Carry out following work:
– Check mounting bracket -3- for damage, renew if necessary.

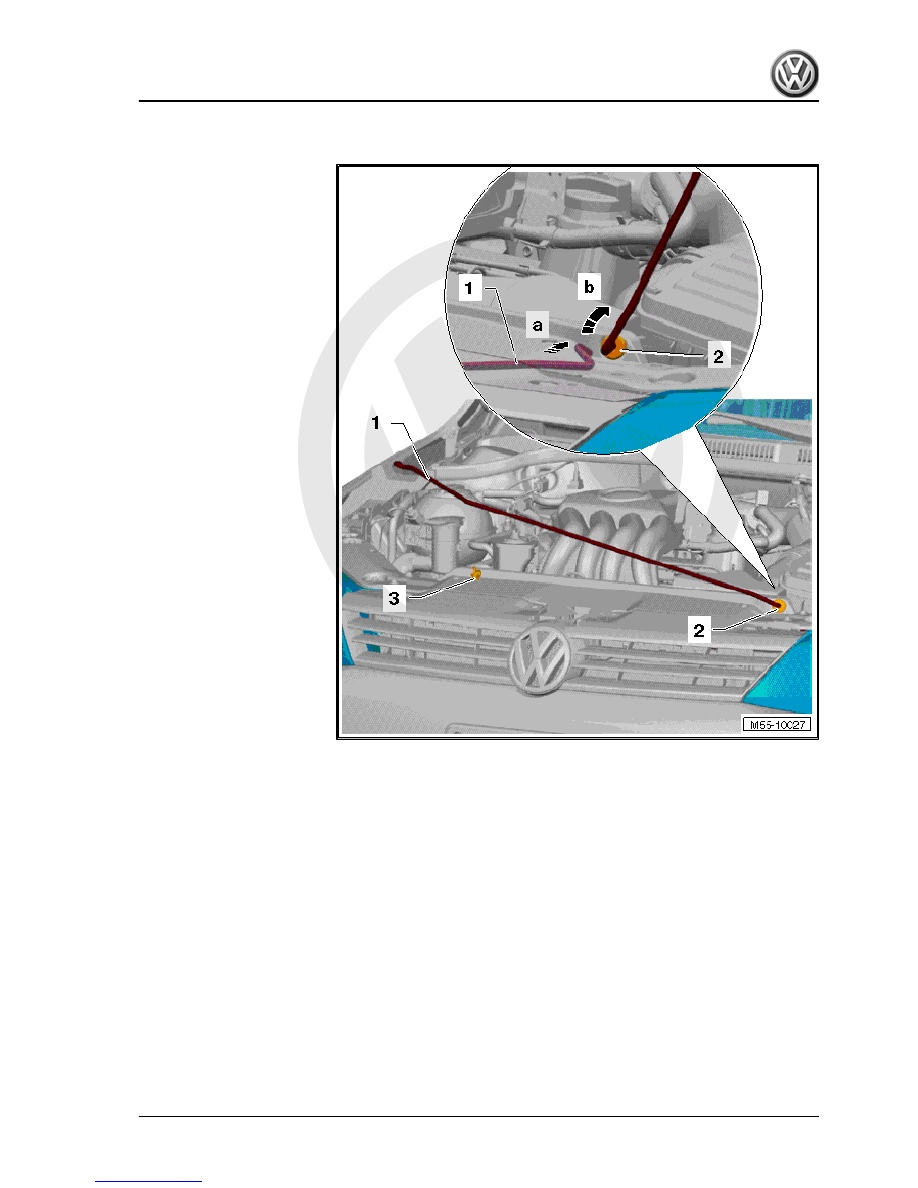

– Slide support rod -1- into rubber grommet -2- -arrow a-.
– Swing support rod -1- round to lock carrier -arrow b-.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

1. Bonnet

41

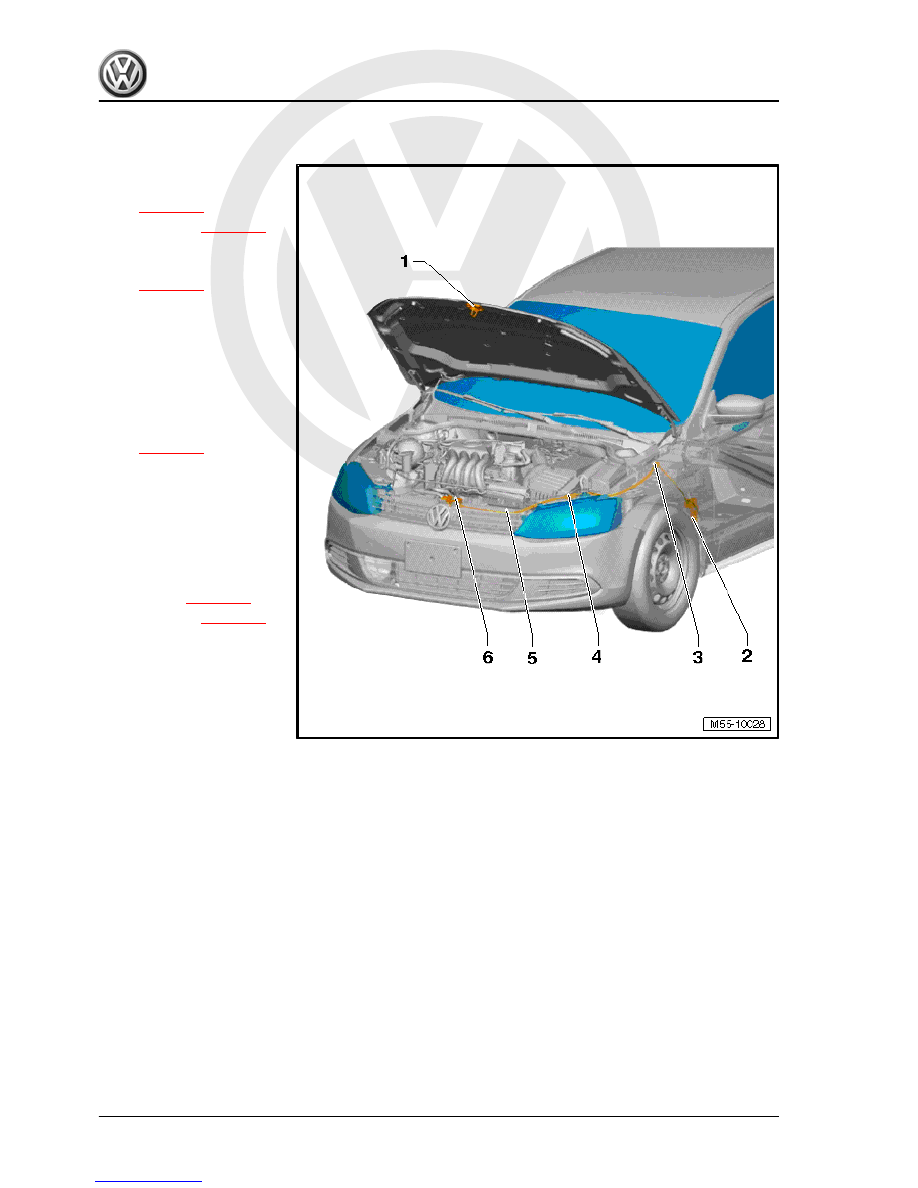

1 - Striker pin

❑ Removing and installing

⇒ page 46

❑ Adjusting

⇒ page 53

2 - Release lever

❑ Removing and installing

⇒ page 49

3 - Cable

❑ From release lever -2- to

cable coupling -4-

4 - Cable coupling

❑ Cable coupling is loca‐

ted above headlight on

driver side

❑ Separating

⇒ page 45

 .

5 - Cable

❑ From cable coupling -4-

to bonnet lock -6-

❑ Clipped into cable cou‐

pling

6 - Lid lock

❑ Removing and installing

lid lock

⇒ page 43

❑ Adjusting

⇒ page 52

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

42



1.9.1

Removing

Carry out following work:
– Open bonnet.
– Remove radiator grille

⇒ page 261

 .

– Detach cable -2- from cable coupling

⇒ page 45

 .

– Detach connector for contact switch for bonnet -F266- if there

is one.

Note

The connector is attached to top left-hand side of lock carrier.

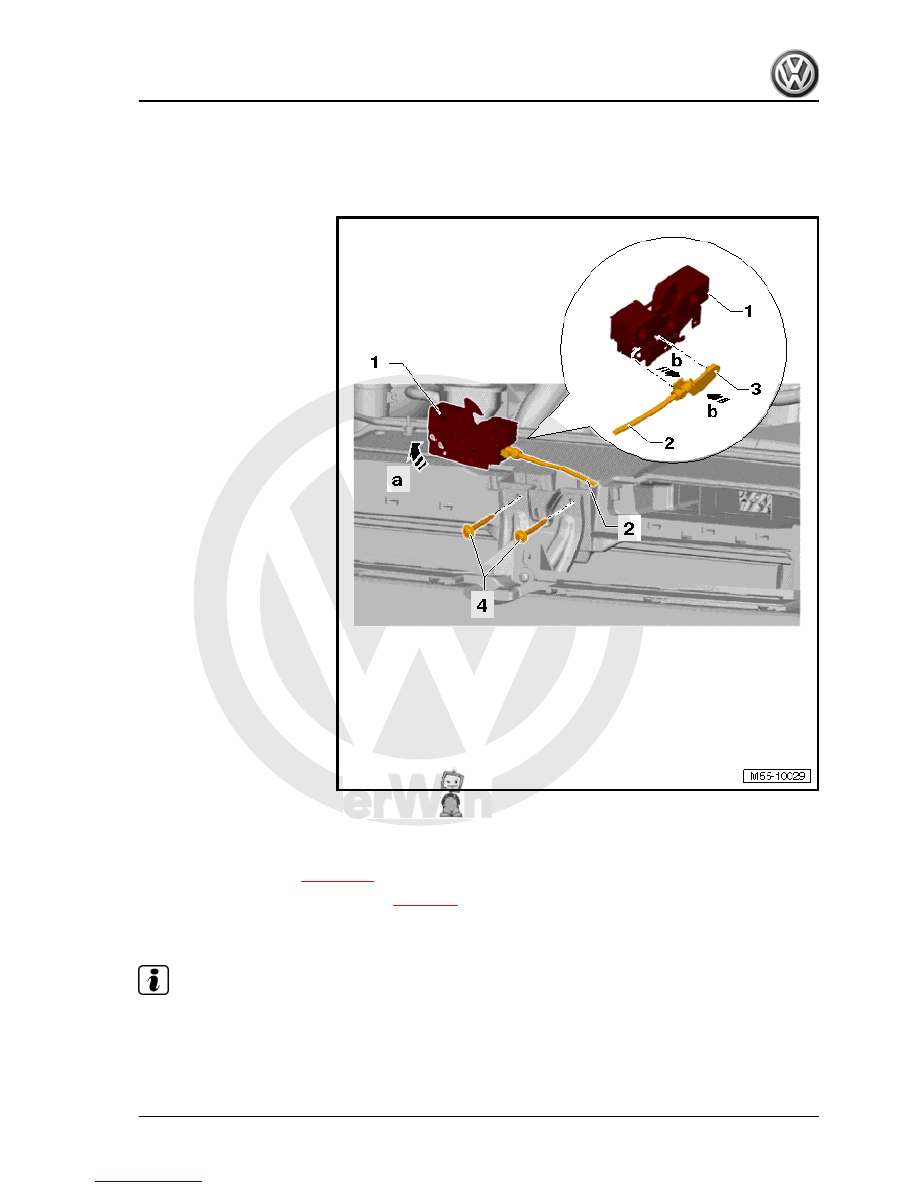

– Remove bolts -4- from lock carrier and remove bonnet lock

-1- upwards -arrow a-.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

1. Bonnet

43



– Unclip bracket -3- by squeezing catch on bracket together

-arrows b-.

– After releasing the catch on bracket, remove cable -2- from

bonnet lock -1-.

Note

Removing and installing bonnet contact switch -F266- ⇒  Electrical system; Rep. gr.  96 ; Lights and switches

in engine compartment; Removing and installing bonnet contact switch F266 -F266- .

1.9.2

Installing

Carry out following work:

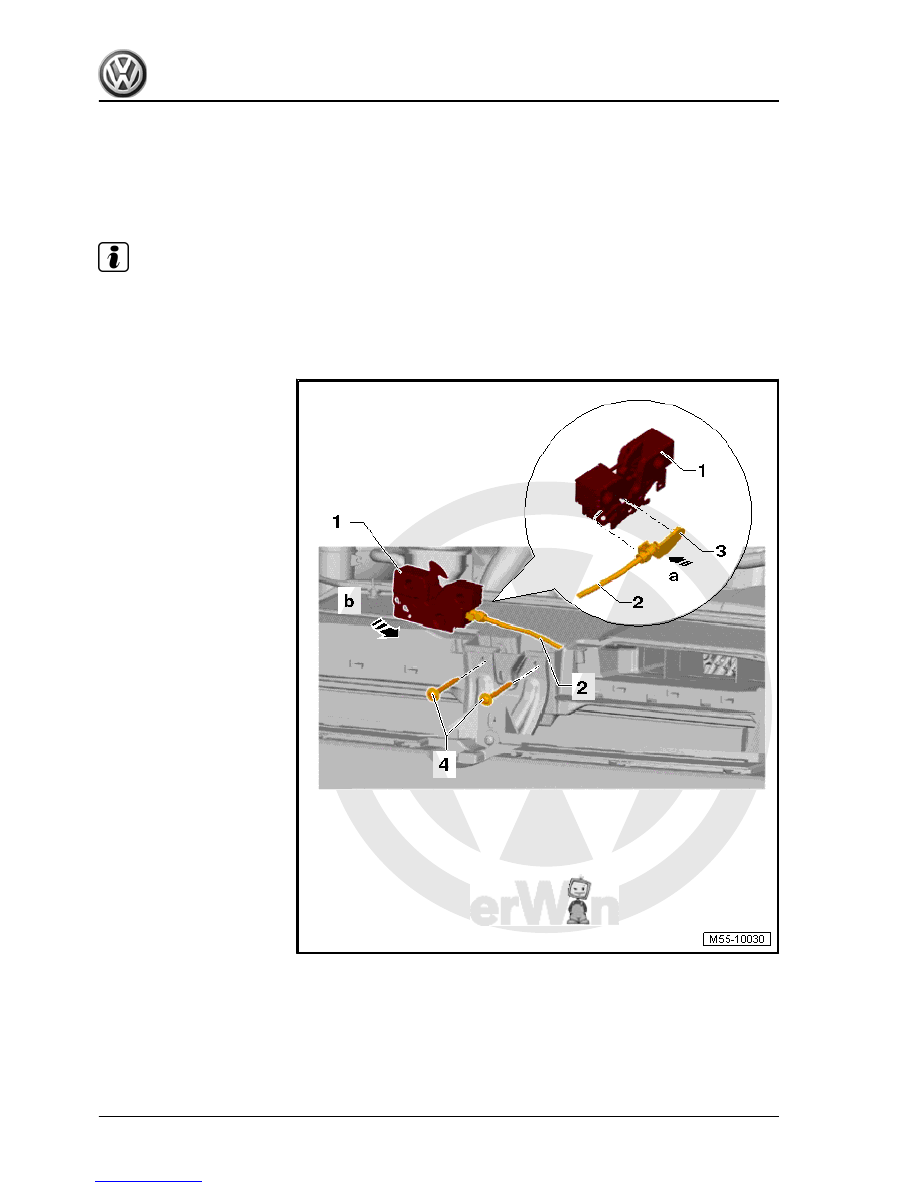

– Attach cable -2- to bonnet lock -1- and clip bracket -3- into

bonnet lock -1- -arrow a-.

– Thread electric wire (if there is one) of contact switch for bon‐

net -F266- into lock carrier.

– Insert bonnet lock -1- into lock carrier -arrow b-.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤
