7.1

Tools

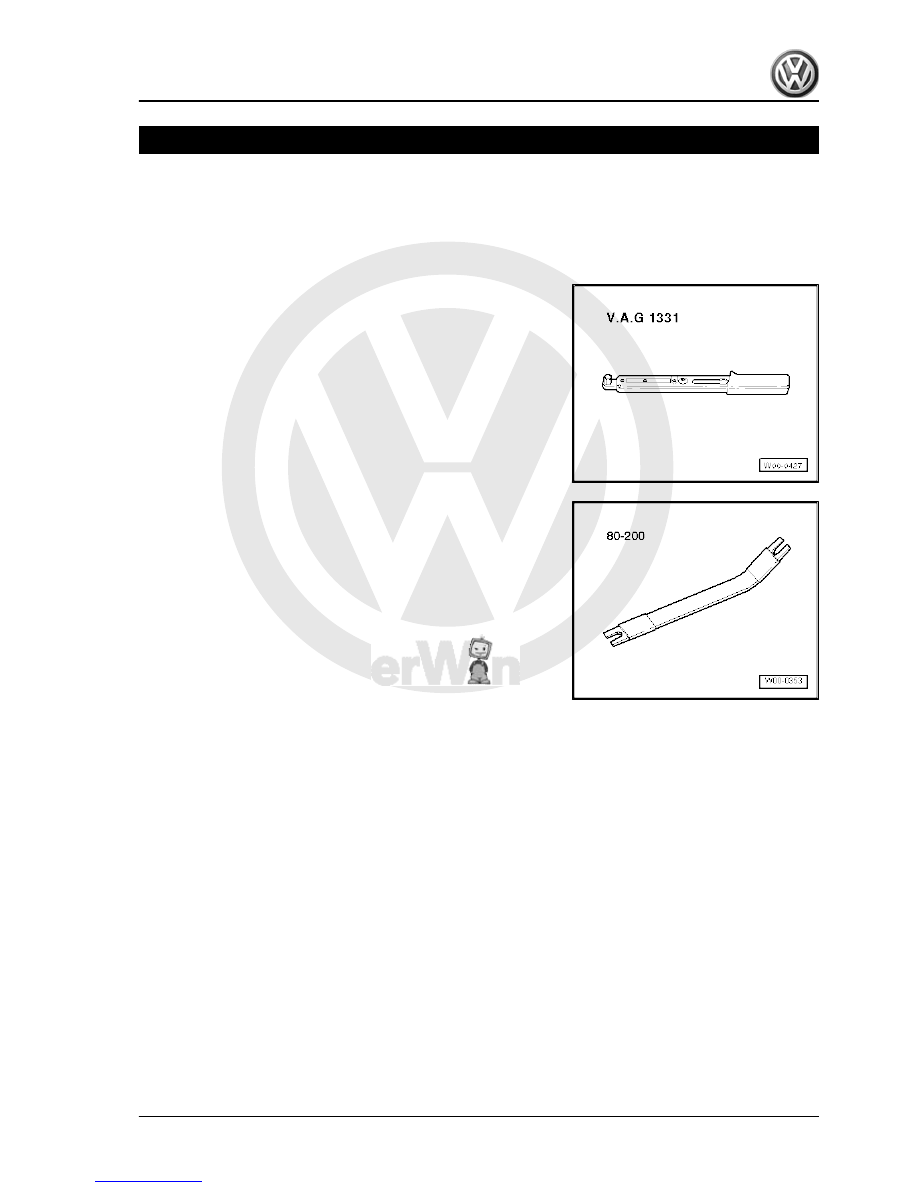

Special tools and workshop equipment required
♦ Torque wrench -V.A.G 1331-

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

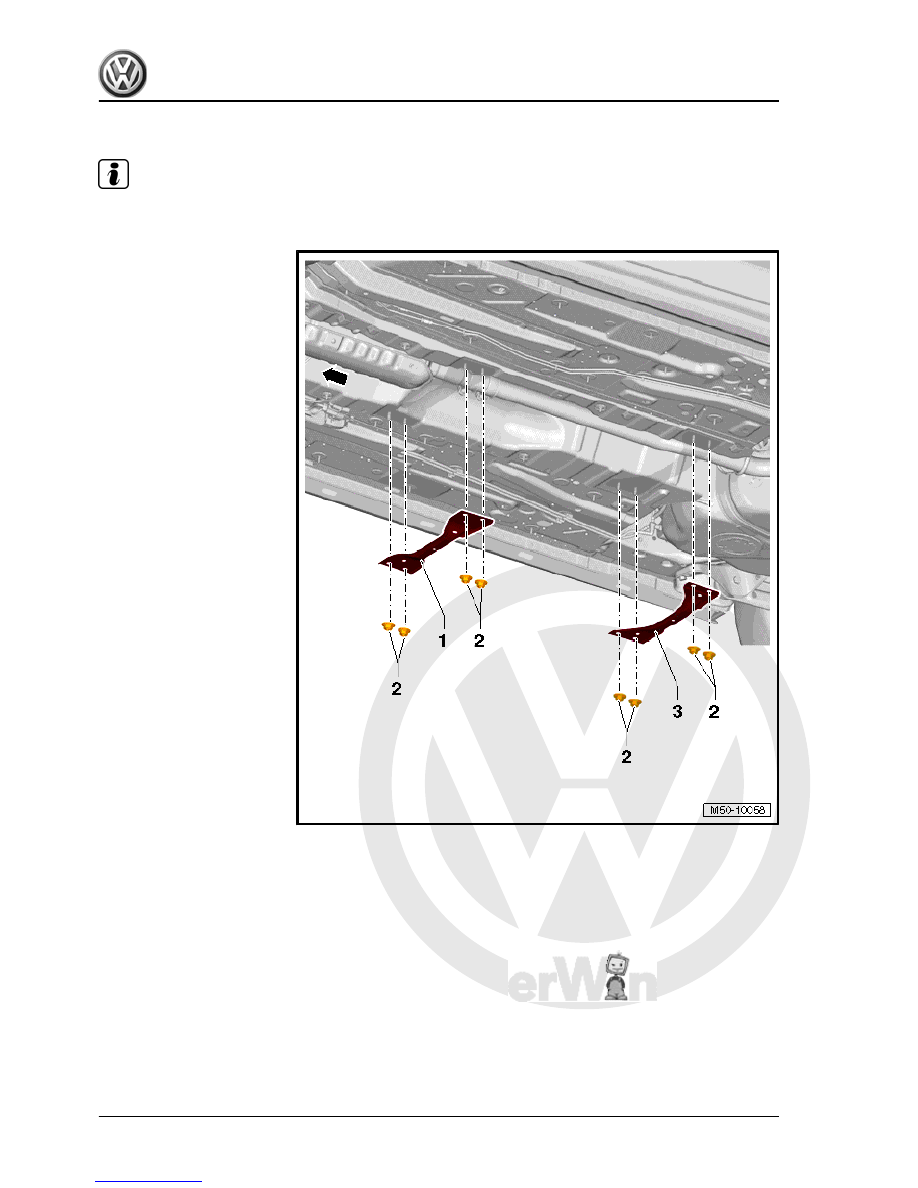

7. Tunnel cross-piece

29



Note

-Arrow- points in direction of normal travel.

1 - Front tunnel cross-piece

❑ Removing:
– Unscrew hexagon nuts

-2- (2 on each side).

2 - Hexagon nut

❑ Qty. 4 per tunnel cross-

piece

❑ Specified torque: 20 Nm

3 - Rear tunnel cross-piece

❑ Removing:
– Unscrew hexagon nuts

-2- (2 on each side).

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

30



Bonnet

1.1

Tools

Special tools and workshop equipment required
♦ Torque wrench -V.A.G 1331-

♦ Removal lever -80 - 200-

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

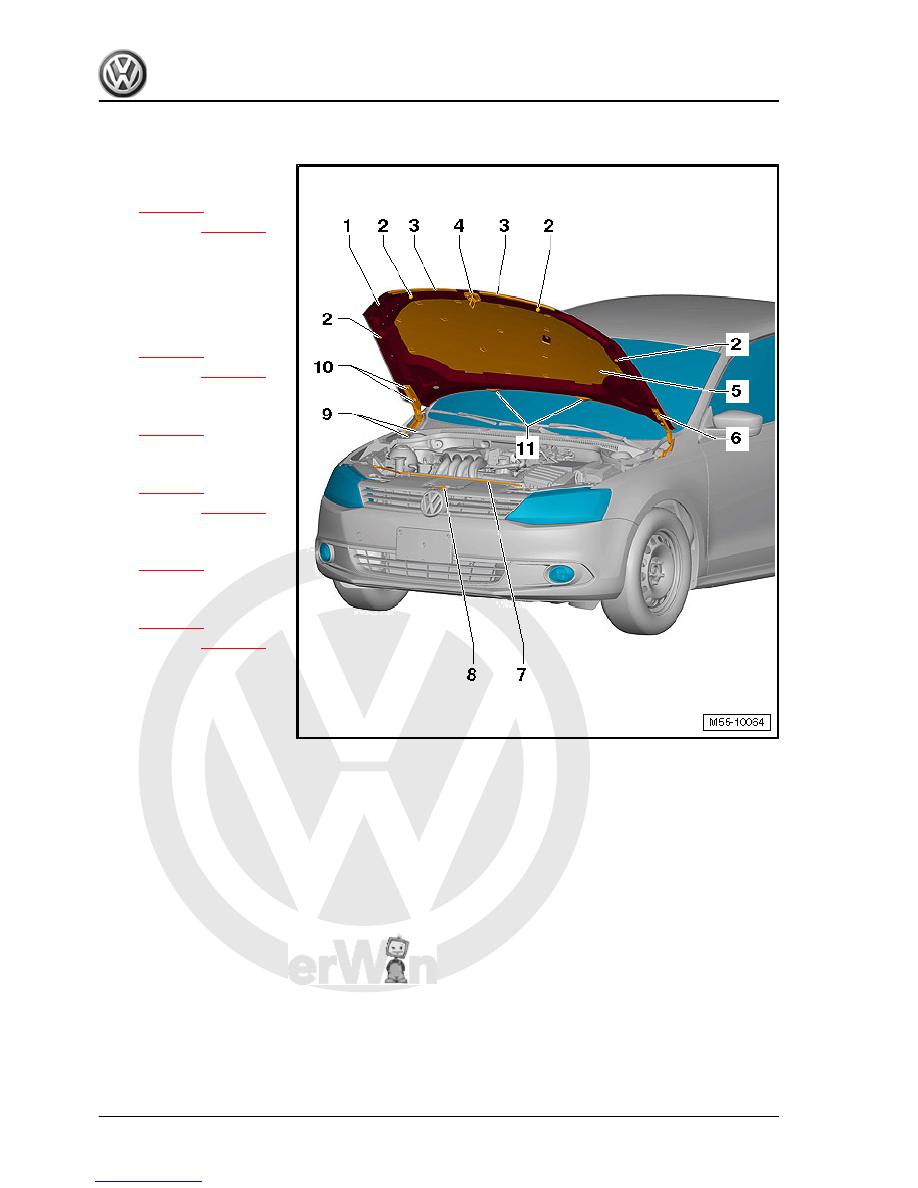

1. Bonnet

31



1 - Bonnet

❑ Removing and installing

⇒ page 33

❑ Adjusting

⇒ page 51

2 - Adjustment buffer
3 - Seal in centre

❑ Left and right.

4 - Striker pin

❑ Removing and installing

⇒ page 46

❑ Adjusting

⇒ page 53

5 - Insulation

❑ Removing and installing

⇒ page 37

6 - Hinge

❑ Removing and installing

⇒ page 34

❑ Adjusting

⇒ page 51

7 - Support rod

❑ Removing and installing

⇒ page 40

8 - Lid lock

❑ Removing and installing

⇒ page 43

❑ Adjusting

⇒ page 52

9 - Bolt

❑ Qty. 2 on each side.
❑ Specified torque: 22 Nm

10 - Nut

❑ Qty. 2 on each side.
❑ Specified torque: 22 Nm

11 - Washer jets

❑ Removing and installing ⇒  Electrical system; Rep. gr.  92 ; Windscreen wiper system; Removing and

installing washer jets for windscreen wiper system .

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤
