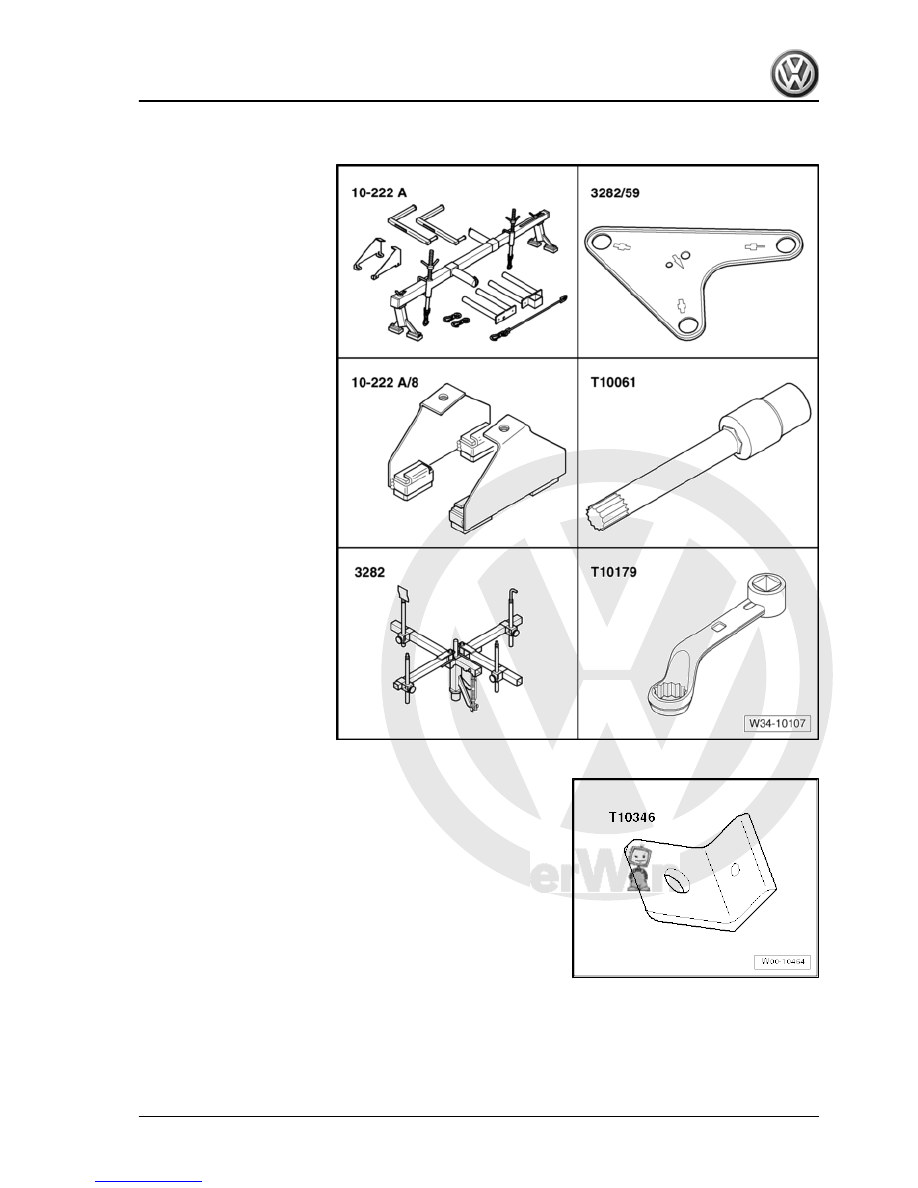

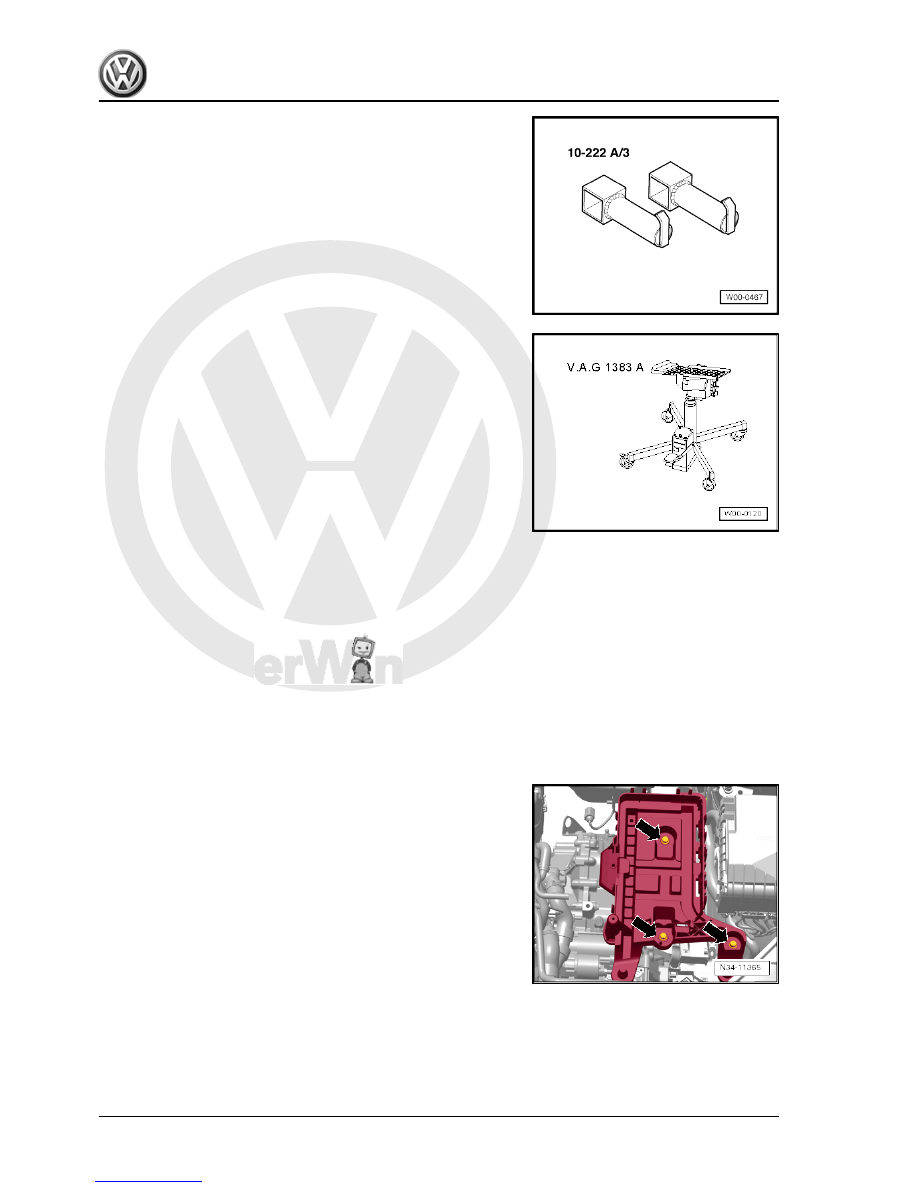

Special tools and workshop

equipment required
♦ Support bracket -10 - 222

A-

♦ Adjustment plate -3282/59-
♦ Adapter -10 - 222 A /8-
♦ Insert tool, 18 mm -T10179-
♦ Gearbox support -3282-
♦ Socket -T10061-

♦ Bracket -T10346-

Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤ , Jetta 2011 ➤

4. Removing and installing gearbox

81



Brief description
The gearbox is removed downwards separately, without engine.
The battery, air filter and starter are removed “from above”.
Noise insulation beneath engine/gearbox, lower cover in front left

wheel housing and pendulum support are removed “from below”.
Perform the following steps:
– Raise vehicle. All 4 supports of lifting platform must be at same

height.

and installing air filter .

Removing and installing battery .

starter .

Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤ , Jetta 2011 ➤

82



observe cable when lowering gearbox.

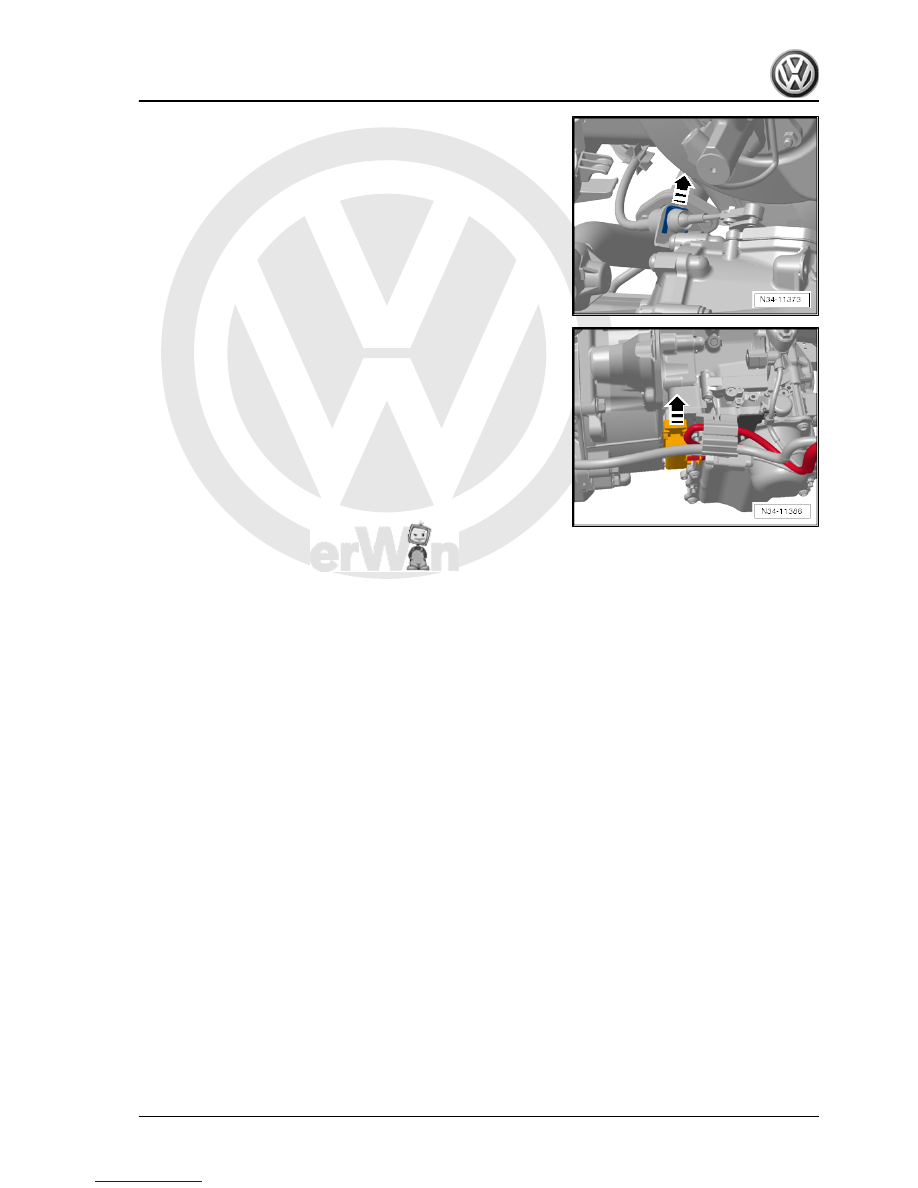

– Release mechatronic unit connector by pulling and pull off

connector.

– Now remove all upper connecting bolts between engine and

gearbox.

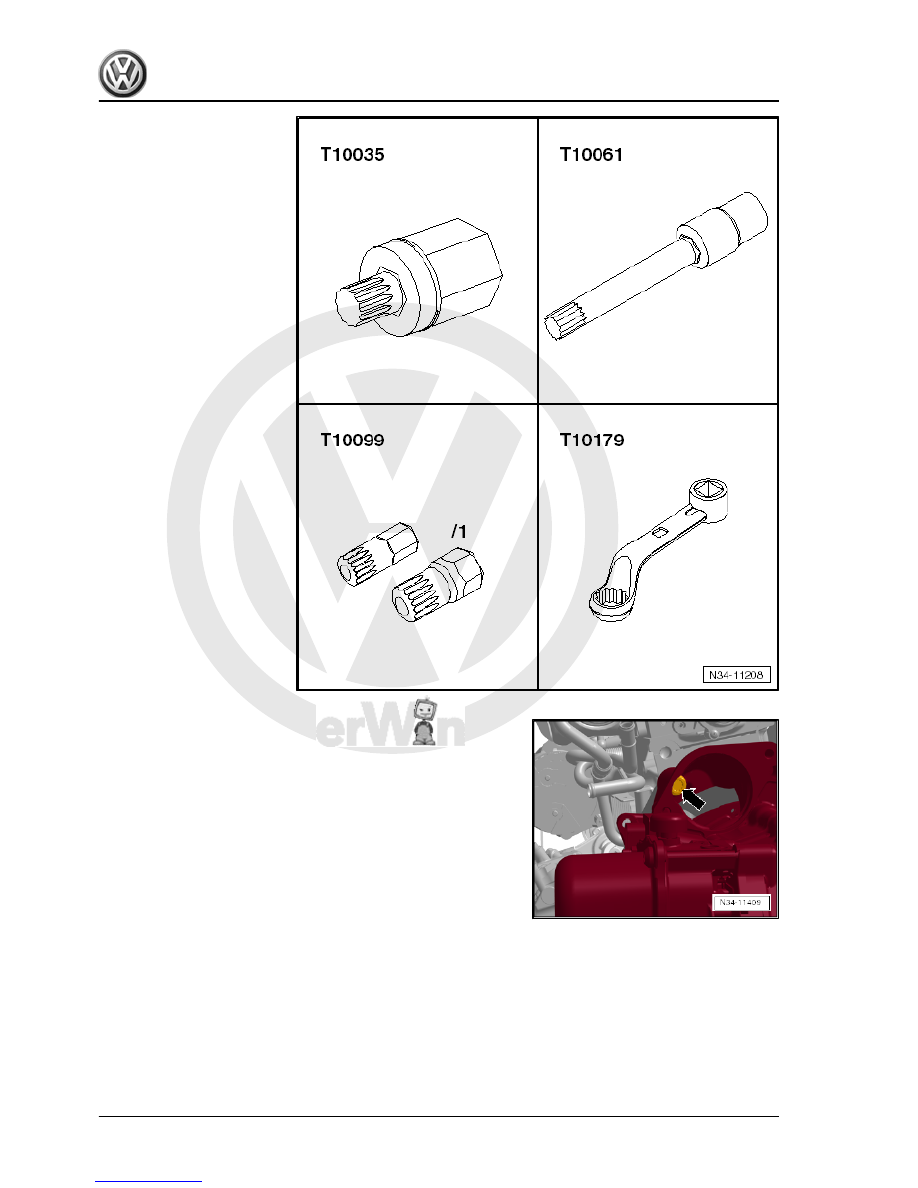

These tools are appropriate for this.

Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤ , Jetta 2011 ➤

4. Removing and installing gearbox

83



- noise insulation .

overview - front wheel housing .
