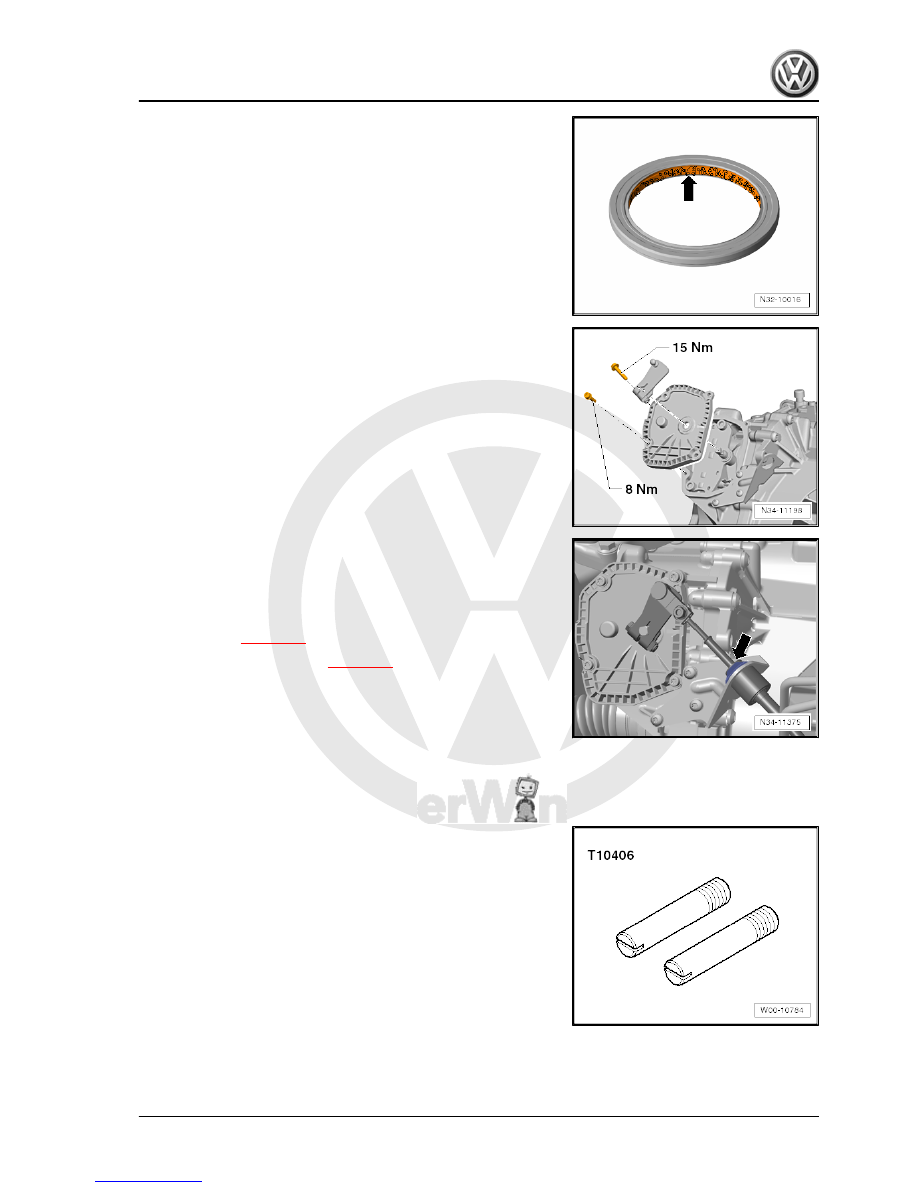

– Press selector lever cable back onto ball head and install new

securing clip.

– Securing clips for selector lever cable must always be re‐

newed.

– Add gear oil after completing work on mechatronic unit. Fill oil

into gearbox

⇒ page 30

– Adjust selector lever cable

⇒ page 43

– Place plug on removed mechatronic unit.
This way, the mechatronic unit can be sent sealed in oil-tight con‐

dition.

3.5

Installing mechatronic unit for dual

clutch gearbox -J743-

Special tools and workshop equipment required
♦ Guide pin -T10406-

Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤ , Jetta 2011 ➤

3. Mechatronic unit for dual clutch gearbox J743

A “new” mechatronic unit is correctly filled with oil.

♦

Do not drain oil. A “removed” mechatronic unit is sent back

with its oil in.

Installing
• All selector forks must be “in neutral” prior to installation of

mechatronic unit

Note

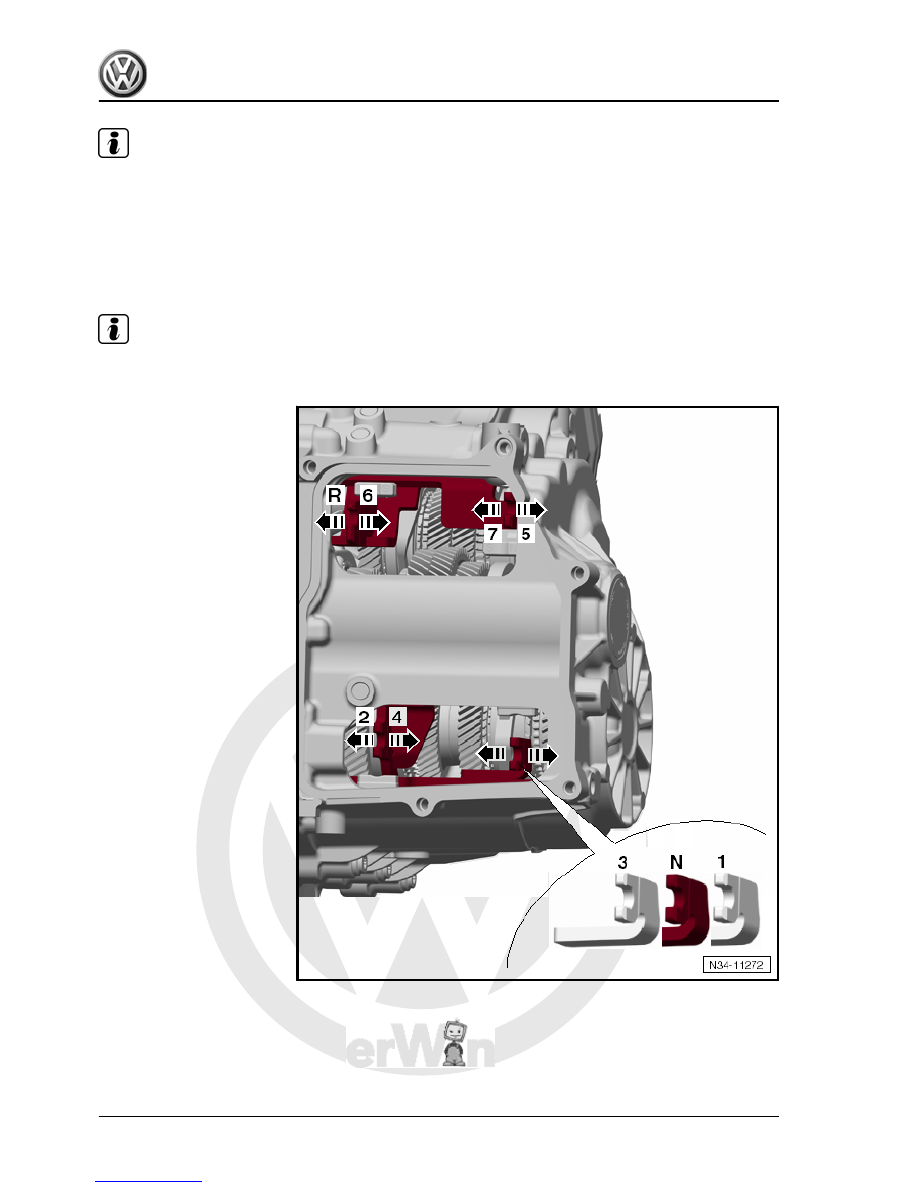

Make sure that all selector forks are located in -N-, “in the middle”, and therefore that the gearbox is in neutral.

– Therefore, check each of 4 selector forks by hand.

Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤ , Jetta 2011 ➤

disengage all gears and return selector forks to middle position

“neutral”.

Note

“Neutral, neutral, neutral”, or gearbox will not function!

You can turn the front gear slightly for assistance. This makes it

“easier” to shift the forks.
– Please clean sealing surface where mechatronic unit will

make contact later on.

Oil residues on sealing surface will later result in a misdiagnosis

of “leaking”.

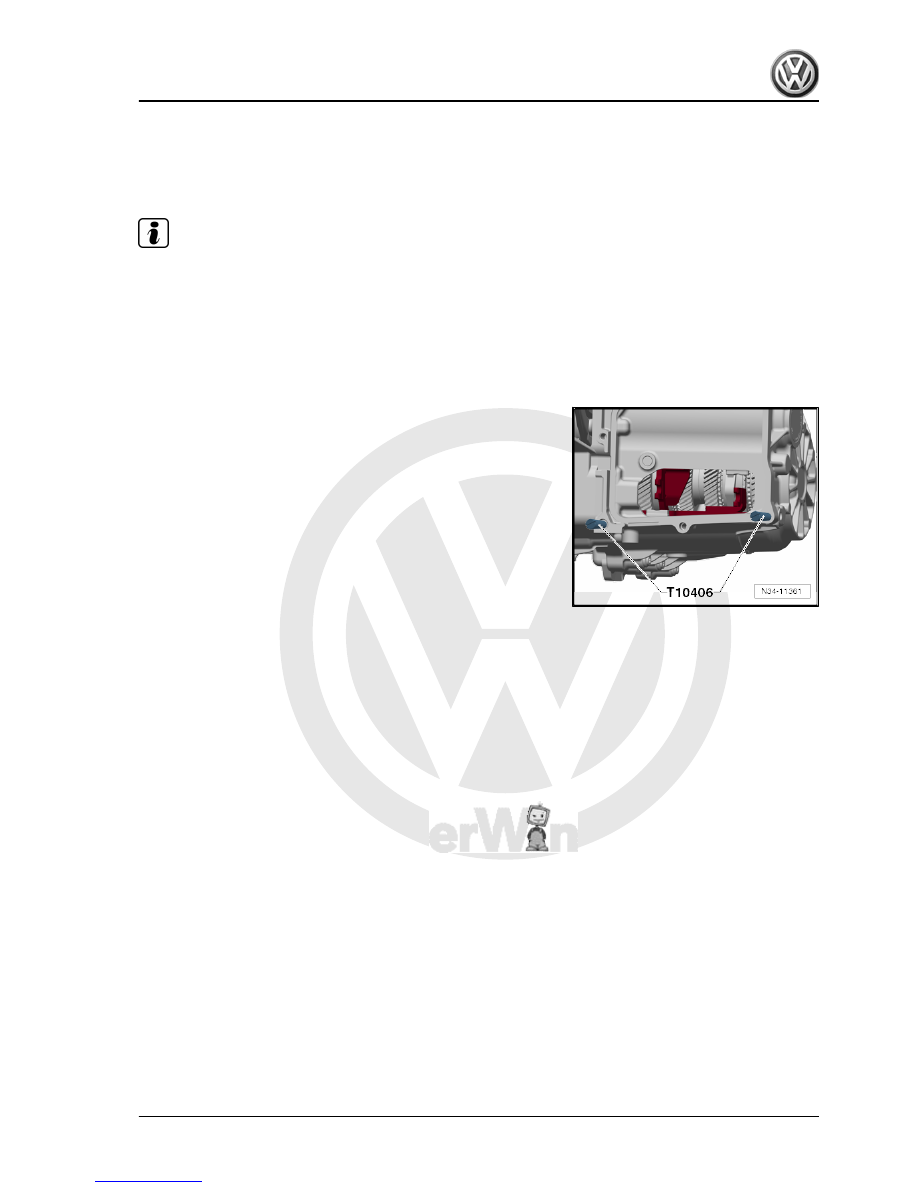

– Screw in guide pin -T10406- hand-tight.

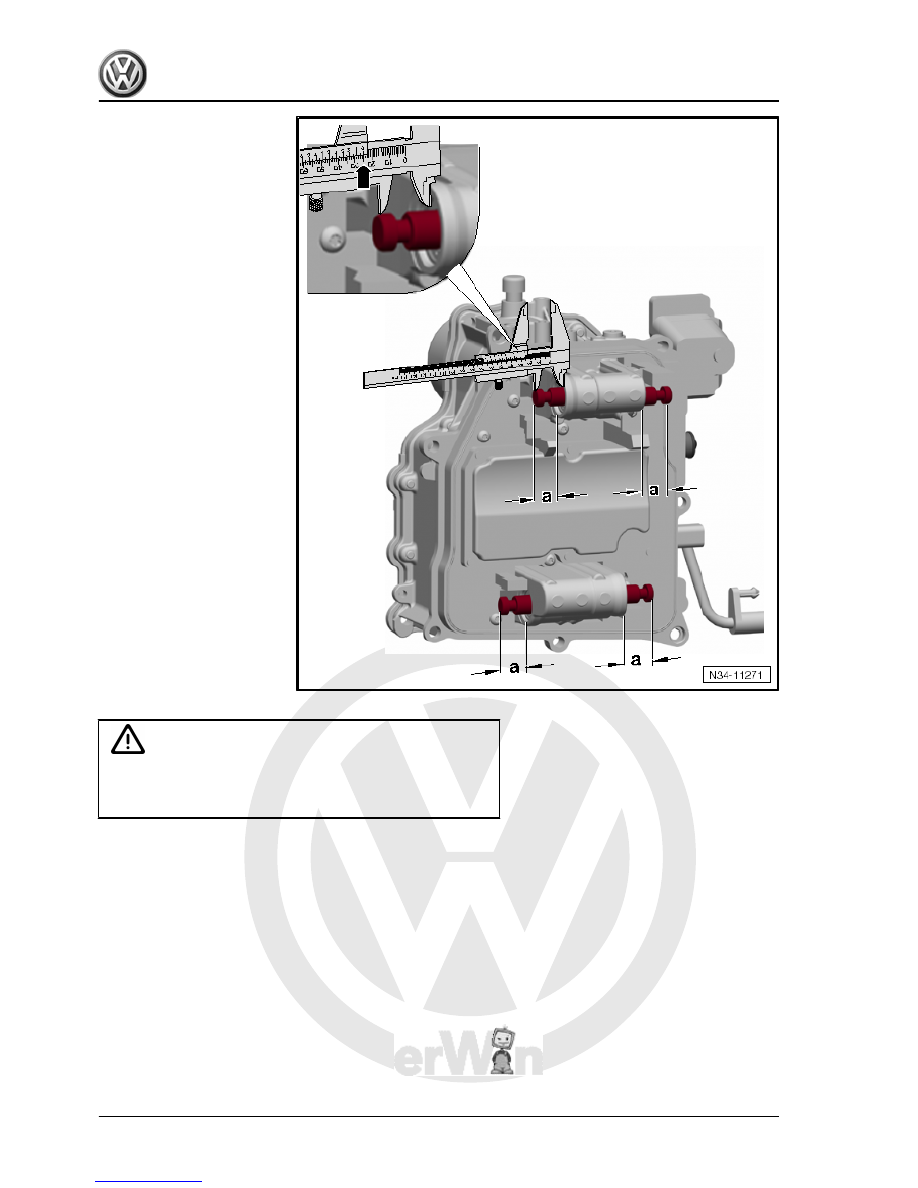

Make sure that all 4 gear actuators project 25 millimetres -a-.

Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤ , Jetta 2011 ➤

3. Mechatronic unit for dual clutch gearbox J743

chatronic unit, make sure that you do not brace yourself on the

sensors.

– Please clean sealing surface of mechatronic unit.
