4-5. Using the driving support systems

4

Dr

iv

ing

■

Certification for the Blind Spot Monitor



For vehicles sold in the U.S.A., Hawaii, American Samoa, Guam, Saipan

and Puerto Rico



For vehicles sold in Canada

270

4-5. Using the driving support systems

■

Vehicles that can be
detected by the Blind Spot
Monitor

The BSM function uses radar
sensors to detect the following
vehicles traveling in adjacent
lanes and advises the driver of
the presence of such vehicles
via the indicators on the outside
rear view mirrors.

WARNING

■

Handling the radar sensor

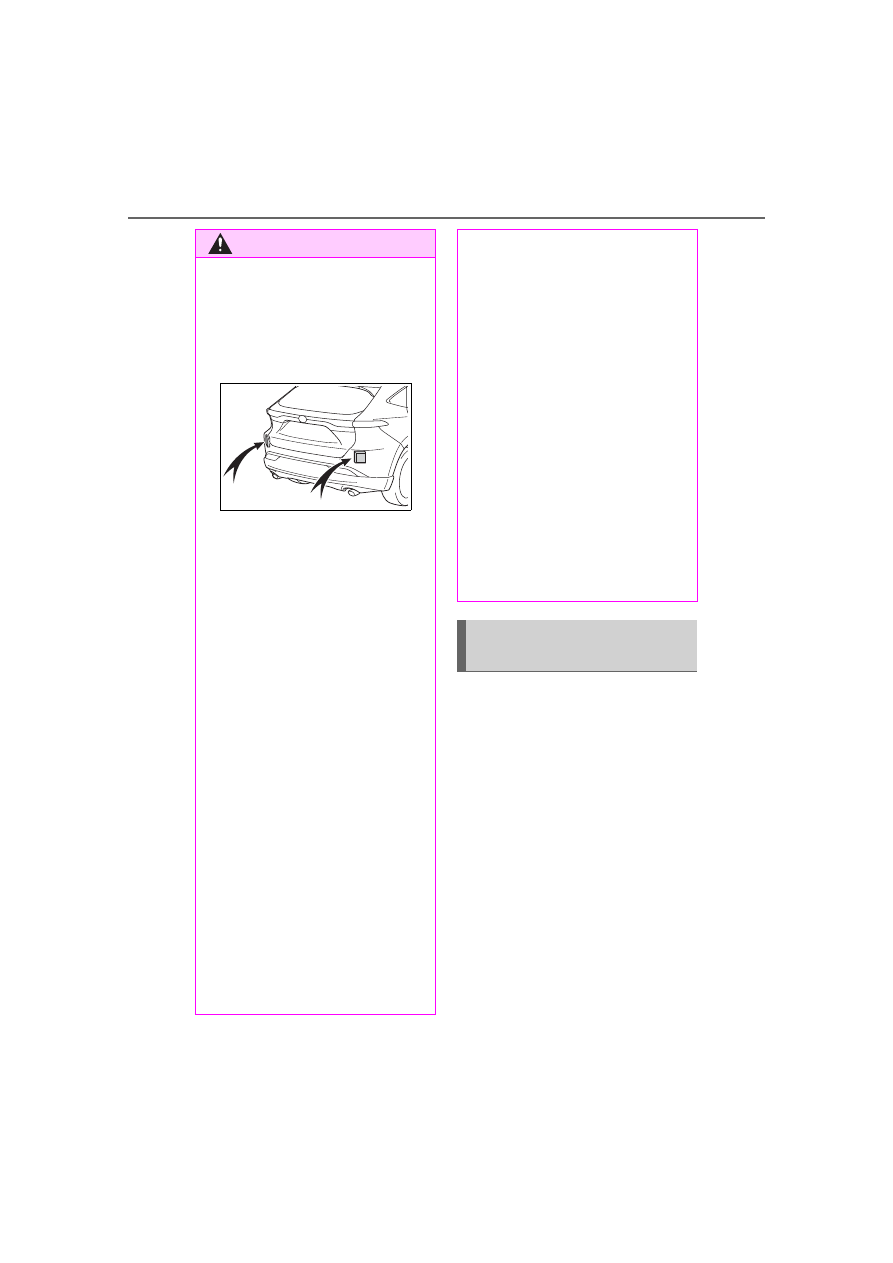

Blind Spot Monitor sensors are

installed inside the left and right

sides of the rear bumper respec-

tively. Observe the following to

ensure the Blind Spot Monitor can

function correctly.

●

Keep the sensors and the sur-

rounding areas on the rear

bumper clean at all times.

If a sensor or its surrounding

area on the rear bumper is dirty

or covered with snow, the Blind

Spot Monitor may not operate

and a warning message

(



P.268) will be displayed. In

this situation, clear off the dirt or

snow and drive the vehicle with

the operation conditions of the

BSM function (



P.272) satis-

fied for approximately 10 min-

utes. If the warning message

does not disappear, have the

vehicle inspected by your

Toyota dealer.

●

Do not subject a sensor or its

surrounding area on the rear

bumper to a strong impact.

If a sensor is moved even

slightly off position, the system

may malfunction and vehicles

may not be detected correctly.

In the following situations, have
your vehicle inspected by your
Toyota dealer.

• A sensor or its surrounding area

is subject to a strong impact.

• If the surrounding area of a sen-

sor is scratched or dented, or

part of them has become dis-

connected.

●

Do not disassemble the sensor.

●

Do not attach accessories,

stickers (including transparent

stickers), aluminum tape, etc. to

a sensor or its surrounding area

on the rear bumper.

●

Do not modify the sensor or sur-

rounding area on the rear

bumper.

●

If a sensor or the rear bumper

needs to be removed/installed

or replaced, contact your

Toyota dealer.

●

Do not paint the rear bumper

any color other than an official

Toyota color.

The Blind Spot Monitor
function

271

4-5. Using the driving support systems

4

Dr

iv

ing

Vehicles that are traveling in
areas that are not visible
using the outside rear view
mirrors (the blind spots)

Vehicles that are approach-
ing rapidly from behind in
areas that are not visible
using the outside rear view
mirrors (the blind spots)

■

The BSM function detection
areas

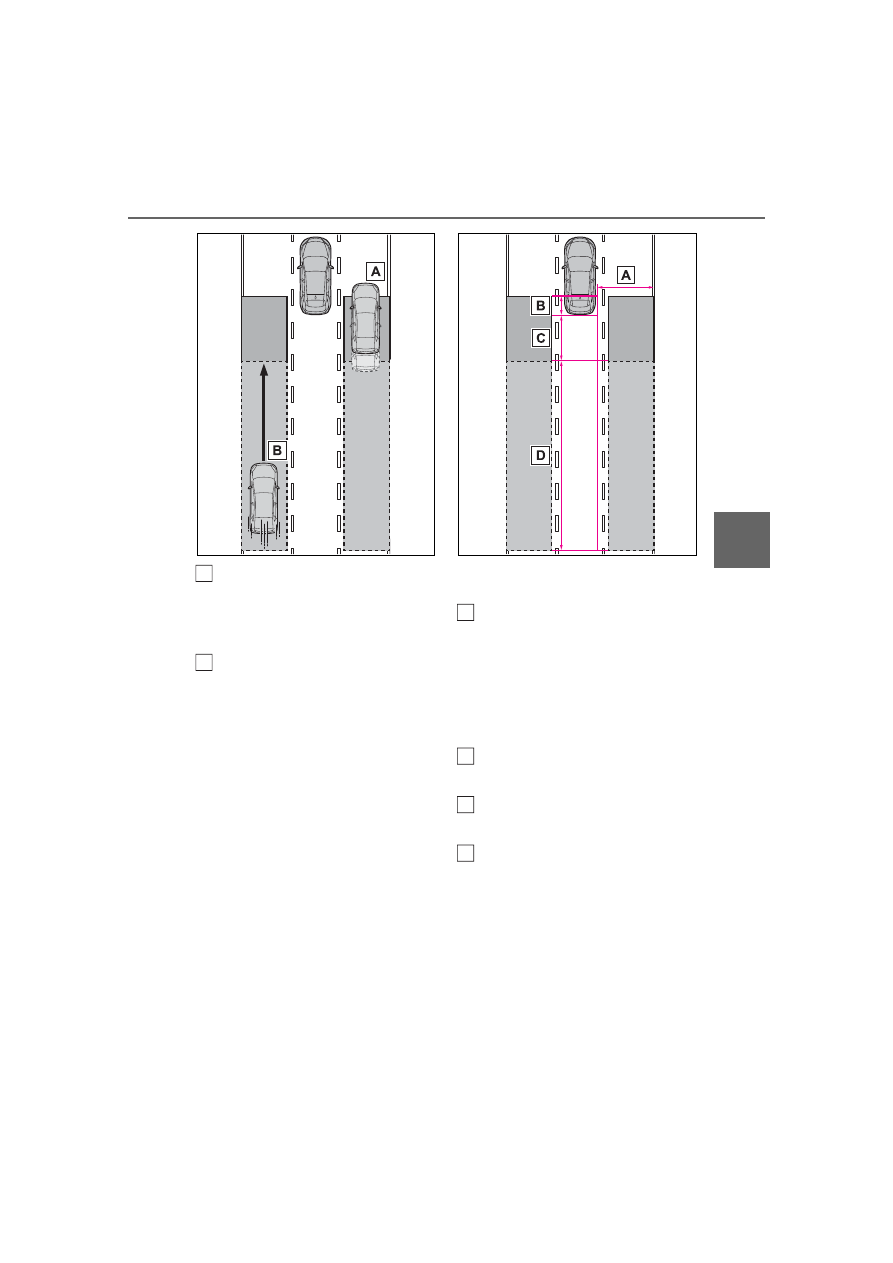

The areas that vehicles can be
detected in are outlined below.

The range of each detection area
is:

Approximately 1.6 ft. (0.5 m)
to 11.5 ft. (3.5 m) from either
side of the vehicle

The area between the side of the
vehicle and 1.6 ft. (0.5 m) from the
side of the vehicle cannot be
detected.

Approximately 3.3 ft. (1 m)
forward of the rear bumper

Approximately 9.8 ft. (3 m)
from the rear bumper

Approximately 9.8 ft. (3 m) to
197 ft. (60 m) from the rear
bumper

The greater the difference in speed
between your vehicle and the
detected vehicle is, the farther
away the vehicle will be detected,
causing the outside rear view mirror
indicator to illuminate or flash.

A

B

A

B

C

D

272

4-5. Using the driving support systems

■

The BSM function is operational

when

The BSM function is operational

when all of the following conditions

are met:

●

The BSM function is on.

●

The shift lever is in a position

other than R.

●

The vehicle speed is greater than

approximately 10 mph (16 km/h).

■

The BSM function will detect a

vehicle when

The BSM function will detect a vehi-

cle present in the detection area in

the following situations:

●

A vehicle in an adjacent lane over-

takes your vehicle.

●

You overtake a vehicle in an adja-

cent lane slowly.

●

Another vehicle enters the detec-

tion area when it changes lanes.

■

Conditions under which the

BSM function will not detect a

vehicle

The BSM function is not designed to

detect the following types of vehi-

cles and/or objects:

●

Small motorcycles, bicycles,
pedestrians, etc.

*

●

Vehicles traveling in the opposite

direction

●

Guardrails, walls, signs, parked

vehicles and similar stationary
objects

*

●

Following vehicles that are in the
same lane

*

●

Vehicles traveling 2 lanes away
from your vehicle

*

●

Vehicles which are being over-

taken rapidly by your vehicle

*

: Depending on the conditions,

detection of a vehicle and/or
object may occur.

■

Conditions under which the

BSM function may not function

correctly

●

The BSM function may not detect

vehicles correctly in the following

situations:

• When the sensor is misaligned

due to a strong impact to the sen-

sor or its surrounding area

• When mud, snow, ice, a sticker,

etc. is covering the sensor or sur-

rounding area on the rear bumper

• When driving on a road surface

that is wet with standing water

during bad weather, such as

heavy rain, snow, or fog

• When multiple vehicles are

approaching with only a small gap

between each vehicle

• When the distance between your

vehicle and a following vehicle is

short

• When there is a significant differ-

ence in speed between your vehi-

cle and the vehicle that enters the

detection area

• When the difference in speed

between your vehicle and another

vehicle is changing

• When a vehicle enters a detection

area traveling at about the same

speed as your vehicle

• As your vehicle starts from a stop,

a vehicle remains in the detection

area

• When driving up and down con-

secutive steep inclines, such as

hills, dips in the road, etc.

• When driving on roads with sharp

bends, consecutive curves, or

uneven surfaces

• When vehicle lanes are wide, or

273

4-5. Using the driving support systems

4

Dr

iv

ing

when driving on the edge of a

lane, and the vehicle in an adja-

cent lane is far away from your

vehicle

• When an accessory (such as a

bicycle carrier) is installed to the

rear of the vehicle

• When there is a significant differ-

ence in height between your vehi-

cle and the vehicle that enters the

detection area

• Immediately after the BSM func-

tion/RCTA function are turned on

●

Instances of the BSM function

unnecessarily detecting a vehicle

and/or object may increase in the

following situations:

• When the sensor is misaligned

due to a strong impact to the sen-

sor or its surrounding area

• When the distance between your

vehicle and a guardrail, wall, etc.

that enters the detection area is

short

• When driving up and down con-

secutive steep inclines, such as

hills, dips in the road, etc.

• When vehicle lanes are narrow, or

when driving on the edge of a

lane, and a vehicle traveling in a

lane other than the adjacent lanes

enters the detection area

• When driving on roads with sharp

bends, consecutive curves, or

uneven surfaces

• When the tires are slipping or

spinning

• When the distance between your

vehicle and a following vehicle is

short

• When an accessory (such as a

bicycle carrier) is installed to the

rear of the vehicle

• When the vehicle throws up water

or snow behind.

■

Operation of the RCTA
function

The RCTA function uses radar
sensors to detect vehicles
approaching from the right or left
at the rear of the vehicle and
alerts the driver of the presence
of such vehicles by flashing the
outside rear view mirror indica-
tors and sounding a buzzer.

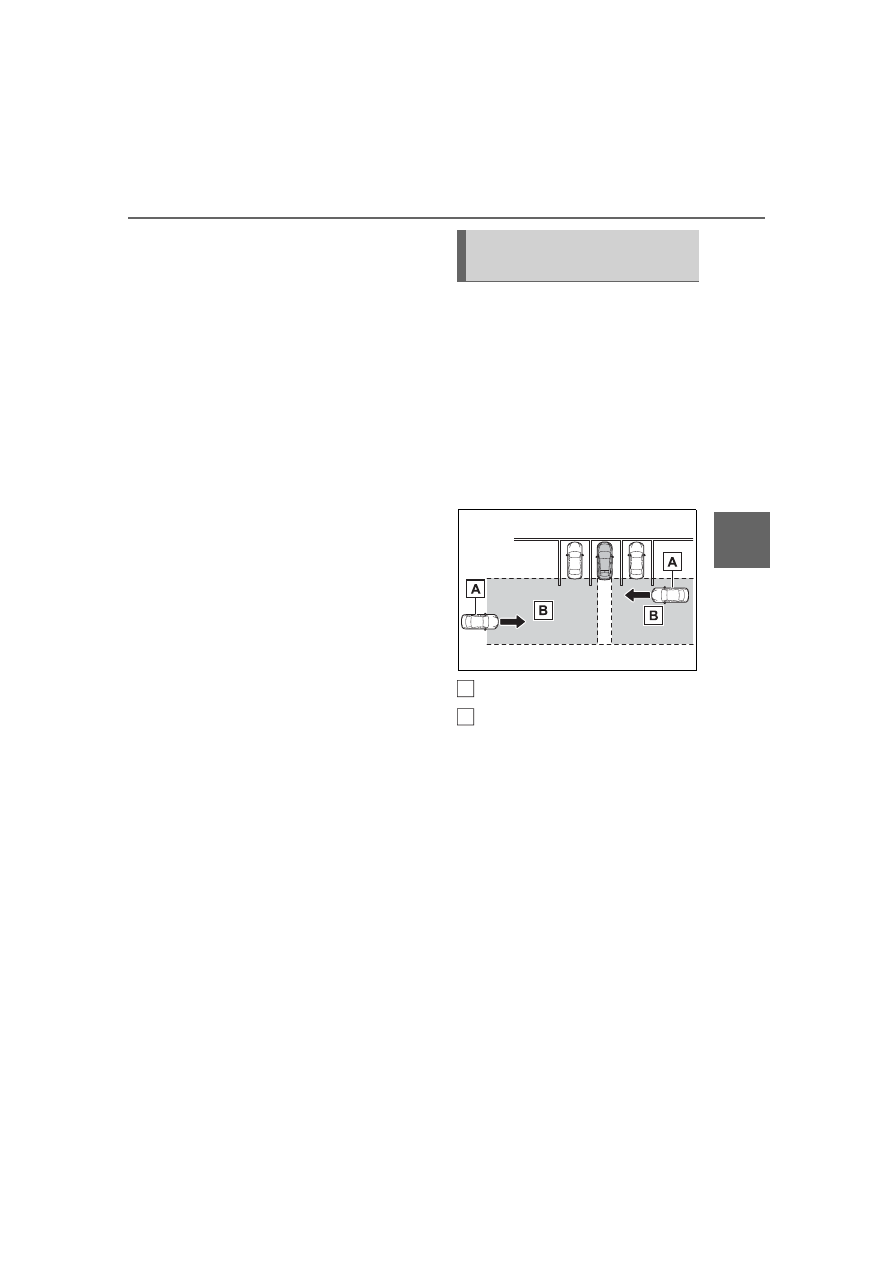

Approaching vehicles

Detection areas

■

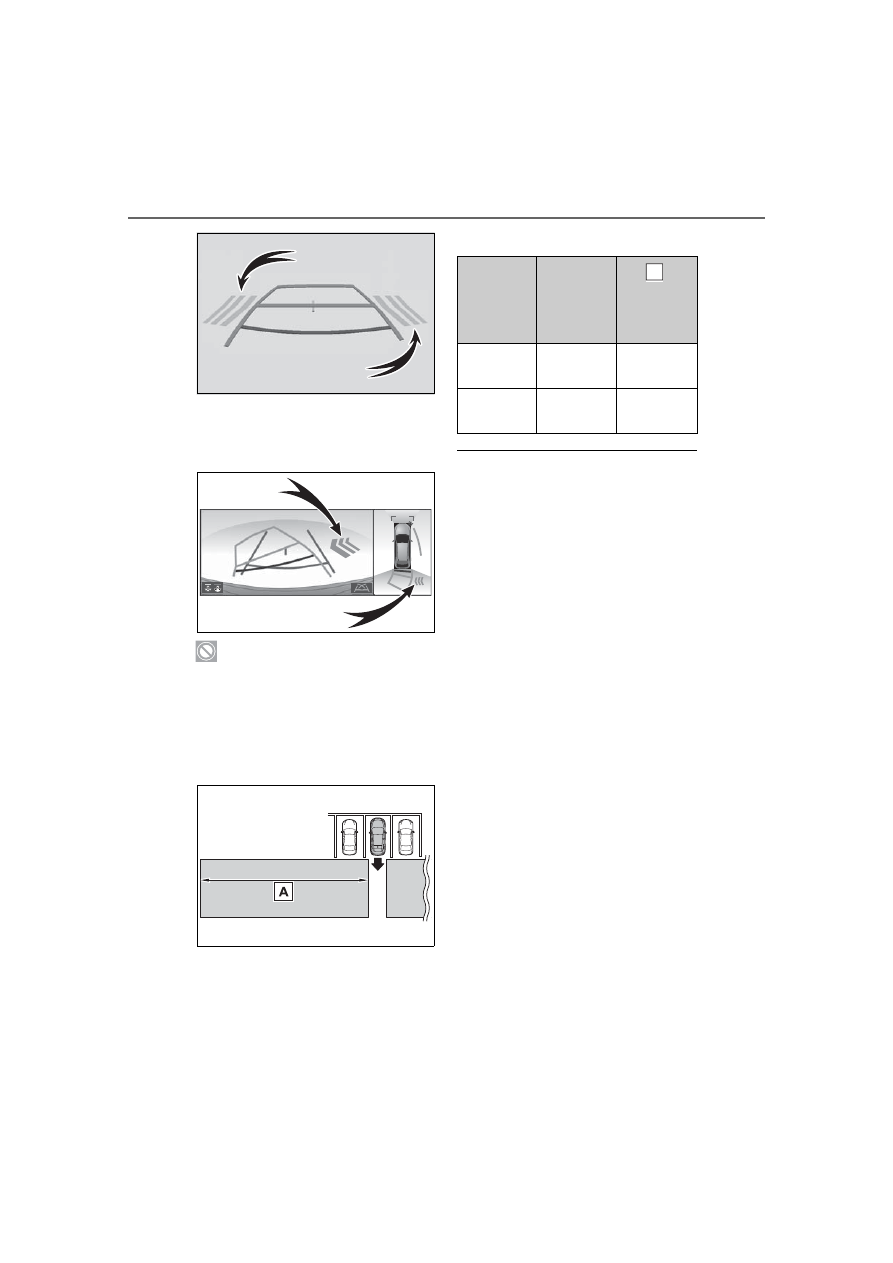

RCTA icon display

When a vehicle approaching
from the right or left at the rear
of the vehicle is detected, the
following will be displayed on
the navigation system (if
equipped) or multimedia sys-
tem (if equipped) screen.



When the Toyota parking
assist monitor (if equipped) is
displayed

The Rear Cross Traffic
Alert function

A

B

274

4-5. Using the driving support systems



When the panoramic view
monitor (if equipped) is dis-
played

: The RCTA function is malfunc-

tioning (



P.268)

■

The RCTA function detec-

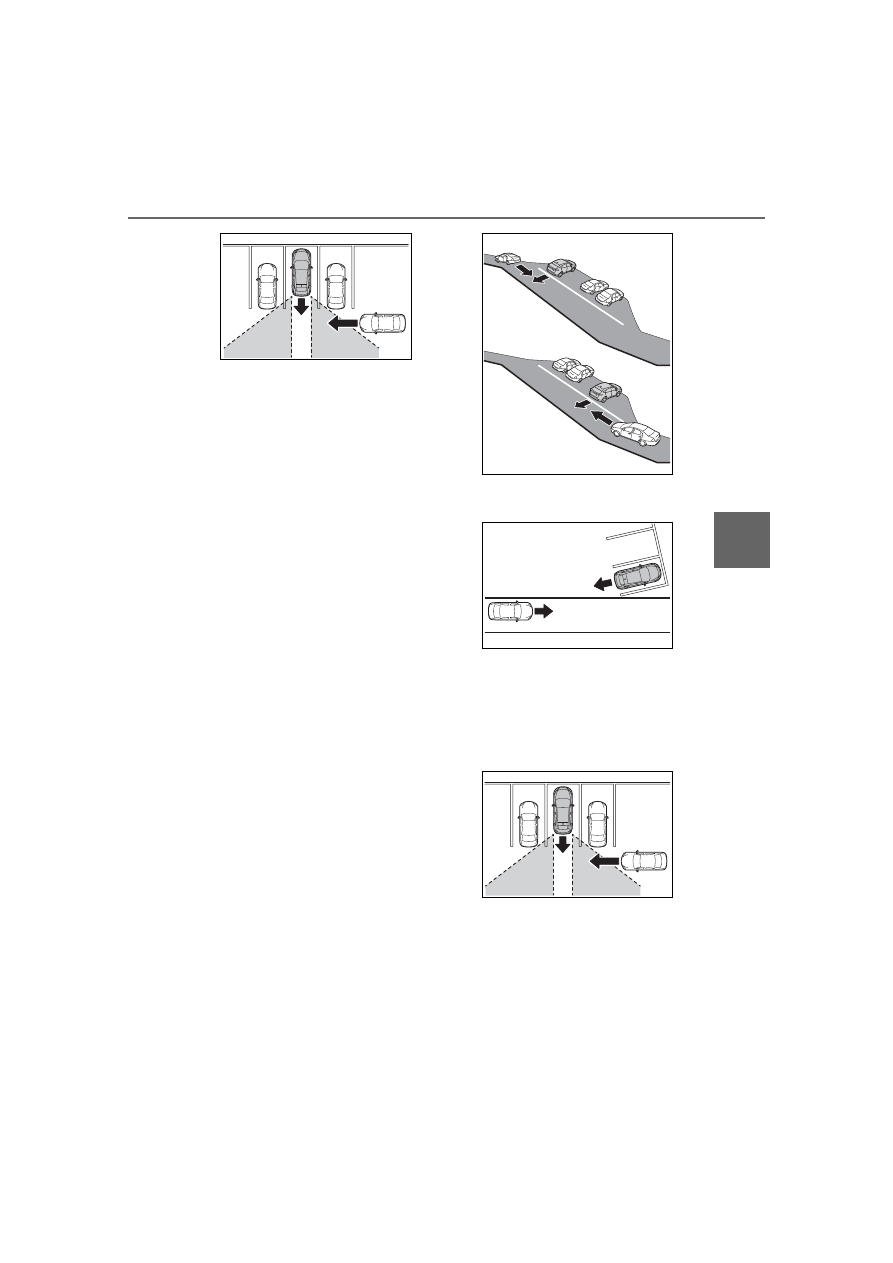

tion areas

The areas that vehicles can be
detected in are outlined below.

The buzzer can alert the driver of
faster vehicles approaching from
farther away.

Example:

■

The RCTA function is opera-

tional when

The RCTA function operates when

all of the following conditions are

met:

●

The RCTA function is on.

●

The shift lever is in R.

●

The vehicle speed is less than

approximately 5 mph (8 km/h).

●

The approaching vehicle speed is

between approximately 5 mph (8

km/h) and 18 mph (28 km/h).

■

Setting the buzzer volume

The buzzer volume can be adjusted

on the multi-information display.

(



P.100, 111)

■

Conditions under which the

RCTA function will not detect a

vehicle

The RCTA function is not designed

to detect the following types of vehi-

cles and/or objects.

●

Vehicles approaching from

directly behind

●

Vehicles backing up in a parking

space next to your vehicle

●

Vehicles that the sensors cannot

detect due to obstructions

Approach-

ing vehicle

Speed



Approxi-

mate alert

distance

Fast

18 mph

(28 km/h)

65 ft. (20

m)

Slow

5 mph (8

km/h)

18 ft. (5.5

m)

A

275

4-5. Using the driving support systems

4

Dr

iv

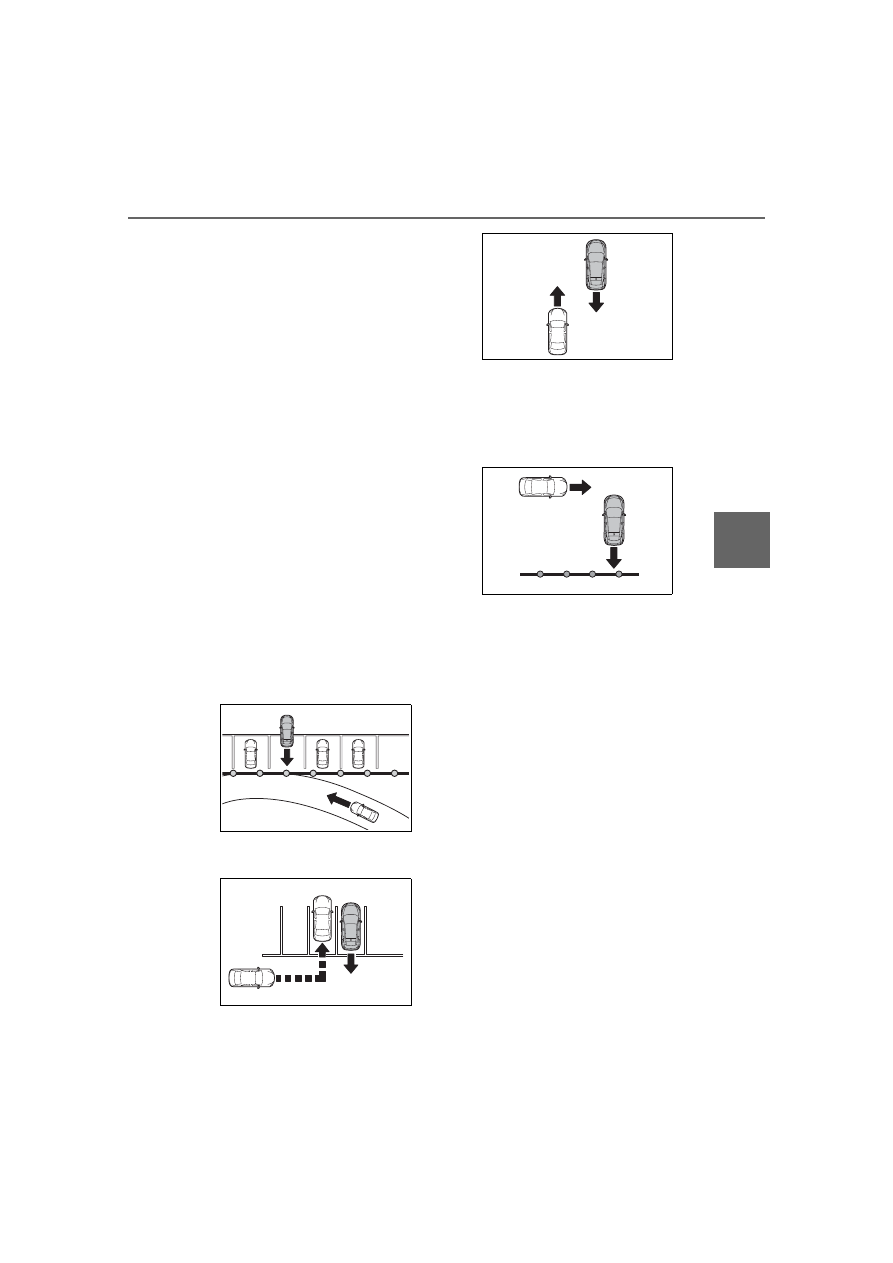

ing

●

Guardrails, walls, signs, parked

vehicles and similar stationary
objects

*

●

Small motorcycles, bicycles,
pedestrians, etc.

*

●

Vehicles moving away from your

vehicle

●

Vehicles approaching from the

parking spaces next to your vehi-
cle

*

*

: Depending on conditions, detec-

tion of a vehicle and/or object may
occur.

■

Conditions under which the

RCTA function may not func-

tion correctly

●

The RCTA function may not

detect vehicles correctly in the fol-

lowing situations:

• When the sensor is misaligned

due to a strong impact to the sen-

sor or its surrounding area

• When mud, snow, ice, a sticker,

etc. is covering the sensor or sur-

rounding area on the rear bumper

• When driving on a road surface

that is wet with standing water

during bad weather, such as

heavy rain, snow, or fog

• When multiple vehicles are

approaching with only a small gap

between each vehicle

• When a vehicle is approaching at

high speed

• When parking on a steep incline,

such as hills, a dip in the road, etc.

• When an accessory (such as a

bicycle carrier) is installed to the

rear of the vehicle

• When backing up on a slope with

a sharp change in grade

• When backing out of a shallow

angle parking spot

• Immediately after the RCTA func-

tion is turned on

• Immediately after the hybrid sys-

tem is started with the RCTA func-

tion on

• When the sensors cannot detect a

vehicle due to obstructions

●

Instances of the RCTA function

unnecessary detecting a vehicle

and/or object may increase in the

following situations:

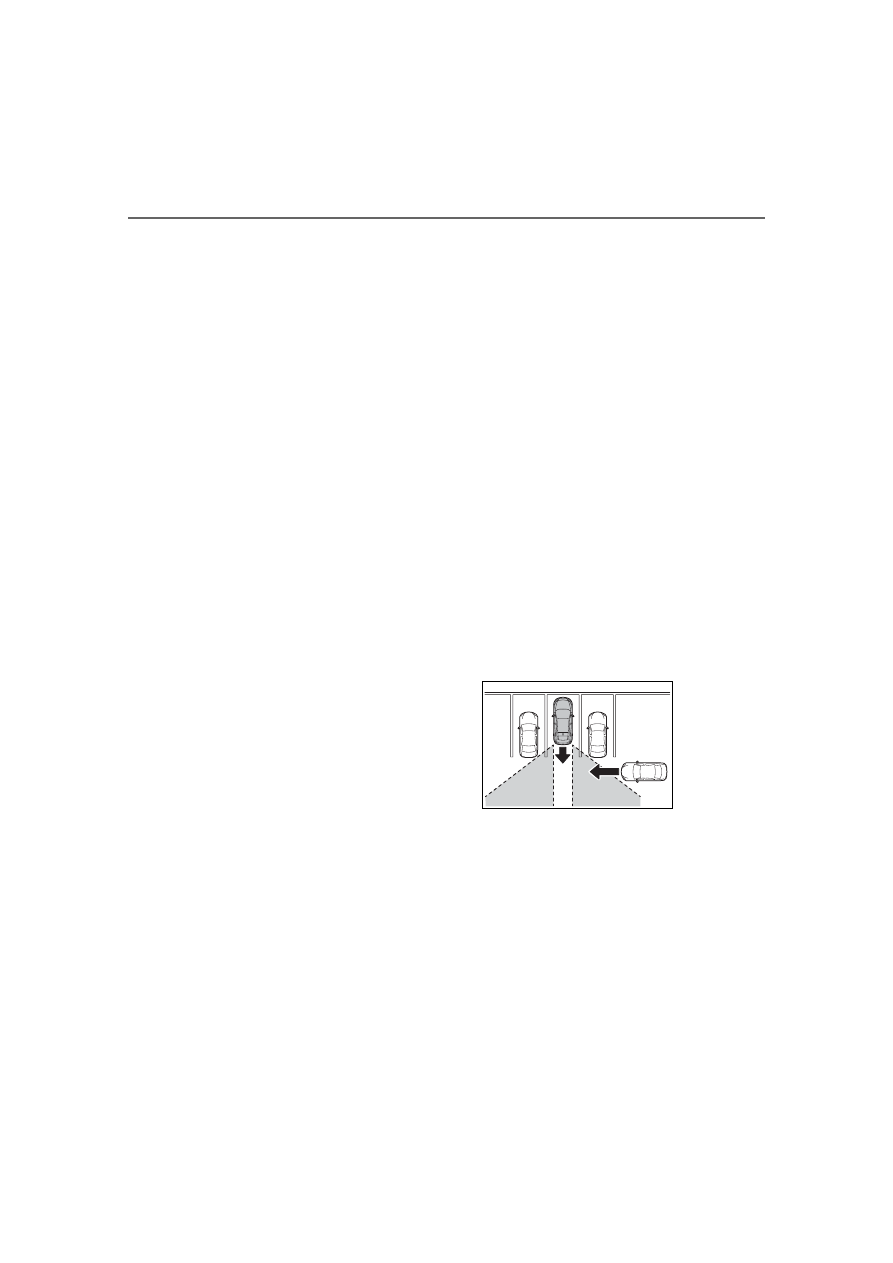

• When a vehicle passes by the

side of your vehicle

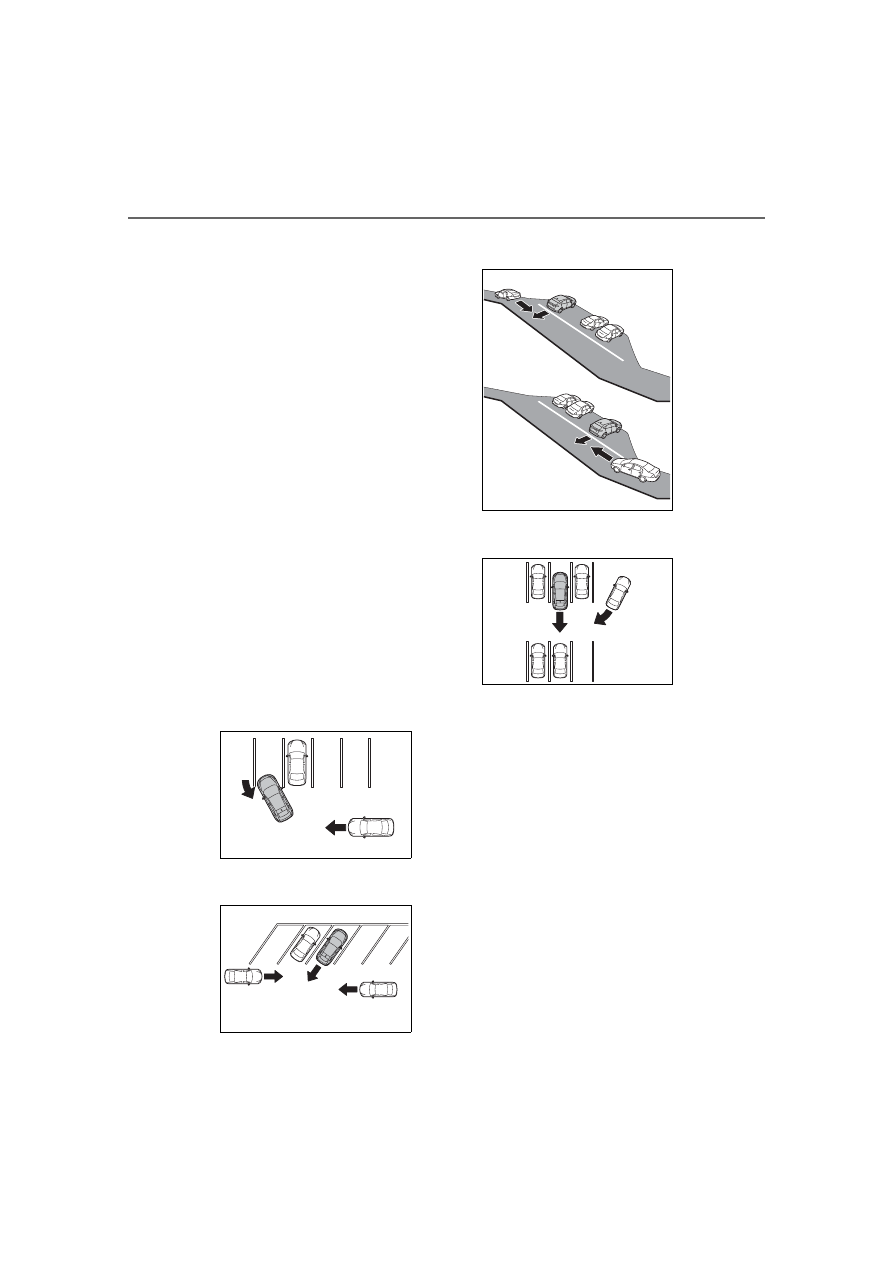

• When the parking space faces a

street and vehicles are being

driven on the street

276

4-5. Using the driving support systems

• When the distance between your

vehicle and metal objects, such as

a guardrail, wall, sign, or parked

vehicle, which may reflect electri-

cal waves toward the rear of the

vehicle, is short

• When an accessory (such as a

bicycle carrier) is installed to the

rear of the vehicle

*

: If equipped

■

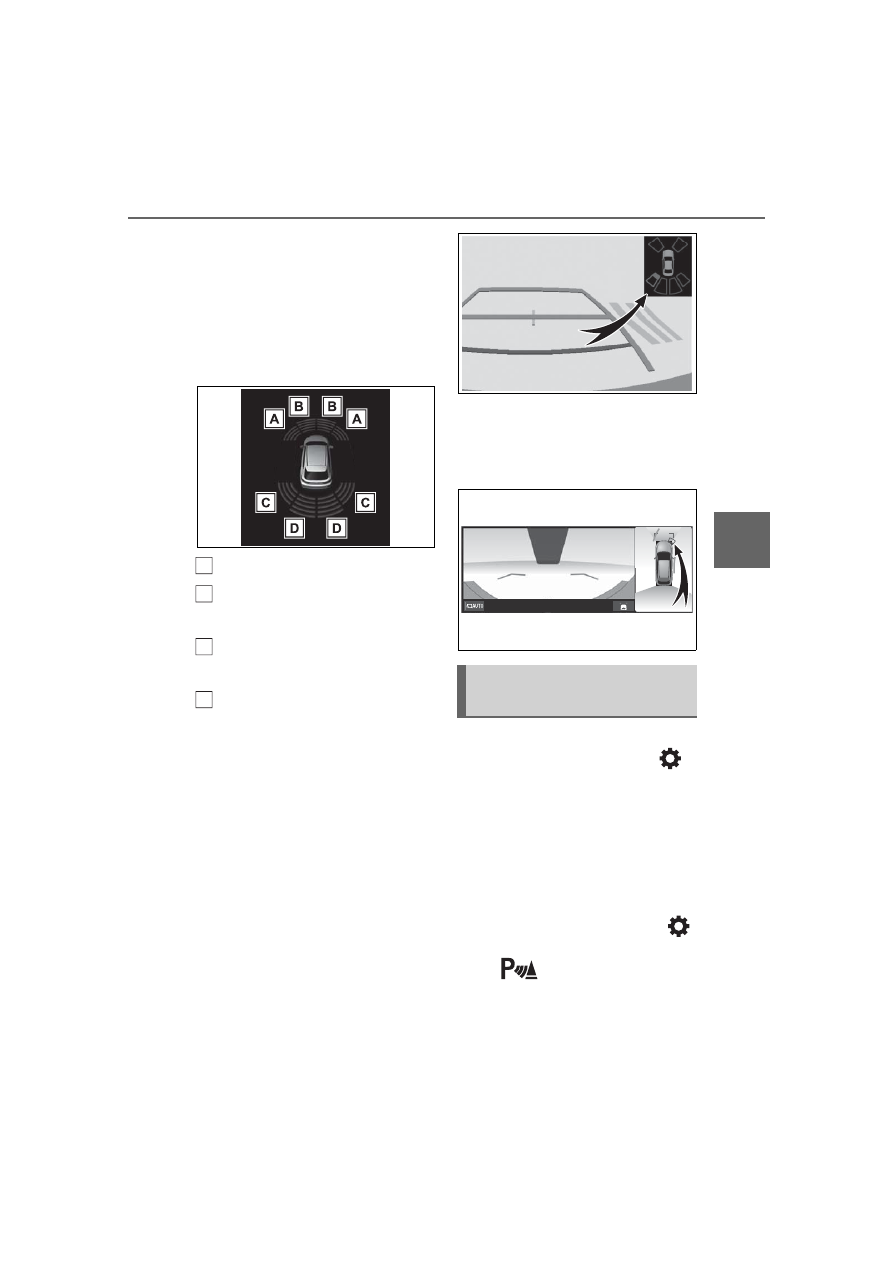

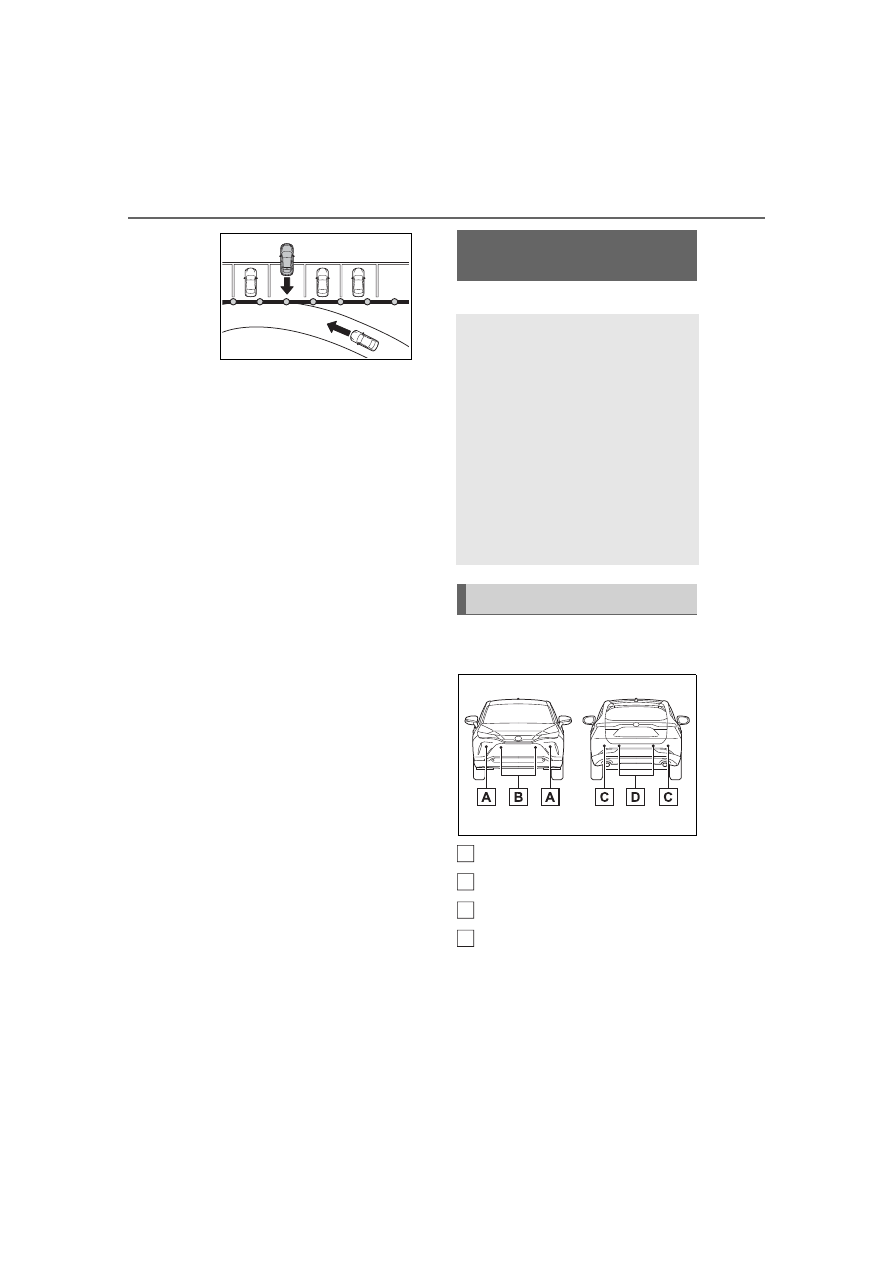

Location and types of sen-
sors

Front corner sensors

Front center sensors

Rear corner sensors

Rear center sensors

■

Display

When the sensors detect an
object, such as a wall, a graphic
is shown on the multi-informa-

Intuitive parking

assist

*

The distance from your
vehicle to objects, such as a
wall, when parallel parking
or maneuvering into a
garage is measured by the
sensors and communicated
via the multi-information
display, navigation system
or multimedia system
screen and a buzzer. Always
check the surrounding area
when using this system.

System components

A

B

C

D

277

4-5. Using the driving support systems

4

Dr

iv

ing

tion display and navigation sys-
tem screen (if equipped) or
multimedia system screen (if
equipped) depending on the
position and distance to the
object.



Multi-information display

Front corner sensor detection

Front center sensor detec-
tion

*1

Rear corner sensor detec-
tion

*2

Rear center sensor detec-
tion

*2

*1

:Displayed when the shift lever is

in a driving position

*2

:Displayed when the shift lever is

in R



Navigation system screen or
multimedia system screen

• When the shift lever is in R
A simplified image is displayed on
the upper corner of the screen
when an obstacle is detected.

• When the panoramic view moni-

tor (if equipped) is displayed

A graphic is shown when the pan-
oramic view monitor is displayed.

The Intuitive parking assist can
be enabled/disabled on the



screen of the multi-information
display. (



P.100, 111)

When the intuitive parking assist
function is disabled, the intuitive
parking assist OFF indicator
(



P.85) illuminates on the multi-

information display.

To re-enable the system, select



on the multi-information display,
select

 and turn it on.

If the system is disabled, it will
remain off even if the power switch
is turned to ON after the power

A

B

C

D

Turning intuitive parking
assist on/off

278

4-5. Using the driving support systems

switch has been turned to OFF.

WARNING

■

Intuitive parking assist pre-

cautions

Observe the following precau-

tions.

Failing to do so may result in the

vehicle being unable to be driven

safely and possibly cause an acci-

dent.

●

Do not use the sensor at

speeds in excess of 6 mph (10

km/h).

●

The sensors’ detection areas

and reaction times are limited.

When moving forward or revers-

ing, check the areas surround-

ing the vehicle (especially the

sides of the vehicle) for safety,

and drive slowly, using the

brake to control the vehicle’s

speed.

●

Do not install accessories near

the bumpers as those areas are

within the sensors’ detection

areas.

●

The area directly under the

bumpers is not detected.

Thin posts or objects lower than

the sensor may not be detected

when approached, even if they

have been detected once.

■

When to disable the function

In the following situations, disable

the function as it may operate

even though there is no possibility

of a collision.

●

The vehicle is equipped with a

commercial fender pole, wire-

less antenna or fog lights.

●

The front or rear bumper or a

sensor receives a strong

impact.

●

A non-genuine Toyota suspen-

sion (lowered suspension, etc.)

is installed.

●

Towing eyelets are installed.

●

A backlit license plate is

installed.

●

When using an automatic car

wash

■

When using the intuitive park-

ing assist

In the following situations, the

system may not function correctly

due to a sensor malfunction, etc.

Have the vehicle checked by your

Toyota dealer.

●

The intuitive parking assist

operation display flashes or

shows continuously, and a

buzzer sounds when no objects

are detected.

●

If the area around a sensor col-

lides with something, or is sub-

jected to strong impact.

●

If the bumper or grille collides

with something.

●

If the display flashes or is dis-

played continuously and a

buzzer does not sound, except

when the mute function has

been turned on.

■

Notes when washing the vehi-

cle

Do not apply intensive bursts of

water or steam to the sensor

area.
Doing so may result in the sensor

malfunctioning.

●

When using a high pressure

washer to wash the vehicle, do

not spray the sensors directly,

as doing so may cause a sensor

to malfunction.

279

4-5. Using the driving support systems

4

Dr

iv

ing

■

The system can be operated

when

●

The power switch is in ON.

●

Intuitive parking assist function is

on.

●

The vehicle speed is less than

about 6 mph (10 km/h).

●

The shift lever is in a position

other than P.

■

If “Clean Parking Assist Sen-

sor” is displayed on the multi-

information display

A sensor may be covered with ice,

snow, dirt, etc. Remove the ice,

snow, dirt, etc., from the sensor to

return the system to normal.
Also, due to ice forming on a sensor

at low temperatures, a warning

message may be displayed or the

sensor may not be able to detect an

object. Once the ice melts, the sys-

tem will return to normal.
If a warning message is displayed

even if the sensor is clean, there

may be a sensor malfunction. Have

the vehicle inspected by your

Toyota dealer.

■

If “Parking Assist Unavailable”

is displayed on the multi-infor-

mation display

Water may be continuously flowing

over the sensor surface, such as in

a heavy rain. When the system

determines that it is normal, the sys-

tem will return to normal.

■

Sensor detection information

●

The sensor’s detection areas are

limited to the areas around the

vehicle’s front and rear bumpers.

●

Depending on the shape of the

object and other factors, the

detection distance may shorten,

or detection may be impossible.

●

Detection may be impossible if

static objects draw too close to the

sensor.

●

There will be a short delay

between static object detection

and display (warning buzzer

sounds). Even at low speeds,

there is a possibility that the object

will come within 11.9 in. (30 cm)

before the display is shown and

the warning buzzer sounds.

●

It might be difficult to hear the

buzzer due to the volume of the

audio system or air flow noise of

the air conditioning system.

●

It may be difficult to hear the

sound of this system due to the

buzzers of other systems.

■

Conditions under which the

function may not function cor-

rectly

Certain vehicle conditions and the

surrounding environment may affect

the ability of a sensor to correctly

detect objects. Particular instances

where this may occur are listed

below.

●

There is dirt, snow or ice on a sen-

sor. (Cleaning the sensors will

resolve this problem.)

●

A sensor is frozen. (Thawing the

area will resolve this problem.)

In especially cold weather, if a

sensor is frozen the sensor dis-

play may be displayed abnor-

mally, or objects, such as a wall,

may not be detected.

WARNING

●

When using steam to clean the

vehicle, do not direct steam too

close to the sensors as doing so

may cause a sensor to malfunc-

tion.

280

4-5. Using the driving support systems

●

A sensor is covered in any way.

●

When a sensor or the area around

a sensor is extremely hot or cold.

●

On an extremely bumpy road, on

an incline, on gravel, or on grass.

●

The vicinity of the vehicle is noisy

due to vehicle horns, motorcycle

engines, air brakes of large vehi-

cles, or other loud noises produc-

ing ultrasonic waves.

●

There is another vehicle equipped

with parking assist sensors in the

vicinity.

●

A sensor is coated with a sheet of

spray or heavy rain.

●

If a sensor is hit by a large amount

of water, such as when driving on

a flooded road.

●

If the vehicle is significantly tilted.

●

The vehicle is approaching a tall

or curved curb.

●

If objects draw too close to the

sensor.

■

Objects which may not be prop-

erly detected

The shape of the object may pre-

vent the sensor from detecting it.

Pay particular attention to the fol-

lowing objects:

●

Wires, fences, ropes, etc.

●

Cotton, snow and other materials

that absorb sound waves

●

Sharply-angled objects

●

Low objects

●

Tall objects with upper sections

projecting outwards in the direc-

tion of your vehicle

People may not be detected if they

are wearing certain types of cloth-

ing.

■

Certification (Canada only)

This ISM device complies with

Canadian ICES-001.

■

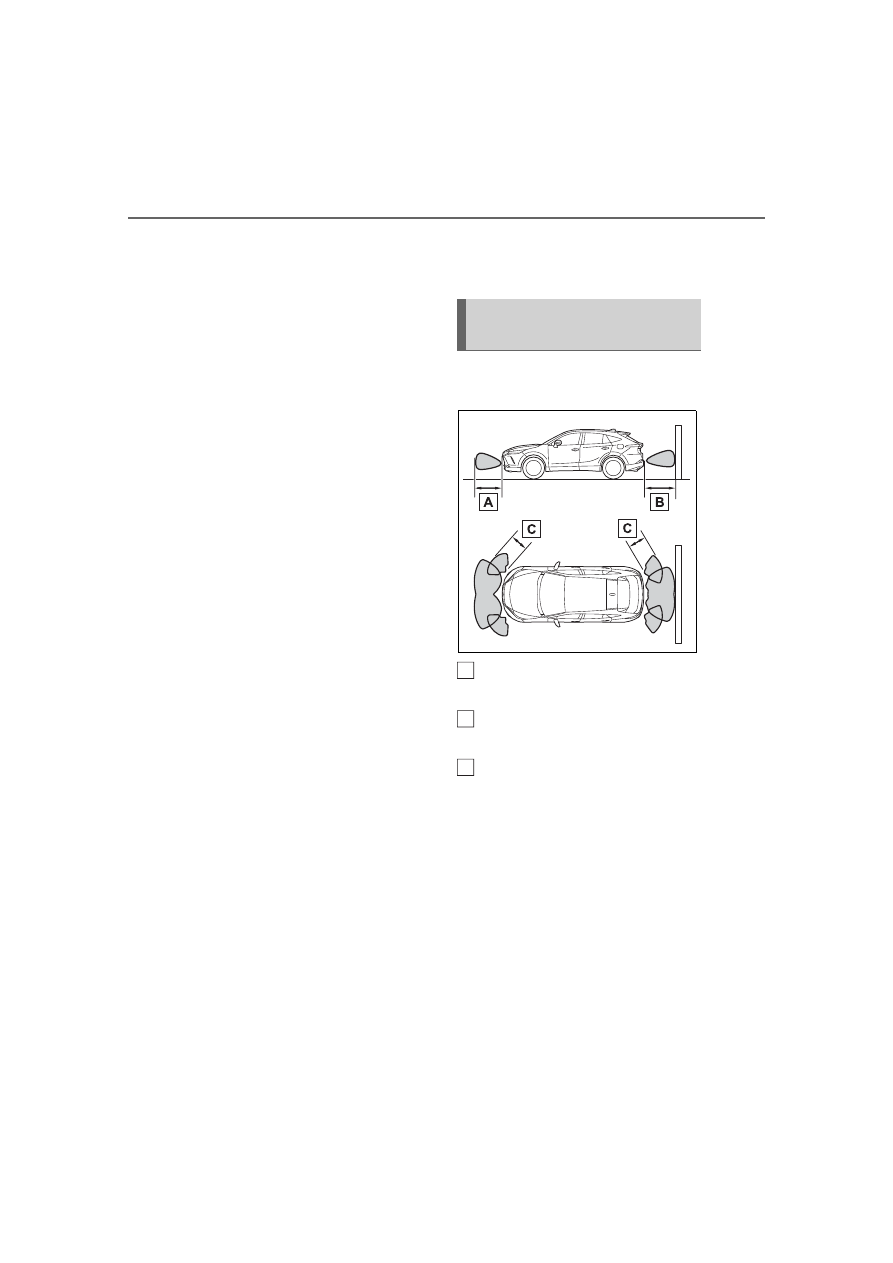

Detection range of the sen-
sors

Approximately 3.3 ft. (100
cm)

Approximately 4.9 ft. (150
cm)

Approximately 2.0 ft. (60 cm)

The diagram shows the detection
range of the sensors. Note that the
sensors cannot detect objects that
are extremely close to the vehicle.
The range of the sensors may
change depending on the shape of
the object, etc.

■

Distance display

When an object is detected by a sensor, the approximate distance to
the object will be displayed on the multi-information display, naviga-
tion system (if equipped) or multimedia system (if equipped) screen.
(As the distance to the object becomes short, the distance segments

Sensor detection display,
object distance

A

B

C

281

4-5. Using the driving support systems

4

Dr

iv

ing

may blink.)

The images may differ from that shown in the illustrations.



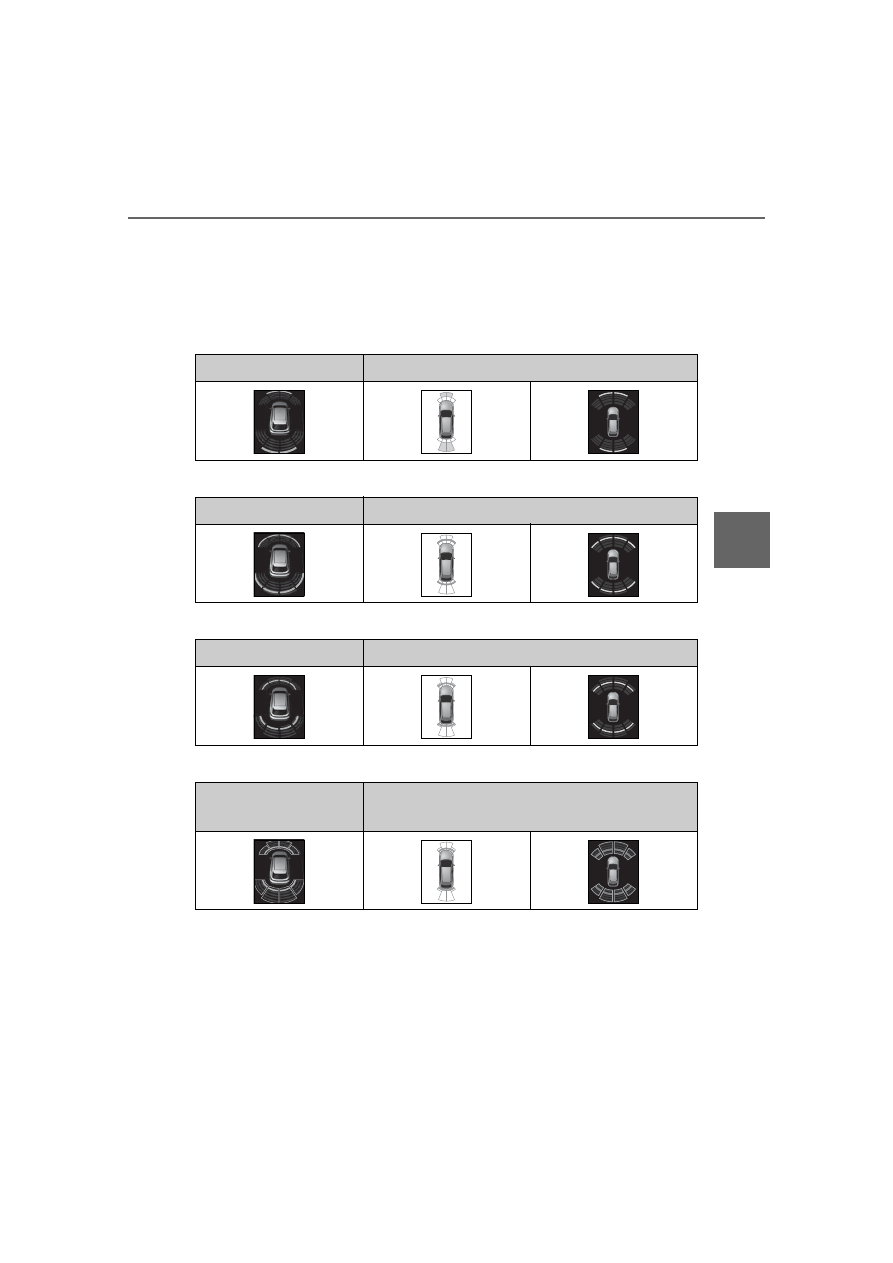

Approximate distance to object

• Front center sensor: 3.3 ft. (100 cm) to 2.0 ft. (60 cm)
• Rear center sensor: 4.9 ft. (150 cm) to 2.0 ft. (60 cm)



Approximate distance to object: 2.0 ft. (60 cm) to 1.5 ft. (45 cm)



Approximate distance to object: 1.5 ft. (45 cm) to 1.0 ft. (30 cm)



Approximate distance to object: 1.0 ft. (30 cm) to 0.5 ft. (15 cm)

*

: The distance segments will blink slowly.

Multi-information display

Navigation or multimedia system screen

Multi-information display

Navigation or multimedia system screen

Multi-information display

Navigation or multimedia system screen

Multi-information dis-

play

*

Navigation or multimedia system screen

282

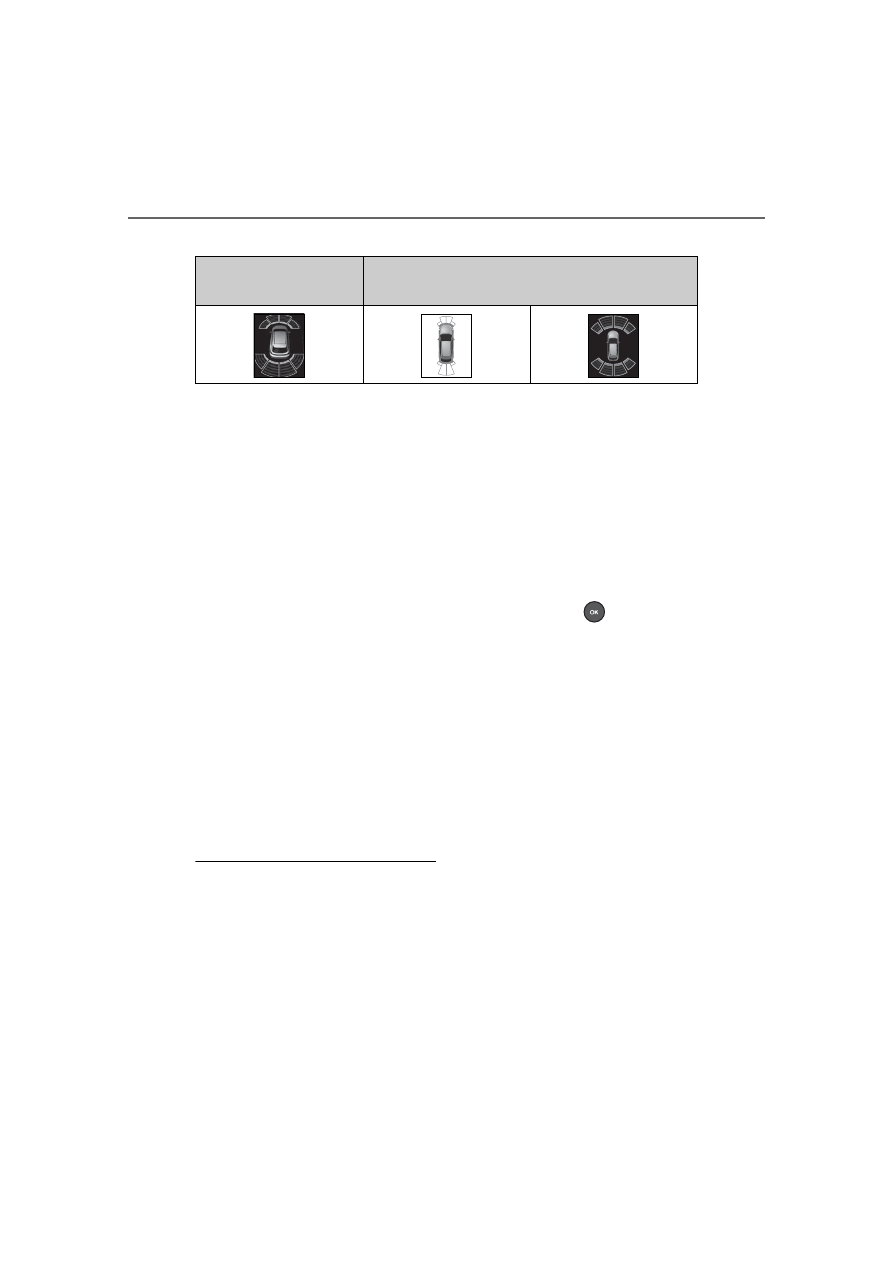

4-5. Using the driving support systems



Approximate distance to object: Less than 0.5 ft. (15 cm)

*

: The distance segments will blink rapidly.

■

Buzzer operation and dis-
tance to an object

A buzzer sounds when the sen-
sors are operating.



The buzzer beeps faster as
the vehicle approaches an
object.
When the vehicle comes
within approximately 1.0 ft.
(30 cm) of the object, the
buzzer sounds continuously.



When 2 or more sensors
simultaneously detect a static
object, the buzzer sounds for
the nearest object.



Even when the sensors are
operating, the buzzer will be
muted in some situations.
(automatic buzzer mute func-
tion)

■

Muting the buzzer sound

●

Automatic buzzer mute function

Even when the sensors are operat-
ing, the buzzer will be muted in the
following situations:
• The distance between the vehicle

and the detected object does not

become shorter (except when the

distance between the vehicle and

object is 1.0 ft. [30 cm] or less).

• Your vehicle is moving away from

the object.

• There are no detectable objects

entering the path of your vehicle.

However, if another object is
detected or the situation changes
while the buzzer is muted, the
buzzer begins sounding again.

●

To mute the buzzer sound

The buzzer can be temporarily
muted by pressing

 of the meter

control switches while a suggestion
that says mute is available is shown
on the multi-information display.

●

When the mute is canceled

Mute will be automatically canceled
in the following situations.
• When the shift position is changed

• When the vehicle speed has

reached or exceeded a certain

speed

• When the Intuitive parking assist

is turned off once and turned on

again

• When the power switch is turned

to OFF once and turned to ON

again

■

Customization

The buzzer volume can be adjusted

on the multi-information display.

(



P.100, 111)

Multi-information dis-

play

*

Navigation or multimedia system screen

283

4-5. Using the driving support systems

4

Dr

iv

ing

*

: If equipped

■

Parking Support Brake
function (static objects)



P.287

■

Parking Support Brake
function (rear-crossing
vehicles)



P.293

PKSB (Parking Sup-

port Brake)

*

The Parking Support Brake
system consists of the fol-
lowing functions that oper-
ate when driving at a low
speed or backing up, such
as when parking. When the
system determines that the
possibility of a collision
with a detected object is
high, a warning operates to
urge the driver to take eva-
sive action. If the system
determines that the possi-
bility of a collision with a
detected object is extremely
high, the brakes are auto-
matically applied to help
avoid the collision or help
reduce the impact of the
collision.

PKSB (Parking Support
Brake) system

WARNING

■

Limitations of the Parking

Support Brake system

Do not overly rely on the system,

as doing so may lead to an acci-

dent.

Always drive while checking the

safety of the surroundings of the

vehicle.
Depending on the vehicle and

road conditions, weather, etc., the

system may not operate.
The detection capabilities of sen-

sors and radars are limited.

Always drive while checking the

safety of the surroundings of the

vehicle.

●

The driver is solely responsible

for safe driving. Always drive

carefully, taking care to observe

your surroundings. The Parking

Support Brake system is

designed to provide support to

lessen the severity of collisions.

However, it may not operate in

some situations.

●

The Parking Support Brake sys-

tem is not designed to stop the

vehicle completely. Addition-

ally, even if the system has

stopped the vehicle, it is neces-

sary to depress the brake pedal

immediately as brake control

will be canceled after approxi-

mately 2 seconds.

●

Do not attempt to test the oper-

ation of the Parking Support

Brake system yourself such as

intentionally driving to a vehicle

or wall.

Depending on the situations, the
system may not operate properly,
possibly leading to an accident.

284

4-5. Using the driving support systems

The Parking Support Brake can
be enabled/disabled on the



screen of the multi-information
display. All of the Parking Sup-
port Brake functions (static
objects and rear-crossing vehi-
cles) are enabled/disabled
simultaneously. (



P.100, 111)

When the Parking Support Brake is
disabled, the PKSB OFF indicator
(



P.85) illuminates on the multi-

information display.

To re-enable the system, select



on the multi-information display,
select

 and turn it on.

If the system is disabled, it will
remain off even if the power switch
is turned to ON after the power
switch has been turned to OFF.

If the hybrid system output
restriction control or brake con-
trol operates, a buzzer will
sound and a message will be
displayed on the multi-informa-
tion display and head-up display
(if equipped), navigation system
(if equipped) or multimedia sys-
tem (if equipped) screen, to alert
the driver.

Depending on the situation, hybrid
system output restriction control will
operate to either limit acceleration
or restrict output as much as possi-
ble.



Hybrid system output restric-
tion control is operating
(acceleration restriction)

Acceleration greater than a certain
amount is restricted by the system.
Multi-information display: “Object
Detected Acceleration Reduced”
Head-up display: No warning dis-
played
Navigation system or multimedia
system screen: No warning dis-
played
PKSB OFF indicator: Not illumi-
nated
Buzzer: Does not sound



Hybrid system output restric-
tion control is operating (out-
put restricted as much as
possible)

NOTICE

■

If “PKSB Unavailable” is dis-

played on the multi-informa-

tion display and the PKSB

OFF indicator illuminates

If this message is displayed

immediately after the power

switch is changed to ON, operate

the vehicle carefully, paying atten-

tion to your surroundings. It may

be necessary to drive the vehicle

for a certain amount of time

before the system returns to nor-

mal. (If the system does not return

to normal after driving for a while,

clean the sensors and their sur-

rounding area on the bumpers.)

Enabling/Disabling the
Parking Support Brake

Display and buzzer for
hybrid system output
restriction control and
brake control

285

4-5. Using the driving support systems

4

Dr

iv

ing

The system has determined that
stronger-than-normal brake opera-
tion is necessary.
Multi-information display: “BRAKE!”
Head-up display: “BRAKE!”
Navigation system or multimedia
system screen: “BRAKE!”
PKSB OFF indicator: Not illumi-
nated
Buzzer: Short beep



Brake control is operating

The system determined that emer-
gency braking is necessary.
Multi-information display: “BRAKE!”
Head-up display: “BRAKE!”
Navigation system or multimedia
system screen: “BRAKE!”
PKSB OFF indicator: Illuminated
Buzzer: Short beep



Vehicle stopped by system
operation

The vehicle has been stopped by
brake control operation.
Multi-information display: “Switch to
Brake” (If the accelerator pedal is
not depressed, “Brake” will be dis-
played.)
Head-up display: “Switch to Brake”
(If the accelerator pedal is not
depressed, “Press Brake Pedal” will
be displayed.)
Navigation system or multimedia
system screen: “Press Brake
Pedal”
PKSB OFF indicator: Illuminated (If
the accelerator pedal is not
depressed, the indicator is not illu-
minated.)

Buzzer: Short beep

If the Parking Support Brake
determines that a collision with a
detected object is possible, the
hybrid system output will be
restricted to restrain any
increase in the vehicle speed.
(Hybrid system output restriction
control: See figure 2.)
Additionally, if the accelerator
pedal continues to be
depressed, the brakes will be
applied automatically to reduce
the vehicle speed. (Brake con-
trol: See figure 3.)



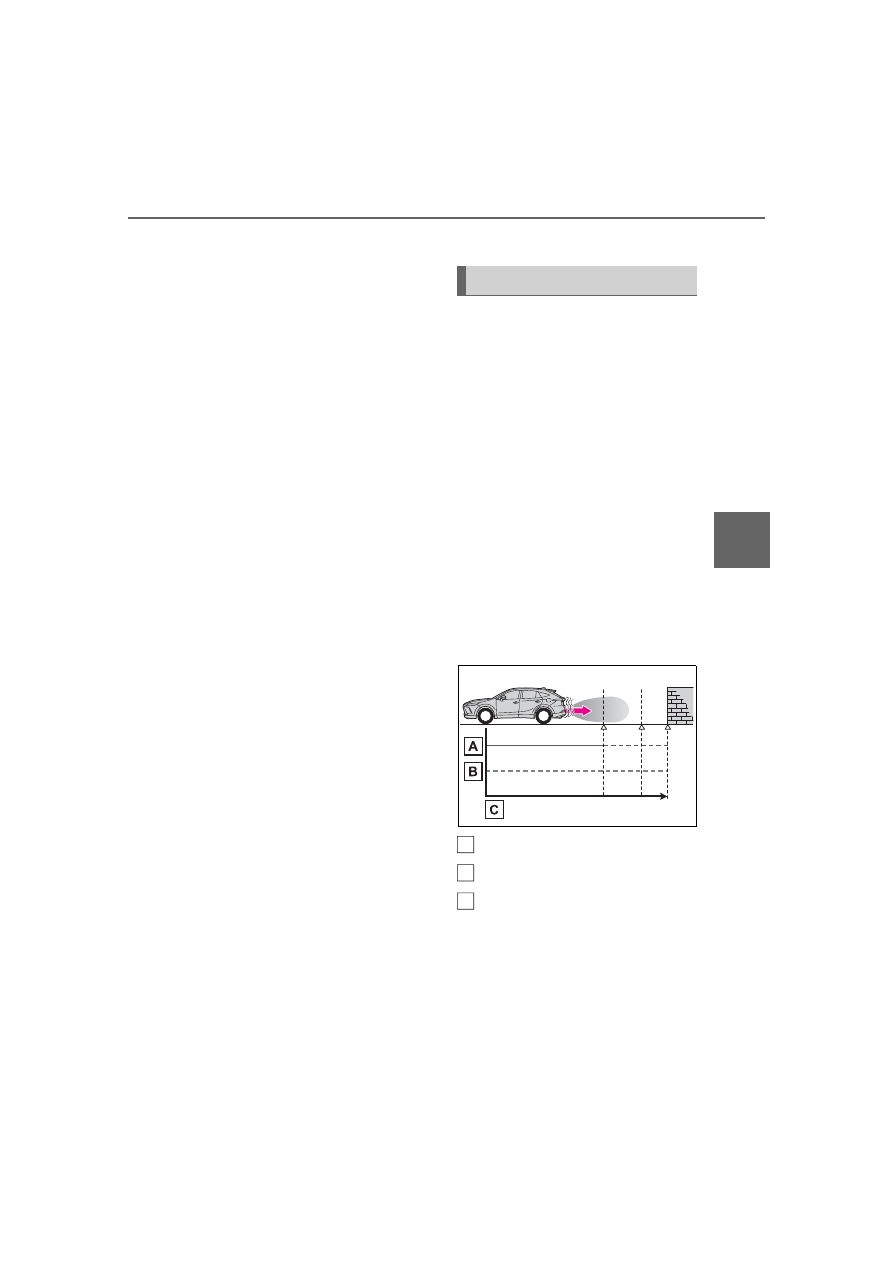

Figure 1: When the PKSB
(Parking Support Brake) is not
operating

Hybrid system output

Braking force

Time



Figure 2: When hybrid system
output restriction control oper-
ates

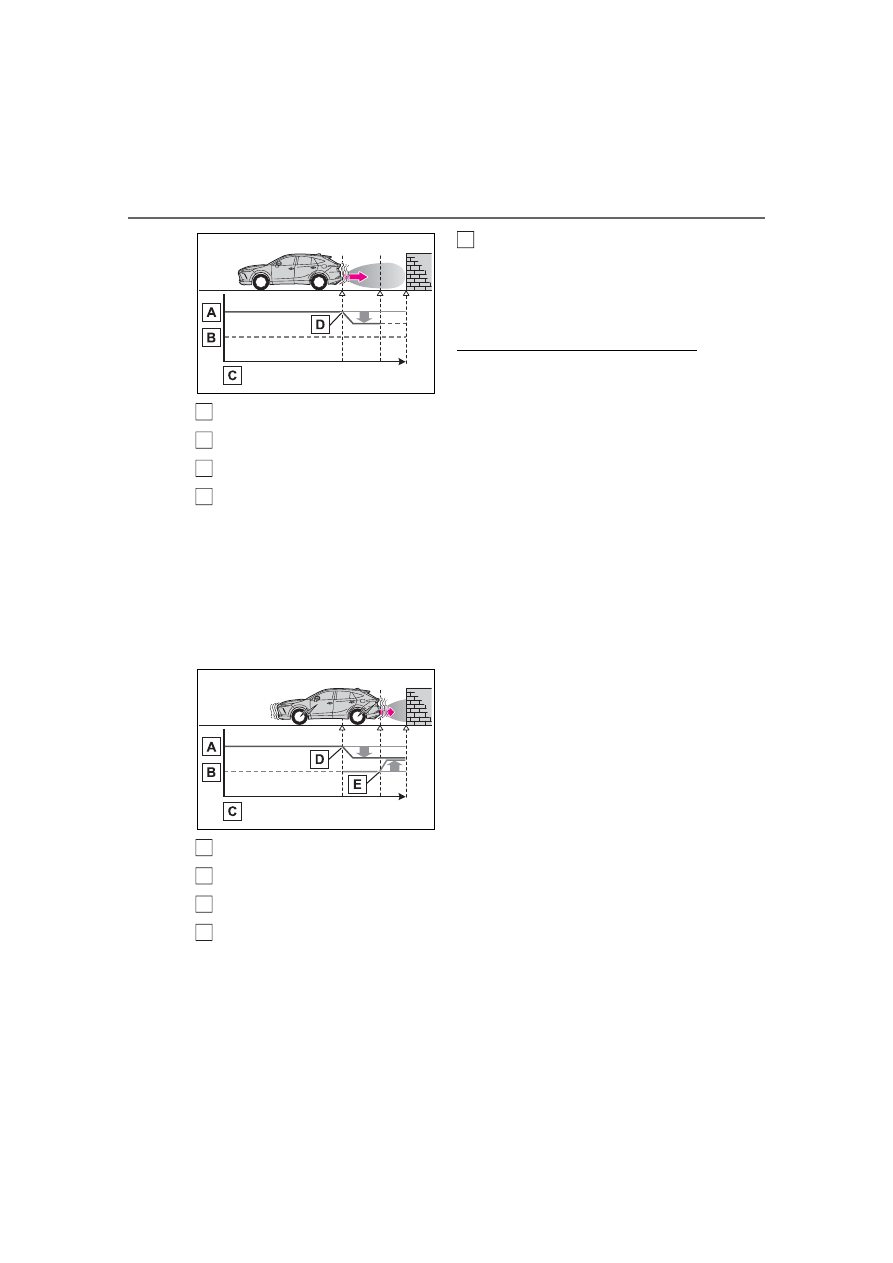

System overview

A

B

C

286

4-5. Using the driving support systems

Hybrid system output

Braking force

Time

Hybrid system output restric-
tion control begins operating
(System determines that pos-
sibility of collision with
detected object is high)



Figure 3: When hybrid system
output restriction control and
brake control operates

Hybrid system output

Braking force

Time

Hybrid system output restric-
tion control begins operating
(System determines that pos-
sibility of collision with
detected object is high)

Brake control begins operat-
ing (System determines that
possibility of collision with
detected object is extremely
high)

■

If the Parking Support Brake

has operated

If the vehicle is stopped due to oper-

ation of the Parking Support Brake,

the Parking Support Brake will be

disabled and the PKSB OFF indica-

tor will illuminate. If the Parking Sup-

port Brake operates unnecessarily,

brake control can be canceled by

depressing the brake pedal or wait-

ing for approximately 2 seconds for

it to automatically be canceled.

Then, the vehicle can be operated

by depressing the accelerator pedal.

■

Re-enabling the Parking Sup-

port Brake

To re-enable the Parking Support

Brake when it is disabled due to

operation of the Parking Support

Brake, either enable the system

again (



P.284), or turn the power

switch to OFF and then back to ON.

Additionally, if the object becomes

no longer in the traveling direction of

the vehicle or if the traveling direc-

tion of the vehicle changes (such as

changing from moving forward to

backing up, or from backing up to

moving forward), the system will be

re-enabled automatically.

■

If “PKSB Unavailable” is dis-

played on the multi-information

display and the PKSB OFF indi-

cator illuminates

●

If “Parking Assist Unavailable

Clean Parking Assist Sensor” is

displayed simultaneously, a sen-

sor may be covered with ice,

snow, dirt, etc. In this case,

remove the ice, snow, dirt, etc.,

from the sensor to return the sys-

tem to normal. If this message is

shown even after removing dirt

A

B

C

D

A

B

C

D

E

287

4-5. Using the driving support systems

4

Dr

iv

ing

from the sensor, or shown when

the sensor was not dirty to begin

with, have the vehicle inspected at

your Toyota dealer.

●

If “Parking Assist Unavailable” is

displayed simultaneously, water

may be continuously flowing over

the sensor surface, such as in a

heavy rain. When the system

determines that it is normal, the

system will return to normal.

*

: If equipped

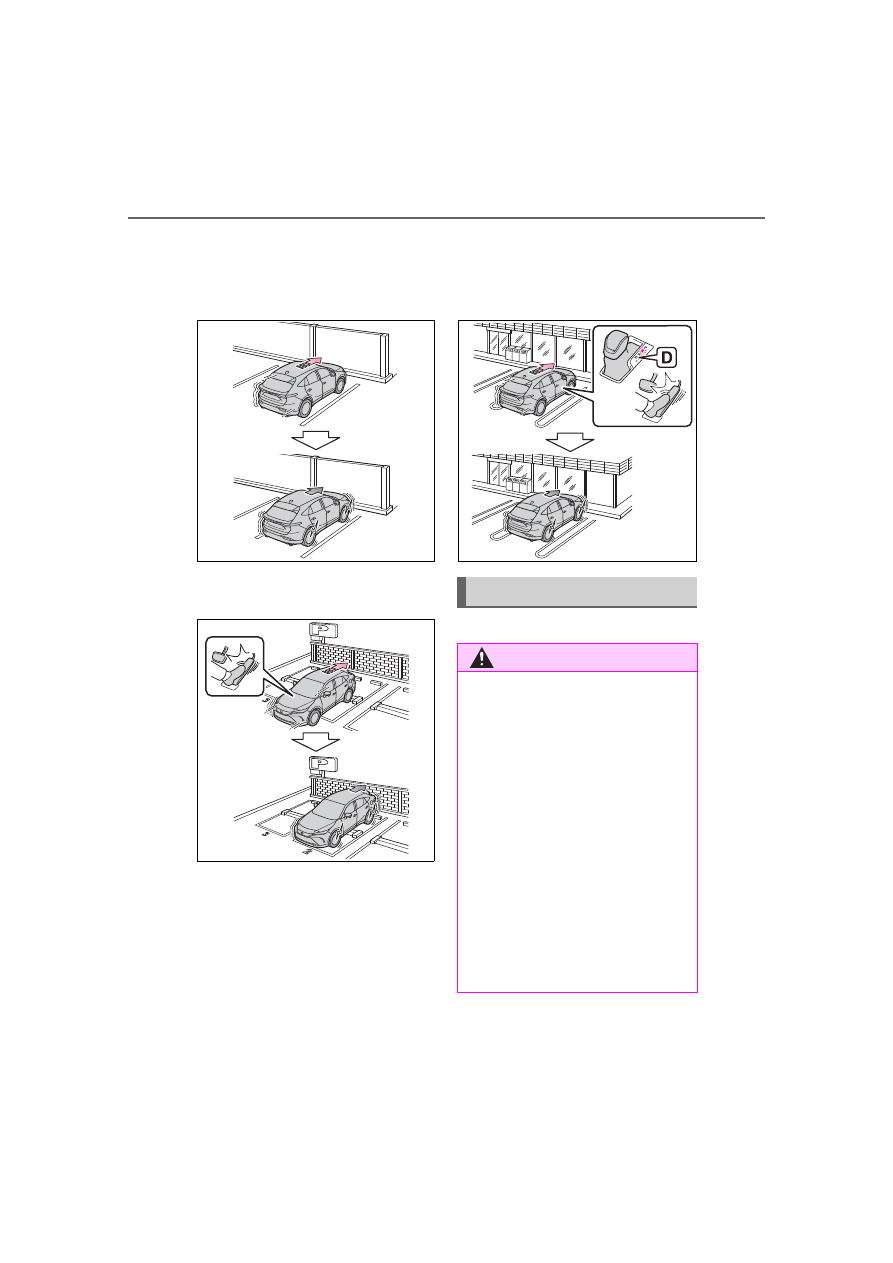

This function will operate in situ-
ations such as the following if an
object is detected in the travel-
ing direction of the vehicle.

Parking Support Brake

function (static

objects)

*

If the sensors detect a static
object, such as a wall, in the
traveling direction of the
vehicle and the system
determines that a collision
may occur due to the vehi-
cle suddenly moving for-
ward due to an accidental
accelerator pedal opera-
tion, the vehicle moving the
unintended direction due to
the wrong shift position
being selected, or while
parking or traveling at low
speeds, the system will
operate to lessen the impact
with the detected static
object and reduce the
resulting damage.

Examples of function
operation

288

4-5. Using the driving support systems

■

When traveling at a low
speed and the brake pedal
is not depressed, or is
depressed late

■

When the accelerator pedal
is depressed excessively

■

When the vehicle moves in
the unintended direction
due to the wrong shift posi-
tion being selected



P.276

Types of sensors

WARNING

■

To ensure the Parking Sup-

port Brake can operate prop-

erly

Observe the following precautions

regarding the sensors (



P.276).

Failure to do so may cause a sen-

sor to not operate properly, and

may cause an accident.

●

Do not modify, disassemble or

paint the sensors.

●

Do not replace a sensor with a

part other than a genuine part.

●

Do not subject a sensor or its

surrounding area to a strong

impact.

●

Do not damage the sensors,

and always keep them clean.

289

4-5. Using the driving support systems

4

Dr

iv

ing

■

The Parking Support Brake

function (static object) will

operate when

The function will operate when the

PKSB OFF indicator is not illumi-

nated (



P.83, 85) and all of the fol-

lowing conditions are met:

●

Hybrid system output restriction

control

• The Parking Support Brake is

enabled.

• The vehicle speed is approxi-

WARNING

●

If the area around a radar sen-

sor is subjected to an impact,

the system may not operate

properly due to a sensor mal-

function. Have the vehicle

inspected by your Toyota

dealer.

■

Handling the suspension

Do not modify the suspension, as

changes to the height or inclina-

tion of the vehicle may prevent

the sensors from detecting

objects correctly or cause the sys-

tem to not operate or operate

unnecessarily.

■

If the Parking Support Brake

function (static objects) oper-

ates unnecessarily, such as

at a railroad crossing

In the event that the Parking Sup-

port Brake function (static objects)

operates unnecessarily, such as

at a railroad crossing, brake con-

trol will be canceled after approxi-

mately 2 seconds, allowing you to

proceed forward and leave the

area, brake control can also be

canceled by depressing the brake

pedal. Depressing the accelera-

tor pedal after brake control is

canceled will allow you to proceed

forward and leave the area.

■

Notes when washing the vehi-

cle

Do not apply intensive bursts of

water or steam to the sensor

area.
Doing so may result in the sensor

malfunctioning.

●

When using a high pressure

washer to wash the vehicle, do

not spray the sensors directly,

as doing so may cause a sensor

to malfunction.

●

When using steam to clean the

vehicle, do not direct steam too

close to the sensors as doing so

may cause a sensor to malfunc-

tion.

■

When to disable the Parking

Support Brake

In the following situations, disable

the Parking Support Brake as the

system may operate even though

there is no possibility of a colli-

sion.

●

When inspecting the vehicle

using a chassis roller, chassis

dynamo or free roller

●

When loading the vehicle onto a

boat, truck or other transport

vessel

●

If the suspension has been

modified or tires of a size other

than specified are installed

●

If the front of the vehicle is

raised or lowered due to the

carried load

●

When equipment that may

obstruct a sensor is installed,

such as a towing eyelet, bumper

protector (an additional trim

strip, etc.), bicycle carrier, or

snow plow

●

When using an automatic car

wash

290

4-5. Using the driving support systems

mately 9 mph (15 km/h) or less.

• There is a static object in the trav-

eling direction of the vehicle and

approximately 6 to 13 ft. (2 to 4 m)

away.

• The Parking Support Brake deter-

mines that a stronger-than-nor-

mal brake operation is necessary

to avoid a collision.

●

Brake control

• Hybrid system output restriction

control is operating

• The Parking Support Brake deter-

mines that an immediate brake

operation is necessary to avoid a

collision.

■

The Parking Support Brake

function (static objects) will

stop operating when

The function will stop operating if

any of the following conditions are

met:

●

Hybrid system output restriction

control

• The Parking Support Brake is dis-

abled.

• The system determines that the

collision has become avoidable

with normal brake operation.

• The static object is no longer

approximately 6 to 13 ft. (2 to 4 m)

away from the vehicle or in the

traveling direction of the vehicle.

●

Brake control

• The Parking Support Brake is dis-

abled.

• Approximately 2 seconds have

elapsed since the vehicle was

stopped by brake control.

• The brake pedal is depressed

after the vehicle is stopped by

brake control.

• The static object is no longer

approximately 6 to 13 ft. (2 to 4 m)

away from the vehicle or in the

traveling direction of the vehicle.

■

Detection range of the Parking

Support Brake function (static

objects)

The detection range of the Parking

Support Brake function (static

objects) differs from the detection

range of the intuitive parking assist

(



P.280). Therefore, even if the

intuitive parking assist detects an

object and provides a warning, the

Parking Support Brake function

(static objects) may not start operat-

ing.

■

Objects that the Parking Sup-

port Brake function (static

objects) may not detect

The sensors may not be able to

detect certain objects, such as the

following:

●

Pedestrian

●

Cotton, snow, and other materials

that are poor reflectors of sonic

waves

●

Objects which are not perpendicu-

lar to the ground, are not perpen-

dicular to the traveling direction of

the vehicle, are uneven or are

waving

●

Low objects

●

Thin objects such as wires,

fences, ropes and signposts

●

Objects that are extremely close

to the bumper

●

Sharply-angled objects

●

Tall objects with upper sections

projecting outwards in the direc-

tion of your vehicle

■

Situations in which the Parking

Support Brake function (static

objects) may not operate

When the shift lever is in N

■

Intuitive parking assist buzzer

Regardless of whether the intuitive

parking assist is enabled or not

(



P.277), if the Parking Support

Brake function (static objects) is

enabled (



P.284), the front or rear

sensors detect an object and brake

control and hybrid system output

restriction control are performed, the

intuitive parking assist buzzer will

sound to notify the driver of the

approximate distance to the object.

291

4-5. Using the driving support systems

4

Dr

iv

ing

■

Situations in which the Parking

Support Brake function (static

objects) may operate even if

there is no possibility of a colli-

sion

In some situations, such as the fol-

lowing, the Parking Support Brake

function (static objects) may operate

even though there is no possibility of

a collision.

●

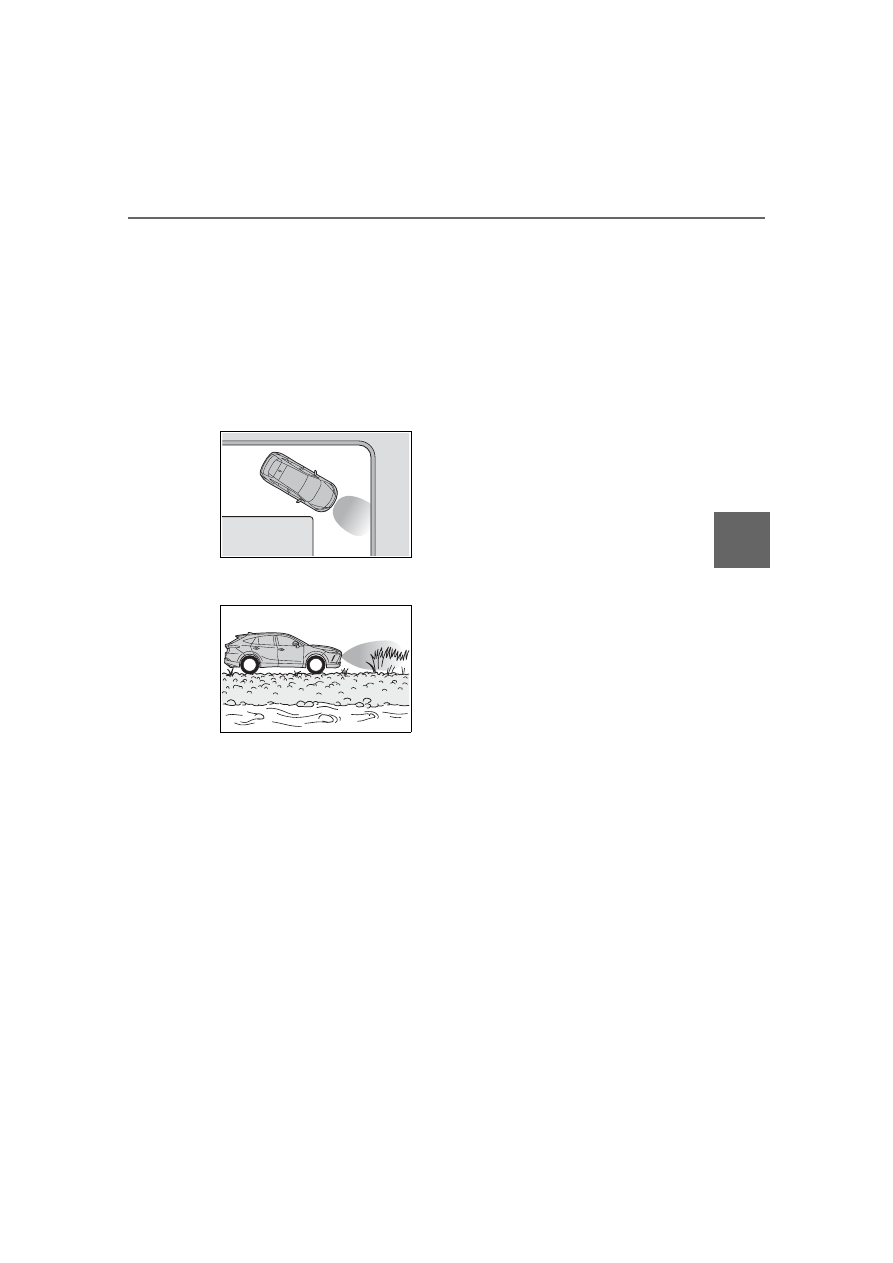

Vehicle surroundings

• When driving on a narrow road

• When driving on a gravel road or

in an area with tall grass

• When driving toward a banner,

flag, low-hanging branch or boom

barrier (such as those used at rail-

road crossings, toll gates and

parking lots)

• When there is a structure on the

roadside (such as when driving in

a narrow tunnel, on a narrow

bridge or on a narrow road)

• When parallel parking

• When there is a rut or hole in the

surface of the road

• When driving on a metal cover

(grating), such as those used for

drainage ditches

• When driving up or down a steep

slope

• If a sensor is hit by a large amount

of water, such as when driving on

a flooded road

• When loaded on ships or trucks

• Moving type automatic car wash

• Lift type parking area or multi-

story parking lot

• Underground parking area

• Structures on the ground (speed

bumps, cat’s eyes, etc.)

• Differences in height

• When moving straight ahead or

turning right

• Snow-melting pipes

• Devices for detecting vehicles,

such as traffic lights, devices for

detecting traffic congestion, or

devices for detecting empty

spaces in parking areas

• Railroad tracks

• H-shaped steel

• When there are vehicles on both

sides, or there is a vehicle that

resembles this vehicle

●

Weather

• If a sensor is covered with ice,

snow, dirt, etc. (when cleared, the

system will return to normal)

• If heavy rain or water strikes a

sensor

• When driving in inclement weather

such as fog, snow or a sandstorm

• Strong wind is blowing

●

Other sonic wave sources

• When vehicle horns, vehicle

detectors, motorcycle engines, air

brakes of large vehicles, the clear-

ance sonar of other vehicles or

other devices which produce ultra-

sonic waves are near the vehicle

• If a sticker or an electronic compo-

nent, such as a backlit license

plate (especially fluorescent type),

fog lights, fender pole or wireless

antenna is installed near a sensor

●

Changes in the vehicle posture

• If the vehicle is significantly tilted

• If the front of the vehicle is raised

or lowered due to the carried load

• If the orientation of a sensor has

been changed due to a collision or

other impact

292

4-5. Using the driving support systems

■

Situations in which the Parking

Support Brake function (static

objects) may not operate prop-

erly

In some situations, such as the fol-

lowing, this function may not oper-

ate properly.

●

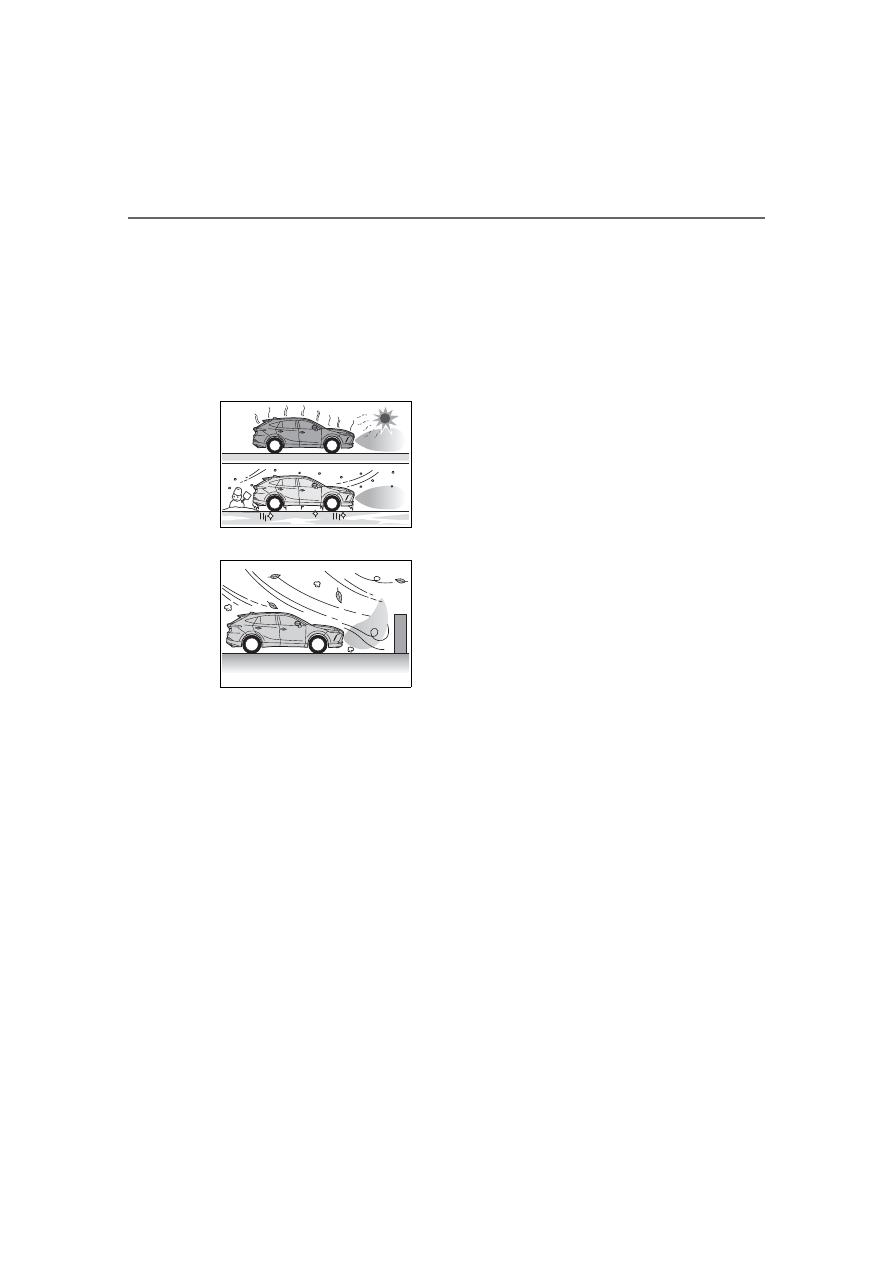

Weather

• When a sensor or the area around

a sensor is extremely hot or cold

• When strong winds are blowing

• If a sensor is covered with ice,

snow, dirt, etc. (when cleared, the

system will return to normal)

• If heavy rain or water strikes a

sensor

• When driving in inclement weather

such as fog, snow or a sandstorm

• A sensor is frozen. (Thawing the

area will resolve this problem.)

●

Vehicle surroundings

• When an object that cannot be

detected is between the vehicle

and a detected object

• If an object such as a vehicle,

motorcycle, bicycle or pedestrian

cuts in front of the vehicle or runs

out from the side of the vehicle

• The vehicle is approaching a tall

or curved curb.

• On an extremely bumpy road, on

an incline, on gravel, or on grass.

• The objects draw too close to the

sensor.

●

Other sonic waves sources

• When vehicle horns, vehicle

detectors, motorcycle engines, air

brakes of large vehicles, the clear-

ance sonar of other vehicles or

other devices which produce ultra-

sonic waves are near the vehicle

• If a sticker or an electronic compo-

nent, such as a backlit license

plate (especially fluorescent type),

fog lights, fender pole or wireless

antenna is installed near a sensor

●

Changes in the vehicle

• If the vehicle is significantly tilted

• If the front of the vehicle is raised

or lowered due to the carried load

• If the orientation of a sensor has

been changed due to a collision or

other impact

• When equipment that may

obstruct a sensor is installed, such

as a towing eyelet, bumper pro-

tector (an additional trim strip,

etc.), bicycle carrier, or snow plow

• If the suspension has been modi-

fied or tires of a size other than

specified are installed

• If paint or a sticker is applied to

the sensor

293

4-5. Using the driving support systems

4

Dr

iv

ing

*

: If equipped

This function will operate in situ-
ations such as the following if a
vehicle is detected in the travel-
ing direction of the vehicle.

■

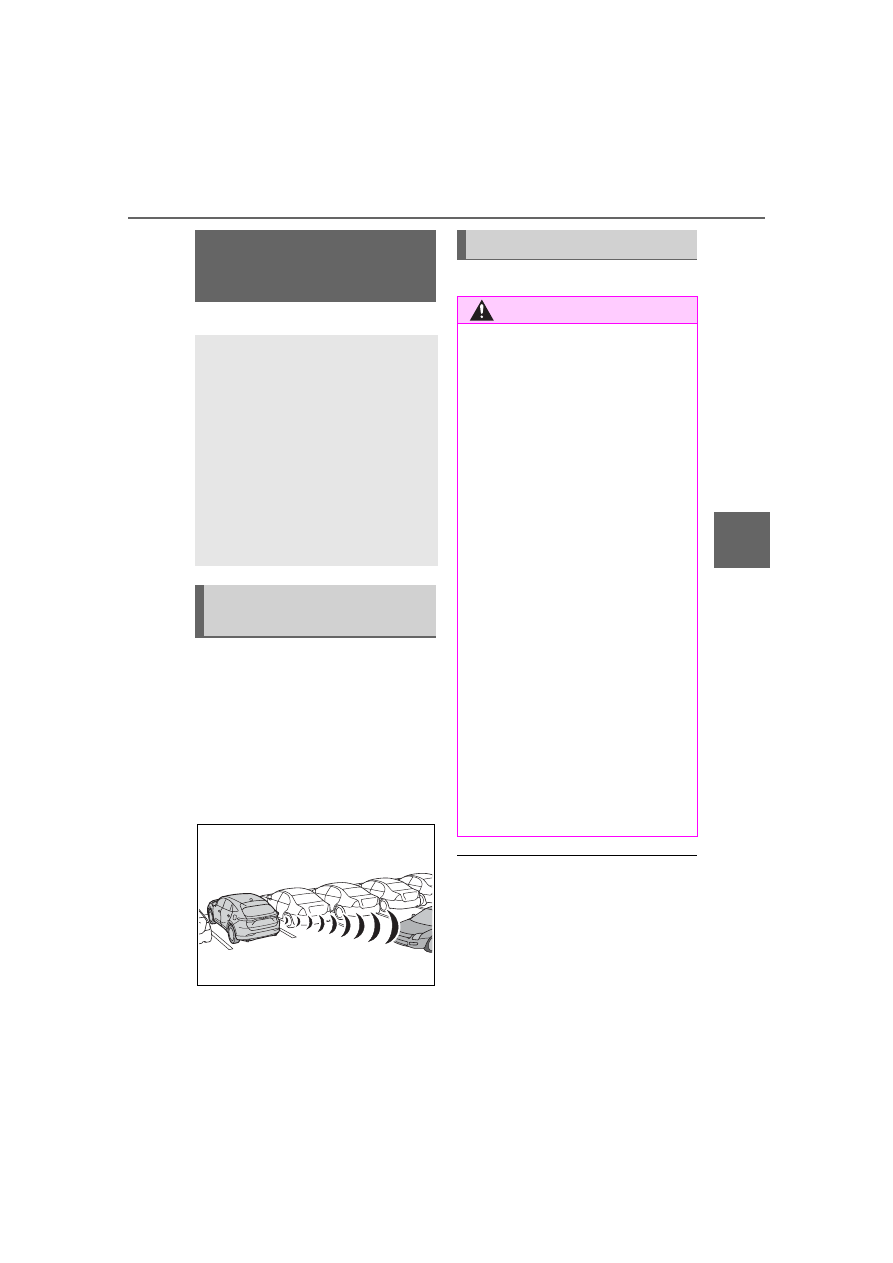

When reversing, a vehicle is
approaching and the brake
pedal is not depressed, or
is depressed late



P.270

■

The Parking Support Brake

function (rear-crossing vehi-

cles) will operate when

The function will operate when the

PKSB OFF indicator is not illumi-

nated (



P.83, 85) and all of the fol-

lowing conditions are met:

●

Hybrid system output restriction

control

• The Parking Support Brake is

enabled.

Parking Support Brake

function (rear-crossing

vehicles)

*

If a rear radar sensor
detects a vehicle approach-
ing from the right or left at
the rear of the vehicle and
the system determines that
the possibility of a collision
is high, this function will
perform brake control to
reduce the likelihood of an
impact with the approach-
ing vehicle.

Examples of function
operation

Types of sensors

WARNING

■

To ensure the Parking Sup-

port Brake (rear-crossing

vehicles) can operate prop-

erly

Observe the following precautions

regarding the rear radar sensors

(



P.270). Failure to do so may

cause a sensor to not operate

properly, and may cause an acci-

dent.

●

Do not modify, disassemble or

paint the sensors.

●

Do not replace a rear radar sen-

sor with a part other than a gen-

uine part.

●

Do not damage the rear radar

sensors, and always keep the

radar sensors and their sur-

rounding area on the bumper

clean.

●

If the area around a rear radar

sensor is subjected to an

impact, the system may not

operate properly due to a sen-

sor malfunction. Have the vehi-

cle inspected by your Toyota

dealer.

●

Observe the rear radar sensor

handling precautions. (



P.270)

294

4-5. Using the driving support systems

• The vehicle speed is approxi-

mately 9 mph (15 km/h) or less.

• Vehicles are approaching from the

right or left at the rear of the vehi-

cle at a traveling speed of less

than approximately 5 mph (8

km/h)

• The shift lever is in R.

• The Parking Support Brake deter-

mines that a stronger than normal

brake operation is necessary to

avoid a collision with an approach-

ing vehicle.

●

Brake control

• Hybrid system output restriction

control is operating

• The Parking Support Brake deter-

mines that an emergency brake

operation is necessary to avoid a

collision with an approaching vehi-

cle.

■

The Parking Support Brake

function (rear-crossing vehi-

cles) will stop operating when

The function will stop operating if

any of the following conditions are

met:

●

Hybrid system output restriction

control

• The Parking Support Brake is dis-

abled.

• The collision becomes avoidable

with normal brake operation.

• A vehicle is no longer approaching

from the right or left at the rear of

the vehicle.

●

Brake control

• The Parking Support Brake is dis-

abled.

• Approximately 2 seconds have

elapsed since the vehicle was

stopped by brake control.

• The brake pedal is depressed

after the vehicle is stopped by

brake control.

• A vehicle is no longer approaching

from the right or left at the rear of

the vehicle.

■

Detection area of the Parking

Support Brake function (rear-

crossing vehicles)

The detection area of the Parking

Support Brake function (rear-cross-

ing vehicles) differs from the detec-

tion area of the RCTA function

(



P.274). Therefore, even if the

RCTA function detects a vehicle

and provides an alert, the Parking

Support Brake function (rear-cross-

ing vehicles) may not start operat-

ing.

■

Conditions under which the

Parking Support Brake func-

tion (rear-crossing vehicles)

will not detect a vehicle

The Parking Support Brake function

(rear-crossing vehicles) is not

designed to detect the following

types of vehicles and/or objects:

●

Vehicles approaching from

directly behind

●

Vehicles backing up in a parking

space next to your vehicle

●

Vehicles that the sensors cannot

detect due to obstructions

●

Vehicles which suddenly acceler-

ate or decelerate near your vehi-

cle

●

Guardrails, walls, signs, parked

vehicles and similar stationary
objects

*

●

Small motorcycles, bicycles,
pedestrians, etc.

*

●

Vehicles moving away from your

vehicle

●

Vehicles approaching from the

parking spaces next to your vehi-

295

4-5. Using the driving support systems

4

Dr

iv

ing

cle

*

●

Objects which are extremely close
to a radar sensor

*

●

Vehicles which are approaching

from the right or left at the rear of

the vehicle at a traveling speed of

less than approximately 5 mph (8

km/h)

●

Vehicles which are approaching

from the right or left at the rear of

the vehicle at a traveling speed of

more than approximately 15 mph

(24 km/h)

*

: Depending on the conditions,

detection of a vehicle and/or
object may occur.

■

Situations in which the system

may operate even though there

is no possibility of a collision

In some situations such as the fol-

lowing, the Parking Support Brake

function (rear-crossing vehicles)

may operate even though there is

no possibility of a collision.

●

When the parking space faces a

street and vehicles are being

driven on the street

●

When a detected vehicle turns

while approaching the vehicle

●

When a vehicle passes by the

side of your vehicle

●

When the distance between your

vehicle and metal objects, such as

a guardrail, wall, sign, or parked

vehicle, which may reflect electri-

cal waves toward the rear of the

vehicle, is short

●

When there are spinning objects

near your vehicle such as the fan

of an air conditioning unit

●

When water is splashed or

sprayed toward the rear bumper,

such as from a sprinkler

■

Situations in which the Parking

Support Brake function (rear-

crossing vehicles) may not

operate properly

In some situations, such as the fol-

lowing, the radar sensors may not

detect an object and this function

may not operate properly

●

Stationary objects

●

When a sensor or the area around

a sensor is extremely hot or cold

●

If the rear bumper is covered with

ice, snow, dirt, etc.

●

When it is raining heavily or water

strikes the vehicle

●

When the detection area of a

radar sensor is obstructed by an

adjacent vehicle

●

If the vehicle is significantly tilted

296

4-5. Using the driving support systems

●

When equipment that may

obstruct a sensor is installed, such

as a towing eyelet, bumper pro-

tector (an additional trim strip,

etc.), bicycle carrier, or snow plow

●

If the suspension has been modi-

fied or tires of a size other than

specified are installed

●

If the front of the vehicle is raised

or lowered due to the carried load

●

If a sticker or an electronic compo-

nent, such as a backlit license

plate (especially fluorescent type),

fog lights, fender pole or wireless

antenna is installed near a radar

sensor

●

If the orientation of a radar sensor

has been changed

●

When multiple vehicles are

approaching with only a small gap

between each vehicle

●

If a vehicle is approaching the rear

of your vehicle rapidly

●

Situations in which the radar sen-

sor may not detect a vehicle

• When a vehicle approaches from

the right or left at the rear of the

vehicle while you are turning while

backing up

• When turning while backing up

• When backing out of a shallow

angle parking spot

• When backing up on a slope with

a sharp change in grade

• When a vehicle turns into the

detection area

297

4-5. Using the driving support systems

4

Dr

iv

ing

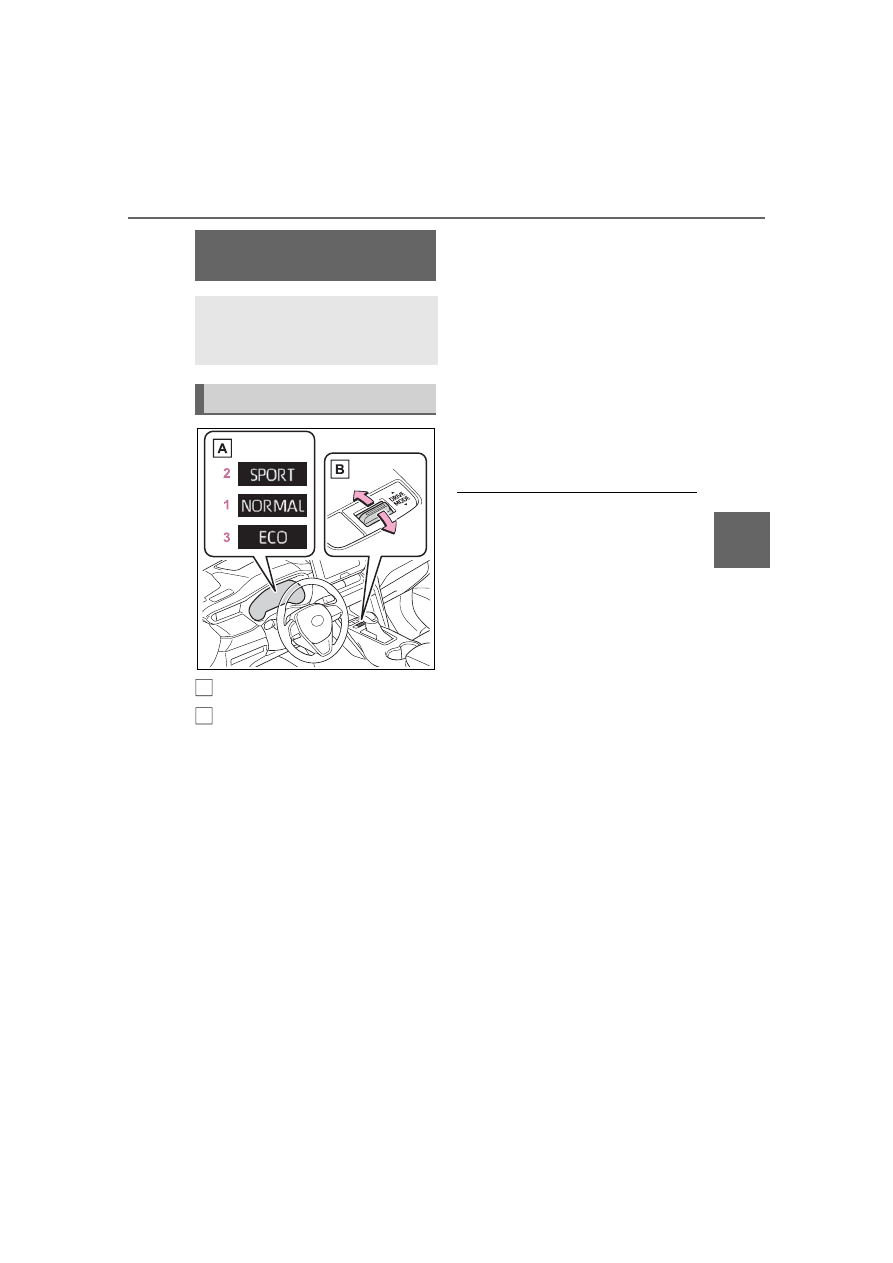

Multi-information display

Driving mode select switch

Operate the driving mode select
switch forward or backward to
select the desired driving mode on
the multi-information display.

1

Normal mode

Provides an optimal balance of fuel
economy, quietness, and dynamic
performance. Suitable for normal
driving.

2

Sport mode

Controls the hybrid system to pro-
vide quick, powerful acceleration.
This mode also changes the steer-
ing feel, making it suitable for when
agile driving response is desired,
such as when driving on roads with

many curves.
When Sport mode is selected,
Sport mode indicator comes on.

3

Eco drive mode

Helps the driver accelerate in an
eco-friendly manner and improve
fuel economy through moderate
throttle characteristics and by con-
trolling the operation of the air con-
ditioning system (heating/cooling).
When Eco drive mode is selected,
Eco drive mode indicator comes
on.

■

When changing to a driving

mode other than normal mode

(vehicles with 7-inch display)

The background color of the multi-

information display changes accord-

ing to the selected driving mode.

■

Operation of the air condition-

ing system in Eco drive mode

Eco drive mode controls the heat-

ing/cooling operations and fan

speed of the air conditioning system

to enhance fuel efficiency. To

improve air conditioning perfor-

mance, perform the following opera-

tions:

●

Turn off air conditioning eco mode

(



P.315, 323)

●

Adjust the fan speed (



P.315,

322)

●

Turn off Eco drive mode

■

Automatic deactivation of a

driving mode

●

Sport mode is automatically deac-

tivated and the driving mode

returns to normal mode when the

power switch is turned to OFF.

●

Normal mode and Eco drive mode

are not deactivated until another

driving mode is selected. (Even if

the power switch is turned to OFF,

normal mode and Eco drive mode

will not be automatically deacti-

Driving mode select

switch

The driving modes can be
selected to suit the driving
and usage conditions.

Selecting a driving mode

A

B

298

4-5. Using the driving support systems

vated.)

■

ECB (Electronically Con-
trolled Brake System)

The electronically controlled
system generates braking force
corresponding to the brake
operation

■

ABS (Anti-lock Brake Sys-
tem)

Helps to prevent wheel lock
when the brakes are applied
suddenly, or if the brakes are
applied while driving on a slip-
pery road surface

■

Brake assist

Generates an increased level of
braking force after the brake
pedal is depressed when the
system detects a panic stop sit-
uation

Driving assist systems

To keep driving safety and
performance, the following
systems operate automati-
cally in response to various
driving situations. Be
aware, however, that these
systems are supplementary
and should not be relied
upon too heavily when oper-
ating the vehicle.

Summary of the driving
assist systems

299

4-5. Using the driving support systems

4

Dr

iv

ing

■

VSC (Vehicle Stability Con-
trol)

Helps the driver to control skid-
ding when swerving suddenly or
turning on slippery road sur-
faces.

■

Enhanced VSC (Enhanced
Vehicle Stability Control)

Provides cooperative control of
the ABS, TRAC, VSC and EPS.
Helps to maintain directional
stability when swerving on slip-
pery road surfaces by con-
trolling steering performance.

■

TRAC (Traction Control)

Helps to maintain drive power
and prevent the drive wheels
from spinning when starting the
vehicle or accelerating on slip-
pery roads

■

Active Cornering Assist
(ACA)

Helps to prevent the vehicle
from drifting to the outer side by
performing inner wheel brake
control when attempting to
accelerate while turning

■

Hill-start assist control

Helps to reduce the backward
movement of the vehicle when
starting on an uphill

■

EPS (Electric Power Steer-
ing)

Employs an electric motor to
reduce the amount of effort
needed to turn the steering

wheel

■

E-Four (Electronic On-
Demand AWD system)

Automatically switches from
front wheel drive to all-wheel
drive (AWD) according to the
driving conditions, helping to
ensure reliable handling and
stability. Examples of condi-
tions where the system will
switch to AWD are when corner-
ing, going uphill, starting off or
accelerating, and when the road
surface is slippery due to snow,
rain, etc.

■

The Secondary Collision
Brake

When the SRS airbag sensor
detects a collision and the sys-
tem operates, the brakes and
brake lights are automatically
controlled to reduce the vehicle
speed and help reduce the pos-
sibility of further damage due to
a secondary collision.

■

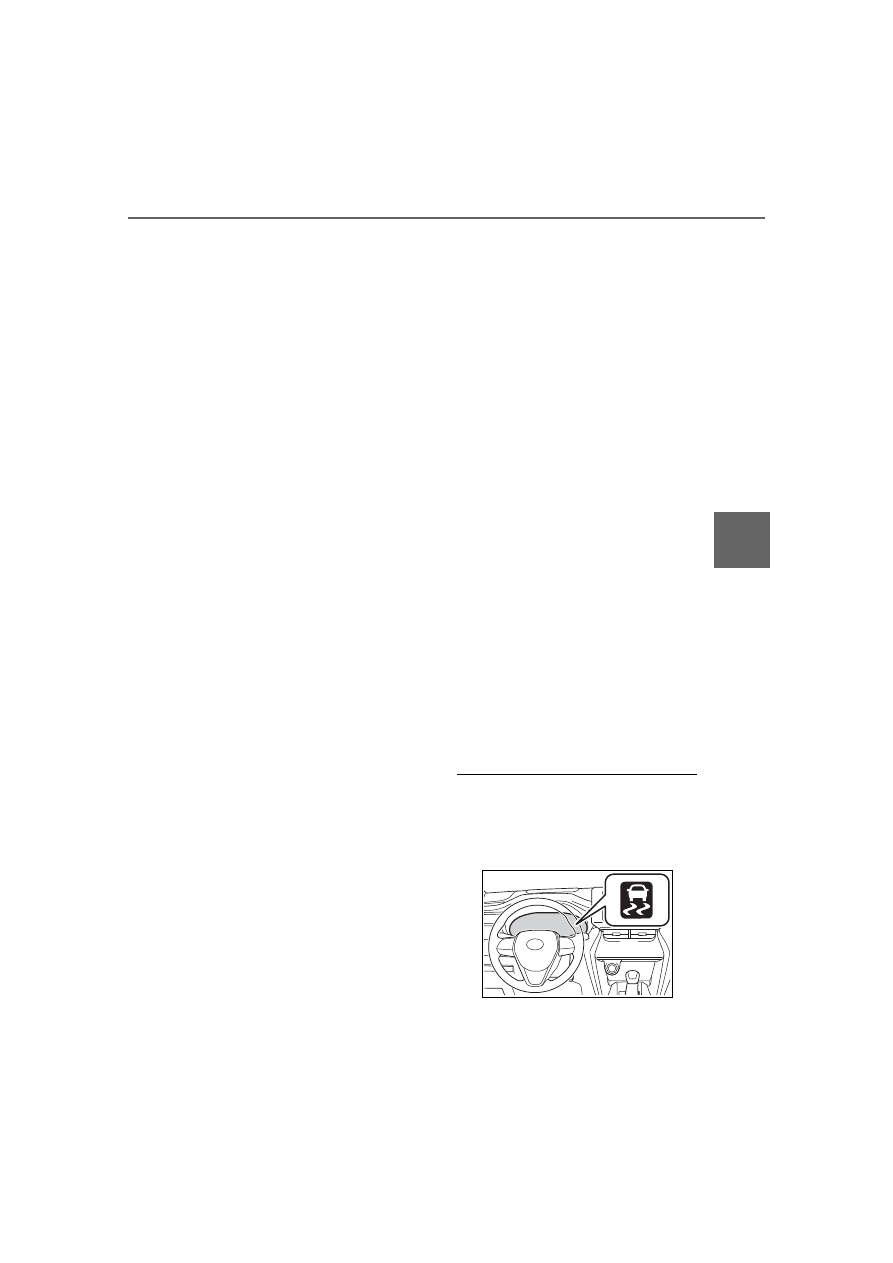

When the TRAC/VSC/ABS sys-

tems are operating

The slip indicator light will flash

while the TRAC/VSC/ABS systems

are operating.

■

Disabling the TRAC system

If the vehicle gets stuck in mud, dirt

300

4-5. Using the driving support systems

or snow, the TRAC system may

reduce power from the hybrid sys-

tem to the wheels.

Pressing

 to turn the system off

may make it easier for you to rock

the vehicle in order to free it.

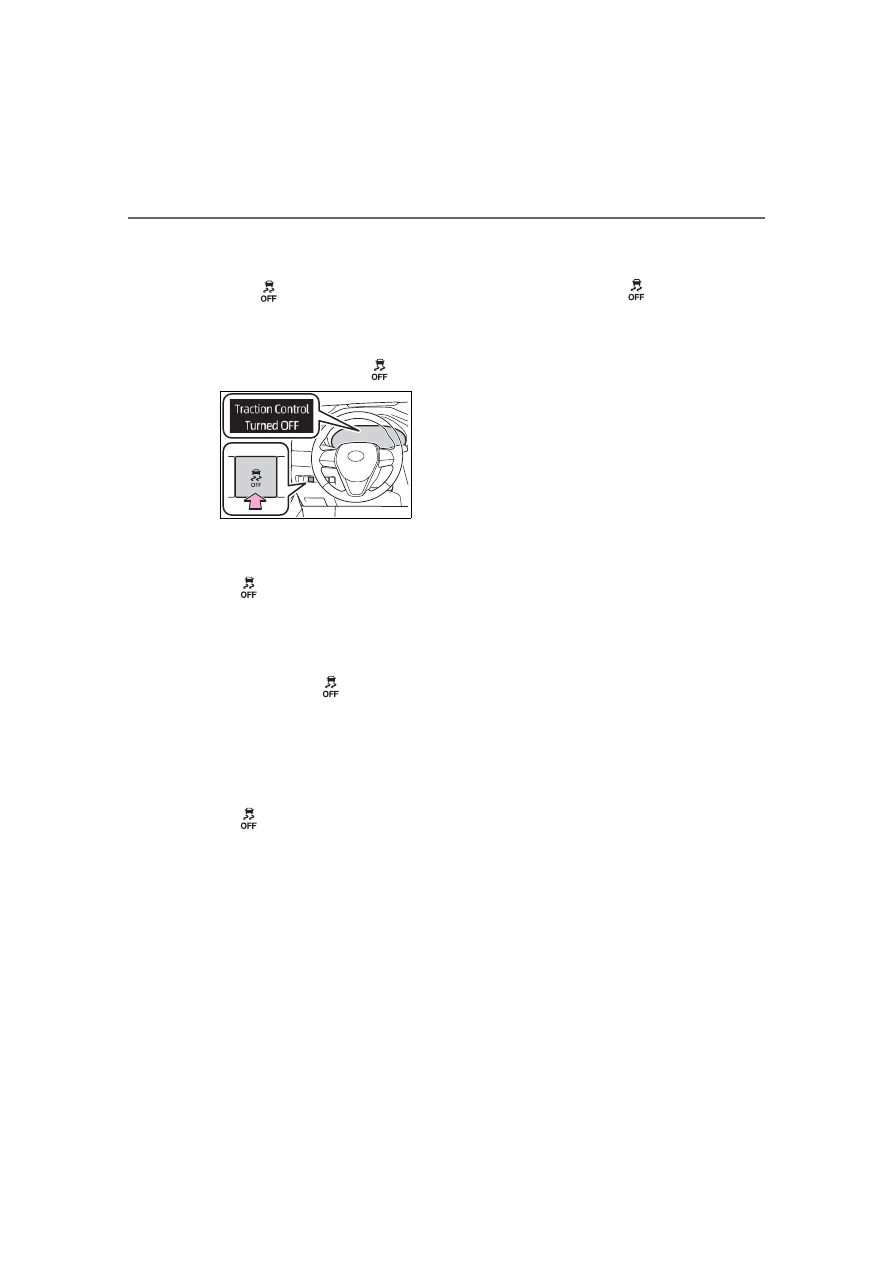

To turn the TRAC system off,
quickly press and release

.

“Traction Control Turned OFF” will

be shown on the multi-information

display.

Press

 again to turn the system

back on.

■

Turning off both TRAC and VSC

systems

To turn the TRAC and VSC systems
off, press and hold

 for more than

3 seconds while the vehicle is

stopped.
The VSC OFF indicator light will

come on and the “Traction Control

Turned OFF” will be shown on the
multi-information display.

*

Press

 again to turn the systems

back on.

*

: PCS will also be disabled (only

Pre-Collision warning is avail-
able). The PCS warning light will
come on and a message will be
displayed on the multi-information
display. (



P.242)

■

When the message is dis-

played on the multi-information

display showing that TRAC has
been disabled even if

 has

not been pressed

TRAC is temporary deactivated. If

the information continues to show,

contact your Toyota dealer.

■

Operating conditions of hill-

start assist control

When the following four conditions

are met, the hill-start assist control

will operate:

●

The shift lever is in a position

other than P or N (when starting

off forward/backward on an

upward incline).

●

The vehicle is stopped.

●

The accelerator pedal is not

depressed.

●

The parking brake is not engaged.

■

Automatic system cancelation

of hill-start assist control

The hill-start assist control will turn

off in any of the following situations:

●

The shift lever is shifted to P or N.

●

The accelerator pedal is

depressed.

●

The parking brake is engaged.

●

2 seconds at maximum elapsed

after the brake pedal is released.

■

Sounds and vibrations caused

by the ABS, brake assist, VSC,

TRAC and hill-start assist con-

trol systems

Any of the following conditions may

occur when the above systems are

operating. None of these indicates

that a malfunction has occurred.
• Vibrations may be felt through the

vehicle body and steering.

• A motor sound may be heard also

after the vehicle comes to a stop.

■

ECB operating sound

ECB operating sound may be heard

301

4-5. Using the driving support systems

4

Dr

iv

ing

in the following cases, but it does

not indicate that a malfunction has

occurred.

●

Operating sound heard from the

engine compartment when the

brake pedal is depressed repeat-

edly, when the hybrid system is

started or just after the vehicle

begins to move.

●

Operating sound heard from the

engine compartment when the

brake pedal is operated.

●

Motor sound of the brake system

heard from the front part of the

vehicle when the driver’s door is

opened.

●

Operating sound heard from the

engine compartment when one or

two minutes passed after the stop

of the hybrid system.

■

Active Cornering Assist opera-

tion sounds and vibrations

When the Active Cornering Assist is

operated, operation sounds and

vibrations may be generated from

the brake system, but this is not a

malfunction.

■

EPS operation sound

When the steering wheel is oper-

ated, a motor sound (whirring

sound) may be heard. This does not

indicate a malfunction.

■

Automatic reactivation of TRAC

and VSC systems

After turning the TRAC and VSC

systems off, the systems will be

automatically re-enabled in the fol-

lowing situations:

●

When the power switch is turned

off.

●

If only the TRAC system is turned

off, the TRAC will turn on when

vehicle speed increases.

If both the TRAC and VSC sys-

tems are turned off, automatic re-

enabling will not occur when vehi-

cle speed increases.

■

Operating conditions of Active

Cornering Assist

The system operates when the fol-

lowing occurs.

●

TRAC/VSC can operate

●

The driver is attempting to accel-

erate while turning

●

The system detects that the vehi-

cle is drifting to the outer side

●

The brake pedal is released

■

Reduced effectiveness of the

EPS system

The effectiveness of the EPS sys-

tem is reduced to prevent the sys-

tem from overheating when there is

frequent steering input over an

extended period of time. The steer-

ing wheel may feel heavy as a

result. Should this occur, refrain

from excessive steering input or

stop the vehicle and turn the hybrid

system off. The EPS system should

return to normal within 10 minutes.

■

Secondary Collision Brake

operating conditions

The system operates when the SRS

airbag sensor detects a collision

while the vehicle is in motion. How-

ever, the system does not operate in

any of the following situations.

●

The vehicle speed is below 6 mph

(10 km/h)

●

Components are damaged

■

Secondary Collision Brake

automatic cancellation

The system is automatically can-

celed in any of the following situa-

tions.

●

The vehicle speed drops below

approximately 6 mph (10 km/h)

●

A certain amount of time elapses

during operation

●

The accelerator pedal is

depressed a large amount

302

4-5. Using the driving support systems

■

If a message about AWD is shown on the multi-information display

Perform the following actions.

Message

Details/Actions

“AWD System Over-

heated

Switching to 2WD

Mode”

AWD system is overheating.



Stop the vehicle in a safe place and let the
engine idle.

Once the display message on the multi-informa-
tion display turns off, there is no problem continu-
ing to drive.
If the message does not disappear, have your
vehicle checked by your Toyota dealer immedi-
ately.

“AWD System Over-

heated

2WD Mode Engaged”

The vehicle switched from all-wheel drive (AWD)
to front wheel drive due to overheating.



Stop the vehicle in a safe place and let the
engine idle.

Once the display message on the multi-informa-
tion display turns off, the AWD system returns to
normal.
If the message does not disappear, have your
vehicle checked by your Toyota dealer immedi-
ately.

“AWD System Malfunc-

tion

2WD Mode Engaged

Visit Your Dealer”

A malfunction occurred in the AWD system.



Have your vehicle checked by your Toyota
dealer immediately.

WARNING

■

The ABS does not operate

effectively when

●

The limits of tire gripping perfor-

mance have been exceeded

(such as excessively worn tires

on a snow covered road).

●

The vehicle hydroplanes while

driving at high speed on wet or

slick roads.

■

Stopping distance when the

ABS is operating may exceed

that of normal conditions

The ABS is not designed to

shorten the vehicle’s stopping dis-

tance. Always maintain a safe dis-

tance from the vehicle in front of

you, especially in the following sit-

uations:

●

When driving on dirt, gravel or

snow-covered roads

●

When driving with tire chains

303

4-5. Using the driving support systems

4

Dr

iv

ing

WARNING

●

When driving over bumps in the

road

●

When driving over roads with

potholes or uneven surfaces

■

TRAC/VSC may not operate

effectively when

Directional control and power may

not be achievable while driving on

slippery road surfaces, even if the

TRAC/VSC system is operating.

Drive the vehicle carefully in con-

ditions where stability and power

may be lost.

■

Active Cornering Assist does

not operate effectively when

●

Do not overly rely on Active

Cornering Assist. Active Corner-

ing Assist may not operate

effectively when accelerating

down slopes or driving on slip-

pery road surfaces.

●

When Active Cornering Assist

frequently operates, Active Cor-

nering Assist may temporarily

stop operating to ensure proper

operation of the brakes, TRAC

and VSC.

■

Hill-start assist control does

not operate effectively when

●

Do not overly rely on hill-start

assist control. Hill-start assist

control may not operate effec-

tively on steep inclines and

roads covered with ice.

●

Unlike the parking brake, hill-

start assist control is not

intended to hold the vehicle sta-

tionary for an extended period

of time. Do not attempt to use

hill-start assist control to hold

the vehicle on an incline, as

doing so may lead to an acci-

dent.

■

When the TRAC/ABS/VSC is

activated

The slip indicator light flashes.

Always drive carefully. Reckless

driving may cause an accident.

Exercise particular care when the

indicator light flashes.

■

When the TRAC/VSC systems

are turned off

Be especially careful and drive at

a speed appropriate to the road

conditions. As these are the sys-

tems to help ensure vehicle stabil-

ity and driving force, do not turn

the TRAC/VSC systems off

unless necessary.

■

Replacing tires

Make sure that all tires are of the

specified size, brand, tread pat-

tern and total load capacity. In

addition, make sure that the tires

are inflated to the recommended

tire inflation pressure level.

The ABS, TRAC and VSC sys-

tems will not function correctly if

different tires are installed on the

vehicle.

Contact your Toyota dealer for

further information when replacing

tires or wheels.

■

Handling of tires and the sus-

pension

Using tires with any kind of prob-

lem or modifying the suspension

will affect the driving assist sys-

tems, and may cause a system to

malfunction.

■

Secondary Collision Brake

Do not rely solely upon the Sec-

ondary Collision Brake. This sys-

tem is designed to help reduce

the possibility of further damage

due to a secondary collision, how-

ever, that effect changes accord-

ing to various conditions. Overly

relying on the system may result

in death or serious injury.

304

4-6. Driving tips

4-6.Driving tips

When using Eco drive mode, the
torque corresponding to the
accelerator pedal depression
amount can be generated more
smoothly than it is in normal
conditions. In addition, the oper-
ation of the air conditioning sys-
tem (heating/cooling) will be
minimized, improving the fuel
economy. (



P.297)

The Eco-friendly driving is pos-
sible by keeping the indicate of
Hybrid System Indicator within
Eco area. (



P.88, 92)

Shift the shift lever to D when
stopped at a traffic light, or driv-
ing in heavy traffic etc. Shift the
shift lever to P when parking.
When using the N, there is no
positive effect on fuel consump-
tion. In the N, the gasoline
engine operates but electricity
cannot be generated. Also,
when using the air conditioning

system, etc., the hybrid battery
(traction battery) power is con-
sumed.



Drive your vehicle smoothly.
Avoid abrupt acceleration and
deceleration. Gradual accel-
eration and deceleration will
make more effective use of
the electric motor (traction
motor) without having to use
gasoline engine power.



Avoid repeated acceleration.
Repeated acceleration con-
sumes hybrid battery (trac-
tion battery) power, resulting
in poor fuel consumption. Bat-
tery power can be restored by
driving with the accelerator
pedal slightly released.

Make sure to operate the brakes
gently and in a timely manner. A
greater amount of electrical
energy can be regenerated
when slowing down.

Repeated acceleration and
deceleration, as well as long
waits at traffic lights, will lead to
bad fuel economy. Check traffic
reports before leaving and avoid
delays as much as possible.

Hybrid vehicle driving

tips

For economical and ecolog-
ical driving, pay attention to
the following points:

Using Eco drive mode

Use of Hybrid System
Indicator

Shift lever operation

Accelerator pedal/brake
pedal operation

When braking

Delays

305

4-6. Driving tips

4

Dr

iv

ing

When driving in a traffic jam,
gently release the brake pedal
to allow the vehicle to move for-
ward slightly while avoiding
overuse of the accelerator
pedal. Doing so can help control
excessive gasoline consump-
tion.

Control and maintain the vehicle
at a constant speed. Before
stopping at a toll booth or simi-
lar, allow plenty of time to
release the accelerator and gen-
tly apply the brakes. A greater
amount of electrical energy can
be regenerated when slowing
down.

Use the air conditioning only
when necessary. Doing so can
help reduce excessive gasoline
consumption.
In summer: When the ambient
temperature is high, use the
recirculated air mode. Doing so
will help to reduce the burden on
the air conditioning system and
reduce fuel consumption as
well.
In winter: Because the gasoline
engine will not automatically cut
out until it and the interior of the
vehicle are warm, it will con-
sume fuel. Also, fuel consump-
tion can be improved by

avoiding overuse of the heater.

Make sure to check the tire infla-
tion pressure frequently.
Improper tire inflation pressure
can cause poor fuel economy.
Also, as snow tires can cause
large amounts of friction, their
use on dry roads can lead to
poor fuel economy. Use tires
that are appropriate for the sea-
son.

Carrying heavy luggage will lead
to poor fuel economy. Avoid car-
rying unnecessary luggage.
Installing a large roof rack will
also cause poor fuel economy.

Since the gasoline engine starts
up and cuts out automatically
when cold, warming up the
engine is unnecessary. More-
over, frequently driving short
distances will cause the engine
to repeatedly warm up, which
can lead to excess fuel con-
sumption.

Highway driving

Air conditioning

Checking tire inflation
pressure

Luggage

Warming up before driv-
ing

306

4-6. Driving tips



Use fluids that are appropriate
to the prevailing outside tem-
peratures.

• Engine oil
• Engine coolant
• Power control unit coolant
• Washer fluid



Have a service technician
inspect the condition of the
12-volt battery.



Have the vehicle fitted with
four snow tires or purchase a
set of tire chains for the front
tires.

*

Ensure that all tires are the same
size and brand, and that chains
match the size of the tires.

*

: Tire chains cannot be mounted

on vehicles with 225/55R19 tires.

Winter driving tips

Carry out the necessary
preparations and inspec-
tions before driving the
vehicle in winter. Always
drive the vehicle in a man-
ner appropriate to the pre-
vailing weather conditions.

Preparation for winter

WARNING

■

Driving with snow tires

Observe the following precautions

to reduce the risk of accidents.

Failure to do so may result in a

loss of vehicle control and cause

death or serious injury.

●

Use tires of the specified size.

●

Maintain the recommended

level of air pressure.

●

Do not drive in excess of 75

mph (120 km/h), regardless of

the type of snow tires being

used.

●

Use snow tires on all, not just

some wheels.

■

Driving with tire chains

(except 225/55R19 tires)

Observe the following precautions

to reduce the risk of accidents.

Failure to do so may result in the

vehicle being unable to be driven

safely, and may cause death or

serious injury.

●

Do not drive in excess of the

speed limit specified for the tire

chains being used, or 30 mph

(50 km/h), whichever is lower.

●

Avoid driving on bumpy road

surfaces or over potholes.

●

Avoid sudden acceleration,

abrupt steering, sudden brak-

ing and shifting operations that

cause sudden engine braking.

●

Slow down sufficiently before

entering a curve to ensure that

vehicle control is maintained.

●

Do not use LTA (Lane Tracing

Assist) system.

NOTICE

■

Repairing or replacing snow

tires

Request repairs or replacement of

snow tires from your Toyota

dealer or legitimate tire retailers.

This is because the removal and

attachment of snow tires affects

the operation of the tire pressure

warning valves and transmitters.

307

4-6. Driving tips

4

Dr

iv

ing

Perform the following according
to the driving conditions:



Do not try to forcibly open a
window or move a wiper that
is frozen. Pour warm water
over the frozen area to melt
the ice. Wipe away the water
immediately to prevent it from
freezing.



To ensure proper operation of
the climate control system
fan, remove any snow that
has accumulated on the air
inlet vents in front of the wind-
shield.



Check for and remove any
excess ice or snow that may
have accumulated on the
exterior lights, vehicle’s roof,
chassis, around the tires or on
the brakes.



Remove any snow or mud
from the bottom of your shoes
before getting in the vehicle.

Accelerate the vehicle slowly,
keep a safe distance between
you and the vehicle ahead, and
drive at a reduced speed suit-
able to road conditions.



Park the vehicle and move
the shift lever to P without set-

ting the parking brake. The
parking brake may freeze up,
preventing it from being
released. If the vehicle is
parked without setting the
parking brake, make sure to
block the wheels.
Failure to do so may be dan-
gerous because it may cause
the vehicle to move unexpect-
edly, possibly leading to an
accident.

When the parking brake is in auto-
matic mode, release the parking
brake after shifting the shift lever to
P. (



P.208)



If the vehicle is left parked
with the brakes damp in cold
temperatures, there is a pos-
sibility of the brakes freezing.



If the vehicle is parked without
setting the parking brake,
confirm that the shift lever
cannot be moved out of P

*

.

*

: The shift lever will be locked if it is

attempted to be shifted from P to
any other position without
depressing the brake pedal. If the
shift lever can be shifted from P,
there may be a problem with the
shift lock system. Have the vehi-
cle inspected by your Toyota
dealer immediately.

Before driving the vehicle

When driving the vehicle

When parking the vehicle

308

4-6. Driving tips



Vehicles without 225/55R19
tires

Use the correct tire chain size
when mounting the tire chains.
Chain size is regulated for each
tire size.

Side chain:

0.12 in. (3 mm) in diameter

0.39 in. (10 mm) in width

1.18 in. (30 mm) in length

Cross chain:

0.16 in. (4 mm) in diameter

0.55 in. (14 mm) in width

0.98 in. (25 mm) in length



Vehicles with 225/55R19 tires

Tire chains cannot be mounted.
Snow tires should be used
instead.

Regulations regarding the use
of tire chains vary depending on
location and type of road.
Always check local regulations
before installing chains.

■

Tire chain installation

Observe the following precautions

when installing and removing

chains:

●

Install and remove tire chains in a

safe location.

●

Install tire chains on the front tires

only. Do not install tire chains on

the rear tires.

●

Install tire chains on front tires as

tightly as possible. Retighten

chains after driving 1/4 - 1/2 mile

(0.5 - 1.0 km).

●

Install tire chains following the

instructions provided with the tire

chains.

WARNING

■

When parking the vehicle

When parking the vehicle without

applying the parking brake, make

sure to chock the wheels. If you

do not chock the wheels, the vehi-

cle may move unexpectedly, pos-

sibly resulting in an accident.

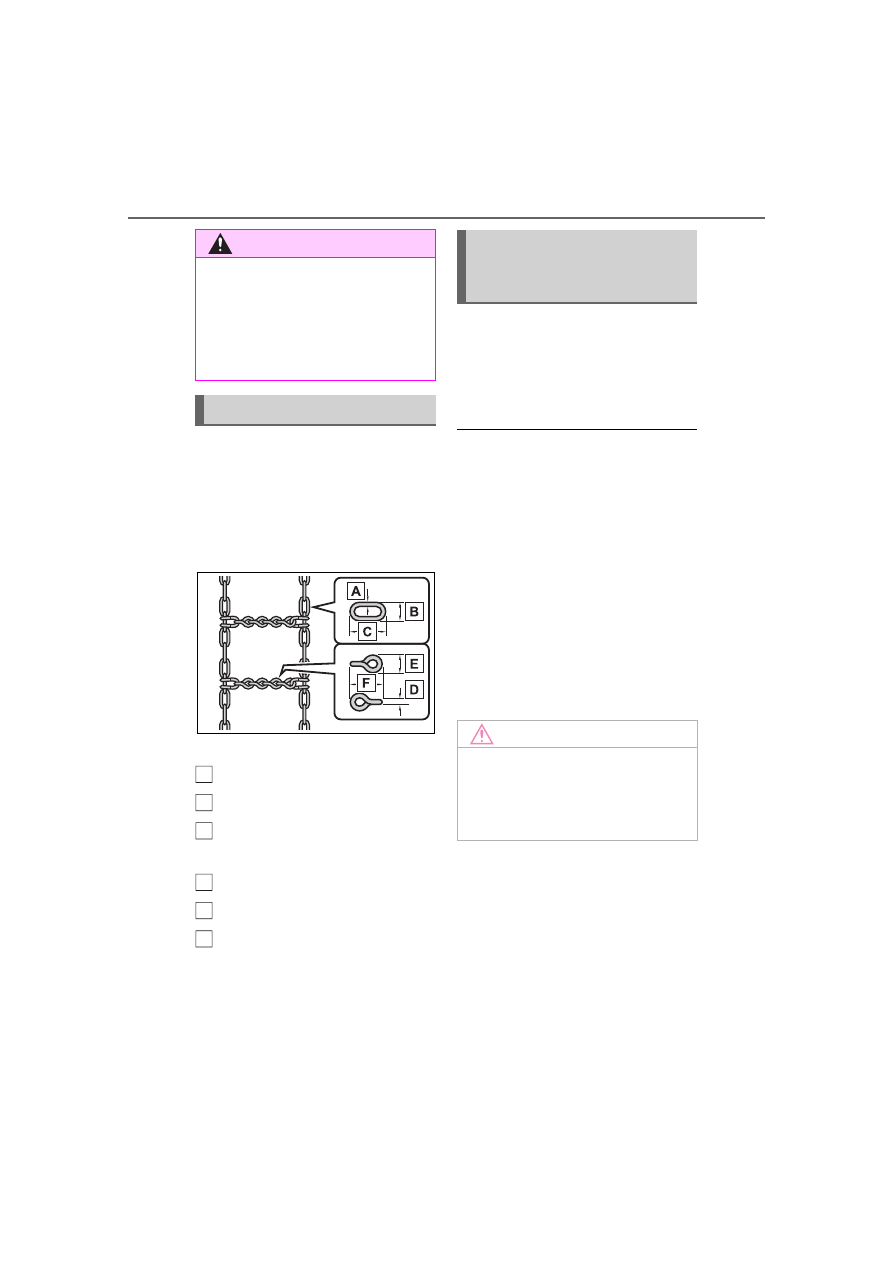

Selecting tire chains

A

B

C

D

E

F

Regulations on the use of
tire chains (except
225/55R19 tires)

NOTICE

■

Fitting tire chains

The tire pressure warning valves

and transmitters may not function

correctly when tire chains are fit-

ted.

309

4-6. Driving tips

4

Dr

iv

ing



Specific design characteris-
tics give it a higher center of
gravity than ordinary passen-
ger cars. This vehicle design
feature causes this type of
vehicle to be more likely to
rollover. Utility vehicles have
a significantly higher rollover
rate than other types of vehi-
cles.



An advantage of the higher
ground clearance is a better
view of the road allowing you
to anticipate problems.



It is not designed for corner-
ing at the same speeds as
ordinary passenger cars any
more than low-slung sports
cars designed to perform sat-
isfactorily under off-road con-
ditions. Therefore, sharp turns
at excessive speeds may
cause rollover.

Your vehicle is not designed to

Utility vehicle precau-

tions

This vehicle belongs to the
utility vehicle class, which
has higher ground clear-
ance and narrower tread in
relation to the height of its
center of gravity.

Utility vehicle feature

WARNING

■

Utility vehicle precautions

Always observe the following pre-

cautions to minimize the risk of

death or serious injury or damage

to your vehicle:

●

In a rollover crash, an unbelted

person is significantly more

likely to die than a person wear-

ing a seat belt. Therefore, the

driver and all passengers

should always fasten their seat

belts.

●

Avoid sharp turns or abrupt

maneuvers, if at all possible.

Failure to operate this vehicle

correctly may result in loss of

control or vehicle rollover caus-

ing death or serious injury.

●

Loading cargo on the roof lug-

gage carrier (if equipped) will

make the center of the vehicle

gravity higher. Avoid high

speeds, sudden starts, sharp

turns, sudden braking or abrupt

maneuvers, otherwise it may

result in loss of control or vehi-

cle rollover due to failure to

operate this vehicle correctly.

●

Always slow down in gusty

crosswinds. Because of its pro-

file and higher center of gravity,

your vehicle is more sensitive to

side winds than an ordinary

passenger car. Slowing down

will allow you to have better

control.

●

Do not drive horizontally across

steep slopes. Driving straight up

or straight down is preferred.

Your vehicle (or any similar off-

road vehicle) can tip over side-

ways much more easily than

forward or backward.

Off-road driving

310

4-6. Driving tips

be driven off-road. However, in
the event that off-road driving
cannot be avoided, please
observe the following precau-
tions to help avoid the areas
prohibited to vehicles.



Drive your vehicle only in
areas where off-road vehicles
are permitted to travel.



Respect private property. Get
owner’s permission before
entering private property.



Do not enter areas that are
closed. Honor gates, barriers
and signs that restrict travel.



Stay on established roads.
When conditions are wet,
driving techniques should be
changed or travel delayed to
prevent damage to roads.

■

Additional information for off-

road driving



For owners in U.S. mainland,

Hawaii and Puerto Rico:

To obtain additional information per-
taining to driving your vehicle off-
road, consult the following organiza-
tions.

• State and Local Parks and Recre-

ation Departments

• State Motor Vehicle Bureau

• Recreational Vehicle Clubs

• U.S. Forest Service and Bureau of

Land Management

WARNING

■

Off-road driving precautions

Always observe the following pre-

cautions to minimize the risk of

death, serious injury or damage to

your vehicle:

●

Drive carefully when off the

road. Do not take unnecessary

risks by driving in dangerous

places.

●

Do not grip the steering wheel

spokes when driving off-road. A

bad bump could jerk the wheel

and injure your hands. Keep

both hands and especially your

thumbs on the outside of the

rim.

●

Always check your brakes for

effectiveness immediately after

driving in sand, mud, water or

snow.

●

After driving through tall grass,

mud, rock, sand, rivers, etc.,

check that there is no grass,

bush, paper, rags, stone, sand,

etc. adhering or trapped on the

underbody. Clear off any such

matter from the underbody. If

the vehicle is used with these

materials trapped or adhering to

the underbody, a breakdown or

fire could occur.

311

4-6. Driving tips

4

Dr

iv

ing

WARNING

●

When driving off-road or in rug-

ged terrain, do not drive at

excessive speeds, jump, make

sharp turns, strike objects, etc.

This may cause loss of control

or vehicle rollover causing

death or serious injury. You are

also risking expensive damage

to your vehicle’s suspension

and chassis.

NOTICE

■

To prevent water damage

Take all necessary safety mea-

sures to ensure that water dam-

age to the hybrid battery (traction

battery), hybrid system or other

components does not occur.

●

Water entering the engine com-

partment may cause severe

damage to the hybrid system.

Water entering the interior may

cause the hybrid battery (trac-

tion battery) stowed under the

rear seats to short circuit.

●

Water entering the hybrid trans-

mission and rear electric motor

(traction motor) will cause dete-

rioration in transmission quality.

The malfunction indicator may

come on, and the vehicle may

not be drivable.

●

Water can wash the grease

from wheel bearings, causing

rusting and premature failure,

and may also enter the hybrid

transmission case, reducing the

gear oil’s lubricating qualities.

■

When you drive through

water

If driving through water, such as

when crossing shallow streams,

first check the depth of the water

and the bottom of the riverbed for

firmness. Drive slowly and avoid

deep water.

■

Inspection after off-road driv-

ing

●

Sand and mud that has accu-

mulated around brake discs

may affect braking efficiency

and may damage brake system

components.

●

Always perform a maintenance

inspection after each day of off-

road driving that has taken you

through rough terrain, sand,

mud, or water. For scheduled

maintenance information, refer

to the “Scheduled Maintenance

Guide” or “Owner’s Manual

Supplement”.

313

5

5

Interior

 featur

es

Interior features

5-1. Using the air conditioning

system and defogger

Automatic air conditioning

system (vehicles with 8-
inch display) ..............

314

Automatic air conditioning

system (vehicles with 12.3-
inch display) ..............

321

Heated steering wheel/seat

heaters/seat ventilators

..................................

331

5-2. Using the interior lights

Interior lights list ..........

334

5-3. Using the storage features

List of storage features

338

Luggage compartment fea-

tures ..........................

341

5-4. Using the other interior

features

Toyota multi-operation

touch (vehicle with the
12.3-inch display) ......

345

Panoramic fixed moon roof

with one-touch frosted
glass control ..............

347

Other interior features .

349

Garage door opener....

361

314

5-1. Using the air conditioning system and defogger

5-1.Using the air conditioning system and defogger

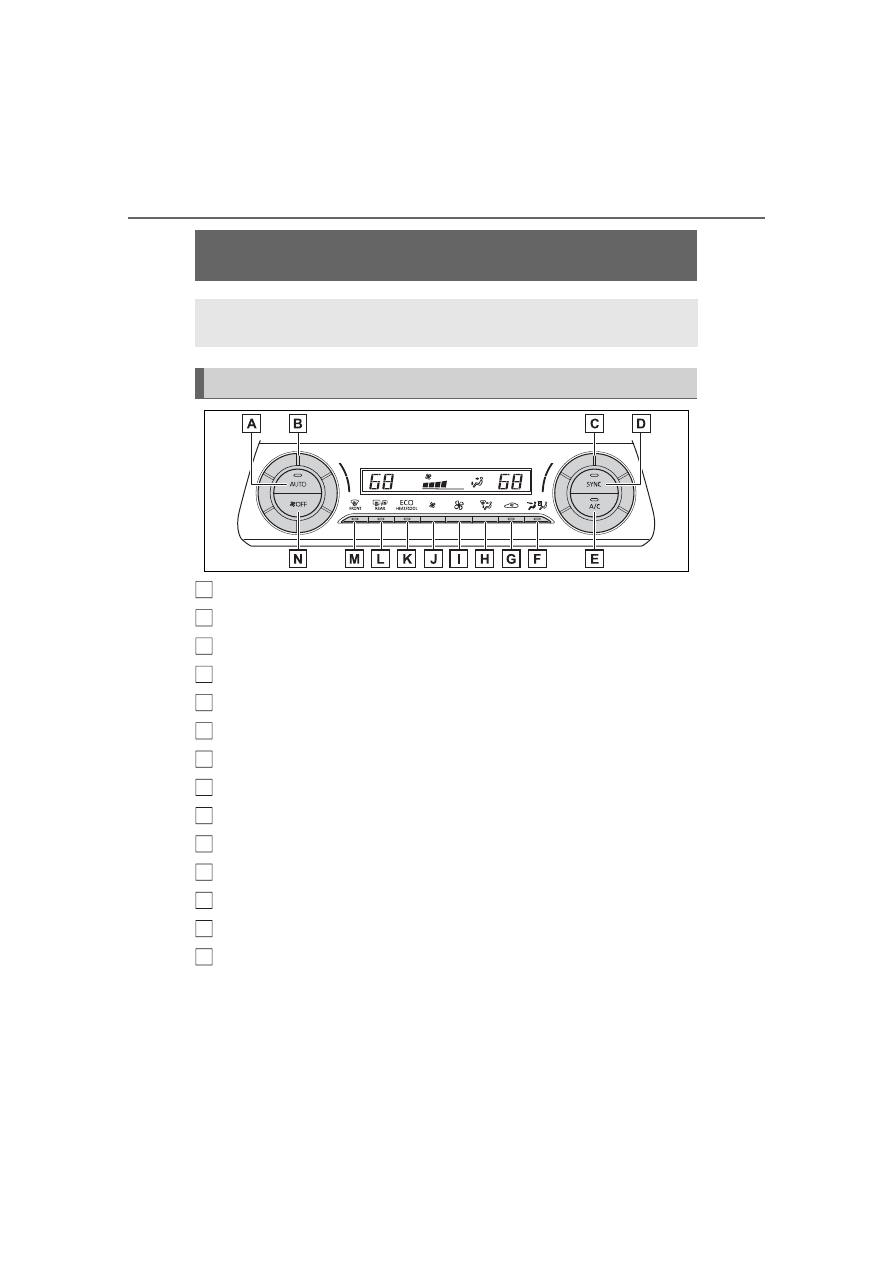

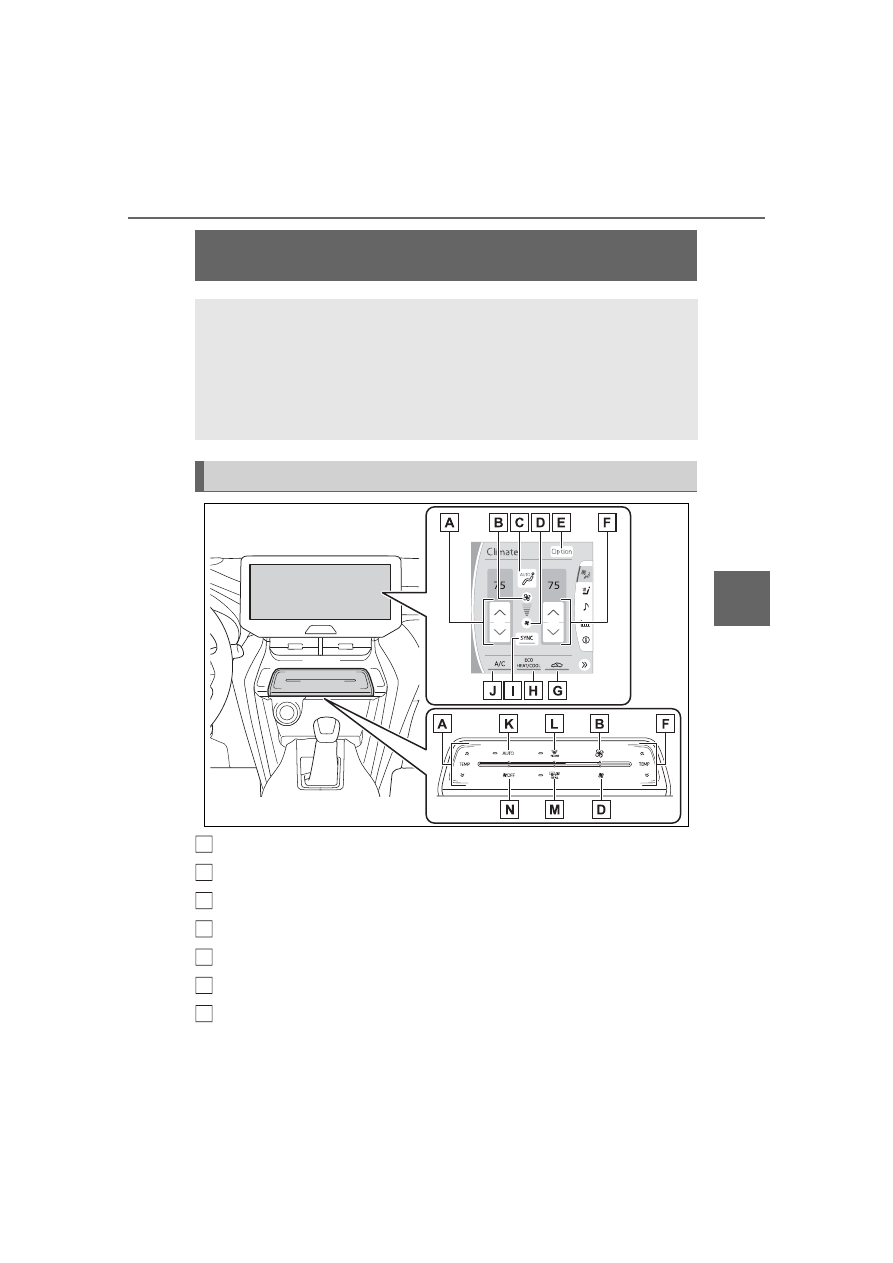

Automatic mode switch

Left-hand side temperature control knob

Right-hand side temperature control knob

“SYNC” switch

“A/C” switch

Front seat concentrated airflow mode (S-FLOW) switch

Outside/recirculated air mode switch

Airflow mode control switch

Fan speed increase switch

Fan speed decrease switch

Eco air conditioning mode switch

Rear window and outside rear view mirror defoggers switch

Windshield defogger switch

“OFF” switch

■

Adjusting the temperature
setting

Turn the temperature control

dial clockwise to increases the
temperature and counterclock-
wise to decreases the tempera-

Automatic air conditioning system (vehicles with

8-inch display)

Air outlets and fan speed are automatically adjusted accord-
ing to the temperature setting.

Air conditioning controls

A

B

C

D

E

F

G

H

I

J

K

L

M

N

315

5-1. Using the air conditioning system and defogger

5

Interior

 featur

es

ture.

If the “A/C” switch is not pressed,
the system will blow ambient tem-
perature air or heated air.

■

Setting the fan speed

Press the fan speed increase
switch to increase the fan speed
and the fan speed decrease
switch to decrease the fan
speed.

Press the “OFF” switch to turn the
fan off.

■

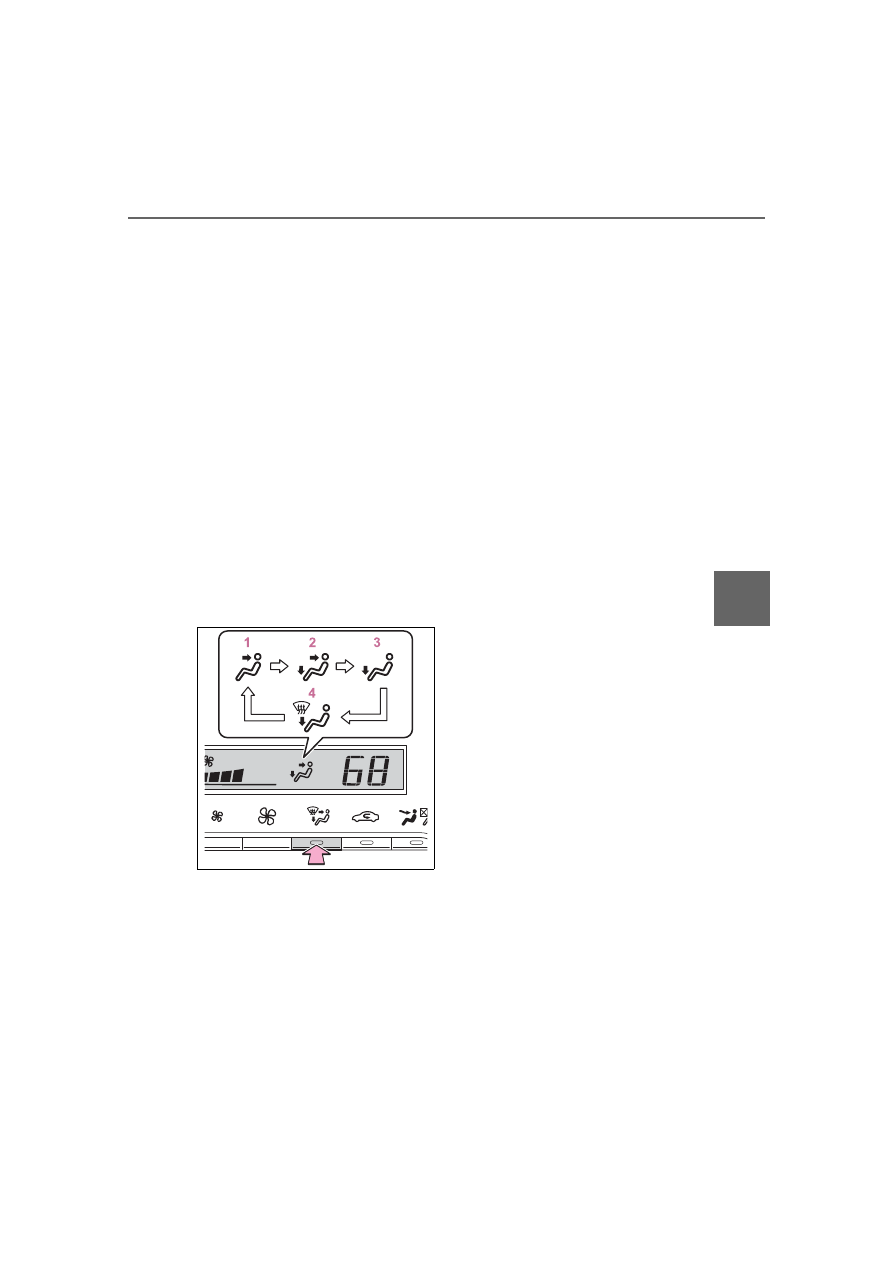

Change the airflow mode

Press the airflow mode control
switch.

The airflow mode changes as fol-
lows each time the switch is
pressed.

1

Air flows to the upper body.

2

Air flows to the upper body
and feet.

3

Air flows to the feet.

4

Air flows to the feet and the
windshield defogger oper-
ates.

■

Switching between outside
air and recirculated air
modes

Press the outside/recirculated
air mode switch.

The mode switches between out-
side air mode and recirculated air
mode each time the switch is oper-
ated.
When recirculated air mode is
selected, the indicator illuminates
on the outside/recirculated air
mode switch.

■

Set cooling and dehumidifi-
cation function

Press the “A/C” switch.

When the function is on, the indica-
tor illuminates on the “A/C” switch.

■

Eco air conditioning mode

The air conditioning is controlled
with low fuel consumption priori-
tized such as reducing fan
speed, etc.
Press the eco air conditioning
mode switch.

When the eco air conditioning
mode is on, the indicator illumi-
nates on the eco air conditioning
mode switch.

■

Defogging the windshield

Defoggers are used to defog the
windshield and front side win-
dows.
Press the windshield defogger
switch.

Set the outside/recirculated air
mode switch to outside air mode if
the recirculated air mode is used. (It

316

5-1. Using the air conditioning system and defogger

may switch automatically.)
To defog the windshield and the
side windows quickly, turn the air
flow and temperature up.
To return to the previous mode,
press the windshield defogger
switch again when the windshield is
defogged.
When the windshield defogger
switch is on, the indicator illumi-
nates on the windshield defogger
switch.

■

Defogging the rear window
and outside rear view mir-
rors

Defoggers are used to defog the
rear window and to remove rain-
drops, dew and frost from the
outside rear view mirrors.
Press the rear window and out-
side rear view mirror defoggers
switch.

The defoggers will automatically
turn off after 15 minutes.
When the rear window and outside
rear view mirror defoggers switch is
on, the indicator illuminates on the
rear window and outside rear view
mirror defoggers switch.

■

When the outside temperature

exceeds 75°F (24°C) and the air

conditioning system is on

●

In order to reduce the air condi-

tioning power consumption, the air

conditioning system may switch to

recirculated air mode automati-

cally.

This may also reduce fuel con-

sumption.

●

Recirculated air mode is selected

as a default mode when the power

switch is turned to ON.

●

It is possible to switch to outside

air mode at any time by pressing

the outside/recirculated air mode

switch.

■

Fogging up of the windows

●

The windows will easily fog up

when the humidity in the vehicle is

high. Turning the cooling and

dehumidification function on will

dehumidify the air from the outlets

and defog the windshield effec-

tively.

●

If you turn the cooling and dehu-

midification function off, the win-

dows may fog up more easily.

●

The windows may fog up if the

recirculated air mode is used.

■

When driving on dusty roads

Close all windows. If dust thrown up

by the vehicle is still drawn into the

vehicle after closing the windows, it

is recommended that the air intake

mode be set to outside air mode

and the fan speed to any setting

except off.

■

Outside/recirculated air mode

●

Setting to the recirculated air

mode temporarily is recom-

mended in preventing dirty air

from entering the vehicle interior

and helping to cool the vehicle

when the outside air temperature

is high.

●

Outside/recirculated air mode may

automatically switch depending on

the temperature setting or the

inside temperature.

■

When the outside temperature

falls to nearly 32°F (0°C)

The dehumidification function may

not operate even when “A/C” switch

is pressed.

■

Operation of the air condition-

ing system in Eco drive mode

●

In Eco drive mode, the air condi-

tioning system is controlled as fol-

lows to prioritize fuel efficiency:

317

5-1. Using the air conditioning system and defogger

5

Interior

 featur

es

• Engine speed and compressor

operation controlled to restrict

heating/cooling capacity

• Fan speed restricted when auto-

matic mode is selected

●

To improve air conditioning perfor-

mance, perform the following

operations:

• Adjust the fan speed

• Turn off Eco drive mode (



P.297)

• Turn off Eco air conditioning mode

●

When the driving mode is set to

Eco drive mode, the Eco air condi-

tioning mode will be turned on

automatically. Even in this case,

the Eco air conditioning mode can

be turned off by pressing the Eco

air conditioning mode switch.

■

Ventilation and air conditioning

odors

●

To let fresh air in, set the air condi-

tioning system to the outside air

mode.

●

During use, various odors from

inside and outside the vehicle may

enter into and accumulate in the

air conditioning system. This may

then cause odor to be emitted

from the vents.

●

In order to suppress odors that

occur when the air conditioning

system starts, the air flow mode

may change to blow air to the feet

or air may stop blowing for a short

period of time immediately after

the air conditioning system is

started in automatic mode.

●

When parking, the system auto-

matically switches to outside air

mode to encourage better air cir-

culation throughout the vehicle,

helping to reduce odors that occur

when starting the vehicle.

■

Air conditioning filter



P.415

■

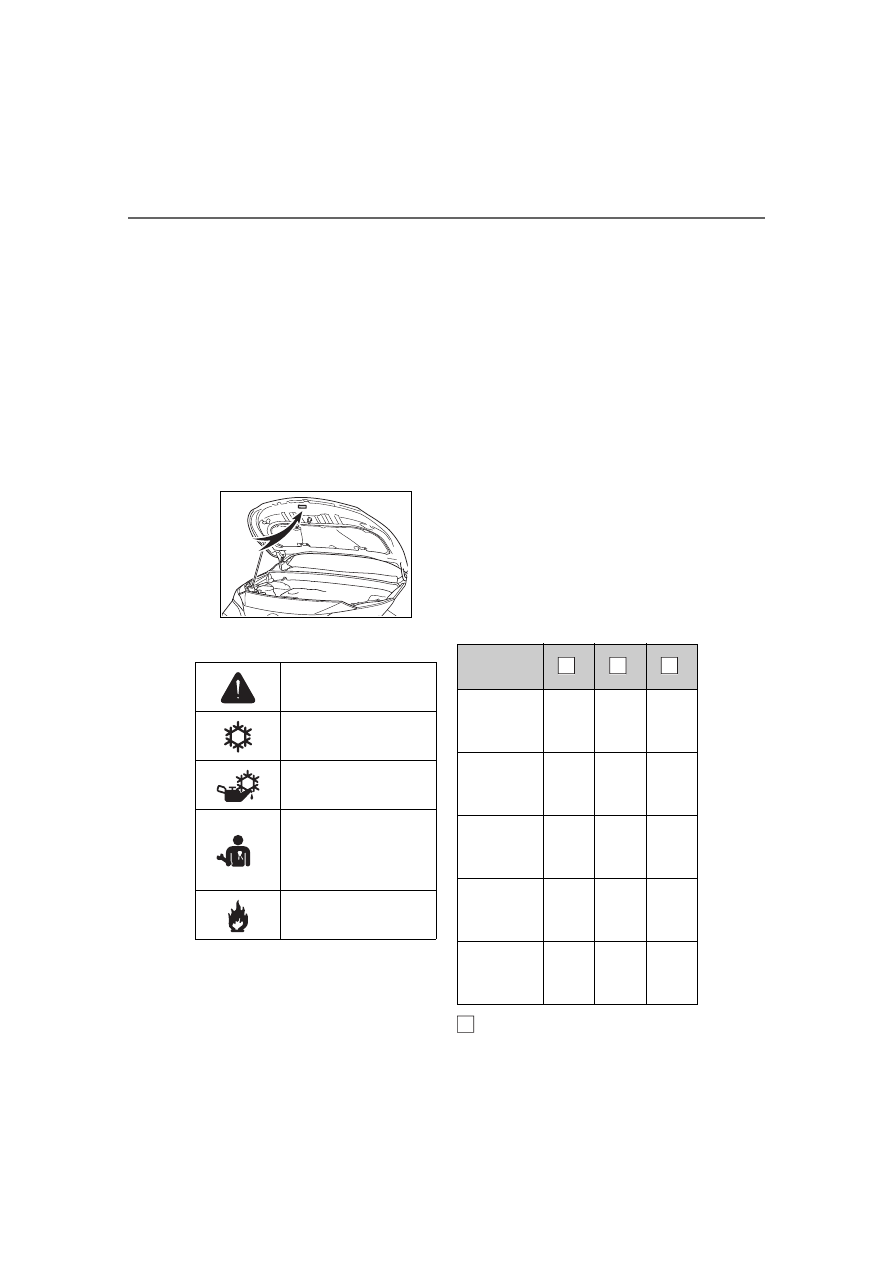

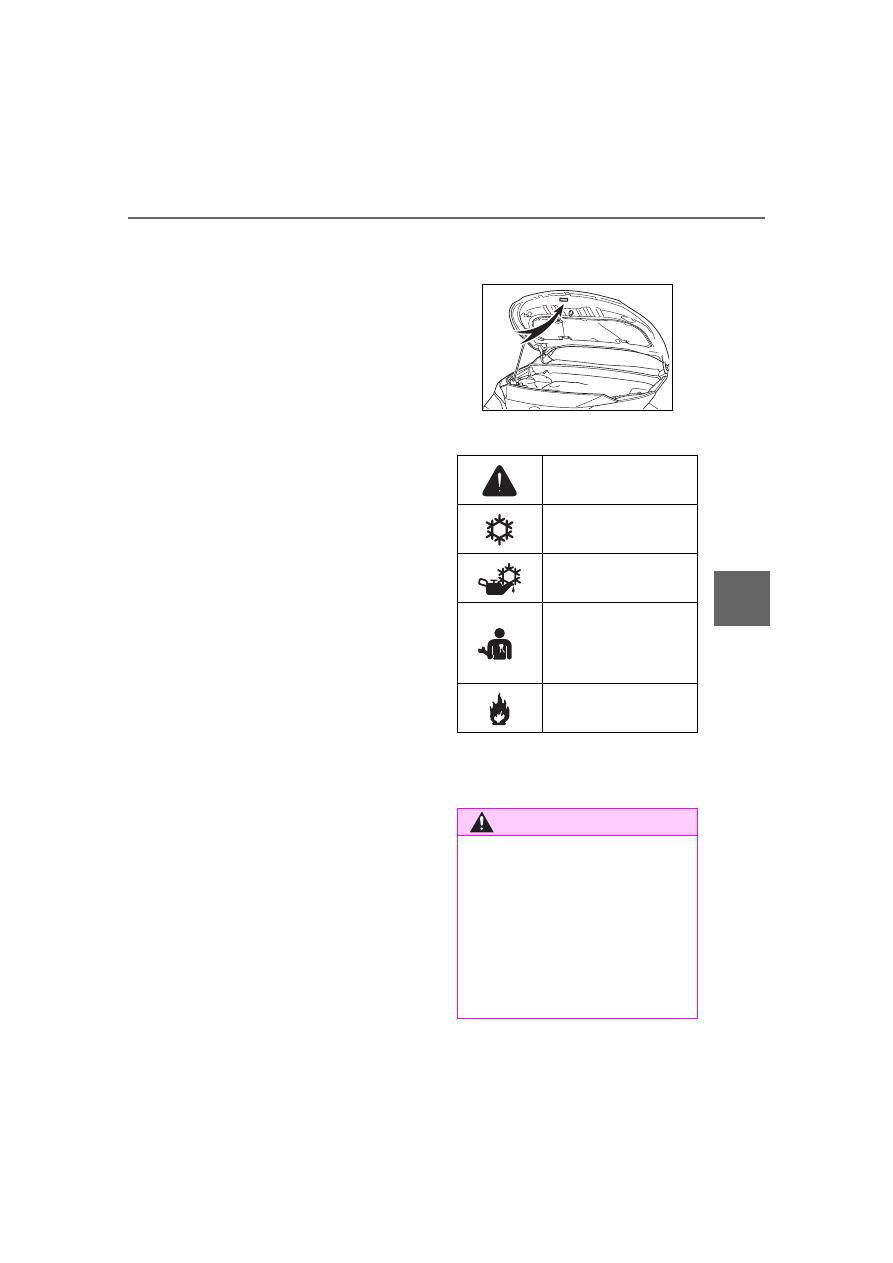

Air conditioning system refrig-

erant

●

A label regarding the refrigerant of

the air conditioning system is

attached to the hood at the loca-

tion shown in the following illustra-

tion.

●

The meaning of each symbol on

the label are as follows:

■

Customization

Some functions can be customized.

(Customizable features:



P.512)

Caution

Air conditioning sys-
tem

Air conditioning sys-
tem lubricant type

Requires registered
technician to service
air conditioning sys-
tem

Flammable refrigerant

WARNING

■

To prevent the windshield

from fogging up

Do not use the windshield defog-

ger switch during cool air opera-

tion in extremely humid weather.

The difference between the tem-

perature of the outside air and

that of the windshield can cause

the outer surface of the wind-

shield to fog up, blocking your

vision.

318

5-1. Using the air conditioning system and defogger

1

Press the “AUTO” switch.

2

Adjust the temperature set-
ting.

3

To stop the operation, press
the “OFF” switch.

If the fan speed setting or air
flow modes are operated, the
automatic mode indicator goes
off. However, automatic mode
for functions other than that
operated is maintained.

■

Using automatic mode

Fan speed is adjusted automati-

cally according to the temperature

setting and the ambient conditions.

Therefore, the fan may stop for a

while until warm or cool air is ready

to flow immediately after the auto-

matic mode switch is pressed.

To turn on the “SYNC” mode,
press the “SYNC” switch.

The driver’s side temperature con-
trol dial can be used to adjust the
temperature for the driver’s and
passenger’s side. To enter individ-
ual mode, operate the passenger’s
side temperature control dial or
press the “SYNC” switch again.
When the “SYNC” mode is on, the
indicator illuminates on the “SYNC”
switch.

This function automatically con-
trols the air conditioning airflow
so that priority is given to the
front seat. When the front pas-
senger seat is not occupied, air-
flow may switch to only the
driver’s seat. Unnecessary air
conditioning is suppressed, con-
tributing to increased fuel effi-
ciency.
Front seat concentrated airflow
mode operates in the following
situations.



No passengers are detected
in the rear seats

WARNING

■

When the outside rear view

mirror defoggers are operat-

ing

Do not touch the rear view mirror

surfaces when the outside rear

view mirror defoggers are on.

NOTICE

■

To prevent 12-volt battery dis-

charge

Do not leave the air conditioning

system on longer than necessary

when the hybrid system is off.

■

When repairing/replacing

parts of the air conditioning

system

Have repair/replacement per-

formed by your Toyota dealer.

When a part of the air condition-

ing system, such as the evapora-

tor, is to be replaced, it must be

replaced with a new one.

Using automatic mode

Adjusting the temperature
for driver and passenger
seats simultaneously
(“SYNC” mode)

Front seat concentrated
airflow mode (S-FLOW)

319

5-1. Using the air conditioning system and defogger

5

Interior

 featur

es



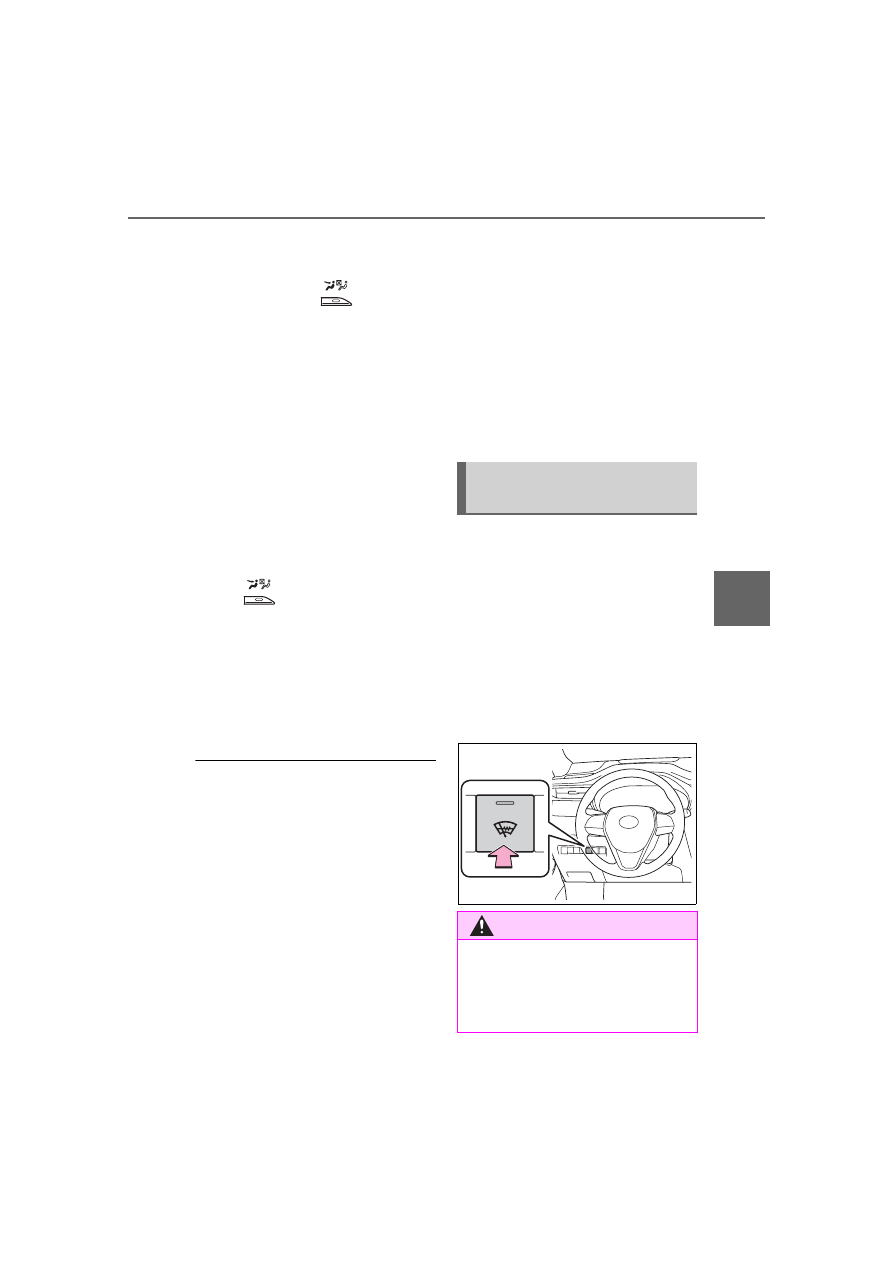

The windshield defogger is
not operating

While operating,

 illumi-

nates.

■

Manually turning front seat
concentrated airflow mode
on/off

In front seat concentrated air-
flow mode, directing airflow to
the front seats only and to the all
seats can be switched via switch
operation. When the mode has
been switched manually, auto-
matic airflow control stops oper-
ating.

Press

 on the air condition-

ing operation panel and switch
the airflow.



Indicator illuminated: Airflow
to the front seats only



Indicator off: Airflow to the all
seats

■

Operation of automatic airflow

control

●

In order to maintain a comfortable

interior, airflow may be directed to

seats without passengers immedi-

ately after the hybrid system is

started and at other times depend-

ing on the outside temperature.

●

After the hybrid system is started,

if passengers move around inside

or enter/exit the vehicle, the sys-

tem cannot accurately detect the

presence of passengers and auto-

matic airflow control will not oper-

ate.

■

Operation of manual airflow

control

Even if the function is manually

switched to directing airflow to only

the front seats, when a rear seat is

occupied, it may automatically direct

airflow to all seats.

■

To return to automatic airflow

control

1

With the indicator off, turn the

power switch to OFF.

2

After 60 minutes or more elapse,

turn the power switch to ON.

This feature is used to prevent
ice from building up on the wind-
shield and wiper blades.
Press the switch to turn the sys-
tem on/off.

The indicator comes on when the
system is on.
The windshield wiper de-icer will
automatically turn off after approxi-
mately 15 minutes.

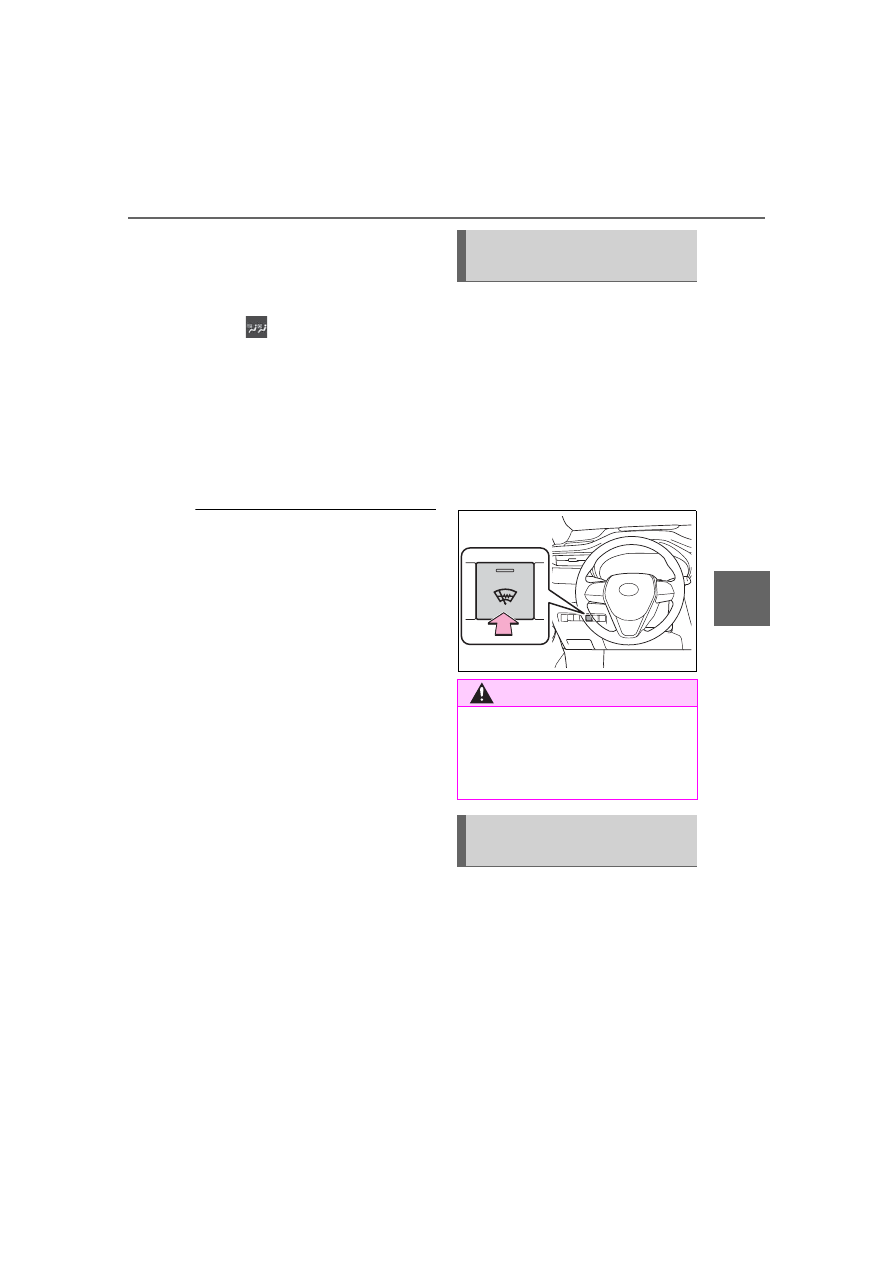

Windshield wiper de-icer
(if equipped)

WARNING

■

To prevent burns

Do not touch the glass at lower

part of the windshield or to the

side of the front pillars when the

windshield wiper deicer is on.

320

5-1. Using the air conditioning system and defogger

■

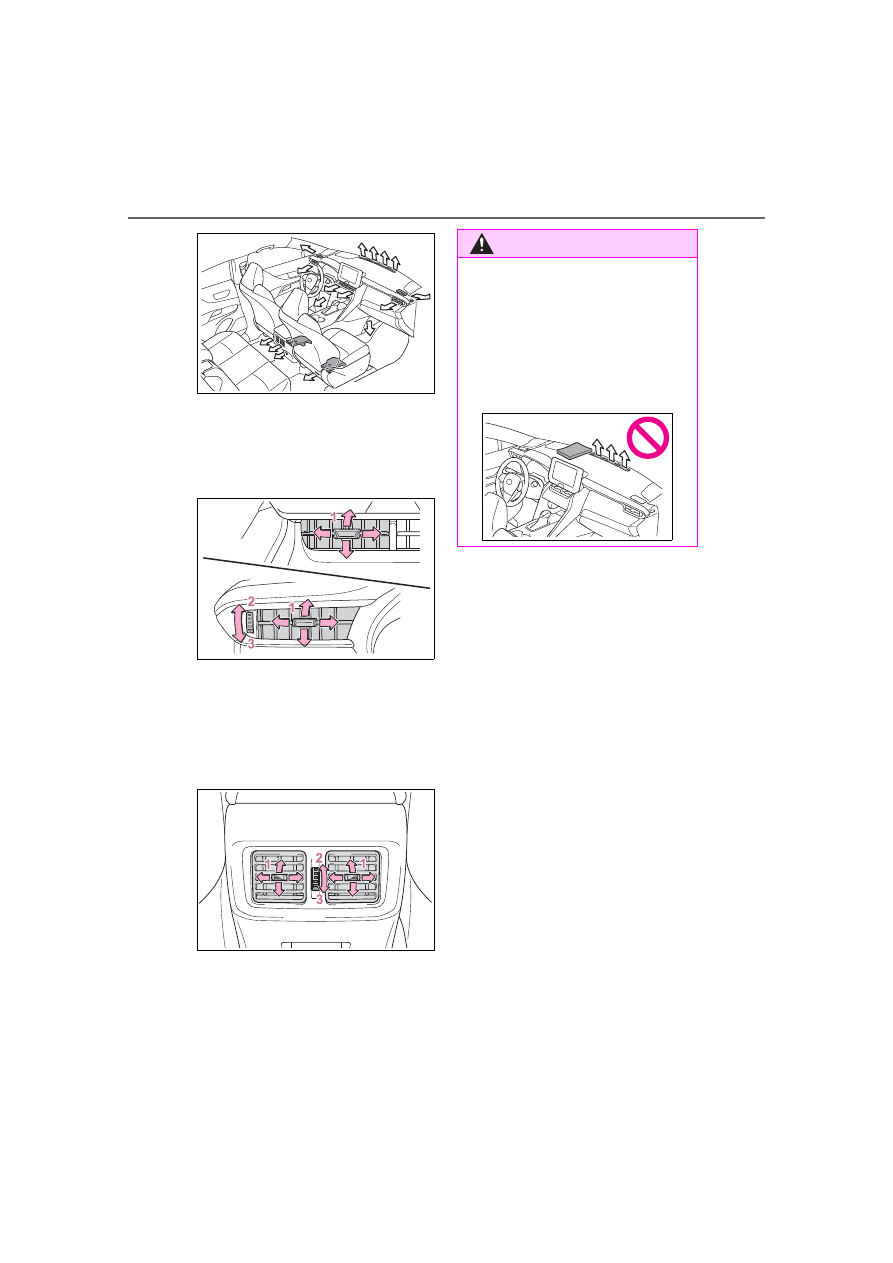

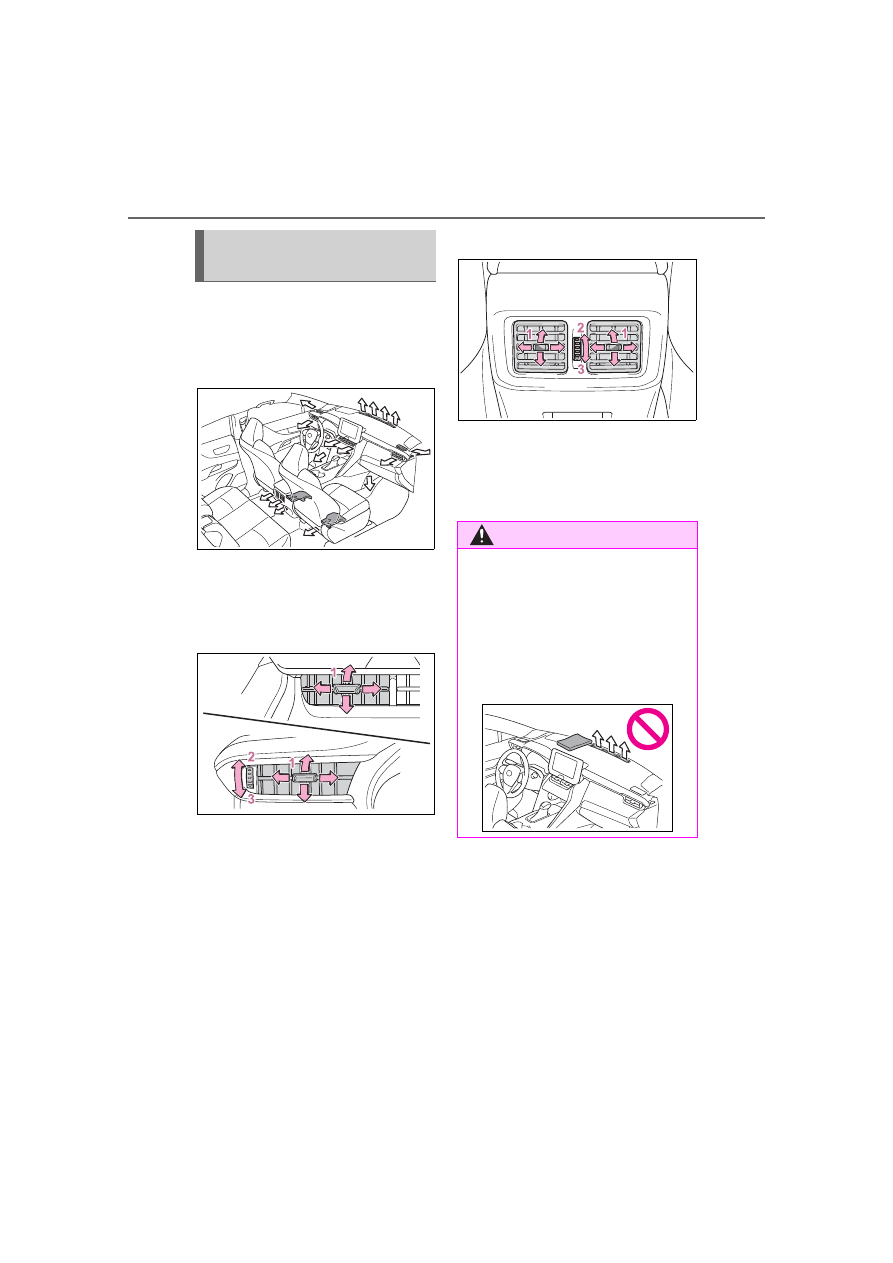

Location of air outlets

The air outlets and air volume
change according to the
selected air flow mode.

■

Adjusting the air flow direc-
tion and opening/closing
the air outlets



Front

1

Direct air flow to the left or
right, up or down

2

Open the vent

3

Close the vent



Rear

1

Direct air flow to the left or
right, up or down

2

Open the vent

3

Close the vent

Air outlet layout and oper-
ations

WARNING

■

To not interrupt the wind-

shield defogger from operat-

ing

Do not place anything on the

instrument panel which may cover

the air outlets. Otherwise, air flow

may be obstructed, preventing the

windshield defoggers from defog-

ging.

321

5-1. Using the air conditioning system and defogger

5

Interior

 featur

es

Left-hand side temperature control switches

Fan speed increase switch

Airflow mode control switch

Fan speed decrease switch

“Option” switch

Right-hand side temperature control switches

Outside/recirculated air mode switch

Automatic air conditioning system (vehicles with

12.3-inch display)

Air outlets and fan speed are automatically adjusted accord-
ing to the temperature setting.
The air conditioning system can be operated using the air
conditioning control panel and air conditioning control
screen on the Toyota multi-operation touch.
For details about Toyota multi-operation touch, refer to P.345.

Air conditioning controls

A

B

C

D

E

F

G

322

5-1. Using the air conditioning system and defogger

Eco air conditioning mode switch

“SYNC” switch

“A/C” switch

Automatic mode switch

Windshield defogger switch

Rear window and outside rear view mirror defoggers switch

“OFF” switch

■

Adjusting the temperature
setting

Press

 of the temperature

control switches on the air con-
ditioning control panel or select

 of the temperature control

switches on the air conditioning
control screen to increases the
temperature.

Press

 of the temperature

control switches on the air con-
ditioning control panel or select

 of the temperature control

switches on the air conditioning
control screen to decreases the
temperature.

If the switch is pressed and held or
selected and held, the temperature
will continuously change.
If the indicator on the “A/C” switch
does not illuminate, the system will
blow ambient temperature air or
heated air.

■

Setting the fan speed

Press the fan speed increase
switch on the air conditioning
control panel or select the fan

speed increase switch on the air
conditioning control screen to
increase the fan speed.
Press the fan speed decrease
switch on the air conditioning
control panel or select the fan
speed decrease switch on the
air conditioning control screen to
decrease the fan speed.

Press the “OFF” switch on the air
conditioning control panel to turn
the fan off.

■

Change the airflow mode

Select the airflow mode control
switch on the air conditioning
control screen.

The airflow mode changes each
time the switch is selected.

: Air flows to the upper body

: Air flows to the upper body

and feet

: Air flows to the feet

: Air flows to the feet and the

windshield defogger operates

H

I

J

K

L

M

N

323

5-1. Using the air conditioning system and defogger

5

Interior

 featur

es

■

Switching between outside
air and recirculated air
modes

Select the outside/recirculated
air mode switch on the air condi-
tioning control screen.

The mode switches between out-
side air mode and recirculated air
mode each time the switch is
selected.
When recirculated air mode is
selected, the indicator illuminates
on the outside/recirculated air
mode switch.

■

Set cooling and dehumidifi-
cation function

Select the “A/C” switch on the
air conditioning control screen.

When the function is on, the indica-
tor illuminates on the “A/C” switch.

■

Eco air conditioning mode

The air conditioning is controlled
with low fuel consumption priori-
tized such as reducing fan
speed, etc.
Select the eco air conditioning
mode switch on the air condi-
tioning control screen.

When the eco air conditioning
mode is on, the indicator illumi-
nates on the eco air conditioning
mode switch.

■

Defogging the windshield

Defoggers are used to defog the
windshield and front side win-
dows.
Press the windshield defogger
switch on the air conditioning

control panel.

Set the outside/recirculated air
mode switch to outside air mode if
the recirculated air mode is used. (It
may switch automatically.)
To defog the windshield and the
side windows quickly, turn the air
flow and temperature up.
To return to the previous mode,
press the windshield defogger
switch again when the windshield is
defogged.
When the windshield defogger
switch is on, the indicator illumi-
nates on the windshield defogger
switch.

■

Defogging the rear window
and outside rear view mir-
rors

Defoggers are used to defog the
rear window and to remove rain-
drops, dew and frost from the
outside rear view mirrors.
Press the rear window and out-
side rear view mirror defoggers
switch on the air conditioning
control panel.

The defoggers will automatically
turn off after 15 minutes.
When the rear window and outside
rear view mirror defoggers switch is
on, the indicator illuminates on the
rear window and outside rear view
mirror defoggers switch.

■

Option control screen

Select the “Option” switch to dis-
play the option control screen.

The functions can be switched on
and off.

324

5-1. Using the air conditioning system and defogger

When the function is on, the indica-
tor illuminates on the screen.

Front seat concentrated air-
flow mode (S-FLOW)
(



P.328)

Select to display the previous
screen.

■

When the outside temperature

exceeds 75°F (24°C) and the air

conditioning system is on

●

In order to reduce the air condi-

tioning power consumption, the air

conditioning system may switch to

recirculated air mode automati-

cally.

This may also reduce fuel con-

sumption.

●

Recirculated air mode is selected

as a default mode when the power

switch is turned to ON.

●

It is possible to switch to outside

air mode at any time by selecting

the outside/recirculated air mode

switch.

■

Fogging up of the windows

●

The windows will easily fog up

when the humidity in the vehicle is

high. Turning the cooling and

dehumidification function on will

dehumidify the air from the outlets

and defog the windshield effec-

tively.

●

If you turn the cooling and dehu-

midification function off, the win-

dows may fog up more easily.

●

The windows may fog up if the

recirculated air mode is used.

■

When driving on dusty roads

Close all windows. If dust thrown up

by the vehicle is still drawn into the

vehicle after closing the windows, it

is recommended that the air intake

mode be set to outside air mode

and the fan speed to any setting

except off.

■

Outside/recirculated air mode

●

Setting to the recirculated air

mode temporarily is recom-

mended in preventing dirty air

from entering the vehicle interior

and helping to cool the vehicle

when the outside air temperature

is high.

●

Outside/recirculated air mode may

automatically switch depending on

the temperature setting or the

inside temperature.

■

When the outside temperature

falls to nearly 32°F (0°C)

The dehumidification function may

not operate even when “A/C” switch

is selected.

■

Operation of the air condition-

ing system in Eco drive mode

●

In Eco drive mode, the air condi-

tioning system is controlled as fol-

lows to prioritize fuel efficiency:

• Engine speed and compressor

operation controlled to restrict

heating/cooling capacity

• Fan speed restricted when auto-

matic mode is selected

●

To improve air conditioning perfor-

mance, perform the following

operations:

• Adjust the fan speed

• Turn off Eco drive mode (



P.297)

• Turn off Eco air conditioning mode

●

When the driving mode is set to

Eco drive mode, the Eco air condi-

tioning mode will be turned on

automatically. Even in this case,

the Eco air conditioning mode can

be turned off by selecting the Eco

A

B

325

5-1. Using the air conditioning system and defogger

5

Interior

 featur

es

air conditioning mode switch.

■

Notes on touch switch opera-

tion

●

Operate using a finger (the pad of

the finger).

●

If a coating, film, etc. is applied to

the surface of the air conditioning

control panel, non-response may

occur.

●

If a pen, etc. is used to operate

the system, the system will not

respond.

●

When performing a touch opera-

tion, make sure that other fingers,

etc. do not touch the air condition-

ing control panel.

●

When performing a series of touch

operations, withdraw the finger

completely before performing the

next operation.

●

Do not forcefully press the air con-

ditioning control panel.

●

If the air conditioning control panel

is dirty or has liquid attached to it,

incorrect operation may occur.

Wipe the control panel clean

before performing any touch oper-

ations.

■

Situations when non-response

may occur from normal touch

switch operation

●

Gloves, etc. are worn.

●

A coating, film, etc. is applied to

the surface of the air conditioning

control panel.

●

The air conditioning control panel

is dirty or has liquid attached to it.

●

The vehicle is in an area where

strong electrical waves or noise

are emitted, such as near a televi-

sion tower, power plant, gasoline

station, broadcasting station, large

display, airport, etc.

●

Wireless devices such as radios,

cell phones, etc. are carried.

●

The air conditioning control panel

is in contact with, or covered by, a

metallic object such as the follow-

ing:

• A card that has metal on it, such

as aluminum foil, etc.

• A pack of cigarettes that use alu-

minum foil

• A wallet or bag that is made of

metal

• Coins

• A heating pad

• CDs, DVDs or other media

●

If your hand is near or touching

the air conditioning control panel

when the power switch is turned to

ACC or ON, non-response may

occur. If so, withdraw your hand

from the air conditioning control

panel and wait approximately 10

seconds before touching the air

conditioning control panel again.

■

When non-response from touch

switch operation

When the air conditioning control

panel is dirty, non-response may

occur.
Clean the touch panel frequently.

■

When cleaning the air condi-

tioning control panel

Touch switches may respond when

cleaning. Turn the power switch to

OFF before proceeding with clean-

ing.

■

Ventilation and air conditioning

odors

●

To let fresh air in, set the air condi-

tioning system to the outside air

mode.

●

During use, various odors from

inside and outside the vehicle may

enter into and accumulate in the

air conditioning system. This may

then cause odor to be emitted

from the vents.

●

In order to suppress odors that

occur when the air conditioning

system starts, the air flow mode

may change to blow air to the feet

or air may stop blowing for a short

period of time immediately after

the air conditioning system is

started in automatic mode.

326

5-1. Using the air conditioning system and defogger

●

When parking, the system auto-

matically switches to outside air

mode to encourage better air cir-

culation throughout the vehicle,

helping to reduce odors that occur

when starting the vehicle.

■

Air conditioning filter



P.415

■

Air conditioning system refrig-

erant

●

A label regarding the refrigerant of

the air conditioning system is

attached to the hood at the loca-

tion shown in the following illustra-

tion.

●

The meaning of each symbol on

the label are as follows:

■

Changing the air conditioning

control panel touch switch

response

The amount of time takes for a

switch to respond can be changed

through the following operations:

The air conditioning system cannot

be operated while these operations

are performed.

1

Press and hold both the fan

speed decrease switch and auto-

matic mode switch on the air

conditioning control panel at the

same time for approximately 3

seconds.

The indicators on the rear window

and outside rear view mirror defog-

gers switch, windshield defogger

switch and automatic mode switch

will blink. The blinking indicators

depend on the current setting.

2

Press the rear window and out-

side rear view mirror defoggers

switch on the air conditioning

control panel.

Each time the switch is pressed, the

response time changes. The sta-

tuses of the indicators on the rear

window and outside rear view mirror

defoggers switch, windshield defog-

ger switch and automatic mode

switch inform the current setting.

 Indicator on the rear window

Caution

Air conditioning sys-
tem

Air conditioning sys-
tem lubricant type

Requires registered
technician to service
air conditioning sys-
tem

Flammable refrigerant

Response

time

1

Not

illumi-

nated

Not

illumi-

nated

Blinks

2

Not

illumi-

nated

Blinks

Not

illumi-

nated

3

Not

illumi-

nated

Blinks Blinks

4

Blinks

Not

illumi-

nated

Not

illumi-

nated

5

Blinks

Not

illumi-

nated

Blinks

A

B

C

A

327

5-1. Using the air conditioning system and defogger

5

Interior

 featur

es

and outside rear view mirror defog-

gers switch

 Indicator on the windshield

defogger switch

 Indicator on the automatic mode

switch
The smaller the number the quicker

the response time becomes, and

the larger the number the slower the

response time becomes.
If touch operations are not per-

formed for approximately 5 sec-

onds with the desired setting, the

setting change completes.
After the setting change completes,

all indicators will illuminate for a

short time. Do not turn the power

switch to OFF during this time. Set-

ting contents will be erased.

■

Turning the air conditioning

control panel touch switch

operation sounds on or off

Operation sounds produced when a

switch is touched can be turned on

or off through the following opera-

tions:
The air conditioning system cannot

be operated while these operations

are performed.

1

Press and hold both the fan

speed increase switch and

“OFF” switch on the air condi-

tioning control panel at the same

time for approximately 3 sec-

onds.

The indicators on the windshield

defogger switch and automatic

mode switch will blink. The blinking

indicators depend on the current

setting.

2

Press the rear window and out-

side rear view mirror defoggers

switch on the air conditioning

control panel.

Each time the switch is pressed, the

operation sounds switches between

on and off. The statuses of the indi-

cators on the windshield defogger

switch and automatic mode switch

inform the current setting.

 Indicator on the windshield

defogger switch

 Indicator on the automatic mode

switch
If touch operations are not per-

formed for approximately 5 sec-

onds with the desired setting, the

setting change completes.
After the setting change completes,

all indicators will illuminate for a

short time. Do not turn the power

switch to OFF during this time. Set-

ting contents will be erased.

■

Customization

Some functions can be customized.

(Customizable features:



P.512)

B

C

Operation

sounds

On

Blinks

Not illumi-

nated

Off

Not illumi-

nated

Blinks

WARNING

■

To prevent the windshield

from fogging up

Do not use the windshield defog-

ger switch during cool air opera-

tion in extremely humid weather.

The difference between the tem-

perature of the outside air and

that of the windshield can cause

the outer surface of the wind-

shield to fog up, blocking your

vision.

■

When the outside rear view

mirror defoggers are operat-

ing

Do not touch the rear view mirror

surfaces when the outside rear

view mirror defoggers are on.

A

B

A

B

328

5-1. Using the air conditioning system and defogger

1

Press the “AUTO” switch on
the air conditioning control
panel.

2

Adjust the temperature set-
ting.

3

To stop the operation, press
the “OFF” switch on the air
conditioning control panel.

If the fan speed setting or air
flow modes are operated, the
automatic mode indicator goes
off. However, automatic mode
for functions other than that
operated is maintained.

■

Using automatic mode

Fan speed is adjusted automati-

cally according to the temperature

setting and the ambient conditions.
Therefore, the fan may stop for a

while until warm or cool air is ready

to flow immediately after the auto-

matic mode switch is pressed.

To turn on the “SYNC” mode,
select the “SYNC” switch on the
air conditioning control screen.

The driver’s side temperature con-
trol switches can be used to adjust
the temperature for the driver’s and
passenger’s side. To enter individ-
ual mode, operate the passenger’s
side temperature control switches
or select the “SYNC” switch again.
When the “SYNC” mode is on, the
indicator illuminates on the “SYNC”
switch.

This function automatically con-
trols the air conditioning airflow
so that priority is given to the
front seat. When the front pas-
senger seat is not occupied, air-
flow may switch to only the
driver’s seat. Unnecessary air
conditioning is suppressed, con-
tributing to increased fuel effi-
ciency.
Front seat concentrated airflow
mode operates in the following
situations.



No passengers are detected
in the rear seats



The windshield defogger is
not operating

While operating,

 illuminates.

■

Manually turning front seat
concentrated airflow mode
on/off

In front seat concentrated air-
flow mode, directing airflow to
the front seats only and to the all
seats can be switched via switch

NOTICE

■

To prevent 12-volt battery dis-

charge

Do not leave the air conditioning

system on longer than necessary

when the hybrid system is off.

Using automatic mode

Adjusting the temperature
for driver and passenger
seats simultaneously
(“SYNC” mode)

Front seat concentrated
airflow mode (S-FLOW)

329

5-1. Using the air conditioning system and defogger

5

Interior

 featur

es

operation. When the mode has
been switched manually, auto-
matic airflow control stops oper-
ating.

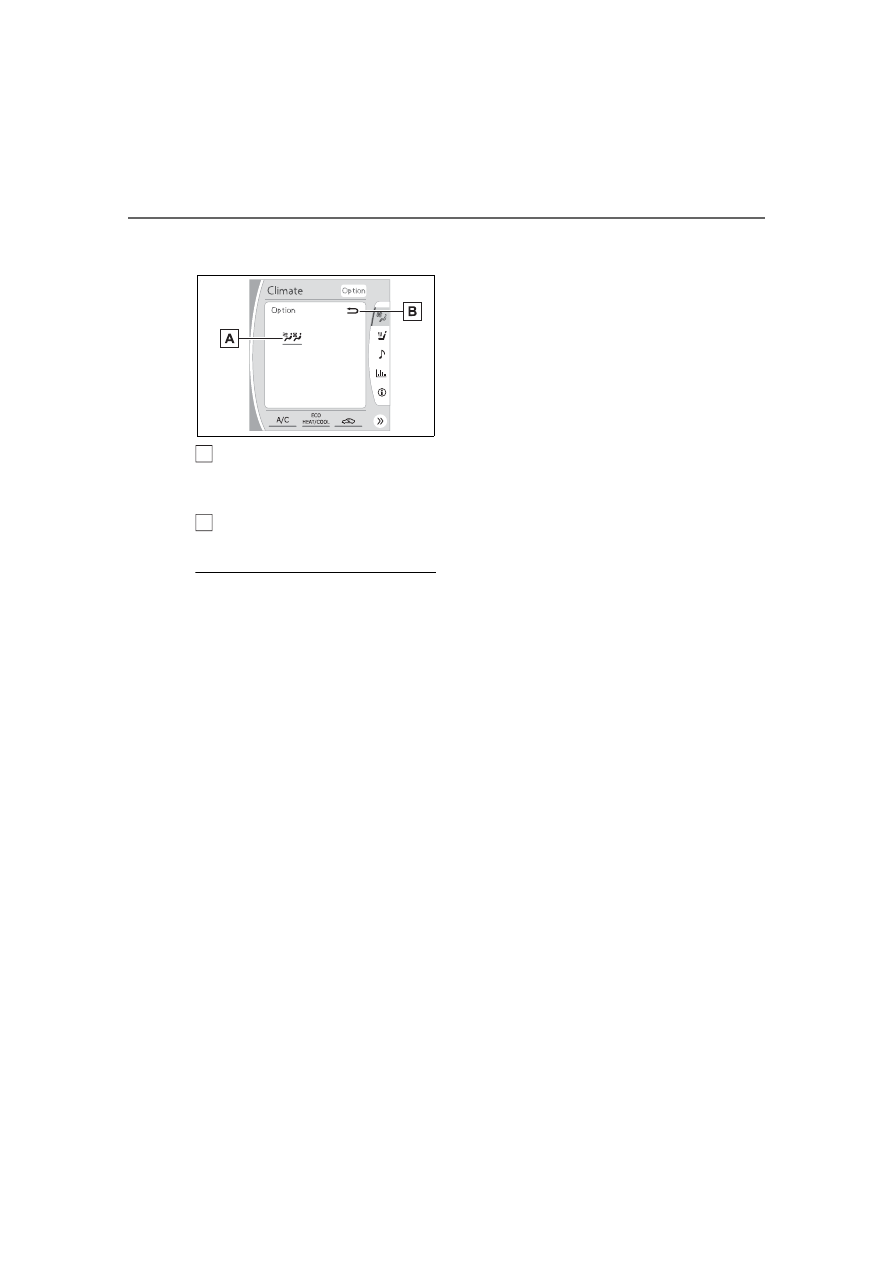

Select

 on the option control

screen of the air conditioning
control screen and switch the
airflow.



Indicator illuminated: Airflow
to the front seats only



Indicator off: Airflow to the all
seats

■

Operation of automatic airflow

control

●

In order to maintain a comfortable

interior, airflow may be directed to

seats without passengers immedi-

ately after the hybrid system is

started and at other times depend-

ing on the outside temperature.

●

After the hybrid system is started,

if passengers move around inside

or enter/exit the vehicle, the sys-

tem cannot accurately detect the

presence of passengers and auto-

matic airflow control will not oper-

ate.

■

Operation of manual airflow

control

Even if the function is manually

switched to directing airflow to only

the front seats, when a rear seat is

occupied, it may automatically direct

airflow to all seats.

■

To return to automatic airflow

control

1

With the indicator off, turn the

power switch to OFF.

2

After 60 minutes or more elapse,

turn the power switch to ON.

This feature is used to prevent
ice from building up on the wind-
shield and wiper blades.
Press the switch to turn the sys-
tem on/off.

The indicator comes on when the
system is on.
The windshield wiper de-icer will
automatically turn off after approxi-
mately 15 minutes.

■

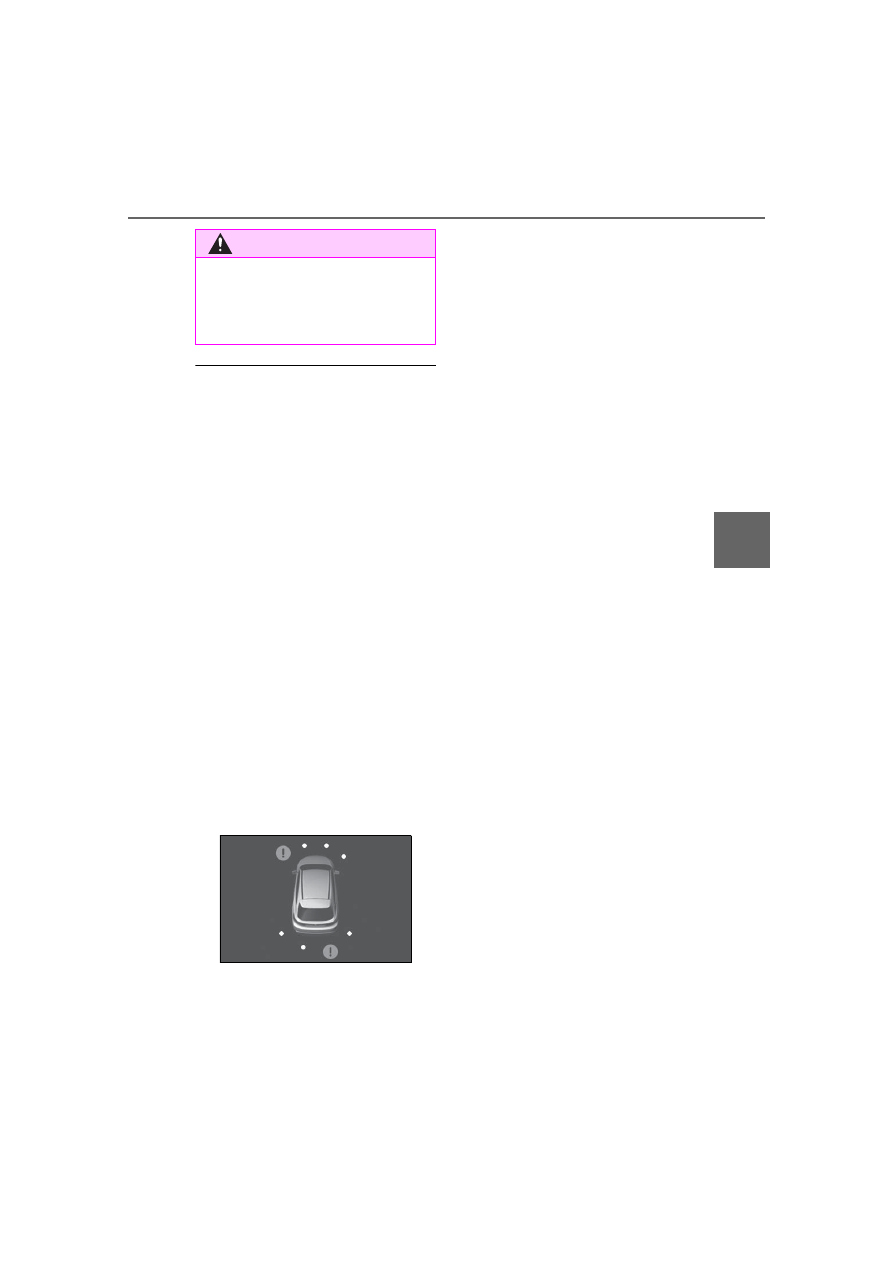

Location of air outlets

The air outlets and air volume
change according to the
selected air flow mode.

Windshield wiper de-icer
(if equipped)

WARNING

■

To prevent burns

Do not touch the glass at lower

part of the windshield or to the

side of the front pillars when the

windshield wiper deicer is on.

Air outlet layout and oper-
ations

330

5-1. Using the air conditioning system and defogger

■

Adjusting the air flow direc-
tion and opening/closing
the air outlets



Front

1

Direct air flow to the left or
right, up or down

2

Open the vent

3

Close the vent



Rear

1

Direct air flow to the left or
right, up or down

2

Open the vent

3

Close the vent

WARNING

■

To not interrupt the wind-

shield defogger from operat-

ing

Do not place anything on the

instrument panel which may cover

the air outlets. Otherwise, air flow

may be obstructed, preventing the

windshield defoggers from defog-

ging.

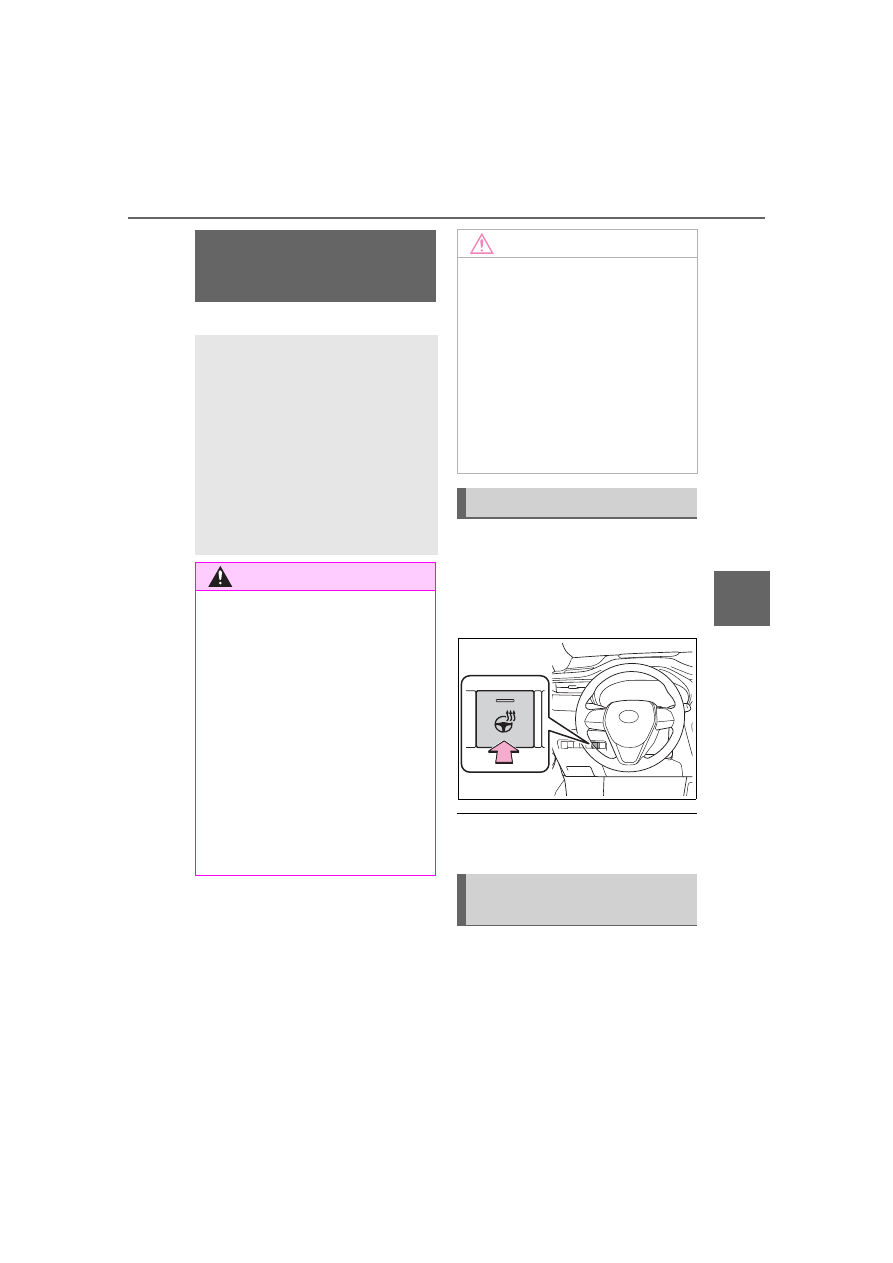

331

5-1. Using the air conditioning system and defogger

5

Interior

 featur

es

*

: If equipped

Turns the heated steering wheel
on/off

The indicator light comes on when
the heated steering wheel is oper-
ating.

■

Operation condition

The power switch is in ON.

■

Using the seat heater
switches

1

Adjust the front armrest to
the rearmost position.
(



P.359)

Heated steering

wheel

*

/seat heat-

ers

*

/seat ventilators

*



Heated steering wheel

Warm up the grip of the steer-
ing wheel



Seat heaters

Warm up the front seat uphol-
stery



Seat ventilators

Maintain good airflow by suck-
ing air into the front seats

WARNING

■

To prevent minor burn inju-

ries

Care should be taken if anyone in

the following categories comes in

contact with the steering wheel or

seats when the heater is on:

●

Babies, small children, the

elderly, the sick and the physi-

cally challenged

●

Persons with sensitive skin

●

Persons who are fatigued

●

Persons who have taken alco-

hol or drugs that induce sleep

(sleeping drugs, cold remedies,

etc.)

NOTICE

■

To prevent damage to the

seat heaters and seat ventila-

tors

Do not put heavy objects that

have an uneven surface on the

seat and do not stick sharp

objects (needles, nails, etc.) into

the seat.

■

To prevent 12-volt battery dis-

charge

Do not use the functions when the

hybrid system is off.

Heated steering wheel

Operating the seat heat-
ers

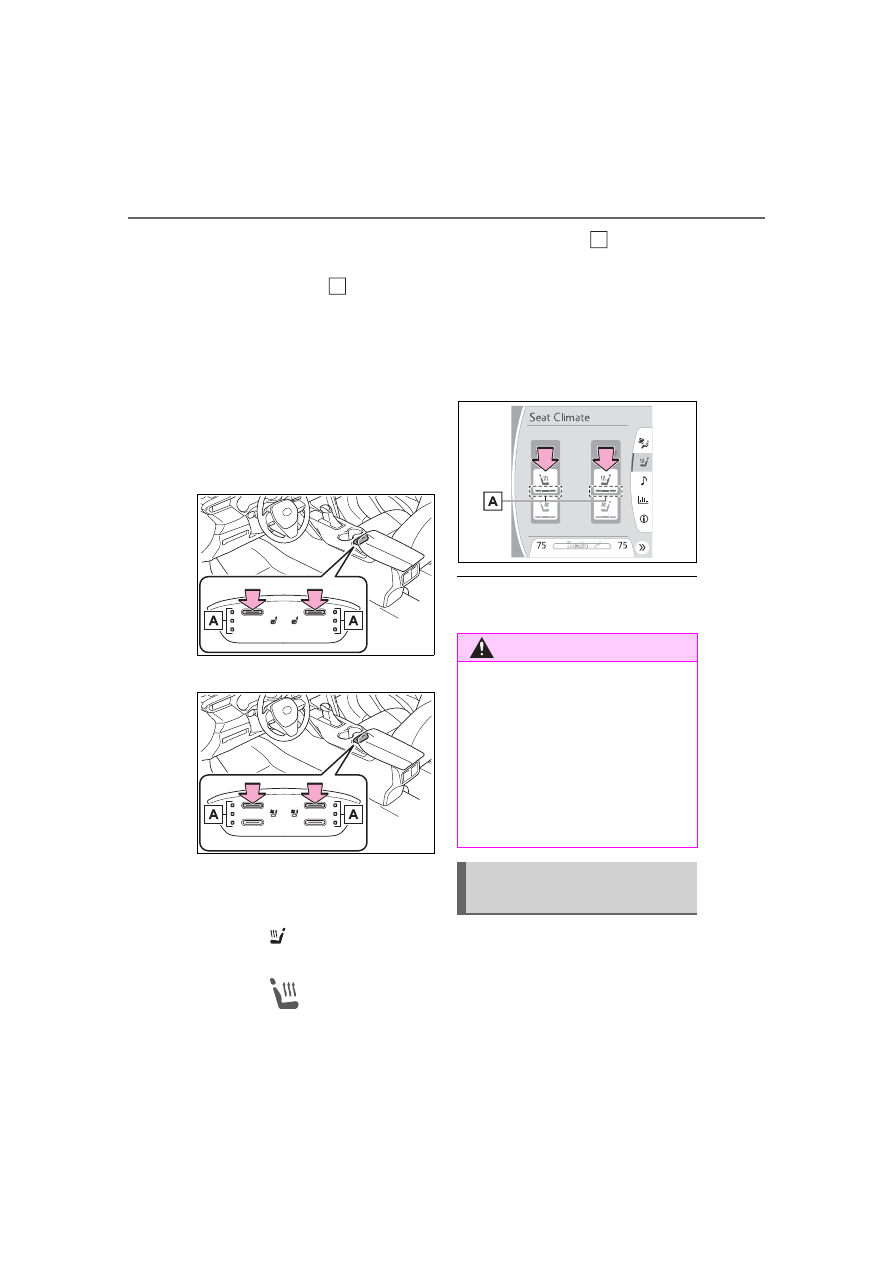

332

5-1. Using the air conditioning system and defogger

2

Press the switch to turn the
seat heater on/off.

The level indicators

 come on

yellow during operation.
Each time the switch is pressed,
the operation condition changes as
follows.
Hi (3 segments lit)



 Mid (2 seg-

ments lit)



 Lo (1 segment lit)





Off



Vehicles without seat ventila-
tors



Vehicles with seat ventilators

■

Using the Toyota multi-
operation touch (if
equipped)

1

Select

 to display the seat

climate screen. (



P.345)

2

Select

 to turn the seat

heater on/off.

The level indicators

 come on

red during operation.
Each time the switch is selected,
the operation condition changes as
follows.
Hi (3 segments lit)



 Mid (2 seg-

ments lit)



 Lo (1 segment lit)





Off

■

Operation condition

The power switch is in ON.

■

Using the seat ventilator
switches

1

Adjust the front armrest to
the rearmost position.
(



P.359)

A

WARNING

■

To prevent causes of over-

heating and minor burn inju-

ries

Observe the following precautions

when using a seat heater:

●

Do not cover the seat with a

blanket or cushion when using

the seat heater.

●

Do not use seat heater more

than necessary.

Operating the seat venti-
lators

A

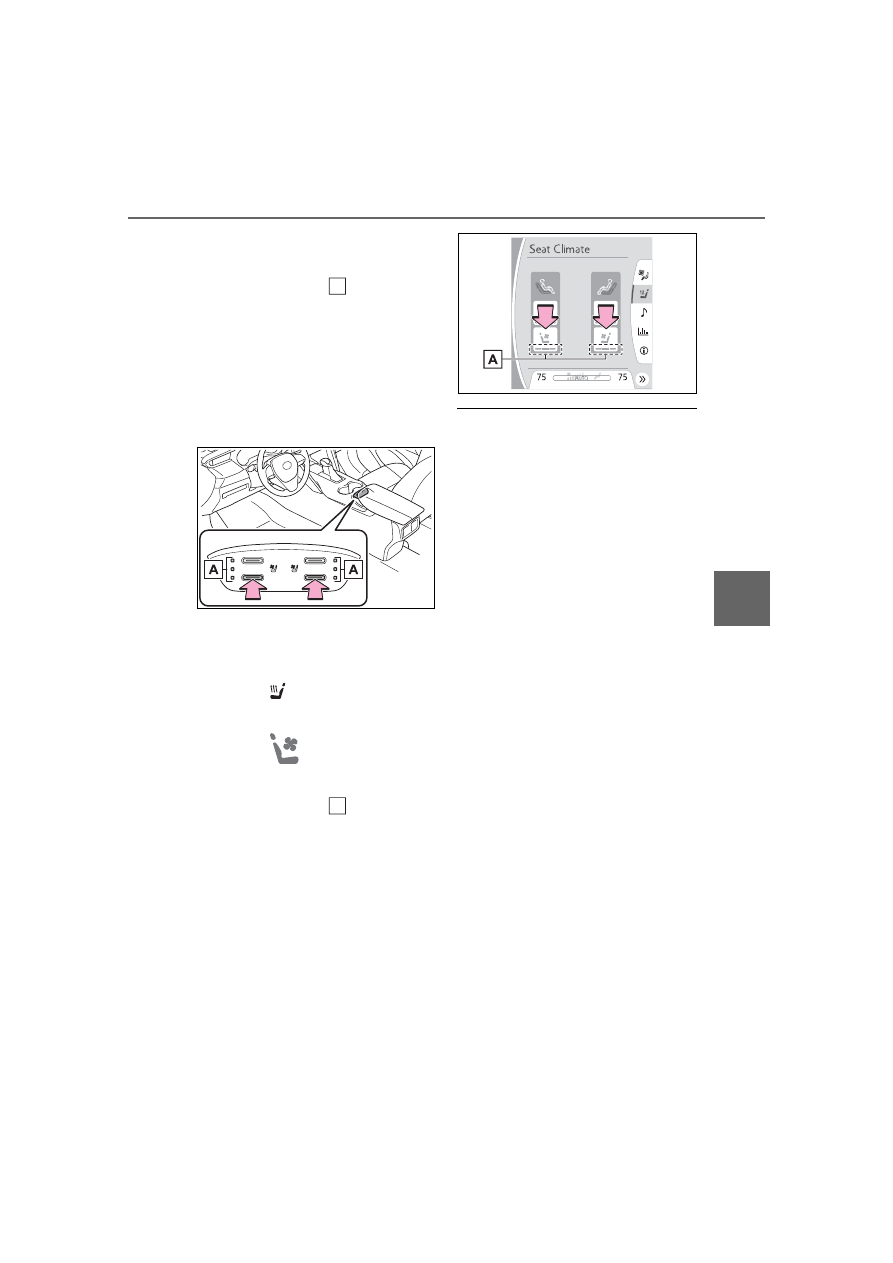

333

5-1. Using the air conditioning system and defogger

5

Interior

 featur

es

2

Press the switch to turn the
seat ventilator on/off.

The level indicators

 come on

green during operation.
Each time the switch is pressed,
the operation condition changes as
follows.
Hi (3 segments lit)



 Mid (2 seg-

ments lit)



 Lo (1 segment lit)





Off

■

Using the Toyota multi-
operation touch (if
equipped)

1

Select

 to display the seat

climate screen. (



P.345)

2

Select

 to turn the seat

ventilator on/off.

The level indicators

 come on

blue during operation.
Each time the switch is selected,
the operation condition changes as
follows.
Hi (3 segments lit)



 Mid (2 seg-

ments lit)



 Lo (1 segment lit)





Off

■

Operation condition

The power switch is in ON.

■

Air conditioning system-linked

control mode

When a seat ventilator is set to Hi,

the fan speed of the seat ventilator

may increase according to the fan

speed of the air conditioning sys-

tem.

A

A
