1-3. Theft deterrent system



For vehicles sold in New Caledonia

81

1-3. Theft deterrent system

1

For safet

y and s

ecurity

82

1-3. Theft deterrent system

83

1-3. Theft deterrent system

1

For safet

y and s

ecurity

84

1-3. Theft deterrent system

85

1-3. Theft deterrent system

1

For safet

y and s

ecurity

86

1-3. Theft deterrent system

87

1-3. Theft deterrent system

1

For safet

y and s

ecurity

NOTICE

■

To ensure the system operates correctly

Do  not  modify  or  remove  the  system.  If  modified  or  removed,  the  proper
operation of the system cannot be guaranteed.

88

1-3. Theft deterrent system

Alarm



The alarm uses light and sound to give an alert when an intrusion is
detected.
The  alarm  is  triggered  in  the  following  situations  when  the  alarm  is
set:

●

A locked door is unlocked or opened in any way other than using
the entry function, wireless remote control or mechanical key. (The
doors will lock again automatically.)

●

The hood is opened.

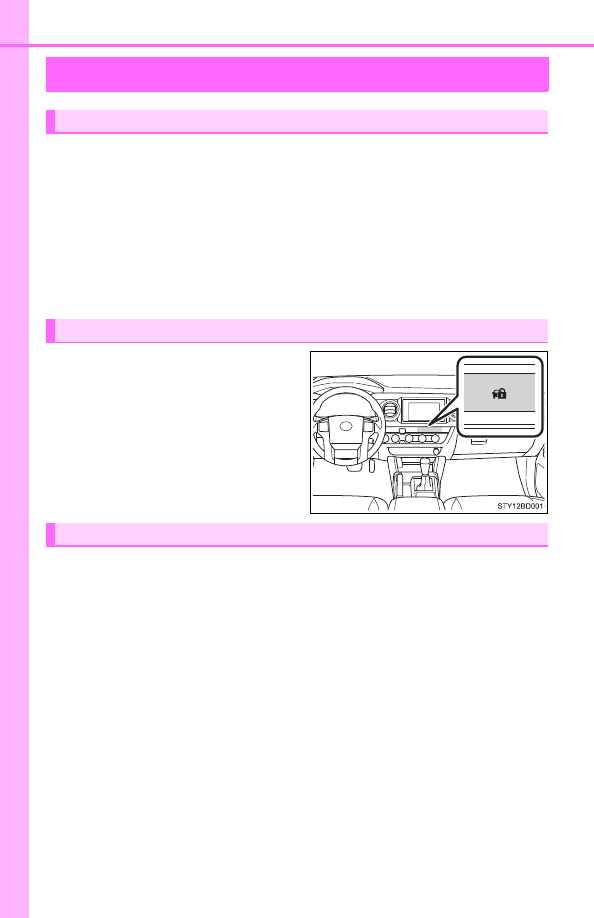

Close  the  doors  and  hood,  and
lock all the doors. The system will
be set automatically after 30 sec-
onds.

The  indicator  light  changes  from
being on to flashing when the sys-
tem is set.

Do one of the following to deactivate or stop the alarms:

●

Unlock the doors.

●

Vehicles without a smart key system:
Turn the engine switch to the “ACC” or “ON” position, or start  the
engine. (The alarm will be deactivated or stopped after a few sec-
onds.)
Vehicles with a smart key system:
Turn the engine switch to ACCESSORY or IGNITION ON mode, or
start the engine. (The alarm will be deactivated or stopped after a
few seconds.)



: If equipped

The alarm

Setting the alarm system

Deactivating or stopping the alarm

89

1-3. Theft deterrent system

1

For safet

y and s

ecurity

■

System maintenance

The vehicle has a maintenance-free type alarm system.

■

Items to check before locking the vehicle

To prevent unexpected triggering of the alarm and vehicle theft, make sure of
the following:

●

Nobody is in the vehicle.

●

The windows and moon roof (if equipped) are closed before the alarm is set.

●

No valuables or other personal items are left in the vehicle.

■

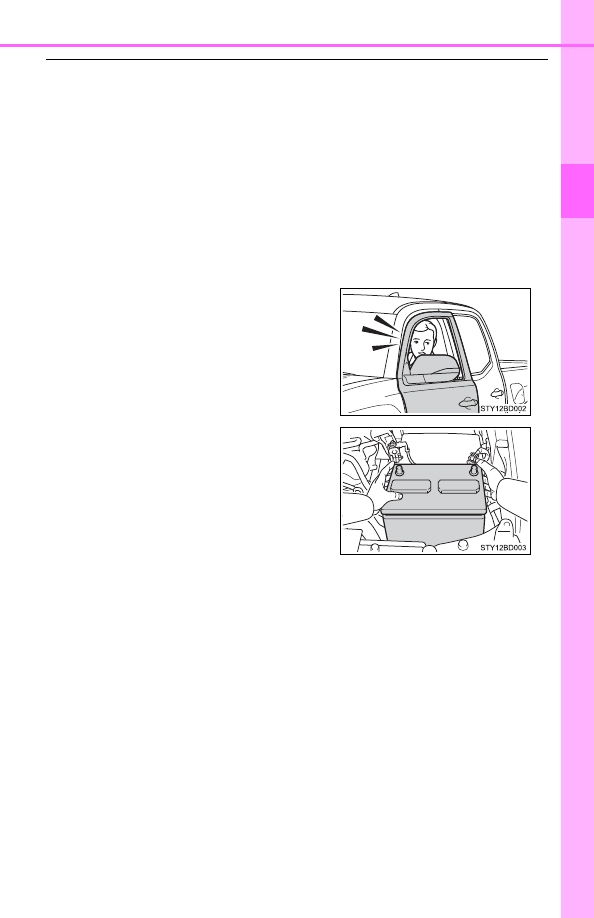

Triggering of the alarm

The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)

●

A person inside the vehicle opens a door
or hood, or unlocks the vehicle using an
inside lock button.

●

The  battery  is  recharged  or  replaced
when the vehicle is locked.

90

1-3. Theft deterrent system

■

Alarm-operated door lock

In the following cases, depending on the situation, the door may automatically
lock to prevent improper entry into the vehicle:

●

When a person remaining in the vehicle locks the door and the alarm is acti-
vated.

●

While the alarm is activated, a person remaining in the vehicle unlocks the
door.

●

When recharging or replacing the battery.

NOTICE

■

To ensure the system operates correctly

Do  not  modify  or  remove  the  system.  If  modified  or  removed,  the  proper
operation of the system cannot be guaranteed.

91

Instrument cluster

2

2.

Instrument cluster

Warning lights and

indicators .......................... 92

Gauges and meters ............ 98
Multi-information display ... 102
Fuel consumption

information ...................... 109

92

2. Instrument cluster

Warning lights and indicators

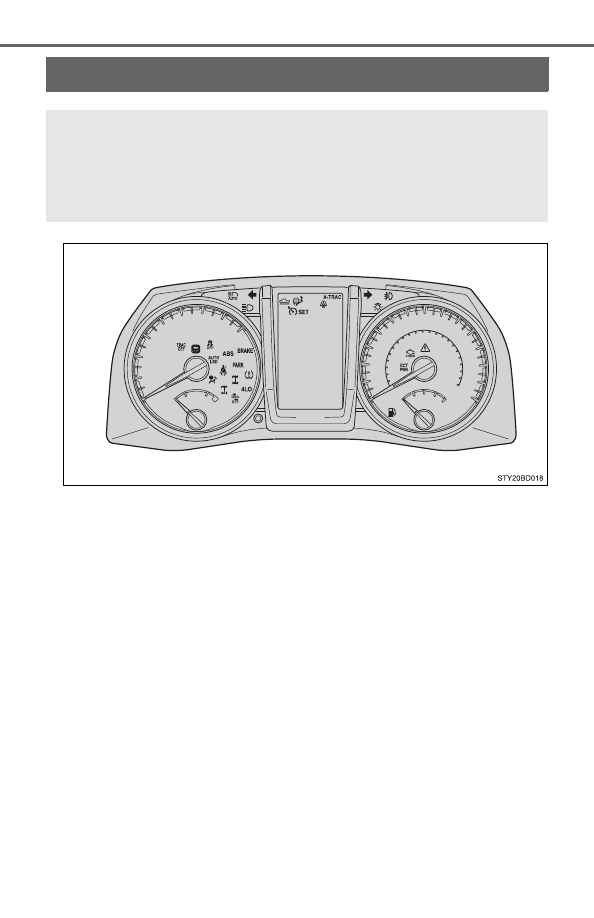

The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For  the  purpose  of  explanation,  the  following  illustration  dis-
plays all warning lights and indicators illuminated.

93

2. Instrument cluster

2

Instrument cluster

Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.

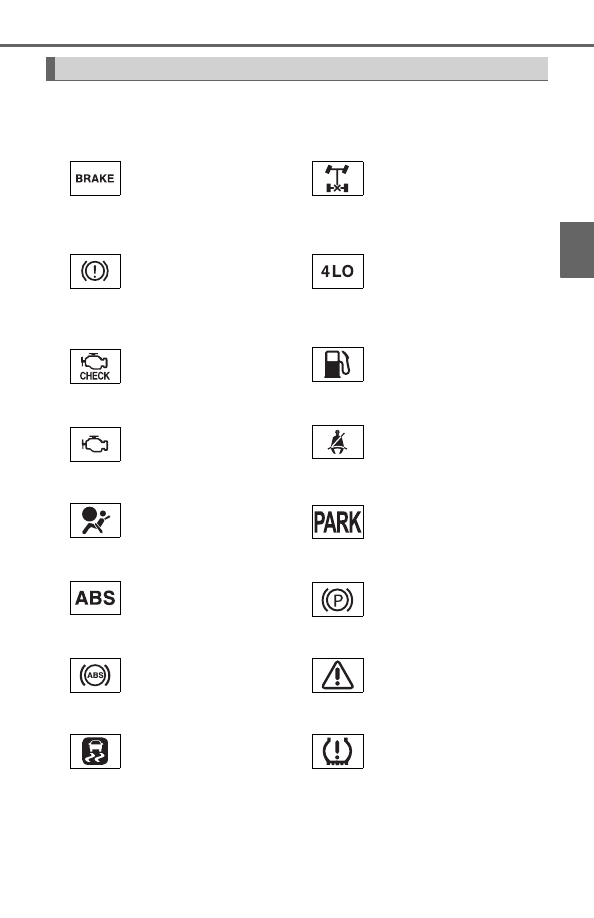

Warning lights

*

1

(U.S.A.)

Brake  system  warning
light (



P. 476)

*

5

(Flashes

rapidly)

Rear  differential  lock
indicator (



P. 477)

*

1

(Canada)

Brake  system  warning
light (



P. 476)

(Flashes)
(4WD models)

Low  speed  four-wheel
drive indicator (



P. 477)

*

1

(U.S.A.)

Malfunction

indicator

lamp (



P. 476)

Low  fuel  level  warning
light (



P. 477, 487)

*

1

(Canada)

Malfunction

indicator

lamp (



P. 476)

Seat  belt  reminder  light
(



P. 477)

*

1

SRS warning light
(



P. 476)

(U.S.A.)

Parking  brake  indicator
(



P. 477)

*

1

(U.S.A.)

ABS warning light
(



P. 476)

(Canada)

Parking  brake  indicator
(



P. 477)

*

1

(Canada)

ABS warning light
(



P. 476)

*

1

Master  warning  light
(



P. 477)

*

1, 2

Slip indicator (



P. 477)

*

1, 5

Tire  pressure  warning
light (



P. 478)

94

2. Instrument cluster

*

1

: These lights turn on when the engine switch is turned to the “ON” position

(vehicles  without  a  smart  key  system)  or  IGNITION  ON  mode  (vehicles
with  a  smart  key  system)  to  indicate  that  a  system  check  is  being  per-
formed. They will turn off after the engine is started, or after a few seconds.
There may be a malfunction in a system if the lights do not come on, or if

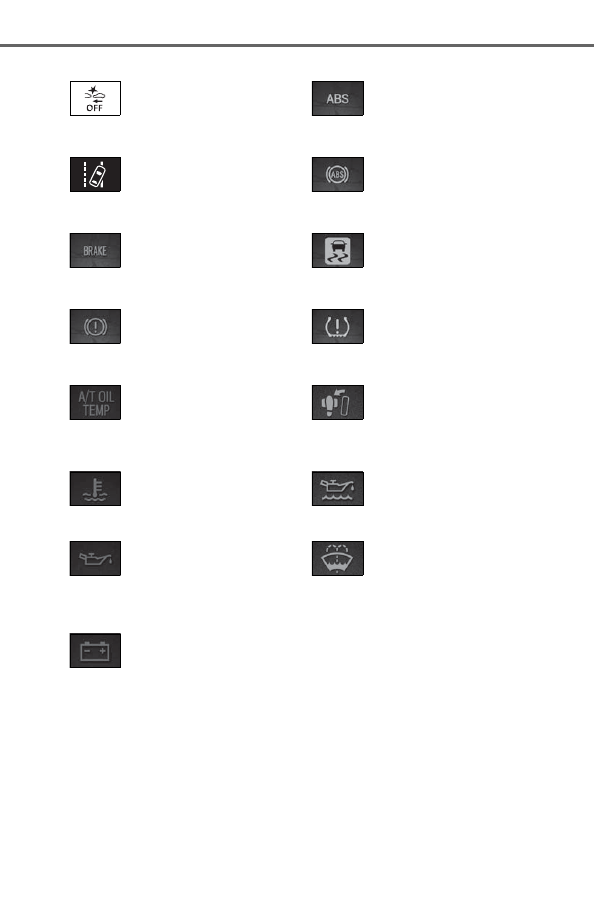

the lights do not turn off. Have the vehicle inspected by your Toyota dealer
for details.

*

1, 3, 5

PCS warning light
(



P. 478)

*

4

(U.S.A.)

ABS warning light
(



P. 485)

*

2, 4, 5

(Yellow)

LDA indicator (



P. 478)

*

4

(Canada)

ABS warning light
(



P. 485)

*

4

(U.S.A.)

Brake  system  warning
light (



P. 483)

*

2, 4

Slip indicator (



P. 485)

*

4

(Canada)

Brake  system  warning
light (



P. 483)

*

4, 5

Tire  pressure  warning
light (



P. 485)

*

4

Automatic  transmission
fluid  temperature  warn-
ing light (



P. 484)

*

4

Brake  Override  System/
Drive-Start Control warn-
ing light
(



P. 486, 487, 497)

*

4

High engine coolant tem-
perature warning light
(



P. 484)

*

4

Low  engine  oil  level
warning light (



P. 486)

*

4

Low  engine  oil  pressure
warning light (



P. 484)

*

4

(Canada

only)

Low  windshield  washer
fluid warning light
(



P. 487)

*

4

Charging  system  warn-
ing light (



P. 484)

95

2. Instrument cluster

2

Instrument cluster

*

2

: The light comes on to indicate a malfunction.

*

3

: The light flashes to indicate a malfunction.

*

4

: This light illuminates on the multi-information display.

*

5

: If equipped

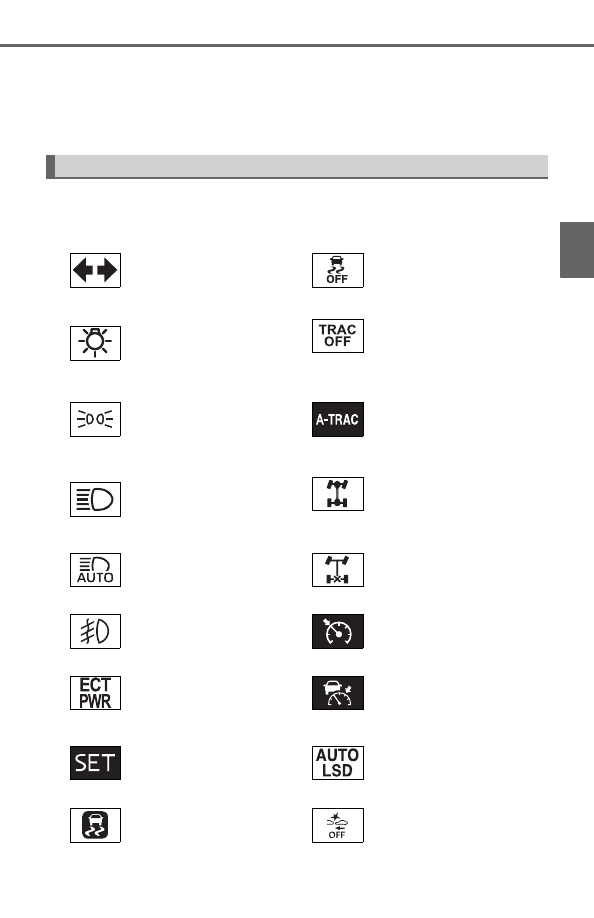

The indicators inform the driver of the operating state of the vehicle’s
various systems.

Indicators

Turn signal indicator
(



P. 217)

*

2

VSC off indicator
(



P. 301, 318, 319)

(U.S.A.)

Headlight indicator
(



P. 219)

*

2

“TRAC OFF” indicator
(



P. 318, 319)

(Canada)

Tail light indicator
(



P. 219)

*

4, 9

Active  traction  control
system indicator
(



P. 306)

Headlight  high  beam
indicator (



P. 221)

(4WD models)

Four-wheel  drive  indica-
tor (



P. 297)

*

9

Automatic  high  beam
indicator (



P. 223)

*

2, 9

Rear  differential  lock
indicator (



P. 303)

*

9

Fog light indicator
(



P. 228)

*

4

Cruise control indicator
(



P. 274, 279)

*

1

Power  mode  indicator
(



P. 211)

*

4, 9

Dynamic  radar  cruise
control indicator
(



P. 270)

*

4

Cruise  control  “SET”
indicator (



P. 274, 279)

*

2

“AUTO  LSD”  indicator
(



P. 301)

*

2, 3

Slip indicator
(



P. 301, 306, 312, 318)

*

2, 9, 10

PCS warning light
(



P. 248)

96

2. Instrument cluster

*

1

: Vehicles with an automatic transmission.

*

2

: These lights turn on when the engine switch is turned to the “ON” position

(vehicles  without  a  smart  key  system)  or  IGNITION  ON  mode  (vehicles
with  a  smart  key  system)  to  indicate  that  a  system  check  is  being  per-
formed. They will turn off after the engine is started, or after a few seconds.
There may be a malfunction in a system if the lights do not come on, or if
the lights do not turn off. Have the vehicle inspected by your Toyota dealer
for details.

*

3

: The light flashes to indicate that the system is operating.

*

4

: This light illuminates on the multi-information display.

*

5

: When  the  outside  temperature  is  approximately  37°F  (3°C)  or  lower,  the

indicator will flash for 10 times, then comes on.

*

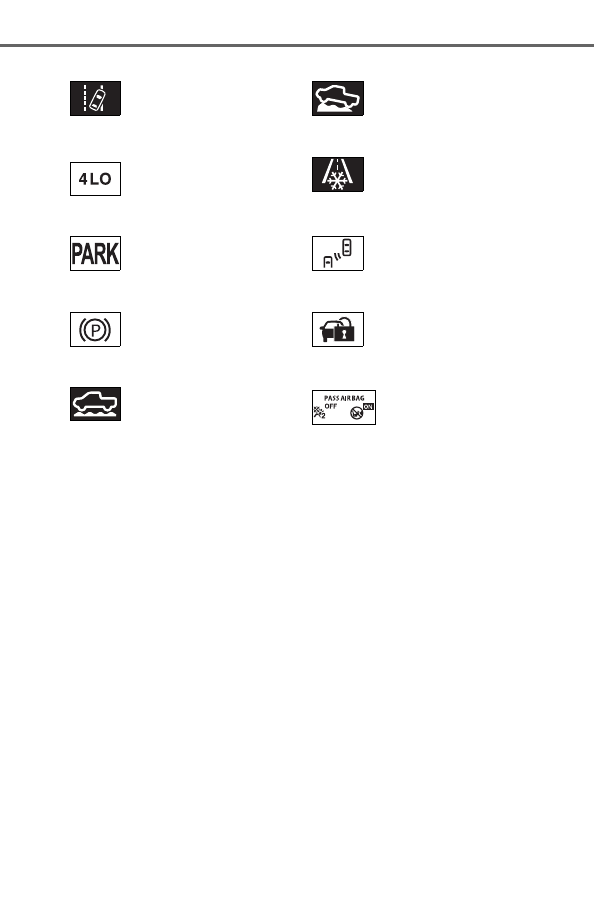

4, 9

(Green)

LDA indicator (



P. 261)

*

4, 9

Crawl Control indicator
(



P. 312)

(4WD models)

Low  speed  four-wheel
drive indicator (



P. 297)

*

4, 5

Low  outside  tempera-
ture indicator (



P. 98)

(U.S.A.)

Parking brake indicator
(



P. 218)

*

6, 7, 9

BSM  outside  rear  view
mirror indicator
(



P. 289)

(Canada)

Parking brake indicator
(



P. 218)

*

8, 9

Security indicator
(



P. 78, 88)

*

4, 9

Multi-terrain  Select  indi-
cator (



P. 308)

“AIR BAG ON/OFF” indicators
(



P. 48)

*

2, 8

97

2. Instrument cluster

2

Instrument cluster

*

6

: In order to confirm operation, the BSM outside rear view mirror indicators

illuminate in the following situations:

• When the engine switch is turned to the “ON” position (vehicles without a

smart  key  system)  or  IGNITION  ON  mode  (vehicles  with  a  smart  key
system) while the BSM main switch is set to ON.

• When the BSM main switch is set to ON while the engine switch is in the

“ON”  position  (vehicles  without  a  smart  key  system)  or  IGNITION  ON
mode (vehicles with a smart key system).

If the system is functioning correctly, the BSM outside rear view mirror indi-
cators will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not
turn off, there may be a malfunction in the system.

*

7

: This light illuminates on the outside rear view mirrors.

*

8

: This light illuminates on the center panel.

*

9

: If equipped

*

10

: The light comes on when the system is turned off.

WARNING

■

If a safety system warning light does not come on

Should a  safety  system light  such as  the ABS and  SRS  warning  light  not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by your Toyota dealer immedi-
ately if this occurs.

98

2. Instrument cluster

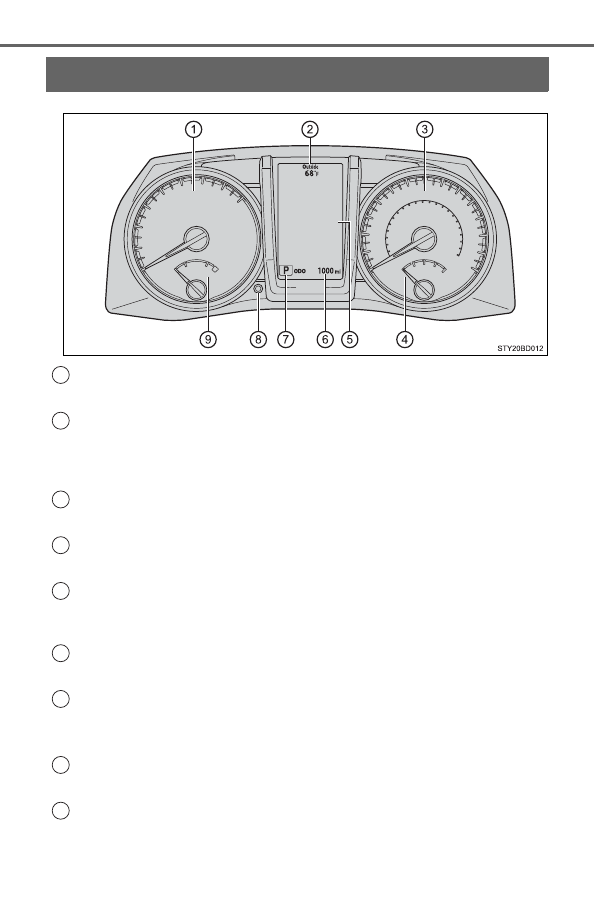

Gauges and meters

Tachometer

Displays the engine speed in revolutions per minute.

Outside temperature

Displays  the  outside  temperature  within  the  range  of  -40°F  (-40°C)  to
122°F  (50°C).  Low  outside  temperature  indicator  comes  on  when  the
ambient temperature is 37°F (3°C) or lower.

Speedometer

Displays the vehicle speed.

Fuel gauge

Displays the quantity of fuel remaining in the tank.

Multi-information display

Presents the driver with a variety of vehicle data. (



P. 103)

Displays warning messages in case of a malfunction. (



P. 483)

Odometer/trip meter



P. 99

Shift position and shift range (vehicles with an automatic transmis-
sion)

Displays the selected shift position or selected shift range. (



P. 210)

“ODO/TRIP” and instrument panel light control button



P. 99

Engine coolant temperature gauge

Displays the engine coolant temperature.

1

2

3

4

5

6

7

8

9

99

2. Instrument cluster

2

Instrument cluster

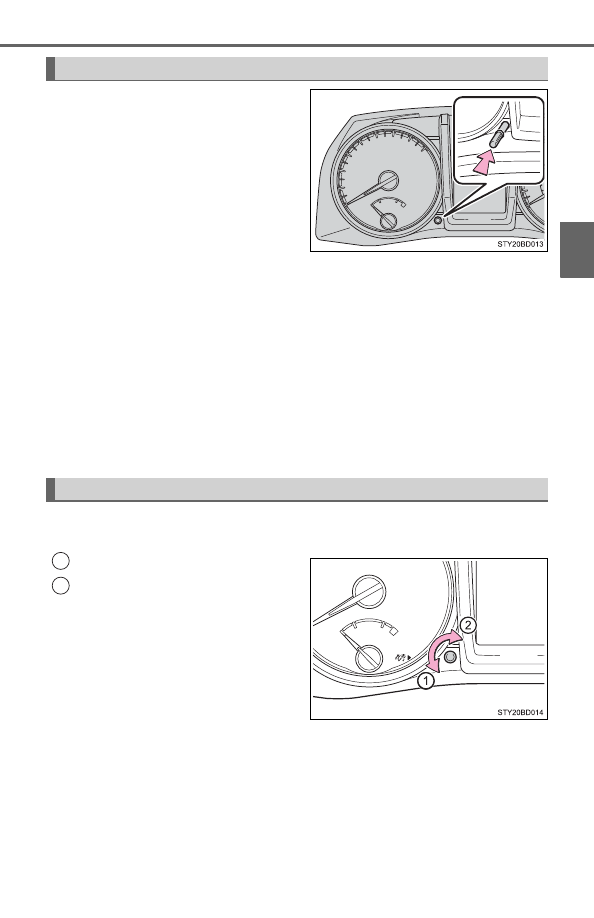

Pressing  the  button  switches  the
display between the odometer, trip
meters, and a blank display.

■

Odometer

Displays the total distance the vehicle has been driven.

■

Trip meter A

*

/trip meter B

*

Displays the distance the vehicle has been driven since the meter
was last reset. Trip meters A and B can be used to record and dis-
play different distances independently.

*

: Press and hold the button to reset.

■

Blank display

A blank screen is displayed.

The brightness of the instrument panel lights can be adjusted by turn-
ing the button.

Darker
Brighter

Changing the odometer and trip meter display

Instrument panel light control

1

2

100

2. Instrument cluster

■

The multi-information display illuminate when

Vehicles without a smart key system:
The engine switch is in the “ON” position.
Vehicles with a smart key system:
The engine switch is in IGNITION ON mode.

■

The brightness of the instrument panel lights

When  the  tail  lights  are  turned  on,  the  display’s  brightness  will  be  reduced
slightly  unless  the  meter  brightness  level  adjustment  is  set  to  the  brightest
setting.

■

Outside temperature display

●

In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 12 mph [20 km/h])
• When the outside temperature has changed suddenly (at the entrance/

exit of a garage, tunnel, etc.)

●

When “--” or “E” is displayed, the system may be malfunctioning.
Take your vehicle to your Toyota dealer.

■

Liquid crystal display

Small  spots  or  light  spots  may  appear  on  the  display. This  phenomenon  is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.

101

2. Instrument cluster

2

Instrument cluster

WARNING

■

The information display at low temperatures

Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift  again,  causing  rapid  and  excessive  engine  braking  and  possibly  an
accident resulting in personal death or injury.

NOTICE

■

To prevent damage to the engine and its components

●

Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.

●

The engine may be overheating if the engine coolant temperature gauge is
in  the  red  zone  (H).  In  this  case,  immediately  stop  the  vehicle  in  a  safe
place, and check the engine after it has cooled completely. (



P. 528)

102

2. Instrument cluster

Multi-information display

The multi-information display presents the driver with a variety of vehi-
cle data.

●

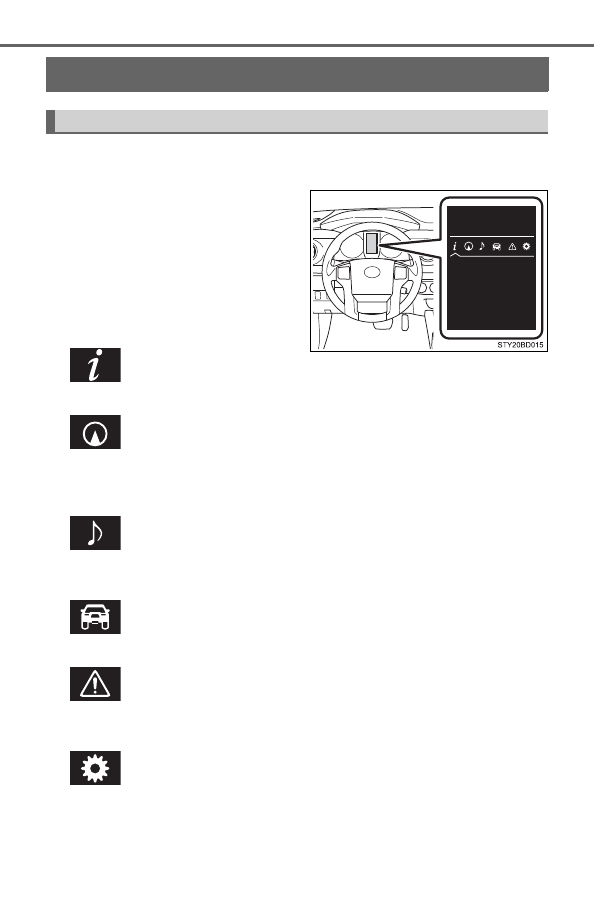

Menu icons
Displays  the  following  informa-
tion  when  an  icon  is  selected.

(



P. 103)

Some of the information may be
displayed

automatically

depending on the situation.

Drive information

Select to display various drive data. (



P. 103)

Navigation system-linked display (if equipped)

Select to display the following navigation system-linked information.

• Route guidance
• Compass display (north-up display/heading-up display)

Audio system-linked display

Select to enable selection of an audio source or track on the meter
using the meter control switches.

Vehicle information (if equipped)

Select to display various vehicle information. (



P. 104)

Warning message display

Select to display warning messages and measures to be taken if a
malfunction is detected. (



P. 483)

Settings display

Select to change the meter display settings. (



P. 105)

Display contents

103

2. Instrument cluster

2

Instrument cluster

■

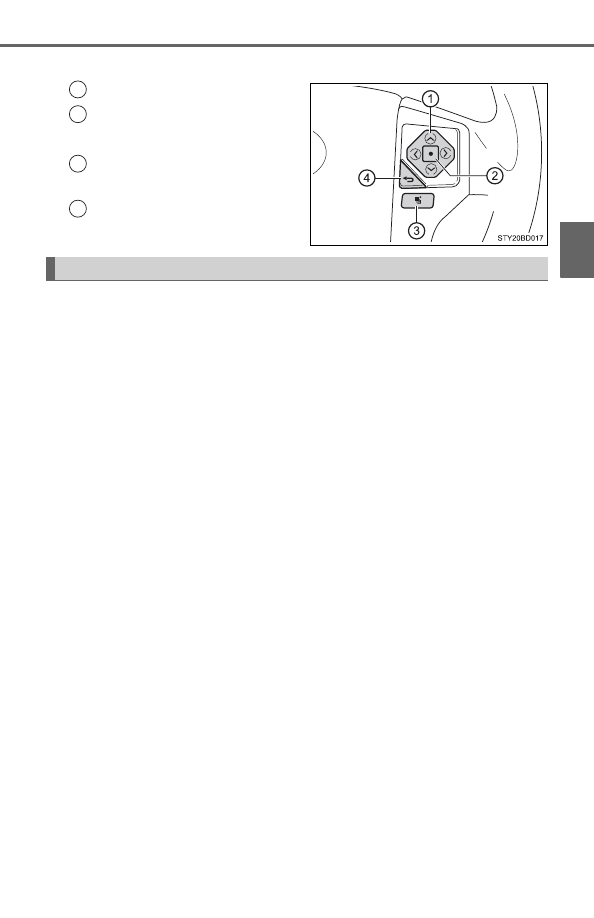

Operating the meter control switches

Select an item/change pages
Press: Enters/Sets
Press and hold: Resets
Switch  menu/Displays  the
top screen
Returns  to  the  previous
screen

●

Average fuel economy

*

1, 2

/Tank average fuel economy

*

1

/Trip aver-

age fuel economy

*

1

Displays  the  average  fuel  consumption  since  the  function  was
reset, the vehicle was refueled, and the engine was started, respec-
tively

Use the displayed average fuel consumption as a reference.

●

Distance to empty

*

1

Displays the estimated maximum distance that can be driven with
the quantity of fuel remaining, the distance driven after the engine
was started and the distance since the function was reset, respec-
tively.

• This distance is computed based on your average fuel consumption. As

a result, the actual distance that can be driven may differ from that dis-
played.

• When only a small amount of fuel is added to the tank, the display may

not be updated.
When refueling, turn the engine switch to the “LOCK” position (vehicles
without a smart key system) or off (vehicles with a smart key system). If
the vehicle is refueled without turning the engine switch to the “LOCK”
position  (vehicles  without  a  smart  key  system)  or  off  (vehicles  with  a
smart key system), the display may not be updated.

●

Current fuel economy

*

1

Displays the current rate of fuel consumption

●

Trip elapsed time

*

1

/Elapsed time

*

1, 2

Displays  the  engine  was  started  and  the  elapsed  time  since  the
function was reset, respectively

1

2

3

4

Drive information

104

2. Instrument cluster

●

Trip average speed

*

1

/Average speed

*

1, 2

Displays  the  engine  was  started  and  the  average  vehicle  speed
since the function was reset, respectively

●

Trip distance

*

1

/Distance

*

1, 2

Displays the engine was started and the distance since the function
was reset, respectively

●

Digital speedometer

*

1

●

Display off

*

1

A blank screen is displayed

*

1

: Can be registered to Drive information 1 through 3.

*

2

: Resetting procedures:

• Select  a  function  to  be  reset  using  the  meter  control  switch  and  then

press and hold the center button to reset.

• If there is more than one function that can be reset, check boxes will be

displayed next to the functions.

●

Clinometer (if equipped)
Displays the longitudinal and lateral inclination of the vehicle.

●

LDA (Lane Departure Alert) (if equipped)



P. 257

●

Dynamic radar cruise control (if equipped)



P. 265

●

Intuitive parking assist (if equipped)



P. 283

●

Multi-terrain select (if equipped)



P. 308

●

Crawl control (if equipped)



P. 312

●

Tire inflation pressure (if equipped)



P. 426

Vehicle information

105

2. Instrument cluster

2

Instrument cluster

■

Changing the settings

Select

 using the meter control switch.

Select an item and then set it with the center button.

■

Customizable items

●

PCS (Pre-Collision System) (if equipped) (→P. 244)

• PCS

Select to enable/disable the PCS (Pre-Collision System) function.

• Sensitivity

Select to set up the PCS (Pre-Collision System) sensitivity.

●

LDA (Lane Departure Alert) (if equipped) (→P. 257)

• LDA sensitivity

Select to set up the LDA (Lane Departure Alert) sensitivity.

• Sway warning

Select to enable/disable the Sway warning function.

• Sway warning sensitivity

Select to set up the sway warning sensitivity.

●

Language
Select to change the language on the display.

●

Units
Select to change the  unit of  measure for fuel consumption and
temperature.

●

Drive information 1 through 3
Select  to  select  up  to  2  items  that  will  be  displayed  on  a  Drive
information screen, up to 3 Drive information screens can be set.

●

Pop-up display
Select to set the following pop-up displays, which may appear in
some situations, on/off.

• Instrument panel brightness adjustment display
• Route  guidance  display  of  the  navigation  system-linked  sys-

tem

• Incoming call display of the hands-free phone system
• Shift position display (vehicles with an automatic transmission)

Settings display

1

2

106

2. Instrument cluster

●

Accent color
Select  to  change  the  accent  colors  on  the  screen,  such  as  the
cursor color.

●

Speed limit display

*

Select to set the display of speed limit information stored in the
navigation system (if equipped) to on with the speed limit caution
indicator  (yellow)  enabled,  on  with  the  speed  limit  caution  not
enabled, or off. If enabled, the speed limit caution indicator  will
come on if the vehicle speed exceeds the displayed speed limit.

●

Programming
It is possible to set up a screen desired to be displayed as the

Top Screen by pressing and holding

 .

There are also screens that cannot be setup as the Top Screen.

●

Maintenance system (U.S.A.)
Select  to  reset  the  message  after  the  required  maintenance  is
performed. (



P. 404)

●

Default settings
Registered or changed meter settings will be deleted or returned
to their default setting.

*

: Speed limit display may not be available for some regions.

107

2. Instrument cluster

2

Instrument cluster

■

Setting items

●

Setting items are not selectable during driving and cannot be operated.
Also, the settings screen is temporarily canceled in the following situations.
• A warning message is displayed.
• The vehicle starts off.

●

Settings for functions not equipped to the vehicle are not displayed.

●

When a function is turned off, the related settings for that function are not
selectable.

■

Pop-up display

In some situations, such as when a switch operation is performed, a pop-up
display will be temporarily displayed on the multi-information display.

■

When disconnecting and reconnecting battery terminals

The drive information will be reset.

■

Ending display

When the engine switch is turned off, each of the following will be displayed
on  the  multi-information  display,  and  will  extinguish  after  approximately
30 seconds.

●

Distance traveled

●

Average fuel economy

●

Distance to empty

■

Tire inflation pressure (vehicles with tire pressure warning system)

●

It  may  take  a  few  minutes  to  display  the  tire  inflation  pressure  after  the
engine switch is turned to the “ON” position (vehicles without a smart key
system) or IGNITION ON mode (vehicles with a smart key system). It may
also take a few minutes to display the tire inflation pressure after inflation
pressure has been adjusted.

●

“---” may be displayed if the tire position information cannot be determined
due to unfavorable radio wave conditions.

●

Tire inflation pressure changes with temperature. The displayed values may
also be different from the values measured using a tire pressure gauge.

■

Liquid crystal display



P. 100

108

2. Instrument cluster

WARNING

■

Caution for use while driving

●

When  operating  the  multi-information  display  while  driving,  pay  extra
attention to the safety of the area around the vehicle.

●

Do not look continuously at the multi-information display while driving as
you  may  fail  to  see  pedestrians,  objects  on  the  road,  etc.  ahead  of  the
vehicle.

■

Cautions during setting up the display

As the engine needs to be running during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO)
may  collect  and  enter  the  vehicle.  This  may  lead  to  death  or  a  serious
health hazard.

NOTICE

■

During setting up the display

To prevent battery discharge, ensure that the engine is running while setting
up the display features.

109

2. Instrument cluster

2

Instrument cluster

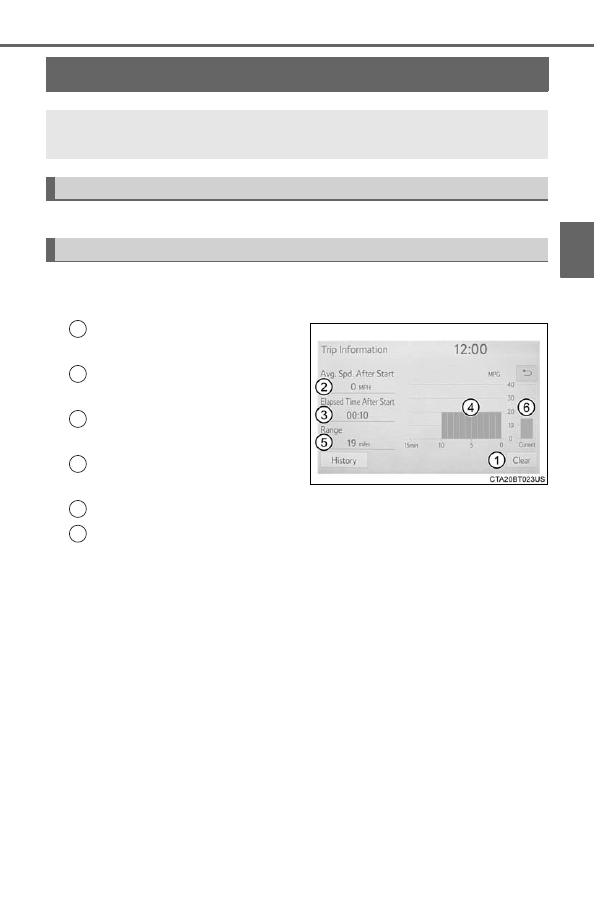

Fuel consumption information



Press the “APPS” button, and then select “Eco” on the screen.

■

Trip information

If the “Past Record” screen is displayed, select “Trip Information”.

Resetting  the  consumption
data
Average vehicle speed since
the engine was started
Elapsed  time  since  the
engine was started
Fuel consumption in the past
15 minutes
Cruising range (



P. 110)

Current fuel consumption

Average  fuel  consumption  for  the  past  15  minutes  is  divided  by
color  into  past  averages  and  averages  attained  since  the  engine
switch  was  last  turned  to  the  “ON”  position  (vehicles  without  a
smart  key  system)  or  IGNITION  ON  mode  (vehicles  with  a  smart
key system). Use the displayed average fuel consumption as a ref-
erence.

These images are examples only.



: If equipped

The fuel consumption information can be displayed on the navi-
gation system or multimedia system.

Display the trip information or past record screen

Fuel consumption

1

2

3

4

5

6

110

2. Instrument cluster

■

Past record

If the “Trip Information” screen is displayed, select “Past Record”.

Resetting  the  past  record
data
Best recorded fuel consump-
tion
Average fuel consumption (if
equipped)
Previous  fuel  consumption
record
Update the average fuel consumption data

The average fuel consumption history is divided by color into past
averages and the average fuel consumption since the last updated.
Use the displayed average fuel consumption as a reference.

These images are examples only.

■

Resetting the data

The fuel consumption data can be deleted by selecting “Clear”.

■

Updating the past record data

Update the average fuel consumption by selecting “Update” to measure the
current fuel consumption again.

■

Cruising range

Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This  distance  is  computed  based  on  your  average  fuel  consumption. As  a
result, the actual distance that can be driven may differ from that displayed.

1

2

3

4

5

111

3

Operation of

each component

3-1. Key information

Keys .................................. 112

3-2. Opening, closing and

locking the doors

Doors ................................ 119
Tailgate ............................. 126
Smart key system.............. 131

3-3. Adjusting the seats

Front seats ........................ 139
Rear seats......................... 142
Head restraints.................. 145

3-4. Adjusting the steering

wheel and mirrors

Steering wheel .................. 149
Inside rear view mirror....... 151
Outside rear view

mirrors............................. 154

3-5. Opening, closing the

windows and moon roof

Power windows ................. 156
Back window (vehicles

with sliding type) ............. 159

Power back window .......... 160
Moon roof.......................... 162

112

3-1. Key information

Keys

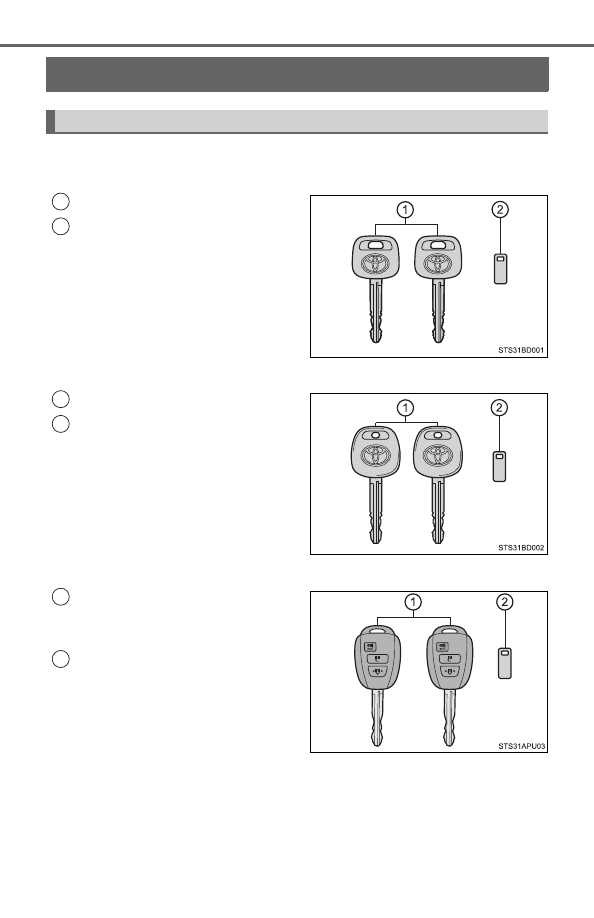

The following keys are provided with the vehicle.



Type A

Keys
Key number plate



Type B

Keys
Key number plate



Type C

Keys

Operating the wireless remote con-
trol function

Key number plate

The keys

1

2

1

2

1

2

113

3-1. Key information

3

Opera

tion of e

ach compon

ent



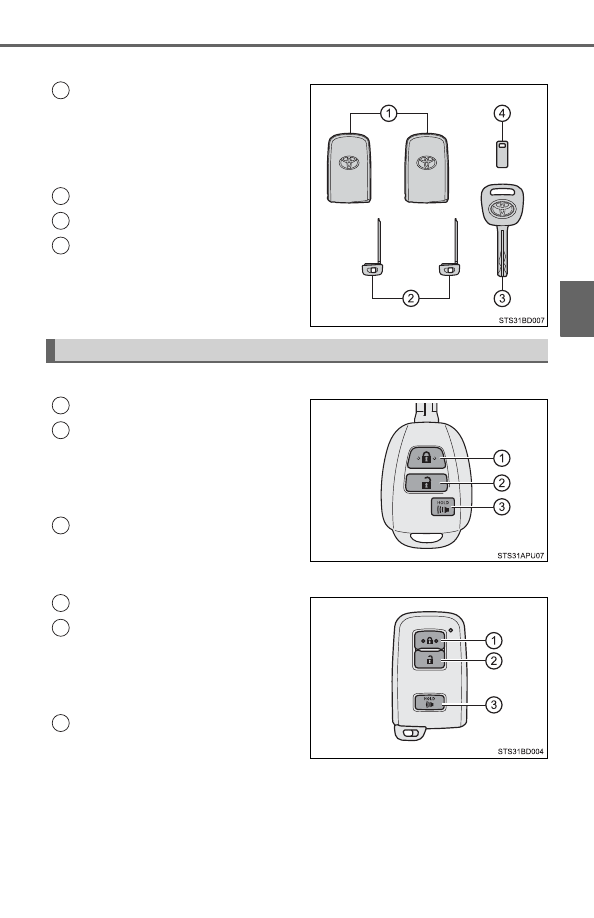

Type D

Electronic keys

• Operating the smart key sys-

tem

 (



P. 131)

• Operating

the

wireless

remote control function

Mechanical keys
Key
Key number plate



Type C

Locks all the doors (



P. 119)

Unlocks all the doors (



P. 119)

Pressing  the  button  unlocks  the
driver’s  door.  Pressing  the  button
again within 3 seconds unlocks the
other doors.

Sounds  the  alarm  (press  and
hold) (



P. 114)



Type D

Locks all the doors (



P. 120)

Unlocks all the doors (



P. 120)

Pressing  the  button  unlocks  the
driver’s  door.  Pressing  the  button
again within 3 seconds unlocks the
other doors.

Sounds  the  alarm  (press  and
hold) (



P. 114)

1

2

3

4

Wireless remote control (type C or type D)

1

2

3

1

2

3

114

3-1. Key information

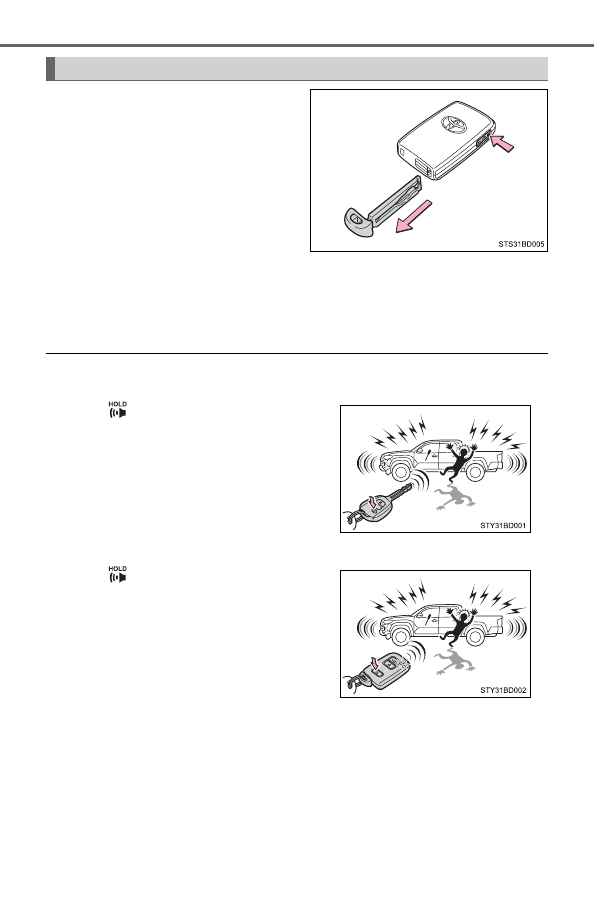

To  take  out  the  mechanical  key,
push the release button and take
the key out.

The  mechanical  key  can  only  be
inserted  in  one  direction,  as  the
key only has grooves on one side.
If  the  key  cannot  be  inserted  in  a
lock cylinder, turn it over and reat-
tempt to insert it.

After using the mechanical key, store it in the electronic key. Carry the
mechanical key together with the electronic key. If the electronic key
battery is depleted or the entry function does not operate properly, you
will need the mechanical key. (



P. 522)

■

Panic mode (type C or type D)



Type C



Type D

Using the mechanical key (type D)

When

  is  pressed  for  longer  than

about 1 second, an alarm will sound inter-
mittently and the vehicle lights will flash to
deter any person from trying to break into
or damage your vehicle.
To stop the alarm, press any button on the
wireless remote control.

When

  is  pressed  for  longer  than

about 1 second, an alarm will sound inter-
mittently and the vehicle lights will flash to
deter any person from trying to break into
or damage your vehicle.
To stop the alarm, press any button on the
electronic key.

115

3-1. Key information

3

Opera

tion of e

ach compon

ent

■

When required to leave the vehicle’s key with a parking attendant (type
D)

Lock the glove box as circumstances demand. (



P. 351)

Remove the mechanical key for your own use and provide the attendant with
the electronic key only.

■

If you lose your keys



Type A, B and C

New genuine key can be made by your Toyota dealer using the other key and
the key number stamped on your key number plate.
Keep the plate in a safe place such as your wallet, not in the vehicle.



Type D

New genuine key can be made by your Toyota dealer.
The following are necessary when making new keys.
Mechanical key:
The key number for the mechanical key stamped on the number plate and the
other key.
Key:
The key number for key stamped on the key number plate.
Keep the plates in a safe place such as your wallet, not in the vehicle.
There  are  key  number  plates  for  the  mechanical  key  and  key  respectively.
When storing them, keep them in a safe place in a manner to distinguish one
from the other (such as markings, etc.).

■

When riding in an aircraft (type C or type D)

When bringing an wireless remote control function onto an aircraft, make sure
you do not press any button on the key while inside the aircraft cabin. If you
are carrying the key in your bag, etc., ensure that the buttons are not likely to
be pressed accidentally. Pressing a button may cause the key to emit radio
waves that could interfere with the operation of the aircraft.

■

Conditions affecting operation (type C or type D)



Type C

The wireless remote control function may not operate normally in the follow-
ing situations:

●

Near a TV tower, radio station, electric power plant, airport or other facility
that generates strong radio waves

●

When carrying a portable radio, cellular phone or other wireless communi-
cation devices

●

When multiple wireless keys are in the vicinity

●

When the wireless key is in contact with, or is covered by a metallic object

●

When a wireless key (that emits radio waves) is being used nearby

●

When the wireless key has been left near an electrical appliance such as a
personal computer



Type D



P. 134

116

3-1. Key information

■

Key battery depletion (type C or type D)



Type C

If the wireless remote control function does not operate, the battery may be
depleted. Replace the battery when necessary. (



P. 445)



Type D

●

The standard battery life is 1 to 2 years.

●

If the battery becomes low, an alarm will sound in the cabin when the engine
stops. (



P. 502)

●

As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indi-
cate  that  the  electronic  key  battery  may  be  depleted.  Replace  the  battery
when necessary. (



P. 445)

• The smart key system or the wireless remote control does not operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.

●

To  avoid  serious  deterioration,  do  not  leave  the  electronic  key  within  1  m
(3 ft.) of the following electrical appliances that produce a magnetic field:
• TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Table lamps
• Induction cookers

■

Replacing the battery (type C or type D)



P. 445

■

Confirmation of the registered key number

The number of keys already registered to the vehicle can be confirmed. Ask
your Toyota dealer for details.

■

Customization (type C or type D)

Settings (e.g. wireless remote control system) can be changed.
(Customizable features:



P. 562)

117

3-1. Key information

3

Opera

tion of e

ach compon

ent

■

Certification for wireless remote control (type C)



For vehicles sold in U.S.A. and New Caledonia

FCC ID: HYQ23AAH
FCC ID: HYQ23AAN
FCC ID: HYQ12BEL
NOTE:
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence,  and  (2)  this  device  must  accept  any  interference  received,  including
interference that may cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
<For 12BEL>
The FCC ID/IC Certification number is affixed inside the equipment. You can
find the ID/number when replacing the battery.



For vehicles sold in Canada

NOTE:
This device  complies with Industry Canada’s  licence-exempt RSSs. Opera-
tion is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may
cause undesired operation of the device.
<For 12BEL>
The FCC ID/IC Certification number is affixed inside the equipment. You can
find the ID/number when replacing the battery.
NOTE:
Le  présent  appareil  est  conforme  aux  CNR  d’Industrie  Canada  applicables
aux appareils radio exempts de licence. L’exploitation est autorisée aux deux
conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage;
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d’en compromettre le fonctionnement.
<Pour 12BEL>
L’identification  FCC/Ie  numéro  d’accréditation  IC  est  apposé(e)  à  l’intérieur
de l’appareil. Cette identification/ce numéro est visible au remplacement de la
pile.

■

Certification for wireless remote control (type D)



P. 137

118

3-1. Key information

NOTICE

■

To prevent key damage

●

Do not drop the keys, subject them to strong shocks or bend them.

●

Do not expose the keys to high temperatures for long periods of time.

●

Do not get the keys wet or wash them in an ultrasonic washer, etc.

●

Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.

●

Do not disassemble the keys.

●

Do not attach a sticker or anything else to the surface of the electronic key.

●

Do not place the keys near objects that produce magnetic fields, such as
TVs,  audio  systems  and  induction  cookers,  or  medical  electrical  equip-
ment, such as low-frequency therapy equipment.

■

Carrying the electronic key on your person (type D)

Carry the electronic key 10 cm (3.9 in.) or more away from electric appli-
ances  that  are  turned  on.  Radio  waves  emitted  from  electric  appliances
within 10 cm (3.9 in.) of the electronic key may interfere with the key, caus-
ing the key to not function properly.

■

In case of a smart entry & start system malfunction or other key-related
problems (type D)

Take your vehicle with all the electronic keys provided with your vehicle to
your Toyota dealer.

■

When an electronic key is lost (type D)

If the electronic key remains lost, the risk of vehicle theft increases signifi-
cantly.  Visit  your  Toyota  dealer  immediately  with  all  remaining  electronic
keys that was provided with your vehicle.

119

3-2. Opening, closing and locking the doors

3

Opera

tion of e

ach compon

ent

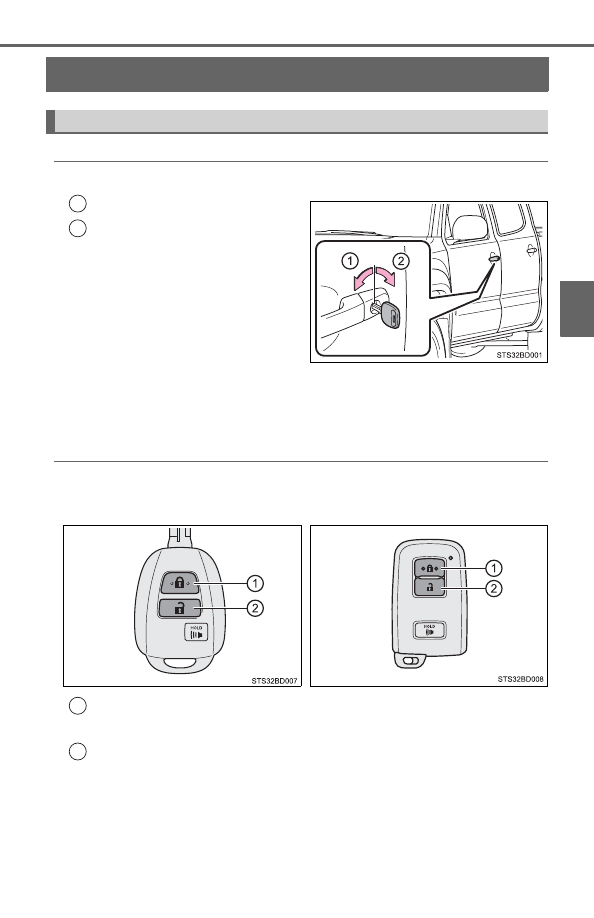

Doors

◆

Key



Vehicles without a smart key system

Locks all the doors
Unlocks all the doors

Turning  the  key  unlocks  the
driver’s  door.  Turning  the  key
again unlocks the other doors.



Vehicles with a smart key system
The  doors  can  also  be  locked  and  unlocked  with  the  mechanical
key. (



P. 522)

◆

Wireless remote control (if equipped)

Locks all the doors

Check that the door is securely locked.

Unlocks all the doors

Pressing the button unlocks the driver’s door. Pressing the button again
within 3 seconds unlocks the other doors.

Unlocking and locking the doors from the outside

1

2



Vehicles  without  a  smart  key
system



Vehicles with a smart key sys-
tem

1

2

120

3-2. Opening, closing and locking the doors

◆

Smart key system (if equipped)

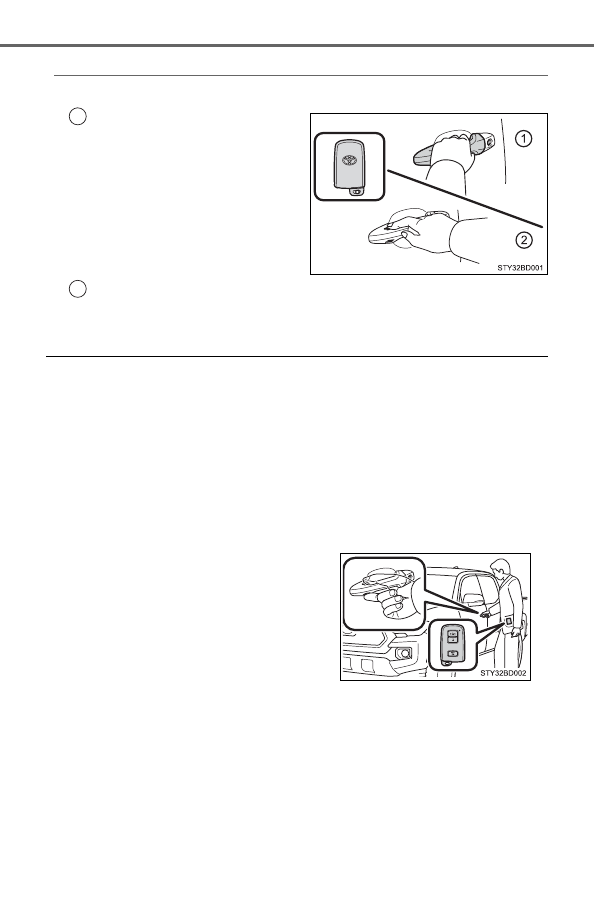

Carry the electronic key to enable this function.

Grip the driver’s door handle
to  unlock  the  door.  Grip  the
passenger’s  door  handle  to
unlock all the doors.

Make  sure  to  touch  the  sensor
on the back of the handle.
The  doors  cannot  be  unlocked
for 3 seconds after the doors are
locked.

Touch the lock sensor (the indentation on the upper part or lower
part of the front door handle) to lock the doors.

Check that the door is securely locked.

■

Operation signals (vehicles with a wireless remote control or smart key
system)

A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked. (Locked: once; Unlocked: twice)

■

Security  feature  (vehicles  with  a  wireless  remote  control  or  smart  key
system)

If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.

■

When the door cannot be locked by the lock sensor on the upper part of
the door handle (vehicles with a smart key system)

■

Door lock buzzer (vehicles with a smart key system)

If  an  attempt  to  lock  the  doors  is  made  when  a  door  is  not  fully  closed,  a
buzzer sounds continuously for 5 seconds. Fully close the door to stop the
buzzer, and lock the vehicle once more.

■

Alarm (if equipped)

Locking the doors will set the alarm system. (



P. 88)

1

If the door will not lock even when the top-
side sensor area is touched, try touching
both  the  topside  and  underside  sensor
areas at the same time.

2

121

3-2. Opening, closing and locking the doors

3

Opera

tion of e

ach compon

ent

■

If the smart key system or the wireless remote control does not operate
properly (if equipped)

Use the mechanical key to lock and unlock the doors. (



P. 522)

Replace the battery with a new one if it is depleted. (



P. 445)

◆

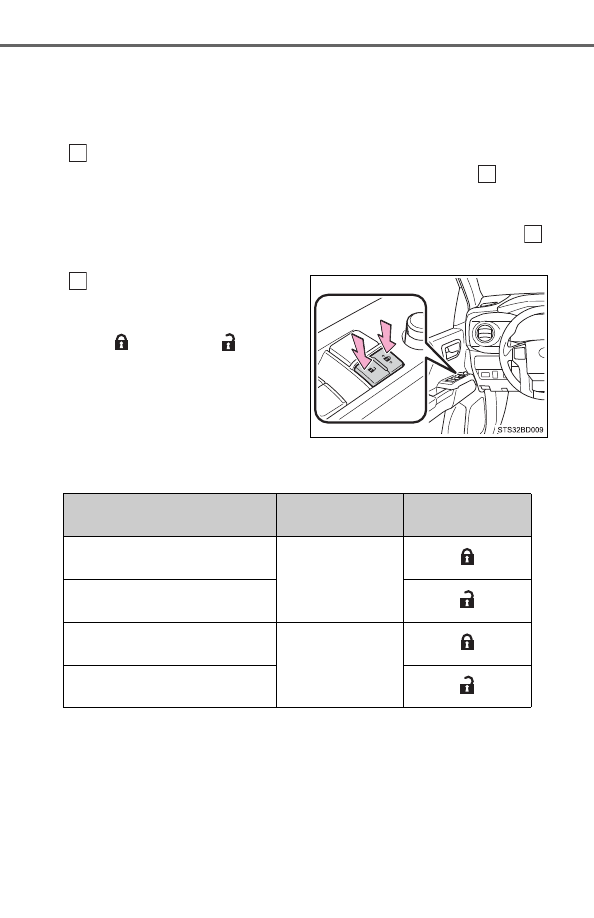

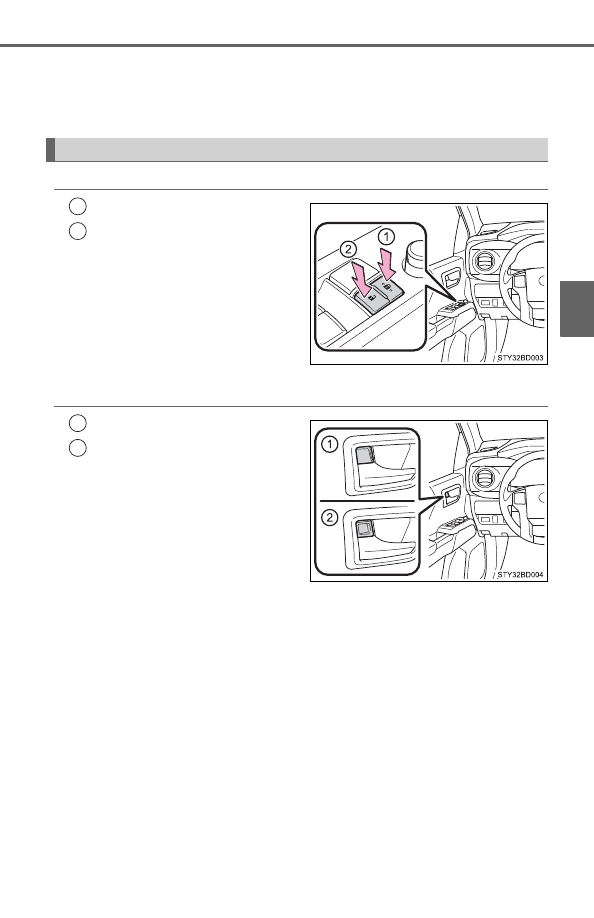

Door lock switches

Locks all the doors
Unlocks all the doors

◆

Inside lock buttons

Locks the door
Unlocks the door

The  front  doors  can  be  opened
by  pulling  the  inside  handle
even  if  the  lock  buttons  are  in
the lock position.

Unlocking and locking the doors from the inside

1

2

1

2

122

3-2. Opening, closing and locking the doors

Move the inside lock button to the lock position.
Close the door.



Vehicles without a smart key system

The door cannot be locked if either of the front doors is open and the
key is in the engine switch.



Vehicles with a smart key system

The door cannot be locked if the engine switch is in ACCESSORY or
IGNITION ON mode, or the electronic key is left inside the vehicle.

The key may not be detected correctly and the door may be locked.

The access door (rear door) can be opened using the inside handle.

Open the front door widely
Pull  (from  the  outside)  or
push  (from  the  inside)  the
inside  handle  of  the  access
door.
Open the access door

You  can  open  and  close  the
access door only when the front
door is widely opened.

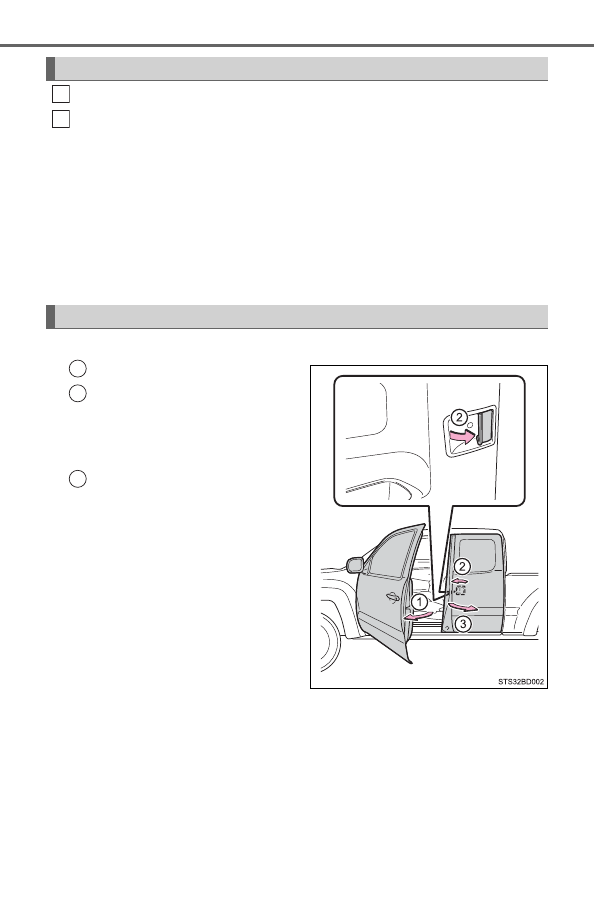

Locking the front doors from the outside without a key

Access doors (Access Cab models only)

1

2

1

2

3

123

3-2. Opening, closing and locking the doors

3

Opera

tion of e

ach compon

ent

The door cannot be opened from
inside the vehicle when the lock is
set.

Unlock
Lock

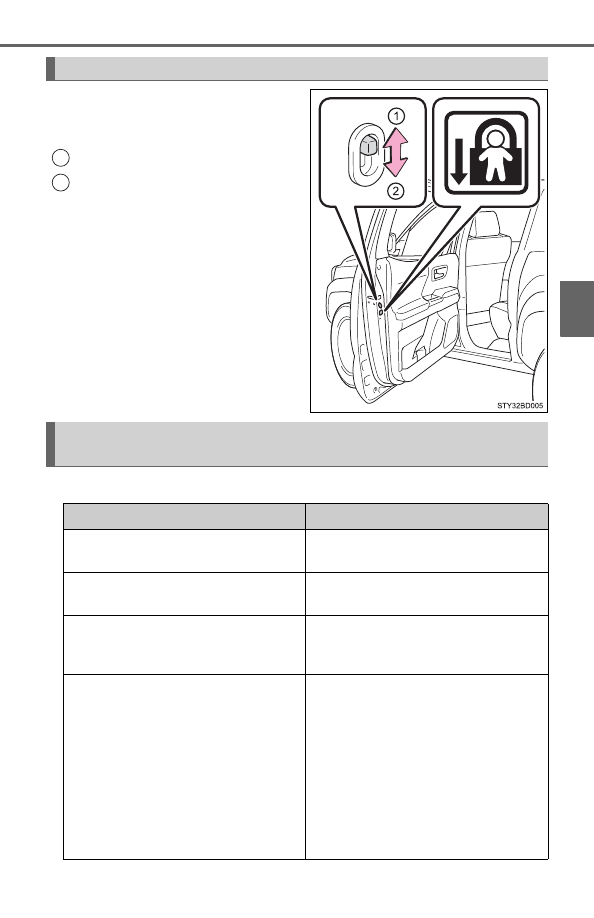

These locks can be set to prevent
children  from  opening  the  rear
doors.  Push  down  on  each  rear
door switch to lock both rear doors.

The following functions can be set or canceled:

Rear door child-protector lock (Double Cab models only)

1

2

Automatic door locking and unlocking systems (vehicles with an
automatic transmission)

Function

Operation

Shift  position  linked  door  locking
function

Shifting the shift lever out of P locks
all the doors.

Shift  position  linked  door  unlocking
function

Shifting  the  shift  lever  to  P  unlocks
all the doors.

Speed linked door locking function

All  the  doors  are  locked  when  the
vehicle speed is approximately 12 mph
(20 km/h) or higher.

Driver’s  door  linked  door  unlocking
function



Vehicles without a smart key system

All  the  doors  are  unlocked  when  the
driver’s door is opened within 10 sec-
onds after turning the engine switch to
the “LOCK” position.



Vehicles with a smart key system

All the doors are unlocked when the
driver’s  door  is  opened  within
10 seconds  after  turning the  engine
switch off.

124

3-2. Opening, closing and locking the doors

■

Setting and canceling the functions

The automatic door locking and unlocking functions can be set or
canceled on the Audio system screen (



P. 562) or by following the

procedure below.

Vehicles without a smart key system: Close all the doors and turn
the engine switch to the “ON” position. (Perform step

 within

10 seconds.)
Vehicles with a smart key system: Close all the doors and turn
the  engine  switch  to  IGNITION  ON  mode.  (Perform  step
within 10 seconds.)
Shift the shift lever to P or N,
and  press  and  hold  the
driver's  door  lock  switch
(

  or

)  for

approximately 5 seconds and
then release.

The  shift  lever  and  switch  posi-
tions  corresponding  to  the
desired  function  to  be  set  are
shown as follows.
Use the same procedure to cancel the function.

When  the  setting  or  canceling  operation  is  complete,  all  doors  are
locked and then unlocked.

1

2

2

2

Function

Shift lever

position

Driver’s door lock

switch position

Shift  position  linked  door  lock-
ing function

P

Shift  position  linked  door
unlocking function

Speed linked door locking func-
tion

N

Driver’s  door  linked  door
unlocking function

125

3-2. Opening, closing and locking the doors

3

Opera

tion of e

ach compon

ent

■

Customization that can be configured at Toyota dealer

Settings (e.g. unlocking function using a key) can be changed.
(Customizable features:



P. 562)

WARNING

■

To prevent an accident

Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant throwing out
of the vehicle, resulting in death or serious injury.

●

Ensure that all doors are properly closed and locked.

●

Do not pull the inside handle of the doors while driving.
Be especially careful for the front doors, as the doors may be opened even
if the inside lock buttons are in locked position.

●

Double Cab models only: Set the rear door child-protector locks when chil-
dren are seated in the rear seats.

NOTICE

■

When opening or closing the front door and access door (Access Cab
models only)

The  front  door  and  access  door  could  be  damaged  if  they  hit  each  other
when being opened or closed.

126

3-2. Opening, closing and locking the doors

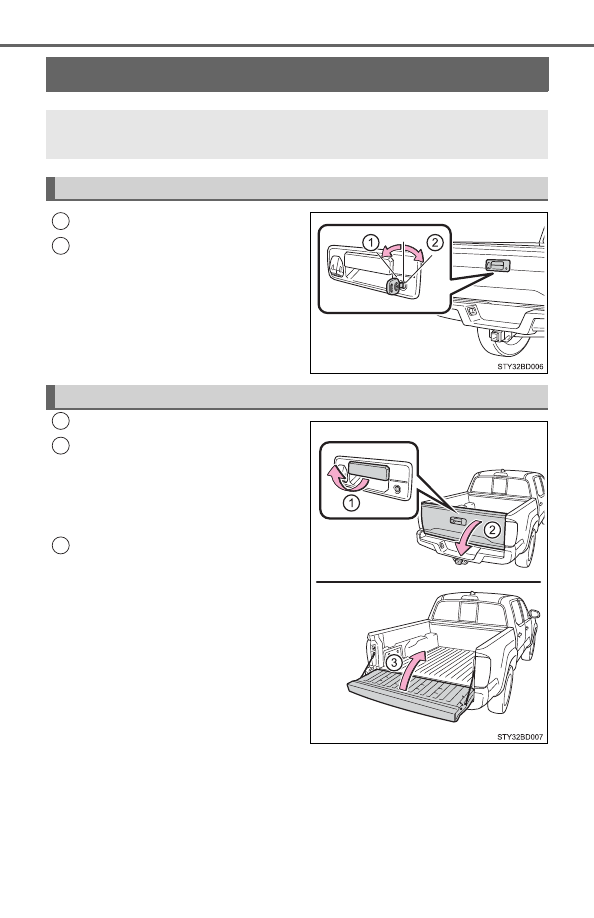

Tailgate

Unlock the tailgate
Lock the tailgate

Pull the handle
Open the tailgate slowly

Tailgate  will  open  slowly  due  to
damper.
The  support  cables  will  hold  the
tailgate horizontal.

Lift and closing the tailgate

After closing the tailgate, try pulling
it  toward  you  to  make  sure  it  is
securely locked.

The  tailgate  can  be  opened  using  the  tailgate  handle.  The  tail-
gate can be locked/unlocked using a key.

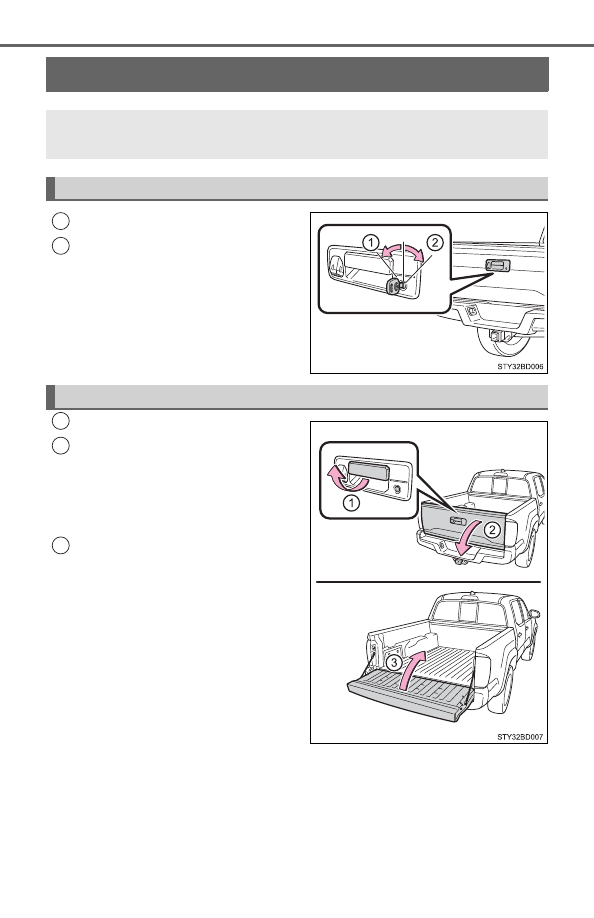

Locking/unlocking the tailgate

1

2

Opening/closing the tailgate

1

2

3

127

3-2. Opening, closing and locking the doors

3

Opera

tion of e

ach compon

ent

■

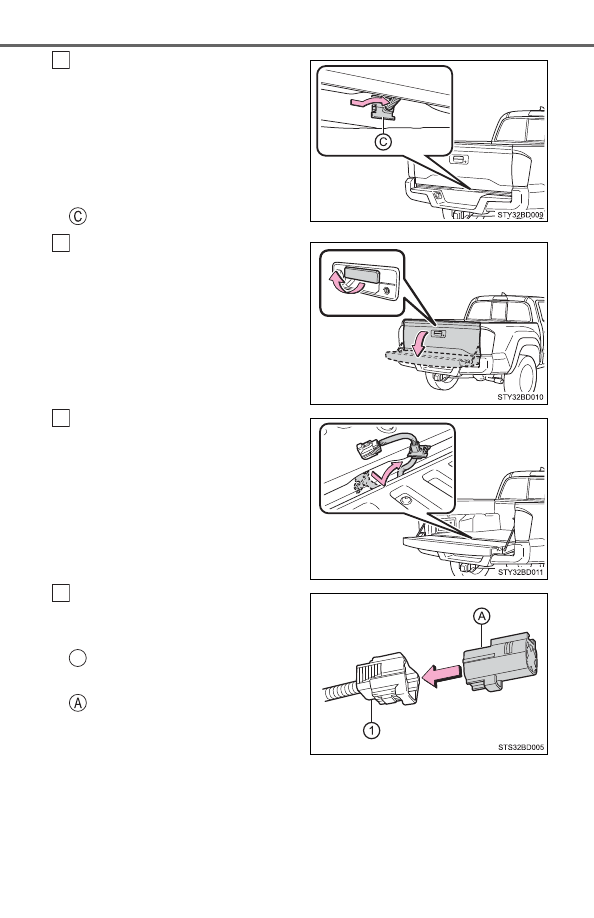

Before removing the tailgate

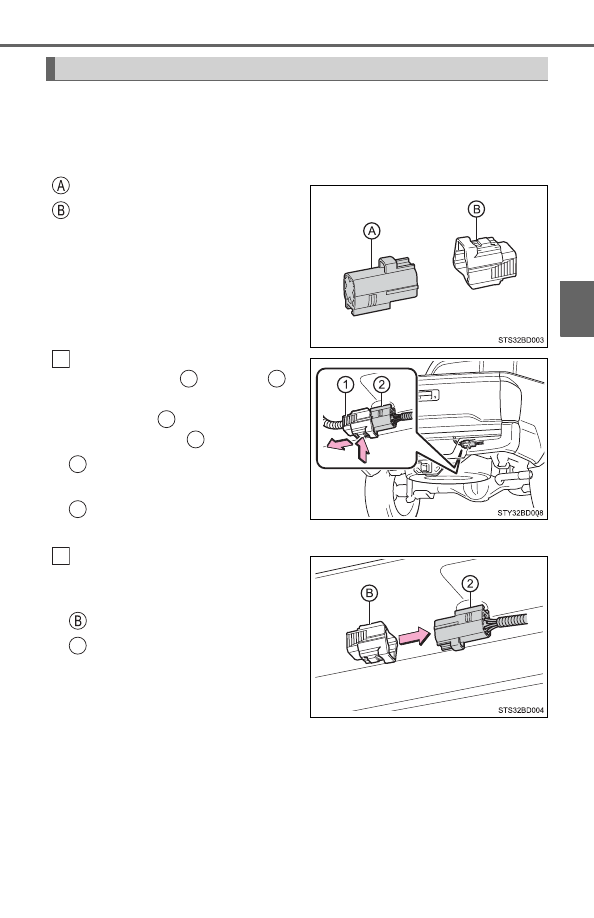

These  connector  covers  are  used  when  removing  the  tailgate,  to
prevent  the  back-up  camera  wire  harness  connectors  from  being
contaminated.
Connector cover (Gray)
Connector cover (White)

Store  the  connector  covers  in  the
glove box in a plastic bag when not
using.

To disconnect the wire harness
connectors  (

  and

),

depress  small  plastic  tab  on
connector

  and  pull  apart

from connector

.

Tailgate  wire  harness  con-
nector (White)
Frame wire harness connec-
tor (Gray)

Attach  the  connector  cover
(White)  to  the  frame  wire  har-
ness connector (Gray).

Connector cover (White)
Frame wire harness connec-
tor (Gray)

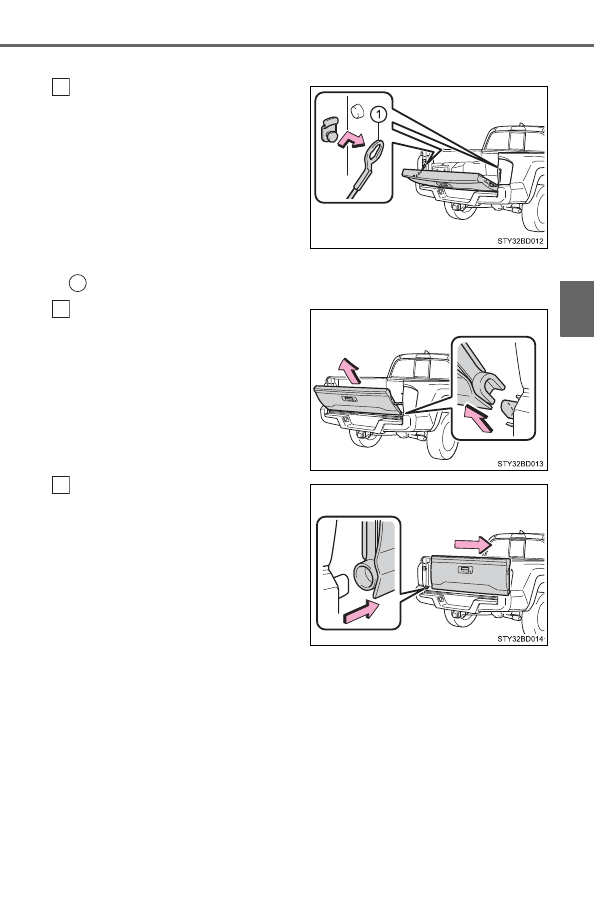

Removing the tailgate

1

1

2

1

2

1

2

2

2

128

3-2. Opening, closing and locking the doors

Pull out the plastic wire protec-
tor located in the vehicle bed by
pressing  the  tabs  and  pulling
the protector.

Be careful not to pull out all of the
tailgate  wire  harness.  Doing  so
may  result  in  damage  to  vehicle
components.

Plastic wire protector

Open the tailgate.

Pull  out  the  wire  harness  from
the vehicle bed.

Attach  the  connector  cover
(Gray)  to  the  tailgate  wire  har-
ness connector (White).

Tailgate  wire  harness  con-
nector (White)
Connector cover (Gray)

3

4

5

6

1

129

3-2. Opening, closing and locking the doors

3

Opera

tion of e

ach compon

ent

■

Removing the tailgate

Open  the  tailgate  to  the  angle
where  you  can  release  the
brackets on the support cables
from the lugs on both sides.
Lift  the  support  cable  bracket
up and slide it off.

To  unhook  the  support  cable
bracket, keep pulling up the clip on
the  bracket  and  unhook  the
bracket.

Support cable bracket

Tilt  the  tailgate  to  about  45°
from  vertical  and  pull  up  the
right  side  of  the  tailgate  to
unhook the right side.

Slide  the  tailgate  a  little  to  the
right  to  unhook  the  left  side
being  mindful  of  tailgate  right-
hand  side  clearance  to  vehi-
cle’s rear bumper.

To  attach  the  tailgate,  follow  the
removal  procedure  in  reverse
order.

1

1

2

3

130

3-2. Opening, closing and locking the doors

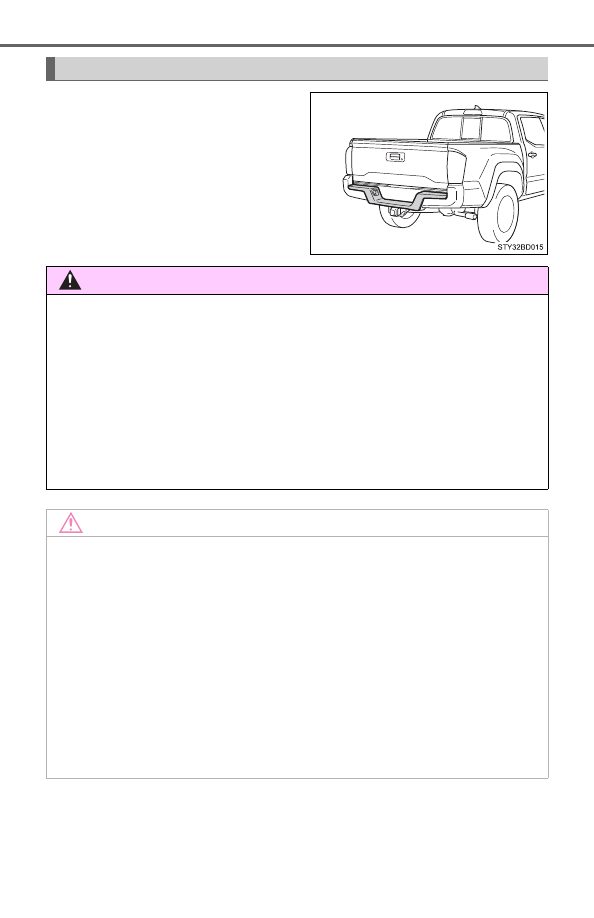

For rear end protection and easier
step-up loading.

To  get  on  the  rear  step  bumper,
use the shaded area in the illustra-
tion.

Rear step bumper

WARNING

■

Before removing the tailgate

Disconnect the wire harness between the back-up camera and the vehicle.
Failure to do so may result in serious personal injury or damage to the vehi-
cle components.

■

Caution while driving

Observe the following precautions.
Failure to do so may result in death or serious personal injury.

●

Do not drive with the tailgate open.

●

Do not allow others to get on the rear step bumper.

NOTICE

■

To prevent damage to the tailgate wire harness

Do not pull out all of the tailgate wire harness before opening the tailgate.

■

To prevent damage to the camera lens

Store the removed tailgate with the back-up camera lens facing upward.

■

After closing the tailgate

Try pulling it toward you to make sure it is securely locked.

■

To prevent damage to the rear step bumper

Do not allow more than one person to get on the rear step bumper at a time.

■

To prevent damage to the tailgate and rear step bumper

Avoid  possible  contact  between  tailgate  and  rear  bumper  during  tailgate
removal and reinstall.

131

3-2. Opening, closing and locking the doors

3

Opera

tion of e

ach compon

ent

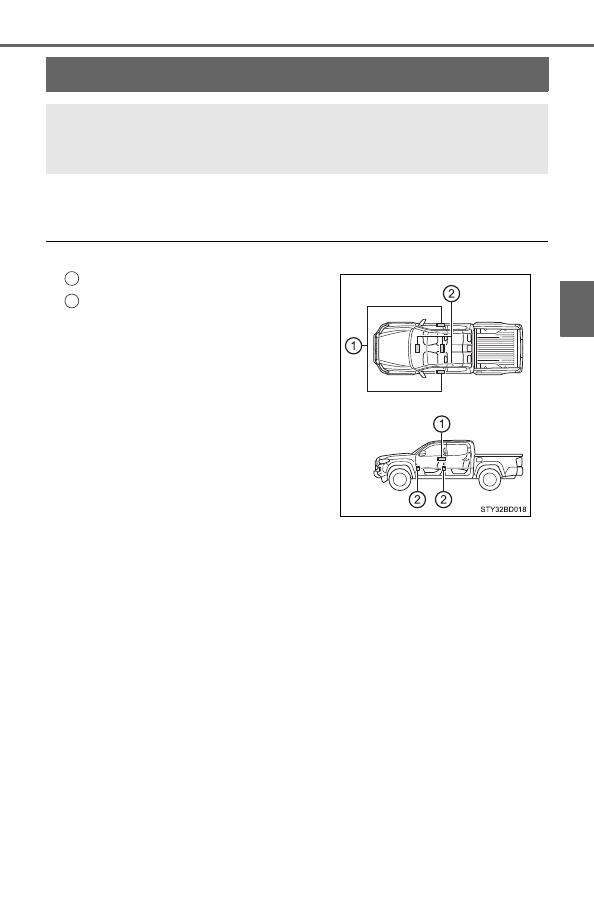

Smart key system



●

Locks and unlocks the doors (



P. 120)

●

Starts the engine (



P. 204)

■

Antenna location



: If equipped

The  following  operations  can  be  performed  simply  by  carrying
the electronic key on your person, for example in your pocket.
The driver should always carry the electronic key.

Antennas outside the cabin
Antennas inside the cabin

1

2

132

3-2. Opening, closing and locking the doors

■

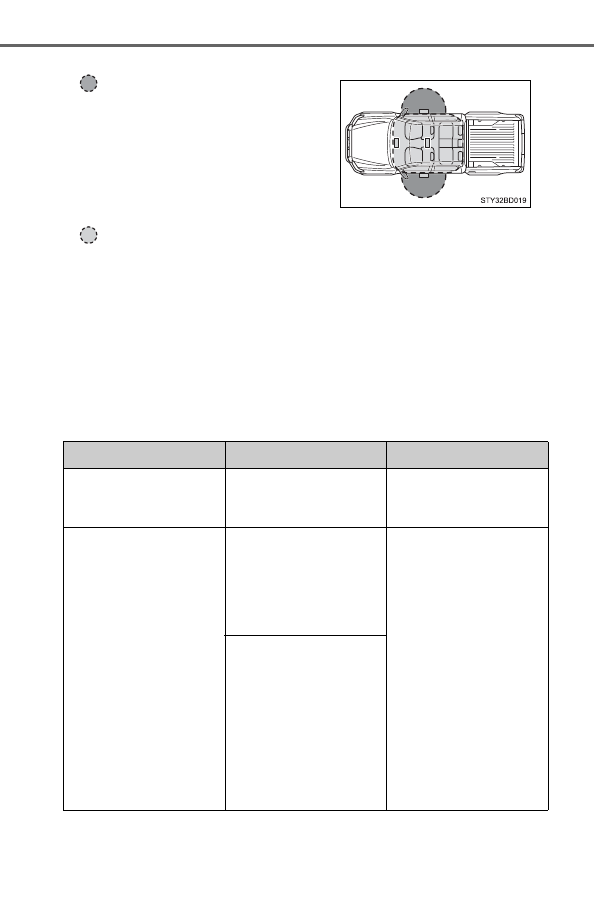

Effective range (areas within which the electronic key is detected)

■

Alarms and warning indicators

A combination of  exterior and interior alarms as well as warning messages
shown on the multi-information display are used to prevent theft of the vehicle
and  accidents  resulting  from  erroneous  operation.  Take  appropriate  mea-
sures in response to any warning message on the multi-information display.
(



P. 483)

The following table describes circumstances and correction procedures when
only alarms are sounded.

When locking or unlocking the
doors

The  system  can  be  operated
when  the  electronic  key  is  within
about 2.3 ft. (0.7 m) either of the
outside front door handles. (Only
the door detecting the key can be
operated.)

When starting the engine or changing engine switch modes

The system can be operated when the electronic key is inside the
vehicle.

Alarm

Situation

Correction procedure

Exterior  alarm  sounds
once for 5 seconds

An  attempt  was  made
to lock the vehicle while
a door was open.

Close  all  of  the  doors
and  lock  the  doors
again.

Exterior  alarm  sounds
once for 5 seconds

An  attempt  was  made
to  lock  the doors  using
the  smart  key  system
while the electronic key
was still inside the vehi-
cle.

Retrieve  the  electronic
key  from  the  vehicle
and  lock  the  doors
again.

An  attempt  was  made
to lock either front door
by  opening  a  door  and
putting  the  inside  lock
button  into  the  lock
position,  then  closing
the  door  by  pulling  on
the outside door handle
with  the  electronic  key
still inside the vehicle.

133

3-2. Opening, closing and locking the doors

3

Opera

tion of e

ach compon

ent

■

Battery-saving function

The battery-saving function will be activated in order to prevent the electronic
key battery and the battery from being discharged while the vehicle is not in
operation for a long time.

●

In  the  following  situations,  the  smart  key  system  may  take  some  time  to
unlock the doors.
• The electronic key has been left in an area of approximately 6 ft. (2 m) of

the outside of the vehicle for 10 minutes or longer.

• The smart key system has not been used for 5 days or longer.

●

If the smart key system has not been used for 14 days or longer, the doors
cannot be unlocked at any door except the driver’s door. In this case, take
hold of the driver’s door handle, or use the wireless remote control or the
mechanical key, to unlock the doors.

The system will resume operation when

●

The vehicle is locked using the door handle lock switch when carrying the
electronic key on your person.

●

The vehicle is locked/unlocked using the wireless remote control. (



P. 119)

●

The vehicle is locked/unlocked using the mechanical key. (



P. 522)

■

Electronic Key Battery-Saving Function

When battery-saving mode is set, battery depletion is minimized by stopping
the electronic key from receiving radio waves.

Interior  alarm  sounds
continuously

An  attempt  was  made
to  open  the  door  and
exit  the  vehicle  when
the  shift  lever  was  not
in P.

Shift the shift lever to P.

The engine  switch was
turned to ACCESSORY
mode while the driver’s
door  was  open  (or  the
driver’s

door

was

opened

while

the

engine  switch  was  in
ACCESSORY mode).

Turn  the  engine  switch
off  and  close  the
driver’s door.

Press

  twice  while  pressing  and

holding

. Confirm that the electronic

key indicator flashes 4 times.
While the battery-saving mode is set, the
smart  key  system  cannot  be  used.  To
cancel the function, press any of the elec-
tronic key buttons.

Alarm

Situation

Correction procedure

134

3-2. Opening, closing and locking the doors

■

Conditions affecting operation

The smart key system uses weak radio waves. In the following situations, the
communication between the electronic key and the vehicle may be affected,
preventing the smart key system, wireless remote control and engine immobi-
lizer system from operating properly. (Ways of coping:



P. 522)

●

When the electronic key battery is depleted

●

Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electrical
noise

●

When  carrying  a  portable  radio,  cellular  phone,  cordless  phone  or  other
wireless communication device

●

When  the  electronic  key  is  in  contact  with,  or  is  covered  by  the  following
metallic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs

●

When multiple electronic keys are in the vicinity

●

When other wireless keys (that emit radio waves) are being used nearby

●

When  carrying  the  electronic  key  together  with  the  following  devices  that
emit radio waves
• Another vehicle’s electronic key or a wireless key that emits radio waves
• Personal computers or personal digital assistants (PDAs)
• Digital audio players
• Portable game systems

●

If window tint with a metallic content or metallic objects are attached to the
back window

●

When  the  electronic  key  is  placed  near  a  battery  charger  or  electronic
devices

135

3-2. Opening, closing and locking the doors

3

Opera

tion of e

ach compon

ent

■

Note for the entry function

●

Even when the electronic key is within the effective range (detection areas),
the system may not operate properly in the following cases:
• The electronic key is too close to the window or outside door handle, near

the ground, or in a high place when the doors are locked or unlocked.

• The electronic key is on the instrument panel or floor, or in the console

box or glove box when the engine is started or engine switch modes are
changed.

●

Do not leave the electronic key on top of the instrument panel or near the
door pockets when exiting the vehicle. Depending on the radio wave recep-
tion conditions, it may be detected by the antenna outside the cabin and the
door will become lockable from the outside, possibly trapping the electronic
key inside the vehicle.

●

As long as the electronic key is within the effective range, the doors may be
locked or unlocked by anyone. However, only the doors detecting the elec-
tronic key can be used to unlock the vehicle.

●

Even if the electronic key is not inside the vehicle, it may be possible to start
the engine if the electronic key is near the window.

●

The  doors may unlock or lock  if a  large  amount  of water  splashes on  the
door handle, such as in the rain or in a car wash, when the electronic key is
within  the  effective  range.  (The  doors  will  automatically  be  locked  after
approximately 60 seconds if the doors are not opened and closed.)

●

If the wireless remote control is used to lock the doors when the electronic
key  is  near  the  vehicle,  there  is  a  possibility  that  the  door  may  not  be
unlocked by the entry function. (Use the wireless remote control to unlock
the doors.)

●

Touching the door lock or unlock sensor while wearing gloves may prevent
lock  or  unlock  operation.  Remove  the  gloves  and  touch  the  lock  sensor
again.

●

When the lock operation is performed using the lock sensor, recognition sig-
nals  will  be  shown  up  to  two  consecutive  times. After  this,  no  recognition
signals will be given.

●

If the door handle becomes wet while the electronic key is within the effec-
tive range, the door may lock and unlock repeatedly. In this case, follow the
following correction procedures to wash the vehicle:
• Place the electronic key in a location 6 ft. (2 m) or more away from the

vehicle. (Take care to ensure that the key is not stolen.)

• Set  the  electronic  key  to  battery-saving  mode  to  disable  the  smart  key

system. (



P. 133)

●

If the electronic key is inside the vehicle and a door handle becomes wet
during a car wash, a message may be shown on the multi-information dis-
play and a buzzer will sound outside the vehicle. To turn off the alarm, lock
all the doors.

136

3-2. Opening, closing and locking the doors

●

The  lock  sensor  may  not  work  properly  if  it  comes  into  contact  with  ice,
snow, mud, etc. Clean the lock sensor and attempt to operate it again, or
use the lock sensor on the lower part of the door handle.

●

If there is another electronic key in the detection area, it may take slightly
longer to unlock the doors after the door handle is gripped.

●

A sudden handle operation or a handle operation immediately after entering
the effective range may prevent the doors from being unlocked. Touch the
door unlock sensor and check that the doors are unlocked before pulling the
door handle again.

●

Fingernails may scrape against the door during operation of the door han-
dle. Be careful not to injure fingernails or damage the surface of the door.

■

Note for the unlocking function

●

Gripping the door handle when wearing a glove may not unlock the door.

●

A sudden approach to the effective range or door handle may prevent the
doors from being unlocked. In this case, return the door handle to the origi-
nal position and check that the doors unlock before pulling the door handle
again.

●

If there is another electronic key in the detection area, it may take slightly
longer to unlock the doors after the door handle is gripped.

■

When the vehicle is not driven for extended periods

●

To prevent theft  of the vehicle, do not  leave the  electronic  key within 6  ft.
(2 m) of the vehicle.

●

The smart key system can be deactivated in advance. (



P. 562)

■

To operate the system properly

●

Make sure to carry the electronic key when operating the system. Do not get
the electronic key too close to the vehicle when operating the system from
the outside of the vehicle.

●

Depending on the position and holding condition of the electronic key, the
key may not be detected correctly and the system may not operate properly.
(The alarm may go off accidentally, or the door lock prevention function may
not operate.)

■

If the smart key system does not operate properly

●

Locking and unlocking the doors: Use the mechanical key. (



P. 522)

●

Starting the engine:



P. 522

■

Customization

Settings (e. g. smart key system) can be changed.
(Customizable features:



P. 562)

■

If the smart key system has been deactivated in a customized setting

●

Locking and unlocking the doors:
Use the wireless remote control or mechanical key. (



P. 119, 522)

●

Starting the engine and changing engine switch modes:



P. 522

●

Stopping the engine:



P. 205

137

3-2. Opening, closing and locking the doors

3

Opera

tion of e

ach compon

ent

■

Certification for the smart key system



For vehicles sold in U.S.A. and New Caledonia

FCC ID: HYQ23AAP
FCC ID: HYQ14FBA
NOTE:
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence,  and  (2)  this  device  must  accept  any  interference  received,  including
interference that may cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.



For vehicles sold in Canada

NOTE:
This device  complies with Industry Canada’s  licence-exempt RSSs. Opera-
tion is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may
cause undesired operation of the device.
NOTE:
Le  présent  appareil  est  conforme  aux  CNR  d’Industrie  Canada  applicables
aux appareils radio exempts de licence. L’exploitation est autorisée aux deux
conditions suivantes:
(1) I’appareil ne doit pas produire de brouillage;
(2) l’utilisateur de I’appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d’en compromettre le fonctionnement.

138

3-2. Opening, closing and locking the doors

WARNING

■

Caution regarding interference with electronic devices

●

People  with  implantable  cardiac  pacemakers,  cardiac  resynchronization
therapy-pacemakers or implantable cardioverter defibrillators should keep
away from the smart key system antennas. (



P. 131)

The radio waves may affect the operation of such devices. If necessary,
the entry function can be disabled. Ask your Toyota dealer for details, such
as  the  frequency  of  radio  waves  and  timing  of  the  emitted  radio  waves.
Then, consult your doctor to see if you should disable the entry function.

●

User of any electrical medical device other than implantable cardiac pace-
makers,  cardiac  resynchronization  therapy-pacemakers  or  implantable
cardioverter defibrillators should consult the manufacturer of the device for
information about its operation under the influence of radio waves.
Radio  waves  could  have  unexpected  effects  on  the  operation  of  such
medical devices.
Ask your Toyota dealer for details for disabling the entry function.

139

3-3. Adjusting the seats

3

Opera

tion of e

ach compon

ent

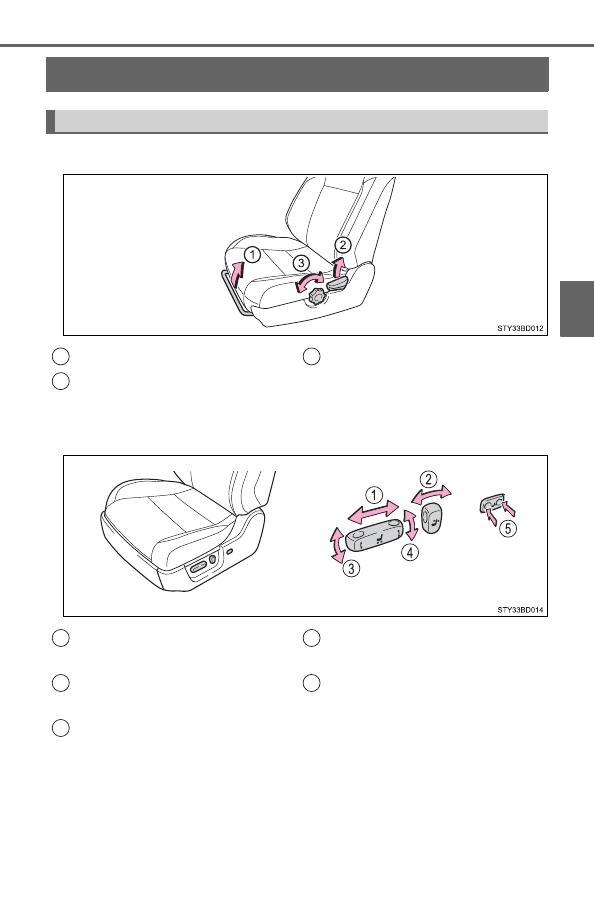

Front seats



Manual seat



Power seat (driver’s seat only) (if equipped)

Adjustment procedure

Seat position adjustment lever
Seatback  angle  adjustment
lever

Seat  lumbar  support  adjust-
ment knob (driver’s seat only)

1

2

3

Seat

position

adjustment

switch
Seatback  angle  adjustment
switch
Seat  cushion  (front)  angle
adjustment switch

Vertical  height  adjustment
switch
Lumbar  support  adjustment
switch

1

2

3

4

5

140

3-3. Adjusting the seats

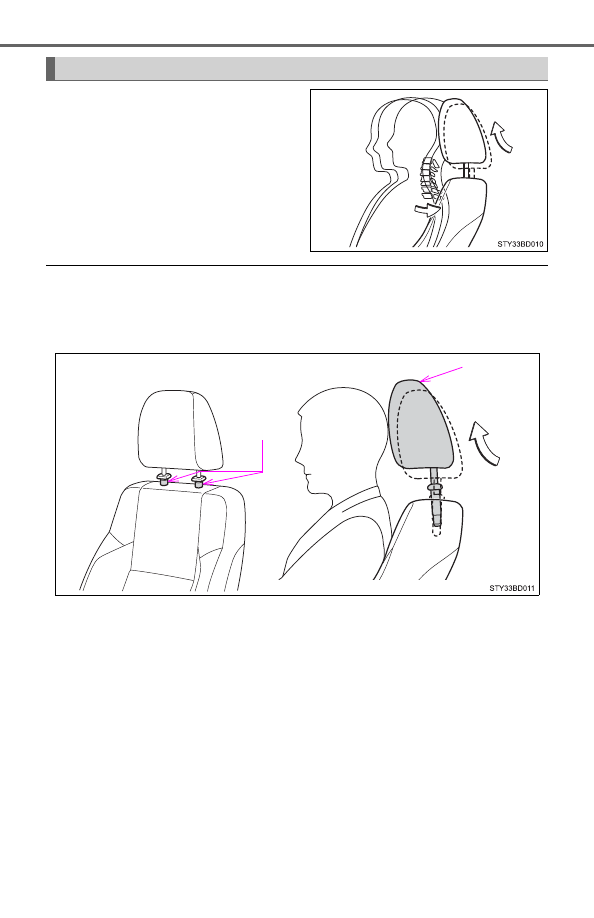

When

the

occupant’s

back

presses  against  the  seatback
during  a  rear-end  collision,  the
head  restraint  moves  slightly  for-
ward  to  help  reduce  the  risk  of
whiplash on the seat occupant.

■

Active head restraints

Even small forces applied to  the seatback may cause the  head  restraint to
move.  Pushing  up  a  locked  head  restraint  forcibly  may  show  the  head
restraint inner structure. These do not indicate problems.

Active head restraints

Inner
structure

During
rear-end
collision

141

3-3. Adjusting the seats

3

Opera

tion of e

ach compon

ent

WARNING

■

When adjusting the seat position

●

Take care when adjusting the seat position to ensure that other passen-
gers are not injured by the moving seat.

●

Do not put your hands under the seat or near the moving parts to avoid
injury.
Fingers or hands may become jammed in the seat mechanism.

■

Seat adjustment

●

To  reduce  the risk  of sliding  under  the lap  belt during a  collision,  do  not
recline the seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint  forces  directly  to  the  abdomen,  or  your  neck  may  contact  the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
Adjustments should not be made while driving as the seat may unexpect-
edly move and cause the driver to lose control of the vehicle.

●

After adjusting the seat, make sure that the seat is locked in position.

■

When adjusting the seat positions

Make sure to leave enough space around the feet so they do not get stuck.

142

3-3. Adjusting the seats

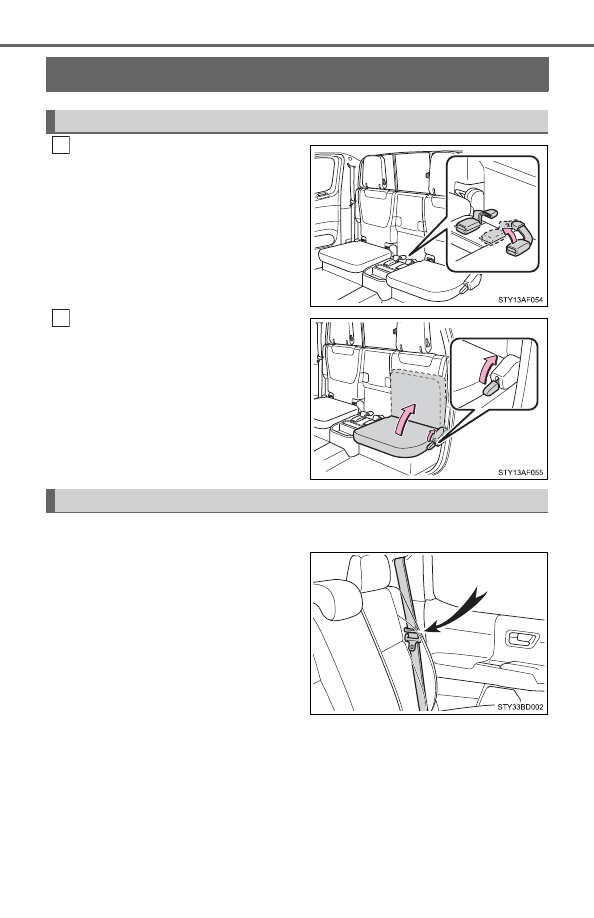

Rear seats



Stow the seat belt buckles.

This prevents the seat belt buckles
from  interfering  with  raising  the
bottom cushion.

Raise  the  bottom  cushion  up
while  pulling  the  lever  until  it
locks.

When returning the bottom cushion
to  its  original  position,  push  the
bottom cushion down while pulling
the  lever  until  the  bottom  cushion
locks into the seat position.

■

Before folding down the rear seats

Pass the seat belts through the
seat belt hangers.

This  prevents  the  shoulder  belt
from being damaged.
Make  sure  that  the  seat  belts  are
removed  from  the  hangers  before
using them.



: If equipped

Raising the bottom cushion (Access Cab models)

1

2

Folding down the rear seats (Double Cab models)

143

3-3. Adjusting the seats

3

Opera

tion of e

ach compon

ent

■

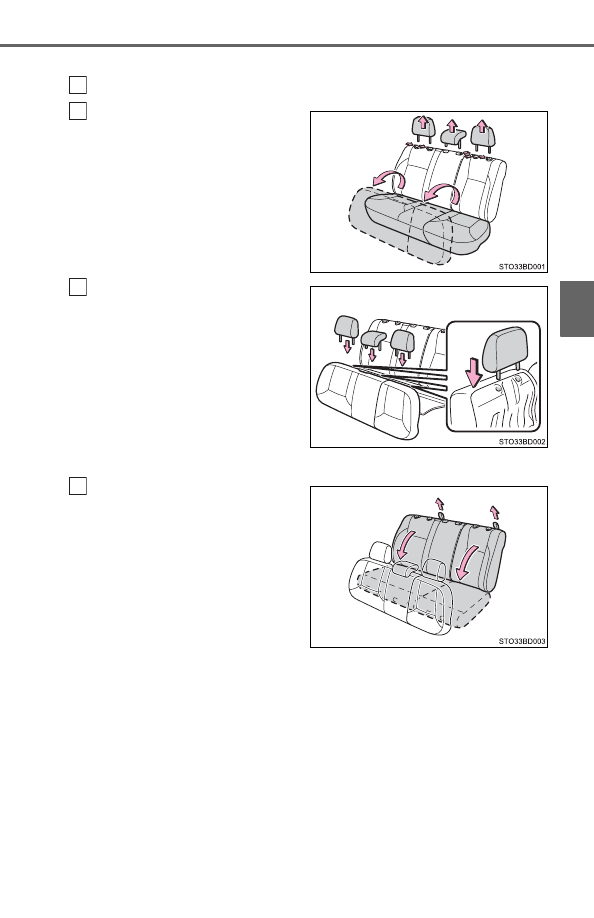

Folding down the rear seats

Make sure to slide the front seat forward as much as possible.
Remove  the  head  restraints
and  lift  up  the  bottom  cush-
ion.

Attach  the head restraints to
the  holders  located  on  the
back  sides  of  the  bottom
cushions.

Installing  the  head  restrains  in
the following manner:
Outer head restraints: The front
of the head restraint facing rear-
ward.
Center head restraint: The front of the head restraint facing forward.

Fold  down  the  seatback  by
pulling the lock release strap.

■

Returning the rear seats

Reverse the steps for folding down the rear seats.

1

2

3

4
