If your vehicle has to be stopped in an emergency

Steadily step on the brake pedal with both feet and firmly depress it.

Do not pump the brake pedal repeatedly as this will increase the effort
required to slow the vehicle.

Shift the shift lever to N.



If the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the road.
Stop the engine.



If the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehicle
speed as much as possible.
Vehicles without a smart key
system: Stop the engine by
turning the engine switch to the
“ACC” position.

Vehicles  with  a  smart  key  sys-
tem: To  stop  the  engine,  press
and hold the engine switch for 2
consecutive  seconds  or  more,
or  press  it  briefly  3  times  or
more in succession.

Stop the vehicle in a safe place by the road.

Only in an emergency, such as if it becomes impossible to stop
the vehicle in the normal way, stop the vehicle using the follow-
ing procedure:

Press and hold for 2 seconds or
more or press briefly 3 times or
more

-------------------------------------------------------------------------------------------------------------------------------------------------------------

465

SIENNA_OM_OM08035U_(U)

Wh
en tro

If your vehicle needs to be towed

The following may indicate a problem with your transaxle. Contact
your Toyota dealer or commercial towing service before towing.

●

The engine is running but the vehicle does not move.

●

The vehicle makes an abnormal sound.

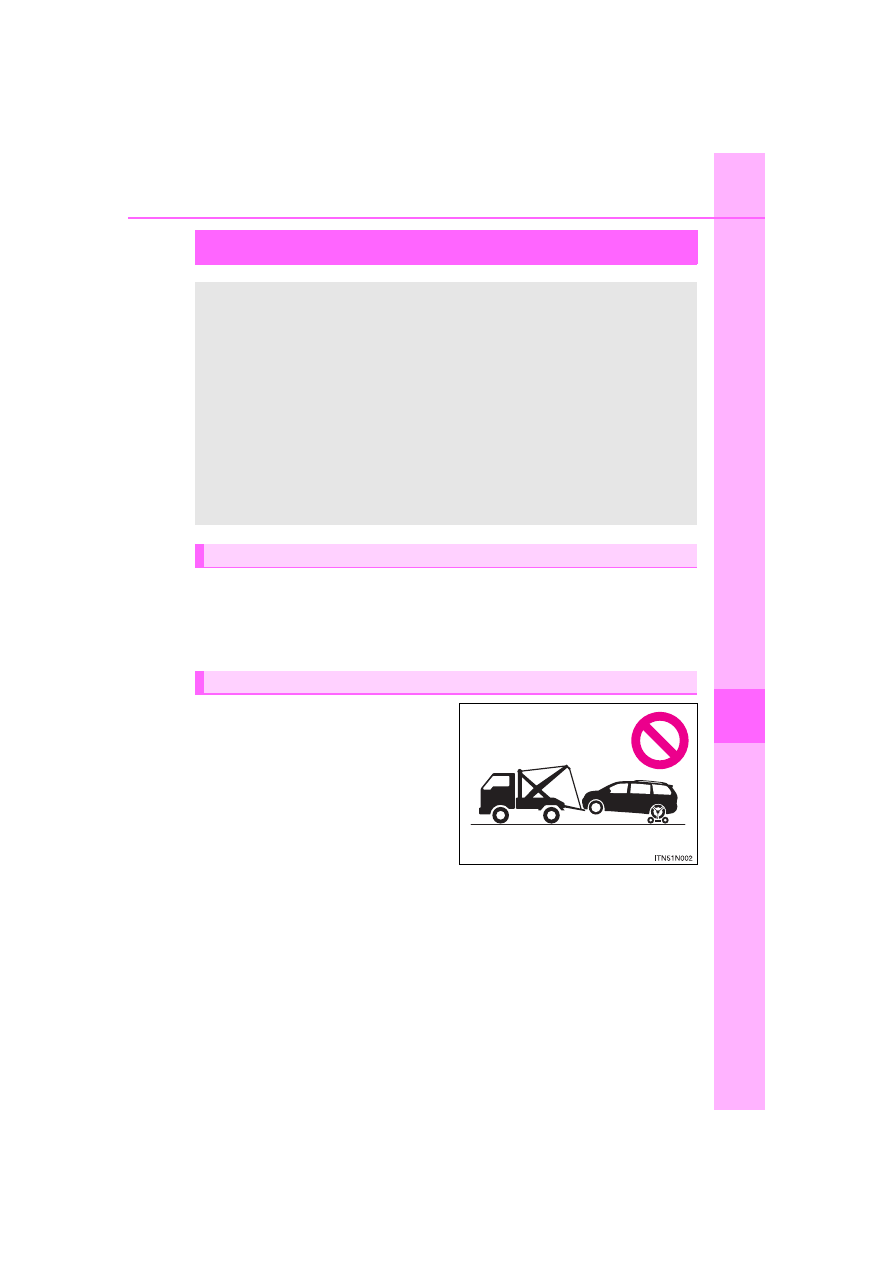

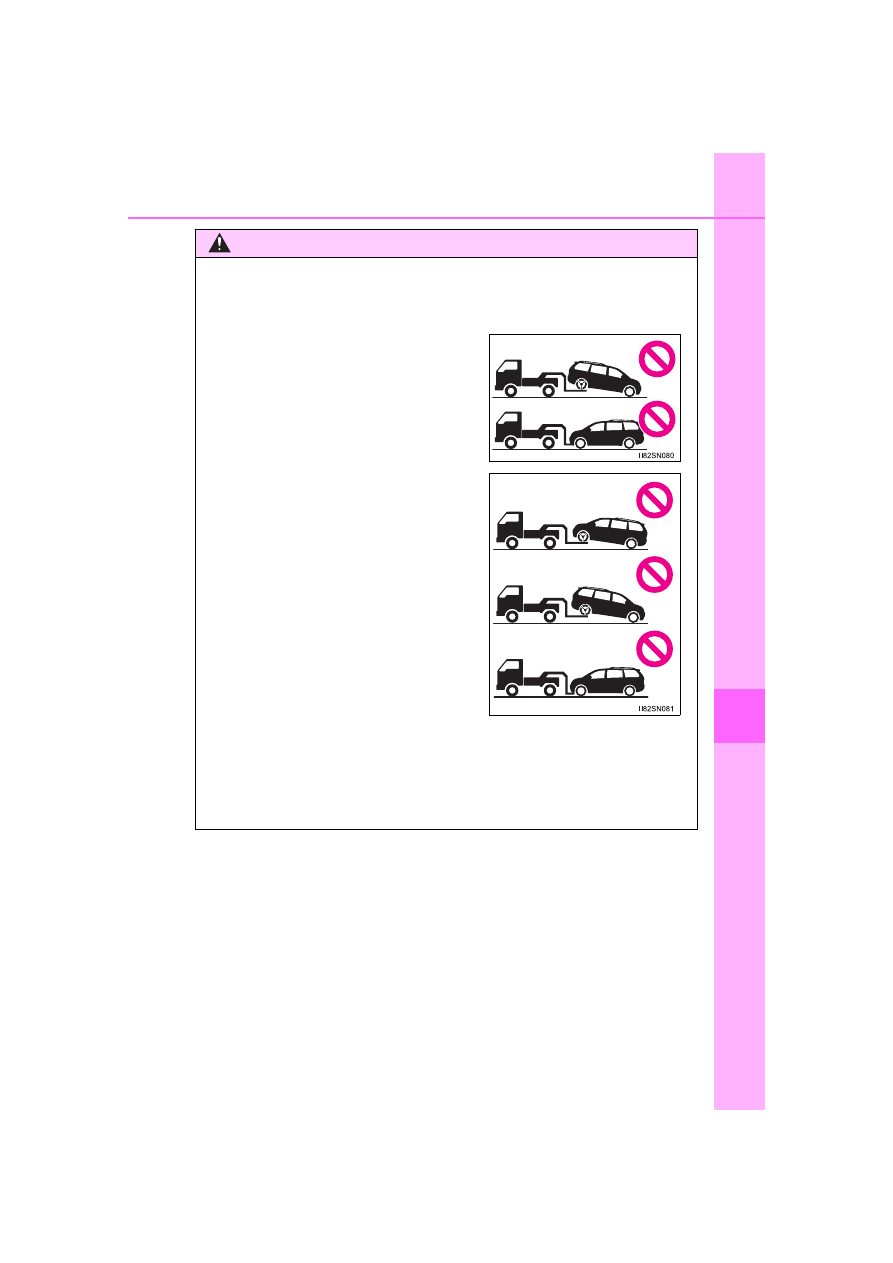

Do not tow with a sling-type truck
to prevent body damage.

If  towing  is  necessary,  we  recommend  having  your  vehicle
towed  by  your  Toyota  dealer  or  commercial  towing  service,
using a wheel-lift type truck or flat bed truck.
Use a safety chain system for all towing, and abide by all state/
provincial and local laws.
2WD models: If towing your vehicle with a wheel-lift type truck
from  the  front,  the  vehicle’s  rear  wheels  and  axles  must  be  in
good conditions. (



P. 466, 467)

If they are damaged, use a towing dolly or flat bed truck.
AWD models: If towing your vehicle with a wheel-lift type truck,
use a towing dolly. (



P. 466, 467)

Situations when it is necessary to contact dealers before towing

Towing with a sling-type truck

-------------------------------------------------------------------------------------------------------------------------------------------------------------

466

SIENNA_OM_OM08035U_(U)

If you use chains or cables to tie
down your vehicle, the angles
shaded in black must be 45



Do not overly tighten the tie
downs or the vehicle may be dam-
aged.

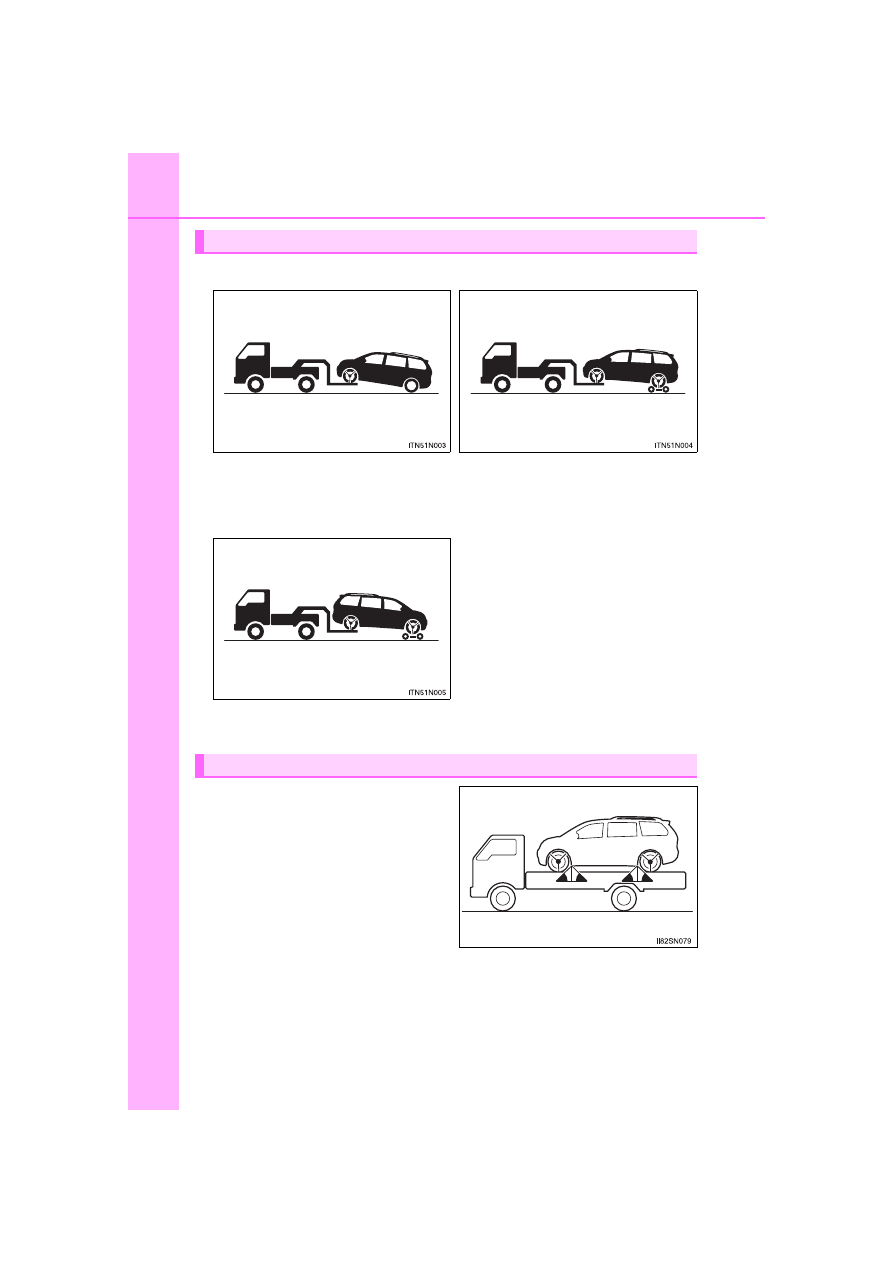

Towing with a wheel-lift type truck



From the front (2WD models)



From the front (AWD models)

Release the parking brake.

Use a towing dolly under the rear
wheels.



From the rear

Use a towing dolly under the front
wheels.

Using a flatbed truck

-------------------------------------------------------------------------------------------------------------------------------------------------------------

467

SIENNA_OM_OM08035U_(U)

Wh
en tro

WARNING

Observe the following precautions.
Failure to do so may result in death or serious injury.

■

When towing the vehicle

■

While towing

Do not turn the engine switch to the “LOCK” position (vehicles without a
smart key system) or off (vehicles with a smart key system).
There is a possibility that the steering wheel is locked and cannot be oper-
ated.

2WD  models:  Be  sure  to  transport  the
vehicle  with  the  front  wheels  raised  or
with all four wheels raised off the ground.
If  the  vehicle  is  towed  with  the  front
wheels contacting the ground, the drive-
train and related parts may be damaged.

AWD  models:  Be  sure  to  transport  the
vehicle with all four wheels raised off the
ground.  If  the  vehicle  is  towed  with  the
tires contacting the ground, the drivetrain
or  related  parts  may  be  damaged,  the
vehicle may fly off the truck.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

468

SIENNA_OM_OM08035U_(U)

NOTICE

■

To prevent damage to the vehicle when towing using a wheel-lift type
truck

When raising the vehicle, ensure adequate ground clearance for towing at
the opposite end of the raised vehicle. Without adequate clearance, the
vehicle could be damaged while being towed.

■

To prevent damage to the vehicle when towing with a sling-type truck

Do not tow with a sling-type truck, either from the front or rear.

■

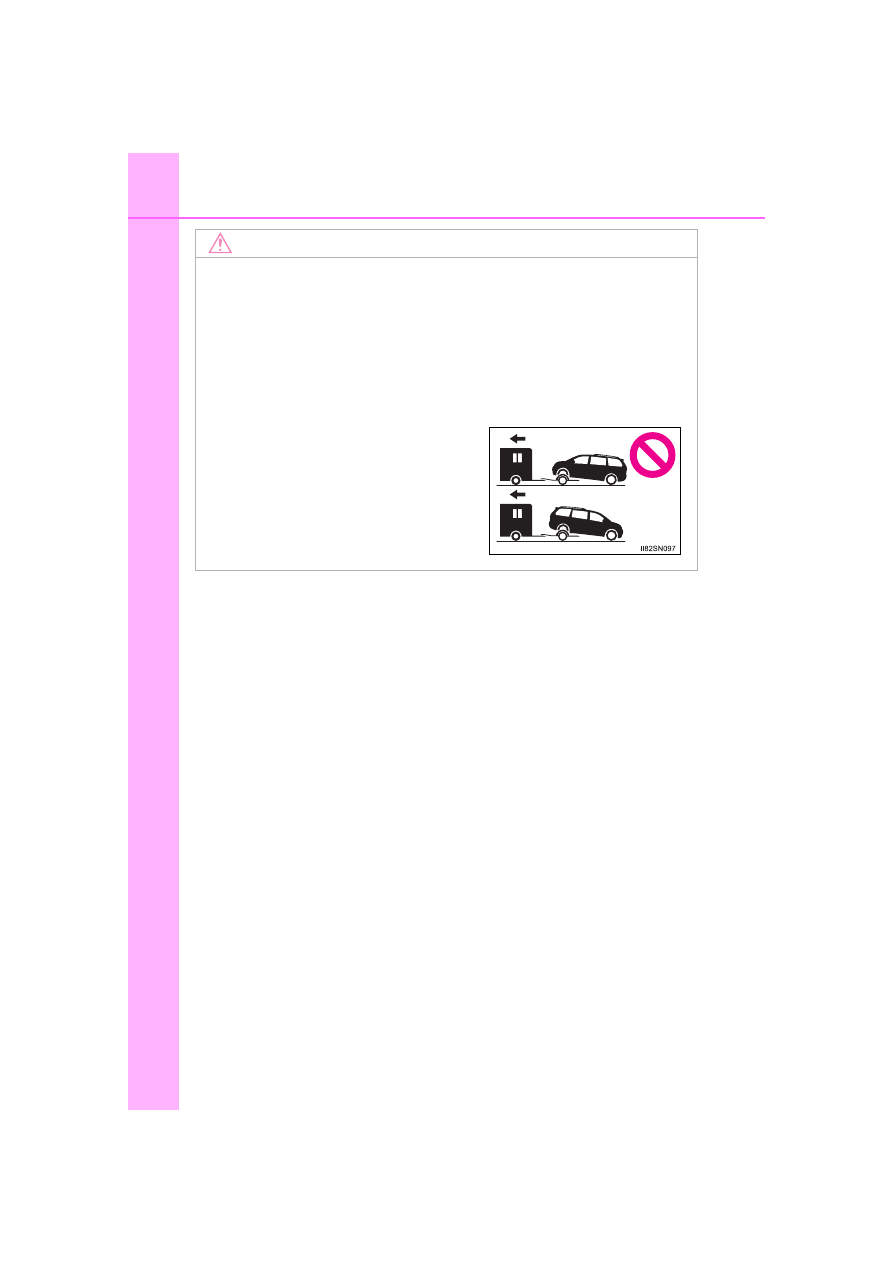

Recreational towing (behind motor home, etc.)

Never dinghy tow your vehicle to prevent
causing serious damage to the Active
Torque Control 4WD system (AWD mod-
els) and transaxle. (



P. 224)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

469

SIENNA_OM_OM08035U_(U)

Wh
en tro

If you think something is wrong

●

Fluid leaks under the vehicle
(Water dripping from the air conditioning after use is normal.)

●

Flat-looking tires or uneven tire wear

●

Engine coolant temperature gauge needle continually points higher
than normal

●

Changes in exhaust sound

●

Excessive tire squeal when cornering

●

Strange noises related to the suspension system

●

Pinging or other noises related to the engine

●

Engine missing, stumbling or running rough

●

Appreciable loss of power

●

Vehicle pulls heavily to one side when braking

●

Vehicle pulls heavily to one side when driving on a level road

●

Loss of brake effectiveness, spongy feeling, pedal almost touches
the floor

If you notice any of the following symptoms, your vehicle proba-
bly needs adjustment or repair. Contact your Toyota dealer as
soon as possible.

Visible symptoms

Audible symptoms

Operational symptoms

-------------------------------------------------------------------------------------------------------------------------------------------------------------

470

SIENNA_OM_OM08035U_(U)

Fuel pump shut off system

Follow the procedure below to restart the engine after the system is
activated.



Vehicles without a smart key system
Turn the engine switch to the “ACC” or “LOCK” position.
Restart the engine.



Vehicles with a smart key system
Turn the engine switch to ACCESSORY mode or turn it off.
Restart the engine.

To minimize the risk of fuel leakage when the engine stalls or
when an airbag inflates upon collision, the fuel pump shut off
system stops the supply of fuel to the engine.

NOTICE

■

Before starting the engine

Inspect the ground under the vehicle.
If you find that fuel has leaked onto the ground, the fuel system has been
damaged and is in need of repair. Do not restart the engine.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

471

SIENNA_OM_OM08035U_(U)

Wh
en tro

If a warning light turns on or a warning

buzzer sounds

Calmly perform the following actions if any of the warning lights
comes on or flashes. If a light comes on or flashes, but then
goes off, this does not necessarily indicate a malfunction in the
system. However, if this continues to occur, have the vehicle
inspected by your Toyota dealer.

Warning light and warning buzzer list

Warning light

Warning light/Details/Actions

(U.S.A.)

(Canada)

Brake system warning light (warning buzzer)

Indicates that:
• The brake fluid level is low; or
• The brake system is malfunctioning

This light also comes on when the parking brake is not
released. If the light turns off after the parking brake is
fully released the system is operating normally.



Immediately stop the vehicle in a safe place and con-
tact your Toyota dealer. Continuing to drive the vehi-
cle may be dangerous.

Charging system warning light

Indicates a malfunction in the vehicle’s charging system



Immediately stop the vehicle in a safe place and con-
tact your Toyota dealer.

Low engine oil pressure warning light

Indicates that the engine oil pressure is too low



Immediately stop the vehicle in a safe place and con-
tact your Toyota dealer.

(U.S.A.)

(Canada)

Malfunction indicator lamp

Indicates a malfunction in:
• The electronic engine control system;
• The electronic throttle control system; or
• The electronic automatic transaxle control system



Have the vehicle inspected by your Toyota dealer
immediately.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

472

SIENNA_OM_OM08035U_(U)

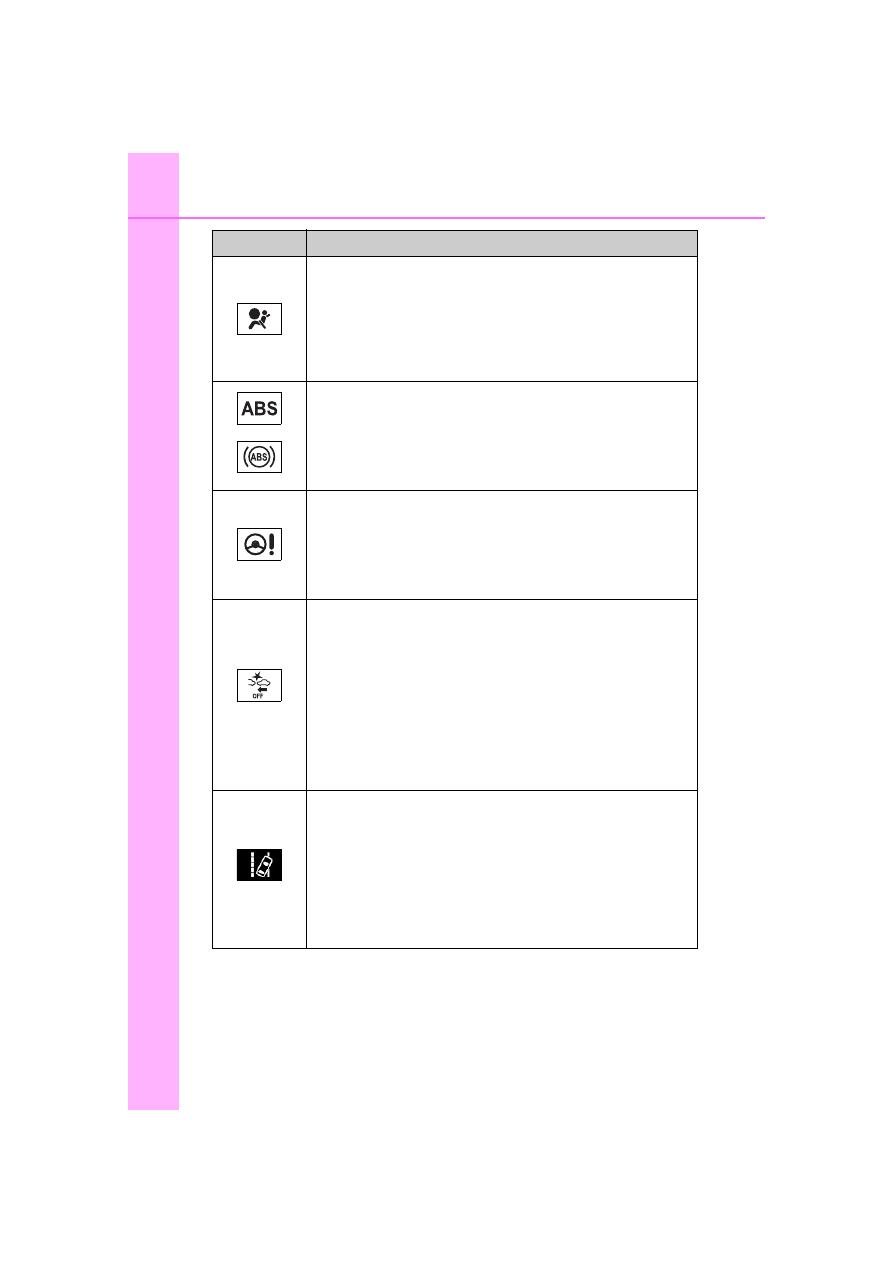

SRS warning light

Indicates a malfunction in:
• The SRS airbag system;
• The front passenger occupant classification system; or
• The seat belt pretensioner system



Have the vehicle inspected by your Toyota dealer
immediately.

(U.S.A.)

(Canada)

ABS warning light

Indicates a malfunction in:
• The ABS; or
• The brake assist system



Have the vehicle inspected by your Toyota dealer
immediately.

Electric power steering system warning light (warning
buzzer)

Indicates a malfunction in the EPS (Electric Power
Steering) system



Have the vehicle inspected by your Toyota dealer
immediately.

(Flashes or

illuminates)

PCS warning light

Indicates a malfunction in the PCS (Pre-Collision System)
or that the system is temporarily unavailable due to the
vehicle being extremely hot/cold, or dirt around a front
sensor, etc. (



P. 277, 481 )



Follow the instructions displayed on the multi-infor-
mation display. (



P. 277, 481)

If the PCS (Pre-Collision System) or VSC (Vehicle Stability
Control) system is disabled, the PCS warning light will illu-
minate.



P. 277

(Amber)

LDA indicator

Indicates a malfunction in the LDA (Lane Departure Alert
with steering control)



When “Lane Departure Alert Unavailable” is dis-
played on the multi-information display, turn the LDA
system off, drive the vehicle for a short time, and
then turn the LDA system back on. (



P. 281)

When a message other than above is displayed, fol-
low the instructions displayed in the message.

Warning light

Warning light/Details/Actions

-------------------------------------------------------------------------------------------------------------------------------------------------------------

473

SIENNA_OM_OM08035U_(U)

Wh
en tro

Slip indicator

Indicates a malfunction in:
• The VSC (Vehicle Stability Control) system;
• The TRAC (Traction Control) system; or
• The hill-start assist control system
The light will flash when the VSC or the TRAC system is
operating.



Have the vehicle inspected by your Toyota dealer
immediately.

Low fuel level warning light

Indicates that remaining fuel is approximately 3.0 gal.
(11.4 L, 2.5 Imp.gal.) or less



Refuel the vehicle.

Seat belt reminder light (warning buzzer)

Warns the driver and/or front passenger to fasten their
seat belts



Fasten the seat belt.
If the front passenger’s seat is occupied, the front
passenger’s seat belt also needs to be fastened to
make the warning light (warning buzzer) turn off.

Low engine oil level warning light

Indicates that engine oil level is low (This warning light
may come on if the vehicle is stopped on a slope. Move
the vehicle to a level surface and check to see if the light
goes off.)



Check the level of engine oil and add more oil if nec-
essary.

Master warning light

A buzzer sounds and the warning light comes on and
flashes to indicate that the master warning system has
detected a malfunction.



P. 481

Warning light

Warning light/Details/Actions

-------------------------------------------------------------------------------------------------------------------------------------------------------------

474

SIENNA_OM_OM08035U_(U)

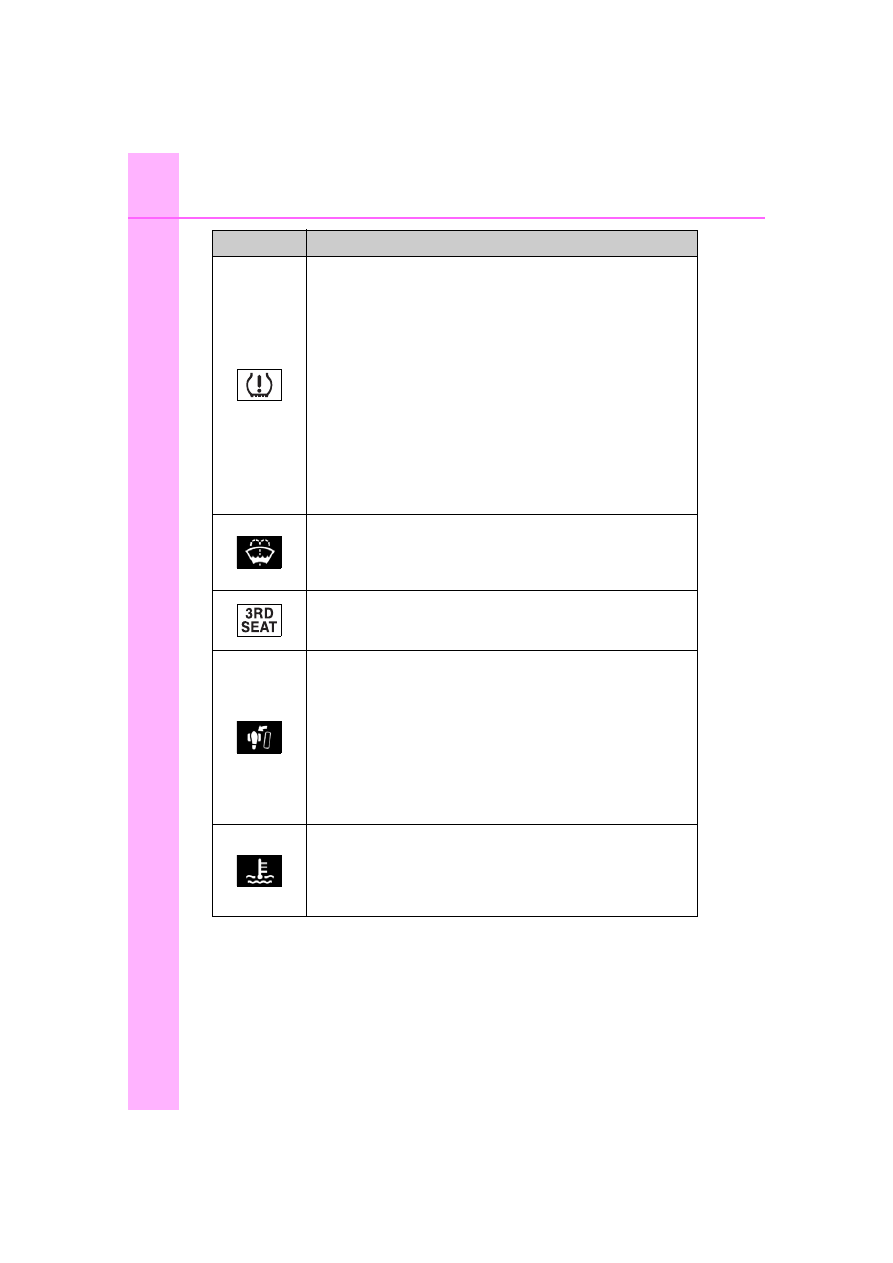

Tire pressure warning light

When the light comes on:

Low tire inflation pressure such as

• Natural causes (



P. 476)

• Flat tire (



P. 485 , 499)



Adjust the tire inflation pressure to the specified

level.

The light will turn off after a few minutes. In case

the light does not turn off even if the tire inflation

pressure is adjusted, have the system checked by

your Toyota dealer.

When the light comes on after blinking for 1 minute:

Malfunction in the tire pressure warning system

(



P. 477)



Have the system checked by your Toyota dealer.

Low windshield washer fluid level warning light

Indicates that the windshield washer fluid level is too

low.



Add washer fluid.

Third seat warning light

Indicates that the third seat operation is not yet complete.



Complete the third seat operation (

P. 159)

Brake Override System warning light

Indicates that the accelerator and brake pedals are being
depressed simultaneously, and the Brake Override Sys-
tem is operating.



Release the accelerator pedal and depress the brake
pedal.

Indicates a malfunction in the Brake Override System
(with warning buzzer)



Have the vehicle inspected by your Toyota dealer
immediately.

High coolant temperature warning light (warning
buzzer)

Changes from a flashing to a solid light when the engine
coolant temperature increases



Stop and check. (

P. 509)

Warning light

Warning light/Details/Actions

-------------------------------------------------------------------------------------------------------------------------------------------------------------

475

SIENNA_OM_OM08035U_(U)

Wh
en tro

: Parking brake engaged warning buzzer:

Indicates that the vehicle is being driven at 5 km/h (3 mph) or more with
the parking brake still engaged

: This light illuminates on the multi-information display.

: Driver’s seat belt buzzer:

The driver’s seat belt buzzer sounds to alert the driver that his or her seat
belt is not fastened. Once the engine switch is turned to the “ON” position
(vehicles without a smart key system) or IGNITION ON mode (vehicles
with a smart key system), the buzzer sounds for 6 seconds. If the vehicle
reaches  a  speed  of  12  mph  (20  km/h),  the  buzzer  sounds  once.  If  the
seat belt is still unfastened after 30 seconds, the buzzer will sound inter-
mittently  for  10  seconds.  Then,  if  the  seat  belt  is  still  unfastened,  the
buzzer will sound in a different tone for 20 more seconds.
Front passenger’s seat belt buzzer:
The front passenger’s seat belt buzzer sounds to alert the front passen-
ger that his or her seat belt is not fastened. The buzzer sounds once if the
vehicle reaches a speed of 12 mph (20 km/h). If the seat belt is still unfas-
tened  after  30 seconds,  the  buzzer  will  sound  intermittently  for  10 sec-
onds. Then, if the seat belt is still unfastened, the buzzer will sound in a
different tone for 20 more seconds.

: If equipped

-------------------------------------------------------------------------------------------------------------------------------------------------------------

476

SIENNA_OM_OM08035U_(U)

■

SRS warning light

This warning light system monitors the airbag sensor assembly, front impact
sensors, side impact sensors (front door), side impact sensors (rear), driver’s
seat position sensor, driver’s seat belt buckle switch, front passenger occu-
pant classification system (ECU and sensors), “AIR BAG ON” indicator light,
“AIR BAG OFF” indicator light, front passenger’s seat belt buckle switch, seat
belt assemblies, airbags, interconnecting wiring and power sources. (



P. 38)

■

Front passenger detection sensor, seat belt reminder and warning
buzzer

●

If luggage is placed on the front passenger seat, the front passenger detec-
tion sensor may cause the warning light to flash and the warning buzzer to
sound even if a passenger is not sitting in the seat.

●

If a cushion is placed on the seat, the sensor may not detect a passenger,
and the warning light may not operate properly.

■

If the malfunction indicator lamp comes on while driving

First check the following:

●

Is the fuel tank empty?
If it is, fill the fuel tank immediately.

●

Is the fuel tank cap loose?
If it is, tighten it securely.

The light will go off after several driving trips.
If the light does not go off even after several trips, contact your Toyota dealer
as soon as possible.

■

Electric power steering system warning light (warning buzzer)

When the battery charge becomes insufficient or the voltage temporarily
drops, the electric power steering system warning light may come on and the
warning buzzer may sound.

■

When the tire pressure warning light comes on

Check the tire inflation pressure and adjust to the appropriate level. Push-

ing the tire pressure warning reset switch will not turn off the tire pressure

warning light.

■

The tire pressure warning light may come on due to natural causes

The tire pressure warning light may come on due to natural causes such

as natural air leaks and tire inflation pressure changes caused by tem-

perature. In this case, adjusting the tire inflation pressure will turn off the

warning light (after a few minutes).

-------------------------------------------------------------------------------------------------------------------------------------------------------------

477

SIENNA_OM_OM08035U_(U)

Wh
en tro

■

When a tire is replaced with a spare tire (vehicles with compact spare

tire)

The compact spare tire is not equipped with a tire pressure warning valve

and transmitter. If a tire goes flat, the tire pressure warning light will not

turn off even though the flat tire has been replaced with the spare tire.

Replace the spare tire with the repaired tire and adjust the tire inflation

pressure. The tire pressure warning light will go off after a few minutes.

■

Conditions that the tire pressure warning system may not function

properly

P. 425

■

If the tire pressure warning light frequently comes on after blinking

for 1 minute

If the tire pressure warning light frequently comes on after blinking for 1

minute when the engine switch is turned to the “ON” position (vehicles

without a smart key system) or IGNITION ON mode (vehicles with a

smart key system), have it checked by your Toyota dealer.

■

Customization that can be configured at Toyota dealer

The vehicle speed linked seat belt reminder buzzer can be disabled.
(Customizable features

P. 547) However, Toyota recommends that the seat

belt reminder buzzer be operational to alert the driver and front passenger
when seat belts are not fastened.

■

Warning buzzer

In some cases, the buzzer may not be heard because of noisy place or an
audio sound.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

478

SIENNA_OM_OM08035U_(U)

WARNING

■

If both the ABS and the brake system warning lights remain on

Stop your vehicle in a safe place immediately and contact your Toyota
dealer. The vehicle will become extremely unstable during braking, and the
ABS system may fail, which could cause an accident resulting in death or
serious injury.

■

When the electric power steering system warning light comes on

The steering wheel may become extremely heavy.
When steering wheel operations are heavier than usual, grip the steering
wheel firmly and operate it using more force than usual.

■

If the tire pressure warning light comes on

Be sure to observe the following precautions. Failure to do so could

cause a loss of vehicle control and result in death or serious injury.
Vehicles with standard tires:

●

Stop your vehicle in a safe place as soon as possible. Adjust the tire

inflation pressure immediately.

●

If the tire pressure warning light comes on even after tire inflation pres-

sure adjustment, it is probable that you have a flat tire. Check the tires.

If a tire is flat, change it with the spare tire and have the flat tire

repaired by the nearest Toyota dealer.

●

Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate,

you could lose control of the steering wheel or the brakes.

Vehicles with run-flat tires:

●

Decelerate to the lowest appropriate speed as soon as possible. Do

not drive over 50 mph (80 km/h).

●

Check and adjust the tire inflation pressure immediately.

●

If the tire pressure warning light comes on even after tire inflation pres-

sure adjustment, it is probable that you have a flat tire. Have the tire

replaced by the nearest Toyota dealer.

●

Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate,

you could lose control of the steering wheel or the brakes.

■

If a blowout or sudden air leakage should occur

The tire pressure warning system may not activate immediately.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

479

SIENNA_OM_OM08035U_(U)

Wh
en tro

WARNING

■

Maintenance of the tires

Each tire, including the spare (if provided), should be checked monthly

when cold and inflated to the inflation pressure recommended by the

vehicle manufacturer on the vehicle placard or tire inflation pressure

label (tire and load information label). (If your vehicle has tires of a dif-

ferent size than the size indicated on the vehicle placard or tire inflation

pressure label [tire and load information label], you should determine

the proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire

pressure monitoring system (TPMS-tire pressure warning system) that

illuminates a low tire pressure telltale (tire pressure warning light) when

one or more of your tires is significantly under-inflated. Accordingly,

when the low tire pressure telltale (tire pressure warning light) illumi-

nates, you should stop and check your tires as soon as possible, and

inflate them to the proper pressure. Driving on a significantly under-

inflated tire causes the tire to overheat and can lead to tire failure.

Under-inflation also reduces fuel efficiency and tire tread life, and may

affect the vehicle’s handling and stopping ability.
Please note that the TPMS (tire pressure warning system) is not a sub-

stitute for proper tire maintenance, and it is the driver’s responsibility to

maintain correct tire pressure, even if under-inflation has not reached

the level to trigger illumination of the TPMS low tire pressure telltale (tire

pressure warning light).
Your vehicle has also been equipped with a TPMS (tire pressure warn-

ing system) malfunction indicator to indicate when the system is not

operating properly. The TPMS (tire pressure warning system) malfunc-

tion indicator is combined with the low tire pressure telltale (tire pressure

warning light). When the system detects a malfunction, the telltale will

flash for approximately one minute and then remain continuously illumi-

nated. This sequence will continue upon subsequent vehicle start-ups

as long as the malfunction exists. When the malfunction indicator is illu-

minated, the system may not be able to detect or signal low tire pres-

sure as intended.
TPMS (tire pressure warning system) malfunctions may occur for a vari-

ety of reasons, including the installation of replacement or alternate tires

or wheels on the vehicle that prevent the TPMS (tire pressure warning

system) from functioning properly. Always check the TPMS (tire pres-

sure warning system) malfunction telltale after replacing one or more

tires or wheels on your vehicle to ensure that the replacement or alter-

nate tires and wheels allow the TPMS (tire pressure warning system) to

continue to function properly.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

481

SIENNA_OM_OM08035U_(U)

Wh
en tro

If a warning message is displayed

Master warning light

The  master  warning  light  also
comes  on  or  flashes  in  order  to
indicate  that  a  message  is  cur-
rently being displayed on the multi-
information display.

Multi-information display
Handling method

Follow the instructions of the mes-
sage on the multi-information dis-
play.

If any of the warning messages are shown again after the following
actions have been performed, contact your Toyota dealer.

The multi-information display shows warnings of system mal-
functions, incorrectly performed operations, and messages that
indicate a need for maintenance. When a message is shown,
perform the correction procedure appropriate to the message.

2
3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

482

SIENNA_OM_OM08035U_(U)

The warning lights and warning buzzers operate as follows depending
on the content of the message. If a message indicates the need for
inspection by a dealer, have the vehicle inspected by your Toyota
dealer immediately.

The operation of the warning lights and warning buzzers may differ
from those stated. In this case, perform the correction procedure
according to the displayed message.

: A buzzer sounds the first time a message is shown on the multi-informa-

tion display.

Messages and warnings

System

warning

light

Warning

buzzer

Warning

Comes on Comes on

Sounds

Indicates an important situation, such
as when a system related to driving is
malfunctioning or that danger may
result if the correction procedure is not
performed

Comes on



Sounds



Comes on

or flashes

Sounds

Indicates an important situation, such
as when the systems shown on the
multi- information display may be mal-
functioning

Flashes



Sounds

Indicates a situation, such as when
damage to the vehicle or danger may
result

Comes on



Does not

sound

Indicates a condition, such as mal-
function of electrical components, their
condition, or indicates the need for
maintenance

Flashes



Does not

sound

Indicates a situation, such as when an
operation has been performed incor-
rectly, or indicates how to perform an
operation correctly

-------------------------------------------------------------------------------------------------------------------------------------------------------------

483

SIENNA_OM_OM08035U_(U)

Wh
en tro

■

Warning messages

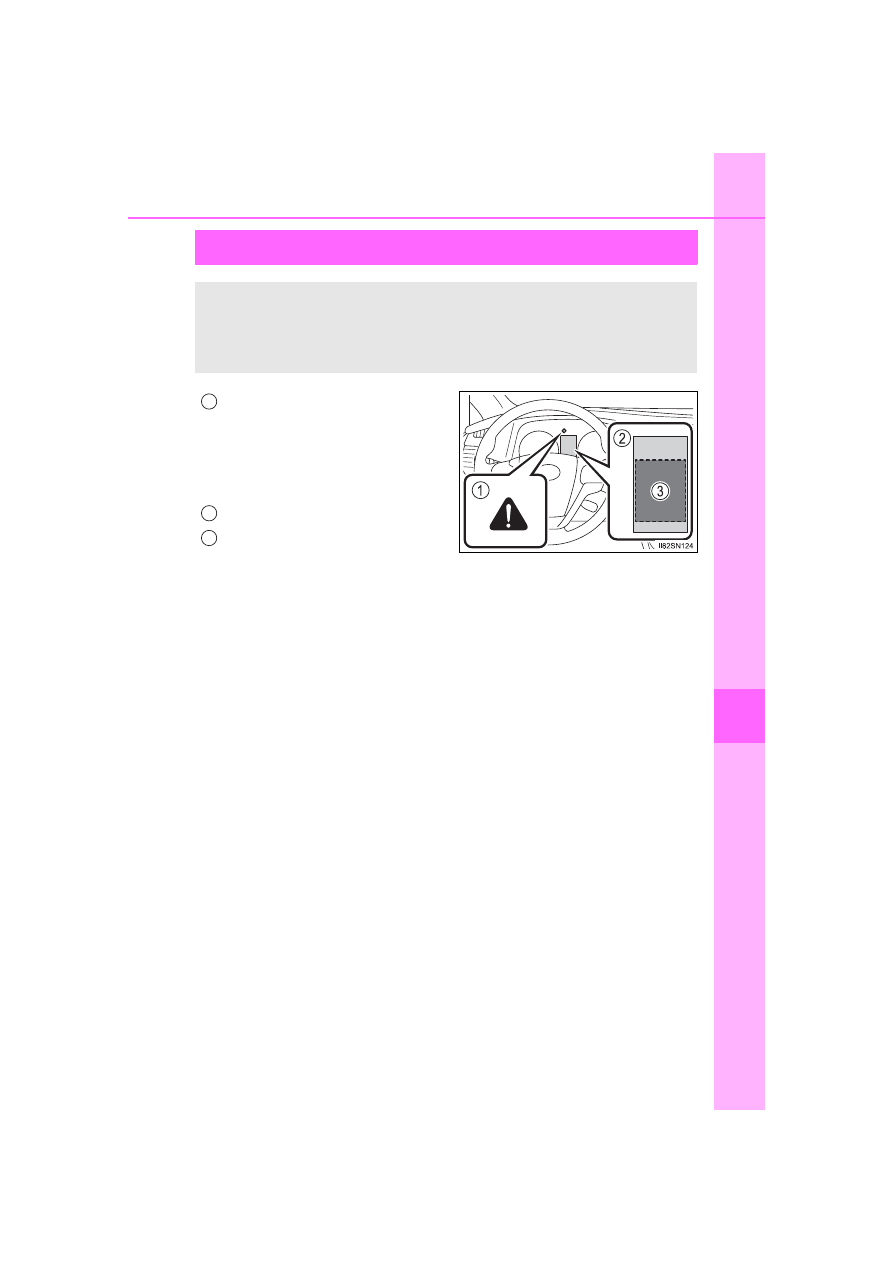

The warning messages explained below may differ from the actual messages
according to operation conditions and vehicle specifications.

■

If a message that indicates the need for contacting or visiting your TOY-
OTA dealer is shown

The system or part shown on the multi-information display is malfunctioning.
Have the vehicle inspected by your Toyota dealer.

■

If “Auto Power Off to Conserve Battery” is shown

Power was turned off due to the automatic power off function. Next time when
starting the engine, increase the engine speed slightly and maintain that level
for approximately 5 minutes to recharge the battery.

■

If “Shift to P Before Exiting Vehicle” is shown

The driver’s door is opened without turning the engine switch to off with the
shift lever in any position other than P. Shift the shift lever to P.

■

If “Front Camera Unavailable” or “Front Camera Unavailable Remove
Debris On Windshield” is shown

The following systems may be suspended until the problem shown in the
message is resolved.

●

PCS (Pre-Collision System)

●

LDA (Lane Departure Alert with steering control)

●

Dynamic radar cruise control

●

Automatic High Beam

■

If “AWD System Overheated 2WD Mode Engaged” or “AWD System
Overheated Switching To 2WD Mode” is shown

The Active Torque Control 4WD system has overheated. Immediately stop
the vehicle in a safe place and contact your Toyota dealer.

■

If “Low Engine Oil Add or Replace” is shown

The engine oil level is low. Check the level of engine oil, and add if necessary.
This message may appear if the vehicle is stopped on a slope. Move the
vehicle to a level surface and check to see if the message disappears.

■

If “Maintenance Required Soon” is shown

The engine oil is scheduled to be changed. Check the engine oil, and change
if necessary. After changing the engine oil, the message should be reset.
(

P. 398)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

484

SIENNA_OM_OM08035U_(U)

■

If “Engine Coolant Temp is High” is shown

The engine coolant temperature is too high. Following the instructions,
accordingly. (



P. 509)

■

If “Clean Park Sonar” is shown

The intuitive parking assist is dirty or covered with ice. Clean the sensor.

■

The messages that need for contacting your Toyota dealer

●

If any of the following messages is shown on the multi-information display, it
may indicate a malfunction. Have the vehicle inspected by your Toyota
dealer immediately.
• “Check Park Sonar System”
• “Check Vehicle Stability Control System”
• “Check Steering Lock System”

●

If any of the following messages is shown on the multi-information display, it
may indicate a malfunction. Immediately stop the vehicle and contact your
Toyota dealer.
• “Check Charging System”
• “Low Oil Pressure”
• “Check Brake System”

-------------------------------------------------------------------------------------------------------------------------------------------------------------

485

SIENNA_OM_OM08035U_(U)

Wh
en tro

If you have a flat tire (vehicles with a

compact spare tire)

●

Stop the vehicle in a safe place on a hard, flat surface.

●

Set the parking brake.

●

Shift the shift lever to P.

●

Stop the engine.

●

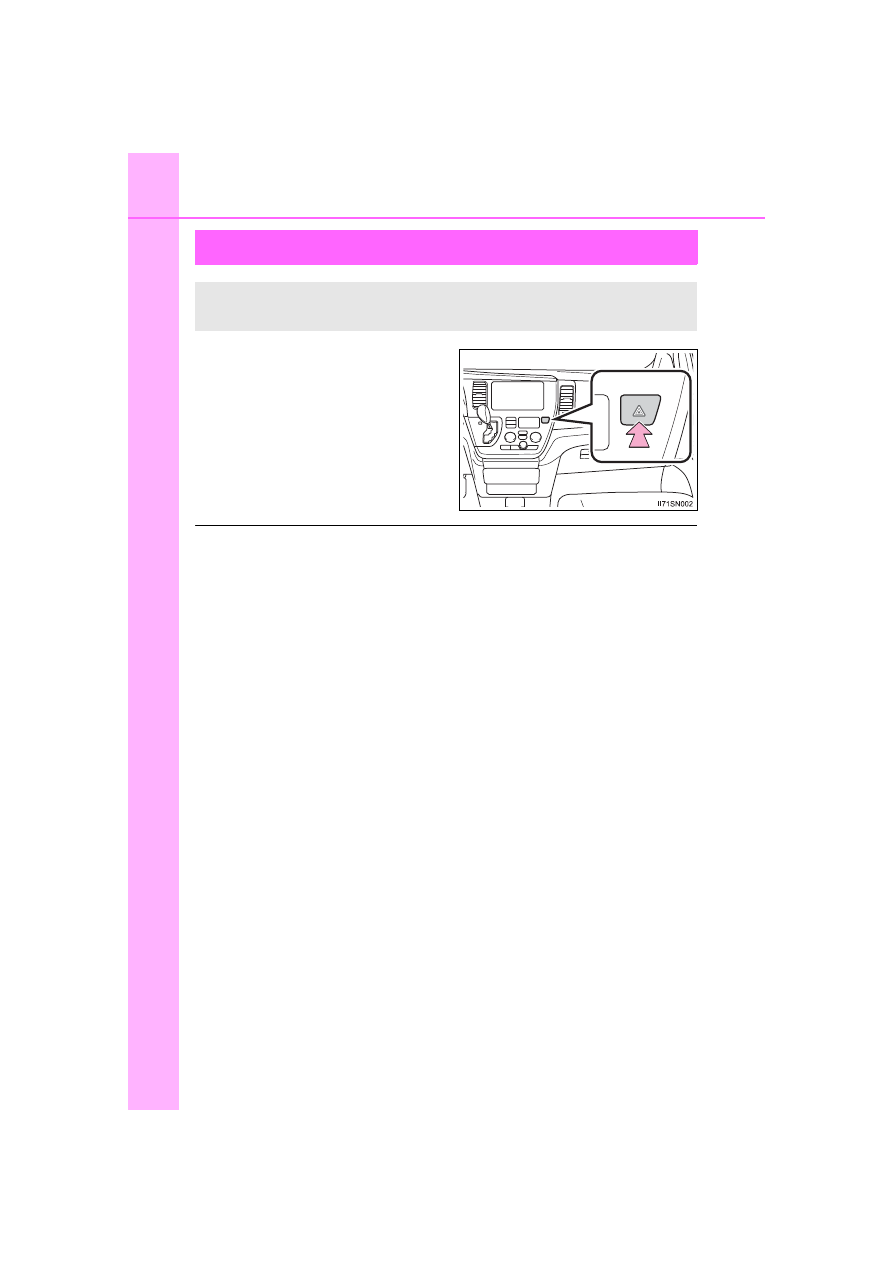

Turn on the emergency flashers. (



P. 462)

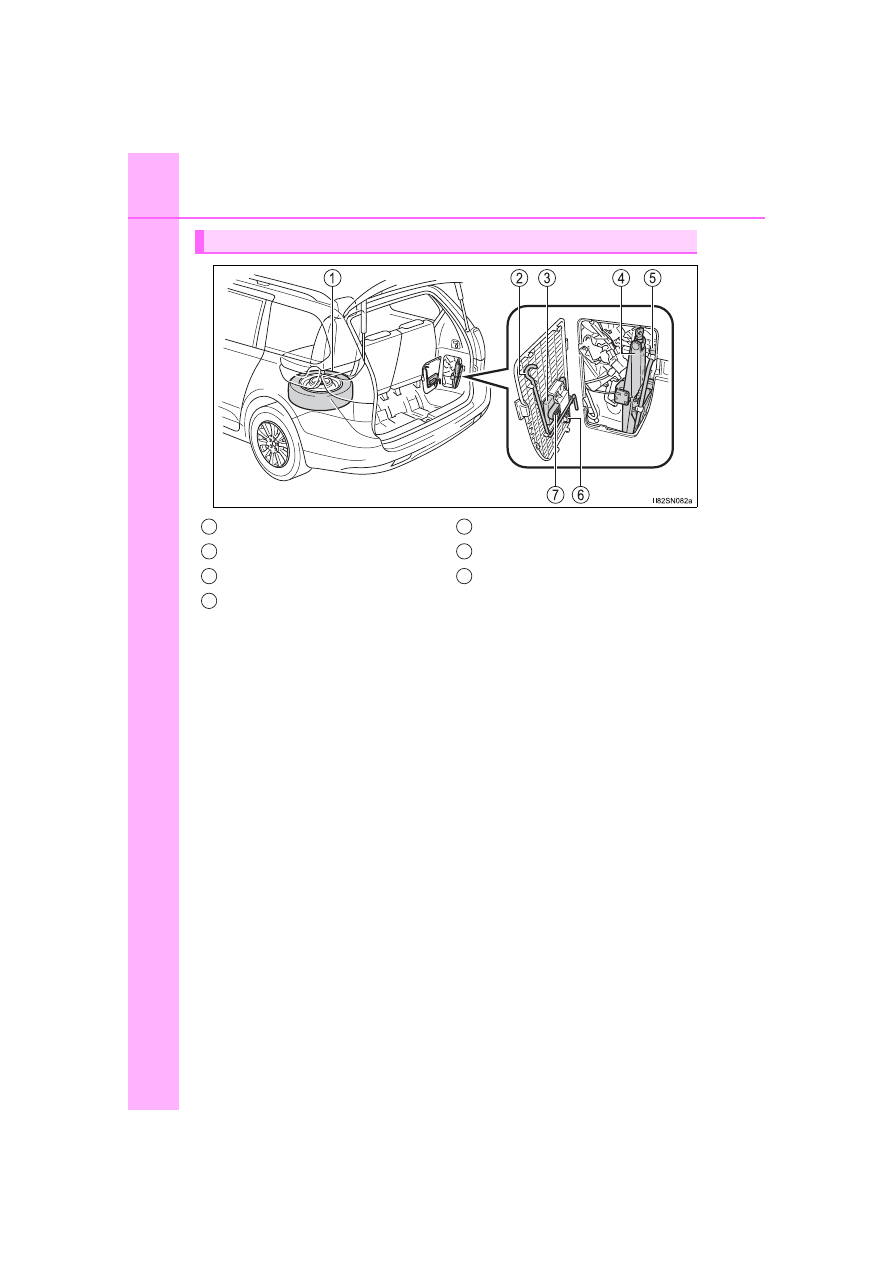

Your vehicle is equipped with a spare tire. The flat tire can be
replaced with the spare tire.
For details about tires:

P. 420

WARNING

■

If you have a flat tire

Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair, which could result in an accident.

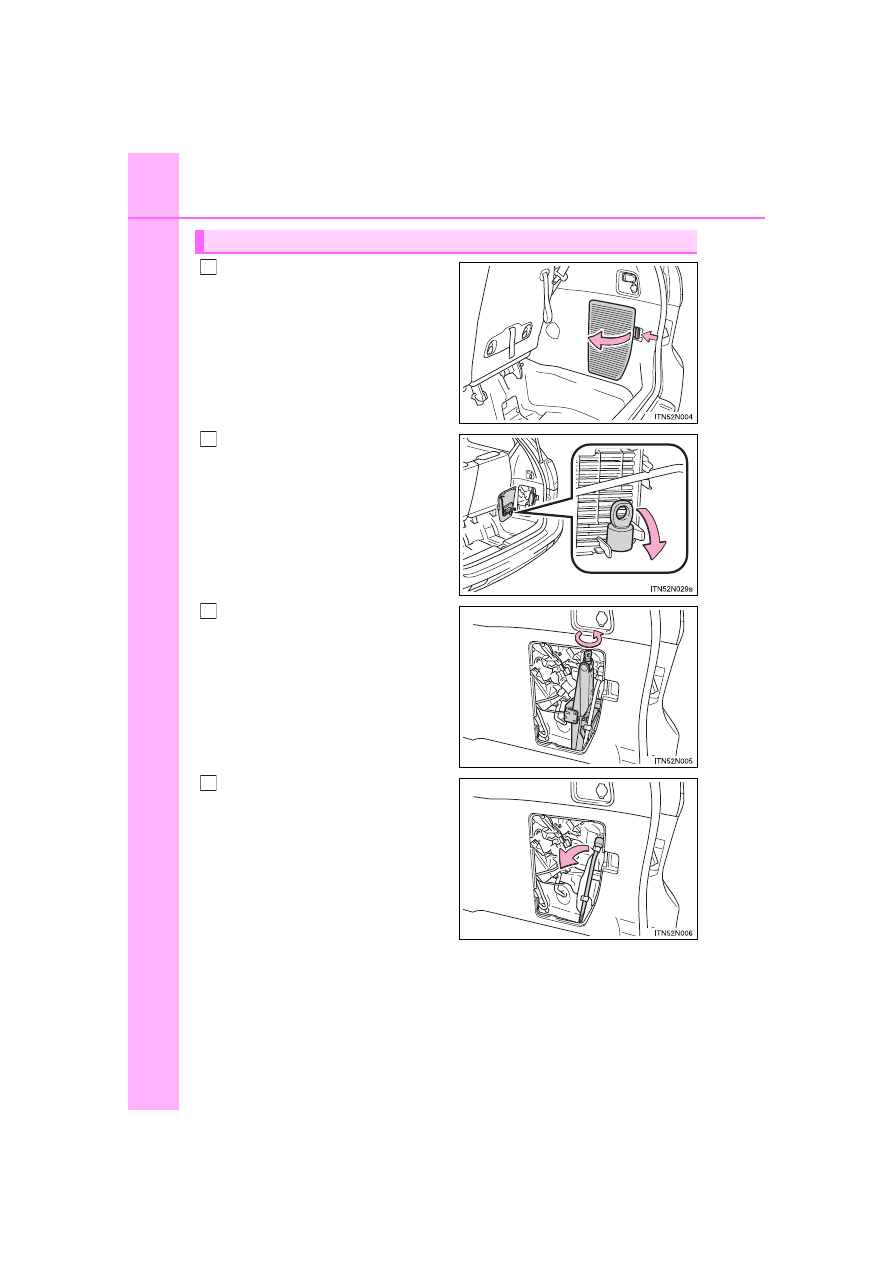

Before jacking up the vehicle

-------------------------------------------------------------------------------------------------------------------------------------------------------------

487

SIENNA_OM_OM08035U_(U)

Wh
en tro

WARNING

■

Using the tire jack

Observe the following precautions.
Improper use of the tire jack may cause the vehicle to suddenly fall off
the jack, leading to death or serious injury.

●

Do not use the tire jack for any purpose other than replacing tires or
installing and removing tire chains.

●

Only use the tire jack that comes with this vehicle for replacing a flat
tire. Do not use it on other vehicles, and do not use other tire jacks for
replacing tires on this vehicle.

●

Put the jack properly in its jack point.

●

Do not put any part of your body under the vehicle while it is supported
by the jack.

●

Do not start or run the engine while your vehicle is supported by the
jack.

●

Do not raise the vehicle while someone is inside.

●

When raising the vehicle, do not put an object on or under the jack.

●

Do not raise the vehicle to a height greater than that required to
replace the tire.

●

Use a jack stand if it is necessary to get under the vehicle.

●

When lowering the vehicle, make sure that there is no-one near the
vehicle. If there are people nearby, warn them vocally before lowering.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

489

SIENNA_OM_OM08035U_(U)

Wh
en tro

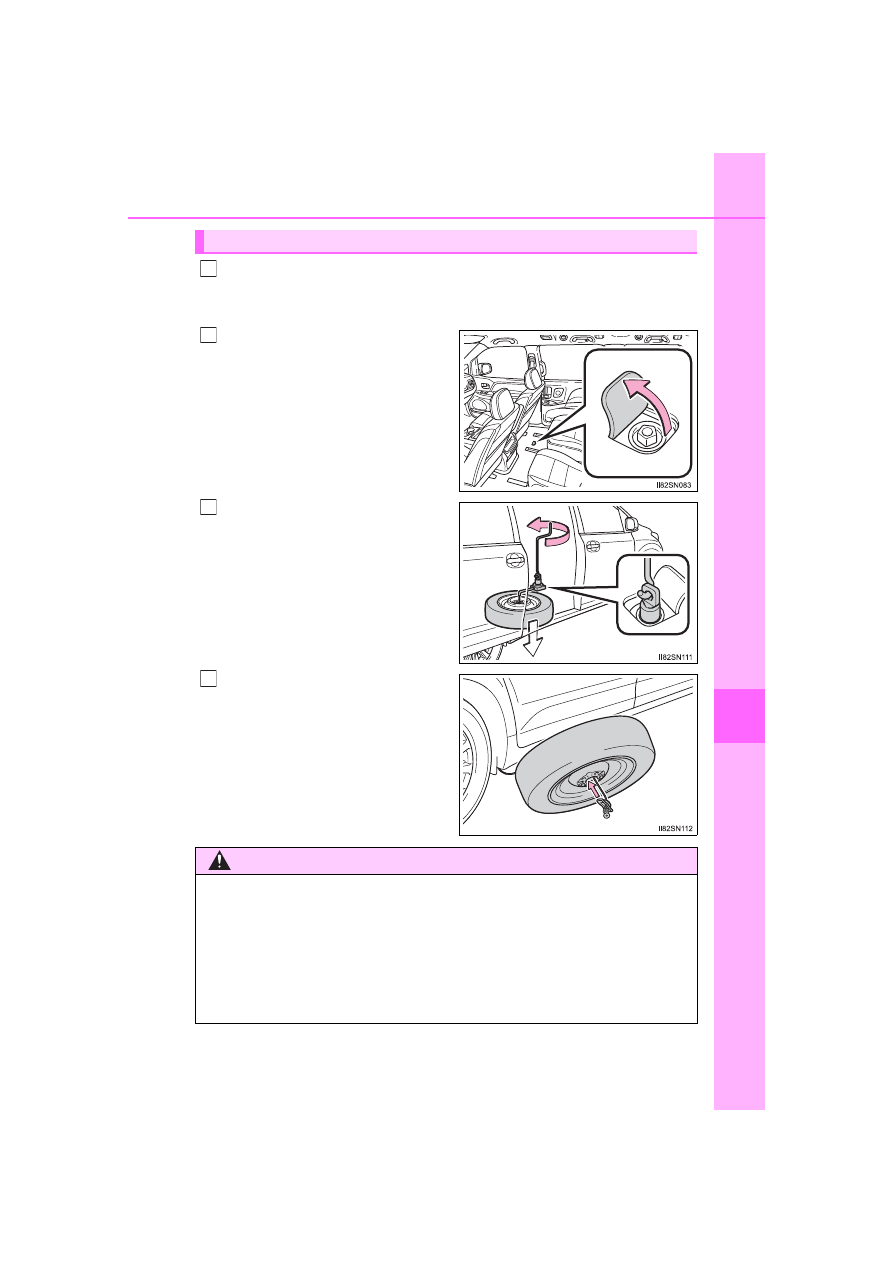

Slide the front passenger’s seat to the frontmost lock position and
the right side second seat to the rearmost lock position so they will
not interfere with the jack handle.
Open the right side sliding door
and you will find the flap on the
floor. Pull back the flap to find
the spare tire clamp bolt.

Attach  the  adapter  socket  over
the spare tire clamp bolt.
Connect  the  jack  handle  and
the  adapter  socket.  Turn  the
jack handle.

The tire will be lowered com-
pletely to the ground.

Take the spare tire out from
underneath the vehicle and
remove the holding bracket.

Taking out the spare tire

WARNING

■

When taking out the spare tire from under the vehicle

Do not touch the exhaust components, as they can become very hot
and burn you.

■

When storing the compact spare tire

Be careful not to catch fingers or other body parts between the compact
spare tire and the body of the vehicle.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

490

SIENNA_OM_OM08035U_(U)

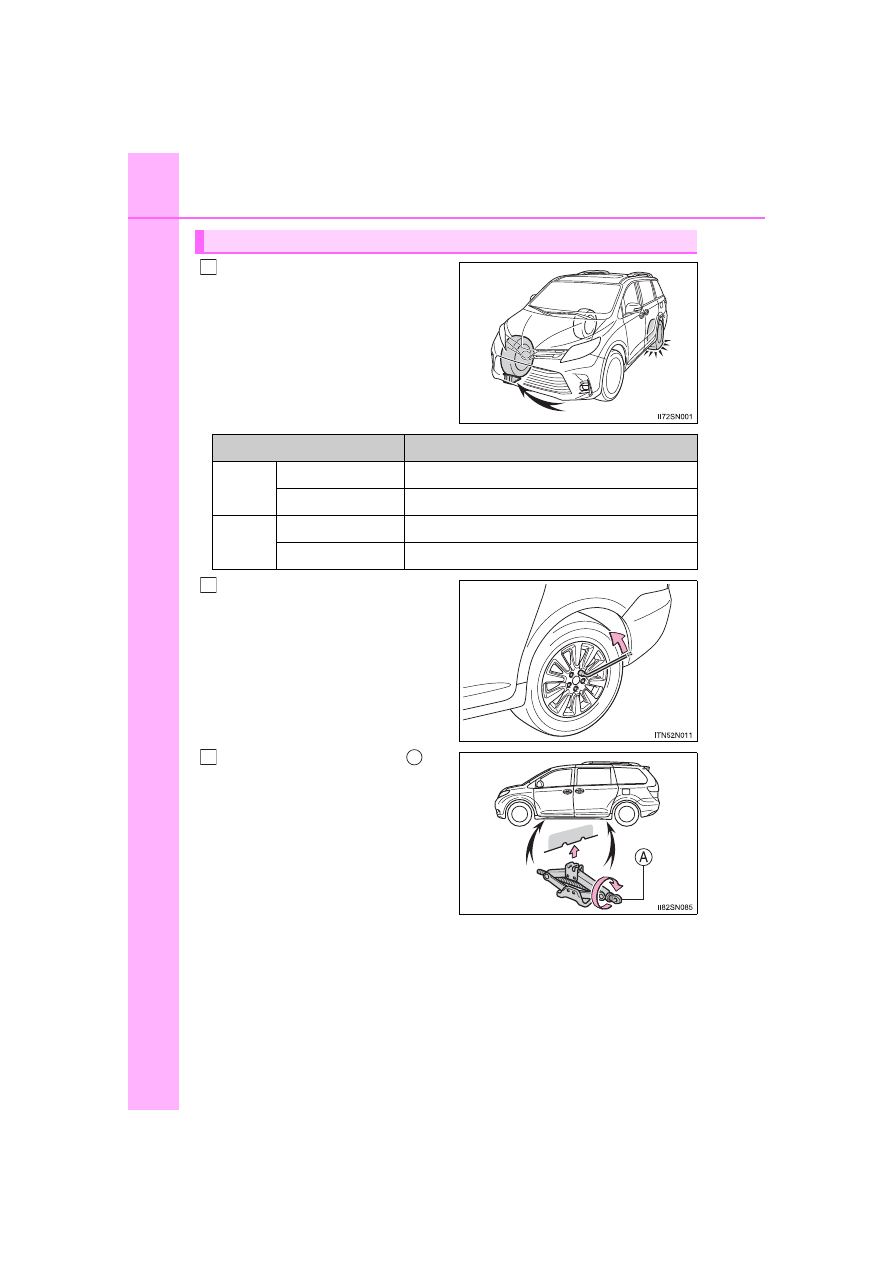

Chock the tires.

Slightly loosen the wheel nuts
(one turn).

Turn the tire jack portion

hand until the notch of the jack
is in contact with the jack point.

The jack point guides are located

on the side of rocker moulding.

They indicate the jack point posi-

tions.

Replacing a flat tire

Flat tire

Wheel chock positions

Front

Left-hand side

Behind the rear right-hand side tire

Right-hand side

Behind the rear left-hand side tire

Rear

Left-hand side

In front of the front right-hand side tire

Right-hand side

In front of the front left-hand side tire

-------------------------------------------------------------------------------------------------------------------------------------------------------------

492

SIENNA_OM_OM08035U_(U)

WARNING

■

Replacing a flat tire

●

Observe the following precautions.
Failure to do so may result in serious injury:
• Do not touch the disc wheels or the area around the brakes immedi-

ately after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area
around the brakes will be extremely hot. Touching these areas with
hands, feet or other body parts while changing a tire, etc. may result
in burns.

• Remove the spare tire before jacking up the vehicle. If the spare tire

is removed after jacking up the vehicle, the tire carrier and the spare
tire may interfere with the jack and cause a serious accident.

●

Failure to follow these precautions could cause the wheel nuts to
loosen and the tire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 76 ft•lbf

(103 N•m, 10.5 kgf•m) as soon as possible after changing wheels.

• When installing a tire, only use wheel nuts that have been specifi-

cally designed for that wheel.

• If there are any cracks or deformations in the bolt screws, nut

threads or bolt holes of the wheel, have the vehicle inspected by
your Toyota dealer.

• When installing the wheel nuts, be sure to install them with the

tapered end facing inward. (



P. 433)

●

For vehicles with power sliding door and/or power back door: In cases
such as when replacing tires, make sure to turn off the power sliding
door main switch (



P. 124) and/or the power back door main switch

(

P. 136). Failure to do so may cause the sliding door and/or the back

door to operate unintentionally if the power sliding door switch and/or
the power back door switch is accidentally touched, resulting in hands
and fingers being caught and injured.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

493

SIENNA_OM_OM08035U_(U)

Wh
en tro

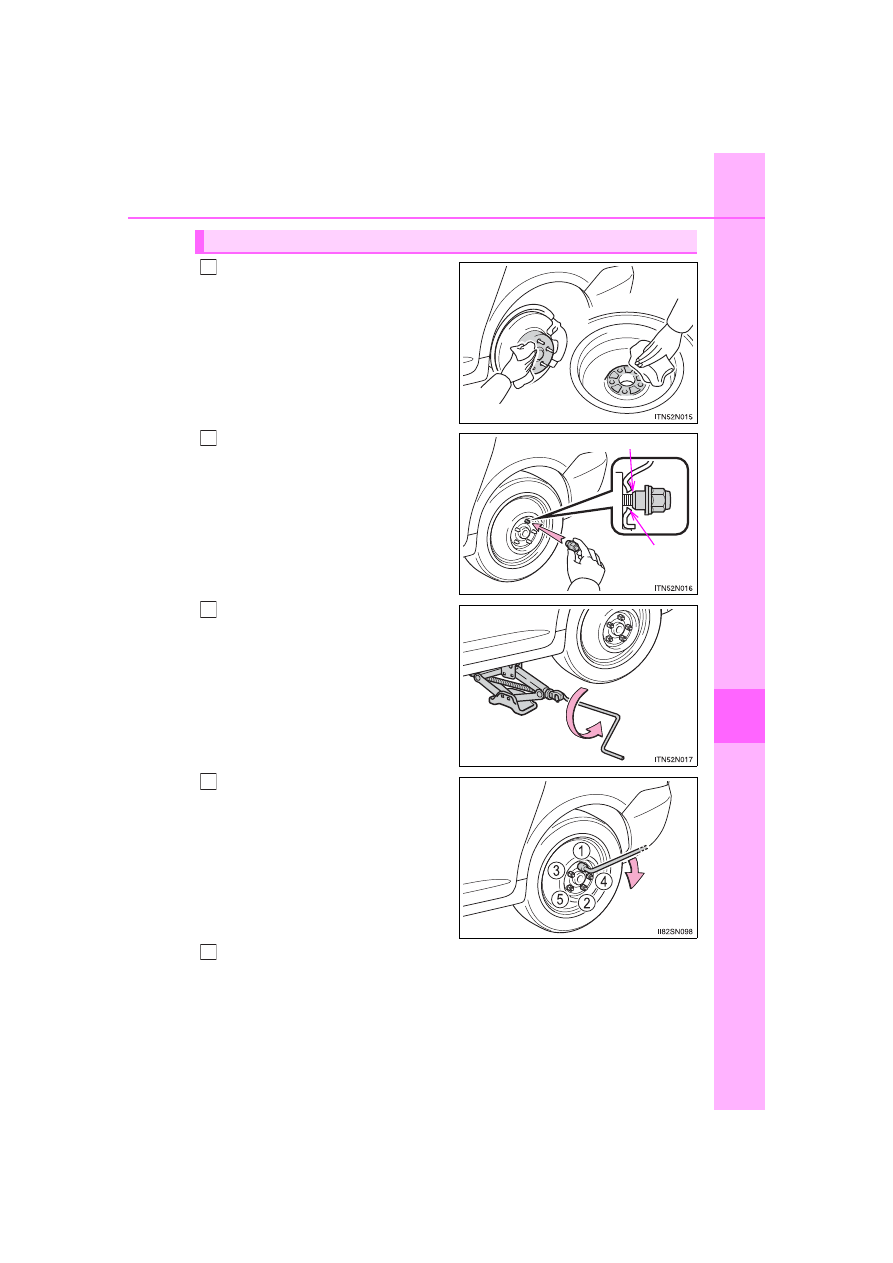

Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.

If  foreign  matter  is  on  the  wheel
contact  surface,  the  wheel  nuts
may loosen while the vehicle is in
motion,  causing  the  tire  to  come
off.

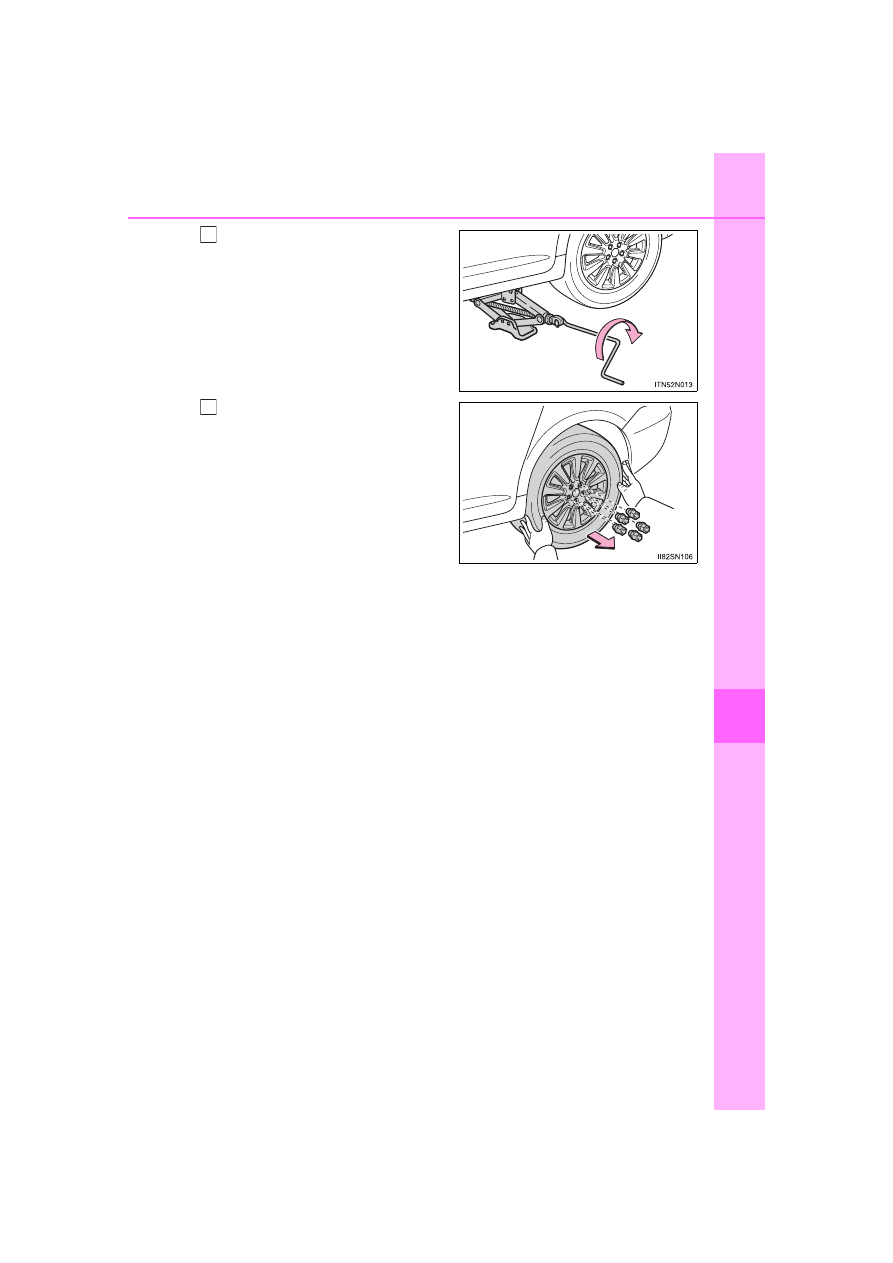

Install the tire and loosely
tighten each wheel nut by hand
by approximately the same
amount.

Tighten the wheel nuts until the
tapered portion comes into loose
contact with the disc wheel seat.

Lower the vehicle.

Firmly tighten each wheel nut
two or three times in the order
shown in the illustration.

Tightening torque:

76 ft•lbf (103 N•m, 10.5 kgf•m)

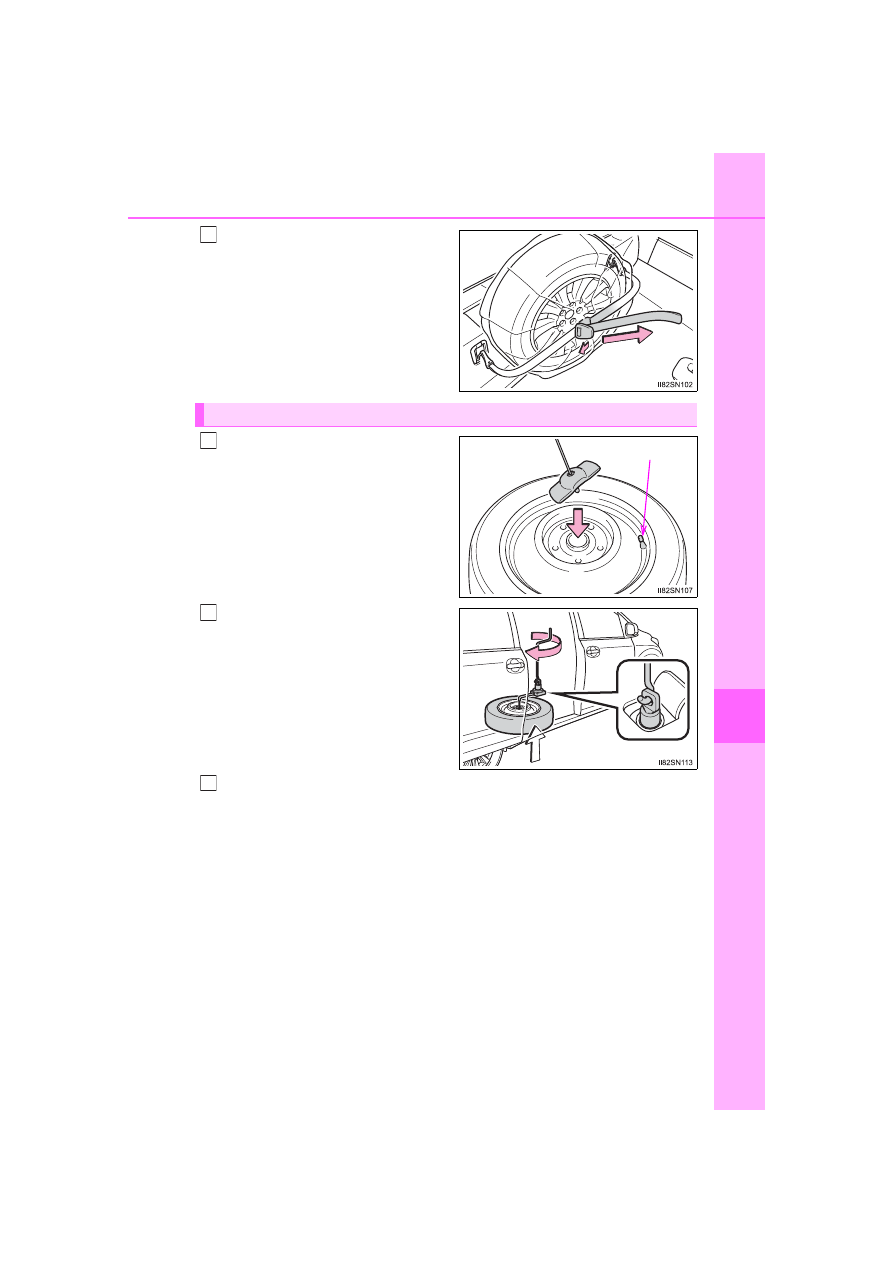

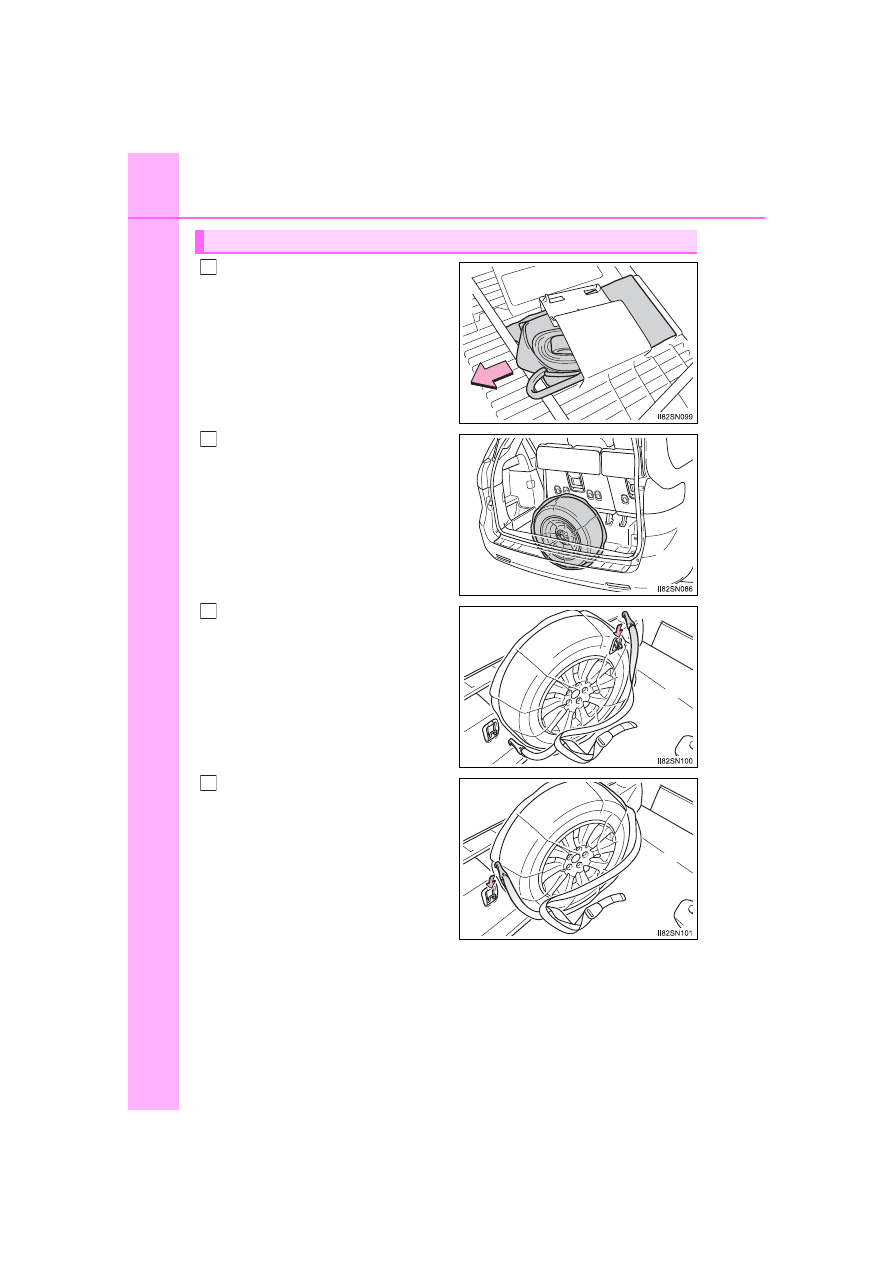

Stow the flat tire, tire jack and all tools.

Installing the spare tire

Tapered portion

Disc wheel
seat

-------------------------------------------------------------------------------------------------------------------------------------------------------------

496

SIENNA_OM_OM08035U_(U)

■

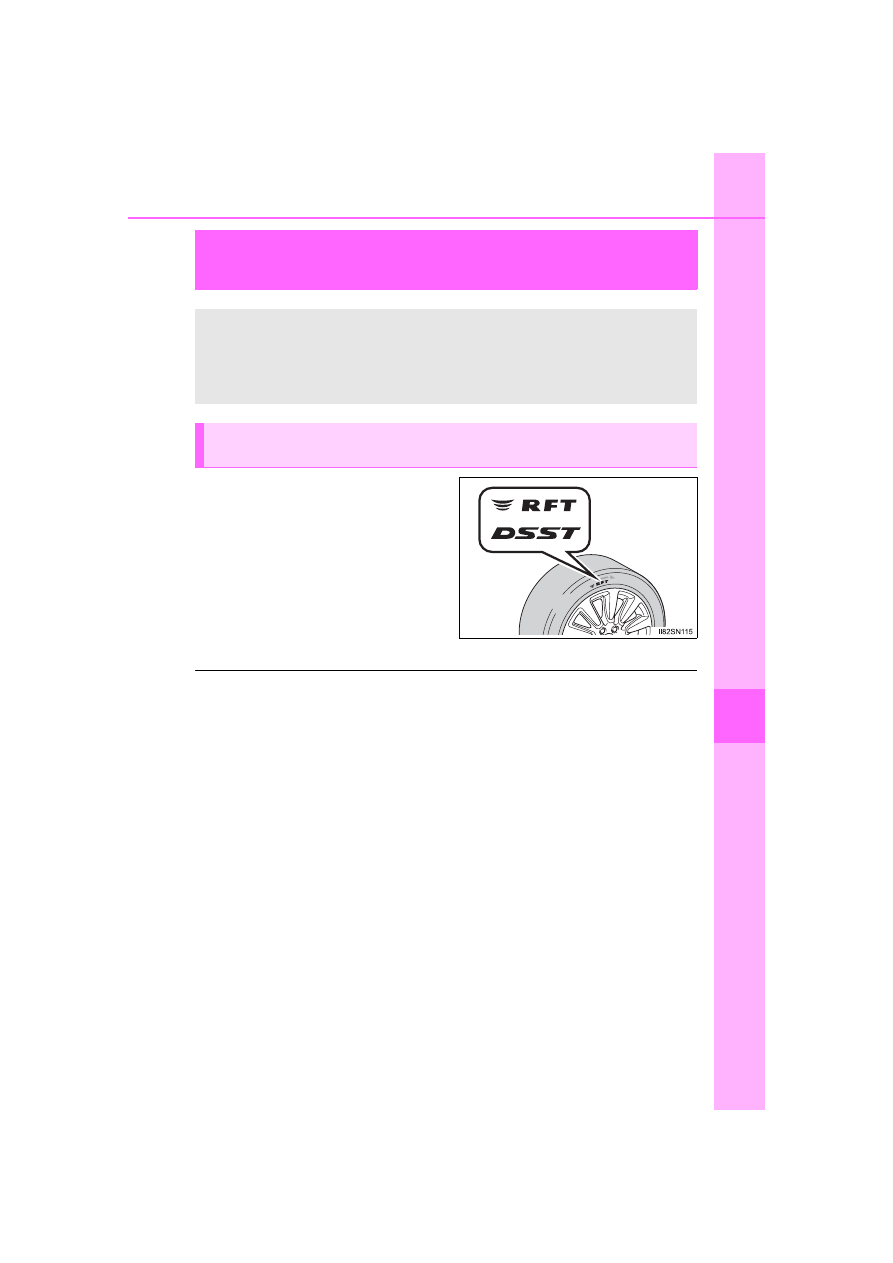

The compact spare tire

●

The compact spare tire is identified by the label “TEMPORARY USE
ONLY” on the tire sidewall.
Use the compact spare tire temporarily, and only in an emergency.

●

Make sure to check the tire inflation pressure of the compact spare tire.
(



P. 524)

■

After completing the tire change

The tire pressure warning system must be reset. (



P. 421)

■

When using the compact spare tire

As the compact spare tire is not equipped with a tire pressure warning
valve and transmitter, low inflation pressure of the spare tire will not be
indicated by the tire pressure warning system. Also, if you replace the
compact spare tire after the tire pressure warning light comes on, the light
remains on.

■

When the compact spare tire is equipped

The vehicle becomes lower when driving with the compact spare tire
compared to when driving with standard tires

■

If you have a flat front tire on a road covered with snow or ice

Install the compact spare tire on one of the rear wheels of the vehicle.
Perform the following steps and fit tire chains to the front tires:

Replace a rear tire with the compact spare tire.
Replace the flat front tire with the tire removed from the rear of the vehi-
cle.
Fit tire chains to the front tires.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

497

SIENNA_OM_OM08035U_(U)

Wh
en tro

WARNING

■

When using the compact spare tire

●

Remember that the compact spare tire provided is specifically
designed for use with your vehicle. Do not use your compact spare tire
on another vehicle.

●

Do not use more than one compact spare tire simultaneously.

●

Replace the compact spare tire with a standard tire as soon as possi-
ble.

●

Avoid sudden acceleration, abrupt steering, sudden braking and shift-
ing operations that cause sudden engine braking.

■

When the compact spare tire is attached

The vehicle speed may not be correctly detected, and the following sys-
tems may not operate correctly:

Also, not only can the following system not be utilized fully, but it may
even negatively affect the drive-train components:
• AWD system (if equipped)

■

Speed limit when using the compact spare tire

Do not drive at speeds in excess of 50 mph (80 km/h) when a compact
spare tire is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Fail-
ure to observe this precaution may lead to an accident causing death or
serious injury.

■

After using the tools and jack

Before driving, make sure all the tools and jack are securely in place in
their storage location to reduce the possibility of personal injury during a
collision or sudden braking.

■

When stowing the flat tire

●

Make sure the third seats are in their original position.

●

Secure it using a tire strap. Otherwise, the flat tire may fly out in case
of sudden braking or an accident, resulting in death or serious injury.

• ABS & Brake assist
• VSC
• TRAC
• EPS
• Automatic High Beam
• PCS (Pre-Collision System)

: If equipped

• Dynamic radar cruise control
• LDA (Lane Departure Alert with

steering control)

• BSM (Blind Spot Monitor)

• Intuitive parking assist

• Navigation system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

498

SIENNA_OM_OM08035U_(U)

NOTICE

■

When loosening or tightening the spare tire clamp bolt

Do not use an impact wrench. Use the adapter socket and jack handle.

■

Be careful when driving over bumps with the compact spare tire
installed on the vehicle

The vehicle becomes lower when driving with the compact spare tire
compared to when driving with standard tires. Be careful when driving
over uneven road surfaces.

■

Driving with tire chains and the compact spare tire

Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving
performance.

■

When replacing the tires

When removing or fitting the wheels, tires or the tire pressure warning
valve and transmitter, contact your Toyota dealer as the tire pressure
warning valve and transmitter may be damaged if not handled correctly.

■

To avoid damage to the tire pressure warning valves and transmit-
ters

When a tire is repaired with liquid sealants, the tire pressure warning
valve and transmitter may not operate properly. If a liquid sealant is
used, contact your Toyota dealer or other qualified service shop as soon
as possible. Make sure to replace the tire pressure warning valve and
transmitter when replacing the tire. (

P. 421)

■

After taking out or stowing the spare tire

Make sure to secure the tire carrier by tightening the clamp bolt to pre-
vent the holding bracket from hitting the under body of the vehicle
during driving.

■

Using the tire carrier

●

As the tire carrier is designed for use with the compact spare tire, it
cannot be used with standard tires.

●

If the spare tire is flat, do not use the tire carrier, as the tire may not be
held securely.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

499

SIENNA_OM_OM08035U_(U)

Wh
en tro

If you have a flat tire (vehicles with run-flat

tires)

Take your vehicle to the nearest
Toyota dealer or authorized tire
dealer as soon as possible if any
tire goes flat.

The vehicle can be driven for a

maximum of 100 miles (160 km)

at a speed below 50 mph

(80 km/h) after the tire pressure

warning light comes on.

(

P. 474)

■

In some condition (such as at high temperatures)

You cannot continue driving for up to 100 miles (160 km).

■

For the detailed information on run-flat tires

See the tire warranty booklet.

Your vehicle is not equipped with a spare tire, but instead you
can continue driving the vehicle with run-flat tires even if any
tire goes flat.
In this case, slow down and drive with extra caution.

Run-flat tires (A “RFT” or “DSST” mark is molded on the side-
wall)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

500

SIENNA_OM_OM08035U_(U)

NOTICE

■

When replacing the tires

When removing or fitting the wheels, tires or the tire pressure warning

valve and transmitter, contact your Toyota dealer as the tire pressure

warning valve and transmitter may be damaged if not handled correctly.

■

When driving over bumps

If a vehicle has a flat tire, the vehicle height will be lower than usual.

Ensure that nothing strikes the bottom of the vehicle.

■

To avoid damaging the tire pressure warning valves and transmit-

ters

When a tire is repaired with liquid sealants, the tire pressure warning

valve and transmitter may not operate properly. If a liquid sealant is

used, contact your Toyota dealer or other qualified service shop as soon

as possible. Make sure to replace the tire pressure warning valve and

transmitter when replacing the tire. (

P. 421)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

501

SIENNA_OM_OM08035U_(U)

Wh
en tro

If the engine will not start

One of the following may be the cause of the problem:

●

There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.

●

The engine may be flooded.
Try to restart the engine again following correct starting procedures.
(

P. 225, 228 )

●

There may be a malfunction in the engine immobilizer system.
(

P. 77)

One of the following may be the cause of the problem:

●

The battery may be discharged. (



P. 505)

●

The battery terminal connections may be loose or corroded.

The engine starting system may be malfunctioning due to an electrical
problem such as an electronic key battery depletion or a blown fuse.
However, an interim measure is available to start the engine.
(

P. 502)

If the engine will not start even though correct starting proce-
dures are being followed (

P. 225, 228), consider each of the fol-

lowing points:

The engine will not start even though the starter motor operates
normally.

The starter motor turns over slowly, the interior lights and head-
lights are dim, or the horn does not sound or sounds at a low
volume.

The starter motor does not turn over (vehicles with a smart key
system)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

502

SIENNA_OM_OM08035U_(U)

One of the following may be the cause of the problem:

●

One or both of the battery terminals may be disconnected.

●

The battery may be discharged. (



P. 505)

●

There may be a malfunction in the steering lock system (vehicle
with a smart key system).

Contact your Toyota dealer if the problem cannot be repaired, or if repair
procedures are unknown.

When the engine does not start, the following steps can be used as an
interim measure to start the engine if the engine switch is functioning
normally:

Set the parking brake.
Shift the shift lever to P.
Turn the engine switch to ACCESSORY mode.
Press and hold the engine switch for about 15 seconds while
depressing the brake pedal firmly.

Even if the engine can be started using the above steps, the system
may be malfunctioning. Have the vehicle inspected by your Toyota
dealer.

The starter motor does not turn over, the interior lights and head-
lights do not turn on, or the horn does not sound.

Emergency start function (vehicles with a smart key system)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

503

SIENNA_OM_OM08035U_(U)

Wh
en tro

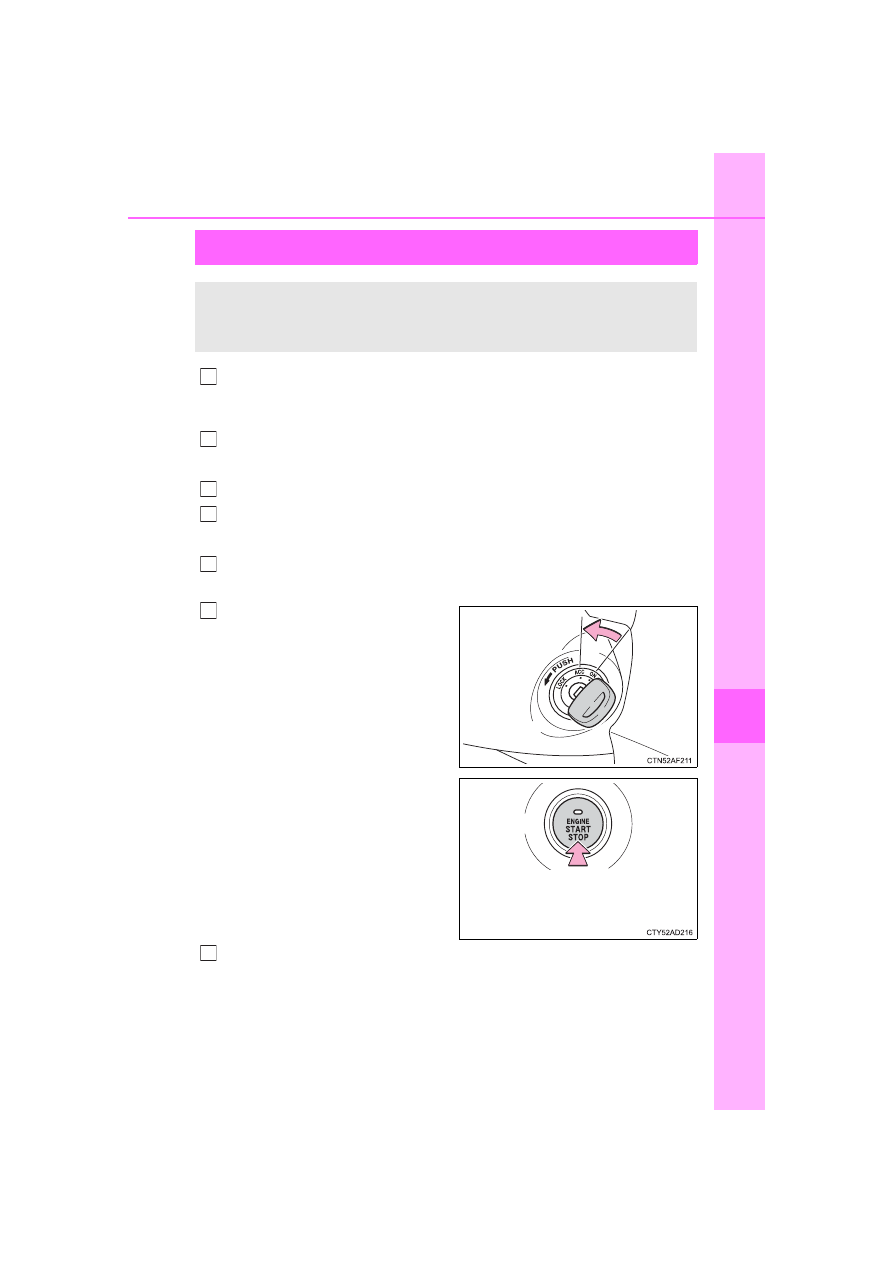

If the electronic key does not operate

properly (vehicles with a smart key system)

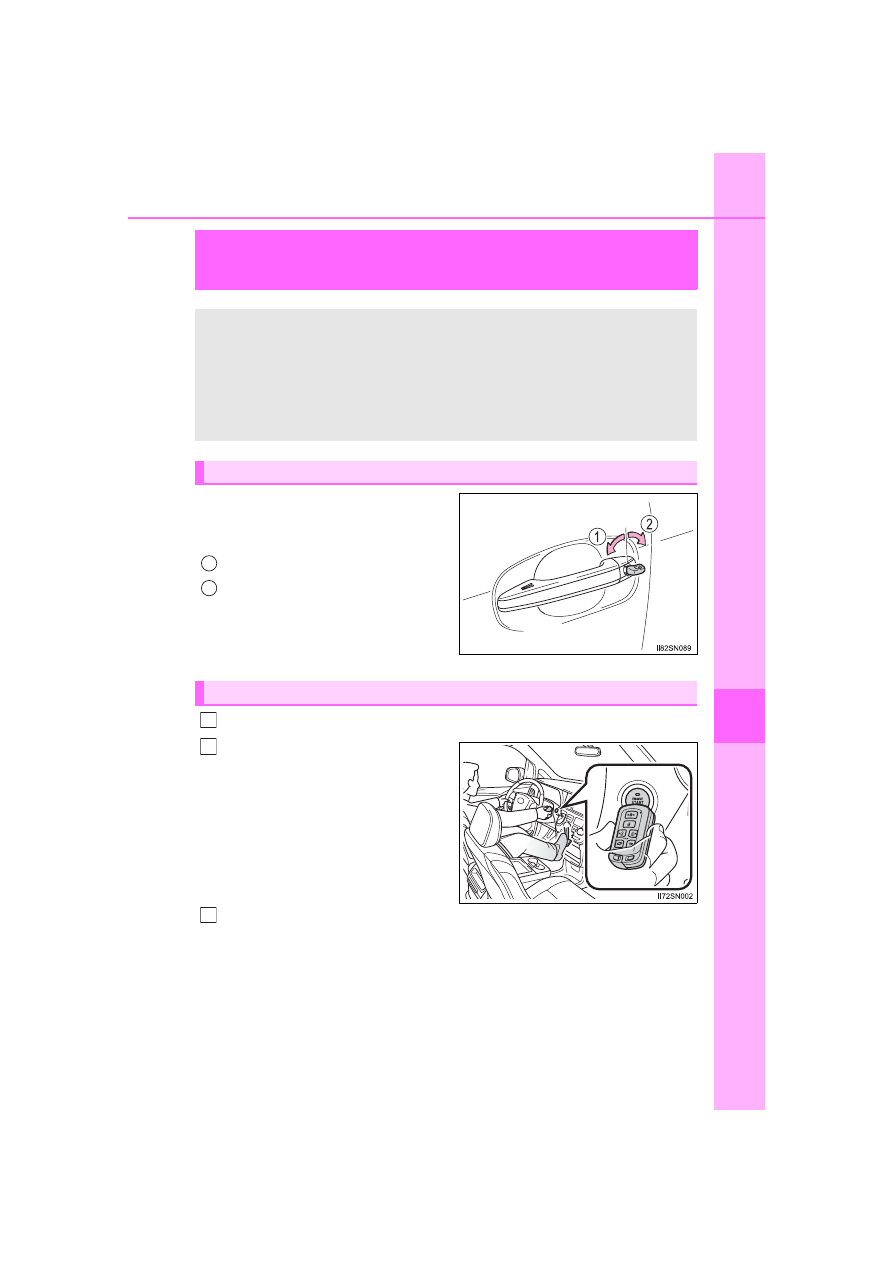

Using the mechanical key
(



P. 106) in order to perform

the following operations.

Locks all the doors
Unlocks the door(s)

Turning  the  key  rearward  unlocks
the  driver’s  door.  Turning  the  key
once  again  within  3  seconds
unlocks the other doors.

Shift the shift lever to P and apply the brakes.
Touch the Toyota emblem side
of the electronic key to the
engine switch.

An alarm will sound to indicate that
the start function cannot detect the
electronic key that is touched to the
engine switch if any of the doors is
opened and closed while the key is
touched to the switch.

Press the engine switch within 10 seconds after the buzzer sounds,
keeping the brake pedal depressed.

In the event that the engine switch cannot be operated, contact your
Toyota dealer.

If communication between the electronic key and vehicle is
interrupted (

P. 119) or the electronic key cannot be used

because the battery is depleted, the smart key system and wire-
less remote control cannot be used. In such cases, the doors
can be opened or the engine can be started by following the pro-
cedure below.

Locking and unlocking the doors and key linked functions

1
2

Starting the engine

-------------------------------------------------------------------------------------------------------------------------------------------------------------

504

SIENNA_OM_OM08035U_(U)

■

Stopping the engine

Shift the shift lever to P and press the engine switch as you normally do when
stopping the engine.

■

Replacing the key battery

As this above procedure is a temporary measure, it is recommended that the
electronic key battery be replaced immediately when the battery depletes.
(

P. 436)

■

Alarm (if equipped)

Using the mechanical key to lock the doors will not set the alarm system.
If a door is unlocked using the mechanical key when the alarm system is set,
the alarm may be triggered. (

P. 79)

■

Changing engine switch modes

Within 10 seconds of the buzzer sounding, release the brake pedal and press
the engine switch.
The engine does not start and modes will be changed each time the switch is
pressed. (



P. 229)

■

When the electronic key does not work properly

●

Check if the battery-saving mode is set. If it is set, cancel the function.
(



P. 145)

●

Make sure that the smart key system has not been deactivated in the cus-
tomization setting. If it is off, turn the function on.
(Customizable features

P. 544)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

505

SIENNA_OM_OM08035U_(U)

Wh
en tro

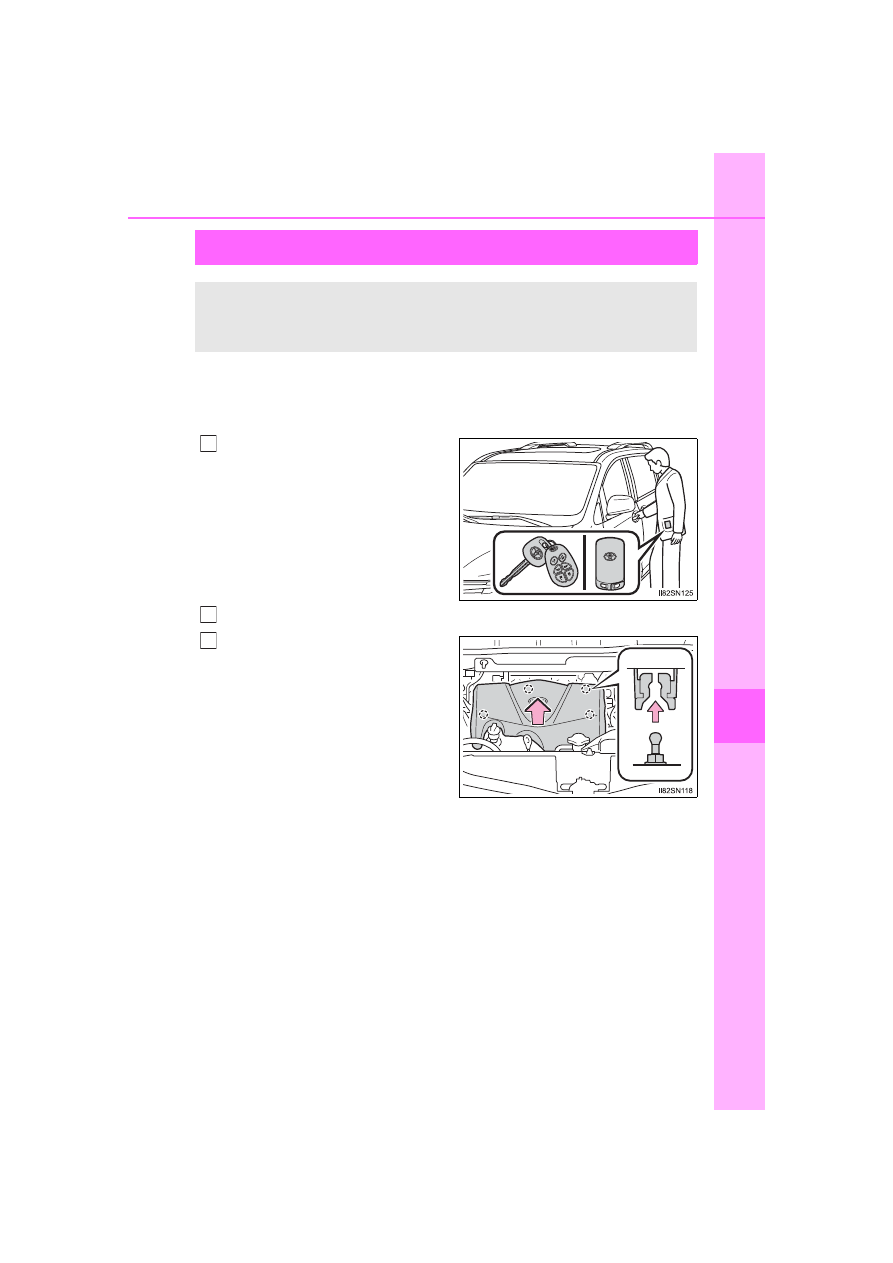

If the battery is discharged

If you have a set of jumper (or booster) cables and a second vehicle
with a 12-volt battery, you can jump start your vehicle by following the
steps below.

Vehicles with an alarm system:
Confirm  that  the  electronic  key
is being carried.
When  connecting  the  jumper
(or  booster)  cables,  depending
on the situation, the alarm may
activate and doors locked.
(

P. 81)

Open the hood. (



P. 407)

Remove the engine cover.

The following procedures may be used to start the engine if the
vehicle’s battery is discharged.
You can call your Toyota dealer or qualified repair shop.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

506

SIENNA_OM_OM08035U_(U)

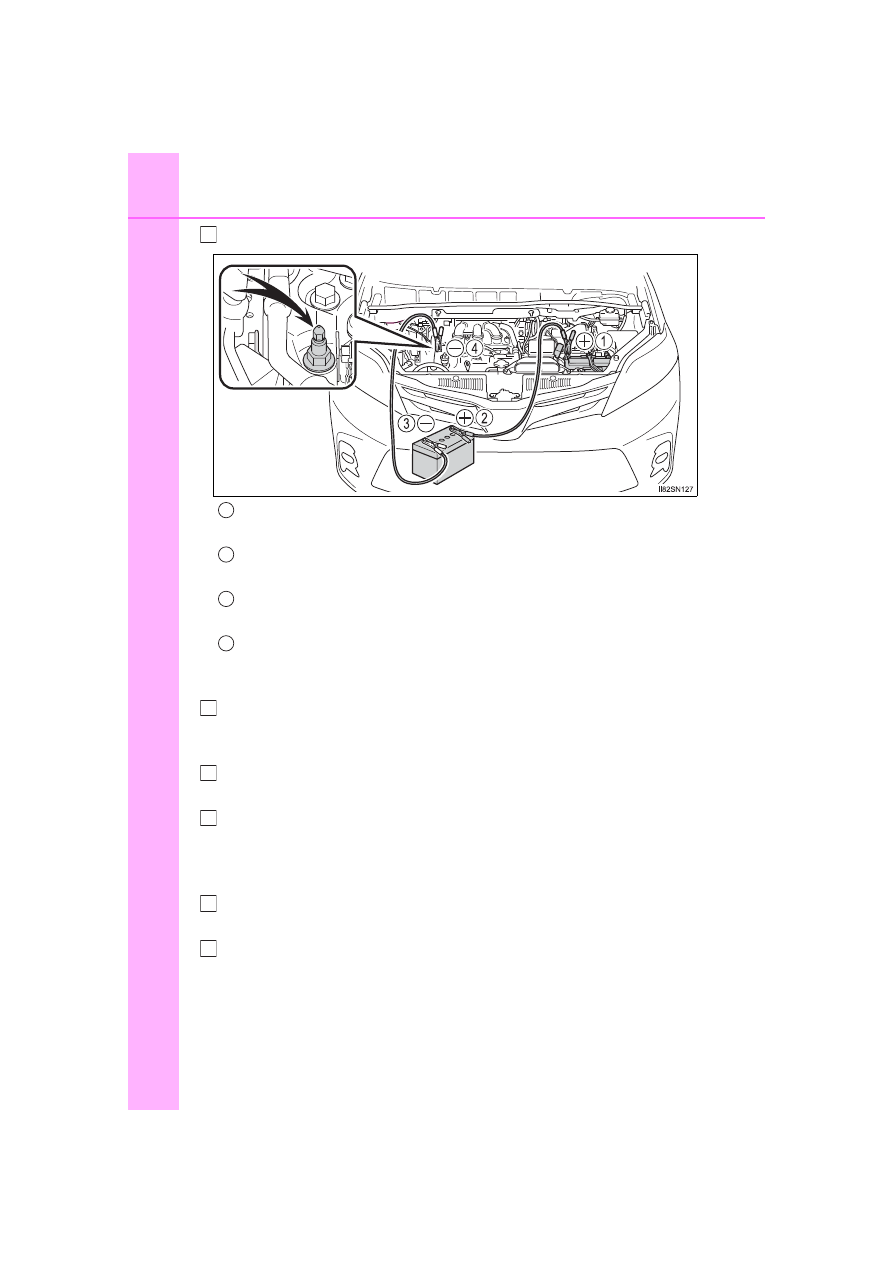

Connect the jumper cables according to the following procedures:

Connect a positive jumper cable clamp to the positive (+) battery
terminal on your vehicle
Connect the clamp on the other end of the positive cable to the
positive (+) battery terminal on the second vehicle
Connect a negative cable clamp to the negative (-) battery termi-
nal on the second vehicle
Connect the clamp at the other end of the negative cable to a
solid, stationary, unpainted metallic point away from the battery
and any moving parts, as shown in the illustration.

Start the engine of the second vehicle. Increase the engine speed
slightly  and  maintain  at  that  level  for  approximately  5  minutes  to
recharge the battery of your vehicle.
Vehicles with a smart key system only: Open and close any of the
doors of your vehicle with the engine switch off.
Maintain  the  engine  speed  of  the  second  vehicle  and  start  the
engine  of  your  vehicle  by  turning  the  engine  switch  to  the  “ON”
position (vehicles without a smart key system) or turning the engine
switch to IGNITION ON mode (vehicles with a smart key system).
Once the vehicle’s engine has started, remove the jumper cables in
the exact reverse order from which they were connected.
To  install  the  engine  cover,  conduct  the  removal  procedure  in
reverse.  After  installing,  check  that  the  fixed  pins  are  inserted
securely.

Once the engine starts, have the vehicle inspected at your Toyota
dealer as soon as possible.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

507

SIENNA_OM_OM08035U_(U)

Wh
en tro

■

Starting the engine when the battery is discharged

The engine cannot be started by push-starting.

■

To prevent battery discharge

●

Turn off the headlights and the audio/visual system while the engine is off.

●

Turn off any unnecessary electrical components when the vehicle is running
at a low speed for an extended period, such as in heavy traffic.

■

When the battery is removed or discharged

●

The power sliding door (if equipped) must be initialized. (



P. 128)

●

The power back door (if equipped) must be initialized. (



P. 138)

■

Charging the battery

The electricity stored in the battery will discharge gradually even when the
vehicle is not in use, due to natural discharge and the draining effects of cer-
tain electrical appliances. If the vehicle is left for a long time, the battery may
discharge, and the engine may be unable to start. (The battery recharges
automatically during driving.)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

508

SIENNA_OM_OM08035U_(U)

WARNING

■

Avoiding battery fires or explosions

Observe the following precautions to prevent accidentally igniting the flam-
mable gas that may be emitted from the battery:

●

Make sure the jumper cable is connected to the correct terminal and that it
is not unintentionally in contact with any other than the intended terminal.

●

Do not allow the other end of the jumper cable connected to the “+” termi-
nal to come into contact with any other parts or metal surfaces in the area,
such as brackets or unpainted metal.

●

Do not allow the + and - clamps of the jumper cables to come into contact
with each other.

●

Do not smoke, use matches, cigarette lighters or allow open flame near
the battery.

■

Battery precautions

The battery contains poisonous and corrosive acidic electrolyte, while
related parts contain lead and lead compounds. Observe the following pre-
cautions when handling the battery:

●

When working with the battery, always wear safety glasses and take care
not to allow any battery fluids (acid) to come into contact with skin, clothing
or the vehicle body.

●

Do not lean over the battery.

●

In the event that battery fluid comes into contact with the skin or eyes,
immediately wash the affected area with water and seek medical attention.
Place a wet sponge or cloth over the affected area until medical attention
can be received.

●

Always wash your hands after handling the battery support, terminals, and
other battery-related parts.

●

Do not allow children near the battery.

NOTICE

■

When handling jumper cables

When connecting the jumper cables, ensure that they do not become entan-
gled in the cooling fans or belt.

■

To prevent damage to the engine cover

●

When removing the cover, make sure that you pull the cover towards you
after lifting the front edge to remove the fixed pins.

●

When installing the cover, do not force the cover or subject it to strong
shocks.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

509

SIENNA_OM_OM08035U_(U)

Wh
en tro

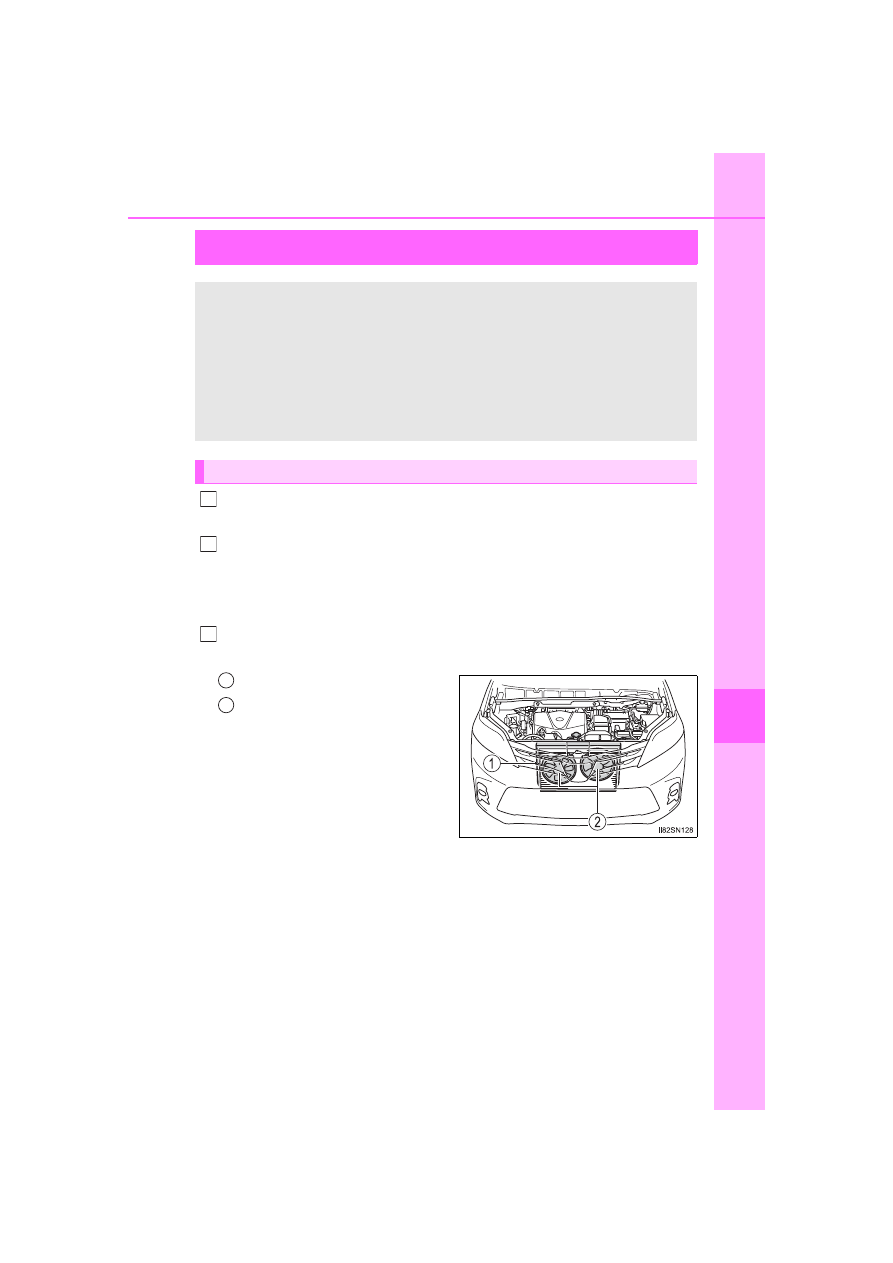

If your vehicle overheats

Stop the vehicle in a safe place and turn off the air conditioning sys-
tem, and then stop the engine.
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.
After the engine has cooled down sufficiently, inspect the hoses and
radiator core (radiator) for any leaks.

Radiator
Cooling fans

If a large amount of coolant
leaks, immediately contact your
Toyota dealer.

The following may indicate that your vehicle is overheating.

●

The needle of the engine coolant temperature gauge (

P. 90)

enters the red zone or a loss of engine power is experienced. (For
example, the vehicle speed does not increase.)

●

“Engine Coolant Temp is High” is shown on the multi-information
display.

●

Steam is coming from under the hood.

Correction procedures

1
2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

510

SIENNA_OM_OM08035U_(U)

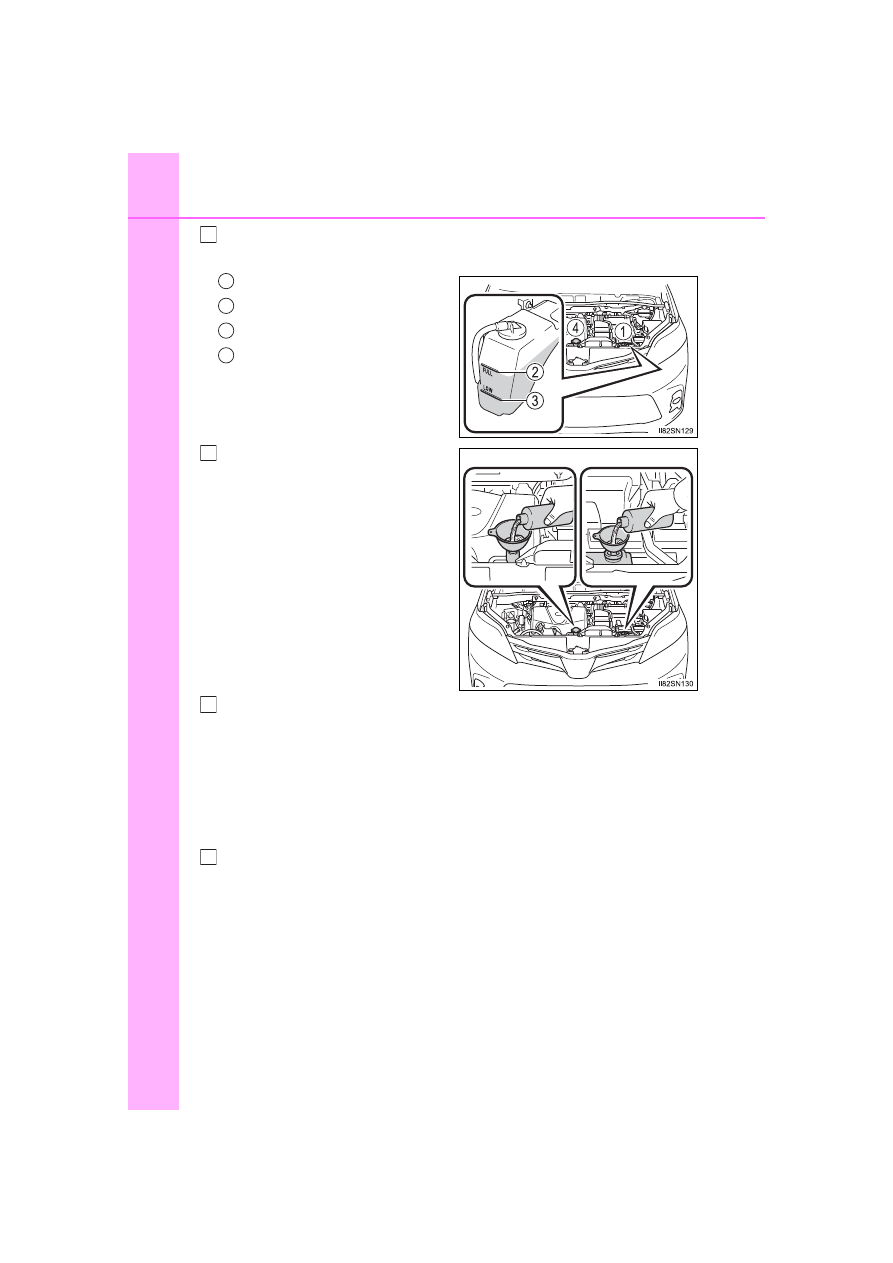

The coolant level is satisfactory if it is between the “FULL” and
“LOW” lines on the reservoir.

Reservoir
“FULL” line
“LOW” line
Radiator cap

Add coolant if necessary.

Water can be used in an emer-
gency if coolant is unavailable.

Start the engine and turn the air conditioning system on to check
that the radiator cooling fans operate and to check for coolant leaks
from the radiator or hoses.

The fans operate when the air conditioning system is turned on immedi-
ately after a cold start. Confirm that the fans are operating by checking the
fan sound and air flow. If it is difficult to check these, turn the air condition-
ing system on and off repeatedly. (The fans may not operate in freezing
temperatures.)

If the fans are not operating:
Stop the engine immediately and contact your Toyota dealer.
If the fans are operating:
Have the vehicle inspected at the nearest Toyota dealer.

1
2
3
4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

511

SIENNA_OM_OM08035U_(U)

Wh
en tro

WARNING

■

When inspecting under the hood of your vehicle

Observe the following precautions.
Failure to do so may result in serious injury such as burns.

●

If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot.

●

Keep hands and clothing (especially a tie, a scarf or a muffler) away from
the fan and belts. Failure to do so may cause the hands or clothing to be
caught.

●

Do not loosen the radiator cap or the coolant reservoir cap while the
engine and radiator are hot. High temperature steam or coolant could
spray out.

NOTICE

■

When adding engine coolant

Add coolant slowly after the engine has cooled down sufficiently. Adding
cool coolant to a hot engine too quickly can cause damage to the engine.

■

To prevent damage to the cooling system

Observe the following precautions:

●

Avoid contaminating the coolant with foreign matter (such as sand or dust
etc.).

●

Do not use any coolant additive.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

512

SIENNA_OM_OM08035U_(U)

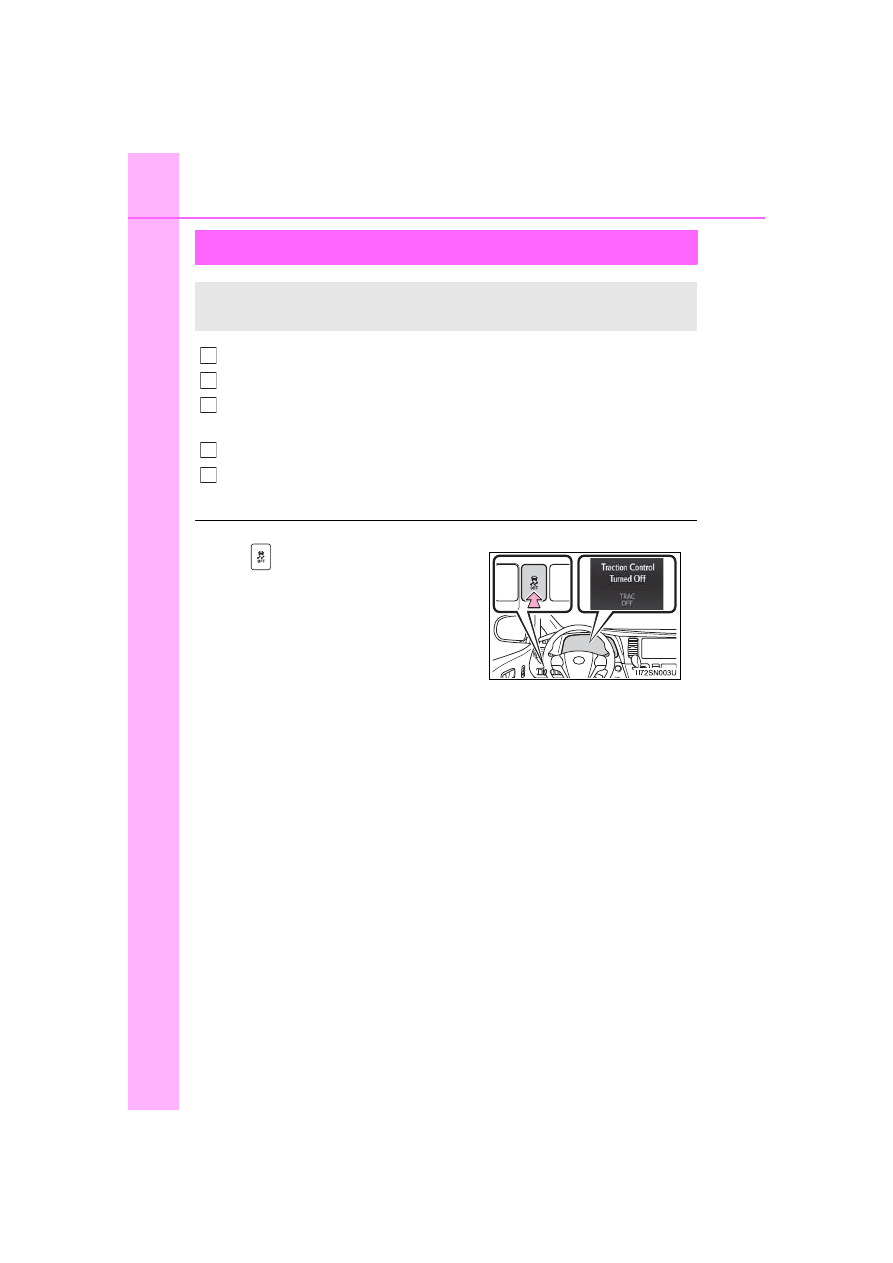

If the vehicle becomes stuck

Stop the engine. Set the parking brake and shift the shift lever to P.
Remove the mud, snow, or sand from around the stuck tire.
Place wood, stones or some other material under the tires to help
provide traction.
Restart the engine.
Shift the shift lever to the D or R and release the parking brake.
Then, while exercising caution, depress the accelerator pedal.

■

When it is difficult to free the vehicle

Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt, or snow:

Press

to turn off TRAC. (



P. 323)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

513

SIENNA_OM_OM08035U_(U)

Wh
en tro

WARNING

■

When attempting to free a stuck vehicle

If you choose to push the vehicle back and forth to free it, make sure the
surrounding area is clear to avoid striking other vehicles, objects or people.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.

■

When shifting the shift lever

Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.

NOTICE

■

To avoid damaging the transaxle and other components

●

Avoid spinning the wheels and pressing the accelerator pedal more than
necessary.

●

If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

516

SIENNA_OM_OM08035U_(U)

Maintenance data (fuel, oil level, etc.)

: Unladen vehicle

: The model code is indicated on the Certification Label. For details, see

“Vehicle identification” below.

: The towing package is required.

Toyota does not recommend towing with this vehicle without the towing
package.

Dimensions and weights

Overall length

GSL30L-PRZSHA

200.4 in. (5090 mm)

Others

200.6 in. (5095 mm)

Overall width

78.1 in. (1985 mm)

Overall height

GSL30L-PRZSHA

68.7 in. (1745 mm)

Others

69.5 in. (1765 mm)

Wheelbase

119.3 in. (3030 mm)

Front and rear tread

67.7 in. (1720 mm)

Vehicle capacity weight
(Occupants + luggage)

GSL30L-PFZDHA

1380 lb. (625 kg)

GSL30L-PFZEHA

1235 lb. (560 kg)

GSL30L-PFZQHA

1145 lb. (520 kg)

GSL30L-PRZEHA

1355 lb. (615 kg)

GSL30L-PRZSHA

1265 lb. (575 kg)

GSL30L-PRZQHA

1290 lb. (585 kg)

GSL35L-PFZEHA

1210 lb. (545 kg)

GSL35L-PFZSHA

1125 lb. (510 kg)

GSL35L-PFZQHA

1125 lb. (510 kg)

Trailer Weight Rating
(TWR)
(Trailer weight +
cargo weight)
(with towing package

)

Without brake

1000 lb. (450 kg)

With brake

3500 lb. (1585 kg)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SIENNA_OM_OM08035U_(U)

517

Vehi

■

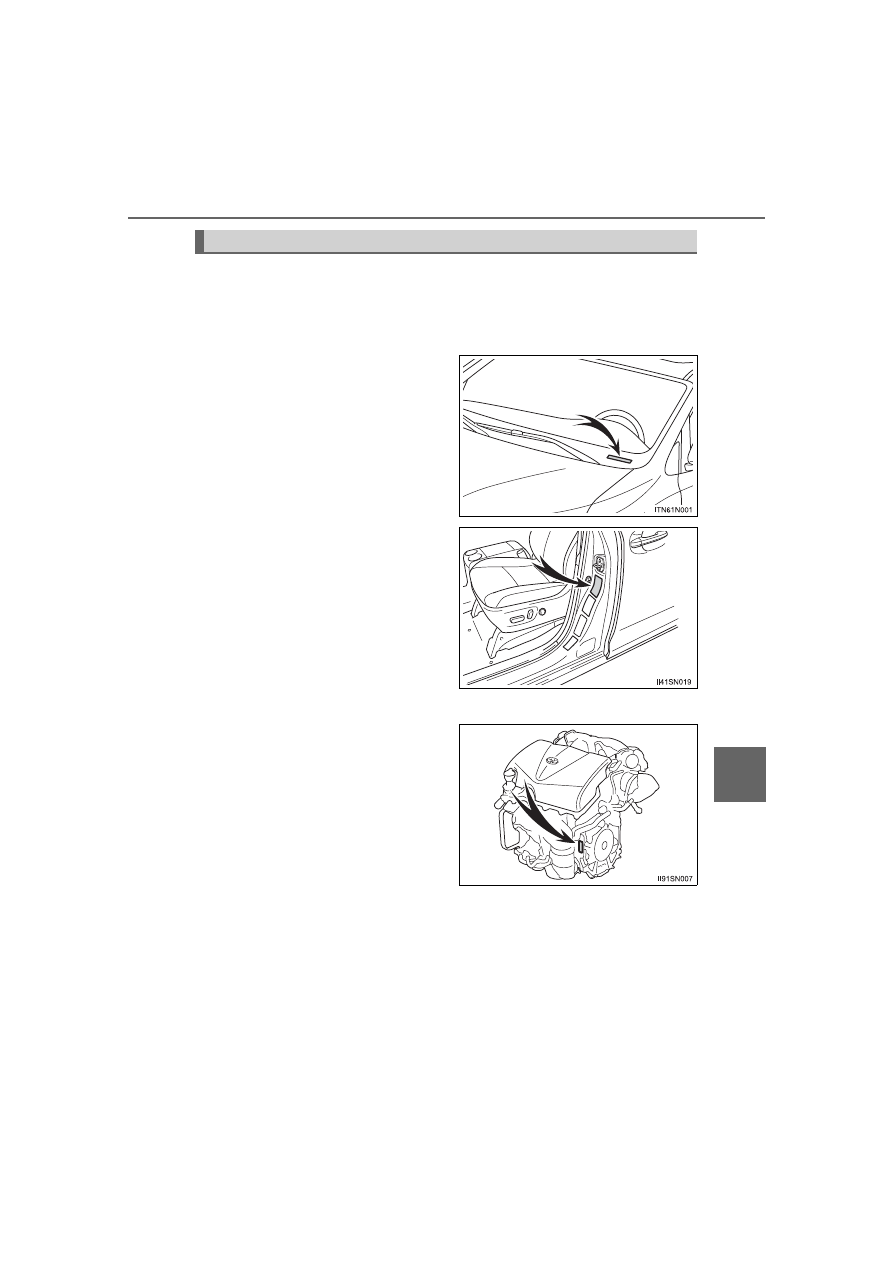

Vehicle identification number

The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.

This number is also on the Cer-
tification Label on the driver’s
side center pillar.

■

Engine number

The engine number is stamped
on the engine block as shown.

Vehicle identification

-------------------------------------------------------------------------------------------------------------------------------------------------------------

518

SIENNA_OM_OM08035U_(U)

: The engine oil capacity is a reference quantity to be used when changing

the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.

Engine

Model

3.5L 6-cylinder (2GR-FKS)

Type

6-cylinder V type, 4-cycle, gasoline

Bore and stroke

3.70



3.27 in. (94.0



83.0 mm)

Displacement

210.9 cu.in. (3456 cm

)

Drive belt tension

Automatic adjustment

Valve clearance

Fuel

Fuel type

Unleaded gasoline only

Octane rating

87 (Research Octane Number 91) or higher

Fuel tank capacity
(Reference)

20.9 gal. (79 L, 17.4 Imp.gal.)

Lubrication system

Oil capacity
(Drain and refill



reference

)

Without filter

With filter

5.6 qt. (5.3 L, 4.7 Imp.qt.)



Vehicles with towing package

5.8 qt. (5.5 L, 4.8 Imp.qt.)



Vehicles without towing package

5.7 qt. (5.4 L, 4.8 Imp.qt.)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SIENNA_OM_OM08035U_(U)

519

Vehi

■

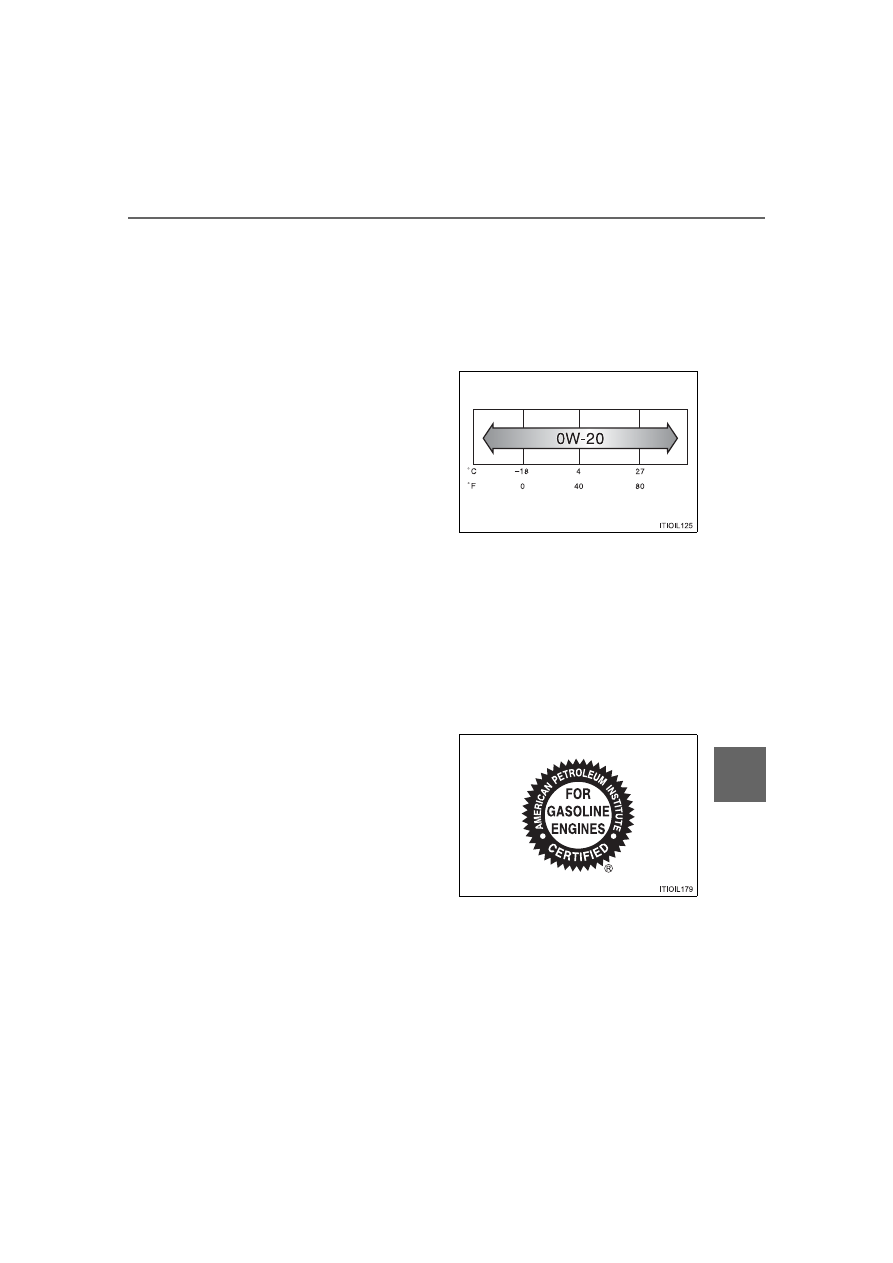

Engine oil selection

“Toyota  Genuine  Motor  Oil”  is  used  in  your  Toyota  vehicle.  Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE  0W-20  is  the  best  choice
for  good  fuel  economy  and
good starting in cold weather.
If  SAE  0W-20  is  not  available,
SAE  5W-20  oil  may  be  used.
However,  it  must  be  replaced
with SAE 0W-20 at the next oil
change.
Oil viscosity (0W-20 is explained here as an example):

• The 0W in 0W-20 indicates the characteristic of the oil which

allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.

• The 20 in 0W-20 indicates the viscosity characteristic of the oil

when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.

How to read oil container label:
The  International  Lubricant
Specification Advisory  Commit-
tee  (ILSAC)  Certification  Mark
is added to some oil containers
to  help  you  select  the  oil  you
should use.

Outside temperature

-------------------------------------------------------------------------------------------------------------------------------------------------------------

520

SIENNA_OM_OM08035U_(U)

Cooling system

Capacity



Without towing package

12.2 qt. (11.5 L, 10.1 Imp.qt.)



With towing package

12.5 qt. (11.8 L, 10.4 Imp.qt.)

Coolant type

Use either of the following.

• “Toyota Super Long Life Coolant”
• A similar high-quality ethylene glycol-based

non-silicate, non-amine, non-nitrite, and non-
borate coolant with long-life hybrid organic
acid technology

Do not use plain water alone.

Ignition system

Spark plug

Make
Gap

DENSO FK20HBR8
0.03 in. (0.8 mm)

NOTICE

■

Iridium-tipped spark plugs

Use only iridium-tipped spark plugs. Do not adjust spark plug gap.

Electrical system

Battery

Open voltage at
68



F (20



C):

12.3 V or more
If  the  voltage  is  lower  than  the  standard  value,
charge the battery.
(After charging the battery, turn on the high beam
headlights for 30 seconds with the engine switch in
the  “LOCK”  position  [vehicles  without  smart  key
system]  or  off  [vehicles  with  smart  key  system],
and turn the headlights off.)

Charging rates

5 A max.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SIENNA_OM_OM08035U_(U)

521

Vehi

: The fluid capacity is a reference quantity.

If replacement is necessary, contact your Toyota dealer.

Your Toyota vehicle is filled with “Toyota Genuine Differential Gear Oil” at
the factory. Use Toyota approved “Toyota Genuine Differential Gear Oil” or
an equivalent of matching quality to satisfy the above specification. Please
contact your Toyota dealer for further details.

Automatic transaxle

Fluid capacity

7.9 qt. (7.48 L, 6.6 Imp.qt.)

Fluid type

Toyota Genuine ATF WS

NOTICE

■

Transmission fluid type

Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of your transmission accompanied
by vibration and, ultimately, damage to the vehicle’s transmission.

Transfer (AWD models)

Oil capacity

0.8 qt. (0.8 L, 0.7 Imp.qt.)

Oil type and viscosity

Toyota Genuine Differential Gear Oil LT 75W-85
GL-5 or equivalent

Rear differential (AWD models)

Oil capacity

0.5 qt. (0.5 L, 0.4 Imp.qt.)

Oil type and viscosity

Toyota Genuine Differential Gear Oil LT 75W-85
GL-5 or equivalent

-------------------------------------------------------------------------------------------------------------------------------------------------------------

522

SIENNA_OM_OM08035U_(U)

: Minimum pedal clearance when depressed with a force of 110 lbf (490 N,

50 kgf) while the engine is running

: Parking brake pedal travel when depressed with a force of 67.4 lbf (300 N,

30.6 kgf)



17-inch tires

Brakes

Pedal clearance

2.99 in. (76 mm)

Pedal free play

0.04



0.24 in. (1



6 mm)

Brake pad wear limit

0.04 in. (1.0 mm)

Parking brake lining wear limit

0.04 in. (1.0 mm)

Parking brake pedal travel



6 clicks

Fluid type

SAE J1703 or FMVSS No.116 DOT 3

Steering

Free play

Less than 1.2 in. (30 mm)

Tires and wheels

Tire size

P235/60R17 100T

Tire inflation pressure

(Recommended cold tire

inflation pressure)

Front:

35 psi (240 kPa, 2.4 kgf/cm

or bar)

Rear:

35 psi (240 kPa, 2.4 kgf/cm

or bar)

Driving at high speeds (above 100
mph [160 km/h]) (in countries where
such speeds are permitted by law)
Add 3 psi (20 kPa, 0.2 kgf/cm

bar) to the front tires and rear tires.
Never exceed the maximum cold tire
inflation pressure indicated on the
tire sidewall.

Wheel size

17 x 7J

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SIENNA_OM_OM08035U_(U)

523

Vehi



18-inch tires



19-inch tires

Tire size

235/55R18 100V, 235/55RF18 100T

Tire inflation pressure

(Recommended cold tire

inflation pressure)

Front:

36 psi (250 kPa, 2.5 kgf/cm

or bar)

Rear:

36 psi (250 kPa, 2.5 kgf/cm

or bar)

Driving at high speeds (above 100
mph [160 km/h]) (in countries where
such speeds are permitted by law)
Add 1 psi (10 kPa, 0.1 kgf/cm

bar) to the front tires and rear tires.
Never exceed the maximum cold tire
inflation pressure indicated on the
tire sidewall.

Wheel size

18 x 7J

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Tire size

P235/50R19 99V

Tire inflation pressure

(Recommended cold tire

inflation pressure)

Front:

36 psi (250 kPa, 2.5 kgf/cm

or bar)

Rear:

36 psi (250 kPa, 2.5 kgf/cm

or bar)

Driving at high speeds (above 100
mph [160 km/h]) (in countries where
such speeds are permitted by law)
Add 3 psi (20 kPa, 0.2 kgf/cm

bar) to the front tires and rear tires.
Never exceed the maximum cold tire
inflation pressure indicated on the
tire sidewall.

Wheel size

19 x 7J

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SIENNA_OM_OM08035U_(U)

525

Vehi
