Toyota Corolla Hatchback (2021 year). Manual in english - part 2

76

2-1. Instrument cluster

COROLLA H/B_U

different distances independently.

To reset, display the desired trip
meter and press and hold the dis-
play change button.

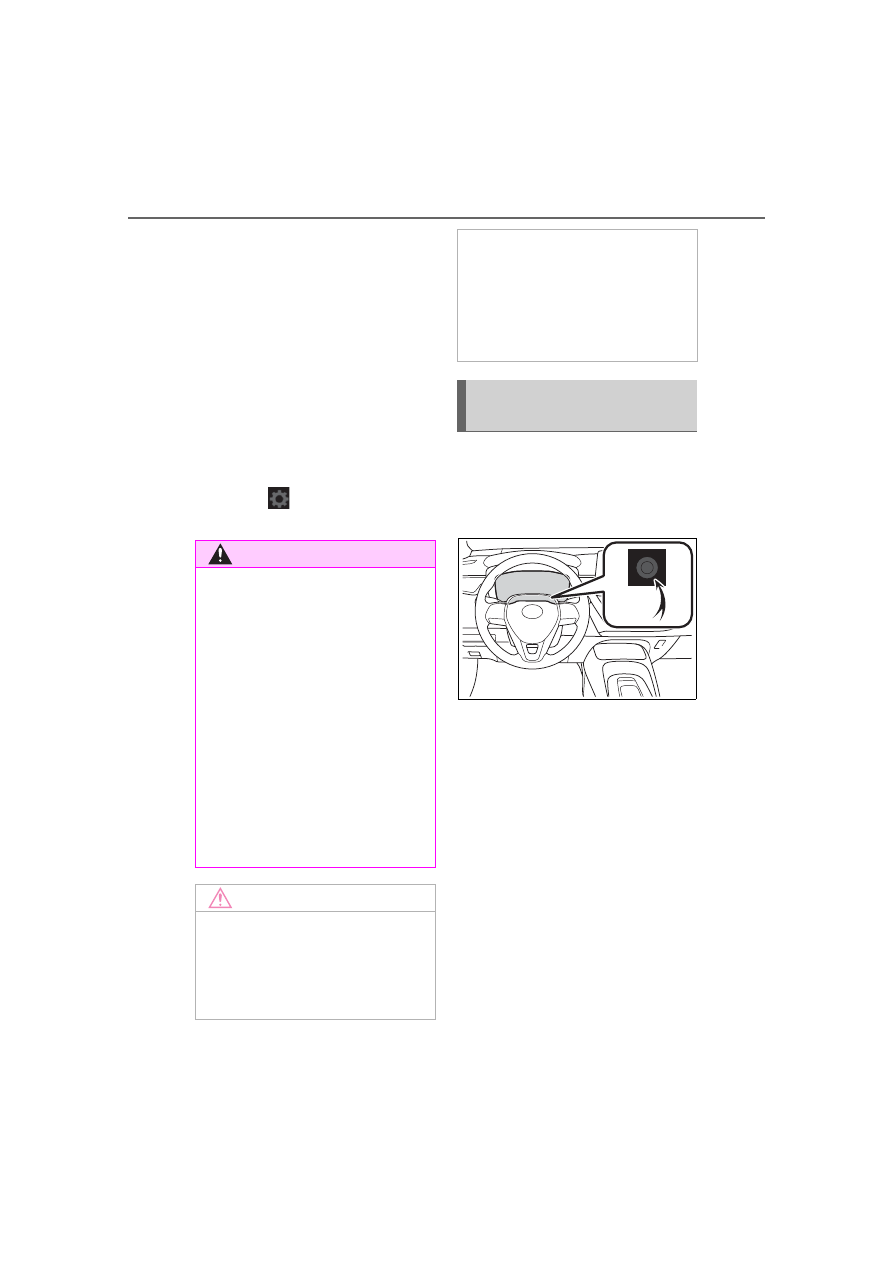

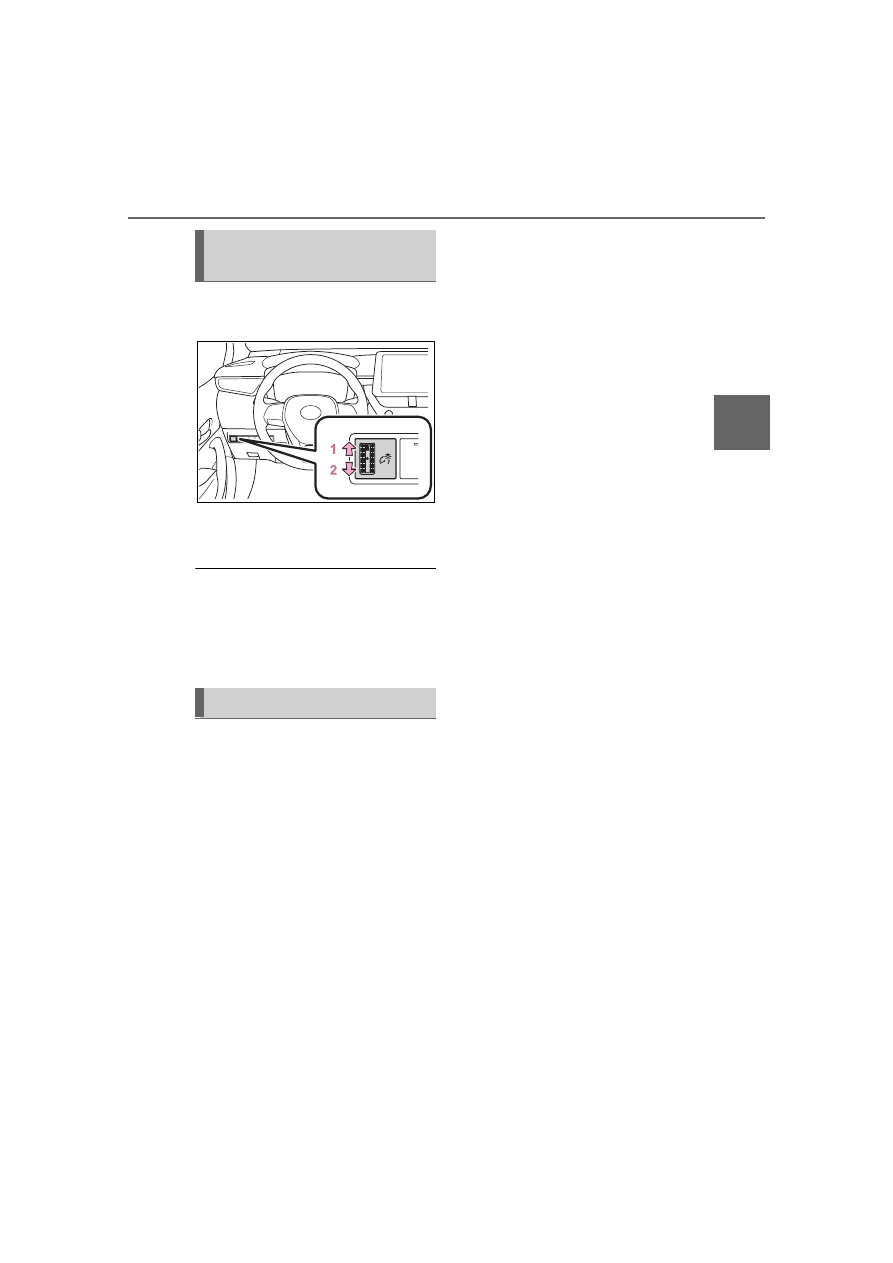

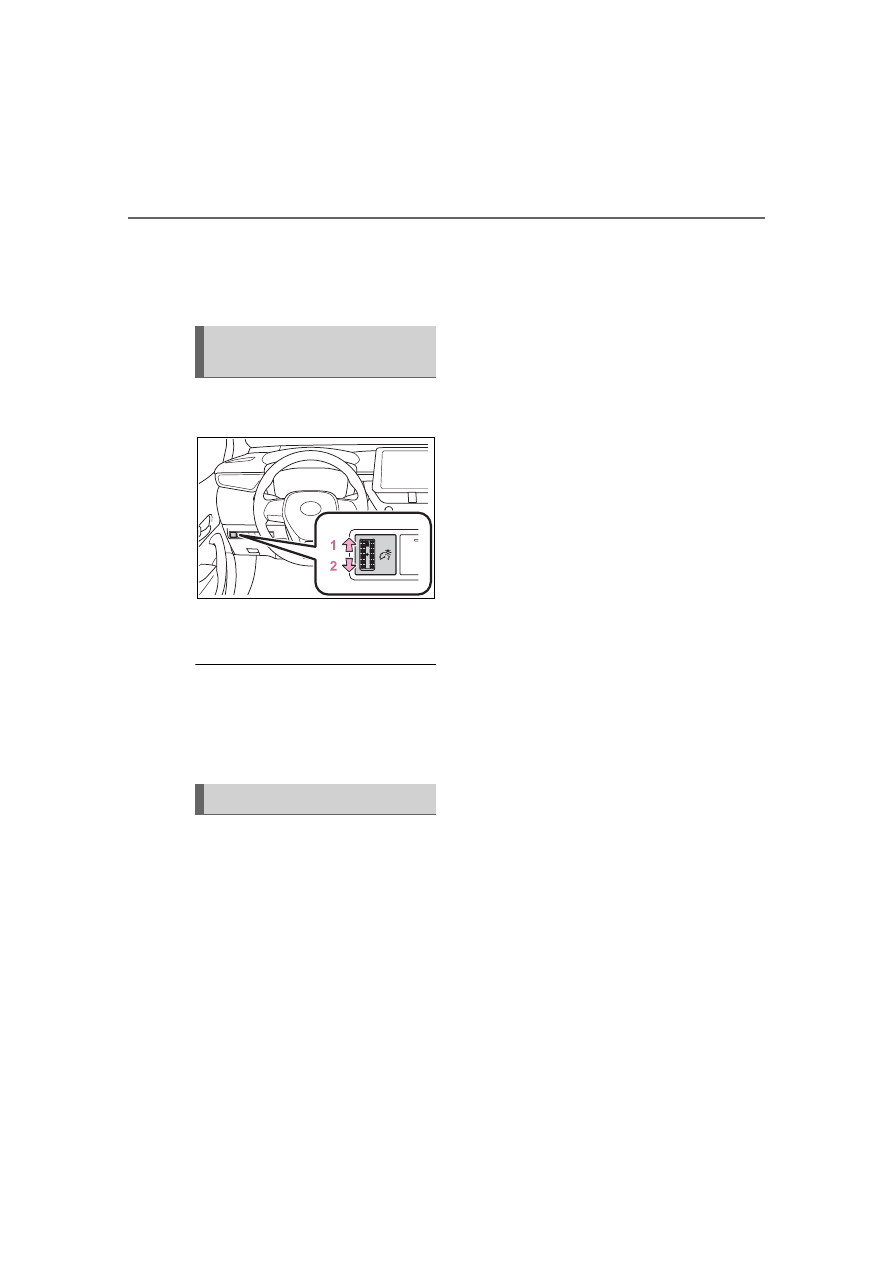

The brightness of the instrument
panel lights can be adjusted.

1

Brighter

2

Darker

■

Instrument panel light bright-
ness adjustment

The brightness of the instrument
panel lights can be adjusted sepa-
rately for when the tail lights are on
and off.

■

Clock adjustment

The clocks on the following can
be adjusted on the audio system
screen.



Multi-information display



Audio system screen

■

Setting the clock to be
adjusted automatically by
GPS

1

Press the “MENU” button.

2

Select “Setup” on the “Menu”
screen.

3

Select “General” on the
“Setup” screen.

4

Select “Clock”.

5

Select “Auto Adjust by GPS”
to set to on.

■

Adjusting the clock manu-
ally

1

Press the “MENU” button.

2

Select “Setup” on the “Menu”
screen.

3

Select “General” on the
“Setup” screen.

4

Select “Clock”.

5

Select “Auto Adjust by GPS”
to set to off.

6

Adjust the displayed time.



Hour: Select “-” or “+” of
“Hours” to adjust the hour.



Minute: Select “-” or “+” of
“Minutes” to adjust the min-
ute.



“:00”: Select to set the clock to
the beginning of the nearest
hour.

e.g.

1:00 to 1:29



 1:00

1:30 to 1:59



 2:00

■

Setting the time zone

1

Press the “MENU” button.

Changing the instrument
panel light brightness

Adjusting the clock

77

2-1. Instrument cluster

COROLLA H/B_U

2

Veh

icle
 st
atu
s in

form

at

ion
 an
d i
ndi
cat
o

rs

2

Select “Setup” on the “Menu”
screen.

3

Select “General” on the
“Setup” screen.

4

Select “Clock”.

5

Select “Time Zone”.

Select the desired time zone.

Premium Audio only:
If “Auto” is selected, the time zone
is selected automatically by current
vehicle position.

■

Setting daylight saving time

1

Press the “MENU” button.

2

Select “Setup” on the “Menu”
screen.

3

Select “General” on the
“Setup” screen.

4

Select “Clock”.

5

Select “Daylight Saving

Time” then on/off/auto

*

.

*

: Premium Audio only

■

Changing the clock
between 12-hour/24-hour
format

1

Press the “MENU” button.

2

Select “Setup” on the “Menu”
screen.

3

Select “General” on the
“Setup” screen.

4

Select “Clock”.

5

Select “24-Hour Time For-
mat” and then on/off.

When set to off, the clock is dis-
played in 12 hour time format.

■

Clock settings screen

If “Clock : 00” is displayed when



is selected on the multi-information
display, the system may be malfunc-
tioning. Have the vehicle inspected
by your Toyota dealer.

78

2-1. Instrument cluster

COROLLA H/B_U

■

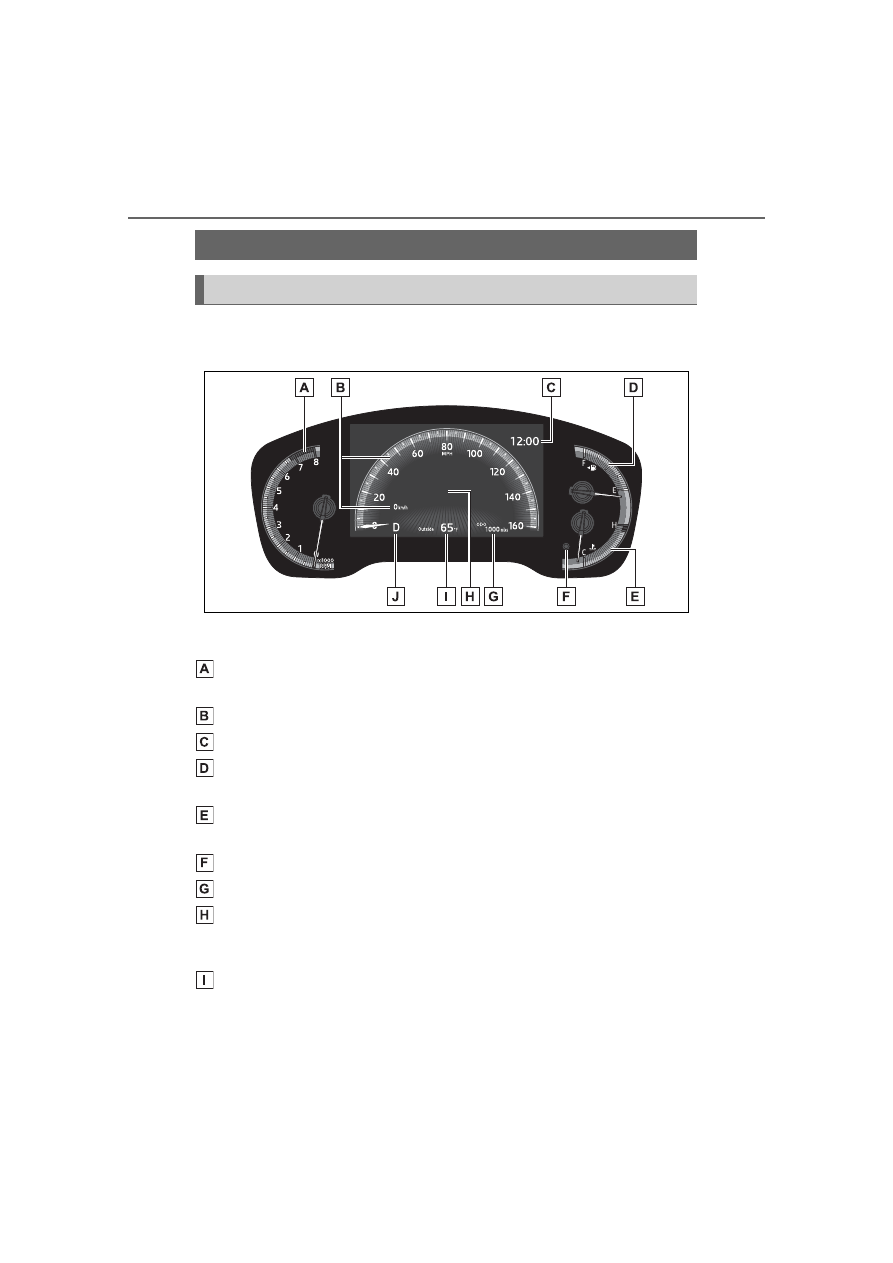

Locations of gauges and meters



Analog speedometer

The units of measure may differ depending on the intended destination of
the vehicle.

Tachometer

Displays the engine speed in revolutions per minute

Speedometer

Clock (



P.81)

Fuel gauge

Displays the quantity of fuel remaining in the tank

Engine coolant temperature gauge

Displays the engine coolant temperature

Display change button (



P.80)

Odometer and trip meter display (



P.80)

Multi-information display

Presents the driver with a variety of vehicle data (



P.82)

Displays warning messages if a malfunction occurs (



P.482)

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F
(50°C)

Gauges and meters (7-inch display)

Meter display

79

2-1. Instrument cluster

COROLLA H/B_U

2

Veh

icle
 st
atu
s in

form

at

ion
 an
d i
ndi
cat
o

rs

Shift position indicator (



P.147)



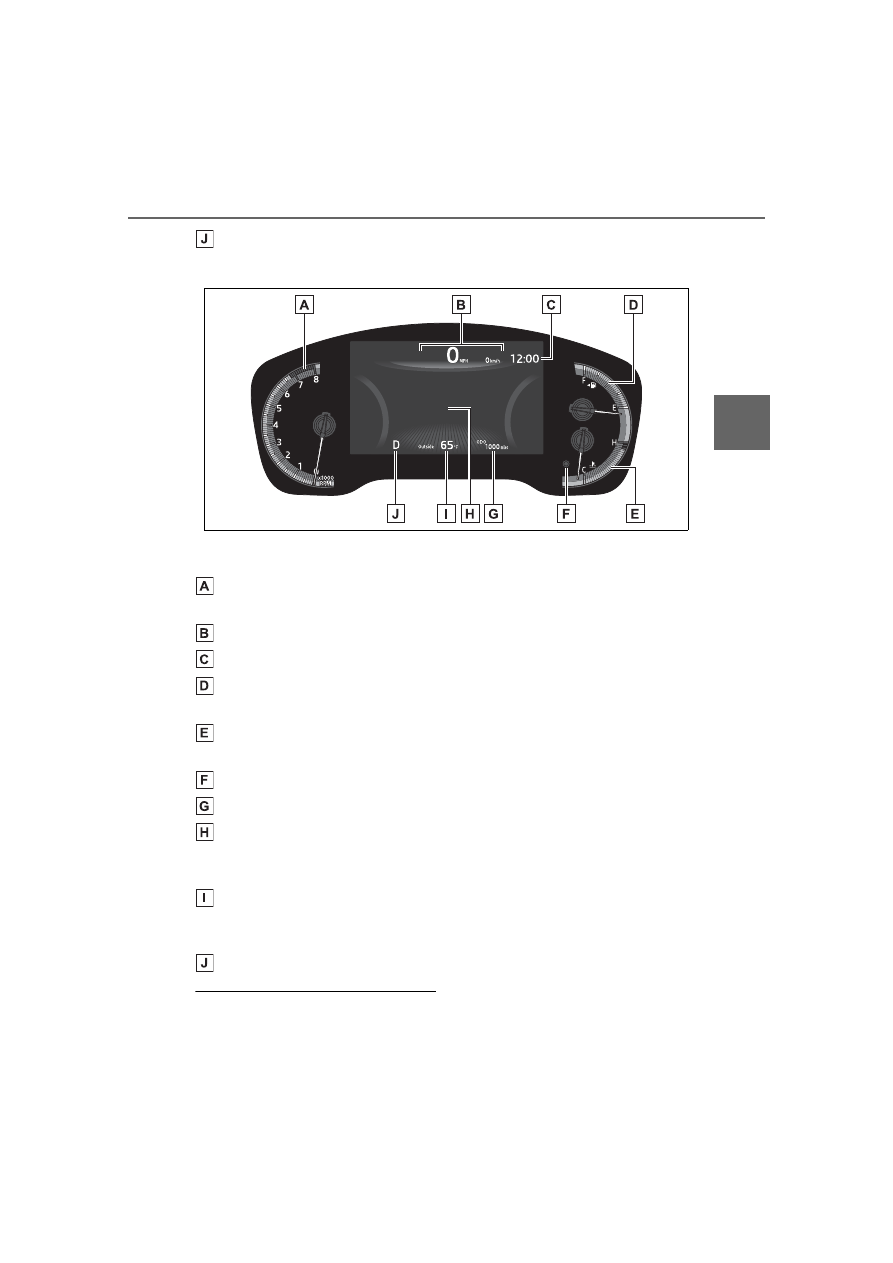

Digital speedometer

The units of measure may differ depending on the intended destination of
the vehicle.

Tachometer

Displays the engine speed in revolutions per minute

Speedometer

Clock (



P.81)

Fuel gauge

Displays the quantity of fuel remaining in the tank

Engine coolant temperature gauge

Displays the engine coolant temperature

Display change button (



P.80)

Odometer and trip meter display (



P.80)

Multi-information display

Presents the driver with a variety of vehicle data (



P.82)

Displays warning messages if a malfunction occurs (



P.482)

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F
(50°C)

Shift position indicator (



P.147)

■

Outside temperature display

●

In the following situations, the cor-

rect outside temperature may not
be displayed, or the display may
take longer than normal to
change:

80

2-1. Instrument cluster

COROLLA H/B_U

• When stopped, or driving at low

speeds (less than 16 mph [25

km/h])

• When the outside temperature

has changed suddenly (at the

entrance/exit of a garage, tunnel,

etc.)

●

When “--” or “E” is displayed, the

system may be malfunctioning.

Take your vehicle to your Toyota

dealer.

■

Liquid crystal display



P.83

■

Customization

The gauges and meters can be cus-
tomized in

 of the multi-informa-

tion display. (



P.87)

■

Changing the display

Press the display change button

until the desired item is dis-

played.

■

Display items



Odometer

Displays the total distance the vehi-

cle has been driven.



Trip meter A/Trip meter B

Displays the distance the vehicle

has been driven since the meter

was last reset. Trip meters A and B

can be used to record and display

different distances independently.
To reset, display the desired trip

meter and press and hold the dis-

play change button.

WARNING

■

The information display at

low temperatures

Allow the interior of the vehicle to

warm up before using the liquid

crystal information display. At

extremely low temperatures, the

information display monitor may

respond slowly, and display

changes may be delayed.
For example, there is a lag

between the driver’s shifting and

the new gear number appearing

on the display. This lag could

cause the driver to downshift

again, causing rapid and exces-

sive engine braking and possibly

an accident resulting in death or

injury.

NOTICE

■

To prevent damage to the

engine and its components

●

Do not let the indicator needle

of the tachometer enter the red

zone, which indicates the maxi-

mum engine speed.

●

The engine may be overheating

if the engine coolant tempera-

ture gauge is in the red zone

(H). In this case, immediately

stop the vehicle in a safe place,

and check the engine after it

has cooled completely.

(



P.510)

Odometer and trip meter

display

81

2-1. Instrument cluster

COROLLA H/B_U

2

Veh

icle
 st
atu
s in

form

at

ion
 an
d i
ndi
cat
o

rs

The brightness of the instrument
panel lights can be adjusted.

1

Brighter

2

Darker

■

Instrument panel light bright-
ness adjustment

The brightness of the instrument
panel lights can be adjusted sepa-
rately for when the tail lights are on
and off.

■

Clock adjustment

The clocks on the following can
be adjusted on the audio system
screen.



Multi-information display



Audio system screen

■

Setting the clock to be
adjusted automatically by
GPS

1

Press the “MENU” button.

2

Select “Setup” on the “Menu”
screen.

3

Select “General” on the
“Setup” screen.

4

Select “Clock”.

5

Select “Auto Adjust by GPS”
to set to on.

■

Adjusting the clock manu-
ally

1

Press the “MENU” button.

2

Select “Setup” on the “Menu”
screen.

3

Select “General” on the
“Setup” screen.

4

Select “Clock”.

5

Select “Auto Adjust by GPS”
to set to off.

6

Adjust the displayed time.



Hour: Select “-” or “+” of
“Hours” to adjust the hour.



Minute: Select “-” or “+” of
“Minutes” to adjust the min-
ute.



“:00”: Select to set the clock to
the beginning of the nearest
hour.

e.g.

1:00 to 1:29



 1:00

1:30 to 1:59



 2:00

■

Setting the time zone

1

Press the “MENU” button.

2

Select “Setup” on the “Menu”
screen.

3

Select “General” on the
“Setup” screen.

4

Select “Clock”.

Changing the instrument
panel light brightness

Adjusting the clock

82

2-1. Instrument cluster

COROLLA H/B_U

5

Select “Time Zone”.

Select the desired time zone.

Premium Audio only:
If “Auto” is selected, the time zone
is selected automatically by current
vehicle position.

■

Setting daylight saving time

1

Press the “MENU” button.

2

Select “Setup” on the “Menu”
screen.

3

Select “General” on the
“Setup” screen.

4

Select “Clock”.

5

Select “Daylight Saving

Time” then on/off/auto

*

.

*

: Premium Audio only

■

Changing the clock
between 12-hour/24-hour
format

1

Press the “MENU” button.

2

Select “Setup” on the “Menu”
screen.

3

Select “General” on the
“Setup” screen.

4

Select “Clock”.

5

Select “24-Hour Time For-
mat” and then on/off.

When set to off, the clock is dis-
played in 12 hour time format.

■

Clock settings screen

If “Clock : 00” is displayed when



is selected on the multi-information
display, the system may be malfunc-
tioning. Have the vehicle inspected
by your Toyota dealer.

■

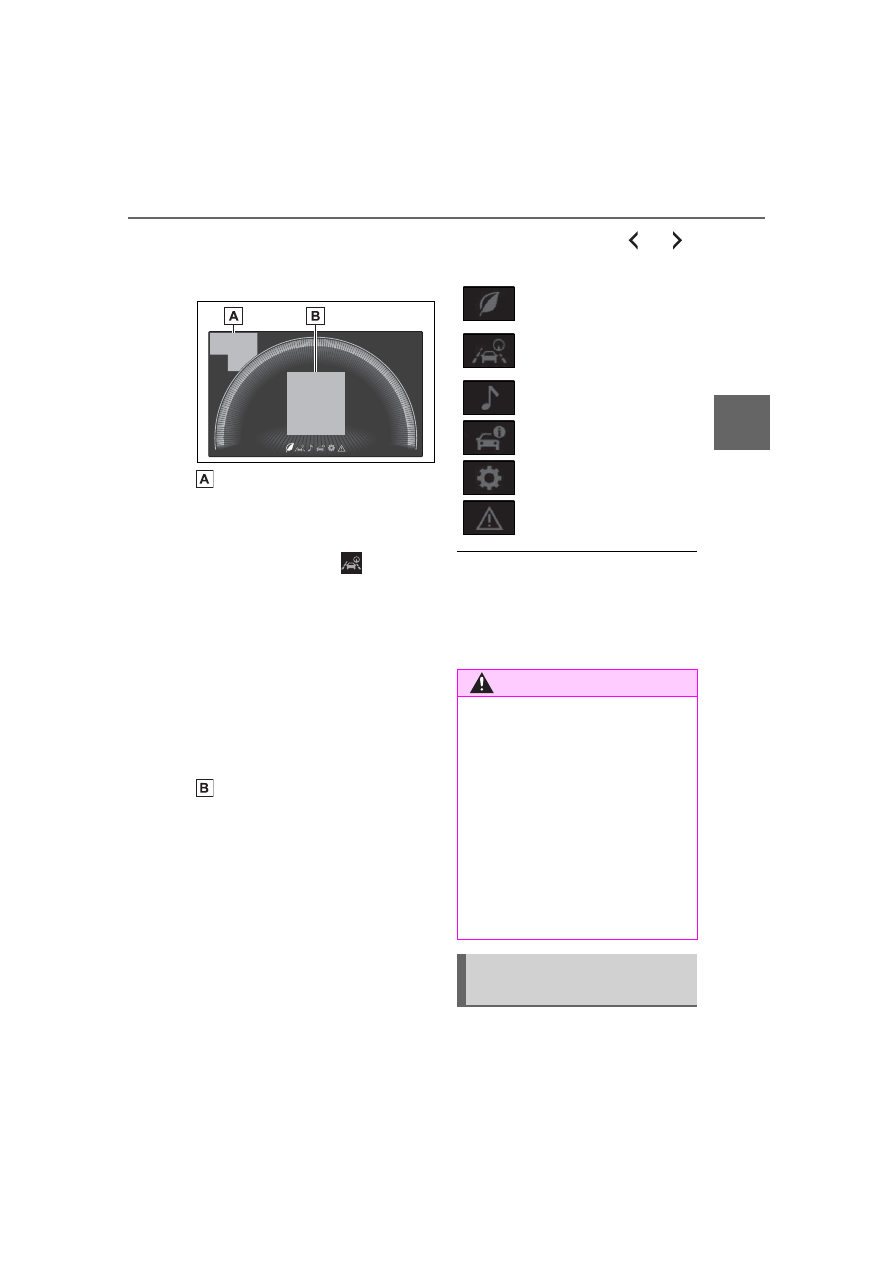

Display



4.2-inch display

Driving assist system status
display area

Displays an image when the follow-
ing systems are operating and a

menu icon other than

 is

selected:
• LTA (Lane Tracing Assist) (if

equipped)

• LDA (Lane Departure Alert with

steering control) (if equipped)

• Dynamic radar cruise control (if

equipped)

• Dynamic radar cruise control with

full-speed range (if equipped)

• RSA (Road Sign Assist) (if

equipped) (



P.225)

Content display area

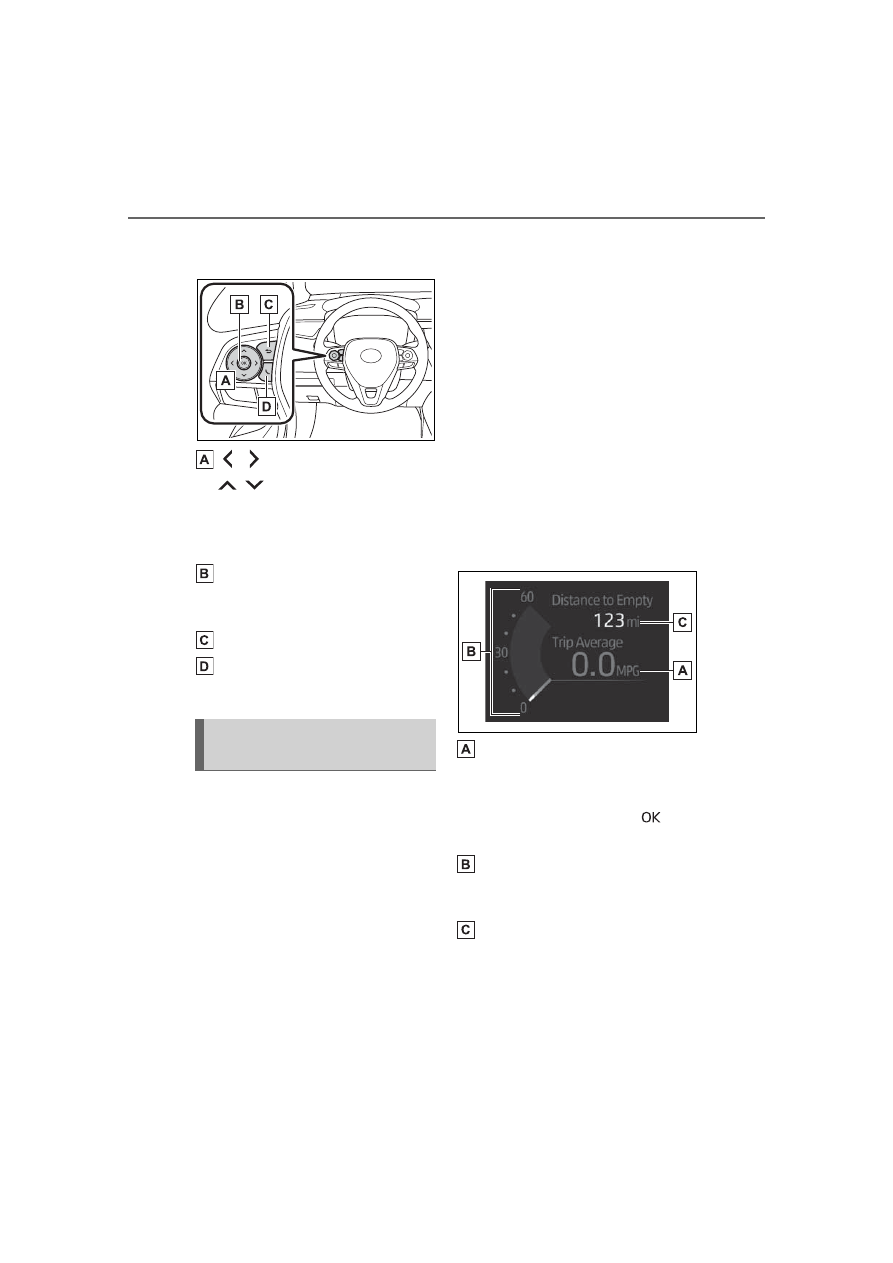

By selecting menu icons on the
multi-information display, a variety
of driving-related information can
be displayed. The multi-information
display can also be used to change
display settings and other vehicle
settings.

Warning or advice pop-up displays

Multi-information dis-

play

Display and menu icons

83

2-1. Instrument cluster

COROLLA H/B_U

2

Veh
icle

 st

atu

s in
form
at

ion

 an

d i

ndi

cat

ors

are also displayed in certain situa-

tions.



7-inch display

Driving assist system status

display area

Displays an image when the follow-

ing systems are operating and a
menu icon other than

 is

selected:

• LTA (Lane Tracing Assist) (if

equipped)

• LDA (Lane Departure Alert with

steering control) (if equipped)

• Dynamic radar cruise control (if

equipped)

• Dynamic radar cruise control with

full-speed range (if equipped)

• RSA (Road Sign Assist) (if

equipped) (



P.225)

Content display area

By selecting menu icons on the

multi-information display, a variety

of driving-related information can

be displayed. The multi-information

display can also be used to change

display settings and other vehicle

settings.
Warning or advice pop-up displays

are also displayed in certain situa-

tions.

■

Menu icons

The menu icons will be dis-

played by pressing the

 or



meter control switch.

■

Liquid crystal display

Small spots or light spots may

appear on the display. This phenom-

enon is characteristic of liquid crys-

tal displays, and there is no problem

continuing to use the display.

The multi-information display is

Driving information display

(



P.84)

Driving support system

information display

(



P.86)

Audio system-linked dis-

play (



P.86)

Vehicle information dis-

play (



P.86)

Settings display (



P.87)

Warning message display

(



P.482)

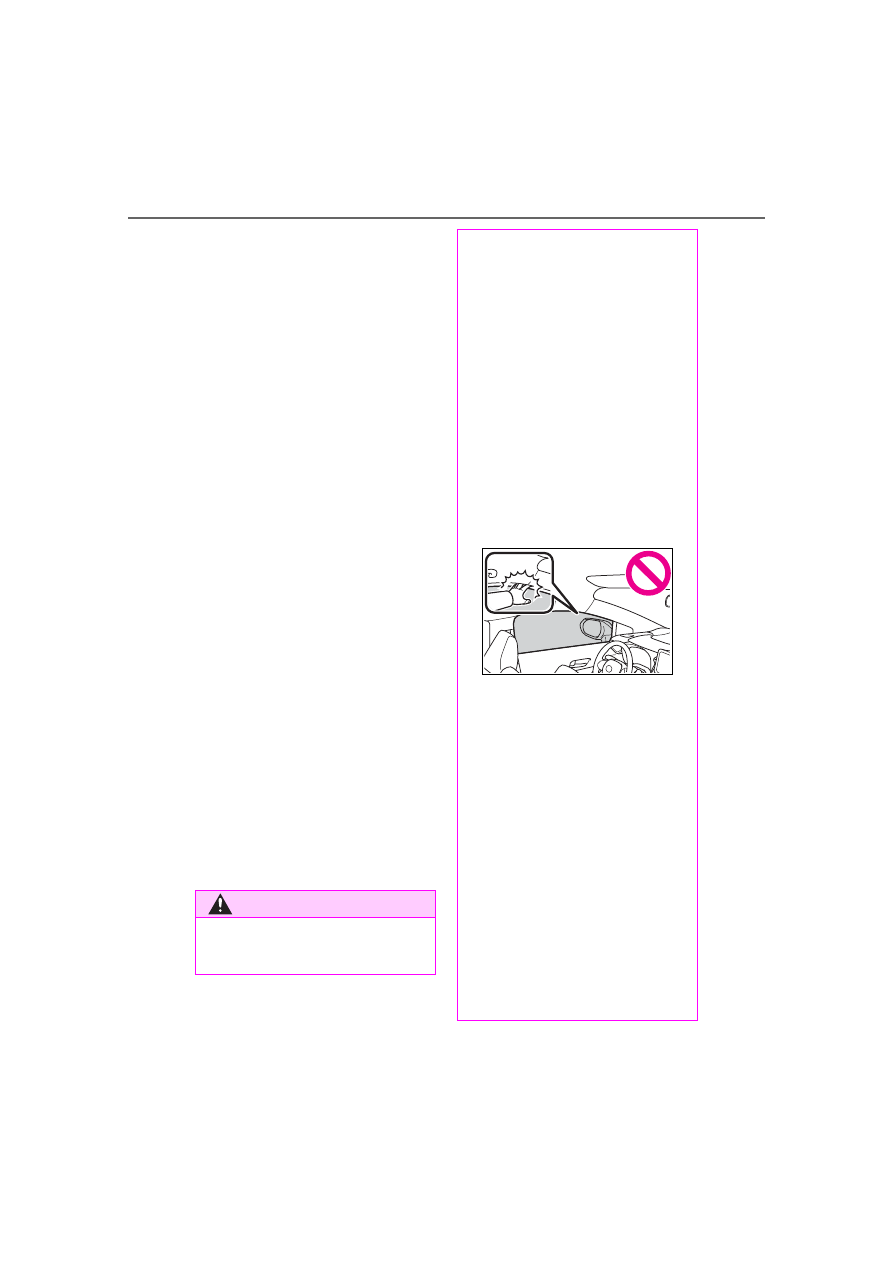

WARNING

■

Caution for use while driving

●

When operating the multi-infor-

mation display while driving,

pay extra attention to the safety

of the area around the vehicle.

●

Do not look continuously at the

multi-information display while

driving as you may fail to see

pedestrians, objects on the

road, etc. ahead of the vehicle.

■

The information display at

low temperatures



P.75, 80

Changing the meter dis-

play

84

2-1. Instrument cluster

COROLLA H/B_U

operated using the meter control
switches.

/

: Select menu icons

/

: Change displayed

content, scroll up/down the
screen and move the cursor
up/down

Press: Enter/Set
Press and hold: Reset/Dis-
play customizable items

Return to the previous screen

Call sending/receiving and
history display

■

Display items



Speedometer display/Driving
range (4.2-inch display)



Fuel economy



Eco Driving Indicator/Driving
range (if equipped)

■

Speedometer display/Driv-
ing range (4.2-inch display)



Speedometer display



Driving range

Displays driving range with remain-

ing fuel. Use the displayed values
as a reference only.

This distance is computed based
on your average fuel consumption.
As a result, the actual distance that
can be driven may differ from that
displayed.

When only a small amount of fuel is
added to the tank, the display may
not be updated.
When refueling, turn the engine
switch off. If the vehicle is refueled
without turning the engine switch
off, the display may not be updated.

■

Fuel economy

Use the displayed values as a ref-
erence only.

Average fuel economy (after
reset)

To reset the average fuel economy

display, press and hold the



meter control switch.

Current fuel consumption

Displays instantaneous current fuel
consumption.

Driving range

Displays driving range with remain-
ing fuel.

This distance is computed based
on your average fuel consumption.
As a result, the actual distance that

Content of driving infor-
mation

85

2-1. Instrument cluster

COROLLA H/B_U

2

Veh

icle
 st
atu
s in

form

at

ion
 an
d i
ndi
cat
o

rs

can be driven may differ from that
displayed.

When only a small amount of fuel is
added to the tank, the display may
not be updated.
When refueling, turn the engine
switch off. If the vehicle is refueled
without turning the engine switch
off, the display may not be updated.

The average fuel economy dis-

play can be changed in

.

(



P.87)



Average fuel economy (after
start)

Displays the average fuel con-
sumption since engine start.



Average fuel economy (after
refuel)

Displays the average fuel con-
sumption since the vehicle was
refueled.

■

Eco Driving Indicator/Driv-
ing range (if equipped)



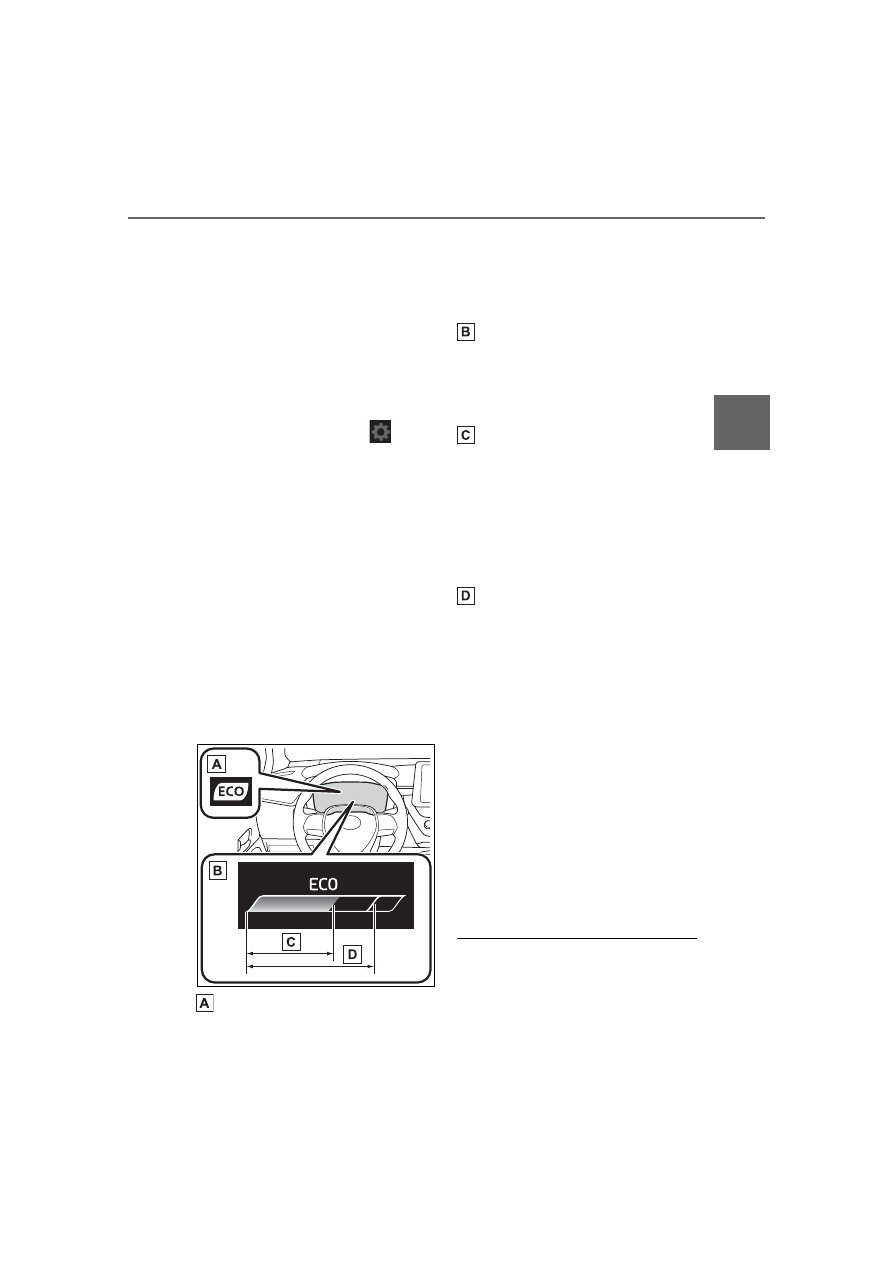

Eco Driving Indicator

Eco Driving Indicator Light

During Eco-friendly acceleration

(Eco driving), the Eco Driving Indi-
cator Light will turn on. When the
acceleration exceeds the Zone of
Eco driving, or when the vehicle is
stopped, the light turns off.

Eco Driving Indicator Zone
Display

Suggests the Zone of Eco driving
with current Eco driving ratio based
on acceleration.

Eco driving ratio based on
acceleration

If the acceleration exceeds the
Zone of Eco driving, the right side
of the Eco Driving Indicator Zone
Display will illuminate.

At this time, the Eco Driving Indica-
tor Light will turn off.

Zone of Eco driving



Driving range

Displays driving range with remain-
ing fuel. Use the displayed values
as a reference only.

This distance is computed based
on your average fuel consumption.
As a result, the actual distance that
can be driven may differ from that
displayed.

When only a small amount of fuel is
added to the tank, the display may
not be updated.
When refueling, turn the engine
switch off. If the vehicle is refueled
without turning the engine switch
off, the display may not be updated.

■

Eco Driving Indicator

Eco Driving Indicator will not oper-
ate under the following conditions:

●

The shift lever is in any position
other than D.

86

2-1. Instrument cluster

COROLLA H/B_U

●

A paddle shift switch is operated.
(If equipped)

●

The driving mode is set to sport
mode.

●

The vehicle speed is approxi-
mately 80 mph (130 km/h) or
higher.

■

Driving support system
information

Select to display the operational
status of the following systems:



LTA (Lane Tracing Assist) (if
equipped) (



P.186)



LDA (Lane Departure Alert
with steering control) (if
equipped) (



P.196)



Dynamic radar cruise control
(if equipped) (



P.215)



Dynamic radar cruise control
with full-speed range (if
equipped) (



P.204)

■

Navigation system-linked
display (if equipped)

Select to display the following
navigation system-linked infor-
mation:



Route guidance to destination



Compass display (head-
ing-up display)

■

Route guidance to destination
display

When the route guidance to destina-
tion display is enabled on the
head-up display, it will not be dis-
played on the multi-information dis-

play. (



P.90)

Select to enable selection of an
audio source or track on the
meter using the meter control
switches.

This menu icon can be set to be

displayed/not displayed in

.

■

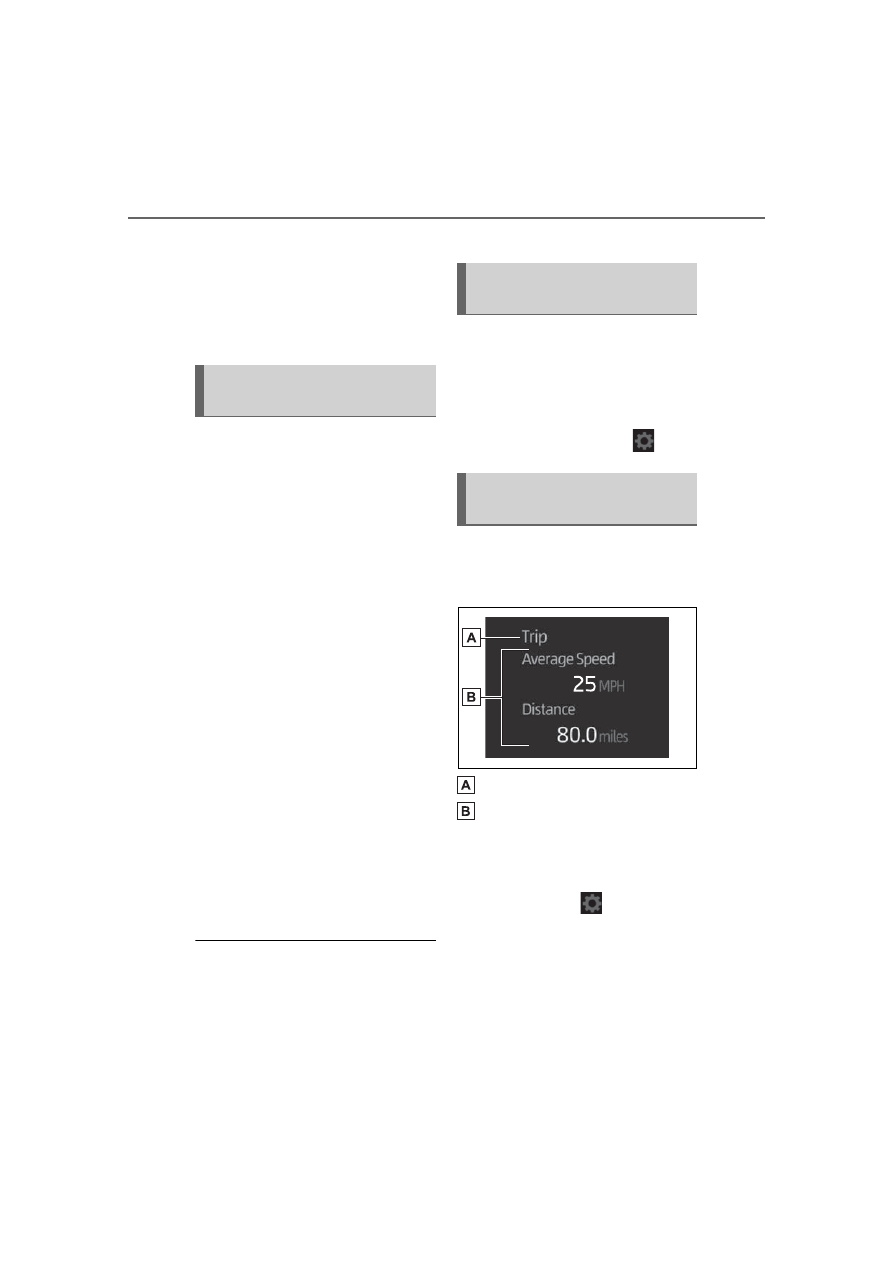

Drive information

Displays drive information such as
the following:

Drive information type

Drive information items

Displays the following depend-
ing on which drive information
type and drive information items

were selected in

. (



P.87)



After start

• Distance: Displays the distance

driven since engine start

• Elapsed time: Displays the

elapsed time since engine start

Driving support system
information display

Audio system-linked dis-
play

Vehicle information dis-
play

87

2-1. Instrument cluster

COROLLA H/B_U

2

Veh

icle
 st
atu
s in

form

at

ion
 an
d i
ndi
cat
o

rs

• Average vehicle speed: Displays

the average vehicle speed since
engine start



After reset

• Distance: Displays the distance

driven since the display was

reset

*

• Elapsed time: Displays the

elapsed time since the display

was reset

*

• Average vehicle speed: Displays

the average vehicle speed since

the display was reset

*

*

: To reset, display the desired item

and press and hold the



meter control switch.

■

Meter display settings that
can be changed



Language

Select to change the language dis-
played.



Units

Select to change the units of mea-
sure displayed.



Speedometer display (7-inch
display)

Select to set the display of the
speedometer to analog/digital.



Eco Driving Indicator Light (if
equipped)

Select to enable/disable the Eco
Driving Indicator Light.



• Fuel economy display

Select to change the average fuel
consumption display between after
start/after reset. (



P.84)



Select to display/not display the
audio system linked display.



Select to change the displayed con-
tent of the following:

• Drive information type

Select to change the drive informa-
tion type display between after
start/after reset.

• Drive information items

Select to set the first and second
items of the drive information dis-
play to any of the following: aver-
age vehicle
speed/distance/elapsed time.



Pop-up display

Select to enable/disable pop-up
displays for each relevant system.



Multi-information display off

Select to turn the multi-information
display off.

To turn the multi-information display
on again, press any of the following
meter control switches

/

/

/

/

/

.



Default setting

Select to reset the meter display
settings to the default setting.

■

Vehicle functions and set-
tings that can be changed



P.535

Settings display

88

2-1. Instrument cluster

COROLLA H/B_U

■

Suspension of the settings dis-

play

●

Some settings cannot be changed

while driving. When changing set-

tings, park the vehicle in a safe

place.

●

If a warning message is displayed,

operation of the settings display

will be suspended.

WARNING

■

Cautions during setting up

the display

If the engine is running when

changing the display settings,

ensure that the vehicle is parked

in a place with adequate ventila-

tion. In a closed area such as a

garage, exhaust gases including

harmful carbon monoxide (CO)

may collect and enter the vehicle.

This may lead to death or a seri-

ous health hazard.

NOTICE

■

During setting up the display

To prevent battery discharge,

ensure that the engine is running

while setting up the display fea-

tures.

89

2-1. Instrument cluster

COROLLA H/B_U

2

Veh

icle
 st
atu
s in

form

at

ion
 an
d i
ndi
cat
o

rs

*

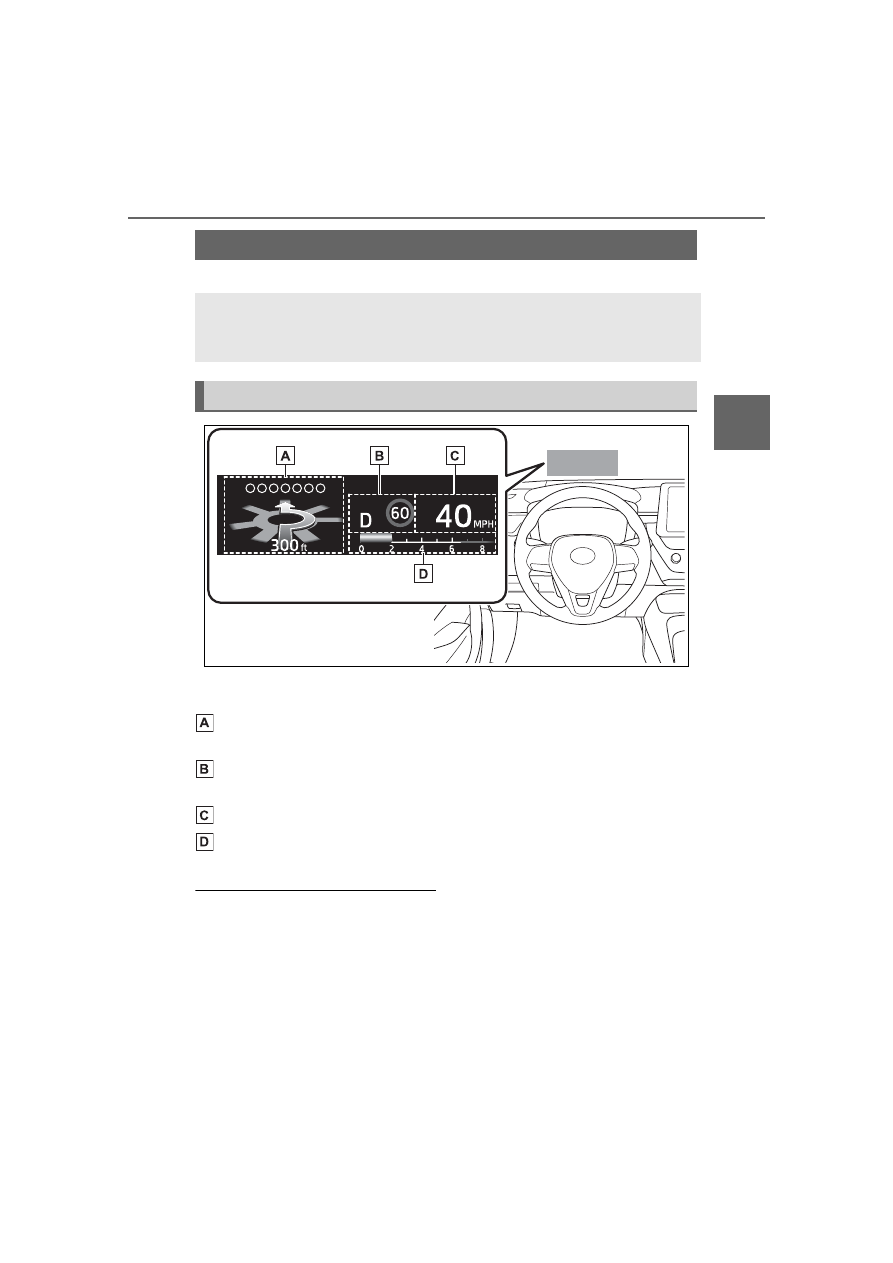

: If equipped

Illustrations used in this text are intended as examples, and may differ from
the image that is actually displayed by the head-up display.

Driving assist system status/navigation system-linked display
area (if equipped) (



P.91)

Shift position display (continuously variable transmission)/RSA
(Road Sign Assist) display area (if equipped) (



P.147, 225)

Vehicle speed display

Tachometer/Eco Driving Indicator (if equipped)/Outside tempera-
ture display area (



P.92)

■

Head-up display will operate
when

The engine switch is in ON.

■

When using the head-up dis-
play

The head-up display may seem
dark or hard to see when viewed
through sunglasses, especially

polarized sunglasses. Adjust the
brightness of the head-up display or
remove your sunglasses.

■

Street name display (vehicles
with a navigation system)

Only street names which are
included in the map data will be dis-
played.

Head-up display

*

The head-up display projects a variety of driving-related infor-
mation and the operating state of the driving support systems
on the windshield.

System components

90

2-1. Instrument cluster

COROLLA H/B_U

Select

 on the multi-informa-

tion display (



P.87) and then

“HUD Main”.

■

Enabling/disabling the

head-up display

Press the

 meter control

switch to enable/disable the

head-up display.

■

Changing the head-up dis-

play settings

Press and hold the

 meter

control switch to change the fol-

lowing settings:



Brightness and vertical posi-

tion of the head-up display

Select to adjust the brightness or

vertical position of the head-up dis-

play.



Display content

Select to change the display

between the following:
• No content
• Eco Driving Indicator (if

equipped)

• Tachometer
Select to enable/disable the follow-

ing items:
• Route guidance to destination (if

equipped)

• Driving support system display
• Compass (heading-up display) (if

equipped)

• Audio system operation status (if

equipped)

WARNING

■

When using the head-up dis-

play

●

Check that the position and

brightness of the head-up dis-

play image does not interfere

with safe driving. Incorrect

adjustment of the image’s posi-

tion or brightness may obstruct

the driver’s view and lead to an

accident, resulting in death or

serious injury.

●

Do not continuously look at the

head-up display while driving as

you may fail to see pedestrians,

objects on the road, etc. ahead

of the vehicle.

NOTICE

■

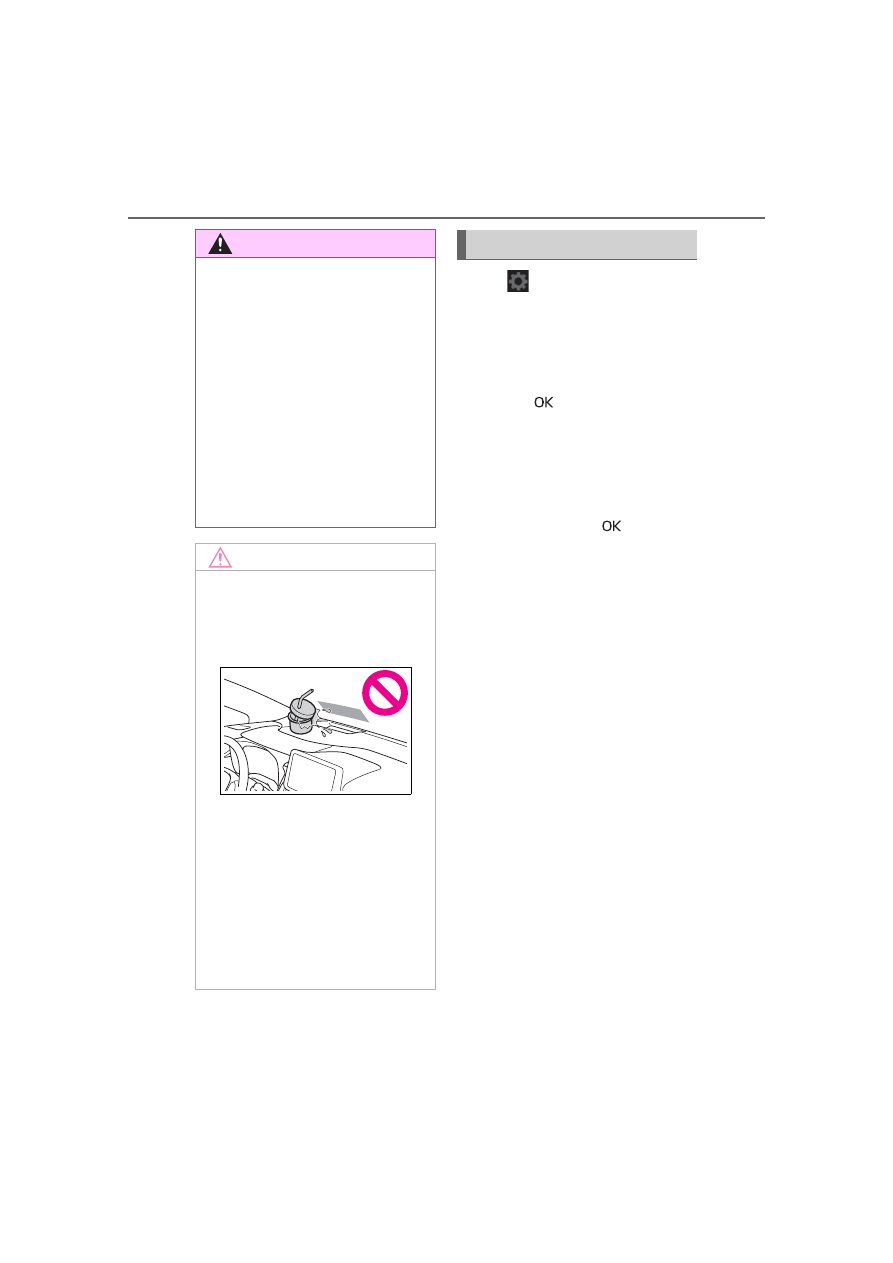

Head-up display projector

●

Do not place any drinks near

the head-up display projector. If

the projector gets wet, electrical

malfunctions may result.

●

Do not place anything on or put

stickers onto the head-up dis-

play projector.

Doing so could interrupt

head-up display indications.

●

Do not touch the inside of the

head-up display projector or

thrust sharp edges or the like

into the projector.

Doing so could cause mechani-

cal malfunctions.

Using the head-up display

91

2-1. Instrument cluster

COROLLA H/B_U

2

Veh
icle

 st

atu

s in
form
at

ion

 an

d i

ndi

cat

ors



Display angle

Select to adjust the angle of the

head-up display.

■

Enabling/disabling of the

head-up display

If the head-up display is disabled, it

will remain disabled when the

engine switch is turned off then back

to ON.

■

Display brightness

The brightness of the head-up dis-
play can be adjusted on

 of the

multi-information display. Also, it is

automatically adjusted according to

the ambient brightness.

■

Driving assist system sta-

tus display

Displays the operational status

of the following systems:



Dynamic radar cruise control

with full-speed range (if

equipped) (



P.204)



Dynamic radar cruise control

(if equipped) (



P.215)



LTA (Lane Tracing Assist) (if

equipped) (



P.186)



LDA (Lane Departure Alert

with steering control) (if

equipped) (



P.196)

Details of content displayed on the

head-up display may differ from

that displayed on the multi-informa-

tion display. For details, refer to the

explanation of each system.

■

Navigation system-linked

display area (if equipped)

Displays the following items

which are linked to the naviga-

tion system:



Street name



Route guidance to destination



Compass (heading-up dis-

play)

Pop-up displays for the following

WARNING

■

Caution for changing settings

of the head-up display

If the engine is running when

changing the display

settings, ensure that the vehicle

is parked in a place with adequate

ventilation. In a closed area such

as a garage, exhaust gases

including harmful carbon monox-

ide (CO) may collect and enter

the vehicle. This may lead to

death or a serious health hazard.

NOTICE

■

When changing the settings

of the head-up display

To prevent battery discharge,

ensure that the engine is running

while changing the settings of the

head-up display.

Driving assist system sta-

tus/navigation sys-

tem-linked display area (if

equipped)

Pop-up display

92

2-1. Instrument cluster

COROLLA H/B_U

systems will be displayed when
necessary:

■

Driving support systems

Displays a warning/sugges-
tion/advice message or the
operating state of a relevant
system.



PCS (Pre-Collision System)
(



P.178)



Brake Override System
(



P.131)



Drive-Start Control (if
equipped) (



P.132)

Details of content displayed on the
head-up display may differ from
that displayed on the multi-informa-
tion display. For details, refer to the
explanation of each system.

■

 icon

Displayed when a warning mes-
sage is displayed on the
multi-information display.
(



P.482)

■

Warning message

Some warning messages are
displayed when necessary,
according to certain conditions.

Details of content displayed on the
head-up display may differ from
that displayed on the multi-informa-
tion display.

■

Audio system operation
status (if equipped)

Displayed when an audio
remote control switch on the
steering wheel is operated.

■

Hands-free system status

Displayed when the hands-free
system is operated.

■

When a pop-up display is dis-
played

When a pop-up display is displayed,
a current display may no longer be
displayed. In this case, the display
will return after the pop-up display
disappears.

■

Tachometer

Displays the engine speed in
revolutions per minute.

■

Eco Driving Indicator (if
equipped)

Eco Driving Indicator Zone
Display

Eco driving ratio based on
acceleration

Zone of Eco driving

Displayed content is the same as
that displayed on the multi-informa-
tion display (Eco Driving Indicator).
For details, refer to P.85.

Tachometer/Eco Driving
Indicator/Outside tem-
perature display

93

2-1. Instrument cluster

COROLLA H/B_U

2

Veh

icle
 st
atu
s in

form

at

ion
 an
d i
ndi
cat
o

rs

■

Outside temperature dis-
play

Displayed when the engine
switch is turned to ON or when
the low outside temperature
indicator is flashing.

■

Outside temperature display

●

When the ambient temperature is
approximately 37°F (3°C) or
lower, the low outside temperature
indicator will flash for approxi-
mately 10 seconds and the out-
side temperature display will turn
off. In this case, the display will be
displayed again when the outside
temperature becomes approxi-
mately 41°F (5°C) or higher.

●

In the following situations, the cor-
rect outside temperature may not
be displayed, or the display may
take longer than normal to
change:

• When stopped, or driving at low

speeds (less than 16 mph [25
km/h])

• When the outside temperature

has changed suddenly (at the
entrance/exit of a garage, tunnel,
etc.)

●

When “--” or “E” is displayed, the
system may be malfunctioning.
Take your vehicle to your Toyota
dealer.

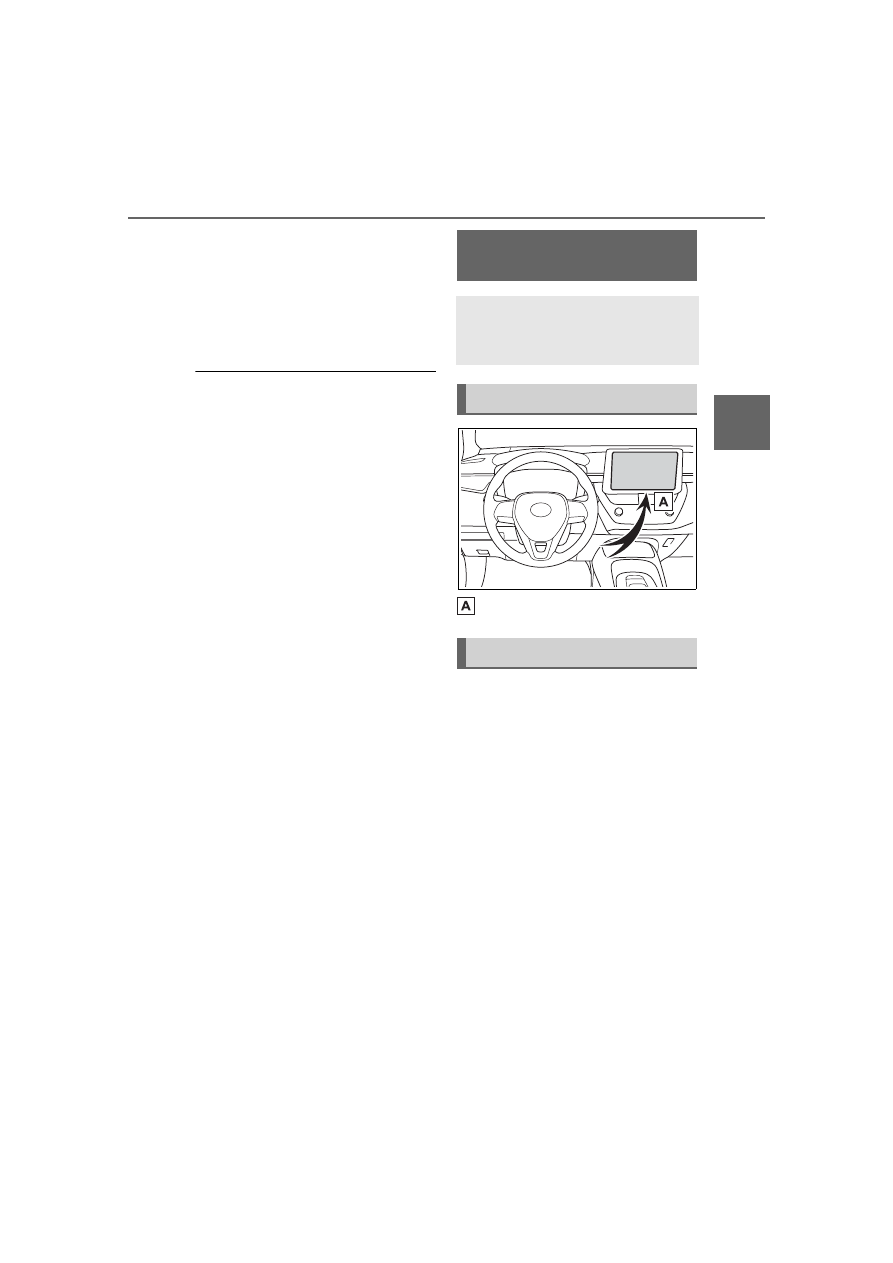

Audio system screen

■

Trip information



Audio without DCM/Audio
Plus without DCM

1

Press the “MENU” button.

2

Select “Info” on the “Menu”
screen.

If a screen other than “Trip Informa-
tion” is displayed, select “Trip Infor-
mation”.



Audio with DCM/Audio Plus
with DCM or Premium Audio

1

Press the “MENU” button.

2

Select “Info” on the “Menu”
screen.

3

Select “ECO” on the “Infor-
mation” screen.

Fuel consumption

information

Fuel consumption informa-
tion can be displayed on the
audio system screen.

System components

Consumption

94

2-1. Instrument cluster

COROLLA H/B_U

If a screen other than “Trip Informa-
tion” is displayed, select “Trip Infor-
mation”.

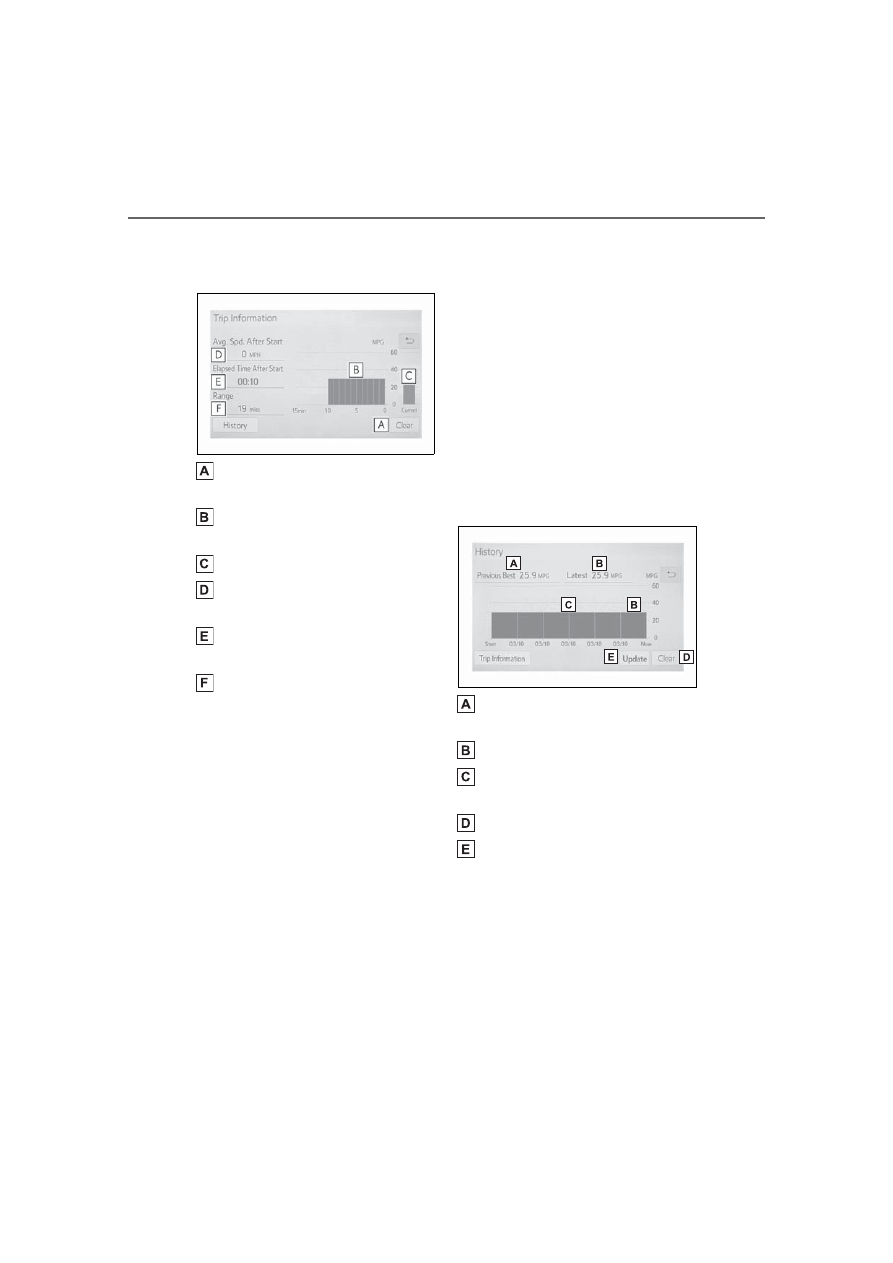

Resetting the consumption
data

Fuel consumption in the past
15 minutes

Current fuel consumption

Average vehicle speed since
the engine was started.

Elapsed time since the
engine was started.

Cruising range

Average fuel consumption for
the past 15 minutes is divided
by color into past averages and
averages attained since the
engine switch was last turned to
ON. Use the displayed average
fuel consumption as a refer-
ence.

The image is an example only, and
may vary slightly from actual condi-
tions.

■

History



Audio without DCM/Audio
Plus without DCM

1

Press the “MENU” button.

2

Select “Info” on the “Menu”
screen.

If a screen other than “History” is
displayed, select “History”.



Audio with DCM/Audio Plus
with DCM or Premium Audio

1

Press the “MENU” button.

2

Select “Info” on the “Menu”
screen.

3

Select “ECO” on the “Infor-
mation” screen.

If a screen other than “History” is
displayed, select “History”.

Best recorded fuel consump-
tion

Latest fuel consumption

Previous fuel consumption
record

Resetting the history data

Updating the latest fuel con-
sumption data

The average fuel consumption
history is divided by color into
past averages and the average
fuel consumption since the last
updated. Use the displayed
average fuel consumption as a
reference.

95

2-1. Instrument cluster

COROLLA H/B_U

2

Veh

icle
 st
atu
s in

form

at

ion
 an
d i
ndi
cat
o

rs

The image is an example only, and
may vary slightly from actual condi-
tions.

■

Updating the history data

Update the latest fuel consumption
by selecting “Update” to measure
the current fuel consumption again.

■

Resetting the data

The fuel consumption data can be
deleted by selecting “Clear”.

■

Cruising range

Displays the estimated maximum
distance that can be driven with the
quantity of fuel remaining.

This distance is computed based on
your average fuel consumption.
As a result, the actual distance that
can be driven may differ from that
displayed.

96

2-1. Instrument cluster

COROLLA H/B_U

97

COROLLA H/B_U

3

3

Before driving

Before driving

.

3-1. Key information

Keys ...............................

98

3-2. Opening, closing and

locking the doors

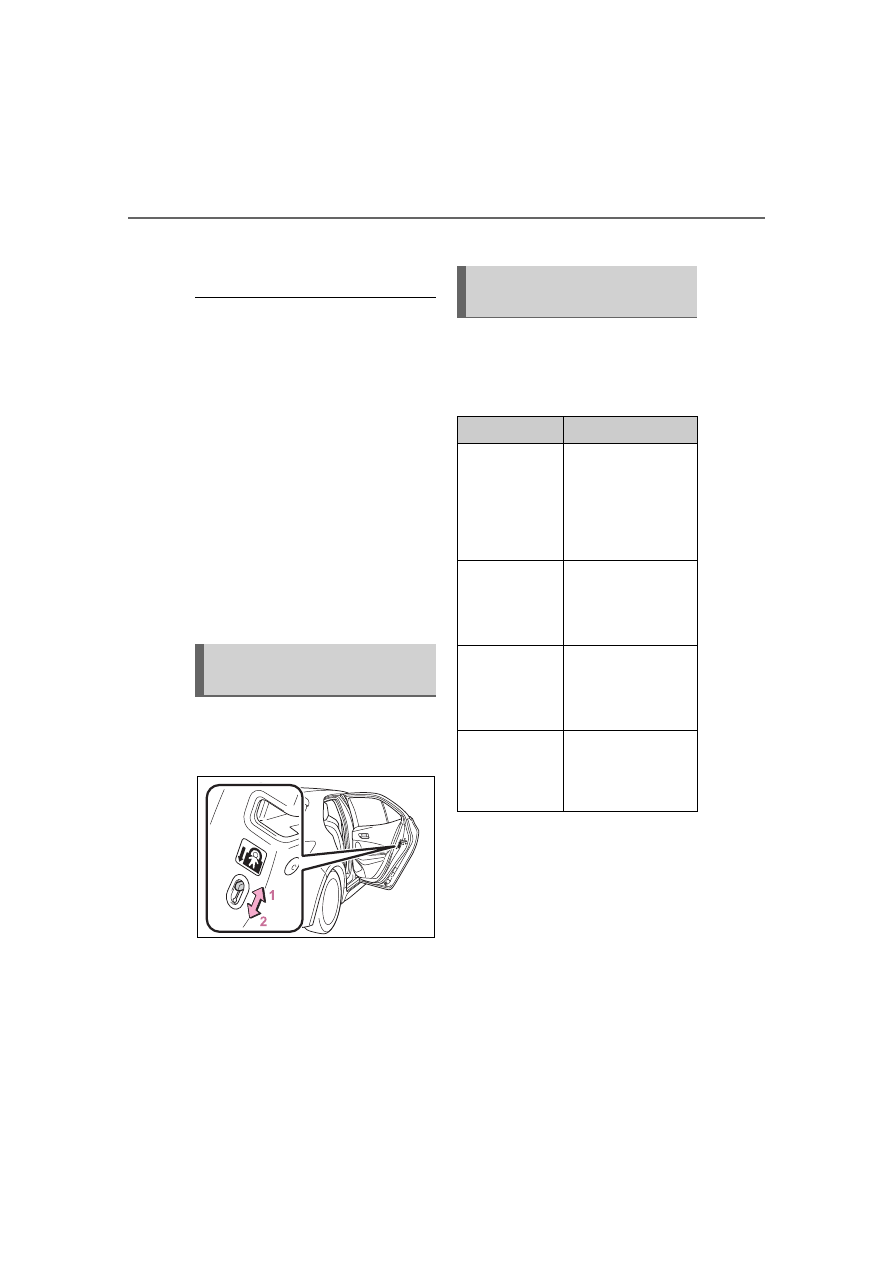

Side doors ...................

101

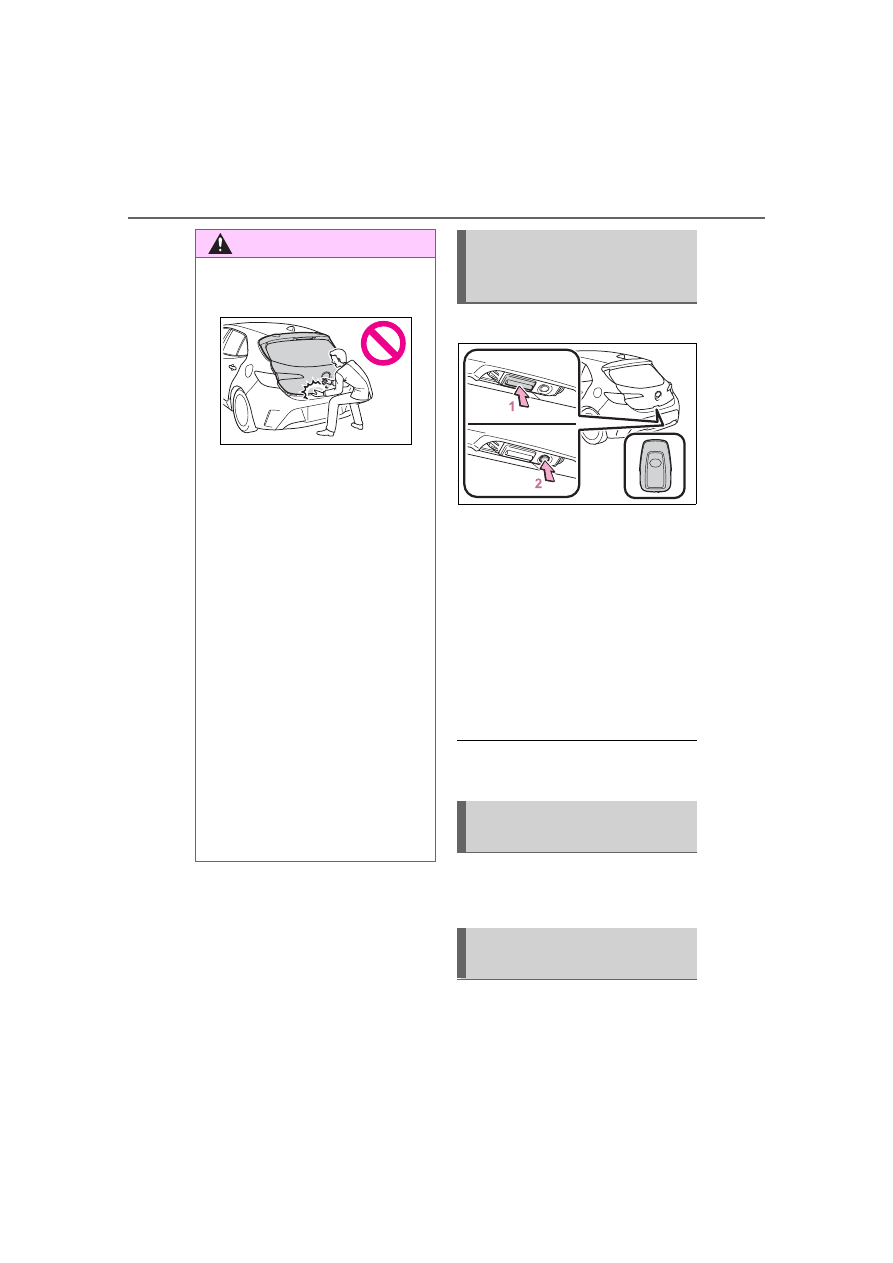

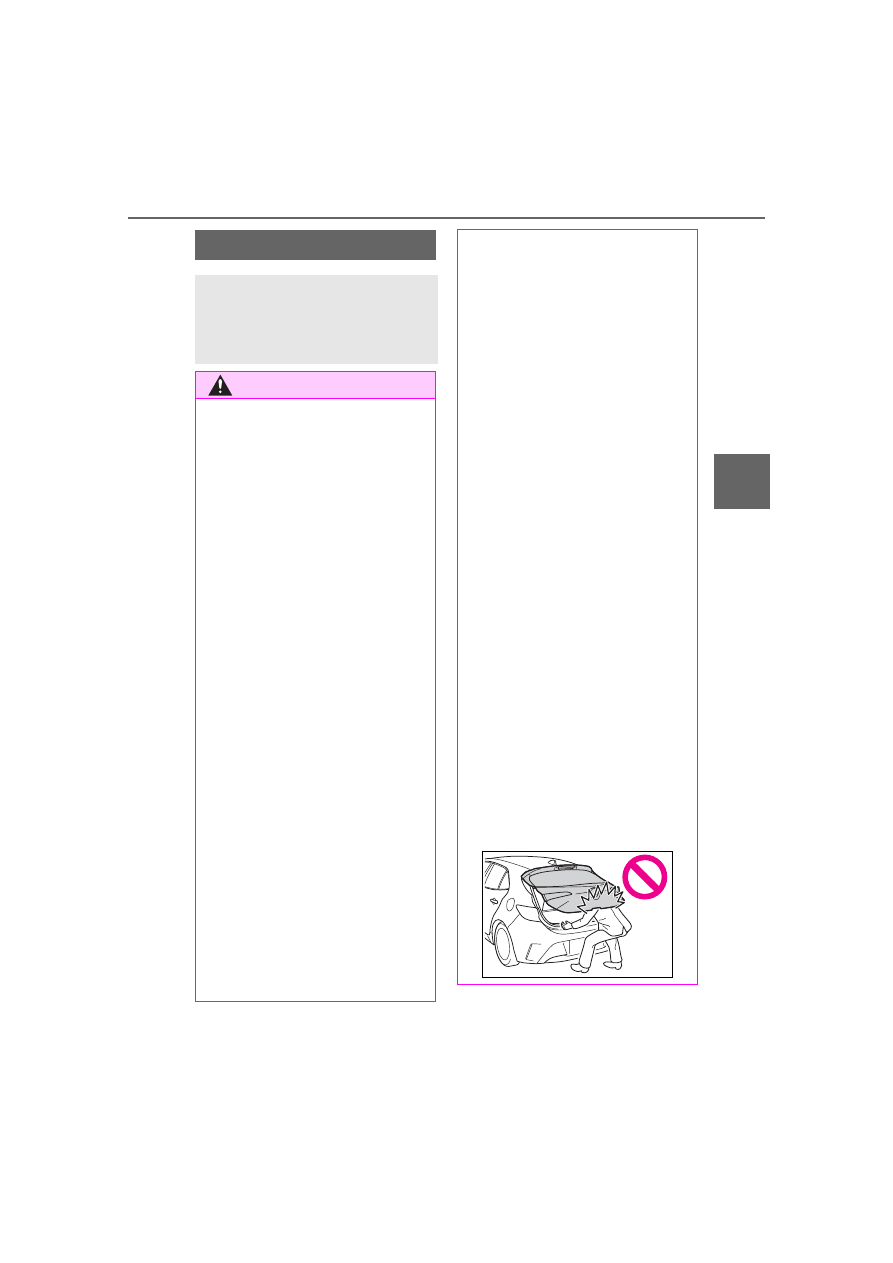

Back door ....................

105

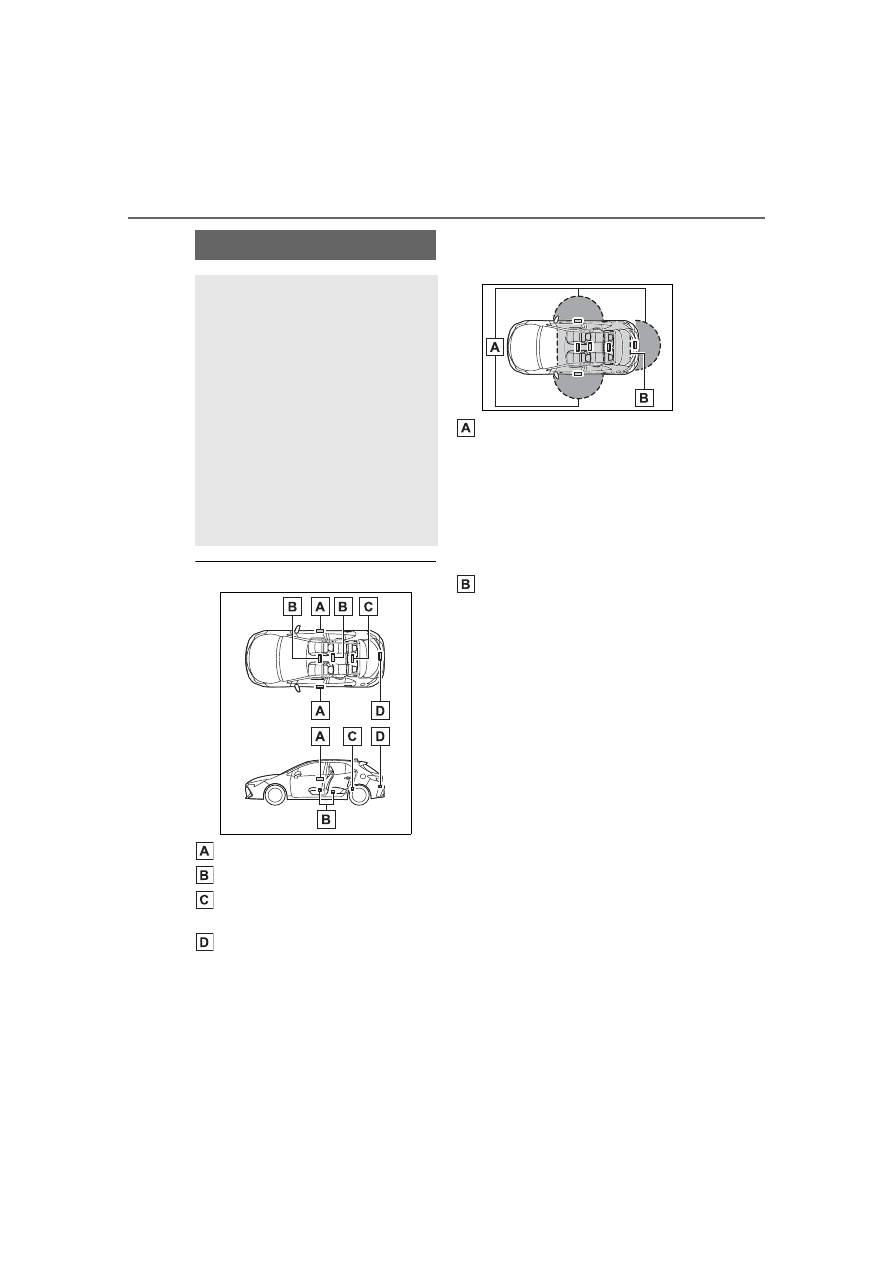

Smart key system .......

108

3-3. Adjusting the seats

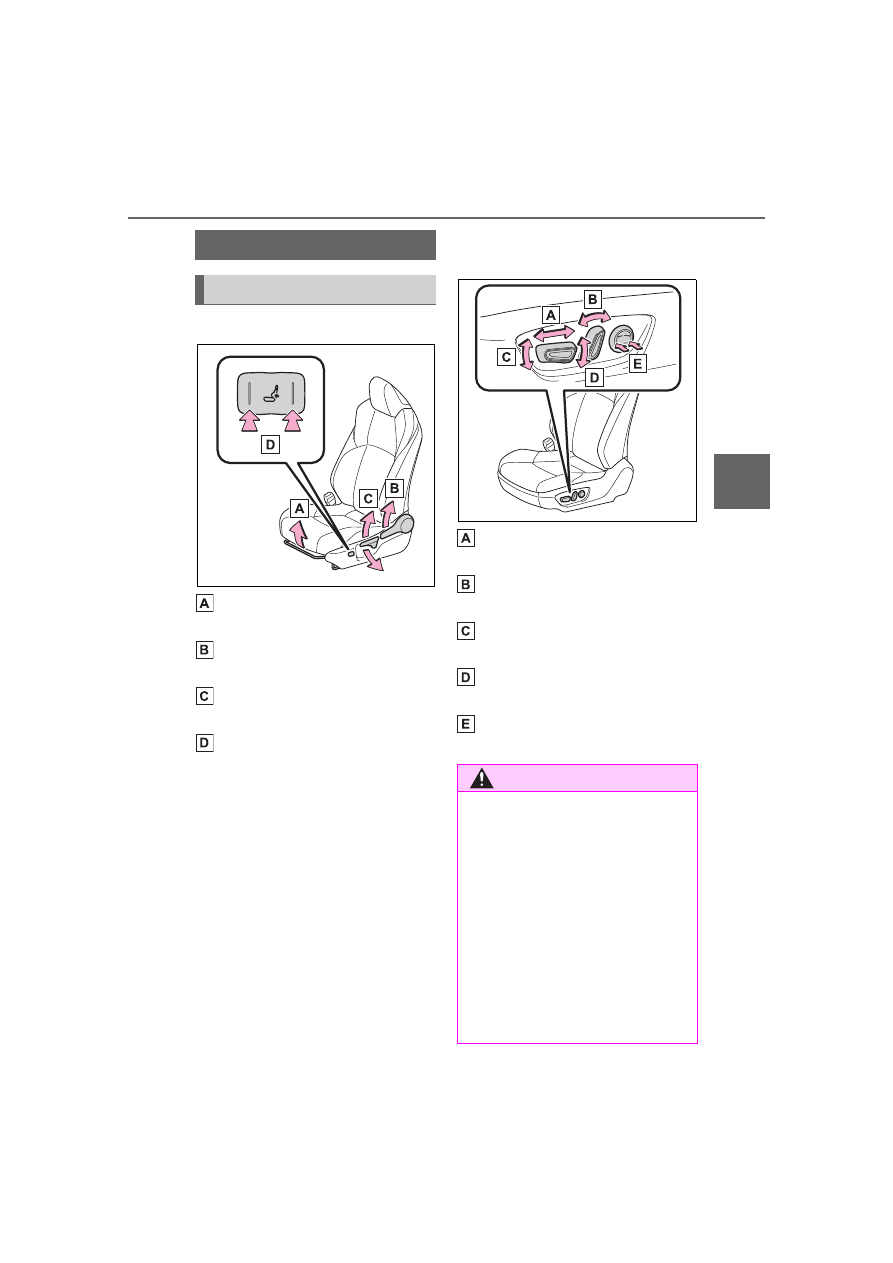

Front seats ..................

115

Rear seats...................

116

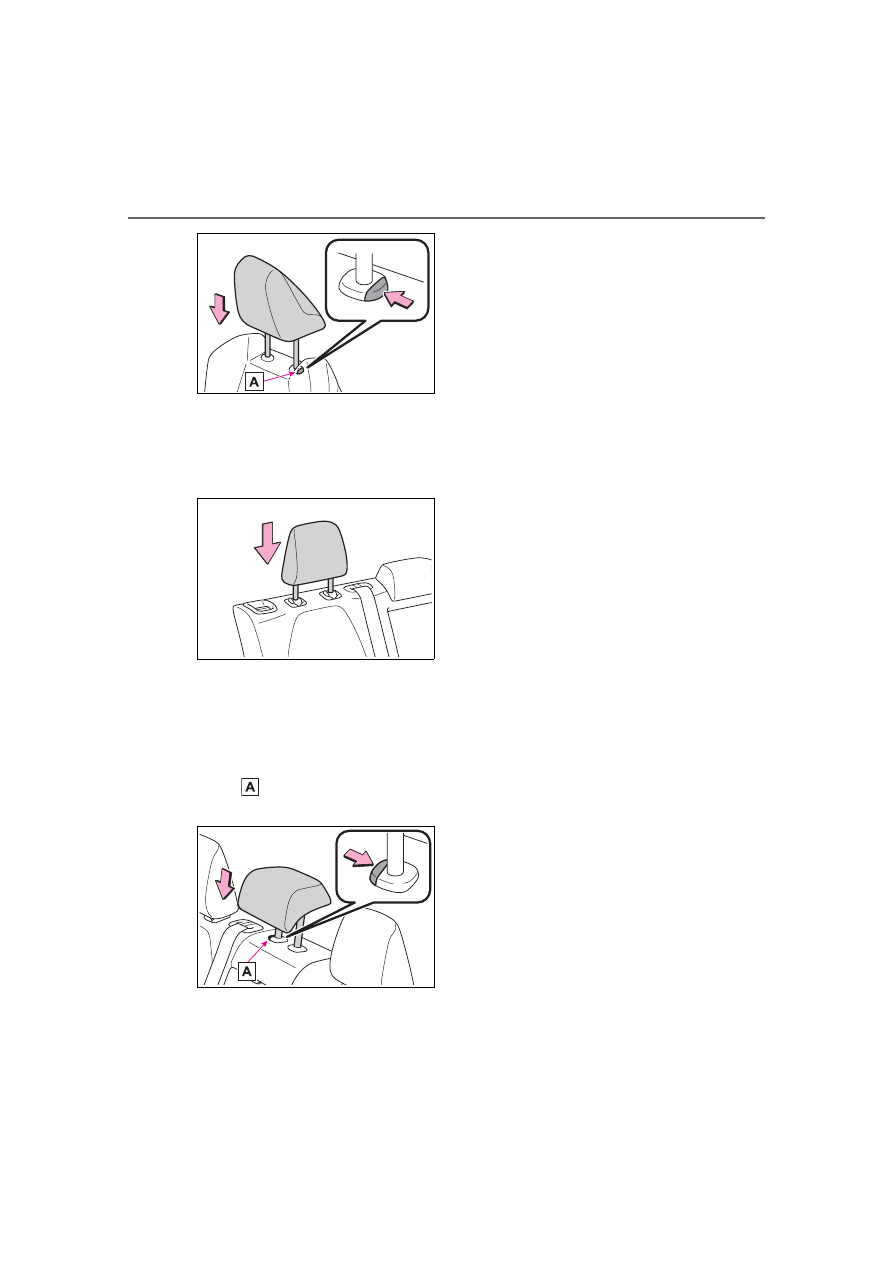

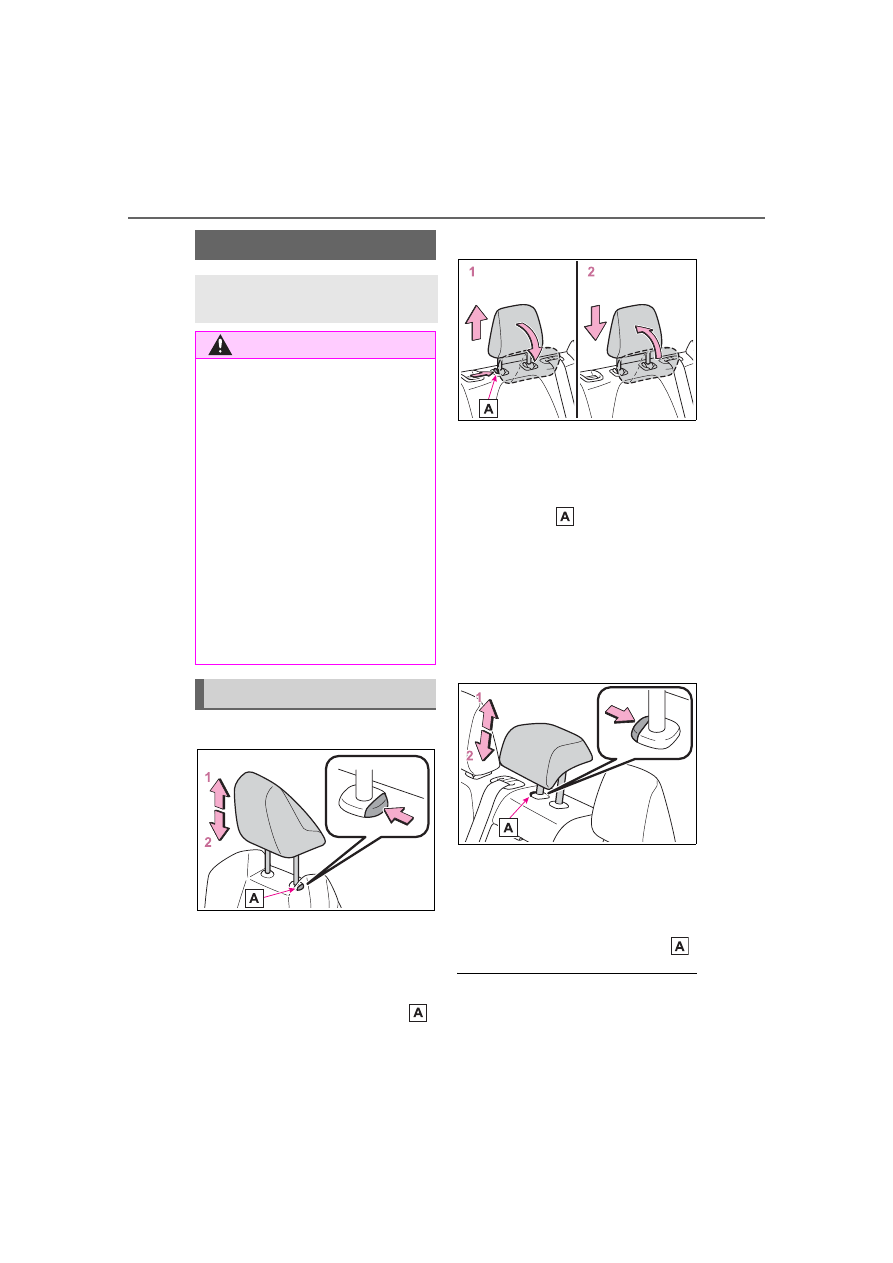

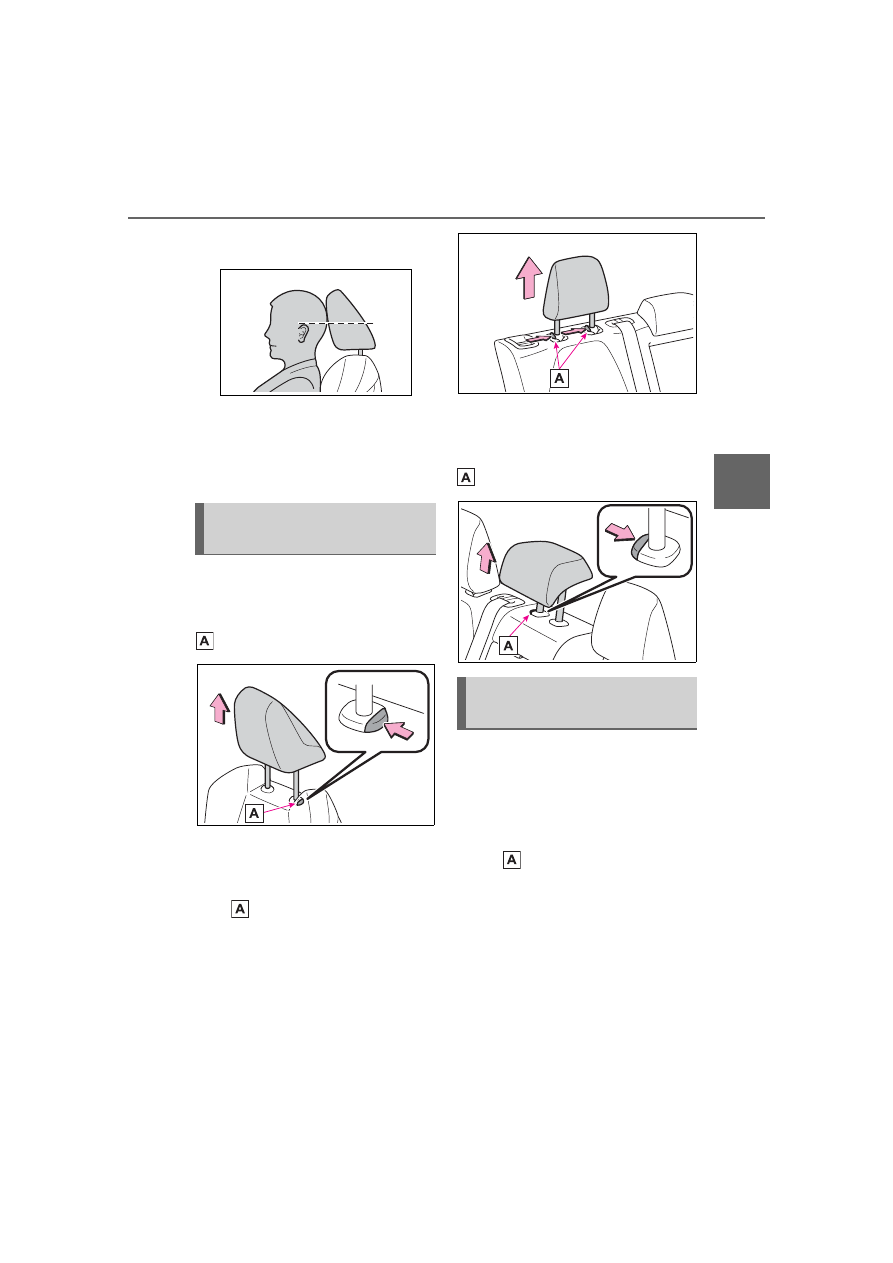

Head restraints............

118

3-4. Adjusting the steering

wheel and mirrors

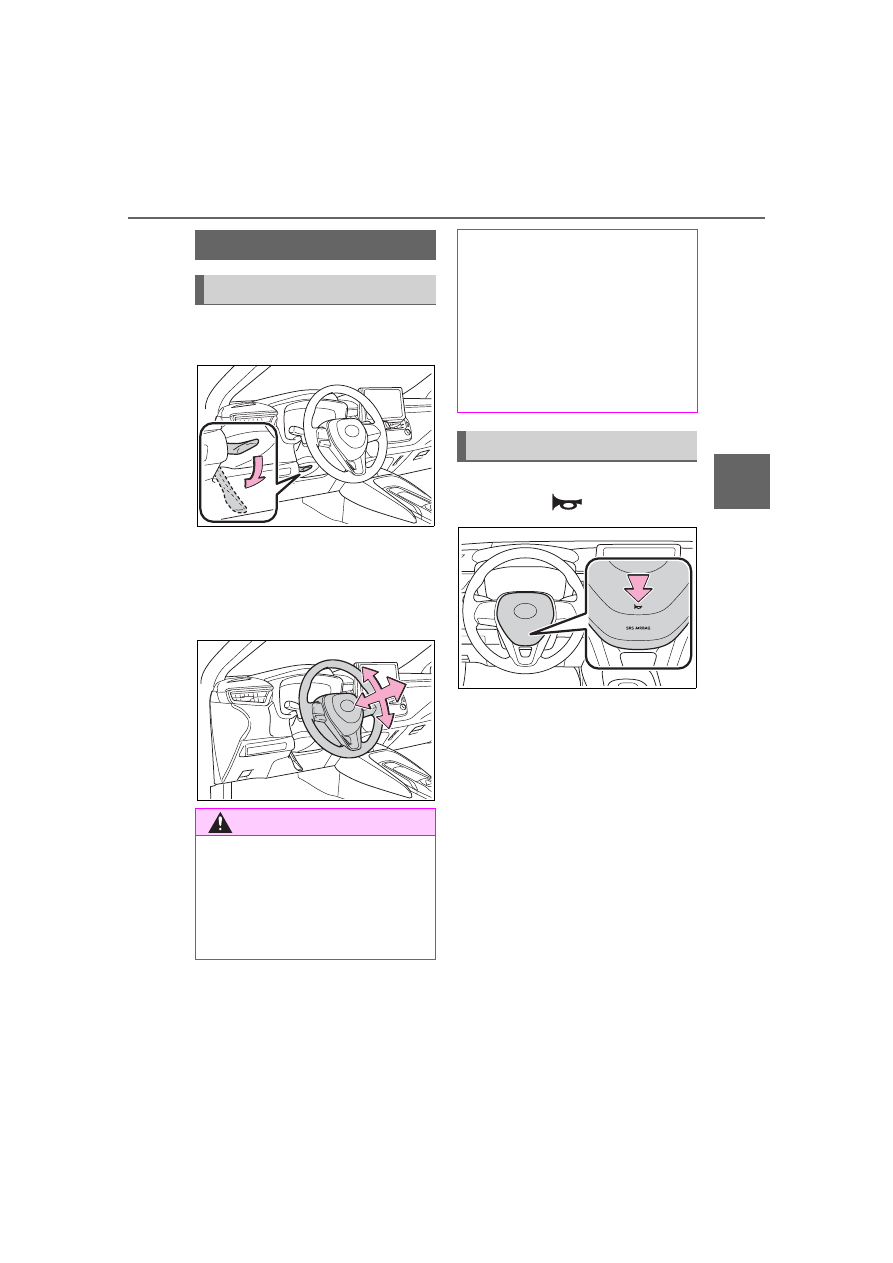

Steering wheel ............

121

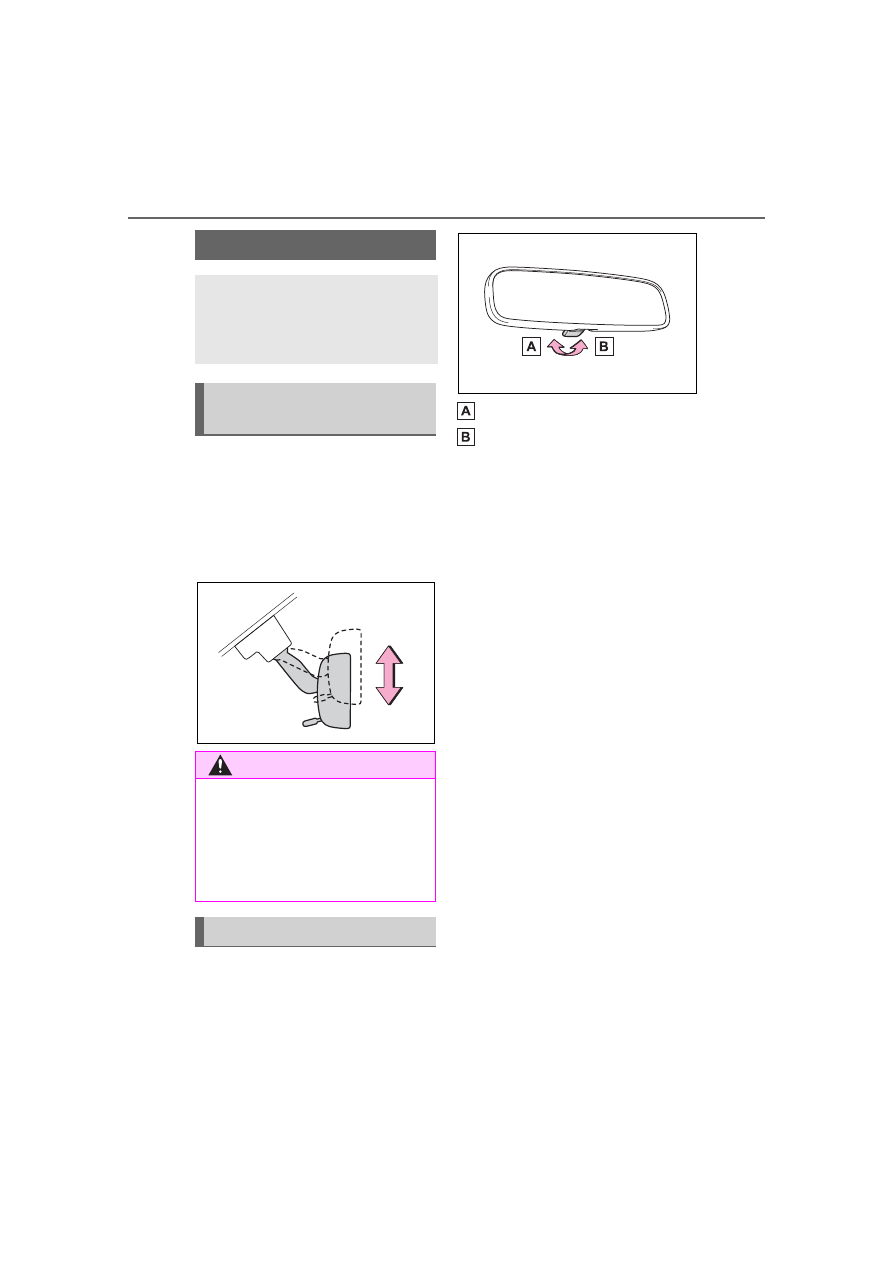

Inside rear view mirror

..................................

122

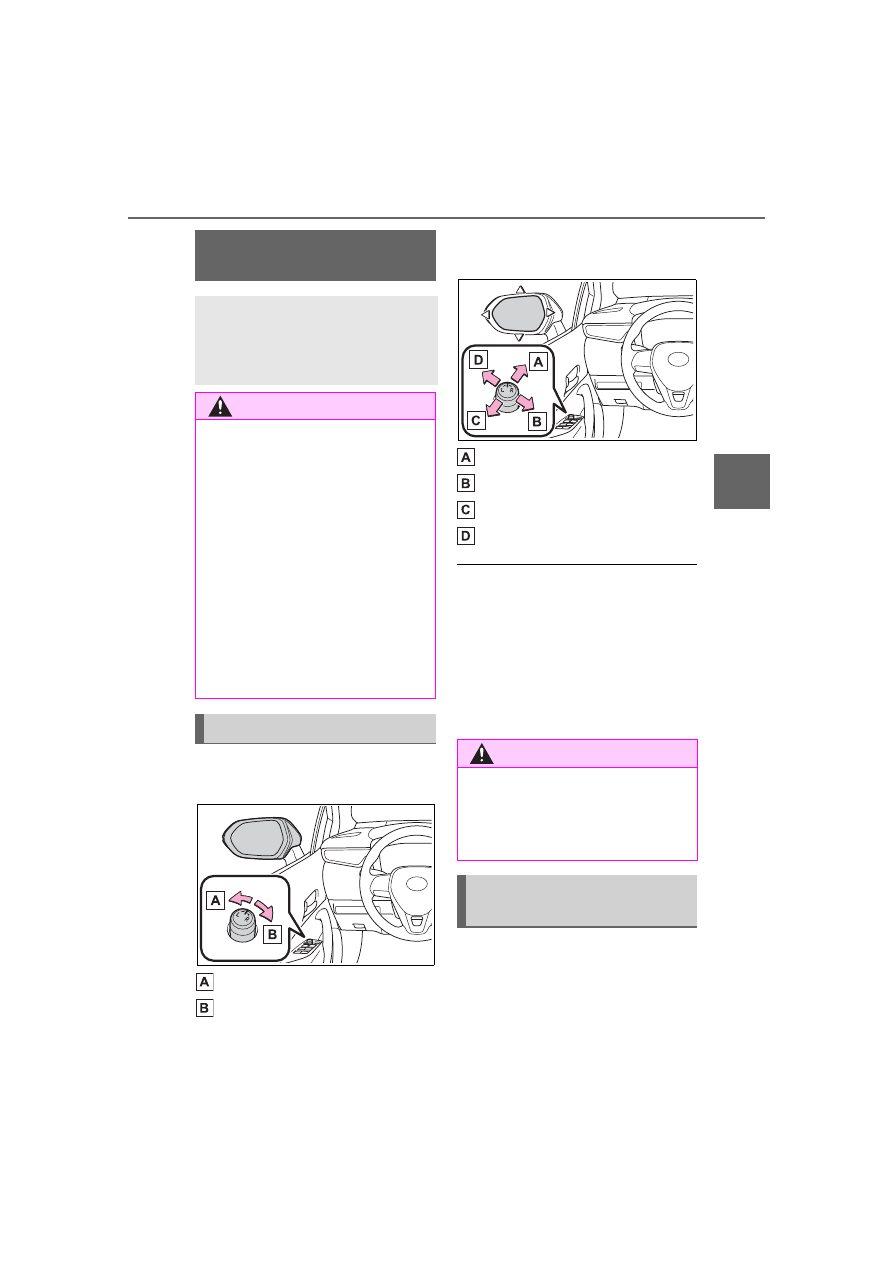

Outside rear view mirrors

..................................

123

3-5. Opening and closing the

windows

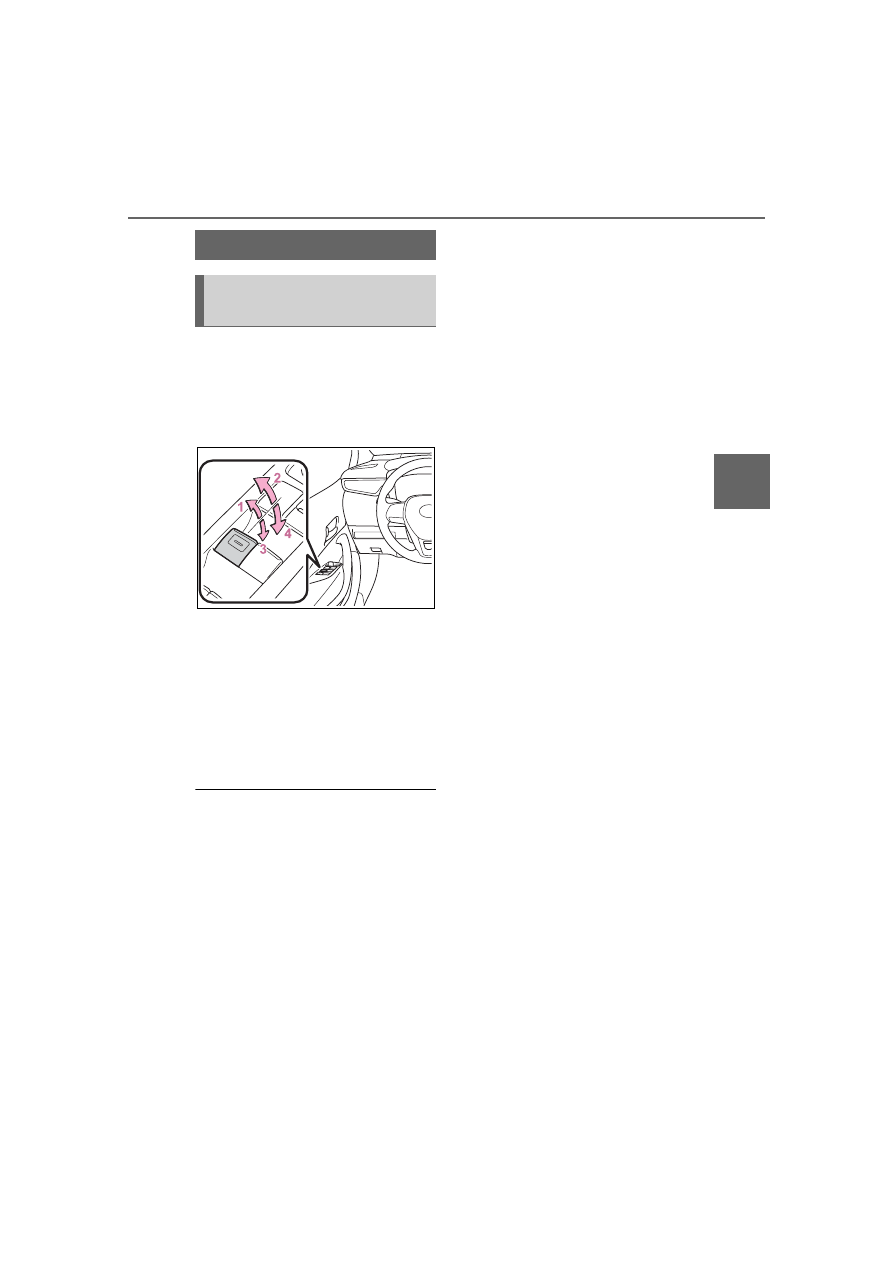

Power windows ...........

125

98

3-1. Key information

COROLLA H/B_U

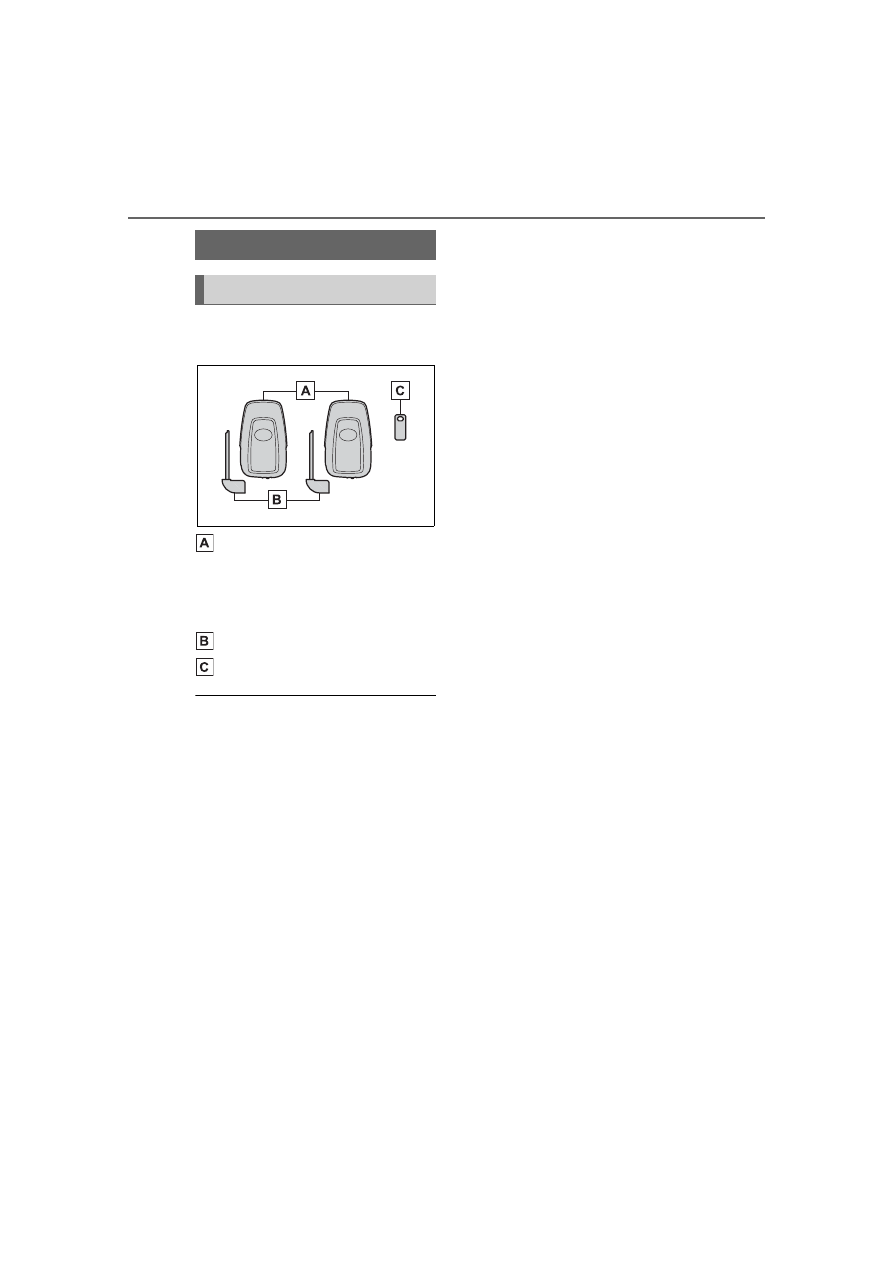

3-1.Key information

The following keys are provided
with the vehicle.

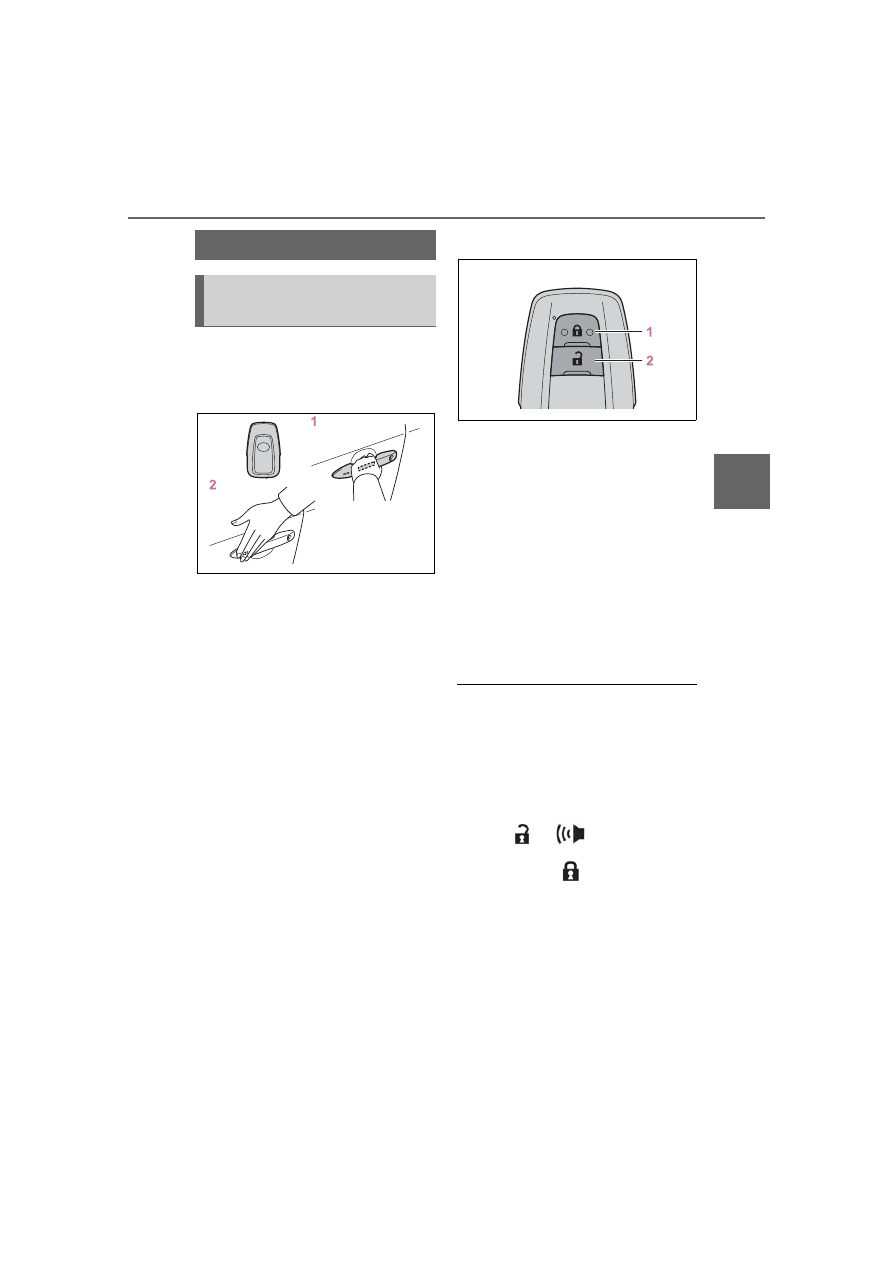

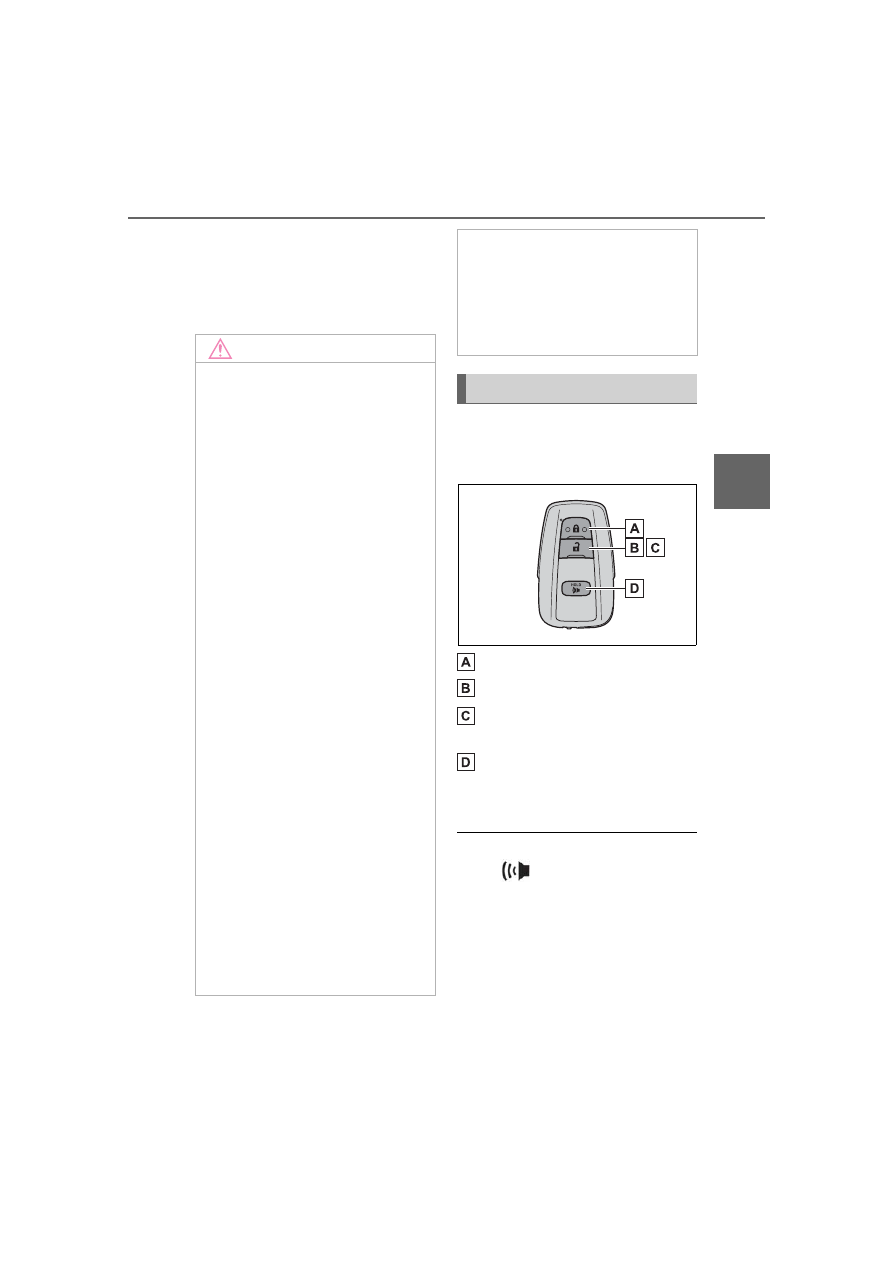

Electronic keys

• Operating the smart key system

(



P.108)

• Operating the wireless remote

control function (



P.99)

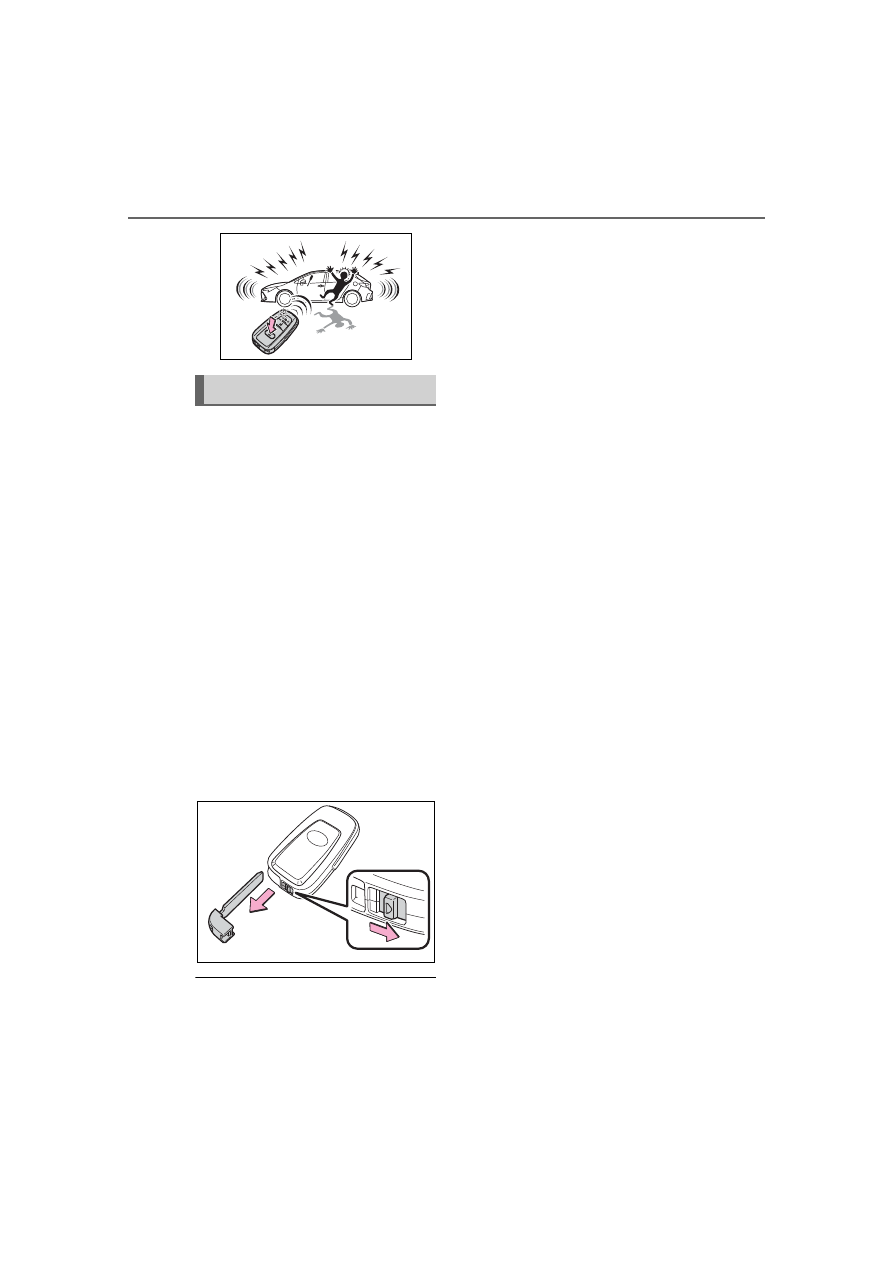

Mechanical keys

Key number plate

■

When riding in an aircraft

When bringing an electronic key
onto an aircraft, make sure you do
not press any buttons on the elec-
tronic key while inside the aircraft
cabin. If you are carrying an elec-
tronic key in your bag, etc., ensure
that the buttons are not likely to be
pressed accidentally. Pressing a
button may cause the electronic key
to emit radio waves that could inter-
fere with the operation of the air-
craft.

■

Electronic key battery depletion

●

The standard battery life is 1 to 2
years.

●

If the battery becomes low, an
alarm will sound in the cabin and a
message will be shown on the
multi-information display when the
engine is stopped.

●

To reduce key battery depletion
when the electronic key is to not
be used for long periods of time,
set the electronic key to the bat-
tery-saving mode. (



P.109)

●

As the electronic key always
receives radio waves, the battery
will become depleted even if the
electronic key is not used. The fol-
lowing symptoms indicate that the
electronic key battery may be
depleted. Replace the battery
when necessary. (



P.456)

• The smart key system or the wire-

less remote control does not oper-
ate.

• The detection area becomes

smaller.

• The LED indicator on the key sur-

face does not turn on.

●

To avoid serious deterioration, do
not leave the electronic key within
3 ft. (1 m) of the following electri-
cal appliances that produce a
magnetic field:

• TVs
• Personal computers
• Cellular phones, cordless phones

and battery chargers

• Recharging cellular phones or

cordless phones

• Table lamps
• Induction cookers

●

If the electronic key is near the
vehicle for longer than necessary,
even if the smart key system is not
operated, the key battery may
become depleted faster than nor-
mal.

■

Replacing the battery



P.456

■

If “A New Key has been Regis-
tered Contact Your Dealer for
Details” is shown on the
multi-information display

This message will be displayed
each time the driver’s door is
opened when the doors are
unlocked from the outside for
approximately 10 days after a new
electronic key has been registered.

Keys

The keys

99

3-1. Key information

COROLLA H/B_U

3

Before driving

If this message is displayed but you

have not had a new electronic key

registered, ask your Toyota dealer to

check if an unknown electronic key

(other than those in your posses-

sion) has been registered.

The keys are equipped with the

following wireless remote con-

trol:

Locks the doors (



P.101)

Unlocks the doors (



P.101)

Opens the windows

*



(



P.101)

Sounds the alarm

*

: This setting must be customized

at your Toyota dealer.

■

Panic mode

When

 is pressed for longer

than about one second, an alarm

will sound intermittently and the

vehicle lights will flash to deter any

person from trying to break into or

damage your vehicle.
To stop the alarm, press any button

on the wireless remote control.

NOTICE

■

To prevent key damage

●

Do not drop the keys, subject

them to strong shocks or bend

them.

●

Do not expose the keys to high

temperatures for long periods of

time.

●

Do not get the keys wet or wash

them in an ultrasonic washer

etc.

●

Do not attach metallic or mag-

netic materials to the keys or

place the keys close to such

materials.

●

Do not disassemble the keys.

●

Do not attach a sticker or any-

thing else to the surface of the

key.

●

Do not place the keys near

objects that produce magnetic

fields, such as TVs, audio sys-

tems and induction cookers, or

medical electrical equipment,

such as low-frequency therapy

equipment.

■

Carrying the electronic key

on your person

Carry the electronic key 3.9 in.

(10 cm) or more away from elec-

tric appliances that are turned on.

Radio waves emitted from electric

appliances within 3.9 in. (10 cm)

of the electronic key may interfere

with the key, causing the key to

not function properly.

■

In case of a smart key system

malfunction or other

key-related problems



P.504

■

When an electronic key is lost



P.504

Wireless remote control

100

3-1. Key information

COROLLA H/B_U

To take out the mechanical key,
push the release button and
take the key out.

The mechanical key can only be
inserted in one direction, as the
key only has grooves on one
side. If the key cannot be
inserted in a lock cylinder, turn it
over and re-attempt to insert it.

After using the mechanical key,
store it in the electronic key.
Carry the mechanical key
together with the electronic key.
If the electronic key battery is
depleted or the entry function
does not operate properly, you
will need the mechanical key.
(



P.504)

■

If you lose your mechanical
keys



P.504

■

If a wrong key is used

The key cylinder rotates freely, iso-
lated from the internal mechanism.

Using the mechanical key

101

3-2. Opening, closing and locking the doors

COROLLA H/B_U

3

Before driving

3-2.Opening, closing and locking the doors

■

Smart key system

Carry the electronic key to
enable this function.

1

Grip the driver’s door handle
to unlock the door. Holding
the driver’s door handle for
approximately 2 seconds
unlocks all the doors. Grip
the front passenger’s door
handle to unlock all the

doors.

*

Make sure to touch the sensor on
the back of the handle.

The doors cannot be unlocked for 3
seconds after the doors are locked.

*

: The door unlock settings can be

changed. (



P.101, 535)

2

Touch the lock sensor (the
indentation on the side of the
front door handle) to lock all
the doors.

Check that the door is securely
locked.

■

Wireless remote control

1

Locks all the doors

Check that the door is securely
locked.

2

Unlocks all the doors

Pressing the button unlocks the
driver’s door. Pressing the button
again within 5 seconds unlocks the
other doors.

Press and hold to open the win-

dows.

*

*

: This setting must be customized

at your Toyota dealer.

■

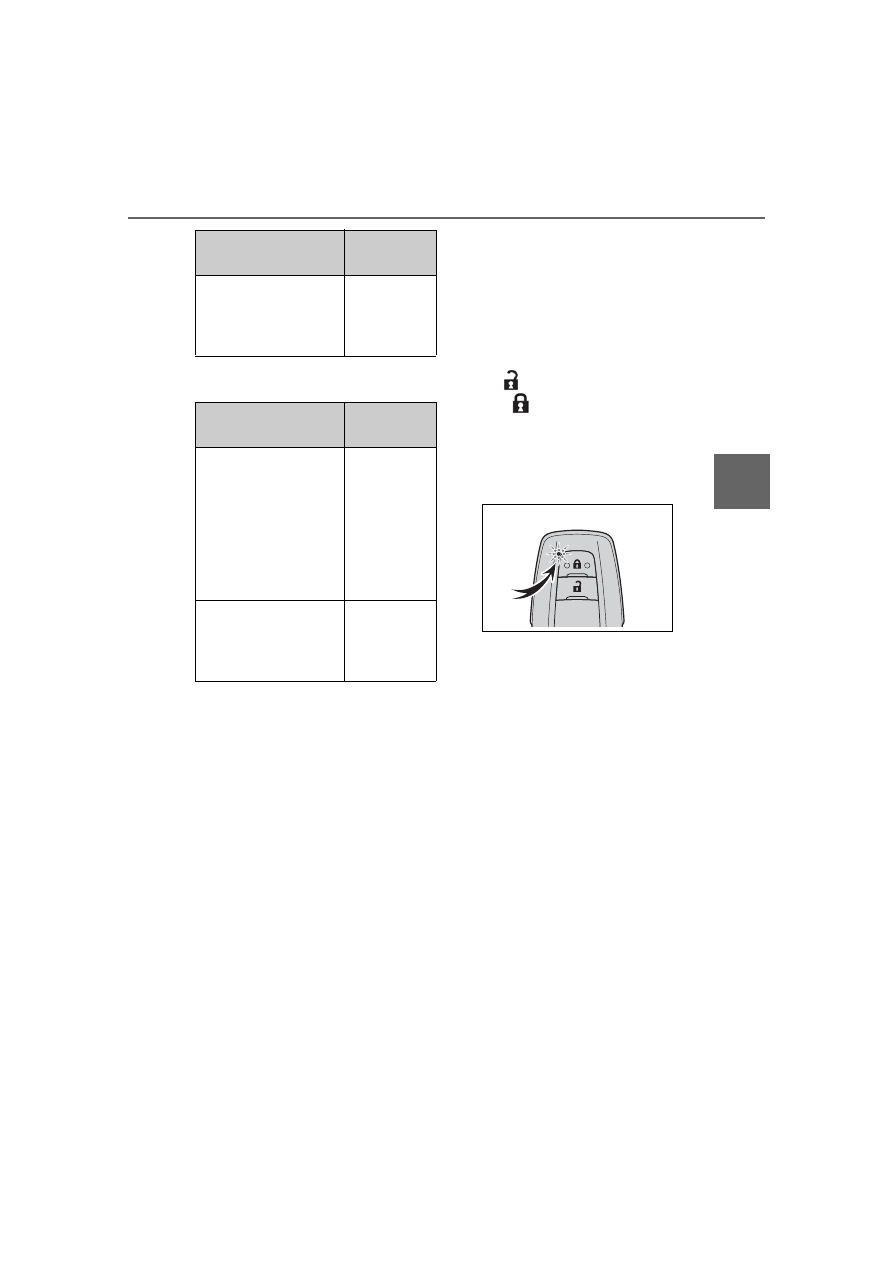

Switching the door unlock func-
tion

It is possible to set which doors the
entry function unlocks using the
wireless remote control.

1

Turn the engine switch off.

2

When the indicator light on the
key surface is not on, press and

hold

 or

 for approxi-

mately 5 seconds while pressing

and holding

.

The setting changes each time an
operation is performed, as shown
below. (When changing the setting
continuously, release the buttons,
wait for at least 5 seconds, and
repeat step

2

.)

Side doors

Unlocking and locking the
doors from the outside

102

3-2. Opening, closing and locking the doors

COROLLA H/B_U

For vehicles with an alarm: To pre-
vent unintended triggering of the
alarm, unlock the doors using the
wireless remote control and open
and close a door once after the set-
tings have been changed. (If a door
is not opened within 60 seconds
after

 is pressed, the doors will

be locked again and the alarm will
automatically be set.)
In case that the alarm is triggered,
immediately stop the alarm. (



P.66)

■

Operation signals

A buzzer sounds and the emer-
gency flashers flash to indicate that
the doors have been
locked/unlocked using the entry
function or wireless remote control.
(Locked: Once; Unlocked: Twice)

A buzzer sounds to indicate that the
windows are operating.

■

Security feature

If a door is not opened within
approximately 60 seconds after the

vehicle is unlocked using the entry
function or wireless remote control,
the security feature automatically
locks the vehicle again.

■

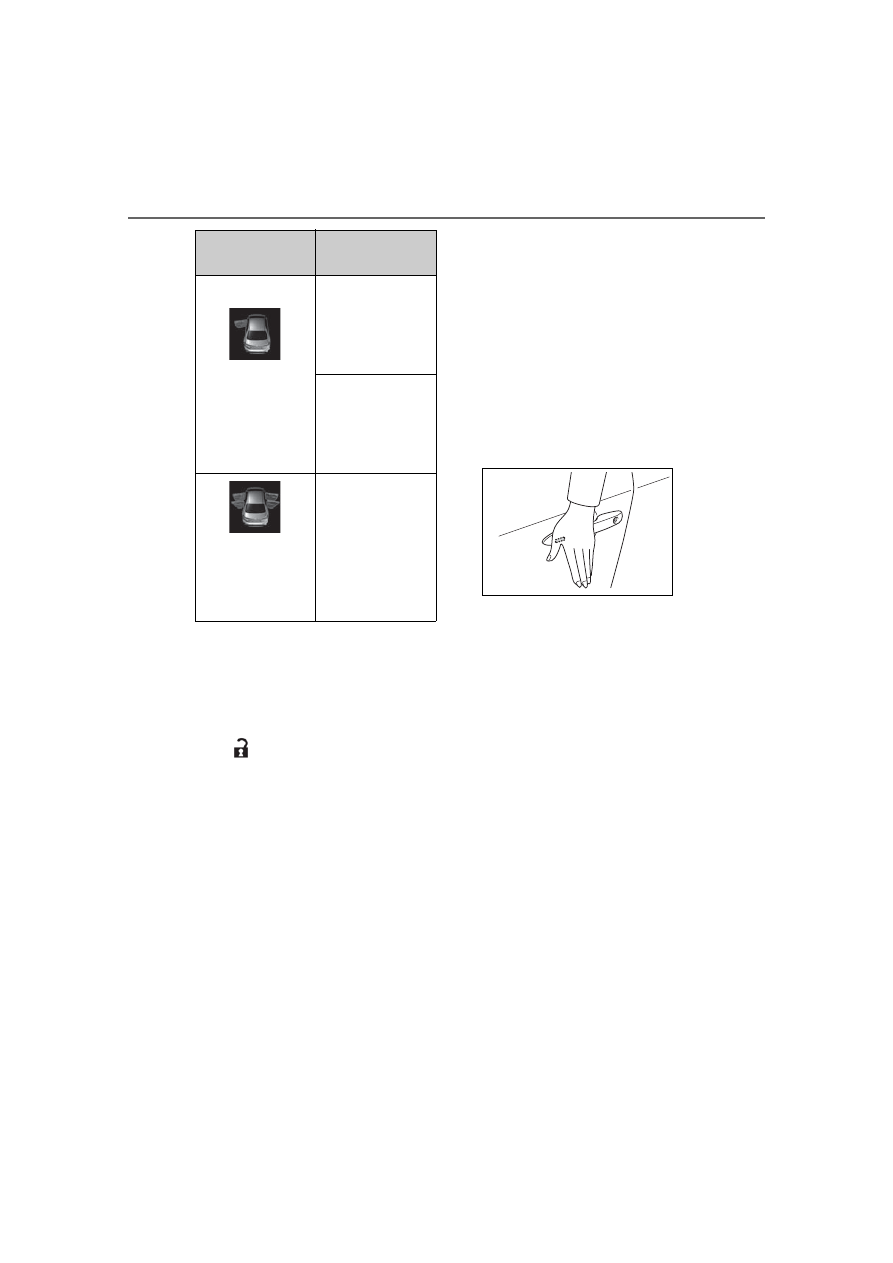

When the door cannot be
locked by the lock sensor on
the surface of the front door
handle

If the doors cannot be locked by
touching the lock sensor with a fin-
ger, touch the lock sensor with the
palm of your hand.

If you are wearing gloves, remove
them.

■

Door lock buzzer

If an attempt to lock the doors using
the entry function or wireless remote
control is made when a door is not
fully closed, a buzzer will sound
continuously for 5 seconds. Fully
close the door to stop the buzzer,
and lock the doors again.

■

Alarm (if equipped)

Locking the doors will set the alarm
system. (



P.66)

■

Conditions affecting the opera-
tion of the smart key system or
wireless remote control



P.109

■

If the smart key system or the
wireless remote control does
not operate properly

Use the mechanical key to lock and
unlock the doors. (



P.504)

Replace the key battery with a new
one if it is depleted. (



P.456)

■

If the battery is discharged

The doors cannot be locked and
unlocked using the smart key sys-

Multi-informa-

tion display/Beep

Unlocking func-

tion

Exterior: Beeps 3

times

Interior: Pings

once

Holding the
driver’s door
handle unlocks
only the driver’s
door.

Holding the front
passenger’s
door handle
unlocks all the
doors.

Exterior: Beeps

twice

Interior: Pings

once

Holding either
front door handle
unlocks all the
doors.

103

3-2. Opening, closing and locking the doors

COROLLA H/B_U

3

Before driving

tem or wireless remote control. Lock

or unlock the doors using the

mechanical key. (



P.504)

■

Customization

Some functions can be customized.

(



P.535)

■

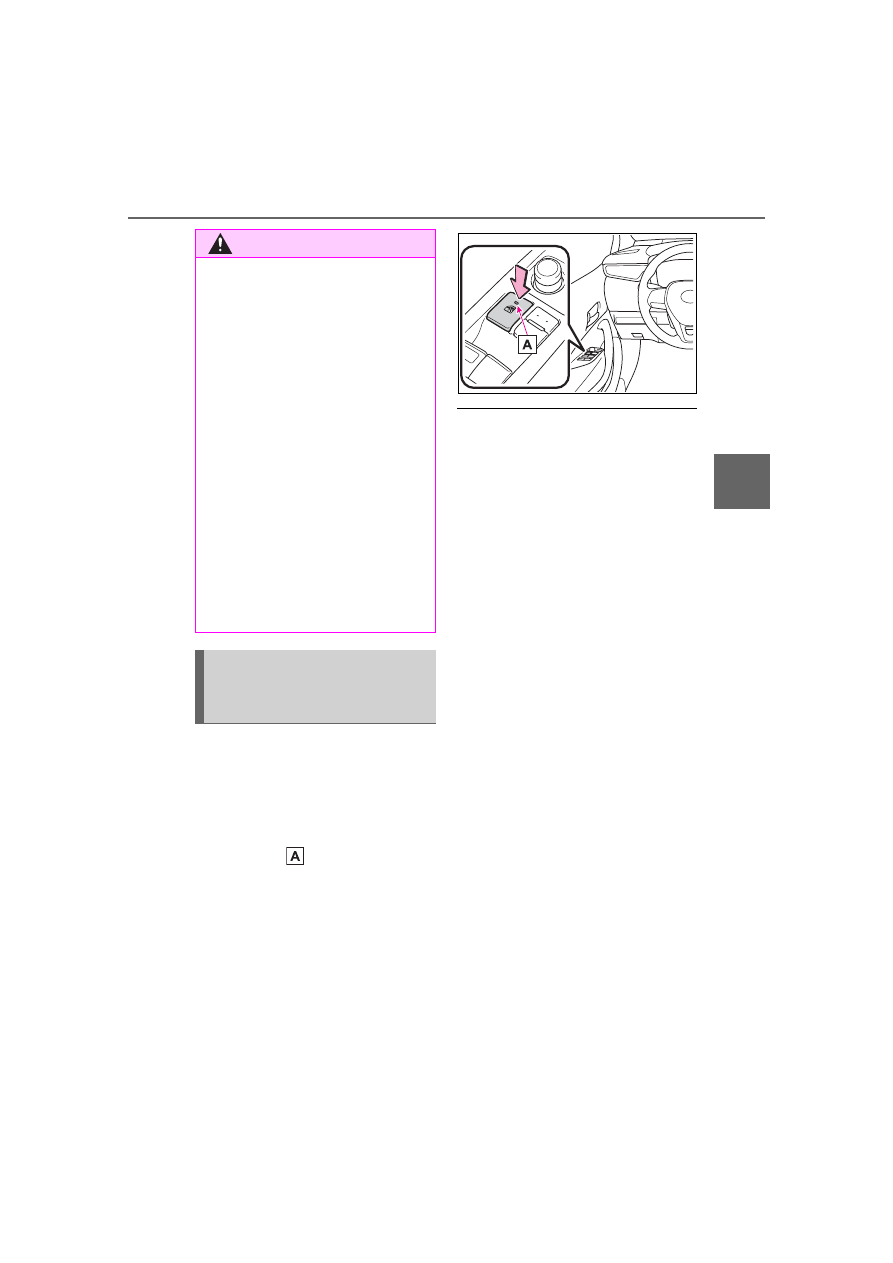

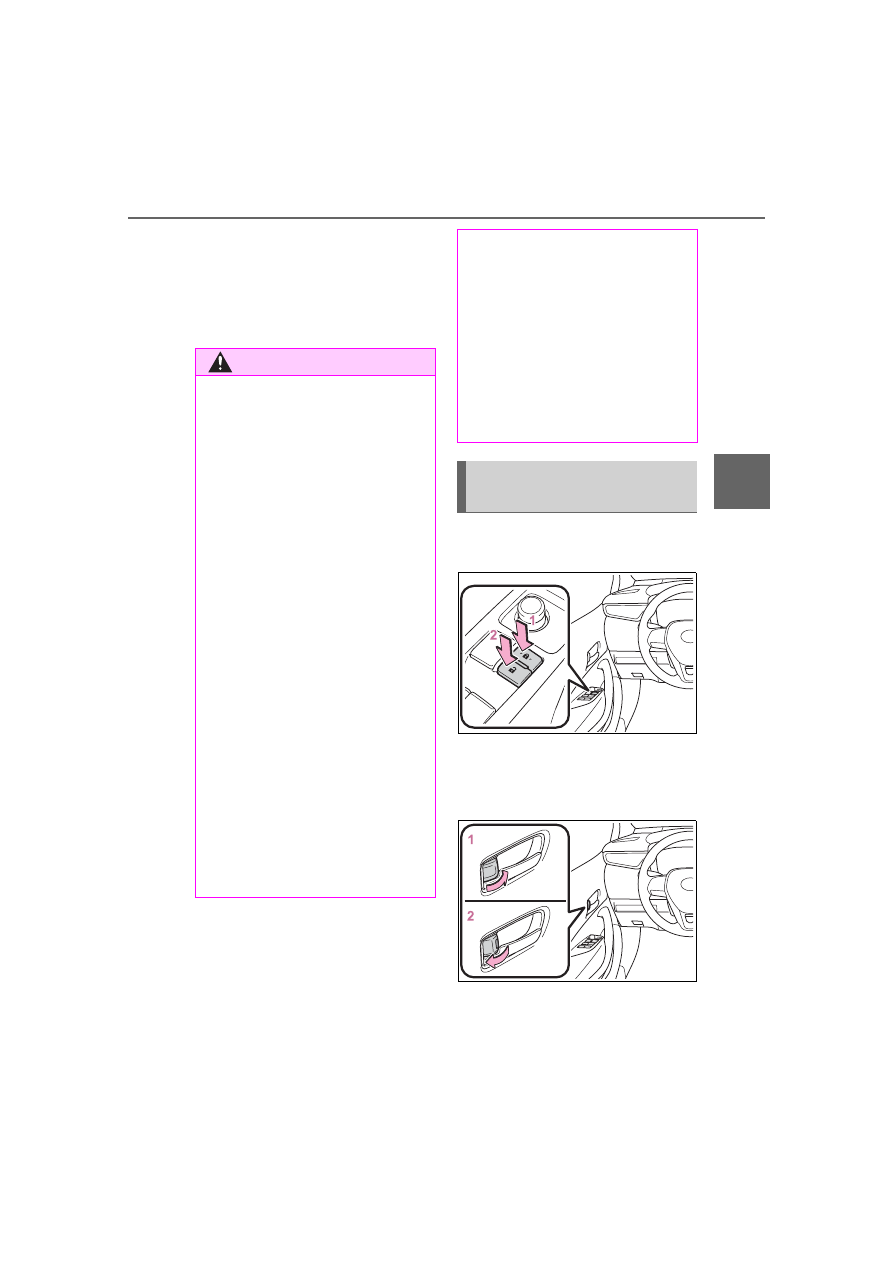

Door lock switches (to

lock/unlock)

1

Locks all the doors

2

Unlocks all the doors

■

Inside lock buttons

1

Locks the door

2

Unlocks the door

WARNING

■

To prevent an accident

Observe the following precautions

while driving the vehicle.

Failure to do so may result in a

door opening and an occupant

being thrown out of the vehicle,

resulting in death or serious injury.

●

Ensure that all doors are prop-

erly closed and locked.

●

Do not pull the inside door han-

dle while driving.

Be especially careful of the front

doors, as the doors may be

opened even if the inside lock

buttons are in the locked posi-

tion.

●

Set the rear door child-protector

locks when children are seated

in the rear seats.

■

When opening or closing a

door

Check the surroundings of the

vehicle such as whether the vehi-

cle is on an incline, whether there

is enough space for a door to

open and whether a strong wind

is blowing. When opening or clos-

ing the door, hold the door handle

tightly to prepare for any unpre-

dictable movement.

■

When using the wireless

remote control and operating

the power windows

Operate the power windows after

checking to make sure that there

is no possibility of any passenger

having any of their body parts

caught in the windows. Also, do

not allow children to operate the

wireless remote control. It is pos-

sible for children and other pas-

sengers to get caught in the

power windows.

Unlocking and locking the

doors from the inside

104

3-2. Opening, closing and locking the doors

COROLLA H/B_U

The front doors can be opened by

pulling the inside handle even if the

lock buttons are in the lock position.

■

Locking the front doors from

the outside without a key

1

Move the inside lock button to

the lock position.

2

Close the door.

The door cannot be locked if the

engine switch is in ACC or ON, or

the electronic key is left inside the

vehicle.
The key may not be detected cor-

rectly and the door may be locked.

■

Open door warning buzzer

If a door or the back door is not fully

closed, a buzzer will sound when

the vehicle speed reaches 3 mph (5

km/h).
The open door(s) or back door is

indicated on the multi-information

display.

The door cannot be opened

from inside the vehicle when

lock is set.

1

Unlock

2

Lock

These locks can be set to prevent

children from opening the rear

doors. Push down on each rear

door switch to lock both rear doors.

The following functions can be

set or canceled:

For instructions on customizing,

refer to P.535.

*

: Vehicles with a continuously vari-

able transmission

Rear door child-protector

lock

Automatic door locking

and unlocking systems

Function

Operation

Speed linked

door locking

function

All doors are auto-

matically locked

when vehicle

speed is approxi-

mately 12 mph (20

km/h) or higher.

Shift position

linked door

locking func-
tion

*

All doors are auto-

matically locked

when shifting the

shift lever out of P.

Shift position

linked door

unlocking
function

*

All doors are auto-

matically unlocked

when shifting the

shift lever to P.

Driver’s door

linked door

unlocking

function

All doors are auto-

matically unlocked

when driver’s door

is opened.

105

3-2. Opening, closing and locking the doors

COROLLA H/B_U

3

Before driving

Back door

The back door can be

locked/unlocked and

opened by the following

procedures.

WARNING

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

■

Caution while driving

●

Keep the back door closed

while driving. If the back door is

left open, it may hit near-by

objects while driving or luggage

may be unexpectedly thrown

out, causing an accident.

In addition, exhaust gases may

enter the vehicle, causing death

or a serious health hazard.

Make sure to close the back

door before driving.

●

Before driving the vehicle, make

sure that the back door is fully

closed. If the back door is not

fully closed, it may open unex-

pectedly while driving, causing

an accident.

●

Never let anyone sit in the lug-

gage compartment. In the event

of sudden braking or a collision,

they are susceptible to death or

serious injury.

■

When children are in the vehi-

cle

●

Do not allow children to play in

the luggage compartment.

If a child is accidentally locked

in the luggage compartment,

they could have heat exhaus-

tion or other injuries.

●

Do not allow a child to open or

close the back door.

Doing so may cause the back

door to move unexpectedly, or

cause the child’s hands, head,

or neck to be caught by the

closing back door.

■

Operating the back door

●

Remove any heavy loads, such

as snow and ice, from the back

door before opening it. Failure

to do so may cause the back

door to suddenly shut again

after it is opened.

●

When opening or closing the

back door, thoroughly check to

make sure the surrounding area

is safe.

●

If anyone is in the vicinity, make

sure they are safe and let them

know that the back door is

about to open or close.

●

Use caution when opening or

closing the back door in windy

weather as it may move

abruptly in strong wind.

●

The back door may suddenly

shut if it is not opened fully. It is

more difficult to open or close

the back door on an incline than

on a level surface, so beware of

the back door unexpectedly

opening or closing by itself.

Make sure that the back door is

fully open and secure before

using the luggage compartment.

106

3-2. Opening, closing and locking the doors

COROLLA H/B_U

■

Entry function

1

Press the button to unlock

the back door.

The door cannot be unlocked for 3

seconds after the door is locked.

2

Press the button to lock the

back door.

Check that the door is securely

locked.

■

Wireless remote control



P.101

■

Operation signals



P.102

■

Door lock switches



P.103

■

Open

Raise the back door while push-

WARNING

●

When closing the back door,

take extra care to prevent your

fingers etc. from being caught.

●

When closing the back door,

make sure to press it lightly on

its outer surface. If the back

door handle is used to fully

close the back door, it may

result in hands or arms being

caught.

●

Do not pull on the back door

damper stay to close the back

door, and do not hang on the

back door damper stay. Doing

so may cause hands to be

caught or the back door damper

stay to break, causing an acci-

dent.

●

If a bicycle carrier or similar

heavy object is attached to the

back door, it may suddenly shut

again after being opened, caus-

ing someone’s hands, head or

neck to be caught and injured.

When installing an accessory

part to the back door, using a

genuine Toyota part is recom-

mended.

Unlocking and locking the

back door from the out-

side

Unlocking and locking the

back door from the inside

Opening/closing the back

door

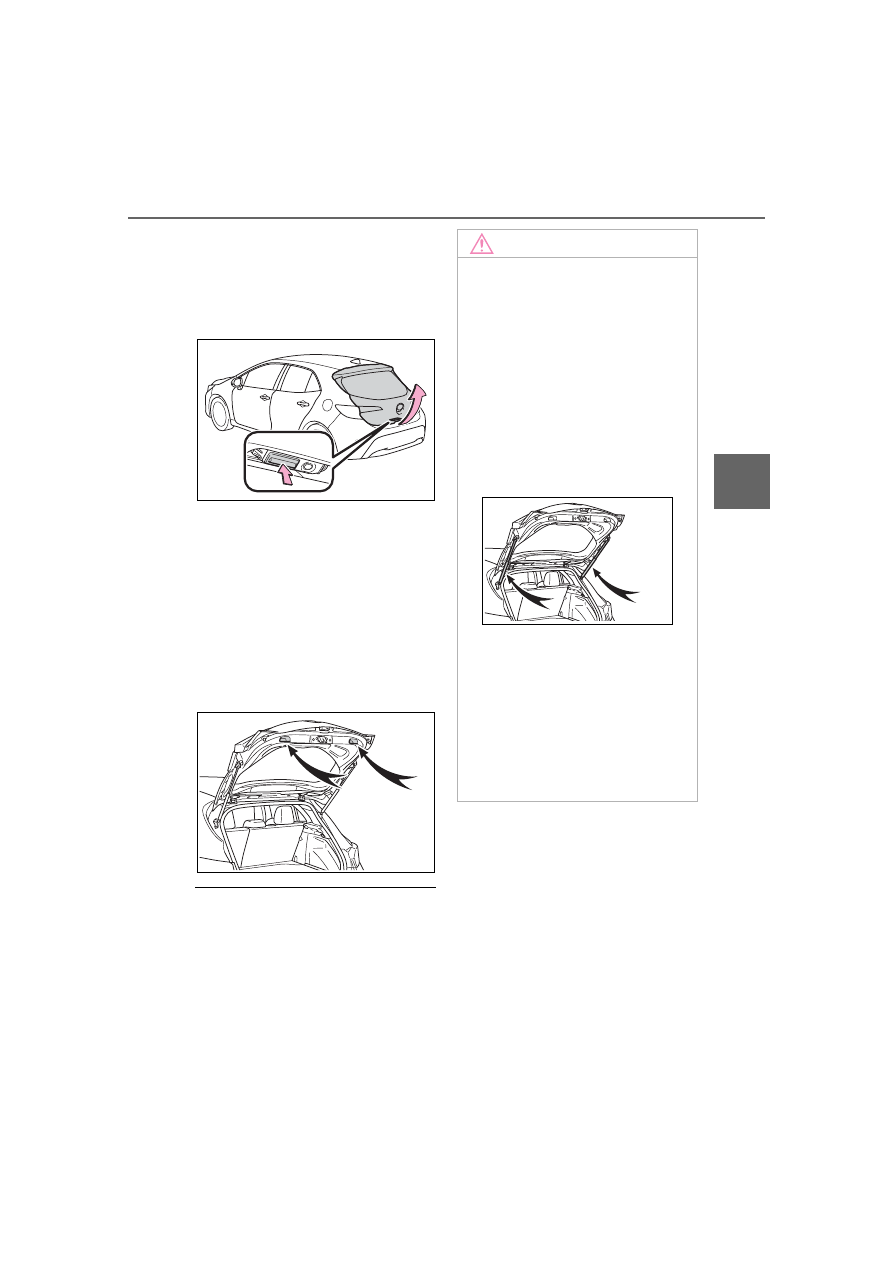

107

3-2. Opening, closing and locking the doors

COROLLA H/B_U

3

Before driving

ing up the back door opener

switch.

The back door cannot be closed

immediately after the back door

opener switch is pushed.

■

Close

Lower the back door using the

back door handle, and make

sure to push the back door

down from the outside to close

it.
Be careful not to pull the back

door sideways when closing the

back door with the handle.

■

Open door warning buzzer



P.104

■

Luggage compartment light

The luggage compartment light

turns on when the back door is

opened.

NOTICE

■

Back door damper stays

The back door is equipped with

damper stays that hold the back

door in place.
Observe the following precau-

tions.

Failure to do so may cause dam-

age to the back door damper stay,

resulting in malfunction.

●

Do not attach any foreign

objects, such as stickers, plastic

sheets, or adhesives to the

damper stay rod.

●

Do not touch the damper stay

rod with gloves or other fabric

items.

●

Do not attach any accessories

other than genuine Toyota parts

to the back door.

●

Do not place your hand on the

damper stay or apply lateral

forces to it.

108

3-2. Opening, closing and locking the doors

COROLLA H/B_U

■

Antenna location

Antennas outside the cabin

Antennas inside the cabin

Antenna inside the luggage
compartment

Antenna outside the luggage
compartment

■

Effective range (areas within
which the electronic key is
detected)

When locking or unlocking the
doors

The system can be operated when
the electronic key is within about 2.3
ft. (0.7 m) of an outside front door
handle and back door. (Only the
doors detecting the key can be
operated.)

When starting the engine or
changing engine switch modes

The system can be operated when
the electronic key is inside the vehi-
cle.

■

Alarms and warning messages

A combination of exterior and inte-
rior buzzers as well as warning mes-
sages shown on the
multi-information display are used to
prevent theft of the vehicle and acci-
dents resulting from erroneous
operation. Take appropriate mea-
sures based on the displayed mes-
sage. (



P.482)

When only an alarm sounds, cir-
cumstances and correction proce-
dures are as follows.

●

Exterior buzzer sounds once for 5
seconds

Smart key system

The following operations
can be performed simply by
carrying the electronic key
on your person, for example
in your pocket. The driver
should always carry the
electronic key.



Locks and unlocks the
doors (



P.101)



Locks and unlocks the back
door (



P.106)



Starts the engine (



P.142)

109

3-2. Opening, closing and locking the doors

COROLLA H/B_U

3

Before driving

●

Interior buzzer sounds continu-
ously

■

Battery-saving function

The battery-saving function will be
activated in order to prevent the
electronic key battery and the vehi-
cle battery from being discharged
while the vehicle is not operated for
a long time.

●

In the following situations, the
smart key system may take some
time to unlock the doors.

• The electronic key has been left

within approximately 11 ft. (3.5 m)
of the outside of the vehicle for 2
minutes or longer.

• The smart key system has not

been used for 5 days or longer.

●

If the smart key system has not
been used for 14 days or longer,
the doors cannot be unlocked
from any door except the driver’s
door. In this case, hold the driver’s
door handle, or use the wireless

remote control or mechanical key
to unlock the doors.

■

Electronic key battery-saving
function

When battery-saving mode is set,
battery depletion is minimized by
stopping the electronic key from
receiving radio waves.

Press

 twice while pressing and

holding

. Confirm that the elec-

tronic key indicator flashes 4 times.

While the battery-saving mode is
set, the smart key system cannot be
used. To cancel the function, press
any of the electronic key buttons.

■

Conditions affecting operation

The smart key system uses weak
radio waves. In the following situa-
tions, the communication between
the electronic key and the vehicle
may be affected, preventing the
smart key system, wireless remote
control and engine immobilizer sys-
tem from operating properly.

●

When the electronic key battery is
depleted

●

Near a TV tower, electric power
plant, gas station, radio station,
large display, airport or other facil-
ity that generates strong radio
waves or electrical noise

●

When carrying a portable radio,
cellular phone, cordless phone or
other wireless communication
device

●

When the electronic key is in con-
tact with, or is covered by the fol-
lowing metallic objects

• Cards to which aluminum foil is

attached

Situation

Correction

procedure

An attempt was
made to lock the
vehicle while a door
was open.

Close all of
the doors
and lock the
doors again.

Situation

Correction

procedure

The engine switch
was turned to ACC
while the driver’s
door was open (or
the driver’s door was
opened while the
engine switch was in
ACC).

Turn the
engine
switch off
and close
the driver’s
door.

The engine switch
was turned to off
while the driver’s
door was open.

Close the
driver’s door

110

3-2. Opening, closing and locking the doors

COROLLA H/B_U

• Cigarette boxes that have alumi-

num foil inside

• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs

●

When other wireless keys (that
emit radio waves) are being used
nearby

●

When carrying the electronic key
together with the following devices
that emit radio waves

• Another vehicle’s electronic key or

a wireless key that emits radio
waves

• Personal computers or personal

digital assistants (PDAs)

• Digital audio players
• Portable game systems

●

If window tint with a metallic con-
tent or metallic objects are
attached to the rear window

●

When the electronic key is placed
near a battery charger or elec-
tronic devices

●

When the vehicle is parked in a
pay parking spot where radio
waves are emitted

If the doors cannot be
locked/unlocked using the smart key
system, lock/unlock the doors by
performing any of the following:

●

Bring the electronic key close to
either front door handle and oper-
ate the entry function.

●

Operate the wireless remote con-
trol.

If the doors cannot be
locked/unlocked using the above
methods, use the mechanical key.
(



P.504)

If the engine cannot be started using
the smart key system, refer to
P.505.

■

Note for the entry function

●

Even when the electronic key is
within the effective range (detec-
tion areas), the system may not
operate properly in the following

cases:

• The electronic key is too close to

the window or outside door han-
dle, near the ground, or in a high
place when the doors are locked
or unlocked.

• The electronic key is on the instru-

ment panel, luggage cover or
floor, or in the door pockets or
glove box when the engine is
started or engine switch modes
are changed.

●

Do not leave the electronic key on
top of the instrument panel or near
the door pockets when exiting the
vehicle. Depending on the radio
wave reception conditions, it may
be detected by the antenna out-
side the cabin and the door will
become lockable from the outside,
possibly trapping the electronic
key inside the vehicle.

●

As long as the electronic key is
within the effective range, the
doors may be locked or unlocked
by anyone. However, only the
doors detecting the electronic key
can be used to unlock the vehicle.

●

Even if the electronic key is not
inside the vehicle, it may be possi-
ble to start the engine if the elec-
tronic key is near the window.

●

The doors may unlock or lock if a
large amount of water splashes on
the door handle, such as in the
rain or in a car wash when the
electronic key is within the effec-
tive range. (The doors will auto-
matically be locked after
approximately 60 seconds if the
doors are not opened and closed.)

●

If the wireless remote control is
used to lock the doors when the
electronic key is near the vehicle,
there is a possibility that the door
may not be unlocked by the entry
function. (Use the wireless remote
control to unlock the doors.)

●

Touching the door lock or unlock
sensor while wearing gloves may
prevent lock or unlock operation.

111

3-2. Opening, closing and locking the doors

COROLLA H/B_U

3

Before driving

●

When the lock operation is per-
formed using the lock sensor, rec-
ognition signals will be shown up
to two consecutive times. After
this, no recognition signals will be
given.

●

If the door handle becomes wet
while the electronic key is within
the effective range, the door may
lock and unlock repeatedly. In that
case, follow the following correc-
tion procedures to wash the vehi-
cle:

• Place the electronic key in a loca-

tion 6 ft. (2 m) or more away from
the vehicle. (Take care to ensure
that the key is not stolen.)

• Set the electronic key to bat-

tery-saving mode to disable the
smart key system. (



P.109)

●

If the electronic key is inside the
vehicle and a door handle
becomes wet during a car wash, a
message may be shown on the
multi-information display and a
buzzer will sound outside the vehi-
cle. To turn off the alarm, lock all
the doors.

●

The lock sensor may not work
properly if it comes into contact
with ice, snow, mud, etc. Clean
the lock sensor and attempt to
operate it again.

●

A sudden handle operation or a
handle operation immediately
after entering the effective range
may prevent the doors from being
unlocked. Touch the door unlock
sensor and check that the doors
are unlocked before pulling the
door handle again.

●

If there is another electronic key in
the detection area, it may take
slightly longer to unlock the doors
after the door handle is gripped.

■

When the vehicle is not driven
for extended periods

●

To prevent theft of the vehicle, do
not leave the electronic key within
6 ft. (2 m) of the vehicle.

●

The smart key system can be

deactivated in advance. (



P.535)

●

Setting the electronic key to bat-
tery-saving mode helps to reduce
key battery depletion. (



P.109)

■

To operate the system properly

Make sure to carry the electronic
key when operating the system. Do
not get the electronic key too close
to the vehicle when operating the
system from the outside of the vehi-
cle.
Depending on the position and hold-
ing condition of the electronic key,
the key may not be detected cor-
rectly and the system may not oper-
ate properly. (The alarm may go off
accidentally, or the door lock pre-
vention function may not operate.)

■

If the smart key system does
not operate properly

●

Locking and unlocking the doors:



P.504

●

Starting the engine:



P.505

■

Customization

Some functions can be customized.
(



P.535)

■

If the smart key system has
been deactivated in a custom-
ized setting

●

Locking and unlocking the doors:
Use the wireless remote control or
mechanical key. (



P.101, 504)

●

Starting the engine and changing
engine switch modes:



P.505

●

Stopping the engine:



P.143

112

3-2. Opening, closing and locking the doors

COROLLA H/B_U

■

Certification for the smart key system



For vehicles sold in the U.S.A., Hawaii, Guam and Puerto Rico

113

3-2. Opening, closing and locking the doors

COROLLA H/B_U

3

Before driving



For vehicles sold in Canada

114

3-2. Opening, closing and locking the doors

COROLLA H/B_U

WARNING

■

Caution regarding interfer-

ence with electronic devices

●

People with implantable car-

diac pacemakers, cardiac

resynchronization ther-

apy-pacemakers or implantable

cardioverter defibrillators should

keep away from the smart key

system antennas. (



P.108)

The radio waves may affect the

operation of such devices. If

necessary, the entry function

can be disabled. Ask your Toy-

ota dealer for details, such as

the frequency of radio waves

and timing of the emitted radio

waves. Then, consult your doc-

tor to see if you should disable

the entry function.

●

Users of any electrical medical

device other than implantable

cardiac pacemakers, cardiac

resynchronization ther-

apy-pacemakers or implantable

cardioverter defibrillators should

consult the manufacturer of the

device for information about its

operation under the influence of

radio waves.

Radio waves could have unex-

pected effects on the operation

of such medical devices.

Ask your Toyota dealer for details

on disabling the entry function.

115

3-3. Adjusting the seats

COROLLA H/B_U

3

Before driving

3-3.Adjusting the seats



Manual seat

Seat position adjustment

lever
Seatback angle adjustment

lever
Vertical height adjustment

lever (driver’s side only)
Lumbar support adjustment
switch

*

 (driver’s side only)

*

: If equipped



Power seat (driver’s side

only)

Seat position adjustment

switch
Seatback angle adjustment

switch
Seat cushion (front) angle

adjustment switch
Vertical height adjustment

switch
Lumbar support adjustment

switch

Front seats

Adjustment procedure

WARNING

■

When adjusting the seat posi-

tion

●

Take care when adjusting the

seat position to ensure that

other passengers are not

injured by the moving seat.

●

Do not put your hands under the

seat or near the moving parts to

avoid injury.

Fingers or hands may become

jammed in the seat mechanism.

●

Make sure to leave enough

space around the feet so they

do not get stuck.

116

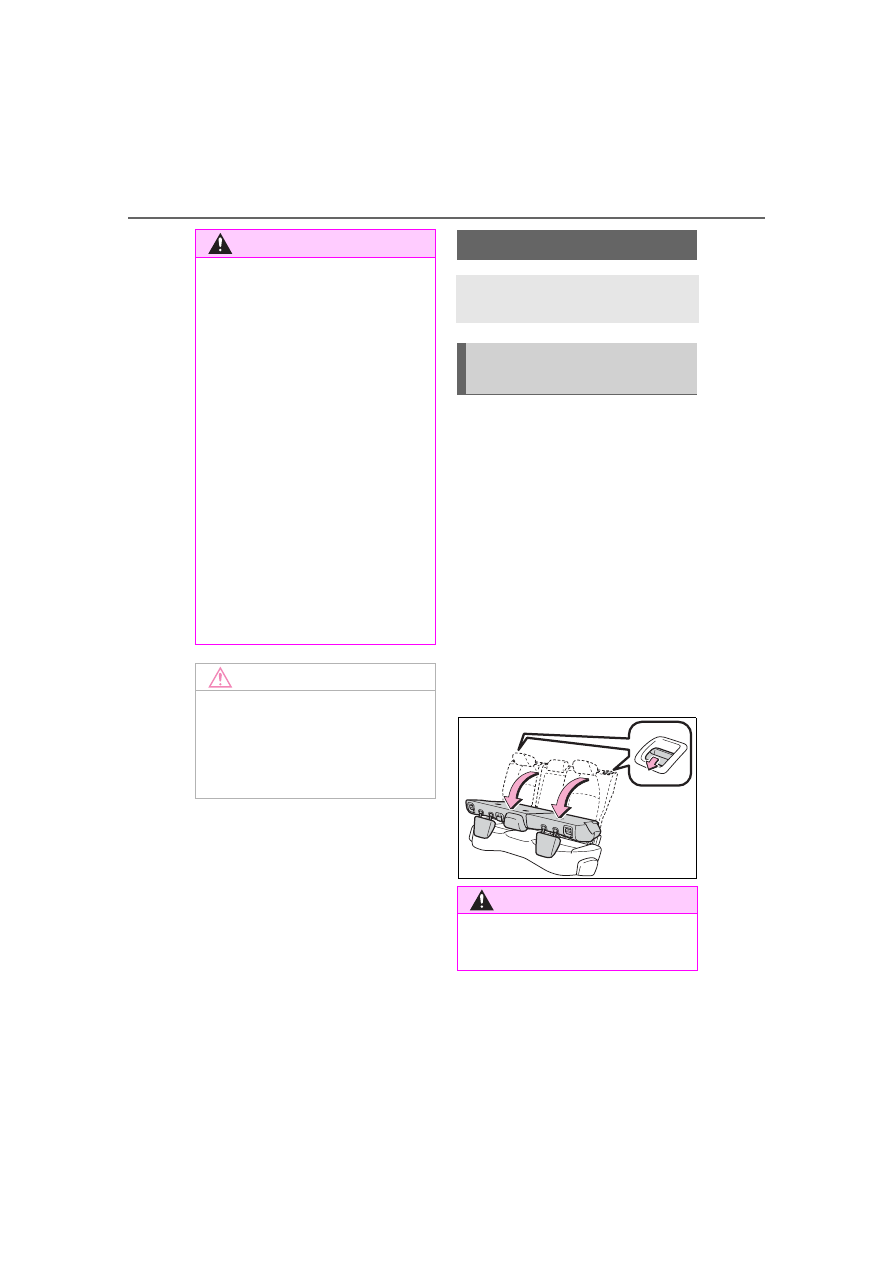

3-3. Adjusting the seats

COROLLA H/B_U

1

Move the front seats forward.

(



P.115)

2

Stow the rear armrest.

(



P.417)

3

Lower the rear center seat

head restraint to the lowest

position. (



P.118)

4

Fold the rear outside seat

head restraints. (



P.118)

5

Pull the seatback lock

release lever and fold the

seatback down.

Each seatback may be folded sep-

arately.

WARNING

■

Seat adjustment

●

Be careful that the seat does

not hit passengers or luggage.

●

To reduce the risk of sliding

under the lap belt during a colli-

sion, do not recline the seat

more than necessary.

If the seat is too reclined, the lap

belt may slide past the hips and

apply restraint forces directly to

the abdomen, or your neck may

contact the shoulder belt,

increasing the risk of death or

serious injury in the event of an

accident.

Adjustments should not be

made while driving as the seat

may unexpectedly move and

cause the driver to lose control

of the vehicle.

●

Manual seat only: After adjust-

ing the seat, make sure that the

seat is locked in position.

NOTICE

■

When adjusting a front seat

When adjusting a front seat, make

sure that the head restraint does

not contact the headliner. Other-

wise, the head restraint and head-

liner may be damaged.

Rear seats

The seatbacks of the rear

seats can be folded down.

Folding down the rear

seatbacks

WARNING

Observe the following precau-

tions. Failure to do so may result

in death or serious injury.

117

3-3. Adjusting the seats

COROLLA H/B_U

3

Before driving

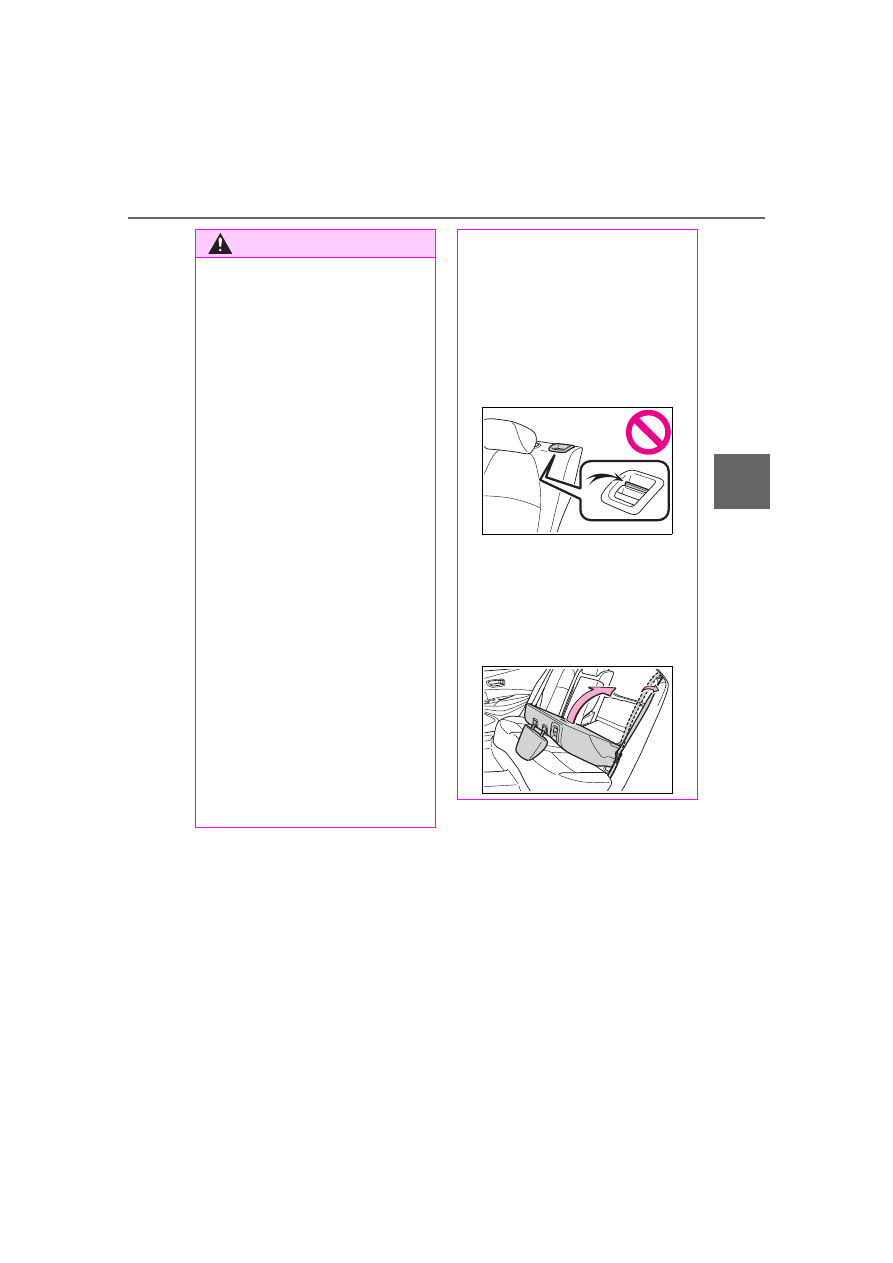

WARNING

■

When folding the rear seat-

backs down

●

Do not fold the seatbacks down

while driving.

●

Stop the vehicle on level

ground, set the parking brake

and shift the shift lever to P

(continuously variable transmis-

sion) or N (manual transmis-

sion).

●

Do not allow anyone to sit on a

folded seatback or in the lug-

gage compartment while driv-

ing.

●

Do not allow children to enter

the luggage compartment.

●

Do not allow anyone to sit on

the rear center seat if the rear

right seat is folded down, as the

seat belt buckle for the rear cen-

ter seat belt is then concealed

under the folded seat and can-

not be used.

●

Be careful not to get your hand

caught when folding the rear

seatbacks.

●

Adjust the position of the front

seats before folding down the

rear seatbacks so that the front

seats do not interfere with the

rear seatbacks when folding

down the rear seatbacks.

■

After returning the rear seat-

back to the upright position

●

Make sure that the seatback is

securely locked in position by

lightly pushing it back and forth.

If the seatback is not securely

locked, the red marking will be

visible on the seatback lock

release lever. Make sure that the

red marking is not visible.

●

Check that the seat belts are

not twisted or caught in the

seatback.

If the seat belt gets caught

between the seatback’s securing

hook and latch, it may damage

the seat belt.

118

3-3. Adjusting the seats

COROLLA H/B_U

■

Front seats

1

Up

Pull the head restraints up.

2

Down

Push the head restraint down while
pressing the lock release button  .

■

Rear outside seats

1

Folding the rear outside seat

head restraints

Pull the head restraint up while

pressing only the right-side lock
release button   and then fold it

forward.

2

Setting up the rear outside

seat head restraints

Fold back the head restraint and

then push it down to the lock posi-

tion.

■

Rear center seat

1

Up

Pull the head restraint up.

2

Down

Push the head restraint down while
pressing the lock release button  .

■

Adjusting the height of the head

restraints (front seats)

Make sure that the head restraints

are adjusted so that the center of

Head restraints

Head restraints are provided

for all seats.

WARNING

■

Head restraint precautions

Observe the following precautions

regarding the head restraints.

Failure to do so may result in

death or serious injury.

●

Use the head restraints

designed for each respective

seat.

●

Adjust the head restraints to the

correct position at all times.

●

After adjusting the head

restraints, push down on them

and make sure they are locked

in position.

●

Do not drive with the head

restraints removed.

Adjusting a head restraint

119

3-3. Adjusting the seats

COROLLA H/B_U

3

Before driving

the head restraint is closest to the
top of your ears.

■

Adjusting the rear center seat
head restraint

Always raise the head restraint one
level from the stowed position when
using.

■

Front seats

Pull the head restraint up while
pressing the lock release button

.

■

Rear outside seats

Pull the head restraint up while
pressing the lock release but-

tons .

■

Rear center seat

Pull the head restraint up while
pressing the lock release button

.

■

Front seats

Align the head restraint with the
installation holes and push it
down to the lock position.

Press and hold the lock release

button

 when lowering the head

restraint.

Removing the head
restraints

Installing the head
restraints

120

3-3. Adjusting the seats

COROLLA H/B_U

■

Rear outside seats

Align the head restraint with the
installation holes and push it
down to the lock position.

■

Rear center seat

Align the head restraint with the
installation holes and push it
down to the lock position.

Press and hold the lock release

button

 when lowering the head

restraint.

121

3-4. Adjusting the steering wheel and mirrors

COROLLA H/B_U

3

Before driving

3-4.Adjusting the steering wheel and mirrors

1

Hold the steering wheel and

push the lever down.

2

Adjust to the ideal position by

moving the steering wheel

horizontally and vertically.

After adjustment, pull the lever up

to secure the steering wheel.

To sound the horn, press on or
close to the

 mark.

Steering wheel

Adjustment procedure

WARNING

■

Caution while driving

Do not adjust the steering wheel

while driving.

Doing so may cause the driver to

mishandle the vehicle and cause

an accident, resulting in death or

serious injury.

■

After adjusting the steering

wheel

Make sure that the steering wheel

is securely locked.

Otherwise, the steering wheel

may move suddenly, possibly

causing an accident, and resulting

in death or serious injury. Also,

the horn may not sound if the

steering wheel is not securely

locked.

Horn

122

3-4. Adjusting the steering wheel and mirrors

COROLLA H/B_U

The height of the rear view mir-

ror can be adjusted to suit your

driving posture.
Adjust the height of the rear

view mirror by moving it up and

down.

Reflected light from the head-

lights of vehicles behind can be

reduced by operating the lever.

Normal position
Anti-glare position

Inside rear view mirror

The rear view mirror’s posi-

tion can be adjusted to

enable sufficient confirma-

tion of the rear view.

Adjusting the height of

rear view mirror

WARNING

■

Caution while driving

Do not adjust the position of the

mirror while driving.

Doing so may lead to mishandling

of the vehicle and cause an acci-

dent, resulting in death or serious

injury.

Anti-glare function

123

3-4. Adjusting the steering wheel and mirrors

COROLLA H/B_U

3

Before driving

1

To select a mirror to adjust,

turn the switch.

Left
Right

2

To adjust the mirror, operate

the switch.

Up
Right
Down
Left

■

Mirror angle can be adjusted

when

The engine switch is in ACC or ON.

■

When the mirrors are fogged up

The outside rear view mirrors can

be cleared using the mirror defog-

gers. Turn on the rear window

defogger to turn on the outside rear

view mirror defoggers. (



P.395)

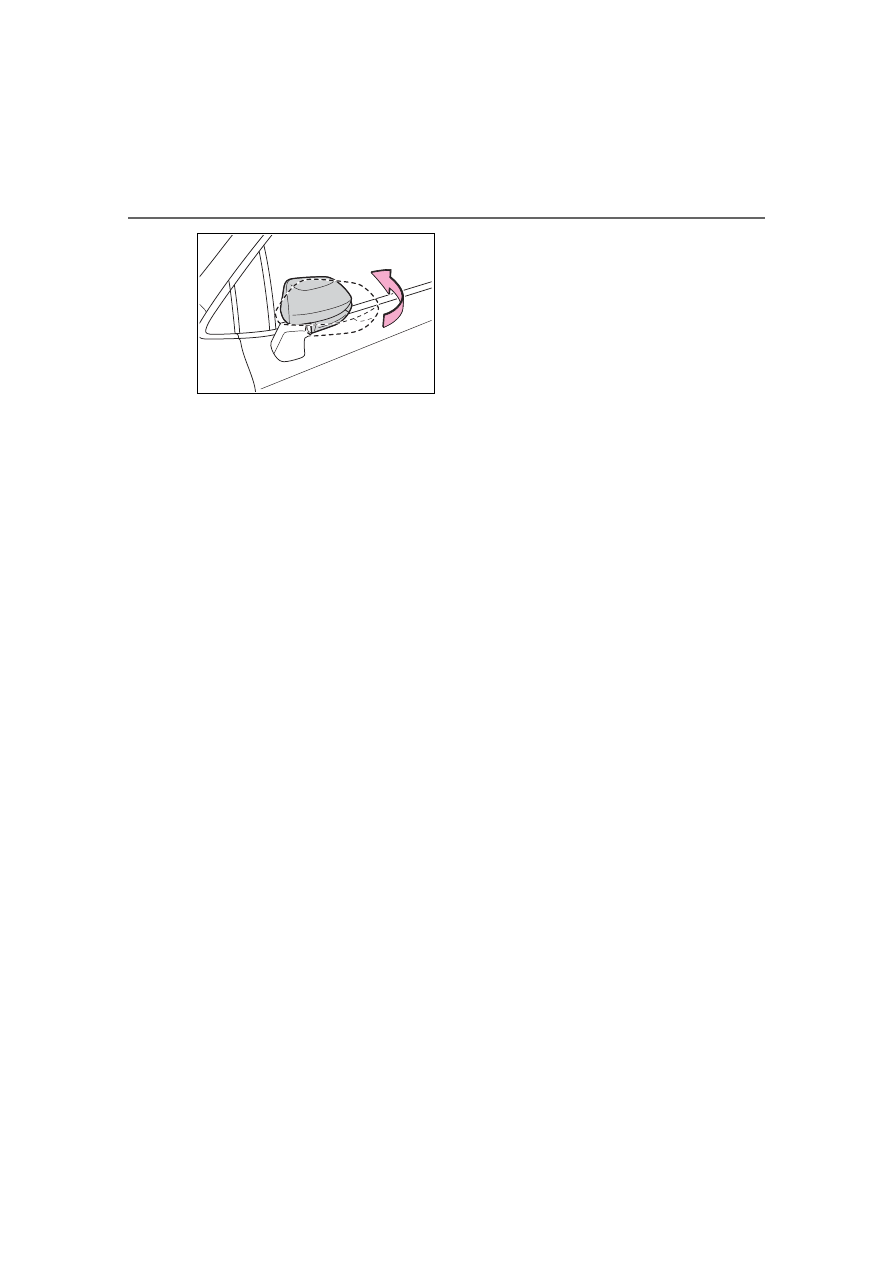

Push the mirror back in the

direction of the vehicle’s rear.

Outside rear view mir-

rors

The rear view mirror’s posi-

tion can be adjusted to

enable sufficient confirma-

tion of the rear view.

WARNING

■

Important points while driving

Observe the following precautions

while driving.

Failure to do so may result in loss

of control of the vehicle and cause

an accident, resulting in death or

serious injury.

●

Do not adjust the mirrors while

driving.

●

Do not drive with the mirrors

folded.

●

Both the driver and passenger

side mirrors must be extended

and properly adjusted before

driving.

Adjustment procedure

WARNING

■

When the mirror defoggers

are operating

Do not touch the rear view mirror

surfaces, as they can become

very hot and burn you.

Folding and extending the

mirrors

124

3-4. Adjusting the steering wheel and mirrors

COROLLA H/B_U

125

3-5. Opening and closing the windows

COROLLA H/B_U

3

Before driving

3-5.Opening and closing the windows

The power windows can be
opened and closed using the
switches.
Operating the switch moves the
windows as follows:

1

Closing

2

One-touch closing

*

3

Opening

4

One-touch opening

*

*

: To stop the window partway,

operate the switch in the opposite
direction.

■

The power windows can be
operated when

The engine switch is in ON.

■

Operating the power windows
after turning the engine off

The power windows can be oper-
ated for approximately 45 seconds
after the engine switch is turned to
ACC or OFF. They cannot, however,
be operated once either front door is
opened.

■

Jam protection function

If an object becomes jammed
between the window and the win-

dow frame while the window is clos-
ing, window movement is stopped
and the window is opened slightly.

■

Catch protection function

If an object becomes caught
between the door and window while
the window is opening, window
movement is stopped.

■

When the window cannot be
opened or closed

When the jam protection function or
catch protection function operates
unusually and the door window can-
not be opened or closed, perform
the following operations with the
power window switch of that door.

●

Stop the vehicle. With the engine
switch in ON, within 4 seconds of
the jam protection function or
catch protection function activat-
ing, continuously operate the
power window switch in the
one-touch closing direction or
one-touch opening direction so
that the door window can be
opened and closed.

●

If the door window cannot be
opened and closed even when
performing the above operations,
perform the following procedure
for function initialization.

1

Turn the engine switch to ON.

2

Pull and hold the power window
switch in the one-touch closing
direction and completely close
the door window.

3

Release the power window
switch for a moment, resume
pulling the switch in the
one-touch closing direction, and
hold it there for approximately 6
seconds or more.

4

Press and hold the power win-
dow switch in the one-touch
opening direction. After the door
window is completely opened,
continue holding the switch for
an additional 1 second or more.

5

Release the power window
switch for a moment, resume

Power windows

Opening and closing the
power windows

126

3-5. Opening and closing the windows

COROLLA H/B_U

pushing the switch in the

one-touch opening direction, and

hold it there for approximately 4

seconds or more.

6

Pull and hold the power window

switch in the one-touch closing

direction again. After the door

window is completely closed,

continue holding the switch for a

further 1 second or more.

If you release the switch while the

window is moving, start again from

the beginning.

If the window reverses and cannot

be fully closed or opened, have the

vehicle inspected by your Toyota

dealer.

■

Door lock linked window opera-

tion

●

The power windows can be

opened and closed using the

mechanical key.

*

 (



P.505)

●

The power windows can be

opened using the wireless remote

control.

*

 (



P.101)

*

: These settings must be custom-

ized at your Toyota dealer.

■

Power windows open warning

buzzer

A buzzer sounds and a message is

shown on the multi-information dis-

play in the instrument cluster when

the engine switch is turned off and

the driver’s door is opened with the

power windows open.

■

Customization

Some functions can be customized.

(



P.535)

WARNING

Observe the following precau-

tions. Failure to do so may result

in death or serious injury.

■

Closing the windows

●

The driver is responsible for all

the power window operations,

including the operation for the

passengers. In order to prevent

accidental operation, especially

by a child, do not let a child

operate the power windows. It is

possible for children and other

passengers to have body parts

caught in the power window.

Also, when riding with a child, it

is recommended to use the win-

dow lock switch. (



P.127)

●

Check to make sure that all pas-

sengers do not have any part of

their body in a position where it

could be caught when a window

is being operated.

●

When using the wireless remote

control or mechanical key and

operating the power windows,

operate the power window after

checking to make sure that

there is no possibility of any

passenger having any of their

body parts caught in the win-

dow. Also do not let a child

operate window by the wireless

remote control or mechanical

key. It is possible for children

and other passengers to get

caught in the power window.

●

When exiting the vehicle, turn

the engine switch off, carry the

key and exit the vehicle along

with the child. There may be

accidental operation, due to

mischief, etc., that may possibly

lead to an accident.

127

3-5. Opening and closing the windows

COROLLA H/B_U

3

Before driving

This function can be used to

prevent children from acciden-

tally opening or closing a pas-

senger window.
Press the switch.

The indicator   will come on and

the passenger windows will be

locked.
The passenger windows can still be

opened and closed using the

driver’s switch even if the lock

switch is on.

■

The power windows can be

operated when

The engine switch is in ON.

■

When the battery is discon-

nected

The window lock switch is disabled.

If necessary, press the window lock

switch after reconnecting the bat-

tery.

WARNING

■

Jam protection function

●

Never use any part of your body

to intentionally activate the jam

protection function.

●

The jam protection function may

not work if something gets

jammed just before the window

is fully closed. Be careful not to

get any part of your body

jammed in the window.

■

Catch protection function

●

Never use any part of your body

or clothing to intentionally acti-

vate the catch protection func-

tion.

●

The catch protection function

may not work if something gets

caught just before the window is

fully opened. Be careful not to

get any part of your body or

clothing caught in the window.

Preventing accidental

operation (window lock

switch)

128

3-5. Opening and closing the windows

COROLLA H/B_U

129

COROLLA H/B_U

4

4

Dr
iv

ing

Driving

.

4-1. Before driving

Driving the vehicle.......

130

Cargo and luggage .....

138

Vehicle load limits .......

140

Trailer towing...............

141

Dinghy towing .............

141

4-2. Driving procedures

Engine (ignition) switch

..................................

142

Continuously variable trans-

mission ......................

147

Manual transmission ...

151

Turn signal lever..........

153

Parking brake ..............

154

Brake Hold ..................

157

4-3. Operating the lights and

wipers

Headlight switch ..........

160

Automatic High Beam .

163

Fog light switch ...........

166

Windshield wipers and

washer.......................

166

Rear window wiper and

washer.......................

168

4-4. Refueling

Opening the fuel tank cap

..................................

170

4-5. Using the driving support

systems

Toyota Safety Sense 2.0

..................................

172

PCS (Pre-Collision System)

..................................

178

LTA (Lane Tracing Assist)

..................................

186

LDA (Lane Departure Alert

with steering control) .

196

Dynamic radar cruise con-

trol with full-speed range

..................................

204

Dynamic radar cruise con-

trol .............................

215

RSA (Road Sign Assist)

..................................

225

BSM (Blind Spot Monitor)

..................................

228

RCTA (Rear Cross Traffic

Alert) function ............

233

Rear view monitor system

..................................

238

Driving mode select switch

..................................

245

Driving assist systems

..................................

246

4-6. Driving tips

Winter driving tips........

251

130

4-1. Before driving

COROLLA H/B_U

4-1.Before driving

■

Starting the engine



P.142

■

Driving



Continuously variable trans-
mission

1

With the brake pedal
depressed, shift the shift
lever to D. (



P.147)

2

If the parking brake is in man-
ual mode, release the park-
ing brake. (



P.154)

3

Gradually release the brake
pedal and gently depress the
accelerator pedal to acceler-
ate the vehicle.



Manual transmission

1

While depressing the clutch
pedal, shift the shift lever to
1. (



P.151)

2

If the parking brake is in man-
ual mode, release the park-
ing brake. (



P.154)

3

Gradually release the clutch
pedal. At the same time, gen-
tly depress the accelerator
pedal to accelerate the vehi-
cle.

■

Stopping



Continuously variable trans-
mission

1

With the shift lever in D,
depress the brake pedal.

2

If necessary, set the parking
brake.

If the vehicle is to be stopped for an
extended period of time, shift the
shift lever to P. (



P.147)



Manual transmission

1

While depressing the clutch
pedal, depress the brake
pedal.

2

If necessary, set the parking
brake.

If the vehicle is to be stopped for an
extended period of time, shift the
shift lever to N. (



P.151)

■

Parking the vehicle



Continuously variable trans-
mission

1

With the shift lever in D,
depress the brake pedal to
stop the vehicle completely.

2

Set the parking brake
(



P.154), shift the shift lever

to P. (



P.147)

Check the parking brake indicator
is illuminated.

3

Press the engine switch to
stop the engine.

4

Slowly release the brake
pedal.

5

Lock the door, making sure
that you have the key on your
person.

If parking on a hill, block the wheels

Driving the vehicle

The following procedures
should be observed to
ensure safe driving:

Driving procedure

131

4-1. Before driving

COROLLA H/B_U

4

Dr
iv

ing

as needed.



Manual transmission

1

While depressing the clutch
pedal, depress the brake
pedal.

2

If the parking brake is in man-
ual mode, set the parking
brake. (



P.154)

Check that the parking brake indi-
cator is illuminated.

3

Shift the shift lever to N.
(



P.151)

If parking on a hill, shift the shift
lever to 1 or R and block the wheels
as needed.

4

Press the engine switch to
stop the engine.

5

Slowly release the brake
pedal.

6

Lock the door, making sure
that you have the key on your
person.

■

Starting off on a steep
uphill



Continuously variable trans-
mission

1

Make sure that the parking
brake is set and shift the shift
lever to D.

2

Gently depress the accelera-
tor pedal.

3

Release the parking brake.



Manual transmission

1

Make sure that the parking
brake is set and shift the shift
lever to 1.

2

Lightly depress the accelera-
tor pedal at the same time as
gradually releasing the clutch
pedal.

3

Release the parking brake.

■

Driving in the rain

●

Drive carefully when it is raining,
because visibility will be reduced,
the windows may become
fogged-up, and the road will be
slippery.

●

Drive carefully when it starts to
rain, because the road surface will
be especially slippery.

●

Refrain from high speeds when
driving on an expressway in the
rain, because there may be a
layer of water between the tires
and the road surface, preventing
the steering and brakes from
operating properly.

■

Engine speed while driving
(vehicles with a continuously
variable transmission)

In the following conditions, the
engine speed may become high
while driving. This is due to auto-
matic up-shifting control or
down-shifting implementation to
meet driving conditions. It does not
indicate sudden acceleration.

●

The vehicle is judged to be driving
uphill or downhill

●

When the accelerator pedal is
released

●

When the brake pedal is
depressed while sport mode is
selected

■

Restraining the engine output
(Brake Override System)

●

When the accelerator and brake
pedals are depressed at the same
time, the engine output may be
restrained.

●

A warning message is displayed
on the multi-information display

132

4-1. Before driving

COROLLA H/B_U

while the system is operating.

■

Restraining sudden start

(Drive-Start Control [vehicles

with a continuously variable

transmission])

●

When the following unusual oper-

ation is performed, the engine out-

put may be restrained.

• When the shift lever is shifted from

R to D, D to R, N to R, P to D, or P

to R (D includes M) with the accel-

erator pedal depressed, a warning

message appears on the

multi-information display. If a

warning message is shown on the

multi-information display, read the

message and follow the instruc-

tion.

• When the accelerator pedal is

depressed too much while the

vehicle is in reverse.

●

While Drive-Start Control is being

activated, your vehicle may have

trouble escaping from the mud or

fresh snow. In such case, deacti-

vate TRAC (



P.247) to cancel

Drive-Start Control so that the

vehicle may become able to

escape from the mud or fresh

snow.

■

Breaking in your new Toyota

To extend the life of the vehicle,

observing the following precautions

is recommended:

●

For the first 186 miles (300 km):

Avoid sudden stops.

●

For the first 621 miles (1000 km):

• Do not drive at extremely high

speeds.

• Avoid sudden acceleration.

• Do not drive continuously in low

gears.

• Do not drive at a constant speed

for extended periods.

■

Operating your vehicle in a for-

eign country

Comply with the relevant vehicle

registration laws and confirm the

availability of the correct fuel.

(



P.515)

WARNING

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

■

When starting the vehicle

(vehicles with a continuously

variable transmission)

Always keep your foot on the

brake pedal while stopped with

the engine running. This prevents

the vehicle from creeping.

■

When driving the vehicle

●

Do not drive if you are unfamil-

iar with the location of the brake

and accelerator pedals to avoid

depressing the wrong pedal.

• Accidentally depressing the

accelerator pedal instead of the

brake pedal will result in sudden

acceleration that may lead to an

accident.

• When backing up, you may twist

your body around, leading to a

difficulty in operating the pedals.

Make sure to operate the pedals

properly.

• Make sure to keep a correct

driving posture even when mov-

ing the vehicle only slightly. This

allows you to depress the brake

and accelerator pedals properly.

• Depress the brake pedal using

your right foot. Depressing the

brake pedal using your left foot

may delay response in an emer-

gency, resulting in an accident.

133

4-1. Before driving

COROLLA H/B_U

4

Dr

iv

ing

WARNING

●

Do not drive the vehicle over or

stop the vehicle near flammable

materials.

The exhaust system and

exhaust gases can be

extremely hot. These hot parts

may cause a fire if there is any

flammable material nearby.

●

During normal driving, do not

turn off the engine. Turning the

engine off while driving will not

cause loss of steering or brak-

ing control, but the power assist

to these systems will be lost.

This will make it more difficult to

steer and brake, so you should

pull over and stop the vehicle as

soon as it is safe to do so.

However, in the event of an

emergency, such as if it

becomes impossible to stop the

vehicle in the normal way:



P.464

●

Use engine braking (downshift)

to maintain a safe speed when

driving down a steep hill.

Using the brakes continuously

may cause the brakes to over-

heat and lose effectiveness.

(



P.147, 151)

●

Do not adjust the positions of

the steering wheel, the seat, or

the inside or outside rear view

mirrors while driving.

Doing so may result in a loss of

vehicle control.

●

Always check that all passen-

gers’ arms, heads or other parts

of their body are not outside the

vehicle.

●

Do not drive in excess of the

speed limit. Even if the legal

speed limit permits it, do not

drive over 85 mph (140 km/h)

unless your vehicle has

high-speed capability tires. Driv-

ing over 85 mph (140 km/h)

may result in tire failure, loss of

control and possible injury. Be

sure to consult a tire dealer to

determine whether the tires on

your vehicle are high-speed

capability tires or not before

driving at such speeds.

■

When driving on slippery

road surfaces

●

Sudden braking, acceleration

and steering may cause tire

slippage and reduce your ability

to control the vehicle.

●

Sudden acceleration, engine

braking due to shifting, or

changes in engine speed could

cause the vehicle to skid.

●

After driving through a puddle,

lightly depress the brake pedal

to make sure that the brakes

are functioning properly. Wet

brake pads may prevent the

brakes from functioning prop-

erly. If the brakes on only one

side are wet and not functioning

properly, steering control may

be affected.

■

When shifting the shift lever

●

Vehicles with a continuously

variable transmission: Do not let

the vehicle roll backward while a

forward driving position is

selected, or roll forward while

the shift lever is in R.

Doing so may cause the engine

to stall or lead to poor brake and

steering performance, resulting

in an accident or damage to the

vehicle.

134

4-1. Before driving

COROLLA H/B_U

WARNING

●

Vehicles with a continuously

variable transmission: Do not

shift the shift lever to P while the

vehicle is moving.

Doing so can damage the trans-

mission and may result in a loss

of vehicle control.

●

Do not shift the shift lever to R

while the vehicle is moving for-

ward.

Doing so can damage the trans-

mission and may result in a loss

of vehicle control.

●

Do not shift the shift lever to a

driving position while the vehicle

is moving backward.

Doing so can damage the trans-

mission and may result in a loss

of vehicle control.

●

Moving the shift lever to N while

the vehicle is moving will disen-

gage the engine from the trans-

mission. Engine braking is not

available when N is selected.

●

Vehicles with a continuously

variable transmission: Be care-

ful not to shift the shift lever with

the accelerator pedal

depressed. Shifting the shift

lever to any positions other than

P or N may lead to unexpected

rapid acceleration of the vehicle

that may cause an accident and

result in death or serious injury.

■

If you hear a squealing or

scraping noise (brake pad

wear indicators)

Have the brake pads checked and

replaced by your Toyota dealer as

soon as possible.
Rotor damage may result if the

pads are not replaced when

needed.

It is dangerous to drive the vehicle

when the wear limits of the brake

pads and/or those of the brake

discs are exceeded.

■

When the vehicle is stopped

●

Do not race the engine.

If the vehicle is in any gear other

than P (continuously variable

transmission) or N, the vehicle

may accelerate suddenly and

unexpectedly, causing an acci-

dent.

●

Vehicles with a continuously

variable transmission: In order

to prevent accidents due to the

vehicle rolling away, always

keep depressing the brake

pedal while the engine is run-

ning, and apply the parking

brake as necessary.

●

If the vehicle is stopped on an

incline, in order to prevent acci-

dents caused by the vehicle roll-

ing forward or backward, always

depress the brake pedal and

securely apply the parking

brake as needed.

●

Avoid revving or racing the

engine.

Running the engine at high

speed while the vehicle is

stopped may cause the exhaust

system to overheat, which could

result in a fire if combustible

material is nearby.

■

When the vehicle is parked

●

Do not leave glasses, cigarette

lighters, spray cans, or soft

drink cans in the vehicle when it

is in the sun.

Doing so may result in the fol-

lowing:

• Gas may leak from a cigarette

lighter or spray can, and may

lead to a fire.

135

4-1. Before driving

COROLLA H/B_U

4

Dr

iv

ing

WARNING

• The temperature inside the

vehicle may cause the plastic

lenses and plastic material of

glasses to deform or crack.

• Soft drink cans may fracture,

causing the contents to spray

over the interior of the vehicle,

and may also cause a short cir-

cuit in the vehicle’s electrical

components.

●

Do not leave cigarette lighters in

the vehicle. If a cigarette lighter

is in a place such as the glove

box or on the floor, it may be lit

accidentally when luggage is

loaded or the seat is adjusted,

causing a fire.

●

Do not attach adhesive discs to

the windshield or windows. Do

not place containers such as air

fresheners on the instrument

panel or dashboard. Adhesive

discs or containers may act as

lenses, causing a fire in the

vehicle.

●

Do not leave a door or window

open if the curved glass is

coated with a metallized film

such as a silver-colored one.

Reflected sunlight may cause

the glass to act as a lens, caus-

ing a fire.

●

Always apply the parking brake,

shift the shift lever to P (vehicles

with a continuously variable

transmission), stop the engine

and lock the vehicle.

Do not leave the vehicle unat-

tended while the engine is run-

ning.

If the vehicle is parked with the

shift lever in P but the parking

brake is not set, the vehicle may

start to move, possibly leading

to an accident.

●

Do not touch the exhaust pipes

while the engine is running or

immediately after turning the

engine off.

Doing so may cause burns.

■

When taking a nap in the vehi-

cle

Always turn the engine off. Other-

wise, if you accidentally move the

shift lever or depress the acceler-

ator pedal, this could cause an

accident or fire due to engine

overheating. Additionally, if the

vehicle is parked in a poorly venti-

lated area, exhaust gases may

collect and enter the vehicle, lead-

ing to death or a serious health

hazard.

■

When braking

●

When the brakes are wet, drive

more cautiously.

Braking distance increases

when the brakes are wet, and

this may cause one side of the

vehicle to brake differently than

the other side. Also, the parking

brake may not securely hold the

vehicle.

●

If the brake booster device does

not operate, do not follow other

vehicles closely and avoid hills

or sharp turns that require brak-

ing.

In this case, braking is still pos-

sible, but the brake pedal

should be depressed more

firmly than usual. Also, the brak-

ing distance will increase. Have

your brakes fixed immediately.

●

Do not pump the brake pedal if

the engine stalls.

Each push on the brake pedal

uses up the reserve for the

power-assisted brakes.

136

4-1. Before driving

COROLLA H/B_U

WARNING

●

The brake system consists of 2

individual hydraulic systems; if

one of the systems fails, the

other will still operate. In this

case, the brake pedal should be

depressed more firmly than

usual and the braking distance

will increase. Have your brakes

fixed immediately.

■

If the vehicle becomes stuck

Do not spin the wheels exces-

sively when a driven wheel is up

in the air, or the vehicle is stuck in

sand, mud, etc. This may damage

the driveline components or pro-

pel the vehicle forward or back-

ward, causing an accident.

NOTICE

■

When driving the vehicle

(vehicles with a continuously

variable transmission)

●

Do not depress the accelerator

and brake pedals at the same

time during driving, as this may

restrain the engine output.

●

Do not use the accelerator

pedal or depress the accelera-

tor and brake pedals at the

same time to hold the vehicle on

a hill.

■

When driving the vehicle

(vehicles with a manual trans-

mission)

●

Do not depress the accelerator

and brake pedals at the same

time during driving, as this may

restrain the engine output.

●

Do not shift gears unless the

clutch pedal is fully depressed.

After shifting, do not release the

clutch pedal abruptly. Doing so

may damage the clutch, trans-

mission and gears.

●

Observe the following precau-

tions.

Failure to do so may cause

excessive premature wear or

damage to the clutch, eventu-

ally making it difficult to acceler-

ate and start off from a stop.

Have the vehicle inspected by

your Toyota dealer.

• Do not rest your foot on the

clutch pedal or depress it any

time other than when shifting.

Doing so may cause clutch trou-

ble.

• Do not use any gear other than

the 1st gear when starting off

and moving forward.

Doing so may damage the

clutch.

• Do not use the clutch pedal to

adjust vehicle speed.

Doing so may damage the

clutch.

• When stopping the vehicle with

the shift lever in a position other

than N, make sure to fully

depress the clutch pedal and

stop the vehicle using the

brakes.

●

Do not shift the shift lever to R

without the vehicle completely

stopped.

Doing so may damage the

clutch, transmission and gears.

■

When parking the vehicle

(vehicles with a continuously

variable transmission)

Always set the parking brake and

shift the shift lever to P. Failure to

do so may cause the vehicle to

move or the vehicle may acceler-

ate suddenly if the accelerator

pedal is accidentally depressed.

137

4-1. Before driving

COROLLA H/B_U

4

Dr

iv

ing

NOTICE

■

Avoiding damage to vehicle

parts

●

Do not turn the steering wheel

fully in either direction and hold

it there for an extended period

of time.

Doing so may damage the

power steering motor.

●

When driving over bumps in the

road, drive as slowly as possible

to avoid damaging the wheels,

underside of the vehicle, etc.

■

If you get a flat tire while driv-

ing

A flat or damaged tire may cause

the following situations. Hold the

steering wheel firmly and gradu-

ally depress the brake pedal to

slow down the vehicle.

●

It may be difficult to control your

vehicle.

●

The vehicle will make abnormal

sounds or vibrations.

●

The vehicle will lean abnor-

mally.

Information on what to do in case

of a flat tire (



P.484,494)

■

When encountering flooded

roads

Do not drive on a road that has

flooded after heavy rain etc.

Doing so may cause the following

serious damage to the vehicle:

●

Engine stalling

●

Short in electrical components

●

Engine damage caused by

water immersion

In the event that you drive on a

flooded road and the vehicle

becomes flooded or stuck in mud

or sand, be sure to have your Toy-

ota dealer check the following:

●

Brake function

●

Changes in the quantity and

quality of the engine oil, tran-

saxle fluid, clutch fluid, differen-

tial oil, etc.

●

Lubricant condition for the bear-

ings and suspension joints

(where possible), and the func-

tion of all joints, bearings, etc.

138

4-1. Before driving

COROLLA H/B_U

Cargo capacity depends on the
total weight of the occupants.

(Cargo capacity) = (Total load
capacity) — (Total weight of
occupants)

Steps for Determining Correct
Load Limit —

(1) Locate the statement “The
combined weight of occupants
and cargo should never exceed
XXX kg or XXX lbs.” on your
vehicle’s placard.

(2) Determine the combined
weight of the driver and passen-
gers that will be riding in your
vehicle.

(3) Subtract the combined
weight of the driver and passen-
gers from XXX kg or XXX lbs.

(4) The resulting figure equals
the available amount of cargo
and luggage load capacity.

For example, if the “XXX”
amount equals 1400 lbs. and
there will be five 150 lb passen-
gers in your vehicle, the amount
of available cargo and luggage
load capacity is 650 lbs. (1400

−



750 (5



 150) = 650 lbs.)

(5) Determine the combined
weight of luggage and cargo
being loaded on the vehicle.
That weight may not safely
exceed the available cargo and
luggage load capacity calcu-
lated in Step 4.

(6) If your vehicle will be towing
a trailer, load from your trailer
will be transferred to your vehi-
cle. Consult this manual to
determine how this reduces the
available cargo and luggage
load capacity of your vehicle.
(



P.514)

Toyota does not recommend towing
a trailer with your vehicle. Your
vehicle is not designed for trailer
towing.

Cargo capacity

Total load capacity (vehicle
capacity weight) (



P.514)

When 2 people with the com-
bined weight of A lb. (kg) are rid-
ing in your vehicle, which has a

Cargo and luggage

Take notice of the following
information about storage
precautions, cargo capacity
and load:

Capacity and distribution

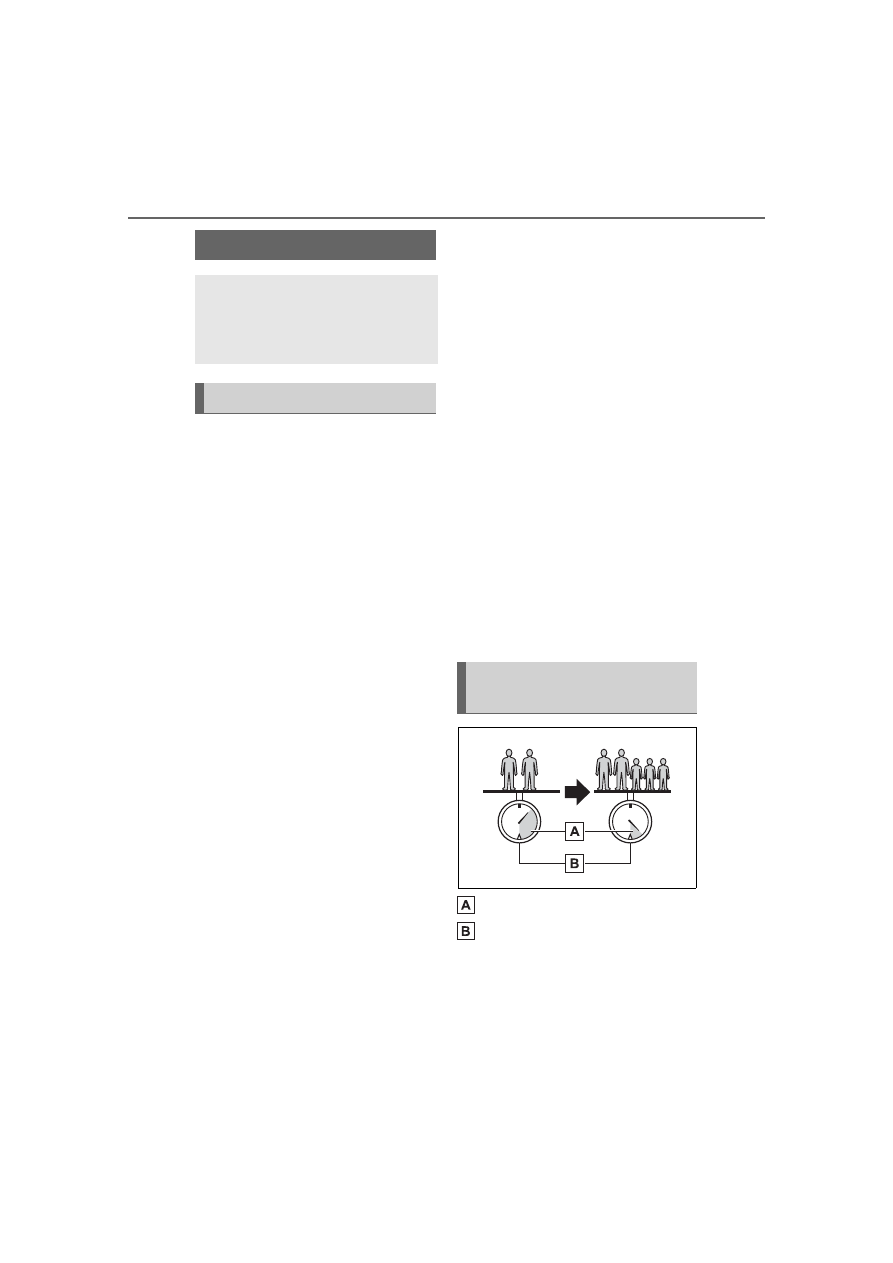

Calculation formula for
your vehicle

139

4-1. Before driving

COROLLA H/B_U

4

Dr

iv

ing

total load capacity (vehicle

capacity weight) of B lb. (kg),

the available amount of cargo

and luggage load capacity will

be C lb. (kg) as follows:
B

*2

 lb. (kg) - A

*1

 lb. (kg) = C

*3

 lb.

(kg)

*1

:A =Weight of people

*2

:B =Total load capacity

*3

:C =Available cargo and luggage

load

In this condition, if 3 more passen-

gers with the combined weight of D

lb. (kg) get on, the available cargo

and luggage load will be reduced E

lb. (kg) as follows:

C lb. (kg) - D

*4

 lb. (kg) = E

*5

 lb.

(kg)

*4

:D =Additional weight of people

*5

:E =Available cargo and luggage

load

As shown in the example above,

if the number of occupants

increases, the cargo and lug-

gage load will be reduced by an

amount that equals the

increased weight due to the

additional occupants. In other

words, if an increase in the num-

ber of occupants causes an

excess of the total load capacity

(combined weight of occupants

plus cargo and luggage load),

you must reduce the cargo and

luggage on your vehicle.

WARNING

■

Things that must not be car-

ried in the luggage compart-

ment

The following things may cause a

fire if loaded in the luggage com-

partment:

●

Receptacles containing gaso-

line

●

Aerosol cans

■

Storage precautions

Observe the following precau-

tions.

Failure to do so may prevent the

pedals from being depressed

properly, may block the driver’s

vision, or may result in items hit-

ting the driver or passengers, pos-

sibly causing an accident.

●

Stow cargo and luggage in the

luggage compartment when-

ever possible.

●

Do not place cargo or luggage

in or on the following locations.

• At the feet of the driver
• On the front passenger or rear

seats (when stacking items)

• On the luggage cover
• On the instrument panel
• On the dashboard

●

Secure all items in the occupant

compartment.

■

Capacity and distribution

●

Do not exceed the maximum

axle weight rating or the total

vehicle weight rating.
