270

4-5. Using the driving support systems

C-HR_OM_USA_OM10684U

Example of constant speed cruising
When there are no vehicles ahead

The vehicle travels at the speed set by the driver.

Example of deceleration cruising and follow-up cruising
When  a  preceding  vehicle  driving  slower  than  the  set  speed
appears

When a vehicle is detected running ahead of you, the system automatically
decelerates  your  vehicle.  When  a  greater  reduction  in  vehicle  speed  is
necessary, the system applies the brakes (the stop lights will come on at
this time). The system will respond to changes in the speed of the vehicle
ahead in order to maintain the vehicle-to-vehicle distance set by the driver.
Approach  warning  warns  you  when  the  system  cannot  decelerate  suffi-
ciently to prevent your vehicle from closing in on the vehicle ahead.
When the vehicle ahead of you stops, your vehicle will also stop (vehicle is
stopped by system control). After the vehicle ahead starts off, pushing the
cruise control lever up or depressing the accelerator pedal (start-off opera-
tion)  will  resume  follow-up  cruising.  If  the  start-off  operation  is  not  per-
formed, system control continues to keep your vehicle stopped.
When the turn signal lever is operated and your vehicle moves to an over-
taking  lane  while  driving  at  50  mph  (80  km/h)  or  more,  the  vehicle  will
accelerate to help to overtake a passing vehicle.
The  system’s  identification  of  what  is  an  overtaking  lane  may  be  deter-
mined solely based on the location of the steering wheel in the vehicle (left
side driver position versus right side driver position.)  If the vehicle is driven
to a region where the overtaking lane is on a different side from where the
vehicle is normally driven, the vehicle may accelerate when the turn signal
lever is operated in the opposite direction to the overtaking lane (e.g., if the
driver normally operates the vehicle in a region where the overtaking lane
is to the right but then drives to a region where the overtaking lane is to the
left, the vehicle may accelerate when the right turn signal is activated).

Example of acceleration
When  there  are  no  longer  any  preceding  vehicles  driving  slower
than the set speed

The system accelerates until the set speed is reached. The system then
returns to constant speed cruising.

271

4-5. Using the driving support systems

4

Drivin

g

C-HR_OM_USA_OM10684U

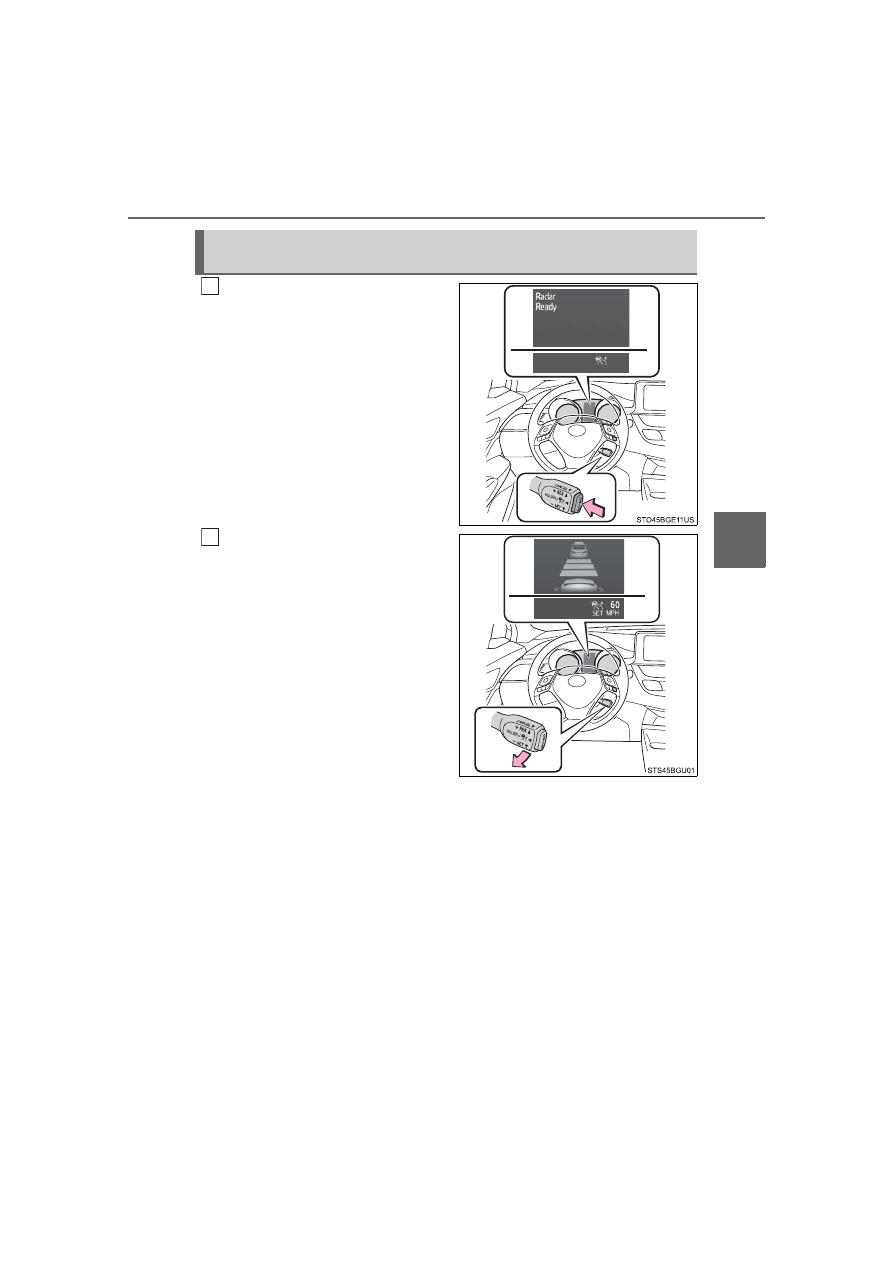

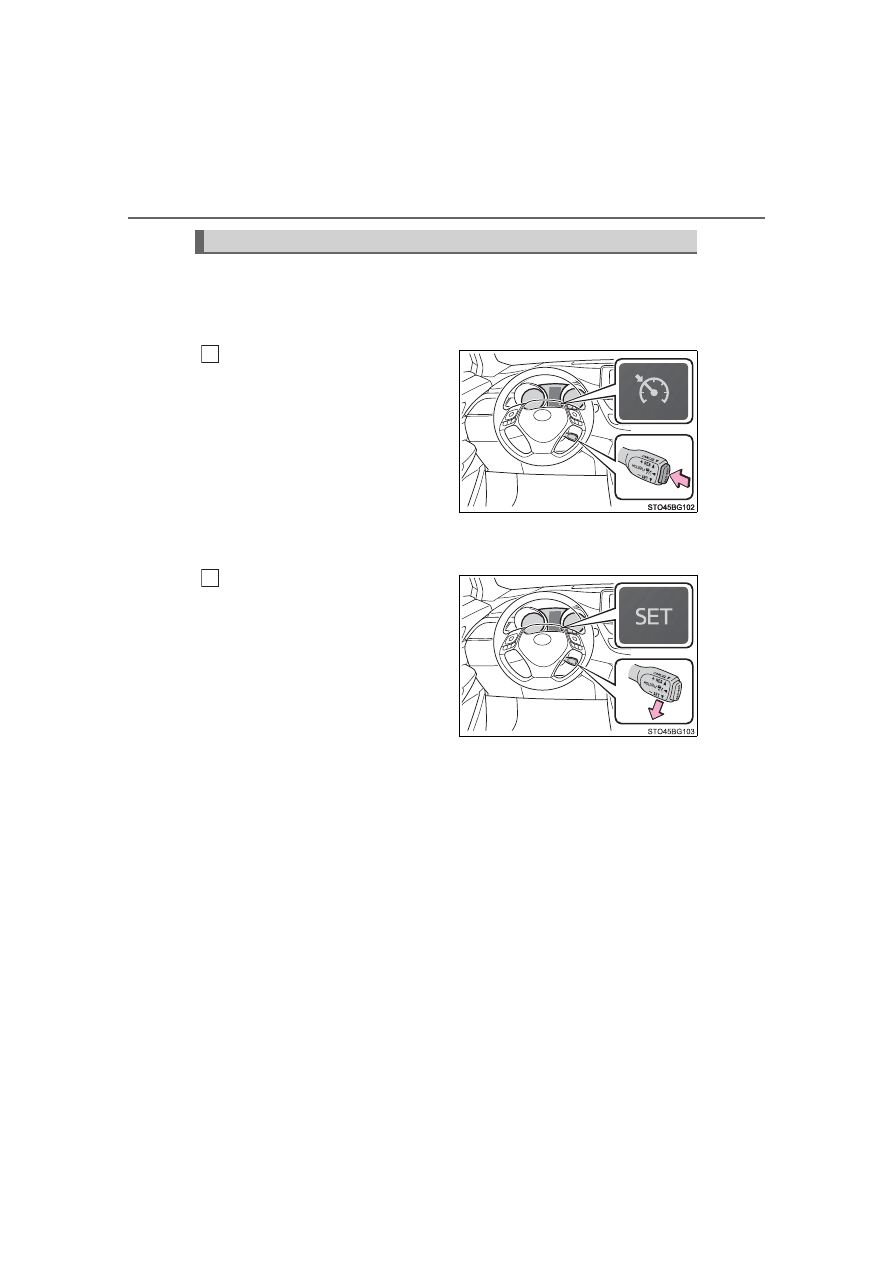

Press  the  “ON-OFF”  button  to
activate the cruise control.

Dynamic  radar  cruise  control  indi-
cator will come on and a message
will be displayed on the multi-infor-
mation display.
Press  the  button  again  to  deacti-
vate the cruise control.
If  the  “ON-OFF”  button  is  pressed
and held for 1.5 seconds or more,
the  system  turns  on  in  constant
speed control mode. (



P. 276)

Accelerate  or  decelerate,  with
accelerator  pedal  operation,  to
the desired vehicle speed (at or
above  approximately  20  mph
[30  km/h])  and  push  the  lever
down to set the speed.

Cruise  control  “SET”  indicator  will
come on.
The  vehicle  speed  at  the  moment
the  lever  is  released  becomes  the
set speed.

Setting  the  vehicle  speed  (vehicle-to-vehicle  distance  control
mode)

1

2

272

4-5. Using the driving support systems

C-HR_OM_USA_OM10684U

●

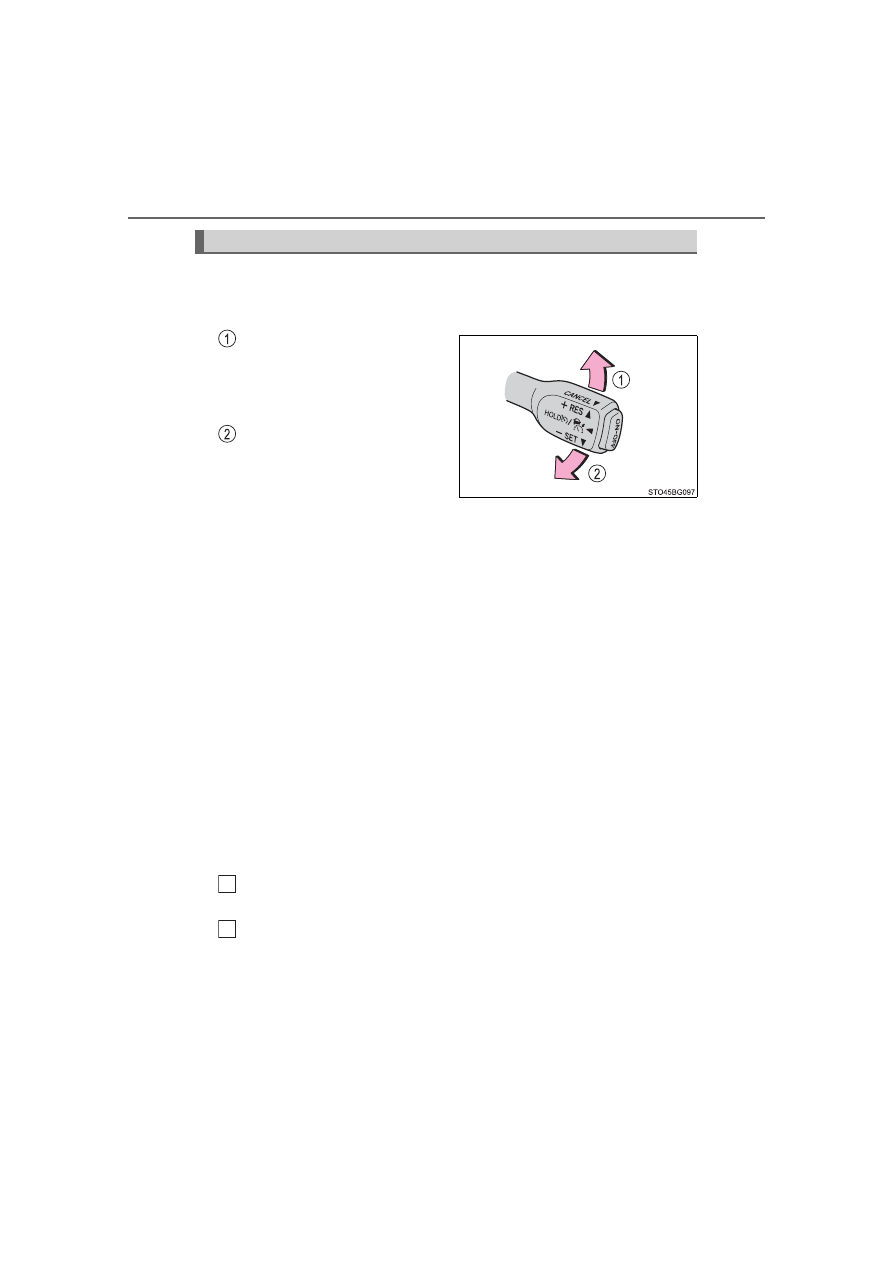

Adjusting the set speed by the lever
To  change  the  set  speed,  operate  the  lever  until  the  desired  set
speed is displayed.

Increases the speed

(Except  when  the  vehicle  has
been stopped by system control
in  vehicle-to-vehicle  distance
control mode)

Decreases the speed

Fine  adjustment:  Momentarily
move  the  lever  in  the  desired
direction.
Large adjustment: Hold the lever up or down to change the speed,
and release when the desired speed is reached.
In the vehicle-to-vehicle distance control mode, the set speed will
be increased or decreased as follows:

Fine  adjustment:  By  1  mph  (1.6  km/h)

*

1

  or  1  km/h  (0.6  mph)

*

2

  each

time the lever is operated
Large  adjustment:  Increases  or  decreases  in  1 mph  (1.6 km/h)

*

1

  or

1 km/h (0.6 mph)

*

2

 increments for as long as the lever is held

In the constant speed control mode (



P. 276), the set speed will be

increased or decreased as follows:

Fine  adjustment:  By  1  mph  (1.6  km/h)

*

1

  or  1  km/h  (0.6  mph)

*

2

  each

time the lever is operated
Large adjustment: The speed will continue to change while the lever is
held.

*

1

: When the set speed is shown in “MPH”

*

2

: When the set speed is shown in “km/h”

●

Increasing the set speed by the accelerator pedal

Accelerate with accelerator pedal operation to the desired vehi-
cle speed
Push the lever down

Adjusting the set speed

1

2

273

4-5. Using the driving support systems

4

Drivin

g

C-HR_OM_USA_OM10684U

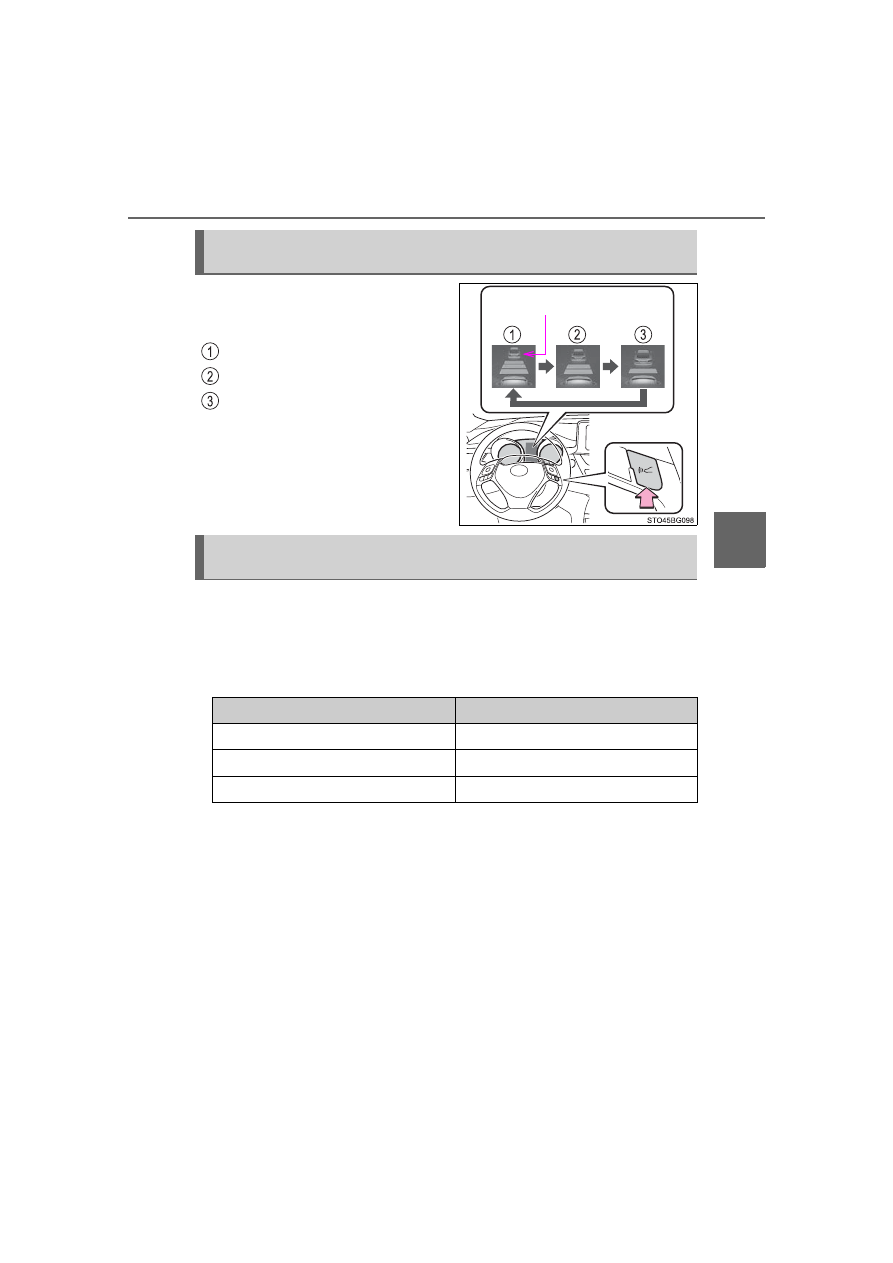

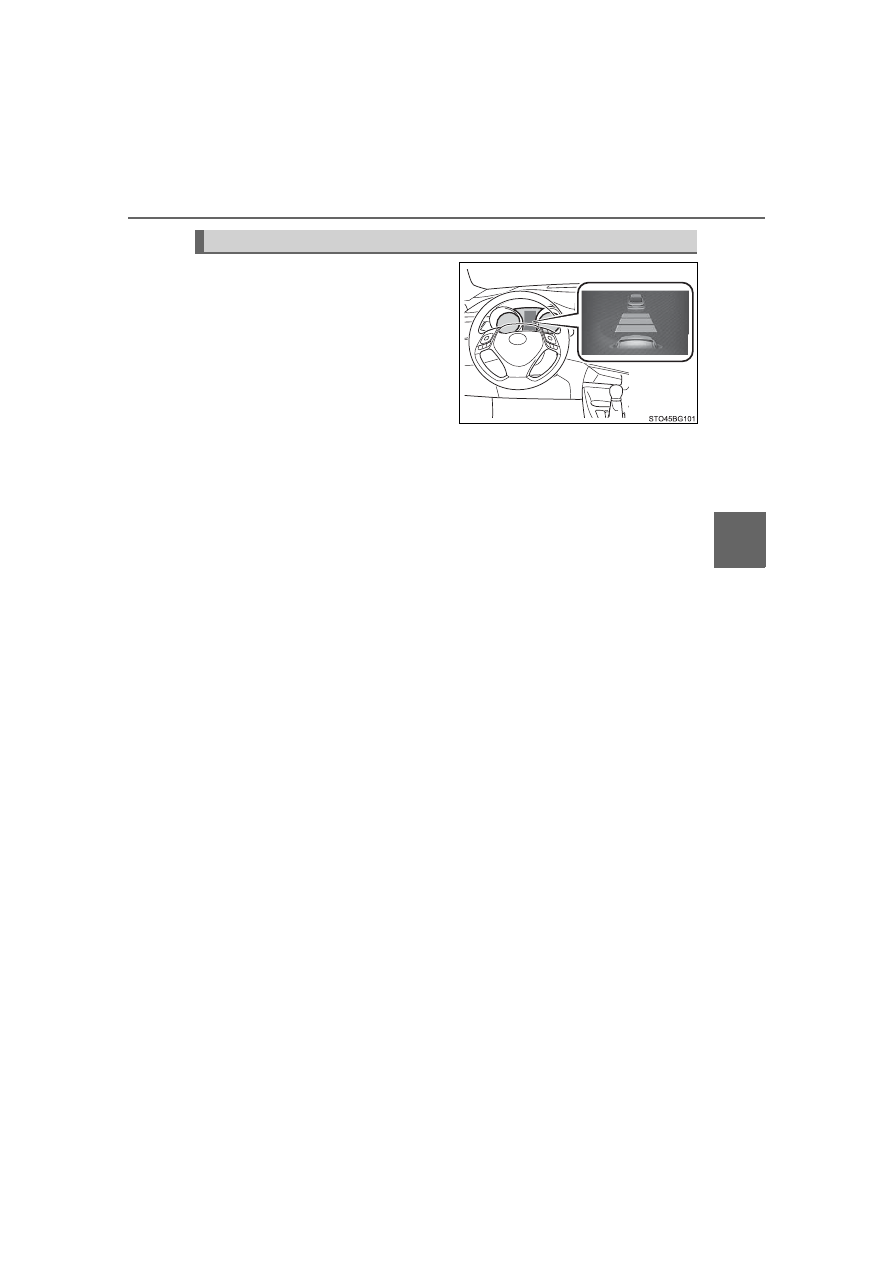

Pressing  the  switch  changes  the
vehicle-to-vehicle  distance  as  fol-
lows:

Long
Medium
Short

If  a  vehicle  is  running  ahead  of
you,  the  preceding  vehicle  mark
will also be displayed.

Select a distance from the table below. Note that the distances shown
correspond to a vehicle speed of 50 mph (80 km/h). Vehicle-to-vehicle
distance  increases/decreases  in  accordance  with  vehicle  speed.
When the vehicle is stopped by system control, the vehicle stops at a
certain vehicle-to-vehicle distance depending on the situation.

Changing the vehicle-to-vehicle distance (vehicle-to-vehicle dis-
tance control mode)

Preceding vehicle mark

Vehicle-to-vehicle distance settings (vehicle-to-vehicle distance
control mode)

Distance options

Vehicle-to-vehicle distance

Long

Approximately 160 ft. (50 m)

Medium

Approximately 130 ft. (40 m)

Short

Approximately 100 ft. (30 m)

274

4-5. Using the driving support systems

C-HR_OM_USA_OM10684U

After  the  vehicle  ahead  of  you
starts off, push the lever up.
Your  vehicle  will  also  resume
follow-up  cruising  if  the  accelera-
tor  pedal  is  depressed  after  the
vehicle ahead of you starts off.

Pulling  the  lever  toward  you
cancels the speed control.

The speed control is also canceled
when

the

brake

pedal

is

depressed.
(When  the  vehicle  has  been
stopped

by

system

control,

depressing  the  brake  pedal  does
not cancel the setting.)

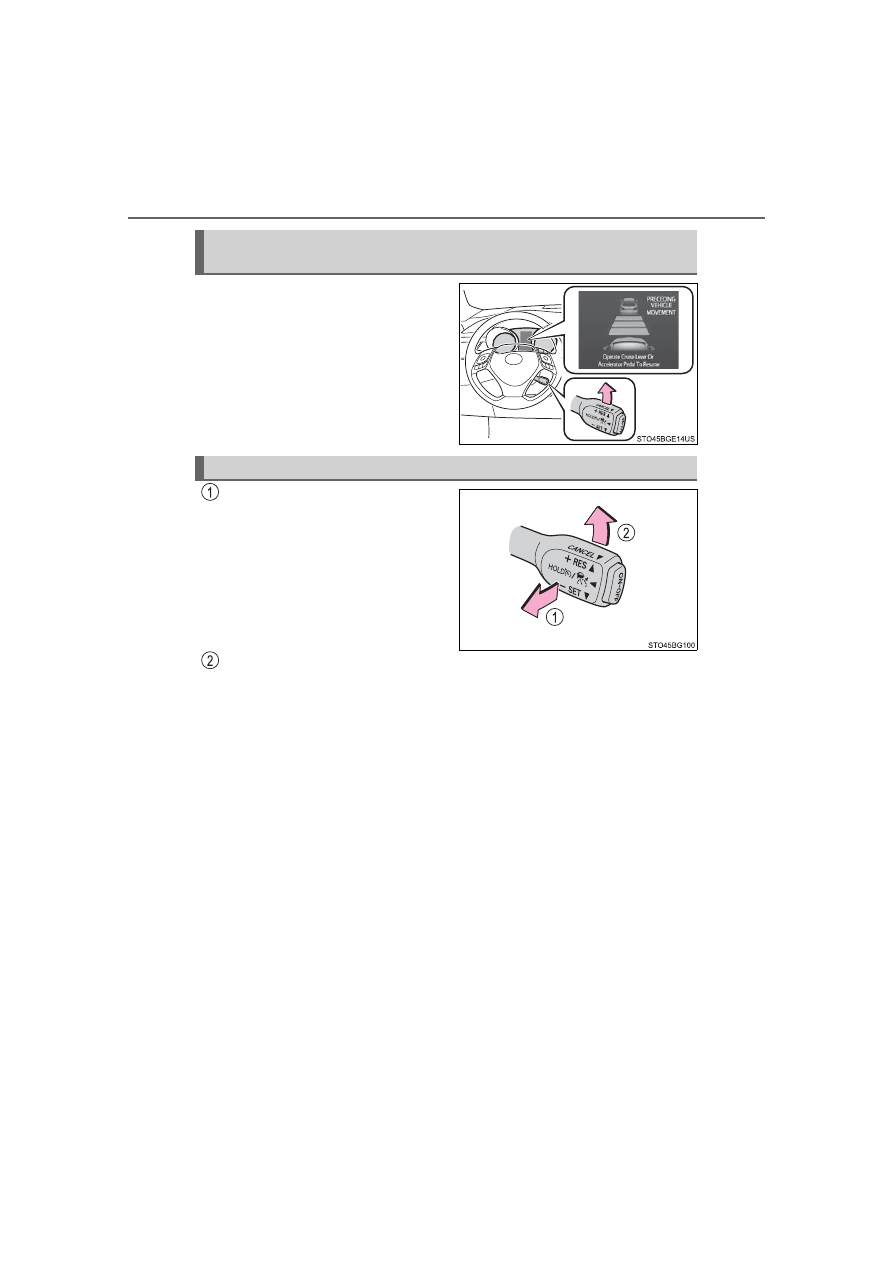

Pushing the lever up resumes the cruise control and returns vehicle
speed to the set speed.

Resuming follow-up cruising when the vehicle has been stopped
by system control (vehicle-to-vehicle distance control mode)

Canceling and resuming the speed control

275

4-5. Using the driving support systems

4

Drivin

g

C-HR_OM_USA_OM10684U

When your vehicle is too close to
a  vehicle  ahead,  and  sufficient
automatic  deceleration  via  the
cruise  control  is  not  possible,  the
display  will  flash  and  the  buzzer
will  sound  to  alert  the  driver.  An
example  of  this  would  be  if
another driver cuts in front of you
while you are following a vehicle.
Depress  the  brake  pedal  to
ensure  an  appropriate  vehicle-to-
vehicle distance.

■

Warnings may not occur when

In the following instances, warnings may not occur even when the
vehicle-to-vehicle distance is small.

●

When  the  speed  of  the  preceding  vehicle  matches  or  exceeds
your vehicle speed

●

When  the  preceding  vehicle  is  traveling  at  an  extremely  slow
speed

●

Immediately after the cruise control speed was set

●

When depressing the accelerator pedal

Approach warning (vehicle-to-vehicle distance control mode)

276

4-5. Using the driving support systems

C-HR_OM_USA_OM10684U

When constant speed control mode is selected, your vehicle will main-
tain  a  set  speed  without  controlling  the  vehicle-to-vehicle  distance.
Select this mode only when vehicle-to-vehicle distance control mode
does not function correctly due to a dirty radar, etc.

With  the  cruise  control  off,
press  and  hold  the  “ON-OFF”
button for 1.5 seconds or more.

Immediately  after  the  “ON-OFF”
button  is  pressed,  the  dynamic
radar  cruise  control  indicator  will
come on. Afterwards, it switches to
the cruise control indicator.
Switching  to  constant  speed  con-
trol  mode  is  only  possible  when
operating  the  lever  with  the  cruise
control off.

Accelerate  or  decelerate,  with
accelerator  pedal  operation,  to
the desired vehicle speed (at or
above  approximately  20  mph
[30  km/h])  and  push  the  lever
down to set the speed.

Cruise  control  “SET”  indicator  will
come on.
The  vehicle  speed  at  the  moment
the  lever  is  released  becomes  the
set speed.
Adjusting the speed setting:



P. 272

Canceling and resuming the speed setting:



P. 274

Selecting constant speed control mode

1

2

277

4-5. Using the driving support systems

4

Drivin

g

C-HR_OM_USA_OM10684U

■

Dynamic radar cruise control with full-speed range can be set when

●

The shift lever is in D.

●

The desired set speed can be set when the vehicle speed is approximately
20 mph (30 km/h) or more.
(However,  when  the  vehicle  speed  is  set  while  driving  at  below  approxi-
mately 20 mph [30 km/h], the set speed will be set to approximately 20 mph
[30 km/h].)

■

Accelerating after setting the vehicle speed

The vehicle can accelerate by operating the accelerator pedal. After acceler-
ating,  the  set  speed  resumes.  However,  during  vehicle-to-vehicle  distance
control mode, the vehicle speed may decrease below the set speed in order
to maintain the distance to the preceding vehicle.

■

When the vehicle stops while follow-up cruising

●

Pushing  the  lever  up  while  the  vehicle  ahead  stops  will  resume  follow-up
cruising if the vehicle ahead starts off within approximately 3 seconds after
the lever is pushed up.

●

If the vehicle ahead starts off within 3 seconds after your vehicle stops, fol-
low-up cruising will be resumed.

■

Automatic cancelation of vehicle-to-vehicle distance control mode

Vehicle-to-vehicle distance control mode is automatically canceled in the fol-
lowing situations:

●

VSC is activated.

●

TRAC is activated for a period of time.

●

When the VSC or TRAC system is turned off.

●

The sensor cannot detect correctly because it is covered in some way.

●

Pre-collision braking is activated.

●

The parking brake is operated.

●

The vehicle is stopped by system control on a steep incline.

●

The following are detected when the vehicle has been stopped by system
control:
• The driver is not wearing a seat belt.
• The driver’s door is opened.
• The vehicle has been stopped for about 3 minutes.

If vehicle-to-vehicle distance control mode is automatically canceled for any
reasons  other  than  the  above,  there  may  be  a  malfunction  in  the  system.
Contact your Toyota dealer.

278

4-5. Using the driving support systems

C-HR_OM_USA_OM10684U

■

Automatic cancelation of constant speed control mode

Constant speed control mode is automatically canceled in the following situa-
tions:

●

Actual vehicle speed is more than approximately 10 mph (16 km/h) below
the set vehicle speed.

●

Actual vehicle speed falls below approximately 20 mph (30 km/h).

●

VSC is activated.

●

TRAC is activated for a period of time.

●

When the VSC or TRAC system is turned off.

●

Pre-collision braking is activated.

If  constant  speed  control  mode  is  automatically  canceled  for  any  reasons
other than the above, there may be a malfunction in the system. Contact your
Toyota dealer.

■

Brake operation

A brake operation sound may be heard and the brake pedal response may
change, but these are not malfunctions.

■

Warning  messages  and  buzzers  for  dynamic  radar  cruise  control  with
full-speed range

Warning messages and buzzers are used to indicate a system malfunction or
to inform the driver of the need for caution while driving. If a warning message
is shown on the multi-information display, read the message and follow the
instructions. (



P. 229, 444)

■

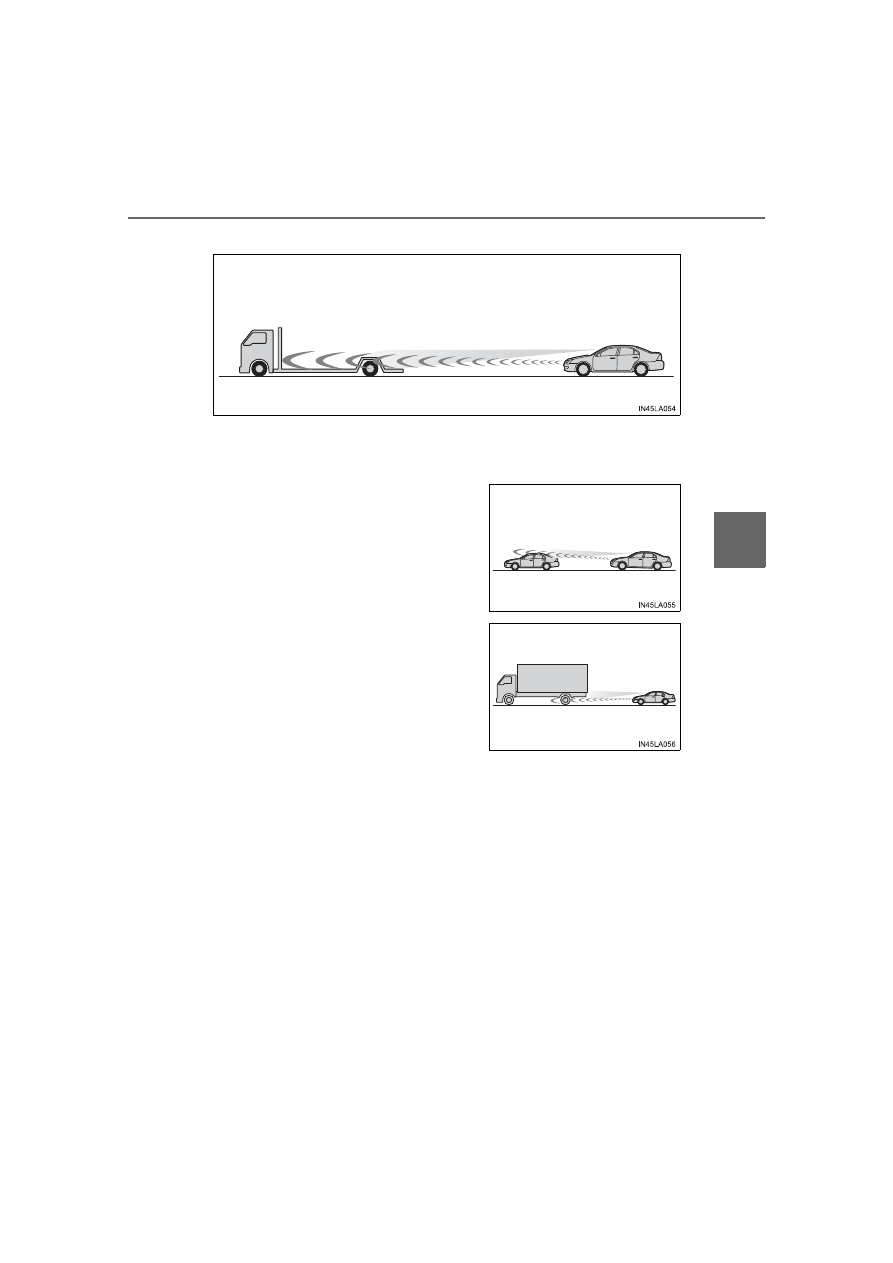

When the sensor may not be correctly detecting the vehicle ahead

In  the  case  of  the  following  and  depending  on  the  conditions,  operate  the
brake  pedal  when  deceleration  of  the  system  is  insufficient  or  operate  the
accelerator pedal when acceleration is required.
As the sensor may not be able to correctly detect these types of vehicles, the
approach warning (



P. 275) may not be activated.

●

Vehicles that cut in suddenly

●

Vehicles traveling at low speeds

●

Vehicles that are not moving in the same lane

279

4-5. Using the driving support systems

4

Drivin

g

C-HR_OM_USA_OM10684U

●

Vehicles with small rear ends (trailers with no load on board, etc.)

●

Motorcycles traveling in the same lane

●

When  water  or  snow  thrown  up  by  the  surrounding  vehicles  hinders  the
detecting of the sensor

●

When  your  vehicle  is  pointing  upwards
(caused by a heavy load in the luggage
compartment, etc.)

●

Preceding vehicle has an extremely high
ground clearance

280

4-5. Using the driving support systems

C-HR_OM_USA_OM10684U

■

Conditions  under  which  the  vehicle-to-vehicle  distance  control  mode
may not function correctly

In the case of the following conditions, operate the brake pedal (or accelera-
tor pedal, depending on the situation) as necessary.
As the sensor may not be able to correctly detect vehicles ahead, the system
may not operate properly.

●

When the vehicle ahead of you decelerates suddenly

●

When driving on a road surrounded by a structure, such as in a tunnel or on
a bridge

●

While  the  vehicle  speed  is  decreasing  to  the  set  speed  after  the  vehicle
accelerates by depressing the accelerator pedal

●

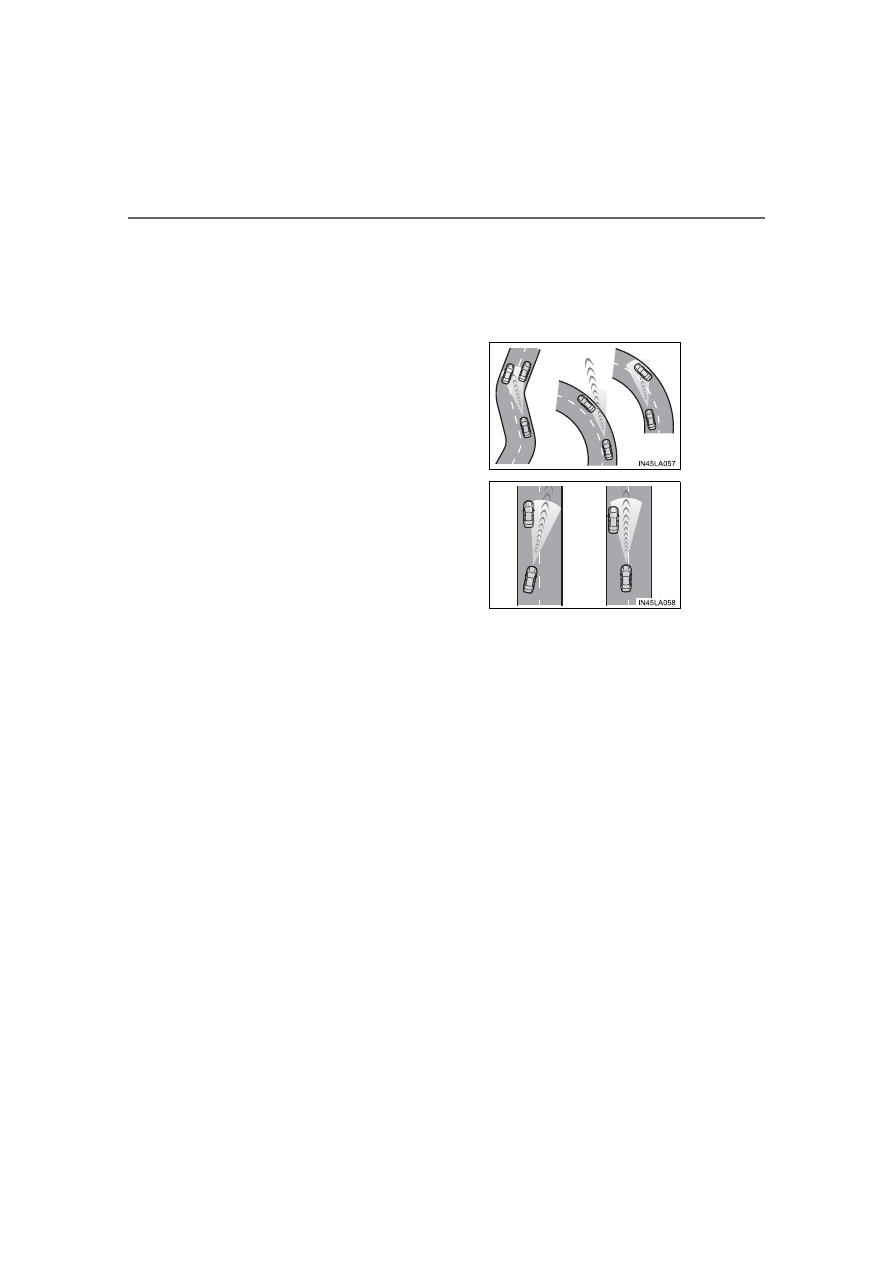

When the road curves or when the lanes
are narrow

●

When  steering  wheel  operation  or  your
position in the lane is unstable

281

4-5. Using the driving support systems

4

Drivin

g

C-HR_OM_USA_OM10684U

Driving mode select

■

Changing the driving mode

To select the drive mode, perform operations on the multi-information
display.

Press “



” or “



” of meter control switches and select

.

Press “



” or “



” of the meter control switches, and select “Drive

Mode”.
Press  “



” or “



”  of  the meter control  switches, and  select drive

mode.

In response to driving conditions, one of 3 drive modes can be
selected.

Select the drive mode

1

2

3

282

4-5. Using the driving support systems

C-HR_OM_USA_OM10684U

■

Driving modes

●

“NORMAL” mode
Provides  an  optimal  balance  of  fuel  economy,  quietness,  and
dynamic performance. Suitable for city driving.

●

“SPORT” mode
Controls the transmission and engine to provide quick, powerful
acceleration. This mode also changes the steering feel, making it
suitable for when agile driving response is desired, such as when
driving on roads with many curves.

When  sport  mode  is  selected,  the  “SPORT”  indicator  will  illuminate
on the multi-information display.

●

“ECO” mode
Helps  the  driver  accelerate  in  an  eco-friendly  manner  and
improve fuel economy  through moderate throttle characteristics
and  by  controlling  the  operation  of  the  air  conditioning  system
(heating/cooling).

When  Eco mode  is  selected,  the  “ECO MODE” indicator  will illumi-
nate on the multi-information display.
While  the  air  conditioning  is  being  used,  the  system  automatically
switches to air conditioning eco mode (



P. 317), allowing for driving

that leads to even better fuel economy.

■

Canceling driving modes

●

Select another drive mode. Also, “SPORT” mode will be canceled automati-
cally when the engine switch is turned off.

●

“NORMAL” mode and “ECO” mode will not be canceled automatically until
another drive mode is selected, even if the engine switch is turned off.

283

4-5. Using the driving support systems

4

Drivin

g

C-HR_OM_USA_OM10684U

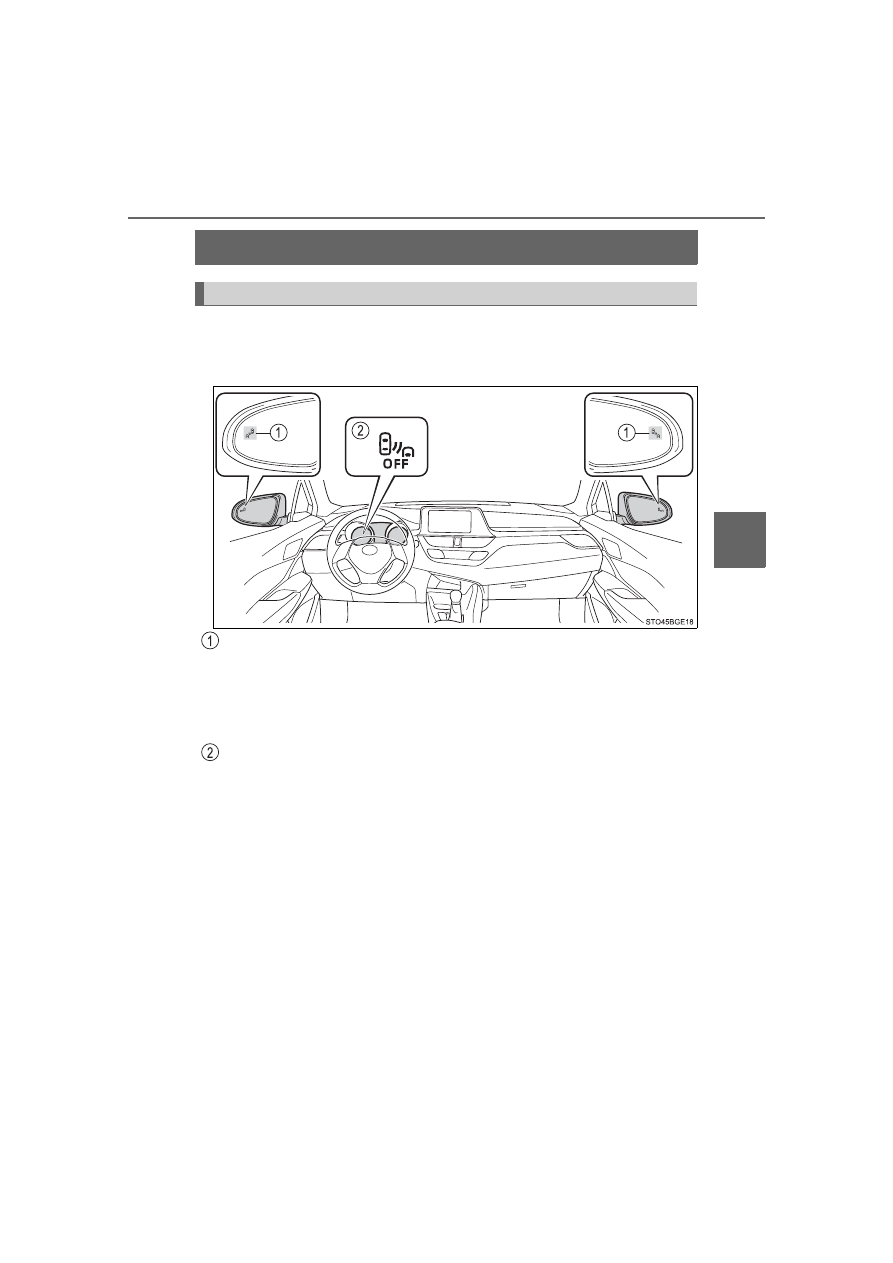

BSM (Blind Spot Monitor)



The Blind Spot Monitor is a system that uses rear side radar sensors
installed on the inner side of the rear bumper on the left and right side
to assist the driver in confirming safety when changing lanes.

Outside rear view mirror indicators

When a vehicle is detected in a blind spot of the outside rear view mirrors
or approaching rapidly from behind into a blind spot, the outside rear view
mirror indicator on the detected side will illuminate. If the turn signal lever
is operated toward the detected side, the outside rear view mirror indicator
flashes.

BSM OFF indicator

Illuminates when the Blind Spot Monitor is disabled.



: If equipped

Summary of the Blind Spot Monitor

284

4-5. Using the driving support systems

C-HR_OM_USA_OM10684U

Press “



” or “



” of the meter control switches, select

.

Press “



” or “



” of the meter control switches, select

.

Press “



” or “



” of the meter control switches, select

.

When the BSM function is disabled, the BSM OFF indicator (



P. 283) illu-

minates.
(Each time the engine switch is turned off then changed to ON, the BSM
function will be enabled automatically.)

■

The outside rear view mirror indicators visibility

When under strong sunlight, the outside rear view mirror indicator may be dif-
ficult to see.

■

When “Blind Spot Monitor Unavailable.” is shown on the multi-informa-
tion display

Water, snow mud, etc., may be built up in the vicinity of the sensor area of
bumper (



P. 286).

Removing  the  water,  snow,  mud,  etc.,  from  the  vicinity  of  the  sensor  area
bumper should return it to normal.
Also,  the  sensor  may  not  function  normally  when  used  in  extremely  hot  or
cold weather.

■

When  “Blind  Spot  Monitor  System  Malfunction.  Visit  Your  Dealer.”  is
shown on the multi-information display

There  may  be  a  sensor  malfunction  or  misaligned.  Have  the  vehicle
inspected by your Toyota dealer.

■

Customization

Some functions can be customized. (



P. 508)

Turning the BSM function on/off

1

2

3

285

4-5. Using the driving support systems

4

Drivin

g

C-HR_OM_USA_OM10684U

■

Certification for the Blind Spot Monitor



For vehicles sold in U.S.A.



For vehicles sold in Canada

286

4-5. Using the driving support systems

C-HR_OM_USA_OM10684U

WARNING

■

Handling the radar sensor

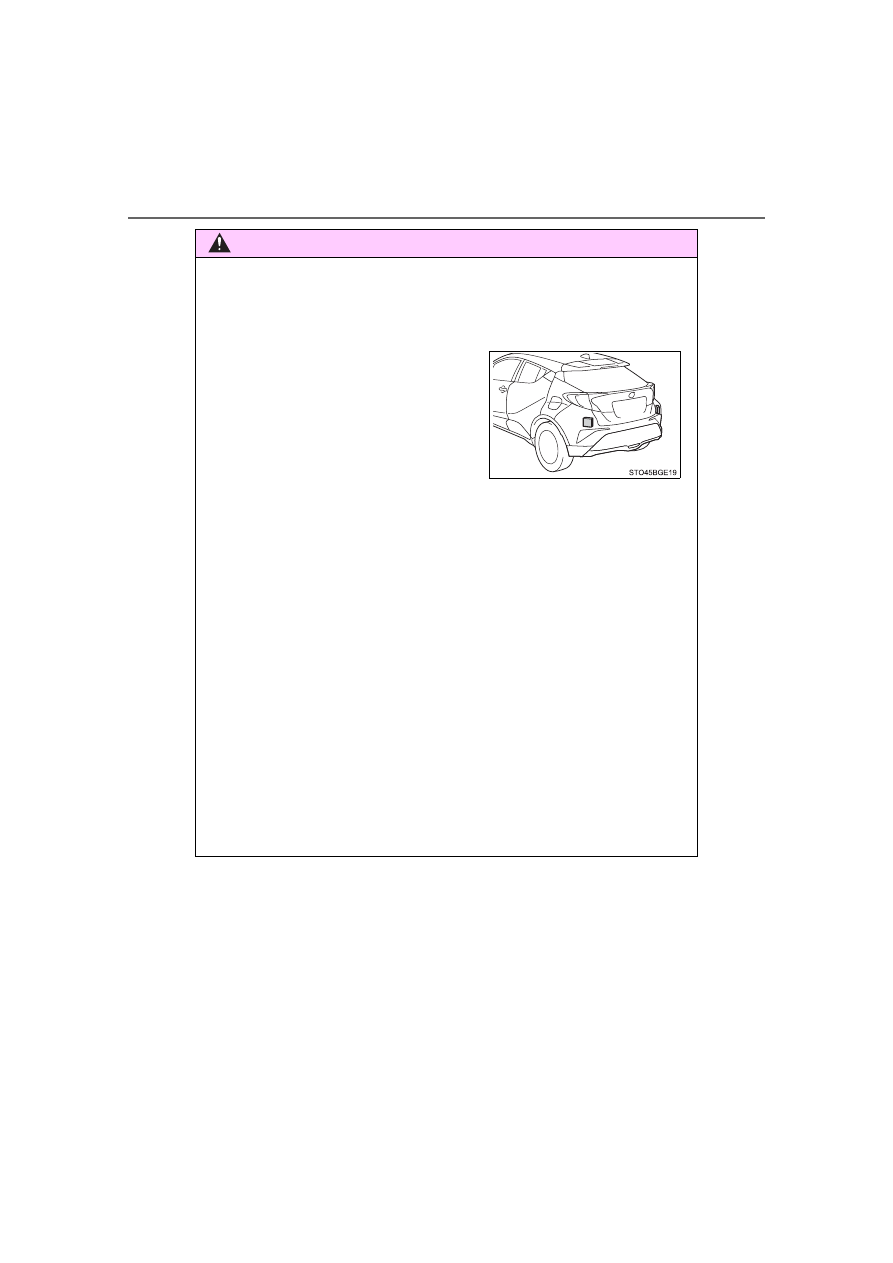

One Blind Spot Monitor sensor is installed inside the left and right side of
the vehicle rear bumper respectively. Observe the following to ensure the
Blind Spot Monitor can function correctly.

If the warning message does not disappear, have the vehicle inspected
by your Toyota dealer.

●

Do not subject a sensor or its surrounding area on the rear bumper to a
strong impact.
If a sensor is moved even slightly off position, the system may malfunction
and vehicles may not be detected correctly.
In  the  following  situations,  have  your  vehicle  inspected  by  your  Toyota
dealer.
• A sensor or its surrounding area is subject to a strong impact.
• If  the  surrounding  area  of  a  sensor  is  scratched  or  dented,  or  part  of

them has become disconnected.

●

Do not disassemble the sensor.

●

Do not attach accessories or stickers to the sensor or surrounding area on
the bumper.

●

Do not modify the sensor or surrounding area on the bumper.

●

Do not paint the rear bumper any color other than an official Toyota color.

●

Keep  the  sensor  and  its  surrounding
area on the bumper clean at all times.
If  a  sensor  or  its  surrounding  area  on
the  rear  bumper  is  dirty  or  covered
with snow, the Blind Spot Monitor may
not  operate  and  a  warning  message
(



P. 284) will be displayed.

In  this  situation,  clear  off  the  dirt  or
snow  and  drive  the  vehicle  with  the
operation conditions of the BSM func-
tion  (



P.  289)  satisfied  for  approxi-

mately 10 minutes.

287

4-5. Using the driving support systems

4

Drivin

g

C-HR_OM_USA_OM10684U

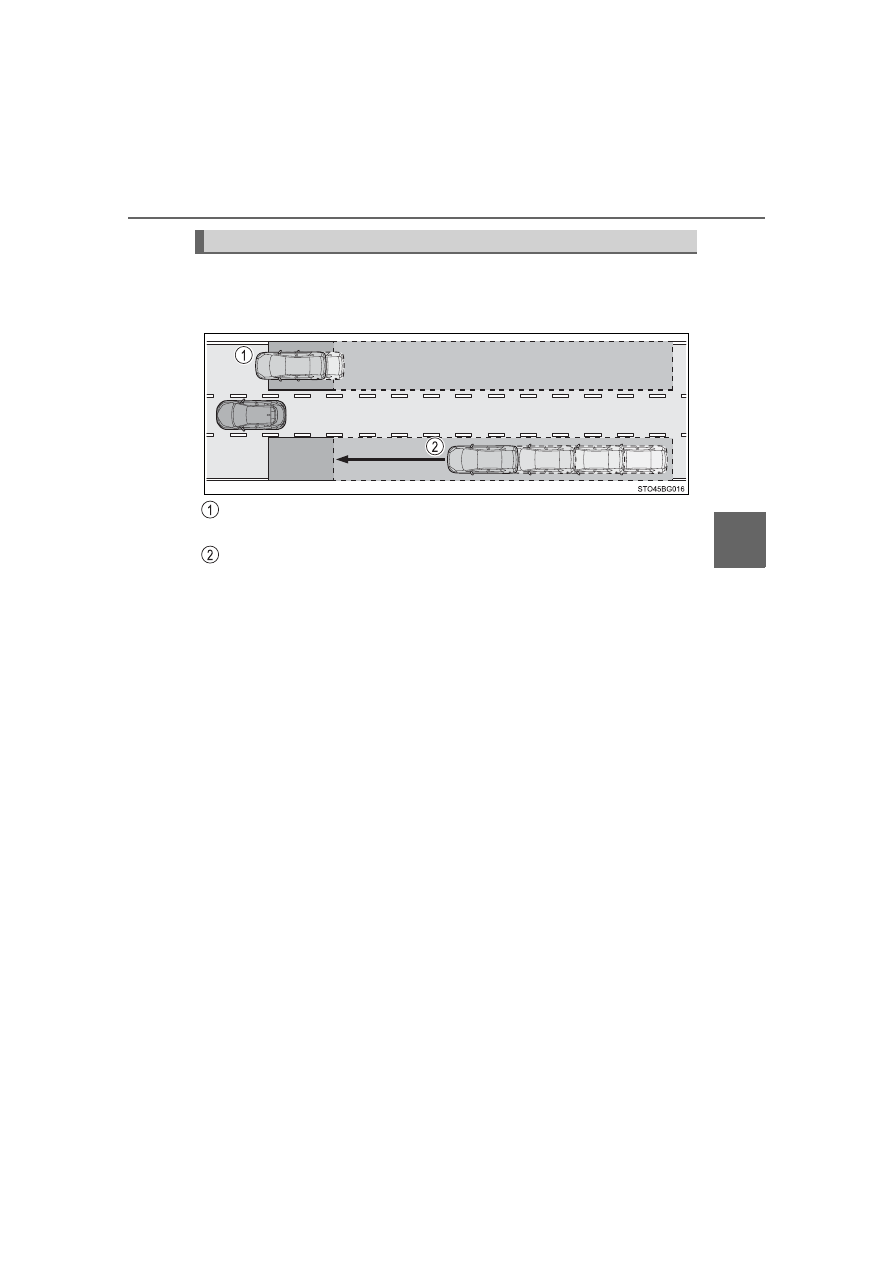

The BSM function uses radar sensors to detect the following vehicles
traveling in adjacent lanes and advises the driver of the presence of
such vehicles via the indicators on the outside rear view mirrors.

Vehicles that are traveling in areas that are not visible using the out-
side rear view mirrors (the blind spots)
Vehicles that are approaching rapidly from behind in areas that are
not visible using the outside rear view mirrors (the blind spots)

BSM function

288

4-5. Using the driving support systems

C-HR_OM_USA_OM10684U

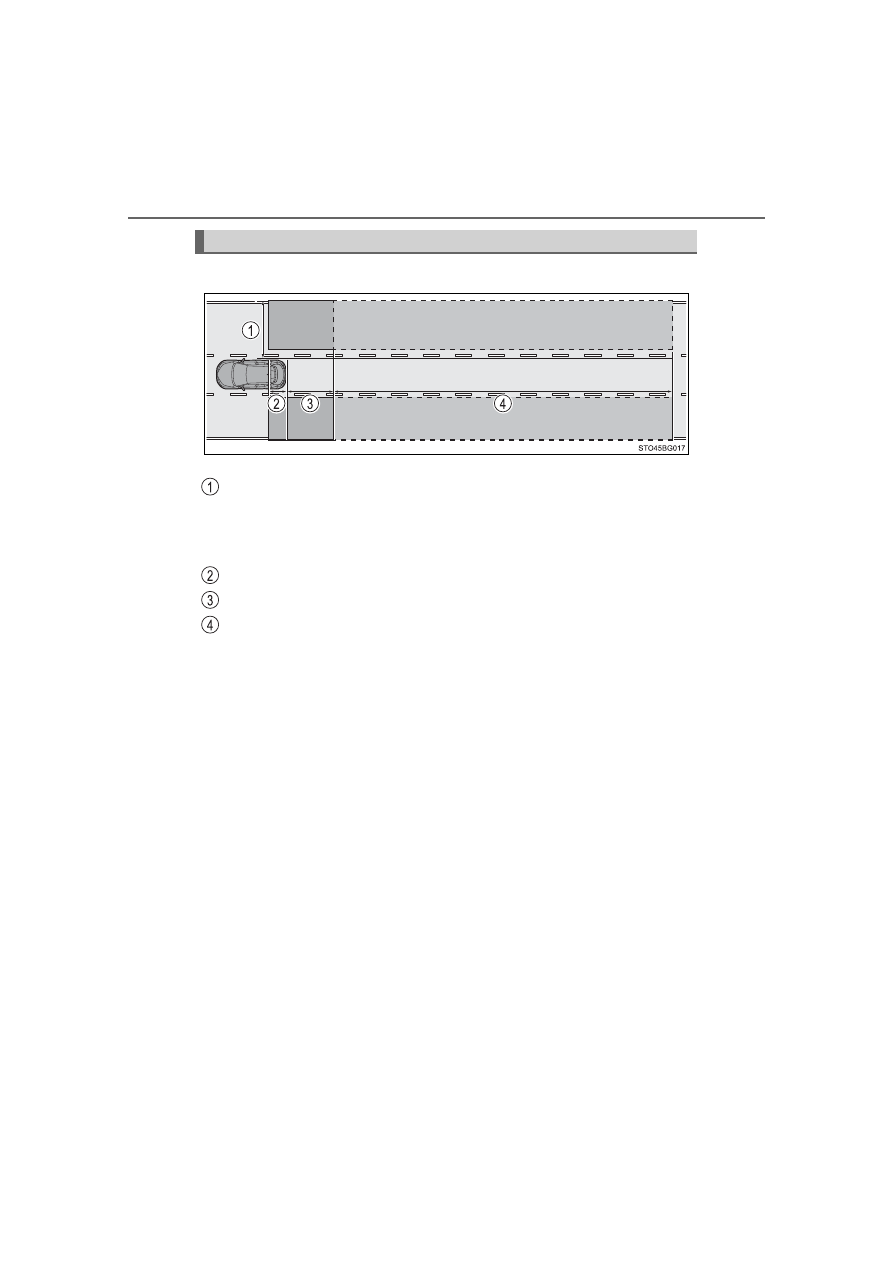

The areas that vehicles can be detected in are outlined below.

The range of each detection area is:

Approximately 1.6 ft. (0.5 m) to 11.5 ft. (3.5 m) from either side of
the vehicle

*

*

: The area between the side of the vehicle and 1.6 ft. (0.5 m) from the side

of the vehicle cannot be detected.

Approximately 3.3 ft. (1 m) forward of the rear bumper
Approximately 9.8 ft. (3 m) from the rear bumper
Approximately 9.8 ft. (3 m) to 197 ft. (60 m) from the rear bumper

*

*

: The greater the difference in speed between your vehicle and the detected

vehicle is, the farther away the vehicle will be detected, causing the out-
side rear view mirror indicator to illuminate or flash.

BSM function detection areas

289

4-5. Using the driving support systems

4

Drivin

g

C-HR_OM_USA_OM10684U

■

The BSM function is operational when

The BSM function is operational when all of the following conditions are met:

●

The BSM system is set to on (



P. 284)

●

The shift lever is in a position other than R.

●

Vehicle speed is greater than approximately 10 mph (16 km/h)

■

The BSM function will detect a vehicle when

The  BSM  function  will  detect  a  vehicle  present  in  the  detection  area  in  the
following situations:

●

A vehicle in an adjacent lane overtakes your vehicle.

●

You overtake a vehicle in adjacent lane slowly.

●

Another vehicle enters the detection area when it changes lanes.

■

Conditions under which the BSM function will not detect a vehicle

The  BSM  function  is  not  designed  to  detect  the  following  types  of  vehicles
and/or objects:

●

Small motorcycles, bicycles, pedestrians, etc.

*

●

Vehicles traveling in the opposite direction

●

Guardrails, walls, signs, parked vehicles and similar stationary objects

*

●

Following vehicles that are in the same lane

*

●

Vehicles traveling 2 lanes away from your vehicle

*

●

Vehicles which are being overtaken rapidly by your vehicle

*

*

: Depending on conditions, detection of a vehicle and/or object may occur.

WARNING

■

Cautions regarding the use of the system

The driver is solely responsible for safe driving. Always drive safely, taking
care to observe your surroundings.
The Blind Spot Monitor function is a supplementary function which alerts the
driver that a vehicle is present in the blind spot. Do not overly rely on the
Blind Spot Monitor function. The function cannot judge if it is safe to change
lanes, therefore over reliance could cause an accident resulting in death or
serious injury.
According  to  conditions,  the  system  may  not  function  correctly. Therefore
the driver’s own visual confirmation of safety is necessary.

290

4-5. Using the driving support systems

C-HR_OM_USA_OM10684U

■

Conditions under which the BSM function may not function correctly

●

The BSM function may not detect vehicles correctly in the following situa-
tions:
• When the sensor is misaligned due to a strong impact to the sensor or its

surrounding area

• When mud, snow, ice, a sticker, etc., is covering the sensor or surround-

ing area on the rear bumper

• When driving on a road surface that is wet with standing water during bad

weather, such as heavy rain, snow, or fog

• When multiple vehicles are approaching with only a small gap between

each vehicle

• When the distance between your vehicle and a following vehicle is short
• When there is a significant difference in speed between your vehicle and

the vehicle that enters the detection area

• When the difference in speed between your vehicle and another vehicle

is changing

• When  a  vehicle  enters  a  detection  area  traveling  at  about  the  same

speed as your vehicle

• As your vehicle starts from a stop, a vehicle remains in the detection area
• When driving up and down consecutive steep inclines, such as hills, dips

in the road, etc.

• When driving on roads with sharp bends, consecutive curves, or uneven

surfaces

• When vehicle lanes are wide, or when driving on the edge of a lane, and

the vehicle in an adjacent lane is far away from your vehicle

• When a bicycle carrier or other accessory is installed to the rear of the

vehicle

• When there is a significant difference in height between your vehicle and

the vehicle that enters the detection area

• Immediately after BSM system is set to on

291

4-5. Using the driving support systems

4

Drivin

g

C-HR_OM_USA_OM10684U

●

Instances  of  the  BSM  function  unnecessarily  detecting  a  vehicle  and/or
object may increase in the following situations:
• When the sensor is misaligned due to a strong impact to the sensor or its

surrounding area

• When the distance between your vehicle and a guardrail, wall, etc., that

enters the detection area is short

• When driving up and down consecutive steep inclines, such as hills, dips

in the road, etc.

• When vehicle lanes are narrow, or when driving on the edge of a lane,

and a vehicle traveling in a lane other than the adjacent lanes enters the
detection area

• When driving on roads with sharp bends, consecutive curves, or uneven

surfaces

• When the tires are slipping or spinning
• When the distance between your vehicle and a following vehicle is short
• When a bicycle carrier or other accessory is installed to the rear of the

vehicle

292

4-5. Using the driving support systems

C-HR_OM_USA_OM10684U

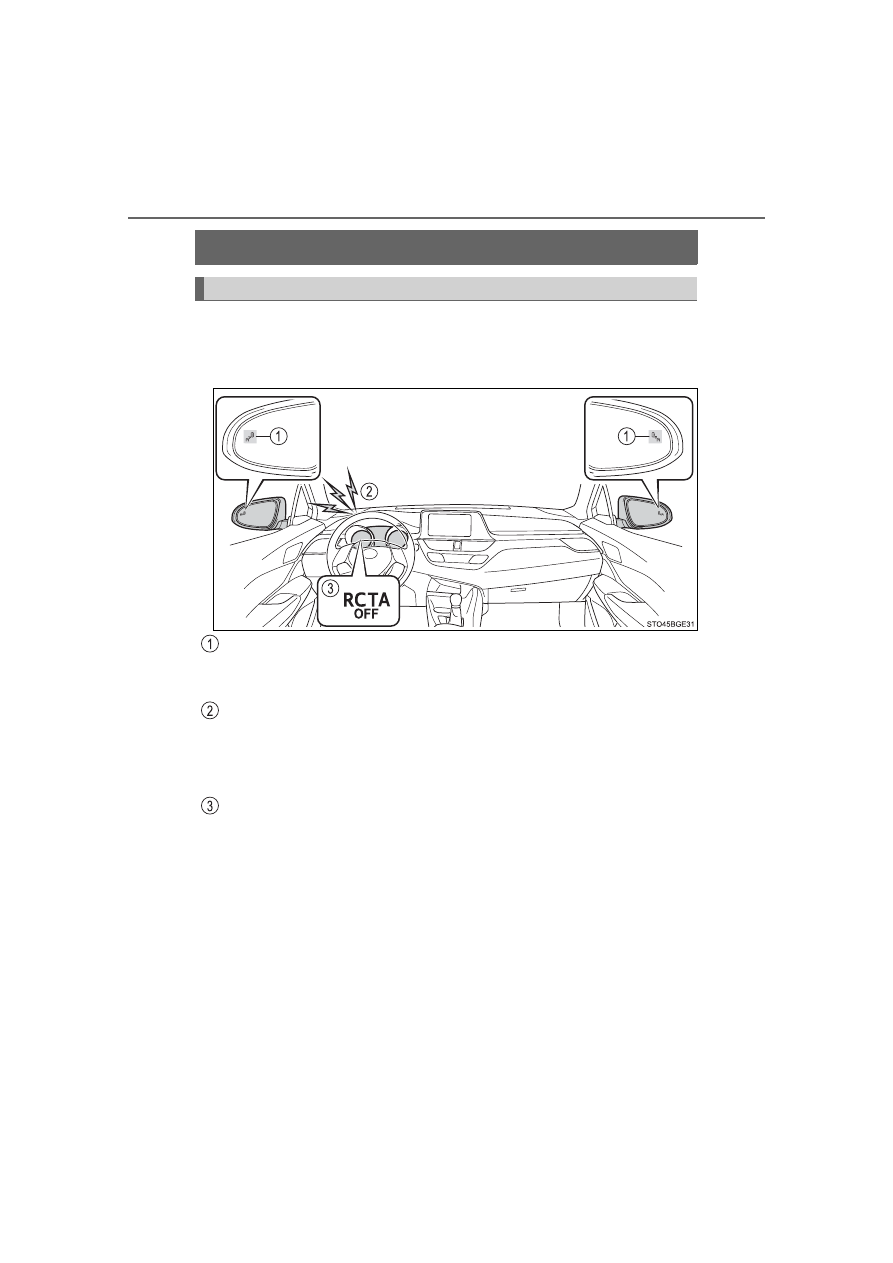

RCTA (Rear Cross Traffic Alert)



The  RCTA  function  uses  the  BSM  rear  side  radar  sensors  installed
behind the rear bumper. This function is intended to assist the driver
in checking areas that are not easily visible when backing up.

Outside rear view mirror indicators

When a vehicle approaching from the right or left at the rear of the vehicle
is detected, both outside rear view mirror indicators will flash.

RCTA buzzer

If a vehicle approaching from the right or left at the rear of the vehicle is
detected, a buzzer will sound. The buzzer also sounds for approximately 1
second immediately after the RCTA function is operated to turn the system
on.

“RCTA OFF” indicator

Illuminates when the Rear Cross Traffic Alert is disabled.

Summary of the Rear Cross Traffic Alert



: If equipped

293

4-5. Using the driving support systems

4

Drivin

g

C-HR_OM_USA_OM10684U

Press “



” or “



” of the meter control switches, select

.

Press “



” or “



” of the meter control switches, select

.

Press “



” or “



” of the meter control switches, select

“RCTA”

.

When the RCTA function is disabled, the “RCTA OFF” indicator (



P. 292)

illuminates.
(Each time the engine switch is turned off then changed to ON, the RCTA
function will be enabled automatically.)

■

The outside rear view mirror indicators visibility

When under strong sunlight, the outside rear view mirror indicator may be dif-
ficult to see.

■

Hearing the RCTA buzzer

The  RCTA  buzzer  may  be  difficult  to  hear  over  loud  noises,  such  as  if  the
audio system volume is high.

■

When “RCTA Unavailable.” is shown on the multi-information display

Water, snow mud, etc., may be built up in the vicinity of the sensor area of
bumper (



P. 286).

Removing  the  water,  snow,  mud,  etc.,  from  the  vicinity  of  the  sensor  area
bumper should return it to normal.
Also, the sensor may not function normally when used in extremely hot or
cold weather

■

When “RCTA Malfunction Visit Your Dealer.” is shown on the multi-infor-
mation display

There  may  be  a  sensor  malfunction  or  misaligned.  Have  the  vehicle
inspected by your Toyota dealer.

■

Rear side radar sensors



P. 286

Turning the RCTA function on/off

1

2

3

294

4-5. Using the driving support systems

C-HR_OM_USA_OM10684U

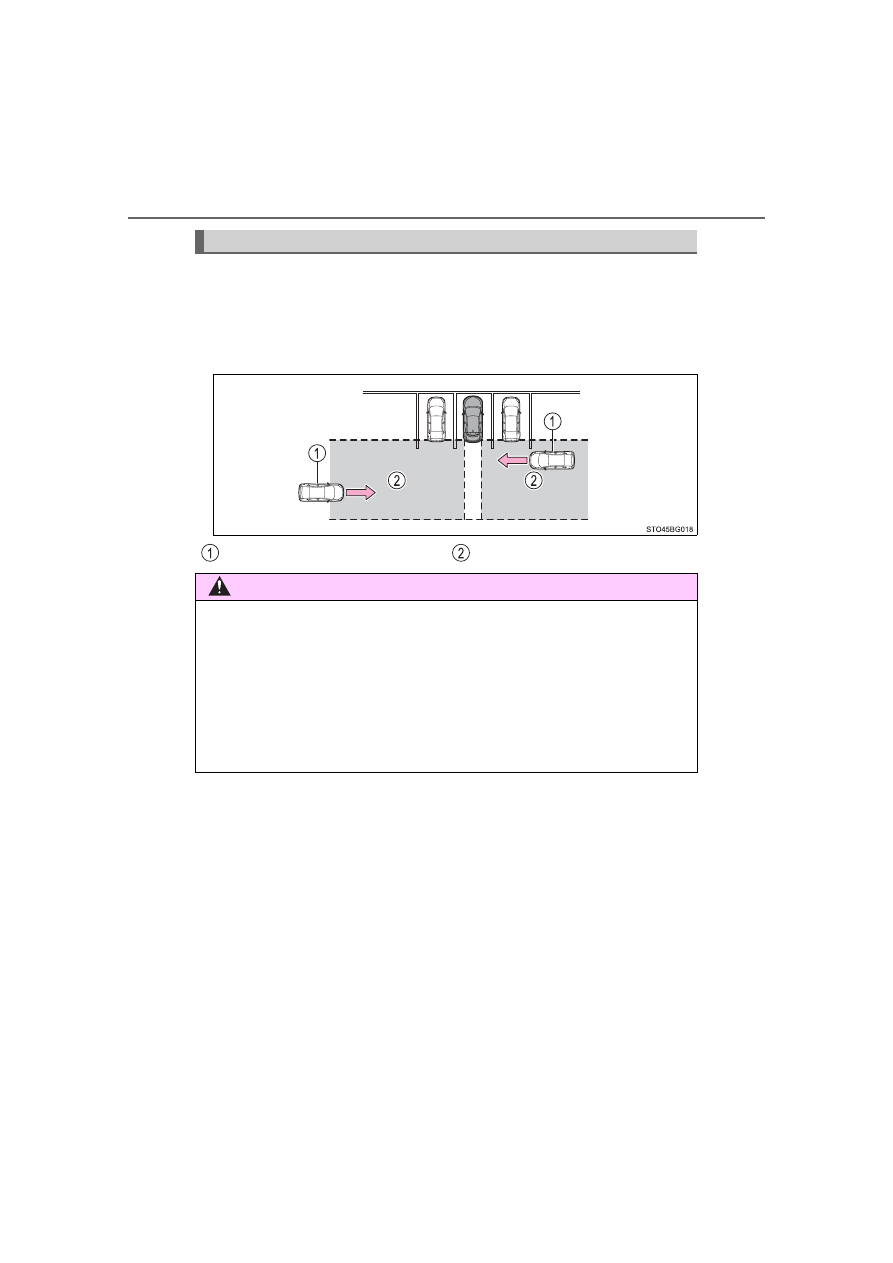

The  RCTA  functions  when  your  vehicle  is  in  reverse.  It  can  detect
other vehicles approaching from the right or left rear of the vehicle. It
uses radar sensors to alert the driver of the other vehicle’s existence
through flashing the outside rear view mirror indicators and sounding
a buzzer.

RCTA function

Approaching vehicles

Detection areas

WARNING

■

Cautions regarding the use of the function

The driver is solely responsible for safe driving. Always drive safely, taking
care to observe your surroundings.
The RCTA function is only a supplementary function which alerts the driver
that a vehicle is approaching from the right or left at the rear of the vehicle.
As the RCTA function may not function correctly under certain conditions,
the driver’s own visual confirmation of safety is necessary. Over reliance on
this function may lead to an accident resulting death or serious injury.

295

4-5. Using the driving support systems

4

Drivin

g

C-HR_OM_USA_OM10684U

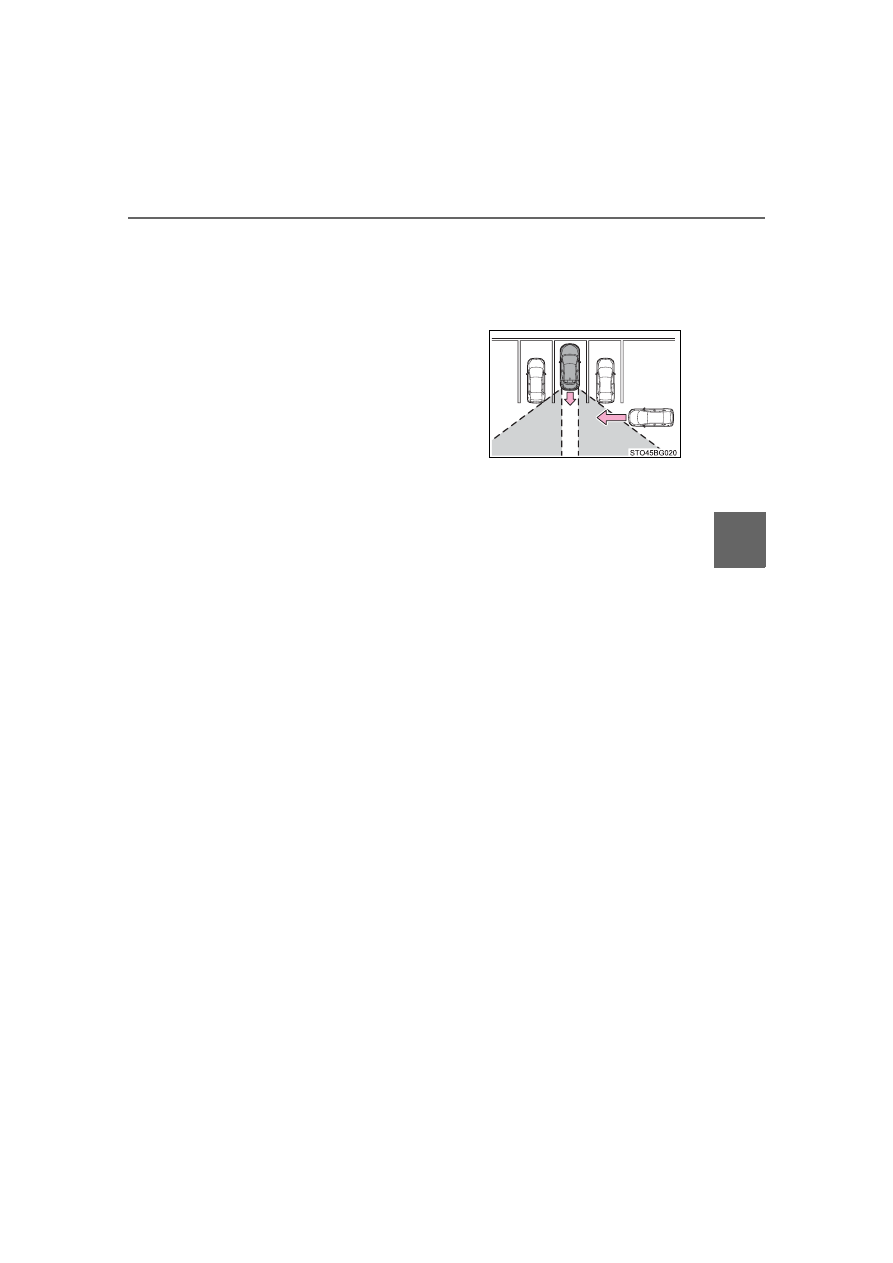

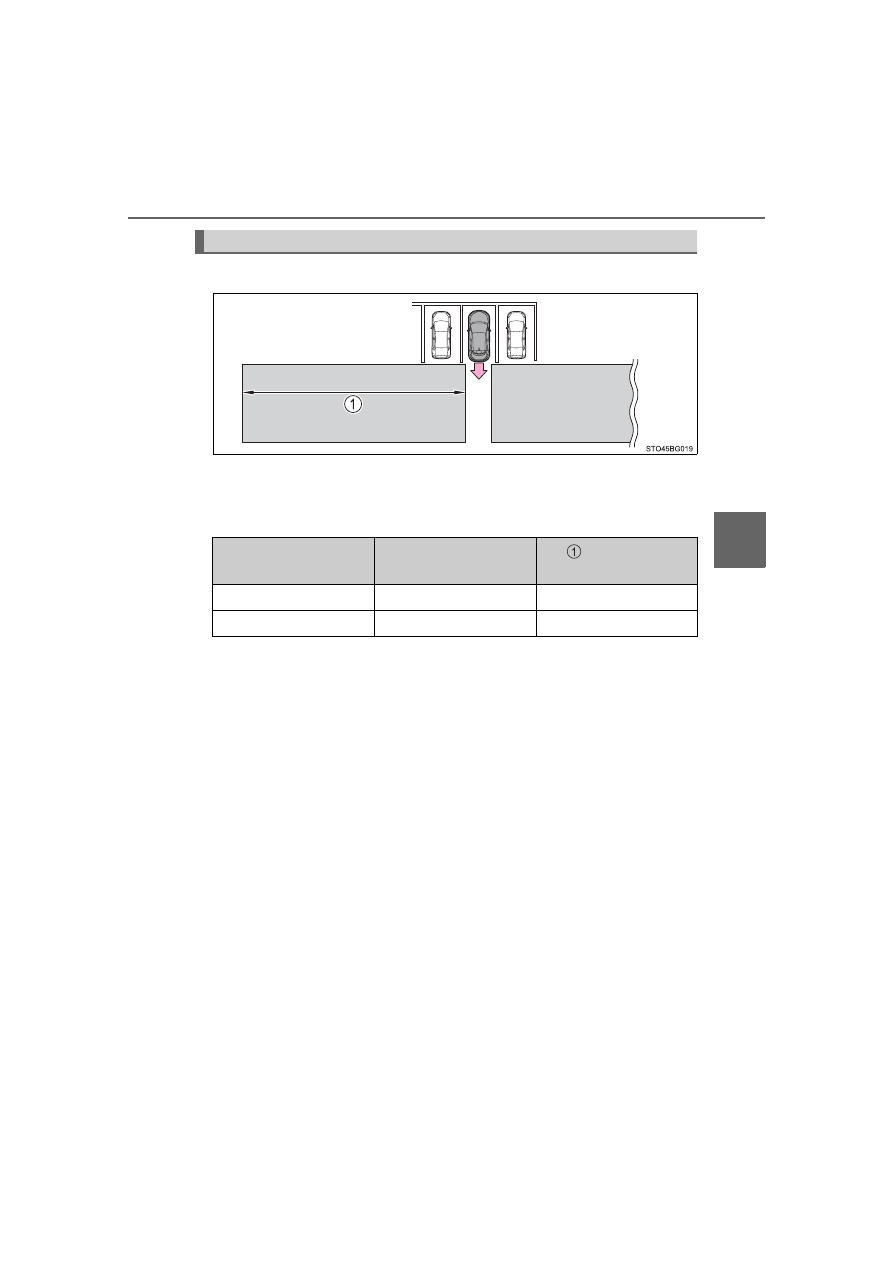

The areas that vehicles can be detected in are outlined below.

To give the driver a more consistent time to react, the buzzer can alert
for faster vehicles from farther away.
Example:

RCTA function detection areas

Approaching vehicle

Speed

Approximate
alert distance

Fast

18 mph (28 km/h)

65 ft. (20 m)

Slow

5 mph (8 km/h)

18 ft. (5.5 m)

296

4-5. Using the driving support systems

C-HR_OM_USA_OM10684U

■

The RCTA function is operational when

The RCTA function operates when all of the following conditions are met:

●

The RCTA system is set to on. (



P. 293)

●

The shift position is in R.

●

Vehicle speed is less than approximately 5 mph (8 km/h).

●

Approaching vehicle speed is between approximately 5 mph (8 km/h) and
18 mph (28 km/h).

■

Adjusting the buzzer volume

The buzzer volume can be adjusted on the multi-information display.
Use the meter control switches to change settings. (



P. 100)

Press “



” or “



” to select

.

Press “



” or “



” to select “Vehicle Settings”, and then press

.

Press “



” or “



” to select

, select the volume and then press

.

Each time the switch is pressed, the volume level will change between 1, 2
and

3

.

■

Muting a buzzer

A  mute  button  will  be  displayed  on  the  multi-information  display  when  an
object is detected. To mute the buzzer, press

.

Mute will be canceled automatically in the following situations:

●

When the shift lever is changed.

●

When the vehicle speed exceeds a certain speed.

●

When the operating function is temporarily canceled.

●

When the operating function is disabled manually.

●

When the engine switch is turned off.

1

2

3

297

4-5. Using the driving support systems

4

Drivin

g

C-HR_OM_USA_OM10684U

■

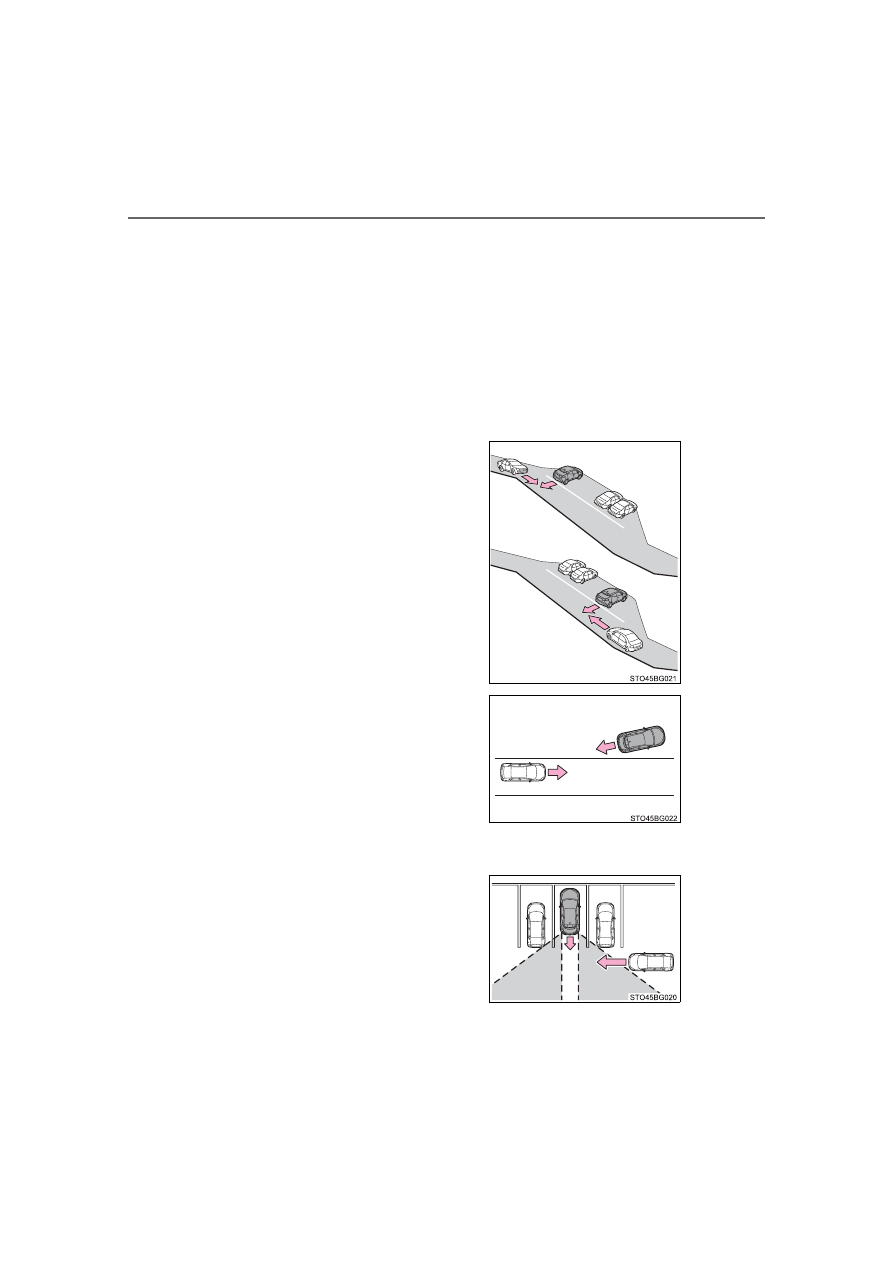

Conditions under which the RCTA function will not detect a vehicle

The RCTA function is not designed to detect the following types of vehicles
and/or objects:

●

Vehicles approaching from directly behind

●

Vehicles backing up in a parking space next to your vehicle

●

Guardrails, walls, signs, parked vehicles and similar stationary objects

*

●

Small motorcycles, bicycles, pedestrians, etc.

*

●

Vehicles moving away from your vehicle

●

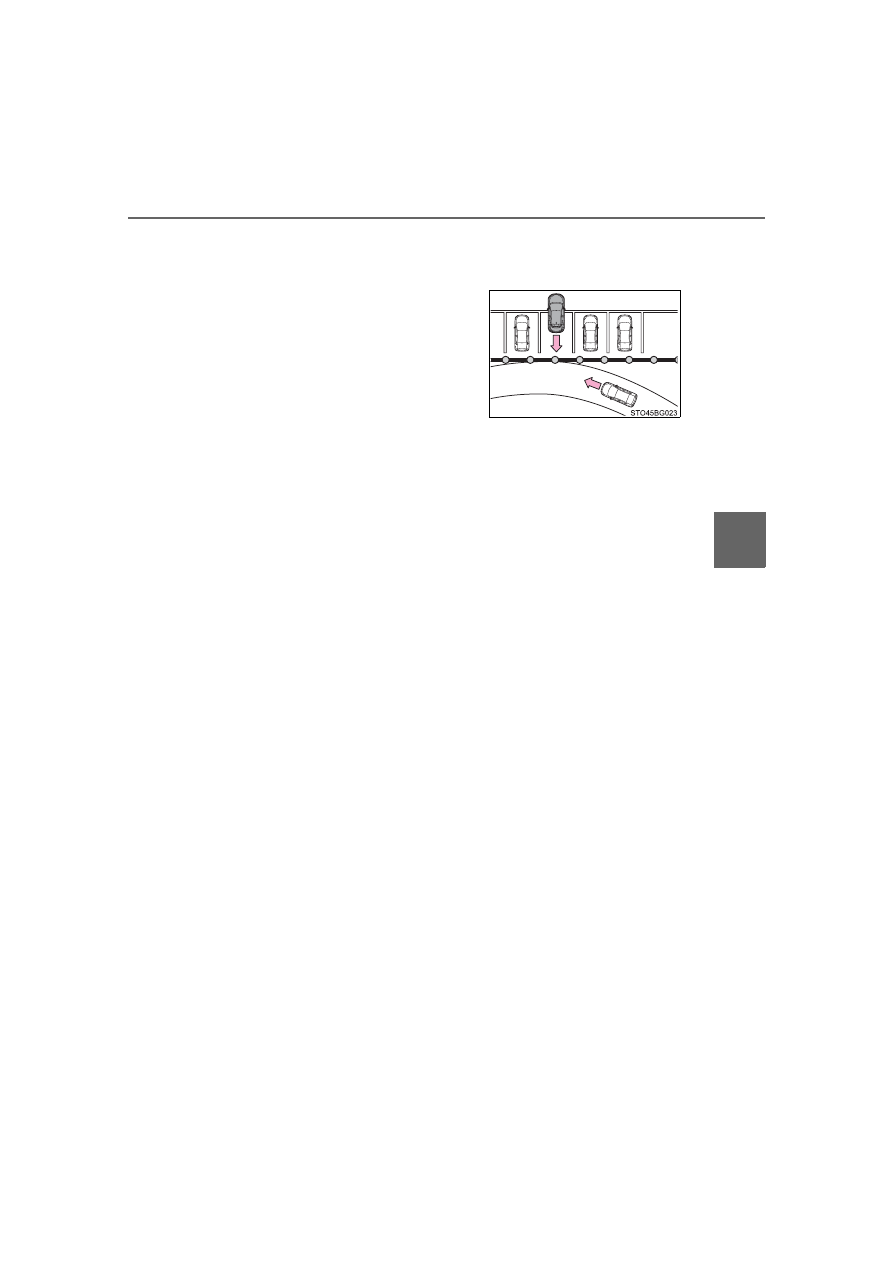

Vehicles approaching from the parking spaces next to your vehicle

*

*

: Depending  on  the  conditions,  detection  of  a  vehicle  and/or  object  may

occur.

●

Vehicles that the sensors cannot detect
due to obstructions

298

4-5. Using the driving support systems

C-HR_OM_USA_OM10684U

■

Conditions under which the RCTA function may not function correctly

●

The RCTA function may not detect vehicles correctly in the following situa-
tions:
• When the sensor is misaligned due to a strong impact to the sensor or its

surrounding area

• When mud, snow, ice, a sticker, etc., is covering the sensor or surround-

ing area on the rear bumper

• When driving on a road surface that is wet with standing water during bad

weather, such as heavy rain, snow, or fog

• When multiple vehicles are approaching with only a small gap between

each vehicle

• When a vehicle is approaching at high speed

• Immediately after the RCTA function is set to on
• Immediately after the engine is started with the RCTA function is set to on

• When  backing  up  on  a  slope  with  a

sharp change in grade

• When backing out of a shallow angle

parking spot

• When  the  sensors  cannot  detect  a

vehicle due to obstructions

299

4-5. Using the driving support systems

4

Drivin

g

C-HR_OM_USA_OM10684U

●

Instances  of  the  RCTA  function  unnecessarily  detecting  a  vehicle  and/or
object may increase in the following situations:
• When a vehicle passes by the side of your vehicle

• When  the  distance  between  your  vehicle  and  metal  objects,  such  as  a

guardrail, wall, sign, or parked vehicle, which may reflect electrical waves
toward the rear of the vehicle, is short

• When  the  parking  space  faces  a

street  and  vehicles  are  being  driven
on the street

300

4-5. Using the driving support systems

C-HR_OM_USA_OM10684U

Driving assist systems

◆

ABS (Anti-lock Brake System)

Helps to prevent wheel lock when the brakes are applied suddenly,
or if the brakes are applied while driving on a slippery road surface

◆

Brake assist

Generates an increased level of braking force after the brake pedal
is depressed when the system detects a panic stop situation

◆

VSC (Vehicle Stability Control)

Helps  the  driver  to  control  skidding  when  swerving  suddenly  or
turning on slippery road surfaces

◆

Enhanced VSC (Enhanced Vehicle Stability Control)

Provides cooperative control of the ABS, TRAC, VSC and EPS.
Helps  to  maintain  directional  stability  when  swerving  on  slippery
road surfaces by controlling steering performance

◆

TRAC



(Traction Control)

Helps  to  maintain  drive  power  and  prevent  the  drive  wheels  from
spinning when starting the vehicle or accelerating on slippery roads

◆

Active Cornering Assist (ACA)

Helps to prevent the vehicle from drifting to the outer side by per-
forming  inner  wheel  brake  control  when  attempting  to  accelerate
while turning.

To keep driving safety and performance, the following systems
operate automatically in response to various driving situations.
Be aware, however, that these systems are supplementary and
should not be relied upon too heavily when operating the vehi-
cle.

301

4-5. Using the driving support systems

4

Drivin

g

C-HR_OM_USA_OM10684U

◆

Hill-start assist control

Helps to reduce the backward movement of the vehicle when start-
ing on an uphill

◆

EPS (Electric Power Steering)

Employs an electric motor to reduce the amount of effort needed to

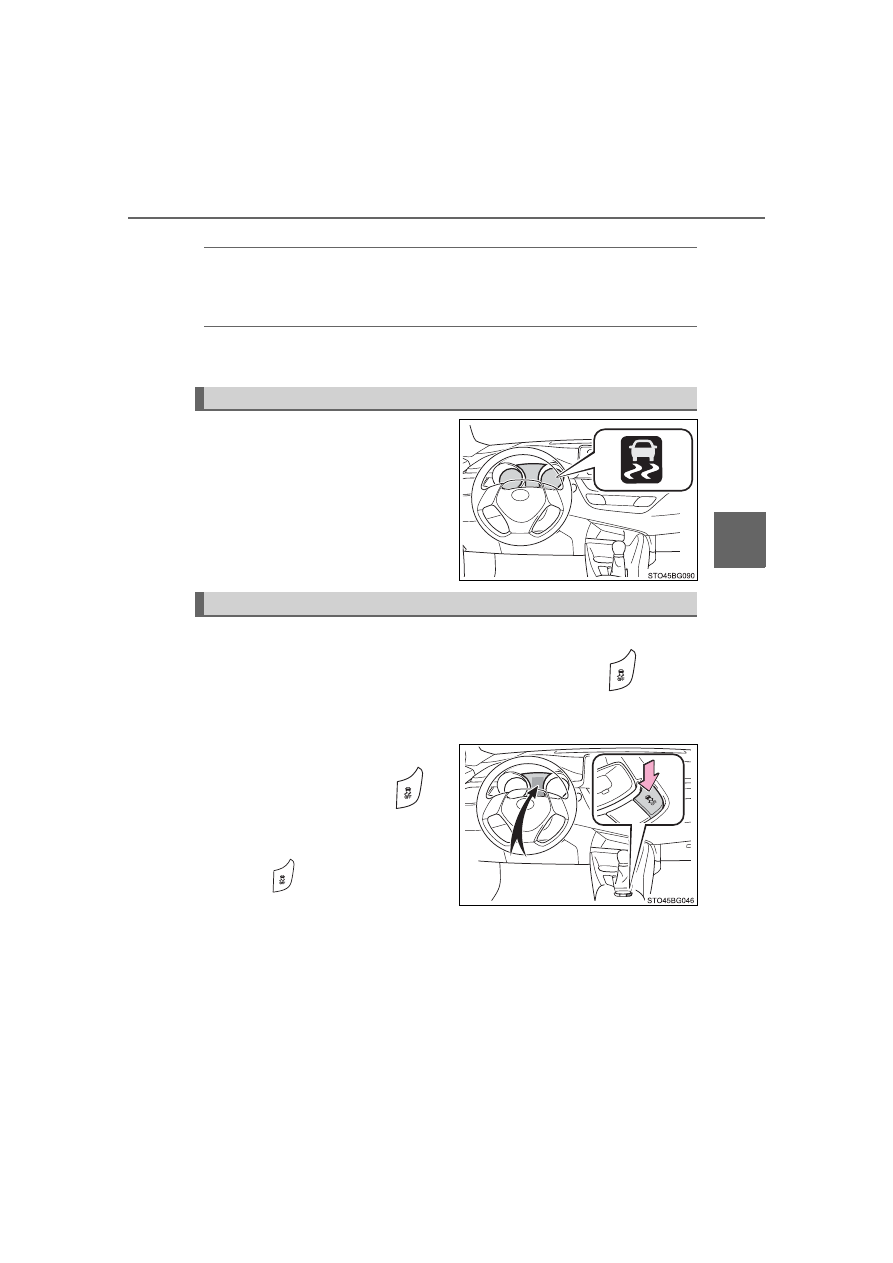

turn the steering wheel.

The  slip  indicator  light  will  flash
while the TRAC/VSC systems are
operating.

If the vehicle gets stuck in mud, dirt or snow, the TRAC system may

reduce power from the engine to the wheels. Pressing

 to turn

the system off may make it easier for you to rock the vehicle in order
to free it.
To  turn  the  TRAC  system  off,

quickly press and release

.

A  message  will  be  shown  on  the
multi-information display.

Press

  again  to  turn  the  sys-

tem back on.

When the TRAC/VSC systems are operating

Disabling the TRAC system

302

4-5. Using the driving support systems

C-HR_OM_USA_OM10684U

■

Turning off both TRAC and VSC systems

To turn the TRAC and VSC systems off, press and hold

 for more than 3

seconds while the vehicle is stopped.
The VSC off indicator light will come on and the message will be shown on
the multi-information display.

*

*

: On  vehicles  with  PCS  (Pre-Collision  System),  PCS  will  also  be  disabled

(only Pre-Collision warning is available). The PCS warning light will come
on and a message will be displayed on the multi-information display.
(



P. 245)

Press

 again to turn the systems back on.

■

When the message is displayed on the multi-information display show-

ing that TRAC has been disabled even if

 has not been pressed

TRAC is temporary deactivated. If the information continues to show, contact
your Toyota dealer.

■

Sounds and vibrations caused by the ABS, brake assist, VSC, TRAC and
hill-start assist control systems

●

A sound may be heard from the engine compartment when the brake pedal
is depressed repeatedly, when the engine is started or just after the vehicle
begins  to  move.  This  sound  does  not  indicate  that  a  malfunction  has
occurred in any of these systems.

●

Any  of  the  following  conditions  may  occur  when  the  above  systems  are
operating. None of these indicates that a malfunction has occurred.
• Vibrations may be felt through the vehicle body and steering.
• A motor sound may be heard also after the vehicle comes to a stop.
• The brake pedal may pulsate slightly after the ABS is activated.
• The brake pedal may move down slightly after the ABS is activated.

■

Active Cornering Assist operation sounds and vibrations

When  the Active Cornering Assist  is operated,  operation  sounds  and  vibra-
tions may be generated from the brake system, but this is not a malfunction.

■

EPS operation sound

When the steering wheel is operated, a motor sound (whirring sound) may be
heard. This does not indicate a malfunction.

303

4-5. Using the driving support systems

4

Drivin

g

C-HR_OM_USA_OM10684U

■

Automatic reactivation of TRAC and VSC systems

After turning the TRAC and VSC systems off, the systems will be automati-
cally re-enabled in the following situations:

●

Vehicles without a smart key system: When the engine switch is turned to
the “LOCK” position
Vehicles with a smart key system: When the engine switch is turned off

●

If only the TRAC system is turned off, the TRAC will turn on when vehicle
speed increases
If both the TRAC and VSC systems are turned off, automatic re-enabling will
not occur when vehicle speed increases.

■

Operating conditions of Active Cornering Assist

The system operates when the following occurs:

●

TRAC/VSC can operate

●

The driver is attempting to accelerate while turning

●

The system detects that the vehicle is drifting to the outer side

●

The brake pedal is released

■

Reduced effectiveness of the EPS system

The effectiveness of the EPS system is reduced to prevent the system from
overheating when there is frequent steering input over an extended period of
time. The steering wheel may feel heavy as a result. Should this occur, refrain
from excessive steering input or stop the vehicle and turn the engine off. The
EPS system should return to normal within 10 minutes.

■

Operating conditions of hill-start assist control

When  the  following  four  conditions  are  met,  the  hill-start  assist  control  will
operate:

●

The shift lever is in a position other than P or N (when starting off forward/
backward on an upward incline).

●

The vehicle is stopped.

●

The accelerator pedal is not depressed.

●

The parking brake is not engaged.

■

Automatic system cancelation of hill-start assist control

The hill-start assist control will turn off in any of the following situations:

●

The shift lever is shifted to P or N.

●

The accelerator pedal is depressed.

●

The parking brake is engaged.

●

2 seconds at maximum elapsed after the brake pedal is released.

304

4-5. Using the driving support systems

C-HR_OM_USA_OM10684U

WARNING

■

The ABS does not operate effectively when

●

The  limits  of  tire  gripping  performance  have  been  exceeded  (such  as
excessively worn tires on a snow covered road).

●

The vehicle hydroplanes while driving at high speed on wet or slick roads.

■

Stopping distance when the ABS is operating may exceed that of nor-
mal conditions

The ABS is not designed to shorten the vehicle’s stopping distance. Always
maintain a safe distance from the vehicle in front of you, especially in the
following situations:

●

When driving on dirt, gravel or snow-covered roads

●

When driving with tire chains

●

When driving over bumps in the road

●

When driving over roads with potholes or uneven surfaces

■

TRAC/VSC may not operate effectively when

Directional control and power may not be achievable while driving on slip-
pery road surfaces, even if the TRAC/VSC system is operating.
Drive the vehicle carefully in conditions where stability and power may be
lost.

■

Active Cornering Assist does not operate effectively when

●

Do not overly rely on Active Cornering Assist. Active Cornering Assist may
not operate effectively when accelerating down slopes or driving on slip-
pery road surfaces.

●

When  Active  Cornering  Assist  frequently  operates,  Active  Cornering
Assist  may  temporarily  stop  operating  to  ensure  proper  operation  of  the
brakes, TRAC and VSC.

■

Hill- start assist control does not operate effectively when

●

Do not overly rely on hill-start assist control. Hill-start assist control may
not operate effectively on steep inclines and roads covered with ice.

●

Unlike the parking brake, hill-start assist control is not intended to hold the
vehicle  stationary for an  extended  period  of time. Do not attempt to  use
hill-start assist control to hold the vehicle on an incline, as doing so may
lead to an accident.

305

4-5. Using the driving support systems

4

Drivin

g

C-HR_OM_USA_OM10684U

WARNING

■

When the TRAC/VSC is activated

The slip indicator light flashes. Always drive carefully. Reckless driving may
cause an accident. Exercise particular care when the indicator light flashes.

■

When the TRAC/VSC systems are turned off

Be  especially  careful  and  drive  at  a  speed  appropriate  to  the  road  condi-
tions. As these are the systems to help ensure vehicle stability and driving
force, do not turn the TRAC/VSC systems off unless necessary.

■

Replacing tires

Make sure that all tires are of the specified size, brand, tread pattern and
total load capacity. In addition, make sure that the tires are inflated to the
recommended tire inflation pressure level.
The ABS, TRAC and VSC systems will not function correctly if different tires
are installed on the vehicle.
Contact  your Toyota  dealer  for  further  information  when  replacing  tires  or
wheels.

■

Handling of tires and the suspension

Using tires with any kind of problem or modifying the suspension will affect
the driving assist systems, and may cause a system to malfunction.

306

4-6. Driving tips

C-HR_OM_USA_OM10684U

Winter driving tips

●

Use  fluids  that  are  appropriate  to  the  prevailing  outside  tempera-
tures.

• Engine oil
• Engine coolant
• Washer fluid

●

Have a service technician inspect the condition of the battery.

●

Have the vehicle fitted with four snow tires or purchase a set of tire
chains for the front tires

*

.

Ensure that all tires are the same size and brand, and that chains match
the size of the tires.

*

: Tire chains cannot be mounted on 18-inch tires.

Perform the following according to the driving conditions:

●

Do not try to forcibly open a window or move a wiper that is frozen.
Pour warm water over the frozen area to melt the ice. Wipe away
the water immediately to prevent it from freezing.

●

To  ensure  proper  operation  of  the  climate  control  system  fan,
remove  any  snow  that  has  accumulated  on  the  air  inlet  vents  in
front of the windshield.

●

Check for and remove any excess ice or snow that may have accu-
mulated  on  the  exterior  lights,  vehicle’s  roof,  chassis,  around  the
tires or on the brakes.

●

Remove  any  snow  or  mud  from  the  bottom  of  your  shoes  before
getting in the vehicle.

Carry  out  the  necessary  preparations  and  inspections  before
driving the vehicle in winter. Always drive the vehicle in a man-
ner appropriate to the prevailing weather conditions.

Preparation for winter

Before driving the vehicle

307

4-6. Driving tips

4

Drivin

g

C-HR_OM_USA_OM10684U

Accelerate the vehicle slowly, keep a safe distance between you and
the vehicle ahead, and drive at a reduced speed suitable to road con-
ditions.

●

Park the vehicle and move the shift lever to P without setting  the
parking brake. The parking brake may freeze up, preventing it from
being released. If the vehicle is parked without setting the parking
brake, make sure to block the wheels.
Failure to do so may be dangerous because it may cause the vehi-
cle to move unexpectedly, possibly leading to an accident.

●

If  the  vehicle  is  parked  without  setting  the  parking  brake,  confirm
that the shift lever cannot be moved out of P

*.

*

: The shift lever will be locked if it is attempted to be shifted from P to any

other position without depressing the brake pedal. If the shift lever can be
shifted from P, there may be a problem with the shift lock system. Have the
vehicle inspected by your Toyota dealer immediately.



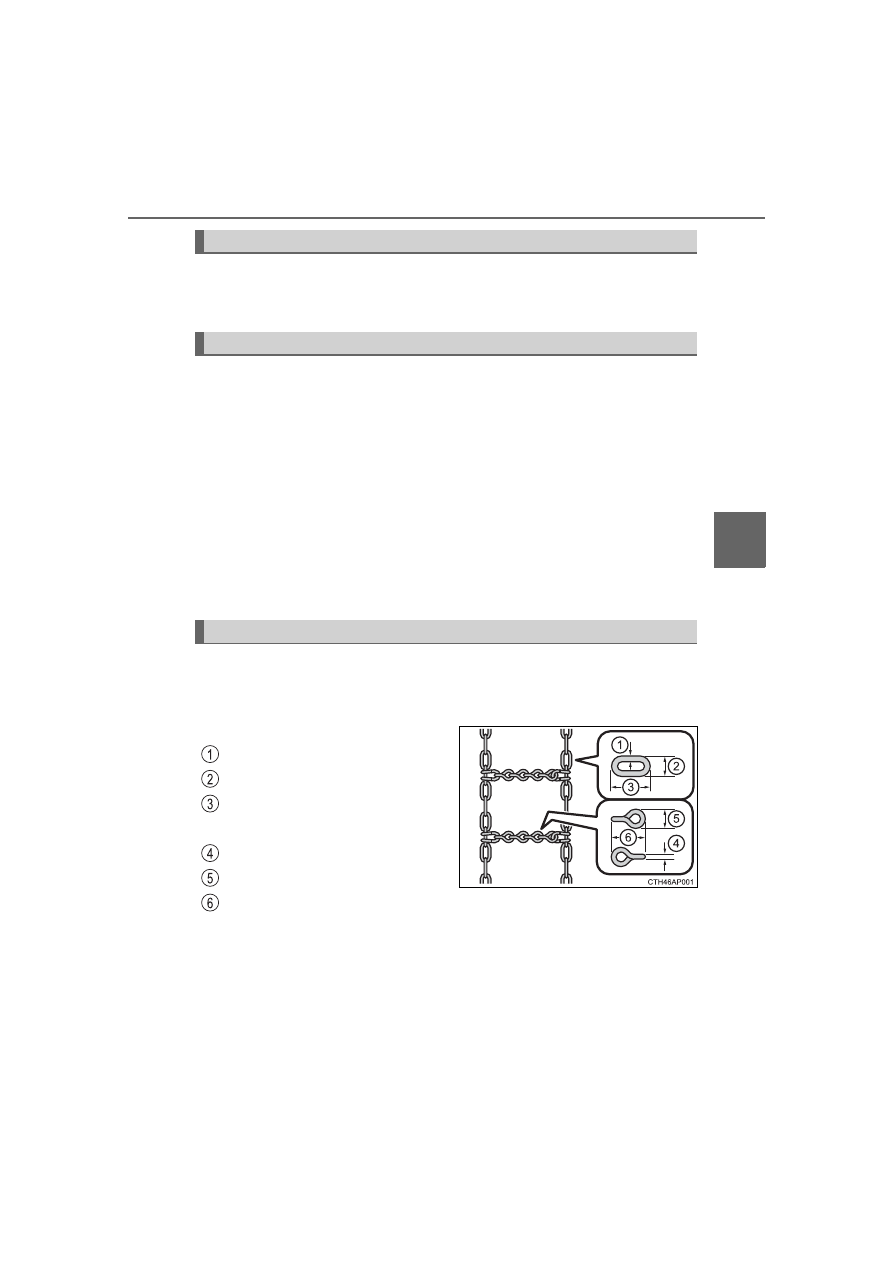

17-inch tires

Use the correct tire chain size when mounting the tire chains.
Chain size is regulated for each tire size.
Side chain:

0.12 in. (3 mm) in diameter
0.39 in. (10 mm) in width
1.18 in. (30 mm) in length

Cross chain:

0.16 in. (4 mm) in diameter
0.55 in. (14 mm) in width
0.98 in. (25 mm) in length



18-inch tires

Tire  chains  cannot  be  mounted  as  the  space  between  the  tire  and
body is too narrow.

Snow tires should be used instead.

When driving the vehicle

When parking the vehicle

Selecting tire chains

308

4-6. Driving tips

C-HR_OM_USA_OM10684U

Regulations regarding the use of tire chains vary depending on loca-
tion and type of road. Always check local regulations before installing
chains.

■

Tire chain installation

Observe the following precautions when installing and removing chains:

●

Install and remove tire chains in a safe location.

●

Install tire chains on the front tires. Do not install tire chains on the rear tires.

●

Install tire chains on front tires as tightly as possible. Retighten chains after
driving 1/4



 1/2 mile (0.5



 1.0 km).

●

Install tire chains following the instructions provided with the tire chains.

Regulations on the use of tire chains

309

4-6. Driving tips

4

Drivin

g

C-HR_OM_USA_OM10684U

WARNING

■

Driving with snow tires

Observe the following precautions to reduce the risk of accidents.
Failure to do so may result in a loss of vehicle control and cause death or
serious injury.

●

Use tires of the size specified.

●

Maintain the recommended level of air pressure.

●

Do  not  drive  in  excess  of  75  mph  (120  km/h),  regardless  of  the  type  of
snow tires being used.

●

Use snow tires on all, not just some wheels.

■

Driving with tire chains

Observe the following precautions to reduce the risk of accidents.
Failure to do so may result in the vehicle being unable to be driven safely,
and may cause death or serious injury.

●

Do not drive in excess of the speed limit specified for the tire chains being
used, or 30 mph (50 km/h), whichever is lower.

●

Avoid driving on bumpy road surfaces or over potholes.

●

Avoid  sudden  acceleration,  abrupt  steering,  sudden  braking  and  shifting
operations that cause sudden engine braking.

●

Slow down sufficiently before entering a curve to ensure that vehicle con-
trol is maintained.

NOTICE

■

Repairing or replacing snow tires

Request repairs or replacement of snow tires from Toyota dealers or legiti-
mate tire retailers.
This is because the removal and attachment of snow tires affects the opera-
tion of the tire pressure warning valves and transmitters.

■

Fitting tire chains

The tire pressure warning valves and transmitters may not function correctly
when tire chains are fitted

310

4-6. Driving tips

C-HR_OM_USA_OM10684U

311

5

Interior features

C-HR_OM_USA_OM10684U

5-1. Using the air conditioning

system and defogger

Air conditioning system ..... 312
Heated steering wheel/

seat heaters .................... 321

5-2. Using the interior lights

Interior lights list ................ 323

• Interior lights ................. 324
• Personal lights .............. 325

5-3. Using the

storage features

List of storage features ..... 326

• Glove box...................... 327
• Console box.................. 327
• Bottle holders................ 328
• Cup holders .................. 329

Luggage compartment

features........................... 330

5-4. Using the

other interior features

Other interior features ....... 336

• Sun visors ..................... 336
• Vanity mirrors................ 336
• Power outlet.................. 337
• Assist grips ................... 338

312

5-1. Using the air conditioning system and defogger

C-HR_OM_USA_OM10684U

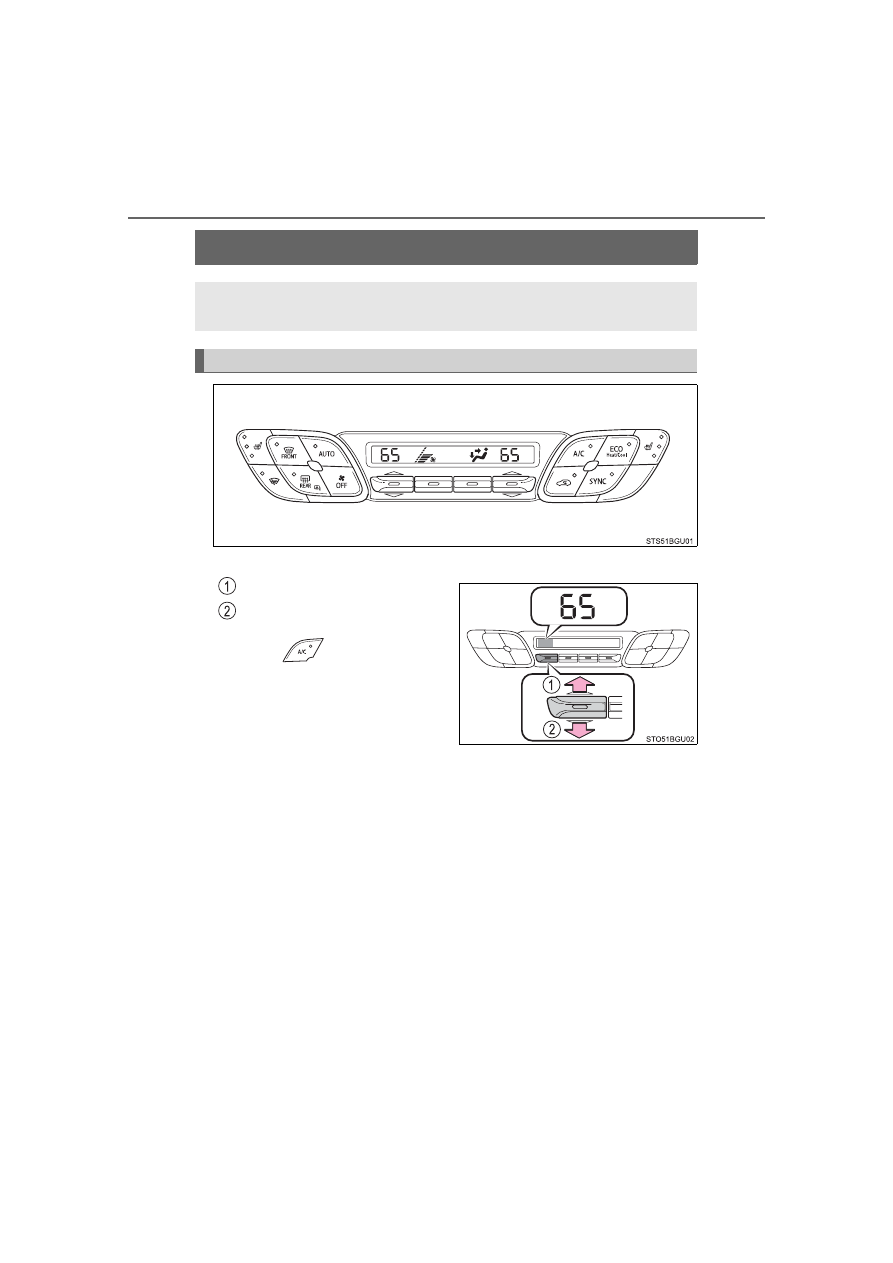

Air conditioning system

■

Adjusting the temperature setting

Increases the temperature
Decreases the temperature

If  the

  indicator  is  turned

off, the system will blow ambient
temperature air or heated air.

Air outlets are automatically selected and fan speed is automati-
cally adjusted according to the set temperature setting.

Air conditioning controls

313

5-1. Using the air conditioning system and defogger

5

In

te

rior

fe

at

ures

C-HR_OM_USA_OM10684U

■

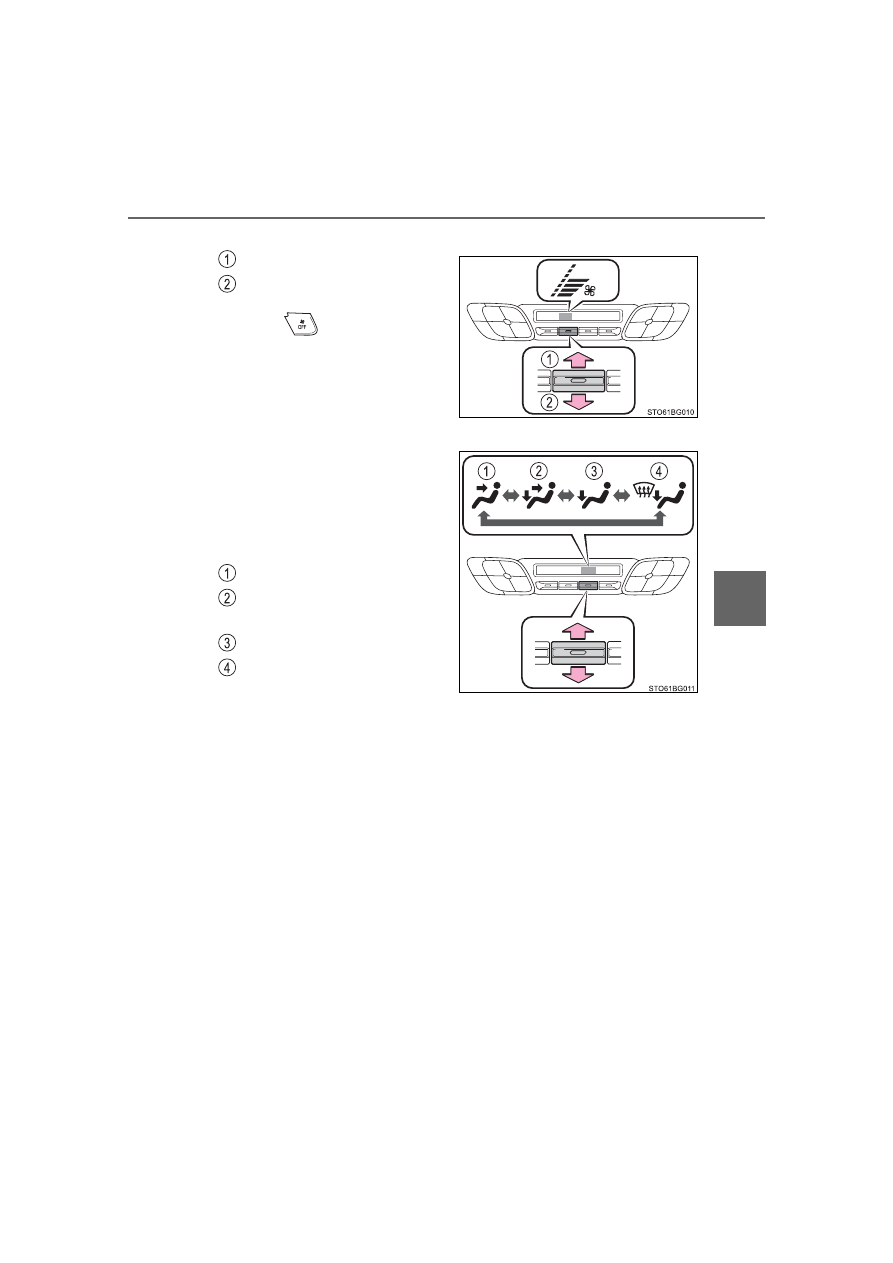

Fan speed setting

Increases the fan speed
Decreases the fan speed

Press

 to turn the fan off.

■

Change the airflow mode

To  change  the  airflow  mode,
move  the  airflow  change  knob
upward or downward.

The  air  outlets  used  are
changed  each  time  the  knob  is
operated.

Air flows to the upper body.
Air  flows  to  the  upper  body
and feet.
Air flows to the feet.
Air  flows  to  the  feet  and  the
windshield  defogger  oper-
ates.

314

5-1. Using the air conditioning system and defogger

C-HR_OM_USA_OM10684U

Press

.

The dehumidification function begins to operate. Air outlets and fan
speed are automatically adjusted according to the temperature set-
ting.
Adjust the temperature setting.

To stop the operation, press

.

■

Automatic mode indicator

If the fan speed setting or air flow modes are operated, the auto-
matic mode indicator goes off. However, automatic mode for func-
tions other than that operated is maintained.

■

Adjusting the temperature for driver and passenger seats sep-
arately

To turn on the dual control mode, perform any of the following pro-
cedures:

●

Press

.

●

Adjust the passenger’s side temperature setting.

The indicator comes on when the dual control mode is on.

Using automatic mode

1

2

3

315

5-1. Using the air conditioning system and defogger

5

In

te

rior

fe

at

ures

C-HR_OM_USA_OM10684U

■

Switching between outside air and recirculated air modes

Press

.

The mode switches between outside air mode (indicator off) and recir-

culated air mode (indicator on) each time

 is pressed.

■

Defogging the windshield

Defoggers  are  used  to  defog  the  windshield  and  front  side  win-
dows.

Press

.

The dehumidification function operates and fan speed increases.
Set the outside/recirculated air mode button to the outside air mode if
the recirculated air mode is used. (It may switch automatically.)
To  defog  the  windshield  and  the  front  side  windows  early,  turn  the  air
flow and temperature up.

To return to the previous mode, press

 again when the windshield

is defogged.

■

Defogging the rear window and outside rear view mirrors

Defoggers are used to defog the rear window, and to remove rain-
drops, dew and frost from the outside rear view mirrors.

Press

.

The defoggers will automatically turn off after a period of time.

■

Windshield wiper de-icer (if equipped)

This  feature  is  used  to  prevent  ice  from  building  up  on  the  wind-
shield and wiper blades.
Press

.

The windshield wiper de-icer will automatically turn off after a period of
time.

Other functions

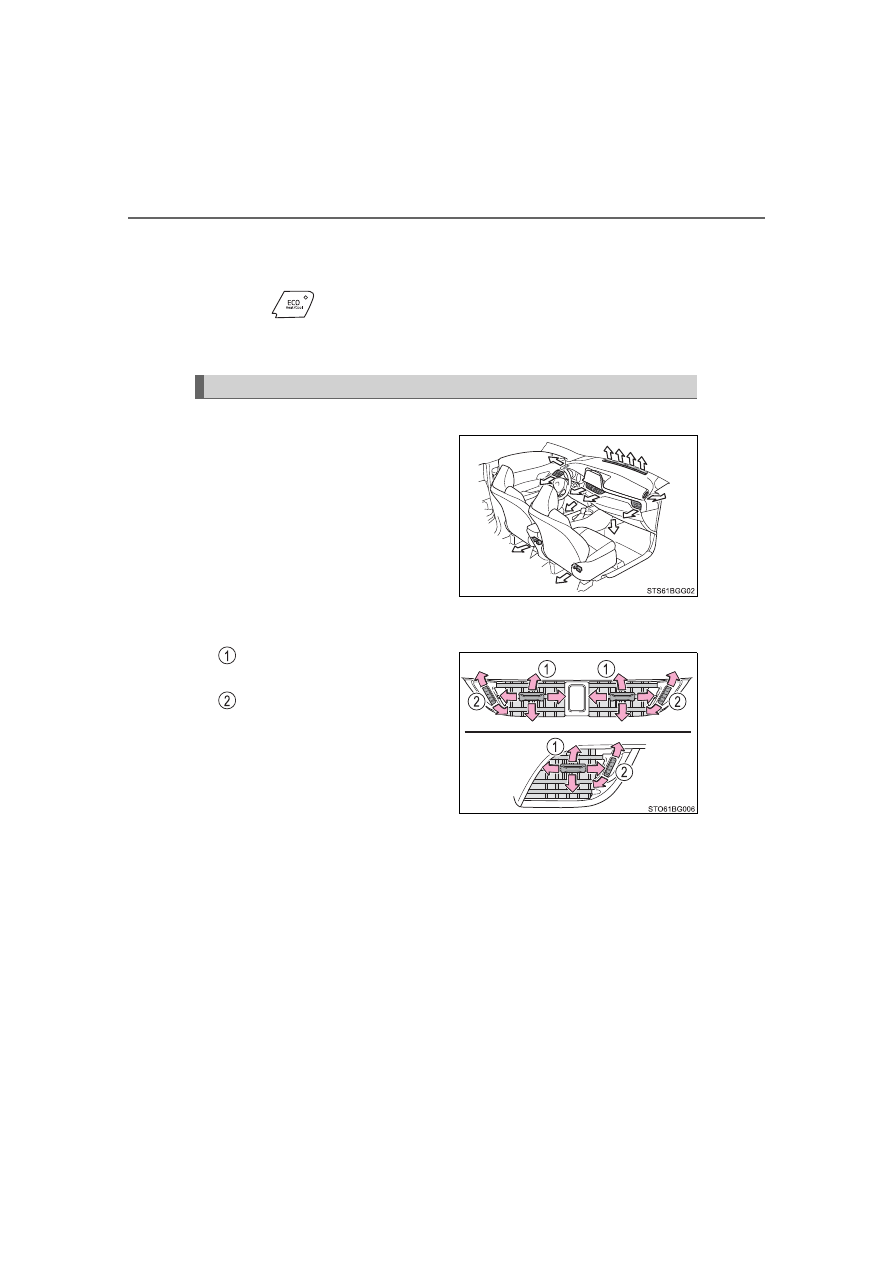

316

5-1. Using the air conditioning system and defogger

C-HR_OM_USA_OM10684U

■

Climate control customization

Climate control setting can be changed.

Press

.

The  air  conditioning  is  controlled  with  low  fuel  consumption  prioritized
such as reducing fan speed, etc.

■

Location of air outlets

The  air  outlets  and  air  volume
change

according

to

the

selected airflow mode.
(



P. 313)

■

Adjusting the position of and opening and closing the air out-
lets

Direct  air  flow  to  the  left  or
right, up or down.
Turn  the  knob  to  open  or
close the vent.

Air outlets

317

5-1. Using the air conditioning system and defogger

5

In

te

rior

fe

at

ures

C-HR_OM_USA_OM10684U

■

Using automatic mode

Fan speed is adjusted automatically according to the temperature setting and
the ambient conditions.
Therefore, the fan may stop for a while until warm or cool air is ready to flow

immediately after

 is pressed.

■

Fogging up of the windows

●

The windows will easily fog up when the humidity in the vehicle is high.

Turning

  on  will  dehumidify  the  air  from  the  outlets  and  defog  the

windshield effectively.

●

If you turn

 off, the windows may fog up more easily.

●

The windows may fog up if the recirculated air mode is used.

■

When driving on dusty roads

Close all windows. If dust thrown up by the vehicle is still drawn into the vehi-
cle after closing the windows, it is recommended that the air intake mode be
set to outside air mode and the fan speed to any setting except off.

■

Outside/recirculated air mode

●

Setting to the recirculated air mode temporarily is recommended in prevent-
ing dirty air from entering the vehicle interior and helping to cool the vehicle
when the outside air temperature is high.

●

Outside/recirculated  air  mode  may  automatically  switch  depending  on  the
temperature setting or the inside temperature.

■

Operation of the air conditioning system in Eco drive mode

●

In Eco drive mode, the air conditioning system is controlled as follows to pri-
oritize fuel efficiency:
• Engine  speed  and  compressor  operation  controlled  to  restrict  heating/

cooling capacity

•  Fan speed restricted when automatic mode is selected

●

To improve air conditioning performance, perform the following operations:
• Adjust the fan speed
• Adjust the temperature setting
• Turn off Eco drive mode

●

Even when the drive mode is set to Eco drive mode, the air conditioning eco

mode can be turned off by pressing

.

318

5-1. Using the air conditioning system and defogger

C-HR_OM_USA_OM10684U

■

When the outside temperature exceeds 75°F (24°C) and the air condition-
ing system is on

●

In order to reduce the air conditioning power consumption, the air condition-
ing system may switch to recirculated air mode automatically. This may also
reduce fuel consumption.

●

Recirculated air mode is selected as a default mode when the engine switch
is  turned  to  the  “ON”  position  (vehicles  without  a  smart  key  system)  or
IGNITION ON mode (vehicles with a smart key system).

●

It is possible to switch to outside air mode at any time by pressing

.

■

When the outside temperature falls to nearly 32



F (0



C)

The dehumidification function may not operate even when

 is pressed.

■

Ventilation and air conditioning odors

●

To let fresh air in, set the air conditioning system to the outside air mode.

●

During use, various odors from inside and outside the vehicle may enter into
and accumulate in the air conditioning system. This may then cause odor to
be emitted from the vents.

●

To reduce potential odors from occurring:
• It is recommended that the air conditioning system be set to outside air

mode prior to turning the vehicle off.

• The start timing of the blower may be delayed for a short period of time

immediately  after  the  air  conditioning  system  is  started  in  automatic
mode.

■

Air conditioning filter



P. 393

319

5-1. Using the air conditioning system and defogger

5

In

te

rior

fe

at

ures

C-HR_OM_USA_OM10684U

■

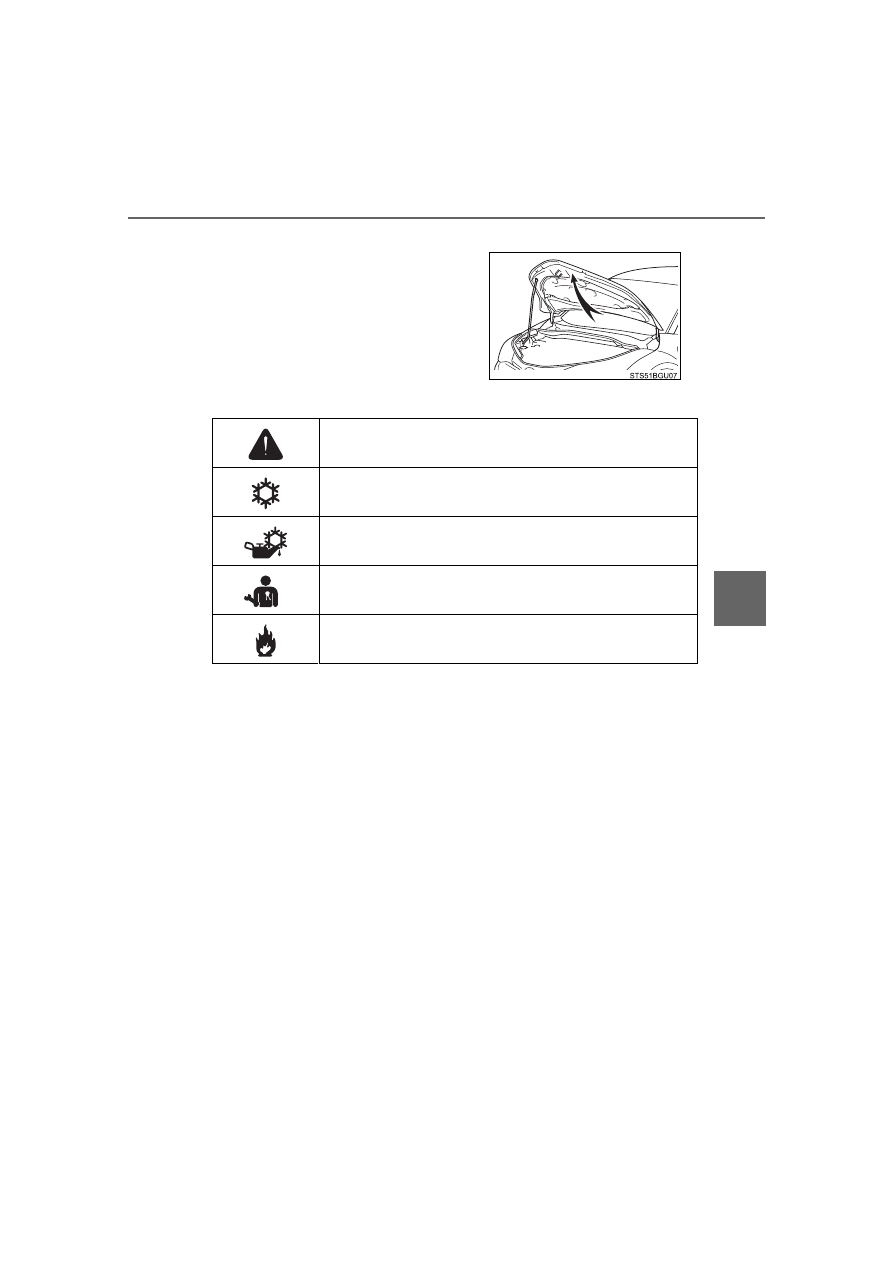

Air conditioning system refrigerant

●

 The meaning of each symbol on the label are as follows:

■

Customization

Settings (e.g. air conditioning setting) can be changed.
(Customizable features



P. 509)

●

A  label  regarding  the  refrigerant  of  the
air conditioning system is attached to the
hood at the location shown in the follow-
ing illustration.

Caution

Air conditioning system

Air conditioning system lubricant type

Requires  registered  technician  to  service  air

conditioning system

Flammable refrigerant

320

5-1. Using the air conditioning system and defogger

C-HR_OM_USA_OM10684U

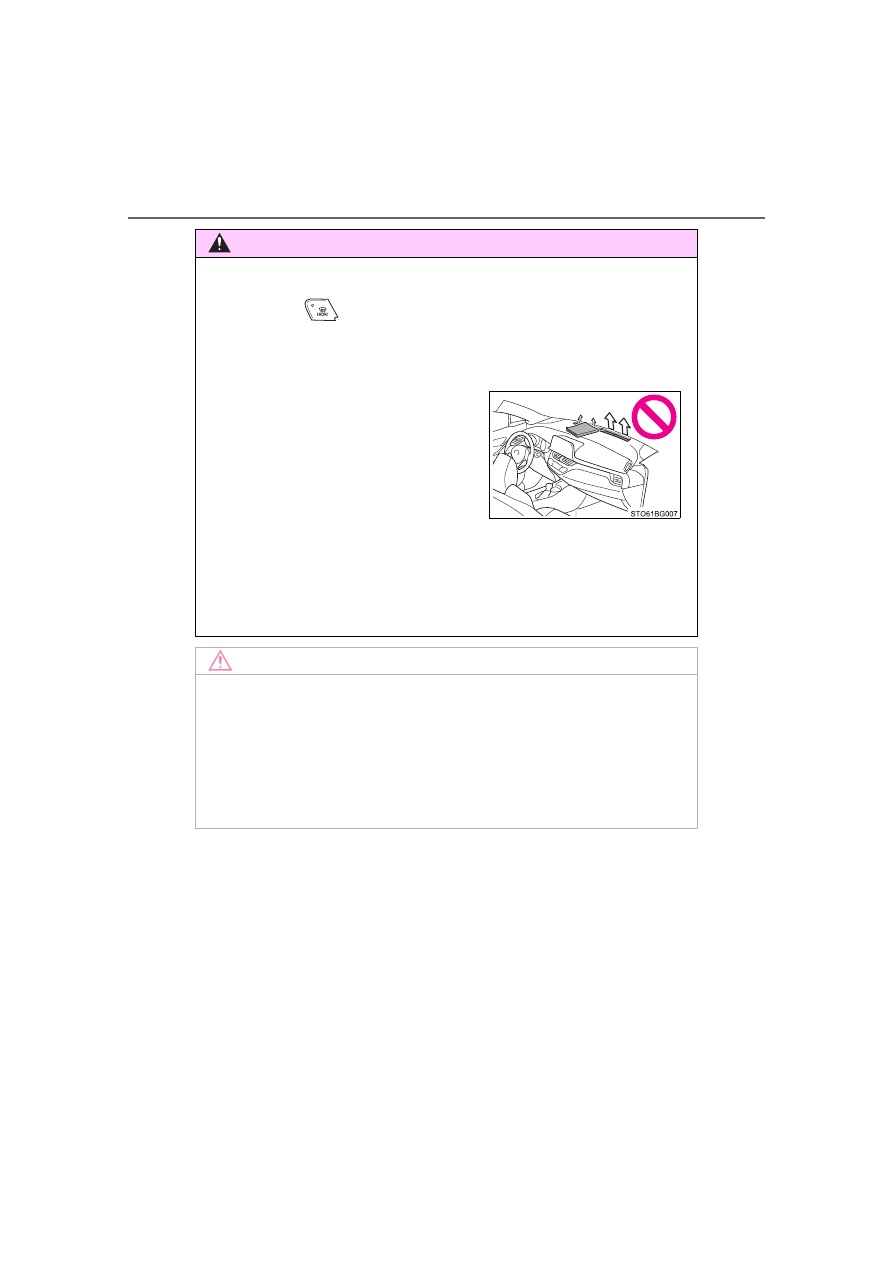

WARNING

■

To prevent the windshield from fogging up

●

Do  not  use

  during  cool  air operation in extremely humid  weather.

The difference between the temperature of the outside air and that of the
windshield can cause the outer surface of the windshield to fog up, block-
ing your vision.

■

To prevent burns

●

Do not touch the rear view mirror surfaces when the outside rear view mir-
ror defoggers are on.

●

Do not touch the glass at the lower part of the windshield or to the side of
the front pillars when the windshield wiper de-icer is on.

NOTICE

■

To prevent battery discharge

Do not leave the air conditioning system on longer than necessary when the
engine is stopped.

■

When repairing/replacing parts of the air conditioning system

Have repair/replacement performed by your Toyota dealer. When a part of
the  air  conditioning  system,  such  as  the  evaporator,  is  to  be  replaced,  it
must be replaced with a new one.

●

Do not place anything on the instrument
panel  which  may  cover  the  air  outlets.
Otherwise,  air  flow  may  be  obstructed,
preventing  the  windshield  defoggers
from defogging.

321

5-1. Using the air conditioning system and defogger

5

In

te

rior

fe

at

ures

C-HR_OM_USA_OM10684U

Heated steering wheel



/seat heaters





: If equipped

Seat heaters heat the front seats.

WARNING

●

Care should be taken to prevent injury if anyone in the following categories
comes in contact with the steering wheel and seats when the heater is on:
• Babies,  small  children,  the  elderly,  the  sick  and  the  physically  chal-

lenged

• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping

drugs, cold remedies, etc.)

●

Observe the following precautions to prevent minor burns or overheating:
• Do  not  cover  the  seat  with  a  blanket  or  cushion  when  using  the  seat

heater.

• Do not use seat heater more than necessary.

NOTICE

●

Do not put heavy objects that have an uneven surface on the seat and do
not stick sharp objects (needles, nails, etc.) into the seat.

●

To prevent battery discharge, do not use the functions when the engine is
not running.

322

5-1. Using the air conditioning system and defogger

C-HR_OM_USA_OM10684U

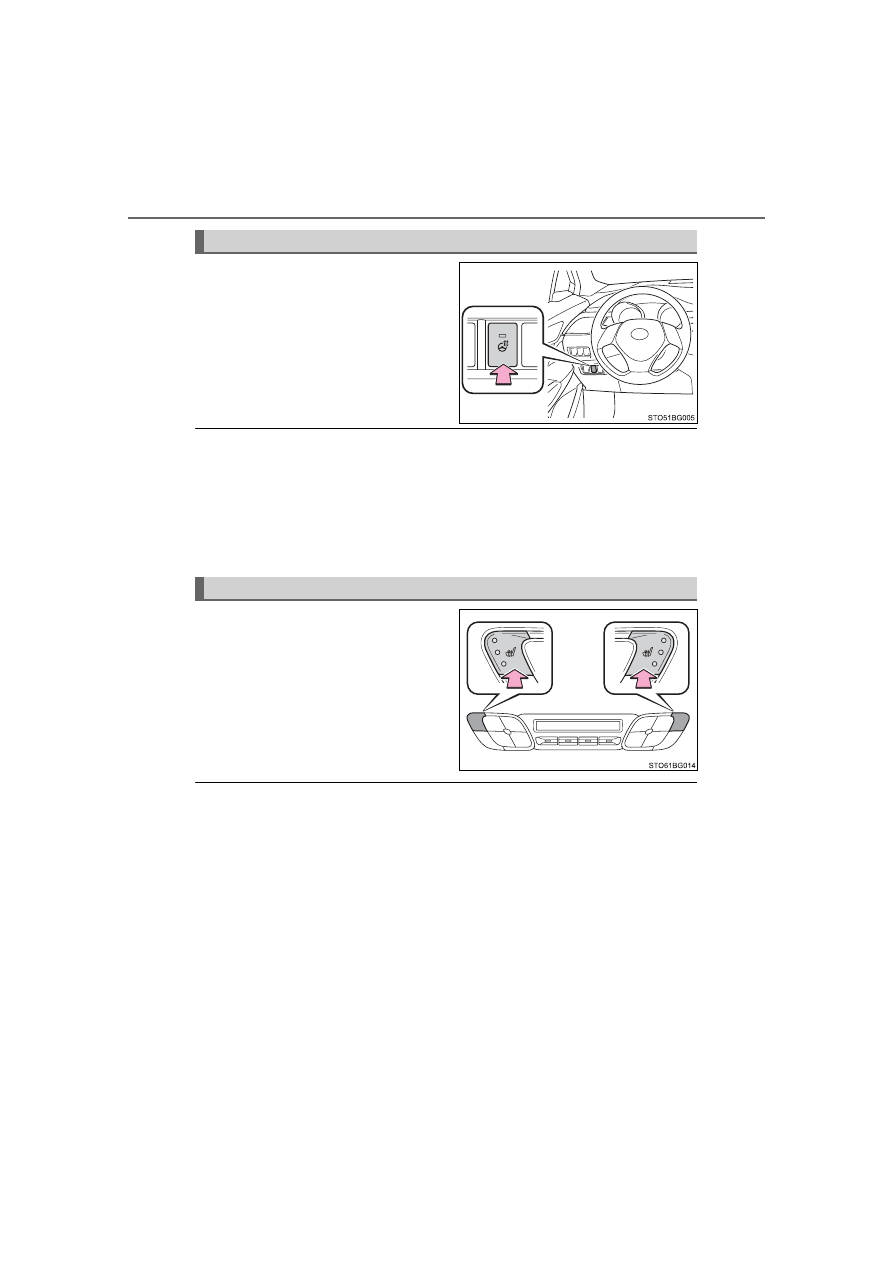

Turns  the  heated  steering  wheel
on/off

The indicator light comes on when
the heated steering wheel is oper-
ating.

■

Operation condition



Vehicles without a smart key system

The heated steering wheel can be used when the engine switch is in the “ON”
position.



Vehicles with a smart key system

The  heated  steering  wheel  can  be  used  when  the  engine  switch  is  in
IGNITION ON mode.

Each  time  the  switch  is  pressed,
the  operation  condition  changes
as follows.
Hi (3 segments lit)



 Mid (2 seg-

ments lit)



 Lo (1 segment lit)



Off

The  level  indicator  (amber)  lights
up during operation.

■

Operation condition



Vehicles without a smart key system

The seat heaters can be used when the engine switch is in the “ON” position.



Vehicles with a smart key system

The  seat  heaters  can  be  used  when  the  engine  switch  is  in  IGNITION  ON
mode.

Heated steering wheel

Seat heaters

323

5-2. Using the interior lights

5

In

te

rior

fe

at

ures

C-HR_OM_USA_OM10684U

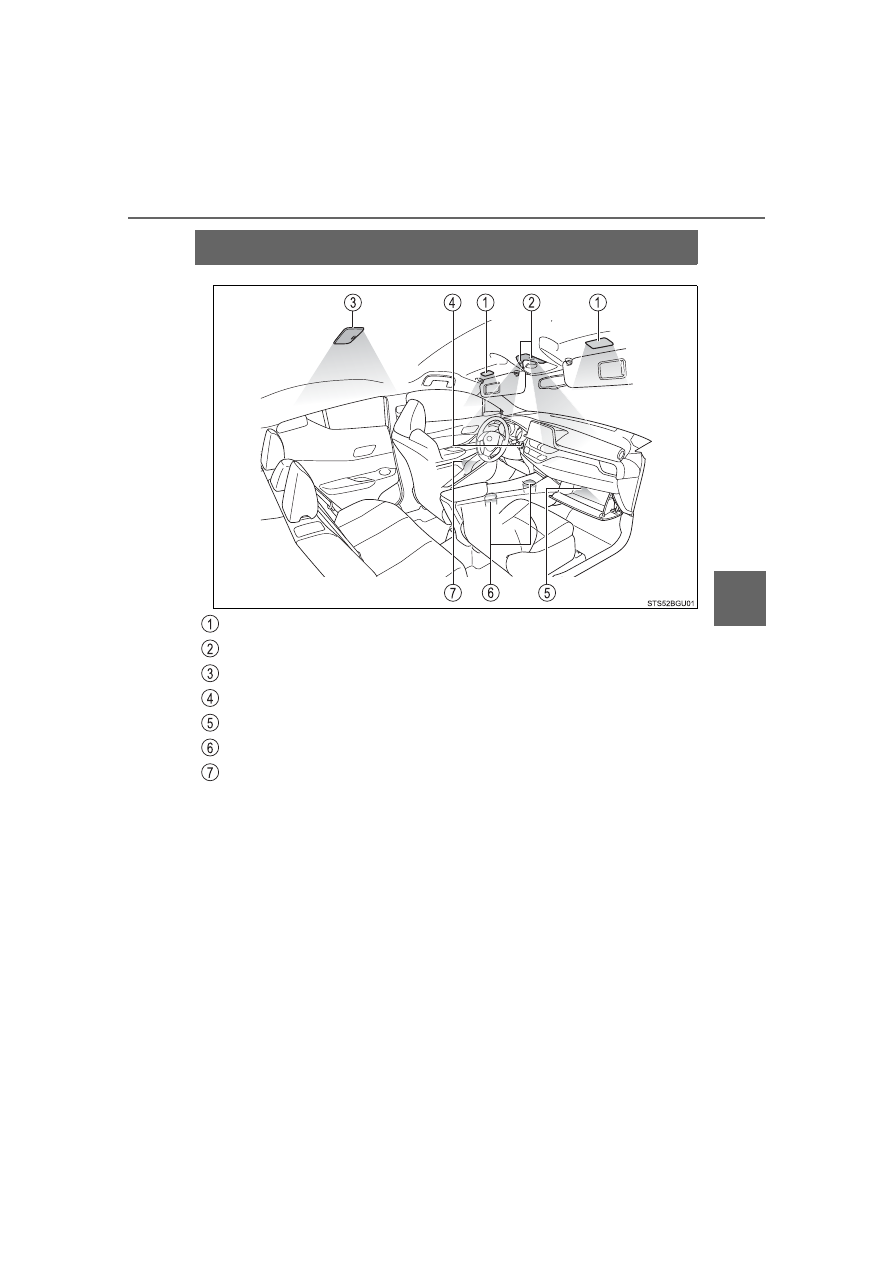

Interior lights list

Vanity lights (if equipped) (



P. 336)

Front interior light/front personal lights (



P. 324, 325)

Rear interior light (



P. 324)

Engine switch light (vehicles with a smart key system)
Glove box light (



P. 327)

Cup holder illumination (if equipped)
Door trim lights (if equipped)

324

5-2. Using the interior lights

C-HR_OM_USA_OM10684U

■

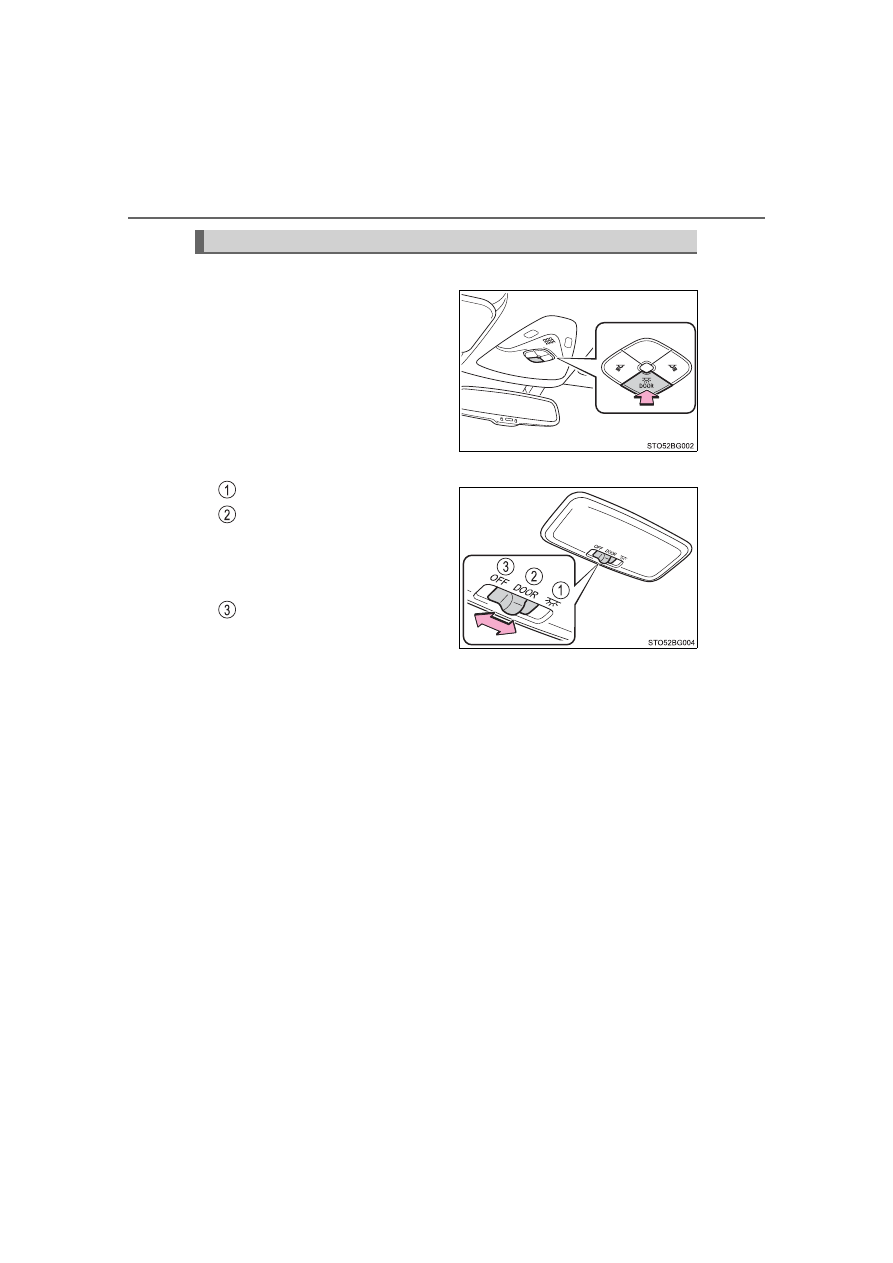

Front

Turns the door position on/off

■

Rear

On
Door position

Operation is linked with the front
interior  light  main  switch.  When
the  switch  is  off,  the  light  does
not illuminate.

Off

Interior lights

325

5-2. Using the interior lights

5

In

te

rior

fe

at

ures

C-HR_OM_USA_OM10684U

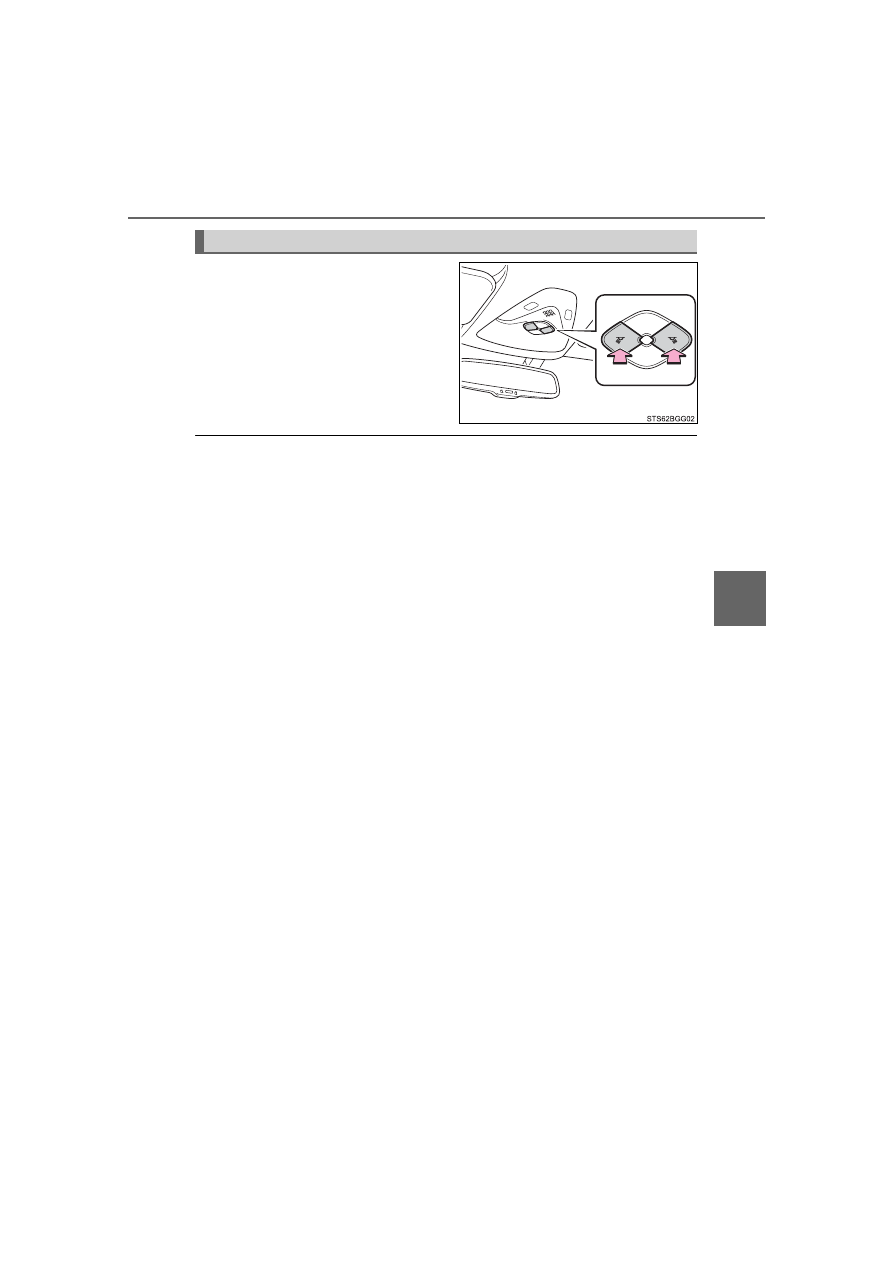

Turns the lights on/off

When  the  lights  are  on  due  to  the
door link switch, a light will not turn
off even if its switch is pressed.

■

Illuminated entry system



Vehicles without a smart key system

When the interior light switch is in the door position, the interior lights auto-
matically  turn  on/off  according  to  the  engine  switch  position,  whether  the
doors are locked/unlocked and whether the doors are open/closed.



Vehicles with a smart key system

When  the  interior  light  switch  is  in  the  door  position,  the  interior  lights  and
engine switch light automatically turn on/off according to engine switch mode,
the  presence  of  the  electronic  key,  whether  the  doors  are  locked/unlocked
and whether the doors are open/closed.

■

Outer mirror illumination (if equipped)

The illumination automatically turns on according to the presence of the elec-
tronic key (vehicles with a smart key system), or the doors are unlocked.

■

To prevent battery discharge

The following lights will turn off automatically after 20 minutes:

●

Front interior light/front personal lights

●

Rear interior light

●

Luggage compartment light

●

Vanity lights (if equipped)

■

Customization

Settings (e.g. the time elapsed before lights turn off) can be changed.
(Customizable features:



P. 510)

Personal lights

326

5-3. Using the storage features

C-HR_OM_USA_OM10684U

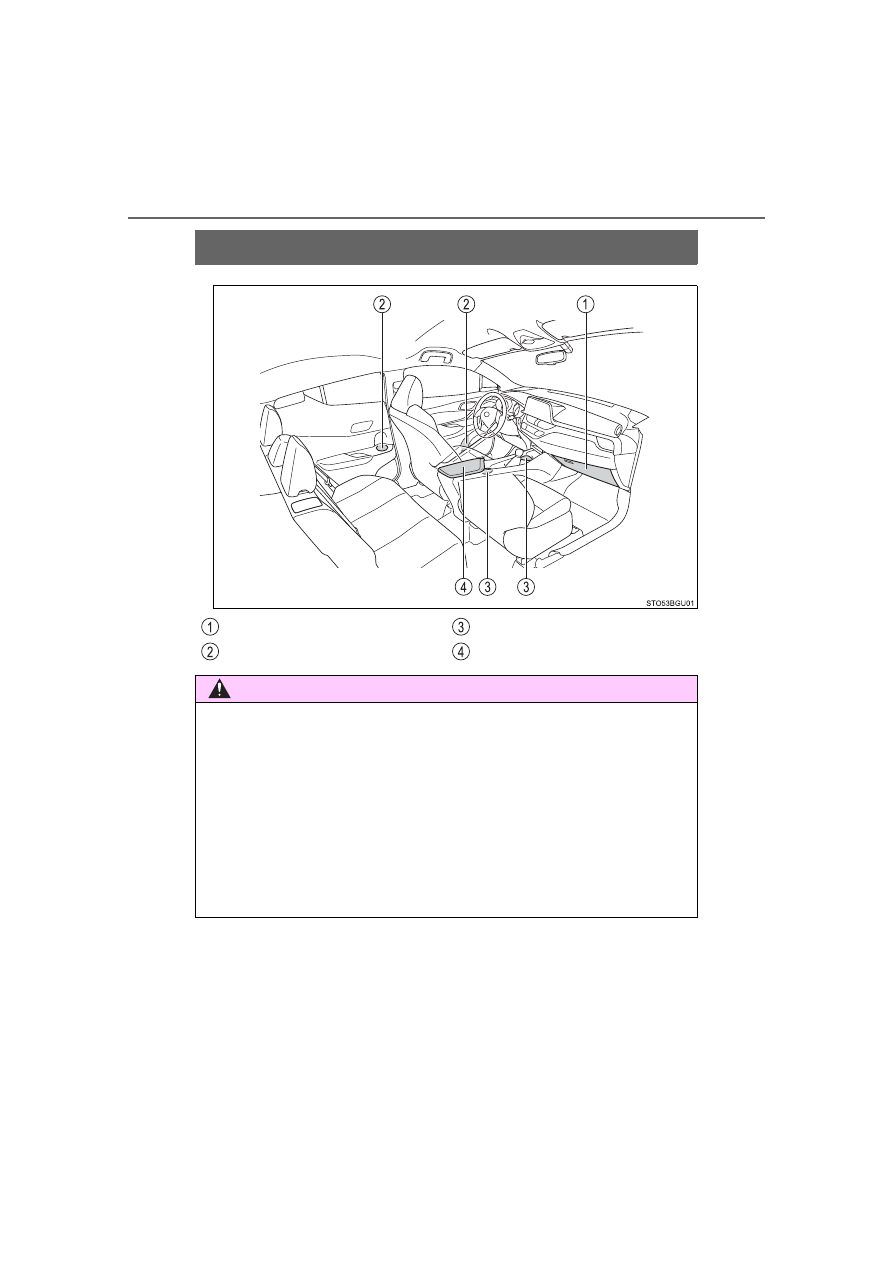

List of storage features

Glove box

 (



P. 327)

Bottle holders

(



P. 328)

Cup holders

(



P. 329)

Console box

 (



P. 327)

WARNING

●

Do not leave glasses, lighters or spray cans in the storage spaces, as this
may cause the following when cabin temperature becomes high:
• Glasses may be deformed by heat or cracked if they come into contact

with other stored items.

• Lighters or spray cans may explode. If they come into contact with other

stored  items,  the  lighter  may  catch  fire  or  the  spray  can  may  release
gas, causing a fire hazard.

●

When driving or when the storage compartments are not in use, keep the
lids closed and trays clear.
In the event of sudden braking or sudden swerving, an accident may occur
due to an occupant being struck by an open lid or the items stored inside.

327

5-3. Using the storage features

5

In

te

rior

fe

at

ures

C-HR_OM_USA_OM10684U

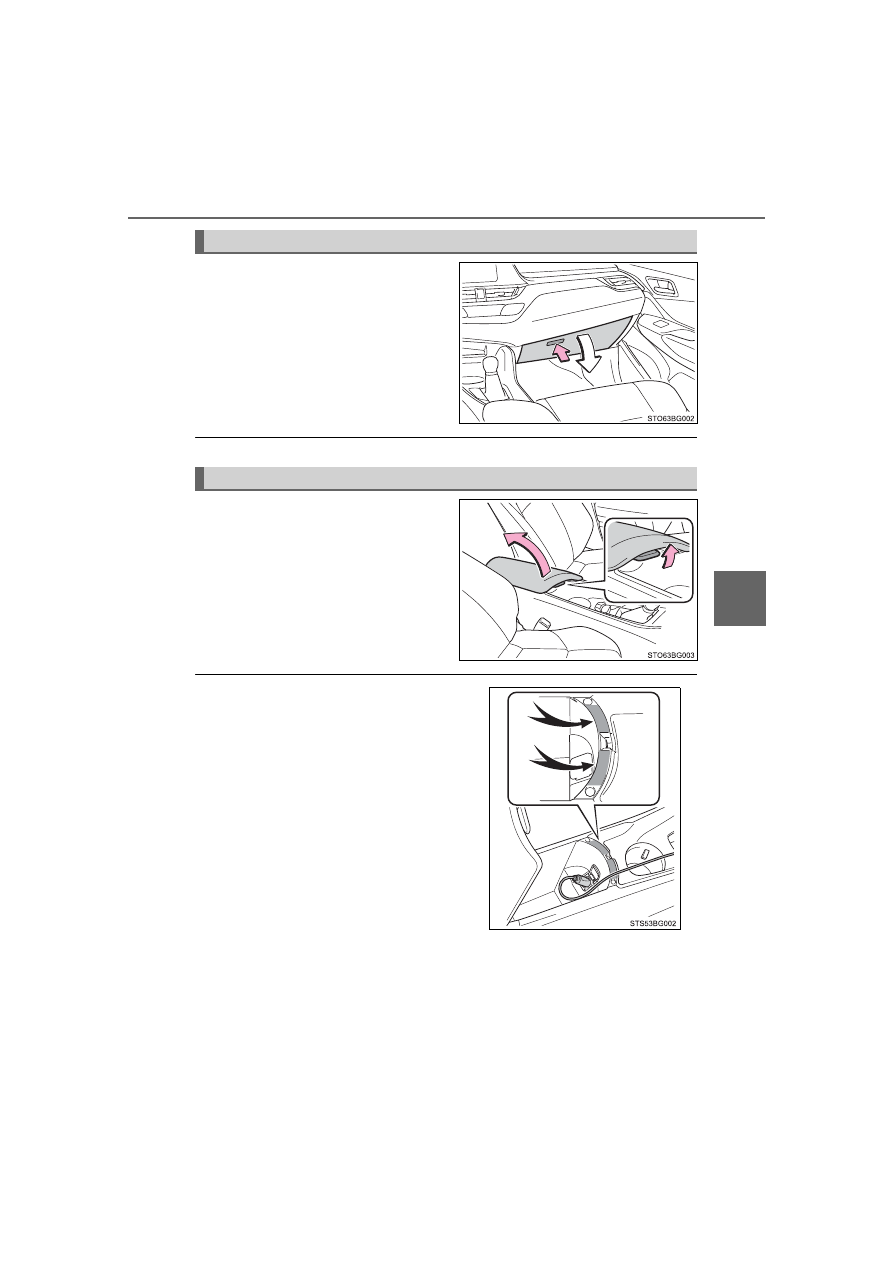

Press the button to open the glove
box.

The glove box light turns on when the tail lights are on.

Lift  the  lid  while  pulling  up  the
knob.

Glove box

Console box

When closing the lid, pass the wire of the
electronic  device  through  the  location
indicated in the illustration.
After closing the lid, check that the wiring
of  the  device  does  not  interfere  with  the
lid.

328

5-3. Using the storage features

C-HR_OM_USA_OM10684U

●

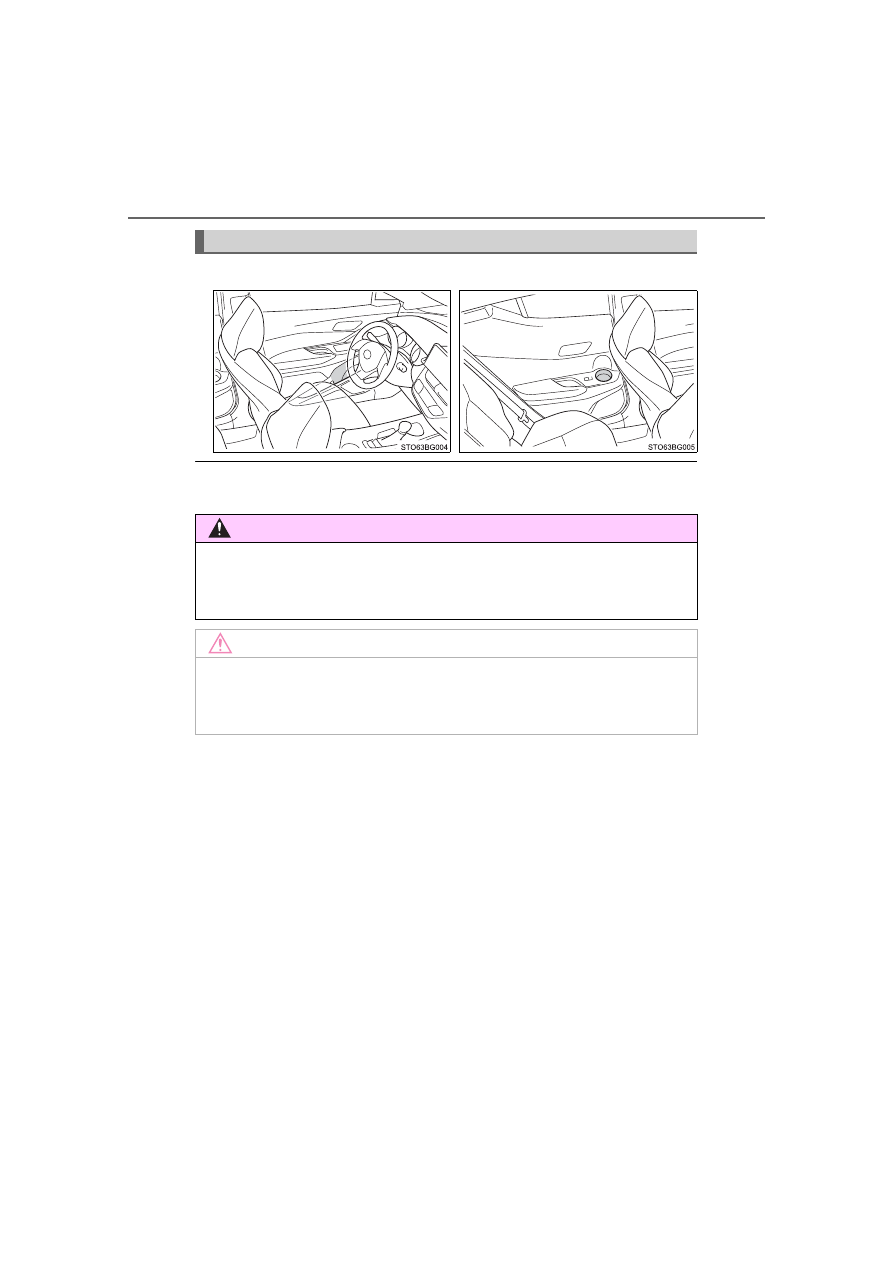

When storing a bottle, close the cap.

●

The bottle may not be stored depending on its size or shape.

Bottle holders



Front



Rear

WARNING

Do not place anything other than a bottle in the bottle holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury.

NOTICE

Put the cap on before stowing a bottle. Do not place open bottles in the bot-
tle holders, or glass or paper cups containing liquid. The contents may spill
and glass cups may break.

329

5-3. Using the storage features

5

In

te

rior

fe

at

ures

C-HR_OM_USA_OM10684U

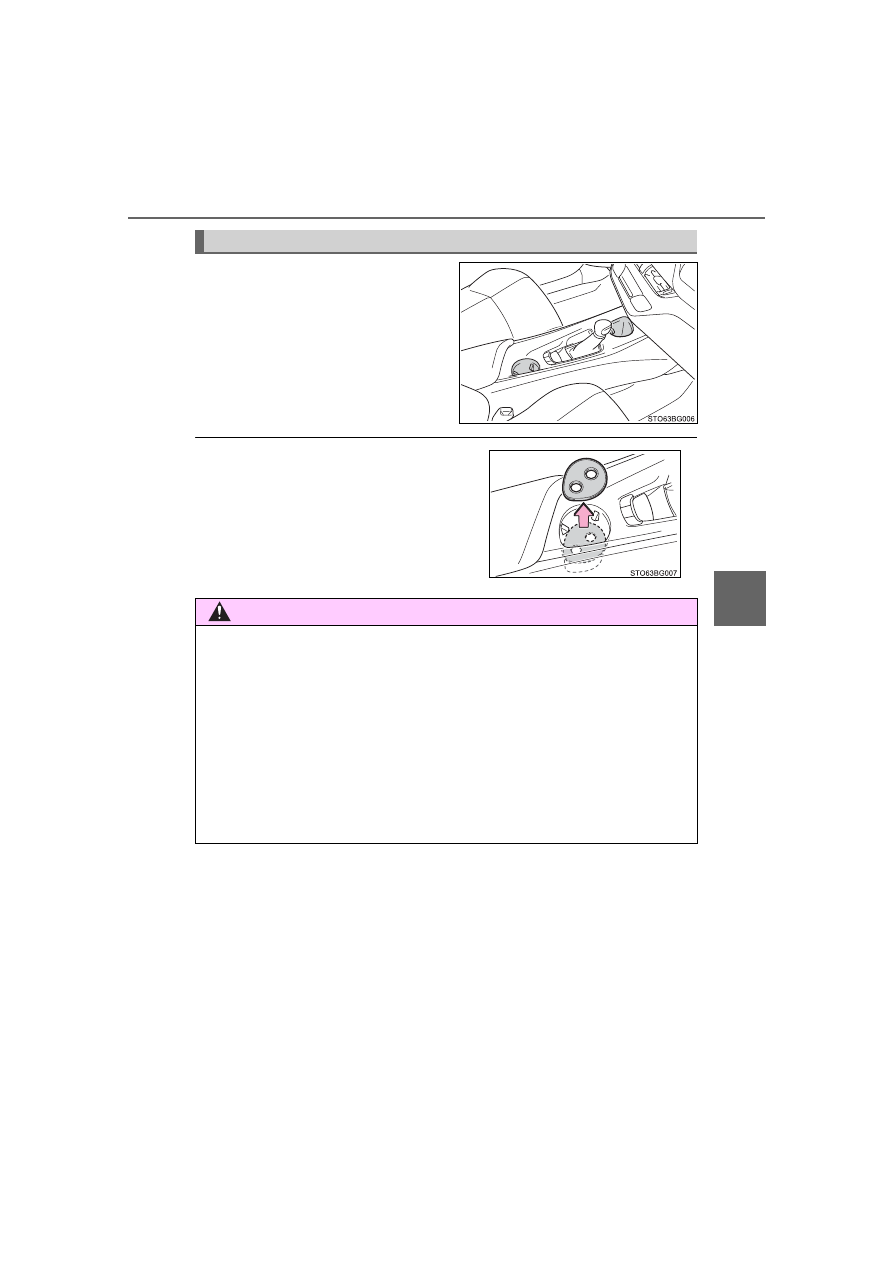

Cup holders

The rear cup holder can have the partition
turned  over,  removed,  and  the  depth
changed.

WARNING

●

Do not place anything other than cups or aluminum cans in the cup hold-
ers.
Other items may be thrown out of the holders in the event of an accident or
sudden braking, causing injury.

●

Observe the following precautions.
Failure to do so may result in serious injury such as burns.
• Close the lid on drinks that are hot.
• Check that the item can be sustained by the internal support.
• Take care to not let the cup height exceed armrest height.
• Do not use the partition in the front cup holder as it is only for use with

the rear cup holder.

330

5-3. Using the storage features

C-HR_OM_USA_OM10684U

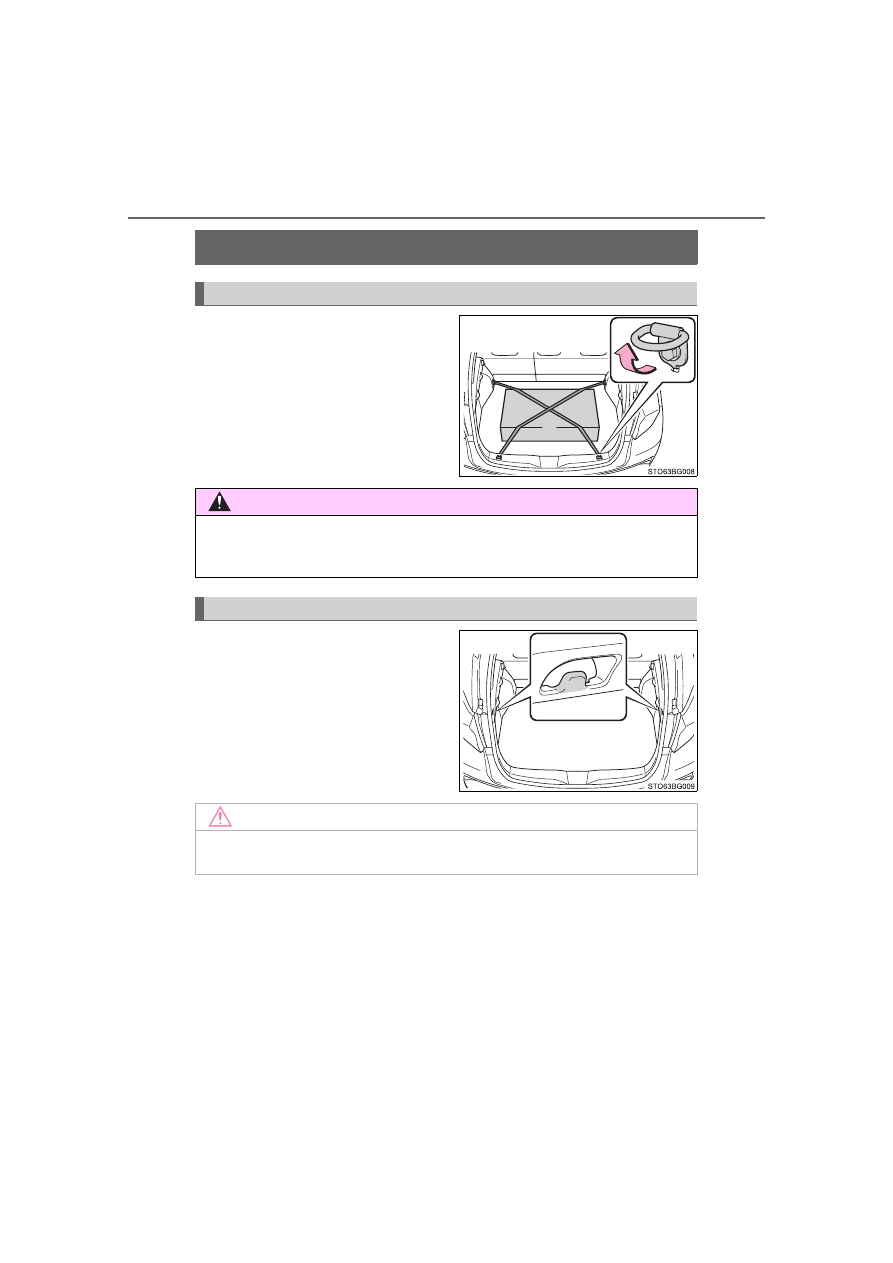

Luggage compartment features

Cargo  hooks  are  provided  for
securing loose items.

Cargo hooks

WARNING

To avoid injury, always return the cargo hooks to their positions when they
are not in use.

Grocery bag hooks

NOTICE

Do not hang any object heavier than 4.4 lb. (2 kg) on the grocery bag hook.

331

5-3. Using the storage features

5

In

te

rior

fe

at

ures

C-HR_OM_USA_OM10684U

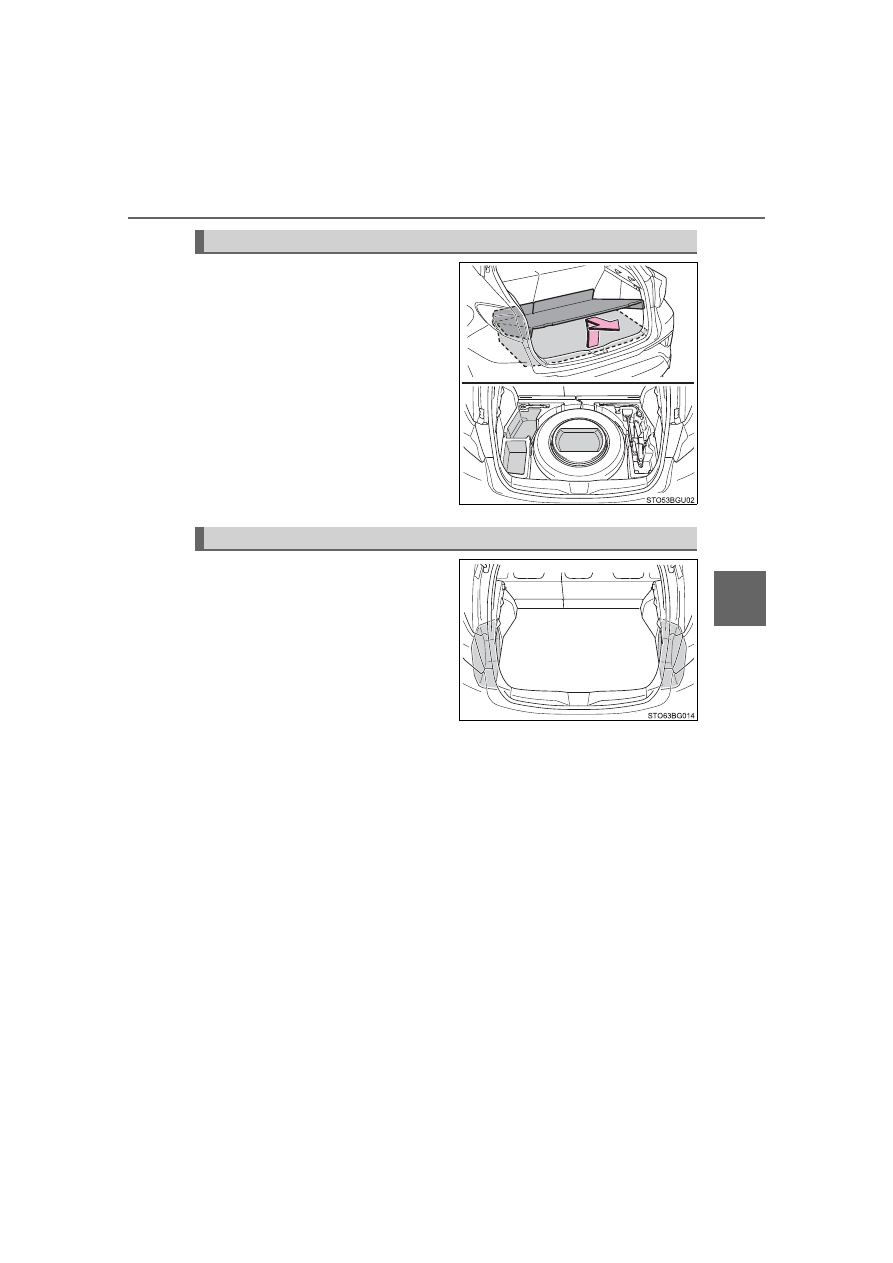

Lift  the  deck  mat  tab  and  pull  it
toward you to remove it.

Auxiliary boxes

Side auxiliary boxes

332

5-3. Using the storage features

C-HR_OM_USA_OM10684U



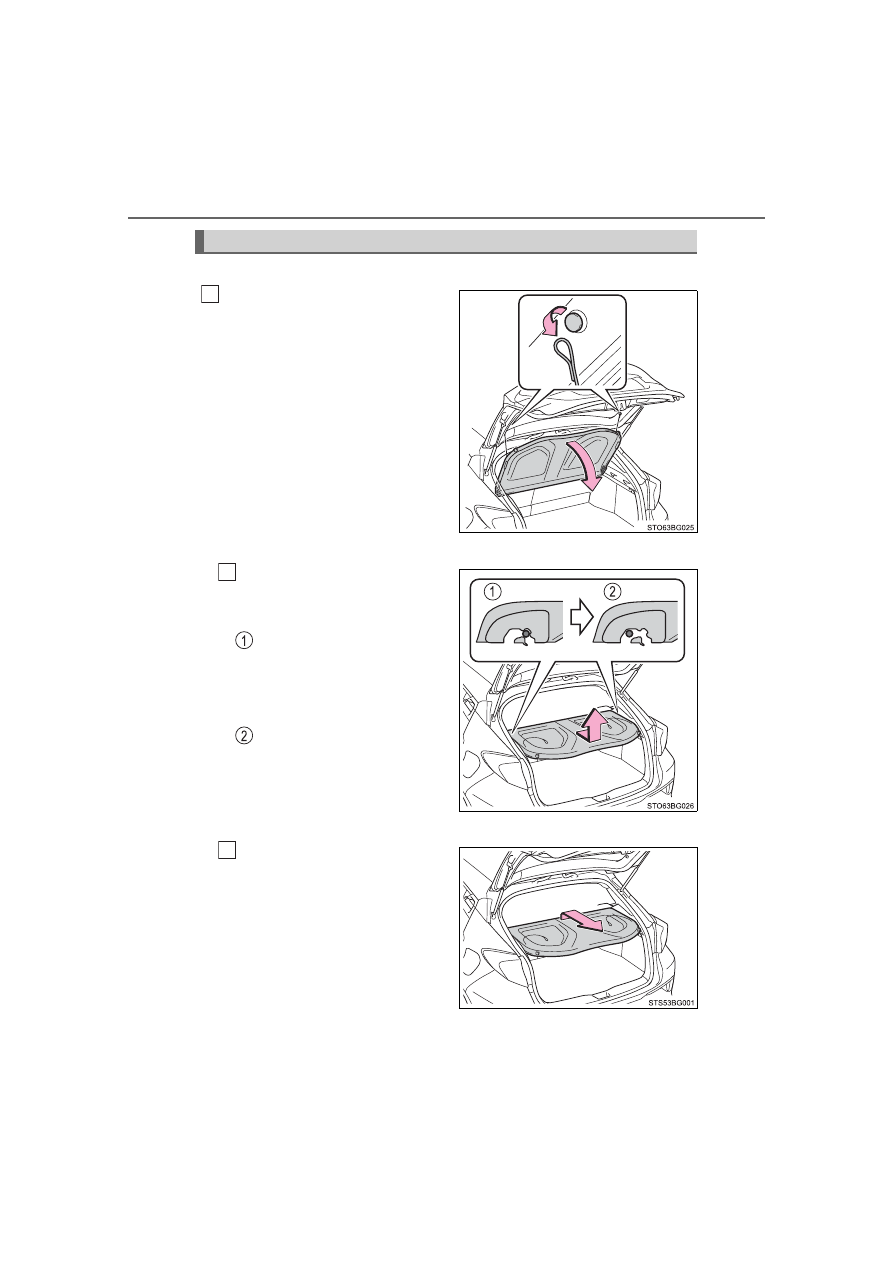

Hard type

Unhook  the  cords  and  return
the luggage cover to horizontal
position.



Type A

Pull it toward you and then lift
the luggage cover to remove
it.

Installation position

Confirm  that  the  cover  has
been securely installed to the
original  position  when  install-
ing.

Removal position



Type B

Lift  the  luggage  cover  and
pull  it  toward  you  to  remove
it.

Confirm that the cover has been
securely installed to the original
position when installing.

Luggage cover

1

2

2

333

5-3. Using the storage features

5

In

te

rior

fe

at

ures

C-HR_OM_USA_OM10684U



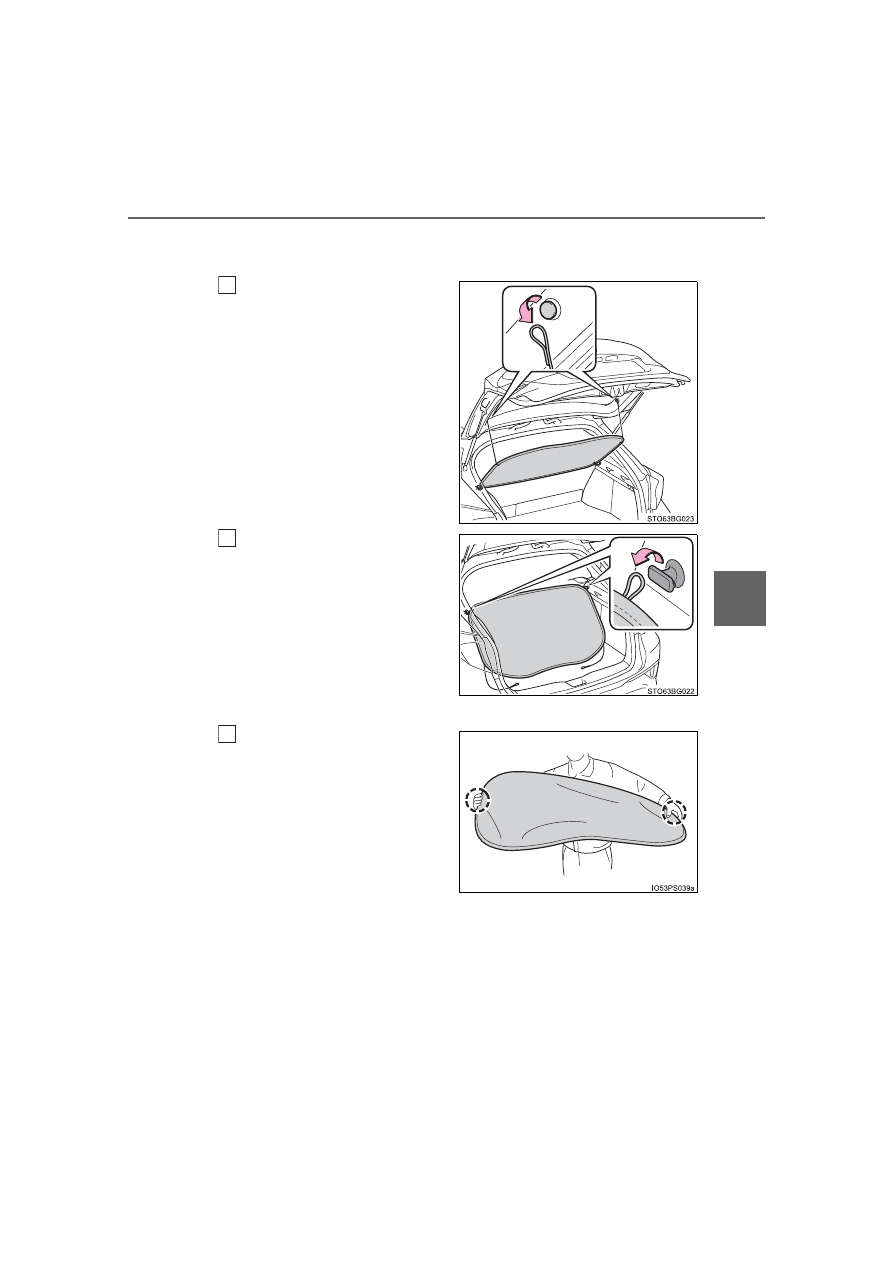

Soft type

■

Removing the luggage cover

Unhook the cords.

Unhook the hook to the hook
brackets.

■

Stowing the luggage cover

Hold  the  luggage  cover  with
both  hands.  Point  your
thumbs  in  opposite  direc-
tions.

1

2

1
