1-3. Emergency assistance

C-HR_OM_USA_OM10684U

■

Safety Connect Services Information

●

Phone calls using the vehicle’s Bluetooth

®

 technology will not be possible

when Safety Connect is active and in use.

●

Safety Connect is available beginning Fall 2009 on select Toyota models (in
the  contiguous  United  States  only).  Contact  with  the  Safety  Connect
response center is dependent upon the telematics device being in operative
condition, cellular connection availability, and GPS satellite signal reception,
which  can  limit  the  ability  to  reach  the  response  center  or  receive  emer-
gency  service  support.  Enrollment  and  Telematics  Subscription  Service
Agreement  are  required.  A  variety  of  subscription  terms  are  available;
charges vary by subscription term selected and location.

●

Automatic Collision Notification, Emergency Assistance and Stolen Vehicle
Location  are  available  in  the  United  States,  including  Hawaii  and Alaska,
Puerto Rico and Canada, and Enhanced Roadside Assistance are available
in the United States, Puerto Rico and Canada.

●

Automatic Collision Notification, Emergency Assistance, Stolen Vehicle and
Enhanced Road Assistance are not available in the U.S. Virgin Islands.
For vehicles first sold in the U.S. Virgin Islands, no Safety Connect services
will function in or outside the U.S. Virgin Islands.

●

Safety Connect services are not subject to section 255 of the Telecommuni-
cations Act and the device is not TTY compatible.

■

Languages

The Safety Connect response center will offer support in multiple languages.
The Safety Connect system will offer voice prompts in English, Spanish, and
French. Please indicate your language of choice when enrolling.

■

When contacting the response center

You may be unable to contact the response center if the network is busy.

79

1-3. Emergency assistance

1

Fo
r safety and securi

ty

C-HR_OM_USA_OM10684U

When the engine switch is turned to the “ON” position (vehicles with-
out  smart  key  system)  or  IGNITION  ON  mode  (vehicles  with  smart
key system), the red indicator light comes on for 2 seconds then turns
off. Afterward, the green indicator light comes on, indicating  that the
service is active.
The  following  indicator  light  patterns  indicate  specific  system  usage
conditions:

●

Green indicator light on = Active service

●

Green indicator light flashing = Safety Connect call in process

●

Red indicator light (except at vehicle start-up) = System malfunction
(contact your Toyota dealer)

●

No indicator light (off) = Safety Connect service not active

■

Automatic Collision Notification

In case of either airbag deployment or severe rear-end collision, the
system is designed to automatically call the response center. The
responding  agent  receives  the  vehicle’s  location  and  attempts  to
speak with the vehicle occupants to assess the level of emergency.
If  the  occupants  are  unable  to  communicate,  the  agent  automati-
cally  treats the call  as  an  emergency,  contacts  the  nearest emer-
gency services provider to describe the situation, and requests that
assistance be sent to the location.

Safety Connect LED light Indicators

Safety Connect services

80

1-3. Emergency assistance

C-HR_OM_USA_OM10684U

■

Stolen Vehicle Location

If your vehicle is stolen, Safety Connect can work with local author-
ities to assist them in locating and recovering the vehicle. After filing
a police report, call the Customer Experience Center at 1-800-331-
4331 in the United States, 1-877-855-8377 in Puerto Rico or 1-888-
869-6828 in Canada, and follow the prompts for Safety Connect to
initiate this service.
In  addition  to assisting law enforcement with  recovery of  a stolen
vehicle, Safety-Connect-equipped vehicle location data may, under
certain  circumstances,  be  shared  with  third  parties  to  locate  your
vehicle. Further information is available at Toyota.com in the United
States, Toyotapr.com in Puerto Rico and Toyota.ca in Canada.

■

Emergency Assistance Button (“SOS”)

In the event of an emergency on the road, push the “SOS” button to
reach  the  Safety  Connect  response  center.  The  answering  agent
will determine your vehicle’s location, assess the emergency, and
dispatch the necessary assistance required.

If  you  accidentally  press  the  “SOS”  button,  tell  the  response-center
agent that you are not experiencing an emergency.

■

Enhanced Roadside Assistance

Enhanced  Roadside  Assistance  adds  GPS  data  to  the  already
included warranty-based Toyota roadside service.
Subscribers can press the “SOS” button to reach a Safety Connect
response-center agent, who can help with a wide range of needs,
such as: towing, flat tire, fuel delivery, etc. For a description of the
Enhanced  Roadside  Assistance  services  and  their  limitations,
please  see  the  Safety  Connect  Terms  and  Conditions,  which  are
available  at  Toyota.com  in  the  United  States,  Toyotapr.com  in
Puerto Rico and Toyota.ca in Canada.

81

1-3. Emergency assistance

1

Fo
r safety and securi

ty

C-HR_OM_USA_OM10684U

Important! Read this information before using Safety Connect.

■

Exposure to radio frequency signals

The Safety Connect system installed in your vehicle is a low-power
radio transmitter and receiver. It receives and also sends out radio
frequency (RF) signals.
In August  1996,  the  Federal  Communications  Commission  (FCC)
adopted RF exposure guidelines with safety levels for mobile wire-
less phones. Those guidelines are consistent with the safety stan-
dards  previously  set  by  the  following  U.S.  and  international
standards bodies.

●

ANSI (American National Standards Institute) C95.1 [1992]

●

NCRP (National  Council  on  Radiation  Protection  and Measure-
ment) Report 86 [1986]

●

ICNIRP  (International  Commission  on  Non-Ionizing  Radiation
Protection) [1996]

Those standards were based on comprehensive and periodic eval-
uations of the relevant scientific literature. Over 120 scientists, engi-
neers,  and  physicians  from  universities,  and  government  health
agencies and industries reviewed the available body of research to
develop the ANSI Standard (C95.1).
The design of Safety Connect complies with the FCC guidelines in
addition to those standards.

Safety information for Safety Connect

82

1-3. Emergency assistance

C-HR_OM_USA_OM10684U

■

Certification for Safety Connect

83

1-3. Emergency assistance

1

Fo
r safety and securi

ty

C-HR_OM_USA_OM10684U

84

1-4. Theft deterrent system

C-HR_OM_USA_OM10684U

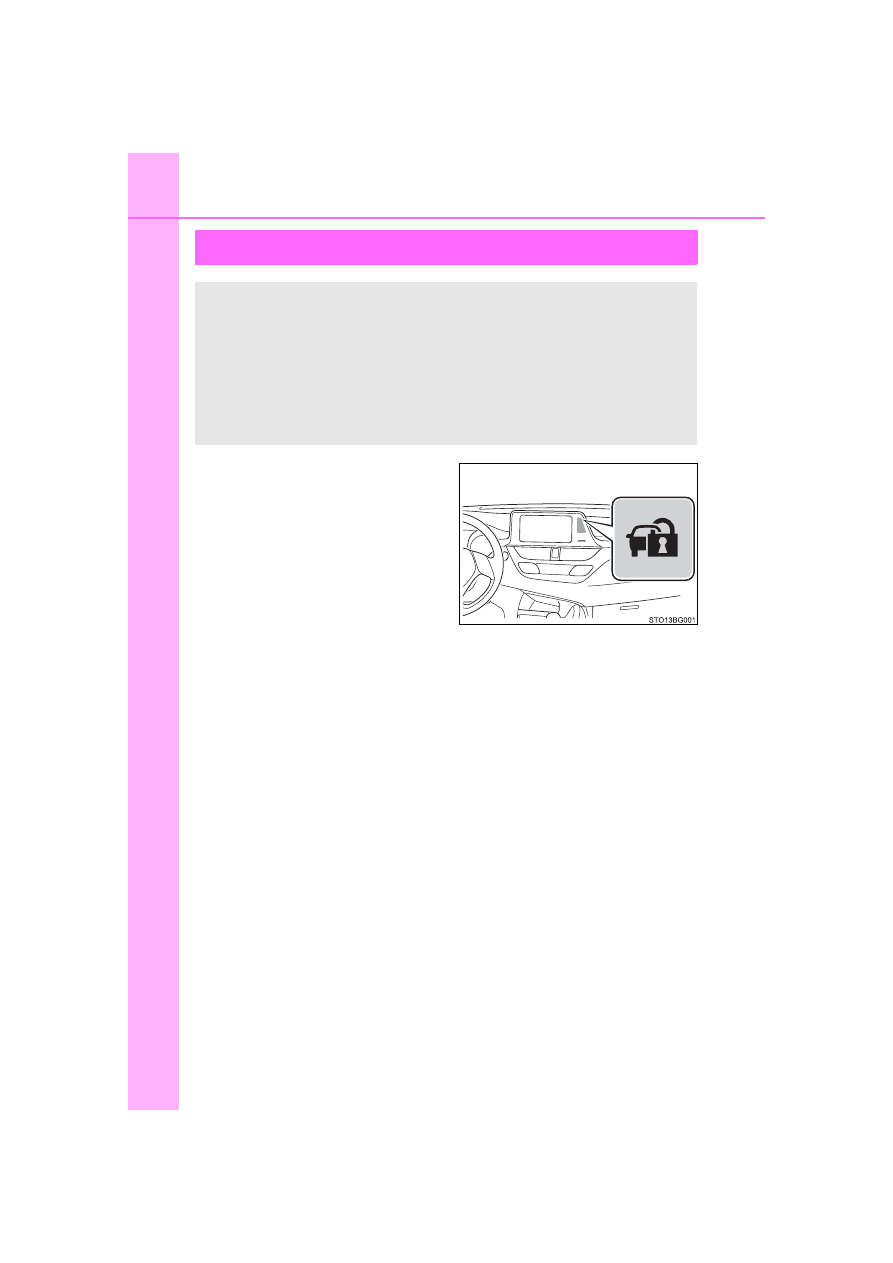

Engine immobilizer system

Vehicles without a smart key sys-
tem:
The  indicator  light  flashes  after
the  key  has  been  removed  from
the  engine  switch  to  indicate  that
the system is operating.
The  indicator  light  stops  flashing
after the registered key has been
inserted into the engine switch to
indicate that the system has been
canceled.
Vehicles with a smart key system:
The indicator light flashes after the engine switch has been turned off
to indicate that the system is operating.
The  indicator  light  stops  flashing  after  the  engine  switch  has  been
turned  to ACCESSORY  or  IGNITION  ON  mode  to  indicate  that  the
system has been canceled.

The vehicle’s keys have built-in transponder chips that prevent
the engine from starting if a key has not been previously regis-
tered in the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehi-
cle.
This system is designed to help prevent vehicle theft but does
not guarantee absolute security against all vehicle thefts.

85

1-4. Theft deterrent system

1

Fo
r safety and securi

ty

C-HR_OM_USA_OM10684U

■

System maintenance

The vehicle has a maintenance-free type engine immobilizer system.

■

Conditions that may cause the system to malfunction

●

If the grip portion of the key is in contact with a metallic object

●

If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle

■

Certifications for the engine immobilizer system



For vehicles sold in the U.S.A.

86

1-4. Theft deterrent system

C-HR_OM_USA_OM10684U



For vehicles sold in Canada

NOTICE

■

To ensure the system operates correctly

Do  not  modify  or  remove  the  system.  If  modified  or  removed,  the  proper
operation of the system cannot be guaranteed.

87

Instrument cluster

2

C-HR_OM_USA_OM10684U

2.

Instrument cluster

Warning lights and

indicators .......................... 88

Gauges and meters ............ 96
Multi-information display ..... 99
Fuel consumption

information ...................... 107

88

2. Instrument cluster

C-HR_OM_USA_OM10684U

Warning lights and indicators

The units used on the meters and some indicators may differ depending on
the target region.

The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.

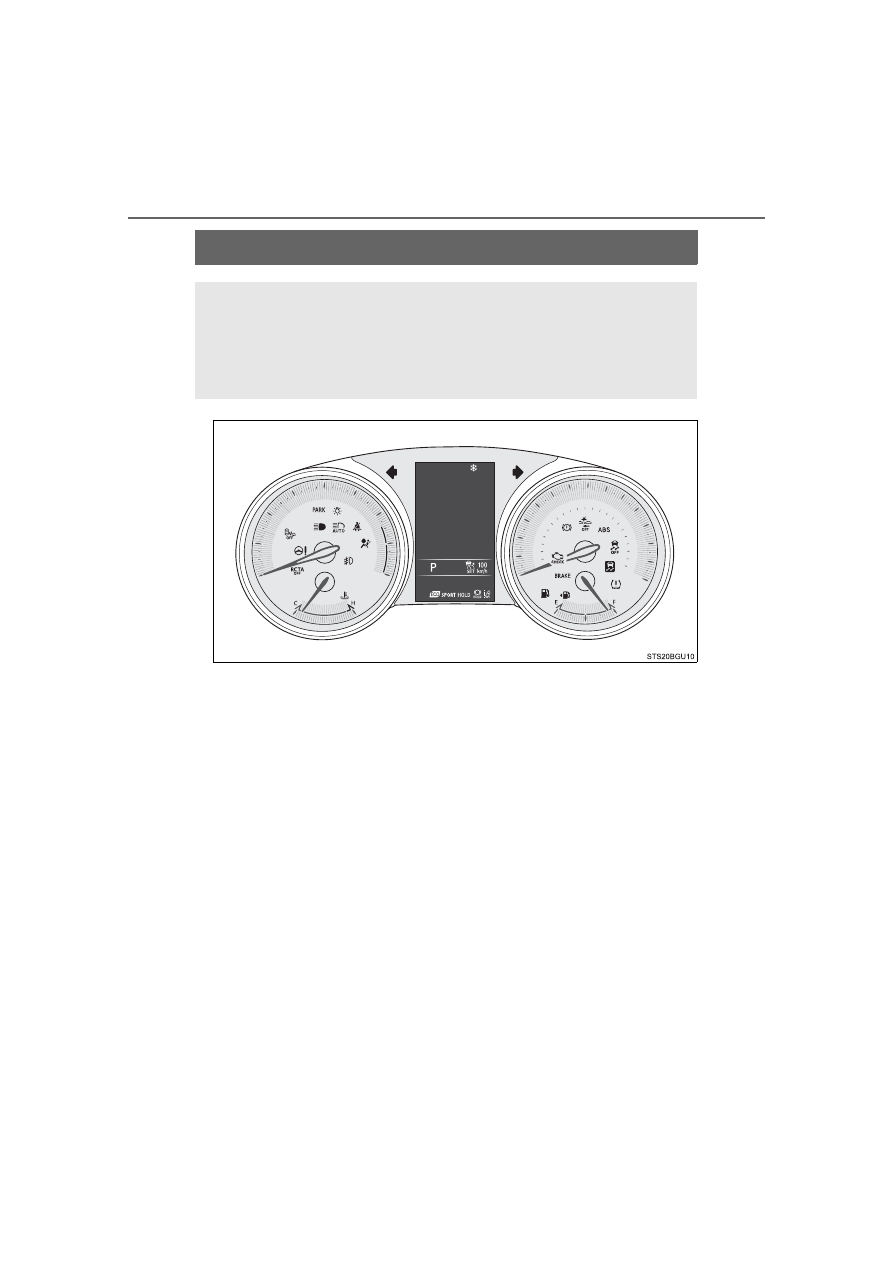

For  the  purpose  of  explanation,  the  following  illustration  dis-
plays all warning lights and indicators illuminated.

89

2. Instrument cluster

2

Instru

me
nt clu

ster

C-HR_OM_USA_OM10684U

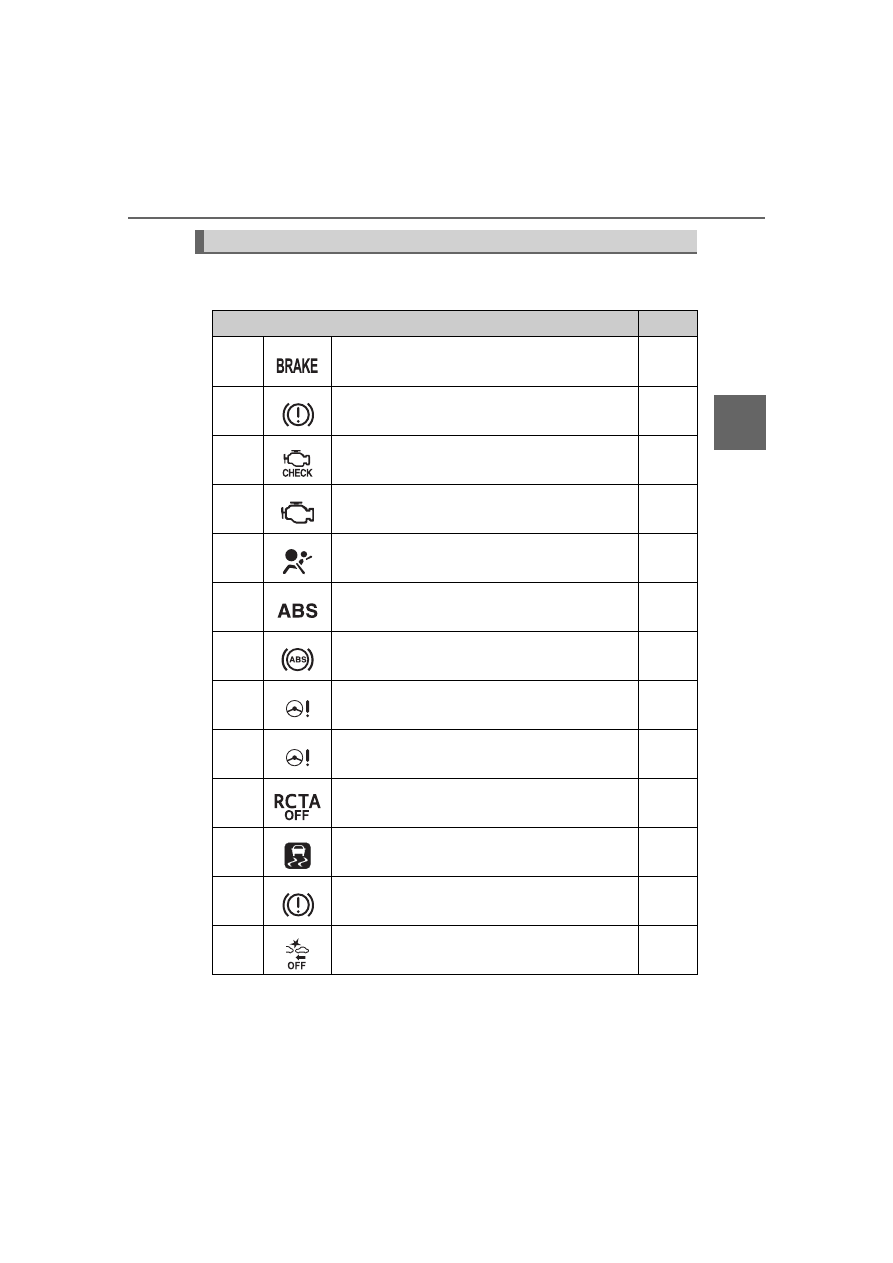

Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.

Warning lights

Warning lights

Pages

*

1

Brake system warning light (red) (U.S.A.)

P. 434

*

1

Brake system warning light (red) (Canada)

P. 434

*

1

Malfunction indicator lamp (U.S.A.)

P. 435

*

1

Malfunction indicator lamp (Canada)

P. 435

*

1

SRS warning light

P. 435

*

1

ABS warning light (U.S.A.)

P. 435

*

1

ABS warning light (Canada)

P. 435

*

1

Electric  power  steering  system  warning  light
(red)

P. 435

*

1

Electric  power  steering  system  warning  light
(yellow)

P. 435

*

2

“RCTA OFF” indicator (if equipped)

P. 435

*

1, 3

Slip indicator light

P. 436

*

1

Brake system warning light (yellow)

P. 436

*

1, 4

PCS warning light

P. 436

90

2. Instrument cluster

C-HR_OM_USA_OM10684U

*

1

: These lights turn on when the engine switch is turned to the “ON” position

(vehicles  without  a  smart  key  system)  or  IGNITION  ON  mode  (vehicles
with  a  smart  key  system)  to  indicate  that  a  system  check  is  being  per-
formed. They will turn off after the engine is started, or after a few seconds.
There may be a malfunction in a system if a light does not come on, or if
the lights do not turn off. Have the vehicle inspected by your Toyota dealer.

*

2

: The light flashes to indicate a malfunction.

*

3

: The light comes on to indicate a malfunction.

*

4

: The light flashes or illuminates to indicate a malfunction.

*

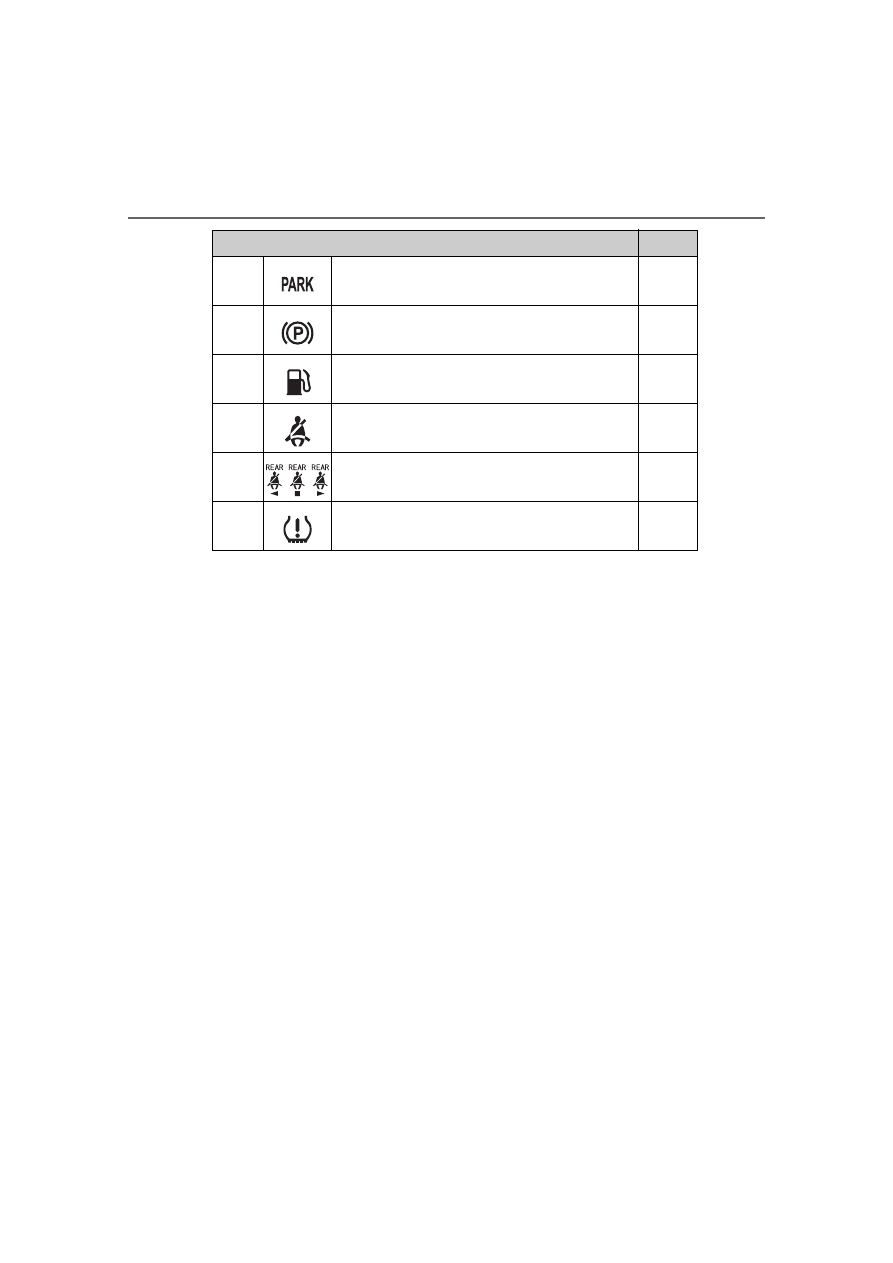

2

Parking brake indicator (U.S.A.)

P. 436

*

2

Parking brake indicator (Canada)

P. 436

Low fuel level warning light

P. 437

Driver’s  and  front  passenger’s  seat  belt
reminder light

P. 437

Rear passengers’ seat belt reminder lights (on
the center panel)

P. 437

*

1

Tire pressure warning light

P. 437

Warning lights

Pages

91

2. Instrument cluster

2

Instru

me
nt clu

ster

C-HR_OM_USA_OM10684U

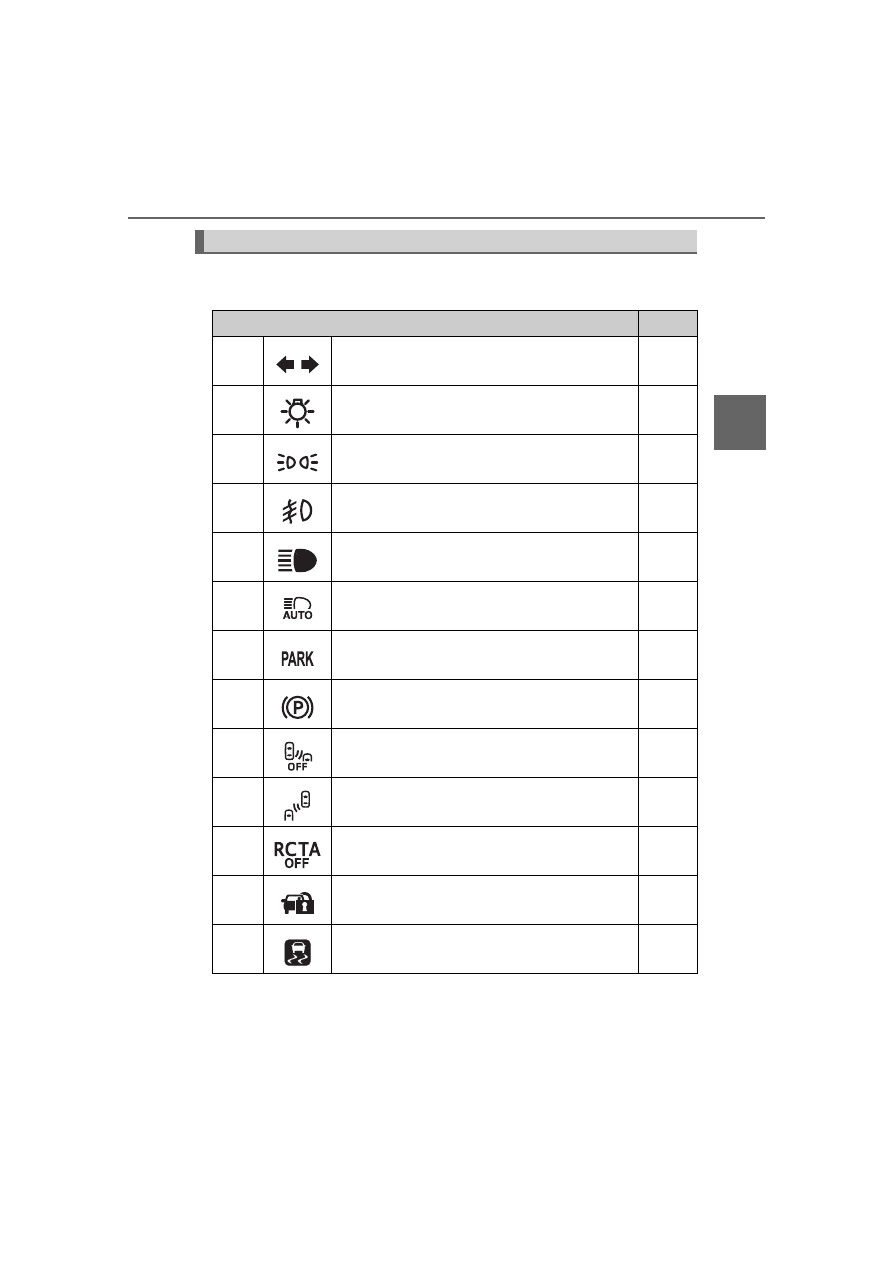

The indicators inform the driver of the operating state of the vehicle’s
various systems.

Indicators

Indicators

Pages

Turn signal indicator

P. 195

Headlight indicator (U.S.A.)

P. 204

Tail light indicator (Canada)

P. 204

Front fog light indicator (if equipped)

P. 214

Headlight high beam indicator

P. 205

Automatic High Beam indicator

P. 209

Parking brake indicator (U.S.A.)

P. 196

Parking brake indicator (Canada)

P. 196

*

1, 2

BSM OFF indicator (if equipped)

P. 283

*

1

BSM outside rear view mirror indicator
(on the outside rear view mirrors) (if equipped)

P. 283,

292

*

2

“RCTA OFF” indicator (if equipped)

P. 292

Security indicator (on the center panel)

P. 84

*

1, 3

Slip indicator light

P. 301

92

2. Instrument cluster

C-HR_OM_USA_OM10684U

*

1

: These lights turn on when the engine switch is turned to the “ON” position

(vehicles  without  a  smart  key  system)  or  IGNITION  ON  mode  (vehicles
with  a  smart  key  system)  to  indicate  that  a  system  check  is  being  per-
formed. They will turn off after the engine is started, or after a few seconds.
There may be a malfunction in a system if a light does not come on, or if
the lights do not turn off. Have the vehicle inspected by your Toyota dealer.

*

2

: The light turns on when the system is off.

*

3

: The light flashes to indicate that the system is operating.

*

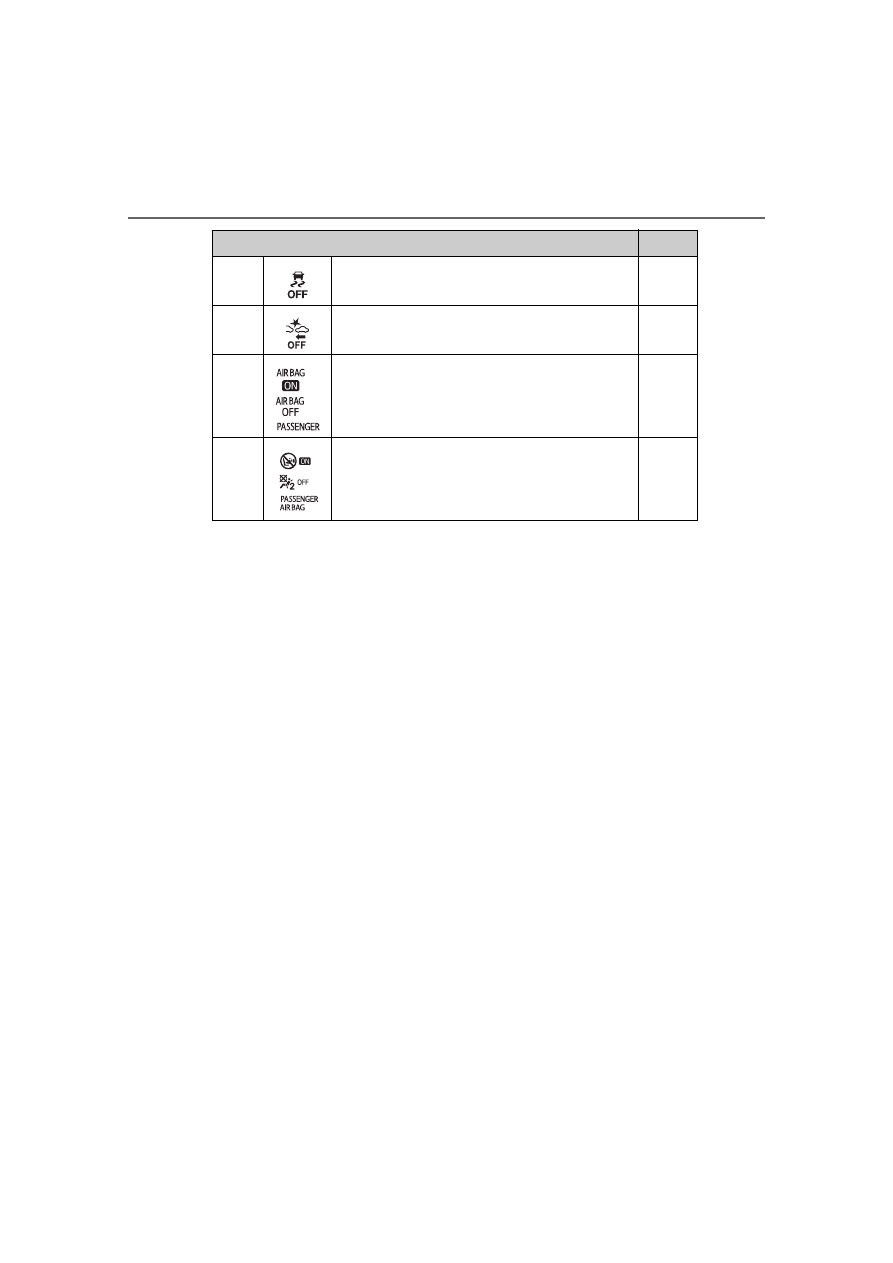

1, 2

VSC off indicator

P. 302

*

1, 2

PCS warning light

P. 236

*

1

“AIR BAG ON/OFF” indicator (U.S.A.)
 (on the center panel)

P. 48

*

1

“AIR BAG ON/OFF” indicator (Canada)
(on the center panel)

P. 48

Indicators

Pages

93

2. Instrument cluster

2

Instru

me
nt clu

ster

C-HR_OM_USA_OM10684U

*

1

: These lights turn on when the engine switch is turned to the “ON” position

(vehicles  without  a  smart  key  system)  or  IGNITION  ON  mode  (vehicles
with  a  smart  key  system)  to  indicate  that  a  system  check  is  being  per-
formed. They will turn off after the engine is started, or after a few seconds.
There may be a malfunction in a system if a light does not come on, or if
the lights do not turn off. Have the vehicle inspected by your Toyota dealer.

*

2

: The light turns on when the system is operating.

*

3

: The light flashes to indicate a malfunction.

*

4

: Depending  on the  operating  condition,  the color  and  illuminating/flashing

state of the light change.

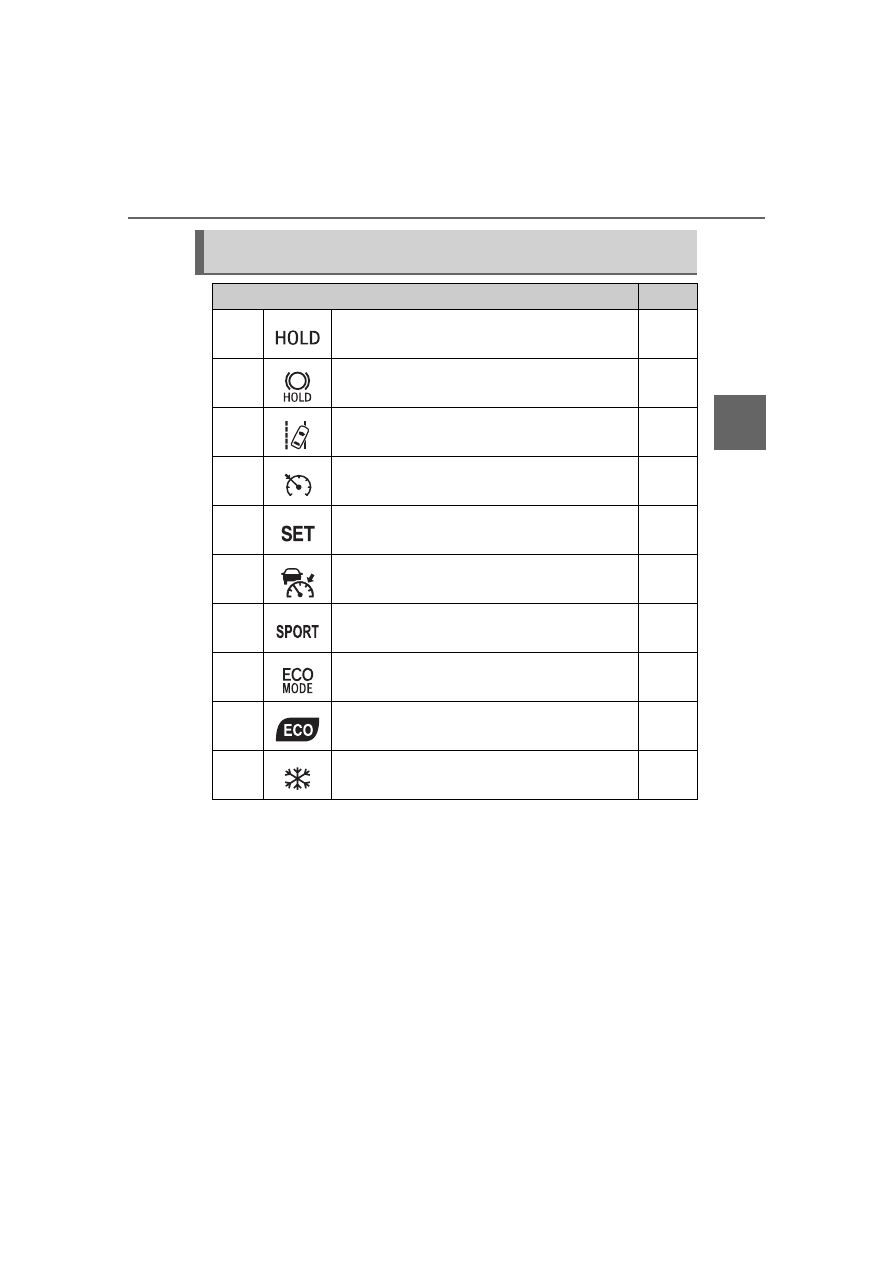

Indicators  and symbols displayed on the multi-information dis-
play

Indicators

Pages

*

1, 2, 3

Brake hold operated indicator

P. 201,

436

*

1

Brake hold standby indicator

P. 201

*

4

LTA indicator

P. 246,

436

Cruise control indicator

P. 266

Cruise control “SET” indicator

P. 266

Radar cruise control indicator

P. 266

“SPORT” indicator

P. 281

“ECO MODE” indicator

P. 281

Eco Driving Indicator Light

P. 95

Low outside temperature indicator

P. 96

94

2. Instrument cluster

C-HR_OM_USA_OM10684U

Symbols on multi-information display

Pages

Charging system warning light

P. 434

Low engine oil pressure warning light

P. 434

High engine coolant temperature warning light

P. 437

Smart key system (if equipped)

P. 183

Brake Override System/Drive-Start Control

P. 438

95

2. Instrument cluster

2

Instru

me
nt clu

ster

C-HR_OM_USA_OM10684U

■

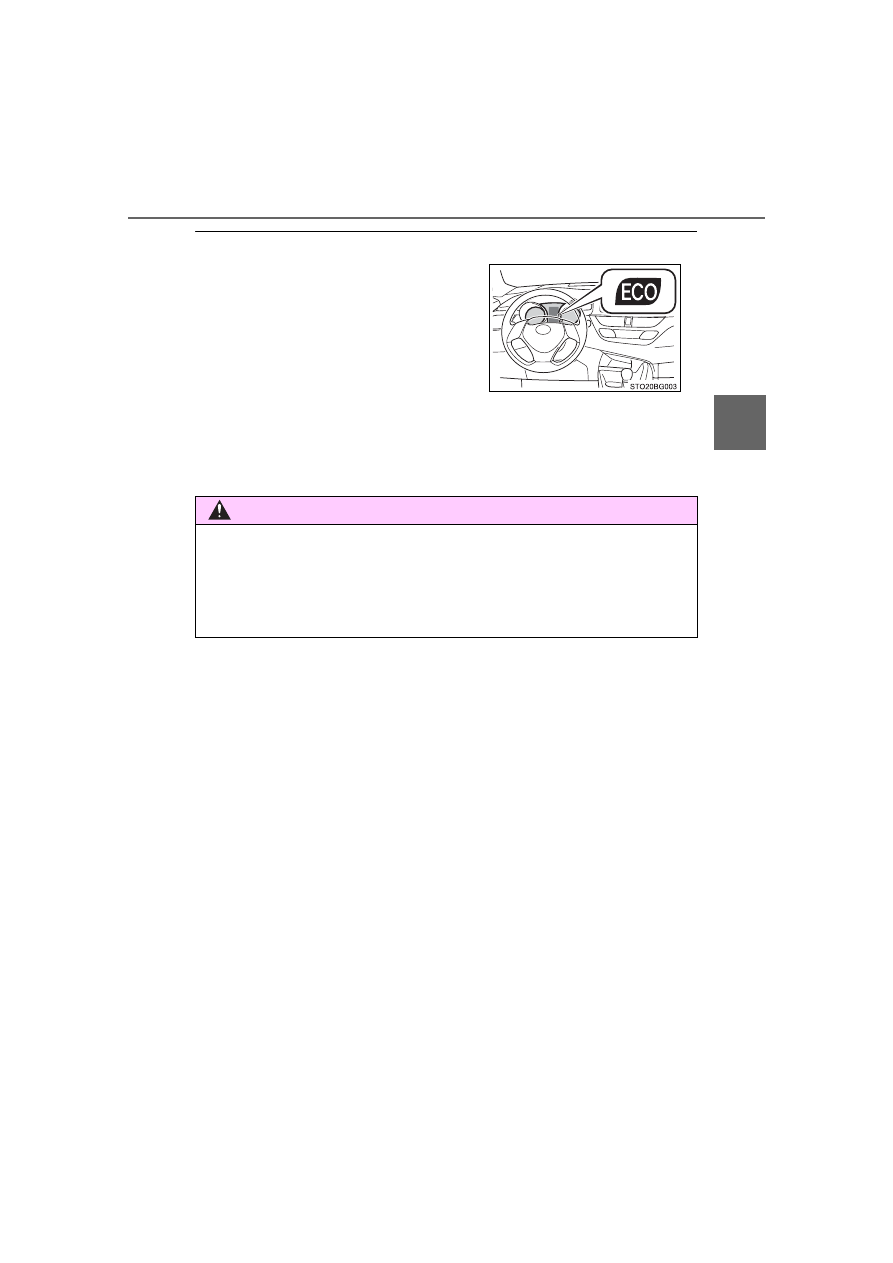

Eco Driving Indicator Light

Eco Driving Indicator Light will not operate in the following conditions:

●

The shift lever is in anything other than D.

●

The vehicle is being driven in “SPORT” mode (



P. 281)

●

The vehicle speed is approximately 80 mph (130 km/h) or higher.

During  Eco-Friendly  acceleration  (Eco
driving),  Eco  Driving  Indicator  Light  will
turn  on.  When  the  acceleration  exceeds
Zone of Eco driving, and when the vehicle
is stopped, the light turns off.
Eco Driving Indicator Light availability can
be customized. The default setting is on.
(



P. 502)

WARNING

■

If a safety system warning light does not come on

Should a safety system light such as ABS and SRS airbag warning light not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by your Toyota dealer.

96

2. Instrument cluster

C-HR_OM_USA_OM10684U

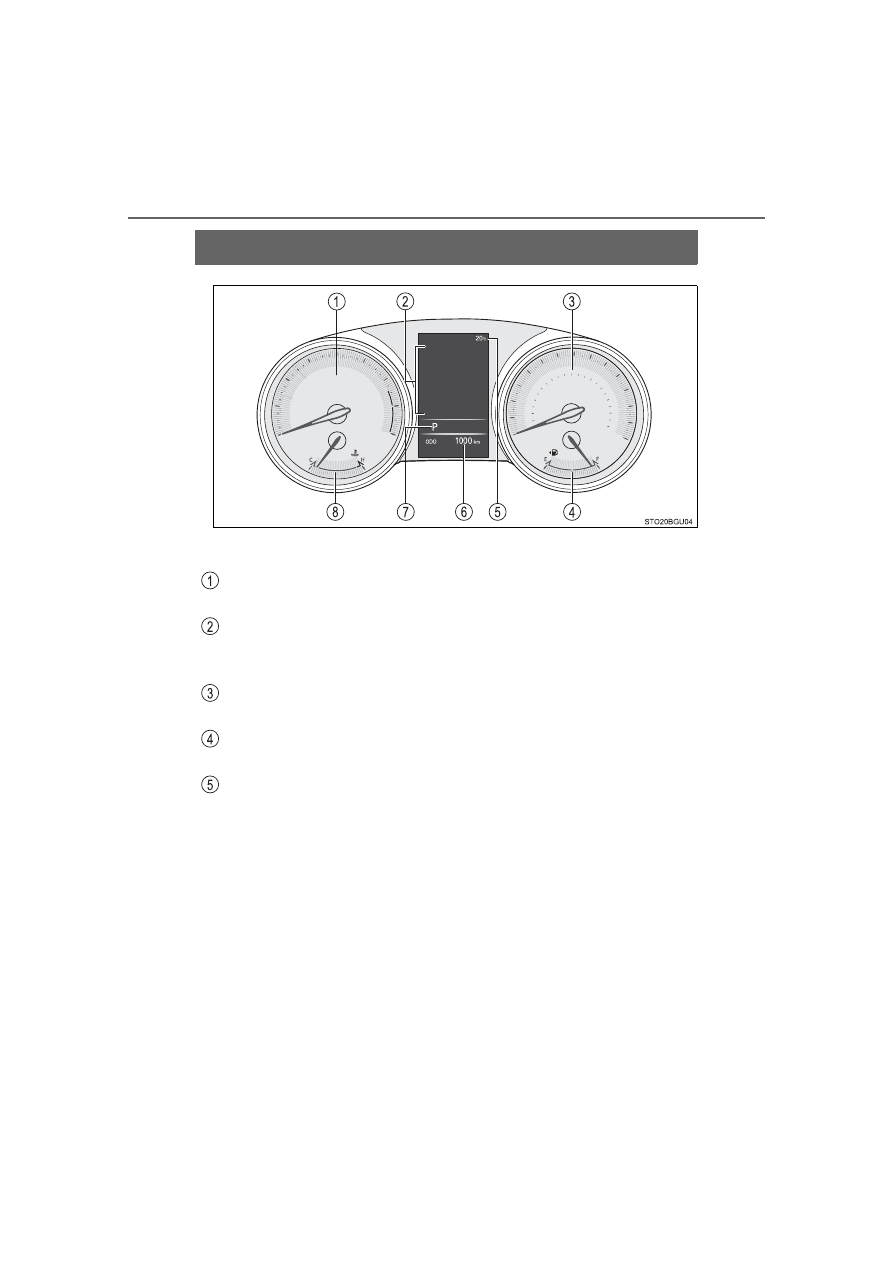

Gauges and meters

The units used on the speedometer may differ depending on the tar-
get region.

Tachometer

Displays the engine speed in revolutions per minute.

Multi-information display

Presents the driver with a variety of driving-related data. (



P. 99)

Displays warning messages in case of a malfunction. (



P. 444)

Speedometer

Displays the vehicle speed.

Fuel gauge

Displays the quantity of fuel remaining in the tank.

Outside temperature display

Displays  the  outside  temperature  within  the  range  of  -40°F  (-40°C)  to
122°F  (50°C).  Low  outside  temperature  indicator  comes  on  when  the
ambient temperature is 37°F (3°C) or lower.

97

2. Instrument cluster

2

Instru

me
nt clu

ster

C-HR_OM_USA_OM10684U

Odometer and trip meter display

Displays the following items.
Odometer:
Displays the total distance the vehicle has been driven.
Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters A and B can be used to record and display different dis-
tances independently.
Maintenance required information:
Displays the remaining distance until the engine oil should be changed. If
“-” is displayed before distance, it means oil maintenance is overdue. Have
the engine oil changed by your Toyota dealer.

• Displays the maintenance required information when the engine switch

is turned to the “ON” position (vehicles without smart key system) or in
IGNITION ON mode (vehicles with smart key system).

• Maintenance required information reset method (



P. 348)

Shift position and shift range display

Displays the selected shift position or selected shift range. (



P. 190)

Engine coolant temperature gauge

Displays the engine coolant temperature.

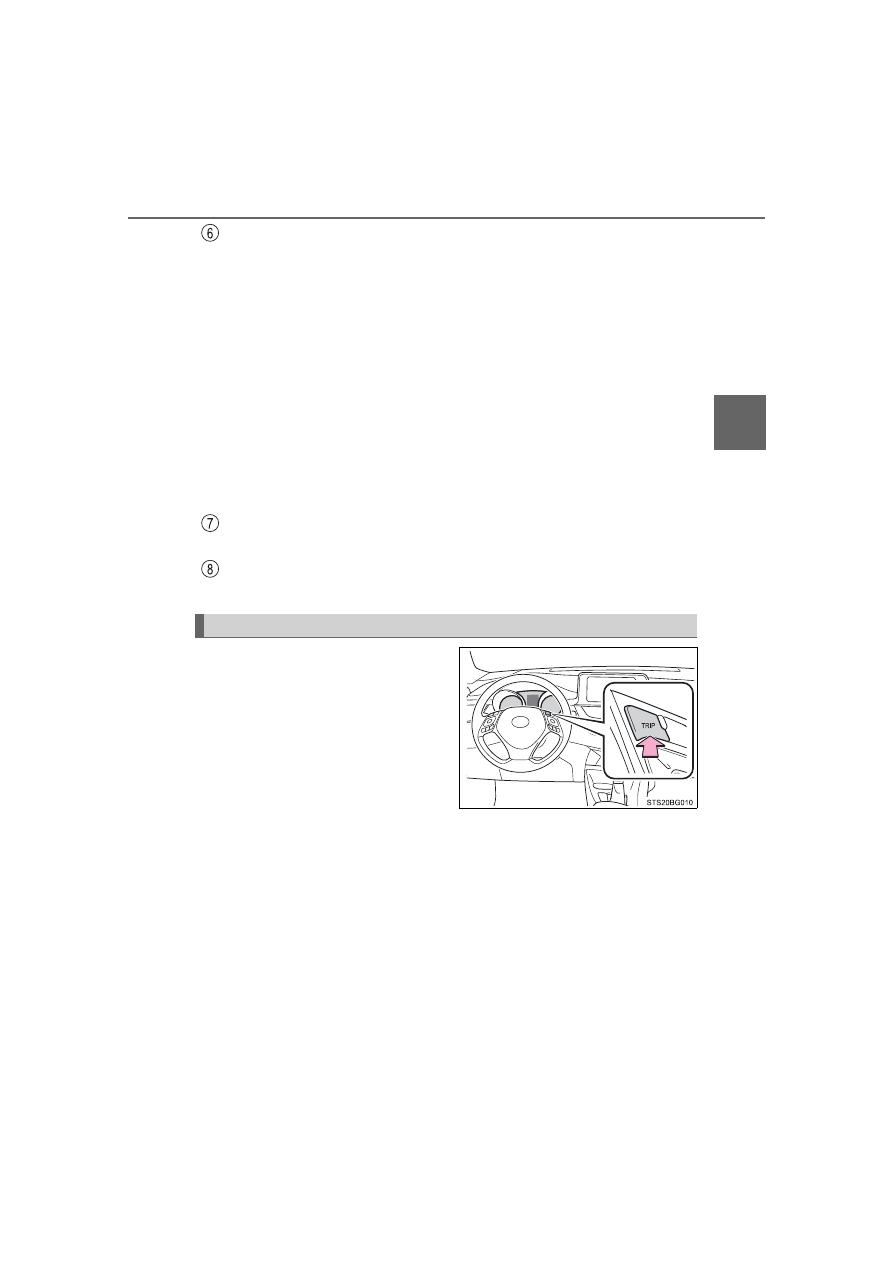

Switches the items of the odome-
ter  and  trip  meter  display  by
pressing the “TRIP” switch.

When  the  trip  meter  is  displayed,
pressing  and  holding  the  “TRIP”
switch will reset the trip meter.

Changing the display

98

2. Instrument cluster

C-HR_OM_USA_OM10684U

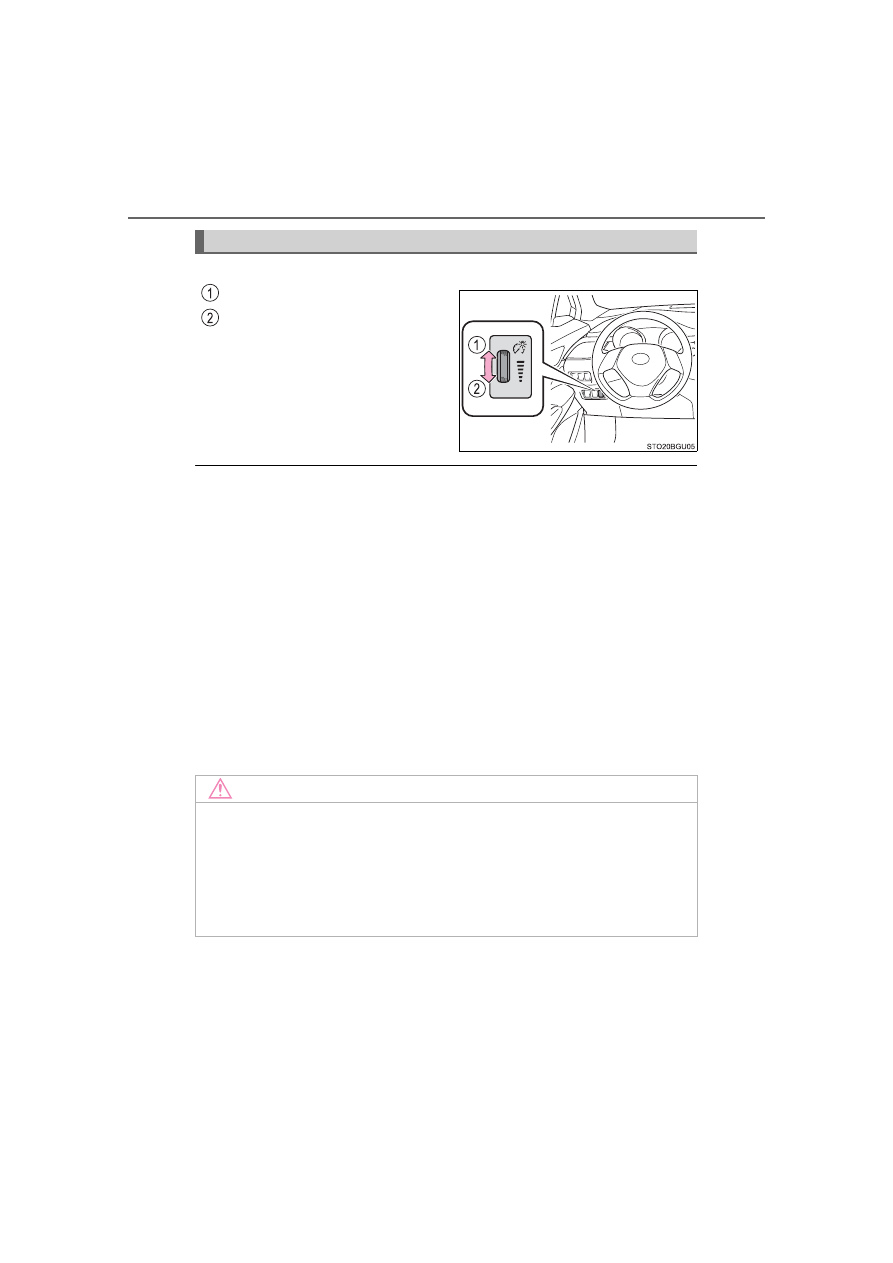

The brightness of the instrument panel lights can be adjusted.

Brighter
Darker

■

The meters and display illuminate when

Vehicles without a smart key system:
The engine switch is in the “ON” position.
Vehicles with a smart key system:
The engine switch is in IGNITION ON mode.

■

Outside temperature display

●

In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 16 mph [25 km/h])
• When the outside temperature has changed suddenly (at the entrance/

exit of a garage, tunnel, etc.)

●

If “



” is displayed continuously, the system may be malfunctioning. Take

your vehicle to your Toyota dealer.

■

Adjusting the clock

The clocks can be adjusted on the audio system screen.
Refer to “MULTIMEDIA OWNER’S MANUAL”.

Instrument panel light control

NOTICE

■

To prevent damage to the engine and its components

●

Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.

●

The engine may be overheating if the engine coolant temperature gauge
enters the red zone (“H”). In this case, immediately stop the vehicle in a
safe place, and check the engine after it has cooled completely. (



P. 470)

99

2. Instrument cluster

2

Instru

me
nt clu

ster

C-HR_OM_USA_OM10684U

Multi-information display

The multi-information display presents the driver with a variety of vehi-
cle data.

●

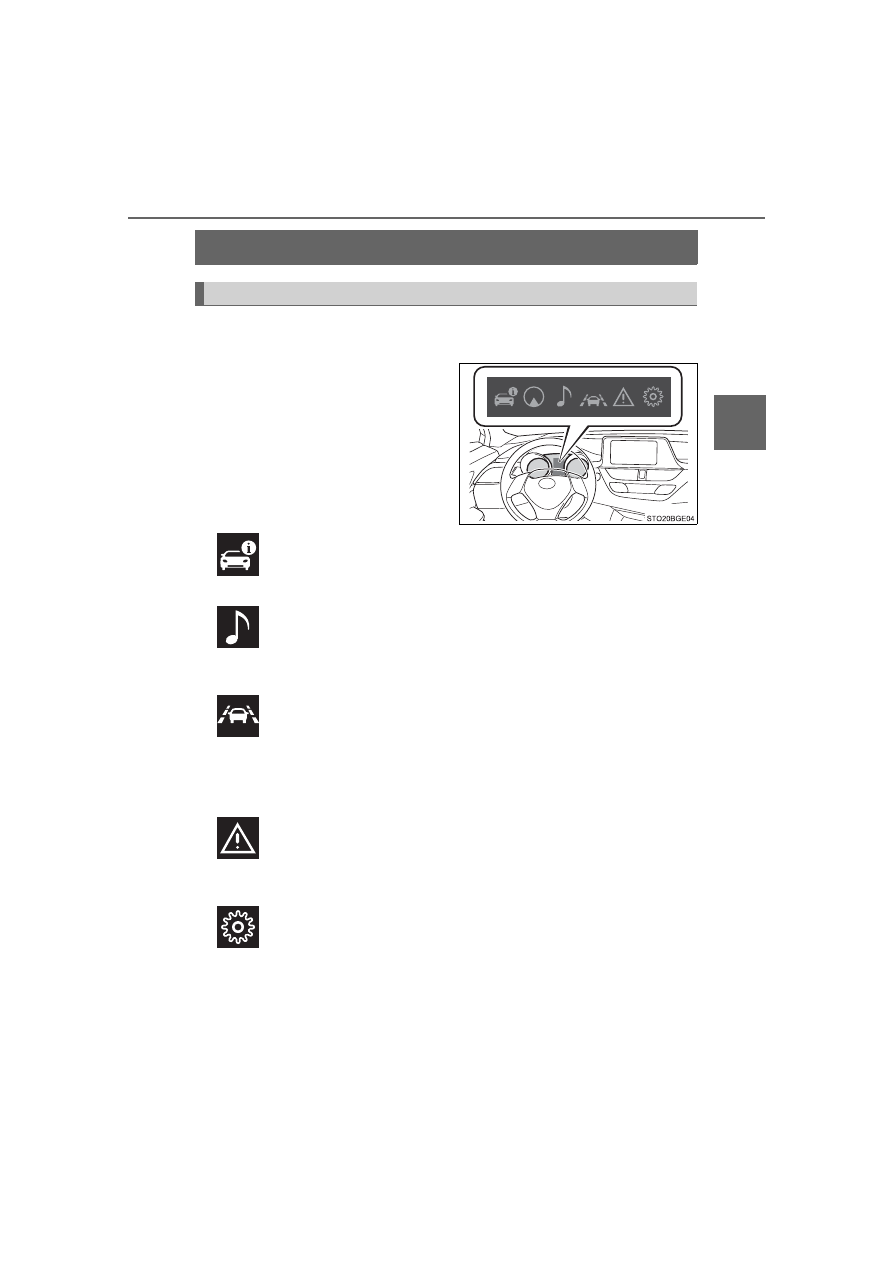

Menu icons
Displays  the  following  informa-
tion  when  an  icon  is  selected.
(



P. 100)

Some of the information may be
displayed

automatically

depending on the situation.

Drive information

Select to display various drive data. (



P. 100)

Audio system-linked display

Select to enable selection of an audio source or track on the meter
using the meter control switches.

Driving assist system information

Select to display the operational status of the following systems:

• LTA (Lane Tracing Assist) (



P. 246)

• Dynamic radar cruise control with full-speed range (



P. 266)

• RSA (Road Sign Assist) (if equipped) (



P. 261)

Warning message display

Select to display warning messages and measures to be taken if a
malfunction is detected. (



P. 444)

Settings display

Select  to  change  the  meter  display  settings  and  the  operation  set-
tings of some vehicle functions. (



P. 102)

Display contents

100

2. Instrument cluster

C-HR_OM_USA_OM10684U

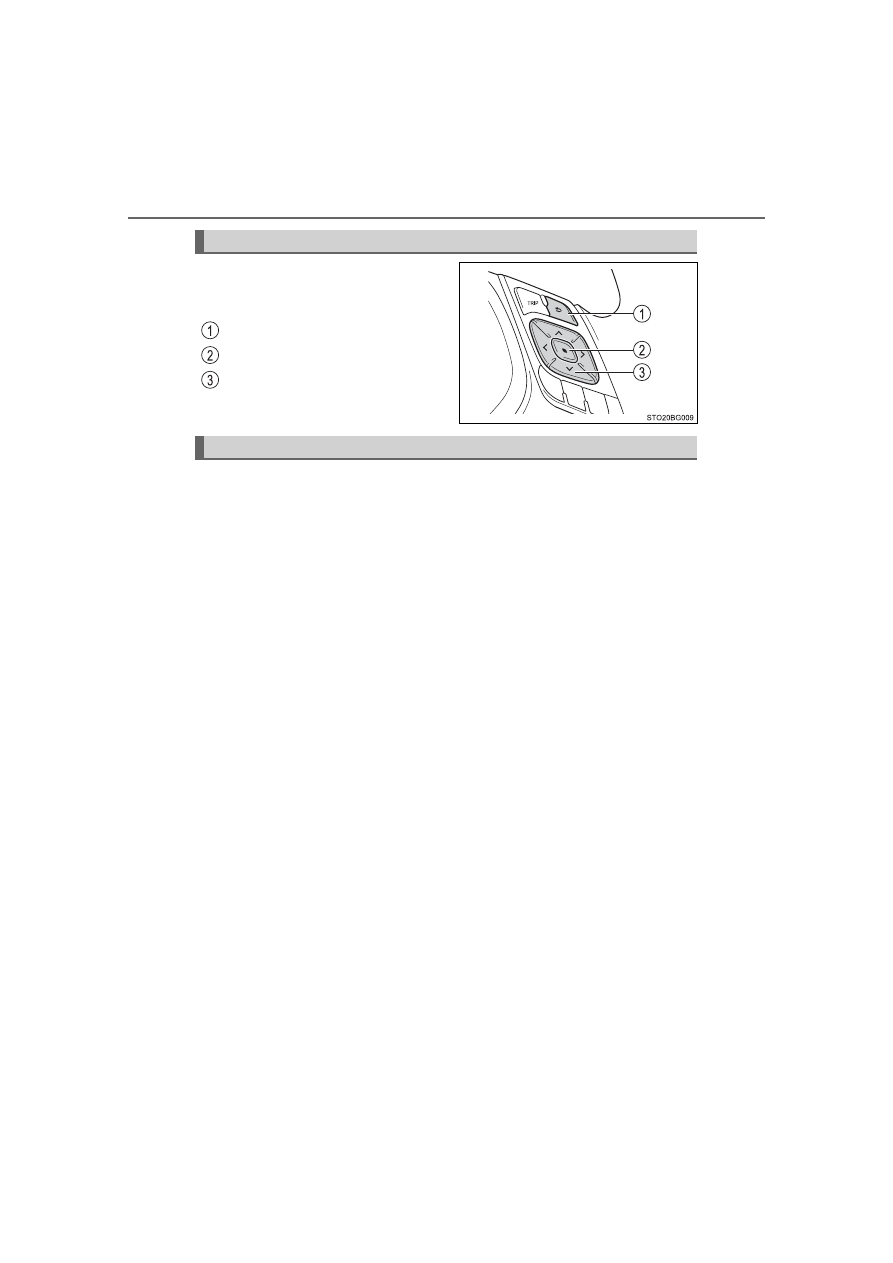

The  multi-information  display  is
operated  using  the  meter  control
switches.

Return to the previous screen
Enter/set
Select an item/change pages

●

Current fuel consumption (bar type/numerical value)

*

1

Displays the current rate of fuel consumption.

●

Average fuel consumption (after reset

*

2

/after start/after refuel)

*

1

Displays the  average fuel  consumption since  the  function was  reset, the
engine was started, and the vehicle was refueled, respectively
Use the displayed average fuel consumption as a reference.

●

Average vehicle speed (after reset

*

2

/after start)

*

1

Displays the average vehicle speed since the function was reset and the
engine was started, respectively

●

Elapsed time (after reset

*

2

/after start)

*

1

Displays the elapsed time since the function was reset and the engine was
started, respectively

●

Distance (range/after start)

*

1

Displays  the  estimated  maximum  distance  that  can  be  driven  with  the
quantity  of  fuel  remaining  and  the  distance  driven  after  the  engine  was
started, respectively

• This distance is computed based on your average fuel consumption. As

a result, the actual distance that can be driven may differ from that dis-
played.

• When only a small amount of fuel is added to the tank, the display may

not be updated.
When refueling, turn the engine switch off. If the vehicle is refueled with-
out turning the engine switch off, the display may not be updated.

Operating the meter control switches

Drive information

101

2. Instrument cluster

2

Instru

me
nt clu

ster

C-HR_OM_USA_OM10684U

●

Eco Driving Indicator Zone Display



P. 104

●

Speedometer

Displays the vehicle speed.

●

G Monitor



P. 105

●

Display off

A blank screen is displayed.

*

1

: Can be registered to Drive information 1 and 2. (



P. 102)

*

2

: Resetting procedures:

• Select a function to be reset using the meter control switches and then

press and hold

 to reset.

• If there is more than one function that can be reset, check boxes will be

displayed next to those functions.

102

2. Instrument cluster

C-HR_OM_USA_OM10684U

The settings of the following items can be changed, refer to P. 500.

For  functions  that  can  be  enabled  or  disabled,  the  function  switches
between on and off each time

 is pressed.

●

 LTA (Lane Tracing Assist) (



P. 246)

Select to set up the following items.

• Lane centering function on/off
• Alert sensitivity
• Sway Alert on/off
• Sway sensitivity

●

 PCS (Pre-Collision System) (



P. 231)

Select to set up the following items.

• PCS on/off
• PCS sensitivity

●

 BSM (Blind Spot Monitor) (



P. 283, 292)

*

Select to set up the following items.

• BSM function on/off
• BSM Sensitivity
• BSM Brightness
• RCTA function on/off

●

 RSA (Road Sign Assist) (



P. 261)

*

Select to enable/disable the RSA (Road Sign Assist).

●

Driving mode select (



P. 281)

Settings display

103

2. Instrument cluster

2

Instru

me
nt clu

ster

C-HR_OM_USA_OM10684U

●

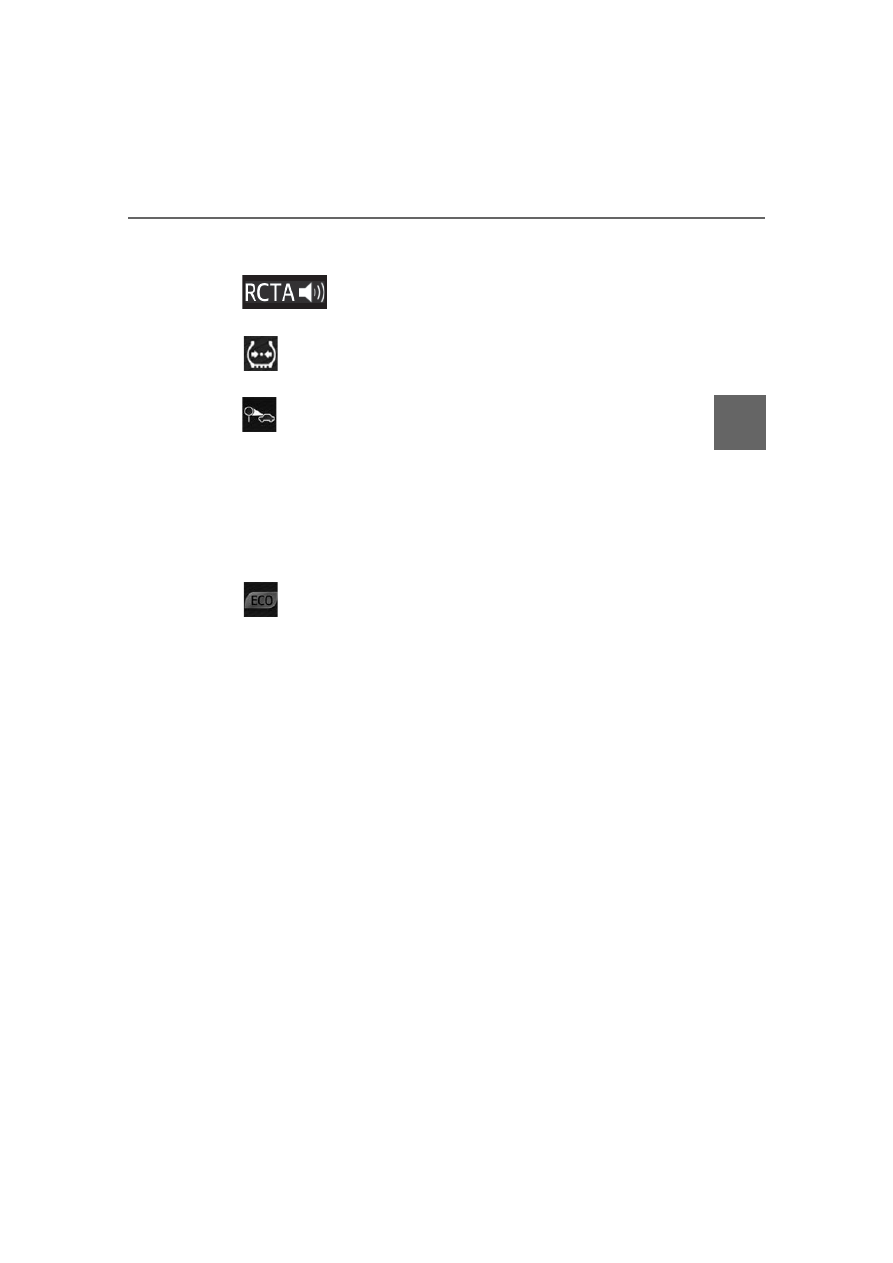

Vehicle Settings
Select the menu to set up the following items.

•

 RCTA setup (



P. 509)

*

Select to change the RCTA buzzer volume.

•

 (Tire pressure warning system) setup (



P. 378)

Select to initialize the tire pressure warning system.

•

 RSA (Road Sign Assist) setup (



P. 508)

*

Select to set up RSA (Road Sign Assist).

●

Meter settings
Select the menu to set up the following items.

• Language

Select to change the language on the display.

• Units

Select to change the unit of measure for fuel consumption.

•

 (Eco Driving Indicator Light) setup

Select to activate/deactivate the Eco Driving Indicator Light

• Drive information 1 and 2

Select to select up to 2 items that will be displayed on a Drive informa-
tion screen, up to 2 Drive information screens can be set.

•  Pop-up display

Select to enable/disable pop-up displays for incoming call display of the
hands-free phone system.

• Initialisation

Registered or changed meter settings will be deleted or returned to their
default setting.

*

: if equipped

104

2. Instrument cluster

C-HR_OM_USA_OM10684U

■

Setting items

●

“Meter  Settings”  and  “Vehicle  Settings”  setting  items  are  not  selectable
during driving and cannot be operated.
Also, the settings screen is temporarily canceled in the following situations.
• A warning message is displayed.
• The vehicle starts off.

●

Settings for functions not equipped to the vehicle are not displayed.

●

When a function is turned off, the related settings for that function are not
selectable.

■

Pop-up display

In some situations, such as when a switch operation is performed, a pop-up
display will be temporarily displayed on the multi-information display.

■

Liquid crystal display

Small  spots  or  light  spots  may  appear  on  the  display. This  phenomenon  is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.

■

When disconnecting and reconnecting battery terminals

The drive information will be reset.

■

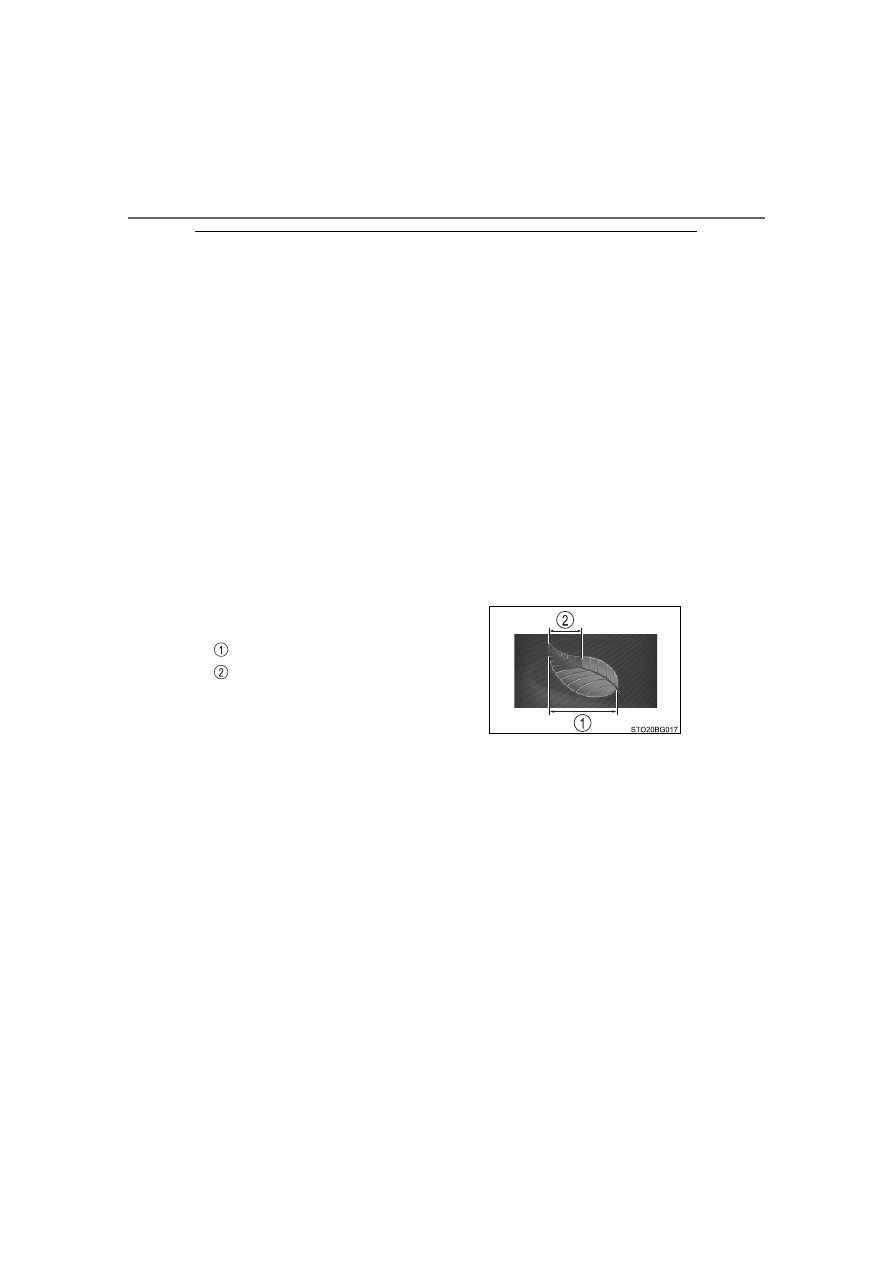

Eco Driving Indicator Zone Display

Suggests  Zone  of  Eco  driving  and  Eco
driving ratio based on acceleration.

Zone of Eco driving
Eco  driving  ratio  based  on  accelera-
tion
If  the  vehicle  exceeds  Zone  of  Eco
driving,  the  green  area  disappears
and  Eco  Driving  Indicator  Light  will
turn off. (



P. 95)

105

2. Instrument cluster

2

Instru

me
nt clu

ster

C-HR_OM_USA_OM10684U

■

G Monitor

■

Ending display

When the engine switch is turned off, each of the following will be displayed
on  the  multi-information  display,  and  will  extinguish  after  approximately
30 seconds.

●

Elapsed time

●

Distance

●

Average fuel consumption

The following item is displayed.

G-force display
Displays the current G-force state.

106

2. Instrument cluster

C-HR_OM_USA_OM10684U

WARNING

■

Caution for use while driving

●

When  operating  the  multi-information  display  while  driving,  pay  extra
attention to the safety of the area around the vehicle.

●

Do not look continuously at the multi-information display while driving as
you  may  fail  to  see  pedestrians,  objects  on  the  road,  etc.  ahead  of  the
vehicle.

■

The information display at low temperatures

Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift  again,  causing  rapid  and  excessive  engine  braking  and  possibly  an
accident resulting in death or injury.

■

Cautions during setting up the display

As the engine needs to be running during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO)
may  collect  and  enter  the  vehicle.  This  may  lead  to  death  or  a  serious
health hazard.

NOTICE

■

While setting up the display

To prevent battery discharge, ensure that the engine is running while setting
up the display features.

107

2. Instrument cluster

2

Instru

me
nt clu

ster

C-HR_OM_USA_OM10684U

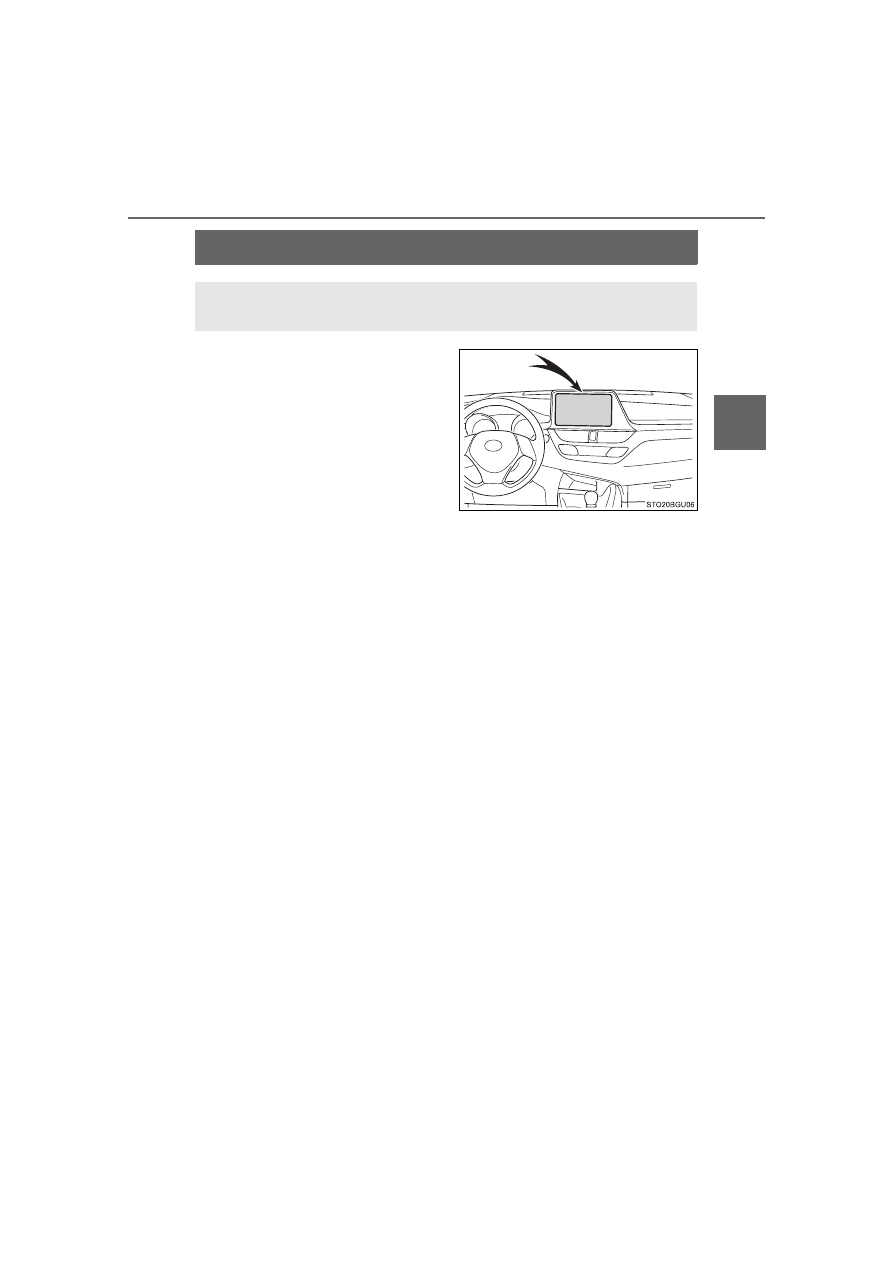

Fuel consumption information

Fuel  consumption  information  can  be  displayed  on  the  audio
system screen.

108

2. Instrument cluster

C-HR_OM_USA_OM10684U

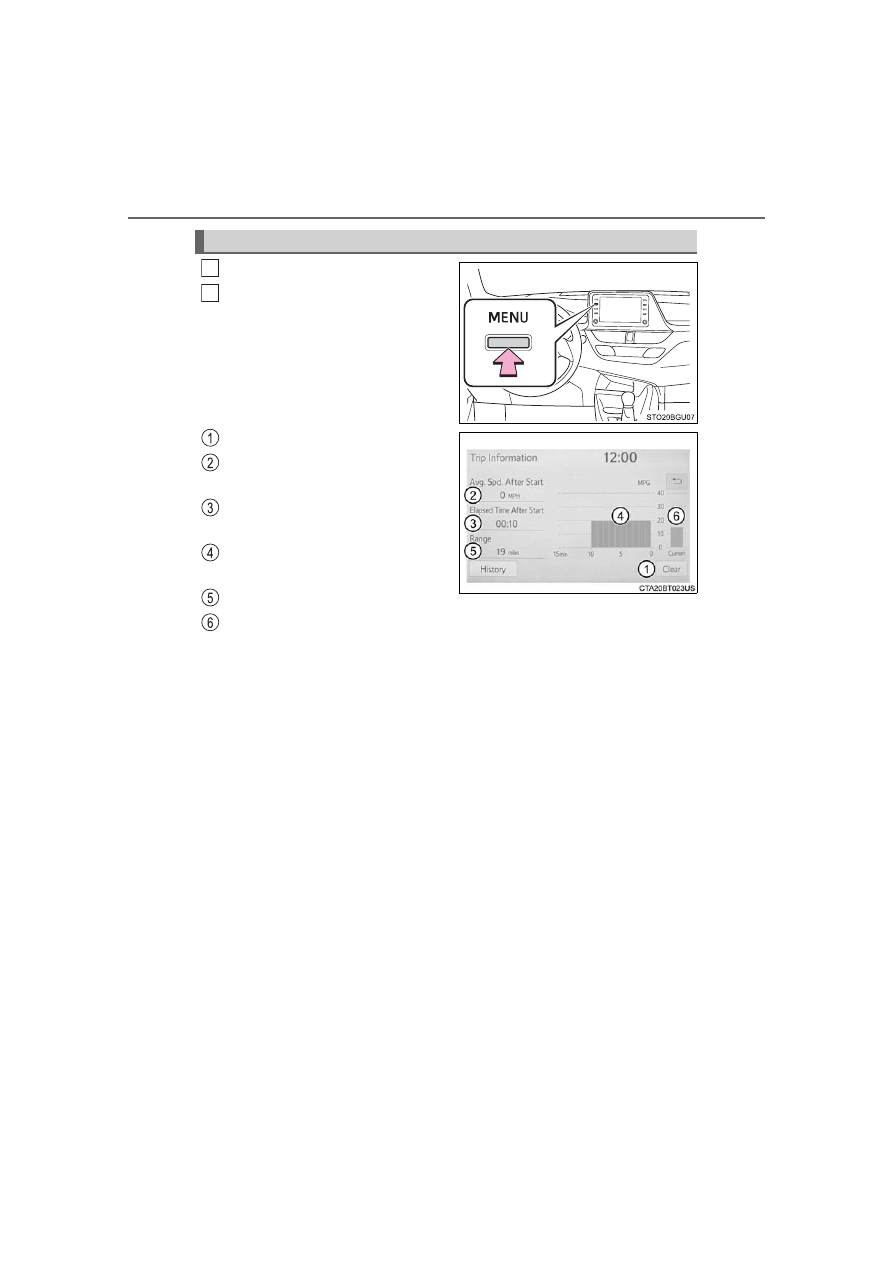

Press the “MENU” button.
Select  “Info”  on  the  “Menu”
screen.

If the “History” screen is displayed,
select “Trip Information”.

Resetting the consumption data
Average  vehicle  speed  since
the engine was started
Elapsed  time  since  the  engine
was started
Fuel consumption in the past 15
minutes
Cruising range (



P. 109)

Current fuel consumption

Average fuel consumption for the past 15 minutes is divided by color
into past averages and averages attained since the engine switch was
last turned to the “ON” position (vehicles without a smart key system)
or IGNITION ON mode (vehicles with a smart key system). Use the
displayed average fuel consumption as a reference.

The  image  is  an  example  only,  and  may  vary  slightly  from  actual  condi-
tions.

Trip information

1

2

109

2. Instrument cluster

2

Instru

me
nt clu

ster

C-HR_OM_USA_OM10684U

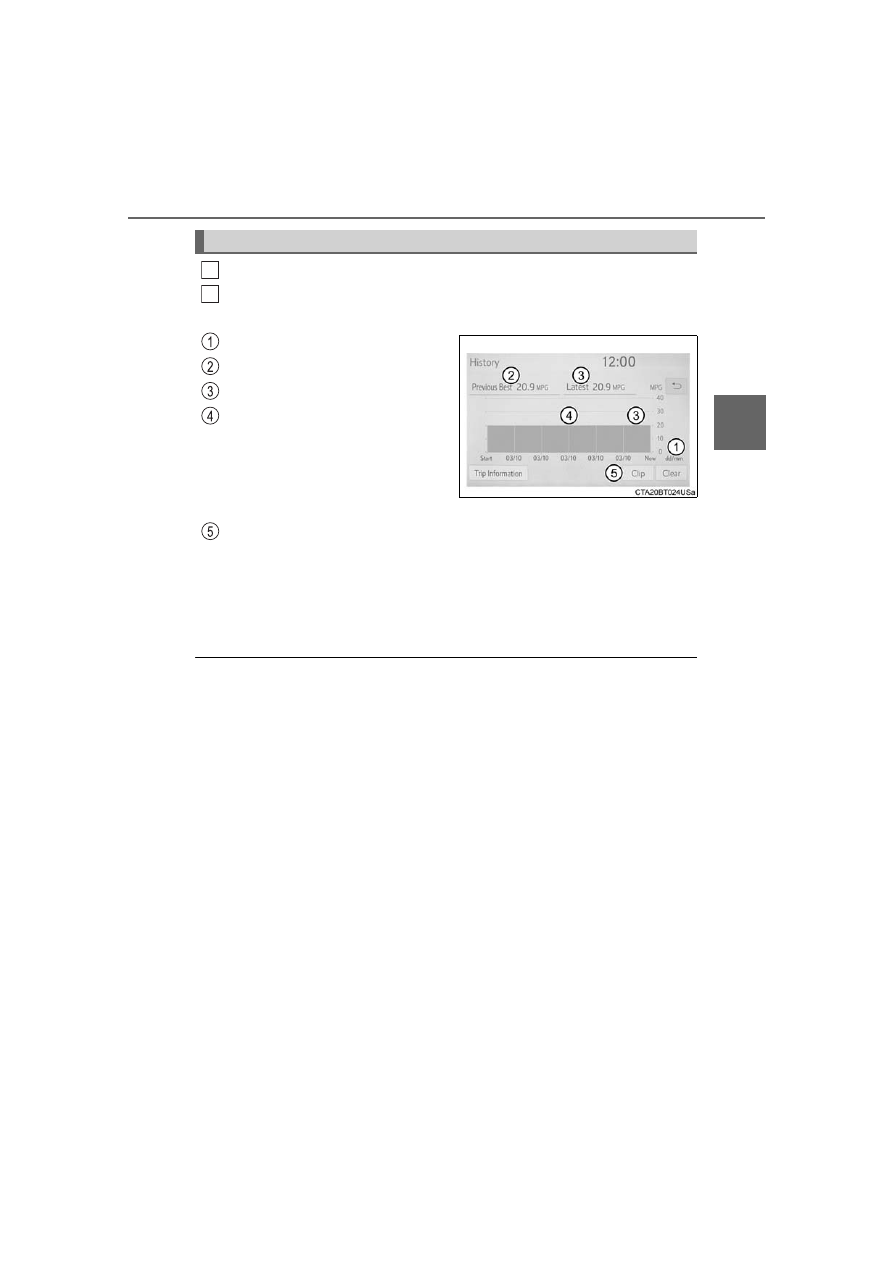

Press the “MENU” button.
Select “Info” on the “Menu” screen.

If the “Trip Information” screen is displayed, select “History”.

Resetting the history data
Best recorded fuel consumption
Latest fuel consumption
Previous

fuel

consumption

record

Displays  the  daily  average  fuel
consumption. (Instead of the date,
“Trip 1” through “Trip 5” will be dis-
played.)

Updating the latest fuel consumption data

The  average  fuel  consumption  history  is  divided  by  color  into  past
averages  and  the  average  fuel  consumption  since  the  last  time
updated. Use the displayed average fuel consumption as a reference.

The  image  is  an  example  only,  and  may  vary  slightly  from  actual  condi-
tions.

■

Updating the history data

Update the average fuel consumption by selecting “Clip” to measure the cur-
rent fuel consumption again.

■

Resetting the data

The fuel consumption data can be deleted by selecting “Clear”.

■

Cruising range

Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that dis-
played.

History

1

2

110

2. Instrument cluster

C-HR_OM_USA_OM10684U

111

3

Operation of

each component

C-HR_OM_USA_OM10684U

3-1. Key information

Keys .................................. 112

3-2. Opening, closing and

locking the doors

Side doors......................... 120
Back door.......................... 127
Smart key system ............. 133

3-3. Adjusting the seats

Front seats ........................ 143
Rear seats......................... 145
Head restraints.................. 147

3-4. Adjusting the steering

wheel and mirrors

Steering wheel .................. 151
Inside rear view mirror ...... 153
Outside rear view

mirrors............................. 154

3-5. Opening and closing the

windows

Power windows ................. 157

112

3-1. Key information

C-HR_OM_USA_OM10684U

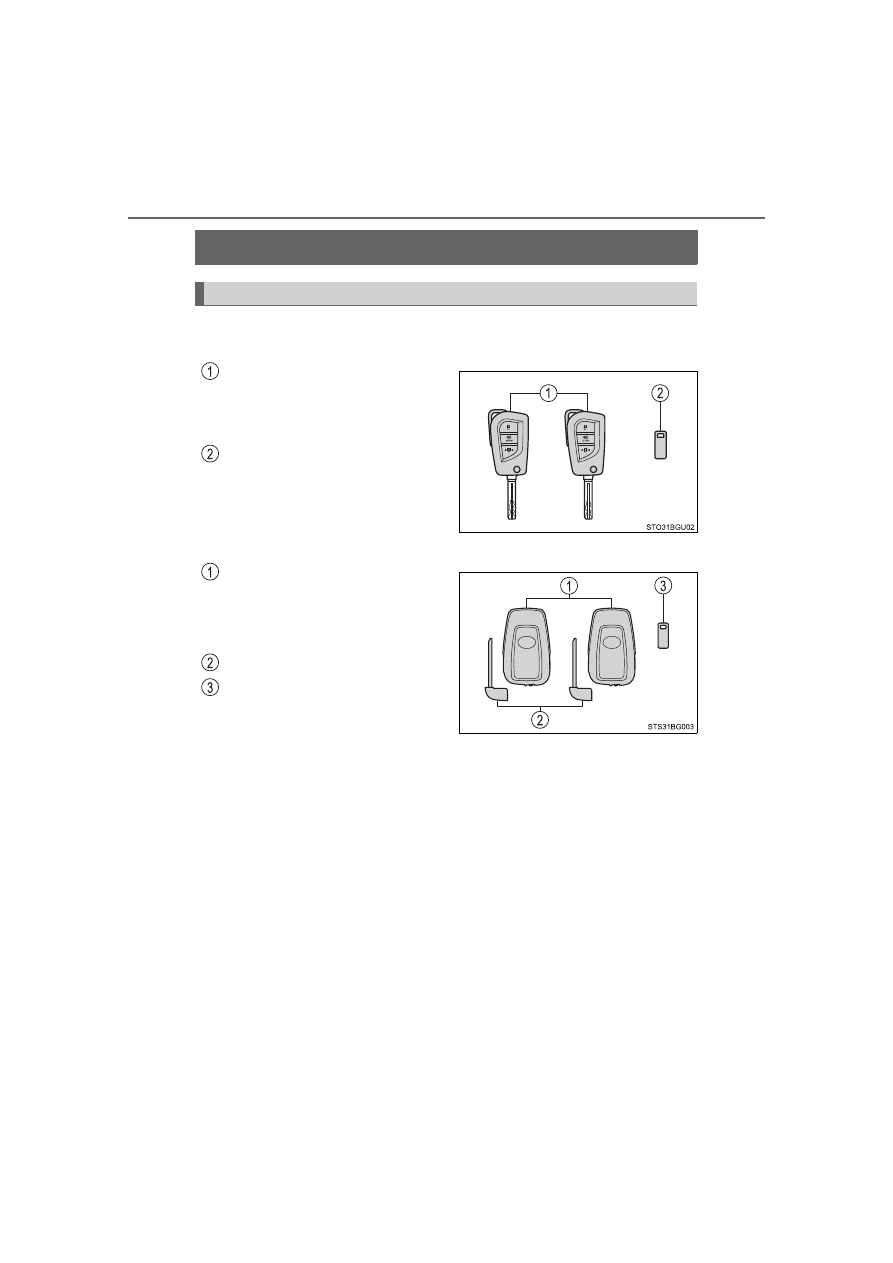

Keys

The following keys are provided with the vehicle.



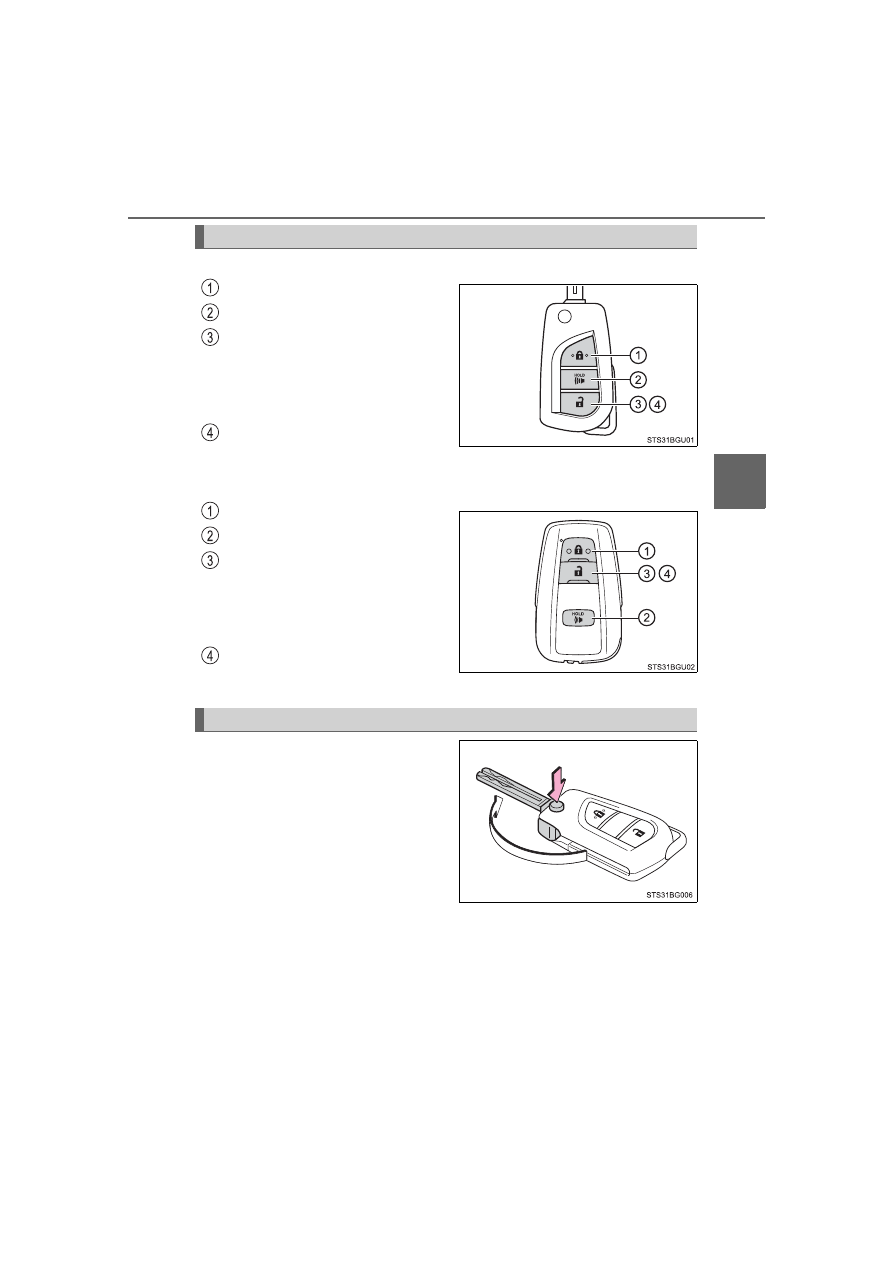

Vehicles without a smart key system

Key  (with  a  wireless  remote
control function)

Operating the wireless remote con-
trol function

Key number plate



Vehicles with a smart key system

Electronic keys

• Operating the smart key system

(



P. 133)

• Operating  the  wireless  remote

control function

Mechanical keys
Key number plate

The keys

113

3-1. Key information

3

Op
eration

 o

f each

 compo

nen
t

C-HR_OM_USA_OM10684U



Vehicles without a smart key system

Locks all the doors

(



P. 120

)

Sounds the alarm

(



P. 114

)

Unlocks the door

(



P. 120

)

Pressing  the  button  unlocks  the
driver’s  door.  Pressing  the  button
again within 3 seconds unlocks the
other doors.

Opens the windows

*



(



P. 120

)

*

: These settings must be customized at your Toyota dealer.



Vehicles with a smart key system

Locks all the doors

(



P. 120

)

Sounds the alarm

(



P. 114

)

Unlocks the door

(



P. 120

)

Pressing  the  button  unlocks  the
driver’s  door.  Pressing  the  button
again within 3 seconds unlocks the
other doors.

Opens the windows

*



(



P. 120

)

*

:  These settings must be customized at your Toyota dealer.

Press the button to open the key.

To stow, press the button then fold
the key.

Wireless remote control

Using the key (vehicles without a smart key system)

114

3-1. Key information

C-HR_OM_USA_OM10684U

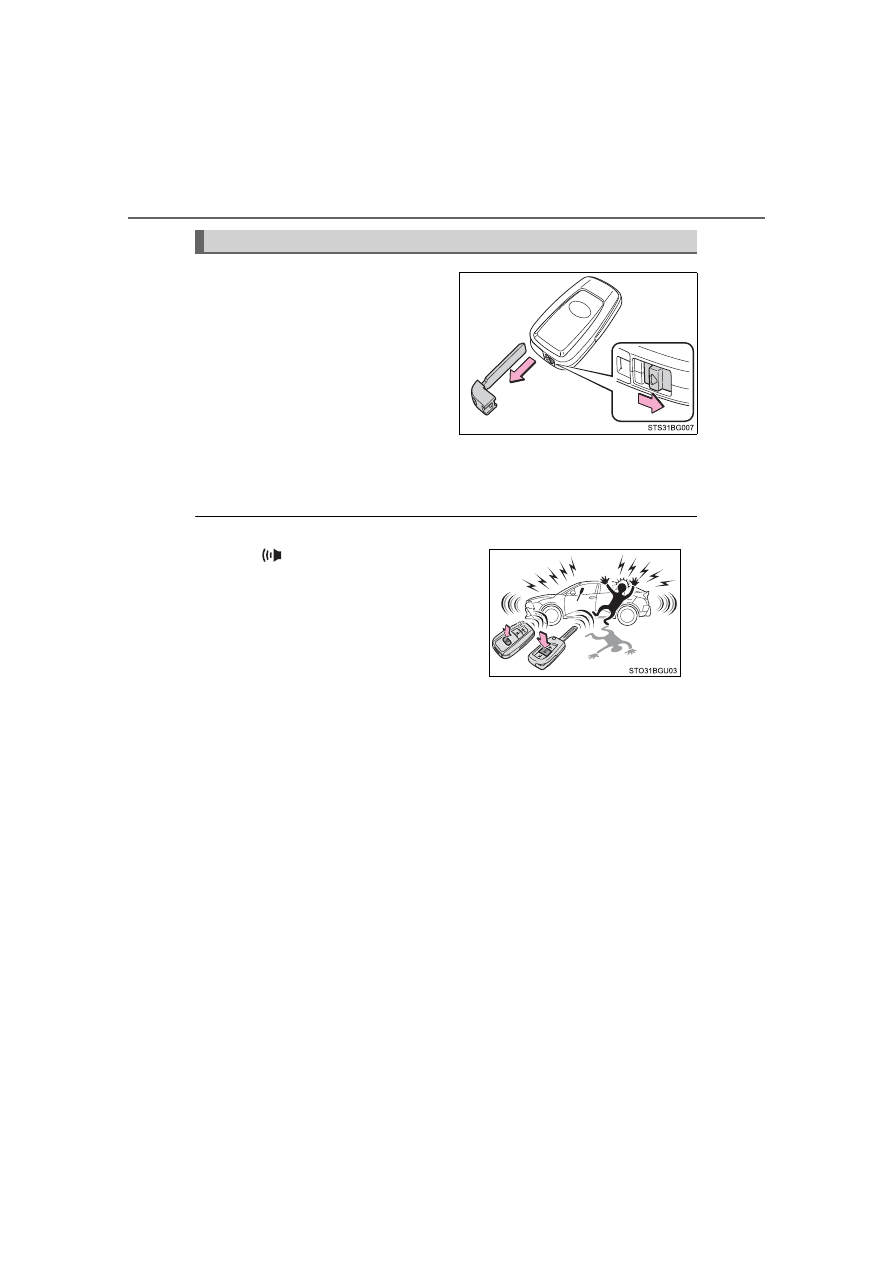

To  take  out  the  mechanical  key,
slide  the  release  lever  and  take
the key out.

The  mechanical  key  can  only  be
inserted  in  one  direction,  as  the
key only has grooves on one side.
If  the  key  cannot  be  inserted  in  a
lock  cylinder,  turn  it  over  and  re-
attempt to insert it.
After  using  the  mechanical  key,  store  it  in  the  electronic  key.  Carry  the
mechanical key together with the electronic key. If the electronic key bat-
tery  is  depleted  or  the  entry  function  does  not  operate  properly,  you  will
need the mechanical key. (



P. 462)

■

Panic mode

■

If you lose your keys

New genuine keys can be made by your Toyota dealer using the other key
(vehicles  without  a  smart  key  system)  or  mechanical  key  (vehicles  with  a
smart key system) and the key number stamped on your key number plate.
Keep the plate in a safe place such as your wallet, not in the vehicle.

Using the mechanical key (vehicles with a smart key system)

When

  is  pressed  for  longer  than

about  one  second,  an  alarm  will  sound
intermittently  and  the  vehicle  lights  will
flash  to  deter  any  person  from  trying  to
break into or damage your vehicle.
To stop the alarm, press any button on the
key  (with  a  wireless  remote  control  func-
tion) or electronic key.

115

3-1. Key information

3

Op
eration

 o

f each

 compo

nen
t

C-HR_OM_USA_OM10684U

■

When riding in an aircraft

When  bringing  a  key  with  wireless  remote  control  function  onto  an  aircraft,
make sure you do not press any buttons on the key while inside the aircraft
cabin. If you are carrying the key in your bag, etc., ensure that the buttons are
not likely to be pressed accidentally. Pressing a button may cause the key to
emit radio waves that could interfere with the operation of the aircraft.

■

Conditions affecting the operation of the smart key system or wireless
remote control



Vehicles without a smart key system

The wireless remote control function may not operate normally in the follow-
ing situations:

●

When the wireless key battery is depleted

●

Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electrical
noise

●

When carrying a portable radio, cellular phone or other wireless communi-
cation devices

●

When multiple wireless keys are in the vicinity

●

When the wireless key is in contact with, or is covered by a metallic object

●

When a wireless key (that emits radio waves) is being used nearby

●

When the wireless key has been left near an electrical appliance such as a
personal computer

●

If window tint with a metallic content or metallic objects are attached to the
rear window



Vehicles with a smart key system



P. 136

116

3-1. Key information

C-HR_OM_USA_OM10684U

■

Key battery depletion



Vehicles without a smart key system

If the wireless remote control function does not operate, the battery may be
depleted. Replace the battery when necessary. (



P. 397)



Vehicles with a smart key system

●

The standard battery life is 1 to 2 years.

●

If the battery becomes low, an alarm will sound in the cabin when the engine
stops. (



P. 397)

●

As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indi-
cate  that  the  electronic  key  battery  may  be  depleted.  Replace  the  battery
when necessary. (



P. 397)

• The smart key system or the wireless remote control does not operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
The battery can be exchanged by the users. (



P. 397) However, as there

may be damage to the key when exchanging, it is recommended to have
the battery exchanged at your Toyota Dealer.

●

To  avoid  serious  deterioration,  do  not  leave  the  electronic  key  within  3 ft.
(1 m) of the following electrical appliances that produce a magnetic field:
• TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Table lamps
• Induction cookers

■

When the key battery is fully depleted



P. 397

■

Confirmation  of  the  registered  key  number  (vehicles  with  a  smart  key
system)

The number of keys already registered to the vehicle can be confirmed. Ask
your Toyota dealer for details.

■

Customization

Settings (e.g. wireless remote control system) can be changed.
(Customizable features:



P. 504)

117

3-1. Key information

3

Op
eration

 o

f each

 compo

nen
t

C-HR_OM_USA_OM10684U

■

Certification for the wireless remote control



For vehicles sold in the U.S.A.

118

3-1. Key information

C-HR_OM_USA_OM10684U



For vehicles sold in Canada

119

3-1. Key information

3

Op
eration

 o

f each

 compo

nen
t

C-HR_OM_USA_OM10684U

NOTICE

■

To prevent key damage

●

Do not drop the keys, subject them to strong shocks, or bend them.

●

Do not expose the keys to high temperatures for long periods of time.

●

Do not get the keys wet or wash them in an ultrasonic washer, etc.

●

Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.

●

Do not disassemble the keys.

●

Do not attach a sticker or anything else to the surface of the electronic key
and key (with a wireless remote control function).

●

Vehicles with a smart key system: Do not place the keys near objects that
produce magnetic fields, such as TVs, audio systems and induction cook-
ers, or medical electrical equipment, such as low-frequency therapy equip-
ment.

■

Carrying the electronic key on your person (vehicles with a smart key
system)

Carry the electronic key 3.9 in. (10 cm) or more away from electric appli-
ances  that  are  turned  on.  Radio  waves  emitted  from  electric  appliances
within 3.9 in. (10 cm) of the electronic key may interfere with the key, caus-
ing the key to not function properly.

■

In case of a smart key system malfunction or other key-related prob-
lems (vehicles with a smart key system)

Take your vehicle with all the electronic keys provided with your vehicle to
your Toyota dealer.

■

When an electronic key is lost (vehicles with a smart key system)

If the electronic key remains lost, the risk of vehicle theft increases signifi-
cantly.  Visit  your  Toyota  dealer  immediately  with  all  remaining  electronic
keys that were provided with your vehicle.

120

3-2. Opening, closing and locking the doors

C-HR_OM_USA_OM10684U

Side doors

◆

Entry function (vehicles with a smart key system)

Carry the electronic key to enable this function.

Grip the driver’s door handle
to  unlock  the  door.  Grip  the
passenger’s  door  handle  to
unlock all the doors.*

Make  sure  to  touch  the  sensor
on the back of the handle.
The  doors  cannot  be  unlocked
for 3 seconds after the doors are
locked.

Touch  the  lock  sensor  (the  indentation  on  the  side  of  the  front
door handle) to lock all the doors.

Check that the door is securely locked.

*

: The door unlock settings can be changed. (



P. 125, 505)

◆

Wireless remote control



Vehicles without a smart key system

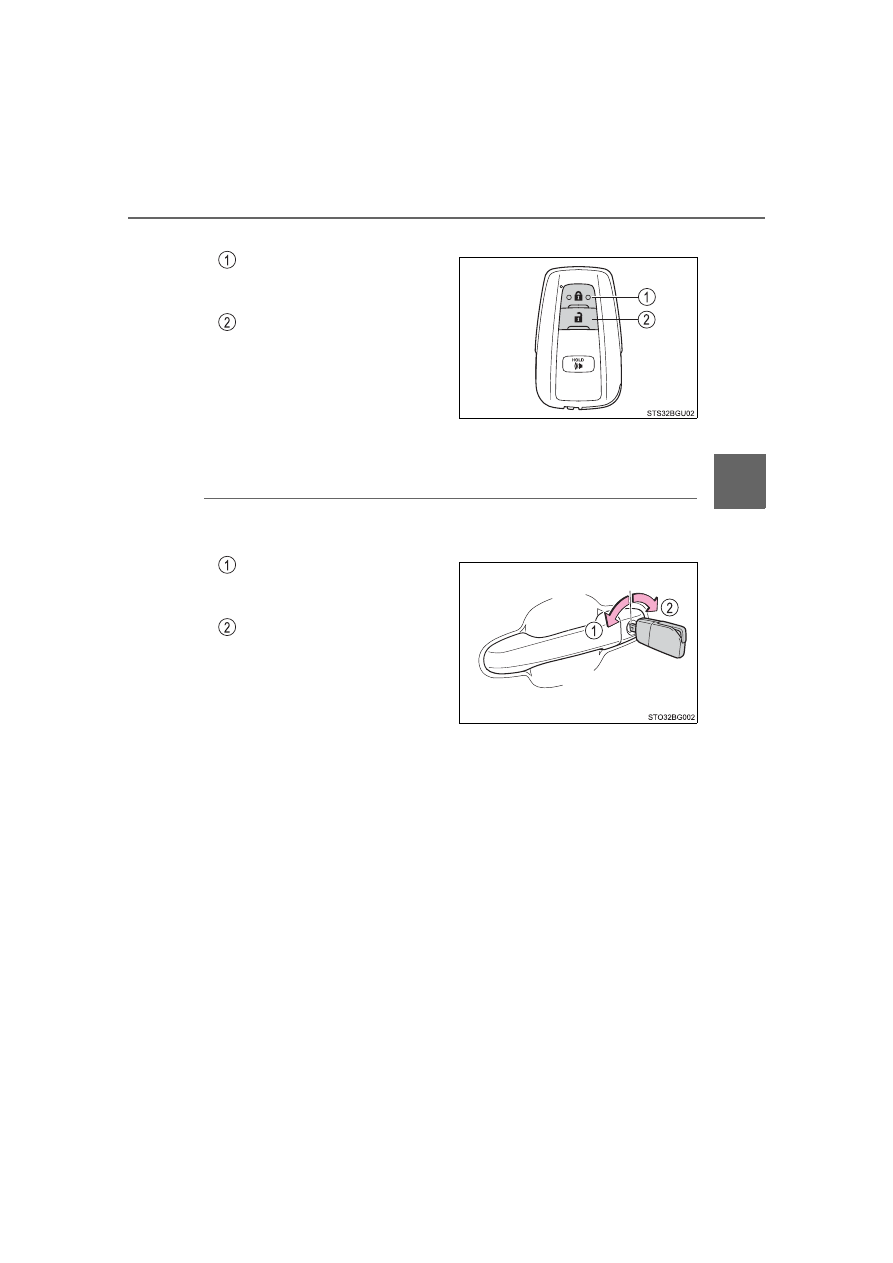

Locks all the doors

Check  that  the  door  is  securely
locked.

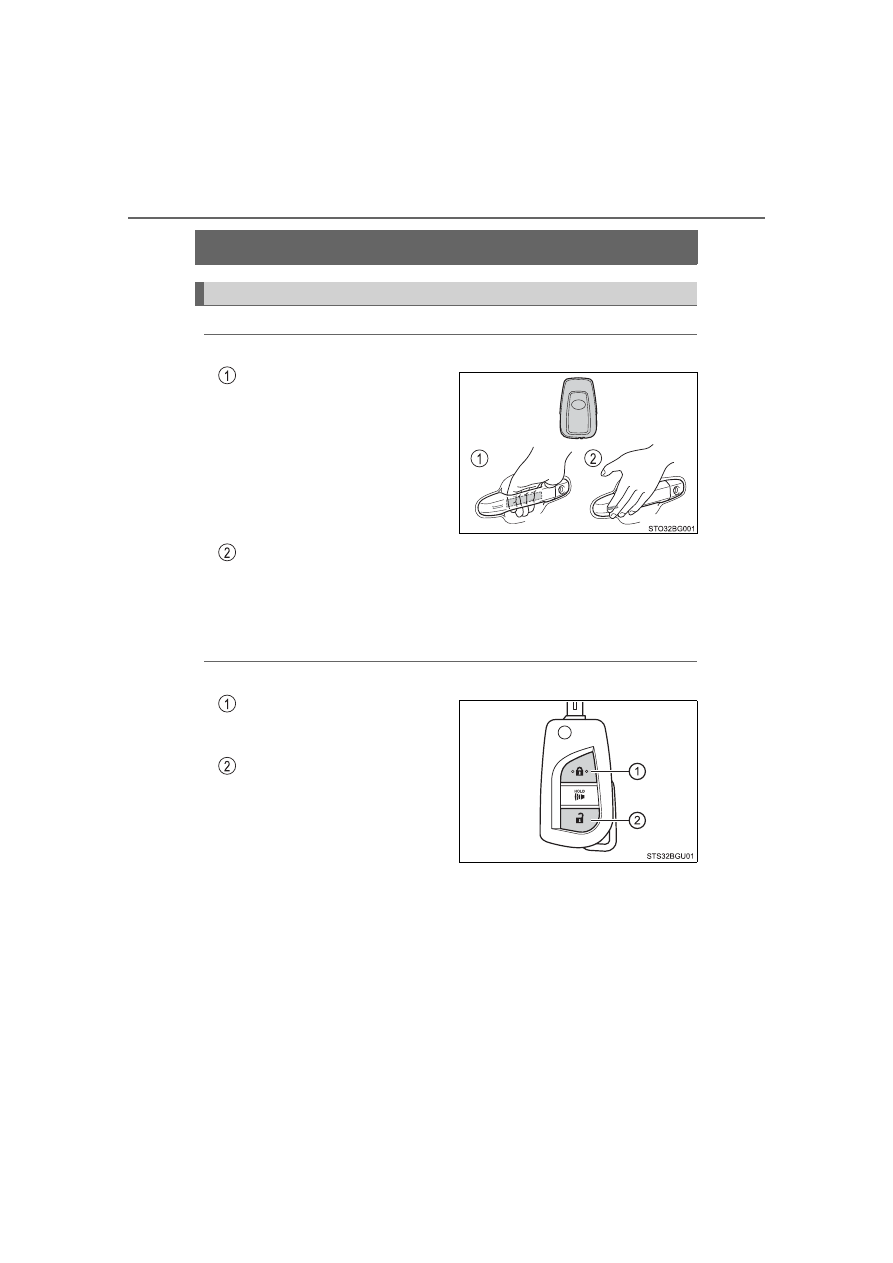

Unlocks the door

Pressing the button unlocks the
driver’s door.
Pressing the button again within
3  seconds  unlocks  the  other
doors.
Press and hold to open the windows

*

*

: These settings must be customized at your Toyota dealer.

Unlocking and locking the doors from the outside

121

3-2. Opening, closing and locking the doors

3

Op
eration

 o

f each

 compo

nen
t

C-HR_OM_USA_OM10684U



Vehicles with a smart key system

Locks all the doors

Check  that  the  door  is  securely
locked.

Unlocks the door

Pressing the button unlocks the
driver’s door.
Pressing the button again within
3  seconds  unlocks  the  other
doors.
Press and hold to open the windows

*

*

: These settings must be customized at your Toyota dealer.

◆

Key

Turning the key operates the doors as follows:



Vehicles without a smart key system

Locks all the doors

Turn  and  hold  to  close  the  win-
dows

*

Unlocks the door

Turning  the  key  unlocks  the
driver’s  door.  Turning  the  key
again unlocks the other doors.
Turn  and  hold  to  open  the  win-
dows

*

*

: These settings must be customized at your Toyota dealer.



Vehicles with a smart key system

The  doors  can  also  be  locked  and  unlocked  with  the  mechanical  key.
(



P. 462)

122

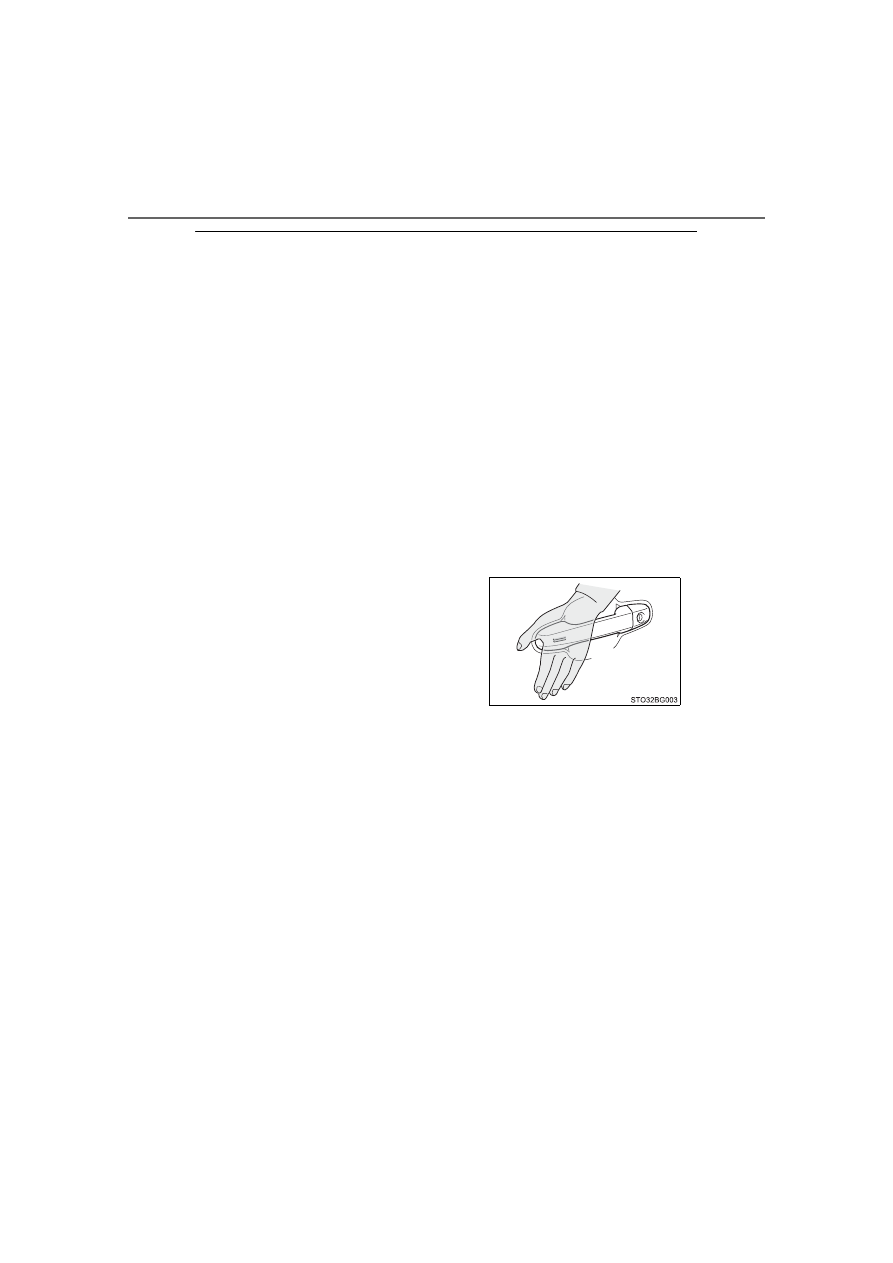

3-2. Opening, closing and locking the doors

C-HR_OM_USA_OM10684U

■

Operation signals

Doors:
A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked using the wireless remote control.
(Locked: once; Unlocked: twice)
Windows:
A buzzer sounds to indicate that the windows are operating.

■

Security feature



Vehicles without a smart key system

If a door is not opened within approximately 60 seconds after the vehicle is
unlocked using the wireless remote control, the security feature automatically
locks the vehicle again.



Vehicles with a smart key system

If a door is not opened within approximately 60 seconds after the vehicle is
unlocked using the entry function or wireless remote control, the security fea-
ture automatically locks the vehicle again.

■

When the door cannot be locked by the lock sensor on the surface of the
front door handle (vehicles with a smart key system)

■

Door lock buzzer



Vehicles without a smart key system

If  an  attempt  to  lock  the  doors  using  the  wireless  remote  control  is  made
when a door is not fully closed, a buzzer will sound continuously for 5 sec-
onds. Fully close the door to stop the buzzer, and lock the doors again.



Vehicles with a smart key system

If  an  attempt  to  lock  the  doors  using  the  entry  function  or  wireless  remote
control is made when a door is not fully closed, a buzzer will sound continu-
ously  for  5  seconds.  Fully  close  the  door  to  stop  the  buzzer,  and  lock  the
doors again.

■

If  the  smart  key  system  or  wireless  remote  control  does  not  operate
properly

●

Vehicles  with  a  smart  key  system:  Use  the  mechanical  key  to  lock  and
unlock the doors. (



P. 462)

●

Replace the battery with a new one if it is depleted. (



P. 397)

Use your palm to touch the lock sensor.

123

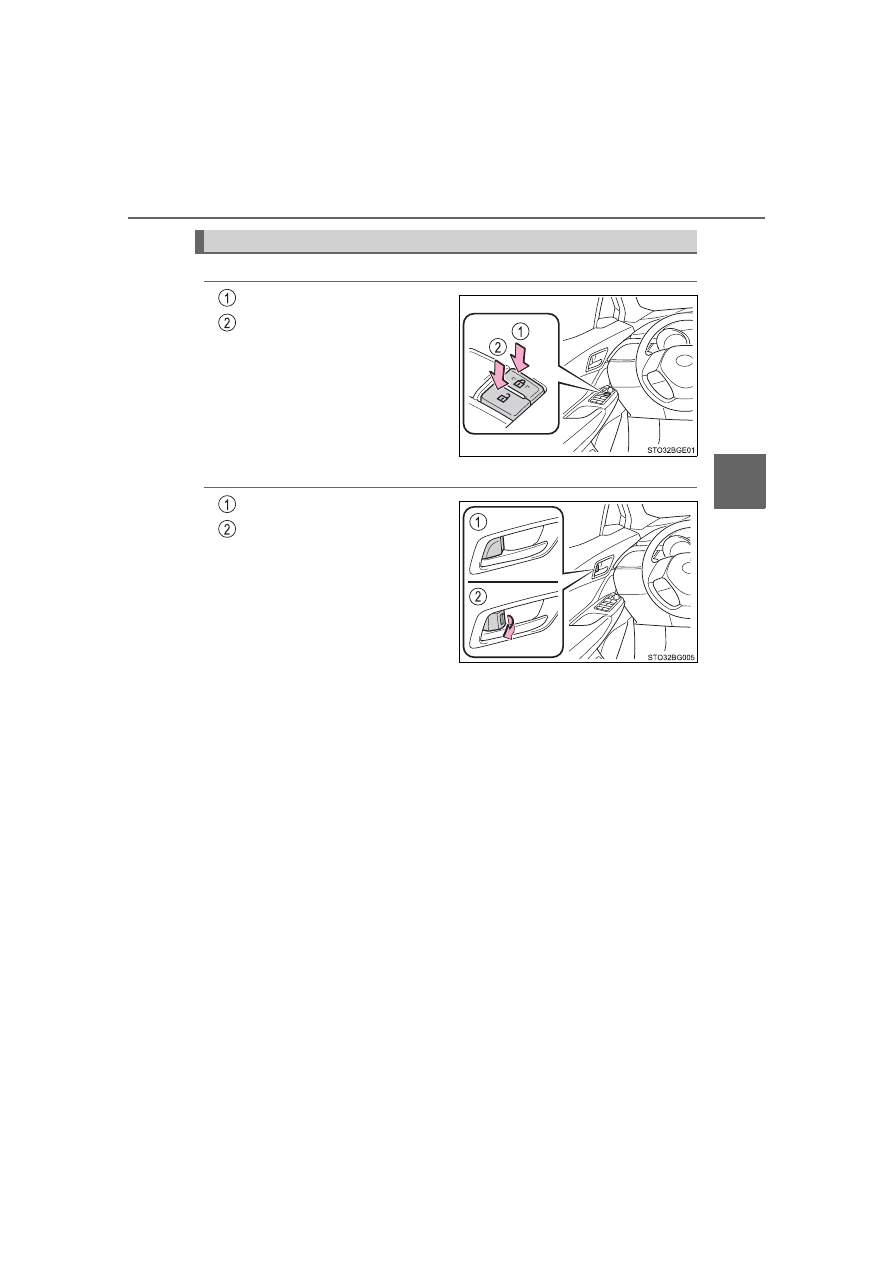

3-2. Opening, closing and locking the doors

3

Op
eration

 o

f each

 compo

nen
t

C-HR_OM_USA_OM10684U

◆

Door lock switches

Locks all the doors
Unlocks all the doors

◆

Inside lock buttons

Locks the door
Unlocks the door

The  front  doors  can  be  opened
by  pulling  the  inside  handle
even  if  the  lock  buttons  are  in
the lock position.

Unlocking and locking the doors from the inside

124

3-2. Opening, closing and locking the doors

C-HR_OM_USA_OM10684U

Move the inside lock button to the lock position.
Close the door.



Vehicles without a smart key system

The door cannot be locked if the key is in the engine switch.



Vehicles with a smart key system

The door cannot be locked if the engine switch is in ACCESSORY or
IGNITION ON mode, or the electronic key is left inside the vehicle.

The key may not be detected correctly and the door may be locked.

The door cannot be opened from
inside the vehicle when the lock is
set.

Unlock
Lock

These locks can be set to prevent
children  from  opening  the  rear
doors.  Push  down  on  each  rear
door switch to lock both rear doors.

Locking the doors from the outside without a key

Rear door child-protector lock

1

2

125

3-2. Opening, closing and locking the doors

3

Op
eration

 o

f each

 compo

nen
t

C-HR_OM_USA_OM10684U

■

Switching the door unlock function (vehicles with a smart key system)

It is possible to set which doors the entry function unlocks using the wireless
remote control.

Turn the engine switch off.

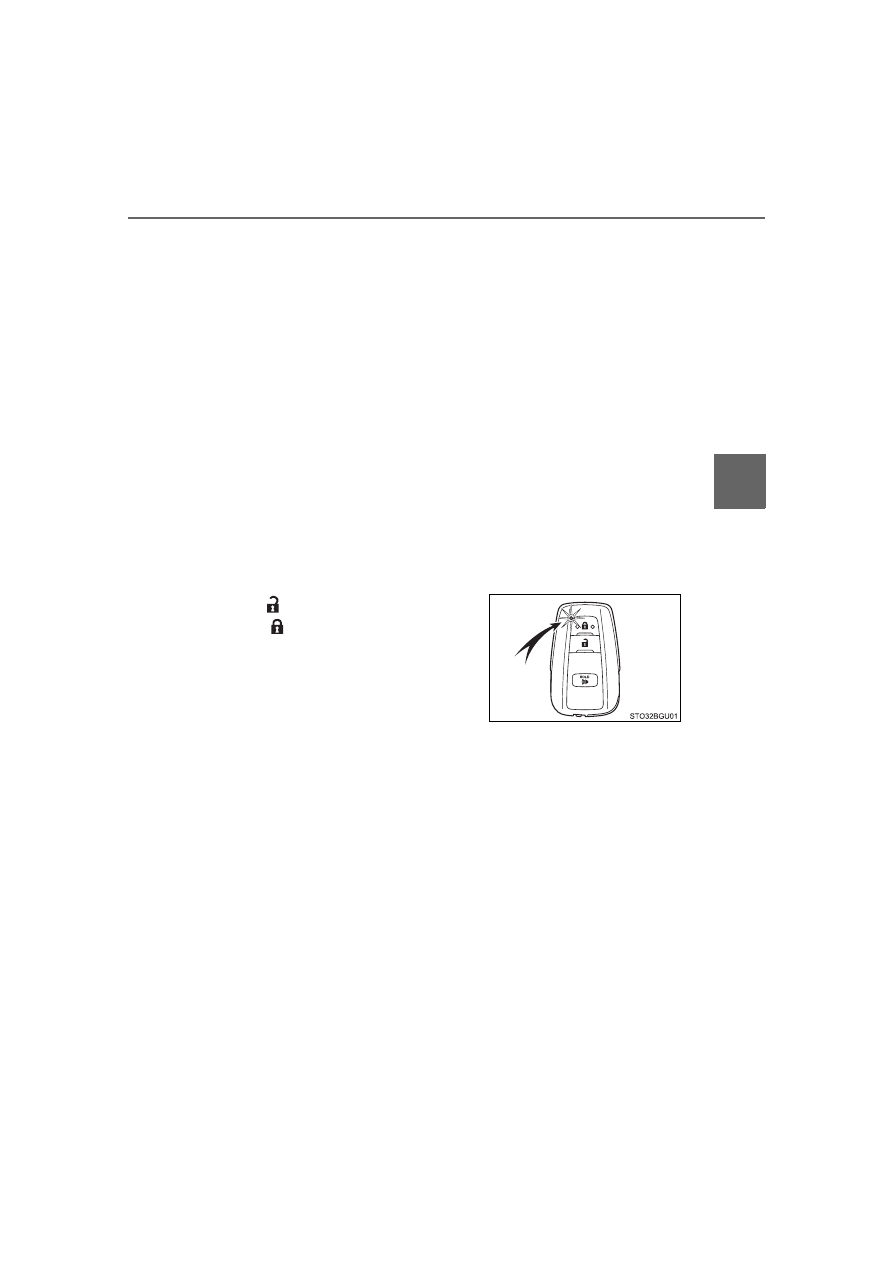

When the indicator light on the key surface is not on, press and hold

 for

approximately 5 seconds while pressing and holding

.

The setting changes each time an operation is performed, as shown below.
(When changing the setting continuously, release the buttons, wait for at least
5 seconds, and repeat step

.)

■

Open door warning buzzer

If a door or the back door is not fully closed, a buzzer will sound when the
vehicle speed reaches 3 mph (5 km/h).
The open door(s) or back door is indicated on the multi-information display.

■

Conditions affecting the operation of the smart key system or wireless
remote control



Vehicles without a smart key system



P. 115



Vehicles with a smart key system



P. 136

■

Customization

Settings (e.g. unlocking function using a key) can be changed.
(Customizable features:



P. 500)

1

2

2

2

Multi-information

display

Unlocking function

Beep

Holding  the  driver’s  door
handle  unlocks  only  the
driver’s door.

Exterior: Beeps 3 times
Interior: Pings once

Holding  the  front  passen-
ger’s  door  handle  unlocks
all the doors.

Holding  a  door  handle
unlocks all the doors.

Exterior: Beeps twice
Interior: Pings once

126

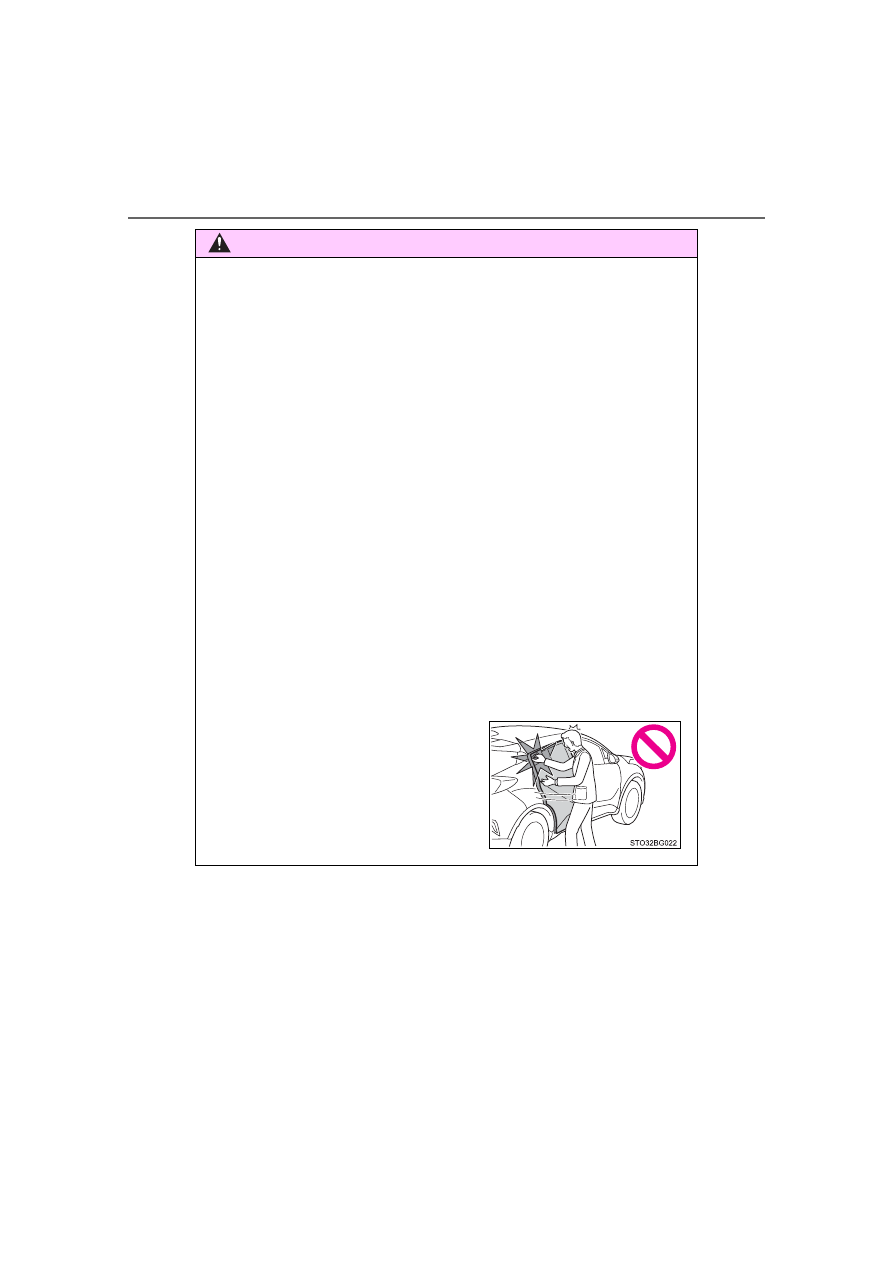

3-2. Opening, closing and locking the doors

C-HR_OM_USA_OM10684U

WARNING

■

To prevent an accident

Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.

●

Ensure that all doors are properly closed and locked.

●

Do not pull the inside handle of the doors while driving.
Be  especially  careful  for  the  front  doors,  as  the  doors  may  be  opened
even if the inside lock buttons are in locked position.

●

Set the rear door child-protector locks when children are seated in the rear
seats.

■

When opening or closing a door

Check the surroundings of the vehicle such as whether the vehicle is on an
incline,  whether  there  is  enough  space  for  a  door  to  open  and  whether  a
strong wind is blowing.
When opening or closing the door, hold the door handle tightly to prepare
for any unpredictable movement.

■

When  using  the  wireless  remote  control  or  key  and  operating  the
power windows

Operate the power window after checking to make sure that there is no pos-
sibility of any passenger having any of their body parts caught in the side
window. Also, do not allow children to operate the wireless remote control or
key.  It  is  possible  for  children  and  other  passengers  to  get  caught  in  the
power window.

■

When closing the rear door

Take  extra  care  to  prevent  your  fingers,
etc., from being caught. Failure to do so
may result in death or serious injury.

127

3-2. Opening, closing and locking the doors

3

Op
eration

 o

f each

 compo

nen
t

C-HR_OM_USA_OM10684U

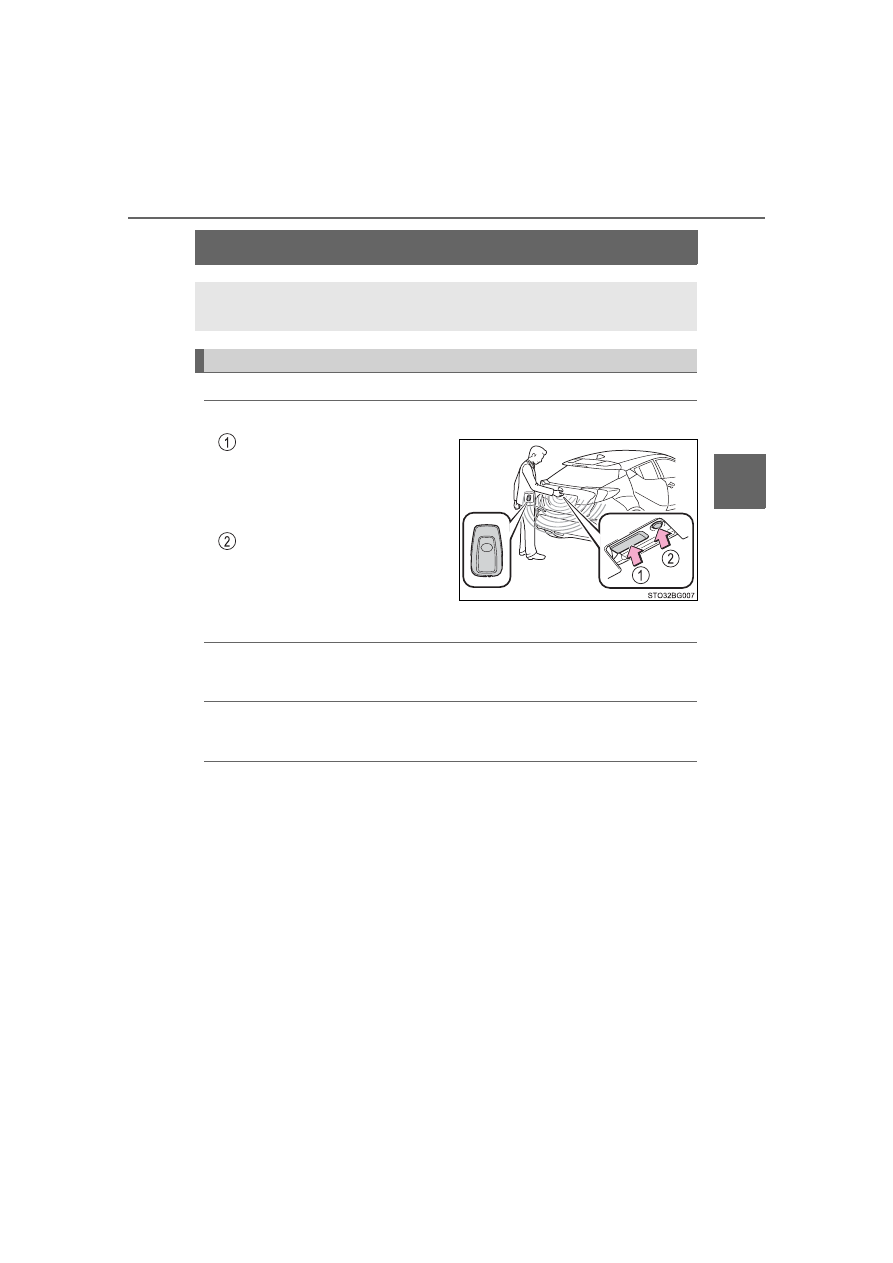

Back door

◆

Entry function (vehicles with a smart key system)

Carry the electronic key to enable this function.

Press  the  button  to  unlock
the back door.

The door cannot be unlocked for
3  seconds  after  the  door  is
locked.

Press  the  button  to  lock  the
back door.

Check  that  the  door  is  securely
locked.

◆

Wireless remote control



P. 120

◆

Key



P. 121

◆

Door lock switches



P. 123

The  back  door  can  be  locked/unlocked  and  opened  by  the  fol-
lowing procedures.

Unlocking and locking the back door

128

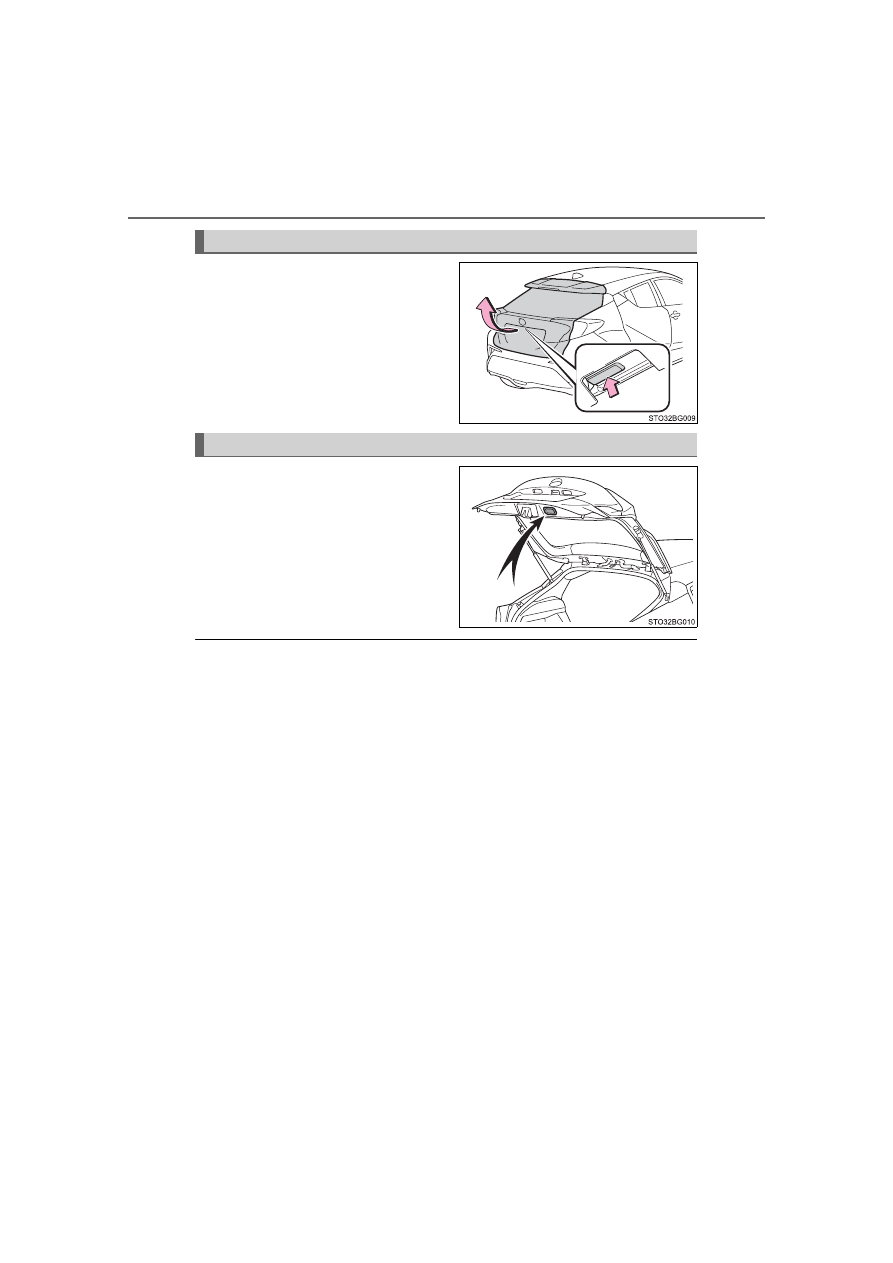

3-2. Opening, closing and locking the doors

C-HR_OM_USA_OM10684U

Raise the back door while pushing
up the back door opener switch.

The  back  door  cannot  be  closed
immediately  after  the  back  door
opener switch is pushed.

Lower  the  back  door  using  the
back door handle, and make sure
to push the back door down from
the outside to close it.

Be careful not to pull the back door
sideways  when  closing  the  back
door with the handle.

■

Operation signals

A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked using the entry function or wireless remote con-
trol. (Locked: Once; Unlocked: Twice)

■

Open door warning buzzer

If a door or the back door is not fully closed, a buzzer will sound when the
vehicle speed reaches 3 mph (5 km/h).
The open door(s) or back door is indicated on the multi-information display.

■

Luggage compartment light

The luggage compartment light turns on when the back door is opened.

Opening the back door

When closing the back door

129

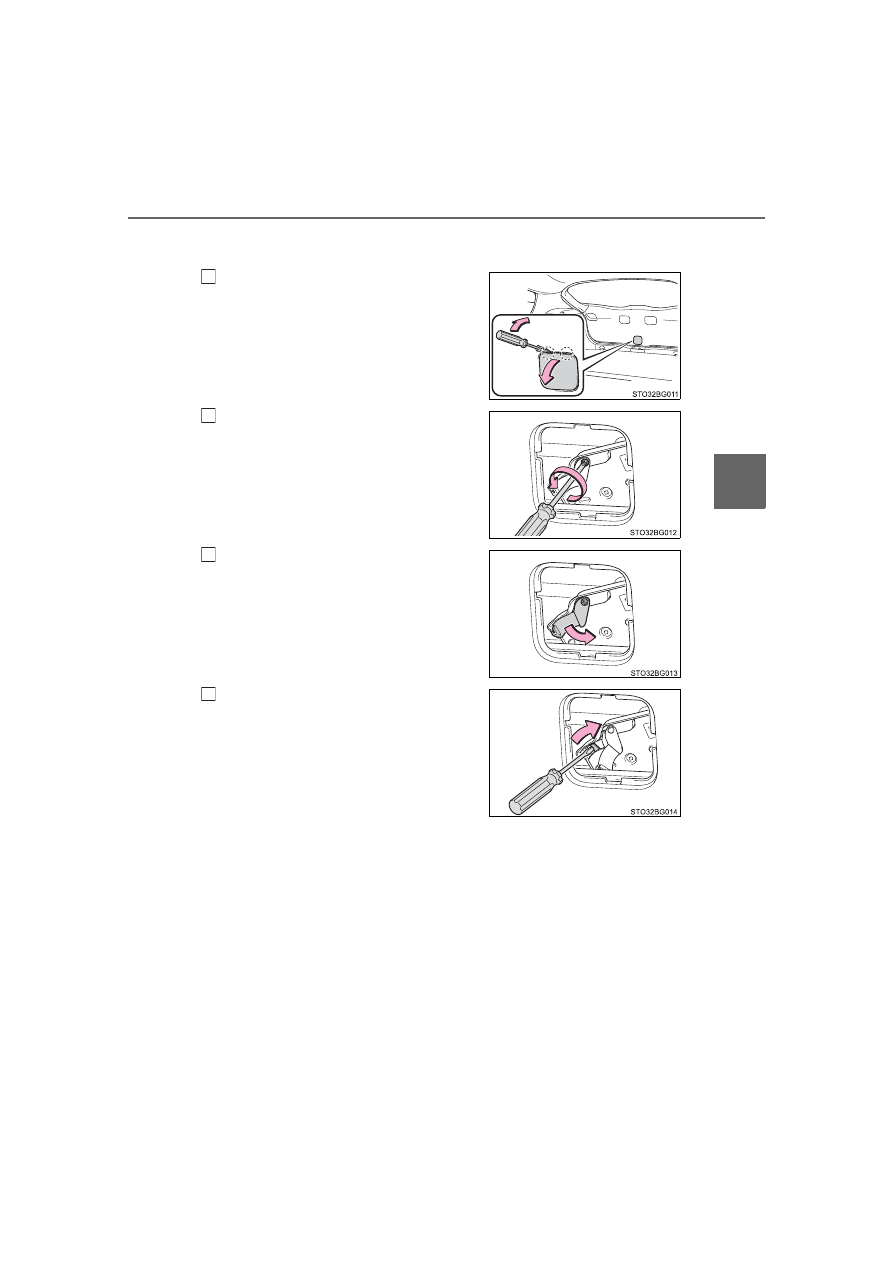

3-2. Opening, closing and locking the doors

3

Op
eration

 o

f each

 compo

nen
t

C-HR_OM_USA_OM10684U

■

If the back door opener is inoperative

The back door can be operated from the inside.

Using a screwdriver, remove the cover.
To  protect  the  cover,  place  a  rag
between  the  flathead  screwdriver  and
the cover as shown in the illustration.

Loosen the screw.

Turn the cover.

Move the lever.

1

2

3

4

130

3-2. Opening, closing and locking the doors

C-HR_OM_USA_OM10684U

WARNING

■

Caution while driving

●

Keep the back door closed while driving.
If the back door is left open, it may hit near-by objects while driving or lug-
gage may be unexpectedly thrown out, causing an accident.
In addition, exhaust gases may enter the vehicle, causing death or a seri-
ous health hazard. Make sure to close the back door before driving.

●

Before driving the vehicle, make sure that the back door is fully closed. If
the back door is not fully closed, it may open unexpectedly while driving,
causing an accident.

●

Never let anyone sit in the luggage compartment. In the event of sudden
braking or a collision, they are susceptible to death or serious injury.

■

When children are in the vehicle

Observe the following precautions.
Failure to do so may result in death or serious injury.

●

Do not allow children to play in the luggage compartment.
If  a  child  is  accidentally  locked  in  the  luggage  compartment,  they  could
have heat exhaustion or other injuries.

●

Do not allow a child to open or close the back door.
Doing  so  may cause  the  back door  to move  unexpectedly,  or  cause  the
child’s hands, head, or neck to be caught by the closing back door.

131

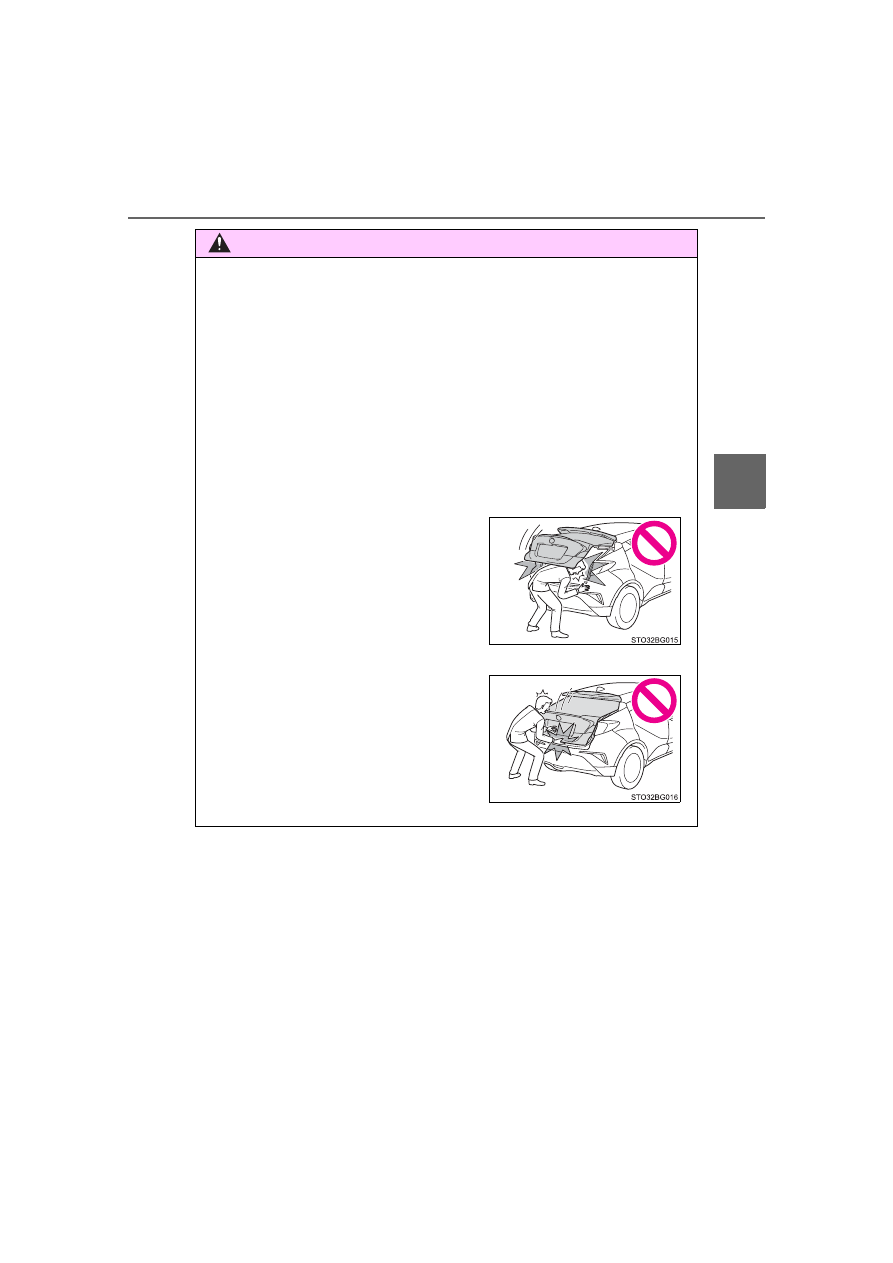

3-2. Opening, closing and locking the doors

3

Op
eration

 o

f each

 compo

nen
t

C-HR_OM_USA_OM10684U

WARNING

■

Operating the back door

Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in death
or serious injury.

●

Remove  any  heavy  loads,  such  as  snow  and  ice,  from  the  back  door
before opening it. Failure to do so may cause the back door to suddenly
shut again after it is opened.

●

When  opening  or  closing  the  back  door,  thoroughly  check  to  make  sure
the surrounding area is safe.

●

If anyone is in the vicinity, make sure they are safe and let them know that
the back door is about to open or close.

●

Use caution when opening or closing the back door in windy weather as it
may move abruptly in strong wind.

●

The back door may suddenly shut if it is
not  opened  fully.  It  is  more  difficult  to
open  or  close  the  back  door  on  an
incline  than  on  a  level  surface,  so
beware  of  the  back  door  unexpectedly
opening or closing by itself. Make sure
that  the  back  door  is  fully  open  and
secure  before  using  the  luggage  com-
partment.

●

When closing the back door, take extra
care  to  prevent  your  fingers,  etc.,  from
being caught.

●

When closing the back door, make sure
to press it lightly on its outer surface. If
the  back  door  handle  is  used  to  fully
close  the  back  door,  it  may  result  in
hands or arms being caught.

132

3-2. Opening, closing and locking the doors

C-HR_OM_USA_OM10684U

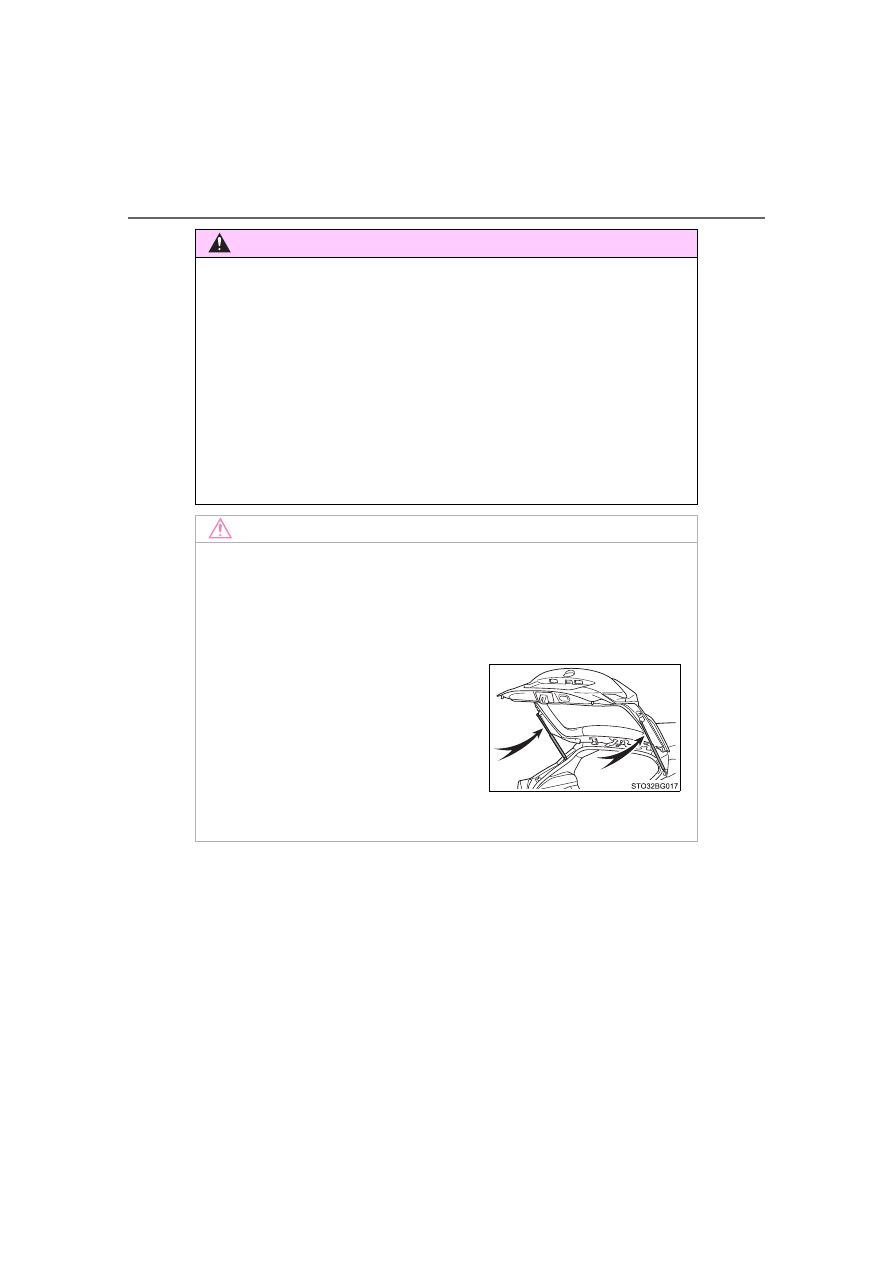

WARNING

■

Operating the back door

Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in death
or serious injury.

●

Do not pull on the back door damper stay to close the back door, and do
not hang on the back door damper stay.
Doing so may cause hands to be caught or the back door damper stay to
break, causing an accident.

●

If a bicycle carrier or similar heavy object is attached to the back door, it
may suddenly shut again after being opened, causing someone’s hands,
head or neck to be caught and injured. When installing an accessory part
to the back door, using a genuine Toyota part is recommended.

NOTICE

■

Back door damper stays

The  back  door  is  equipped  with  damper  stays  that  hold  the  back  door  in
place.
Observe the following precautions.
Failure to do so may cause damage to the back door damper stay, resulting
in malfunction.

●

Do not place your hand on the damper stay or apply lateral forces to it.

●

Do not attach any foreign objects, such
as stickers, plastic sheets, or adhesives
to the damper stay rod.

●

Do not touch the damper stay rod with
gloves or other fabric items.

●

Do  not  attach  any  accessories  other
than  genuine  Toyota  parts  to  the  back
door.

133

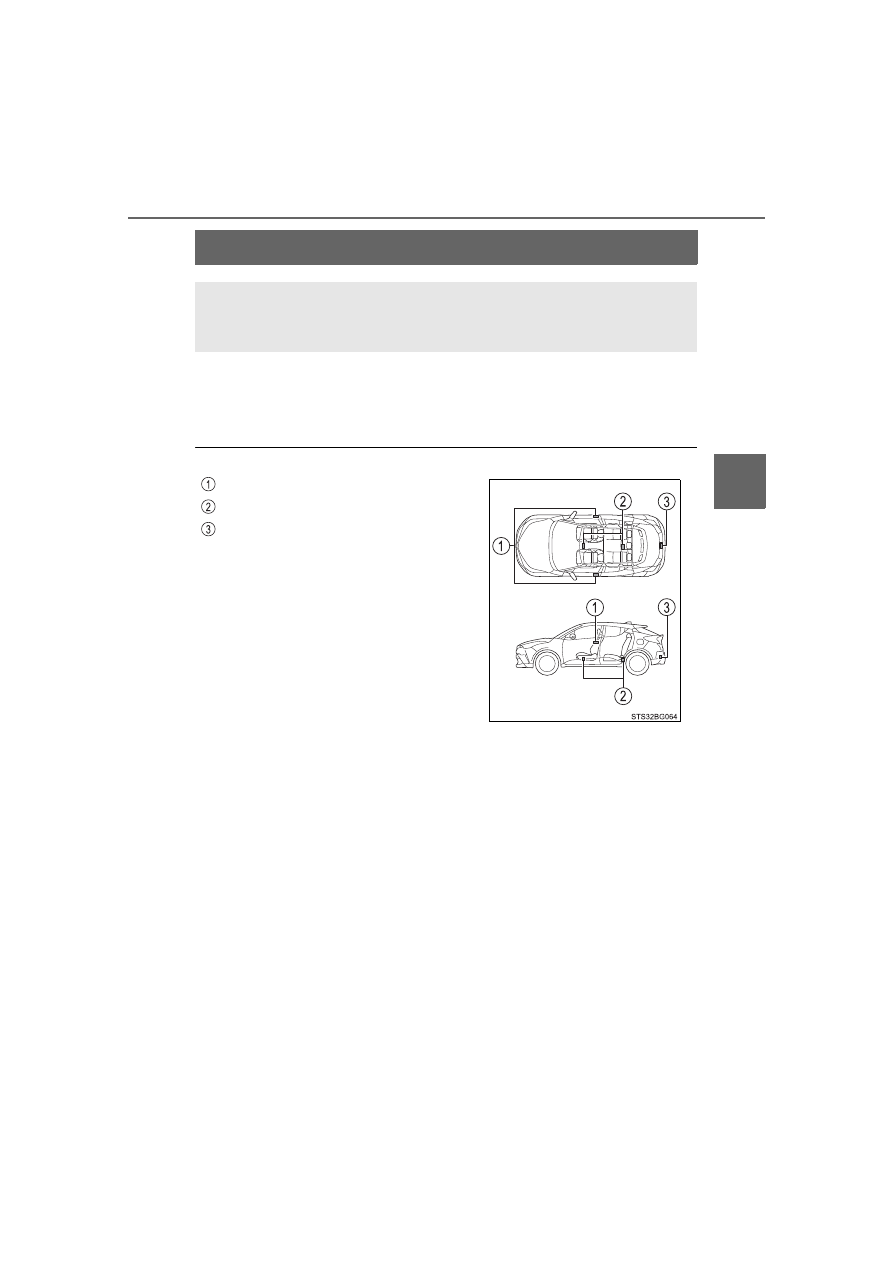

3-2. Opening, closing and locking the doors

3

Op
eration

 o

f each

 compo

nen
t

C-HR_OM_USA_OM10684U

Smart key system



●

Unlocks and locks the doors (



P. 120)

●

Unlocks and locks the back door (



P. 127)

●

Starts the engine (



P. 183)

■

Antenna location



: If equipped

The  following  operations  can  be  performed  simply  by  carrying
the electronic key on your person, for example in your pocket.
The driver should always carry the electronic key.

Antenna outside the cabin
Antennas inside the cabin
Antenna  outside  the  luggage  compart-
ment

134

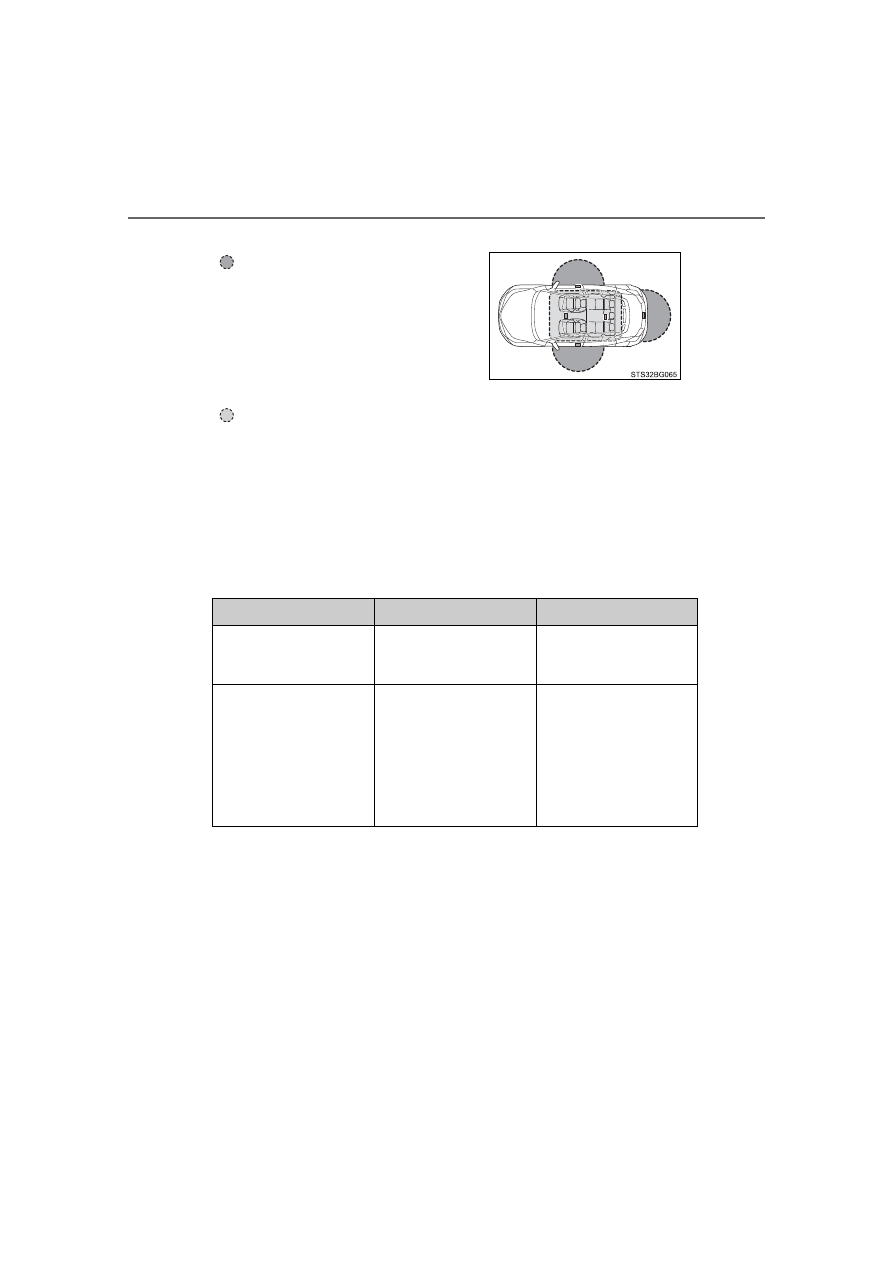

3-2. Opening, closing and locking the doors

C-HR_OM_USA_OM10684U

■

Effective range (areas within which the electronic key is detected)

When starting the engine or changing engine switch modes
The system can be operated when the electronic key is inside the vehi-
cle.

■

Alarms and warning messages

A combination of exterior and interior buzzers as well as warning messages
shown on the multi-information display are used to prevent theft of the vehicle
and  accidents  resulting  from  erroneous  operation.  Take  appropriate  mea-
sures based on the displayed message.
When only an alarm sounds, circumstances and correction procedures are as
follows.

When  locking  or  unlocking  the
doors
The system can be operated when
the  electronic  key  is  within  about
2.3 ft.  (0.7  m)  of  an  outside  front
door  handle  and  the  back  door.
(Only  the  doors  detecting  the  key
can be operated.)

Alarm

Situation

Correction procedure

Exterior  buzzer  sounds
once for 5 seconds

An  attempt  was  made
to lock the vehicle while
a door was open.

Close  all  of  the  doors
and  lock  the  doors
again.

Interior  buzzer  sounds
continuously

The engine  switch was
turned to ACCESSORY
mode while the driver’s
door  was  open  (or  the
driver’s

door

was

opened

while

the

engine  switch  was  in
ACCESSORY mode).

Turn  the  engine  switch
off  and  close  the
driver’s door.

135

3-2. Opening, closing and locking the doors

3

Op
eration

 o

f each

 compo

nen
t

C-HR_OM_USA_OM10684U

■

When  “Smart  Key  System  Malfunction.  See  Owner’s  Manual.”  is  dis-
played on the multi-information display

The  system  may  be  malfunctioning.  Have  the  vehicle  inspected  by  your
Toyota dealer immediately.

■

Battery-saving function

The battery-saving function will be activated in order to prevent the electronic
key battery and the vehicle battery from being discharged while the vehicle is
not in operation for a long time.

●

In  the  following  situations,  the  smart  key  system  may  take  some  time  to
unlock the doors.
• The electronic key has been left in an area of approximately 6 ft. (2 m) of

the outside of the vehicle for 10 minutes or longer.

• The smart key system has not been used for 5 days or longer.

●

If the smart key system has not been used for 14 days or longer, the doors
cannot be unlocked at any doors except the driver’s door. In this case, take
hold of the driver’s door handle, or use the wireless remote control or the
mechanical key, to unlock the doors.

■

Electronic key battery-saving function

When battery-saving mode is set, battery depletion is minimized by stopping
the electronic key from receiving radio waves.

Press

  twice  while  pressing  and

holding

. Confirm that the electronic

key indicator flashes 4 times.
While the battery-saving mode is set, the
smart  key  system  cannot  be  used.  To
cancel the function, press any of the elec-
tronic key buttons.

136

3-2. Opening, closing and locking the doors

C-HR_OM_USA_OM10684U

■

Conditions affecting operation

The smart key system uses weak radio waves. In the following situations, the
communication between the electronic key and the vehicle may be affected,
preventing the smart key system, wireless remote control and engine immobi-
lizer system from operating properly. (Ways of coping:



P. 462)

●

When the electronic key battery is depleted

●

Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electrical
noise

●

When  carrying  a  portable  radio,  cellular  phone,  cordless  phone  or  other
wireless communication device

●

When  the  electronic  key  is  in  contact  with,  or  is  covered  by  the  following
metallic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs

●

When other wireless keys (that emit radio waves) are being used nearby

●

When  carrying  the  electronic  key  together  with  the  following  devices  that
emit radio waves
• Portable radio, cellular phone, cordless phone or other wireless commu-

nication devices

• Another electronic key or a wireless key that emits radio waves
• Personal computers or personal digital assistants (PDAs)
• Digital audio players
• Portable game systems

●

If window tint with a metallic content or metallic objects are attached to the
rear window

●

When  the  electronic  key  is  placed  near  a  battery  charger  or  electronic
devices

●

When parking at a meter

137

3-2. Opening, closing and locking the doors

3

Op
eration

 o

f each

 compo

nen
t

C-HR_OM_USA_OM10684U

■

Note for the entry function

●

Even when the electronic key is within the effective range (detection areas),
the system may not operate properly in the following cases:
• The electronic key is too close to the window or outside door handle, near

the ground, or in a high place when the doors are locked or unlocked.

• The electronic key is near the ground or in a high place, or too close to

the rear bumper center when the back door is opened.

• The electronic key is on the instrument panel, luggage cover or floor, or in

the door pockets or glove box when the engine is started or engine switch
modes are changed.

●

Do not leave the electronic key on top of the instrument panel or near the
door pockets when exiting the vehicle. Depending on the radio wave recep-
tion conditions, it may be detected by the antenna outside the cabin and the
door will become lockable from the outside, possibly trapping the electronic
key inside the vehicle.

●

As long as the electronic key is within the effective range, the doors may be
unlocked or locked by anyone.

●

Even if the electronic key is not inside the vehicle, it may be possible to start
the engine if the electronic key is near the window.

●

The doors may unlock if a large amount of water splashes on the door han-
dle, such as in the rain or in a car wash when the electronic key is within the
effective range. (The door will automatically be locked after approximately
60 seconds if the doors are not opened and closed.)

●

If the wireless remote control is used to lock the doors when the electronic
key  is  near  the  vehicle,  there  is  a  possibility  that  the  door  may  not  be
unlocked by the entry function. (Use the wireless remote control to unlock
the doors.)

138

3-2. Opening, closing and locking the doors

C-HR_OM_USA_OM10684U

●

Touching the door lock sensor while wearing gloves may delay or prevent
lock operation. Remove the gloves and touch the lock sensor again.

●

If the door handle becomes wet while the electronic key is within the effec-
tive range, the door may lock and unlock repeatedly. In this case, follow the
following correction procedures to wash the vehicle.
• Place the electronic key in a location 6 ft. (2 m) or more away from the

vehicle. (Take care to ensure that the key is not stolen.)

• Set electronic key to battery-saving mode to disable the smart key sys-

tem. (



P. 135)

●

If the electronic key is inside the vehicle and a door handle becomes wet
during a car wash, a message may be shown on the multi-information dis-
play and a buzzer will sound outside the vehicle. To turn off the alarm, lock
all the doors.

●

The  lock  sensor  may  not  work  properly  if  it  comes  into  contact  with  ice,
snow, mud, etc. Clean the lock sensor and attempt to operate it again.

●

A sudden approach to the effective range or door handle may prevent the
doors from being unlocked. In this case, return the door handle to the origi-
nal position and check that the doors unlock before pulling the door handle
again.

●

If there is another electronic key in the detection area, it may take slightly
longer to unlock the doors after the door handle is gripped.

●

Fingernails may scrape against the door during operation of the door han-
dle. Be careful not to injure fingernails or damage the surface of the door.

139

3-2. Opening, closing and locking the doors

3

Op
eration

 o

f each

 compo

nen
t

C-HR_OM_USA_OM10684U

■

When the vehicle is not driven for extended periods

●

To prevent theft  of the vehicle, do not  leave the  electronic  key within 6  ft.
(2 m) of the vehicle.

●

The smart key system can be deactivated in advance. (



P. 500)

■

To operate the system properly

Make sure to carry the electronic key when operating the system. Do not get
the electronic key too close to the vehicle when operating the system from the
outside of the vehicle.
Depending on the position and holding condition of the electronic key, the key
may not be detected correctly and the system may not operate properly. (The
alarm may go off accidentally, or the door lock prevention may not operate.)

■

If the smart key system does not operate properly

●

Locking and unlocking the doors: Use the mechanical key. (



P. 462)

●

Starting the engine system:



P. 463

■

Customization

Settings (e.g. smart key system) can be changed.
(Customizable features:



P. 500

■

If the smart key system has been deactivated in a customized setting

●

Unlocking and locking the doors:
Use the wireless remote control or mechanical key. (



P. 120, 462)

●

Starting the engine and changing engine switch modes:



P. 463

●

Stopping the engine:



P. 184

140

3-2. Opening, closing and locking the doors

C-HR_OM_USA_OM10684U

■

Certification for the smart key system



For vehicles sold in the U.S.A.

141

3-2. Opening, closing and locking the doors

3

Op
eration

 o

f each

 compo

nen
t

C-HR_OM_USA_OM10684U



For vehicles sold in Canada
