6-2. Maintenance

CAMRY_U

WARNING

■

If the engine is running

Turn the engine off and ensure that there is adequate ventilation before per-
forming maintenance checks.

463

6-2. Maintenance

CAMRY_U

6

Mainten

ance an

d ca

re

The OBD system determines that a problem exists somewhere in the
emission control system. Your vehicle may not pass the I/M test and
may need  to  be  repaired. Contact  your Toyota  dealer to  service  the
vehicle.

●

When the battery is disconnected or discharged
Readiness codes that are set during ordinary driving are erased.
Also,  depending  on  your  driving  habits,  the  readiness  codes  may
not be completely set.

●

When the fuel tank cap is loose
The  malfunction  indicator  lamp  comes  on  indicating  a  temporary
malfunction and your vehicle may not pass the I/M test.

The error code in the OBD system will not be cleared unless the vehi-
cle is driven 40 or more times.

Contact your Toyota dealer to prepare the vehicle for re-testing.

Emission inspection and maintenance (I/M)

programs

Some states have vehicle emission inspection programs which
include OBD (On Board Diagnostics) checks. The OBD system
monitors the operation of the emission control system.

If the malfunction indicator lamp comes on

Your vehicle may not pass the I/M test in the following situations:

When the malfunction indicator lamp still remains on after sev-
eral driving trips

If your vehicle does not pass the I/M test

464

CAMRY_U

6-3. Do-it-yourself maintenance

Do-it-yourself service precautions

If  you  perform  maintenance  by  yourself,  be  sure  to  follow  the
correct procedure as given in these sections.

Items

Parts and tools

Battery condition
(



P. 478)

• Warm water

• Baking soda

• Grease

• Conventional wrench (for terminal clamp bolts)

Brake fluid level
(



P. 477)

• FMVSS No.116 DOT 3 or SAE J1703 brake fluid
• Rag or paper towel
• Funnel (used only for adding brake fluid)

Engine

coolant

level (



P. 475)

• “Toyota  Super  Long  Life  Coolant”  or  a  similar  high

quality  ethylene  glycol-based  non-silicate,  non-
amine, non-nitrite and non-borate coolant with long-
life hybrid organic acid technology
U.S.A.:
“Toyota Super Long Life Coolant” is pre-mixed with
50% coolant and 50% deionized water.
Canada:
“Toyota Super Long Life Coolant” is pre-mixed with
55% coolant and 45% deionized water.

• Funnel (used only for adding engine coolant)

Engine oil level
(



P. 471)

• “Toyota Genuine Motor Oil” or equivalent
• Rag or paper towel
• Funnel (used only for adding engine oil)

Fuses (



P. 509)

• Fuse with same amperage rating as original

Light bulbs
(



P. 512)

• Bulb with same number and wattage rating as origi-

nal

• Flathead screwdriver

• Wrench

Radiator/con-
denser (



P. 476)



Tire

inflation

pressure

(



P. 497)

• Tire pressure gauge

• Compressed air source

Washer fluid
(



P. 481)

• Water or washer fluid containing antifreeze (for win-

ter use)

• Funnel (used only for adding water or washer fluid)

465

6-3. Do-it-yourself maintenance

CAMRY_U

6

Mainten

ance an

d ca

re

WARNING

The  engine  compartment  contains  many  mechanisms  and  fluids  that  may
move suddenly, become hot, or become electrically energized. To avoid death
or serious injury, observe the following precautions.

■

When working on the engine compartment

●

Keep  hands,  clothing  and  tools  away  from  the  moving  fan  and  engine
drive belt.

●

Be  careful  not  to  touch  the  engine,  radiator,  exhaust  manifold,  etc.  right
after driving as they may be hot. Oil and other fluids may also be hot.

●

Do not leave anything that may burn easily, such as paper and rags, in the
engine compartment.

●

Do not smoke, cause sparks or expose an open flame to fuel or the bat-
tery. Fuel and battery fumes are flammable.

●

Be extremely cautious when working on the battery. It contains poisonous
and corrosive sulfuric acid.

■

When working near the electric cooling fan or radiator grille

Vehicles without a smart key system:
Be sure the engine switch is off. With the engine switch in the “ON” position,
the electric cooling fan may automatically start to run if the air conditioning
is on and/or the coolant temperature is high. (



P. 476)

Vehicles with a smart key system:
Be sure the engine switch is off. With the engine switch in IGNITION ON
mode, the electric cooling fan may automatically start to run if the air condi-
tioning is on and/or the coolant temperature is high. (



P. 476)

■

Safety glasses

Wear  safety  glasses  to  prevent  flying  or  falling  material,  fluid  spray,  etc.
from getting in your eyes.

NOTICE

■

If you remove the air cleaner filter

Driving with the air cleaner filter removed may cause excessive engine wear
due to dirt in the air.

466

6-3. Do-it-yourself maintenance

CAMRY_U

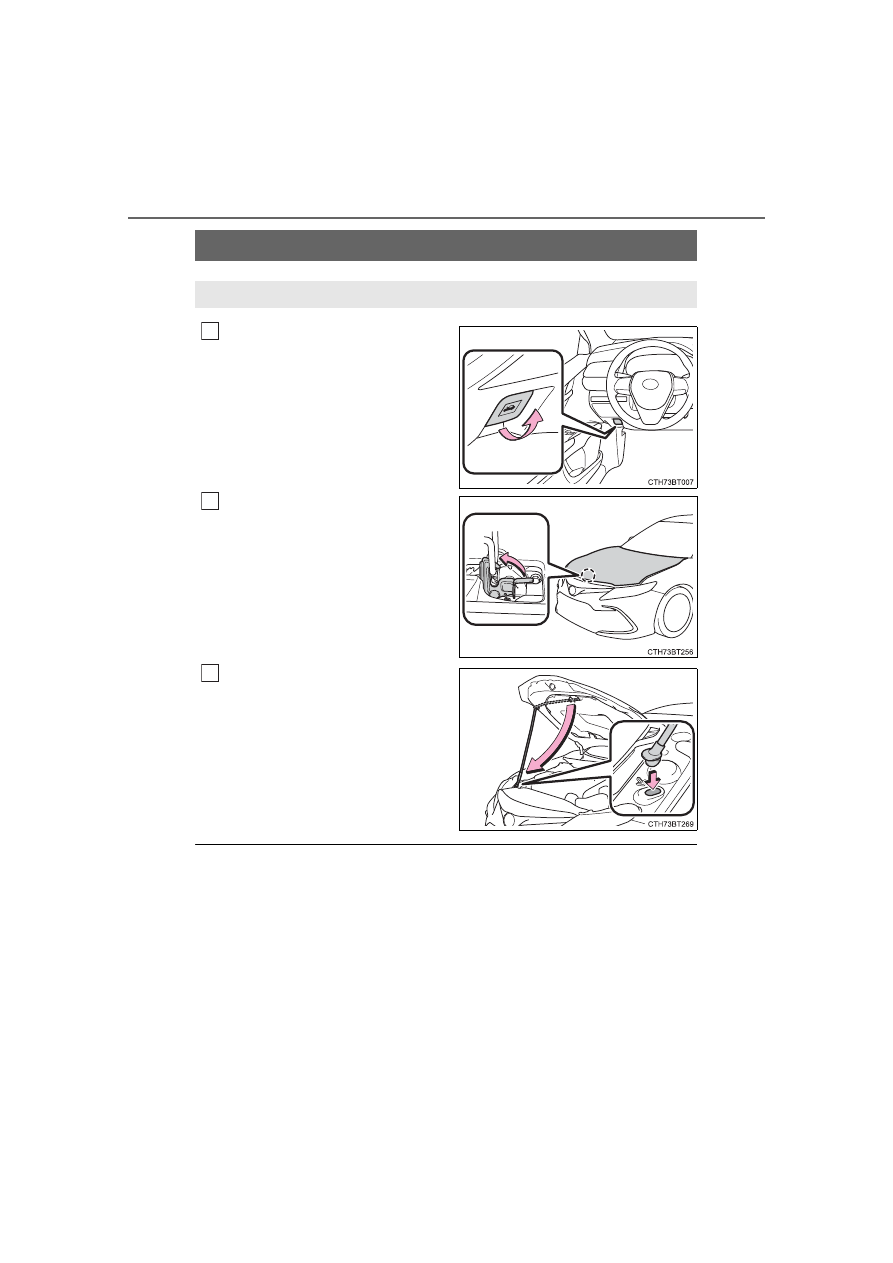

Pull the hood lock release lever.

The hood will pop up slightly.

Pull up the auxiliary catch lever
and lift the hood.

Hold the hood open by inserting
the support rod into the slot.

■

Open hood warning buzzer

If the vehicle reaches a speed of 3 mph (5 km/h), the master warning light
flashes and a buzzer sounds to indicate that the hood is not fully closed.

Hood

Release the lock from the inside of the vehicle to open the hood.

1

2

3

467

6-3. Do-it-yourself maintenance

CAMRY_U

6

Mainten

ance an

d ca

re

WARNING

■

Pre-driving check

Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion
and cause an accident, which may result in death or serious injury.

■

After installing the support rod into the slot

Make  sure  the  rod  supports  the  hood  securely  preventing  it  from  falling
down onto your head or body.

NOTICE

■

When closing the hood

Be sure to return the support rod to its clip before closing the hood. Closing
the hood with the support rod not clipped could cause the hood to bend.

468

6-3. Do-it-yourself maintenance

CAMRY_U

◆

Front

◆

Rear



2WD models



AWD models

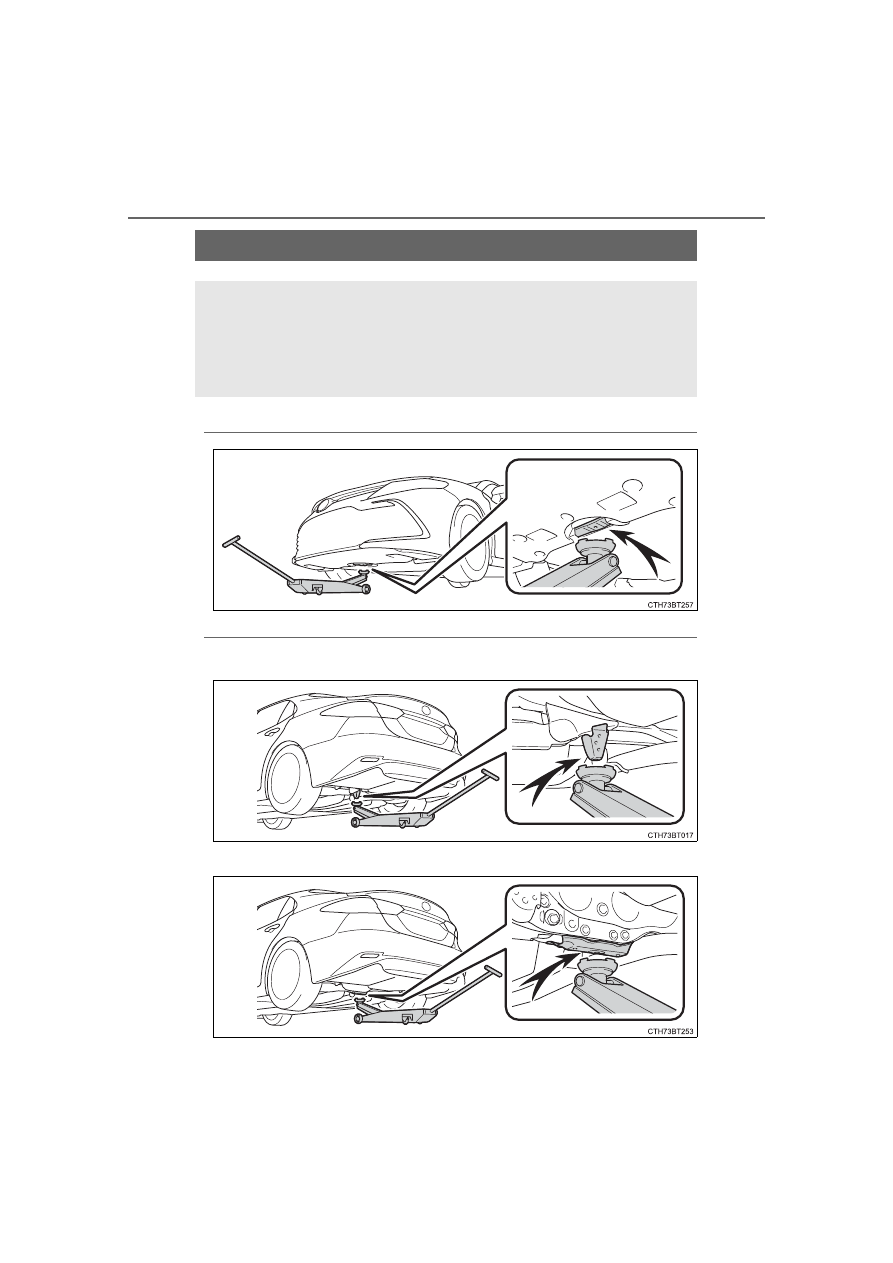

Positioning a floor jack

When  using  a  floor  jack,  follow  the  instructions  in  the  manual
provided with the jack and perform the operation safely.
When raising your vehicle with a floor jack, position the jack cor-
rectly.  Improper  placement  may  damage  your  vehicle  or  cause
injury.

469

6-3. Do-it-yourself maintenance

CAMRY_U

6

Mainten

ance an

d ca

re



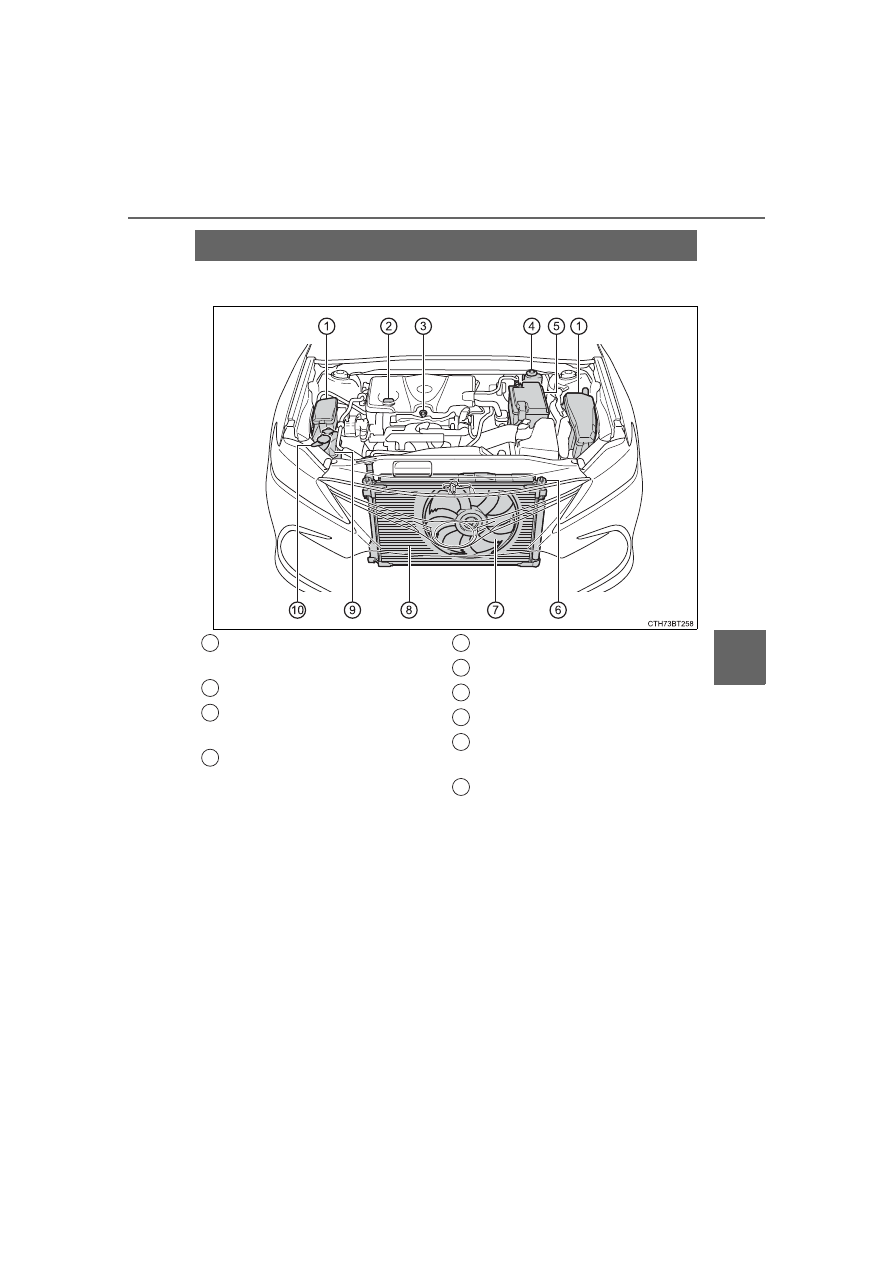

2.5 L 4-cylinder (A25A-FKS) engine

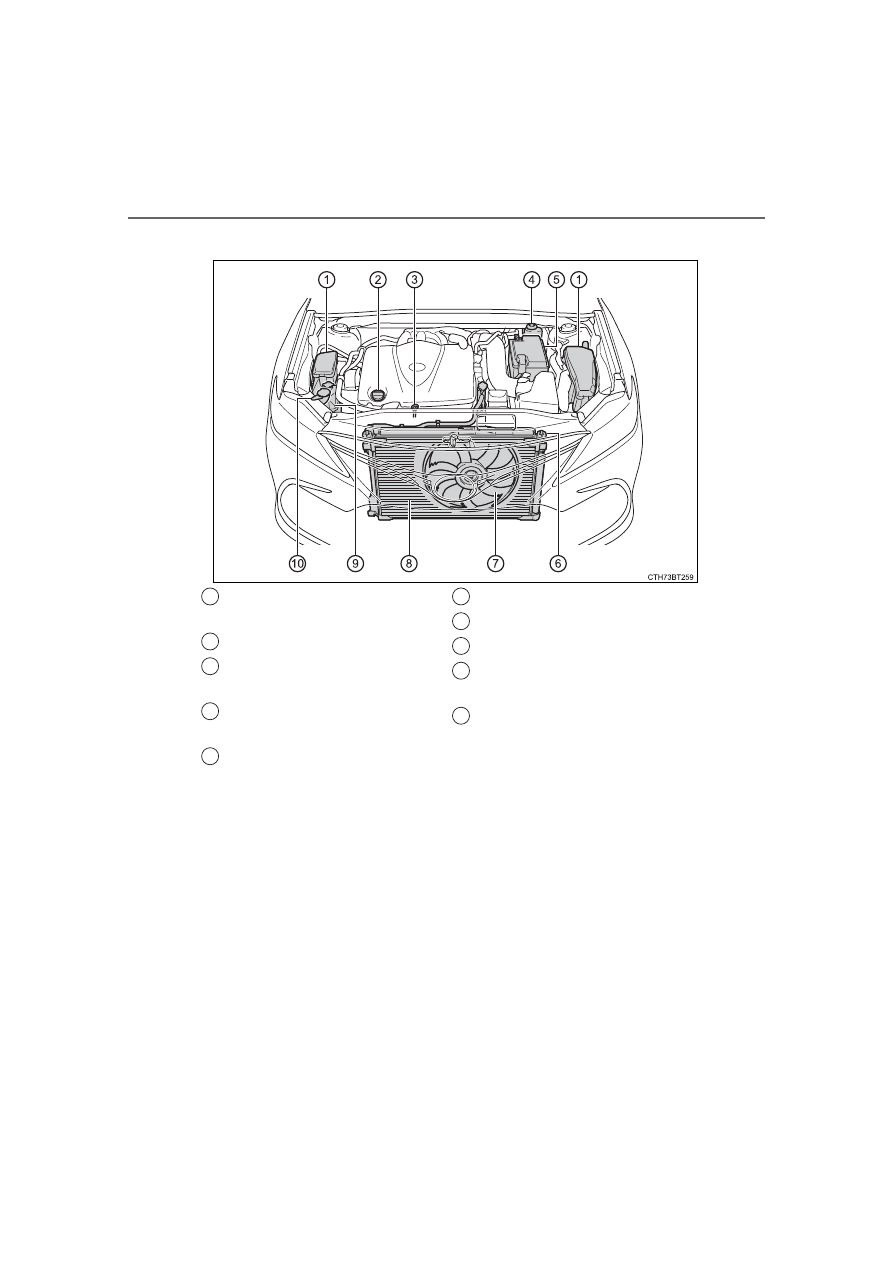

Engine compartment

Fuse boxes (if equipped)

(



P. 509)

Engine oil filler cap (



P. 473)

Engine oil level dipstick

(



P. 471)

Brake fluid reservoir

(



P. 477)

Battery

(



P. 478)

Radiator

(



P. 476)

Electric cooling fan
Condenser

(



P. 476)

Engine coolant reservoir

(



P. 475)

Washer fluid tank (



P. 481)

1

2

3

4

5

6

7

8

9

10

470

6-3. Do-it-yourself maintenance

CAMRY_U



3.5 L V6 (2GR-FKS) engine

Fuse boxes (if equipped)

(



P. 509)

Engine oil filler cap (



P. 473)

Engine oil level dipstick

(



P. 471)

Brake fluid reservoir

(



P. 477)

Battery

(



P. 478)

Radiator

(



P. 476)

Electric cooling fan
Condenser

(



P. 476)

Engine coolant reservoir

(



P. 475)

Washer fluid tank (



P. 481)

1

2

3

4

5

6

7

8

9

10

471

6-3. Do-it-yourself maintenance

CAMRY_U

6

Mainten

ance an

d ca

re

With the engine at operating temperature and turned off, check the oil
level on the dipstick.

■

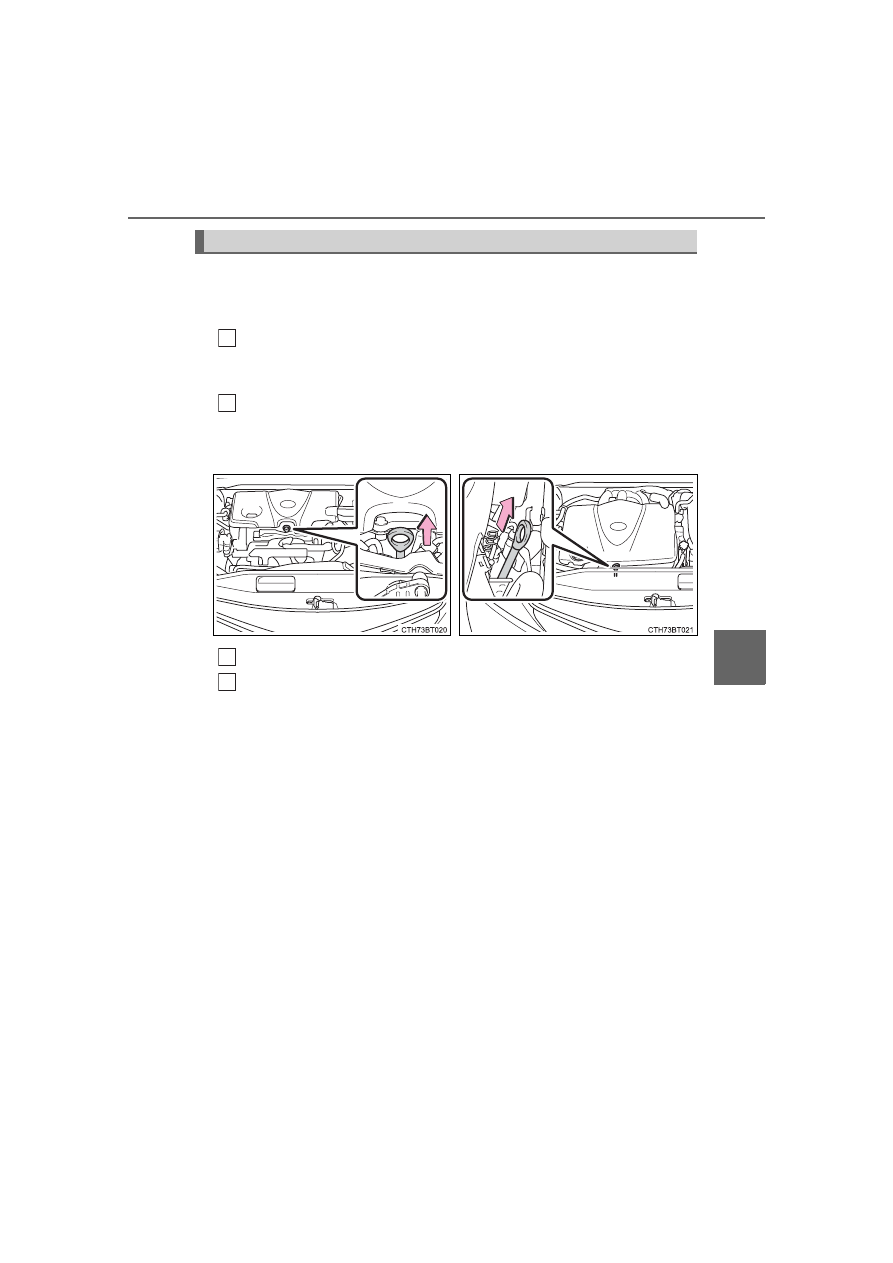

Checking the engine oil

Park  the  vehicle  on  level  ground. After  warming  up  the  engine
and  turning  it  off,  wait  more  than  5  minutes  for  the  oil  to  drain
back into the bottom of the engine.
Holding a rag under the end, pull the dipstick out.

Wipe the dipstick clean.
Reinsert the dipstick fully.

Engine oil

1

2



2.5  L  4-cylinder  (A25A-FKS)
engine



3.5 L V6 (2GR-FKS) engine

3

4

472

6-3. Do-it-yourself maintenance

CAMRY_U

Holding a rag under the end, pull the dipstick out and check the
oil level.

Low
Normal
Excessive

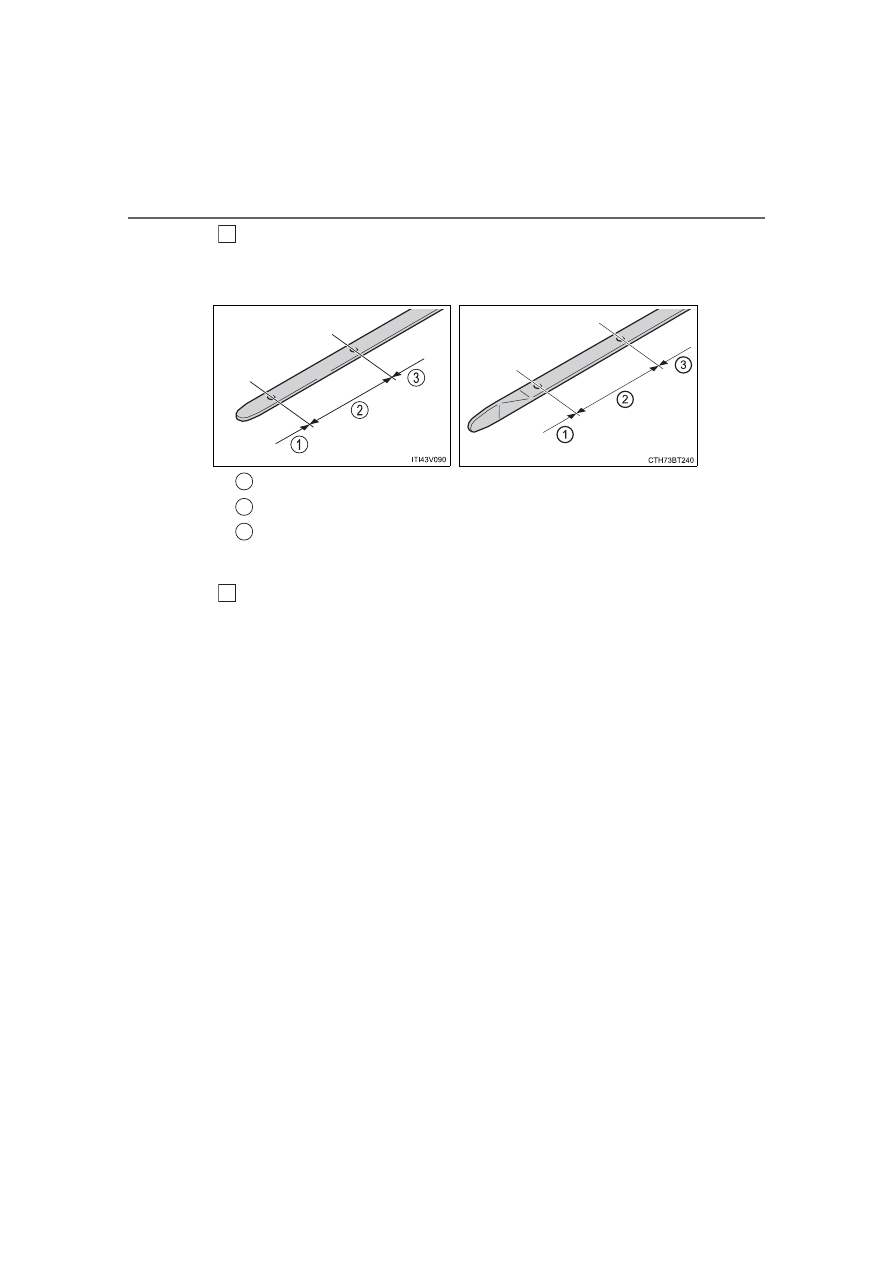

The shape of the dipstick may differ depending on the type of vehicle
or engine.

Wipe the dipstick and reinsert it fully.

5



Flat dipstick



Twist dipstick

1

2

3

6

473

6-3. Do-it-yourself maintenance

CAMRY_U

6

Mainten

ance an

d ca

re

■

Adding engine oil

If  the  oil  level  is  below  or  near
the low level mark, add engine
oil  of  the  same  type  as  that
already in the engine.

Make  sure  to  check  the  oil  type  and  prepare  the  items  needed
before adding oil.

Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.

■

Engine oil consumption

A certain amount of engine oil will be consumed while driving. In the following
situations,  oil  consumption  may  increase,  and  engine  oil  may  need  to  be
refilled in between oil maintenance intervals.

●

When the engine is new, for example directly after purchasing the vehicle or
after replacing the engine

●

If low quality oil or oil of an inappropriate viscosity is used

●

When driving at high engine speeds or with a heavy load, or when driving
while accelerating or decelerating frequently

●

When leaving the engine idling for a long time, or when driving frequently
through heavy traffic

Engine oil selection



P. 588

Oil quantity
(Low



 Full)



2.5 L 4-cylinder (A25A-FKS) engine

1.6 qt. (1.5 L, 1.3 Imp. qt.)



3.5 L V6 (2GR-FKS) engine

1.9 qt. (1.8 L, 1.6 lmp. qt.)

Items

Clean funnel

1

2

3

474

6-3. Do-it-yourself maintenance

CAMRY_U

WARNING

■

Used engine oil

●

Used  engine  oil  contains  potentially  harmful  contaminants  which  may
cause  skin  disorders  such  as  inflammation  and  skin  cancer,  so  care
should be taken to avoid prolonged and repeated contact. To remove used
engine oil from your skin, wash thoroughly with soap and water.

●

Dispose of used oil and filters only in a safe and acceptable manner. Do
not dispose of used oil and filters in household trash, in sewers or onto the
ground.
Call your Toyota dealer, service station or auto parts store for information
concerning recycling or disposal.

●

Do not leave used engine oil within the reach of children.

NOTICE

■

To prevent serious engine damage

Check the oil level on a regular basis.

■

When replacing the engine oil

●

Be careful not to spill engine oil on the vehicle components.

●

Avoid overfilling, or the engine could be damaged.

●

Check the oil level on the dipstick every time you refill the vehicle.

●

Be sure the engine oil filler cap is properly tightened.

■

If oil is spilled on the engine cover (2.5 L 4-cylinder [A25A-FKS] engine)

To  prevent  the  engine cover from being  damaged, remove any engine oil
from the engine cover as soon as possible using a neutral detergent.
Do not use an organic solvent such as brake cleaner.

475

6-3. Do-it-yourself maintenance

CAMRY_U

6

Mainten

ance an

d ca

re

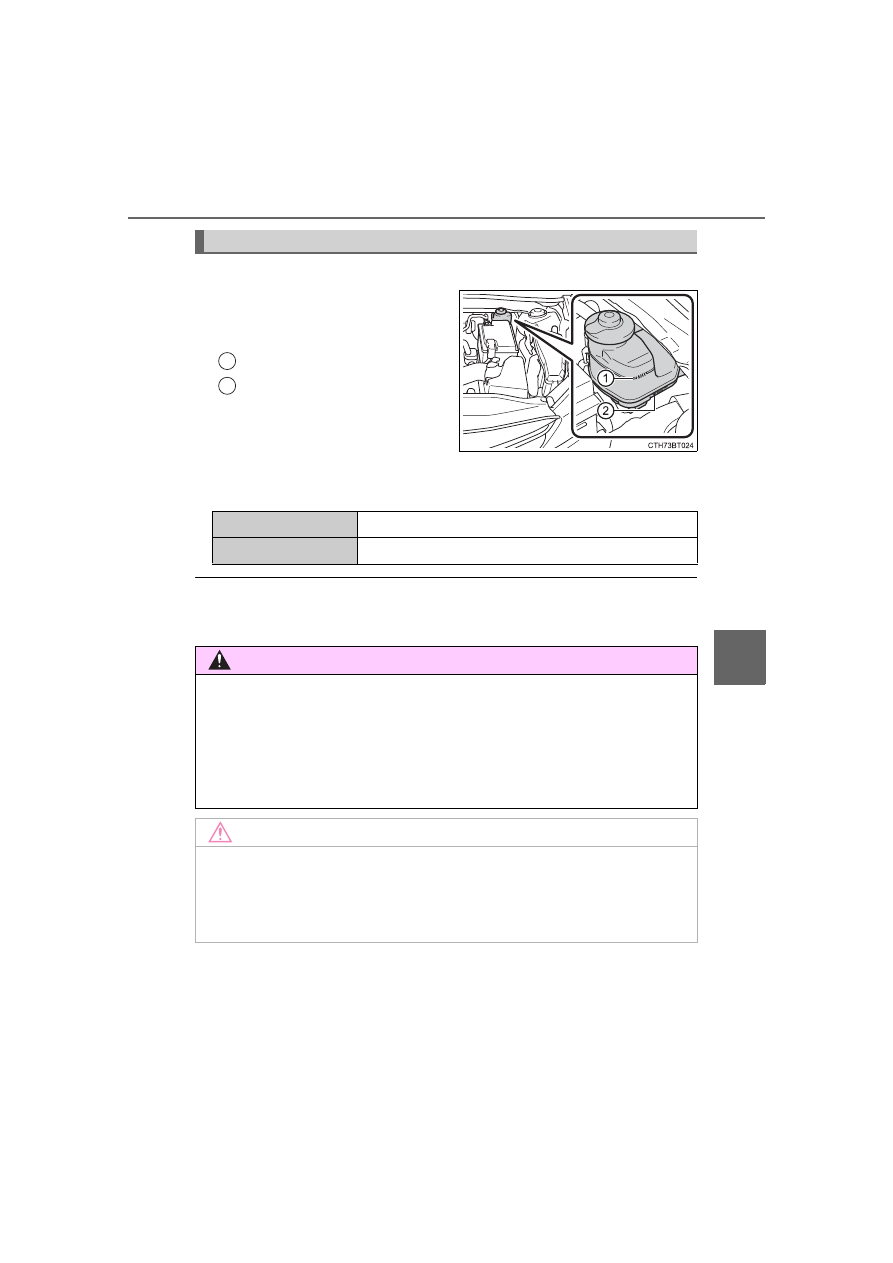

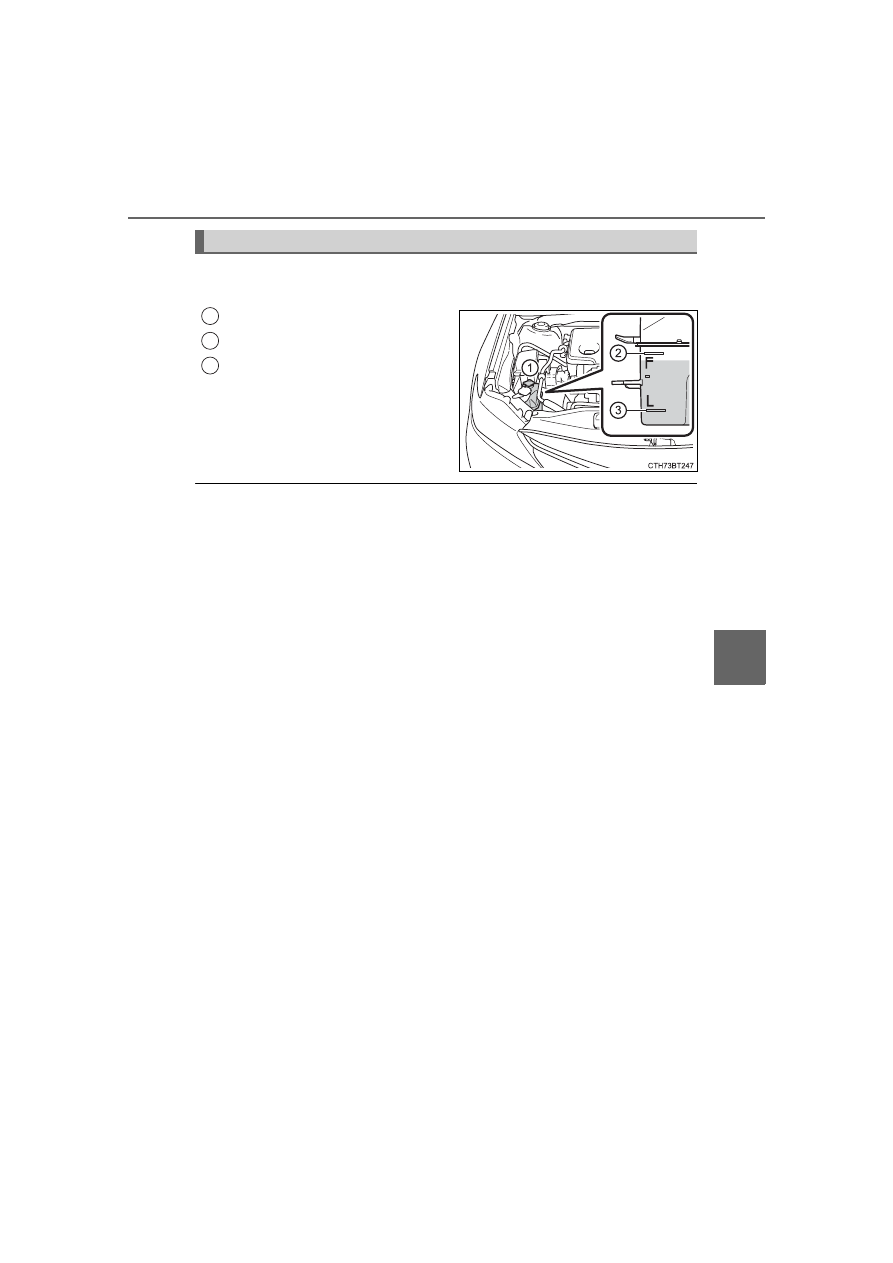

The coolant level is satisfactory if it is between the “F” and “L” lines on
the reservoir when the engine is cold.

Reservoir cap
“F” line
“L” line

If  the  level  is  on  or  below  the  “L”
line, add coolant up to the “F” line.
(



P. 577)

■

Coolant selection

Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene
glycol based non-silicate, non-amine, non-nitrite, and non-borate coolant with
long-life hybrid organic acid technology.
U.S.A.:
“Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deion-
ized water. (Minimum temperature: -31



F [-35



C])

Canada:
“Toyota Super Long Life Coolant” is a mixture of 55% coolant and 45% deion-
ized water. (Minimum temperature: -44



F [-42



C])

For more details about engine coolant, contact your Toyota dealer.

■

If the coolant level drops within a short time of replenishing

Visually check the radiator, hoses, engine coolant reservoir caps, drain cock
and water pump.
If you cannot find a leak, have your Toyota dealer test the cap and check for
leaks in the cooling system.

Engine coolant

1

2

3

476

6-3. Do-it-yourself maintenance

CAMRY_U

Check the radiator and condenser and clear away any foreign objects.
If  either of  the  above parts  is  extremely  dirty  or you  are not  sure of
their condition, have your vehicle inspected by your Toyota dealer.

WARNING

■

When the engine is hot

Do not remove the engine coolant reservoir cap or the radiator cap.
The cooling system may be under pressure and may spray hot coolant if the
cap is removed, causing serious injuries, such as burns.

NOTICE

■

When adding coolant

Coolant is neither plain water nor straight antifreeze. The correct mixture of
water and antifreeze must be used to provide proper lubrication, corrosion
protection and cooling. Be sure to read the antifreeze or coolant label.

■

If you spill coolant

Be sure to wash it off with water to prevent it from damaging parts or paint.

Radiator and condenser

WARNING

■

When the engine is hot

Do not touch the radiator or condenser as they may be hot and cause seri-
ous injuries, such as burns.

477

6-3. Do-it-yourself maintenance

CAMRY_U

6

Mainten

ance an

d ca

re

■

Checking fluid level

The brake fluid level should be
between  the  “MAX”  and  “MIN”
lines on the tank.

“MAX”
“MIN”

■

Adding fluid

Make sure to check the fluid type and prepare the necessary item.

■

Brake fluid can absorb moisture from the air

Excess moisture in the brake fluid can cause a dangerous loss of braking effi-
ciency. Use only newly opened brake fluid.

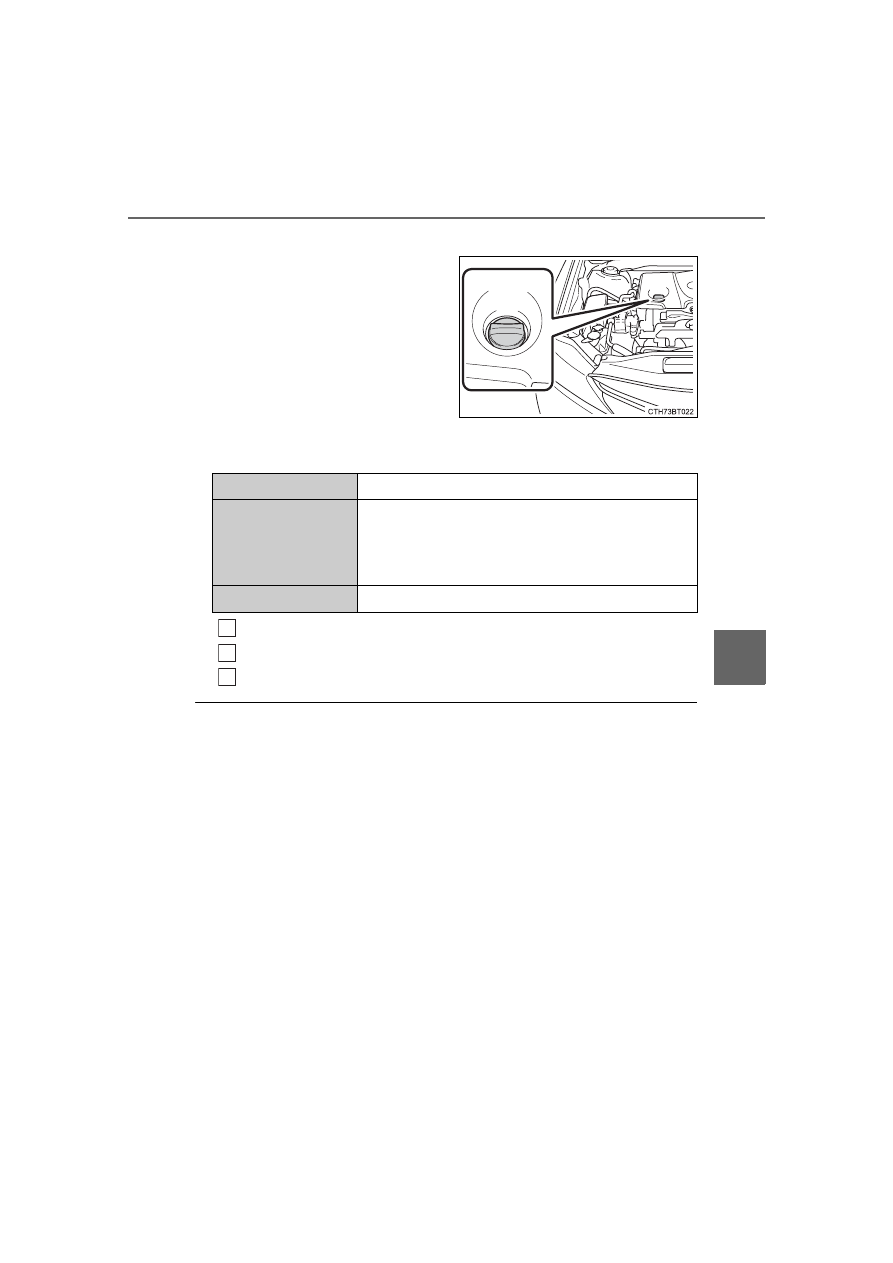

Brake fluid

1

2

Fluid type

FMVSS No.116 DOT 3 or SAE J1703 brake fluid

Item

Clean funnel

WARNING

■

When filling the reservoir

Take  care  as  brake  fluid  can  harm  your  hands  and  eyes  and  damage
painted surfaces.
If fluid gets on your hands or in your eyes, flush the affected area with clean
water immediately.
If you still experience discomfort, see a doctor.

NOTICE

■

If the fluid level is low or high

It is normal for the brake fluid level to go down slightly as the brake pads
wear out or when the fluid level in the accumulator is high.
If the reservoir needs frequent refilling, there may be a serious problem.

478

6-3. Do-it-yourself maintenance

CAMRY_U

Check the battery as follows.

■

Battery exterior

Make  sure  that  the  battery  terminals  are  not  corroded  and  that
there are no loose connections, cracks, or loose clamps.

Terminals
Hold-down clamp

■

Before recharging

When recharging, the battery produces hydrogen gas which is flammable and
explosive. Therefore, observe the following before recharging:

●

If recharging with the battery installed on the vehicle, be sure to disconnect
the ground cable.

●

Make sure the power switch on the charger is off when connecting and dis-
connecting the charger cables to the battery.

■

After recharging/reconnecting the battery (vehicles with a smart key sys-
tem)

●

Unlocking the doors using the smart key system may not be possible imme-
diately  after  reconnecting  the  battery.  If  this  happens,  use  the  wireless
remote control or the mechanical key to lock/unlock the doors.

●

Start the engine with the engine switch in ACCESSORY mode. The engine
may  not  start  with  the  engine  switch  turned  off.  However,  the  engine  will
operate normally from the second attempt.

●

The engine switch mode is recorded by the vehicle. If the battery is recon-
nected, the vehicle will return the engine switch mode to the status it was in
before  the  battery  was  disconnected.  Make  sure  to  turn  off  the  engine
before disconnecting the battery. Take extra care when connecting the bat-
tery if the engine switch mode prior to discharge is unknown.

If the system will not start even after multiple attempts, contact your Toyota
dealer.

Battery

1

2

479

6-3. Do-it-yourself maintenance

CAMRY_U

6

Mainten

ance an

d ca

re

WARNING

■

Chemicals in the battery

Batteries  contain  poisonous  and  corrosive  sulfuric  acid  and  may  produce
hydrogen gas which is flammable and explosive. To reduce the risk of death
or serious injury, take the following precautions while working on or near the
battery:

●

Do not cause sparks by touching the battery terminals with tools.

●

Do not smoke or light a match near the battery.

●

Avoid contact with eyes, skin and clothes.

●

Never inhale or swallow electrolyte.

●

Wear protective safety glasses when working near the battery.

●

Keep children away from the battery.

■

Where to safely charge the battery

Always charge the battery in an open area. Do not charge the battery in a
garage or closed room where there is insufficient ventilation.

■

How to recharge the battery

Only  perform  a  slow  charge  (5  A  or  less).  The  battery  may  explode  if
charged at a quicker rate.

■

Emergency measures regarding electrolyte

●

If electrolyte gets in your eyes
Flush your eyes with clean water for at least 15 minutes and get immedi-
ate medical attention. If possible, continue to apply water with a sponge or
cloth while traveling to the nearest medical facility.

●

If electrolyte gets on your skin
Wash the affected area thoroughly. If you feel pain or burning, get medical
attention immediately.

●

If electrolyte gets on your clothes
It can soak through clothing on to your skin. Immediately take off the cloth-
ing and follow the procedure above if necessary.

●

If you accidentally swallow electrolyte
Drink a large quantity of water or milk. Get emergency medical attention
immediately.

■

When disconnecting the battery

Do not disconnect the negative (-) terminal on the body side. The discon-
nected negative (-) terminal may touch the positive (+) terminal, which may
cause a short and result in death or serious injury.

480

6-3. Do-it-yourself maintenance

CAMRY_U

NOTICE

■

When recharging the battery

Never  recharge  the  battery  while  the  engine  is  running. Also,  be  sure  all
accessories are turned off.

481

6-3. Do-it-yourself maintenance

CAMRY_U

6

Mainten

ance an

d ca

re

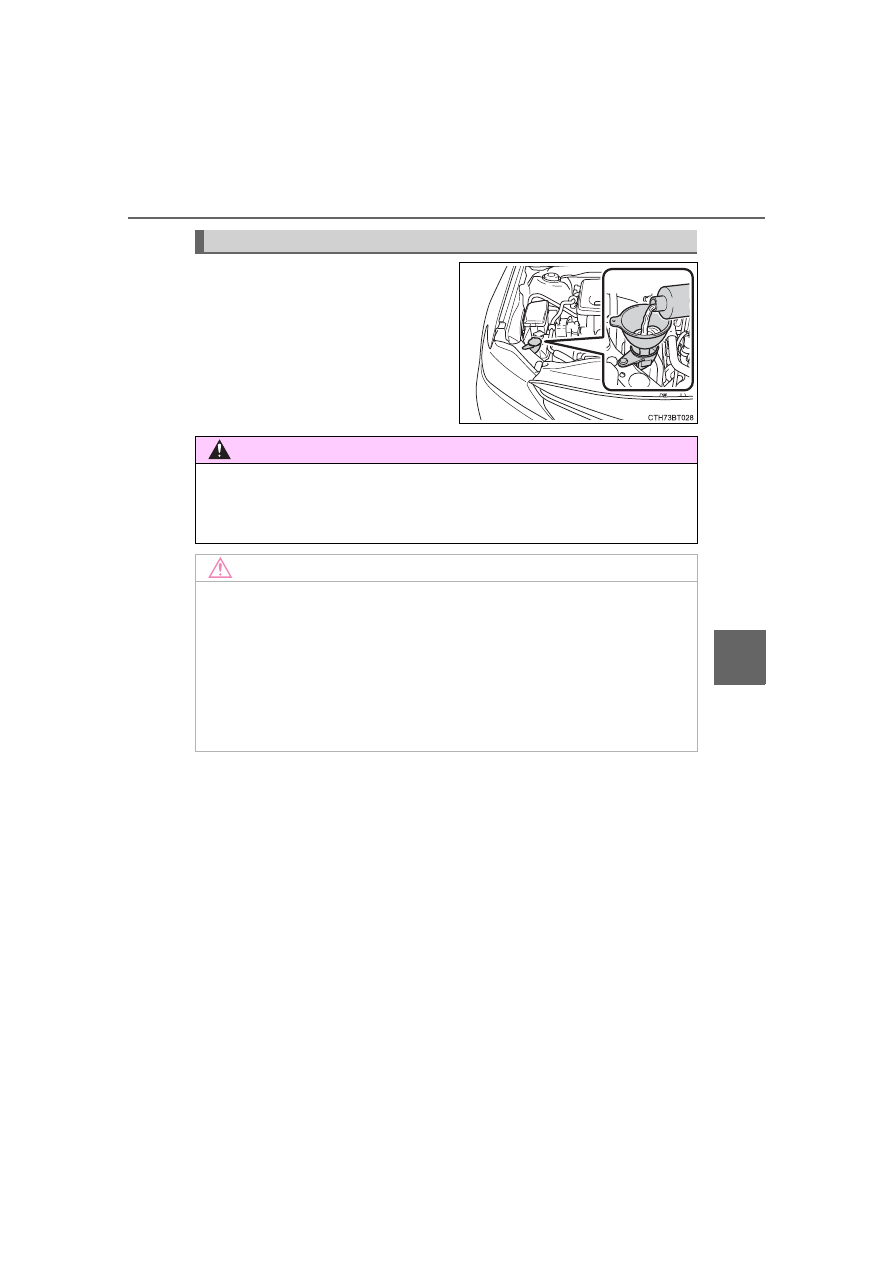

Add  washer  fluid  in  the  following
situations:

●

A washer does not work.

●

“Windshield Washer Fluid Low”
is  displayed  on  the  multi-infor-
mation display.

Washer fluid

WARNING

■

When adding washer fluid

Do not add washer fluid when the engine is hot or running as washer fluid
contains alcohol and may catch fire if spilled on the engine, etc.

NOTICE

■

Do not use any fluid other than washer fluid

Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle's painted surfaces, as well as
damaging the pump leading to problems of the washer fluid not spraying.

■

Diluting washer fluid

Dilute washer fluid with water as necessary.
Refer to the freezing temperatures listed on the label of the washer fluid bot-
tle.

482

6-3. Do-it-yourself maintenance

CAMRY_U

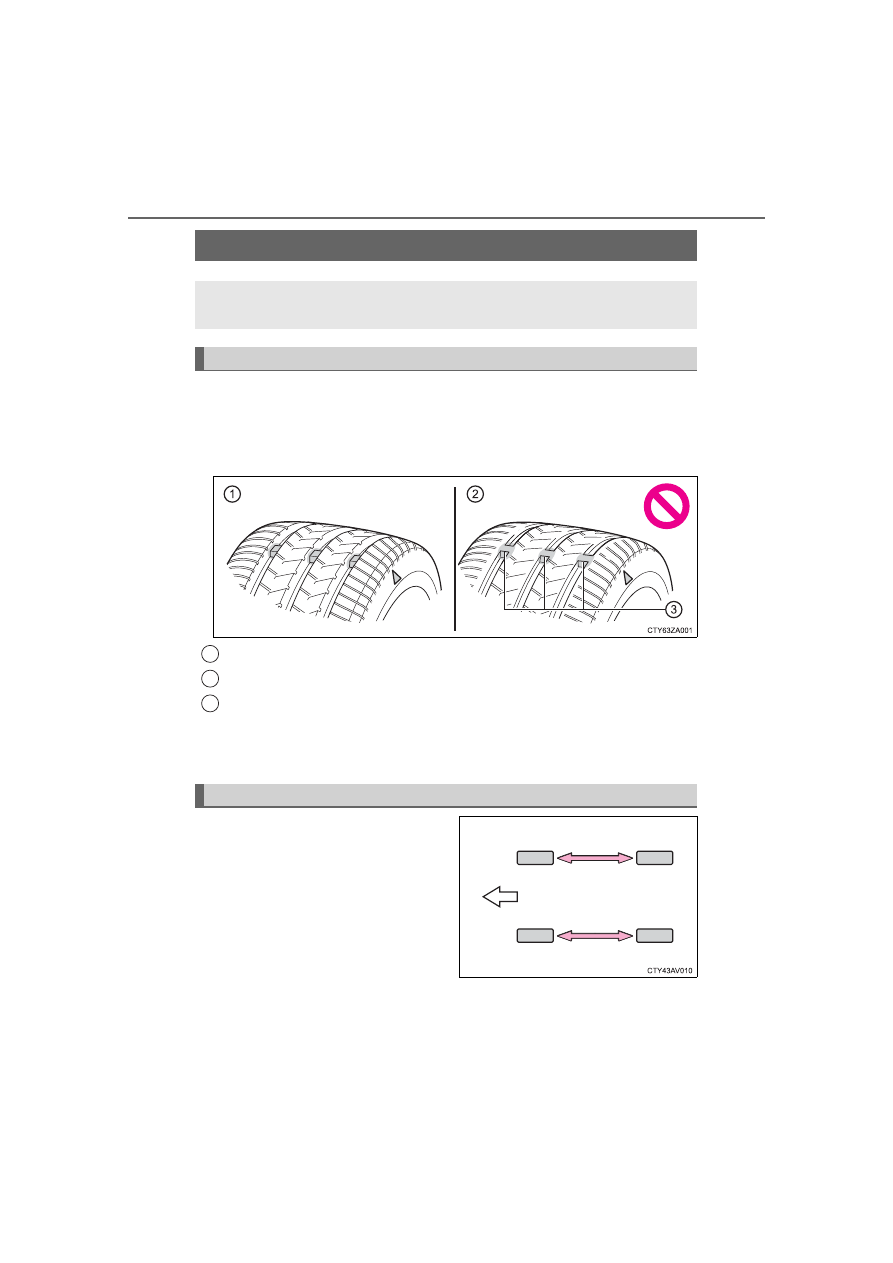

Check if the treadwear indicators are showing on the tires. Also check
the tires for uneven wear, such as excessive wear on one side of the
tread.
Check the spare tire condition and pressure if not rotated.

New tread
Worn tread
Treadwear indicator

The location of treadwear indicators is shown by a “TWI” or “



” mark,

etc., molded into the sidewall of each tire.
Replace the tires if the treadwear indicators are showing on a tire.

Rotate  the  tires  in  the  order
shown.

To equalize tire wear and extend

tire life, Toyota recommends that

tire  rotation  is  carried  out  at  the

same interval as tire inspection.
Do  not  fail  to  initialize  the  tire

pressure  warning  system  after

tire rotation.

Tires

Replace or rotate tires in accordance with maintenance sched-
ules and treadwear.

Checking tires

Tire rotation

1

2

3

Front

483

6-3. Do-it-yourself maintenance

CAMRY_U

6

Mainten

ance an

d ca

re

Your vehicle is equipped with a tire pressure warning system that uses
tire pressure warning valve and transmitters to detect low tire inflation
pressure before serious problems arise.



Vehicles without a tire inflation pressure display function

If  the  tire  pressure  drops  below  a  predetermined  level,  the  driver  is
warned by a warning light. (



P. 541)



Vehicles with a tire inflation pressure display function

●

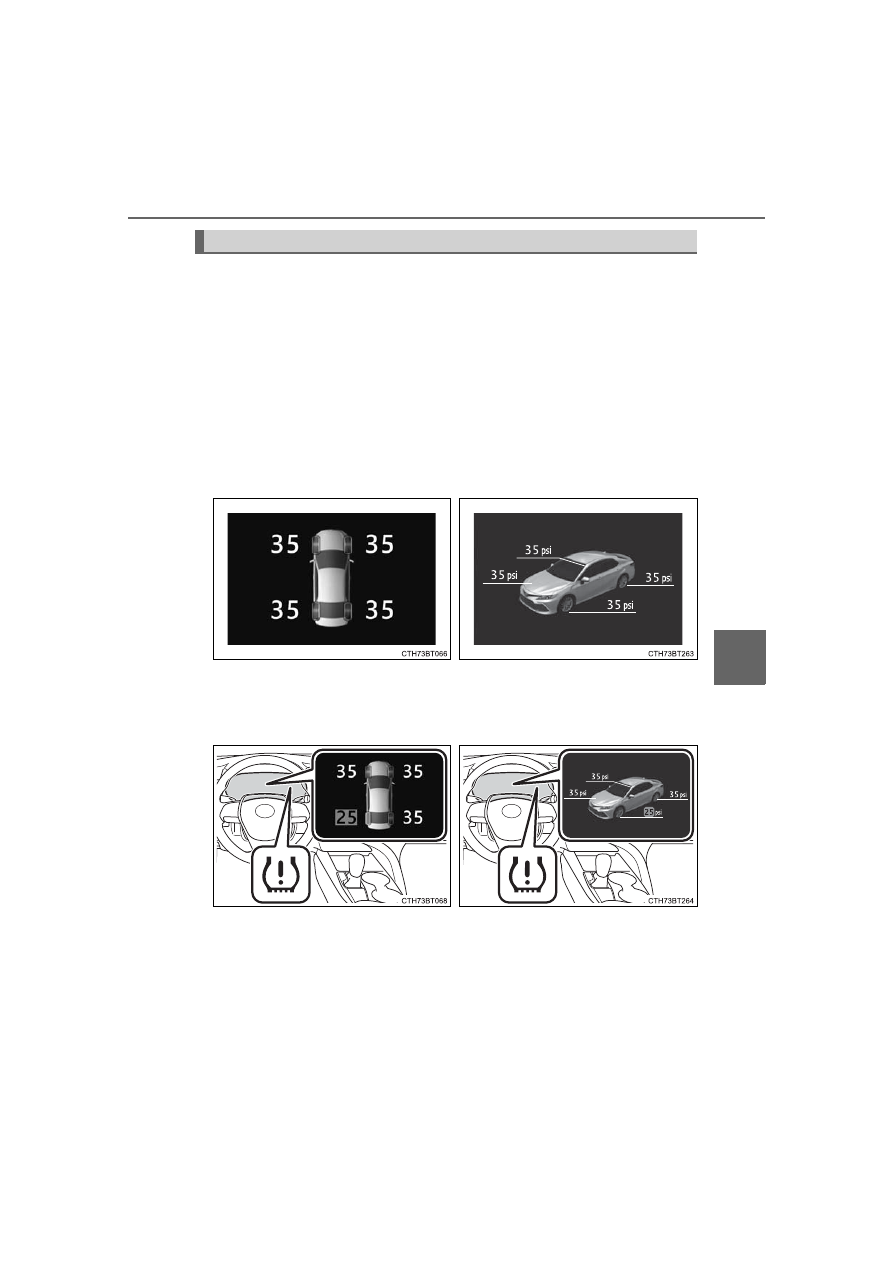

The tire pressure detected by the tire pressure warning system can
be displayed on the multi-information display.

●

If the tire pressure drops below a predetermined level, the driver is
warned by a screen display and a warning light. (



P. 541)

Tire pressure warning system



4.2-inch display



7-inch display



4.2-inch display



7-inch display

484

6-3. Do-it-yourself maintenance

CAMRY_U

◆

Installing tire pressure warning valve and transmitters

When replacing the tires or wheels, the tire pressure warning valve
and  transmitters  must  be  installed  to  the  wheels  which  will  be
installed to the vehicle.
When  new  tire  pressure  warning  valve  and  transmitters  are
installed,  new  ID  codes  must  be  registered  in  the  tire  pressure
warning  computer  and  the  tire  pressure  warning  system  must  be
initialized. (



P. 486)

◆

Initializing the tire pressure warning system

■

The tire pressure warning system must be initialized in the fol-
lowing circumstances:

●

When the tire inflation pressure is changed such as when chang-
ing traveling speed or load weight.

●

When the tire inflation pressure is changed such as when the tire
size is changed.

●

When rotating the tires.

●

Vehicles with a tire inflation pressure display function: After per-
forming the transmitter ID code registration procedure. (



P. 486)

When the tire pressure warning system is initialized, the current tire
inflation pressure is set as the benchmark pressure.

■

How to initialize the tire pressure warning system

Park the vehicle in a safe place and stop the engine for 20 min-
utes or more.

The  initialization  procedure  cannot  be  started  while  the  vehicle  is

moving.

Adjust the tire inflation pressure to the specified cold tire inflation
pressure level. (



P. 594)

Make sure to adjust the tire pressure to the specified cold tire infla-

tion  pressure  level.  The  tire  pressure  warning  system  will  operate

based on this pressure level.

Start the engine. (



P. 211, 213)

Select

 (4.2-inch display) or

 (7-inch display) on the multi-

information display using the meter control switches on the steer-
ing wheel. (



P. 101, 115).

1

2

3

4

485

6-3. Do-it-yourself maintenance

CAMRY_U

6

Mainten

ance an

d ca

re

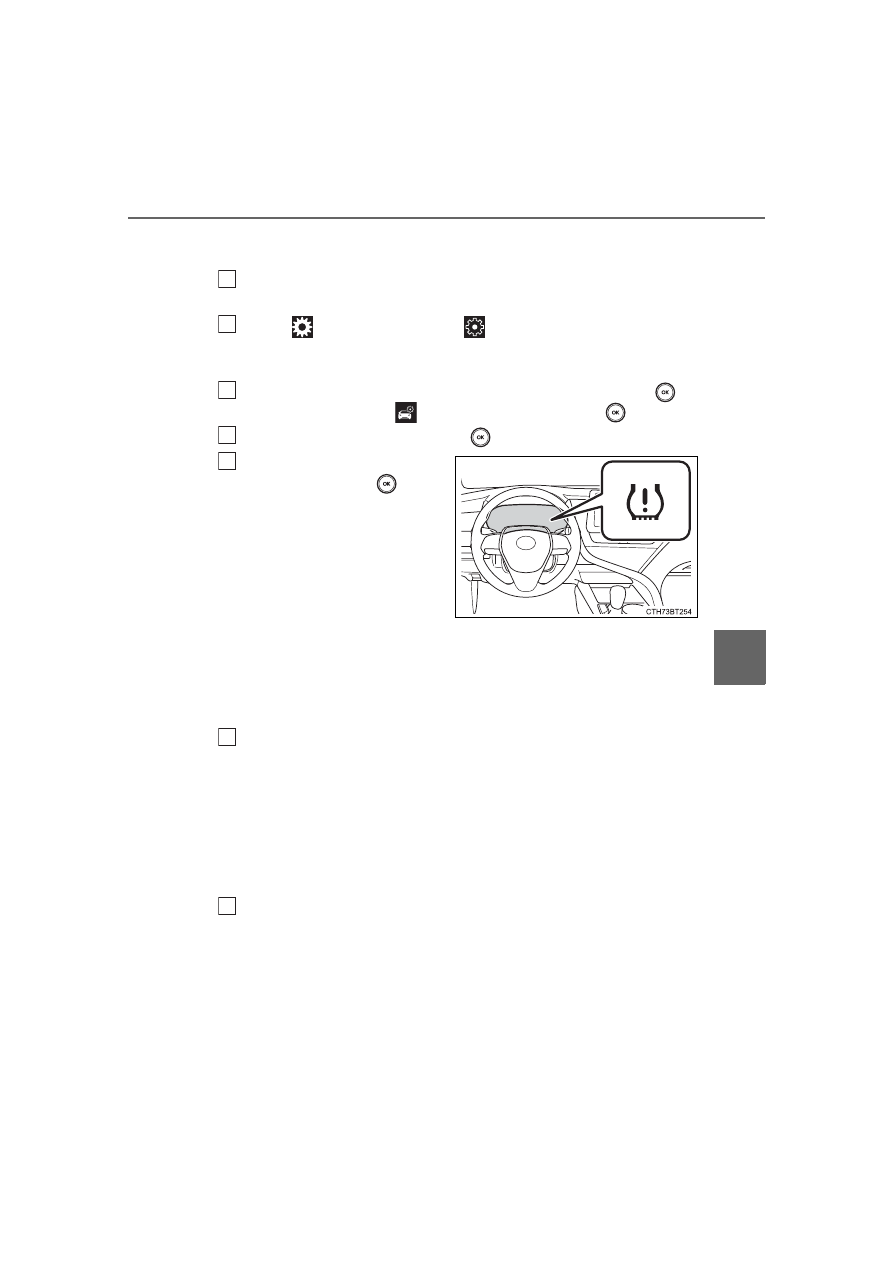

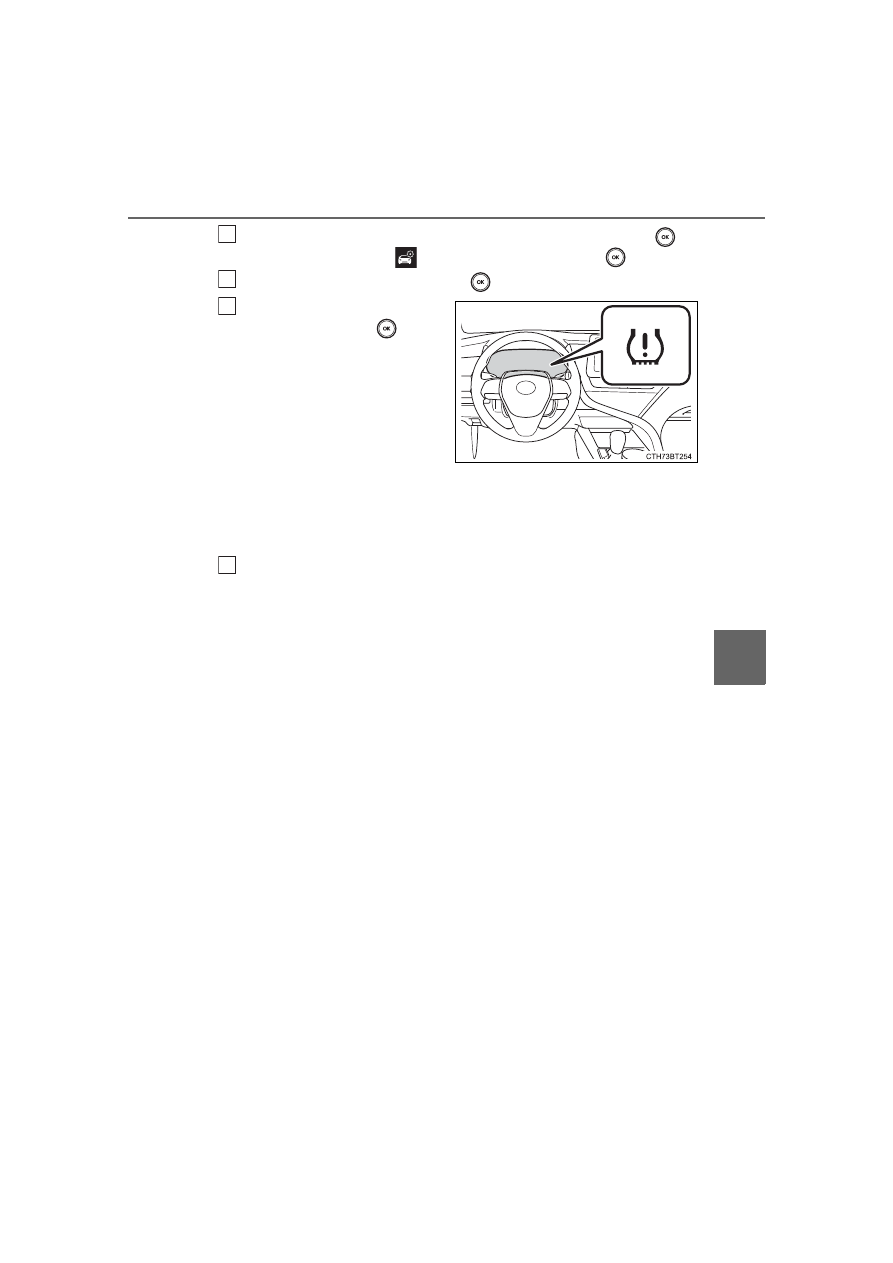

4.2-inch display: Select “Vehicle Settings” and then press

.

7-inch display: Select

 and then press and hold

.

Select “TPWS” and then press

.

Select  “Set  Pressure”  then
press  and  hold

  until

the  tire  pressure  warning
light blinks 3 times.

Then  a  message  will  be  dis-

played on the multi-information

display.
Vehicles  with  a  tire  inflation

pressure display function: “- -”

will  be  displayed  on  the  multi-

information  display  for  the

inflation  pressure  of  each  tire

while initialization is being per-

formed.

Vehicles  with  a  tire  inflation  pressure  display  function:  Drive  at
approximately 25 mph (40 km/h) or more for approximately 10 to
30 minutes.

When initialization is complete, the inflation pressure of each tire will

be displayed on the multi-information display.
Even if the vehicle is not driven at approximately 25 mph (40 km/h)

or  more,  initialization  can  be  completed  by  driving  for  a  long time.

However, if initialization does not complete after driving for 1 hour or

more, park the vehicle in a safe place for approximately 20 minutes

and then drive the vehicle again.

5

6

7

8

486

6-3. Do-it-yourself maintenance

CAMRY_U

◆

Registering ID codes



Vehicles without a tire inflation pressure display function

Every tire pressure warning valve and transmitter has a unique ID
code. In addition to the set of tire pressure warning system sensor
ID codes initially registered to the vehicle, a second set of ID codes
can be registered.
A second set of tire pressure warning system sensor ID codes can
be registered at your Toyota dealer. When 2 sets of ID codes have
been registered, either ID code set can be selected.



Vehicles with a tire inflation pressure display function

Every tire pressure warning valve and transmitter has a unique ID
code. When replacing a tire pressure warning valve and transmitter,
it is necessary to register the ID codes.
The ID codes can be registered on

 (4.2-inch display) or

 (7-

inch display) of the multi-information display.

■

Changing the available set of ID codes (vehicles without a tire
inflation pressure display function)

When 2 sets of ID codes are registered, the corresponding ID code
set for the installed wheels can be selected on

 (4.2-inch display)

or

 (7-inch display) of the multi-information display. It is not nec-

essary  to  reregister  the  ID  codes  each  time  the  wheels  are
changed.
For information regarding changing the registered ID codes for an
ID code set, contact your Toyota dealer.

487

6-3. Do-it-yourself maintenance

CAMRY_U

6

Mainten

ance an

d ca

re

■

How to register the ID codes (vehicles with a tire inflation pres-
sure display function)

Park the vehicle in a safe place, wait for approximately 20 min-
utes, and then start the engine. (



P. 211, 213)

Select

 (4.2-inch display) or

 (7-inch display) on the multi-

information display using the meter control switches on the steer-
ing wheel. (



P. 101, 115)

4.2-inch display: Select “Vehicle Settings” and then press

.

7-inch display: Select

 and then press and hold

.

Select “TPWS” and then press

.

Select  “Change  Wheel”  then
press  and  hold

  until

the  tire  pressure  warning
light blinks slowly 3 times.

Then  a  message  will  be  dis-

played on the multi-information

display.
When registration is being per-

formed, the tire pressure warn-

ing

light

will

blink

for

approximately  1  minute  then

illuminate and “- -” will be dis-

played  for  the  inflation  pres-

sure  of  each tire  on  the  multi-

information display.

Drive  at  approximately  25  mph  (40  km/h)  or  more  for  approxi-
mately 10 to 30 minutes.

Registration is complete when the tire pressure warning light turns

off and the inflation pressure of each tire is displayed on the multi-

information display.
Even if the vehicle is not driven at approximately 25 mph (40 km/h)

or  more,  registration  can  be  completed  by  driving  for  a  long  time.

However, if registration does not complete after driving for 1 hour or

more, perform the procedure again from the beginning.

Initialize the tire pressure warning system. (



P. 484)

1

2

3

4

5

6

7

488

6-3. Do-it-yourself maintenance

CAMRY_U

■

When to replace your vehicle’s tires

Tires should be replaced if:

●

The treadwear indicators are showing on a tire.

●

You  have  tire  damage  such  as  cuts,  splits,  cracks  deep  enough  to

expose the fabric, and bulges indicating internal damage

●

A tire goes flat repeatedly or cannot be properly repaired due to the size

or location of a cut or other damage

If you are not sure, consult with your Toyota dealer.

■

Replacing tires and wheels

If the ID codes of the tire pressure warning valve and transmitters are not

registered, the tire pressure warning system will not work properly. In this

case, after driving for about 20 minutes, the tire pressure warning light will

blink for approximately 1 minute and then illuminate to indicate a system

malfunction.

■

Tire life

Any tire over 6 years old must be checked by a qualified technician even

if it has seldom or never been used or damage is not obvious.

■

Routine tire inflation pressure checks

The  tire  pressure  warning  system  does  not  replace  routine  tire inflation

pressure  checks.  Make  sure  to  check  tire  inflation  pressure  as  part  of

your routine of daily vehicle checks.

■

Low profile tires (vehicles with 18 or 19-inch wheels)

Generally,  low  profile  tires  will  wear  more  rapidly  and  tire  grip  perfor-

mance  will  be  reduced  on  snowy  and/or  icy  roads  when  compared  to

standard tires. Be sure to use snow tires on snowy and/or icy roads and

drive carefully at a speed appropriate for road and weather conditions.

■

Maximum load of tire

Check that the maximum load of the replacement tire is greater than 1/2

of the Gross Axle Weight Ratings (GAWR) of either the front axle or the

rear axle, whichever is greater.

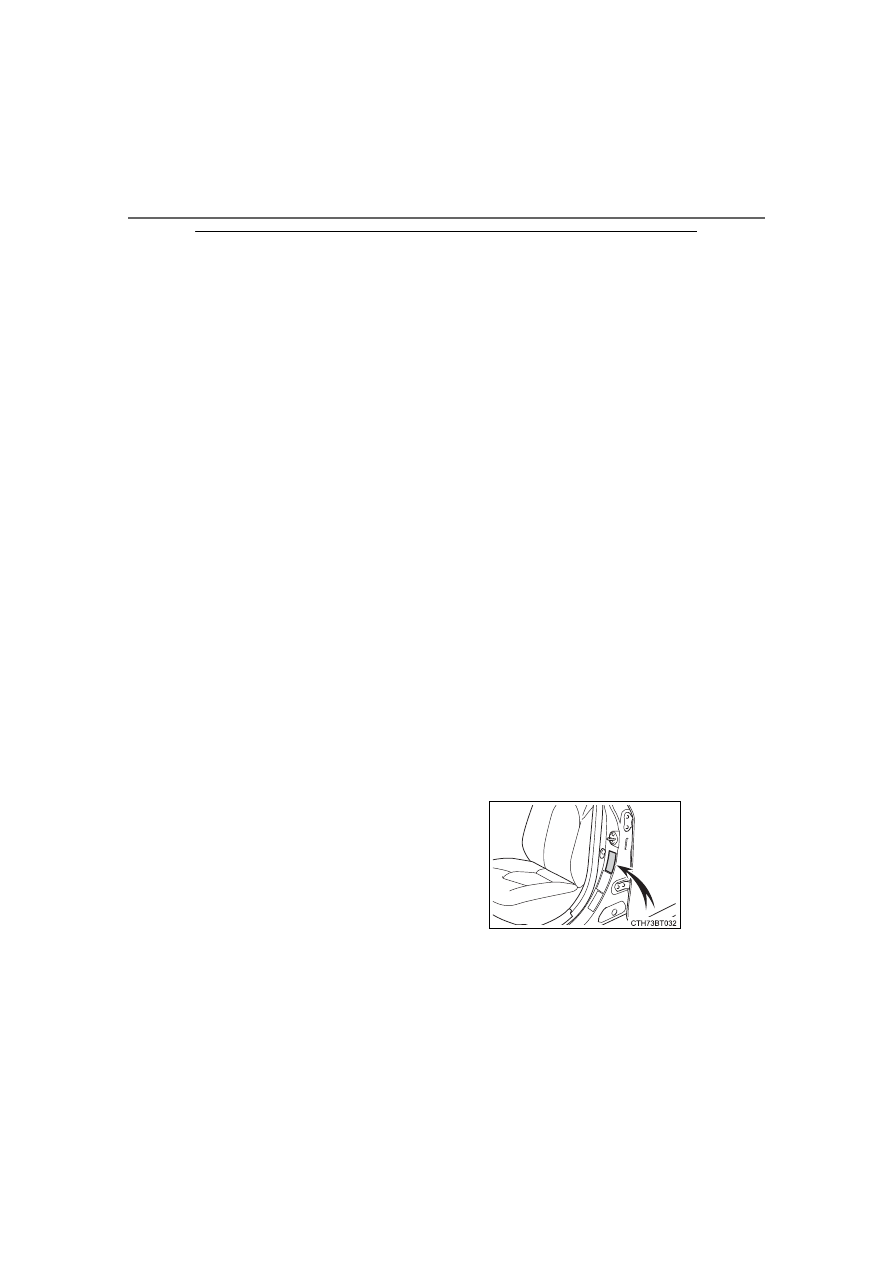

For  the  GAWR,  see  the  Certification

Label. For the maximum load of the tire,

see the load limit at maximum cold tire

inflation  pressure  mentioned  on  the

sidewall of the tire. (



P. 603)

489

6-3. Do-it-yourself maintenance

CAMRY_U

6

Mainten

ance an

d ca

re

■

Tire types

●

Summer tires
Summer tires are high-speed performance tires best suited to highway

driving under dry conditions. Since summer tires do not have the same

traction  performance  as  snow  tires,  summer  tires  are  inadequate  for

driving  on  snow-covered  or  icy  roads.  For  driving  on  snow-covered

roads or icy roads, the use of snow tires is recommended. When install-

ing snow tires, be sure to replace all four tires.

●

All season tires
All season tires are designed to provide better traction in snow and to

be  adequate  for  driving  in  most  winter  conditions  as  well  as  for  use

year-round. All  season  tires,  however,  do  not  have  adequate  traction

performance compared with snow tires in heavy or loose snow. Also, all

season tires fall short in acceleration and handling performance com-

pared with summer tires in highway driving.

●

Snow tires
For driving on snow-covered roads or icy roads, we recommend using

snow tires. If you need snow tires, select tires of the same size, con-

struction and load capacity as the originally installed tires. Since your

vehicle  has  radial  tires  as  original  equipment,  make  sure  your  snow

tires also have radial construction. Do not install studded tires without

first  checking  local  regulations  for  possible  restrictions.  Snow  tires

should be installed on all wheels. (



P. 386)

■

If the tread on snow tires wears down below 0.16 in. (4 mm)

The effectiveness of the tires as snow tires is lost.

■

Situations in which the tire pressure warning system may not oper-

ate properly

●

In  the  following  situations,  the  tire  pressure  warning  system  may  not

operate properly.
• If non-genuine Toyota wheels are used.

• If  a  tire  has  been  replaced  with  a  tire  that  is  not  an  OE  (Original

Equipment) tire.

• If a tire has been replaced with a tire that is not of the specified size.

• If tire chains, etc. are installed.

• If a window tint that affects radio wave signals is installed.

• If there is a lot of snow or ice on the vehicle, particularly around the

wheels or wheel housings.

• If the tire inflation pressure is much higher than the specified level.

• If wheels not equipped with tire pressure warning valve and transmit-

ter are used.

• If the ID codes of the tire pressure warning valve and transmitters are

not registered in the tire pressure warning computer.

490

6-3. Do-it-yourself maintenance

CAMRY_U

●

Performance may be affected in the following situations.
• When driving near a TV tower, electric power plant, gas station, radio

station,  large  display,  airport  or  other  facility  that  generates  strong

radio waves or electrical noise

• When  carrying  a  portable  radio,  cellular  phone,  cordless  phone  or

other wireless communication device

Vehicles  with  a  tire  inflation  pressure  display  function:  If  tire  position

information is not correctly displayed due to the radio wave conditions,

the display may be corrected by changing the location of the vehicle as

the radio wave conditions may change.

●

When the vehicle is stopped, the time taken for the warning to start or

turn off may be longer.

●

When the inflation pressure of a tire drops rapidly, for example when a

tire has burst, the warning may not operate.

■

Initialization procedure

●

Make sure to perform the initialization procedure after adjusting the tire

inflation pressure.

Also,  make  sure  the  tires  are  cold  before  performing  the  initialization

procedure or adjusting the tire inflation pressure.

●

If the engine switch is turned to the “LOCK” position (vehicles without a

smart key system) or off (vehicles with a smart key system) during ini-

tialization, it is not necessary to restart the initialization procedure from

the  beginning  as  it  will  begin  automatically  when  the  engine  switch  is

turned back to the “ON” position (vehicles without a smart key system)

or IGNITION ON mode (vehicles with a smart key system).

●

If  initialization  has  accidentally  been  started  when  it  is  not  necessary,

adjust the tire inflation pressure to the specified level when the tires are

cold and then perform the initialization procedure again.

●

Vehicles with a tire inflation pressure display function: While the position

of each tire is being determined and the inflation pressures are not being

displayed on the multi-information display, if the inflation pressure of a

tire drops, the tire pressure warning light will come on.

■

Warning performance of the tire pressure warning system

The  warning  of  the  tire  pressure  warning  system  will  change  in  accor-

dance with the conditions under which it was initialized. For this reason,

the system may give a warning even if the tire pressure does not reach a

low enough level, or if the pressure is higher than the pressure that was

adjusted to when the system was initialized.

491

6-3. Do-it-yourself maintenance

CAMRY_U

6

Mainten

ance an

d ca

re

■

If the tire pressure warning system is not initialized properly



Vehicles without a tire inflation pressure display function

Initialization can be completed in a few minutes. However, in the following

cases, the settings have not been recorded and the system will not oper-

ate properly. If repeated attempts to record tire inflation pressure settings

are unsuccessful, have the vehicle inspected by your Toyota dealer.

●

If initialization is attempted and the tire pressure warning light does not

blink 3 times.

●

If, when the vehicle has been driven for about 20 minutes after perform-

ing initialization, the tire pressure warning light blinks for approximately

1 minute and then illuminates.



Vehicles with a tire inflation pressure display function

●

In the following situations, initialization may take longer than usual to be

completed or may not be possible. (Usually, the vehicle will need to be

driven for approximately 10 to 30 minutes to complete initialization.)

If  initialization  is  not  complete  after  driving  approximately  30  minutes,

continue driving for a while.
• If the vehicle is driven on an unpaved road, it may take longer to com-

plete initialization.

• If  the  vehicle  is  backed  up  while  performing  initialization,  data  col-

lected during initialization will be cleared and it will take longer than

normal to complete.

• If the vehicle is driven in heavy traffic or another situation where other

vehicles are driven close by, it may take time for the system to recog-

nize the tire pressure warning valve and transmitters of your vehicle

over those of other vehicles.

If  initialization  is  not  complete  after  driving  for  approximately  1  hour,

park the vehicle in a safe place for approximately 20 minutes and then

drive the vehicle again.

●

In  the  following  situations,  initialization  will  not  be  started  or  was  not

completed  properly  and  the  system  will  not  operate  properly.  Perform

the initialization procedure again.
• If, when attempting to start initialization, the tire pressure warning light

does not blink 3 times.

• If, when the vehicle has been driven for about 20 minutes after per-

forming initialization, the tire pressure warning light blinks for approxi-

mately 1 minute and then illuminates.

●

If  initialization  cannot  be  completed  after  performing  the  above  proce-

dure, contact your Toyota dealer.

492

6-3. Do-it-yourself maintenance

CAMRY_U

■

When registering ID codes (vehicles with a tire inflation pressure dis-

play function)

●

Before performing ID code registration, make sure that no wheels with

tire pressure warning valve and transmitters installed are near the vehi-

cle.

●

Make sure to initialize the tire pressure warning system after registering

the ID codes. If the system is initialized before registering the ID codes,

the initialized values will be invalid.

●

As the tires will be warm when registration is completed, make sure to

allow the tires to cool before performing initialization.

■

Canceling ID code registration (vehicles with a tire inflation pressure

display function)

●

To cancel ID code registration after it has been started, turn the engine

switch off before driving the vehicle.

If the vehicle is driven after ID code registration is started, to cancel reg-

istration, perform the ID code registration start procedure again and turn

the engine switch off before driving.

●

If ID code registration has been canceled, the tire pressure warning light

will blink for approximately 1 minute when the engine switch is turned to

the  “ON”  position  (vehicles  without  a  smart  key  system)  or  IGNITION

ON mode (vehicles with a smart key system) and then illuminate. The

tire pressure warning system will be operational when the tire pressure

warning light turns off.

●

If  the  warning  light  does  not  turn  off  even  after  several  minutes  have

elapsed, ID code registration may not have been cancelled correctly. To

cancel  registration,  perform  the  ID  code  registration  start  procedure

again and then turn the engine switch off before driving.

493

6-3. Do-it-yourself maintenance

CAMRY_U

6

Mainten

ance an

d ca

re

■

If ID codes are not registered properly (vehicles with a tire inflation

pressure display function)

●

In  the  following  situations,  ID  code  registration  may  take  longer  than

usual to be completed or may not be possible. (Usually, the vehicle will

need  to  be  driven  for  approximately  10  to  30  minutes  to  complete  ID

code registration.)

If ID code registration is not complete after driving for approximately 30

minutes, continue driving for a while.
• If the vehicle is driven on an unpaved road, it may take longer than

normal to complete registration.

• If  the  vehicle  is  backed  up  while  performing  registration,  data  col-

lected during registration will be cleared, and it will take longer than

normal to complete.

• If the vehicle is driven in heavy traffic or another situation where other

vehicles are driven close by, it may take time for the system to recog-

nize the tire pressure warning valve and transmitters of your vehicle

over those of other vehicles.

• If a wheel with a tire pressure warning valve and transmitter installed

is  inside  or  near  the  vehicle,  registration  of  the  ID  codes  for  the

installed wheels may not be possible.

If ID registration is not complete after driving for approximately 1 hour,

park the vehicle in a safe place for approximately 20 minutes and then

perform the ID code registration procedure again.

●

In the following situations, ID code registration will not be started or was

not  completed  properly  and  the  system  will  not  operate  properly.  Per-

form the ID code registration procedure again.
• If,  when  attempting  to  start  ID  code  registration,  the  tire  pressure

warning light does not blink slowly 3 times.

• If, when the vehicle has been driven for about 20 minutes after per-

forming ID code registration, the tire pressure warning light blinks for

approximately 1 minute and then illuminates.

●

If ID code registration cannot be completed after performing the above

procedure, contact your Toyota dealer.

494

6-3. Do-it-yourself maintenance

CAMRY_U

■

Tire pressure warning system certification



For vehicles sold in the U.S.A.

495

6-3. Do-it-yourself maintenance

CAMRY_U

6

Mainten

ance an

d ca

re



For vehicles sold in Canada

WARNING

■

When inspecting or replacing tires

Observe the following precautions to prevent accidents.

Failure to do so may cause damage to parts of the drive train as well as

dangerous  handling  characteristics,  which  may  lead  to  an  accident

resulting in death or serious injury.

●

Do not mix tires of different makes, models or tread patterns.

Also, do not mix tires of remarkably different treadwear.

●

Do not use tire sizes other than those recommended by Toyota.

●

Do not mix differently constructed tires (radial, bias-belted or bias-ply

tires).

●

Do not mix summer, all season and snow tires.

●

Do not use tires that have been used on another vehicle.

Do not use tires if you do not know how they were used previously.

■

When initializing the tire pressure warning system

Do not initialize the tire pressure warning system without first adjusting

the tire inflation pressure to the specified level. Otherwise, the tire pres-

sure warning light may not come on even if the tire inflation pressure is

low, or it may come on when the tire inflation pressure is actually nor-

mal.

496

6-3. Do-it-yourself maintenance

CAMRY_U

NOTICE

■

Repairing  or  replacing  tires,  wheels,  tire  pressure  warning  valve

and transmitters and tire valve caps

●

When removing or fitting the wheels, tires or the tire pressure warning

valve and transmitters, contact your Toyota dealer as the tire pressure

warning  valve  and  transmitters  may  be  damaged  if  not  handled  cor-

rectly.

●

Make sure to install the tire valve caps. If the tire valve caps are not

installed, water may enter the valves of the tire pressure warning valve

and transmitters and the valves may become stuck.

●

When replacing tire valve caps, do not replace them with metal caps or

any tire valve caps other than specified, as they may become stuck.

■

To avoid damage to the tire pressure warning valve and transmit-

ters

When  a  tire  is  repaired  with  liquid  sealants,  the  tire  pressure  warning

valve  and  transmitter  may  not  operate  properly.  If  a  liquid  sealant  is

used, contact your Toyota dealer or other qualified service shop as soon

as possible. Make sure to replace the tire pressure warning valve and

transmitter when replacing the tire. (



P. 484)

■

Driving on rough roads

Take particular care when driving on roads with loose surfaces or pot-

holes.

These conditions may cause losses in tire inflation pressure, reducing

the  cushioning  ability  of  the  tires.  In  addition,  driving  on  rough  roads

may  cause  damage  to  the  tires  themselves,  as  well  as  the  vehicle’s

wheels and body.

■

Low profile tires (vehicles with 18 or 19-inch wheels)

Low profile tires may cause greater damage than usual to the tire wheel

when sustaining impact from the road surface. Therefore, pay attention

to the following:

●

Be sure to use proper tire inflation pressure. If tires are under-inflated,

they may be damaged more severely.

●

Avoid potholes, uneven pavement, curbs and other road hazards. Fail-

ure to do so may lead to severe tire and wheel damage.

■

If tire inflation pressure of each tire becomes low while driving

Do not continue driving, or your tires and/or wheels may be ruined.

497

6-3. Do-it-yourself maintenance

CAMRY_U

6

Mainten

ance an

d ca

re

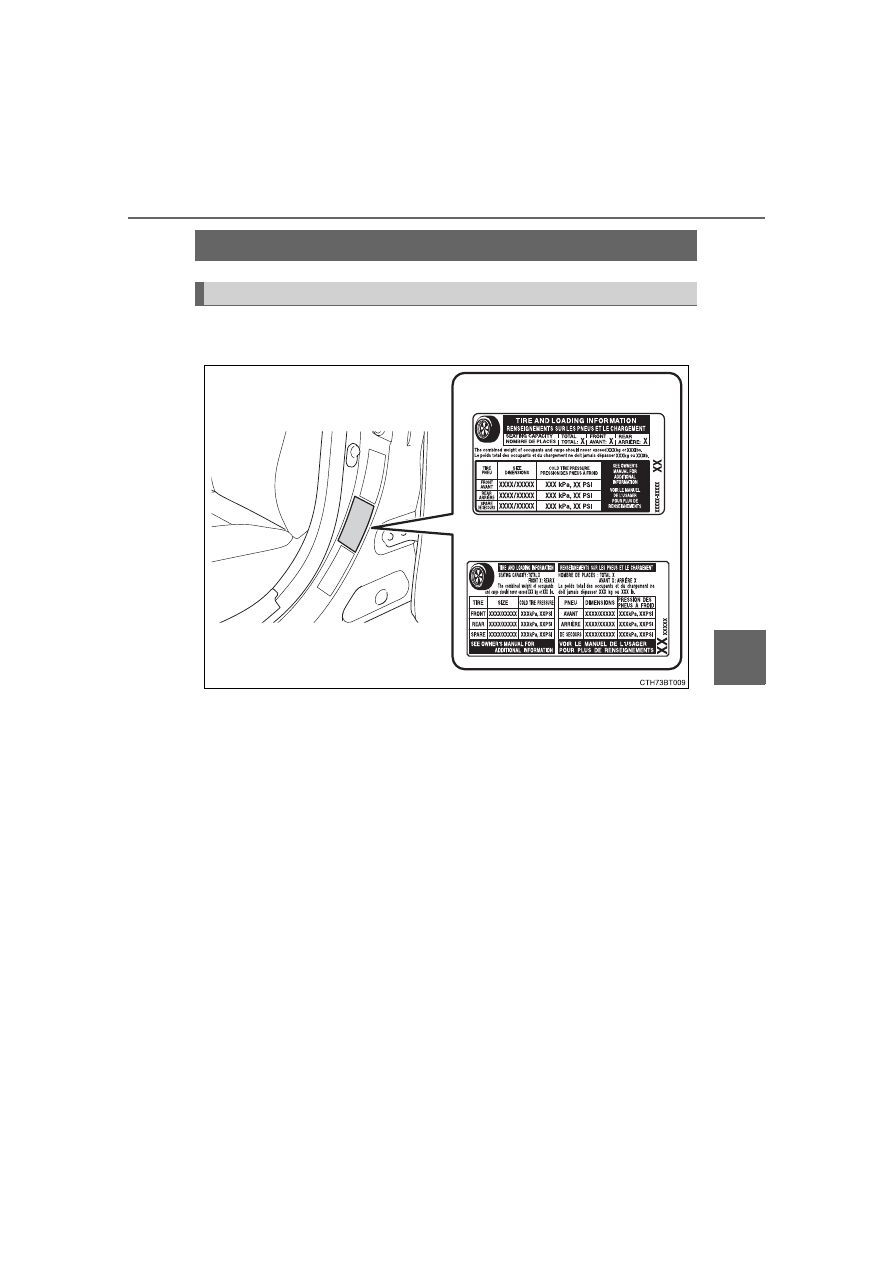

The  recommended  cold  tire  inflation  pressure  and  tire  size  are  dis-
played on the tire and loading information label. (



P. 594)

Tire inflation pressure

Tire inflation pressure



Type A



Type B

498

6-3. Do-it-yourself maintenance

CAMRY_U

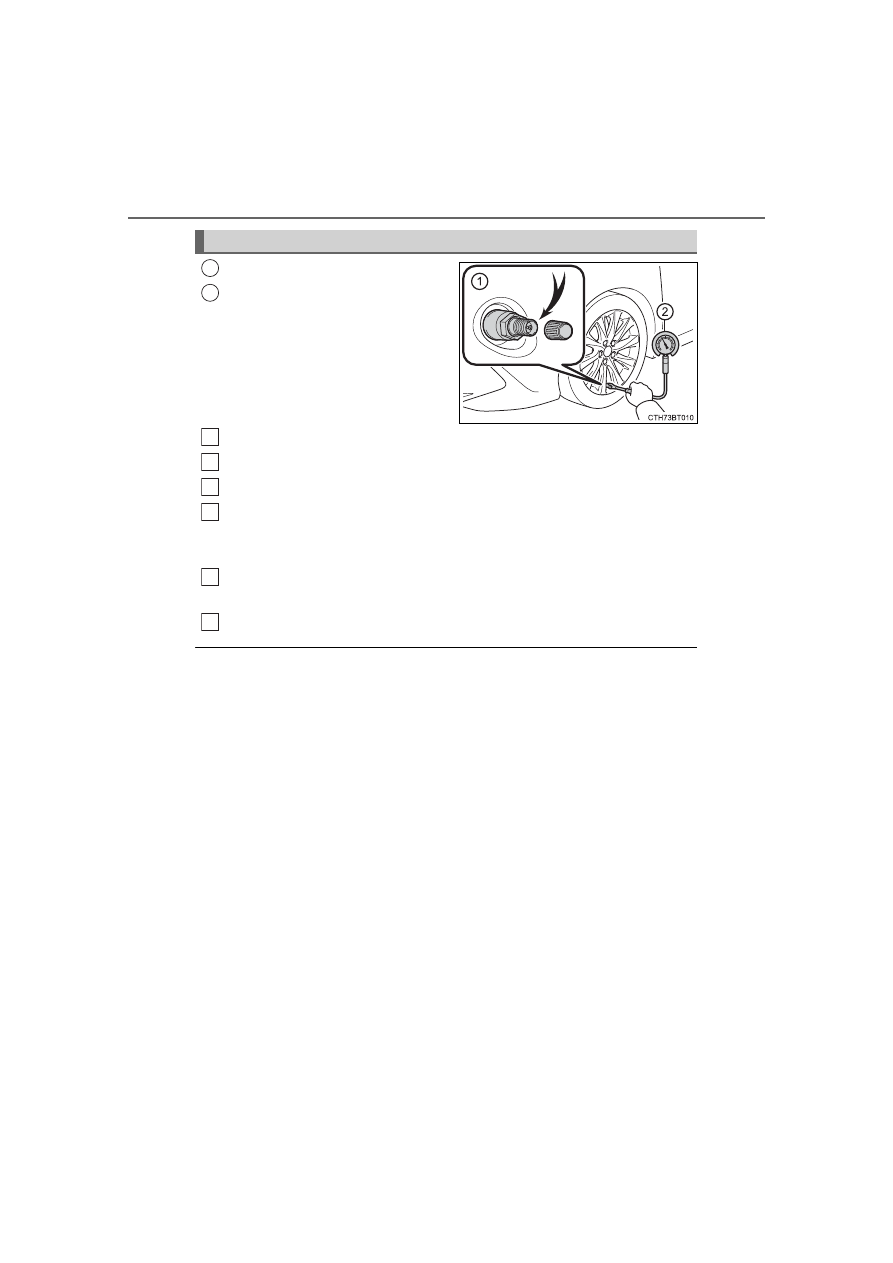

Tire valve
Tire pressure gauge

Remove the tire valve cap.
Press the tip of the tire pressure gauge onto the tire valve.
Read the pressure using the gauge gradations.
If the tire inflation pressure is not at the recommended level, adjust
the pressure.
If you add too much air, press the center of the valve to deflate.
After  completing  the  tire  inflation  pressure  measurement  and
adjustment, apply soapy water to the valve and check for leakage.
Put the tire valve cap back on.

■

Tire inflation pressure check interval

You should check tire inflation pressure every two weeks, or at least once

a month.

Do not forget to check the spare.

■

Effects of incorrect tire inflation pressure

Driving with incorrect tire inflation pressure may result in the following:

●

Reduced fuel economy

●

Reduced driving comfort and poor handling

●

Reduced tire life due to wear

●

Reduced safety

●

Damage to the drivetrain

If a tire needs frequent inflating, have it checked by your Toyota dealer.

Inspection and adjustment procedure

1

2

1

2

3

4

5

6

499

6-3. Do-it-yourself maintenance

CAMRY_U

6

Mainten

ance an

d ca

re

■

Instructions for checking tire inflation pressure

When checking tire inflation pressure, observe the following:

●

Check only when the tires are cold.

If  your  vehicle  has  been  parked  for  at  least  3  hours  or  has  not  been

driven for more than 1 mile or 1.5 km, you will get an accurate cold tire

inflation pressure reading.

●

Always use a tire pressure gauge.

It is difficult to judge if a tire is properly inflated based only on its appear-

ance.

●

It  is  normal  for  the  tire  inflation  pressure  to  be  higher  after  driving  as

heat is generated in the tire. Do not reduce tire inflation pressure after

driving.

●

Never exceed the vehicle capacity weight.

Passengers and luggage weight should be placed so that the vehicle is

balanced.

WARNING

■

Proper inflation is critical to save tire performance

Keep your tires properly inflated.

If the tires are not properly inflated, the following conditions may occur

which could lead to an accident resulting in death or serious injury:

●

Excessive wear

●

Uneven wear

●

Poor handling

●

Possibility of blowouts resulting from overheated tires

●

Air leaking from between tire and wheel

●

Wheel deformation and/or tire damage

●

Greater possibility of tire damage while driving (due to road hazards,

expansion joints, sharp edges on the road, etc.)

NOTICE

■

When inspecting and adjusting tire inflation pressure

Be sure to put the tire valve caps back on.

If a valve cap is not installed, dirt or moisture may get into the valve and

cause an air leak, resulting in decreased tire inflation pressure.

500

6-3. Do-it-yourself maintenance

CAMRY_U

When replacing wheels, care should be taken to ensure that they are
equivalent to those removed in load capacity, diameter, rim width and
inset

*

.

Replacement wheels are available at your Toyota dealer.

*

: Conventionally referred to as “offset”.

Toyota does not recommend using the following:

●

Wheels of different sizes or types

●

Used wheels

●

Bent wheels that have been straightened

●

Use  only Toyota  wheel  nuts  and  wrenches  designed  for  use  with
your aluminum wheels.

●

When  rotating,  repairing  or  changing  your  tires,  check  that  the
wheel nuts are still tight after driving 1000 miles (1600 km).

●

Be  careful  not  to  damage  the  aluminum  wheels  when  using  tire
chains.

●

Use only Toyota genuine balance weights or equivalent and a plas-
tic or rubber hammer when balancing your wheels.

■

When replacing wheels

The wheels of your vehicle are equipped with tire pressure warning valve

and  transmitters  that  allow  the  tire  pressure  warning  system  to  provide

advance warning in the event of a loss in tire inflation pressure. When-

ever  wheels  are  replaced,  tire  pressure  warning  valve  and  transmitters

must be installed. (



P. 484)

Wheels

If  a  wheel  is  bent,  cracked  or  heavily  corroded,  it  should  be
replaced.  Otherwise,  the  tire  may  separate  from  the  wheel  or
cause a loss of handling control.

Wheel selection

Aluminum wheel precautions (if equipped)

501

6-3. Do-it-yourself maintenance

CAMRY_U

6

Mainten

ance an

d ca

re

WARNING

■

When replacing wheels

●

Do not use wheels that are a different size from those recommended in

the Owner’s Manual, as this may result in a loss of handling control.

●

Never  use  an  inner  tube  in  a  leaking  wheel  which  is  designed  for  a

tubeless tire. Doing so may result in an accident, causing death or seri-

ous injury.

■

When installing the wheel nuts

●

Be sure to install the wheel nuts with the tapered ends facing inward.

(



P. 563) Installing the nuts with the tapered ends facing outward can

cause the wheel to break and eventually cause the wheel to come off

while driving, which could lead to an accident resulting in death or seri-

ous injury.

●

Never use oil or grease on the wheel bolts or wheel nuts.

Oil and grease may cause the wheel nuts to be excessively tightened,

leading to bolt or disc wheel damage. In addition, the oil or grease can

cause the wheel nuts to loosen and the wheel may fall off, causing an

accident  and  resulting  in  death  or  serious  injury.  Remove  any  oil  or

grease from the wheel bolts or wheel nuts.

NOTICE

■

Replacing tire pressure warning valve and transmitters

●

Because tire repair or replacement may affect the tire pressure warn-
ing  valve  and  transmitters, make sure to have tires serviced  by your
Toyota dealer or other qualified service shop. In addition, make sure to
purchase  your  tire  pressure  warning  valve  and  transmitters  at  your
Toyota dealer.

●

Ensure that only genuine Toyota wheels are used on your vehicle.
Tire  pressure  warning  valve  and  transmitters  may  not  work  properly
with non-genuine wheels.

502

6-3. Do-it-yourself maintenance

CAMRY_U

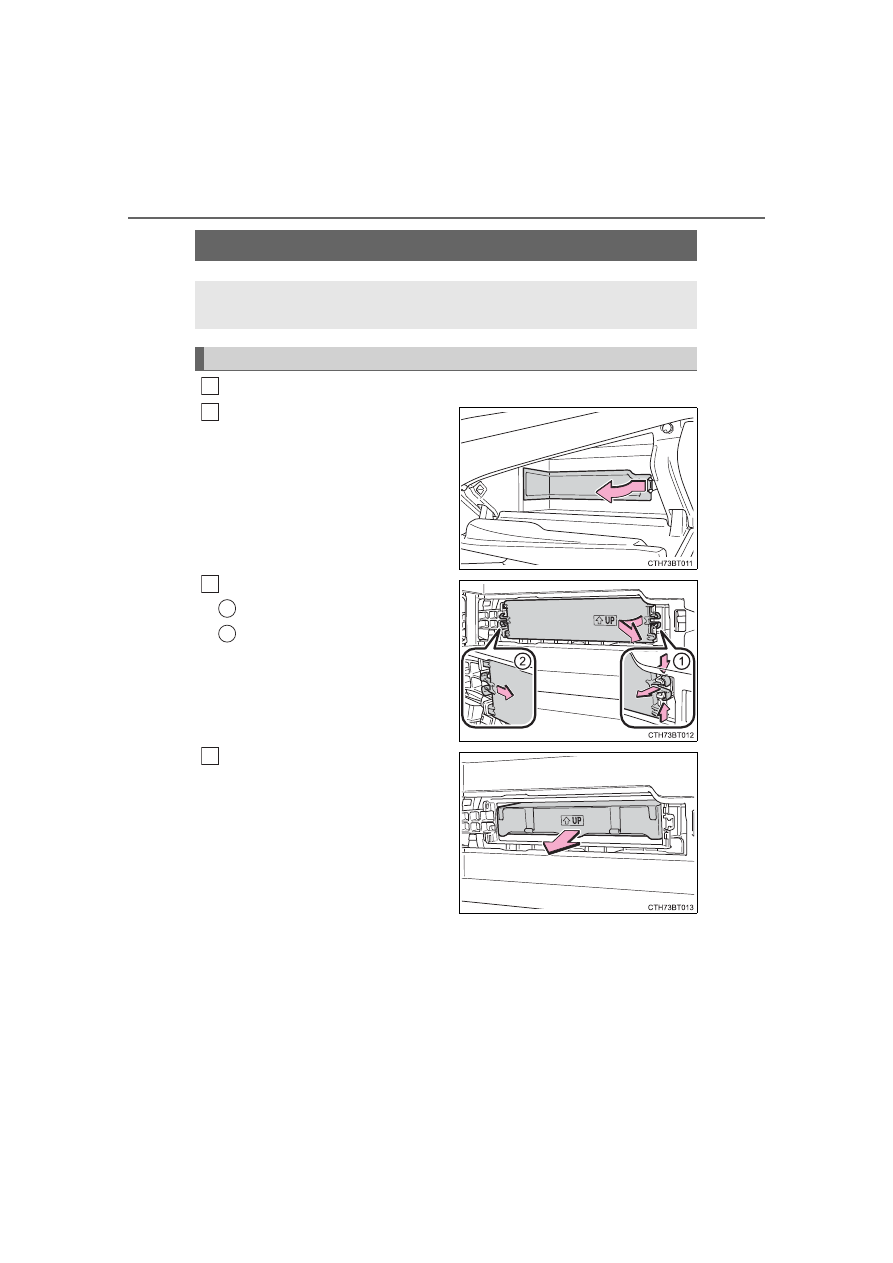

Turn the engine switch off.
Open  the  glove  box  and
remove  the  glove  box  cover
inside the glove box.

Remove the filter cover.

Unlock the filter cover.
Move  the  filter  cover  in  the
direction  of  the  arrow,  and
then pull it out of the claws.

Remove the filter case.

There  may  be  foreign  objects  on
top of the air conditioning filter.

Air conditioning filter

The air conditioning filter must be changed regularly to maintain
air conditioning efficiency.

Removal method

1

2

3

1

2

4

503

6-3. Do-it-yourself maintenance

CAMRY_U

6

Mainten

ance an

d ca

re

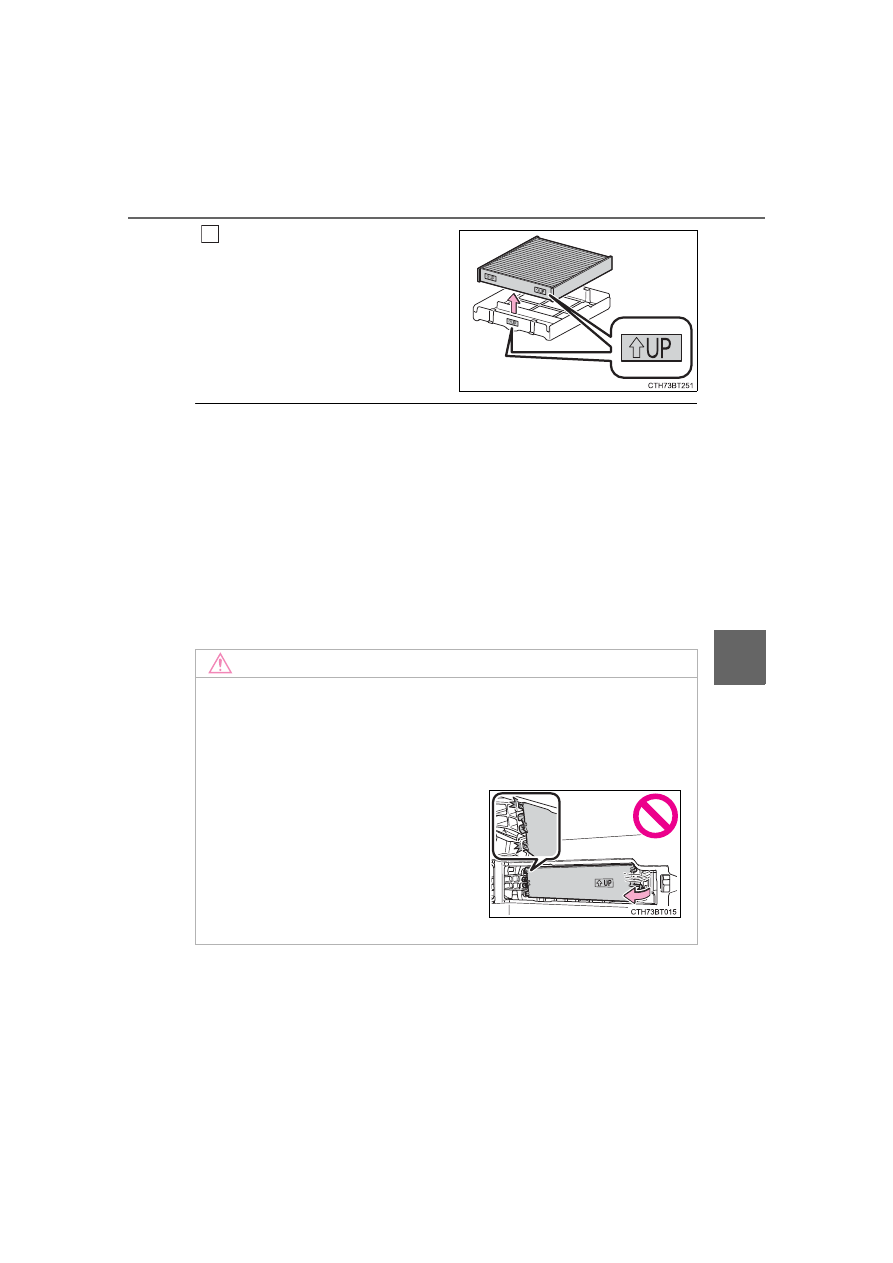

Remove the air conditioning fil-
ter  from  the  filter  case  and
replace it with a new one.

The “



UP” marks shown on the fil-

ter  and  the  filter  case  should  be
pointing up.

■

Checking interval

Inspect and replace the air conditioning  filter  according to  the  maintenance
schedule. In dusty areas or areas with heavy traffic flow, early replacement
may be required. (For scheduled maintenance information, please refer to the
“Scheduled Maintenance Guide” or “Owner’s Manual Supplement”.)

■

If air flow from the vents decreases dramatically

The filter may be clogged. Check the filter and replace if necessary.

■

Air conditioning filter with deodorizing function

When  fragrances  are  placed  in  your  vehicle,  the  deodorizing  effect  may
become significantly weakened in a short period.
When an air conditioning odor comes out continuously, replace the air condi-
tioning filter.

5

NOTICE

■

When using the air conditioning system

Make sure that a filter is always installed.
Using the air conditioning system without a filter may cause damage to the
system.

■

To prevent damage to the filter cover

When moving the filter cover in the direc-
tion  of  arrow  to  release  the  fitting,  pay
attention  not  to apply excessive  force  to
the  claws.  Otherwise,  the  claws  may  be
damaged.

504

6-3. Do-it-yourself maintenance

CAMRY_U

●

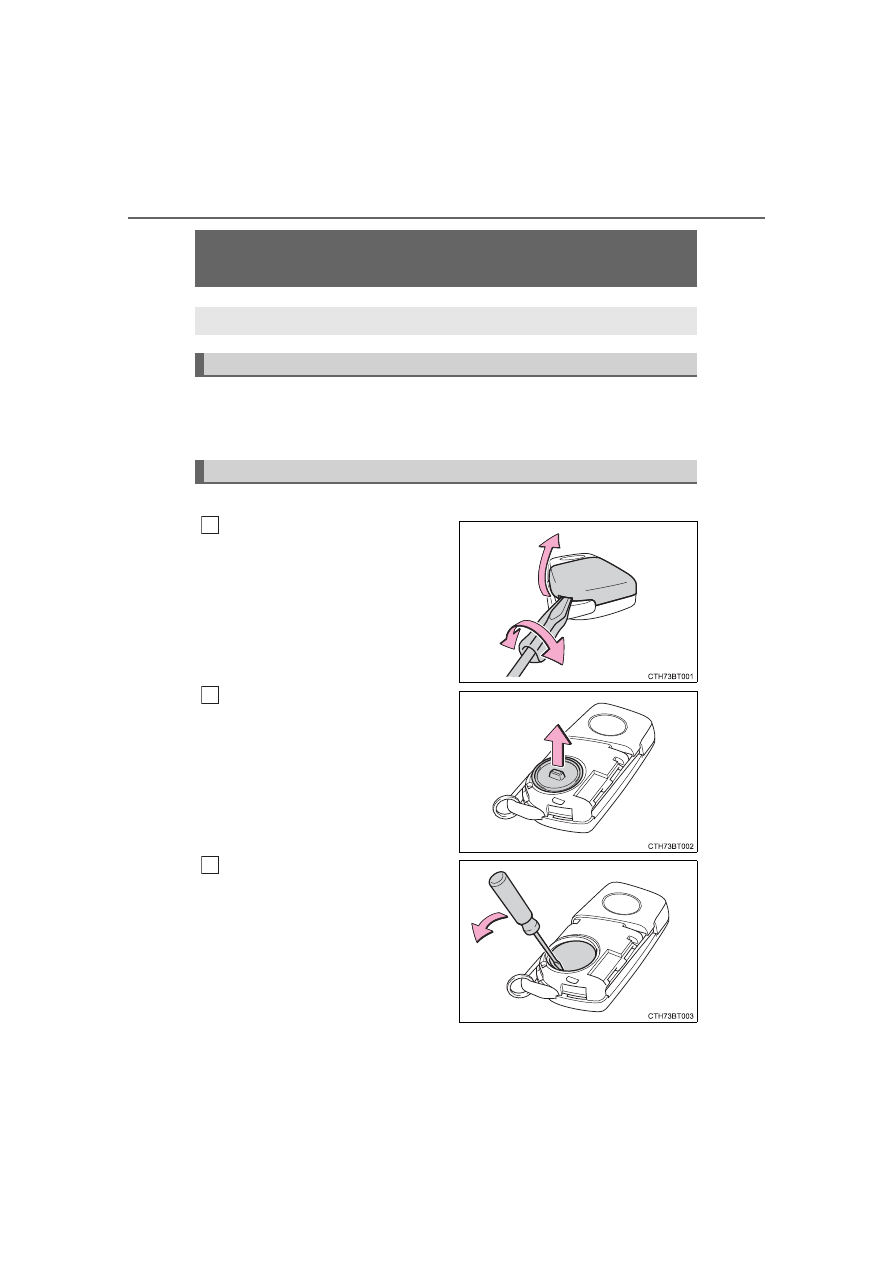

Flathead screwdriver

●

Small flathead screwdriver

●

Lithium battery CR2032



Vehicles without a smart key system

Remove the key cover.

To  prevent  damage  to  the  key,
cover the tip of the flathead screw-
driver with a rag.

Remove the battery cover.

If  the  battery  cover  is  difficult  to
remove, lift the edge to remove it.

Remove  the  depleted  battery
using  a  small  flathead  screw-
driver.

Insert  a  new  battery  with  the  “+”
terminal facing up.

Wireless remote control/electronic key

battery

Replace the battery with a new one if it is depleted.

You will need the following items:

Replacing the battery

1

2

3

505

6-3. Do-it-yourself maintenance

CAMRY_U

6

Mainten

ance an

d ca

re

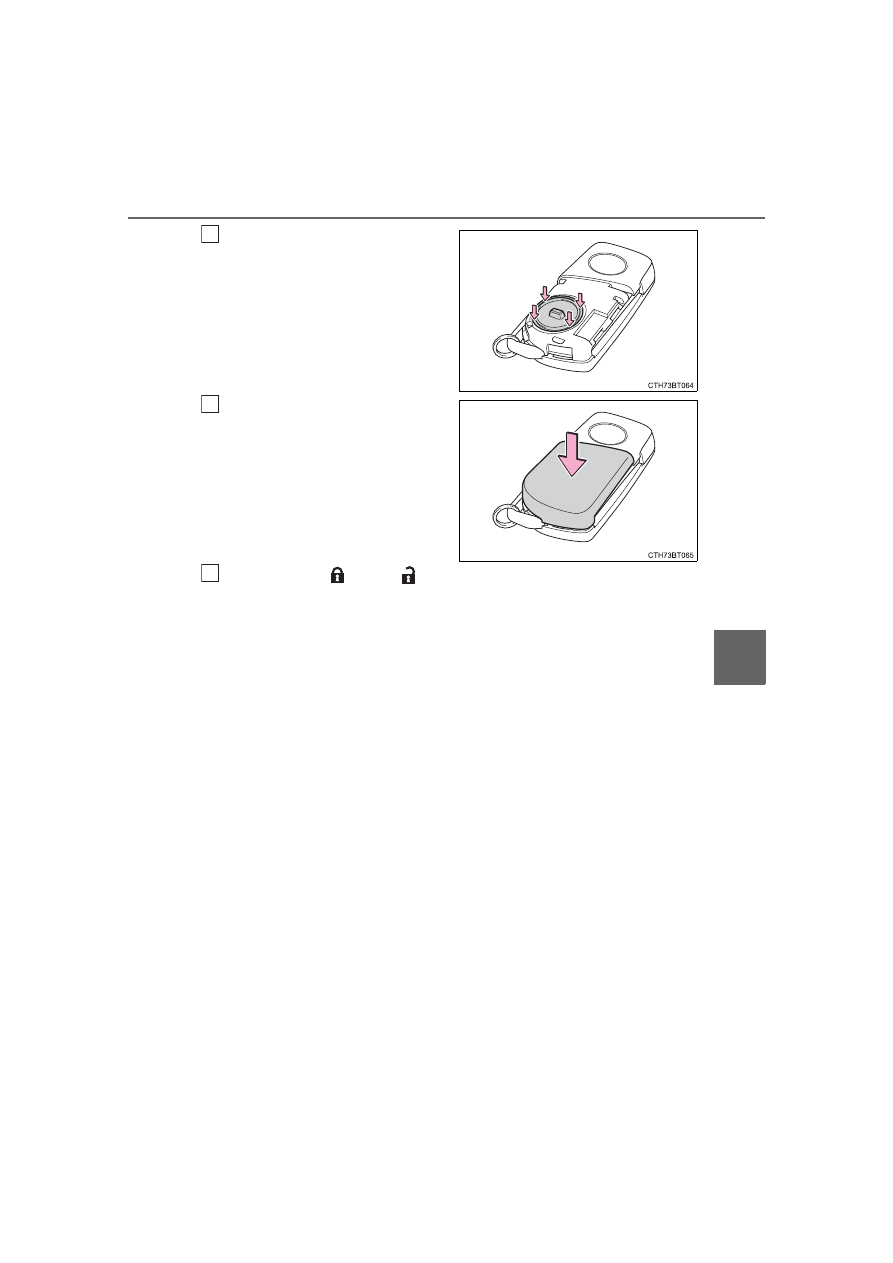

Install the battery cover with the
tab facing up.

Push the entire edge of the battery
cover into the key.

Install the key cover.

Align  the  key  cover  with  the  key
and  then  press  it  straight  into  the
key.
Make  sure  that  the  key  cover  is
securely installed without any gaps
between it and the key.

Operate the

 or

 switch and check that the doors can

be locked/unlocked.

4

5

6

506

6-3. Do-it-yourself maintenance

CAMRY_U



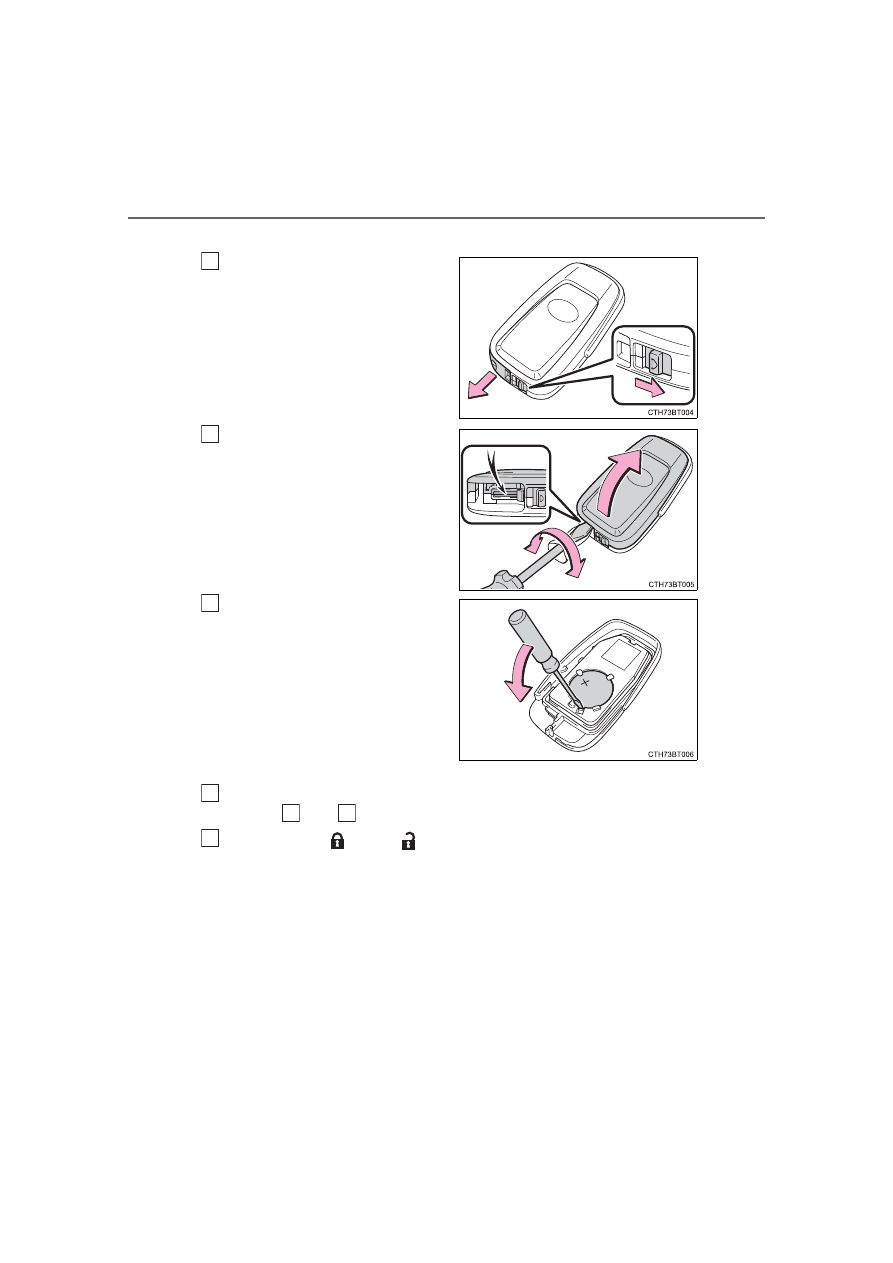

Vehicles with a smart key system

Release  the  lock  and  remove
the mechanical key.

Remove the key cover.

To  prevent  damage  to  the  key,
cover the tip of the flathead screw-
driver with a rag.

Remove  the  depleted  battery
using  a  small  flathead  screw-
driver.

When  removing  the  cover,  the
electronic key module may stick to
the cover and the battery may not
be visible. In this case, remove the
electronic  key  module  in  order  to
remove the battery.
Insert a new battery with the “+” terminal facing up.

When installing the key cover and mechanical key, install by con-
ducting

 and

 with the directions reversed.

Operate the

 or

 switch and check that the doors can

be locked/unlocked.

1

2

3

4

2

1

5

507

6-3. Do-it-yourself maintenance

CAMRY_U

6

Mainten

ance an

d ca

re

■

When replacing the key battery

Be careful not to lose the battery or any other small parts.

■

Use a CR2032 lithium battery

●

Batteries can be purchased at your Toyota dealer, local electrical appliance
shops or camera stores.

●

Replace only with the same or equivalent type recommended by the manu-
facturer.

●

Dispose of used batteries according to local laws.

■

If the key battery is depleted

The following symptoms may occur:

●

The  smart  key  system  (if  equipped)  and  wireless  remote  control  will  not
function properly.

●

The operational range will be reduced.

WARNING

■

Battery precautions

Observe the following precautions. Failure to do so may result in death or
serious injury.

●

Do not swallow the battery. Doing so may cause chemical burns.

●

Vehicles  without  a  smart  key  system: A  coin  battery  or  button  battery  is
used in the key. If a battery is swallowed, it may cause severe chemical
burns in as little as 2 hours and may result in death or serious injury.

●

Vehicles with a smart key system: A coin battery or button battery is used
in the electronic key. If a battery is swallowed, it may cause severe chemi-
cal burns in as little as 2 hours and may result in death or serious injury.

●

Keep away new and removed batteries from children.

●

Vehicles without a smart key system: If the cover cannot be firmly closed,
stop  using the key and stow the key in  the  place where  children  cannot
reach, and then contact your Toyota dealer.

●

Vehicles  with  a  smart  key  system:  If  the  cover  cannot  be  firmly  closed,
stop using the electronic key and stow the key in the place where children
cannot reach, and then contact your Toyota dealer.

●

If  you  accidentally  swallow  a  battery  or  put  a  battery  into  a  part  of  your
body, get emergency medical attention immediately.

508

6-3. Do-it-yourself maintenance

CAMRY_U

WARNING

■

To prevent battery explosion or leakage of flammable liquid or gas

●

Replace the battery with a new battery of the same type. If a wrong type of
battery is used, it may explode.

●

Do not expose batteries to extremely low pressure due to high altitude or
extremely high temperatures.

●

Do not burn, break or cut a battery.

NOTICE

■

For normal operation after replacing the battery

Observe the following precautions to prevent accidents:

●

Always work with dry hands.
Moisture may cause the battery to rust.

●

Do not touch or move any other component inside the remote control.

●

Do not bend either of the battery terminals.

■

When  removing  the  battery  cover  (vehicles  without  a  smart  key  sys-
tem)

Do not forcibly remove the battery cover, otherwise it may be damaged.
If the battery cover is difficult to remove, lift the edge to remove it.

509

6-3. Do-it-yourself maintenance

CAMRY_U

6

Mainten

ance an

d ca

re

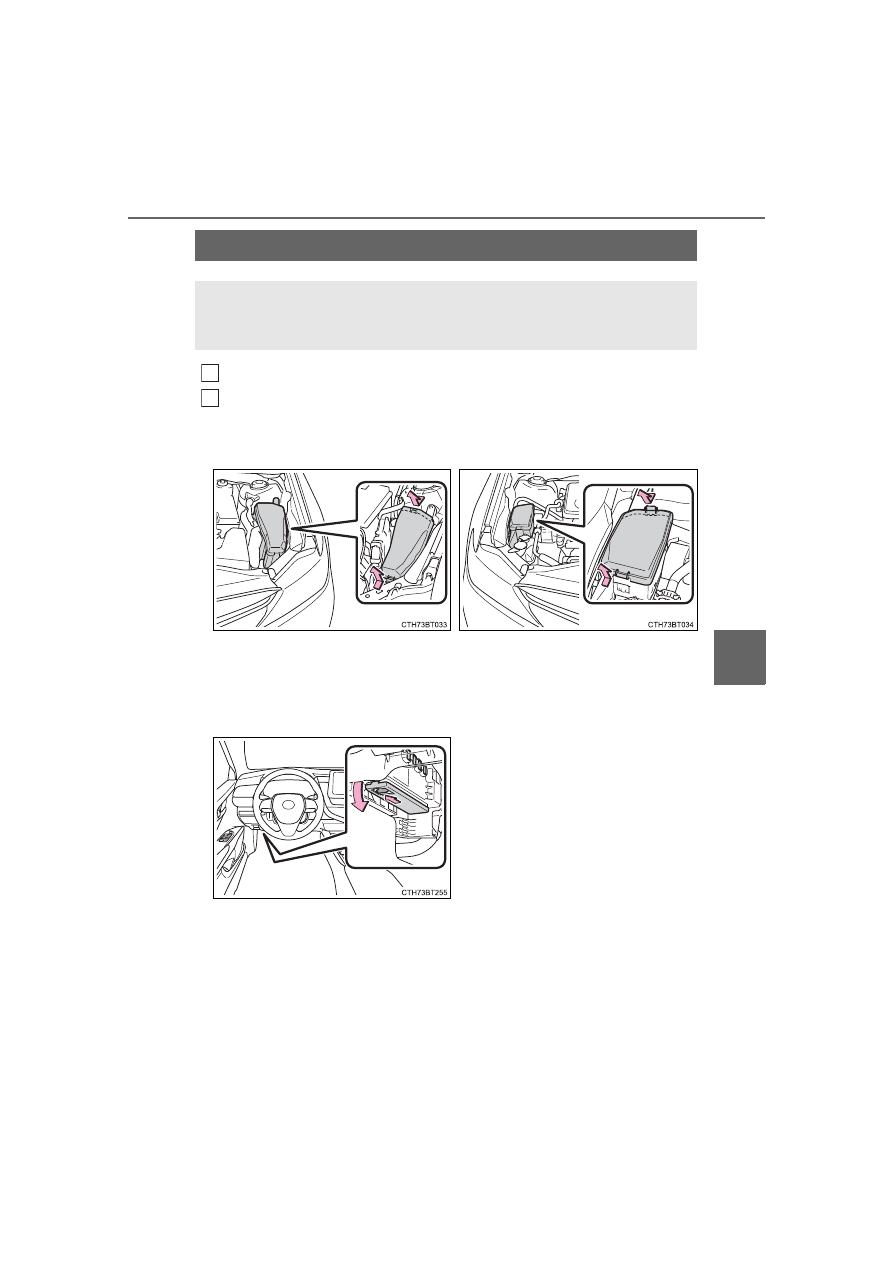

Turn the engine switch off.
Open the fuse box cover.

Checking and replacing fuses

If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.

1

2



Engine compartment (type A)



Engine  compartment  (type  B)
(if equipped)

Push the tabs in and lift the lid off.

Push  the  tabs  in  and  lift  the  lid
off.



Under  the  driver’s  side  instru-
ment panel

Remove the lid.

Make  sure  to  push  the  claw  when
removing/installing the lid.

510

6-3. Do-it-yourself maintenance

CAMRY_U

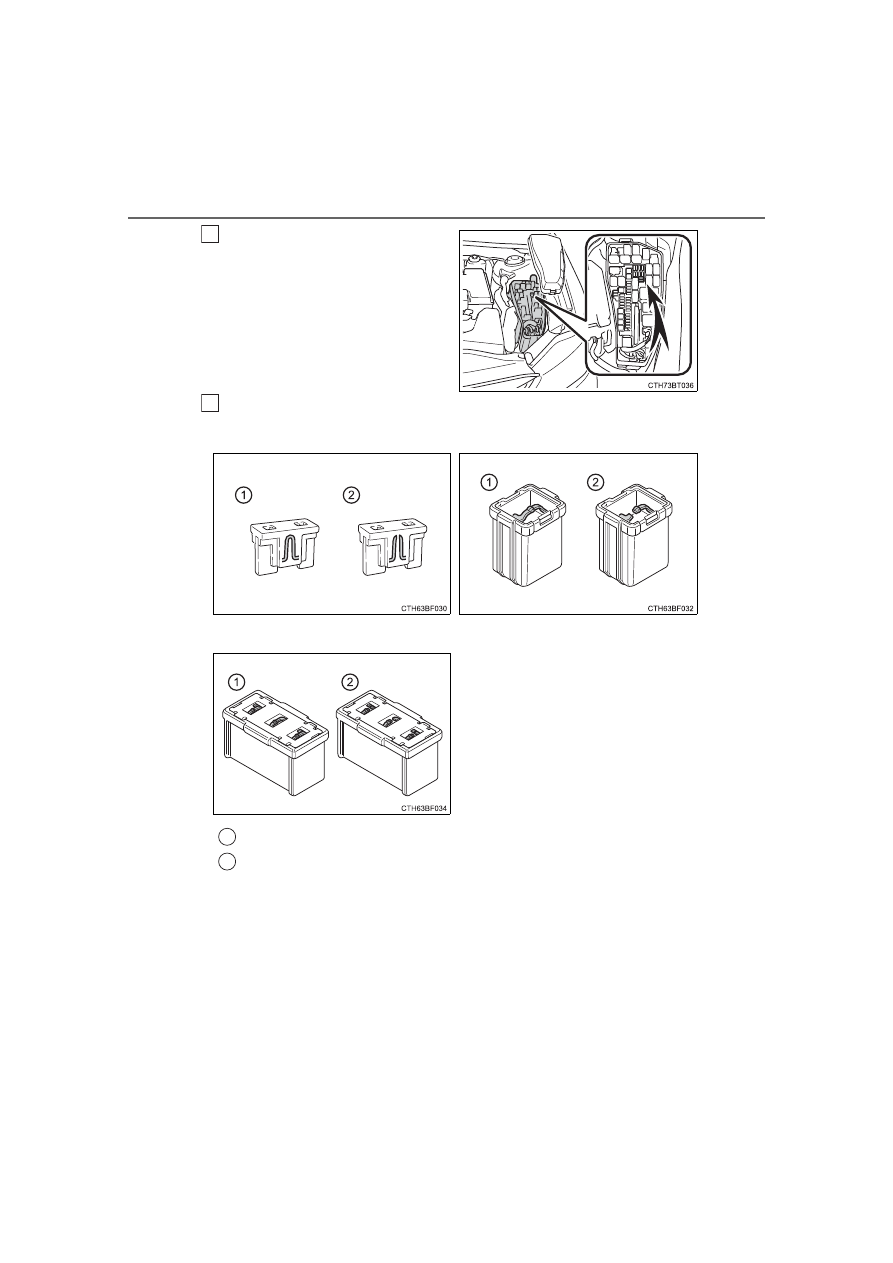

Remove  the  fuse  with  the  pull-
out tool.

Only type A fuses can be removed
using the pullout tool.

Check if the fuse is blown.

Normal fuse
Blown fuse

Replace the blown fuse with a new fuse of an appropriate amperage rat-
ing. The amperage rating can be found on the fuse box lid.

3

4



Type A



Type B



Type C

1

2

511

6-3. Do-it-yourself maintenance

CAMRY_U

6

Mainten

ance an

d ca

re

■

After a fuse is replaced

●

If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. (



P. 512)

●

If the replaced fuse blows again, have the vehicle inspected by your Toyota
dealer.

■

If there is an overload in a circuit

The fuses are designed to blow, protecting the wiring harness from damage.

WARNING

■

To prevent system breakdowns and vehicle fire

Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.

●

Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.

●

Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.

●

Do not modify the fuses or fuse boxes.

NOTICE

■

Before replacing fuses

Have  the  cause  of  electrical  overload  determined  and  repaired  by  your
Toyota dealer as soon as possible.

512

6-3. Do-it-yourself maintenance

CAMRY_U

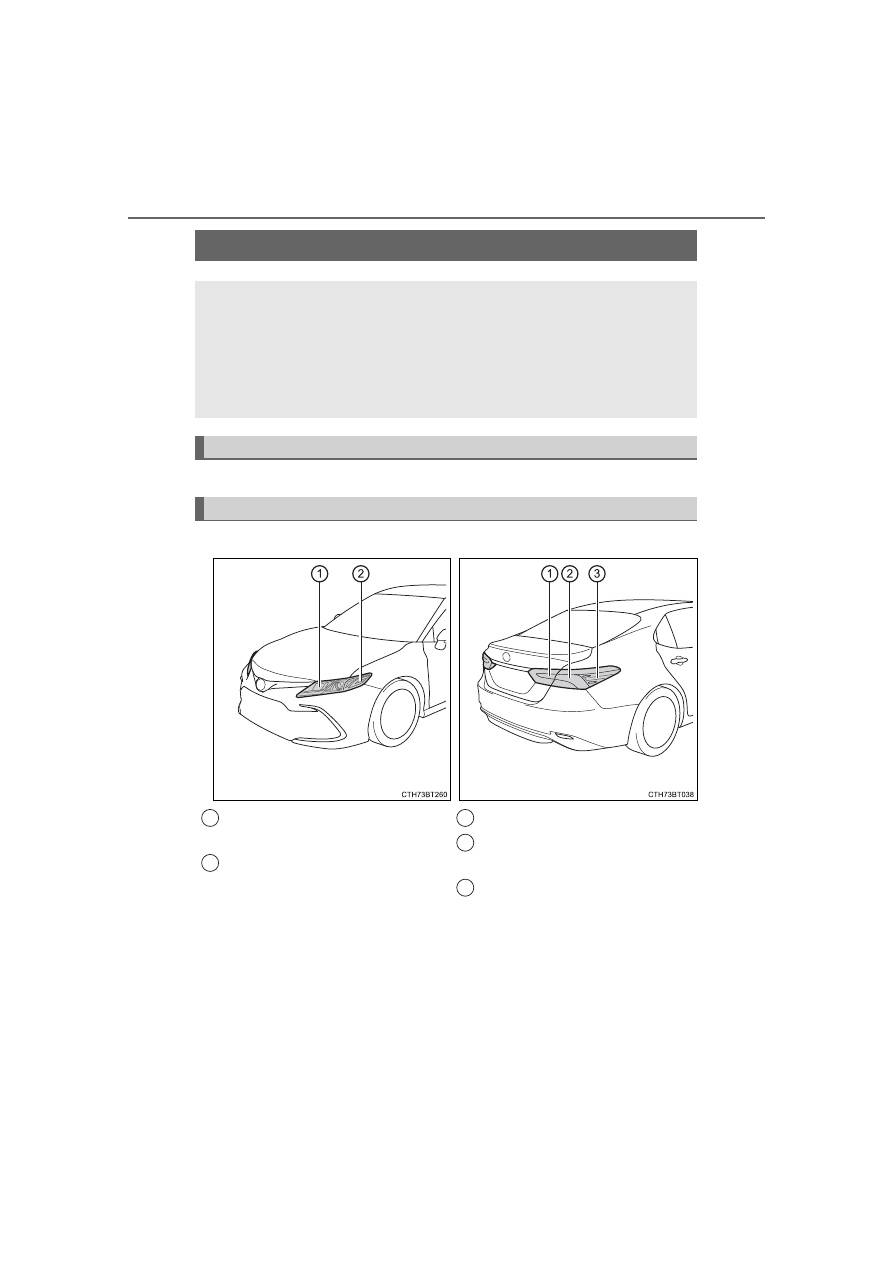

Check the wattage of the light bulb to be replaced. (



P. 599)

Light bulbs

You may replace the following bulbs yourself. The difficulty level
of replacement varies depending on the bulb. If necessary bulb
replacement  seems  difficult  to  perform,  contact  your  Toyota
dealer.
For more information about replacing other light bulbs, contact
your Toyota dealer.

Preparing for light bulb replacement

Bulb locations



Front



Rear

Front  turn  signal/parking  lights
(bulb type)
Front  side  marker  lights  (bulb
type)

Back-up lights (bulb type)
Rear  turn  signal  lights  (bulb
type)
Rear  side  marker  lights  (bulb
type)

1

2

1

2

3

513

6-3. Do-it-yourself maintenance

CAMRY_U

6

Mainten

ance an

d ca

re

■

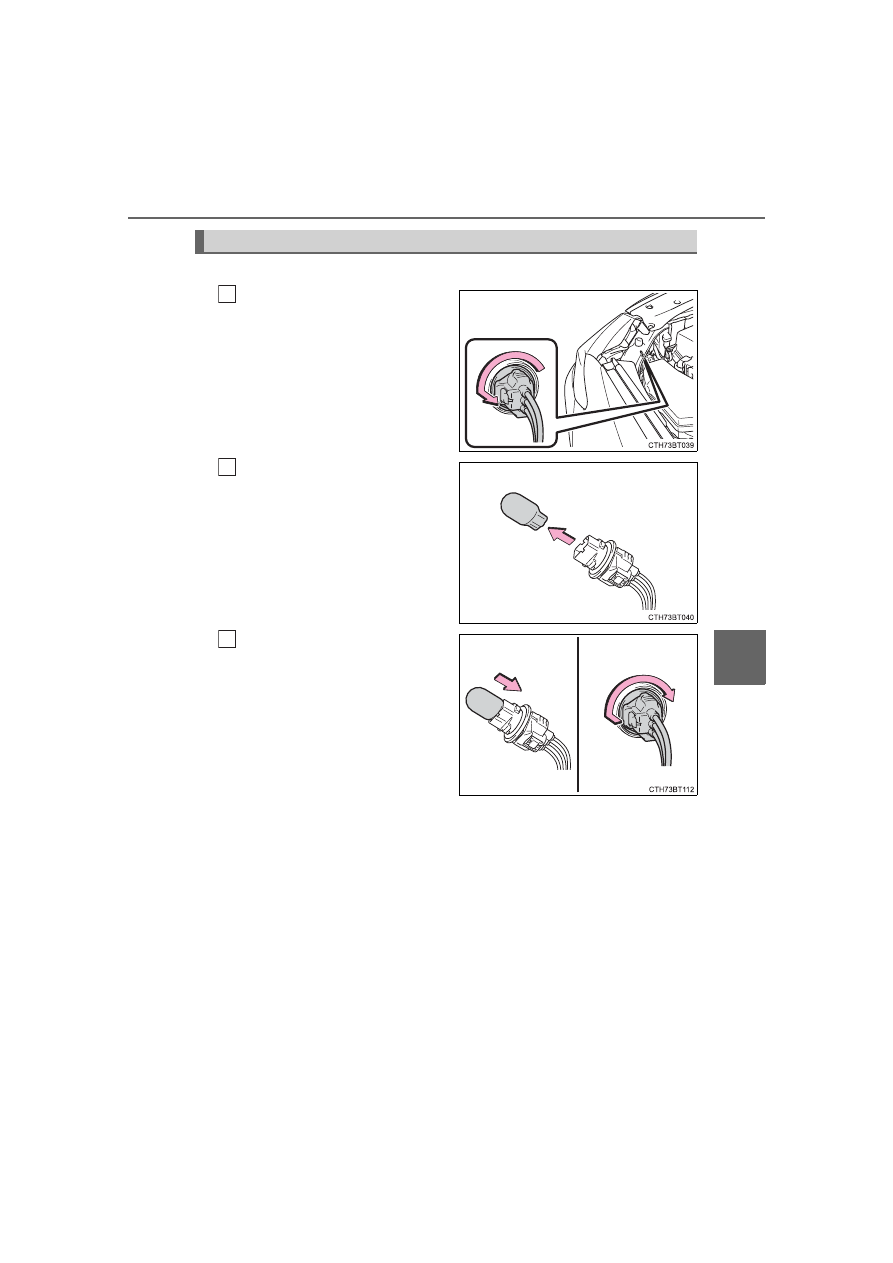

Front turn signal/parking lights (bulb type)

Turn  the  bulb  base  counter-
clockwise.

Remove the light bulb.

Install  a  new  light  bulb  and
then  install  the  bulb  base  to
the  light  unit  by  inserting  it
and turning it clockwise.

Replacing light bulbs

1

2

3

514

6-3. Do-it-yourself maintenance

CAMRY_U

■

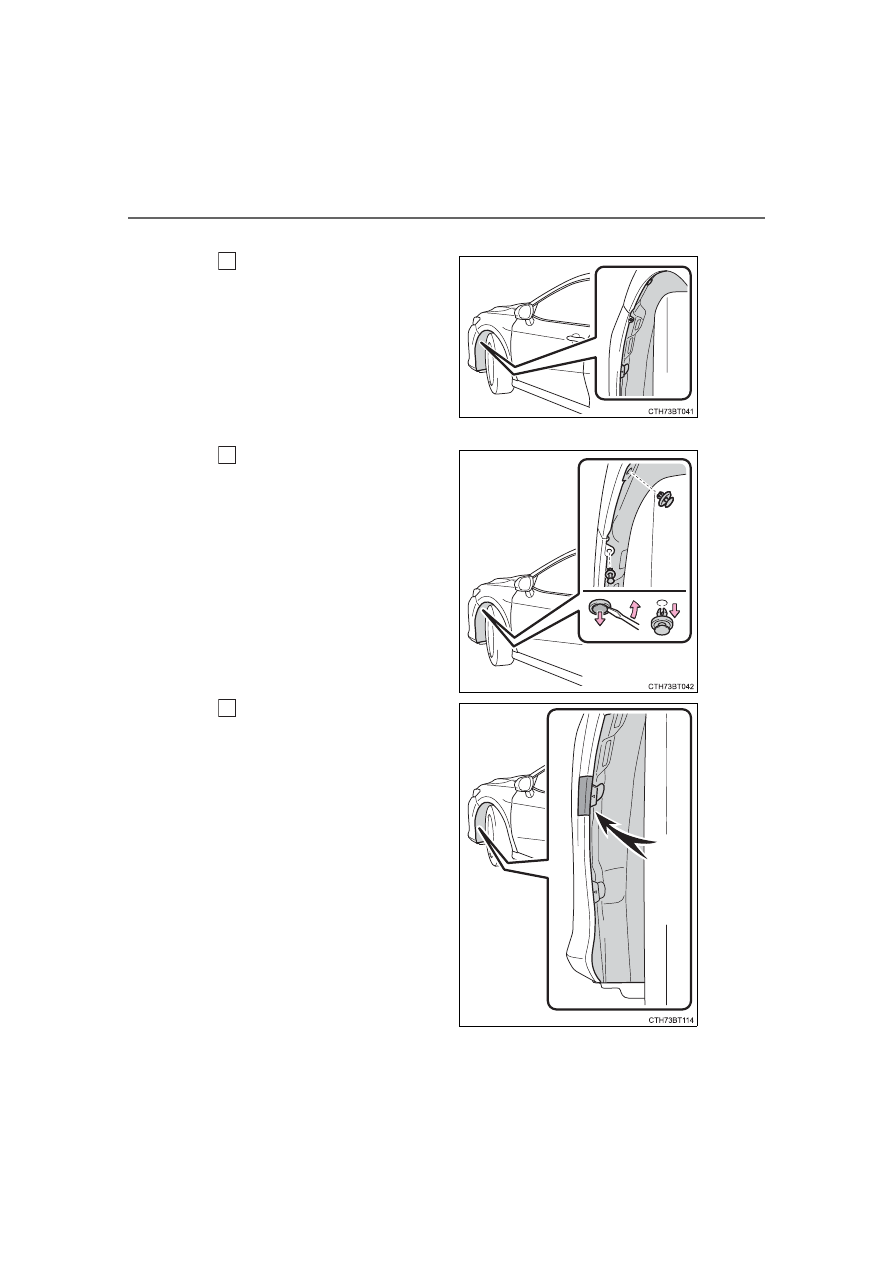

Front side marker lights (bulb type)

To  ensure  enough  space  to
perform work, turn the steer-
ing  wheel  to  move  the  front
wheel  away  from  the  light
bulb to be replaced.

Turn  the  steering  wheel  to  the
left when replacing the right side
light  bulb,  and  turn  the  steering
wheel  to  the  right  when  replac-
ing the left side light bulb.

Remove  the  fender  liner
clips.

To  protect  the  front  bumper
from  being  damaged,  apply
protective  tape  around  the
clip  as  shown  in  the  illustra-
tion.

Use  masking  tape,  etc.  Do  not
use  duct  tape,  as  it  may  leave
residue  or  damage  the  paint
when removed.

1

2

3

515

6-3. Do-it-yourself maintenance

CAMRY_U

6

Mainten

ance an

d ca

re

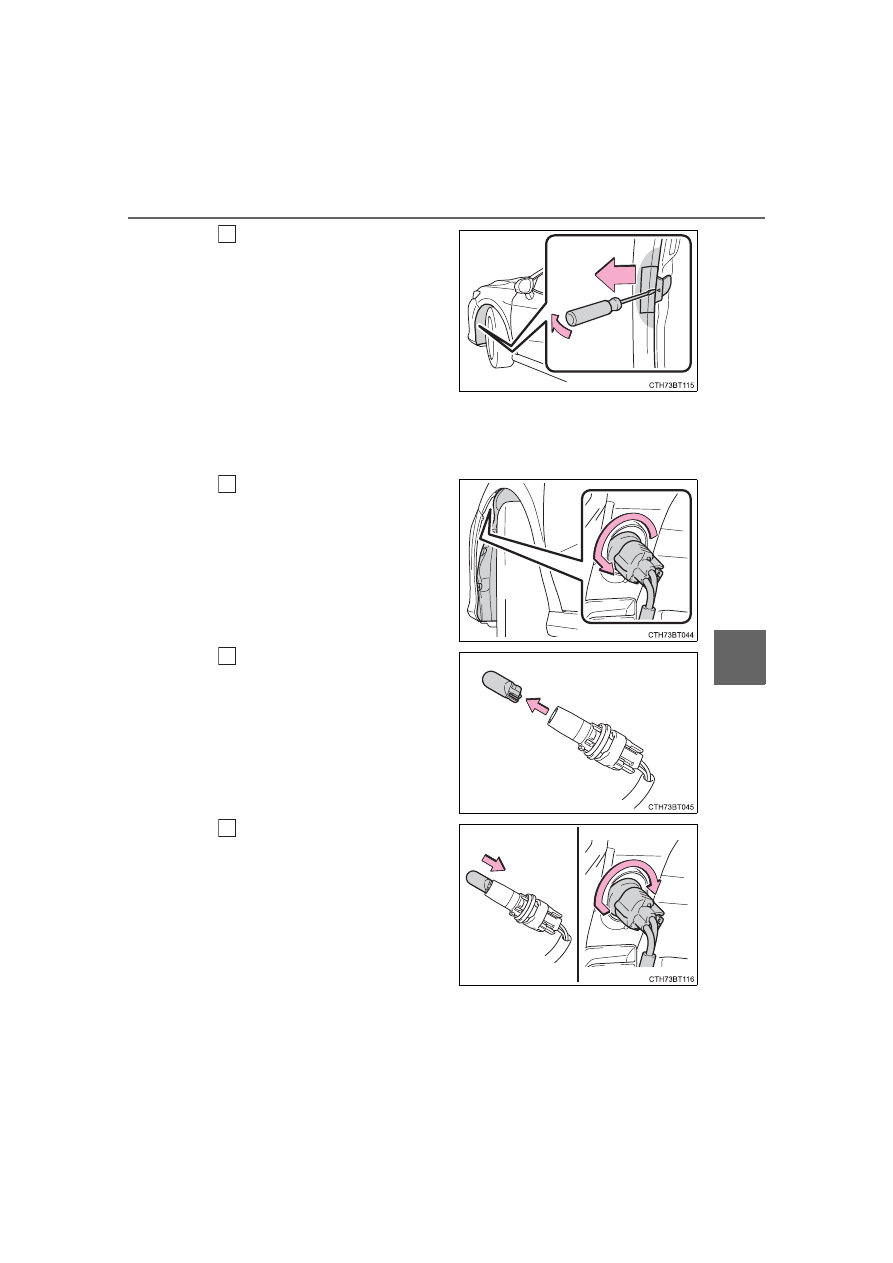

Insert a small flathead screw-
driver  between  the  front
bumper  and  fender  liner  at
the  position  marked  with  a
“



”  and  then  separate  the

front bumper from the fender
liner.

To  separate  the  front  bumper
from the fender liner, pry up the
fender  liner  while  pulling  the
front bumper outward as shown
in the illustration.

Pull back the fender liner and
turn  the  bulb  base  counter-
clockwise.

Remove the light bulb.

Install  a  new  light  bulb  and
then  install  the  bulb  base  to
the  light  unit  by  inserting  it
and turning it clockwise.

4

5

6

7

516

6-3. Do-it-yourself maintenance

CAMRY_U

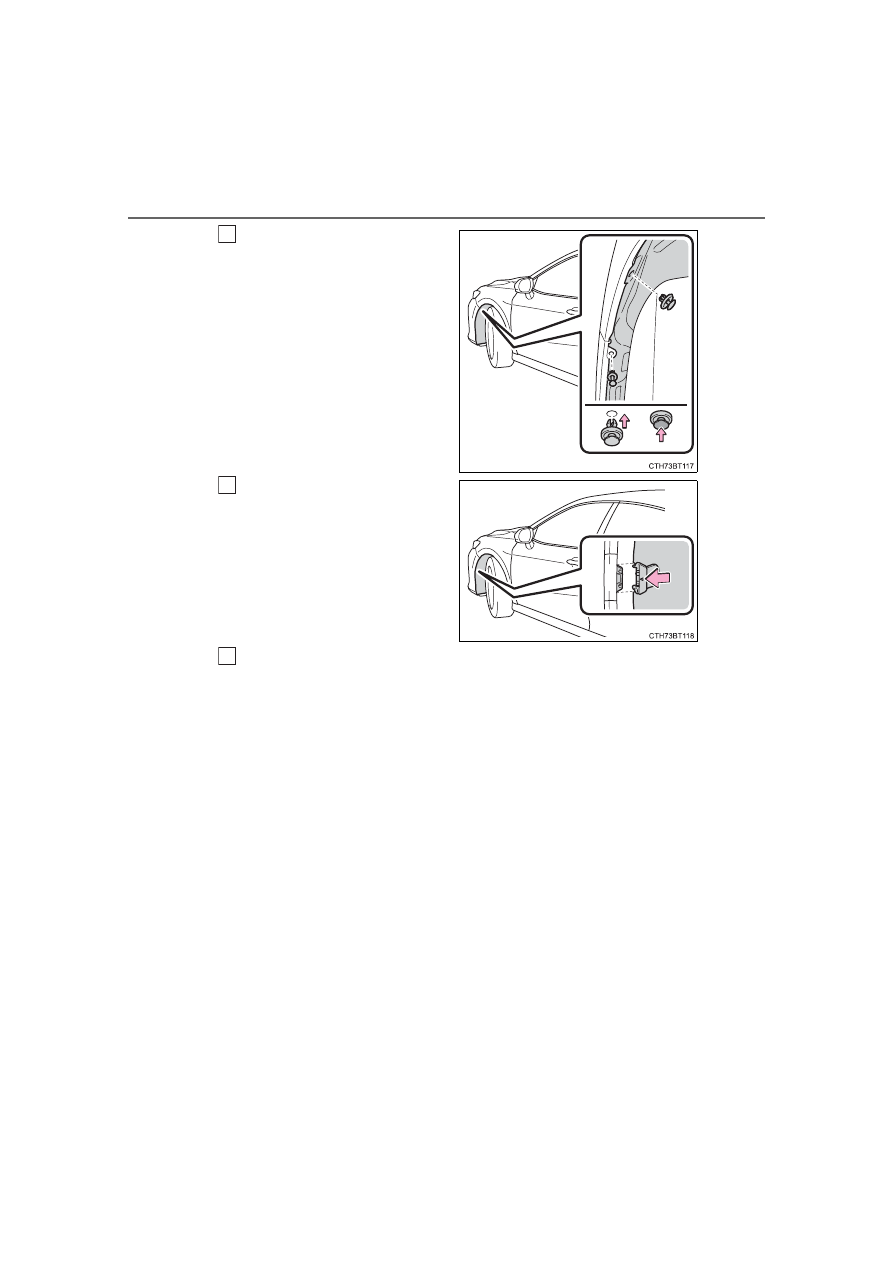

Return  the  fender  liner  to  its
original  position,  and  install
the clips.

Make  sure  that  the  fender  liner
is  correctly  positioned  on  the
inner side of the front bumper.

To  Install  the  fender  liner  to
the front bumper, engage the
clip to the front bumper.

Remove the protective tape.

8

9

10

517

6-3. Do-it-yourself maintenance

CAMRY_U

6

Mainten

ance an

d ca

re

■

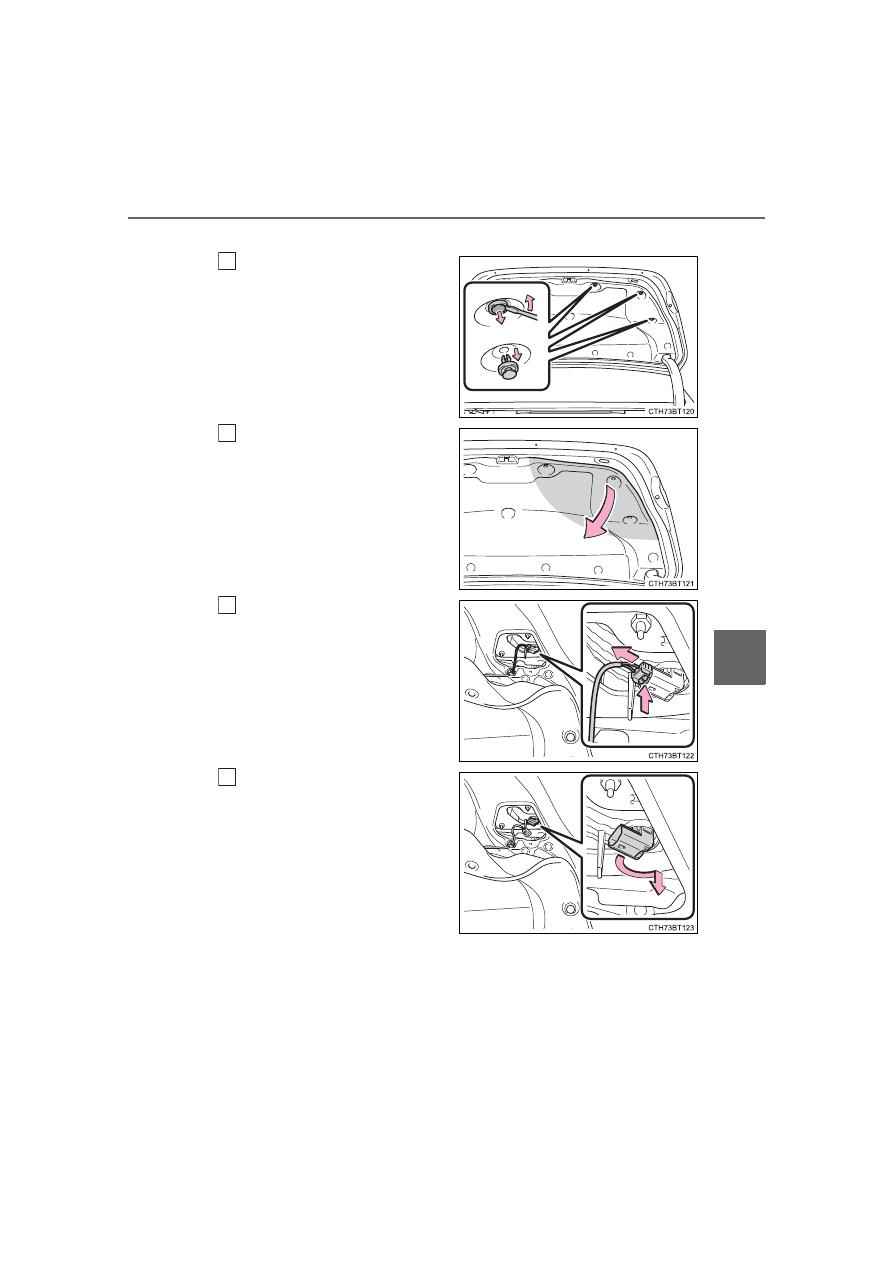

Back-up lights (bulb type)

Open  the  trunk  lid  and
remove the clips.

Partly  remove  the  trunk  lid
cover.

Disconnect  the  connector
while  depressing  the  lock
release.  (When  replacing
right side bulb only.)

Turn  the  bulb  base  counter-
clockwise.

1

2

3

4

518

6-3. Do-it-yourself maintenance

CAMRY_U

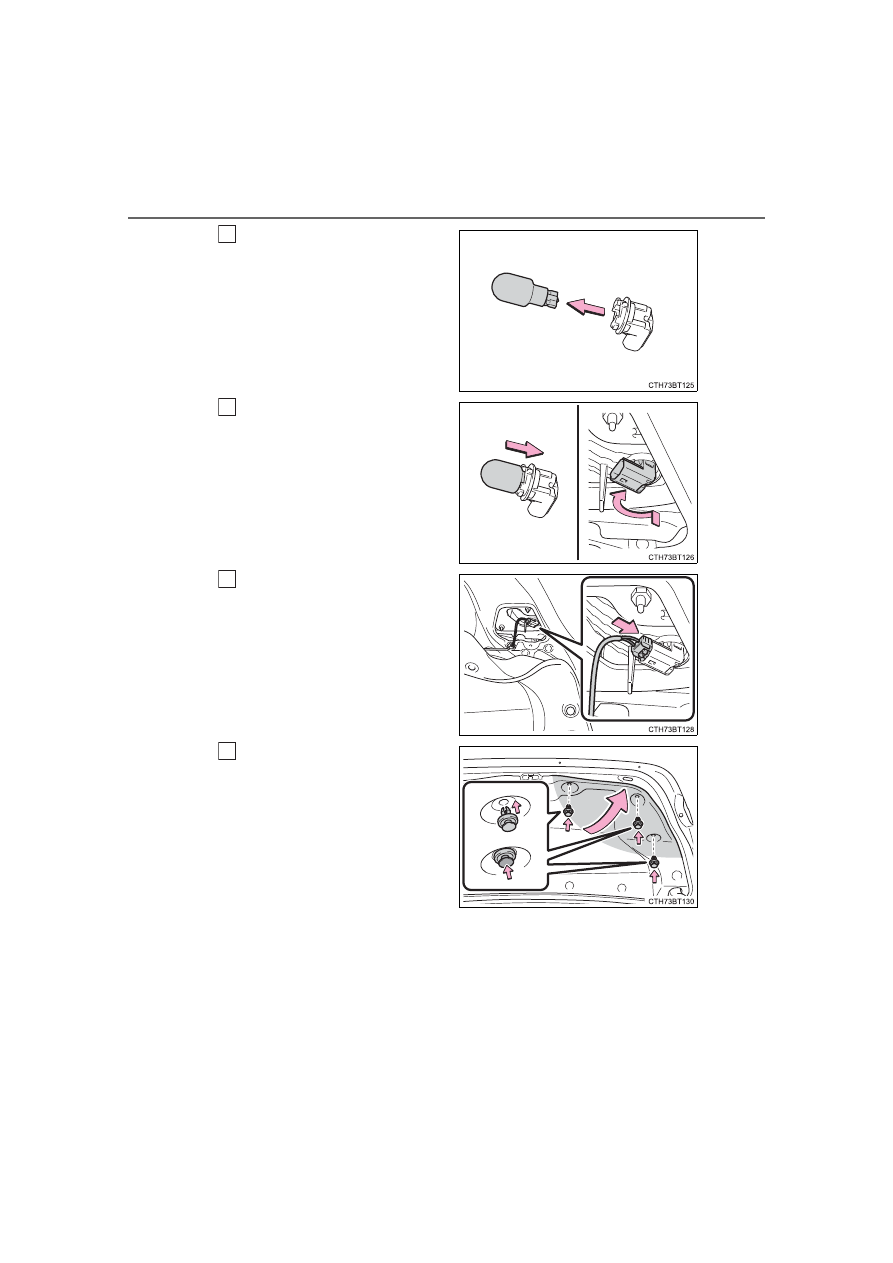

Remove the light bulb.

Install  a  new  light  bulb  and
then  install  the  bulb  base  to
the  light  unit  by  inserting  it
and turning it clockwise.

Connect

the

connector.

(When  replacing  right  side
bulb only.)

Reinstall  the  trunk  lid  cover
with the clips.

5

6

7

8

519

6-3. Do-it-yourself maintenance

CAMRY_U

6

Mainten

ance an

d ca

re

■

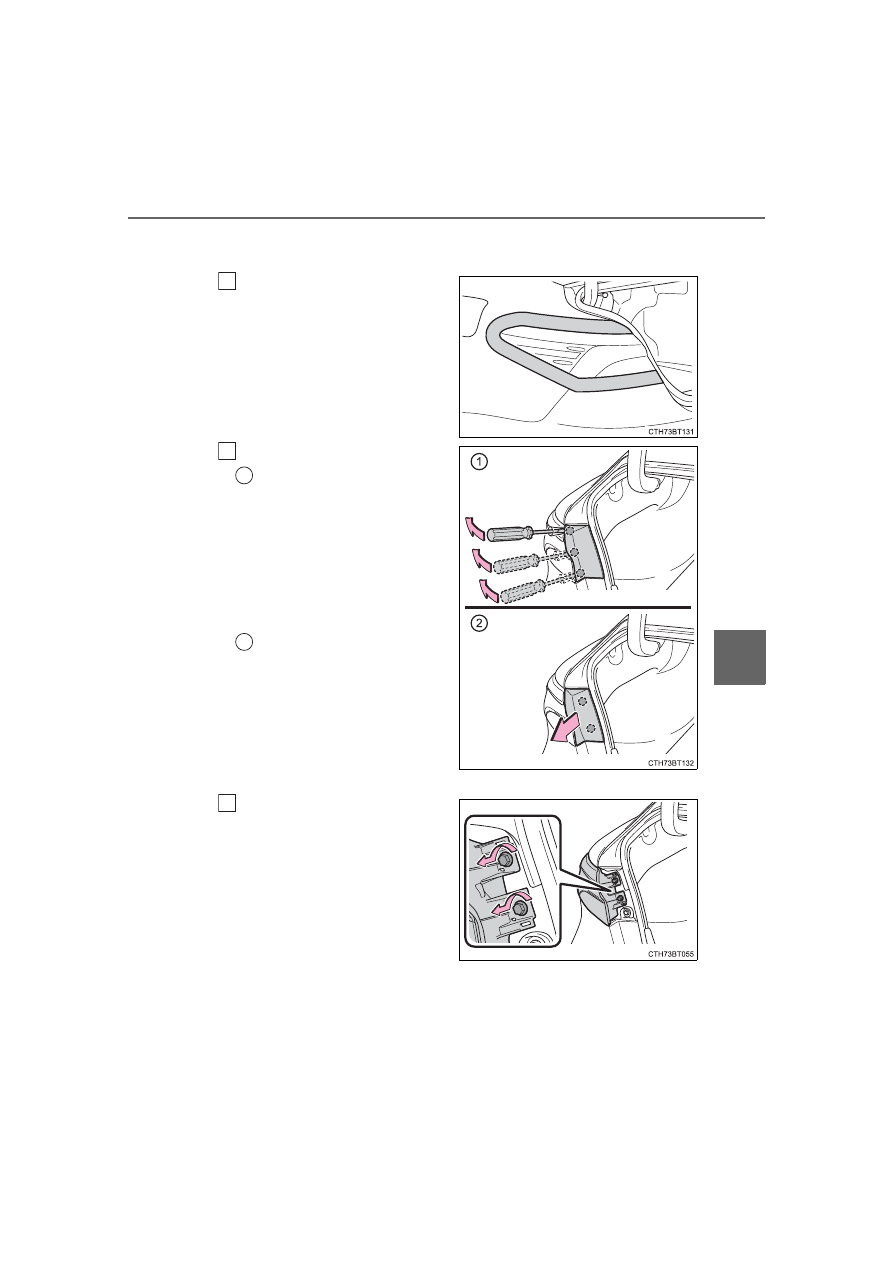

Rear turn signal lights (bulb type) and rear side marker lights
(bulb type)

Open  the  trunk  and  apply
protective tape to the vehicle
body around the light unit.

Use  masking  tape,  etc.  Do  not
use  duct  tape,  as  it  may  leave
residue  or  damage  the  paint
when removed.

Remove the cover.

Insert  a  flathead  screw-
driver  between  the  cover
and  the  light  unit  and  pry
up  the  cover  in  several
positions  as  shown  in  the
illustration  to  disengage
the  claws  (indicated  by  a
dotted line).
Pull  the  cover  toward  the
rear  of  the  vehicle  to  dis-
engage  the  claws  (indi-
cated by a dotted line) and
remove the cover.

To  prevent  scratching  the  vehi-
cle,  wrap  the  tip  of  the  flathead
screwdriver with a cloth, etc.

Remove the 2 bolts.

1

2

1

2

3

520

6-3. Do-it-yourself maintenance

CAMRY_U

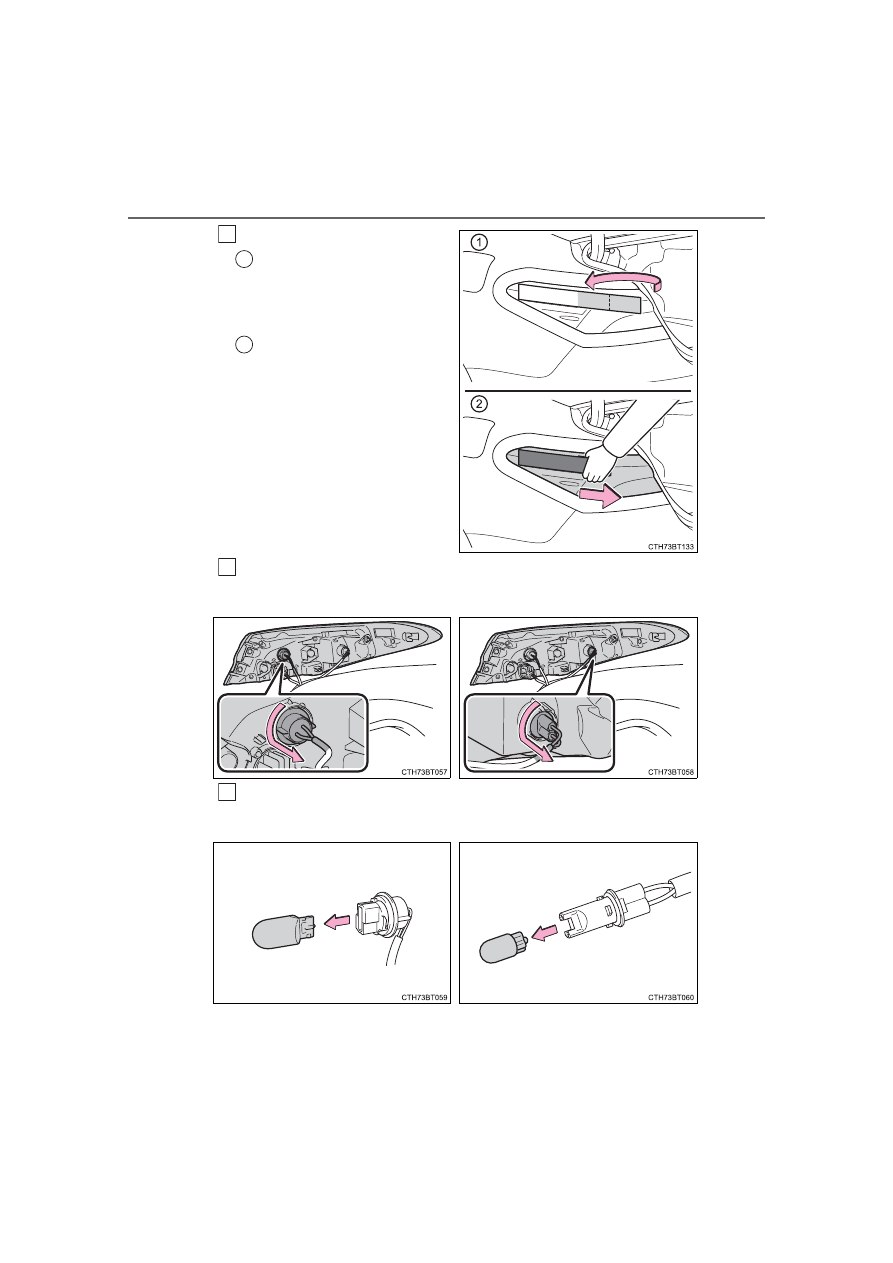

Remove the light unit.

Attach  a  long  piece  of
packing  tape  to  the  light
unit and fold the excess in
half.
Hold  the  folded  portion
and  pull  it  toward  the  rear
of  the  vehicle  to  remove
the light unit.

Turn the bulb base counterclockwise.

Remove the light bulb.

4

1

2

5



Rear turn signal lights



Rear side marker lights

6



Rear turn signal lights



Rear side marker lights

521

6-3. Do-it-yourself maintenance

CAMRY_U

6

Mainten

ance an

d ca

re

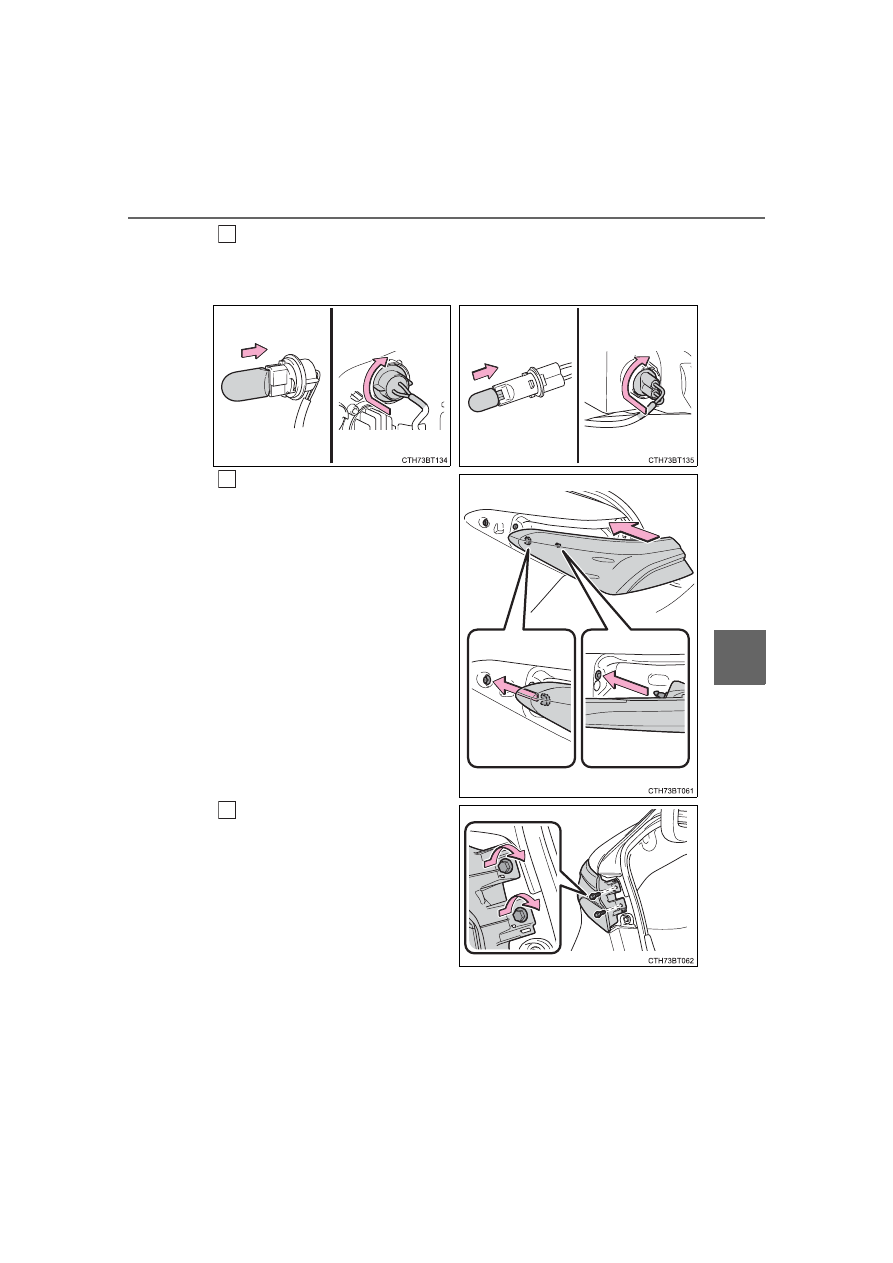

Install a new light bulb and then install the bulb base to the light
unit by inserting it and turning it clockwise.

Install the light unit.

Align the tabs and push the light
unit toward the front of the vehi-
cle to install it.

Install the 2 bolts.

7



Rear turn signal lights



Rear side marker lights

8

9

522

6-3. Do-it-yourself maintenance

CAMRY_U

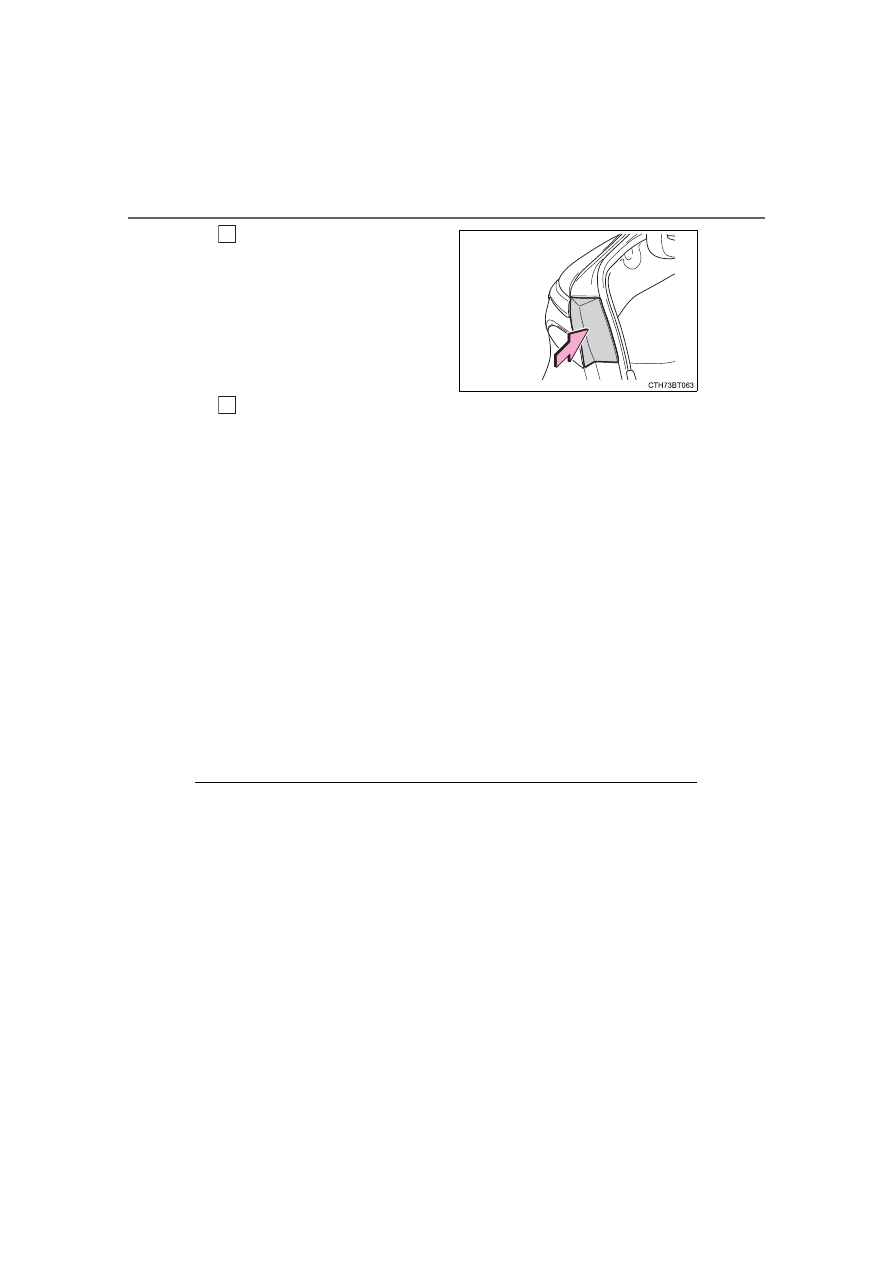

Install the cover.

Remove the protective tape.

■

Replacing the following bulbs

If any of the lights listed below has burnt out, have it replaced by
your Toyota dealer.

●

Headlights

●

Daytime running lights

●

Parking lights (LED type)

●

Front turn signal lights (LED type)

●

Front side marker lights (LED type)

●

Side turn signal lights (if equipped)

●

Tail lights

●

Rear side marker lights (LED type)

●

Stoplights

●

Rear turn signal lights (LED type)

●

Back-up lights (LED type)

●

High mounted stoplight

●

License plate lights

■

LED light bulbs

The lights other than the front turn signal/parking lights (bulb type), front side
marker  lights  (bulb  type),  back-up  lights  (bulb  type),  rear  turn  signal  lights
(bulb  type)  and  rear  side  marker  lights  (bulb  type)  consist  of  a  number  of
LEDs. If any of the LEDs burn out, take your vehicle to your Toyota dealer to
have the light replaced.

■

Condensation build-up on the inside of the lens

Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction.
Contact your Toyota dealer for more information in the following situations:

●

Large drops of water have built up on the inside of the lens.

●

Water has built up inside the headlight.

10

11

523

6-3. Do-it-yourself maintenance

CAMRY_U

6

Mainten

ance an

d ca

re

WARNING

■

Replacing light bulbs

●

Turn  off  the  lights.  Do  not  attempt  to  replace  the  bulb  immediately  after
turning off the lights.
The bulbs become very hot and may cause burns.

●

Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.

●

Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.

■

To prevent damage or fire

Make sure bulbs are fully seated and locked.

524

6-3. Do-it-yourself maintenance

CAMRY_U

525

7

When trouble arises

CAMRY_U

7-1.  Essential information

Emergency flashers .......... 526
If your vehicle has to be

stopped in an
emergency ...................... 527

If the vehicle is trapped in

rising water ..................... 529

7-2.  Steps to take in an

emergency

If your vehicle needs to be

towed .............................. 530

If you think something is

wrong .............................. 536

Fuel pump shut off

system ............................ 537

If a warning light turns

on or a warning buzzer
sounds ............................ 538

If a warning message is

displayed......................... 548

If you have a flat tire.......... 553
If the engine will not

start................................. 567

If the electronic key does

not operate properly........ 569

If the vehicle battery is

discharged ...................... 572

If your vehicle

overheats ........................ 577

If the vehicle becomes

stuck ............................... 580
