1-3. Emergency assistance

CAMRY_U

■

Certification for Safety Connect

FCC ID: BEJTL19BNN
IC: 2703H-TL19BNN

79

1

Fo
r safety and securi

ty

CAMRY_U

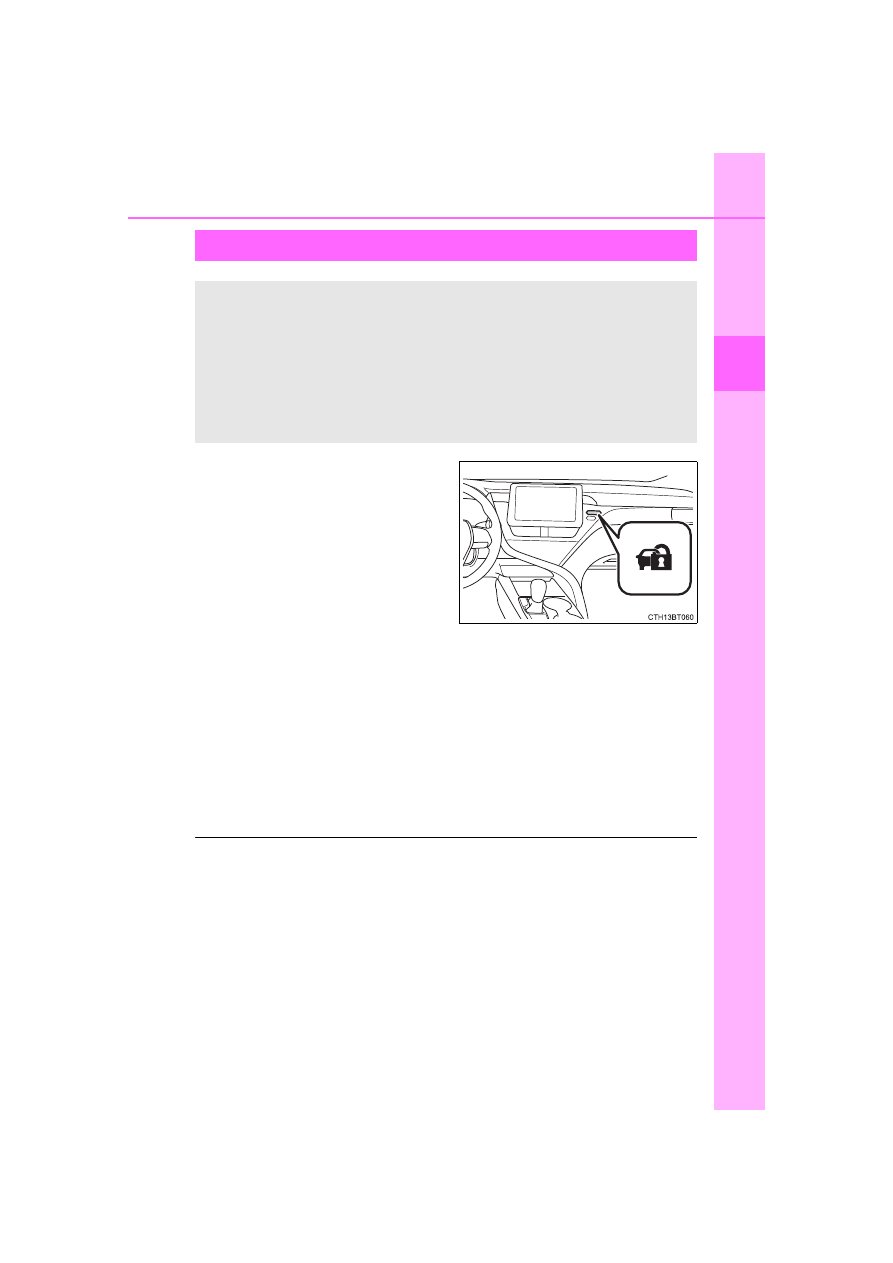

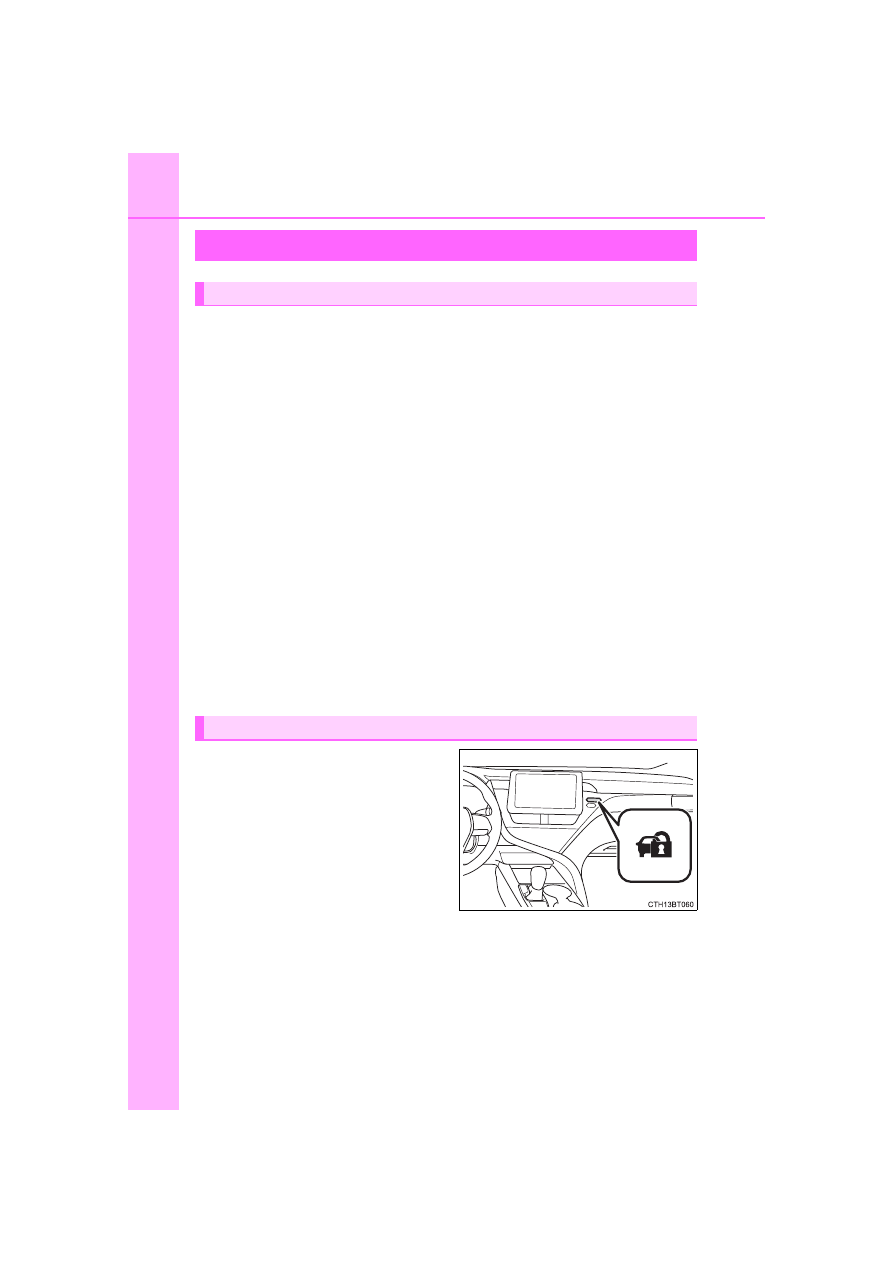

1-4. Theft deterrent system

Vehicles without a smart key sys-
tem:
The  indicator  light  flashes  after
the  key  has  been  removed  from
the  engine  switch  to  indicate  that
the system is operating.
The  indicator  light  stops  flashing
after the registered key has been
inserted into the engine switch to
indicate that the system has been
canceled.
Vehicles with a smart key system:
The indicator light flashes after the engine switch has been turned off
to indicate that the system is operating.
The  indicator  light  stops  flashing  after  the  engine  switch  has  been
turned  to ACCESSORY  or  IGNITION  ON  mode  to  indicate  that  the
system has been canceled.

■

System maintenance

The vehicle has a maintenance-free type engine immobilizer system.

■

Conditions that may cause the system to malfunction

●

If the grip portion of the key is in contact with a metallic object

●

If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle

Engine immobilizer system

The vehicle’s keys have built-in transponder chips that prevent
the engine from starting if a key has not been previously regis-
tered in the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehi-
cle.
This system is designed to help prevent vehicle theft but does
not guarantee absolute security against all vehicle thefts.

80

1-4. Theft deterrent system

CAMRY_U

■

Certifications for the engine immobilizer system



For vehicles sold in the U.S.A.

81

1-4. Theft deterrent system

1

Fo
r safety and securi

ty

CAMRY_U



For vehicles sold in Canada

NOTICE

■

To ensure the system operates correctly

Do  not  modify  or  remove  the  system.  If  modified  or  removed,  the  proper
operation of the system cannot be guaranteed.

82

1-4. Theft deterrent system

CAMRY_U

The alarm uses light and sound to give an alert when an intrusion is
detected.
The  alarm  is  triggered  in  the  following  situations  when  the  alarm  is
set:



Vehicles without a smart key system

●

A locked door is unlocked or opened in any way other than using
the wireless remote control or key. (The doors will lock again auto-
matically.)

●

The  trunk  is  opened  in  any  way  other  than  using  the  wireless
remote control.

●

The hood is opened.



Vehicles with a smart key system

●

A locked door is unlocked or opened in any way other than using
the entry function, wireless remote control or mechanical key. (The
doors will lock again automatically.)

●

The trunk is opened in any way other than using the entry function
or wireless remote control.

●

The hood is opened.

Close  the  doors,  trunk  and  hood,
and lock all the doors. The system
will  be  set  automatically  after  30
seconds.

The  indicator  light  changes  from
being on to flashing when the sys-
tem is set.

Alarm

The alarm

Setting the alarm system

83

1-4. Theft deterrent system

1

Fo
r safety and securi

ty

CAMRY_U

Do one of the following to deactivate or stop the alarm:



Vehicles without a smart key system

●

Unlock the doors.

●

Open the trunk using the wireless remote control.

●

Turn the engine switch to the “ACC” or “ON” position, or start  the
engine. (The alarm will be deactivated or stopped after a few sec-
onds.)



Vehicles with a smart key system

●

Unlock the doors.

●

Open the trunk using the entry function or wireless remote control.

●

Turn the engine switch to ACCESSORY or IGNITION ON mode, or
start the engine. (The alarm will be deactivated or stopped after a
few seconds.)

■

System maintenance

The vehicle has a maintenance-free type alarm system.

■

Items to check before locking the vehicle

To prevent unexpected triggering of the alarm and vehicle theft, make sure of
the following:

●

Nobody is in the vehicle.

●

The windows and moon roof or panoramic moon roof are closed before the
alarm is set.

●

No valuables or other personal items are left in the vehicle.

Deactivating or stopping the alarm

84

1-4. Theft deterrent system

CAMRY_U

■

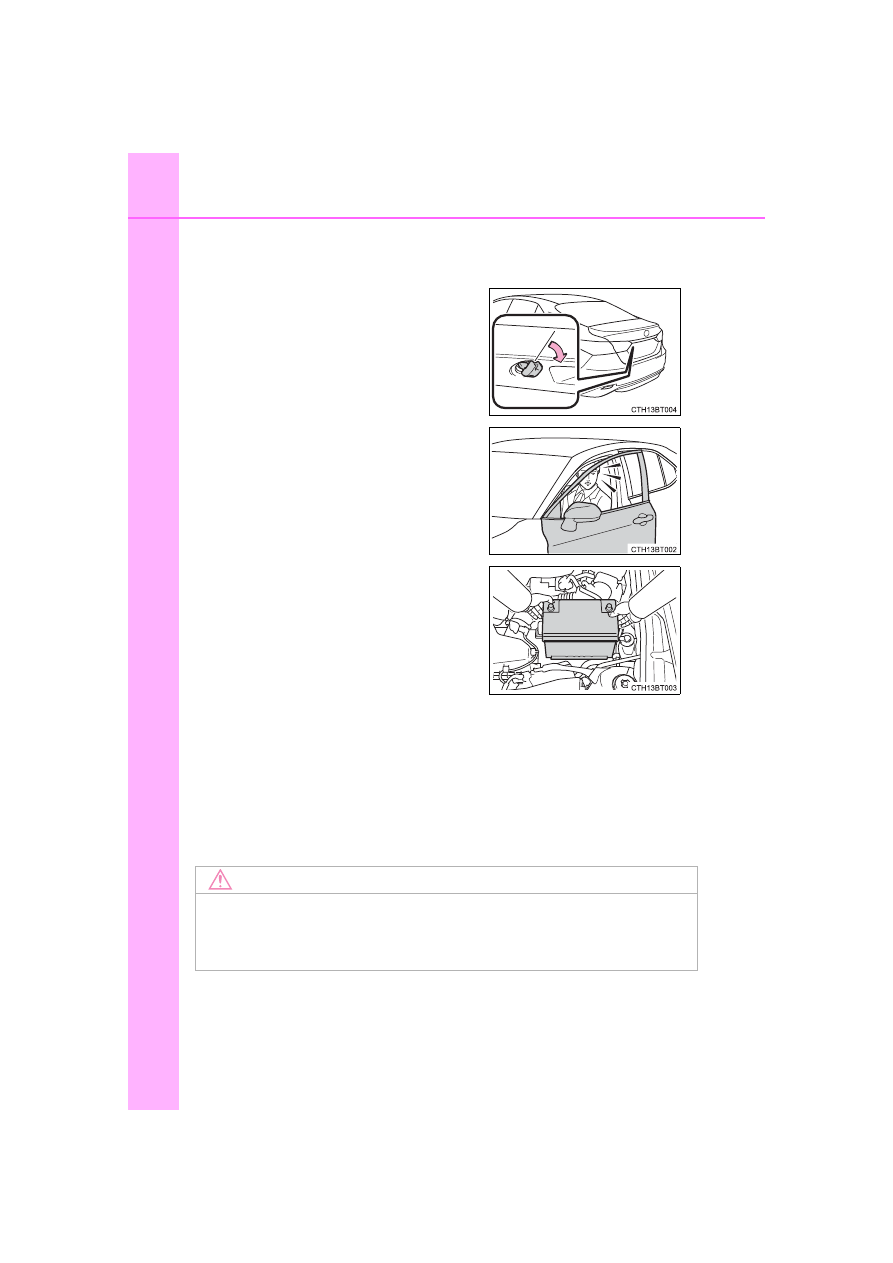

Triggering of the alarm

The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)

■

Alarm-operated door lock

In the following cases, depending on the situation, the door may automatically
lock to prevent improper entry into the vehicle:

●

When a person remaining in the vehicle unlocks the door and the alarm is
activated.

●

While the alarm is activated, a person remaining in the vehicle unlocks the
door.

●

When recharging or replacing the battery

●

Vehicles  without  a  smart  key  system:
The trunk is opened using the key.

●

Vehicles  with  a  smart  key  system:  The
trunk  is  opened  using  the  mechanical
key.

●

A person inside the vehicle opens a door
or the trunk or hood, or unlocks the vehi-
cle.

●

The  battery  is  recharged  or  replaced
when the vehicle is locked. (



P. 575)

NOTICE

■

To ensure the system operates correctly

Do  not  modify  or  remove  the  system.  If  modified  or  removed,  the  proper
operation of the system cannot be guaranteed.

85

Instrument cluster

2

CAMRY_U

2.

Instrument cluster

Warning lights and

indicators .......................... 86

Gauges and meters ............ 92
Multi-information display

(4.2-inch display) .............. 96

Multi-information display

(7-inch display) ............... 109

Head-up display ................ 126
Fuel consumption

information ...................... 132

86

CAMRY_U

2. Instrument cluster



4.2-inch display



7-inch display

The units used on the meters and some indicators may differ depending on
the target region.

Warning lights and indicators

The warning lights and indicators on the instrument cluster, cen-
ter panel and outside rear view mirrors inform the driver of the
status of the vehicle’s various systems.

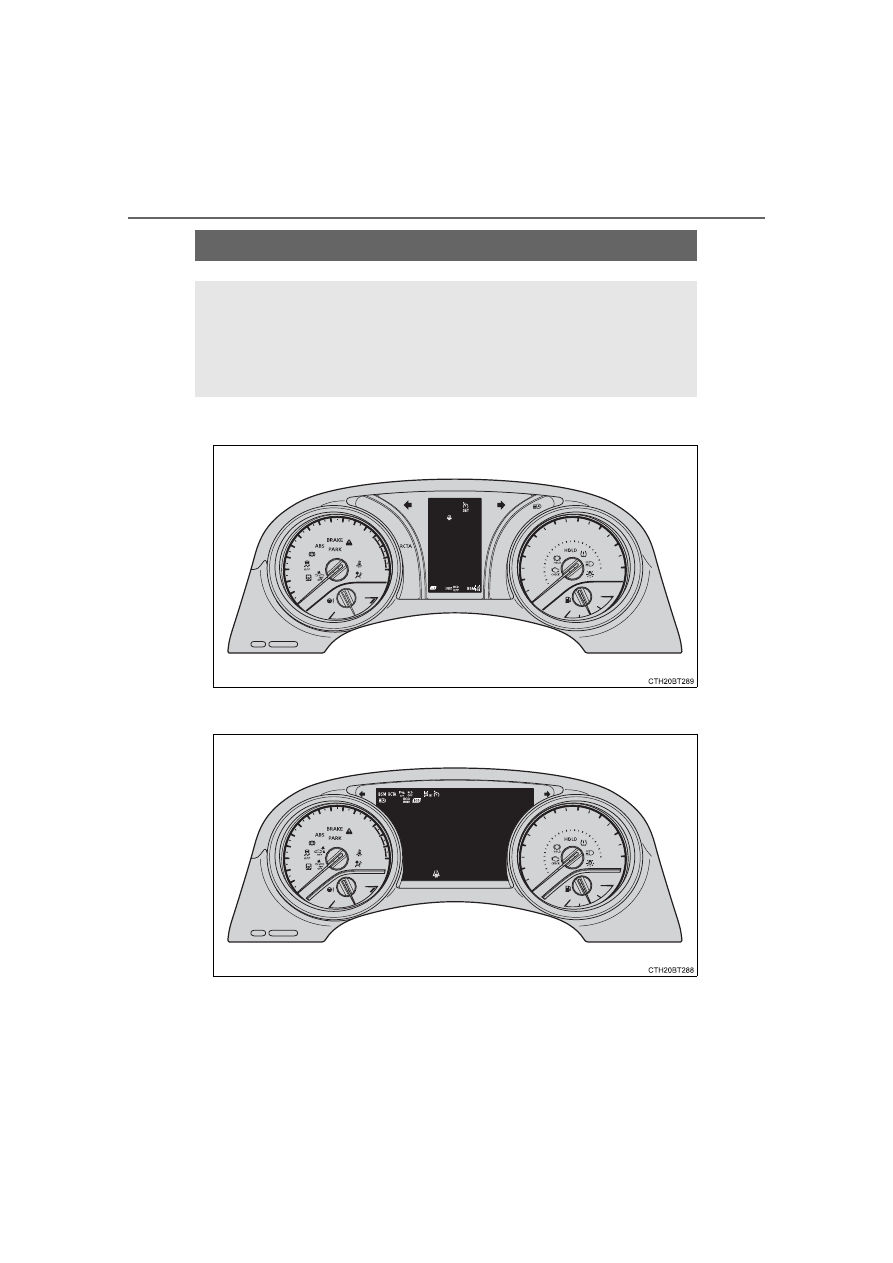

For  the  purpose  of  explanation,  the  following  illustrations  dis-
play all warning lights and indicators illuminated.

87

2. Instrument cluster

2

Instru

me
nt clu

ster

CAMRY_U

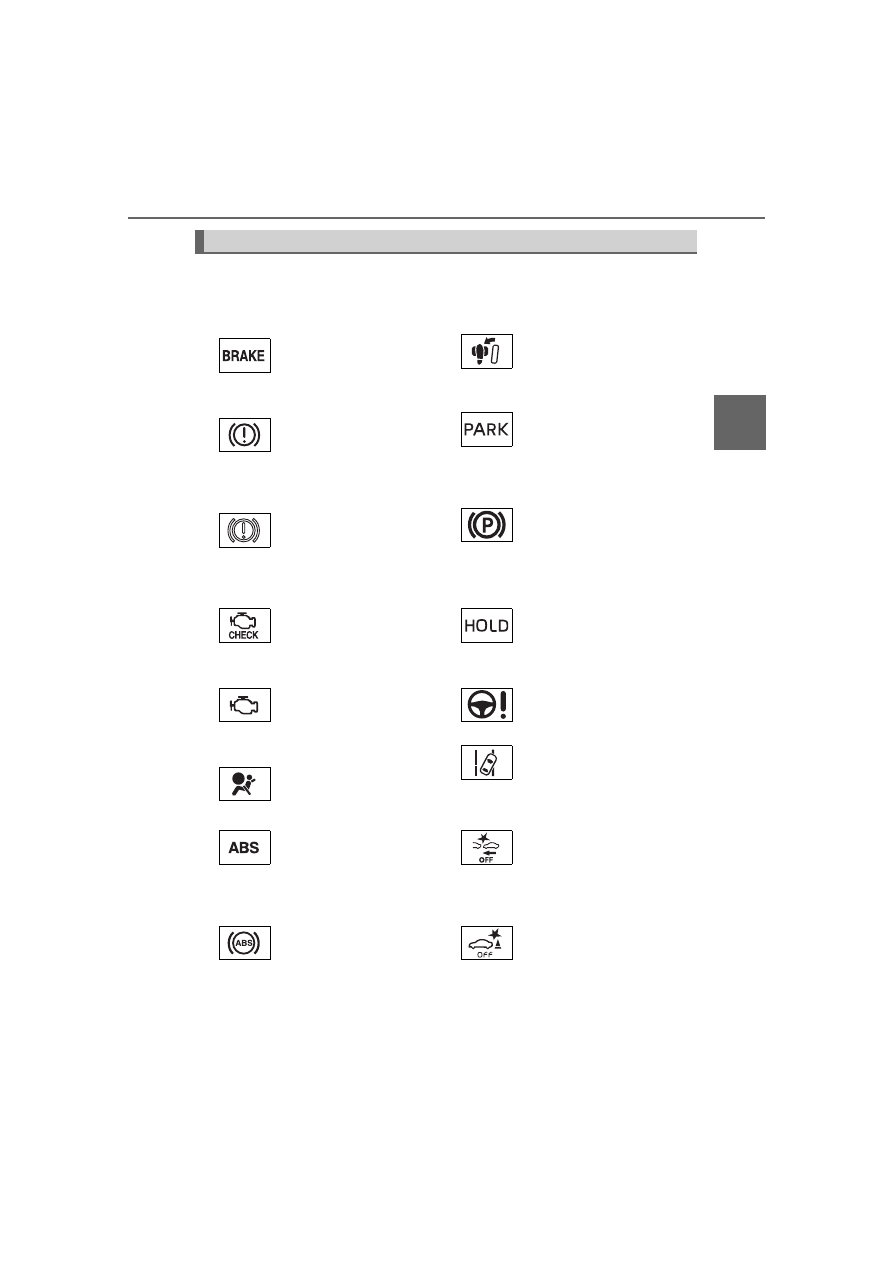

Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.

Warning lights

*

1

(U.S.A.)

Brake system warning
light (



P. 538)

Brake  Override  System/
Drive-Start Control/Park-
ing Support Brake warn-
ing light (



P. 539)

*

1

(Canada)

(Red)

Brake system warning
light (



P. 538)

(U.S.A.)

Parking brake indicator
(



P. 539)

*

1

(if equipped)

(Yellow)

Brake  system  warning
light (



P. 538)

(Canada)

Parking brake indicator
(



P. 539)

*

1

(U.S.A.)

Malfunction indicator
lamp (



P. 538)

*

1, 2

(if equipped)

Brake hold operated
indicator (



P. 539)

*

1

(Canada)

Malfunction indicator
lamp (



P. 538)

*

1

(Red/yellow)

Electric power steering
system warning light
(



P. 539)

*

1

SRS warning light
(



P. 538)

(Yellow)

LTA indicator (



P. 539)

*

1

(U.S.A.)

ABS warning light
(



P. 538)

*

1

(Flashes or
illuminates)

PCS warning light
(



P. 540)

*

1

(Canada)

ABS warning light
(



P. 538)

*

1, 2

(if equipped)

PKSB OFF indicator
(



P. 540)

88

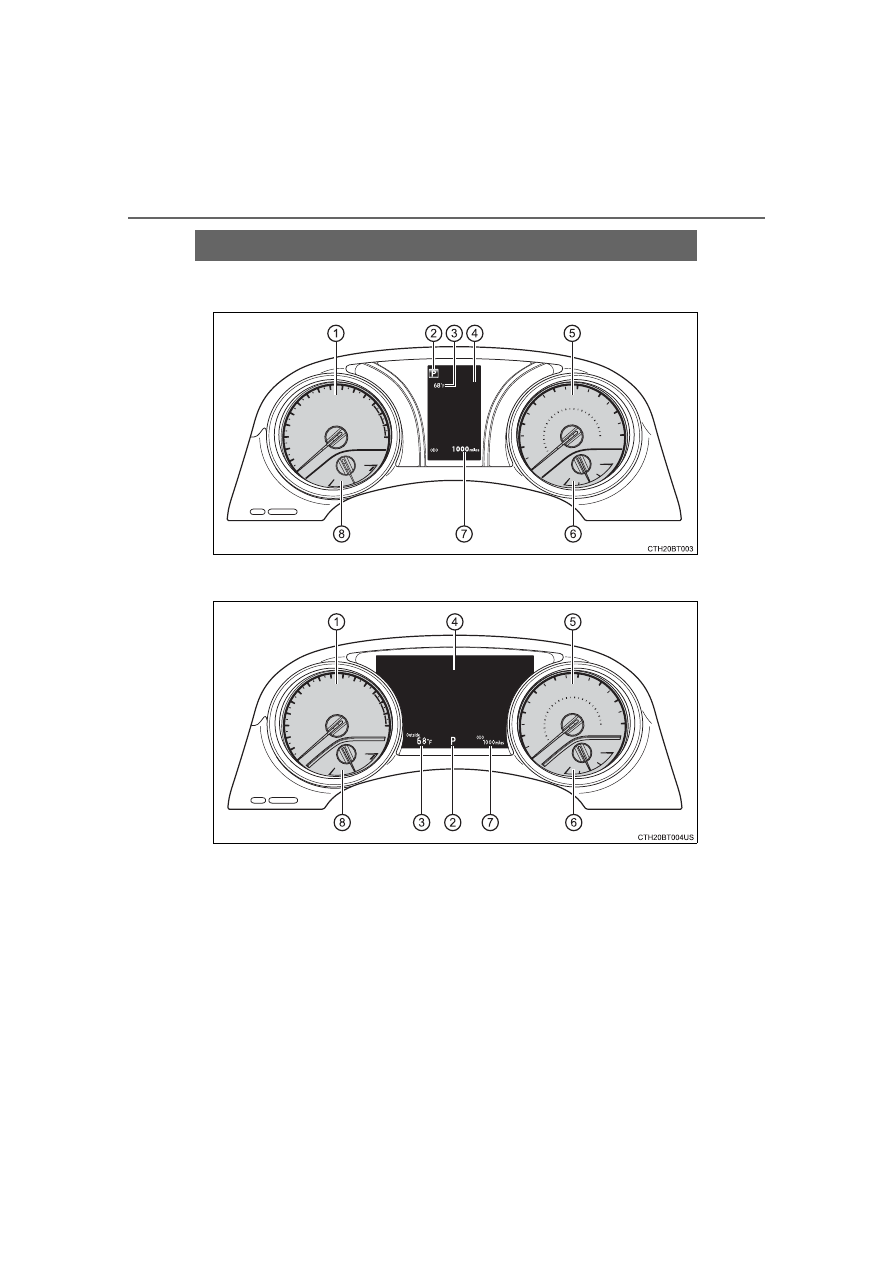

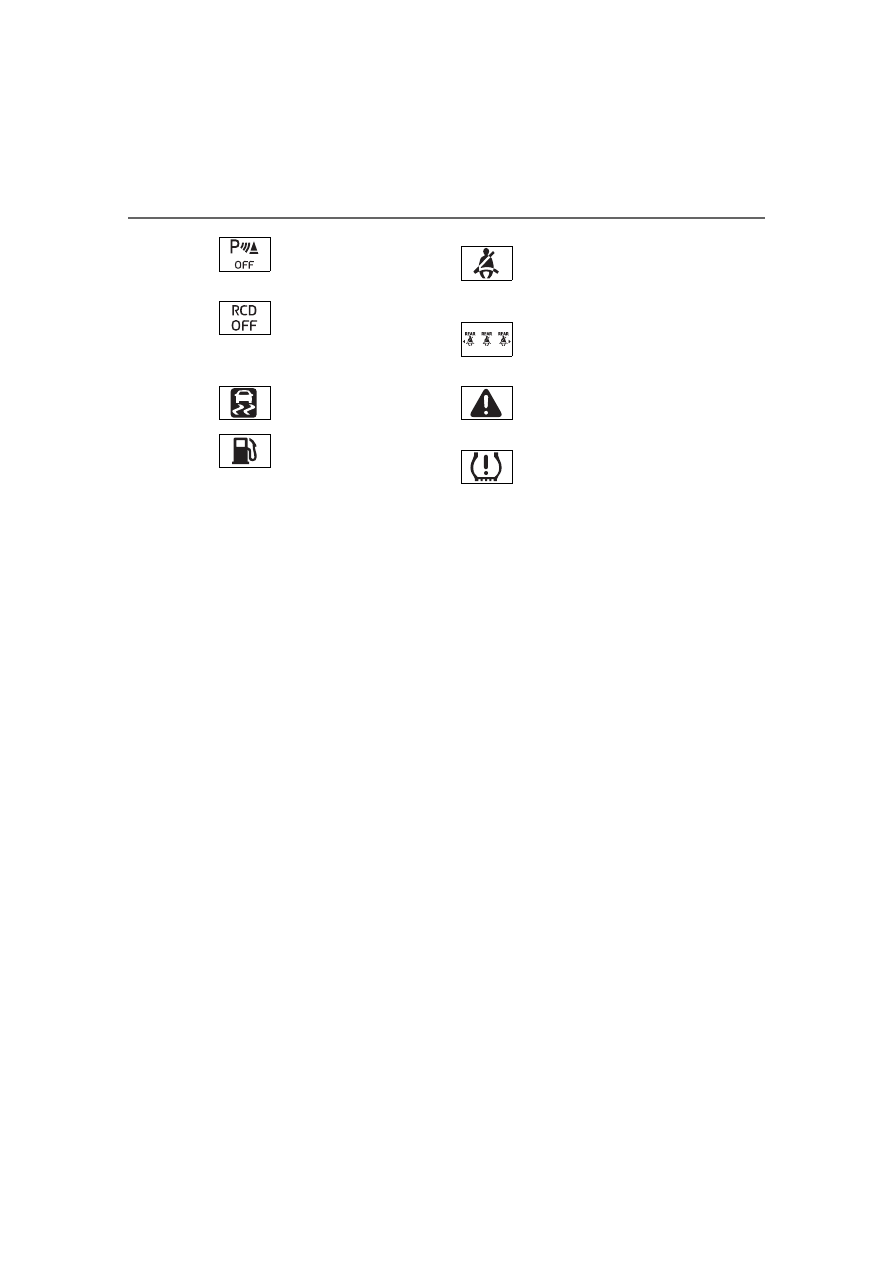

2. Instrument cluster

CAMRY_U

*

1

: These lights turn on when the engine switch is turned to the “ON” position

(vehicles  without  a  smart  key  system)  or  IGNITION  ON  mode  (vehicles
with  a  smart  key  system)  to  indicate  that  a  system  check  is  being  per-
formed. They will turn off after the engine is started, or after a few seconds.
There may be a malfunction in a system if a light does not come on, or turn
off. Have the vehicle inspected by your Toyota dealer.

*

2

: This light flashes to indicate a malfunction.

*

3

: This light illuminates on the center panel.

(if equipped)

Intuitive parking assist
OFF indicator (



P. 540)

Driver’s and front
passenger’s seat belt
reminder light (



P. 541)

(if equipped)

RCD OFF indicator
(



P. 540)

*

3

Rear passengers’ seat
belt reminder lights
(



P. 541)

*

1

Slip indicator (



P. 541)

*

1

Master warning light
(



P. 541)

Low fuel level warning
light (



P. 541)

*

1

Tire pressure warning
light (



P. 541)

89

2. Instrument cluster

2

Instru

me
nt clu

ster

CAMRY_U

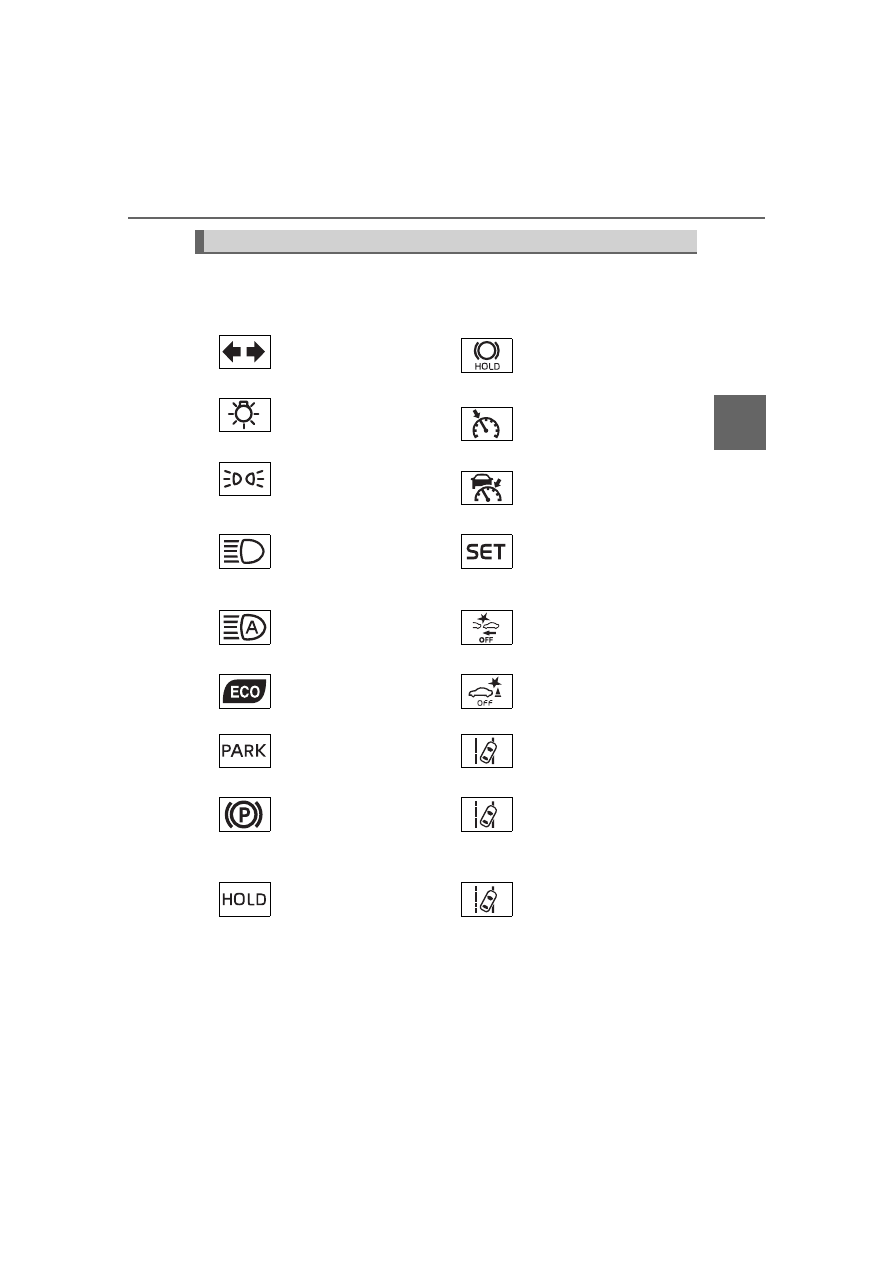

The indicators inform the driver of the operating state of the vehicle’s
various systems.

Indicators

Turn signal indicator
(



P. 225)

*

1

(if equipped)

Brake hold standby
indicator (



P. 231)

(U.S.A.)

Headlight indicator
(



P. 233)

Cruise control indicator
(



P. 294, 310)

(Canada)

Tail light indicator
(



P. 233)

Dynamic  radar  cruise
control indicator
(



P. 294, 310)

Headlight high beam
indicator (



P. 234)

Cruise control “SET”
indicator
(



P. 294, 310)

*

1

Automatic High Beam
indicator (



P. 238)

*

1, 3

PCS warning light
(



P. 258)

*

1, 2

Eco driving indicator
(



P. 107, 124)

*

1, 3

(if equipped)

PKSB OFF indicator
(



P. 362)

(U.S.A.)

Parking brake indicator
(



P. 226, 227)

(White)

LTA indicator (



P. 283)

(Canada)

Parking brake indicator
(



P. 226, 227)

(Green)

LTA indicator
(



P. 259, 283)

*

1

(if equipped)

Brake hold operated
indicator (



P. 231)

*

4

(Yellow)

LTA indicator (



P. 283)

90

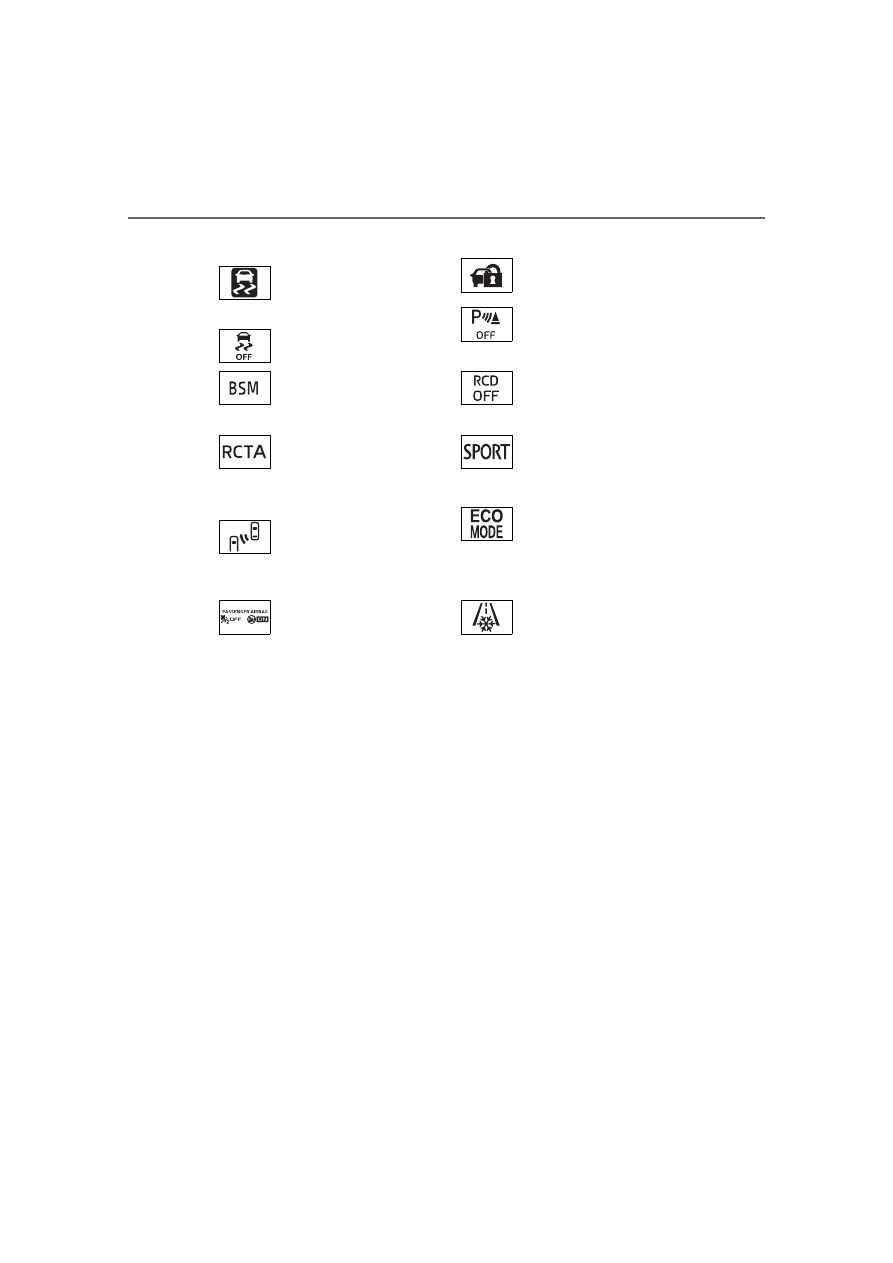

2. Instrument cluster

CAMRY_U

*

1, 4

Slip indicator (



P. 327)

*

7

Security indicator
(



P. 79, 82)

*

1, 3

VSC OFF indicator
(



P. 329)

(if equipped)

Intuitive  parking  assist
OFF indicator (



P. 342)

(if equipped)

“BSM” indicator
(



P. 334)

(if equipped)

RCD OFF indicator
(



P. 357)

(if equipped)

“RCTA” indicator
(



P. 350)

(if equipped)

“SPORT” indicator
(



P. 384)

*

5, 6

(if equipped)

BSM  (Blind  Spot  Moni-
tor)  outside  rear  view
mirror indicators
(



P. 334)

(if equipped)

“ECO MODE” indicator
(



P. 384)

*

1, 7

“AIRBAG ON/OFF”
indicator (



P. 47)

*

8

Low  outside  tempera-
ture indicator (



P. 92)

91

2. Instrument cluster

2

Instru

me
nt clu

ster

CAMRY_U

*

1

: These lights turn on when the engine switch is turned to the “ON” position

(vehicles  without  a  smart  key  system)  or  IGNITION  ON  mode  (vehicles
with  a  smart  key  system)  to  indicate  that  a  system  check  is  being  per-
formed. They will turn off after the engine is started, or after a few seconds.
There may be a malfunction in a system if a light does not come on, or turn
off. Have the vehicle inspected by your Toyota dealer.

*

2

: This light does not turn on when the system is disabled.

*

3

: This light turns on when the system is off.

*

4

: This light flashes to indicate that the system is operating.

*

5

: These  indicators  will  illuminate  in  the  following  situations  to  indicate  that

the system initial check is being performed:

• When  the  BSM  function  or  RCTA  function  is  enabled  and  the  engine

switch is turned to the “ON” position (vehicles without a smart key sys-
tem) or IGNITION ON mode (vehicles with a smart key system).

• When the engine switch is in the “ON” position (vehicles without a smart

key system) or IGNITION ON mode (vehicles with a smart key system)
and the BSM function is enabled.

• When the engine switch is in the “ON” position (vehicles without a smart

key system) or IGNITION ON mode (vehicles with a smart key system)
and  the  RCTA  function  is  enabled.  (At  this  time,  a  buzzer  will  also
sound.)
The indicators will turn off after a few seconds. If the indicators do not
illuminate or turn off, or if a buzzer does not sound when the RCTA func-
tion  is  enabled,  the  system  may  be  malfunctioning.  Have  the  vehicle
inspected by your Toyota dealer.

*

6

: This light illuminates on the outside rear view mirrors.

*

7

: This light illuminates on the center panel.

*

8

: When the outside temperature is approximately 37°F (3°C) or lower, this

indicator will flash for approximately 10 seconds, then stay on.

WARNING

■

If a safety system warning light does not come on

Should a safety system light such as the ABS and SRS warning lights not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by your Toyota dealer immedi-
ately if this occurs.

92

2. Instrument cluster

CAMRY_U



4.2-inch display



7-inch display

Gauges and meters

93

2. Instrument cluster

2

Instru

me
nt clu

ster

CAMRY_U

Tachometer

Displays the engine speed in revolutions per minute

Shift position (



P. 219)

Outside temperature

Displays  the  outside  temperature  within  the  range  of  -40°F  (-40°C)  to
122°F  (50°C).  Low  outside  temperature  indicator  comes  on  when  the
ambient temperature is 37°F (3°C) or lower.

Multi-information display

Presents the driver with a variety of vehicle data (



P. 96, 109)

Displays warning messages in case of a malfunction (



P. 548)

Speedometer
Fuel gauge

Displays the fuel level. In the following situations, the actual fuel level may
not be displayed correctly:

• After refueling only a small amount (approximately 5 L or less)
• When stopped on a hill or other slope
• When driving on a slope or around a curve

Odometer and trip meter (



P. 106, 123)

Engine coolant temperature gauge

Displays the engine coolant temperature

The brightness of the instrument panel lights can be adjusted.

Darker
Brighter

• The brightness of the instrument

panel  lights  can  be  adjusted
individually  for  day  mode  and
night mode

*

.

• If  the  brightness  is  adjusted

when  the  surroundings  are
bright  and  the  tail  lights  are  on
(day  mode  brightness  adjust-
ment),  the  brightness  level  of
night  mode  will  be  adjusted  at
the same time.

*

: Day mode and night mode:



P. 94

Instrument panel light control

1

2

3

4

5

6

7

8

1

2

94

2. Instrument cluster

CAMRY_U

■

The meters and display illuminate when



Vehicles without a smart key system

The engine switch is in the “ON” position.



Vehicles with a smart key system

The engine switch is in IGNITION ON mode.

■

Brightness of the meters (day mode and night mode)

●

The  brightness  of  the  meters  is  changed  between  day  mode  and  night
mode.
• Day mode: When the tail lights are off or when the tail lights are on but

the surrounding area is bright

• Night mode: When the tail lights are on and the surrounding area is dark

●

When  in  night  mode,  the  brightness  will  be  reduced  slightly  unless  the
meters are set to the maximum brightness level.

■

Outside temperature display

In  the  following  situations,  the  correct  outside  temperature  may  not  be  dis-
played, or the display may take longer than normal to change:

●

When stopped, or driving at low speeds (less than 16 mph [25 km/h])

●

When the outside temperature has changed suddenly (at the entrance/exit
of a garage, tunnel, etc.)

●

When “



” or “E” is displayed, the system may be malfunctioning.

Take your vehicle to your Toyota dealer.

■

Fuel gauge and driving range display

The  fuel  gauge  and  driving  range  display  are  linked.  If  the  fuel  gauge  and
driving range display do not update after refueling a small amount, they can
be updated by performing the following procedure:

Stop the vehicle on a level surface.
Wait until the fuel in the fuel tank stabilizes.
Press the ODO/TRIP switch to change the odometer and trip meter display
to the odometer.
Turn the engine switch off.
Vehicles without a smart key system:
While pressing and holding the ODO/TRIP switch, turn the engine switch to
the “ON” position.
Vehicles with a smart key system:
While pressing and holding the ODO/TRIP switch, turn the engine switch to
IGNITION ON mode.
Continue  holding  the  ODO/TRIP  switch  for  approximately  5  seconds.
Release the switch when the odometer begins blinking.
Updating  will  be  complete  when  the  odometer  blinks  for  approximately  5
seconds and then returns to the normal display.

1

2

3

4

5

95

2. Instrument cluster

2

Instru

me
nt clu

ster

CAMRY_U

NOTICE

■

To prevent damage to the engine and its components

●

Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.

●

The engine may be overheating if the engine coolant temperature gauge is
in  the  red  zone  (H).  In  this  case,  immediately  stop  the  vehicle  in  a  safe
place, and check the engine after it has cooled completely. (



P. 577)

96

2. Instrument cluster

CAMRY_U

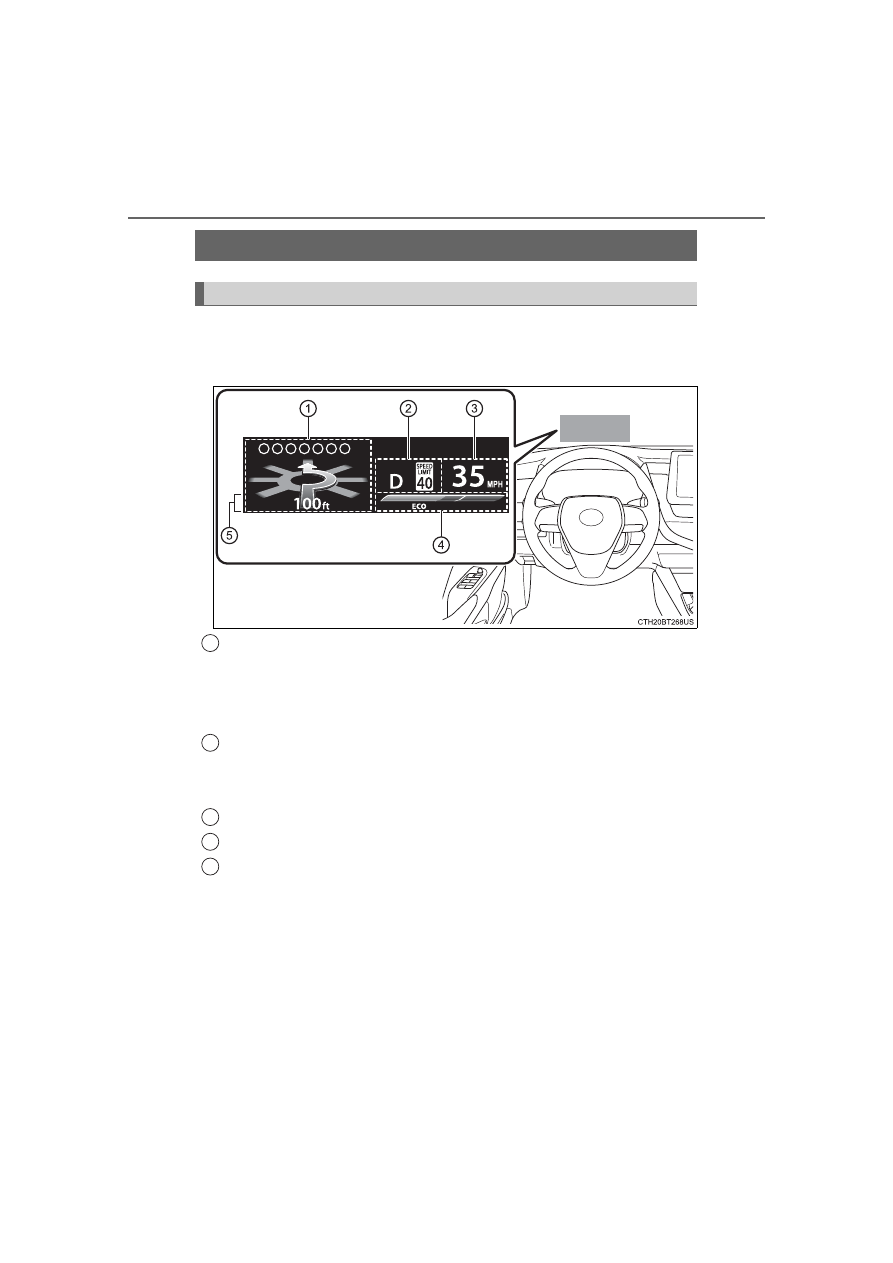

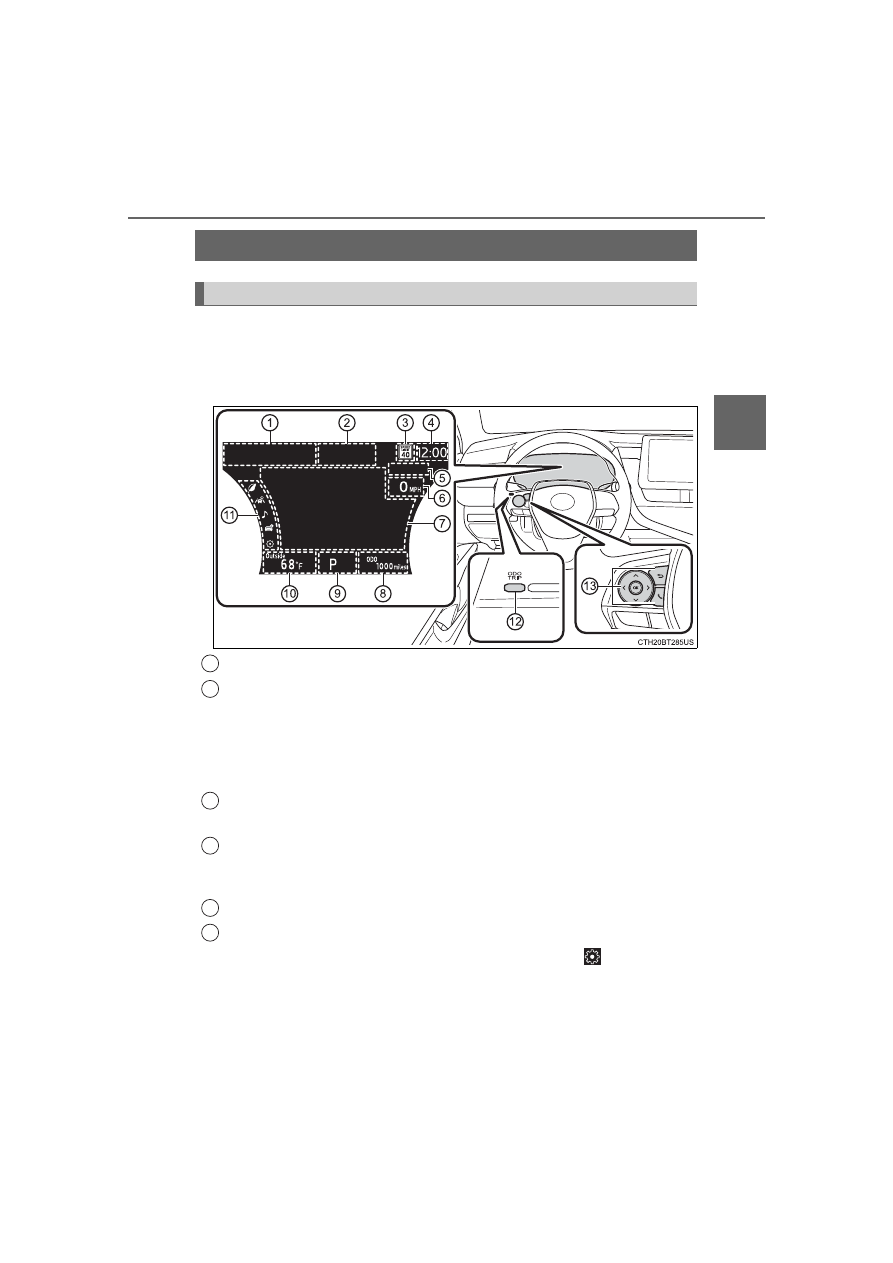

The multi-information display presents the driver with a variety of driv-
ing-related data, such as the current outside temperature. The multi-
information display  can  also  be  used  to  change  the  display  settings
and other settings.

Shift position (



P. 219)

Menu icon display area

Displays the following items.
When a menu icon is not selected, the outside temperature and clock are
displayed.

• Menu icons (



P. 98)

• Outside temperature (



P. 92)

• Clock

*

*

: For clock settings, refer to “NAVIGATION AND MULTIMEDIA SYSTEM

OWNER’S MANUAL”.

Content display area

A variety of information can be displayed by selecting a menu icon. Addi-
tionally, warning or suggestion/advice pop-up displays will be displayed in
some situations.

• Menu icon content (



P. 98)

• Suggestion function (



P. 106)

• Warning message (



P. 548)

Odometer/trip meter (



P. 106)

Indicators (



P. 86)

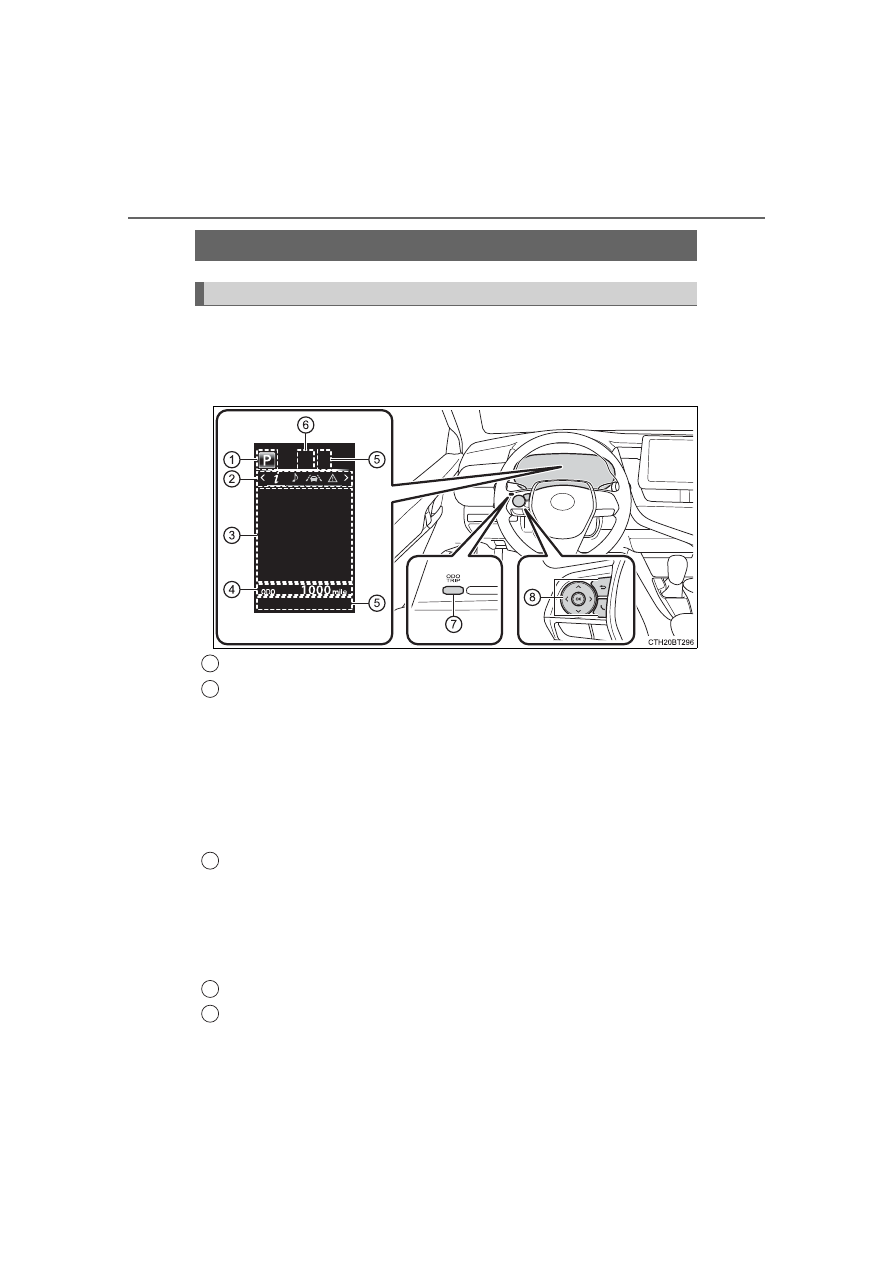

Multi-information display (4.2-inch display)

Summary of functions

1

2

3

4

5

97

2. Instrument cluster

2

Instru

me
nt clu

ster

CAMRY_U

RSA (Road Sign Assist) (if equipped) (



P. 289)

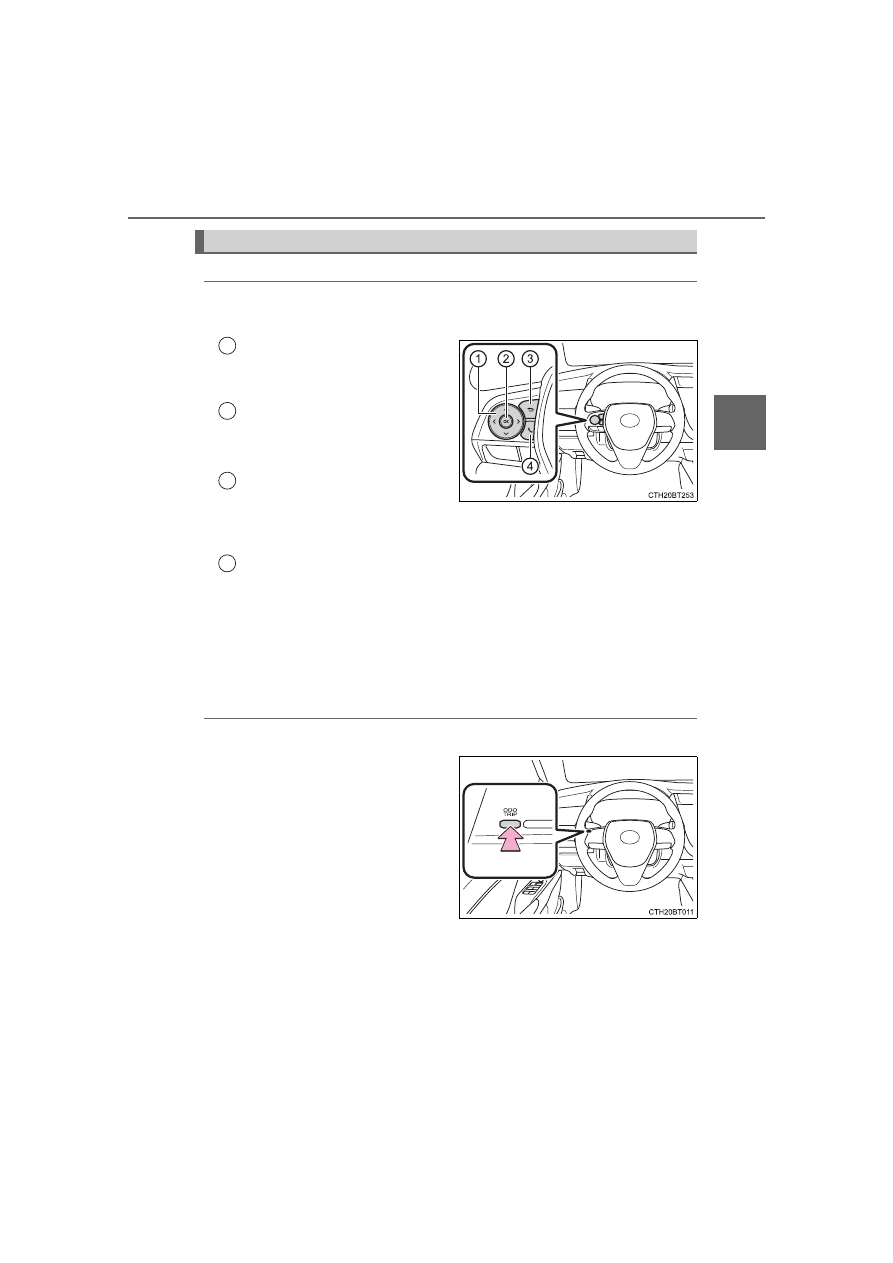

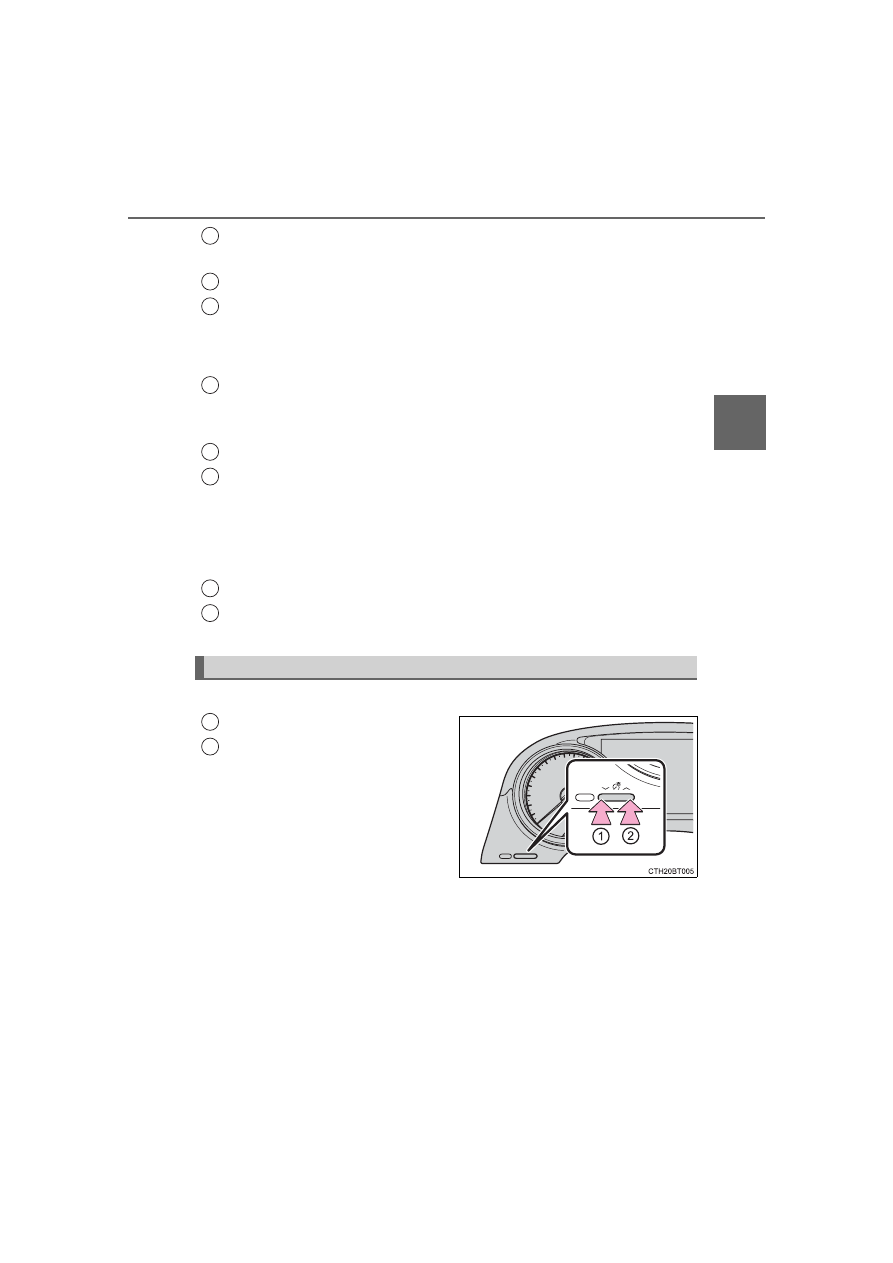

“ODO/TRIP” switch (



P. 97)

Meter control switches (



P. 97)

◆

Using the content display area

The  content  display  area  is  operated  using  the  meter  control
switches.

Scroll  screens

*

,  change  the

displayed content

*

 and move

the cursor
Press: Enter/Set
Press and hold: Reset
Return  to  the  previous
screen

Pressing and holding the switch
will display the first screen of the
selected menu icon.

Call sending/receiving and history display

Linked  with  the  hands-free  system,  sending  or  receiving  call  is  dis-
played. For details regarding the hands-free system, refer to “NAVIGA-
TION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.

*

: When the screen can be scrolled or different content can be displayed,

a mark, such as an arrow, will be displayed to suggest which switch to
operate.

◆

Using the odometer/trip meter

Items in this area are operated using the “ODO/TRIP” switch.
Press: Change displayed item

Each time the switch is pressed,
the  displayed  item  will  be
changed.

Press and hold: Reset

Display  the  desired  trip  meter
and press and hold the switch to
reset the trip meter.

Using the multi-information display

6

7

8

1

2

3

4

98

2. Instrument cluster

CAMRY_U

Select a menu icon to display its content.

Drive information (



P. 99)

Select to display various drive data.

Audio system-linked display

Select  to  enable  selection  of  an  audio  source  or  track  on  the  meter
using the meter control switches.

Driving assist system information

Select to display the operational status of the following systems:

• Dynamic radar cruise control with full-speed range (if equipped)

(



P. 294)

• Dynamic radar cruise control (if equipped) (



P. 310)

• LTA (Lane Tracing Assist) (



P. 274)

• RSA (Road Sign Assist) (if equipped) (



P. 289)

Warning message display (



P. 548)

Select to display warning messages and measures to be taken if a mal-
function is detected.

Settings display (



P. 101)

Select to change the meter display settings and other settings.

Menu icons

99

2. Instrument cluster

2

Instru

me
nt clu

ster

CAMRY_U

■

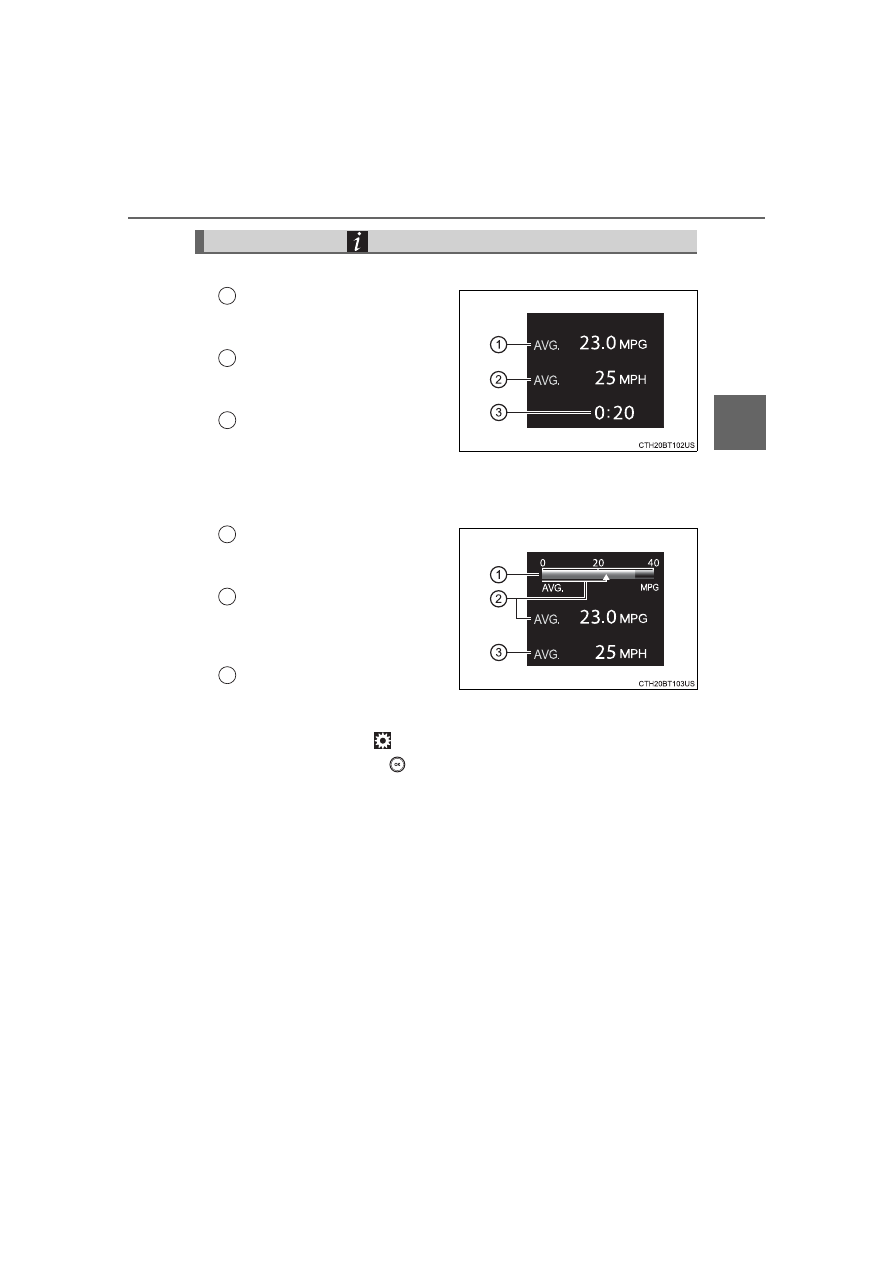

Trip (after start)

Average fuel economy

*

Displays  the  average  fuel  con-
sumption since engine start.

Average vehicle speed

Displays  the  average  vehicle
speed since engine start.

Elapsed time

Displays the time elapsed since
engine start.

*

: Use the displayed fuel consumption as a reference only.

■

Total (after reset)

Current fuel consumption

Displays  the  instantaneous  cur-
rent fuel consumption.

Average fuel economy

*

1, 2

Displays  the  average  fuel  con-
sumption  since  the  display  was
reset.

Average

vehicle

speed/

Elapsed time

*

1

Displays the average vehicle speed  since reset or elapsed time since
reset, as selected in

. (



P. 101)

*

1

: Pressing and holding

 will reset the average fuel consumption and

average vehicle speed/elapsed time.

*

2

: Use the displayed fuel consumption as a reference only.

Drive information (

)

1

2

3

1

2

3

100

2. Instrument cluster

CAMRY_U

■

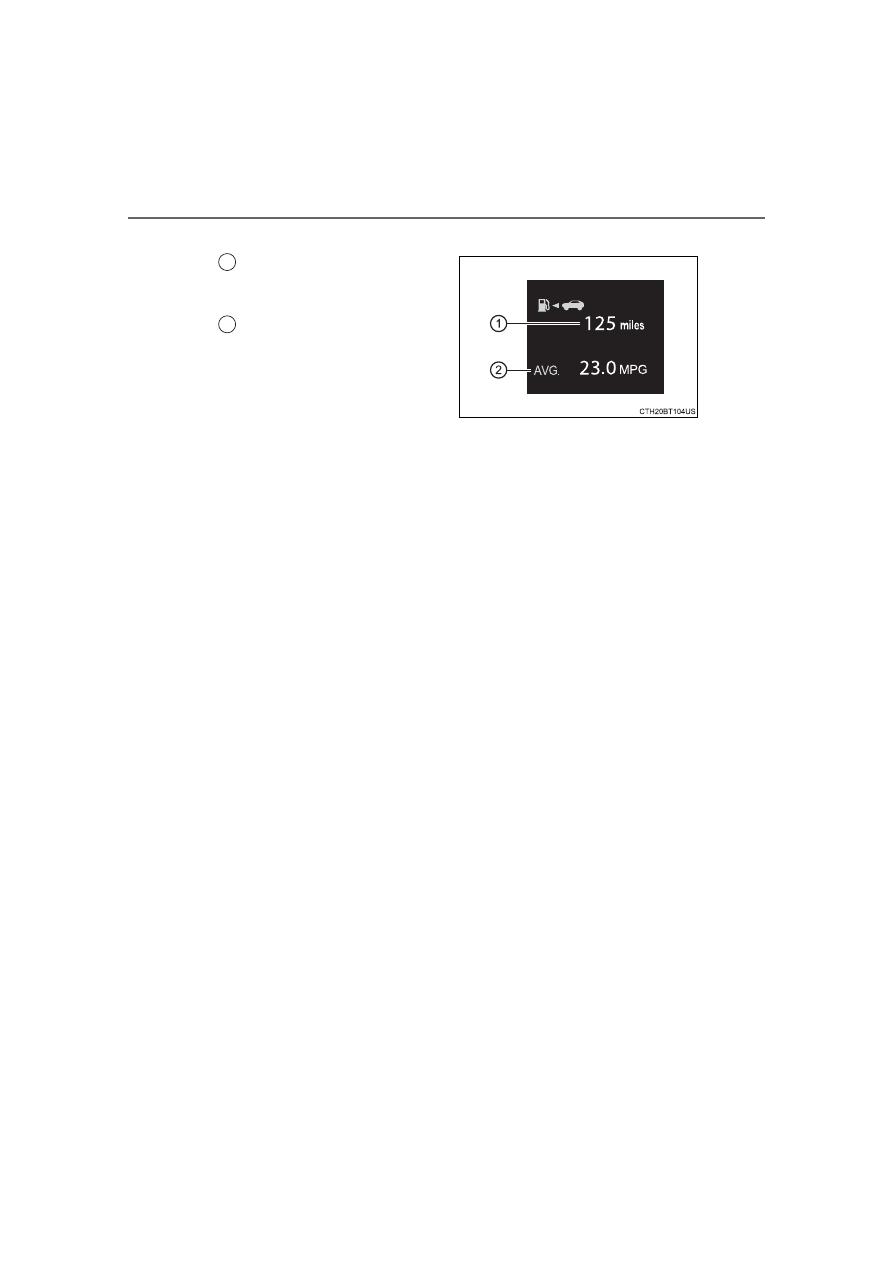

Tank (after refuel)

Driving range

*

1, 2

Displays  the  driving  range  with
remaining fuel.

Average fuel economy

*

1, 3

Displays  the  average  fuel  con-
sumption  since  the  vehicle  was
refueled.

*

1

: When only a small amount of fuel is added to the tank, the display may

not be updated.
When refueling, turn the engine switch off. If the vehicle is refueled with-
out turning the engine switch off, the display may not be updated.

*

2

: This distance is computed based on your average fuel consumption. As

a result, the actual distance that can be driven may differ from that dis-
played.

*

3

: Use the displayed fuel consumption as a reference only.

■

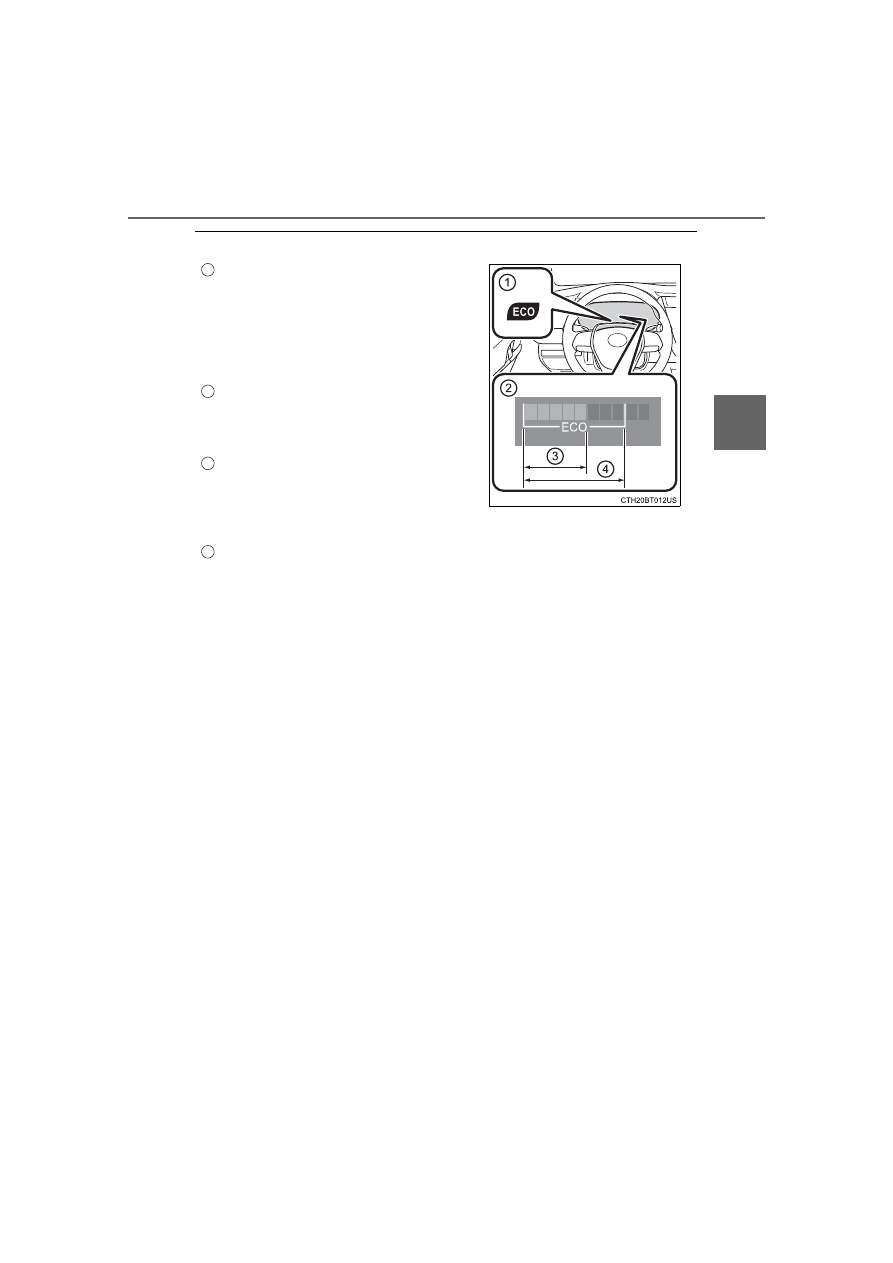

Eco Driving Indicator



P. 107

■

Speedometer

Displays the vehicle speed.

■

Tire  pressure  (vehicles  with  a  tire  inflation  pressure  display
function)



P. 483

■

Blank (No items)

Displays no drive information contents.

1

2

101

2. Instrument cluster

2

Instru

me
nt clu

ster

CAMRY_U

◆

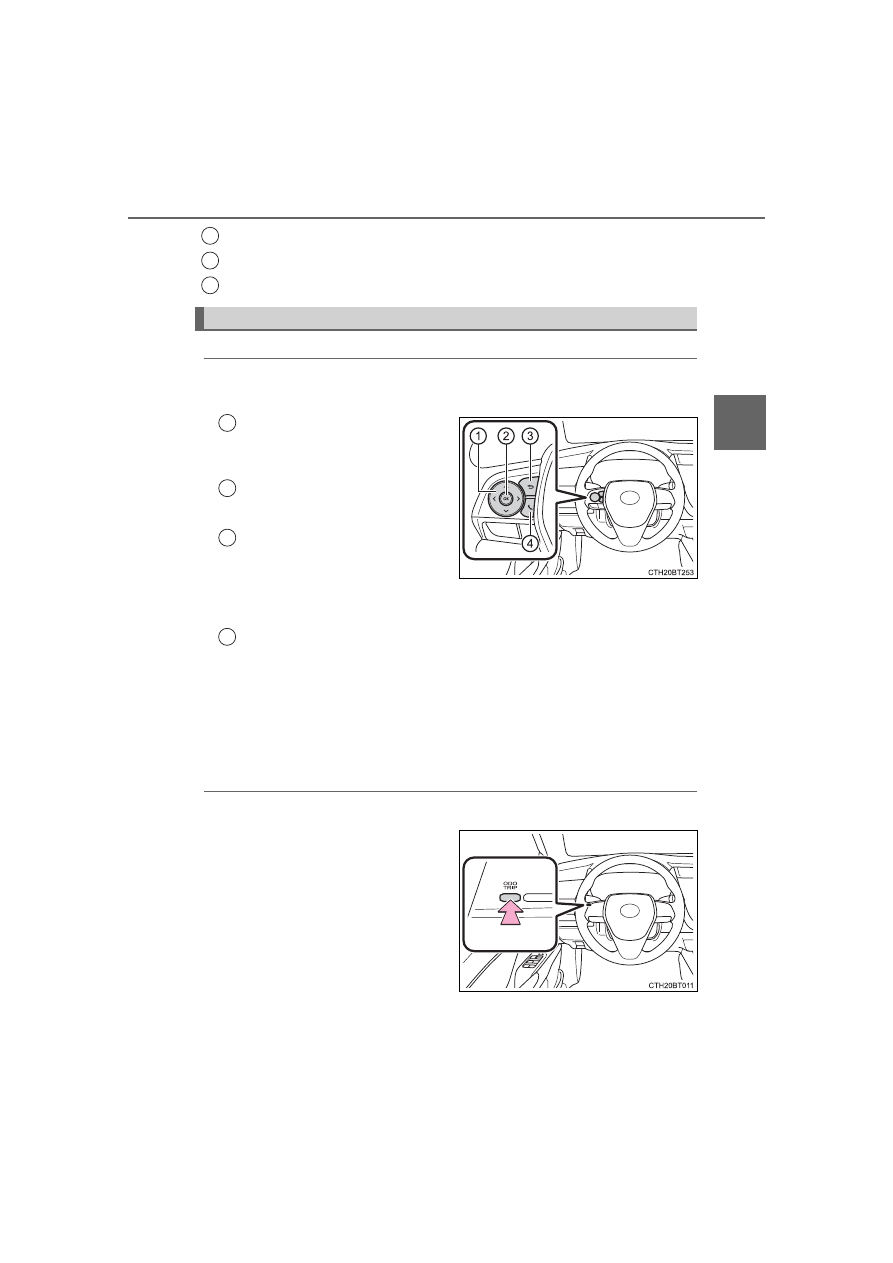

Changing settings

Use  the  meter  control  switches  on  the  steering  wheel  to  change
settings.

Press

 or

 to select

.

Operate the switches to select a desired item.
Change the setting by referring to the message displayed on the
screen.

◆

Setting items

■

 LTA (Lane Tracing Assist) (



P. 274)

The following LTA system settings can be changed:

Settings display (

)

1

2

3

Item

Settings

Details

Lane center

On

Select to enable/disable the lane
centering function.

Off

Alert sensitivity

High

Select  to  set  the  warning  sensi-
tivity.

Normal

Sway warning

On

Select to enable/disable the vehi-
cle sway warning.

Off

Sway sensitivity

High

Select  to  set  the  vehicle  sway
warning sensitivity.

Medium

Low

102

2. Instrument cluster

CAMRY_U

■

 PCS (Pre-Collision System) (



P. 258)

The following pre-collision system settings can be changed:

■

 DRCC (Dynamic radar cruise control) (



P. 294, 310)

■

 BSM (Blind Spot Monitor) function (if equipped) (



P. 334)

■

RCTA (Rear Cross Traffic Alert) function (if equipped)
(



P. 350)

■

RCD (Rear camera detection) function (if equipped) (



P. 357)

Item

Settings

Details

PCS

On

Select to enable/disable the pre-
collision system.

Off

Warning sensitivity

 Early

Select  to  change  the  warning
timing.

 Middle

 Late

Item

Settings

Details

Curve

speed

reduction

 Strong

Select  to  change  the  vehicle
speed reduction strength.

 Weak

Off

Item

Settings

Details

BSM

On

Select  to  enable/disable  the
Blind Spot Monitor function.

Off

Item

Settings

Details

RCTA

On

Select to enable/disable the Rear
Cross Traffic Alert function.

Off

Item

Settings

Details

RCD

On

Select to enable/disable the rear
camera detection.

Off

103

2. Instrument cluster

2

Instru

me
nt clu

ster

CAMRY_U

■

 RSA (Road Sign Assist) (if equipped) (



P. 289)

The following RSA settings can be changed:

Item

Settings

Details

RSA

On

Select  to  enable/disable  the
RSA.

Off

Notification method

Excess

speed

notification

Select a notification method used
to  warn  the  driver  if  the  vehicle
speed  exceeds  the  speed  dis-
played on the speed limit sign on
the multi-information display.
Available methods:
• No notification
• Display only
• Display and buzzer

Other notifications

Select a notification method used
to  warn  the  driver  if  the  system
detects  the  vehicle  approaching
to  the  no-entry  road  when  a  do
not enter sign is displayed on the
multi-information display.
Available methods:
• No notification
• Display only
• Display and buzzer

Excess speed noti-
fication level

5 mph (10 km/h)

Select  a  speed  threshold  over
which the excess speed notifica-
tion  will  start  to  operate  when  a
speed  limit  sign  is  displayed  on
the multi-information display.

3 mph (5 km/h)

1 mph (2 km/h)

104

2. Instrument cluster

CAMRY_U

■

Vehicle settings

Item

Settings

Details

 BSM (Blind Spot Monitor) (if equipped) (



P. 334)

Outside  rear  view
mirror

indicator

brightness

Bright

Select  to  change  the  brightness
of  the  outside  rear  view  mirror
indicators.

Dim

Notification  timing
for  presence  of
approaching  vehi-
cle (sensitivity)

 Early

Select  to  change  the  notification
timing  for  an  approaching  vehi-
cle.

 Middle

 Late

Only when vehicle
detected  in  blind
spot

RCTA (Rear Cross Traffic Alert) (if equipped) (



P. 350)

RCTA  buzzer  vol-
ume

1 (Low)

Select  to  change  the  volume  of
the RCTA buzzer.

2 (Medium)

3 (Loud)

TPWS (Tire pressure warning system) (



P. 483)

Set pressure (tire pressure warning sys-
tem initialization)

Select  to  initialize  the  tire  pres-
sure  warning  system.  To  per-
form initialization, press and hold
the

 switch.

Before  performing  initialization,
make sure to adjust the inflation
pressure of each tire to the spec-
ified level. (



P. 484)

Change  wheel  (change  the  tire  pres-
sure  warning  system  sensor  ID  code
set)
(vehicles  without  a  tire  inflation  pres-
sure display function)

Select  to  change  the  tire  pres-
sure  warning  system  sensor  ID
code set.
To enable this function, a second
set of tire pressure warning sys-
tem  sensor  ID  codes  must  be
registered  by  a  Toyota  dealer.
For information regarding chang-
ing  the  registered  ID  code  set,
contact your Toyota dealer.
(



P. 486)

105

2. Instrument cluster

2

Instru

me
nt clu

ster

CAMRY_U

■

Meter settings

Change  wheel  (register  tire  pressure
warning system sensor ID codes)
(vehicles  with  a  tire  inflation  pressure
display function)

Select to register the ID codes of
the  tire  pressure  sensors  to  the
tire pressure warning system.
To  register  the  ID  codes,  press
and hold the

 switch.

(



P. 486)

Rear seat reminder
(



P. 154)

On

Select to enable/disable the rear
seat reminder.

Off

Scheduled maintenance display (if equipped)

Maintenance data reset

Select to reset the message indi-
cating  maintenance  is  required,
after the required maintenance is
performed. (



P. 457)

Item

Settings

Details

Item

Settings

Details

Language

Select  to  change  the  language
displayed.

Units

Select  to  change  the  units  of
measure displayed.

  (Eco  Driving

Indicator Light)

On

Select to enable/disable the Eco
Driving Indicator Light. (



P. 107)

Off

Drive  information
(total [after reset])

Average  vehicle
speed

Select  to  change  the  display
between average speed/elapsed
time.

Elapsed time

Pop-up display

Incoming calls

Select to enable/disable the pop-
up display.

Brightness adjust-
ment

Default setting

Select to reset the meter display
settings to the default setting.

106

2. Instrument cluster

CAMRY_U

■

Odometer

Displays the total distance the vehicle has been driven.

■

Trip meter A/trip meter B

Displays the distance the vehicle has been driven since the meter
was last reset. Trip meters A and B can be used to record and dis-
play different distances independently.

To reset, display the desired trip meter and press and hold the “ODO/
TRIP” switch.

Displays suggestions to the driver in the following situations. To select
a response to a displayed suggestion, use the meter control switches.

The suggestion function can be turned on/off.
(Customizable features:



P. 616)

■

Suggestion to turn off the headlights

If  the  headlights  are  left  on  for  a  certain  amount  of  time  after  the
engine switch has been turned off, if the headlight switch is in the
“AUTO” position, a suggestion message will be displayed asking if
you wish to turn the headlights off. To turn the headlights off, select
“Yes”.

If a front door is opened after the engine switch is turned off, this sug-
gestion message will not be displayed.

Odometer/trip meter

Suggestion function

107

2. Instrument cluster

2

Instru

me
nt clu

ster

CAMRY_U

■

Eco Driving Indicator

Eco Driving Indicator will not operate under the following conditions:

●

The shift lever is in any position other than D.

●

A paddle shift switch (if equipped) is operated.

●

The vehicle speed is approximately 80 mph (130 km/h) or higher.

■

Suspension of the settings display

●

Some  settings  cannot  be  changed  while  driving.  When  changing  settings,
park the vehicle in a safe place.

●

If a warning message is displayed, operation of the settings display will be
suspended.

■

Tire pressure (vehicles with a tire inflation pressure display function)

●

It  may  take  a  few  minutes  to  display  the  tire  inflation  pressure  after  the
engine switch is turned to the “ON” position (vehicles without a smart key
system) or IGNITION ON mode (vehicles with a smart key system). It may
also take a few minutes to display the tire inflation pressure after inflation
pressure has been adjusted.

●

“---” may be displayed if the tire position information cannot be determined
due to unfavorable radio wave conditions.

●

Tire inflation pressure changes with temperature. The displayed values may
also be different from the values measured using a tire pressure gauge.

■

Liquid crystal display

Small  spots  or  light  spots  may  appear  on  the  display. This  phenomenon  is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.

■

Customization

Some functions can be customized. (



P. 101, 616)

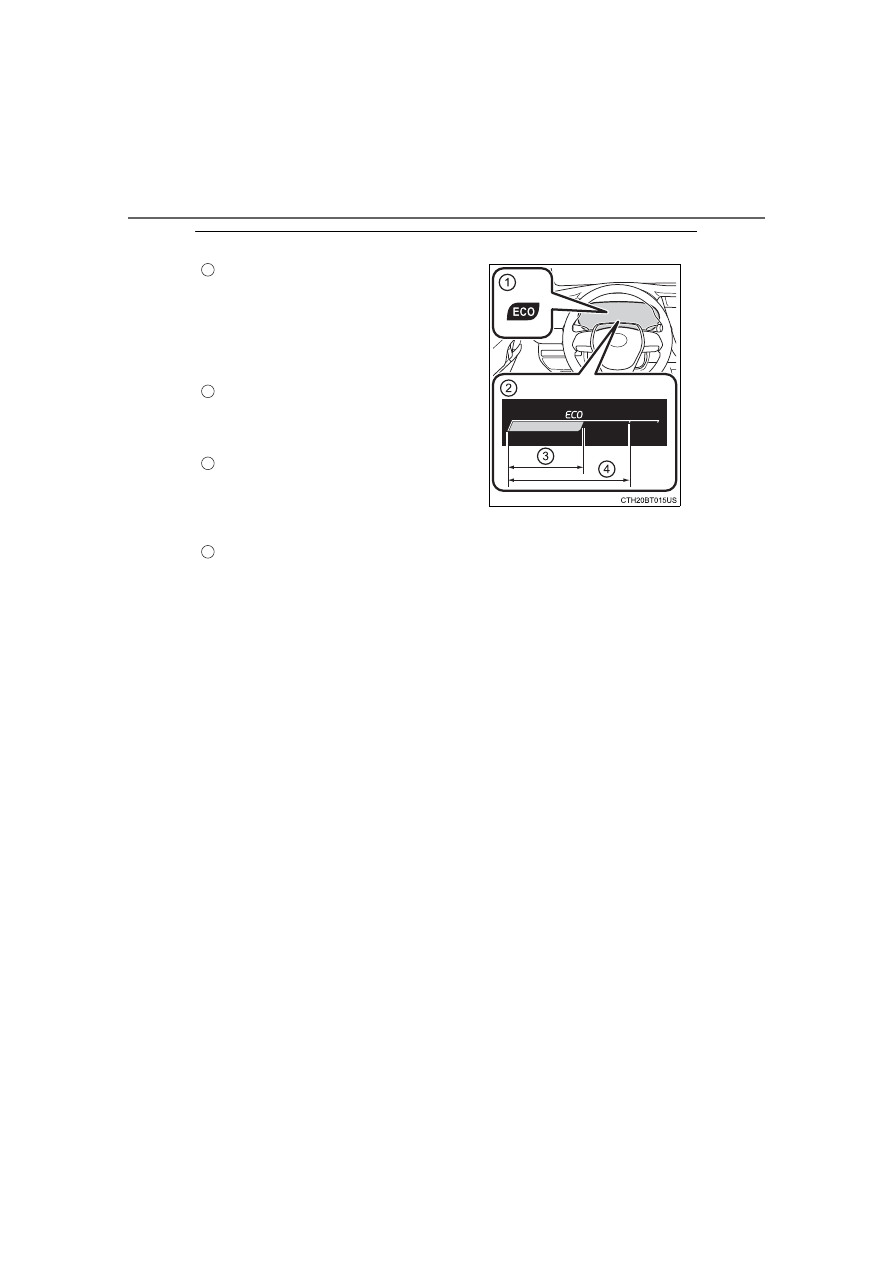

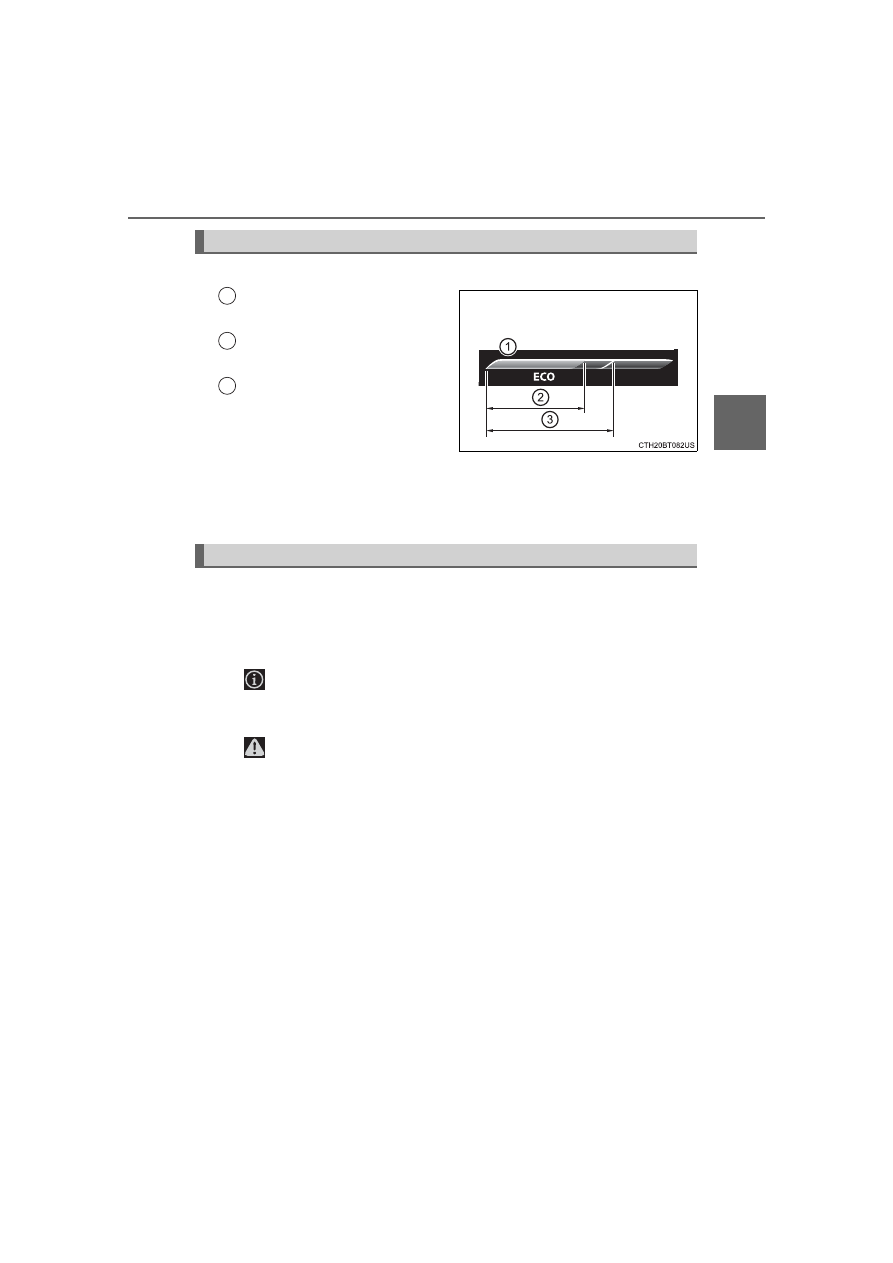

Eco Driving Indicator Light
During  Eco-friendly  acceleration  (Eco
driving), the Eco Driving Indicator Light
will  turn  on.  When  the  acceleration
exceeds  the  Zone  of  Eco  driving,  or
when  the  vehicle  is  stopped,  the  light
turns off.
Eco Driving Indicator Zone Display
Suggests  the  Zone  of  Eco  driving  with
current  Eco  driving  ratio  based  on
acceleration.
Eco driving ratio based on acceleration
If the acceleration exceeds the Zone of
Eco  driving,  the  right  side  of  the  Eco
Driving  Indicator  Zone  Display  will  illu-
minate.
Zone of Eco driving

1

2

3

4

108

2. Instrument cluster

CAMRY_U

WARNING

■

Caution for use while driving

●

When  operating  the  multi-information  display  while  driving,  pay  extra
attention to the safety of the area around the vehicle.

●

Do not look continuously at the multi-information display while driving as
you  may  fail  to  see  pedestrians,  objects  on  the  road,  etc.  ahead  of  the
vehicle.

■

The information display at low temperatures

Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift  again,  causing  rapid  and  excessive  engine  braking  and  possibly  an
accident resulting in death or injury.

■

Cautions during setting up the display

As the engine needs to be running during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO)
may  collect  and  enter  the  vehicle.  This  may  lead  to  death  or  a  serious
health hazard.

NOTICE

■

While setting up the display

To prevent battery discharge, ensure that the engine is running while setting
up the display features.

109

2. Instrument cluster

2

Instru

me
nt clu

ster

CAMRY_U

The multi-information display presents the driver with a variety of driv-
ing-related data, such as the current outside temperature. The multi-
information display  can  also  be  used  to  change  the  display  settings
and other settings.

Indicators (



P. 89)

Driving assist system status display area

Displays the operational status of the following systems:

• Dynamic radar cruise control with full-speed range (if equipped)

(



P. 294)

• Dynamic radar cruise control (if equipped) (



P. 310)

• LTA (Lane Tracing Assist) (



P. 274)

Speed limit display (vehicles with a navigation system)
(U.S.A. only) /RSA (Road Sign Assist) (if equipped) (



P. 289)

Clock

For  clock  settings,  refer  to  “NAVIGATION  AND  MULTIMEDIA  SYSTEM
OWNER’S MANUAL”.

RSA (Road Sign Assist) (if equipped) (



P. 289)

Speedometer

The  speedometer  display  can  be  enabled/disabled  in

  on  the  multi-

information display. (



P. 115)

Multi-information display (7-inch display)

Summary of functions

1

2

3

4

5

6

110

2. Instrument cluster

CAMRY_U

Content display area

A variety of information can be displayed by selecting a menu icon. Addi-
tionally, warning or suggestion/advice pop-up displays will be displayed in
some situations.

• Menu icon content (



P. 112)

• Suggestion function (



P. 123)

• Warning message (



P. 548)

Odometer/trip meter (



P. 123)

Shift position (



P. 219)

Outside temperature (



P. 92)

Menu icons (



P. 112)

“ODO/TRIP” switch (



P. 111)

Meter control switches (



P. 111)

7

8

9

10

11

12

13

111

2. Instrument cluster

2

Instru

me
nt clu

ster

CAMRY_U

◆

Using the content display area

The  content  display  area  is  operated  using  the  meter  control
switches.

Scroll  screens

*

,  change  the

displayed content

*

 and move

the cursor
Press: Enter/Set
Press  and  hold:  Reset/Dis-
play the next screen
Return  to  the  previous
screen

Pressing  and  holding  the  switch  will  display  the  first  screen  of  the
selected menu icon.

Call sending/receiving and history display

Linked  with  the  hands-free  system,  sending  or  receiving  call  is  dis-
played. For details regarding the hands-free system, refer to “NAVIGA-
TION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.

*

: When the screen can be scrolled or different content can be displayed,

a mark, such as an arrow, will be displayed to suggest which switch to
operate.

◆

Using the odometer/trip meter

Items in this area are operated using the “ODO/TRIP” switch.
Press: Change displayed item

Each time the switch is pressed,
the  displayed  item  will  be
changed.

Press and hold: Reset

Display  the  desired  trip  meter
and press and hold the switch to
reset the trip meter.

Using the multi-information display

1

2

3

4

112

2. Instrument cluster

CAMRY_U

Select a menu icon to display its content.

Warning message display (



P. 548)

This menu icon will be displayed only when a warning message can be
displayed.
Select to display warning messages and measures to be taken if a mal-
function is detected.

Eco-friendly driving information (



P. 113)

Select to display fuel consumption data in various forms.

Driving assist system information

Select to perform the following:
Display the operational status of the following systems:

• Dynamic radar cruise control with full-speed range (if equipped)

(



P. 294)

• Dynamic radar cruise control (if equipped) (



P. 310)

• LTA (Lane Tracing Assist) (



P. 274)

• RSA (Road Sign Assist) (if equipped) (



P. 289)

Display the following navigation system-linked information (if equipped):

• Route guidance
• Compass display

Audio system-linked display

Select  to  enable  selection  of  an  audio  source  or  track  on  the  meter
using the meter control switches.

Vehicle information

Select to perform the following:
Display the following information:

• Tire inflation pressure (



P. 483)

Enable/Disable the following systems:

• Intuitive parking assist (if equipped) (



P. 342)

• BSM (Blind Spot Monitor) function (if equipped) (



P. 334)

• RCTA (Rear Cross Traffic Alert) function (if equipped) (



P. 350)

This function can also be enabled/disabled on

.

Settings display (



P. 115)

Select to change the meter display settings and other settings.

Menu icons

113

2. Instrument cluster

2

Instru

me
nt clu

ster

CAMRY_U

■

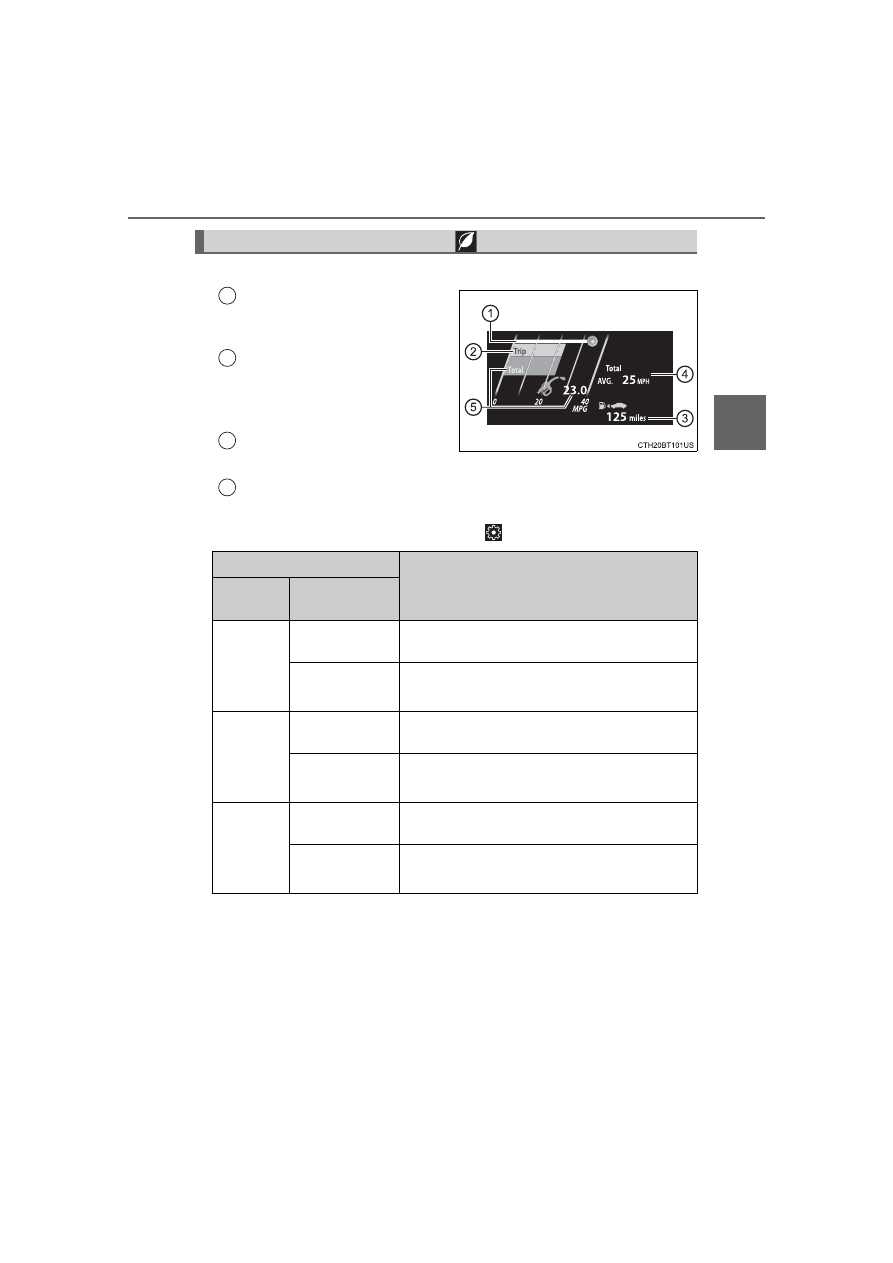

Fuel consumption

Current fuel consumption

Displays  the  instantaneous  cur-
rent fuel consumption.

Average  fuel  economy  (after
start)

Displays  the  average  fuel  con-
sumption since engine start.

*

1

Driving range

Displays the driving range with remaining fuel.

*

2, 3

Gadget

*

4

The following items can be displayed by changing the settings for gad-
get content and fuel economy type on

. (



P. 115)

Eco-friendly driving information (

)

1

2

3

4

Displayable item

Content

Gadget
content

Fuel economy

type

Average
vehicle
speed

Trip
(after start)

Displays  the  average  vehicle  speed  since
engine start.

Total
(after reset)

Displays the average vehicle speed since the
display was reset.

*

5

Distance

Trip
(after start)

Displays  the  distance  driven  since  vehicle
start.

Total
(after reset)

Displays the distance driven since the display
was reset.

*

5

Elapsed
time

Trip
(after start)

Displays the elapsed time since engine start.

Total
(after reset)

Displays  the  elapsed  time  since  the  display
was reset.

*

5

114

2. Instrument cluster

CAMRY_U

Average fuel economy

Displayed item (listed below) can be changed on the fuel economy type
screen of

. (



P. 115)

●

Total (after reset)

Displays the average fuel consumption since the display was reset.

*

1, 5

●

Tank (after refuel)

Displays  the  average  fuel  consumption  since  the  vehicle  was  refu-
eled.

*

1, 2

*

1

: Use the displayed fuel consumption as a reference only.

*

2

: When only a small amount of fuel is added to the tank, the display may

not be updated.
When refueling, turn the engine switch off. If the vehicle is refueled with-
out turning the engine switch off, the display may not be updated.

*

3

: This distance is computed based on your average fuel consumption. As

a result, the actual distance that can be driven may differ from that dis-
played.

*

4

: The default setting is no display.

*

5

: This display can be reset by pressing and holding

 while it is dis-

played.

■

Eco indicator

• Eco Driving Indicator



P. 124

• Driving range

Displays the driving range with remaining fuel.

When only a small amount of fuel is added to the tank, the display may
not be updated.
When refueling, turn the engine switch off. If the vehicle is refueled with-
out turning the engine switch off, the display may not be updated.
This distance is computed based on your average fuel consumption. As
a result, the actual distance that can be driven may differ from that dis-
played.

5

115

2. Instrument cluster

2

Instru

me
nt clu

ster

CAMRY_U

■

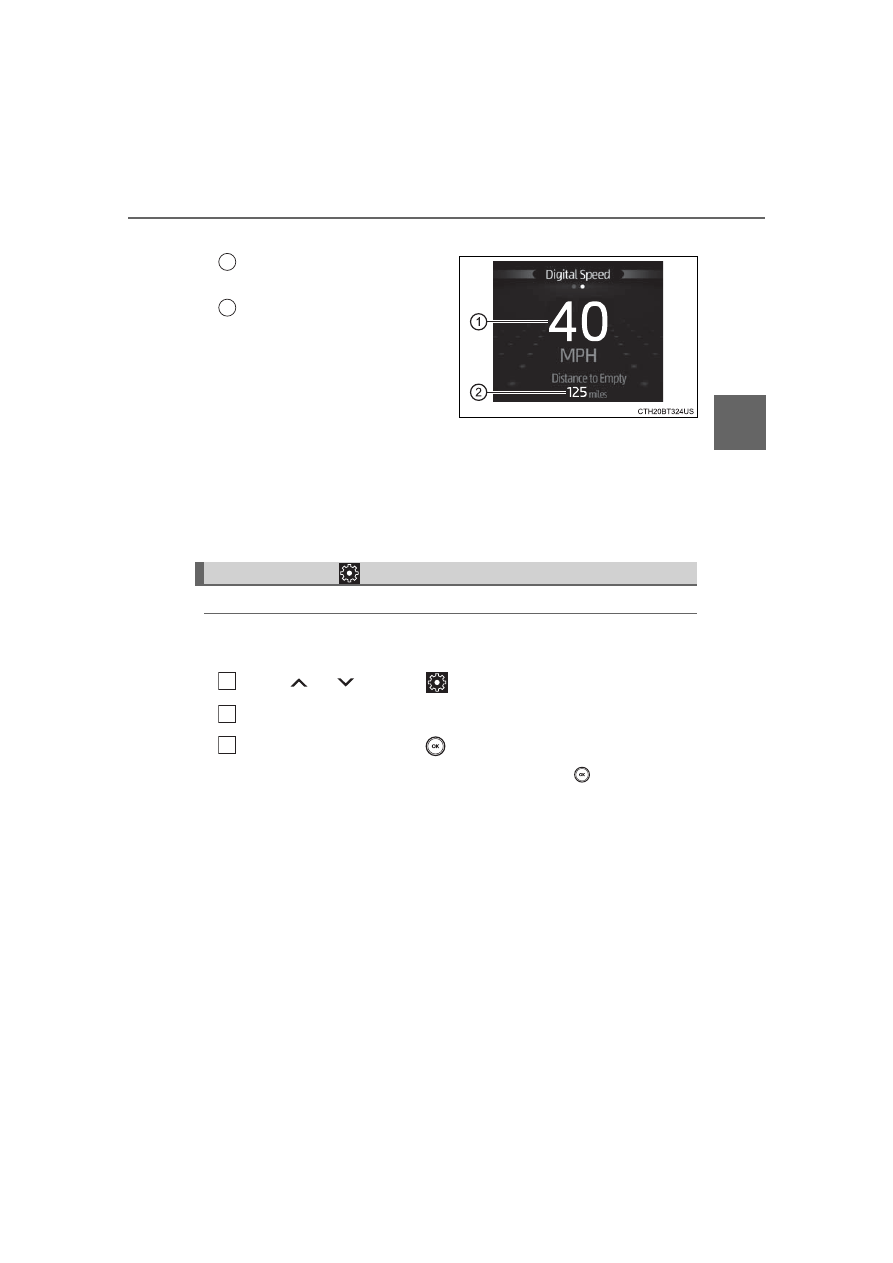

Speedometer display/Driving range

Speedometer display

Displays the vehicle speed.

Driving range

Displays  the  driving  range  with
remaining fuel.
When  only  a  small  amount  of
fuel is added to the tank, the dis-
play may not be updated.
When refueling, turn the engine
switch  off.  If the  vehicle  is  refu-
eled  without  turning  the  engine
switch  off,  the  display  may  not
be updated.
This distance is computed based on your average fuel consumption. As
a result, the actual distance that can be driven may differ from that dis-
played.

◆

Changing settings

Use  the  meter  control  switches  on  the  steering  wheel  to  change
settings.

Press

 or

 to select

.

Operate the switches to select a desired item.

Press or press and hold

.

The  available  settings  will  differ  depending  on  if

  is  pressed  or

pressed and held. Follow the instructions on the display.

1

2

Settings display (

)

1

2

3

116

2. Instrument cluster

CAMRY_U

◆

Setting items

■

 LTA (Lane Tracing Assist) (



P. 274)

Press and hold

 to change the settings of the following items:

■

 PCS (Pre-Collision System) (



P. 258)

Press and hold

 to change the settings of the following items:

■

 DRCC (Dynamic radar cruise control) (



P. 294, 310)

Press and hold

 to change the settings of the following item:

Item

Settings

Details

Lane center

On

Select to enable/disable the lane
centering function.

Off

Alert sensitivity

High

Select  to  set  the  warning  sensi-
tivity.

Normal

Sway warning

On

Select to enable/disable the vehi-
cle sway warning.

Off

Sway sensitivity

High

Select  to  set  the  vehicle  sway
warning sensitivity.

Medium

Low

Item

Settings

Details

PCS

On

Select to enable/disable the pre-
collision system.

Off

Warning sensitivity

 Early

Select  to  change  the  warning
timing.

 Middle

 Late

Item

Settings

Details

Curve

speed

reduction

 Strong

Select  to  change  the  vehicle
speed reduction strength.

 Weak

Off

117

2. Instrument cluster

2

Instru

me
nt clu

ster

CAMRY_U

■

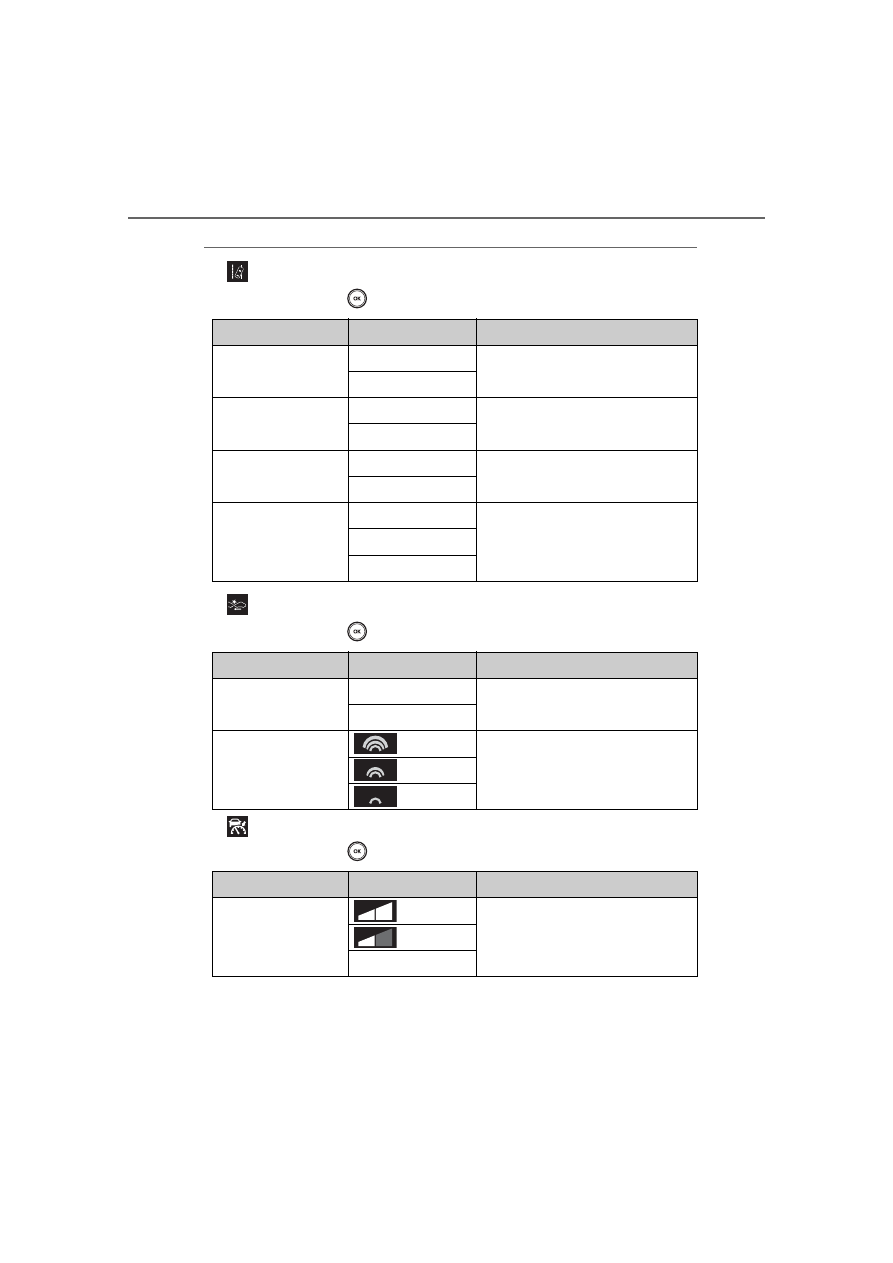

 BSM (Blind Spot Monitor) (if equipped) (



P. 334)

Press

 to enable/disable the Blind Spot Monitor function.

Press and hold

 to change the settings of the following item:

■

 RCTA (Rear Cross Traffic Alert) (if equipped) (



P. 350)

Press

 to enable/disable the Rear Cross Traffic Alert function.

Press and hold

 to change the settings of the following item:

Item

Settings

Details

BSM

On

Select  to  enable/disable  the
Blind Spot Monitor function.

Off

Item

Settings

Details

Outside  rear  view
mirror

indicator

brightness

Bright

Select  to  change  the  brightness
of  the  outside  rear  view  mirror
indicators.

Dim

Notification  timing
for  presence  of
approaching  vehi-
cle (sensitivity)

 Early

Select  to  change  the  notification
timing  for  an  approaching  vehi-
cle.

 Middle

 Late

Only when vehicle
detected  in  blind
spot

Item

Settings

Details

RCTA

On

Select to enable/disable the Rear
Cross Traffic Alert function.

Off

Item

Settings

Details

RCTA  buzzer  vol-
ume

1 (Low)

Select  to  change  the  volume  of
the RCTA buzzer.

2 (Medium)

3 (Loud)

118

2. Instrument cluster

CAMRY_U

■

RCD (Rear camera detection) function (if equipped) (



P. 357)

Press

 to enable/disable the rear camera detection function.

■

 PKSB (Parking Support Brake) (if equipped) (



P. 361)

Press

 to enable/disable the Parking Support Brake.

■

 Intuitive parking assist (if equipped) (



P. 342)

Press

 to enable/disable the Intuitive parking assist.

Press and hold

 to change the settings of the following item:

Item

Settings

Details

RCD

On

Select to enable/disable the rear
camera detection.

Off

Item

Settings

Details

PKSB

On

Select  to  enable/disable  the
Parking Support Brake system.

Off

Item

Settings

Details

Intuitive

parking

assist

On

Select to enable/disable the intui-
tive parking assist.

Off

Item

Settings

Details

Volume

1 (Low)

Select  to  change  the  volume  of
the  intuitive  parking  assist
buzzer.

2 (Medium)

3 (Loud)

119

2. Instrument cluster

2

Instru

me
nt clu

ster

CAMRY_U

■

 HUD (Head-up display) (if equipped) (



P. 126)

Press

 to enable/disable the head-up display.

Press and hold

 to change the settings of the following items:

Item

Settings

Details

HUD

On

Select  to  enable/disable  the
head-up display.

Off

Item

Settings

Details

HUD Brightness/Position

Select  to  adjust  the  brightness/
position of the head-up display.
• Press  the

/

  switch  to

adjust the display brightness.

• Press  the

/

  switch  to

adjust the display position.

HUD  Driving  sup-
port

Tachometer  set-
tings

Select  to  change  the  display
between the following:
• Eco Driving Indicator
• Tachometer
• No content

Navigation

sys-

tem (if equipped)

Select to enable/disable head-up
display content.

Driving Assist

Compass
(if equipped)

Audio system

Rotation

Select to adjust the angle of the
head-up display.
Press  the

/

  switch  to

adjust the display angle.

120

2. Instrument cluster

CAMRY_U

■

 RSA (Road Sign Assist) (if equipped) (



P. 289)

Press and hold

 to change the settings of the following items:

Item

Settings

Details

RSA

On

Select  to  enable/disable  the
RSA.

Off

Notification method

Excess

speed

notification

Select a notification method used
to  warn  the  driver  if  the  vehicle
speed  exceeds  the  speed  dis-
played on the speed limit sign on
the multi-information display.
Available methods:
• No notification
• Display only
• Display and buzzer

Other notifications

Select a notification method used
to  warn  the  driver  if  the  system
detects  the  vehicle  approaching
to  the  no-entry  road  when  a  do
not enter sign is displayed on the
multi-information display.
Available methods:
• No notification
• Display only
• Display and buzzer

Excess speed noti-
fication level

5 mph (10 km/h)

Select  a  speed  threshold  over
which the excess speed notifica-
tion  will  start  to  operate  when  a
speed  limit  sign  is  displayed  on
the multi-information display.

3 mph (5 km/h)

1 mph (2 km/h)

121

2. Instrument cluster

2

Instru

me
nt clu

ster

CAMRY_U

■



Vehicle settings

Press and hold

 to change the settings of the following items:

Item

Settings

Details

TPWS (Tire pressure warning system) (



P. 483)

Set pressure (tire pressure warning sys-
tem initialization)

Select  to  initialize  the  tire  pres-
sure  warning  system.  To  per-
form initialization, press and hold
the

 switch.

Before  performing  initialization,
make sure to adjust the inflation
pressure of each tire to the spec-
ified level. (



P. 484)

Change  wheel  (change  the  tire  pres-
sure  warning  system  sensor  ID  code
set)
(vehicles  without  a  tire  inflation  pres-
sure display function)

Select  to  change  the  tire  pres-
sure  warning  system  sensor  ID
code set.
To enable this function, a second
set of tire pressure warning sys-
tem  sensor  ID  codes  must  be
registered  by  a  Toyota  dealer.
For information regarding chang-
ing  the  registered  ID  code  set,
contact your Toyota dealer.
(



P. 486)

Change  wheel  (register  tire  pressure
warning system sensor ID codes) (vehi-
cles with a tire inflation pressure display
function)

Select to register the ID codes of
the  tire  pressure  sensors  to  the
tire pressure warning system. To
register the ID codes, press and
hold the

 switch.

(



P. 486)

Rear seat reminder
(



P. 154)

On

Select to enable/disable the rear
seat reminder.

Off

Scheduled maintenance display (if equipped)

Maintenance data reset

Select to reset the message indi-
cating  maintenance  is  required,
after the required maintenance is
performed. (



P. 457)

122

2. Instrument cluster

CAMRY_U

■



Meter settings

Press and hold

 to change the settings of the following items:

*

1

: Selecting this item will only change the gadget.

*

2

: Selecting this item will turn the display of the gadget off.

Item

Settings

Details

Language

Select  to  change  the  language
displayed.

Units

Select  to  change  the  units  of
measure displayed.

  (Eco  Driving

Indicator Light)

On

Select to enable/disable the Eco
Driving Indicator Light. (



P. 124)

Off

Speedometer

On

Select  to  enable/disable  the
speedometer display.

Off

Gadget content

Off

No display

Average  vehicle
speed

Select  to  turn  the  display  of  a
gadget.

Distance

Elapsed time

Fuel economy type

Trip (after start)

*

1

Select  to  change  the  average
fuel consumption display and an
item to be displayed as gadget.

Total (after reset)

Tank
(after refuel)

*

2

Multi-information display off

Select  to  turn  the  multi-informa-
tion display off.
To turn the multi-information dis-
play  on  again,  press  any  direc-
tion switch (

/

/

/

).

Pop-up display

Intersection  guid-
ance (if equipped)

Select to enable/disable the pop-
up display.

Incoming calls

Brightness adjust-
ment

Default setting

Select to reset the meter display
settings to the default setting.

123

2. Instrument cluster

2

Instru

me
nt clu

ster

CAMRY_U

■

Odometer

Displays the total distance the vehicle has been driven.

■

Trip meter A/trip meter B

Displays the distance the vehicle has been driven since the meter
was last reset. Trip meters A and B can be used to record and dis-
play different distances independently.

To reset, display the desired trip meter and press and hold the “ODO/
TRIP” switch.

Displays suggestions to the driver in the following situations. To select
a response to a displayed suggestion, use the meter control switches.

The suggestion function can be turned on/off.
(Customizable features:



P. 616)

■

Suggestion to turn off the headlights

If  the  headlights  are  left  on  for  a  certain  amount  of  time  after  the
engine switch has been turned off, if the headlight switch is in the
“AUTO” position, a suggestion message will be displayed asking if
you wish to turn the headlights off. To turn the headlights off, select
“Yes”.

If a front door is opened after the engine switch is turned off, this sug-
gestion message will not be displayed.

Odometer/trip meter

Suggestion function

124

2. Instrument cluster

CAMRY_U

■

Eco Driving Indicator

Eco Driving Indicator will not operate under the following conditions:

●

The shift lever is in any position other than D.

●

A paddle shift switch (if equipped) is operated.

●

Neither normal mode nor Eco drive mode is selected. (



P. 384)

●

The vehicle speed is approximately 80 mph (130 km/h) or higher.

■

Suspension of the settings display

●

Some  settings  cannot  be  changed  while  driving.  When  changing  settings,
park the vehicle in a safe place.

●

If a warning message is displayed, operation of the settings display will be
suspended.

■

Tire pressure

●

It  may  take  a  few  minutes  to  display  the  tire  inflation  pressure  after  the
engine switch is turned to IGNITION ON mode. It may also take a few min-
utes  to  display  the  tire  inflation  pressure  after  inflation  pressure  has  been
adjusted.

●

“---” may be displayed if the tire position information cannot be determined
due to unfavorable radio wave conditions.

●

Tire inflation pressure changes with temperature. The displayed values may
also be different from the values measured using a tire pressure gauge.

■

Liquid crystal display

Small  spots  or  light  spots  may  appear  on  the  display. This  phenomenon  is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.

■

Customization

Some functions can be customized. (



P. 115, 616)

Eco Driving Indicator Light
During  Eco-friendly  acceleration  (Eco
driving), the Eco Driving Indicator Light
will  turn  on.  When  the  acceleration
exceeds  the  Zone  of  Eco  driving,  or
when  the  vehicle  is  stopped,  the  light
turns off.
Eco Driving Indicator Zone Display
Suggests  the  Zone  of  Eco  driving  with
current  Eco  driving  ratio  based  on
acceleration.
Eco driving ratio based on acceleration
If the acceleration exceeds the Zone of
Eco  driving,  the  right  side  of  the  Eco
Driving  Indicator  Zone  Display  will  illu-
minate.
Zone of Eco driving

1

2

3

4

125

2. Instrument cluster

2

Instru

me
nt clu

ster

CAMRY_U

WARNING

■

Caution for use while driving

●

When  operating  the  multi-information  display  while  driving,  pay  extra
attention to the safety of the area around the vehicle.

●

Do not look continuously at the multi-information display while driving as
you  may  fail  to  see  pedestrians,  objects  on  the  road,  etc.  ahead  of  the
vehicle.

■

The information display at low temperatures

Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift  again,  causing  rapid  and  excessive  engine  braking  and  possibly  an
accident resulting in death or injury.

■

Cautions during setting up the display

As the engine needs to be running during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO)
may  collect  and  enter  the  vehicle.  This  may  lead  to  death  or  a  serious
health hazard.

NOTICE

■

While setting up the display

To prevent battery discharge, ensure that the engine is running while setting
up the display features.

126

2. Instrument cluster

CAMRY_U

The head-up display is linked to the meters and navigation system (if
equipped) and projects a variety of information in front of the driver,
such as the current vehicle speed.

Driving assist system status/navigation system-linked display area
(if equipped) (



P. 128)

The following pop-up displays will be displayed in certain situations:

• Pre-collision warning (pre-collision system)
• Alert from the Parking Support Brake system (if equipped)

Shift position/speed limit/RSA (Road Sign Assist) display area

• Shift position (



P. 219)

• Speed limit (vehicles with a navigation system) (U.S.A. only)
• RSA (Road Sign Assist) display (if equipped) (



P. 289)

Vehicle speed display
Eco Driving Indicator/Tachometer (



P. 129)

Information display area (



P. 129)

The following pop-up displays will be displayed in certain situations:

• Warning/message
• Hands-free system status
• Audio system operation status

Head-up display





: If equipped

Summary of functions

1

2

3

4

5

127

2. Instrument cluster

2

Instru

me
nt clu

ster

CAMRY_U

Select

 on the multi-information display (



P. 115) and then

.

◆

Enabling/disabling the head-up display

Press

 to enable/disable the head-up display.

◆

Changing the head-up display settings

Press and hold

 to change the following settings:

■

Eco Driving Indicator/Tachometer

Select to display Eco Driving Indicator/tachometer/no content.

■

Display brightness/position

Select to adjust the brightness and position of the head-up display.

■

Display content

Select to enable/disable the following items:

• Route guidance to destination (if equipped)
• Driving assist system status
• Compass (if equipped)
• Audio system operation status

■

Display angle

Select to adjust the angle of the head-up display.

Using the head-up display

128

2. Instrument cluster

CAMRY_U

◆

Driving assist system status display

Displays the operational status of the following systems:

• Dynamic radar cruise control with full-speed range (



P. 294)

• LTA (Lane Tracing Assist) (



P. 274)

• RSA (Road Sign Assist) (if equipped) (



P. 289)

• Intuitive parking assist (if equipped) (



P. 342)

◆

Navigation system-linked display area (if equipped)

Displays the following items, which are linked to the navigation sys-
tem:

■

Street name

When  the  navigation  system  is  performing  route  guidance,  the
name of the next street will be displayed on the top of the display
area.

■

Route guidance to destination

Displayed  when  the  navigation  system  is  performing  route  guid-
ance. When approaching an intersection, an arrow will be displayed
to indicate the suggested direction of travel.

■

Compass

Displays the direction of travel.

Driving  assist  system  status/navigation  system-linked  display
area (if equipped)

129

2. Instrument cluster

2

Instru

me
nt clu

ster

CAMRY_U

■

Eco Driving Indicator

Eco  Driving  Indicator  Zone
Display
Eco  driving  ratio  based  on
acceleration
Zone of Eco driving

Displayed  content  is  the  same
as  that  displayed  on  the  multi-
information display (Eco Driving
Indicator). For details, refer to
P. 124.

■

Tachometer

Displays the engine speed in revolutions per minute.

Displays the following items in the appropriate situation:

■

Warning/Message

●

Alert from the LTA (Lane Tracing Assist)

●

Dynamic radar cruise control with full-speed range

●

 message

Displayed when a suggestion/advice pop-up display is displayed on the
multi-information display. (



P. 123)

●

 message

Displayed when a warning message is displayed on the multi-informa-
tion display. (



P. 548)

●

Outside temperature

Displayed in the following situations:

• When the engine switch is turned to IGNITION ON mode
• When the low outside temperature indicator is flashing

Displayed content is the same as that displayed on the multi-information
display. For details, refer to the explanation of the outside temperature
display on the multi-information display. (



P. 92)

■

Hands-free system status

Displayed when the hands-free system is operated.

■

Audio system operation status

Displayed when the audio system is operated.

Eco Driving Indicator/Tachometer

1

2

3

Information display area

130

2. Instrument cluster

CAMRY_U

■

Head-up display

The  head-up  display  may  seem  dark  or  hard  to  see  when  viewed  through
sunglasses, especially polarized sunglasses.
Adjust the brightness of the head-up display or remove your sunglasses.

■

Display brightness

The brightness of the head-up display can  be adjusted on

 of the  multi-

information display. Also, it is automatically adjusted according to the ambient
brightness.

■

Enabling/disabling of the head-up display

If  the  head-up  display  is  disabled,  it  will  remain  disabled  when  the  engine
switch is turned off then back to IGNITION ON mode.

■

Street name display (vehicles with a navigation system)

Only street names which are included in the map data will be displayed.

WARNING

■

Before using the head-up display

●

Check that the position and brightness of the head-up display image does
not interfere with safe driving. Incorrect adjustment of the image’s position
or  brightness  may  obstruct  the  driver’s  view  and  lead  to  an  accident,
resulting in death or serious injury.

●

Do not continuously look at the head-up display while driving as you may
fail to see pedestrians, objects on the road, etc. ahead of the vehicle.

■

Caution for changing settings of the head-up display

As the engine needs to be running while changing the settings of the head-
up display, ensure that the vehicle is parked in a place with adequate venti-
lation. In a closed area such as a garage, exhaust gases including harmful
carbon monoxide (CO) may collect and enter the vehicle. This may lead to
death or a serious health hazard.

131

2. Instrument cluster

2

Instru

me
nt clu

ster

CAMRY_U

NOTICE

■

To prevent damage to components

■

When changing the settings of the head-up display

To  prevent  battery  discharge,  ensure  that  the  engine  is  running  while  the
changing the settings of the head-up display.

●

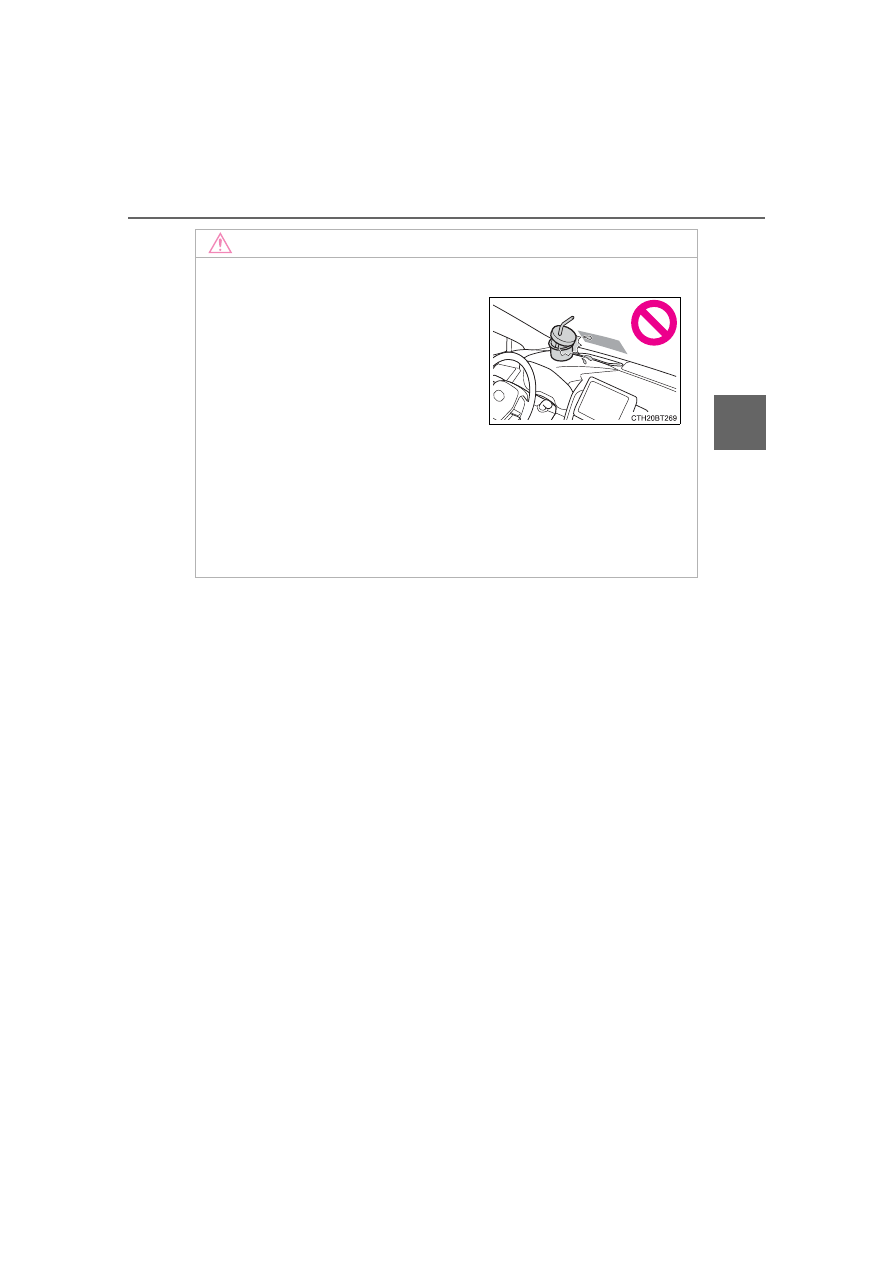

Do not place any drinks near the head-
up display projector. If the projector gets
wet, electrical malfunctions may result.

●

Do not place anything on or put stickers
onto the head-up display projector.
Doing  so  could  interrupt  head-up  dis-
play indications.

●

Do not touch the inside of the head-up
display  projector  or  thrust  sharp  edges
or the like into the projector.
Doing so could cause mechanical mal-
functions.

132

2. Instrument cluster

CAMRY_U



Audio  (vehicles  without  Data  Communication  Module)  or  Audio
Plus (vehicles without Data Communication Module)

Press the “MENU” button.
Select  “Info”  on  the  “Menu”
screen.

If the “History” screen is displayed,
select “Trip Information”.

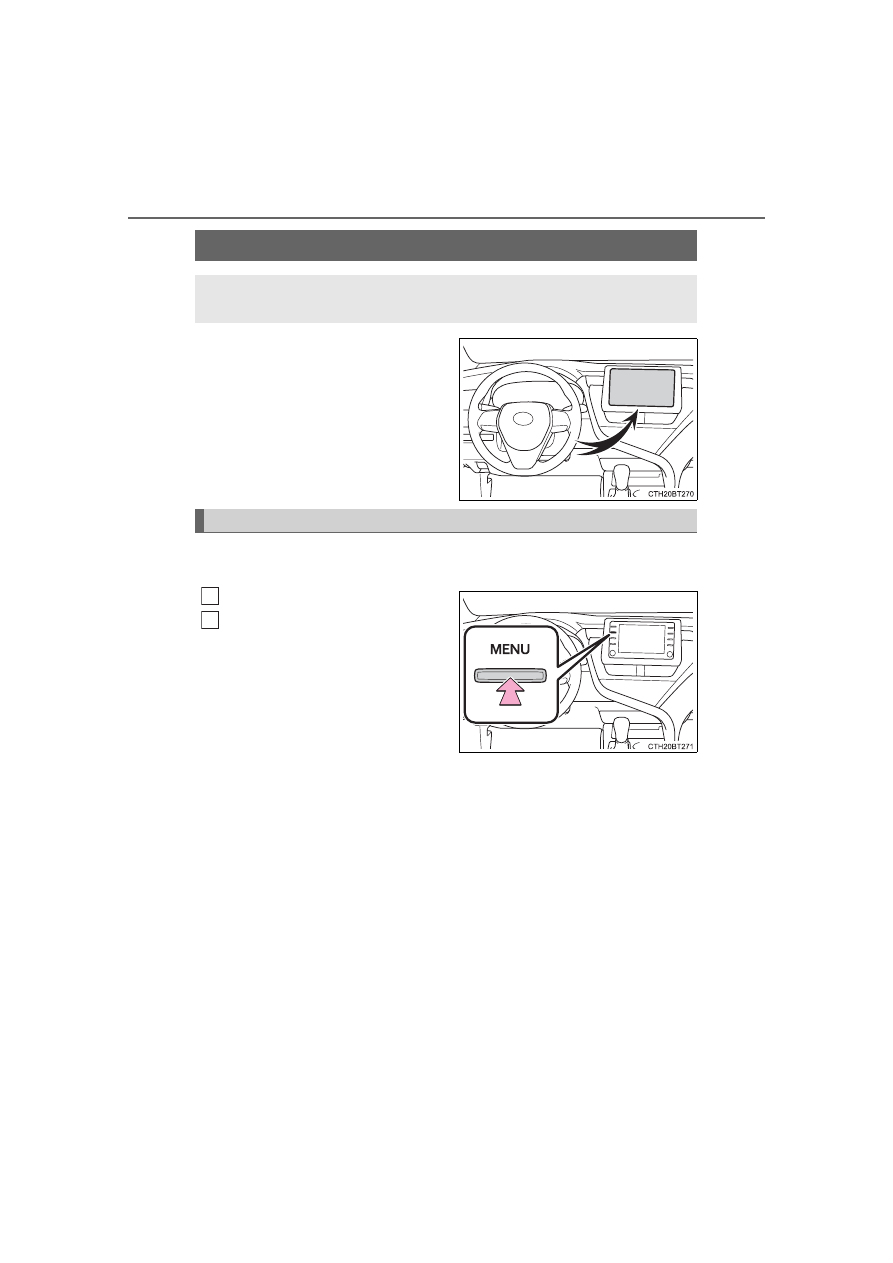

Fuel consumption information

Fuel  consumption  information  can  be  displayed  on  the  audio
system screen.

Trip information

1

2

133

2. Instrument cluster

2

Instru

me
nt clu

ster

CAMRY_U



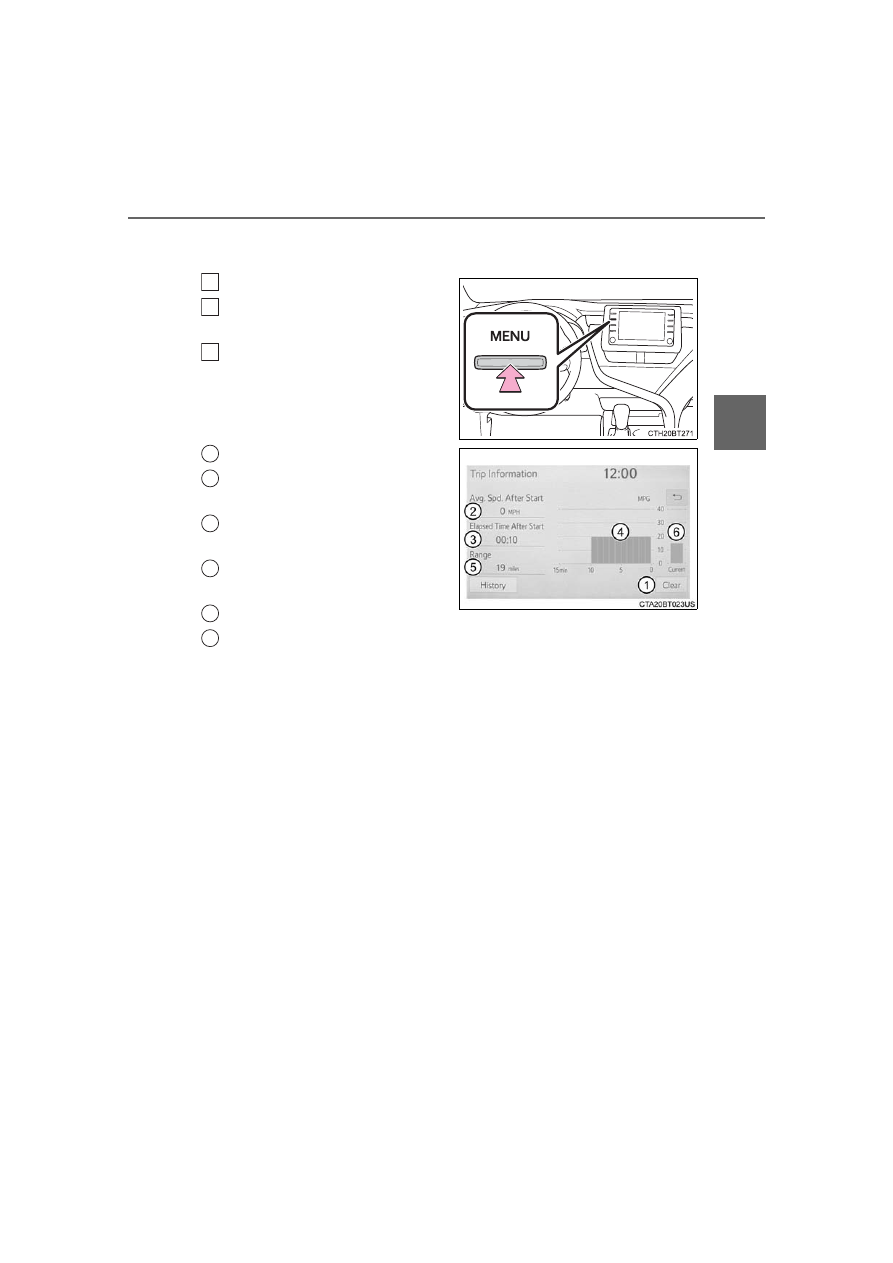

Audio  (vehicles  with  Data  Communication  Module),  Audio  Plus
(vehicles with Data Communication Module) and Premium Audio

Press the “MENU” button.
Select  “Info”  on  the  “Menu”
screen.
Select  “ECO”  on  the  “Informa-
tion” screen.

If the “History” screen is displayed,
select “Trip Information”.

Resetting the consumption data
Average  vehicle  speed  since
the engine was started
Elapsed  time  since  the  engine
was started
Fuel consumption in the past 15
minutes
Cruising range (



P. 135)

Current fuel consumption

Vehicles without a smart key system:
Average fuel consumption for the past 15 minutes is divided by color
into past averages and averages attained since the engine switch was
last turned to the “ON” position. Use the displayed average fuel con-
sumption as a reference.
Vehicles with a smart key system:
Average fuel consumption for the past 15 minutes is divided by color
into past averages and averages attained since the engine switch was
last  turned  to  IGNITION  ON  mode.  Use  the  displayed  average  fuel
consumption as a reference.

This image is an example only.

1

2

3

1

2

3

4

5

6

134

2. Instrument cluster

CAMRY_U



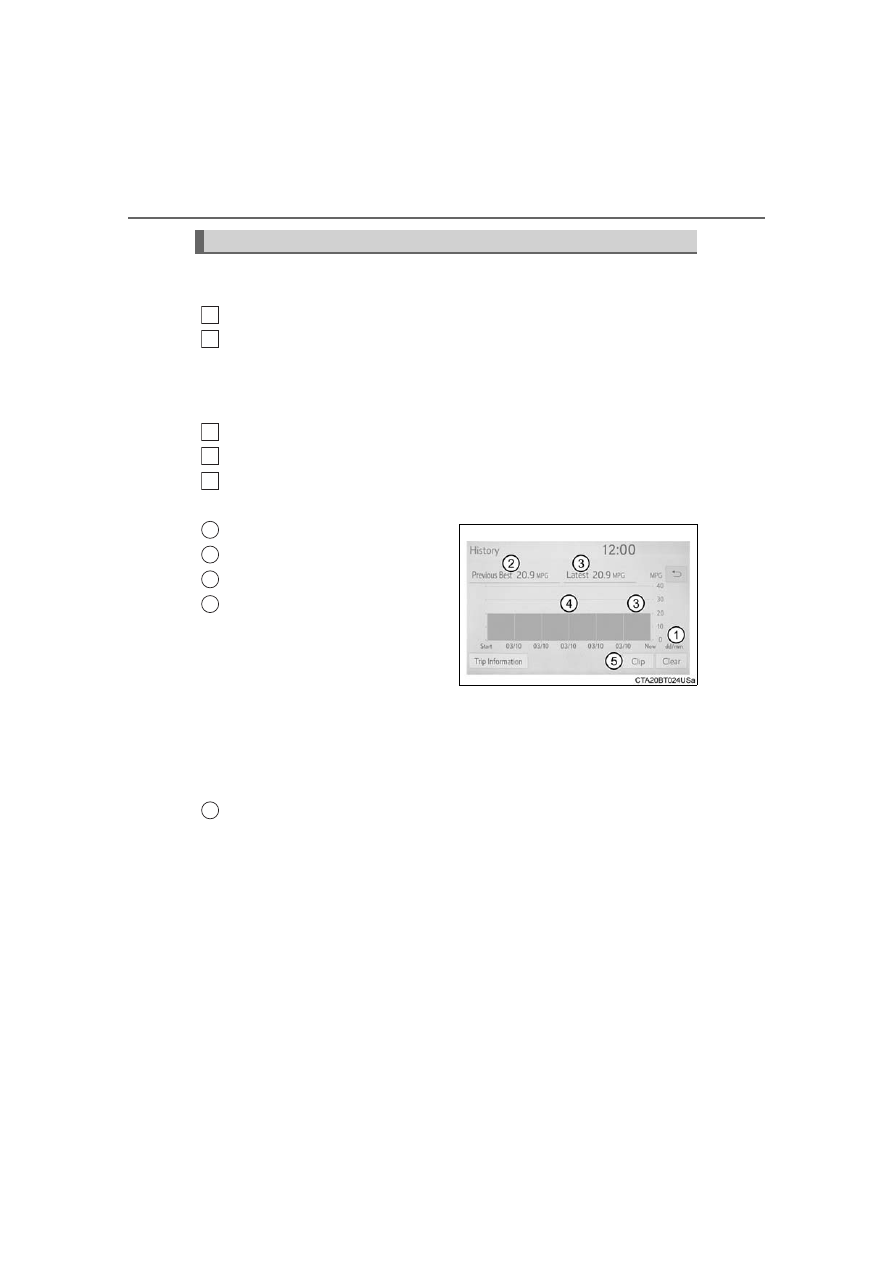

Audio  (vehicles  without  Data  Communication  Module)  or  Audio
Plus (vehicles without Data Communication Module)
Press the “MENU” button.
Select “Info” on the “Menu” screen.

If the “Trip Information” screen is displayed, select “History”.



Audio  (vehicles  with  Data  Communication  Module),  Audio  Plus
(vehicles with Data Communication Module) and Premium Audio
Press the “MENU” button.
Select “Info” on the “Menu” screen.
Select “ECO” on the “Information” screen.

If the “Trip Information” screen is displayed, select “History”.

Resetting the past record data
Best recorded fuel consumption
Current fuel economy
Previous

fuel

consumption

record



Audio and Audio Plus

Displays  the  daily  average  fuel
consumption. (Instead of the date,
“Trip 1” through “Trip 5” will be dis-
played.)



Premium Audio

Displays the daily average fuel consumption.

Updating the average fuel consumption data

The  average  fuel  consumption  history  is  divided  by  color  into  past
averages  and  the  average  fuel  consumption  since  the  last  updated.
Use the displayed average fuel consumption as a reference.

This image is an example only.

History

1

2

1

2

3

1

2

3

4

5

135

2. Instrument cluster

2

Instru

me
nt clu

ster

CAMRY_U

■

Updating the past record data

Update the average fuel consumption by selecting “Clip” to measure the cur-
rent fuel consumption again.

■

Resetting the data

The fuel consumption data can be deleted by selecting “Clear”.

■

Cruising range

Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that dis-
played.

136

2. Instrument cluster

CAMRY_U

137

3

Operation of

each component

CAMRY_U

3-1.  Key information

Keys .................................. 138

3-2.  Opening, closing and

locking the doors

Doors ................................ 147
Trunk................................. 156
Smart key system ............. 161

3-3.  Adjusting the seats

Front seats ........................ 169
Rear seats......................... 171
Head restraints.................. 173

3-4.  Adjusting the steering

wheel and mirrors

Steering wheel .................. 175
Inside rear view mirror ...... 177
Outside rear view

mirrors............................. 179

3-5.  Opening and closing

the windows

Power windows ................. 181
Moon roof.......................... 185
Panoramic moon roof........ 189

138

CAMRY_U

3-1. Key information

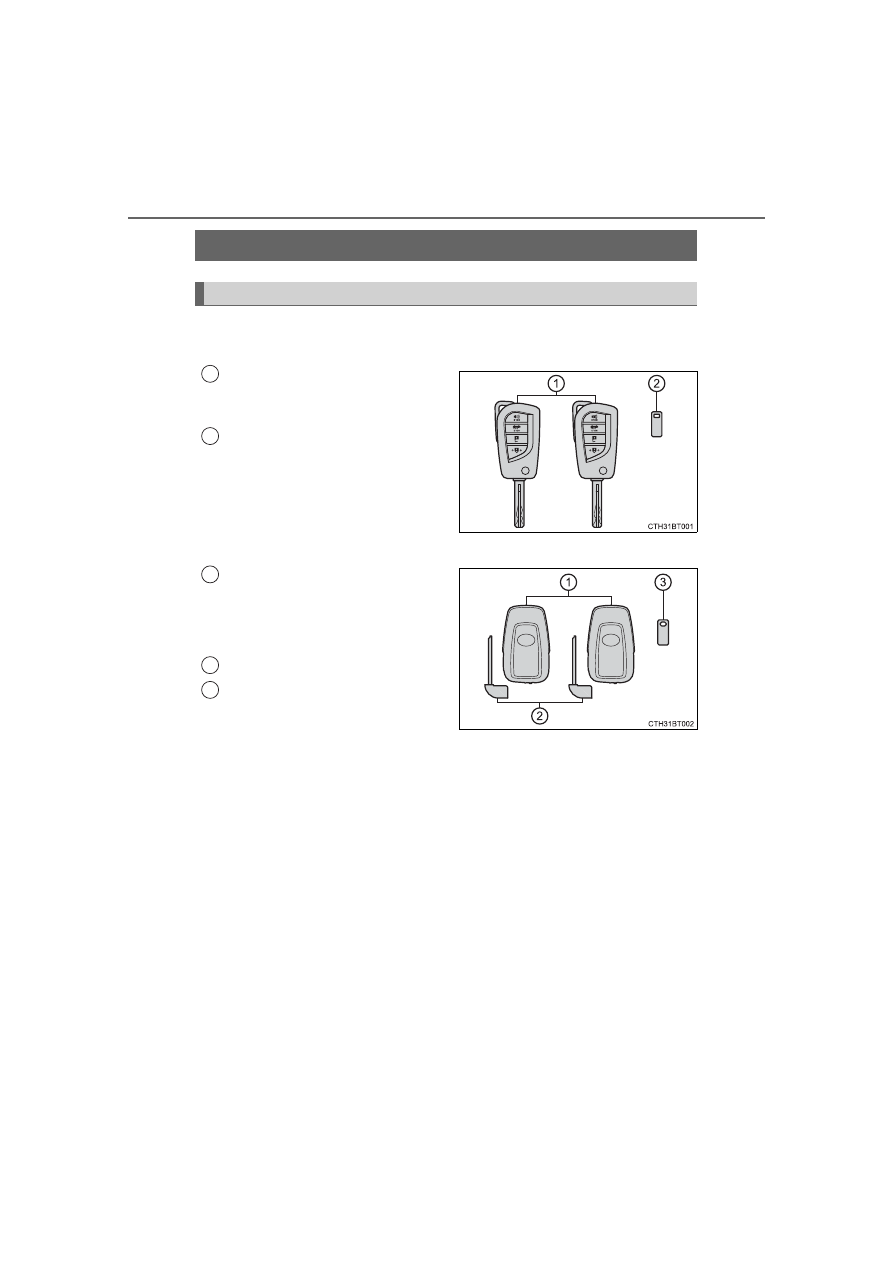

The following keys are provided with the vehicle.



Vehicles without a smart key system

Keys

Operating the wireless remote con-
trol function (



P. 139)

Key number plate



Vehicles with a smart key system

Electronic keys

• Operating the smart key system

(



P. 161)

• Operating  the  wireless  remote

control function (



P. 139)

Mechanical keys
Key number plate

Keys

The keys

1

2

1

2

3

139

3-1. Key information

3

Op
eration

 o

f each

 compo

nen
t

CAMRY_U



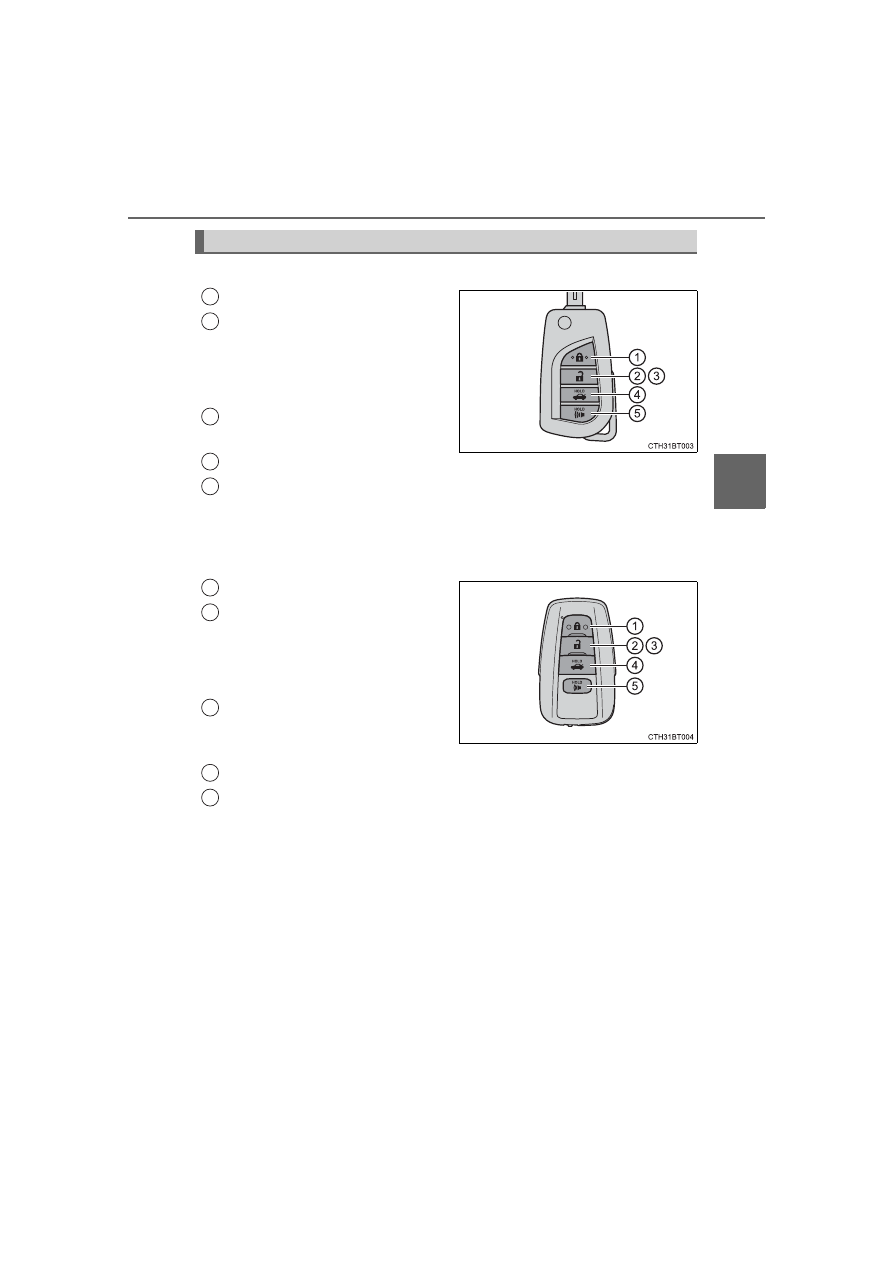

Vehicles without a smart key system

Locks all the doors (



P. 148)

Unlocks all the doors (



P. 148)

Pressing  the  button  unlocks  the
driver’s  door.  Pressing  the  button
again within 3 seconds unlocks the
other doors.

Opens  the  windows

*

1

  and  the

moon roof

*

1, 2

(



P. 148)

Opens the trunk (



P. 157)

Sounds the alarm (



P. 141)

*

1

: This setting must be customized at your Toyota dealer.

*

2

: If equipped



Vehicles with a smart key system

Locks all the doors (



P. 148)

Unlocks all the doors (



P. 148)

Pressing  the  button  unlocks  the
driver’s  door.  Pressing  the  button
again within 3 seconds unlocks the
other doors.

Opens  the  windows

*

1

  and  the

moon  roof

*

1,  2

  or  panoramic

moon roof

*

1, 2

 (



P. 148)

Opens the trunk (



P. 157)

Sounds the alarm (



P. 141)

*

1

: This setting must be customized at your Toyota dealer.

*

2

: If equipped

Wireless remote control

1

2

3

4

5

1

2

3

4

5

140

3-1. Key information

CAMRY_U

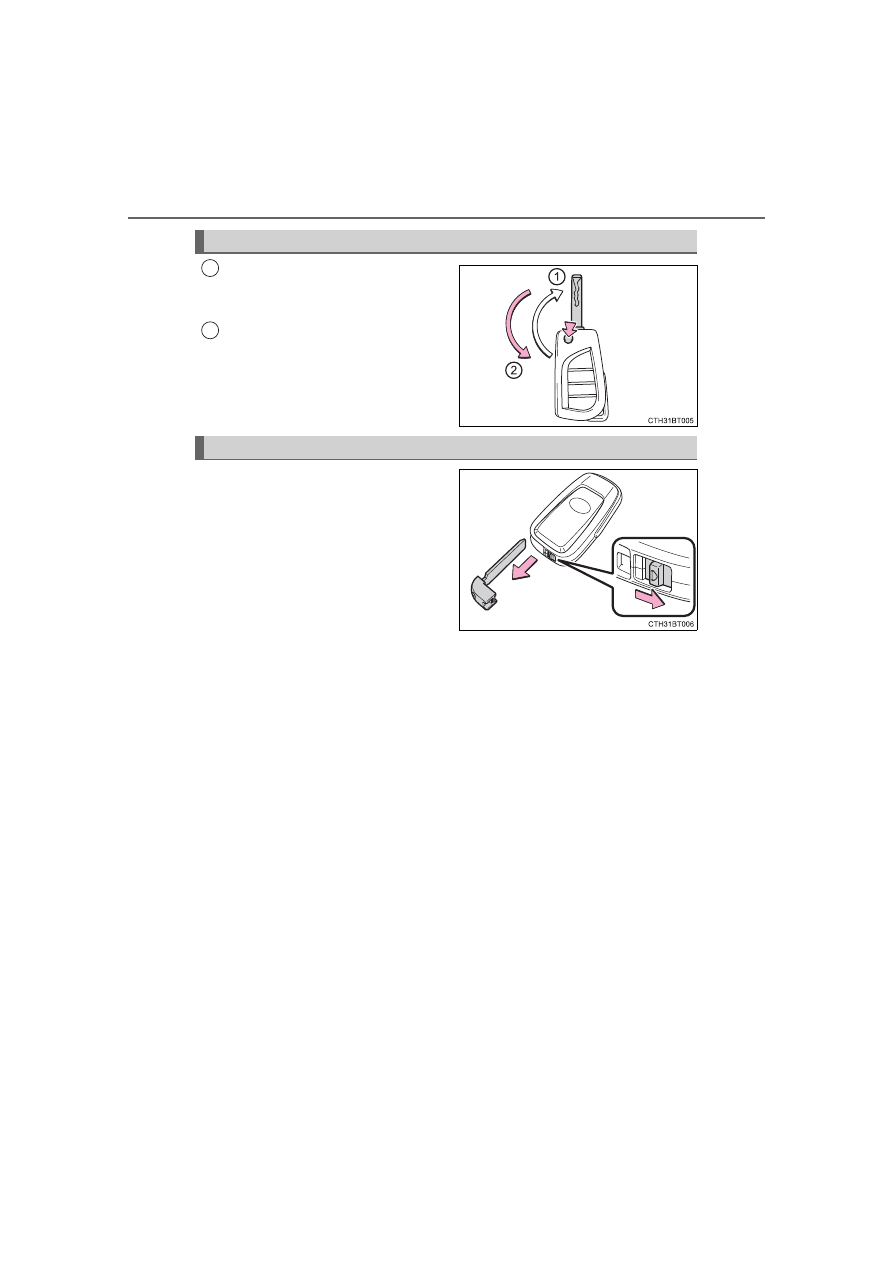

Releasing

To  release  the  key,  press  the  but-
ton.

Folding

To  stow  the  key,  press  the  button
then fold the key.

To  take  out  the  mechanical  key,
slide  the  release  lever  and  take
the key out.

The  mechanical  key  can  only  be
inserted  in  one  direction,  as  the
key only has grooves on one side.
If  the  key  cannot  be  inserted  in  a
lock  cylinder,  turn  it  over  and  re-
attempt to insert it.
After  using  the  mechanical  key,  store  it  in  the  electronic  key.  Carry  the
mechanical key together with the electronic key. If the electronic key bat-
tery  is  depleted  or  the  entry  function  does  not  operate  properly,  you  will
need the mechanical key. (



P. 569)

Using the key (vehicles without a smart key system)

1

2

Using the mechanical key (vehicles with a smart key system)

141

3-1. Key information

3

Op
eration

 o

f each

 compo

nen
t

CAMRY_U

■

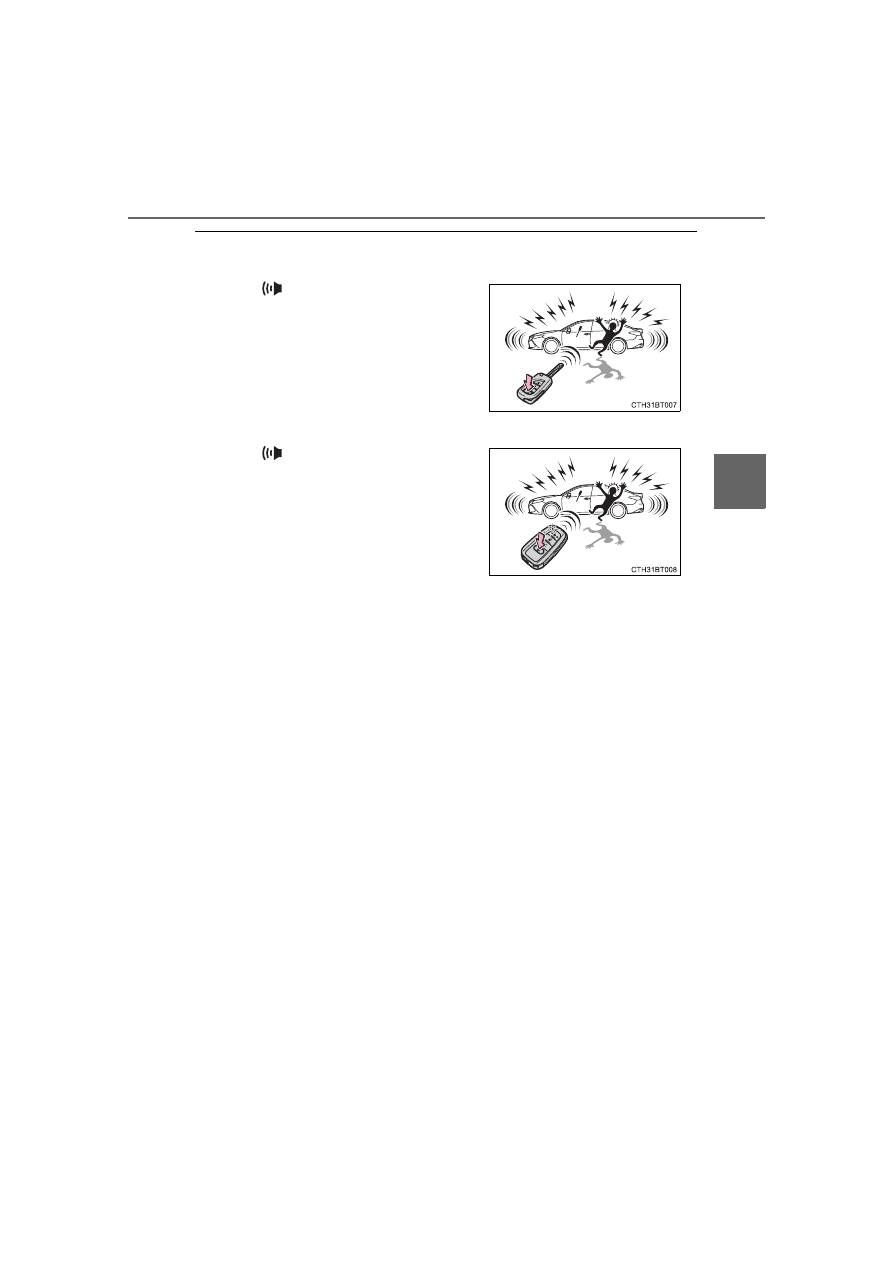

Panic mode



Vehicles without a smart key system



Vehicles with a smart key system

■

When required to leave the vehicle’s key with a parking attendant (vehi-
cles with a smart key system)

Lock the glove box as circumstances demand. (



P. 420)

Remove the mechanical key for your own use and provide the attendant with
the electronic key only.

When

  is  pressed  for  longer  than

about  one  second,  an  alarm  will  sound
intermittently  and  the  vehicle  lights  will
flash  to  deter  any  person  from  trying  to
break into or damage your vehicle.
To stop the alarm, press any button on the
wireless remote control.

When

  is  pressed  for  longer  than

about  one  second,  an  alarm  will  sound
intermittently  and  the  vehicle  lights  will
flash  to  deter  any  person  from  trying  to
break into or damage your vehicle.
To stop the alarm, press any button on the
electronic key.
