Toyota Sienna (2019 year). Instruction - part 24

The USB charging ports can be used when



Vehicles without a smart key system

The engine switch is in the “ACC” or “ON” position.



Vehicles with a smart key system

The engine switch is in ACCESSORY or IGNITION ON mode.

Situations in which the USB charging ports may not operate correctly

If a device which consumes more than 2.1 A at 5 V is connected

If a device designed to communicate with a personal computer, such as a
USB memory device, is connected

If the connected external device is turned off (depending on device)

If the temperature inside the vehicle is high, such as after the vehicle has
been parked in the sun

About connected external devices
Depending on the connected external device, charging may occasionally be
suspended and then start again. This is not a malfunction.

NOTICE

To prevent damage to the USB charging ports

Do not insert foreign objects into the ports.

Do not spill water or other liquids into the ports.

When the USB charging ports are not in use, close the lids. If a foreign
object or liquid enters a port may cause a short circuit.

Do not apply excessive force to or impact the USB charging ports.

Do not disassemble or modify the USB charging ports.

To prevent damage to external devices

Do not leave external devices in the vehicle. The temperature inside the
vehicle may become high, resulting in damage to an external device.

Do not push down on or apply unnecessary force to an external device or
the cable of an external device while it is connected.

To prevent battery discharge
Do not use the USB charging ports for a long period of time with the engine
stopped.

370

SIENNA_OM_OM08025U_(U)

Pull the armrest down for use.

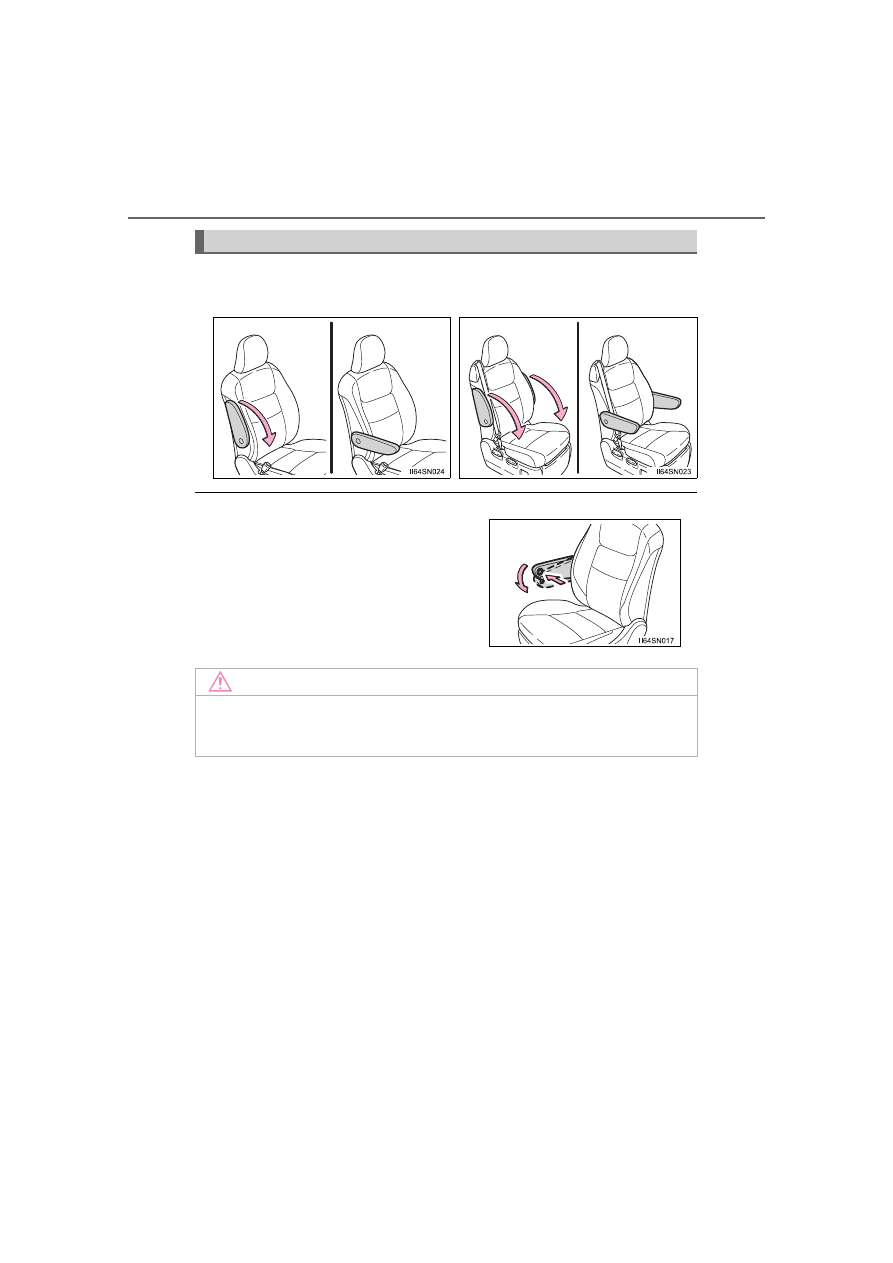

Adjusting the front seat armrests with lock release button (if equipped)

Armrests



Front seat



Second seat (if equipped)

Push the armrest down while pressing the
button.

NOTICE

To prevent damage to the armrest, do not apply too much load on the arm-
rest.

SIENNA_OM_OM08025U_(U)

371

Assist grips



Type A



Type B

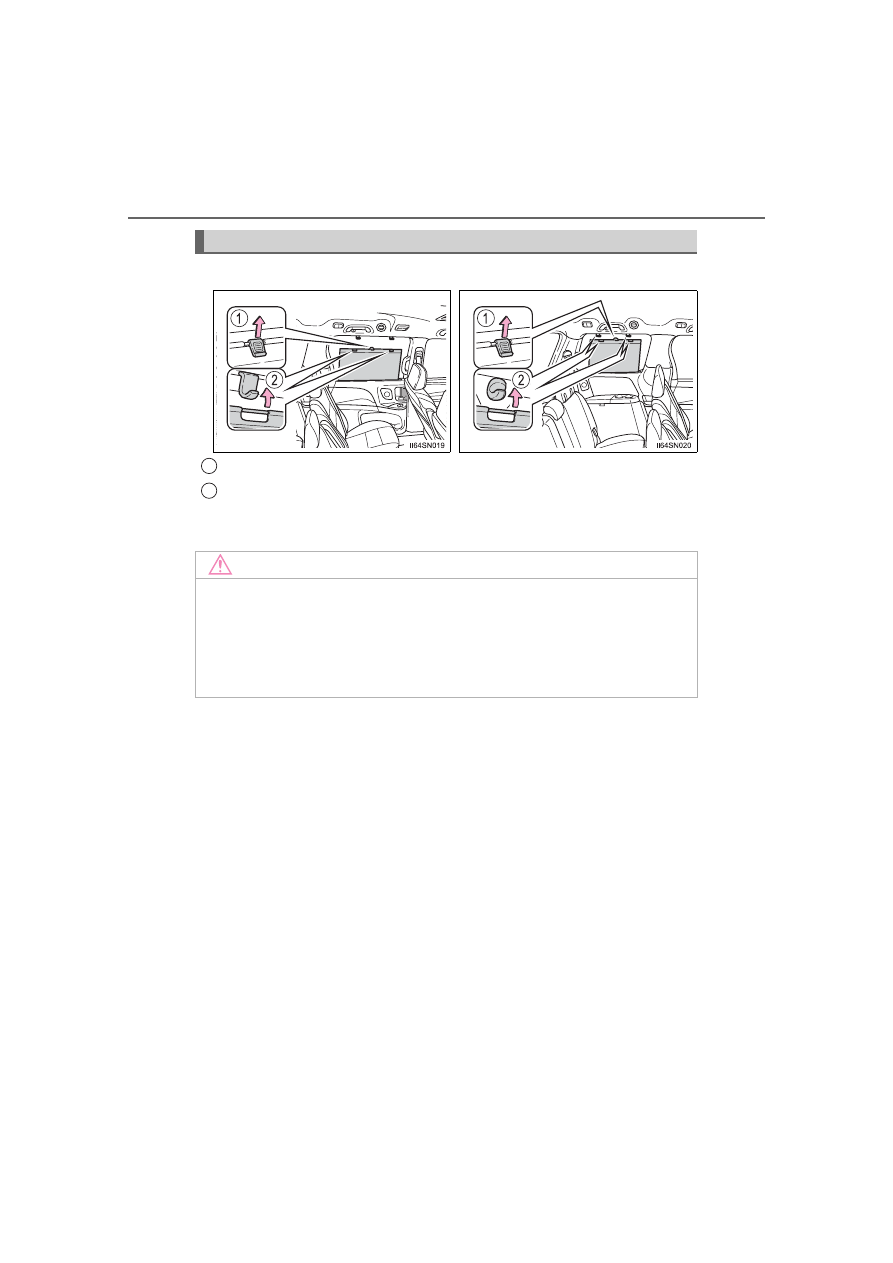

An assist grip installed on the ceil-
ing can be used to support your
body while sitting on the seat.

An assist grip installed on the pil-
lar can be used when getting in
or out of the vehicle and others.

WARNING

Type A: Do not use the assist grip when getting in or out of the vehicle or ris-
ing from your seat.

NOTICE

To prevent damage to the assist grip, do not hang any heavy object or put a
heavy load on the assist grip.

372

SIENNA_OM_OM08025U_(U)

Pull the tab up.
Secure the sunshade using the hooks.

To retract the sunshade, pull the tab up slightly to unhook the sunshade,
and lower the sunshade slowly.

Rear side sunshades (if equipped)



Rear door window



Rear quarter window

NOTICE

To ensure normal operation of the rear sunshades, observe the following
precautions.

Do not place anything where it may hinder the opening/closing of the sun-
shade.

Do not place anything on the sunshade.

1
2

SIENNA_OM_OM08025U_(U)

373

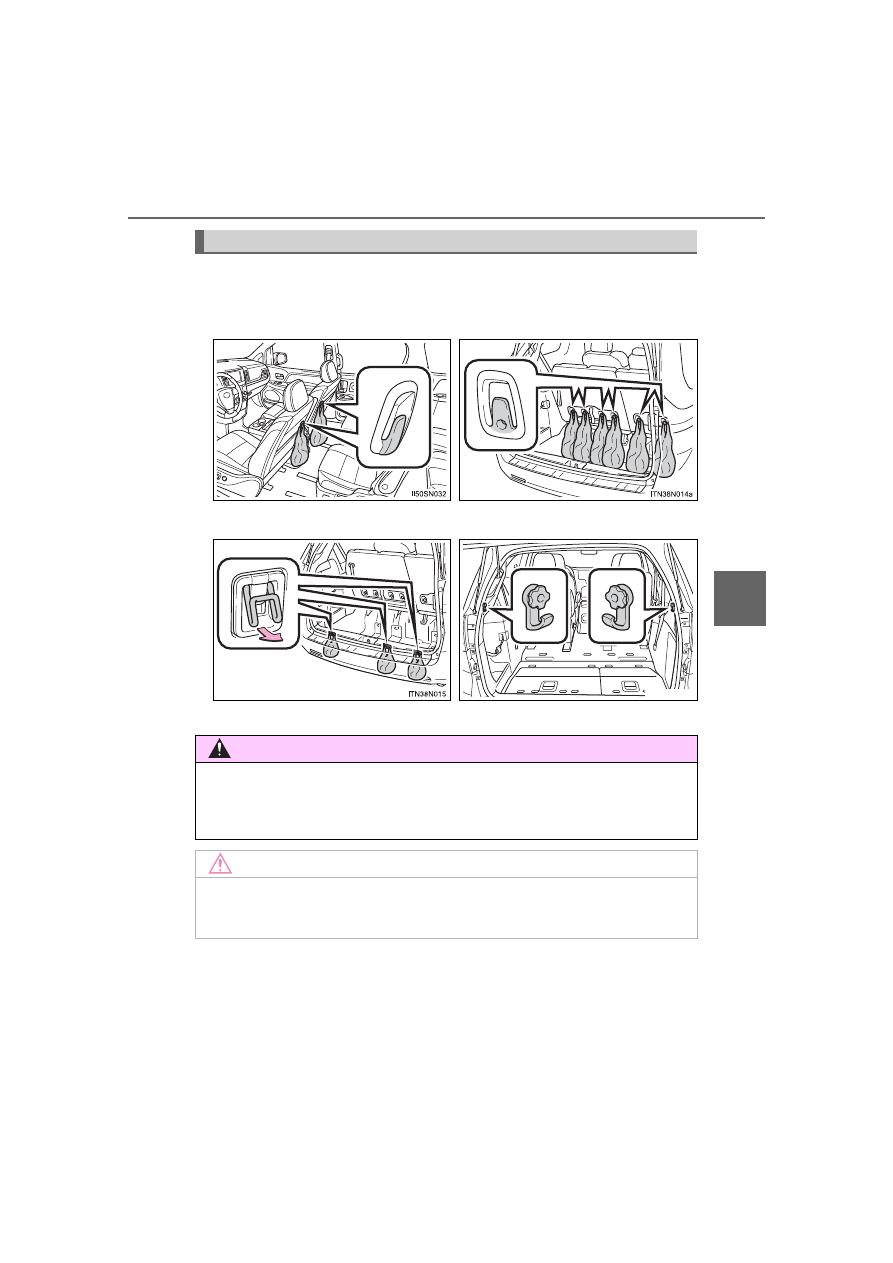

The hooks are designed to hang things like a grocery bag.

Grocery bag hooks



Type A (front seatback)
(if equipped)



Type B (third seatback)



Type C (luggage compartment)



Type D (luggage compartment)

Pull the hook up.

WARNING

Type C: When not in use, keep the grocery bag hook stowed.
Injuries may result in the event of sudden braking, sudden swerving or an
accident.

NOTICE

Type A and B: Do not hang any object heavier than 8.8 lb. (4 kg) on the gro-
cery bag hook.

ITN38N036

374

SIENNA_OM_OM08025U_(U)

Garage door opener



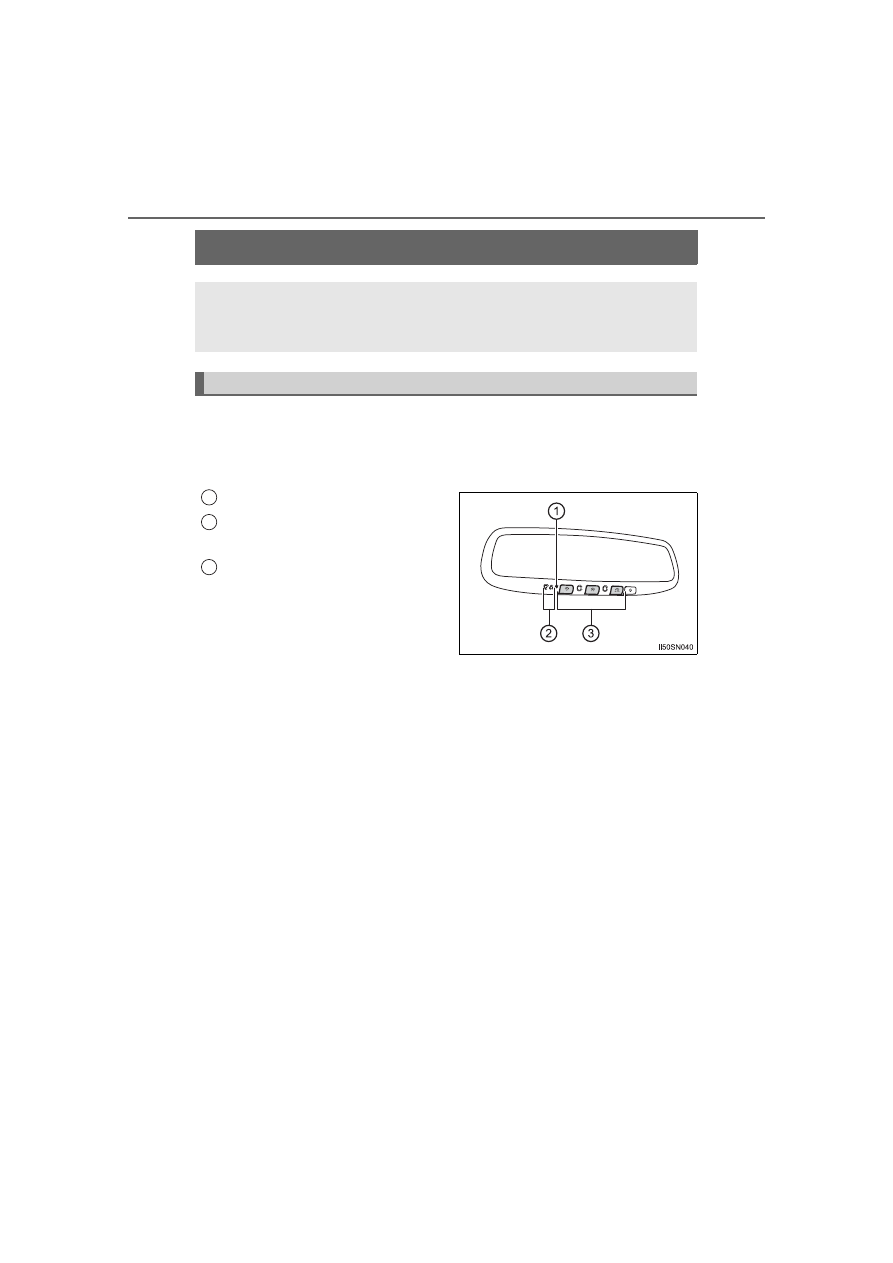

The HomeLink

wireless control system in your vehicle has 3 buttons

which can be programmed to operate 3 different devices. Refer to the
programming methods on the following pages to determine the
method which is appropriate for the device.

HomeLink

indicator light

Garage door operation indica-
tors
Buttons

Before programming the HomeLink

During programming, it is possible that garage doors, gates, or
other devices may operate. For this reason, make sure that peo-
ple and objects are clear of the garage door or other devices to
prevent injury or other potential harm.

It is recommended that a new battery be placed in the remote
control transmitter for more accurate programming.

Garage door opener motors manufactured after 1995 may be
equipped with rolling code protection. If this is the case, you may
need a stepladder or other sturdy, safe device to reach the
“Learn” or “Smart” button on the garage door opener motor.



: If equipped

The garage door opener can be programmed to operate garage
doors, gates, entry doors, door locks, home lighting systems,
security systems, and other devices.

HomeLink

1
2

SIENNA_OM_OM08025U_(U)

375

Programming the HomeLink

Steps

through

must be performed within 60 seconds, other-

wise the indicator light will stop flashing and programming will not
be able to be completed.

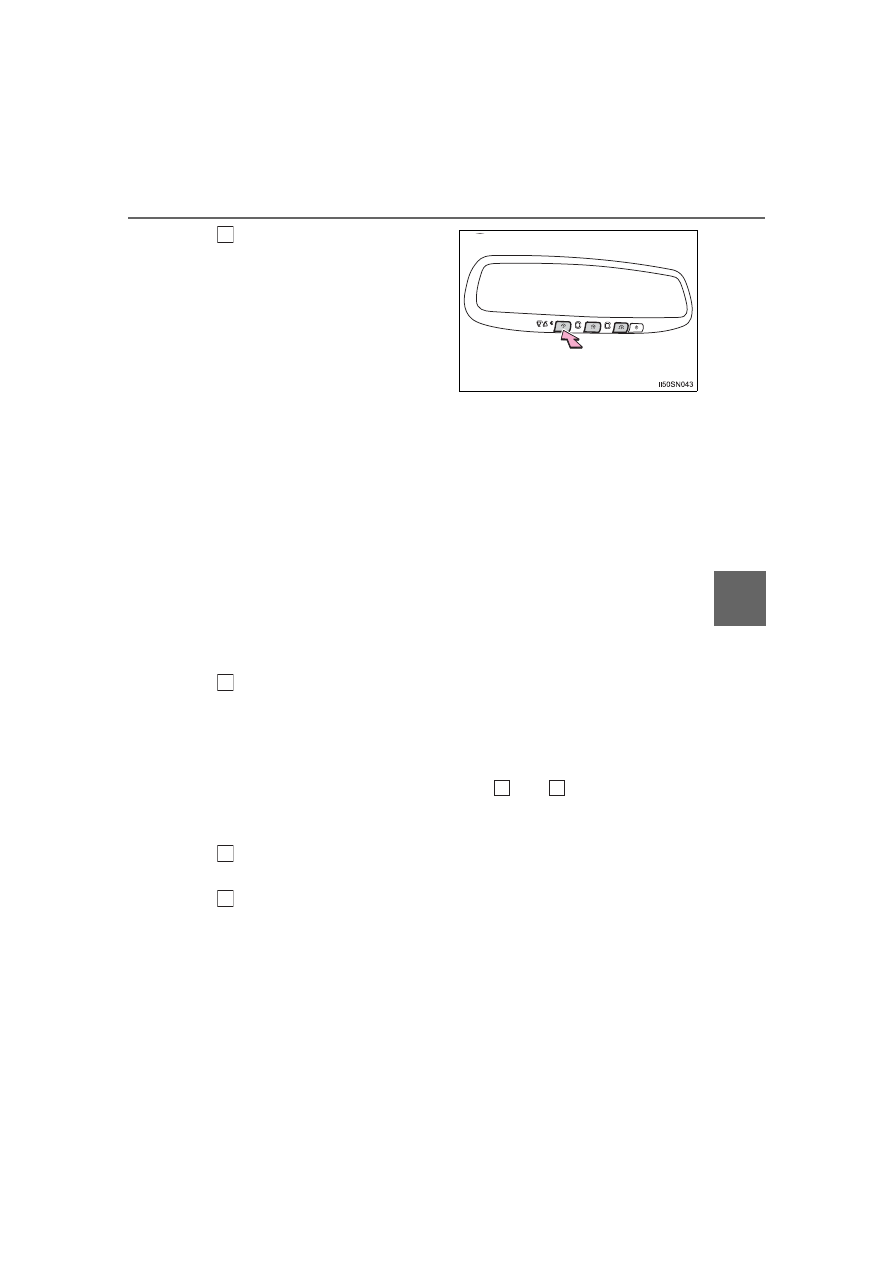

Press and release the HomeLink

button you want to program

and check that the HomeLink

indicator light flashes orange.

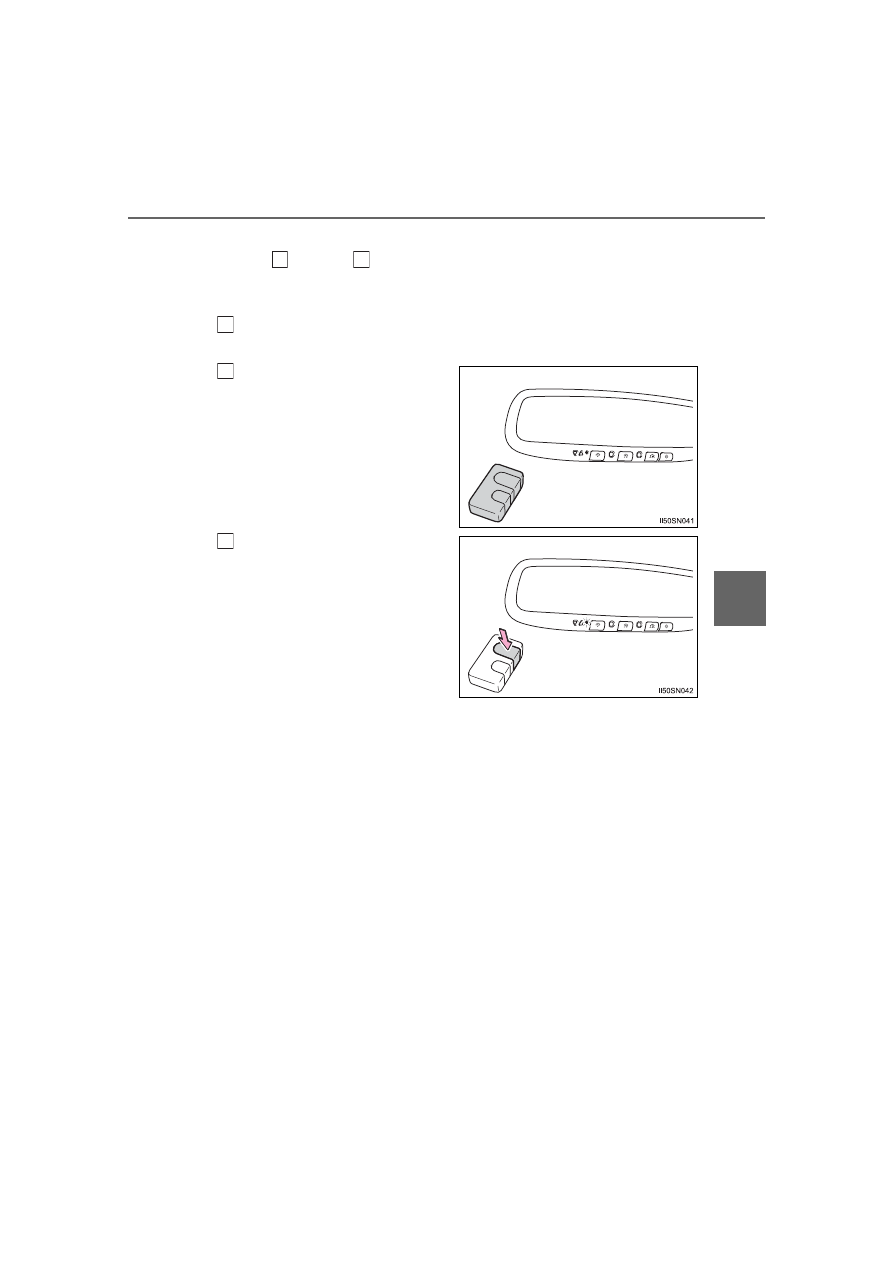

Point  the  remote  control
transmitter  for  the  device  at
the rear view mirror, 1 to 3 in.
(25  to  75  mm)  from  the
HomeLink

buttons.

Keep the HomeLink

indicator

light in view while programming.

Program a device.



Programming a device other than an entry gate (for U.S.A.
owners)

Press and hold the remote control transmitter button until the
HomeLink

indicator light changes from slowly flashing orange to

rapidly flashing green (rolling code) or continuously lit green
(fixed code), then release the button.



Programming an entry gate (for U.S.A. owners)/Programming
a device in the Canadian market

Press and release the remote control transmitter button at 2 sec-
ond intervals, repeatedly, until the HomeLink

indicator light

changes from slowly flashing orange to rapidly flashing green
(rolling code) or continuously lit green (fixed code).

376

SIENNA_OM_OM08025U_(U)

Test the HomeLink

operation by pressing the newly pro-

grammed button and observing the indicator light:

Indicator light illuminates: Programming of a fixed code device
has completed. The garage door or other device should oper-
ate when a HomeLink

button is pressed and released.

Indicator light flashes rapidly: The garage door opener motor
or other device is equipped with a rolling code. To complete
programming, firmly press and hold the HomeLink

button for

2 seconds then release it.

If the garage door or other device does not operate, proceed
to “Programming a rolling code system”.

Repeat the steps above to program another device for any of the
remaining HomeLink

buttons.

Programming a rolling code system
2 or more people may be necessary to complete rolling code pro-
gramming.

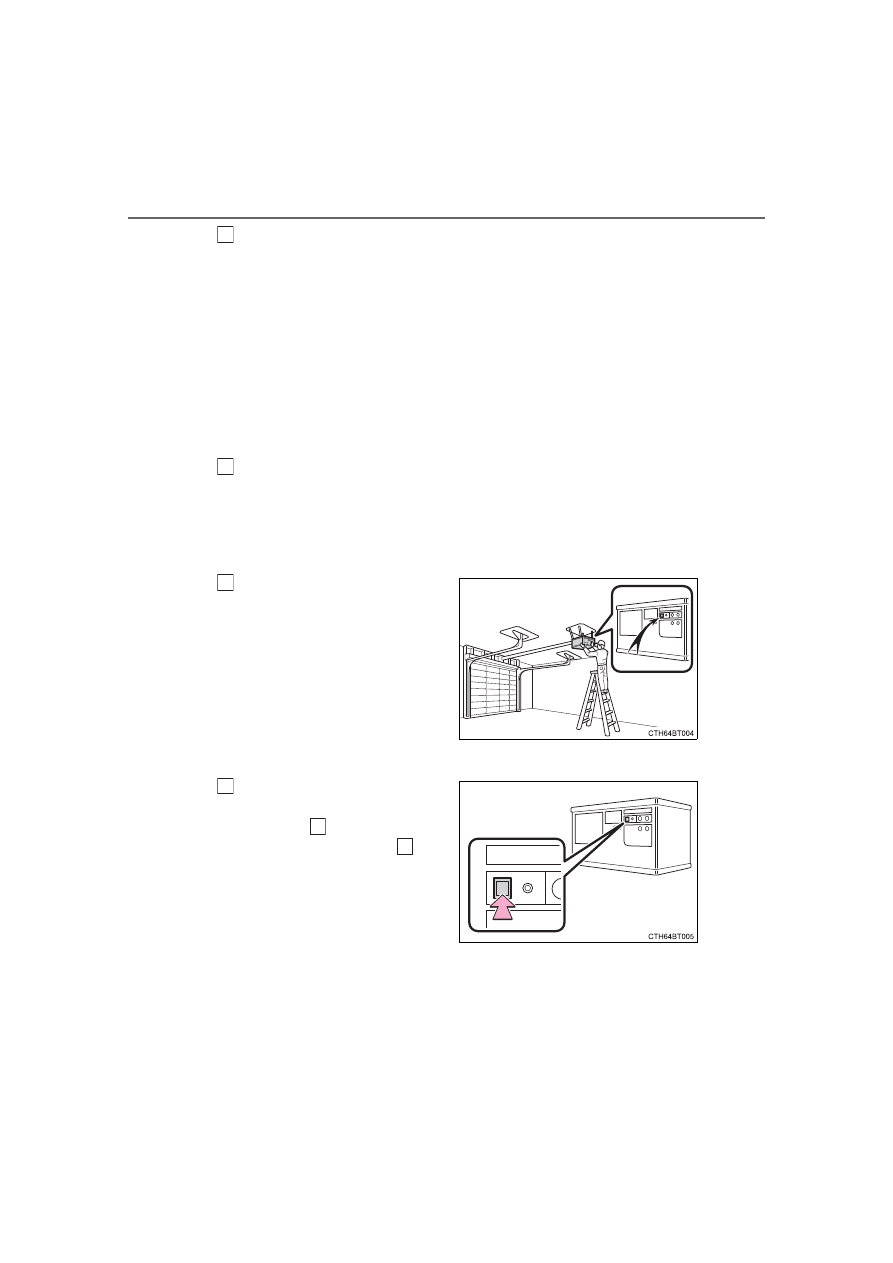

Locate the “Learn” or “Smart”
button on the garage door
opener motor in the garage.

This button can usually be found
where the hanging antenna wire
is  attached  to  the  unit.  The
name  and  color  of  the  button
may  vary  by  manufacturer.
Refer  to  the  Owner’s  manual
supplied  with  the  garage  door
opener motor for details.

Press and release the
“Learn” or “Smart” button.
Perform

within 30 sec-

onds after performing

SIENNA_OM_OM08025U_(U)

377

Press and hold the desired
HomeLink

button (inside the

vehicle) for 2 seconds and
release it. Repeat this
sequence

(press/hold/

release)  up  to  3  times  to
complete programming.
If  the  garage  door  opener
motor  operates  when  the
HomeLink

button

pressed, the garage door
opener motor recognizes the
HomeLink

signal.

Enabling 2-way communication with a garage door (only avail-
able for compatible devices)
When enabled, 2-way communication allows you to check the sta-
tus of the opening and closing of a garage door through indicators
in your vehicle.
2-way communication is only available if the garage door opener
motor used is a compatible device. (To check device compatibility,
refer to www.HomeLink.com.)

Within 5 seconds after programming the garage door opener has
been completed, if the garage door opener motor is trained to
HomeLink

, both garage door operation indicators will flash rap-

idly green and the light on the garage door opener motor will
blink twice, indicating that 2-way communication is enabled.

If the indicators do not flash, perform

and

within the first 10

presses of the HomeLink

button after programming has been

completed.

Press a programmed HomeLink

button to operate a garage

door.
Within 1 minute of pressing the HomeLink

button, after the

garage door operation has stopped, press the “Learn” or “Smart”
button on the garage door opener motor. Within 5 seconds of the
establishment of 2-way communication with the garage door
opener, both garage door operation indicators in the vehicle will
flash rapidly green and the light on the garage door opener motor
will blink twice, indicating that 2-way communication is enabled.

378

SIENNA_OM_OM08025U_(U)

Reprogramming a single HomeLink

button

When the following procedure is performed, buttons which already
have devices registered to them can be overwritten:

With one hand, press and hold the desired HomeLink

button.

When the HomeLink

indicator starts flashing orange, continue

to hold the HomeLink

button and perform “Programming the

HomeLink

”

(it takes 20 seconds for the HomeLink

indicator

to start flashing).

Press the appropriate HomeLink

button. The HomeLink

indicator

light should turn on.

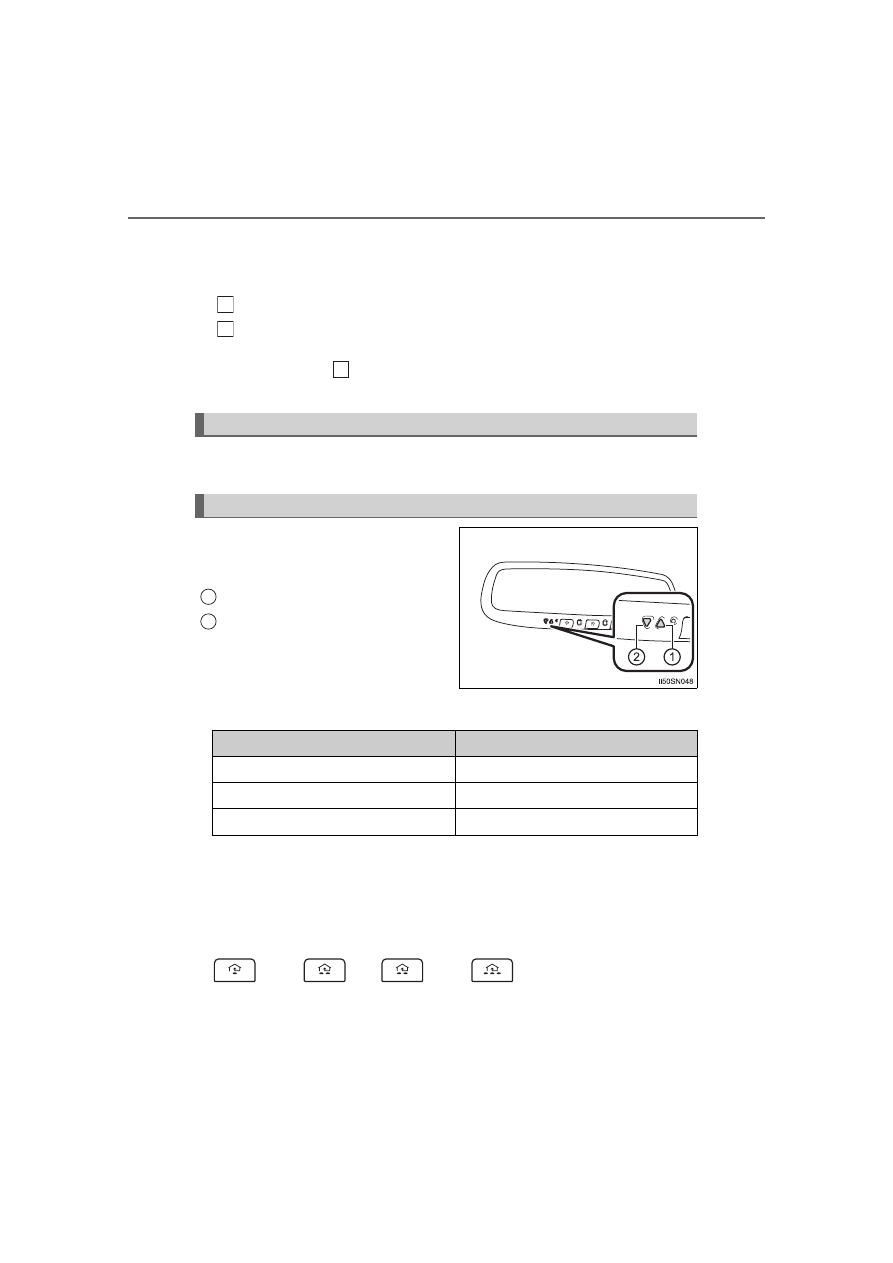

The status of the opening and
closing of a garage door is shown
by the indicators.

Opening
Closing

This function is only available if the
garage door opener motor used is
a compatible device. (To check
device compatibility, refer to
www.HomeLink.com.)

The indicators can operate within approximately 820 ft. (250 m) of the
garage door. However, if there are obstructions between the garage
door and the vehicle, such as houses and trees, feedback signals
from the garage door may not be received. To recall the previous door
operation status, press and release either HomeLink

buttons

and

simultaneously. The last

recorded status will be displayed for 3 seconds.

Operating the HomeLink

Garage door operation indicators

1
2

Color

Status

Orange (flashing)

Currently opening/closing

Green

Opening/closing has completed

Red (flashing)

Feedback signals cannot be received

SIENNA_OM_OM08025U_(U)

379

Press and hold the 2 outside but-
tons for 10 seconds until the
HomeLink

indicator

light

changes from continuously lit
orange to rapidly flashing green.

If you sell your vehicle, be sure to
erase the programs stored in the
HomeLink

memory.

Codes stored in the HomeLink

memory

The registered codes are not erased even if the battery cable is discon-
nected.

If learning failed when registering a different code to a HomeLink

button

that already has a code registered to it, the already registered code will not
be erased.

Before programming

Install a new battery in the transmitter.

The battery side of the transmitter must be pointed away from the Home-
Link

Certification for the garage door opener



For vehicles sold in the U.S.A.

FCC ID: NZLAECHL5
NOTE:
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.



For vehicles sold in Canada

NOTE:
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, includ-
ing interference that may cause undesired operation of the device.
REMARQUE:
Le present appareil est conforme aux CNR d’Industrie Canada applicables
aux appareils radio exempts de licence. L’exploitation est autorisee aux deux
conditions suivantes: (1) l’appareil ne doit pas produire de brouillage, et (2)
l’utilisateur de l’appareil doit accepter tout brouillage radioelectrique subi,
meme si le brouillage est susceptible d’en compromettre le fonctionnement.

Erasing the entire HomeLink

memory (all three codes)

380

SIENNA_OM_OM08025U_(U)

About HomeLink

HomeLink and HomeLink house icon are registered trademarks of Gentex
Corporation.

When support is necessary
For compatible products and video programming instructions, please visit
www.homelink.com/toyota, www.youtube.com/user/HomeLinkGentex, or call
the toll-free HomeLink Hotline at 1-800-355-3515 (North America).

WARNING

When programming a garage door or other remote control device
The garage door or other device may operate, so ensure people and
objects are out of danger to prevent potential harm.

Conforming to federal safety standards
Do not use the HomeLink

compatible transceiver with any garage door

opener or device that lacks safety stop and reverse features as required by
federal safety standards. This includes any garage door that cannot detect
an interfering object. A door or device without these features increases the
risk of death or serious injury.

When operating or programming HomeLink

Never allow a child to operate or play with the HomeLink

buttons.

381

SIENNA_OM_OM08025U_(U)

Compass



To turn the compass on or off,
press and hold the button for 3
seconds.



: If equipped

The compass on the inside rear view mirror indicates the direc-
tion in which the vehicle is heading.

Operation

Displays and directions

Display

Direction

North

Northeast

East

Southeast

South

Southwest

West

Northwest

382

SIENNA_OM_OM08025U_(U)

The direction display deviates from the true direction determined by
the earth’s magnetic field. The amount of deviation varies according to
the geographic position of the vehicle.

If you cross over a map boundary shown in illustration, the compass will
deviate.
To obtain higher precision or perfect calibration, refer to the following.

Deviation calibration

Stop the vehicle.
Press and hold the button for
6 seconds.
A number (1 to 15) appears
on the compass display.

Press the button and referring to the map above, select the num-
ber of the zone where you are.

If the direction is displayed several seconds after adjustment, the cali-
bration is complete.

Calibrating the compass

Samoa: 5 Guam: 8 Saipan: 8

SIENNA_OM_OM08025U_(U)

383

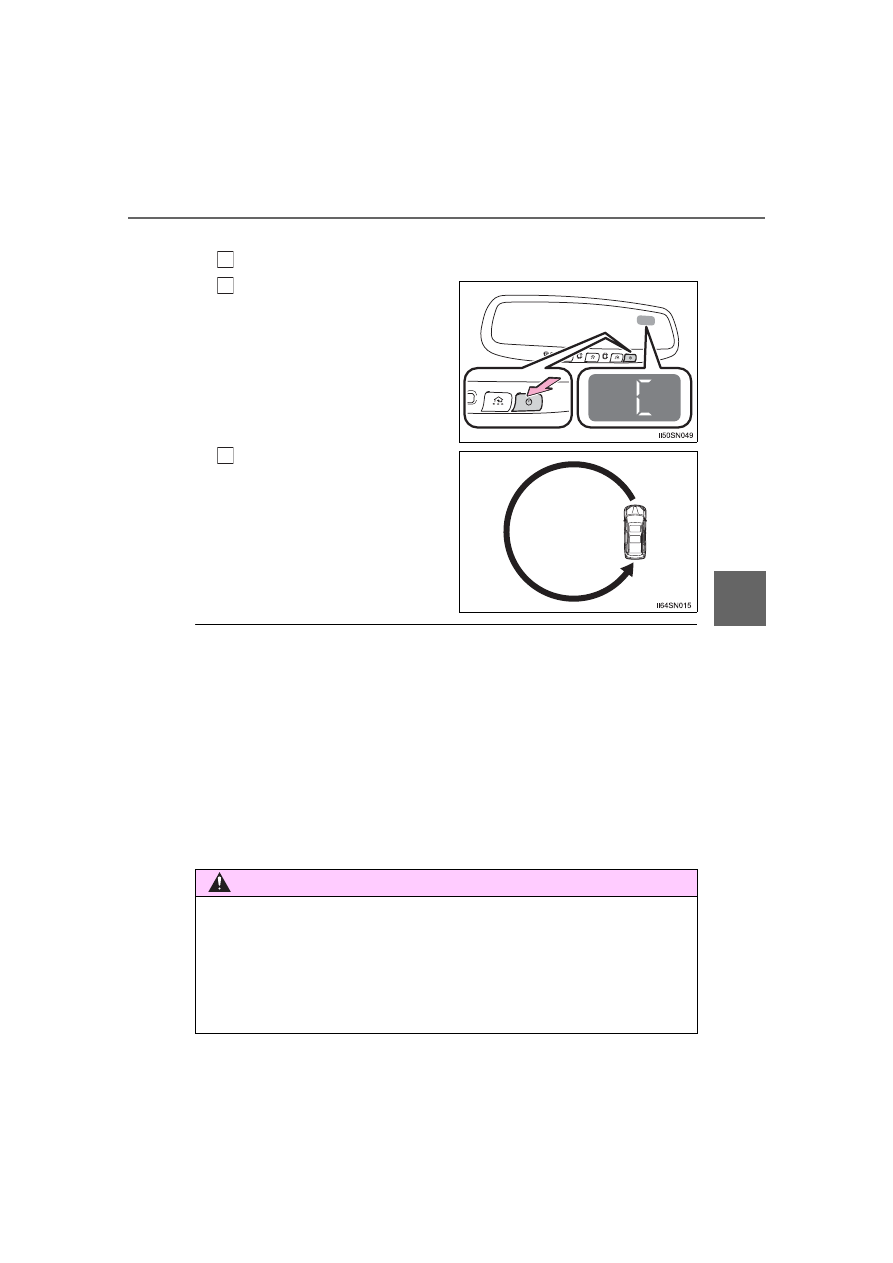

Circling calibration

Stop the vehicle in a place where it is safe to drive in a circle.
Press and hold the button for
9 seconds.

“C” appears on the compass
display.

Drive the vehicle at 5 mph (8
km/h) or less in a circle until
a direction is displayed.

If there is not enough space to
drive in a circle, drive around the
block until the direction is dis-
played.

Conditions unfavorable to correct operation
The compass may not show the correct direction in the following conditions:

The vehicle is stopped immediately after turning.

The vehicle is on an inclined surface.

The vehicle is in a place where the earth’s magnetic field is subject to inter-
ference by artificial magnetic fields (underground car park/parking lot, under
a steel tower, between buildings, roof car park/parking lot, near an intersec-
tion, near a large vehicle, etc.).

The vehicle has become magnetized.
(There is a magnet or metal object near the inside rear view mirror.)

The battery has been disconnected.

A door is open.

WARNING

While driving the vehicle
Do not adjust the display. Adjust the display only when the vehicle is
stopped.

When doing the circling calibration
Secure a wide space, and watch out for people and vehicles in the vicinity.
Do not violate any local traffic rules while performing circling calibration.

384

SIENNA_OM_OM08025U_(U)
