4-3. Operating the lights and wipers

Turning the end of the lever turns on the lights as follows:



Type A

The headlights, day-
time running lights (

P.

195) and all the lights
listed below turn on and
off automatically.
(Vehicles without a
smart

key

system:

When

the

engine

switch  is  in  the  “ON”
position)
(Vehicles  with  a  smart
key  system:  When  the
engine  switch  is  in
IGNITION ON mode)
The  side  marker,  park-
ing,  tail,  license  plate,
instrument  panel  lights,
and  daytime  running
lights  (

P. 195) turn

on.
The headlights and all the lights listed above (except day-
time running lights) turn on.
The daytime running lights turn off.

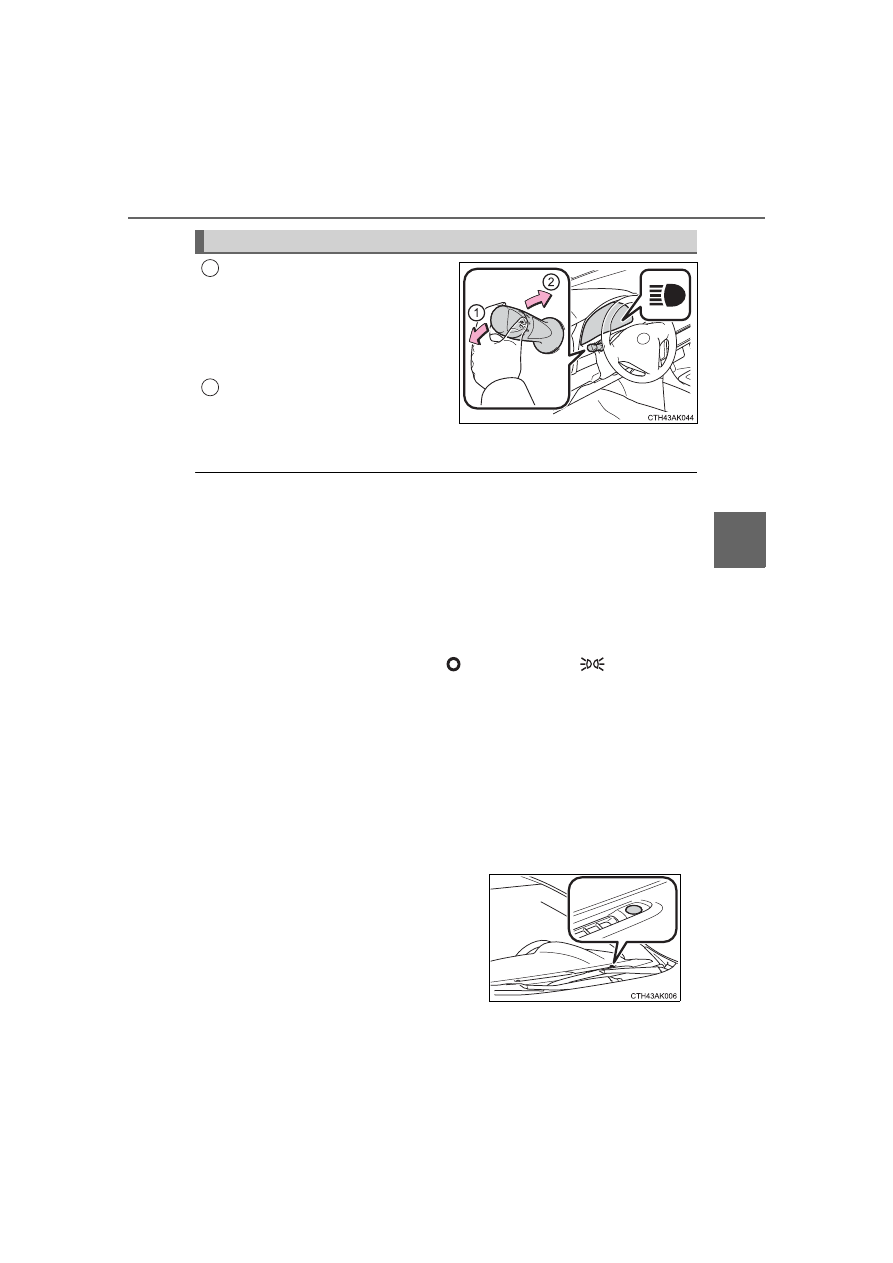

Headlight switch

The headlights can be operated manually or automatically.

Operating instructions

194

4-3. Operating the lights and wipers

COROLLA_TMMMS_TMMC_U



Type B

The headlights, day-
time running lights (

P.

195) and all the lights
listed below turn on and
off automatically.
(Vehicles without a
smart

key

system:

When

the

engine

P. 195) turn

on.
The headlights and all the lights listed above (except day-
time running lights) turn on.

The daytime running lights turn on. (

P. 195)

195

4-3. Operating the lights and wipers

Drivin

COROLLA_TMMMS_TMMC_U

With the headlights on, push
the lever away from you to turn
on the high beams.

Pull the lever toward you to the
center position to turn the high
beams off.

Pull the lever toward you and
release it to flash the high
beams once.

You can flash the high beams with the headlights on or off.

■

Daytime running light system

●

Vehicles with daytime running lights that are integrated into the headlights:
The daytime running lights illuminate using the same lights as the headlight
low beams and illuminate darker than the headlight low beams.

●

To make your vehicle more visible to other drivers during daytime driving,
the daytime running lights turn on automatically when all of the following
conditions are met. (The daytime running lights are not designed for use at
night.)
• The engine is running
• The parking brake is released
• The headlight switch is in the

(type B only),

or “AUTO”

position

: When the surroundings are bright

The daytime running lights remain on after they illuminate, even if the park-
ing brake is set again.

●

For the U.S.A.: Daytime running lights can be turned off by operating the
switch.

●

Compared to turning on the headlights, the daytime running light system
offers greater durability and consumes less electricity, so it can help improve
fuel economy.

■

Headlight control sensor

Turning on the high beam headlights

The sensor may not function properly if an
object is placed on the sensor, or anything
that  blocks  the  sensor  is  affixed  to  the
windshield.
Doing  so  interferes  with  the  sensor
detecting  the  level  of  ambient  light  and
may  cause  the  automatic  headlight  sys-
tem to malfunction.

196

4-3. Operating the lights and wipers

COROLLA_TMMMS_TMMC_U

■

Automatic light off system



Vehicles without a smart key system

●

When the headlights are on: The headlights and tail lights turn off 30 sec-
onds after the engine switch is turned to the “ACC” or “LOCK” position and a
door is opened and closed. (Vehicles with a wireless remote control: The
lights turn off immediately if

on the key is pressed after all the doors

are locked.)

●

When only the tail lights are on: The tail lights turn off automatically if the
engine switch is turned to the “ACC” or “LOCK” position and the driver’s
door is opened.

To turn the lights on again, turn the engine switch to “ON” position, or turn the
light switch off once and then back to the

position.

If any of the doors or trunk lid is kept open, the lights automatically turn off
after 20 minutes.



Vehicles with a smart key system

●

When the headlights are on: The headlights and tail lights turn off 30 sec-
onds after the engine switch is turned to ACCESSORY mode or turned off
and a door is opened and closed. (The lights turn off immediately if

the key is pressed after all the doors are locked.)

●

When only the tail lights are on: The tail lights turn off automatically if the
engine switch is turned to ACCESSORY mode or turned off and the driver’s
door is opened.

To turn the lights on again, turn the engine switch to IGNITION ON mode, or
turn the light switch off once and then back to the

position.

If any of the doors or trunk lid is kept open, the lights automatically turn off
after 20 minutes.

■

Light reminder buzzer



Vehicles without a smart key system

A buzzer sounds when the engine switch is turned to “LOCK” position and the
driver's door is opened while the lights are turned on.



Vehicles with a smart key system

A buzzer sounds when the engine switch is turned off or turned to ACCES-
SORY mode and the driver's door is opened while the lights are turned on.

197

4-3. Operating the lights and wipers

Drivin

COROLLA_TMMMS_TMMC_U

■

Battery-saving function
In the following conditions, the headlights and the other remaining lights will
go off automatically after 20 minutes in order to prevent the vehicle battery
from being discharged:

●

The headlights and/or tail lights are on.

●

Vehicles without a smart key system: The engine switch is in the “ACC” or
“LOCK” position.

●

Vehicles with a smart key system: The engine switch is turned to ACCES-
SORY mode or turned off.

This function will be canceled in any of the following situations:

●

Vehicles without a smart key system: When the engine switch is turned to
the “ON” position.

●

Vehicles with a smart key system: When the engine switch is turned to IGNI-
TION ON mode.

●

When the light switch is operated

●

When the door or trunk is opened or closed

■

Customization
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features:

P. 564)

NOTICE

■

To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not
running.

198

4-3. Operating the lights and wipers

COROLLA_TMMMS_TMMC_U

Push the lever away from you with
the headlight switch in the
position.

The Automatic High Beam indica-
tor will come on when the system
is operating.

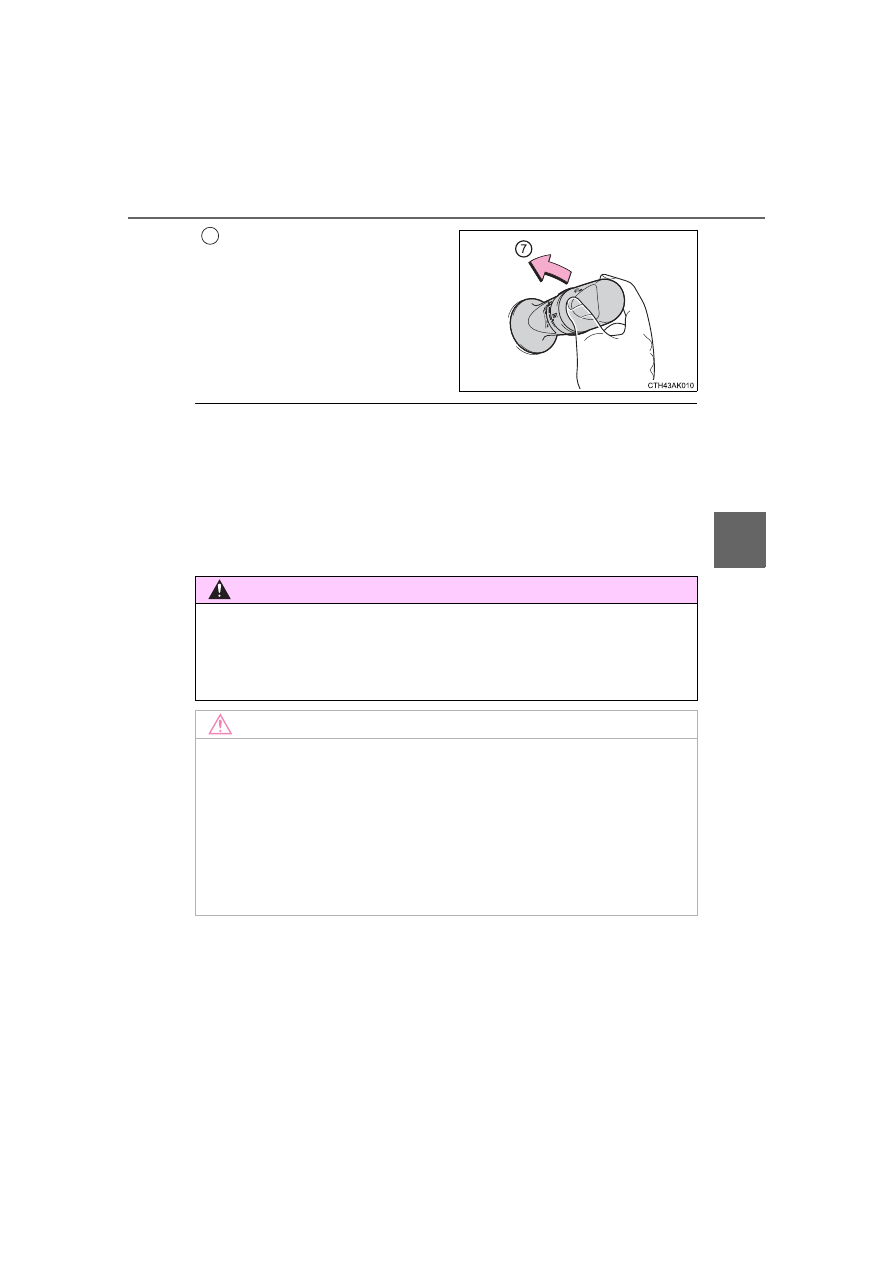

Automatic High Beam

The Automatic High Beam uses a camera sensor located behind
the upper portion of the windshield to assess the brightness of
the lights of vehicles ahead, streetlights, etc., and automatically
turns the high beams on or off as necessary.

WARNING

■

Limitations of the Automatic High Beam
Do not overly rely on the Automatic High Beam. Always drive safely, taking
care to observe your surroundings and turning the high beams on or off
manually if necessary.

■

To prevent incorrect operation of the Automatic High Beam system
Do not overload the vehicle.

Activating the Automatic High Beam

199

4-3. Operating the lights and wipers

Drivin

COROLLA_TMMMS_TMMC_U

■

Switching to the low beams
Pull the lever to its original posi-
tion.

The Automatic High Beam indi-
cator will turn off.
Push the lever away from you to
activate the Automatic High
Beam system again.

■

Switching to the high beams
Turn the light switch to the

position.

The Automatic High Beam indi-
cator will turn off and the high
beam indicator will turn on.

■

Conditions to turn the high beams on/off automatically

●

When all of the following conditions are met, the high beams will be turned
on automatically (after approximately 1 second):
• The vehicle speed is approximately 21 mph (34 km/h) or more.
• The area ahead of the vehicle is dark.
• There are no vehicles ahead with headlights or tail lights turned on.
• There are few streetlights on the road ahead.

●

If any of the following conditions is met, the high beams will turn off automat-
ically:
• The vehicle speed is below approximately 17 mph (27 km/h).
• The area ahead of the vehicle is not dark.
• Vehicles ahead have their headlights or tail lights turned on.
• There are many streetlights on the road ahead.

Turning the high beams on/off manually

200

4-3. Operating the lights and wipers

COROLLA_TMMMS_TMMC_U

■

Camera sensor detection information

●

The high beams may not be automatically turned off in the following situa-
tions:
• When a vehicle suddenly appears from around a curve
• When the vehicle is cut in front of by another vehicle
• When vehicles ahead cannot be detected due to repeated curves, road

dividers or roadside trees

• When vehicles ahead appear in a faraway lane on a wide road
• When the lights of vehicles ahead are not on

●

The high beams may be turned off if a vehicle ahead that is using fog lights
without its headlights turned on is detected.

●

House lights, street lights, traffic signals, and illuminated billboards or signs
and other reflective objects may cause the high beams to change to the low
beams, or the low beams to remain on.

●

The following factors may affect the amount of time taken for the high
beams to turn on or off:
• The brightness of the headlights, fog lights, and tail lights of vehicles

ahead

• The movement and direction of vehicles ahead
• When a vehicle ahead only has operational lights on one side
• When a vehicle ahead is a two-wheeled vehicle
• The condition of the road (gradient, curve, condition of the road surface,

etc.)

• The number of passengers and amount of luggage in the vehicle

●

The high beams may turn on or off unexpectedly.

●

Bicycles or similar vehicles may not be detected.

●

In the following situations the system may not be able to correctly detect the
surrounding brightness level. This may cause the low beams to remain on
or the high beams to flash or dazzle pedestrians or vehicles ahead. In such
a case, it is necessary to manually switch between the high and low beams.
• When driving in inclement weather (heavy rain, snow, fog, sandstorms,

etc.)

• When the windshield is obscured by fog, mist, ice, dirt, etc.
• When the windshield is cracked or damaged
• When the camera sensor is deformed or dirty
• When the temperature of the camera sensor is extremely high
• When the surrounding brightness level is equal to that of headlights, tail

lights or fog lights

• When headlights or tail lights of vehicles ahead are turned off, dirty,

changing color, or not aimed properly

• When the vehicle is hit by water, snow, dust, etc. from a preceding vehi-

cle

201

4-3. Operating the lights and wipers

Drivin

COROLLA_TMMMS_TMMC_U

• When driving through an area of intermittently changing brightness and

darkness

• When frequently and repeatedly driving ascending/descending roads, or

roads with rough, bumpy or uneven surfaces (such as stone-paved
roads, gravel roads, etc.)

• When frequently and repeatedly taking curves or driving on a winding

road

• When there is a highly reflective object ahead of the vehicle, such as a

sign or mirror

• When the back of a preceding vehicle is highly reflective, such as a con-

tainer on a truck

• When the vehicle's headlights are damaged or dirty, or are not aimed

properly

• When the vehicle is listing or titling due to a flat tire, a trailer being towed,

etc.

• When the headlights are changed between the high beams and low

beams repeatedly in an abnormal manner

• When the driver believes that the high beams may be flashing or dazzling

pedestrians or other drivers

■

Temporarily lowering sensor sensitivity
The sensitivity of the sensor can be temporarily lowered.

Turn the engine switch off while the following conditions are met.

• The headlight switch is in

• The headlight switch lever is in the high beam position.
Turn the engine switch to the “ON” position (vehicles without a smart key
system) or IGNITION ON mode (vehicles with a smart key system).
Within 30 seconds after

, repeat pulling the headlight switch lever to the

original position then pushing it to the high beam position quickly 10 times,
then leave the lever in the high beam position.
If the sensitivity is changed, the Automatic High Beam indicator will turn on
and off 3 times.

Automatic High Beam (headlights) may turn on even the vehicle is stopped.

202

4-3. Operating the lights and wipers

COROLLA_TMMMS_TMMC_U

The wiper operation is selected by moving the lever as follows. When
intermittent windshield wiper operation is selected, the wiper interval
can be also adjusted.

Intermittent windshield
wiper operation

Low speed windshield
wiper operation

High speed windshield
wiper operation

Temporary operation

: For the U.S.A.

: For Canada

Wiper intervals can be adjusted when intermittent operation is
selected.

Increases the intermittent wind-
shield wiper frequency

Decreases

the

intermittent

windshield wiper frequency

: The interval adjuster may not be

equipped depending on the grade.

Windshield wipers and washer

Operating the wiper lever

203

4-3. Operating the lights and wipers

Drivin

COROLLA_TMMMS_TMMC_U

Washer/wiper dual operation

Wipers will automatically operate a
couple of times after the washer
squirts.

■

The windshield wiper and washer can be operated when



Vehicles without a smart key system

The engine switch is in the “ON” position.



Vehicles with a smart key system

The engine switch is in IGNITION ON mode.

■

If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the
windshield washer fluid reservoir.

WARNING

■

Caution regarding the use of washer fluid
When it is cold, do not use the washer fluid until the windshield becomes
warm. The fluid may freeze on the windshield and cause low visibility. This
may lead to an accident, resulting in death or serious injury.

NOTICE

■

When the windshield is dry
Do not use the wipers, as they may damage the windshield.

■

When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.

■

When a nozzle becomes blocked
In this case, contact your Toyota dealer.
Do not try to clear it with a pin or other object. The nozzle will be damaged.

204

COROLLA_TMMMS_TMMC_U

4-4. Refueling

● Close all the doors and windows, and turn the engine switch off.
● Confirm the type of fuel. (P. 548)

■

Fuel types
P. 548

■

Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your vehicle has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.

Opening the fuel tank cap

Perform the following steps to open the fuel tank cap:

Before refueling the vehicle

WARNING

■

When refueling the vehicle
Observe the following precautions while refueling the vehicle. Failure to do
so may result in death or serious injury.

●

After exiting the vehicle and before opening the fuel door, touch an
unpainted metal surface to discharge any static electricity. It is important to
discharge static electricity before refueling because sparks resulting from
static electricity can cause fuel vapors to ignite while refueling.

●

Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened.
Wait until the sound cannot be heard before fully removing the cap. In hot
weather, pressurized fuel may spray out the filler neck and cause injury.

●

Do not allow anyone that has not discharged static electricity from their
body to come close to an open fuel tank.

●

Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.

●

Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.

●

Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible ignition
hazard.

205

4-4. Refueling

Drivin

COROLLA_TMMMS_TMMC_U

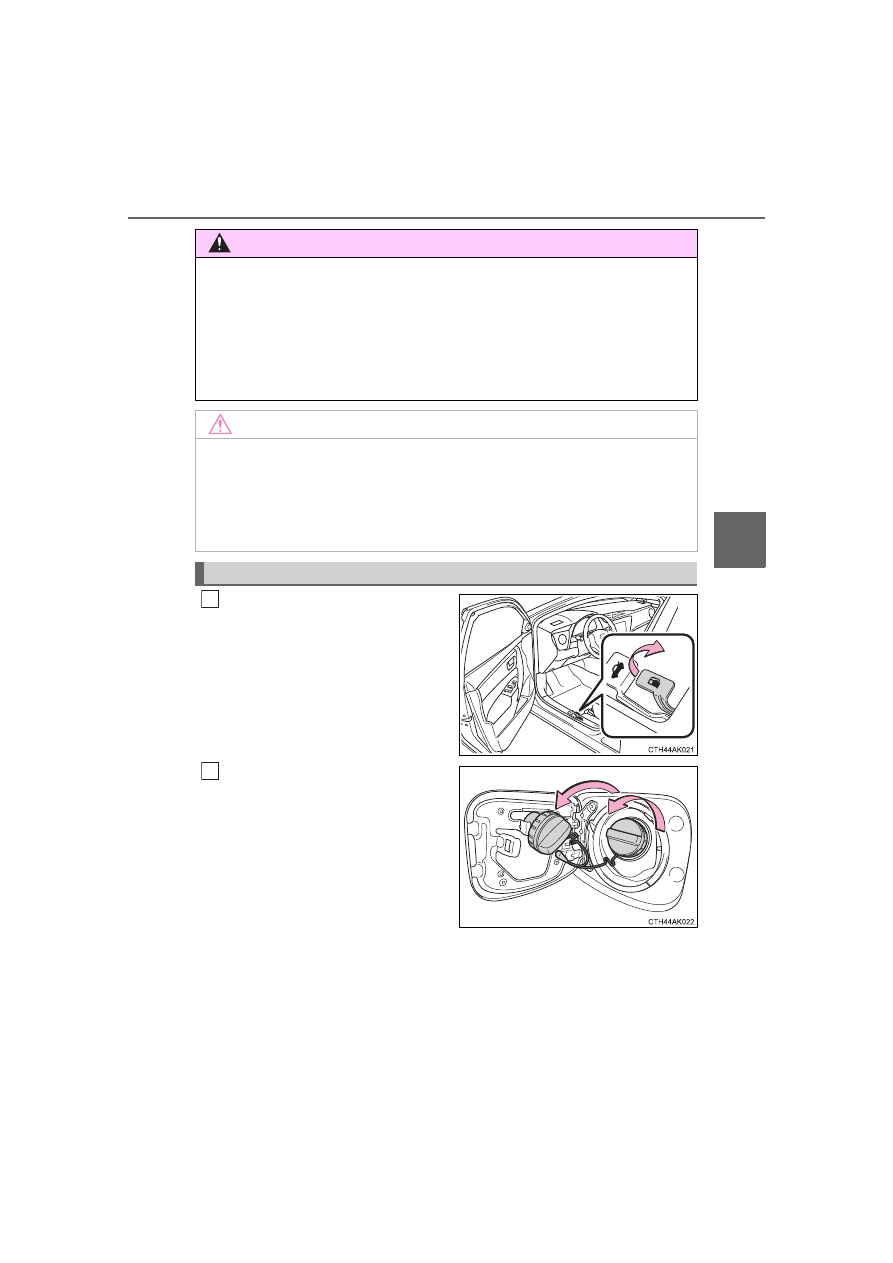

Pull up the opener to open the
fuel filler door.

Turn the fuel tank cap slowly to
remove it and hang it on the
back of the fuel filler door.

WARNING

■

When refueling
Observe the following precautions to prevent fuel overflowing from the fuel
tank:

●

Securely insert the fuel nozzle into the fuel filler neck.

●

Stop filling the tank after the fuel nozzle automatically clicks off.

●

Do not top off the fuel tank.

NOTICE

■

Refueling
Do not spill fuel during refueling.
Doing so may damage the vehicle, such as causing the emission control
system to operate abnormally or damaging fuel system components or the
vehicle’s painted surface.

Opening the fuel tank cap

206

4-4. Refueling

COROLLA_TMMMS_TMMC_U

After  refueling,  turn  the  fuel  tank
cap  until  you  hear  a  click.  Once
the  cap  is  released,  it  will  turn
slightly in the opposite direction.

Closing the fuel tank cap

WARNING

■

When replacing the fuel tank cap
Do not use anything but a genuine Toyota fuel tank cap designed for your
vehicle. Doing so may cause a fire or other incident which may result in
death or serious injury.

207

Drivin

COROLLA_TMMMS_TMMC_U

4-5. Using the driving support systems

◆

PCS (Pre-Collision System)

P. 214

◆

LDA (Lane Departure Alert with steering control)

P. 226

◆

Automatic High Beam

P. 198

◆

Dynamic radar cruise control

P. 235

Toyota Safety Sense P

The Toyota Safety Sense P consists of the following drive assist
systems and contributes to a safe and comfortable driving expe-
rience:

WARNING

■

Toyota Safety Sense P
The Toyota Safety Sense P is designed to operate under the assumption
that the driver will drive safely, and is designed to help reduce the impact to
the occupants and the vehicle in the case of a collision or assist the driver in
normal driving conditions.
As there is a limit to the degree of recognition accuracy and control perfor-
mance that this system can provide, do not overly rely on this system. The
driver is always responsible for paying attention to the vehicle's surround-
ings and driving safely.

208

4-5. Using the driving support systems

COROLLA_TMMMS_TMMC_U

The pre-collision system is equipped with a sophisticated computer
that will record certain data, such as:

• Accelerator status
• Brake status
• Vehicle speed
• Operation status of the pre-collision system functions
• Information (such as the distance and relative speed between your

vehicle and the vehicle ahead or other objects)

• Images from the camera sensor (available only when the pre-colli-

sion braking function or the pre-collision brake assist function was
operating)
The pre-collision system does not record conversations, sounds or
images of the inside of the vehicle.

● Data usage

Toyota may use the data recorded in this computer to diagnose
malfunctions, conduct research and development, and improve
quality.
Toyota will not disclose the recorded data to a third party except:

• With the consent of the vehicle owner or with the consent of the

lessee if the vehicle is leased

• In response to an official request by the police, a court of law or a

government agency

• For use by Toyota in a lawsuit
• For research purposes where the data is not tied to a specific

vehicle or vehicle owner

● Recorded images can be erased using a specialized device.

The image recording function can be disabled. However, if the func-
tion is disabled, data from when the pre-collision system operates
will not be available.

Vehicle data recording

Content .. 11 12 13 14 ..
