6-3. Do-it-yourself maintenance

CAMRY_U

6

Mainten

ance an

d ca

re



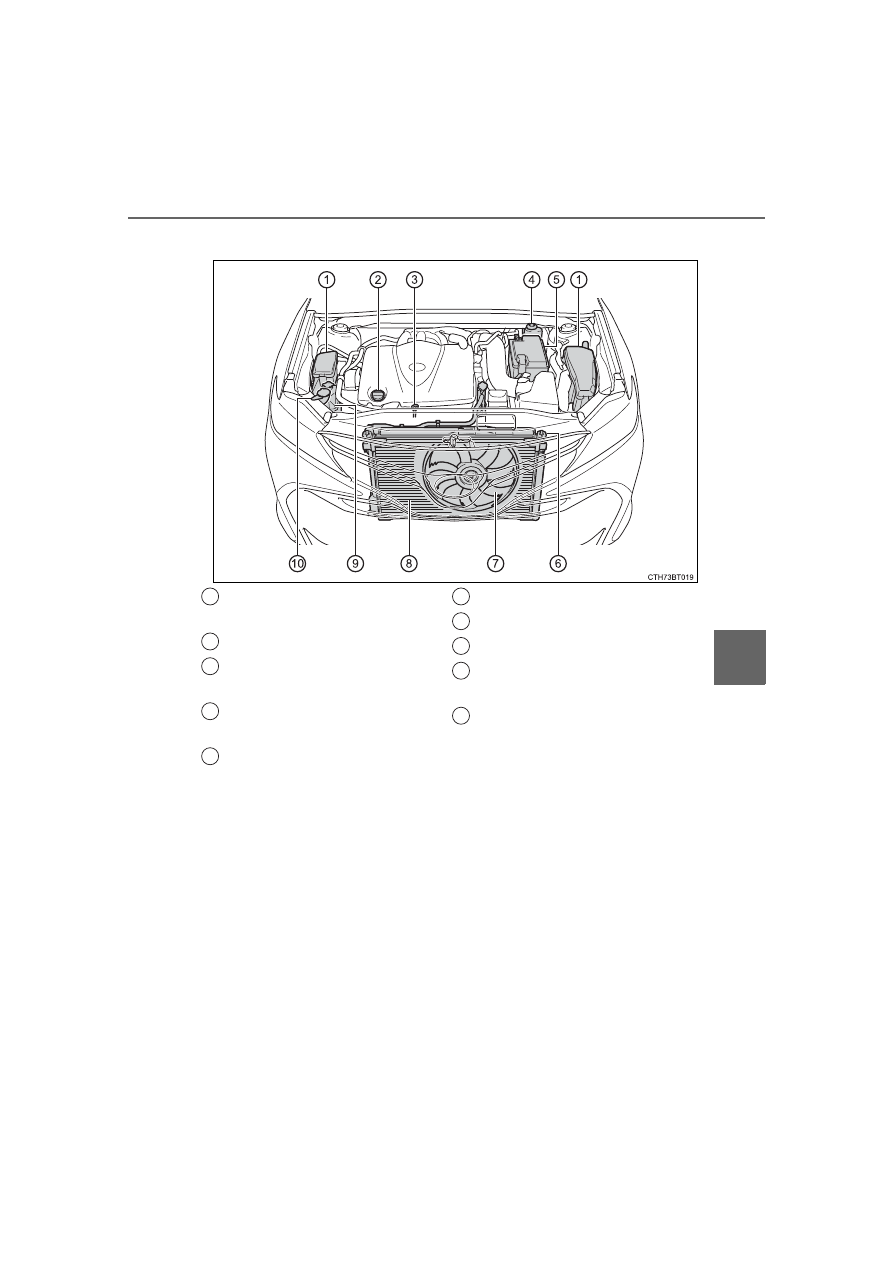

3.5 L V6 (2GR-FKS) engine

Fuse boxes (if equipped)

(

P. 470)

Engine oil filler cap (

P. 435)

Engine oil level dipstick

(

P. 434)

Brake fluid reservoir

(

P. 439)

Battery

(

P. 440)

Radiator

(

P. 438)

Electric cooling fan
Condenser

(

P. 438)

Engine coolant reservoir

(

P. 437)

Washer fluid tank (

P. 443)

1

2

3

4

5

6

7

8

9

10

434

6-3. Do-it-yourself maintenance

CAMRY_U

With the engine at operating temperature and turned off, check the oil
level on the dipstick.

■

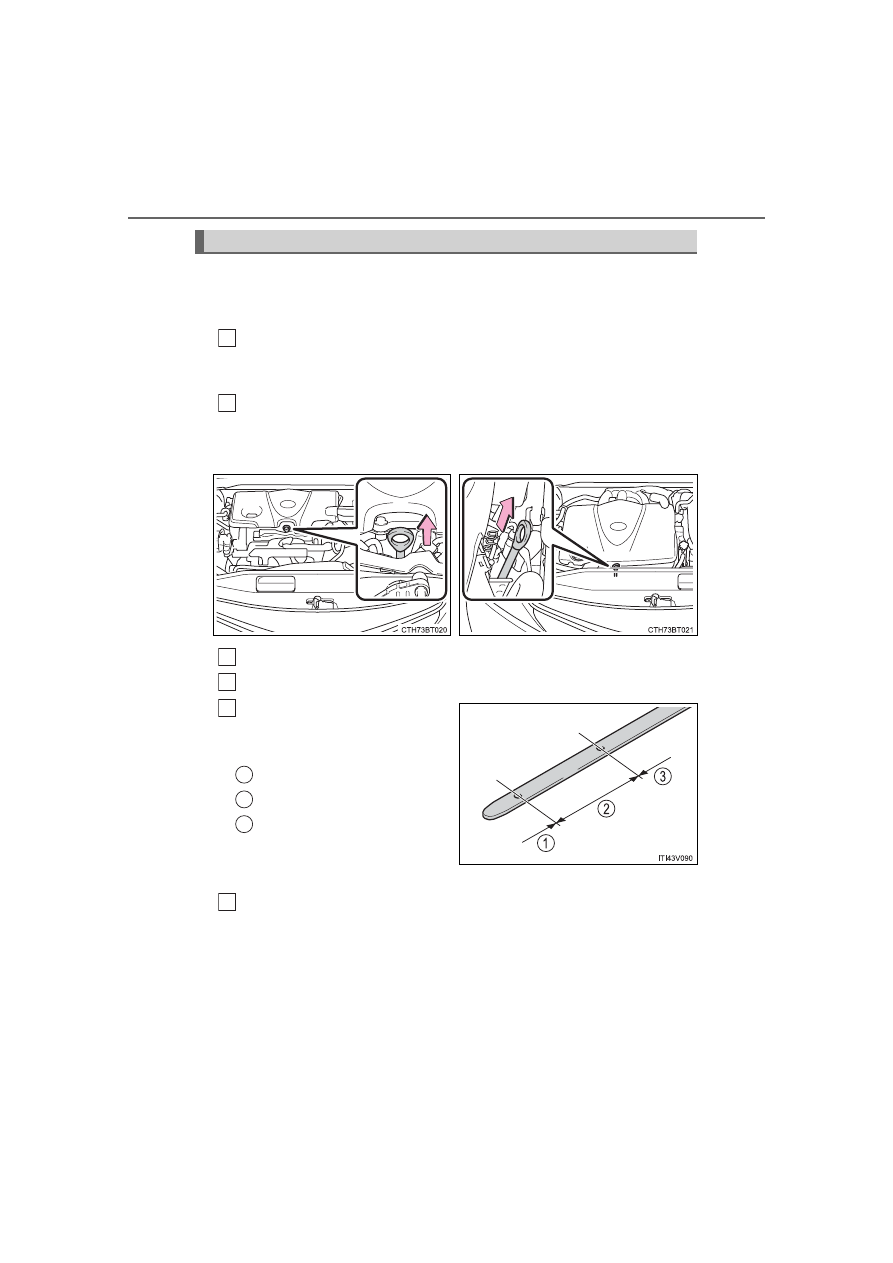

Checking the engine oil

Park  the  vehicle  on  level  ground. After  warming  up  the  engine
and  turning  it  off,  wait  more  than  5  minutes  for  the  oil  to  drain
back into the bottom of the engine.
Holding a rag under the end, pull the dipstick out.

Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end,
pull  the  dipstick  out  and
check the oil level.

Low
Normal
Excessive

The  shape  of  the  dipstick  may
differ  depending  on  the  type  of
vehicle or engine.

Wipe the dipstick and reinsert it fully.

Engine oil

1

2



2.5  L  4-cylinder  (A25A-FKS)
engine



3.5 L V6 (2GR-FKS) engine

3

4

5

1

2

3

6

435

6-3. Do-it-yourself maintenance

CAMRY_U

6

Mainten

ance an

d ca

re

■

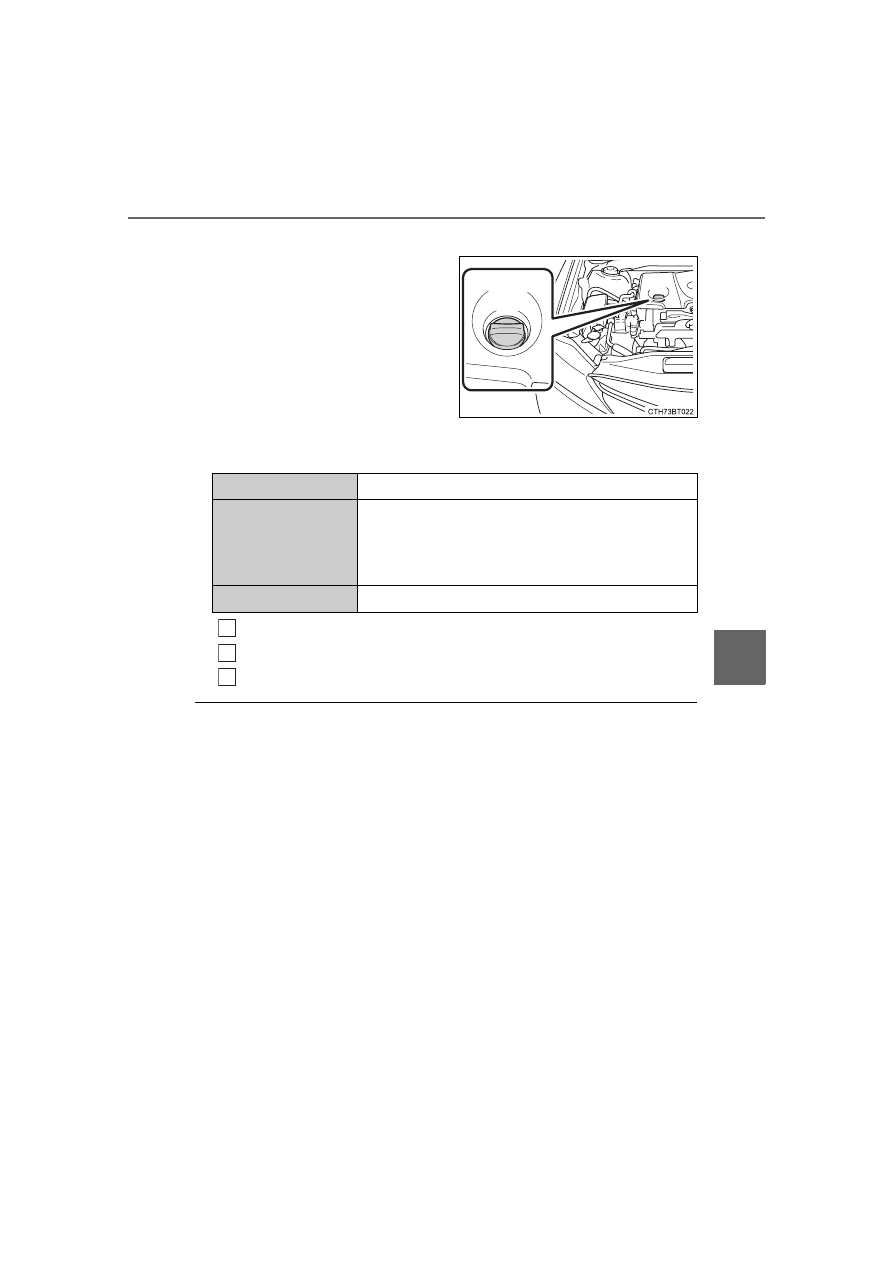

Adding engine oil
If  the  oil  level  is  below  or  near
the low level mark, add engine
oil  of  the  same  type  as  that
already in the engine.

Make  sure  to  check  the  oil  type  and  prepare  the  items  needed
before adding oil.

Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.

■

Engine oil consumption
A certain amount of engine oil will be consumed while driving. In the following
situations,  oil  consumption  may  increase,  and  engine  oil  may  need  to  be
refilled in between oil maintenance intervals.

●

When the engine is new, for example directly after purchasing the vehicle or
after replacing the engine

●

If low quality oil or oil of an inappropriate viscosity is used

●

When driving at high engine speeds or with a heavy load, or when driving
while accelerating or decelerating frequently

●

When leaving the engine idling for a long time, or when driving frequently
through heavy traffic

Engine oil selection

P. 543

Oil quantity
(Low

 Full)



2.5 L 4-cylinder (A25A-FKS) engine

1.6 qt. (1.5 L, 1.3 Imp. qt.)



3.5 L V6 (2GR-FKS) engine

1.9 qt. (1.8 L, 1.6 lmp. qt.)

Items

Clean funnel

1

2

3

436

6-3. Do-it-yourself maintenance

CAMRY_U

WARNING

■

Used engine oil

●

Used  engine  oil  contains  potentially  harmful  contaminants  which  may
cause  skin  disorders  such  as  inflammation  and  skin  cancer,  so  care
should be taken to avoid prolonged and repeated contact. To remove used
engine oil from your skin, wash thoroughly with soap and water.

●

Dispose of used oil and filters only in a safe and acceptable manner. Do
not dispose of used oil and filters in household trash, in sewers or onto the
ground.
Call your Toyota dealer, service station or auto parts store for information
concerning recycling or disposal.

●

Do not leave used engine oil within the reach of children.

NOTICE

■

To prevent serious engine damage
Check the oil level on a regular basis.

■

When replacing the engine oil

●

Be careful not to spill engine oil on the vehicle components.

●

Avoid overfilling, or the engine could be damaged.

●

Check the oil level on the dipstick every time you refill the vehicle.

●

Be sure the engine oil filler cap is properly tightened.

■

If oil is spilled on the engine cover (2.5 L 4-cylinder [A25A-FKS] engine)
To  prevent  the  engine cover from being  damaged, remove any engine oil
from the engine cover as soon as possible using a neutral detergent.
Do not use an organic solvent such as brake cleaner.

437

6-3. Do-it-yourself maintenance

CAMRY_U

6

Mainten

ance an

d ca

re

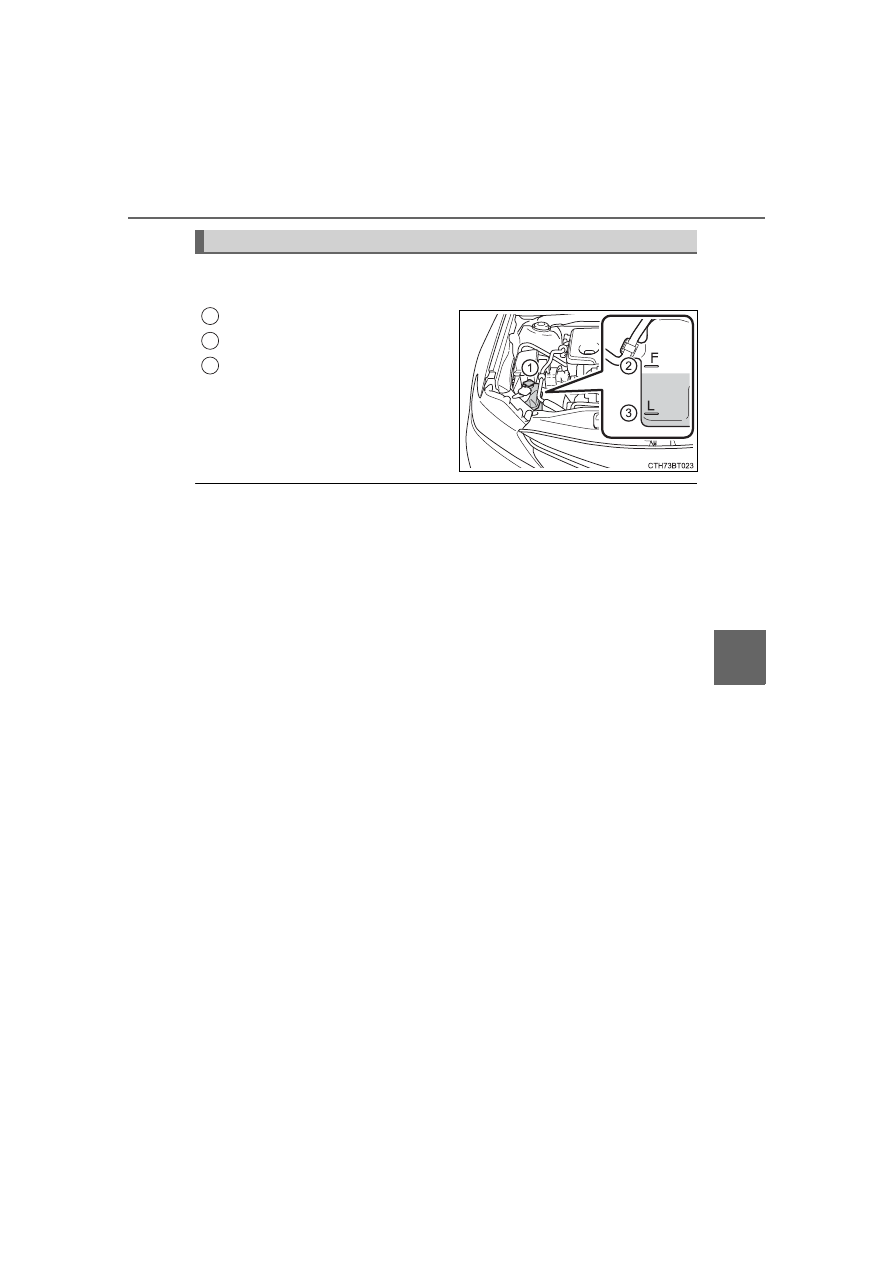

The coolant level is satisfactory if it is between the “F” and “L” lines on
the reservoir when the engine is cold.

Reservoir cap
“F” line
“L” line

If  the  level  is  on  or  below  the  “L”
line, add coolant up to the “F” line.
(

P. 534)

■

Coolant selection
Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene
glycol based non-silicate, non-amine, non-nitrite, and non-borate coolant with
long-life hybrid organic acid technology.
U.S.A.:
“Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deion-
ized water. (Minimum temperature: -31

F [-35C])

Canada:
“Toyota Super Long Life Coolant” is a mixture of 55% coolant and 45% deion-
ized water. (Minimum temperature: -44

F [-42C])

For more details about engine coolant, contact your Toyota dealer.

■

If the coolant level drops within a short time of replenishing
Visually check the radiator, hoses, engine coolant reservoir caps, drain cock
and water pump.
If you cannot find a leak, have your Toyota dealer test the cap and check for
leaks in the cooling system.

Engine coolant

1

2

3

438

6-3. Do-it-yourself maintenance

CAMRY_U

Check the radiator and condenser and clear away any foreign objects.
If  either of  the  above parts  is  extremely  dirty  or you  are not  sure of
their condition, have your vehicle inspected by your Toyota dealer.

WARNING

■

When the engine is hot
Do not remove the engine coolant reservoir cap or the radiator cap.
The cooling system may be under pressure and may spray hot coolant if the
cap is removed, causing serious injuries, such as burns.

NOTICE

■

When adding coolant
Coolant is neither plain water nor straight antifreeze. The correct mixture of
water and antifreeze must be used to provide proper lubrication, corrosion
protection and cooling. Be sure to read the antifreeze or coolant label.

■

If you spill coolant
Be sure to wash it off with water to prevent it from damaging parts or paint.

Radiator and condenser

WARNING

■

When the engine is hot
Do not touch the radiator or condenser as they may be hot and cause seri-
ous injuries, such as burns.

439

6-3. Do-it-yourself maintenance

CAMRY_U

6

Mainten

ance an

d ca

re

■

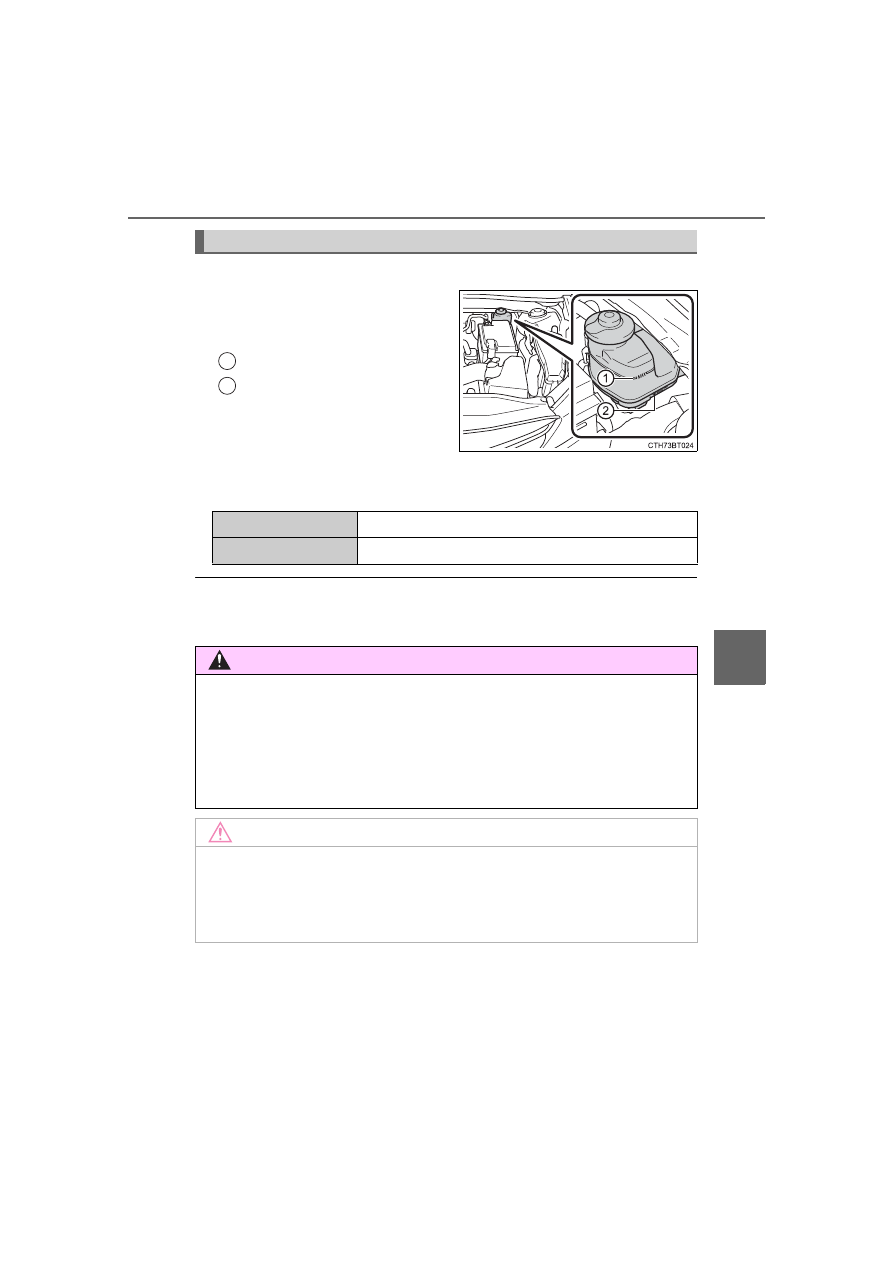

Checking fluid level
The brake fluid level should be
between  the  “MAX”  and  “MIN”
lines on the tank.

“MAX”
“MIN”

■

Adding fluid
Make sure to check the fluid type and prepare the necessary item.

■

Brake fluid can absorb moisture from the air
Excess moisture in the brake fluid can cause a dangerous loss of braking effi-
ciency. Use only newly opened brake fluid.

Brake fluid

1

2

Fluid type

FMVSS No.116 DOT 3 or SAE J1703 brake fluid

Item

Clean funnel

WARNING

■

When filling the reservoir
Take  care  as  brake  fluid  can  harm  your  hands  and  eyes  and  damage
painted surfaces.
If fluid gets on your hands or in your eyes, flush the affected area with clean
water immediately.
If you still experience discomfort, see a doctor.

NOTICE

■

If the fluid level is low or high
It is normal for the brake fluid level to go down slightly as the brake pads
wear out or when the fluid level in the accumulator is high.
If the reservoir needs frequent refilling, there may be a serious problem.

440

6-3. Do-it-yourself maintenance

CAMRY_U

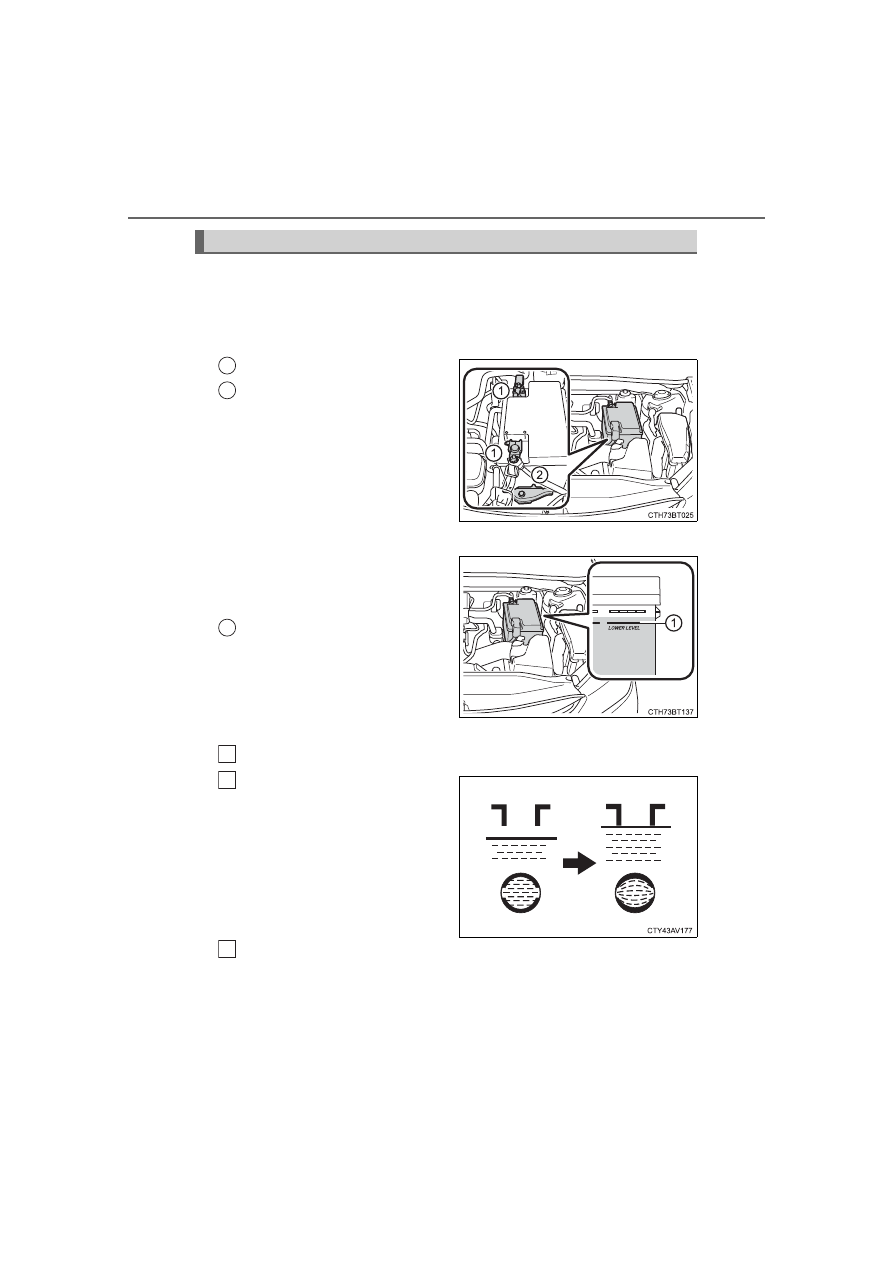

Check the battery as follows.

■

Battery exterior
Make  sure  that  the  battery  terminals  are  not  corroded  and  that
there are no loose connections, cracks, or loose clamps.

Terminals
Hold-down clamp

■

Checking battery fluid (batteries with vent plugs)
Check  that  the  fluid  level  is
above  the  “LOWER  LEVEL”
line.

“LOWER LEVEL” line

If the fluid level is at or below the
“LOWER  LEVEL”  line,  add  dis-
tilled water.

■

Adding distilled water (batteries with vent plugs)

Remove the vent plug.
Add distilled water.

If  it  is  difficult  to  see  the  fluid
level  from  the  side,  check  it  by
looking directly into the cell.

Put the vent plug back on and close it securely.

Battery

1

2

1

1

Low

O.K.

2

3

441

6-3. Do-it-yourself maintenance

CAMRY_U

6

Mainten

ance an

d ca

re

■

Before recharging
When recharging, the battery produces hydrogen gas which is flammable and
explosive. Therefore, observe the following before recharging:

●

If recharging with the battery installed on the vehicle, be sure to disconnect
the ground cable.

●

Make sure the power switch on the charger is off when connecting and dis-
connecting the charger cables to the battery.

■

After recharging/reconnecting the battery (vehicles with a smart key sys-
tem)

●

Unlocking the doors using the smart key system may not be possible imme-
diately  after  reconnecting  the  battery.  If  this  happens,  use  the  wireless
remote control or the mechanical key to lock/unlock the doors.

●

Start the engine with the engine switch in ACCESSORY mode. The engine
may  not  start  with  the  engine  switch  turned  off.  However,  the  engine  will
operate normally from the second attempt.

●

The engine switch mode is recorded by the vehicle. If the battery is recon-
nected, the vehicle will return the engine switch mode to the status it was in
before  the  battery  was  disconnected.  Make  sure  to  turn  off  the  engine
before disconnecting the battery. Take extra care when connecting the bat-
tery if the engine switch mode prior to discharge is unknown.

If the system will not start even after multiple attempts, contact your Toyota
dealer.

WARNING

■

Chemicals in the battery
Batteries  contain  poisonous  and  corrosive  sulfuric  acid  and  may  produce
hydrogen gas which is flammable and explosive. To reduce the risk of death
or serious injury, take the following precautions while working on or near the
battery:

●

Do not cause sparks by touching the battery terminals with tools.

●

Do not smoke or light a match near the battery.

●

Avoid contact with eyes, skin and clothes.

●

Never inhale or swallow electrolyte.

●

Wear protective safety glasses when working near the battery.

●

Keep children away from the battery.

■

Where to safely charge the battery
Always charge the battery in an open area. Do not charge the battery in a
garage or closed room where there is insufficient ventilation.

442

6-3. Do-it-yourself maintenance

CAMRY_U

WARNING

■

How to recharge the battery (batteries without vent plugs)
Only  perform  a  slow  charge  (5  A  or  less).  The  battery  may  explode  if
charged at a quicker rate.

■

Emergency measures regarding electrolyte

●

If electrolyte gets in your eyes
Flush your eyes with clean water for at least 15 minutes and get immedi-
ate medical attention. If possible, continue to apply water with a sponge or
cloth while traveling to the nearest medical facility.

●

If electrolyte gets on your skin
Wash the affected area thoroughly. If you feel pain or burning, get medical
attention immediately.

●

If electrolyte gets on your clothes
It can soak through clothing on to your skin. Immediately take off the cloth-
ing and follow the procedure above if necessary.

●

If you accidentally swallow electrolyte
Drink a large quantity of water or milk. Get emergency medical attention
immediately.

■

When disconnecting the battery
Do not disconnect the negative (-) terminal on the body side. The discon-
nected negative (-) terminal may touch the positive (+) terminal, which may
cause a short and result in death or serious injury.

NOTICE

■

When recharging the battery
Never  recharge  the  battery  while  the  engine  is  running. Also,  be  sure  all
accessories are turned off.

■

When adding distilled water (batteries with vent plugs)
Avoid overfilling. Water spilled during battery recharging may cause corro-
sion.

443

6-3. Do-it-yourself maintenance

CAMRY_U

6

Mainten

ance an

d ca

re

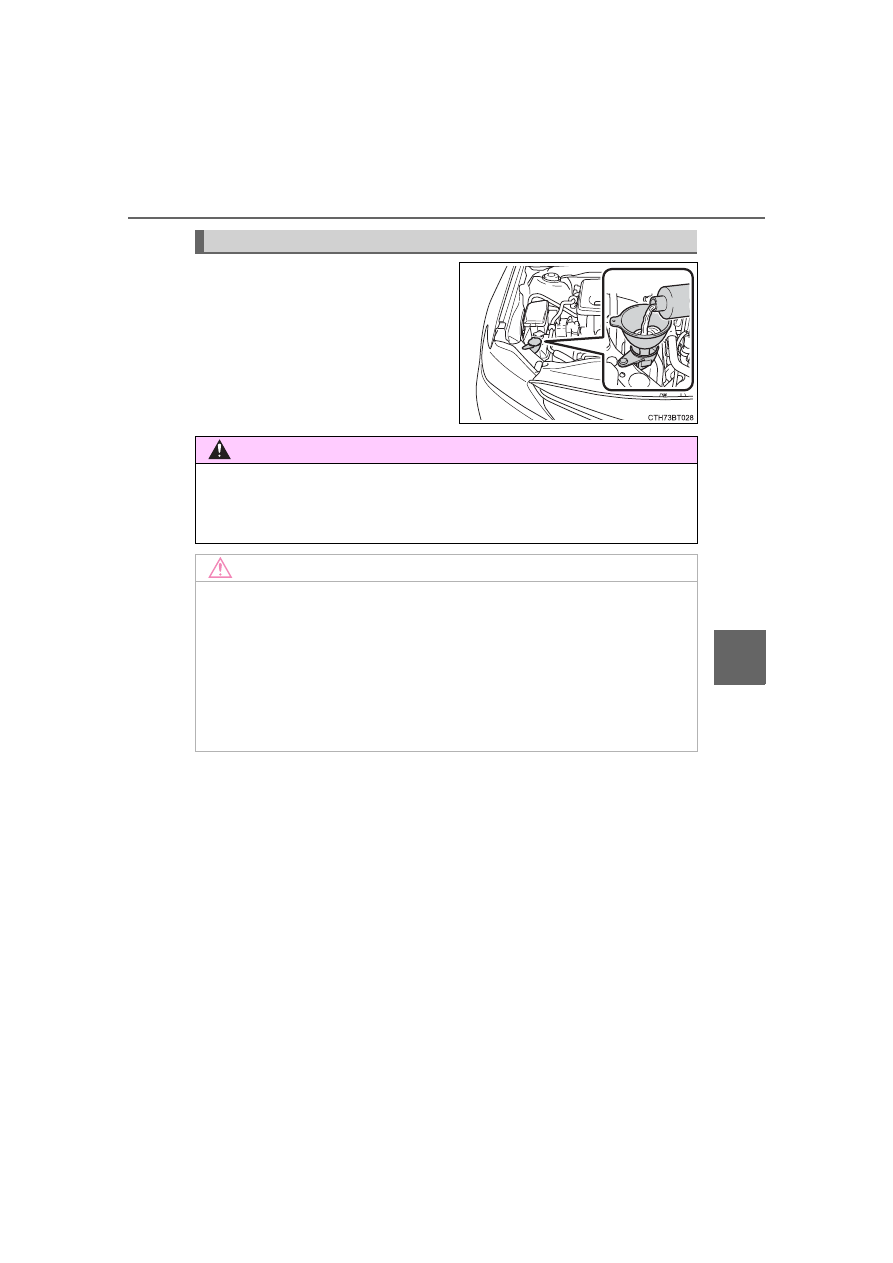

Add  washer  fluid  in  the  following
situations:
● A washer does not work.
● “Windshield Washer Fluid Low”

is  displayed  on  the  multi-infor-
mation display.

Washer fluid

WARNING

■

When adding washer fluid
Do not add washer fluid when the engine is hot or running as washer fluid
contains alcohol and may catch fire if spilled on the engine, etc.

NOTICE

■

Do not use any fluid other than washer fluid
Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle's painted surfaces, as well as
damaging the pump leading to problems of the washer fluid not spraying.

■

Diluting washer fluid
Dilute washer fluid with water as necessary.
Refer to the freezing temperatures listed on the label of the washer fluid bot-
tle.

444

6-3. Do-it-yourself maintenance

CAMRY_U

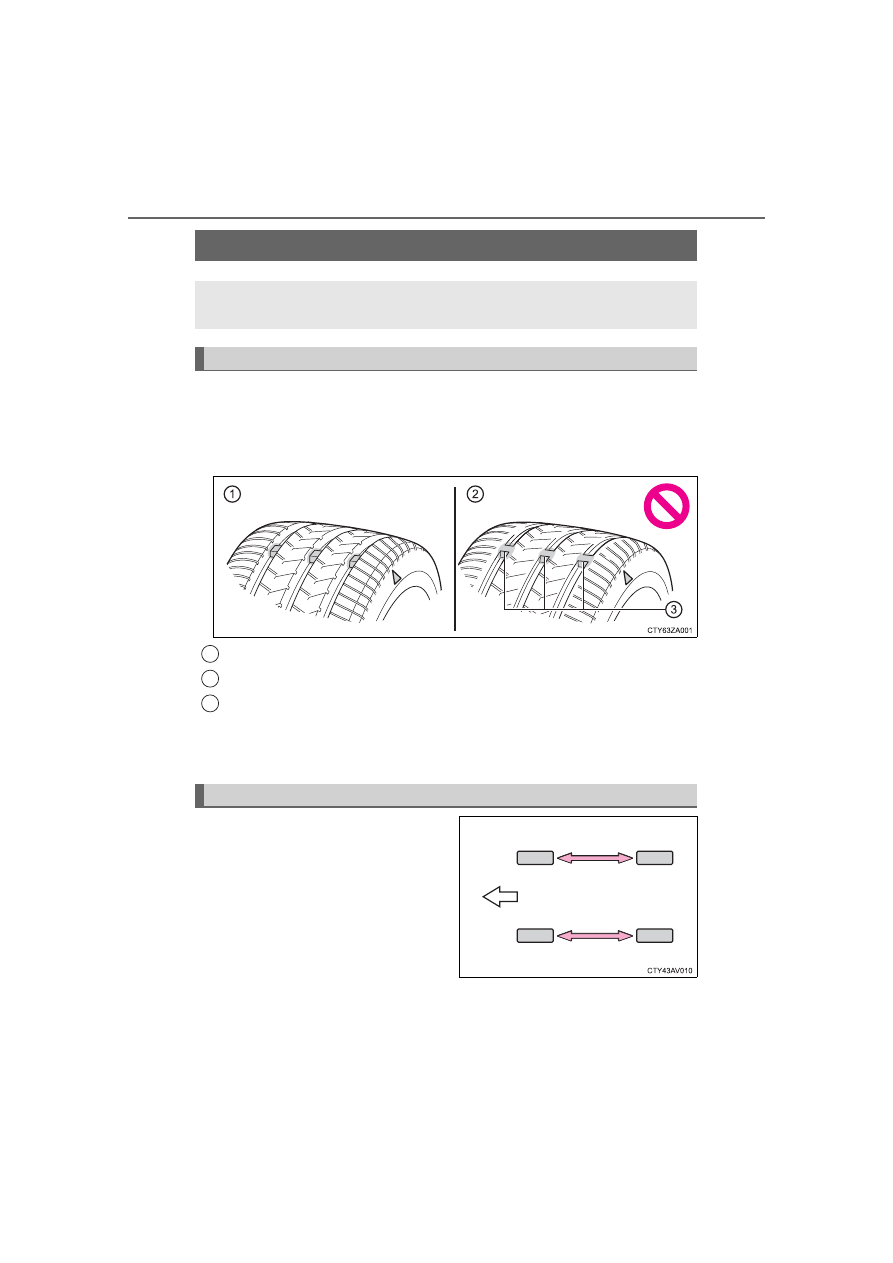

Check if the treadwear indicators are showing on the tires. Also check
the tires for uneven wear, such as excessive wear on one side of the
tread.
Check the spare tire condition and pressure if not rotated.

New tread
Worn tread
Treadwear indicator

The location of treadwear indicators is shown by a “TWI” or “



” mark,

etc., molded into the sidewall of each tire.
Replace the tires if the treadwear indicators are showing on a tire.

Rotate  the  tires  in  the  order
shown.

To equalize tire wear and extend

tire life, Toyota recommends that

tire  rotation  is  carried  out  at  the

same interval as tire inspection.
Do  not  fail  to  initialize  the  tire

pressure  warning  system  after

tire rotation.

Tires

Replace or rotate tires in accordance with maintenance sched-
ules and treadwear.

Checking tires

Tire rotation

1

2

3

Front

445

6-3. Do-it-yourself maintenance

CAMRY_U

6

Mainten

ance an

d ca

re

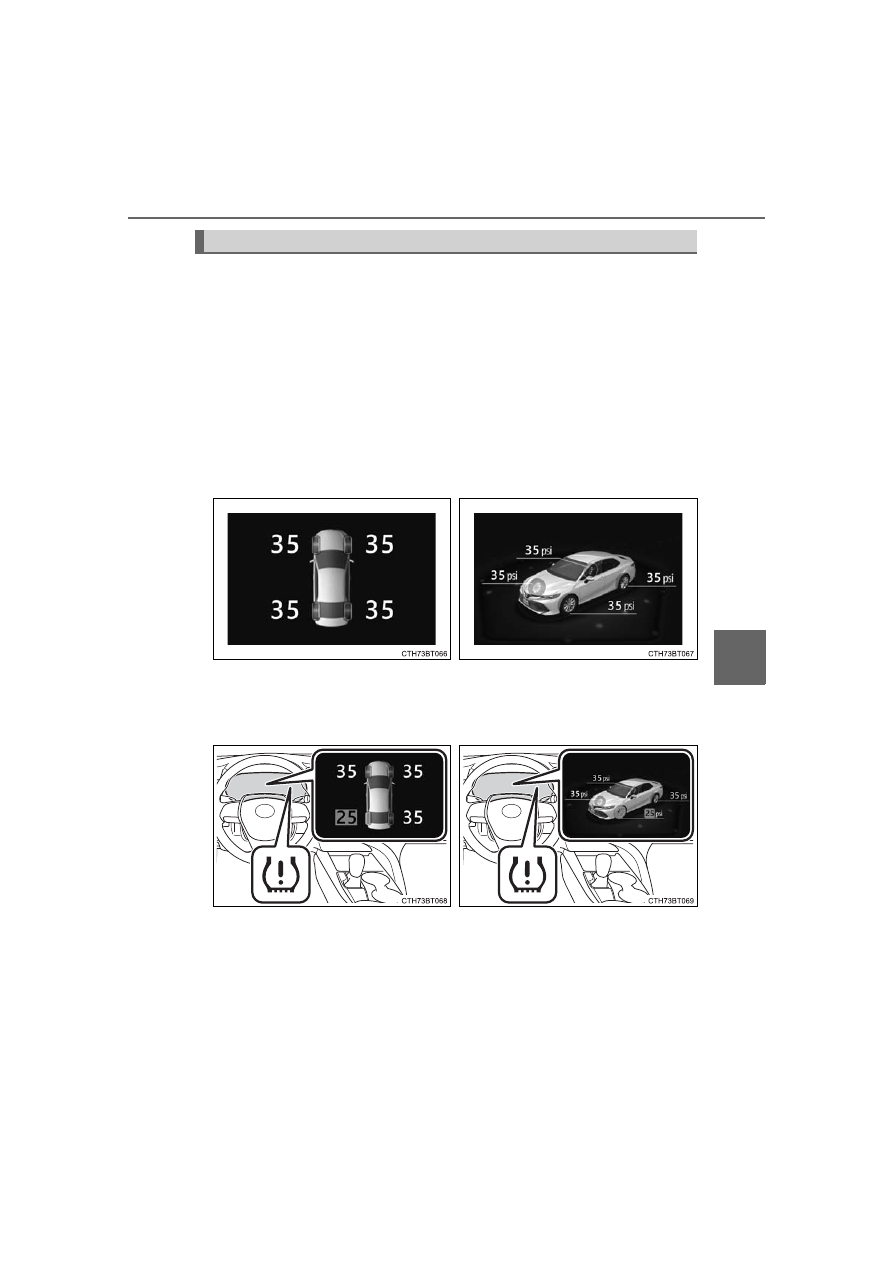

Your vehicle is equipped with a tire pressure warning system that uses
tire pressure warning valve and transmitters to detect low tire inflation
pressure before serious problems arise.



Vehicles without a tire inflation pressure display function

If  the  tire  pressure  drops  below  a  predetermined  level,  the  driver  is
warned by a warning light. (

P. 500)



Vehicles with a tire inflation pressure display function

● The tire pressure detected by the tire pressure warning system can

be displayed on the multi-information display.

● If the tire pressure drops below a predetermined level, the driver is

warned by a screen display and a warning light. (

P. 500)

Tire pressure warning system



4.2-inch display



7-inch display



4.2-inch display



7-inch display

446

6-3. Do-it-yourself maintenance

CAMRY_U

◆

Installing tire pressure warning valve and transmitters

When replacing the tires or wheels, the tire pressure warning valve
and  transmitters  must  be  installed  to  the  wheels  which  will  be
installed to the vehicle.
When  new  tire  pressure  warning  valve  and  transmitters  are
installed,  new  ID  codes  must  be  registered  in  the  tire  pressure
warning  computer  and  the  tire  pressure  warning  system  must  be
initialized. (

P. 448)

◆

Initializing the tire pressure warning system

■

The tire pressure warning system must be initialized in the fol-
lowing circumstances:
● When the tire inflation pressure is changed such as when chang-

ing traveling speed or load weight.

● When the tire inflation pressure is changed such as when the tire

size is changed.

● When rotating the tires.
● Vehicles with a tire inflation pressure display function: After per-

forming the transmitter ID code registration procedure. (

P. 448)

When the tire pressure warning system is initialized, the current tire
inflation pressure is set as the benchmark pressure.

■

How to initialize the tire pressure warning system

Park the vehicle in a safe place and stop the engine for 20 min-
utes or more.

The  initialization  procedure  cannot  be  started  while  the  vehicle  is

moving.

Adjust the tire inflation pressure to the specified cold tire inflation
pressure level. (

P. 547)

Make sure to adjust the tire pressure to the specified cold tire infla-

tion  pressure  level.  The  tire  pressure  warning  system  will  operate

based on this pressure level.

Start the engine. (

P. 206, 208)

Select

 (4.2-inch display) or

 (7-inch display) on the multi-

information display using the meter control switches on the steer-
ing wheel. (

P. 100, 112).

1

2

3

4

447

6-3. Do-it-yourself maintenance

CAMRY_U

6

Mainten

ance an

d ca

re

4.2-inch display: Select “Vehicle Settings” and then press

.

7-inch display: Select

 and then press and hold

.

Select “TPWS” and then press

.

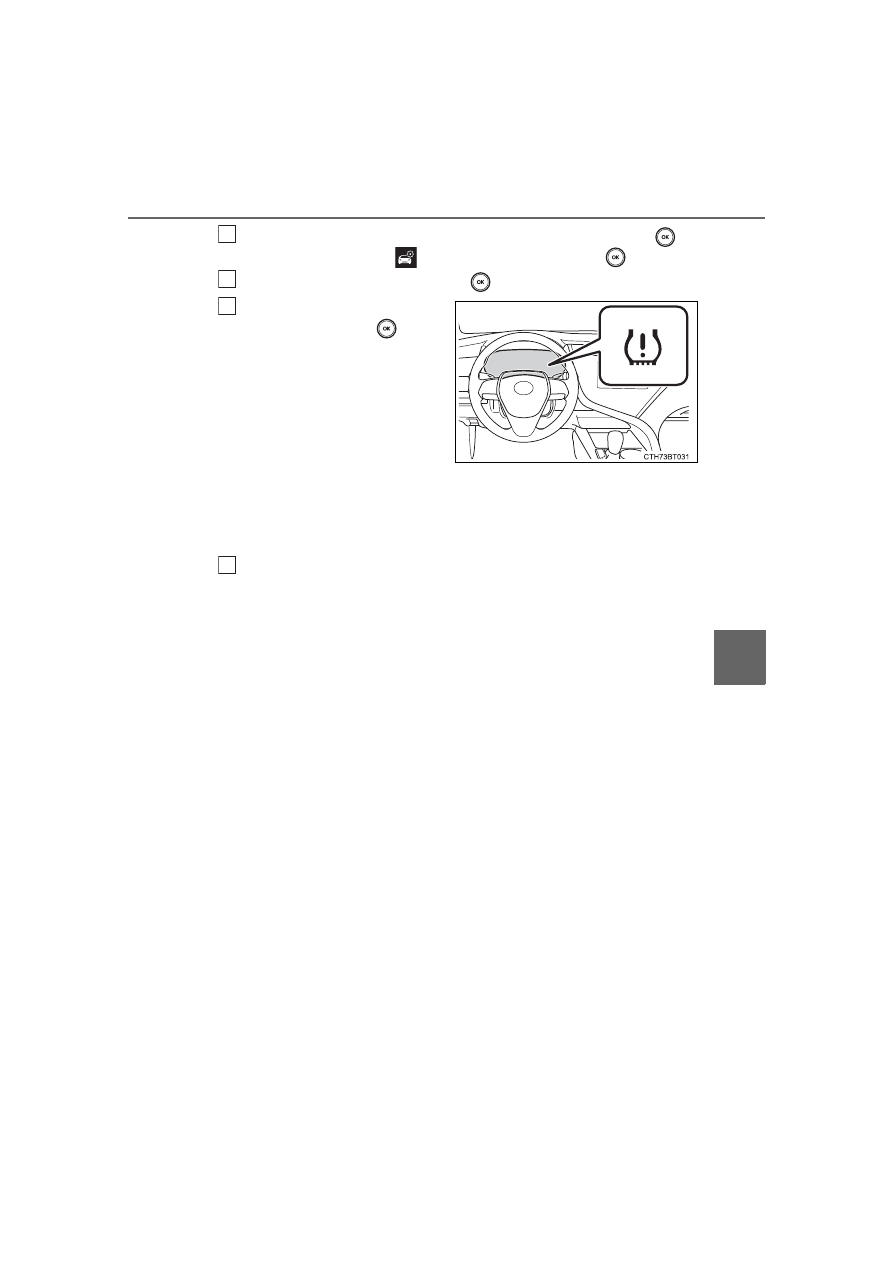

Select  “Set  Pressure”  then
press  and  hold

  until

the  tire  pressure  warning
light blinks 3 times.

Then  a  message  will  be  dis-

played on the multi-information

display.
Vehicles  with  a  tire  inflation

pressure display function: “- -”

will  be  displayed  on  the  multi-

information  display  for  the

inflation  pressure  of  each  tire

while initialization is being per-

formed.

Vehicles  with  a  tire  inflation  pressure  display  function:  Drive  at
approximately 25 mph (40 km/h) or more for approximately 10 to
30 minutes.

When initialization is complete, the inflation pressure of each tire will

be displayed on the multi-information display.
Even if the vehicle is not driven at approximately 25 mph (40 km/h)

or  more,  initialization  can  be  completed  by  driving  for  a  long time.

However, if initialization does not complete after driving for 1 hour or

more, park the vehicle in a safe place for approximately 20 minutes

and then drive the vehicle again.

5

6

7

8

448

6-3. Do-it-yourself maintenance

CAMRY_U

◆

Registering ID codes



Vehicles without a tire inflation pressure display function

Every tire pressure warning valve and transmitter has a unique ID
code. In addition to the set of tire pressure warning system sensor
ID codes initially registered to the vehicle, a second set of ID codes
can be registered.
A second set of tire pressure warning system sensor ID codes can
be registered at your Toyota dealer. When 2 sets of ID codes have
been registered, either ID code set can be selected.



Vehicles with a tire inflation pressure display function

Every tire pressure warning valve and transmitter has a unique ID
code. When replacing a tire pressure warning valve and transmitter,
it is necessary to register the ID codes.
The ID codes can be registered on

 (4.2-inch display) or

 (7-

inch display) of the multi-information display.

■

Changing the available set of ID codes (vehicles without a tire
inflation pressure display function)
When 2 sets of ID codes are registered, the corresponding ID code
set for the installed wheels can be selected on

 (4.2-inch display)

or

 (7-inch display) of the multi-information display. It is not nec-

essary  to  reregister  the  ID  codes  each  time  the  wheels  are
changed.
For information regarding changing the registered ID codes for an
ID code set, contact your Toyota dealer.
