6-4. Using the other interior features

527

Assist grips

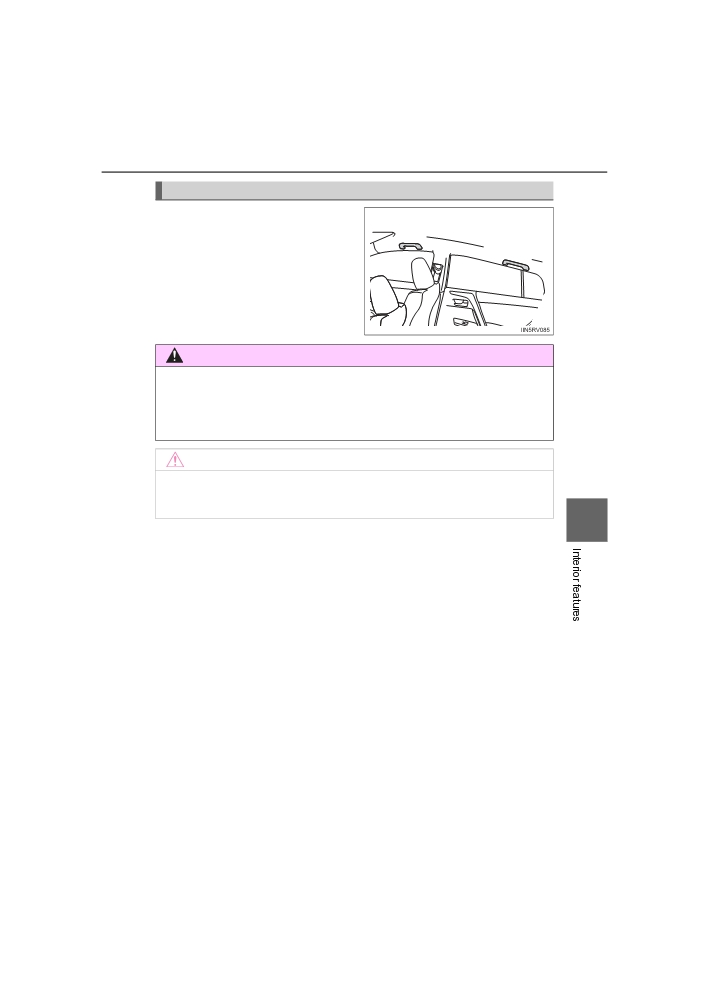

An assist grip installed on the ceil-

ing can be used to support your

body while sitting on the seat.

WARNING

Do not use the assist grip when getting in or out of the vehicle or rising from

your seat.

Doing so could damage the assist grip, or could cause you to injure yourself

by falling over.

NOTICE

To prevent damage to the assist grip, do not hang any heavy object or put a

heavy load on the assist grip.

6

RAV4_OM_OM0R012U_(U)

528

6-4. Using the other interior features

Garage door opener∗

The garage door opener can be programmed to operate garage

doors, gates, entry doors, door locks, home lighting systems,

security systems, and other devices.

Programming the HomeLink®

The HomeLink® wireless control system in your vehicle has 3 buttons

which can be programmed to operate 3 different devices. Refer to the

programming methods on the following pages to determine the

method which is appropriate for the device.

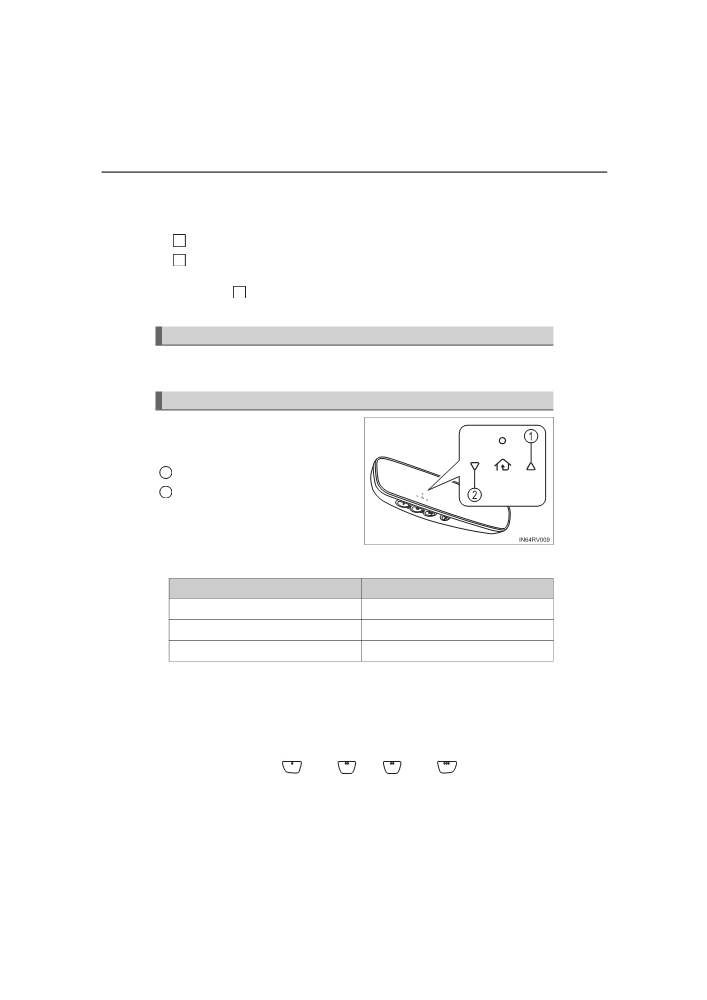

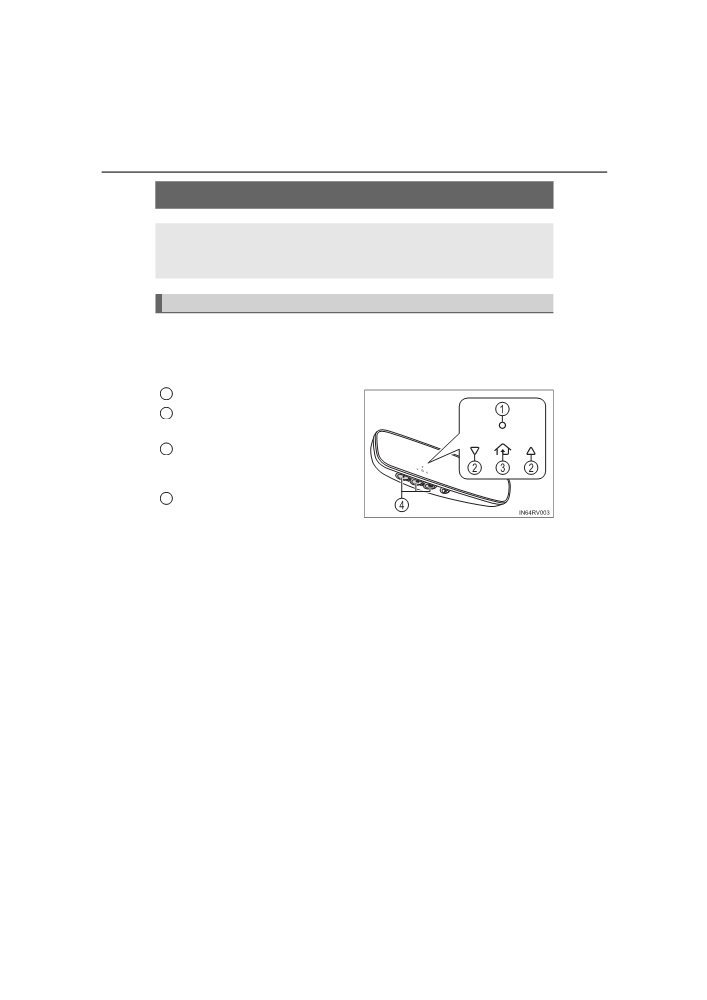

1

HomeLink® indicator light

2

Garage door operation indica-

tors

3

HomeLink® icon

Illuminates while HomeLink® is

operating.

4

Buttons

■ Before programming HomeLink®

● During programming, it is possible that garage doors, gates, or

other devices may operate. For this reason, make sure that peo-

ple and objects are clear of the garage door or other devices to

prevent injury or other potential harm.

● It is recommended that a new battery be placed in the remote

control transmitter for more accurate programming.

● Garage door opener motors manufactured after 1995 may be

equipped with rolling code protection. If this is the case, you may

need a stepladder or other sturdy, safe device to reach the

“Learn” or “Smart” button on the garage door opener motor.

∗: If equipped

RAV4_OM_OM0R012U_(U)

6-4. Using the other interior features

529

■ Programming HomeLink®

Steps

1

through

3

must be performed within 60 seconds, other-

wise the indicator light will stop flashing and programming will not

be able to be completed.

1

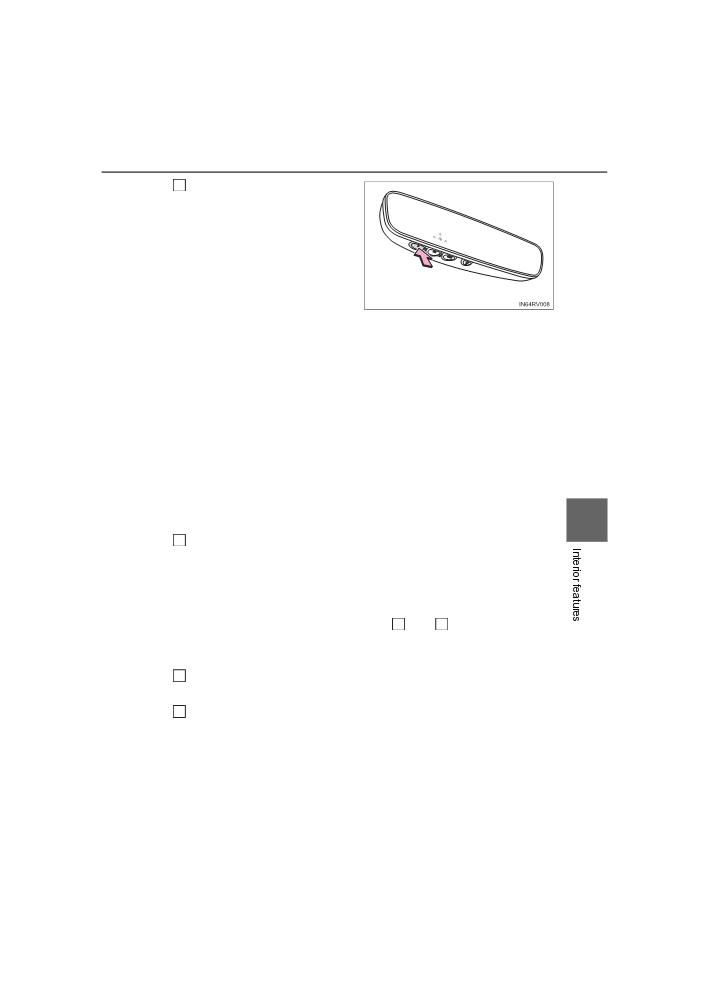

Press and release the HomeLink® button you want to program

and check that the HomeLink® indicator light flashes (orange).

2

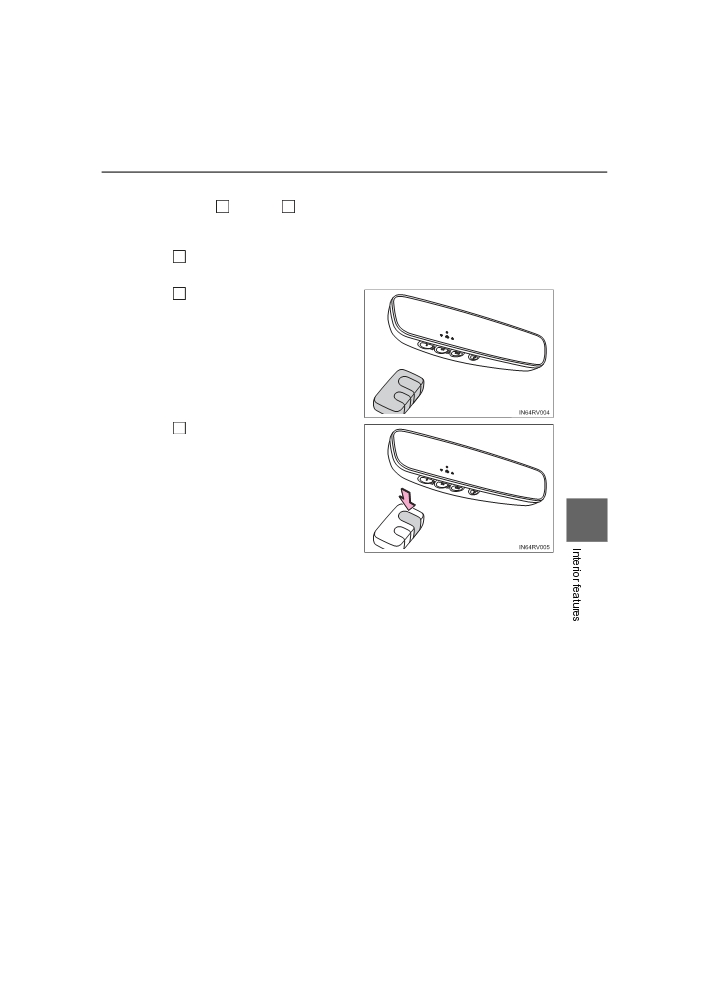

Point the remote control

transmitter for the device at

the rear view mirror, 1 to 3 in.

(25 to

75 mm) from the

HomeLink® buttons.

Keep the HomeLink® indicator

light in view while programming.

Program a device.

3

6

 Programming a device other than an entry gate (for U.S.A.

owners)

Press and hold the handheld transmitter button until the Home-

Link® indicator light changes from slowly flashing orange to rap-

idly flashing green (rolling code) or continuously lit green (fixed

code), then release the button.

 Programming an entry gate (for U.S.A. owners)/Programming

a device in the Canadian market

Press and release the remote control transmitter button at 2 sec-

ond intervals, repeatedly, until the HomeLink® indicator light

changes from slowly flashing (orange) to rapidly flashing (green)

(rolling code) or continuously lit (green) (fixed code).

RAV4_OM_OM0R012U_(U)

530

6-4. Using the other interior features

Test the HomeLink® operation by pressing the newly pro-

4

grammed button and observing the indicator light:

● Indicator light illuminates: Programming of a fixed code device

has completed. The garage door or other device should oper-

ate when a HomeLink® button is pressed and released.

● Indicator light flashes rapidly: The garage door opener motor

or other device is equipped with a rolling code. To complete

programming, firmly press and hold the HomeLink® button for

2 seconds then release it.

● If the garage door or other device does not operate, proceed

to “Programming a rolling code system”.

5

Repeat the steps above to program another device for any of the

remaining HomeLink® buttons.

■ Programming a rolling code system

2 or more people may be necessary to complete rolling code pro-

gramming.

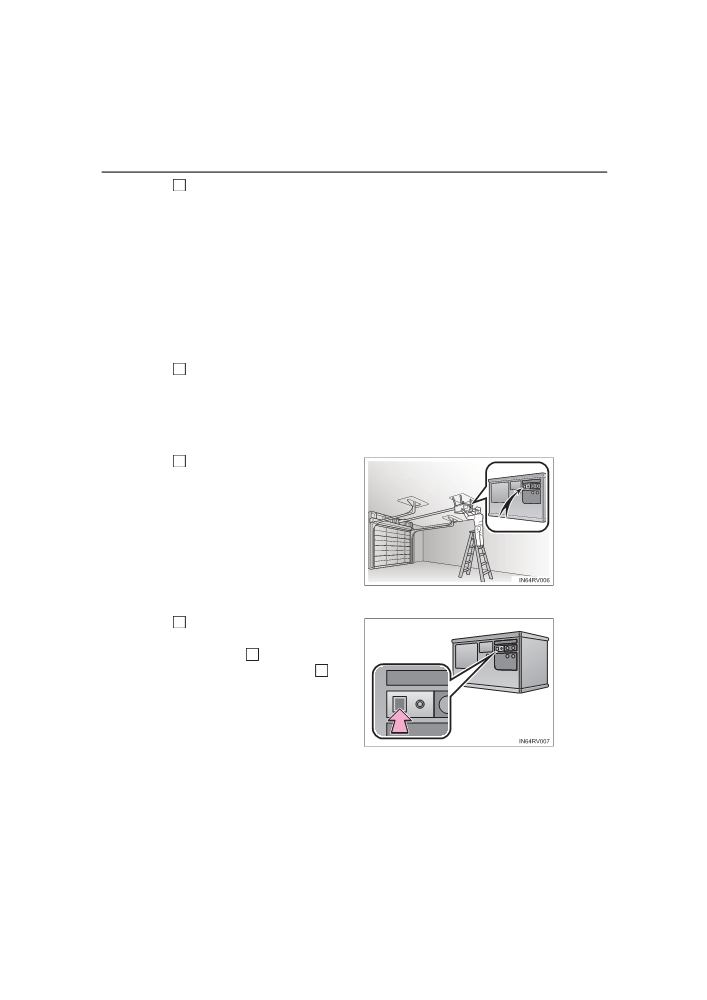

Locate the “Learn” or “Smart”

1

button on the garage door

opener motor in the garage.

This button can usually be found

where the hanging antenna wire

is attached to the unit. The

name and color of the button

may vary by manufacturer.

Refer to the owner’s manual

supplied with the garage door

opener motor for details.

2

Press and release the

“Learn” or “Smart” button.

Perform

3

within

30 sec-

onds after performing

2

RAV4_OM_OM0R012U_(U)

6-4. Using the other interior features

531

3

Press and hold the desired

HomeLink® button (inside the

vehicle) for

2 seconds and

release it. Repeat this

sequence

(press/hold/

release) up to

3 times to

complete programming.

If the garage door opener

motor operates when the

HomeLink®

button

is

pressed, the garage door

opener motor recognizes the

HomeLink® signal.

■ Enabling 2-way communication with a garage door (only avail-

able for compatible devices)

When enabled, 2-way communication allows you to check the sta-

tus of the opening and closing of a garage door through indicators

in your vehicle.

2-way communication is only available if the garage door opener

motor used is a compatible device. (To check device compatibility,

6

refer to www.HomeLink.com.)

Within 5 seconds after programming the garage door opener has

1

been completed, if the garage door opener motor is trained to

HomeLink®, both garage door operation indicators will flash rap-

idly (green) and the light on the garage door opener motor will

blink twice, indicating that 2-way communication is enabled.

If the indicators do not flash, perform

2

and

3

within the first 10

presses of the HomeLink® button after programming has been

completed.

2

Press a programmed HomeLink® button to operate a garage

door.

Within 1 minute of pressing the HomeLink® button, after the

3

garage door operation has stopped, press the “Learn” or “Smart”

button on the garage door opener motor. Within 5 seconds of the

establishment of

2-way communication with the garage door

opener, both garage door operation indicators in the vehicle will

flash rapidly (green) and the light on the garage door opener motor

will blink twice, indicating that 2-way communication is enabled.

RAV4_OM_OM0R012U_(U)

532

6-4. Using the other interior features

■ Reprogramming a single HomeLink® button

When the following procedure is performed, buttons which already

have devices registered to them can be overwritten:

With one hand, press and hold the desired HomeLink® button.

1

When the HomeLink® indicator starts flashing (orange), continue

2

to hold the HomeLink® button and perform “Programming Home-

Link®”

1

(it takes 20 seconds for the HomeLink® indicator to

start flashing).

Operating HomeLink®

Press the appropriate HomeLink® button. The HomeLink® indicator

light should turn on.

Garage door operation indicators

The status of the opening and

closing of a garage door is shown

by the indicators.

1

Opening

2

Closing

This function is only available if the

garage door opener motor used is

a compatible device.

(To check

device compatibility, refer to

www.HomeLink.com.)

Color

Status

Orange (flashing)

Currently opening/closing

Green

Opening/closing has completed

Red (flashing)

Feedback signals cannot be received

The indicators can operate within approximately 820 ft. (250 m) of the

garage door. However, if there are obstructions between the garage

door and the vehicle, such as houses and trees, feedback signals

from the garage door may not be received.

To recall the previous door operation status, press and release either

HomeLink® buttons

and

or

and

simultaneously.

The last recorded status will be displayed for 3 seconds.

RAV4_OM_OM0R012U_(U)

6-4. Using the other interior features

533

Erasing the entire HomeLink® memory (all three codes)

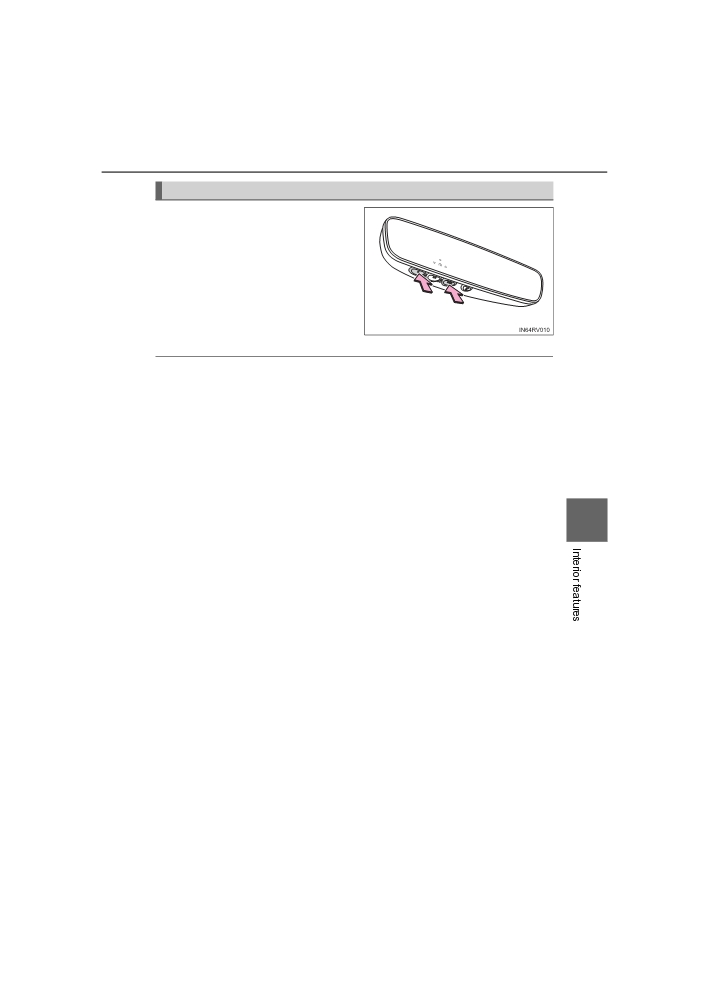

Press and hold the 2 outside but-

tons for

10 seconds until the

HomeLink®

indicator

light

changes from continuously lit

(orange) to rapidly flashing

(green).

If you sell your vehicle, be sure to

erase the programs stored in the

HomeLink® memory.

■ Codes stored in the HomeLink® memory

● The registered codes are not erased even if the battery cable is discon-

nected.

● If learning failed when registering a different code to a HomeLink® button

that already has a code registered to it, the already registered code will not

be erased.

■Before programming

● Install a new battery in the transmitter.

● The battery side of the transmitter must be pointed away from the

HomeLink.

■Certification for the garage door opener

6

 For vehicles sold in the U.S.A.

NOTE:

This device complies with part 15 of the FCC Rules. Operation is subject to

the following two conditions: (1) This device may not cause harmful interfer-

ence, and (2) this device must accept any interference received, including

interference that may cause undesired operation.

FCC WARNING:

changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

 For vehicles sold in Canada

NOTE:

This device complies with Industry Canada licence-exempt RSS standard(s).

Operation is subject to the following two conditions: (1) this device may not

cause interference, and (2) this device must accept any interference, includ-

ing interference that may cause undesired operation of the device.

NOTE:

Le présent appareil est conforme aux CNR d’Industrie Canada applicables

aux appareils radio exempts de licence. L’exploitation est autorisée aux deux

conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2)

l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,

même si le brouillage est susceptible d’en compromettre le fonctionnement.

RAV4_OM_OM0R012U_(U)

6-4. Using the other interior features

535

Compass∗

The compass on the inside rear view mirror indicates the direc-

tion in which the vehicle is heading.

Operation

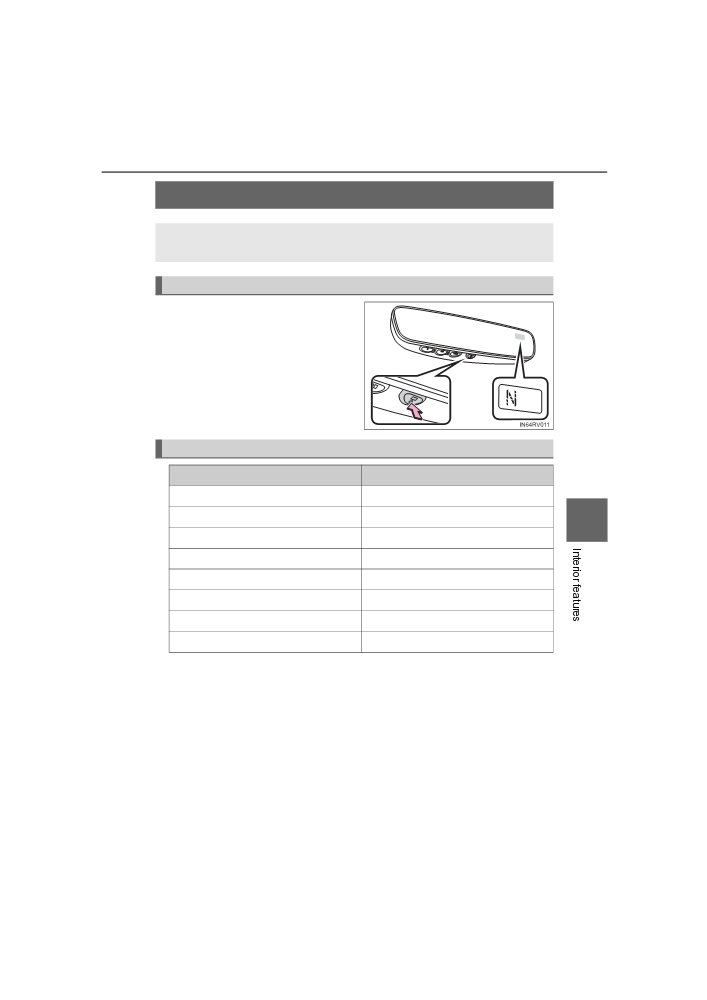

To turn the compass on or off,

press and hold the switch for 3

seconds.

Displays and directions

Display

Direction

N

North

NE

Northeast

6

E

East

SE

Southeast

S

South

SW

Southwest

W

West

NW

Northwest

∗: If equipped

RAV4_OM_OM0R012U_(U)

536

6-4. Using the other interior features

Calibrating the compass

The direction display deviates from the true direction determined by

the earth’s magnetic field. The amount of deviation varies according to

the geographic position of the vehicle.

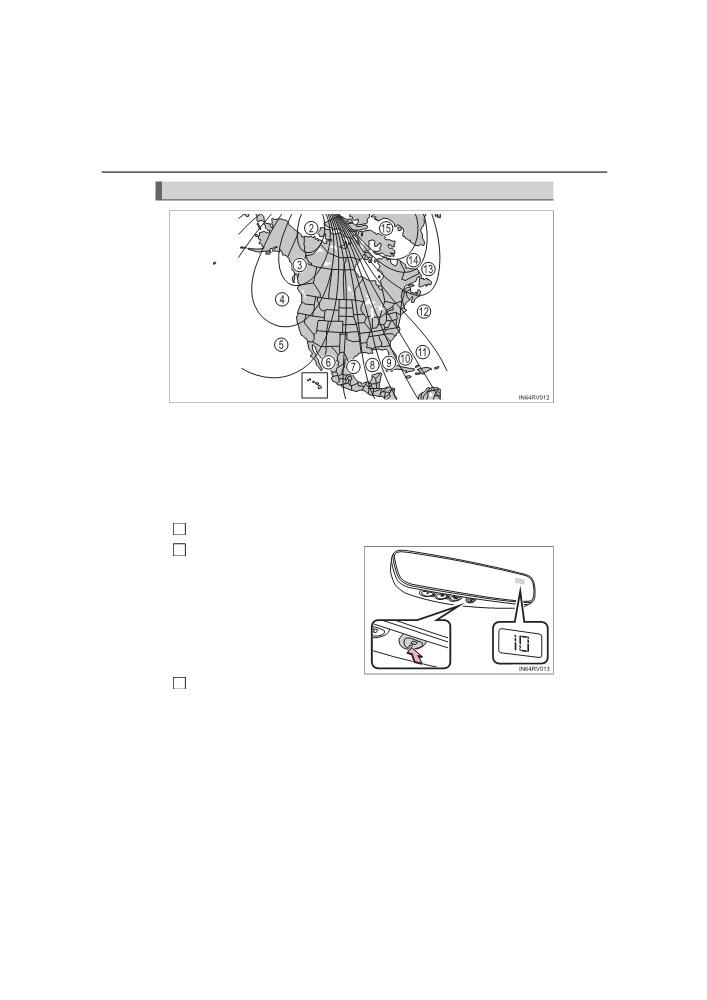

If you cross over a map boundary shown in illustration, the compass will

deviate.

To obtain higher precision or perfect calibration, refer to the following.

■ Deviation calibration

1

Stop the vehicle.

2

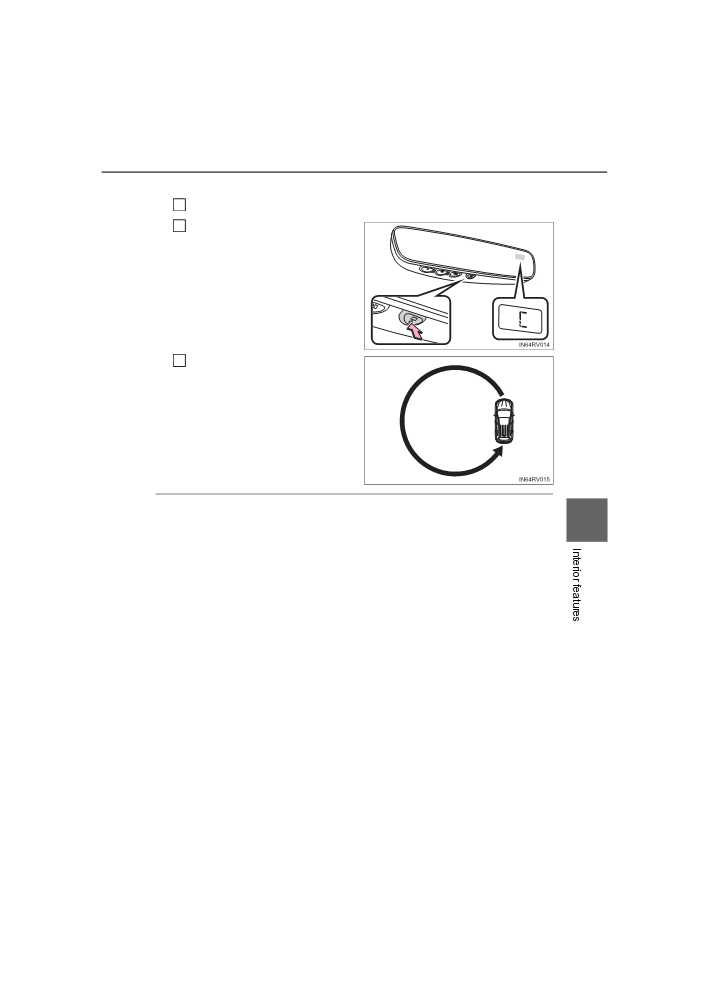

Press and hold the switch for

6 seconds.

A number (1 to 15) appears on

the compass display.

3

Press the switch and, referring to the map above, select the num-

ber of the zone where you are.

If the direction is displayed several seconds after adjustment, the cali-

bration is complete.

RAV4_OM_OM0R012U_(U)

6-4. Using the other interior features

537

■ Circling calibration

1

Stop the vehicle in a place where it is safe to drive in a circle.

2

Press and hold the switch for

9 seconds.

“C” appears on the compass

display.

Drive the vehicle at 5 mph (8

3

km/h) or less in a circle until

a direction is displayed.

If there is not enough space to

drive in a circle, drive around the

block until the direction is dis-

played.

■Conditions unfavorable to correct operation

6

The compass may not show the correct direction in the following conditions:

● The vehicle is stopped immediately after turning.

● The vehicle is on an inclined surface.

● The vehicle is in a place where the earth’s magnetic field is subject to inter-

ference by artificial magnetic fields (underground car park/parking lot, under

a steel tower, between buildings, roof car park/parking lot, near an intersec-

tion, near a large vehicle, etc.).

● The vehicle has become magnetized.

(There is a magnet or metal object near the inside rear view mirror.)

● The battery has been disconnected.

● A door is open.

RAV4_OM_OM0R012U_(U)

538

6-4. Using the other interior features

WARNING

■ While driving the vehicle

Do not adjust the display. Adjust the display only when the vehicle is

stopped.

■When doing the circling calibration

Secure a wide space, and watch out for people and vehicles in the neigh-

borhood. Do not violate any local traffic rules while performing circling cali-

bration.

NOTICE

■ To avoid compass malfunctions

Do not place magnets or any metal objects near the inside rear view mirror.

Doing this may cause the compass sensor to malfunction.

■ To ensure normal operation of the compass

● Do not perform circling calibration of the compass in a place where the

earth’s magnetic field is subject to interference by artificial magnetic fields.

● During calibration, do not operate electric systems (moon roof, power win-

dows, etc.) as they may interfere with the calibration.

RAV4_OM_OM0R012U_(U)

540

7-1. Maintenance and care

Cleaning and protecting the vehicle exterior

Perform the following to protect the vehicle and maintain it in

prime condition:

● Working from top to bottom, liberally apply water to the vehicle

body, wheel wells and underside of the vehicle to remove any dirt

and dust.

● Wash the vehicle body using a sponge or soft cloth, such as a

chamois.

● For hard-to-remove marks, use car wash soap and rinse thoroughly

with water.

● Wipe away any water.

● Wax the vehicle when the waterproof coating deteriorates.

If water does not bead on a clean surface, apply wax when the vehicle

body is cool.

■Automatic car washes

● Before washing the vehicle:

• Fold the mirrors

• Turn off the power back door (if equipped)

Start washing from the front of the vehicle. Make sure to extend the mirrors

before driving.

● Brushes used in automatic car washes may scratch the vehicle surface and

harm your vehicle’s paint.

● Rear spoiler may not be washable in some automatic car washes.

There may also be an increased risk of damage to vehicle.

■ High pressure car washes

● Do not allow the nozzles of the car wash to come within close proximity of

the windows.

● Before using the car wash, check that the fuel filler door on your vehicle is

closed properly.

■ When using a car wash (vehicles with smart key system)

● If the door handle becomes wet while the electronic key is within the effec-

tive range, the door may lock and unlock repeatedly. Place the key in a posi-

tion 6 ft. (2 m) or more separate from the vehicle while the vehicle is being

washed. (Take care to ensure that the key is not stolen.)

● If the electronic key is inside the vehicle and a door handle becomes wet

during a car wash, a buzzer will sound outside the vehicle. To turn off the

alarm, lock all the doors.

RAV4_OM_OM0R012U_(U)

7-1. Maintenance and care

541

■ Aluminum wheels (if equipped)

● Remove any dirt immediately by using a neutral detergent.

● Wash detergent off with water immediately after use.

● To protect the paint from damage, make sure to observe the following pre-

cautions.

• Do not use acidic, alkaline or abrasive detergent

• Do not use hard brushes

• Do not use detergent on the wheels when they are hot, such as after driv-

ing or parking in hot weather

■ Bumpers

Do not scrub with abrasive cleaners.

WARNING

■ When washing the vehicle

Do not apply water to the inside of the engine compartment. Doing so may

cause the electrical components etc. to catch fire.

■ Precautions regarding the exhaust pipes

Exhaust gases cause the exhaust pipes to become quite hot.

When washing the vehicle, be careful not to touch the pipes until they have

cooled sufficiently, as touching hot exhaust pipes can cause burns.

■ Precautions regarding the Blind Spot Monitor (if equipped)

If the paint of the rear bumper is chipped or scratched, the system may mal-

function. If this occurs, consult your Toyota dealer.

7

RAV4_OM_OM0R012U_(U)

542

7-1. Maintenance and care

NOTICE

■ To prevent paint deterioration and corrosion on the body and compo-

nents (aluminum wheels etc.)

● Wash the vehicle immediately in the following cases:

• After driving near the sea coast

• After driving on salted roads

• If coal tar or tree sap is present on the paint surface

• If dead insects, insect droppings or bird droppings are present on the

paint surface

• After driving in an area contaminated with soot, oily smoke, mine dust,

iron powder or chemical substances

• If the vehicle becomes heavily soiled with dust or mud

• If liquids such as benzene and gasoline are spilled on the paint surface

● If the paint is chipped or scratched, have it repaired immediately.

● To prevent the wheels from corroding, remove any dirt and store in a place

with low humidity when storing the wheels.

■ Cleaning the exterior lights

● Wash carefully. Do not use organic substances or scrub with a hard brush.

This may damage the surfaces of the lights.

● Do not apply wax to the surfaces of the lights.

Wax may cause damage to the lenses.

■When using a high-pressure car wash

● When washing the vehicle, do not let water from the high-pressure washer

directly hit the camera (if equipped) or the area around the camera. Due to

the shock from high-pressure water, it is possible that the device may not

operate normally.

● Do not bring the nozzle tip close to boots (rubber or resin manufactured

cover), connectors or the following parts.

The parts may be damaged if they come into contact with high-pressure

water.

• Traction related parts

• Steering parts

• Suspension parts

• Brake parts

RAV4_OM_OM0R012U_(U)

7-1. Maintenance and care

543

Cleaning and protecting the vehicle interior

The following procedures will help protect your vehicle’s interior

and keep it in top condition:

Protecting the vehicle interior

● Remove dirt and dust using a vacuum cleaner. Wipe dirty surfaces

with a cloth dampened with lukewarm water.

● If dirt cannot be removed, wipe it off with a soft cloth dampened with

neutral detergent diluted to approximately 1%.

Wring out any excess water from the cloth and thoroughly wipe off

remaining traces of detergent and water.

Cleaning the leather areas

● Remove dirt and dust using a vacuum cleaner.

● Wipe off any excess dirt and dust with a soft cloth dampened with

diluted detergent.

Use a diluted water solution of approximately 5% neutral wool detergent.

● Wring out any excess water from the cloth and thoroughly wipe off

all remaining traces of detergent.

● Wipe the surface with a dry, soft cloth to remove any remaining

7

moisture. Allow the leather to dry in a shaded and ventilated area.

Cleaning the synthetic leather areas

● Remove dirt and dust using a vacuum cleaner.

● Wipe it off with a soft cloth dampened with neutral detergent diluted

to approximately 1%.

● Wring out any excess water from the cloth and thoroughly wipe off

remaining traces of detergent and water.

RAV4_OM_OM0R012U_(U)

Content   ..  30  31  32  33   ..
