Toyota Prius (2018 year). Instruction - part 2
FEATURES & OPERATIONS
Steering lock release
Turn
Push
5IF HSFFO JOEJDBUPS MJHIU PO UIF FOHJOF TXJUDI XJMM nBTI BOE B NFTTBHF XJMM CF
TIPXO PO UIF NVMUJ JOGPSNBUJPO EJTQMBZ 1SFTT UIF FOHJOF TXJUDI XIJMF UVSOJOH UIF
TUFFSJOH XIFFM MFGU BOE SJHIU

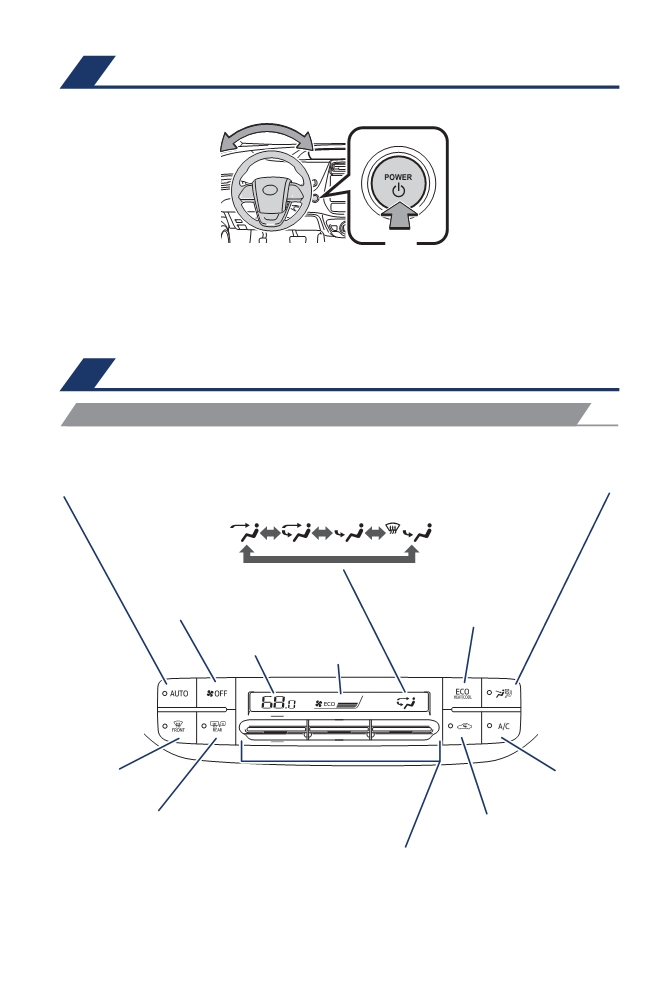

Air conditioning/heating
AUTOMATIC AIR CONDITIONING - 6.1” DISPLAY (IF EQUIPPED)
Automatic climate control ON
3MART mOW 3 &LOW MODE GIVES AIRmOW
Adjusting the temperature setting will
PRIORITY TO THE FRONT SEATS REDUCING THE
CAUSE THE AIRmOW VENTS AIR INTAKE AND
AIRmOW AND AIR CONDITIONING EFFECT ON
fan to adjust automatically.
rear seats when there are no passengers.
!IRmOW VENT
Climate control that minimizes
Climate
fuel consumption. This option
control OFF
may reduce fan speed.
Temperature
setting
Fan speed
Windshield
Air conditioning
defogger
ON/OFF
Outside rearview mirror/
Recirculate cabin air
Rear defogger
(outside air when OFF)
Adjusters
5P $OWN #HANGE TEMPERATURE
CHANGE FAN SPEED CHANGE VENT MODE
18

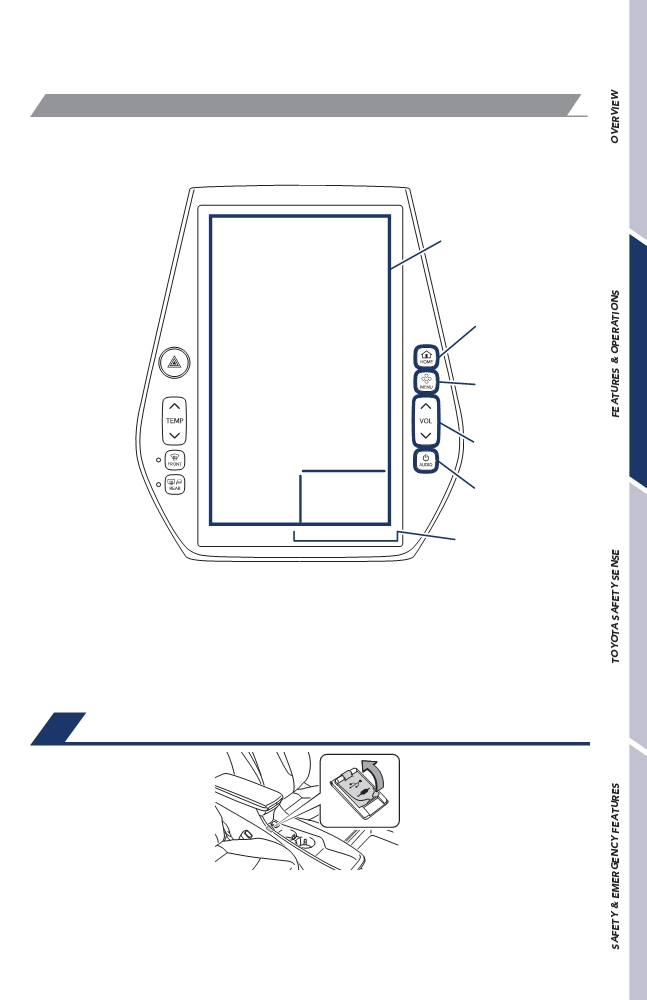

AUTOMATIC AIR CONDITIONING - 11.6” DISPLAY (IF EQUIPPED)
Controls
Air conditioning
temperature control
Windshield defogger
Rear window and outside
rear view mirrors defogger
Touch area to display
air conditioning control
screen (3EE BELOW)

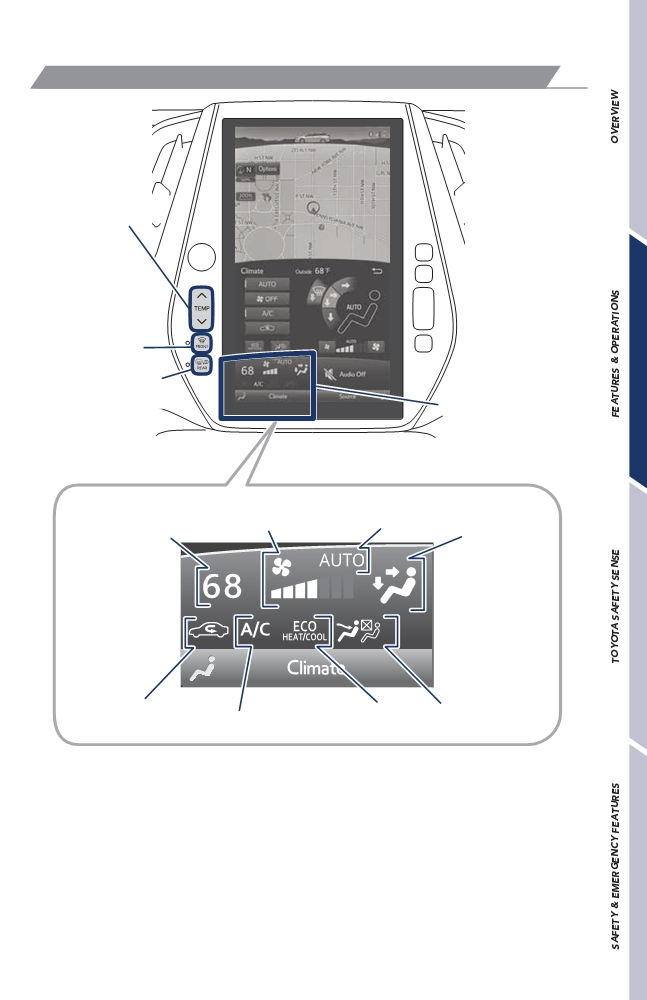

Air conditioning control screen
Fan speed setting
Automatic mode setting
!IRmOW MODE SETTING
Temperature setting
Outside/recirculated
Air conditioning
S-FLOW mode setting
air mode setting
A/C setting
ECO mode setting
19
FEATURES & OPERATIONS
Color Dual Multi-Information Display (MID)

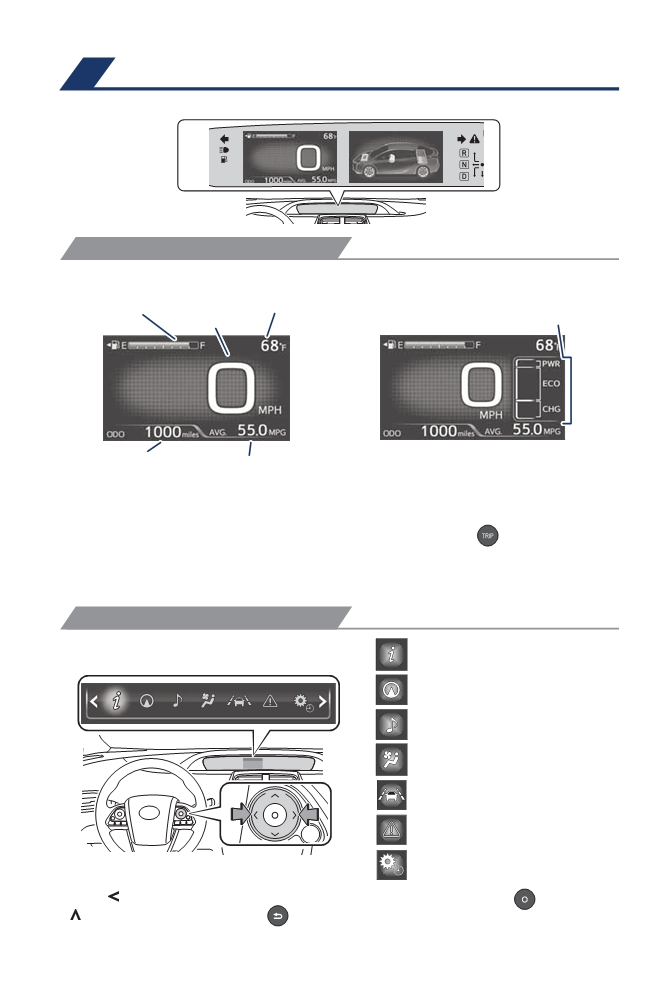

Main display
MID
MAIN DISPLAY
Simple screen
Split screen
Fuel gauge
Outside temperature
Hybrid system indicator and
Speedometer
current fuel
Mileage display
Average fuel
(odometer/trip meters/
consumption display
driving range)
The default split screen mode can also be viewed in simple screen mode shown
above. The main display shows basic drive information. Push “
” to view more
info for mileage and average fuel consumption display.
For more details, see Owner’s Manual.
MULTI-INFORMATION DISPLAY (MID)
Drive information
Navigation system-linked
display (if equipped)
Audio system-linked
display (if equipped)
Air conditioning system
settings screen
Driving assist system information
(if equipped)
Warning message display
Settings display
v
Push “
” to change between the following information screens, “
” to select,
“
v
” to switch contents and “
” to go back:
For more details, see Owner’s Manual.
20

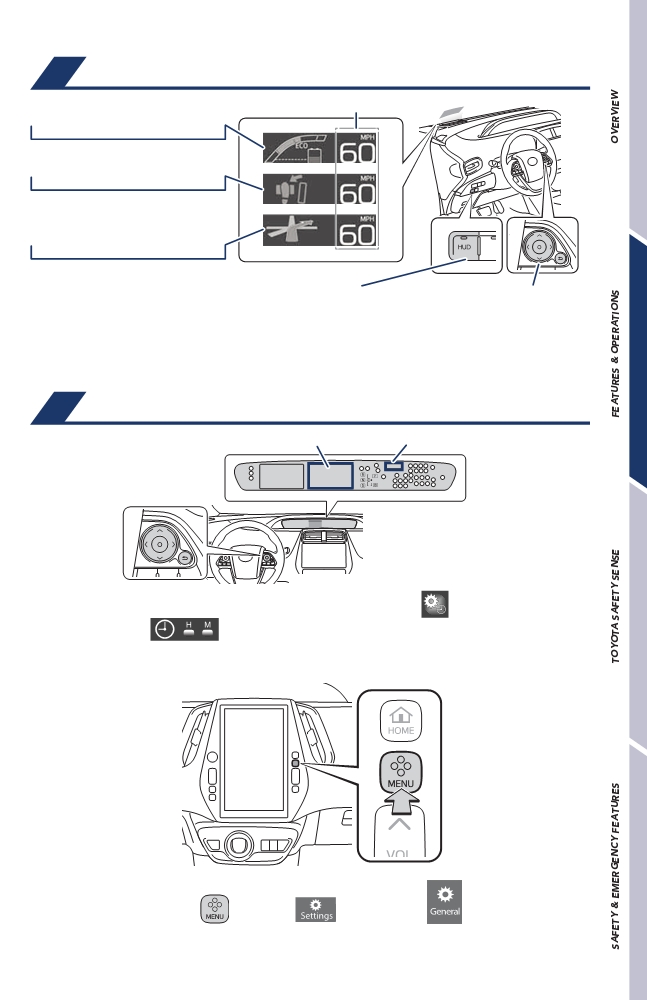

Color Head-up Display (HUD) (if equipped)
Vehicle speed display
Hybrid system current driving and
energy regeneration status
Insert display driving support
system information
Route guidance display
(if equipped with navigation
system)
Head-up display (HUD) switch
Meter control switches adjust
activates or switches between items
position and brightness of HUD
The color head-up display can display the current vehicle speed and hybrid system
indicator in front of the driver. Also, it can display various types of information to
assist the driver.
Clock
Multi-Information Display (MID) Clock display
Meter control switches
To adjust the time, use meter control switches to go to the
screen on the MID.
Then, select the
option to access the clock setting.
11.6” display (if equipped)
To adjust the time, press
to select
. Then select
to access
General Settings screen. From here, select “System Time” to access clock setting.
21
FEATURES & OPERATIONS
Audio

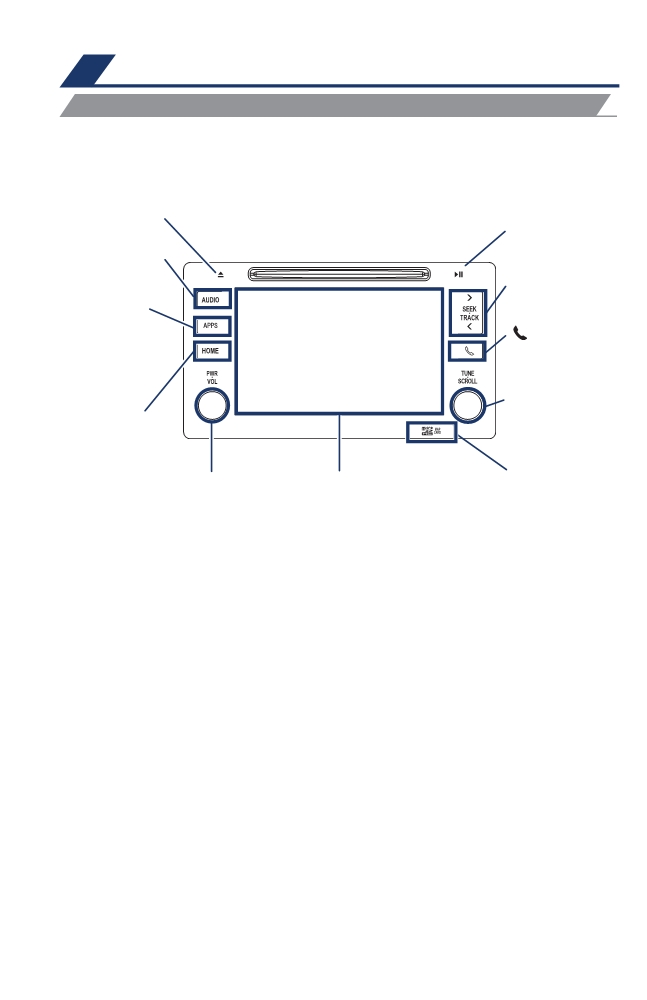

ENTUNE™ PREMIUM AUDIO WITH INTEGRATED NAVIGATION & APP SUITE
6.1” Display
Eject CD
Touch to pause or
resume playing
AUDIO Button
Access to audio
functions.
Seek station/
CD track select
APPS Button
Access to
Entune® App
Button
Suite, sports,
Access telephone
stocks, news,
option screen.
TRAFlC AND
weather.
Turn to tune radio
stations manually
HOME Button
or select tracks
Access to
OR lLES
Home screen.
Map card
Push to turn ON/OFF. Touch screen display
insert
HOME SCREEN - the home screen offers a two panel and a three panel layout. Information and
layout will vary depending on selected set up.
Refer to the Navigation System Owner’s Manual for more details.
NOTE: Concentrating on the road should always be your first priority while driving. Do
not use the Entune system if it will distract you.
22
ENTUNE™ PREMIUM AUDIO WITH INTEGRATED NAVIGATION & APP SUITE
11.6” Display (if equipped)
Touch screen display
Access audio and
navigation functions.
Home button
Access to Home
screen.
Menu button
Access to Menu
screen.
Volume button
Push to turn
ON/OFF.
Audio information
display area
Refer to the Navigation System Owner’s Manual for more details.
NOTE: Concentrating on the road should always be your first priority while driving. Do
not use the Entune system if it will distract you.
USB/AUX port
By inserting a USB or an auxilary cable plug into the USB/AUX port, you can listen
to music from a portable audio device through the vehicle’s speaker system while in
USB/AUX mode.
Refer to the “Owner’s Manual” or the “Navigation System Owner’s Manual” for
instructions and more information.
23
FEATURES & OPERATIONS
Power outlets
Front
Rear
Power switch must be set at “ACCESSORY” or “ON” mode to be used.

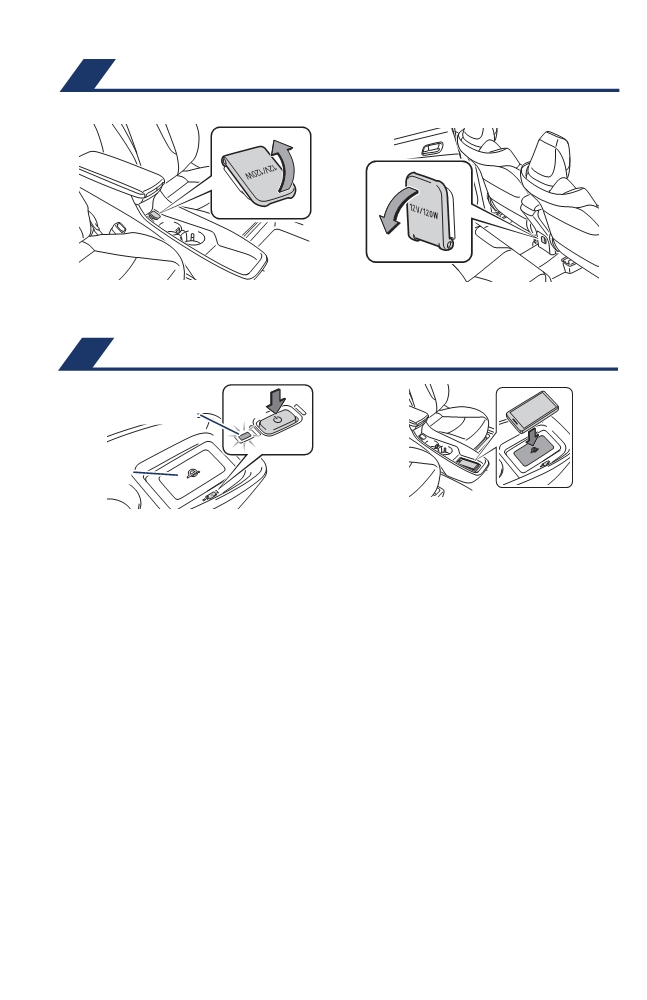

Qi-compatible wireless charging (if equipped)
(1)
(2)
Operation
indicator light
Charge
area
Push power supply charging button.
Place charging side of device on the
charge area.
Orange light - device is charging.
'REEN LIGHT DEVICE IS lNISHED CHARGING
The power switch must be in ACCESSORY or ON mode.
A portable device can be charged by just placing Qi standard wireless charge
compatible portable devices according to the Wireless Power Consortium, such as
smart phones and mobile batteries, etc., on the charge area.
This function cannot be used with portable devices that are larger than the
charging area. Also, depending on the portable device, it may not operate
normally.
See Owner’s Manual for compatible portable devices.
24

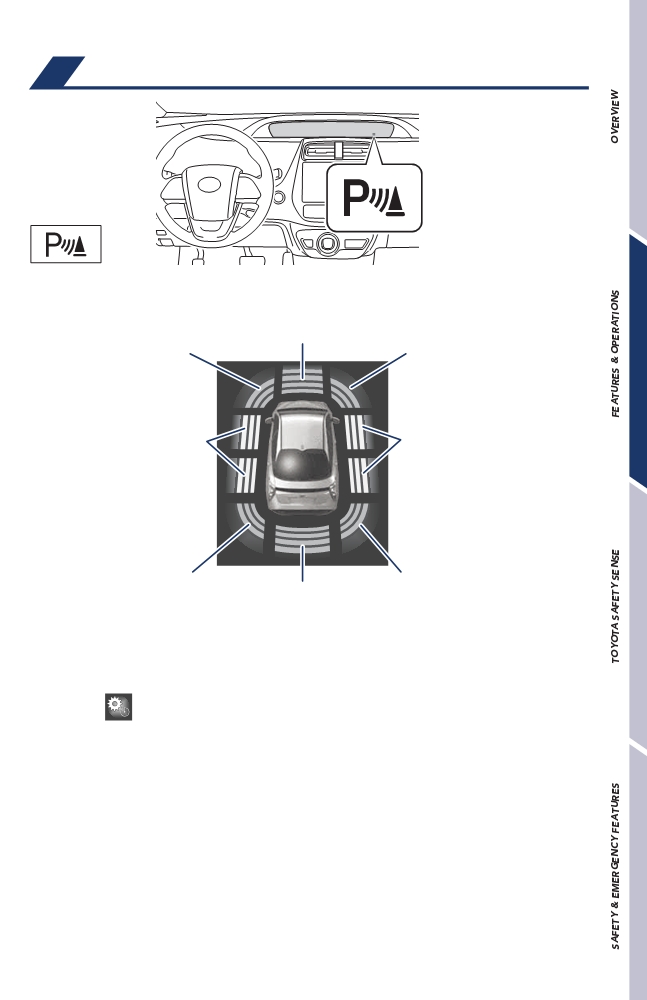

Intelligent Parking Assist (IPA) (if equipped)
Front
center sensor
Corner sensors
Corner sensors
(front and rear)
(front and rear)
Side sensors
Side sensors
(front and rear)
(front and rear)
Corner sensors
Corner sensors
(front and rear)
Rear
(front and rear)
center sensor
If the sensors detect an obstacle, the buzzer and MID display informs the driver of
the approximate position and distance of the obstacle by illuminating continuously
(far) or blinking (near).
Note: Use
in the Multi-Information Display (MID) to change settings. The
system will continue in the last state it was in (ON or OFF) when the engine is
started again.
Refer to section S-APGS (Simple Advanced Parking Guidance System) in the
Owner’s Manual for more details.
25
FEATURES & OPERATIONS
Intelligent Clearance Sonar (ICS) (if equipped)
When parking, this available system scans for stationary objects, like walls or
lampposts. Should the system anticipate a collision, it will emit an audible and
visible alert, reduce engine or motor output, and automatically apply the brakes if
needed. And with advanced side-colllision detection, Prius can help you get in and
out of parking spots more easily.
CHANGE SETTINGS
System ON/OFF on the
Multi-Information Display.
Refer to the Owner‘s Manual for more details on this system.
Rear view monitor system

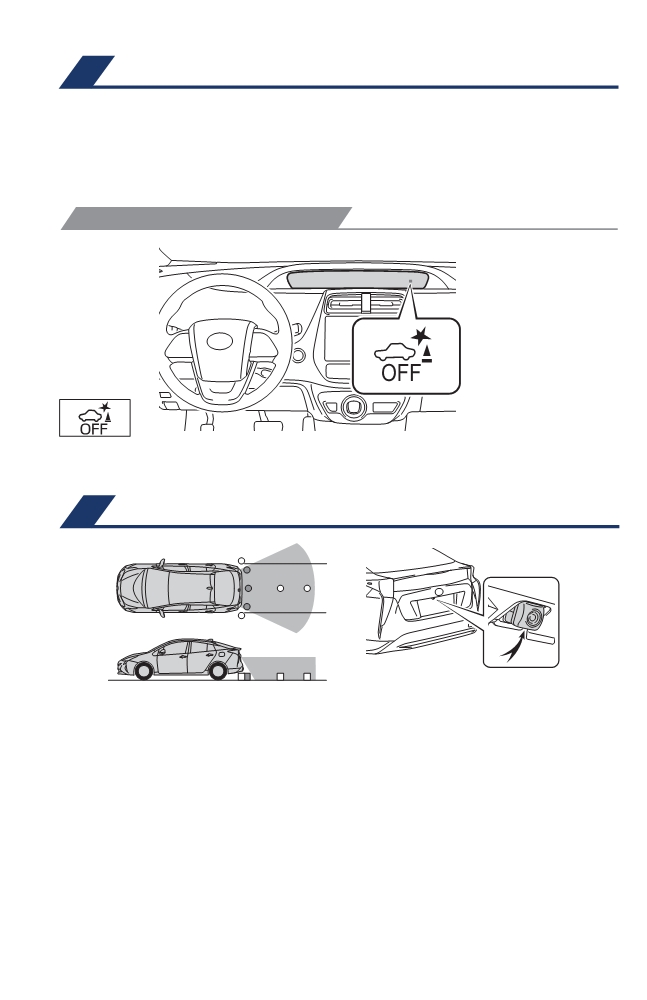

The rear view monitor system displays an image of the view from the bumper of
the rear area of the vehicle. The camera for the rear view monitor system is located
above the license plate.
To adjust the image on the rear view monitor screen, press the “SETUP” button
and select “Display” on the “Setup” screen. Select “Camera” to adjust the screen
contrast and brightness.
Refer to the Owner‘s Manual for limitations and more details on this system.
26
Blind Spot Monitor with Rear Cross Traffic
Alert (BSM w/RCTA) (if equipped)
Indicator
BSM on/off screen and indicator
Indicator
Buzzer
RCTA detection display

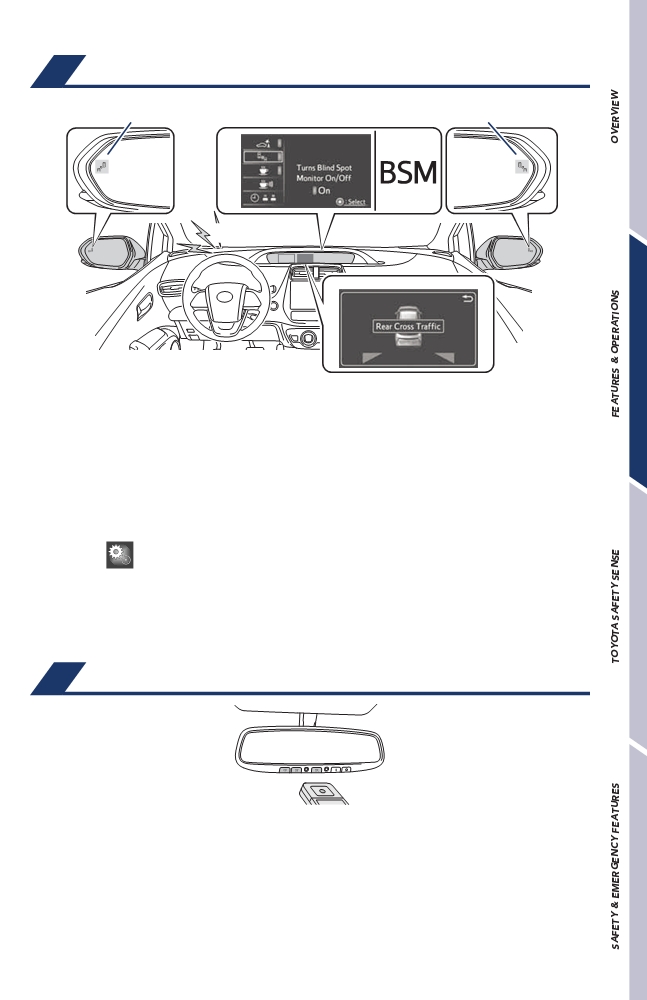

The Blind Spot Monitor is a system that has two functions:
• The Blind Spot Monitor function (assists the driver in making the decision when
changing lanes)
t 5IF 3FBS $SPTT 5SBGmD "MFSU GVODUJPO BTTJTUT UIF ESJWFS XIFO CBDLJOH VQ
The system is designed to use radar sensors to detect vehicles traveling in the
Prius’ blind spot and advises the driver of the vehicles’ presence via the outside
rear view mirror indicators.
Note: Use
in the Multi-Information Display (MID) to change settings. The
system will continue in the last state it was in (ON or OFF) when the engine is
started again.
Refer to the Owner‘s Manual for limitations and more details on this system before
attempting to use it.
Garage door opener (HomeLink®) (if equipped)
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc.
Refer to “Garage door opener,” Section 6-4 in the Owner’s Manual for more
details.
For programming assistance, contact HomeLink®n 6-4 in the owner’s manual fhttp://
* HomeLink® is a registered trademark of Johnson Controls, Inc.
27
TOYOTA SAFETY SENSE™

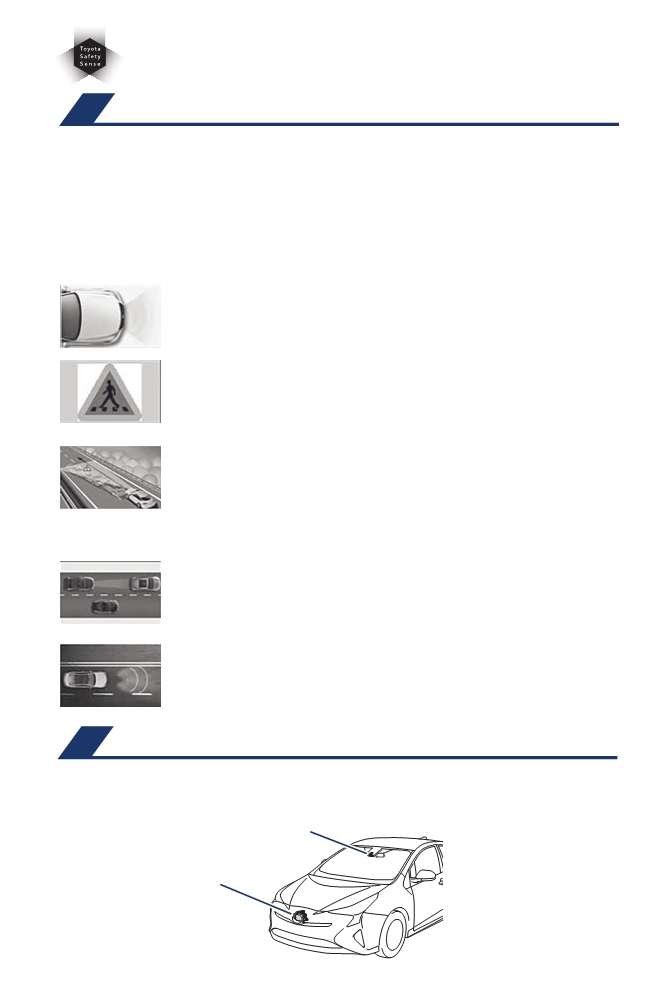

Quick overview-Toyota Safety Sense™ P (TSS-P)
Toyota Safety Sense™ P (TSS-P) is a set of active safety technologies designed
UP IFMQ NJUJHBUF PS QSFWFOU DPMMJTJPOT BDSPTT B XJEF SBOHF PG USBGmD TJUVBUJPOT JO
certain conditions. TSS-P is designed to help support the driver’s awareness,
decision making and vehicle operation contributing to a safe driving experience.
5HIHU WR WKH 2ZQHU·V 0DQXDO IRU RSHUDWLRQ VHWWLQJ DGMXVWPHQWV OLPLWDWLRQV DQG
PRUH GHWDLOV WR XQGHUVWDQG WKHVH IXQFWLRQV DQG FRPSOHWH VDIHW\ SUHFDXWLRQV )RU
PRUH LQIRUPDWLRQ
SOHDVH JR WR KWWS ZZZ WR\RWD FRP VDIHW\ VHQVH
Pre-Collision System with Pedestrian Detection function (PCS w/PD)
PCS w/PD is designed to provide alert, mitigation, and/or
avoidance support in certain conditions, when the system detects
a potential collision with a preceding vehicle is likely to occur.
Advanced millimeter-wave radar sensor system is designed
to work with the camera sensor to help recognize a preceding
pedestrian, and provide an alert, mitigation and/or avoidance
support in certain conditions.

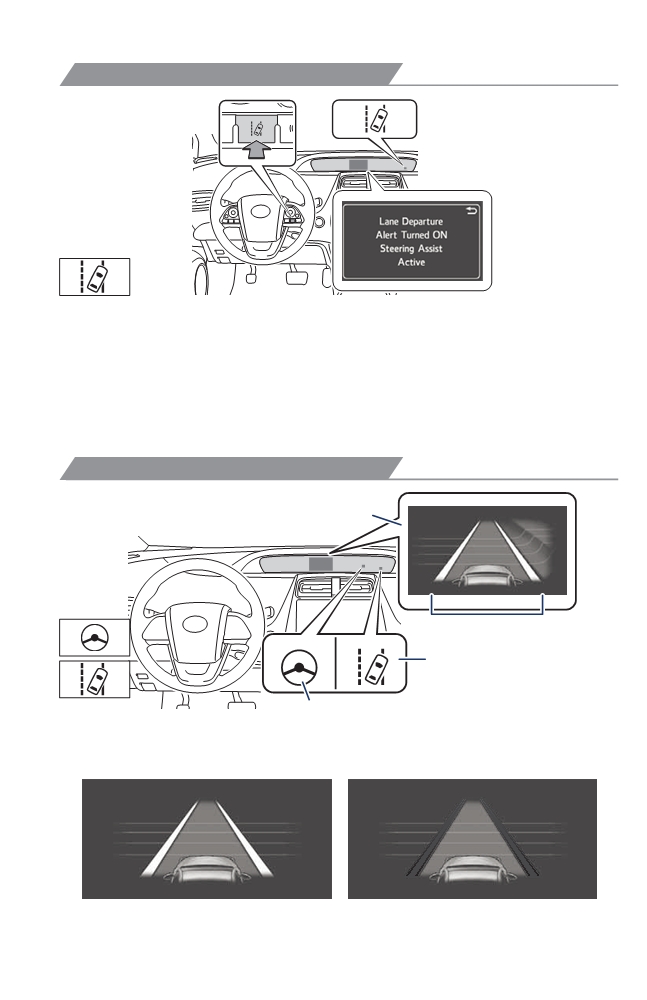

Lane Departure Alert with Steering Assist function (LDA w/SA)
-%" X 4" JT EFTJHOFE UP QSPWJEF OPUJmDBUJPO XIFO UIF TZTUFN
detects an unintended lane departure.
The Steering Assist function is designed to provide small
corrective steering inputs to the steering wheel for a short period
of time to help keep the vehicle in its lane.
Full-Speed Range Dynamic Radar Cruise Control (DRCC)
DRCC is designed to help maintain a pre-set distance to a
preceding vehicle when the preceding vehicle is traveling at a
lower speed.
Automatic High Beams (AHB)
AHB is designed to detect the headlights of oncoming vehicles
and the tail lights of preceding vehicles and switch between high
beams and low beams as appropriate.
Sensors
TSS-P combines an in-vehicle camera mounted in front of the inside rear view mirror
and a millimeter-wave radar mounted in the front grill. These sensors support the
driver assist systems.
Camera sensor
Radar sensor
28

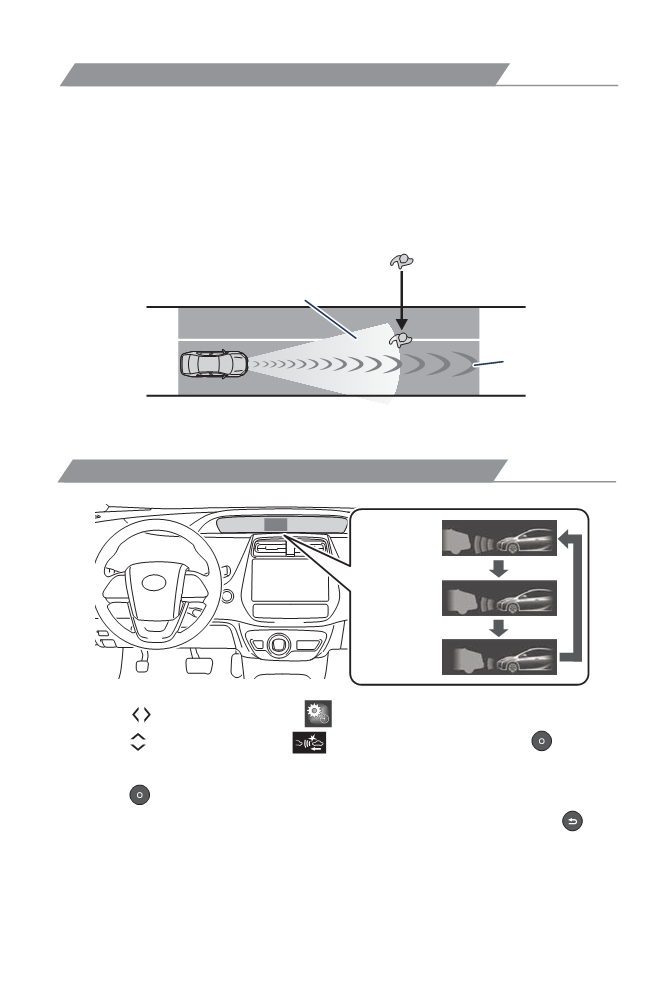

Pre-Collision System with Pedestrian
Detection function (PCS w/PD)

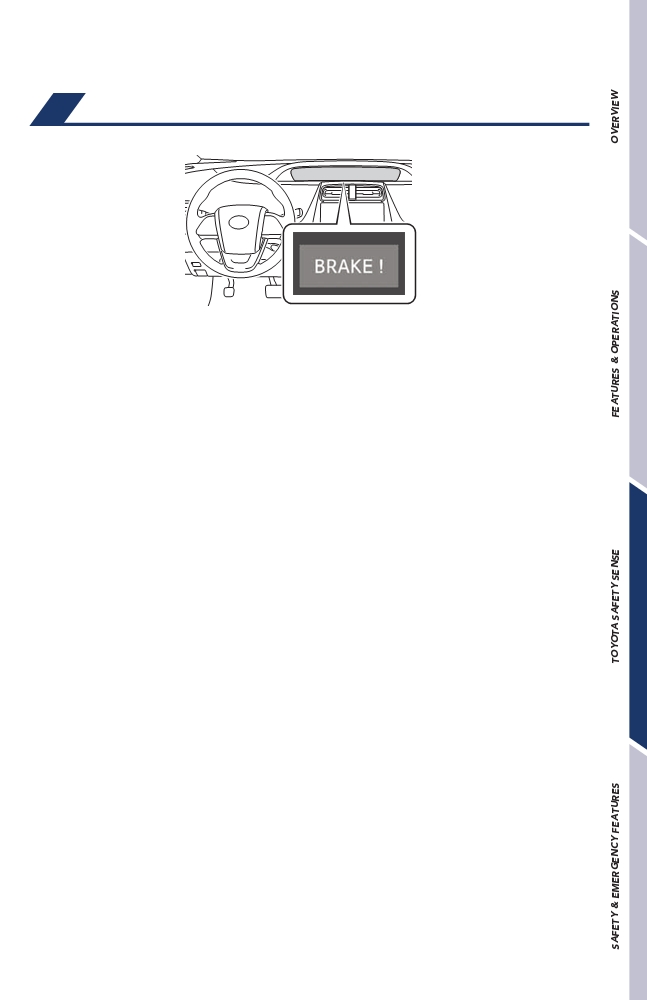

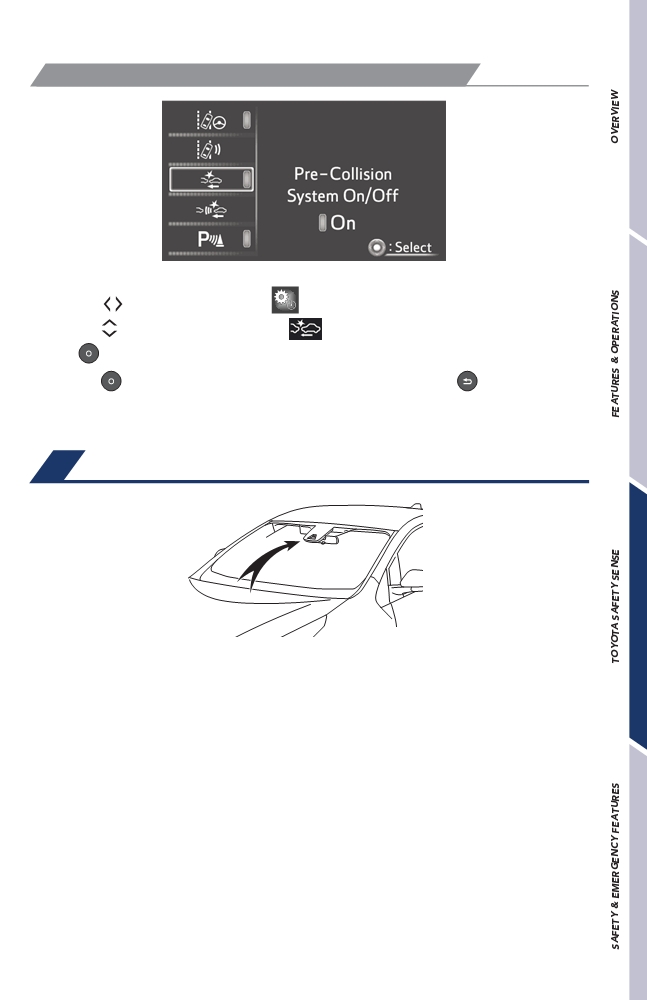

The Pre-Collision System uses a radar sensor and camera sensor to help detect a
vehicle or pedestrian in front of your vehicle.
As there is a limit to the degree of recognition accuracy and control performance
that this system can provide, do not overly rely on this system. This system will not
prevent collisions or lessen collision damage or injury in every situation. Do not use
PCS instead of normal braking operations under any circumstances. Do not attempt
to test the operation of the pre-collision system yourself, as the system may not
operate or engage, possibly leading to an accident. In some situations, such as
when driving in inclement weather such as heavy rain, fog, snow or a sandstorm or
while driving on a curve and for a few seconds after driving on a curve, a vehicle
may not be detected by the radar and camera sensors, preventing the system from
operating or engaging properly.
Refer to a Toyota Owner’s Manual for a list of additional situations in which the
system may not operate properly.
Pre-Collision Warning
When the system determines that the possibility of a frontal collision is high, a
buzzer will sound and a warning message will be displayed on the Multi-Information
Display (MID) to urge the driver to take evasive action.
Pre-Collision Brake Assist
If the driver notices the hazard and brakes, the system may provide additional
braking force using Brake Assist. This system may prime the brakes and may apply
greater braking force in relation to how strongly the brake pedal is depressed.
Pre-Collision Braking
If the driver does not brake in a set time and the system determines that the
possibility of a frontal collision with a preceding vehicle is extremely high, the
system may automatically apply the brakes, reducing speed in order to help the
driver reduce the impact and in certain cases avoid the collision.
Refer to a Toyota Owner’s Manual for additional information on PCS w/PD operation,
settings adjustments, limitations, and precautions before attempting to use it.
29
TOYOTA SAFETY SENSE™
PEDESTRIAN DETECTION FUNCTION
In certain conditions, the PCS system included with the TSS-P package may also
help to detect a pedestrian in front of your vehicle. With Toyota Safety Sense™ P,
PCS uses an in-vehicle camera and front-grill mounted millimeter-wave radar to
help detect a pedestrian in front of your vehicle in certain conditions. The in-vehicle
DBNFSB PG 1$4 EFUFDUT B QPUFOUJBM QFEFTUSJBO CBTFE PO TJ[F QSPmMF BOE NPUJPO PG
the detected pedestrian. However, a pedestrian may not be detected depending
on the conditions, including the surrounding brightness and the motion, posture,
size, and angle of the potential detected pedestrian, preventing the system from
operating or engaging. Refer to a Toyota Owner’s Manual for additional information.
Monocular camera sensor
Millimeter
wave radar
"T QBSU PG UIF 1SF $PMMJTJPO 4ZTUFN UIJT GVODUJPO JT BMTP EFTJHOFE UP mSTU QSPWJEF BO
alert and then automatic braking if needed.
CHANGING THE PCS ALERT TIMING
Far
Middle
(default)
Near
(1) Press “
” switches and select
from the Multi-Information Display (MID).
(2) Press “
” switches and select
from the MID and then press “
”. The
setting screen is displayed.
(3) Press “
” each time to change the setting. Each time it is pressed, the
response to the PCS alert timing changes as shown above. You can press “
” to
go back to the menu.
Note: PCS is enabled each time the engine switch is turned to Ignition On.
The system can be disabled/enabled and the alert timing of the system can be
changed. (Alert timing only, brake operation remains the same).
30
DISABLING THE PRE-COLLISION SYSTEM (PCS)
(1) Press “
” switches and select
from the Multi-Information Display (MID).
(2) Press “
” switches and select the
setting function from the MID and then
press “
”. The setting screen is displayed.
(3) Press “
” each time to change the setting. You can press “
” to go back to
the menu.
Lane Departure Alert with
Steering Assist function (LDA w/SA)
LDA in TSS-P uses an in-vehicle camera designed to detect visible white and yellow
lane markers in front of the vehicle and the vehicle’s position on the road. If the
system determines that the vehicle is starting to unintentionally deviate from its lane,
the system alerts the driver with an audio and visual alert. When the alerts occur, the
driver must check the surrounding road situation and carefully operate the steering
wheel to move the vehicle back to the center part of their lane.
LDA is designed to function at speeds of approximately 32 MPH or higher on
relatively straight roadways.
In addition to the alert function, LDA w/SA also features a steering assist
function. When enabled, if the system determines that the vehicle is on a path to
unintentionally depart from its lane, the system may provide small corrective steering
inputs to the steering wheel for a short period of time to help keep the vehicle in its
lane.
31
TOYOTA SAFETY SENSE™
TURNING THE LDA SYSTEM ON/OFF
Press the LDA switch to turn the LDA system on. Depress again to turn it off.
Note: Operation of the LDA system and
setting adjustments continues in the
same condition regardless of Ignition cycle until changed by the driver or the
system is reset.
Refer to a Toyota Owner’s Manual for additional information on LDA operation,
settings adjustments, limitations, and precautions before attempting to use it.
FUNCTIONS
LDA function display
LDA function display
Lane Marker
LDA indicator
Steering control indicator
-BOF %FQBSUVSF "MFSU
-%" JOEJDBUPS nBTIFT PSBOHF XIFO PQFSBUJOH
(1)
(2)
32
The LDA function
displays when the Multi-Information Display (MID) is switched
to the driving assist system information screen.
(1) The system displays solid white lines on the LDA indicator when visible lane
NBSLFST PO UIF SPBE BSF EFUFDUFE " TJEF nBTIFT PSBOHF UP BMFSU UIF ESJWFS XIFO UIF
vehicle deviates from its lane.
(2) The system displays outlines on the LDA indicator when lane markers on the road
are not detected or the function is temporarily cancelled.
Note: When operation conditions are no longer met, a function may be
temporarily canceled. However, when the operation conditions are met again,
operation of the function is automatically restored. For example, LDA may not
function on the side(s) where white/yellow lines are not detectable.
Refer to a Toyota Owner’s Manual for additional information on LDA operation,
settings adjustments, limitations, and precautions before attempting to use it.
DISABLING THE STEERING ASSIST FUNCTION
(1) Press “
” switches and select
from the Multi-Information Display (MID).
(2) Press “
” switches and select the
setting function and then press “
”.
(3) Press “
” each time to change the setting.
(4) Press “
” to go back to the menu.
Note: Operation of the LDA system and setting adjustments continues in the
same condition regardless of Ignition cycle until changed by the driver or the
system is reset.
CHANGING THE LDA ALERT SENSITIVITY
The driver can adjust the sensitivity of the LDA (warning) function from the
Multi-Information Display (MID) customization screen.
High - Is designed to warn approximately before the front tire
crosses the lane marker.
Normal - Is designed to warn approximately when the front tire
crosses the lane marker.
(1) Press “
” switches and select
from the Multi-Information Display (MID).
(2) Press “
” switches and select the
setting function and then press “
”.
(3) Press “
” each time to change the setting.
(4) Press “
” to go back to the menu.
33
TOYOTA SAFETY SENSE™

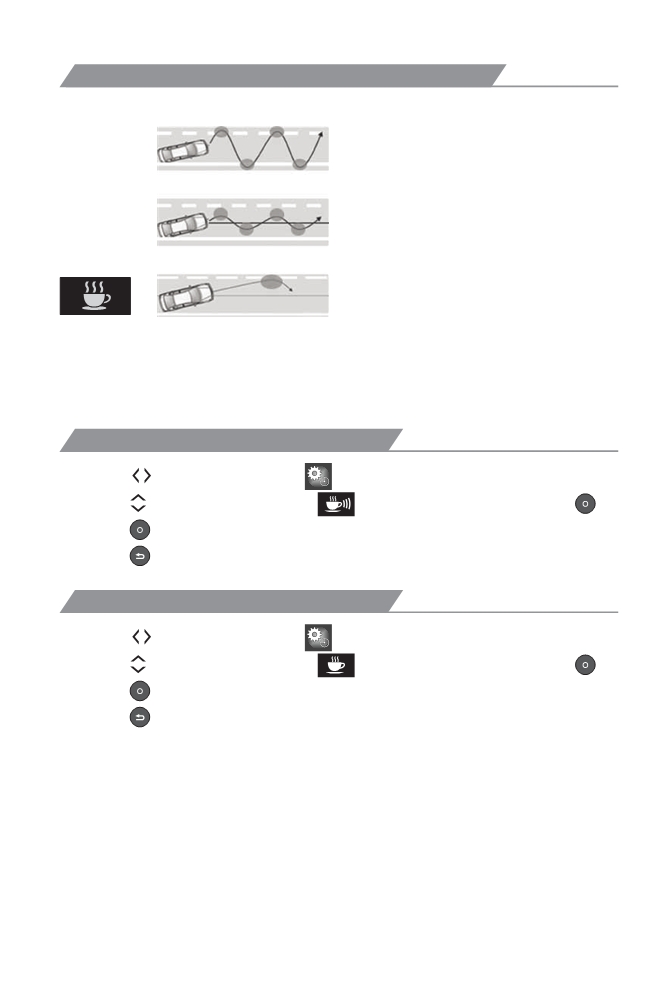

VEHICLE SWAY WARNING SYSTEM (SWS) FUNCTION
Continuous lane deviations from
swaying.
Gentle swaying from driver’s
inattentiveness.
Acute steering wheel operation after the
number of operations decrease due to driver’s
inattentiveness.
SWS is a function of LDA and is designed to detect swaying based on the vehicle
location in the lane and the driver’s steering wheel operation. To help prevent
swaying, the system alerts the driver using a buzzer sound and a warning displays
in the MID.
ADJUSTING SWAY ALERT SENSITIVITY
(1) Press “
” switches and select
from the Multi-Information Display (MID).
(2) Press “
” switches and select the
setting function and then press “
”.
(3) Press “
” each time to change the setting.
(4) Press “
” to go back to the menu.
DISABLING SWS
(1) Press “
” switches and select
from the Multi-Information Display (MID).
(2) Press “
” switches and select the
setting function and then press “
”.
(3) Press “
” each time to change the setting.
(4) Press “
” to go back to the menu.
Note: Operation of the LDA system and setting adjustments continues in the
same condition regardless of Ignition cycle until changed by the driver or the
system is reset.
34
