8-2. Steps to take in an emergency
595
■ Messages displays
The message illustrations used are intended as examples, and may differ
from the image that is actually displayed on the multi-information display.
■ Warning buzzer
→P. 572
8
HIGHLANDER_HV_U (OM0E032U)
596
8-2. Steps to take in an emergency
If you have a flat tire
Your vehicle is equipped with a spare tire. The flat tire can be
replaced with the spare tire.
For details about tires: →P. 522
WARNING
■If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair, which could result in an accident.
Before jacking up the vehicle
● Stop the vehicle in a safe place on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P.
● Stop the hybrid system.
● Turn on the emergency flashers. (→P. 560)
HIGHLANDER_HV_U (OM0E032U)
8-2. Steps to take in an emergency
597

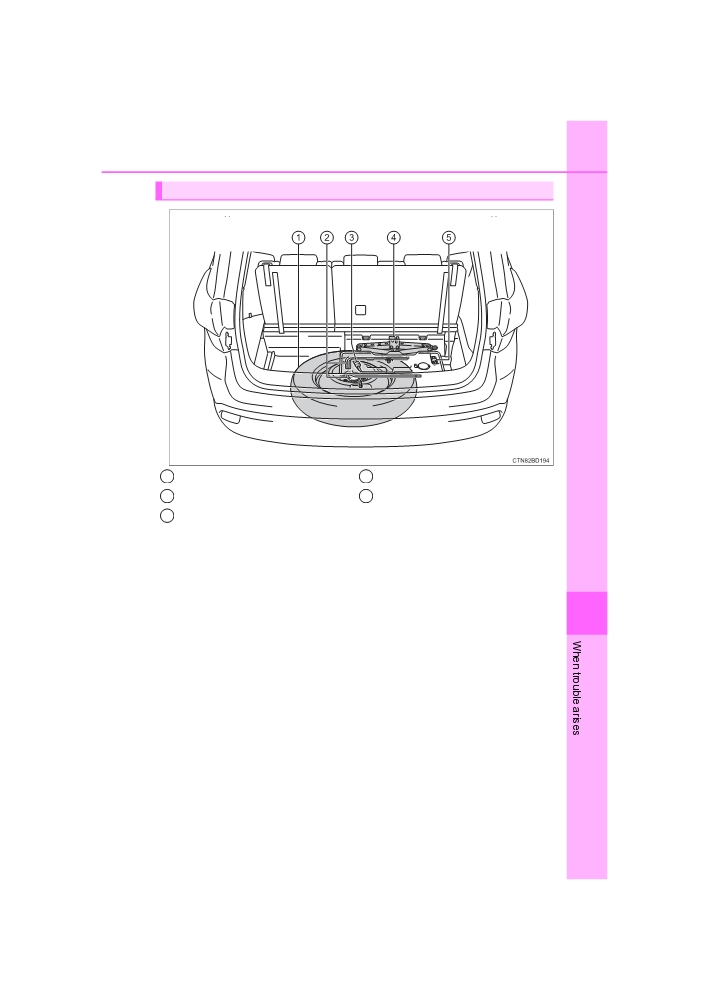

Location of the spare tire, jack and tools
1
Spare tire
4
Jack
2
Jack handles
5
Adapter socket
3
Wheel nut wrench
8
HIGHLANDER_HV_U (OM0E032U)
598
8-2. Steps to take in an emergency
WARNING
■Using the tire jack
Observe the following precautions.
Improper use of the tire jack may cause the vehicle to suddenly fall off
the jack, leading to death or serious injury.
●Do not use the tire jack for any purpose other than replacing tires or
installing and removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat
tire.
Do not use it on other vehicles, and do not use other tire jacks for
replacing tires on this vehicle.
● Put the jack properly in its jack point.
●Do not put any part of your body under the vehicle while it is supported
by the jack.
●Do not start the hybrid system or drive the vehicle while the vehicle is
supported by the jack.
●Do not raise the vehicle while someone is inside.
●When raising the vehicle, do not put an object on or under the jack.
● Do not raise the vehicle to a height greater than that required to
replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
●When lowering the vehicle, make sure that there is no-one near the
vehicle. If there are people nearby, warn them vocally before lowering.
HIGHLANDER_HV_U (OM0E032U)
8-2. Steps to take in an emergency
599

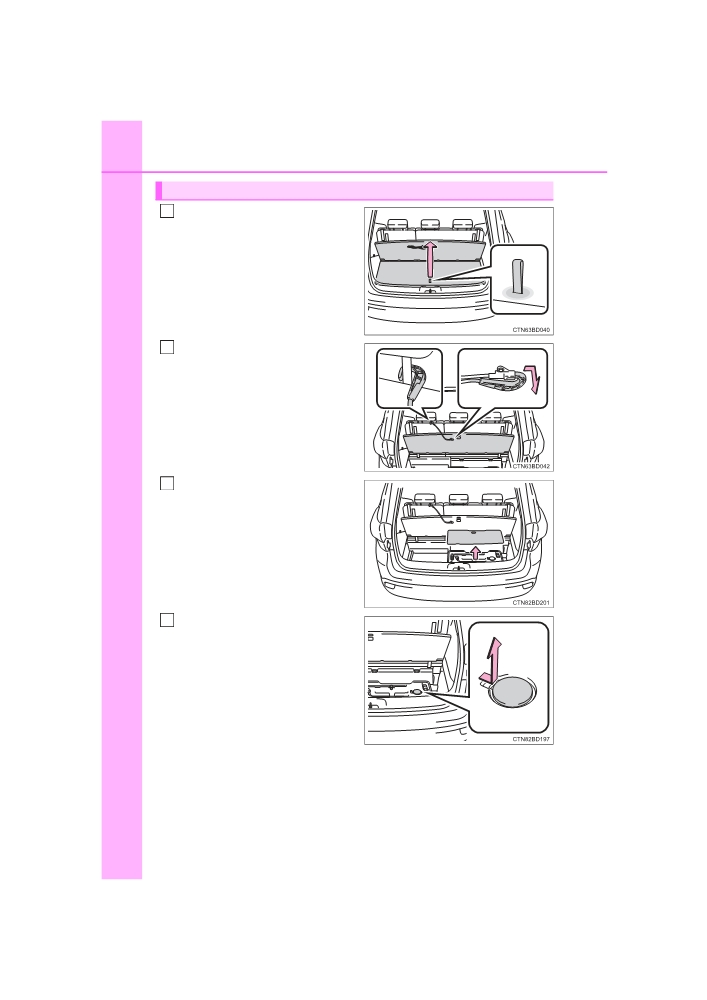

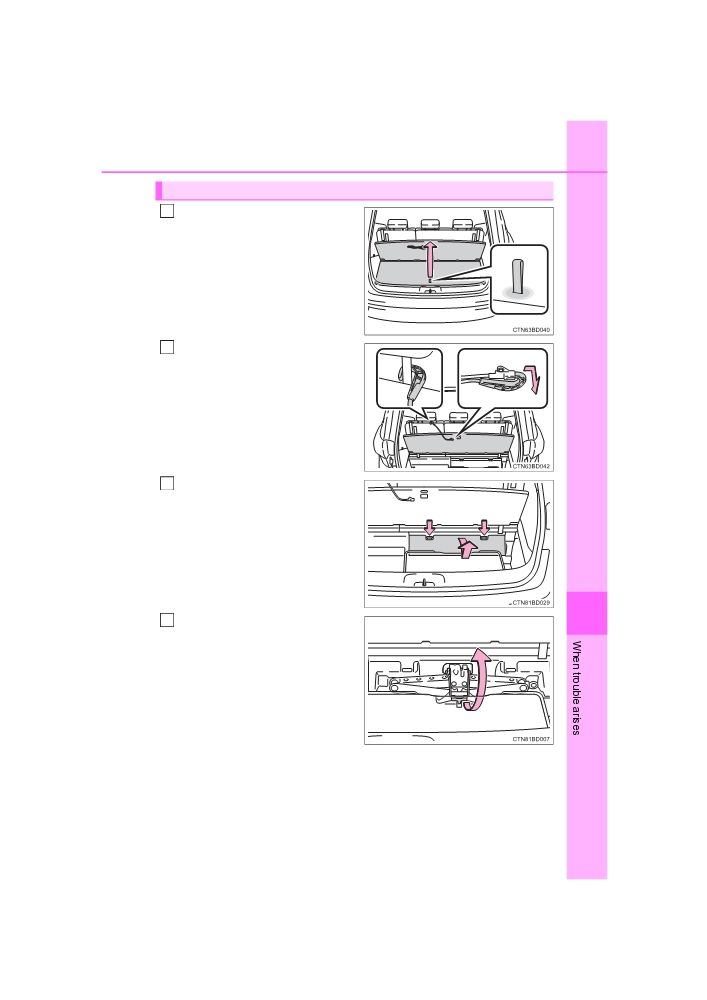

Taking out the jack
Pull the strap upwards to open
1
the center deck board.
To secure the center deck
2
board, remove the hook on the
backside of the center deck
board and attach the hook to
the head restraint on the third
seats as shown.
Remove the jack cover.
3
8
4
Remove the jack after removing
the hook.
HIGHLANDER_HV_U (OM0E032U)
600
8-2. Steps to take in an emergency
Taking out the spare tire
Pull the strap upwards to open
1
the center deck board.
To secure the center deck
2
board, remove the hook on the
backside of the center deck
board and attach the hook to
the head restraint on the third
seats as shown.
3
Remove the mat.
4
Remove the cover.
If it is difficult to
remove the
cover, you can use your key.
HIGHLANDER_HV_U (OM0E032U)
8-2. Steps to take in an emergency
601

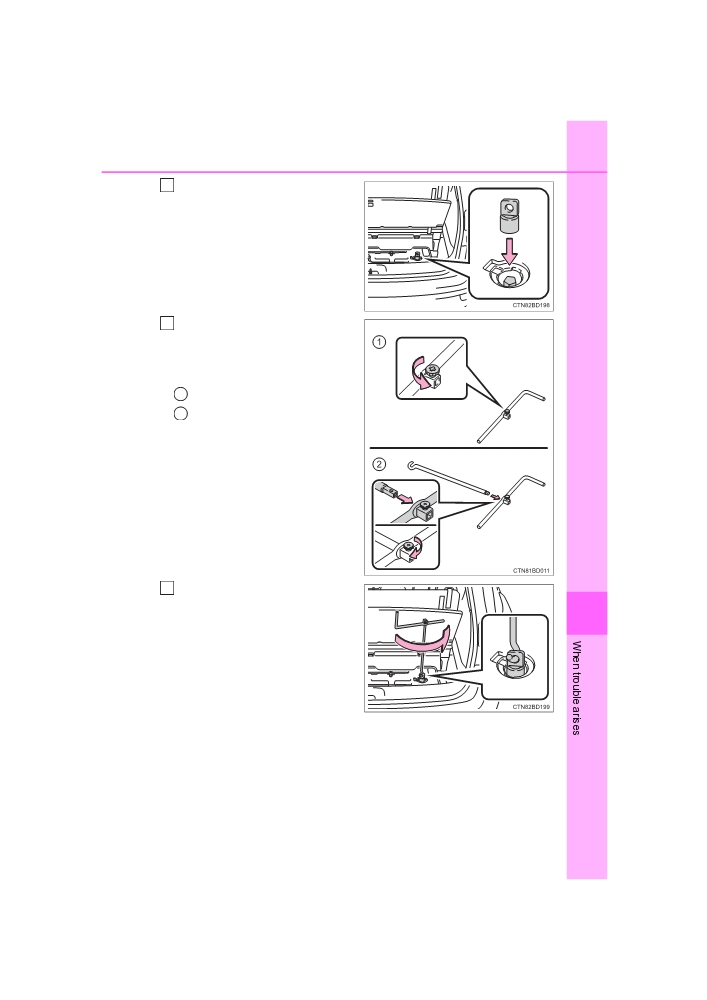

5
Attach the adapter socket to the
spare tire clamp bolt.
6
Assembling the jack handle.
Remove the jack handle and
assemble it by following these
steps.
1
Loosen the screw.
2
Assemble the jack handle
and tighten the screw.
Check that the screw is firmly
tightened.
Connect the jack handle to the
7
adapter socket. Turn the jack
8
handle counterclockwise.
The tire will
be lowered com-
pletely to the ground.
Turn the jack handle slowly to
lower the spare tire. If the handle
is turned quickly, as doing so
may cause the shaft to disen-
gage and the tire may not be low-
ered.
If the spare tire cannot be lowered: →P. 608
HIGHLANDER_HV_U (OM0E032U)
602
8-2. Steps to take in an emergency
8

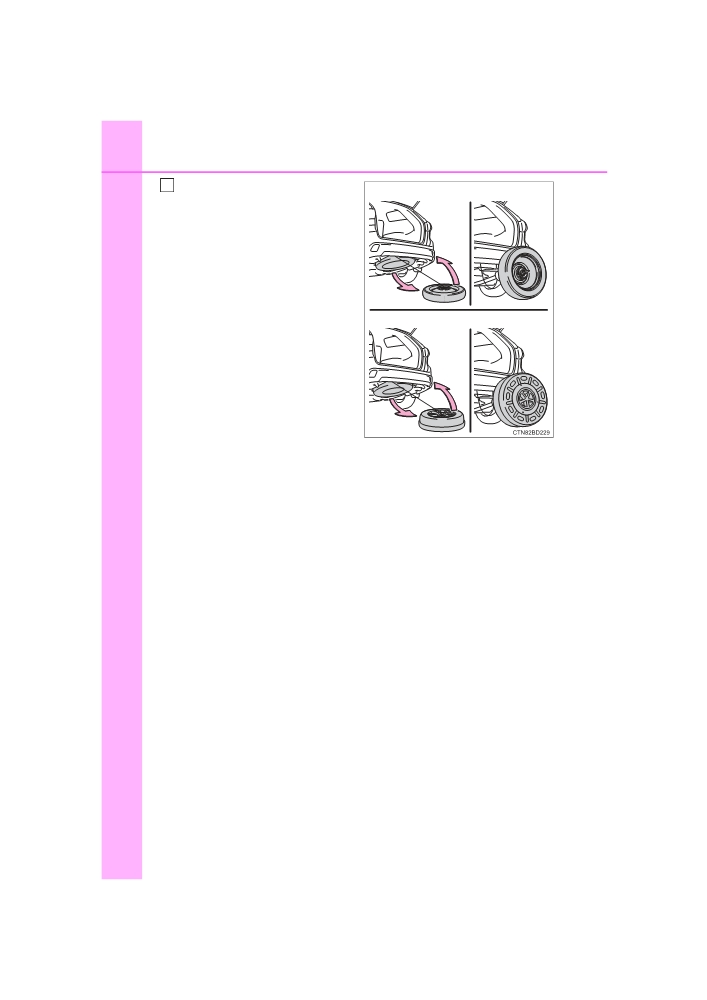

Pull out the spare tire and stand
With a compact spare tire
it against the bumper.
With a full-size spare tire
HIGHLANDER_HV_U (OM0E032U)
8-2. Steps to take in an emergency
603

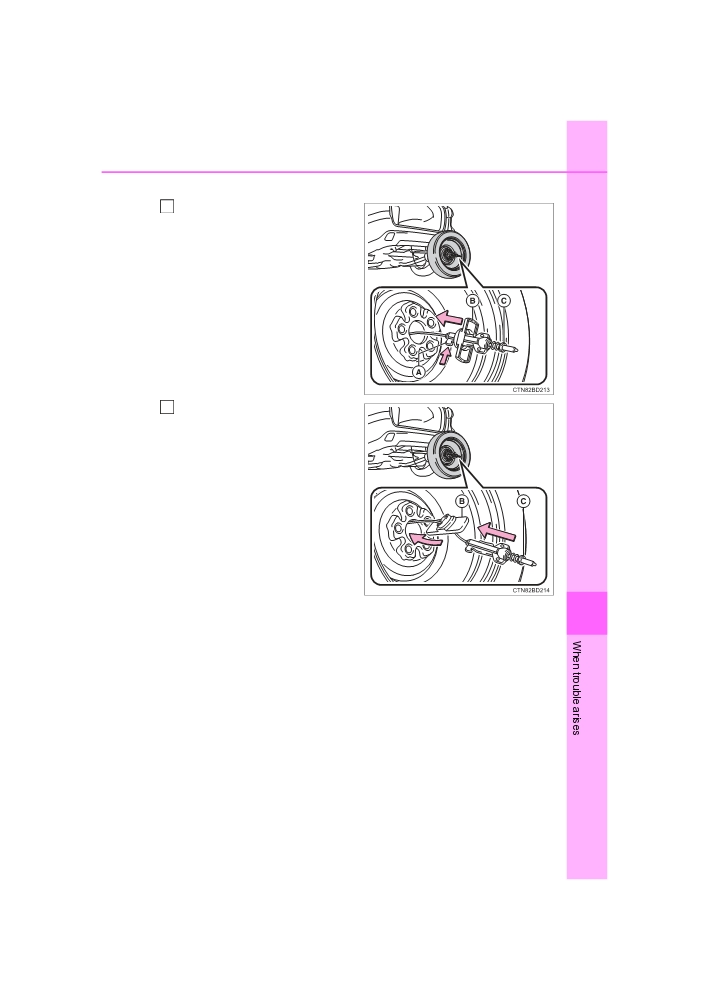

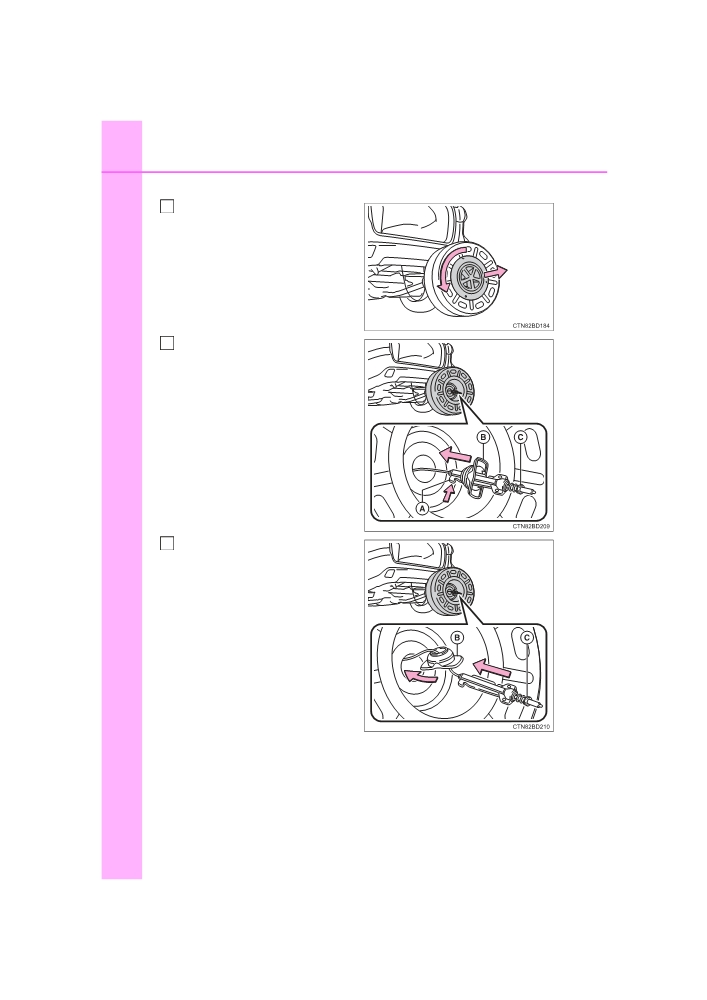

Vehicles with a compact spare tire
Fully depress the secondary
9
latch (A) and remove the hold-
ing bracket (B) from the hoist
assembly (C).
Tilt the bracket (B) and pass it
10
through the wheel opening.
Then remove the hoist assem-
bly (C).
8
HIGHLANDER_HV_U (OM0E032U)
604
8-2. Steps to take in an emergency
Vehicles with a full-size spare tire
Remove the inside spare tire
9
cover.
Fully depress the secondary
10
latch (A) and remove the hold-
ing bracket (B) from the hoist
assembly (C).
Tilt the holding bracket (B) so
11
that it can easily be passed
through the wheel opening.
After passing the holding
bracket through the wheel
opening, remove the hoist
assembly (C).
HIGHLANDER_HV_U (OM0E032U)
8-2. Steps to take in an emergency
605
12
Remove the outside spare tire
cover.
8
HIGHLANDER_HV_U (OM0E032U)
606
8-2. Steps to take in an emergency

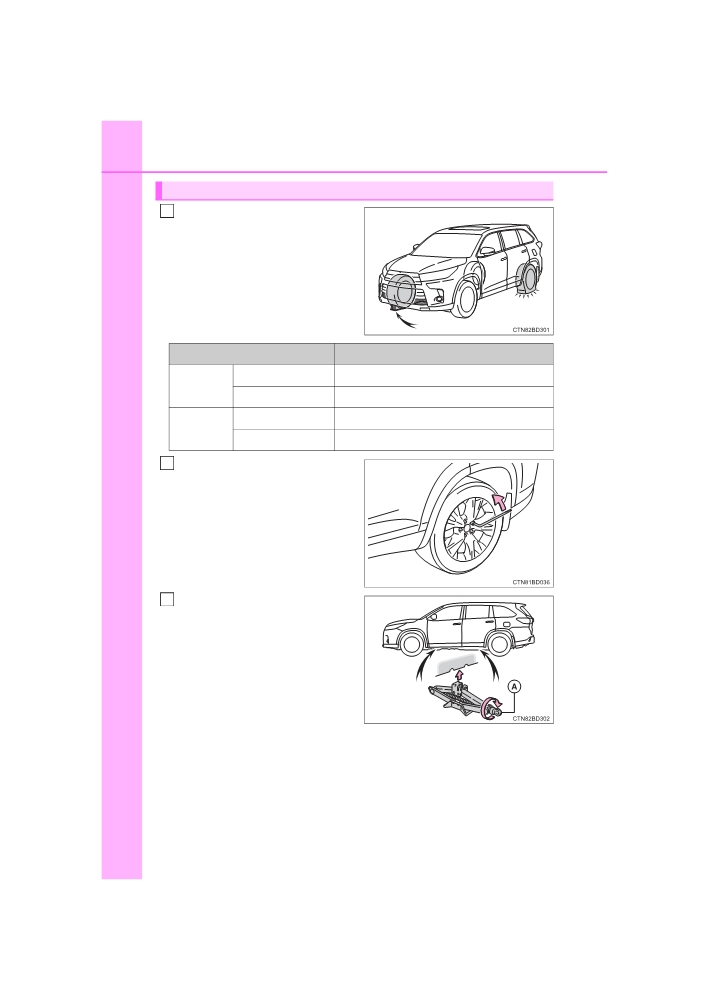

Replacing a flat tire
1
Chock the tires.
Flat tire
Wheel chock positions
Left-hand side
Behind the rear right-hand side tire
Front
Right-hand side
Behind the rear left-hand side tire
Left-hand side
In front of the front right-hand side tire
Rear
Right-hand side
In front of the front left-hand side tire
2
Slightly loosen the wheel nuts
(one turn).

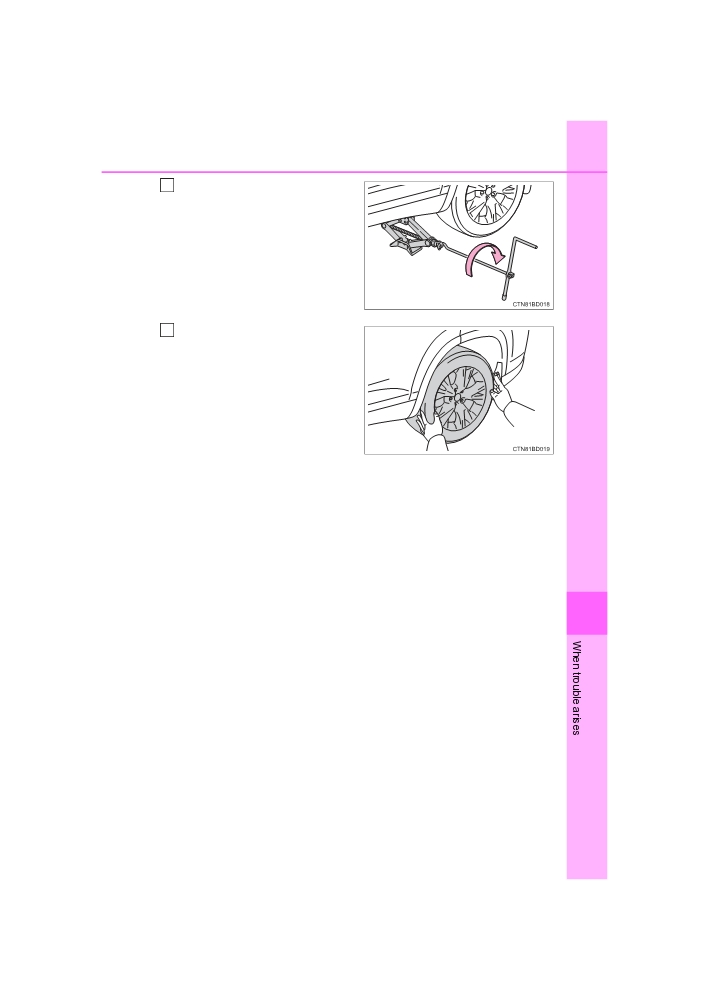

Turn the tire jack portion “A” by
3
hand until the notch of the jack
is in contact with the jack point.
The jack point guides are located
under the rocker panel. They
indicate the jack point positions.
HIGHLANDER_HV_U (OM0E032U)
8-2. Steps to take in an emergency
607

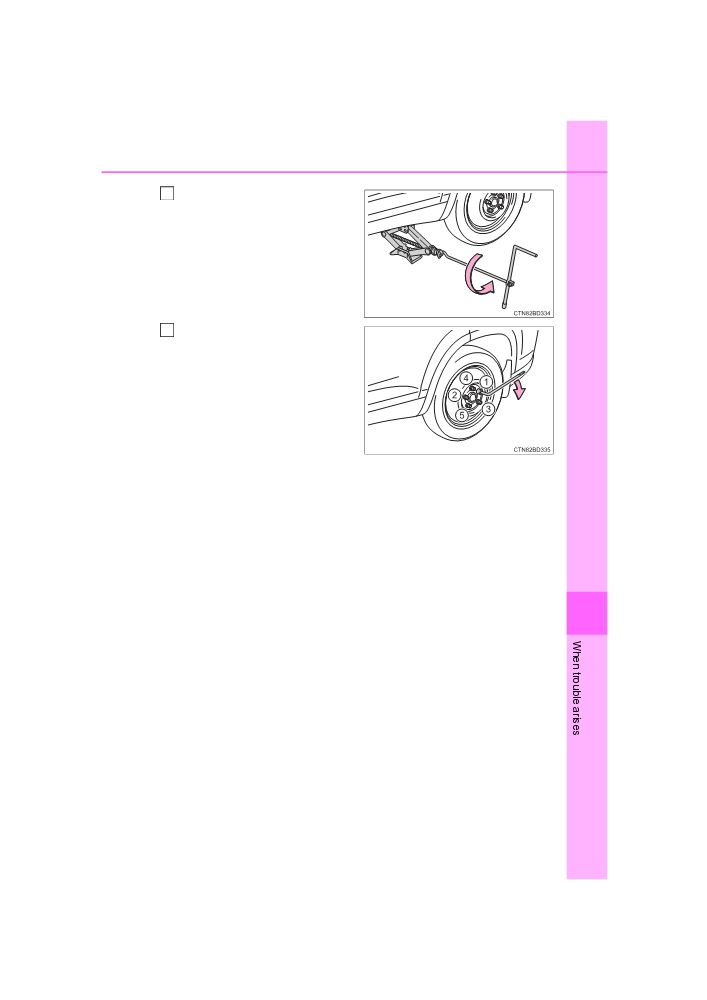

4
Raise the vehicle until the tire is
slightly raised off the ground.
5
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
8
HIGHLANDER_HV_U (OM0E032U)
608
8-2. Steps to take in an emergency

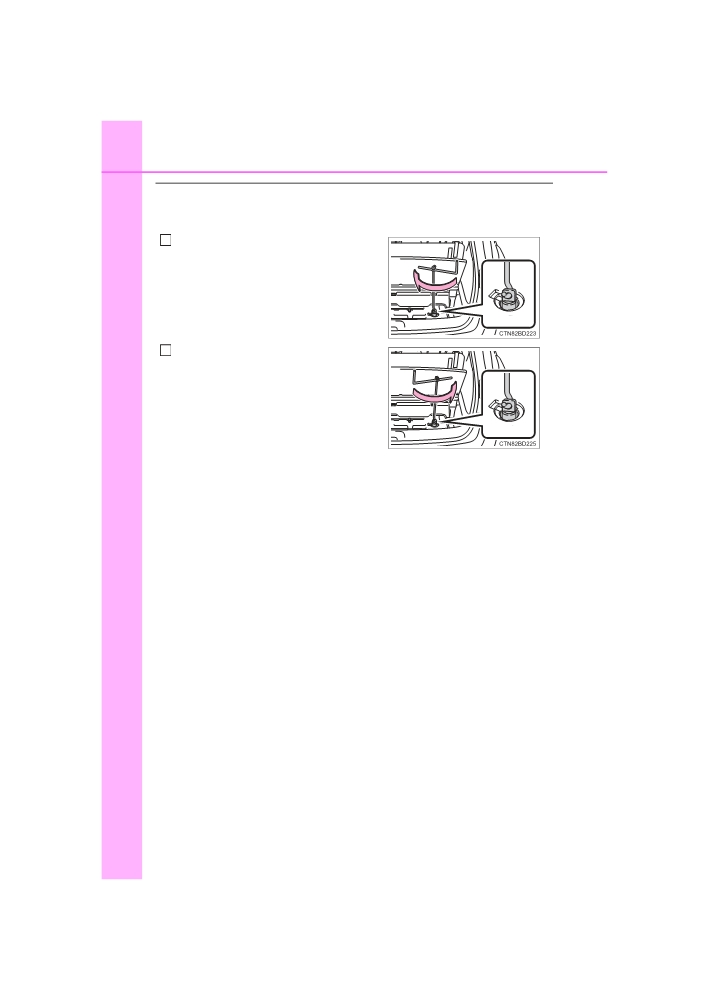

■If the spare tire cannot be lowered
If the spare tire cannot be lowered, it may not have been stowed properly.
Perform the following procedure:
Fully tighten the spare tire clamp bolt
1
by turning the jack handle clockwise
until two clicks are heard and the jack
handle skips.
Turn the jack handle counterclock-
2
wise to lower the spare tire.
If the spare tire still cannot be low-
ered, attempt to fully tighten the spare
tire clamp bolt again by turning the
jack handle clockwise. Then turn it
counterclockwise at least 2 turns to
lower the spare tire.
If the spare tire still cannot be lowered, the wire cable may be severed.
Have the vehicle inspected by your Toyota dealer.
HIGHLANDER_HV_U (OM0E032U)
8-2. Steps to take in an emergency
609
WARNING
■Replacing a flat tire
●Do not touch the disc wheels or the area around the brakes immedi-
ately after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around
the brakes will be extremely hot. Touching these areas with hands, feet
or other body parts while changing a tire, etc. may result in burns.
●Failure to follow these precautions could cause the wheel nuts to
loosen and the tire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 76 ft•lbf (103
N•m, 10.5 kgf•m) as soon as possible after changing wheels.
• Do not attach a heavily damaged wheel ornament, as it may fly off
the wheel while the vehicle is moving.
• When installing a tire, only use wheel nuts that have been specifi-
cally designed for that wheel.
• If there are any cracks or deformations in the bolt screws, nut
threads or bolt holes of the wheel, have the vehicle inspected by
your Toyota dealer.
• When installing the wheel nuts, be sure to install them with the
tapered ends facing inward. (→P. 536)
●Observe the following precautions.
Failure to do so may result in serious injury:

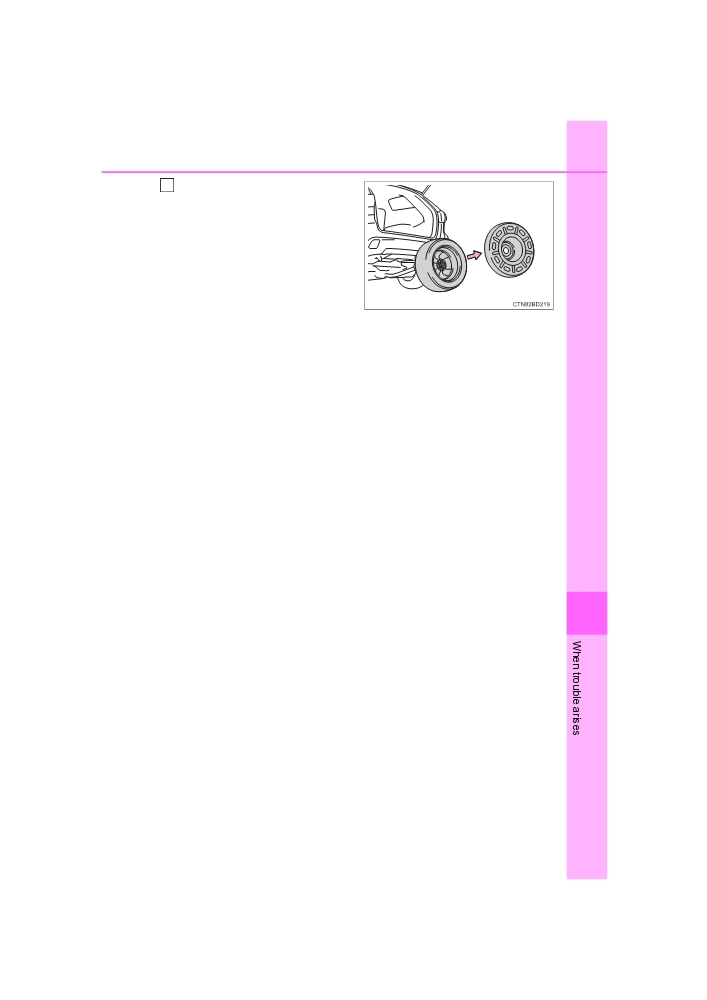

• Do not try to remove the wheel ornament by hand. Take due care in
handling the ornament to avoid unexpected personal injury.
• Lower the spare tire completely to the ground before removing it
from under the vehicle.
8
HIGHLANDER_HV_U (OM0E032U)
610
8-2. Steps to take in an emergency

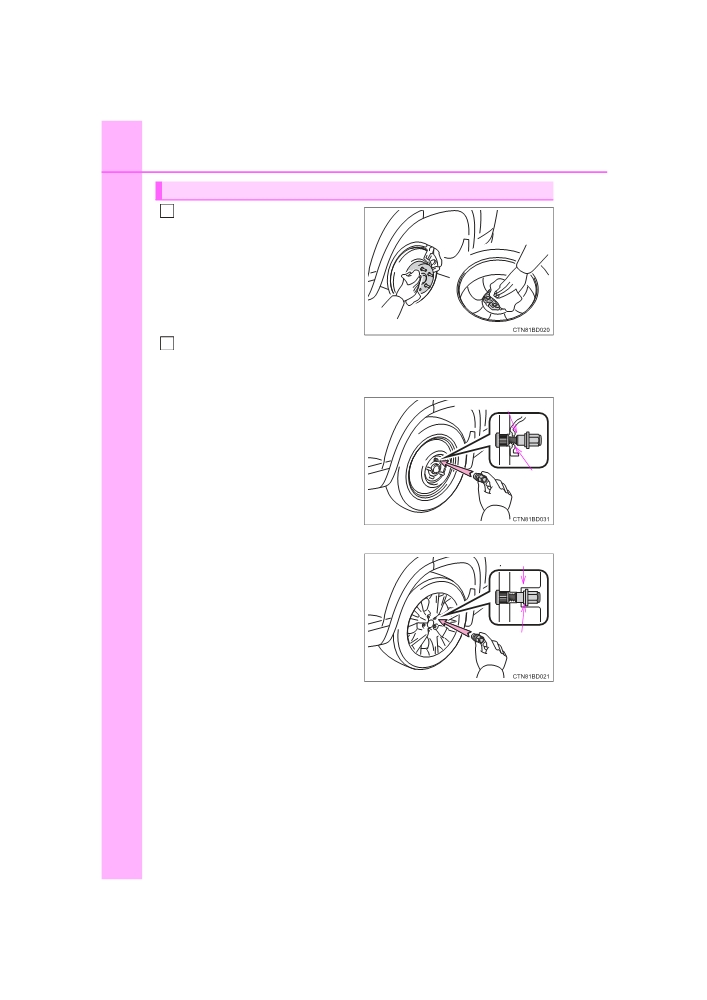

Installing the spare tire
Remove any dirt or foreign mat-
1
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is in
motion, causing the tire to come
off.
2
Install the spare tire and loosely tighten each wheel nut by hand by
approximately the same amount.
Vehicles with a compact spare tire
Tighten the nuts until the
Tapered portion
tapered portion comes into
loose contact with the disc
wheel seat.
Disc
wheel
seat
Vehicles with a full-size spare tire
Turn the nuts until the washers
Disc wheel
come into contact with the
wheel.
Washer
HIGHLANDER_HV_U (OM0E032U)
8-2. Steps to take in an emergency
611
3
Lower the vehicle.
Firmly tighten each wheel nut
4
two or three times in the order
shown in the illustration.
Tightening torque:
76 ft•lbf (103 N•m, 10.5 kgf•m)
8
