Toyota C-HR (2018 year). Instruction

449

Vehicle specifications

8-1. Specifications

Maintenance data

(fuel, oil level, etc.).......... 450

Fuel information ................ 458
Tire information ................. 461

8-2. Customization

Customizable features ...... 474

8-3. Items to initialize

Items to initialize ............... 482

450

8-1. Specifications

Maintenance data (fuel, oil level, etc.)

: Unladen vehicles

■

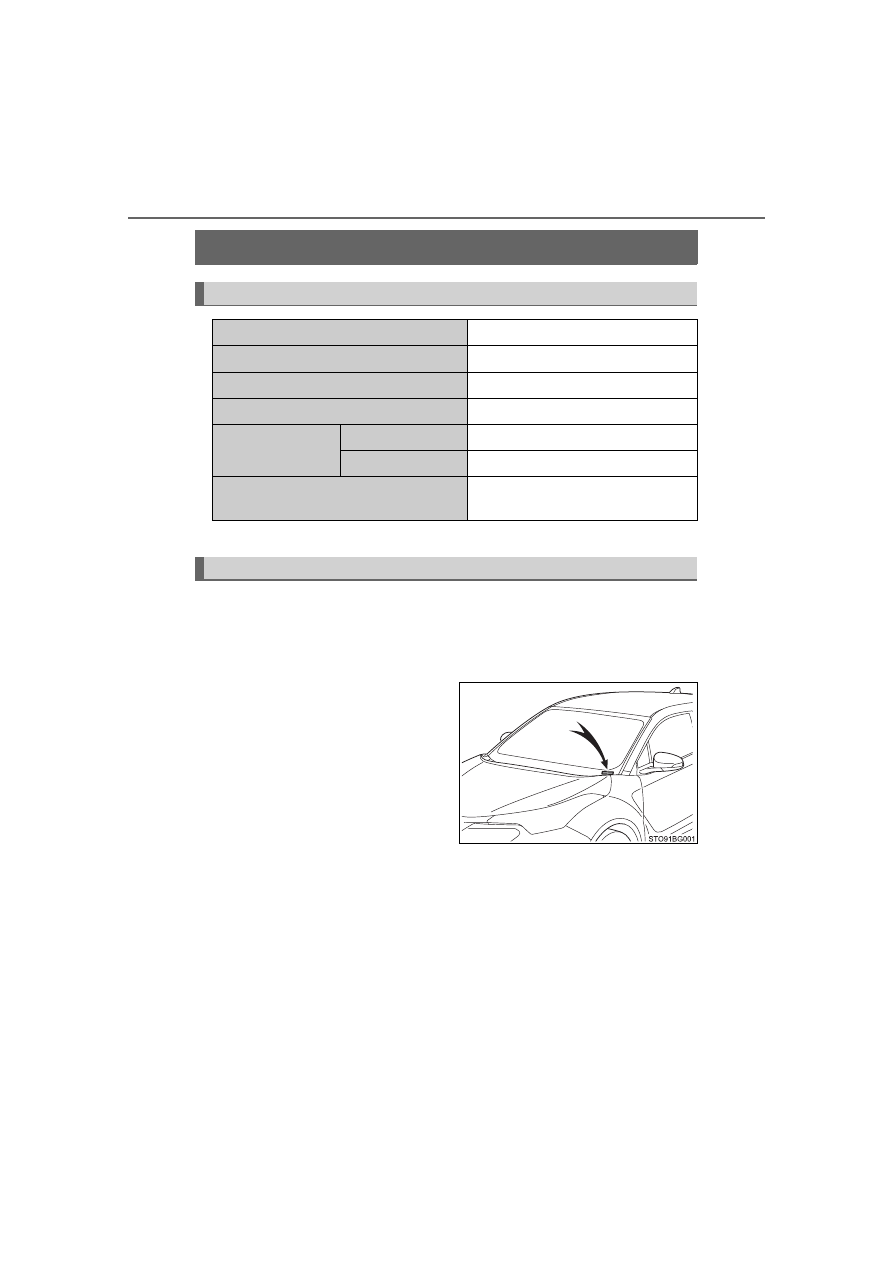

Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is also stamped on
the top left of the instrument
panel.

Dimensions and weights

Overall length

173.9 in. (4417 mm)

Overall width

70.7 in. (1795 mm)

Overall height

61.2 in. (1555 mm)

Wheelbase

103.9 in. (2640 mm)

Tread

Front

61.0 in. (1550 mm)

Rear

61.4 in. (1560 mm)

Vehicle capacity weight

(occupants + luggage)

835 lb. (375 kg)

Vehicle identification

451

8-1. Specifications

Vehi

e specificatio

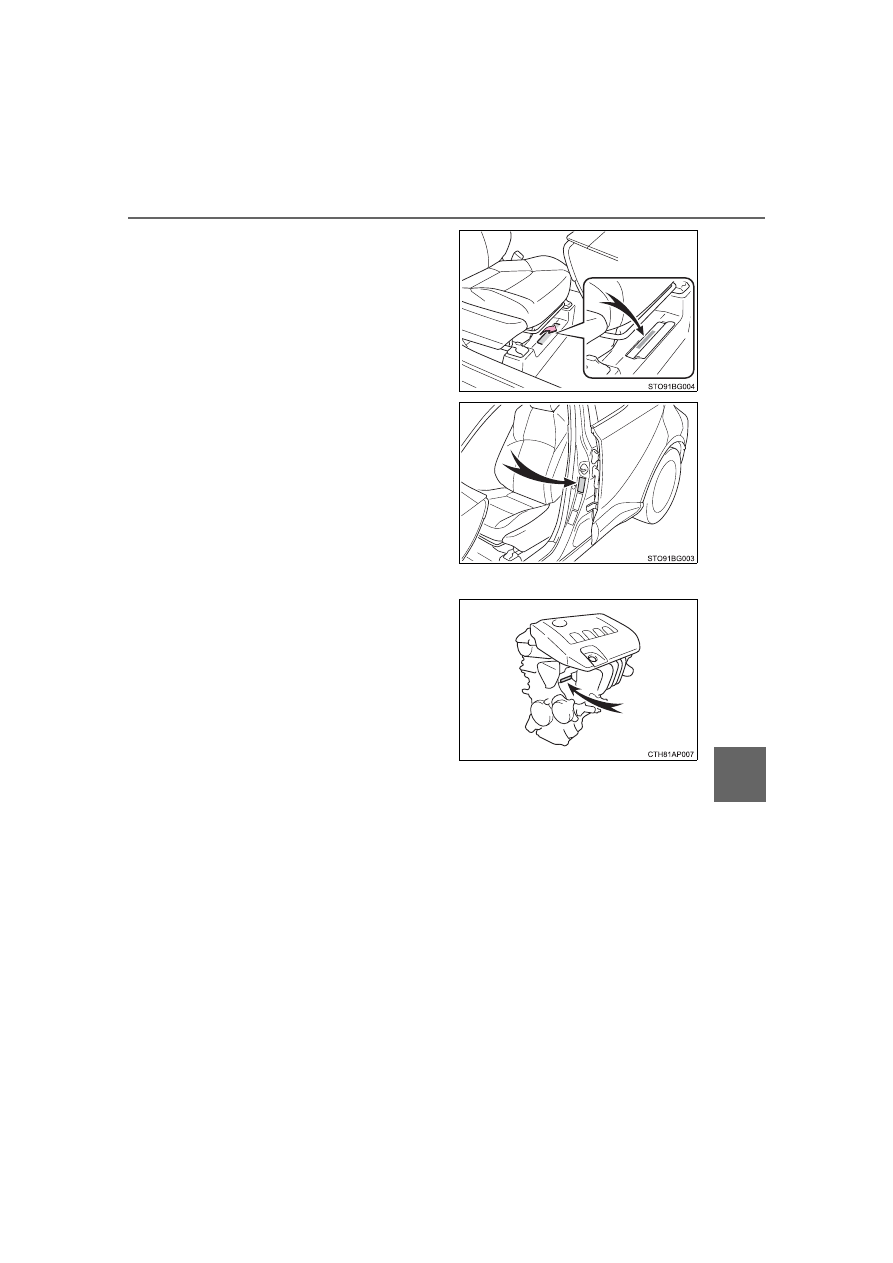

This number is stamped under
the right-hand front seat.

This number is also on the Cer-
tification Label.

■

Engine number

The engine number is stamped
on the engine block as shown.

452

8-1. Specifications

: The engine oil capacity is a reference quantity to be used when changing

the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.

Engine

Model

3ZR-FAE

Type

4-cylinder in line, 4-cycle, gasoline

Bore and stroke

3.17

× 3.84 in. (80.5 × 97.6 mm)

Displacement

121.3 cu.in. (1987 cm

)

Valve clearance (engine
cold)

Automatic adjustment

Drive belt tension

Automatic adjustment

Fuel

Fuel type

Unleaded gasoline only

Octane rating

87 (Research Octane Number 91) or higher

Fuel tank capacity
(Reference)

13.2 gal. (50 L, 11.0 Imp.gal.)

Lubrication system

Oil capacity
(Drain and refill

⎯

reference

)

With filter
Without filter

4.4 qt. (4.2 L, 3.7 Imp.qt.)
4.1 qt. (3.9 L, 3.4 Imp.qt.)

453

8-1. Specifications

Vehi

e specificatio

■

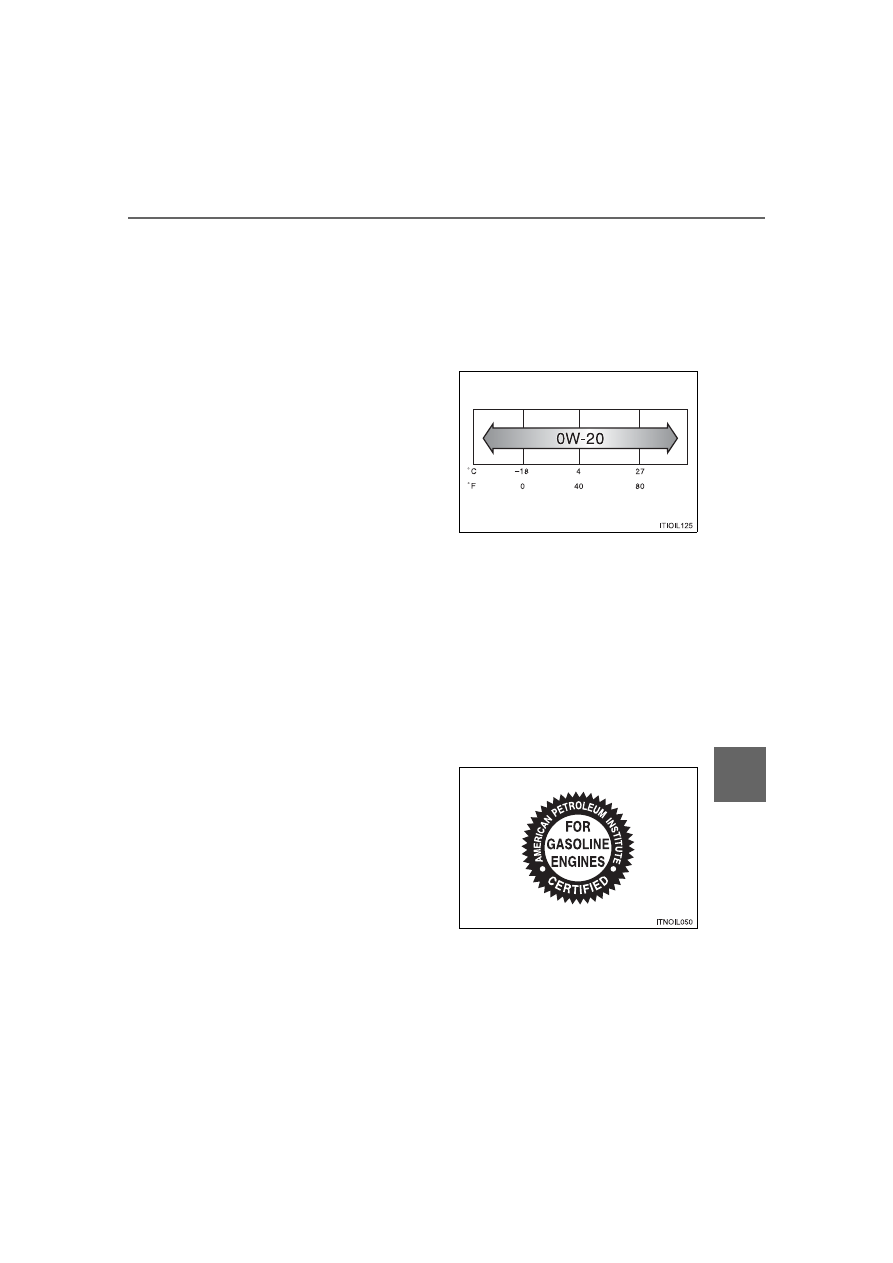

Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use Toy-
ota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20

SAE 0W-20 is the best choice for
good fuel economy and good start-
ing in cold weather.
If SAE 0W-20 is not available, SAE
5W-20 oil may be used. However,
it must be replaced with SAE 0W-
20 at the next oil change.

Oil viscosity (0W-20 is explained here as an example):

• The 0W in 0W-20 indicates the characteristic of the oil which allows cold

startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.

• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the

oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.

How to read oil container label:
The International Lubricant Specification Advisory Committee
(ILSAC) Certification Mark is added to some oil containers to help
you select the oil you should use.

Outside temperature

454

8-1. Specifications

Cooling system

Capacity

6.1 qt. (5.7 L, 5.1 Imp.qt.)

Coolant type

Use either of the following.

• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-sili-

cate, non-amine, non-nitrite, and non-borate cool-
ant with long-life hybrid organic acid technology

Do not use plain water alone.

Ignition system

Spark plug

Make

DENSO SC16HR11 or DENSO SC20HR11

Gap

0.043 in. (1.1 mm)

NOTICE

■

Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust spark plug gap.

Electrical system

Battery

Specific volt-
age reading at
68

°F (20°C):

12.3 V or higher
If the specific voltage is lower than the standard value,
charge the battery. (Voltage checked 20 minutes after
the engine and all the lights are turned off)

Specific grav-
ity reading at
68

°F (20°C):

1.25 or higher
If the specific gravity is lower than the standard value,
charge the battery.

Charging rates

Quick charge
Slow charge

15 A max.
5 A max.

455

8-1. Specifications

Vehi

e specificatio

: The fluid capacity is a reference quantity.

If replacement is necessary, contact your Toyota dealer.

: Minimum pedal clearance when depressed with a force of 30.6 kgf (300 N,

67.4 lbf) while the engine is running

Continuously variable transmission

Fluid capacity

7.6 qt. (7.2 L, 6.3 Imp.qt.)

Fluid type

Toyota Genuine CVT Fluid FE

NOTICE

■

Continuously variable transmission fluid type
Using continuously variable transmission fluid other than “Toyota Genuine
CVT Fluid FE” may cause deterioration in shift quality, locking up of the
transmission accompanied by vibration and, ultimately, damage to the vehi-
cle’s transmission.

Brakes

Pedal clearance

4.5 in. (115 mm)

Pedal free play

0.04

⎯ 0.20 in. (1 ⎯ 5 mm)

Brake pad wear limit

0.04 in. (1.0 mm)

Fluid type

SAE J1703 or FMVSS No.116 DOT 3;
SAE J1704 or FMVSS No.116 DOT 4

Steering

Free play

Less than 1.2 in. (30 mm)

456

8-1. Specifications



17-inch tires



18-inch tires



Compact spare tire

Tires and wheels

Tire size

215/60R17 96H

Tire inflation pressure

(Recommended cold tire

inflation pressure)

Front tires:

33 psi (230 kPa, 2.3 kgf/cm

or bar)

Rear tires:

33 psi (230 kPa, 2.3 kgf/cm

or bar)

Wheel size

× 6 1/2J

Wheel nut torque

76 ft·lbf (103 N·m, 10.5 kgf·m)

Tire size

225/50R18 95V

Tire inflation pressure

(Recommended cold tire

inflation pressure)

Front tires:

33 psi (230 kPa, 2.3 kgf/cm

or bar)

Rear tires:

33 psi (230 kPa, 2.3 kgf/cm

or bar)

Wheel size

× 7 J

Wheel nut torque

76 ft·lbf (103 N·m, 10.5 kgf·m)

Tire size

T145/90D16 106M, T145/70D18 107M

Tire inflation pressure

(Recommended cold tire

inflation pressure)

60 psi (420 kPa, 4.2 kgf/cm

or bar)

Wheel size

× 4 T, 18 × 4 T

Wheel nut torque

76 ft·lbf (103 N·m, 10.5 kgf·m)

457

8-1. Specifications

Vehi

e specificatio

: If equipped

Light bulbs

Light bulbs

Bulb No.

Type

Exterior

Headlights

9012

Front side marker lights

―

Front turn signal lights

―

Side turn signal lights

―

Rear side marker lights

―

Rear turn signal lights

―

Back-up lights

921

License plate lights

―

Interior

Vanity lights

―

Front interior lights/
front personal lights

―

Rear interior light

―

Luggage compartment
light

―

A: HIR2 halogen bulbs

C: Single end bulbs (amber)

E: Double end bulbs

B: Wedge base bulbs (clear)

D: Wedge base bulbs (amber)

458

8-1. Specifications

Fuel information

■

Gasoline quality
In very few cases, driveability problems may be caused by the brand of gaso-
line you are using. If driveability problems persist, try changing the brand of
gasoline. If this does not correct the problem, consult your Toyota dealer.

■

Gasoline quality standards

●

Automotive manufacturers in the U.S.A., Europe and Japan have developed
a specification for fuel quality called the World-Wide Fuel Charter (WWFC),
which is expected to be applied worldwide.

●

The WWFC consists of four categories that are based on required emission
levels. In the U.S., category 4 has been adopted.

●

The WWFC improves air quality by lowering emissions in vehicle fleets, and
improves customer satisfaction through better performance.

■

Recommendation of the use of gasoline containing detergent additives

●

Toyota recommends the use of gasoline that contains detergent additives to
avoid the build-up of engine deposits.

●

All gasoline sold in the U.S.A. contains minimum detergent additives to
clean and/or keep clean intake systems, per EPA’s lowest additives concen-
tration program.

●

Toyota strongly recommends the use of Top Tier Detergent Gasoline. For
more information on Top Tier Detergent Gasoline and a list of marketers,
please go to the official website www.toptiergas.com.

You must only use unleaded gasoline.
Select octane rating 87 (Research Octane Number 91) or higher.
Use of unleaded gasoline with an octane rating lower than 87
may result in engine knocking. Persistent knocking can lead to
engine damage.

At minimum, the gasoline you use should meet the specifications of
ASTM D4814 in the U.S.A..

459

8-1. Specifications

Vehi

e specificatio

■

Recommendation of the use of low emissions gasoline
Gasolines containing oxygenates such as ethers and ethanol, as well as
reformulated gasolines, are available in some cities. These fuels are typically
acceptable for use, providing they meet other fuel requirements.
Toyota recommends these fuels, since the formulations allow for reduced
vehicle emissions.

■

Non-recommendation of the use of blended gasoline

●

If you use gasohol in your vehicle, be sure that it has an octane rating no
lower than 87.

●

Toyota does not recommend the use of gasoline containing methanol.

●

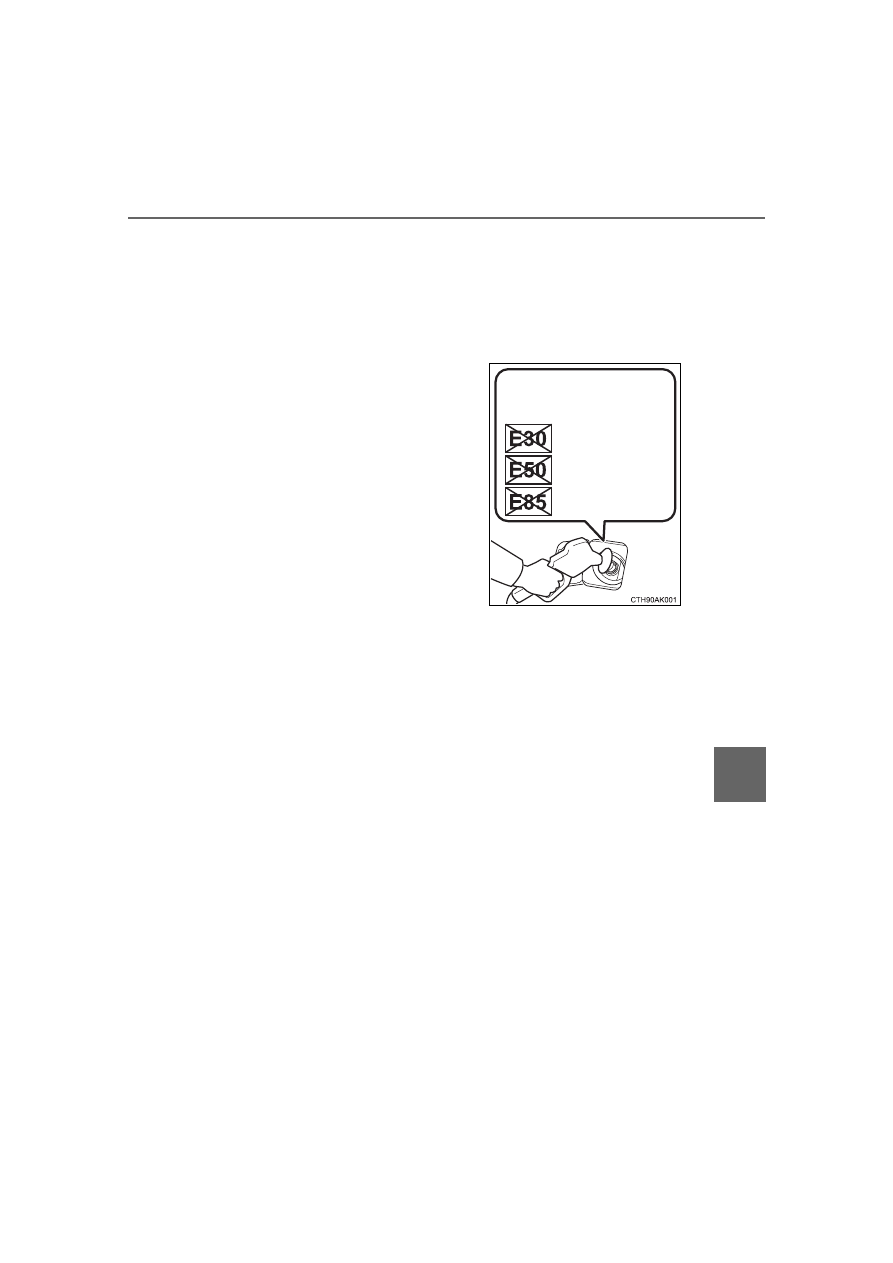

Use only gasoline containing up to 15%
ethanol.
DO NOT use any flex-fuel or gasoline
that could contain more than 15% etha-
nol, including from any pump labeled
E30, E50, E85 (which are only some
examples of fuel containing more than
15% ethanol).

DO NOT use gasoline contain-
ing more than 15% ethanol.

(30% ethanol)

(50% ethanol)

(85% ethanol)

460

8-1. Specifications

■

Non-recommendation of the use of gasoline containing MMT
Some gasoline contains an octane enhancing additive called MMT (Methylcy-
clopentadienyl Manganese Tricarbonyl).
Toyota does not recommend the use of gasoline that contains MMT. If fuel
containing MMT is used, your emission control system may be adversely
affected.
The malfunction indicator lamp on the instrument cluster may come on. If this
happens, contact your Toyota dealer for service.

■

If your engine knocks

●

Consult your Toyota dealer.

●

You may occasionally notice light knocking for a short time while accelerat-
ing or driving uphill. This is normal and there is no need for concern.

NOTICE

■

Notice on fuel quality

●

Do not use improper fuels. If improper fuels are used, the engine will be
damaged.

●

Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic
converters causing the emission control system to malfunction.

●

Do not use gasohol other than the type previously stated.
Other gasohol may cause fuel system damage or vehicle performance
problems.

●

Using unleaded gasoline with an octane number or rating lower than the
level previously stated will cause persistent heavy knocking.
At worst, this will lead to engine damage.

■

Fuel-related poor driveability
If poor driveability (poor hot starting, vaporization, engine knocking, etc.) is
encountered after using a different type of fuel, discontinue the use of that
type of fuel.

■

When refueling with gasohol
Take care not to spill gasohol. It can damage your vehicle’s paint.

462

8-1. Specifications

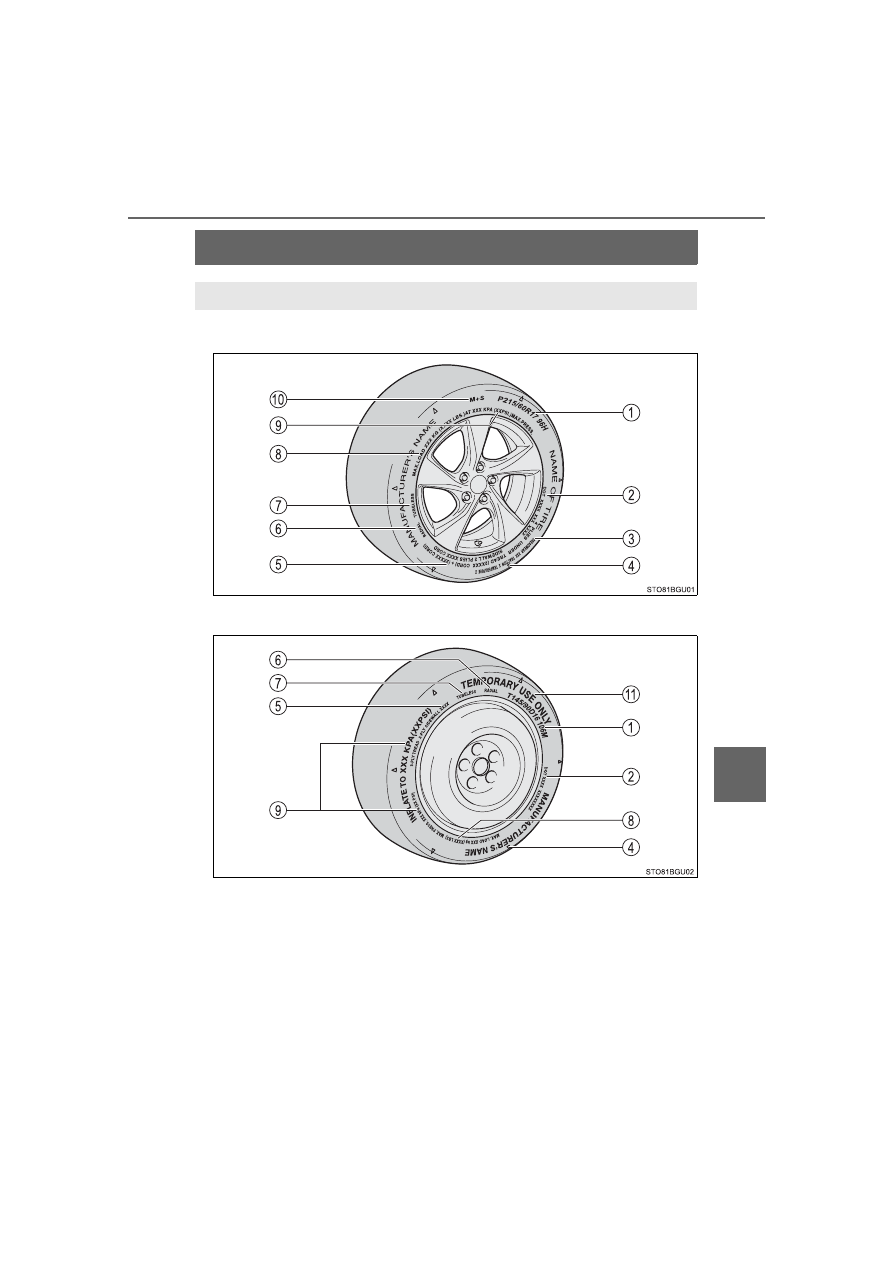

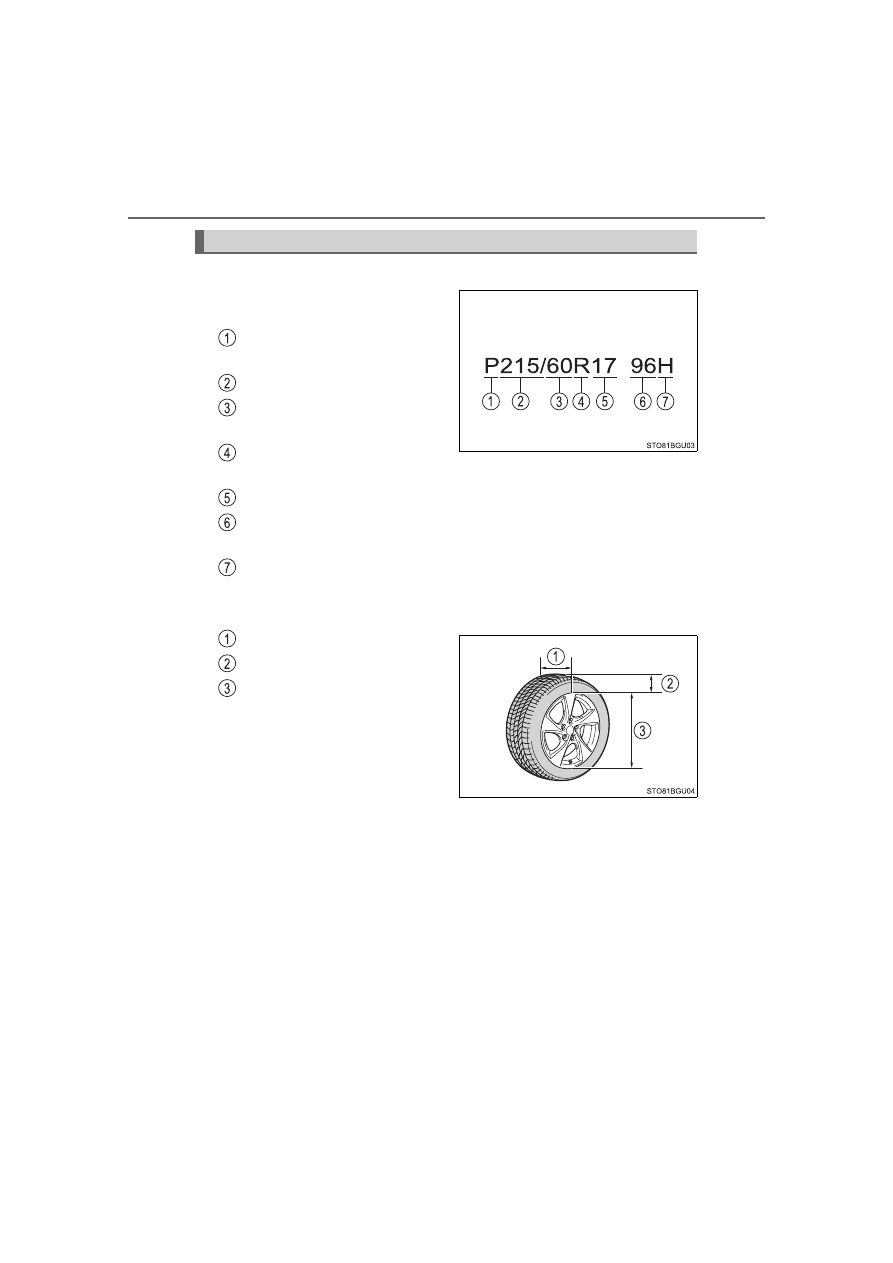

Tire size (

→P. 464)

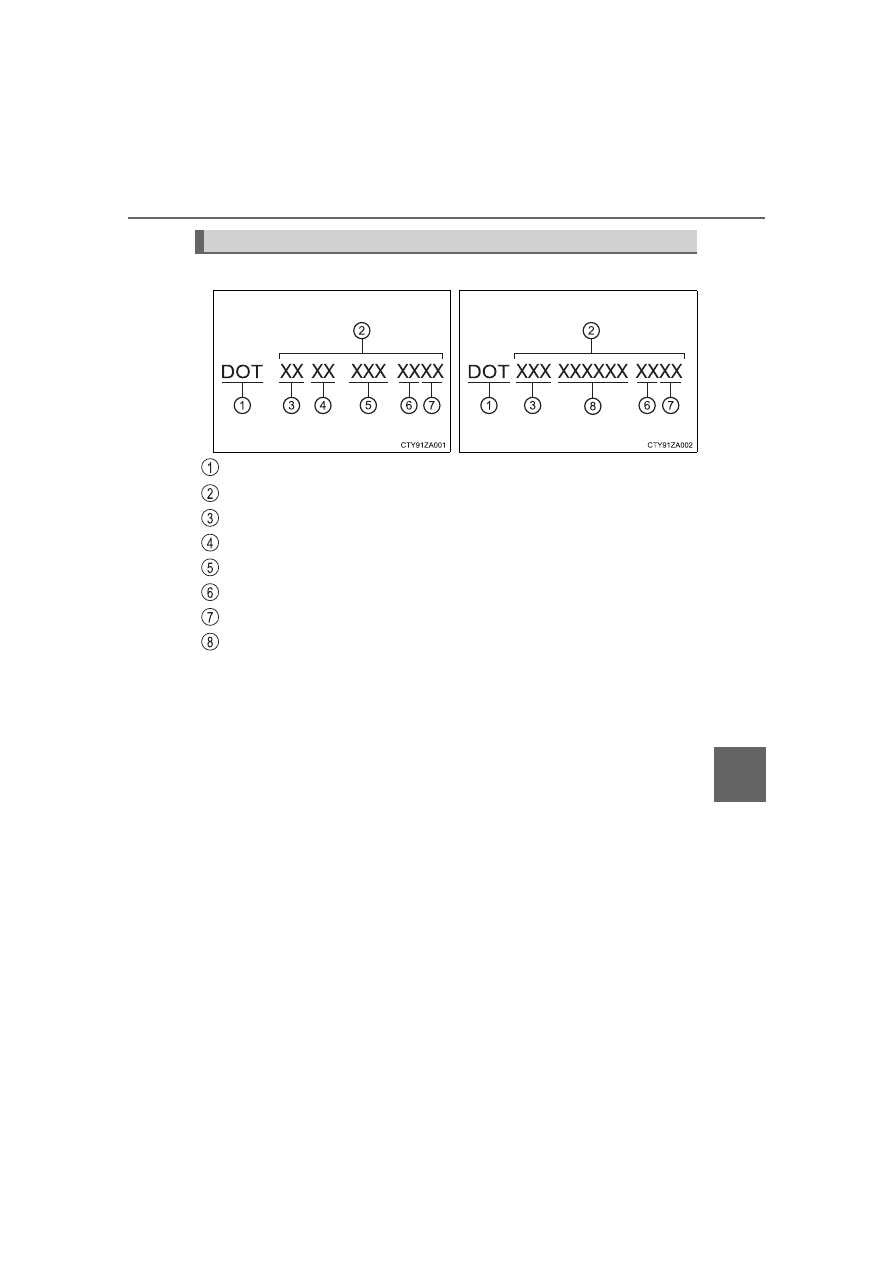

DOT and Tire Identification Number (TIN)(

→P. 463)

Uniform tire quality grading

For details, see “Uniform Tire Quality Grading” that follows.

Location of treadwear indicators(

→P. 353)

Tire ply composition and materials

Plies are layers of rubber-coated parallel cords. Cords are the strands

which form the plies in a tire.

Radial tires or bias-ply tires

A radial tire has “RADIAL” on the sidewall. A tire not marked “RADIAL”

is a bias-ply tire.

TUBELESS or TUBE TYPE

A tubeless tire does not have a tube and air is directly put into the tire.

A tube type tire has a tube inside the tire and the tube maintains the air

pressure.

Load limit at maximum cold tire inflation pressure (

→P. 468)

Maximum cold tire inflation pressure (

→P. 468)

This means the pressure to which a tire may be inflated.

Summer tires or all season tires (

→P. 357)

An all season tire has “M+S” on the sidewall. A tire not marked “M+S”

is a summer tire.

“TEMPORARY USE ONLY”

A compact spare tire is identified by the phrase “TEMPORARY USE

ONLY” molded on its sidewall. This tire is designed for temporary

emergency use only.

463

8-1. Specifications

Vehi

e specificatio

DOT symbol

Tire Identification Number (TIN)
Tire manufacturer’s identification mark
Tire size code
Manufacturer’s optional tire type code (3 or 4 letters)
Manufacturing week
Manufacturing year
Manufacturer’s code

: The DOT symbol certifies that the tire conforms to applicable Federal

Motor Vehicle Safety Standards.

Typical DOT and Tire Identification Number (TIN)



Type A



Type B

464

8-1. Specifications

■

Typical tire size information

The illustration indicates typical
tire size.

Tire use (P = Passenger car,
T = Temporary use)
Section width (millimeters)
Aspect ratio
(tire height to section width)
Tire construction code
(R = Radial, D = Diagonal)
Wheel diameter (inches)
Load index
(2 digits or 3 digits)
Speed symbol
(alphabet with one letter)

■

Tire dimensions

Section width
Tire height
Wheel diameter

Tire size

Toyota C-HR (2018 year). Instruction - part 29
