3-1. Key information

Keys

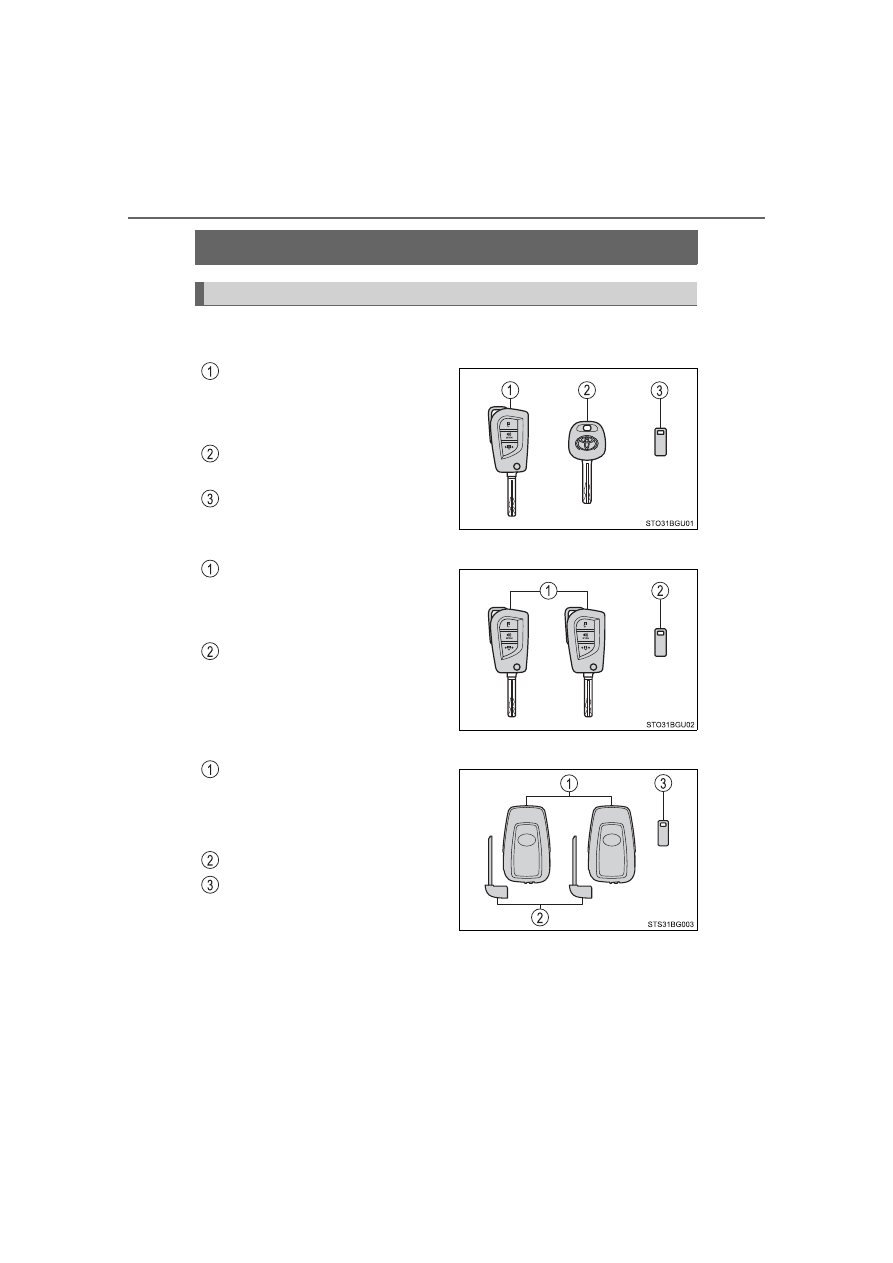

The following keys are provided with the vehicle.



Vehicles without a smart key system (type A)

Key (with a wireless remote
control function)

Operating the wireless remote con-
trol function (

→P. 99)

Key (without a wireless remote
control function)
Key number plate



Vehicles without a smart key system (type B)

Key (with a wireless remote
control function)

Operating the wireless remote con-
trol function (

→P. 99)

Key number plate



Vehicles with a smart key system

Electronic keys

• Operating the smart key system

(

→P. 118)

• Operating the wireless remote

control function (

→P. 99)

Mechanical keys
Key number plate

The keys

Op
eration



Vehicles without a smart key system

Locks all the doors

(

→

P. 105

)

Sounds the alarm

(

→

P. 100

)

Unlocks the door

(

→

P. 105

)

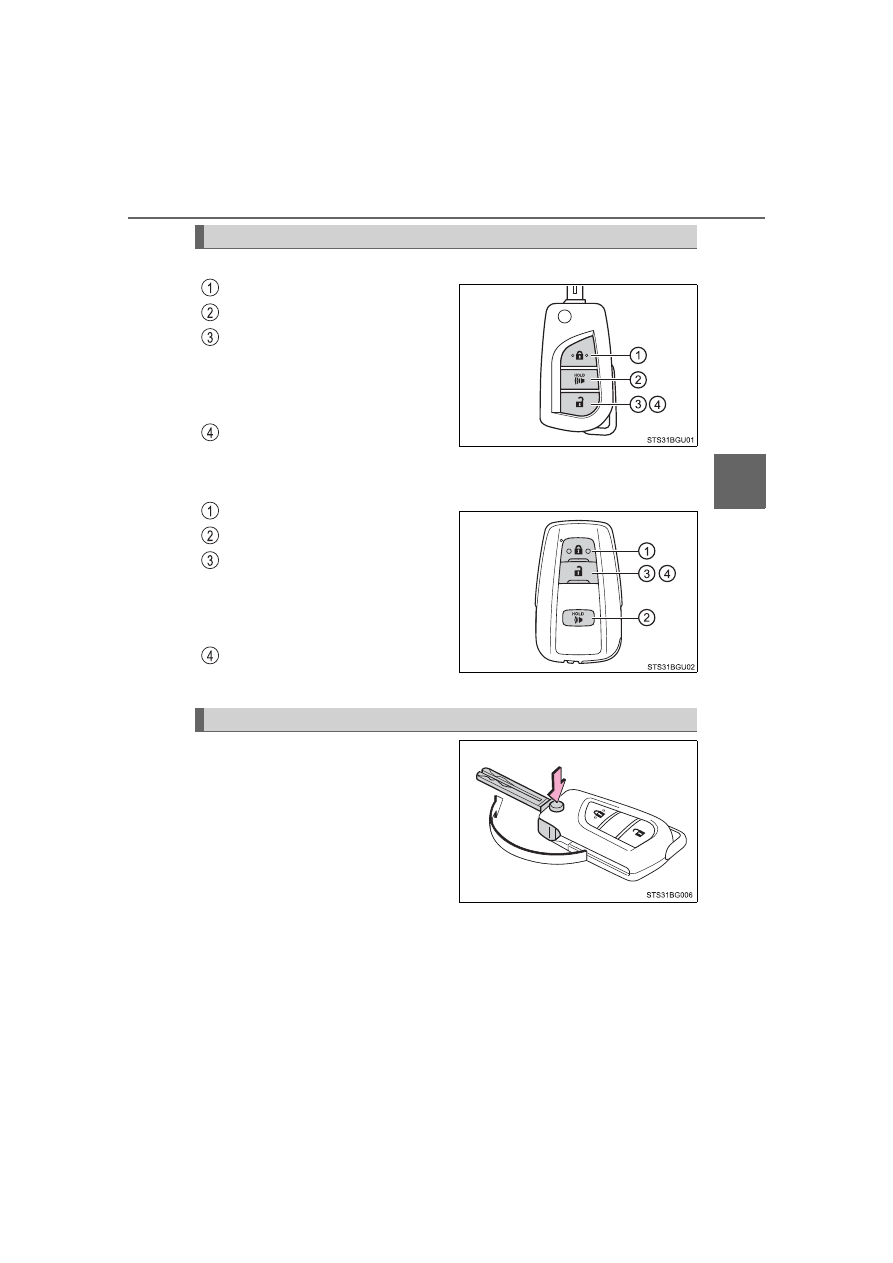

Pressing the button unlocks the
driver’s door. Pressing the button
again within 3 seconds unlocks the
other doors.

Opens the windows

(

→

P. 105

)

: These settings must be customized at your Toyota dealer.



Vehicles with a smart key system

Locks all the doors

(

→

P. 105

)

Sounds the alarm

(

→

P. 100

)

Unlocks the door

(

→

P. 105

)

Pressing the button unlocks the
driver’s door. Pressing the button
again within 3 seconds unlocks the
other doors.

Opens the windows

(

→

P. 105

)

: These settings must be customized at your Toyota dealer.

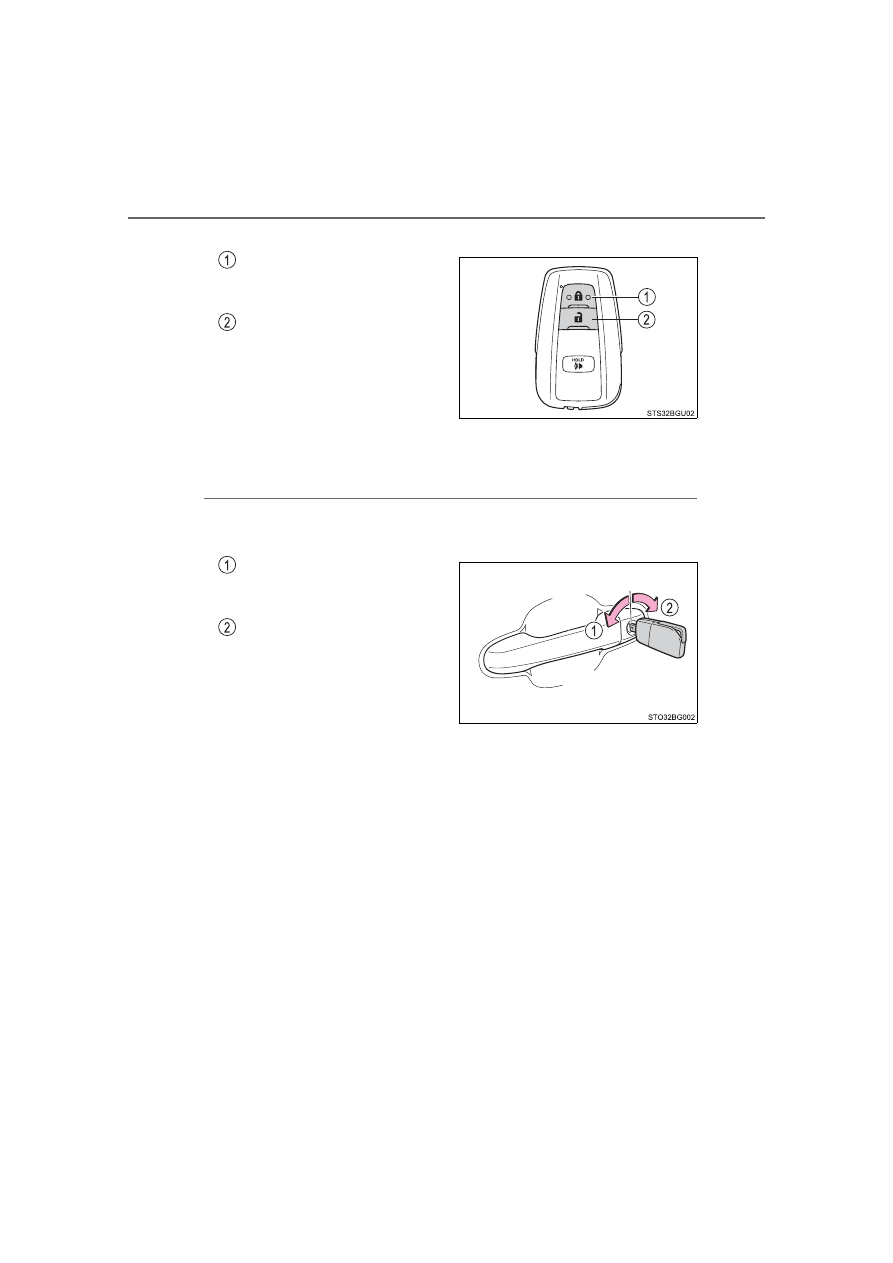

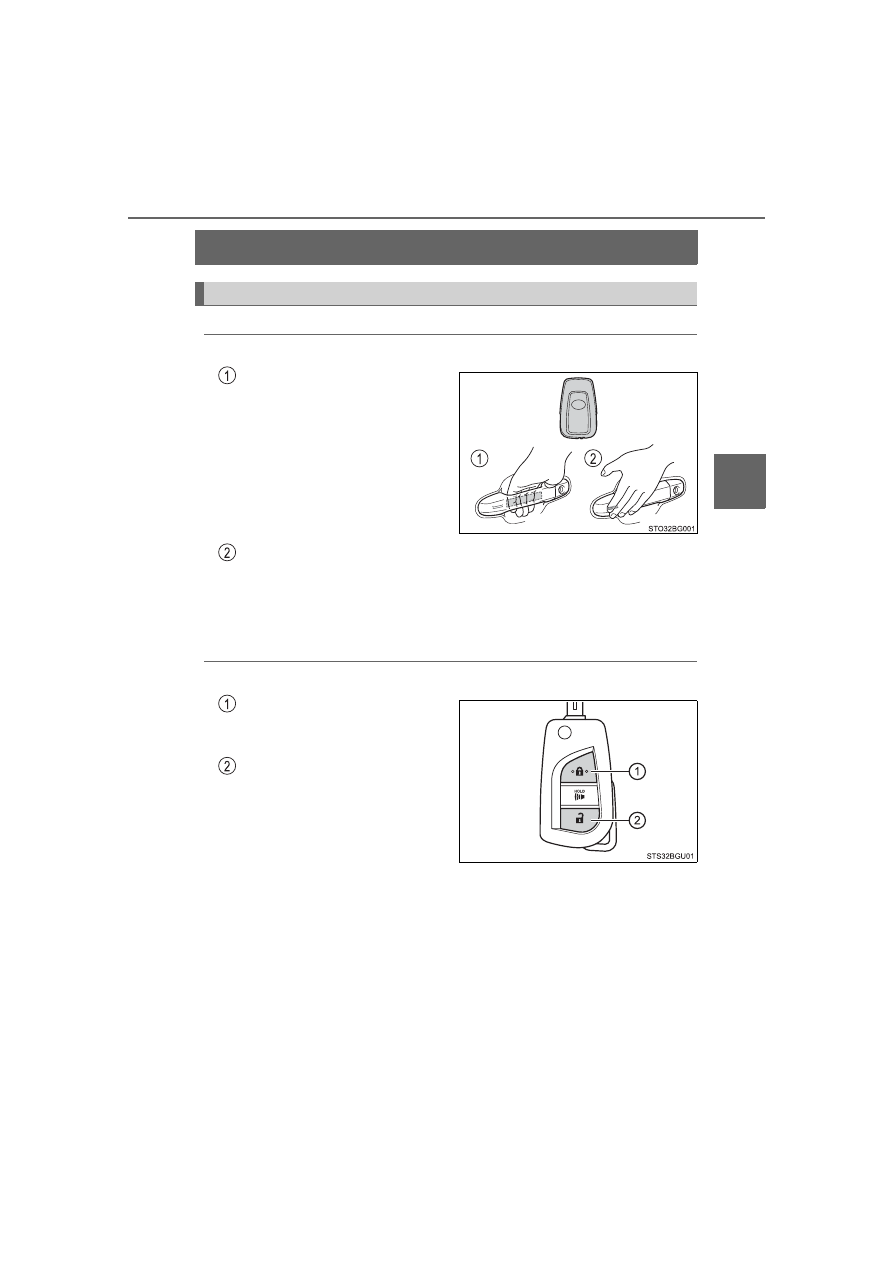

Press the button to open the key.

To stow, press the button then fold
the key.

Wireless remote control

Using the key (vehicles without a smart key system)

100

3-1. Key information

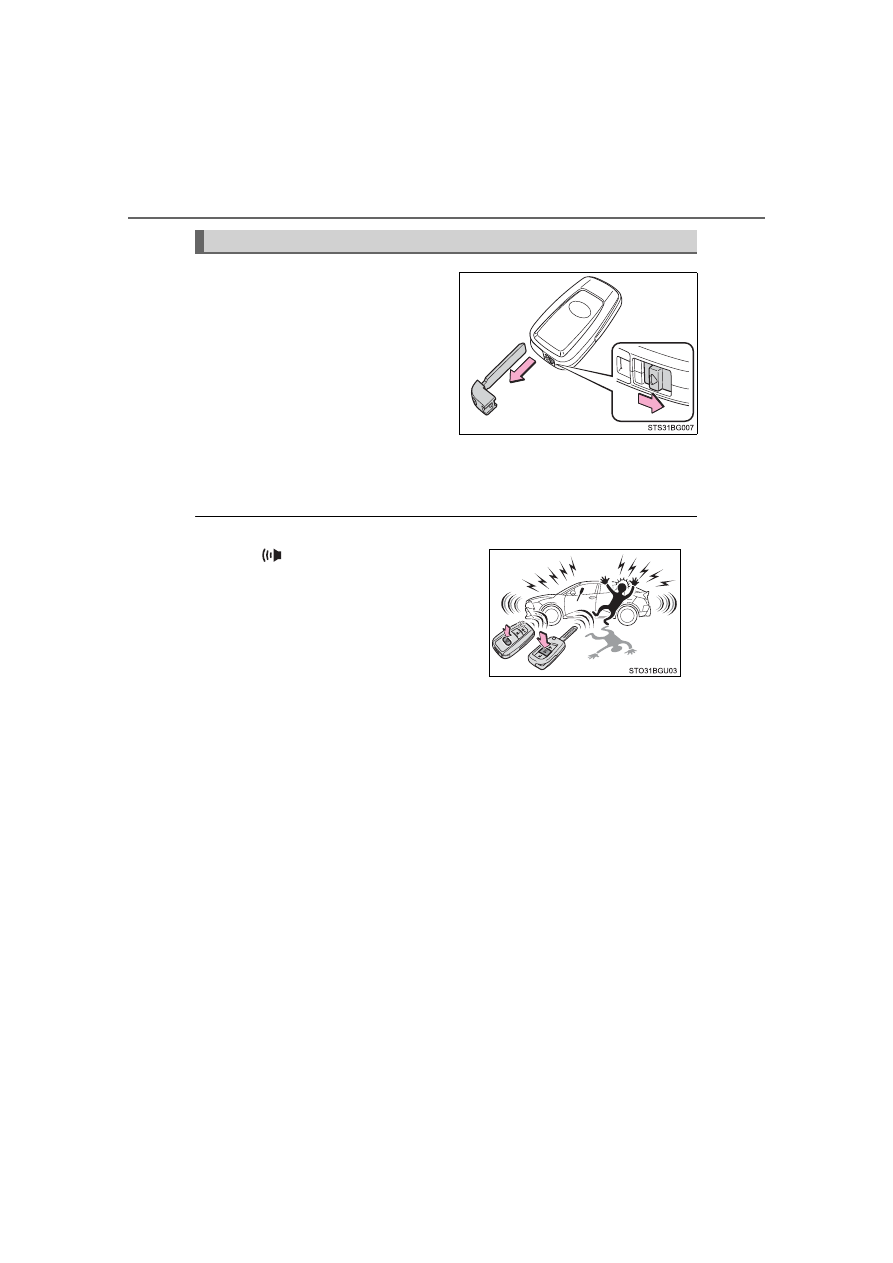

To take out the mechanical key,
slide the release lever and take
the key out.

The mechanical key can only be
inserted in one direction, as the
key only has grooves on one side.
If the key cannot be inserted in a
lock cylinder, turn it over and re-
attempt to insert it.
After using the mechanical key, store it in the electronic key. Carry the
mechanical key together with the electronic key. If the electronic key bat-
tery is depleted or the entry function does not operate properly, you will
need the mechanical key. (

→P. 436)

■

Panic mode

■

If you lose your keys
New genuine keys can be made by your Toyota dealer using the other key
(vehicles without a smart key system) or mechanical key (vehicles with a
smart key system) and the key number stamped on your key number plate.
Keep the plate in a safe place such as your wallet, not in the vehicle.

Using the mechanical key (vehicles with a smart key system)

When

is pressed for longer than

about one second, an alarm will sound
intermittently and the vehicle lights will
flash to deter any person from trying to
break into or damage your vehicle.
To stop the alarm, press any button on the
key (with a wireless remote control func-
tion) or electronic key.

101

Op
eration

■

When riding in an aircraft
When bringing a key with wireless remote control function onto an aircraft,
make sure you do not press any buttons on the key while inside the aircraft
cabin. If you are carrying the key in your bag, etc., ensure that the buttons are
not likely to be pressed accidentally. Pressing a button may cause the key to
emit radio waves that could interfere with the operation of the aircraft.

■

Conditions affecting the operation of the smart key system or wireless
remote control



Vehicles without a smart key system

The wireless remote control function may not operate normally in the follow-
ing situations:

●

When the wireless key battery is depleted

●

Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electrical
noise

●

When carrying a portable radio, cellular phone or other wireless communi-
cation devices

●

When multiple wireless keys are in the vicinity

●

When the wireless key is in contact with, or is covered by a metallic object

●

When a wireless key (that emits radio waves) is being used nearby

●

When the wireless key has been left near an electrical appliance such as a
personal computer

●

If window tint with a metallic content or metallic objects are attached to the
rear window



Vehicles with a smart key system

→P. 121

102

3-1. Key information

■

Key battery depletion



Vehicles without a smart key system

If the wireless remote control function does not operate, the battery may be
depleted. Replace the battery when necessary. (

→P. 373)



Vehicles with a smart key system

●

The standard battery life is 1 to 2 years.

●

If the battery becomes low, an alarm will sound in the cabin when the engine
stops. (

→P. 373)

●

As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indi-
cate that the electronic key battery may be depleted. Replace the battery
when necessary. (

→P. 373)

• The smart key system or the wireless remote control does not operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
The battery can be exchanged by the users. (

→P. 373) However, as there

may be damage to the key when exchanging, it is recommended to have
the battery exchanged at your Toyota Dealer.

●

To avoid serious deterioration, do not leave the electronic key within 3 ft.
(1 m) of the following electrical appliances that produce a magnetic field:
• TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Table lamps
• Induction cookers

■

When the key battery is fully depleted
→P. 373

■

Confirmation of the registered key number (vehicles with a smart key
system)
The number of keys already registered to the vehicle can be confirmed. Ask
your Toyota dealer for details.

■

Customization
Settings (e.g. wireless remote control system) can be changed.
(Customizable features:

→P. 474)

103

Op
eration

■

Certification for the wireless remote control



For vehicles sold in the U.S.A.

FCC ID: MOZBG3AW
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence; and (2) This device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.



For vehicles sold in the U.S.A.

FCC ID: MOZB97TZ
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence; and (2) This device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
The FCC ID/IC Certification number is affixed inside the equipment. You can
find the ID/number when replacing the battery.



For vehicles sold in Canada

This device complies with Industry Canada’s licence-exempt RSSs. Opera-
tion is subject to the following two conditions: (1) This device may not cause
interference; and (2) This device must accept any interference, including
interference that may cause undesired operation of the device.
The FCC ID/IC Certification number is affixed inside the equipment. You can
find the ID/number when replacing the battery.

104

3-1. Key information

NOTICE

■

To prevent key damage

●

Do not drop the keys, subject them to strong shocks, or bend them.

●

Do not expose the keys to high temperatures for long periods of time.

●

Do not get the keys wet or wash them in an ultrasonic washer, etc.

●

Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.

●

Do not disassemble the keys.

●

Do not attach a sticker or anything else to the surface of the electronic key
and key (with a wireless remote control function).

●

Vehicles with a smart key system: Do not place the keys near objects that
produce magnetic fields, such as TVs, audio systems and induction cook-
ers, or medical electrical equipment, such as low-frequency therapy equip-
ment.

■

Carrying the electronic key on your person (vehicles with a smart key
system)
Carry the electronic key 3.9 in. (10 cm) or more away from electric appli-
ances that are turned on. Radio waves emitted from electric appliances
within 3.9 in. (10 cm) of the electronic key may interfere with the key, caus-
ing the key to not function properly.

■

In case of a smart key system malfunction or other key-related prob-
lems (vehicles with a smart key system)
Take your vehicle with all the electronic keys provided with your vehicle to
your Toyota dealer.

■

When an electronic key is lost (vehicles with a smart key system)
If the electronic key remains lost, the risk of vehicle theft increases signifi-
cantly. Visit your Toyota dealer immediately with all remaining electronic
keys that was provided with your vehicle.

105

3-2. Opening, closing and locking the doors

Op
eration

f each

compo

nen
t

Side doors

◆

Entry function (vehicles with a smart key system)

Carry the electronic key to enable this function.

Grip the driver’s door handle
to unlock the door. Grip the
passenger’s door handle to
unlock all the doors.*

Make sure to touch the sensor
on the back of the handle.
The doors cannot be unlocked
for 3 seconds after the doors are
locked.

Touch the lock sensor (the indentation on the side of the front
door handle) to lock all the doors.

Check that the door is securely locked.

: The door unlock settings can be changed. (

→P. 110, 477)

◆

Wireless remote control



Vehicles without a smart key system

Locks all the doors

Check that the door is securely
locked.

Unlocks the door

Pressing the button unlocks the
driver’s door.
Pressing the button again within
3 seconds unlocks the other
doors.
Press and hold to open the windows

: These settings must be customized at your Toyota dealer.

Unlocking and locking the doors from the outside

106

3-2. Opening, closing and locking the doors



Vehicles with a smart key system

Locks all the doors

Check that the door is securely
locked.

Unlocks the door

Pressing the button unlocks the
driver’s door.
Pressing the button again within
3 seconds unlocks the other
doors.
Press and hold to open the windows

: These settings must be customized at your Toyota dealer.

◆

Key

Turning the key operates the doors as follows:



Vehicles without a smart key system

Locks all the doors

Turn and hold to close the win-
dows

Unlocks the door

Turning the key unlocks the
driver’s door. Turning the key
again unlocks the other doors.
Turn and hold to open the win-
dows

: These settings must be customized at your Toyota dealer.



Vehicles with a smart key system

The doors can also be locked and unlocked with the mechanical key.
(

→P. 436)

107

3-2. Opening, closing and locking the doors

Op
eration

f each

compo

nen
t

■

Operation signals
Doors:
A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked using the wireless remote control.
(Locked: once; Unlocked: twice)
Windows:
A buzzer sounds to indicate that the windows are operating.

■

Security feature



Vehicles without a smart key system

If a door is not opened within approximately 60 seconds after the vehicle is
unlocked using the wireless remote control, the security feature automatically
locks the vehicle again.



Vehicles with a smart key system

If a door is not opened within approximately 60 seconds after the vehicle is
unlocked using the entry function or wireless remote control, the security fea-
ture automatically locks the vehicle again.

■

When the door cannot be locked by the lock sensor on the surface of the
front door handle (vehicles with a smart key system)

■

Door lock buzzer



Vehicles without a smart key system

If an attempt to lock the doors using the wireless remote control is made
when a door is not fully closed, a buzzer will sound continuously for 5 sec-
onds. Fully close the door to stop the buzzer, and lock the doors again.



Vehicles with a smart key system

If an attempt to lock the doors using the entry function or wireless remote
control is made when a door is not fully closed, a buzzer will sound continu-
ously for 5 seconds. Fully close the door to stop the buzzer, and lock the
doors again.

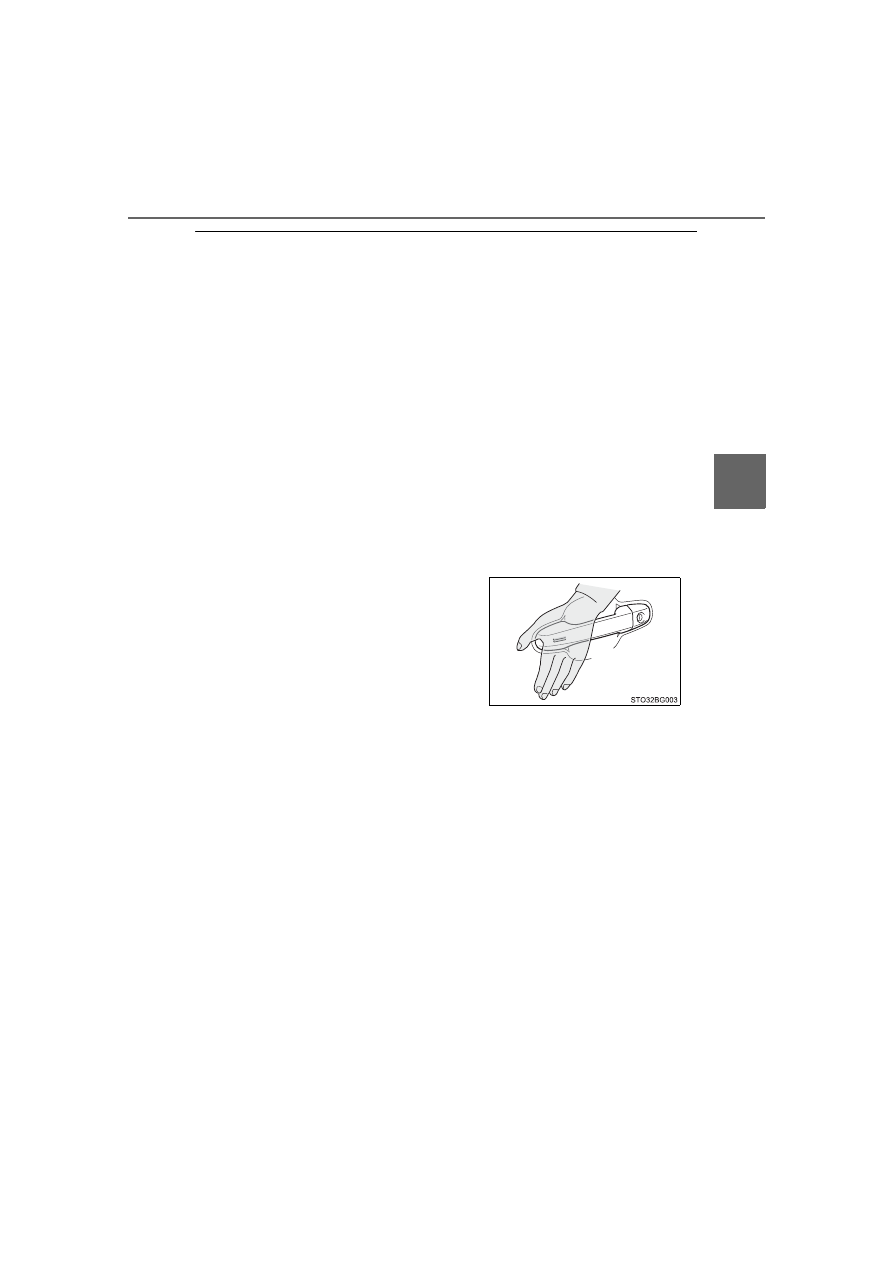

Use your palm to touch the lock sensor.

108

3-2. Opening, closing and locking the doors

■

If the smart key system or wireless remote control does not operate
properly
Vehicles with a smart key system: Use the mechanical key to lock and unlock
the doors. (

→P. 436)

Replace the battery with a new one if it is depleted. (

→P. 373)

◆

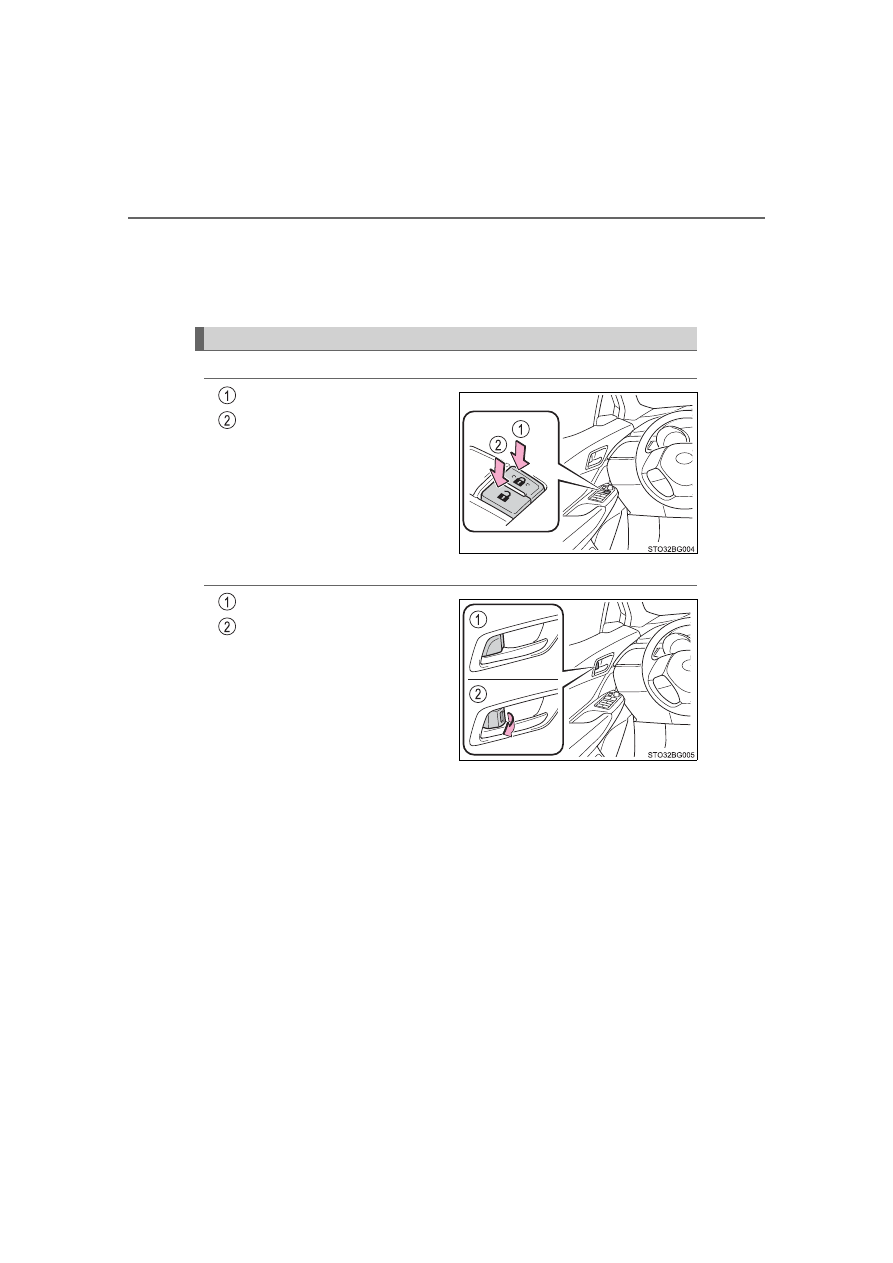

Door lock switches

Locks all the doors
Unlocks all the doors

◆

Inside lock buttons

Locks the door
Unlocks the door

The front doors can be opened
by pulling the inside handle
even if the lock buttons are in
the lock position.

Unlocking and locking the doors from the inside

109

3-2. Opening, closing and locking the doors

Op
eration

f each

compo

nen
t

Move the inside lock button to the lock position.
Close the door.



Vehicles without a smart key system

The door cannot be locked if the key is in the engine switch.



Vehicles with a smart key system

The door cannot be locked if the engine switch is in ACCESSORY or
IGNITION ON mode, or the electronic key is left inside the vehicle.

The key may not be detected correctly and the door may be locked.

The door cannot be opened from
inside the vehicle when the lock is
set.

Unlock
Lock

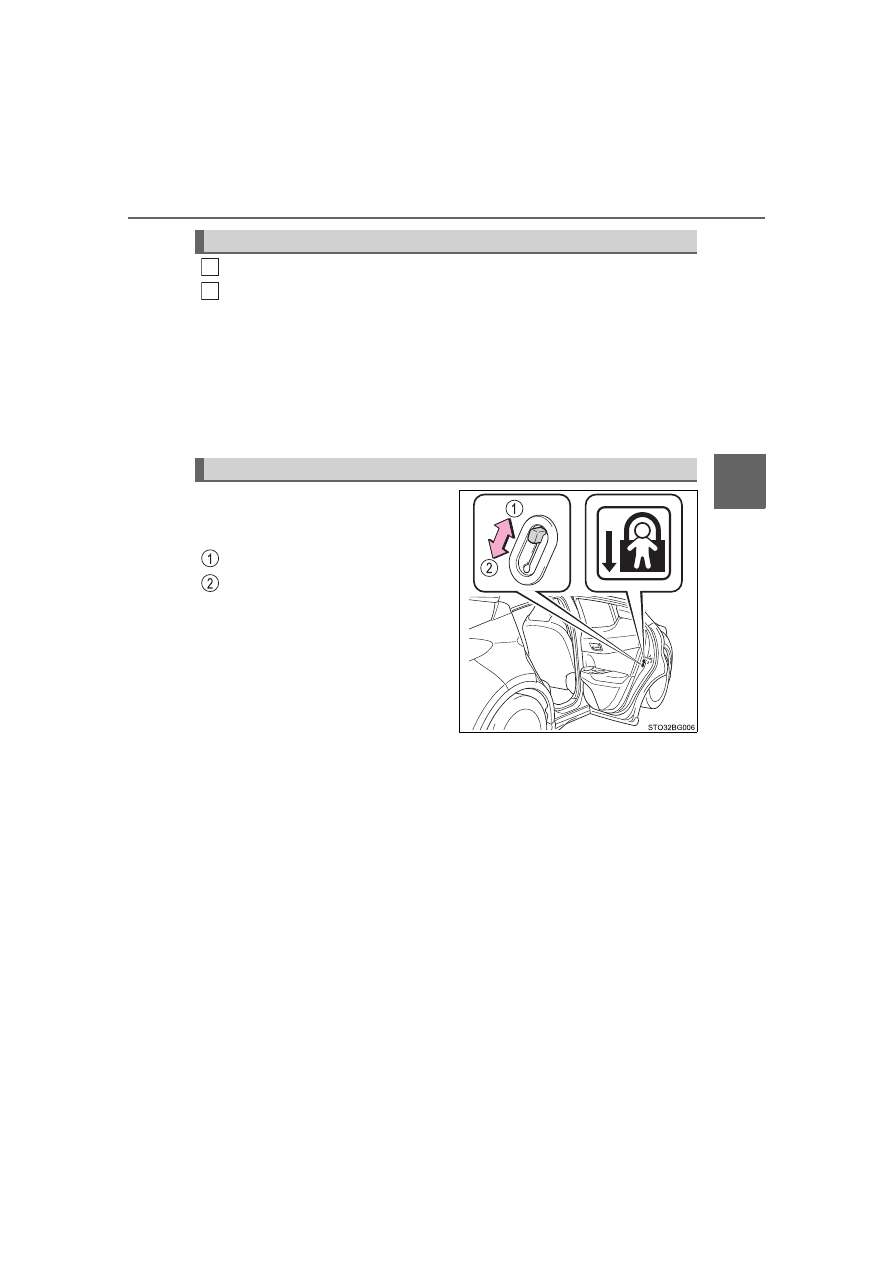

These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear doors.

Locking the doors from the outside without a key

Rear door child-protector lock

1
2

110

3-2. Opening, closing and locking the doors

■

Switching the door unlock function (vehicles with a smart key system)
It is possible to set which doors the entry function unlocks using the wireless
remote control.

Turn the engine switch off.

When the indicator light on the key surface is not on, press and hold

for

approximately 5 seconds while pressing and holding

The setting changes each time an operation is performed, as shown below.
(When changing the setting continuously, release the buttons, wait for at least
5 seconds, and repeat step

■

Open door warning buzzer
If a door or the back door is not fully closed, a buzzer will sound when the
vehicle speed reaches 3 mph (5 km/h).
The open door(s) or back door is indicated on the multi-information display.

■

Conditions affecting the operation of the smart key system or wireless
remote control



Vehicles without a smart key system

→P. 101



Vehicles with a smart key system

→P. 121

■

Customization
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features:

→P. 474)

Multi-information

display

Unlocking function

Beep

Holding the driver’s door
handle unlocks only the
driver’s door.

Exterior: Beeps 3 times
Interior: Pings once

Holding the front passen-
ger’s door handle unlocks
all the doors.

Holding a door handle
unlocks all the doors.

Exterior: Beeps twice
Interior: Pings once

111

3-2. Opening, closing and locking the doors

Op
eration

f each

compo

nen
t

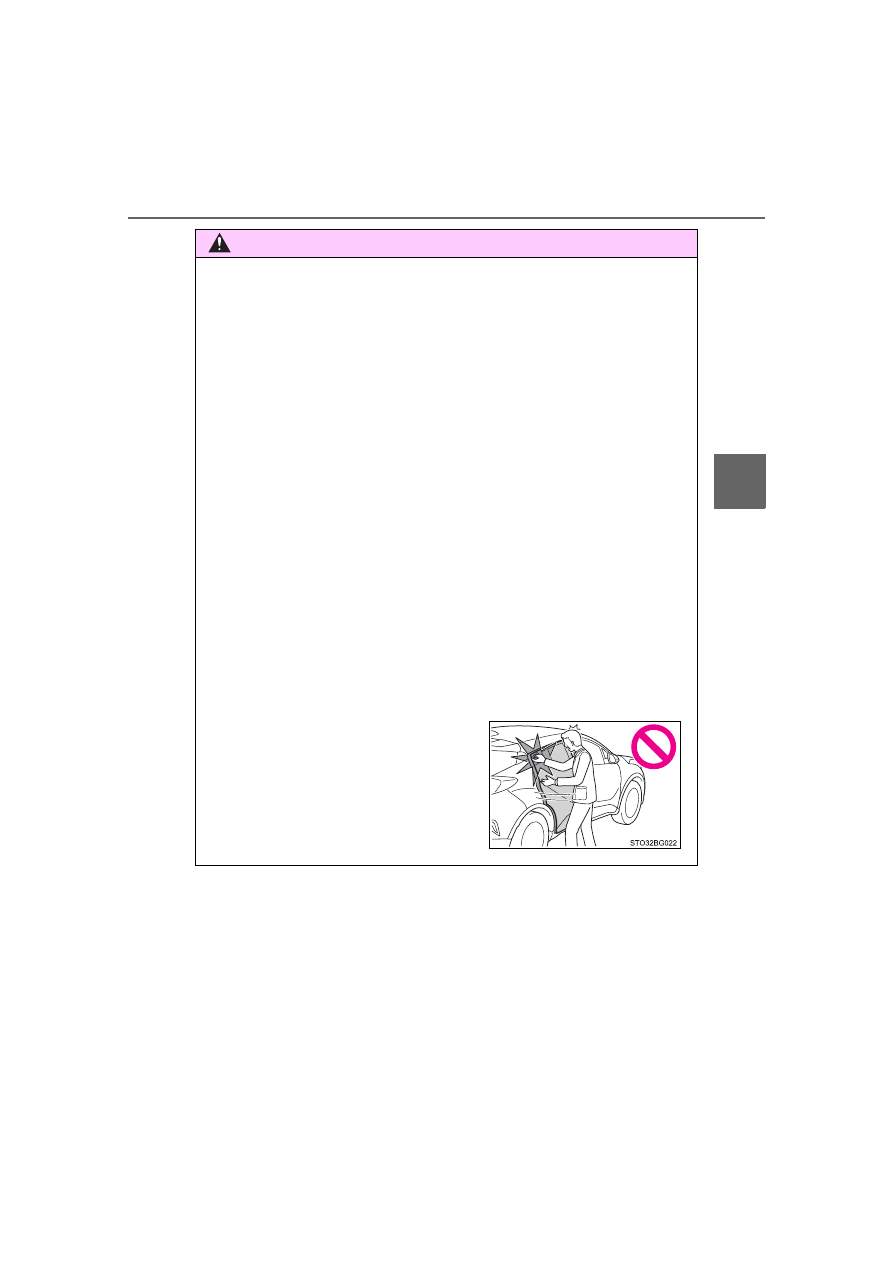

WARNING

■

To prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.

●

Ensure that all doors are properly closed and locked.

●

Do not pull the inside handle of the doors while driving.
Be especially careful for the front doors, as the doors may be opened
even if the inside lock buttons are in locked position.

●

Set the rear door child-protector locks when children are seated in the rear
seats.

■

When opening or closing a door
Check the surroundings of the vehicle such as whether the vehicle is on an
incline, whether there is enough space for a door to open and whether a
strong wind is blowing.
When opening or closing the door, hold the door handle tightly to prepare
for any unpredictable movement.

■

When using the wireless remote control or key and operating the
power windows
Operate the power window after checking to make sure that there is no pos-
sibility of any passenger having any of their body parts caught in the side
window. Also, do not allow children to operate the wireless remote control or
key. It is possible for children and other passengers to get caught in the
power window.

■

When closing the rear door

Take extra care to prevent your fingers,
etc., from being caught. Failure to do so
may result in death or serious injury.
