Toyota C-HR (2018 year). Instruction

1-1. For safe use

Fo
r

safety and securi

■

Child restraint system with infant

■

Unoccupied

Indicator/

warning light

“AIR BAG ON” and “AIR BAG OFF”

indicator lights

“AIR BAG

OFF”

SRS warning light

Off

Seat belt reminder light

Off

flashing

Devices

Front passenger airbag

Deactivated

Side airbag

on the front passenger seat

Activated

Curtain shield airbag

in the front passenger side

Seat cushion airbag

in the front passenger side

Deactivated

Front passenger’s seat belt pretensioner

and force limiter

Activated

Indicator/

warning light

“AIR BAG ON” and “AIR BAG OFF”

indicator lights

“AIR BAG OFF”

SRS warning light

Off

Seat belt reminder light

Devices

Front passenger airbag

Deactivated

Side airbag

on the front passenger seat

Activated

Curtain shield airbag

in the front passenger side

Seat cushion airbag

in the front passenger side

Deactivated

Front passenger’s seat belt pretensioner

and force limiter

Activated

1-1. For safe use

■

There is a malfunction in the system

: The system judges a person of adult size as an adult. When a smaller

adult sits in the front passenger seat, the system may not recognize him/
her as an adult depending on his/her physique and posture.

: In the event the front passenger is wearing a seat belt.

: In the event the front passenger does not wear a seat belt

: For some children, child in seat, child in booster seat or child in convertible

seat, the system may not recognize him/her as a child. Factors which may
affect this can be the physique or posture.

: Never install a rear-facing child restraint system on the front passenger

seat. A forward-facing child restraint system should only be installed on the
front passenger seat when it is unavoidable. (

→P. 55)

: In case the indicator light is not illuminated, consult this manual on how to

install the child restraint system properly. (

→P. 57)

Indicator/

warning light

“AIR BAG ON” and “AIR BAG OFF”

indicator lights

“AIR BAG OFF”

SRS warning light

Seat belt reminder light

Devices

Front passenger airbag

Deactivated

Side airbag

on the front passenger seat

Activated

Curtain shield airbag

in the front passenger side

Seat cushion airbag

in the front passenger side

Deactivated

Front passenger’s seat belt pretensioner

and force limiter

Activated

1-1. For safe use

Fo
r

safety and securi

WARNING

■

Front passenger occupant classification system precautions
Observe the following precautions regarding the front passenger occupant
classification system.
Failure to do so may cause death or serious injury.

●

Wear the seat belt properly.

●

Make sure the front passenger’s seat belt plate has not been left inserted
into the buckle before someone sits in the front passenger seat.

●

Make sure the “AIR BAG OFF” indicator light is not illuminated when using
the seat belt extender for the front passenger seat. If the “AIR BAG OFF”
indicator light is illuminated, disconnect the extender tongue from the seat
belt buckle, and reconnect the seat belt. Reconnect the seat belt extender
after making sure the “AIR BAG ON” indicator light is illuminated. If you
use the seat belt extender while the “AIR BAG OFF” indicator light is illumi-
nated, the SRS airbags for the front passenger may not activate, which
could cause death or serious injury in the event of a collision.

●

Do not apply a heavy load to the front passenger seat.

●

Do not put weight on the front passenger seat by putting your hands or
feet on the front passenger seat seatback from the rear passenger seat.

●

Do not let a rear passenger lift the front passenger seat with their feet or
press on the seatback with their legs.

●

Do not put objects under the front passenger seat.

1-1. For safe use

WARNING

■

Front passenger occupant classification system precautions

●

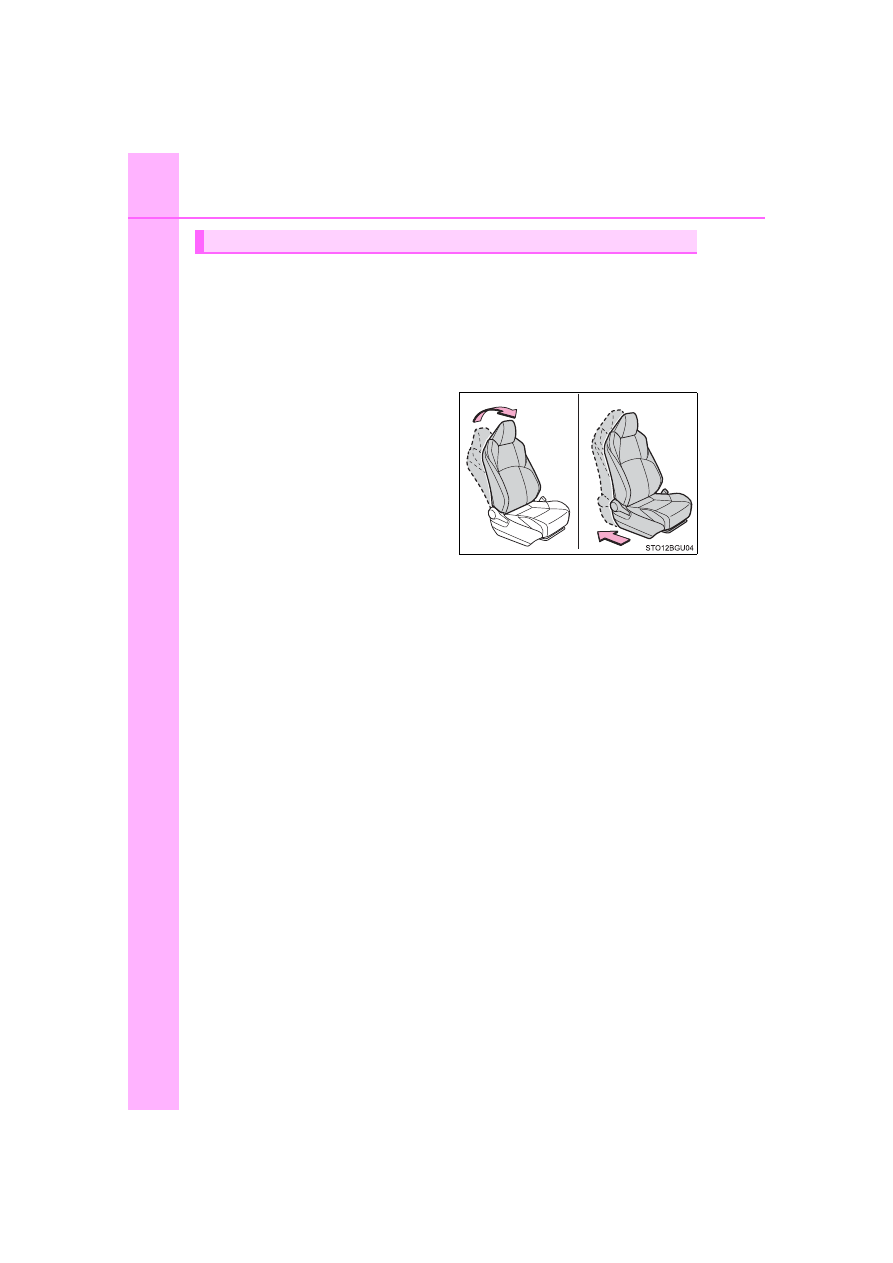

Do not recline the front passenger seatback so far that it touches the rear
seat. This may cause the “AIR BAG OFF” indicator light to be illuminated,
which indicates that the SRS airbags for the front passenger will not
deploy in the event of a severe accident. If the seatback touches the rear
seat, return the seatback to a position where it does not touch the rear
seat. Keep the front passenger seatback as upright as possible when the
vehicle is moving. Reclining the seatback excessively may lessen the
effectiveness of the seat belt system.

●

If an adult sits in the front passenger seat, the “AIR BAG ON” indicator
light is illuminated. If the “AIR BAG OFF” indicator is illuminated, ask the
passenger to sit up straight, well back in the seat, feet on the floor, and
with the seat belt worn correctly. If the “AIR BAG OFF” indicator still
remains illuminated, either ask the passenger to move to the rear seat, or
if that is not possible, move the front passenger seat fully rearward.

●

When it is unavoidable to install a forward-facing child restraint system on
the front passenger seat, install the child restraint system on the front pas-
senger seat in the proper order. (

→P. 57)

●

Do not modify or remove the front seats.

●

Do not kick the front passenger seat or subject it to severe impact. Other-
wise, the SRS warning light may come on to indicate a malfunction of the
front passenger occupant classification system. In this case, contact your
Toyota dealer immediately.

●

Child restraint systems installed on the rear seat should not contact the
front seatbacks.

●

Do not use a seat accessory, such as a cushion and seat cover, that cov-
ers the seat cushion surface.

●

Do not modify or replace the upholstery of the front seat.

1-1. For safe use

Fo
r

safety and securi

Exhaust gas precautions

Harmful substance to the human body is included in exhaust
gases if inhaled.

WARNING

Exhaust gases include harmful carbon monoxide (CO), which is colorless and
odorless. Observe the following precautions.
Failure to do so may cause exhaust gases enter the vehicle and may lead to
an accident caused by light-headedness, or may lead to death or a serious
health hazard.

■

Important points while driving

●

Keep the back door closed.

●

If you smell exhaust gases in the vehicle even when the back door is
closed, open the windows and have the vehicle inspected at your Toyota
dealer as soon as possible.

■

When parking

●

If the vehicle is in a poorly ventilated area or a closed area, such as a
garage, stop the engine.

●

Do not leave the vehicle with the engine on for a long time.
If such a situation cannot be avoided, park the vehicle in an open space
and ensure that exhaust fumes do not enter the vehicle interior.

●

Do not leave the engine running in an area with snow build-up, or where it
is snowing. If snowbanks build up around the vehicle while the engine is
running, exhaust gases may collect and enter the vehicle.

■

Exhaust pipe
The exhaust system needs to be checked periodically. If there is a hole or
crack caused by corrosion, damage to a joint or abnormal exhaust noise, be
sure to have the vehicle inspected and repaired by your Toyota dealer.

1-2. Child safety

Riding with children

● It is recommended that children sit in the rear seats to avoid acci-

dental contact with the shift lever, wiper switch, etc.

● Use the rear door child-protector lock or the window lock switch to

avoid children opening the door while driving or operating the
power window accidentally. (

→P. 109, 140)

● Do not let small children operate equipment which may catch or

pinch body parts, such as the power window, hood, back door,
seats, etc.

Observe the following precautions when children are in the vehi-
cle.
Use a child restraint system appropriate for the child, until the
child becomes large enough to properly wear the vehicle’s seat
belt.

WARNING

Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the side windows, the moon roof (if equipped) or other features of the vehi-
cle. In addition, heat build-up or extremely cold temperatures inside the
vehicle can be fatal to children.

1-2. Child safety

Fo
r

safety and securi

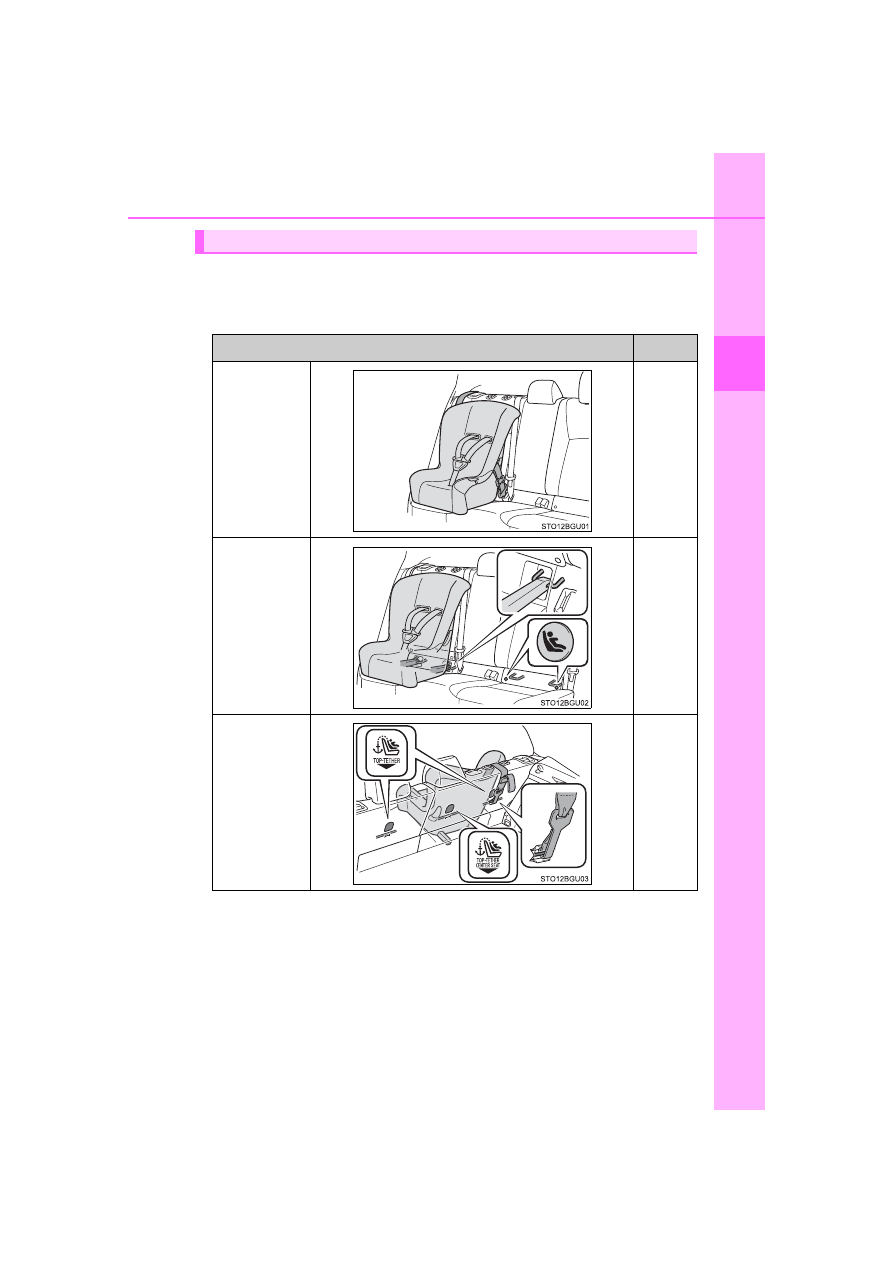

Child restraint systems

Points to remember...................................................................... P. 55
Child restraint system .................................................................. P. 57
When using a child restraint system ............................................ P. 58
Child restraint system installation method

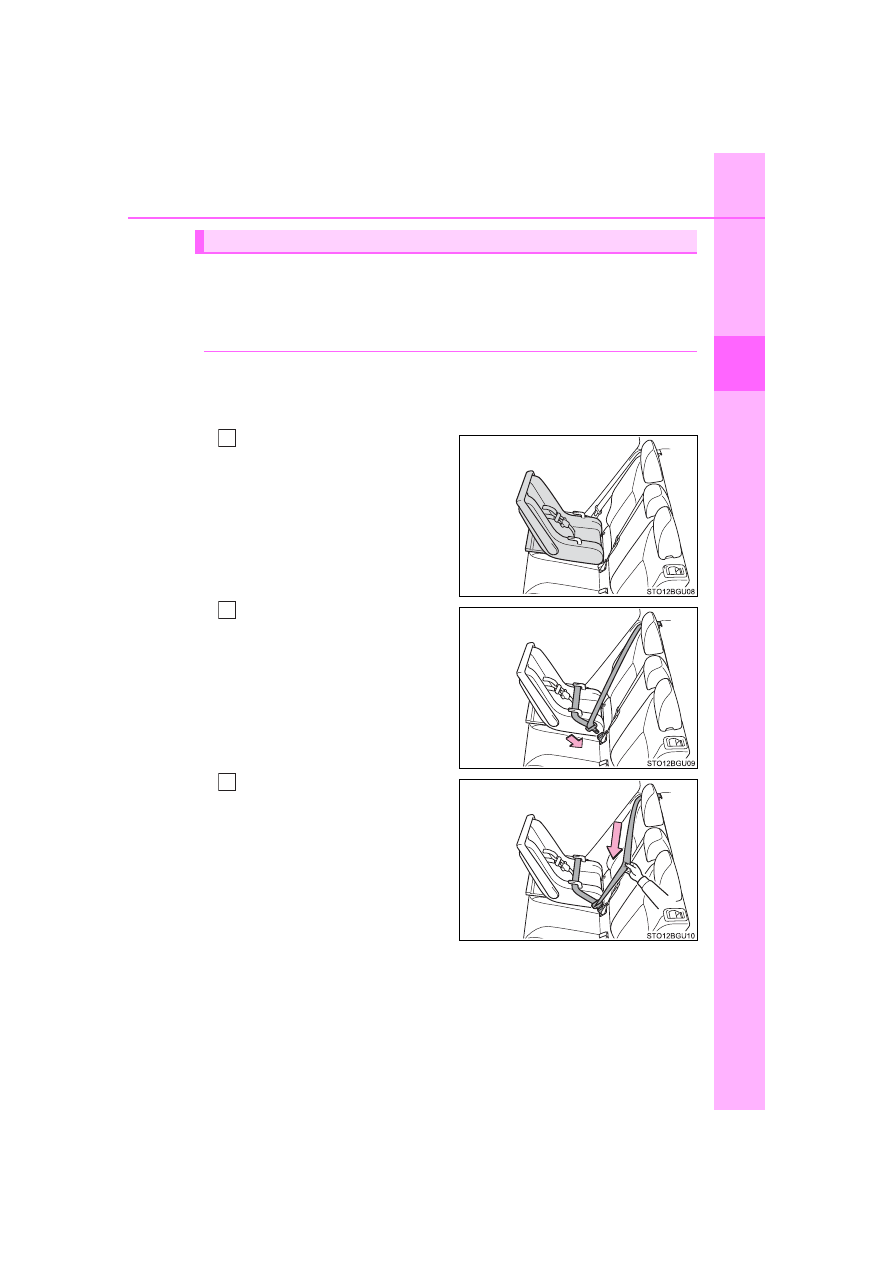

• Fixed with a seat belt ............................................................... P. 61
• Fixed with a child restraint LATCH anchor ............................... P. 67
• Using an anchor bracket (for top tether strap) ......................... P. 70

The laws of all 50 states of the U.S.A. as well as Canada now require
the use of child restraint systems.
● Prioritize and observe the warnings, as well as the laws and regula-

tions for child restraint systems.

● Use a child restraint system until the child becomes large enough to

properly wear the vehicle’s seat belt.

● Choose a child restraint system that suits your vehicle and is appro-

priate to the age and size of the child.

Before installing a child restraint system in the vehicle, there are
precautions that need to be observed, different types of child
restraint systems, as well as installation methods, etc., written in
this manual.

● Use a child restraint system when riding with a small child that

cannot properly use a seat belt. For the child’s safety, install the
child restraint system to a rear seat. Be sure to follow the installa-
tion method that is in the operation manual enclosed with the
restraint system.

Table of contents

Points to remember

1-2. Child safety

WARNING

■

When a child is riding
Observe the following precautions.
Failure to do so may result in death or serious injury.

●

For effective protection in automobile accidents and sudden stops, a child
must be properly restrained, using a seat belt or child restraint system
which is correctly installed. For installation details, refer to the operation
manual enclosed with the child restraint system. General installation
instruction is provided in this manual.

●

Toyota strongly urges the use of a proper child restraint system that con-
forms to the weight and size of the child, installed on the rear seat. Accord-
ing to accident statistics, the child is safer when properly restrained in the
rear seat than in the front seat.

●

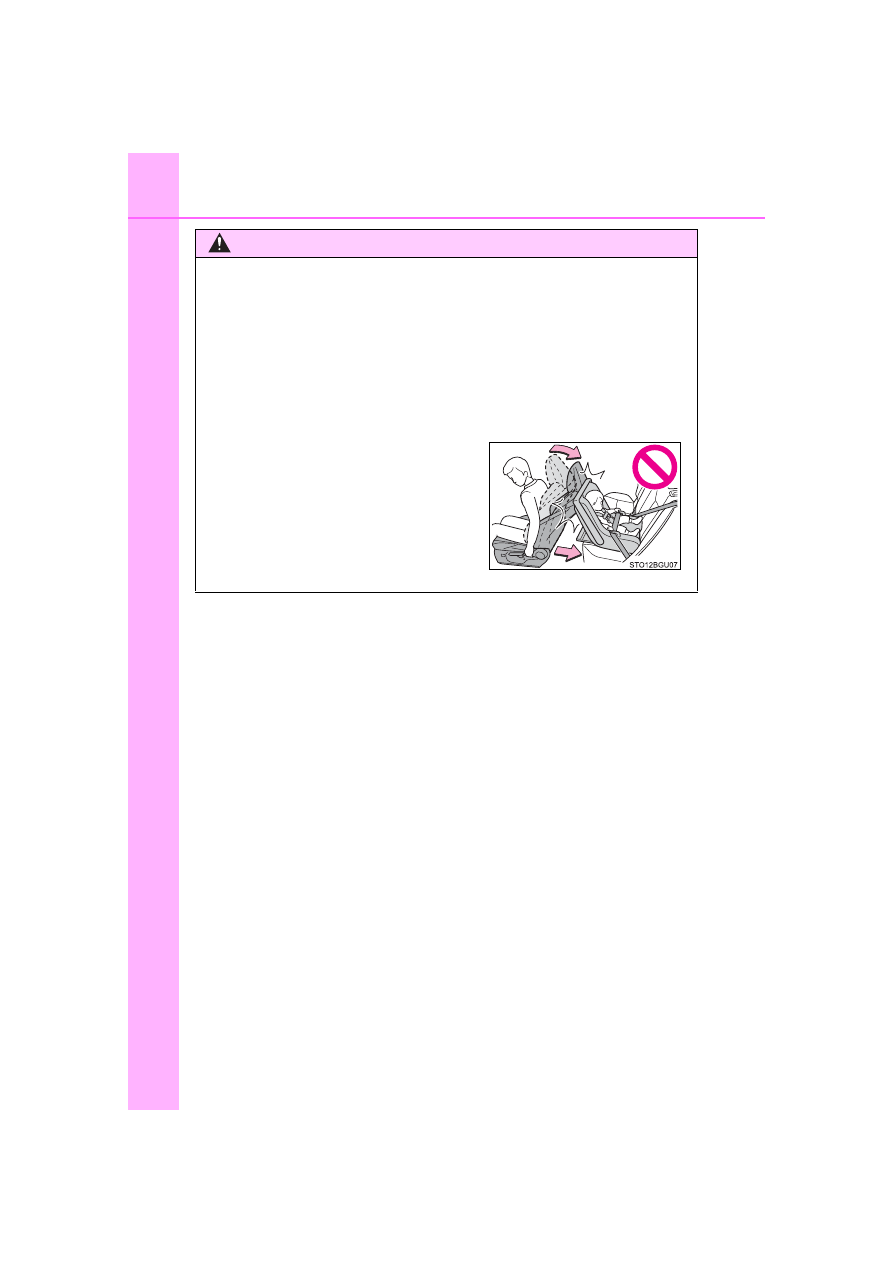

Holding a child in your or someone else’s arms is not a substitute for a
child restraint system. In an accident, the child can be crushed against the
windshield or between the holder and the interior of the vehicle.

■

Handling the child restraint system

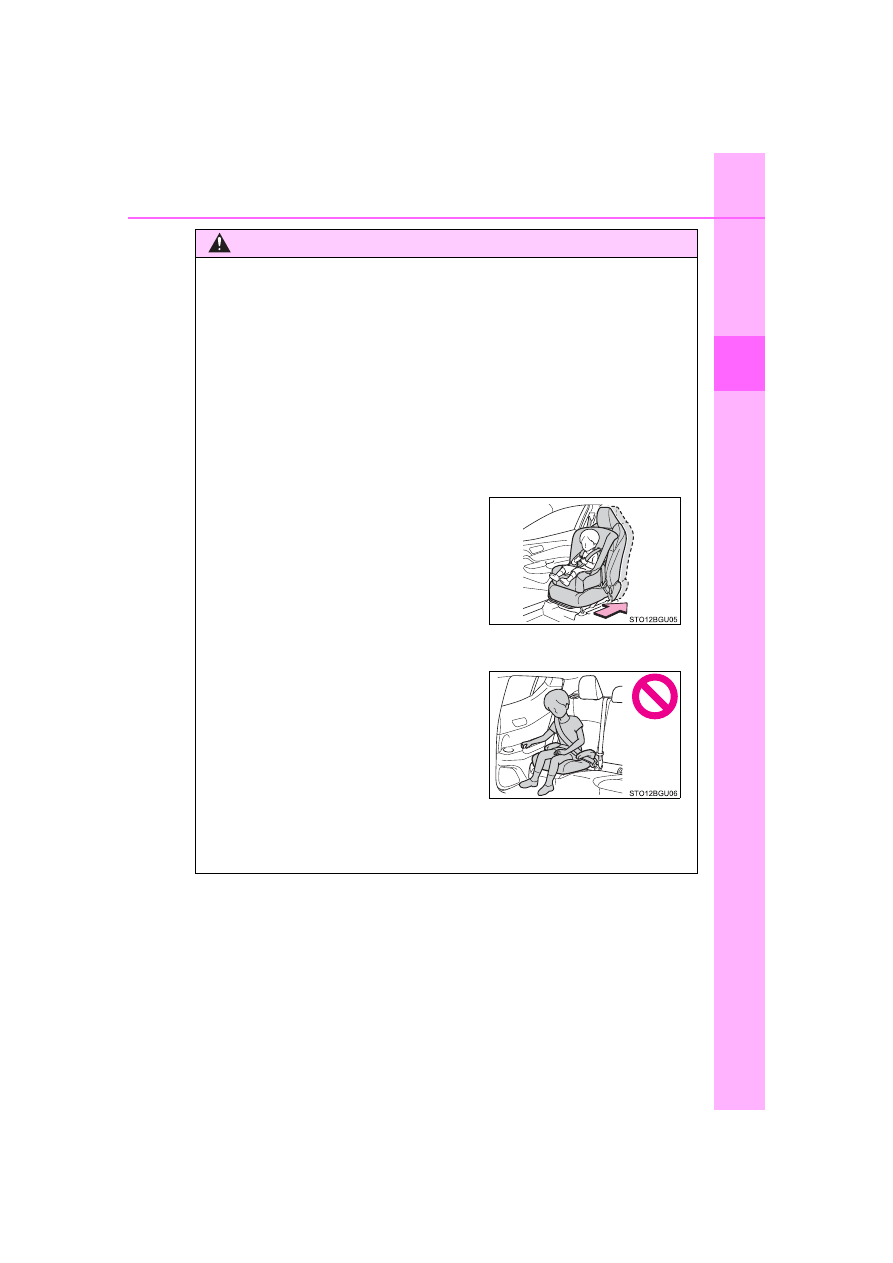

If the child restraint system is not properly fixed in place, the child or other
passengers may be seriously injured or even killed in the event of sudden
braking, sudden swerving, or an accident.

●

If the vehicle were to receive a strong impact from an accident, etc., it is
possible that the child restraint system has damage that is not readily visi-
ble. In such cases, do not reuse the restraint system.

●

Make sure you have complied with all installation instructions provided
with the child restraint system manufacturer and that the system is prop-
erly secured.

●

Keep the child restraint system properly secured on the seat even if it is
not in use. Do not store the child restraint system unsecured in the pas-
senger compartment.

●

If it is necessary to detach the child restraint system, remove it from the
vehicle or store it securely in the luggage compartment.

1-2. Child safety

Fo
r

safety and securi

■

Types of child restraint system installation methods
Confirm with the operation manual enclosed with the child restraint
system about the installation of the child restraint system.

Child restraint system

Installation method

Page

Seat belt
attachment

P. 61

Child
restraint
LATCH
anchors
attachment

P. 67

Anchor
brackets (for
top tether
strap) attach-
ment

P. 70

1-2. Child safety

■

When installing a child restraint system to a front passenger
seat
For the safety of a child, install a child restraint system to a rear
seat. When installing child restraint system to a front passenger
seat is unavoidable, adjust the seat as follows and install the child
restraint system.
● Raise the seatback as much

as possible

● Move the seat to the rear-

most position

● If the head restraint interferes

with the child restraint sys-
tem installation and the head
restraint can be removed,
remove the head restraint

When using a child restraint system

1-2. Child safety

Fo
r

safety and securi

WARNING

■

When using a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.

●

Never install a rear-facing child restraint system on the front passenger
seat even if the “AIR BAG OFF” indicator light is illuminated. In the event
of an accident, the force of the rapid inflation of the front passenger airbag
can cause death or serious injury to the child if the rear-facing child
restraint system is installed on the front passenger seat.

●

A forward-facing child restraint system may be installed on the front pas-
senger seat only when it is unavoidable. A child restraint system that
requires a top tether strap should not be used in the front passenger seat
since there is no top tether strap anchor for the front passenger seat.

If the head restraint interferes with the child restraint system installation
and the head restraint can be removed, remove the head restraint.

●

A forward-facing child restraint system
may be installed on the front passenger
seat only when it is unavoidable. When
installing a forward-facing child restraint
system on the front passenger seat,
move the seat as far back as possible,
even if the “AIR BAG OFF” indicator
light is illuminated.

●

Do not allow the child to lean his/her
head or any part of his/her body against
the door or the area of the seat, front or
rear pillars, or roof side rails from which
the SRS side airbags or SRS curtain
shield airbags deploy even if the child is
seated in the child restraint system. It is
dangerous if the SRS side airbags and
curtain shield airbags inflate, and the
impact could cause death or serious
injury to the child.

1-2. Child safety

WARNING

■

When using a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.

●

When a booster seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder.

●

Use child restraint system suitable to the age and size of the child and
install it to the rear seat.

●

If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach the
child restraint system to the right-hand
rear seat.

●

Adjust the front passenger seat so that
it does not interfere with the child
restraint system.

1-2. Child safety

Fo
r

safety and securi

A child restraint system for a small child or baby must itself be prop-
erly restrained on the seat with the lap portion of the lap/shoulder belt.

◆

Installing child restraint system using a seat belt (child
restraint lock function belt)

Install the child restraint system in accordance to the operation
manual enclosed with the child restraint system.

■

Rear-facing — Infant seat/convertible seat

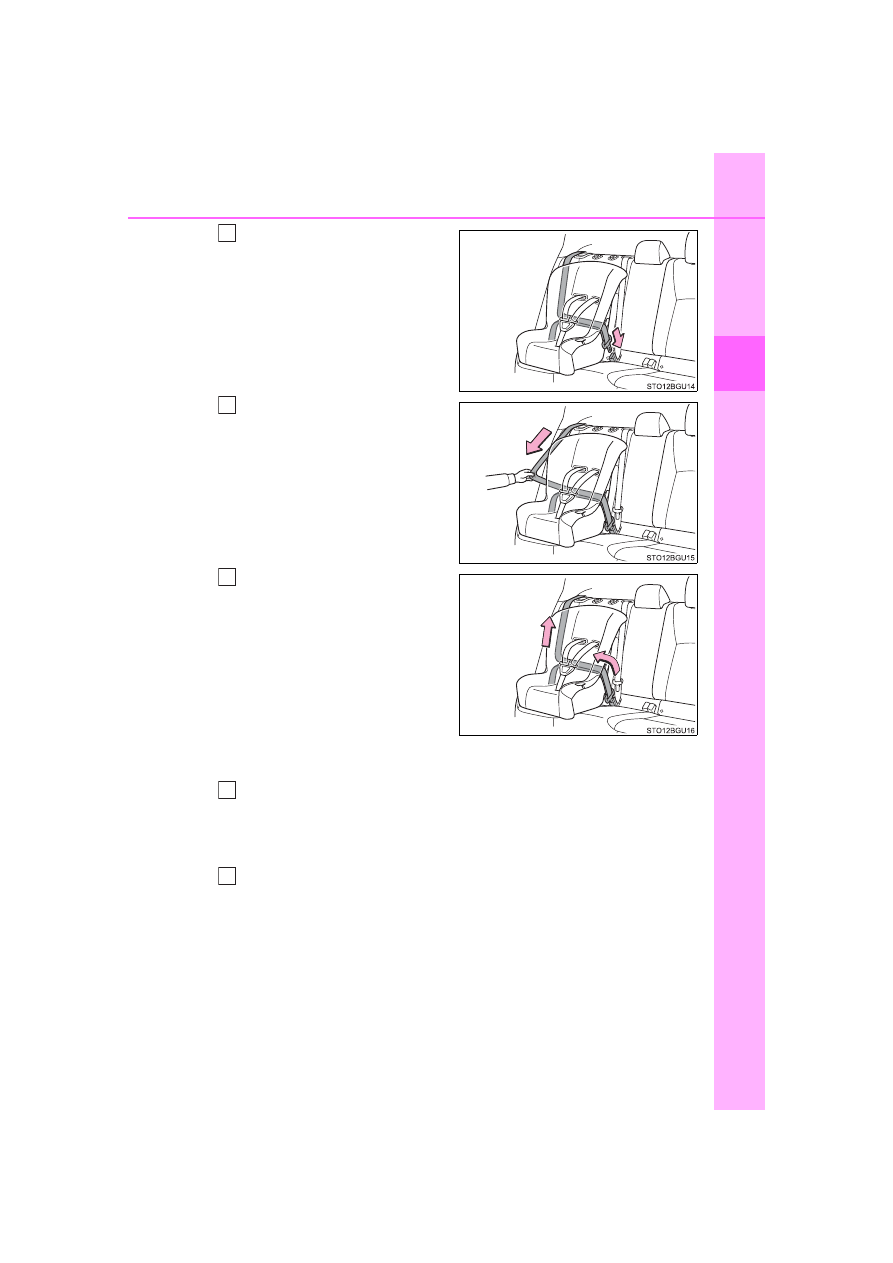

Place the child restraint sys-
tem on the rear seat facing
the rear of the vehicle.

Run the seat belt through the
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted.

Fully extend the shoulder belt
and allow it to retract to put it
in lock mode. In lock mode,
the belt cannot be extended.

Child restraint system fixed with a seat belt

1-2. Child safety

While pushing the child
restraint system down into
the rear seat, allow the
shoulder belt to retract until
the child restraint system is
securely in place.

After the shoulder belt has
retracted to a point where there
is no slack in the belt, pull the
belt to check that it cannot be
extended.

After installing the child restraint system, rock it back and forth to
ensure that it is installed securely. (

→P. 66)

■

Forward-facing — Convertible seat

If installing the child restraint system to the front passenger seat
is unavoidable, refer to P. 58 for front passenger seat adjustment.

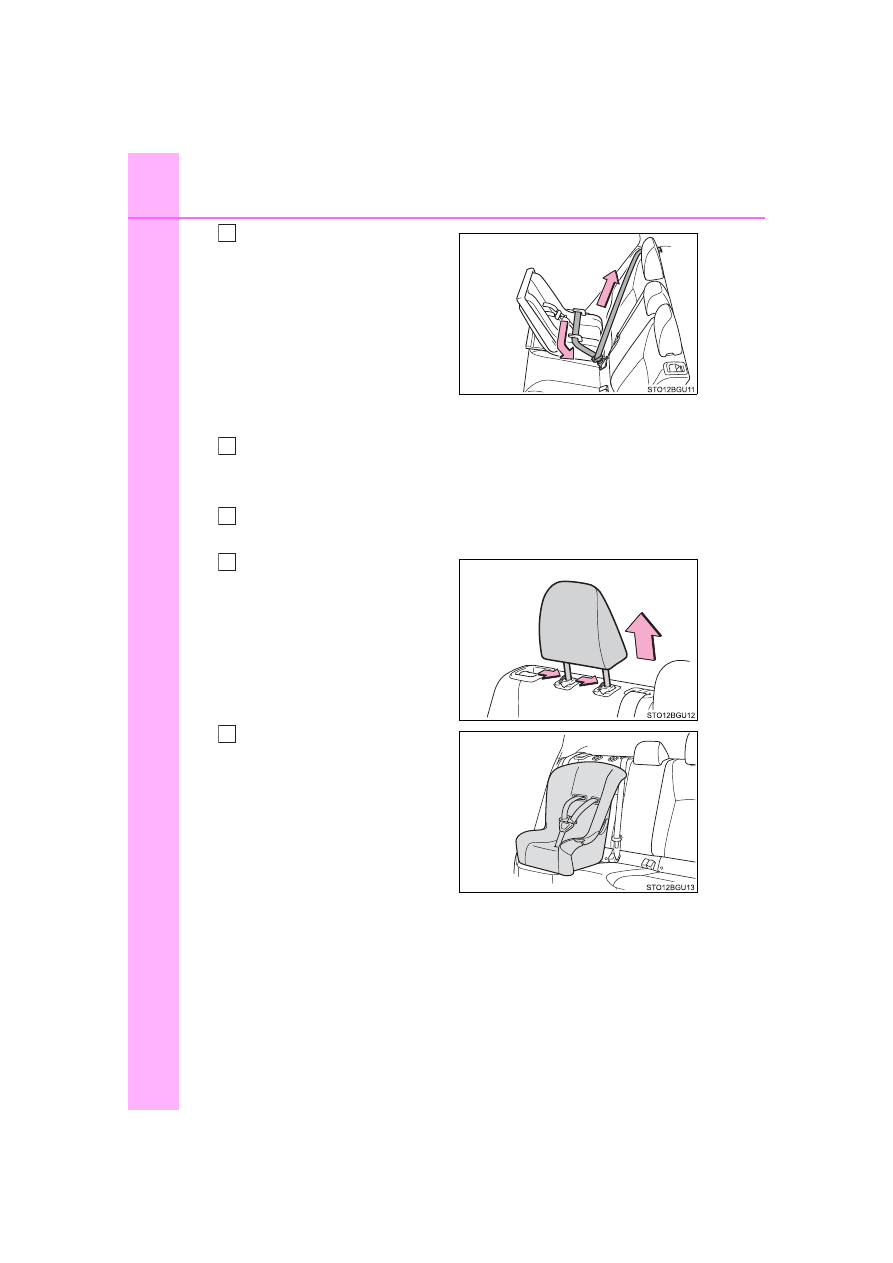

If the head restraint interferes
with the child restraint sys-
tem installation and the head
restraint can be removed,
remove the head restraint.
(

→P. 130)

Place the child restraint sys-
tem on the seat facing the
front of the vehicle.

1-2. Child safety

Fo
r

safety and securi

Run the seat belt through the
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted.

Fully extend the shoulder belt
and allow it to retract to put it
in lock mode. In lock mode,
the belt cannot be extended.

While pushing the child
restraint system into the rear
seat, allow the shoulder belt
to retract until the child
restraint system is securely
in place.

After the shoulder belt has
retracted to a point where there
is no slack in the belt, pull the
belt to check that it cannot be
extended.

If the child restraint has a top tether strap, follow the child
restraint manufacturer’s operation manual regarding the installa-
tion, using the top tether strap to latch onto the top tether strap
anchor. (

→P. 70)

After installing the child restraint system, rock it back and forth to
ensure that it is installed securely. (

→P. 66)

1-2. Child safety

■

Booster seat

If installing the child restraint system to the front passenger seat
is unavoidable, refer to P. 58 for front passenger seat adjustment.

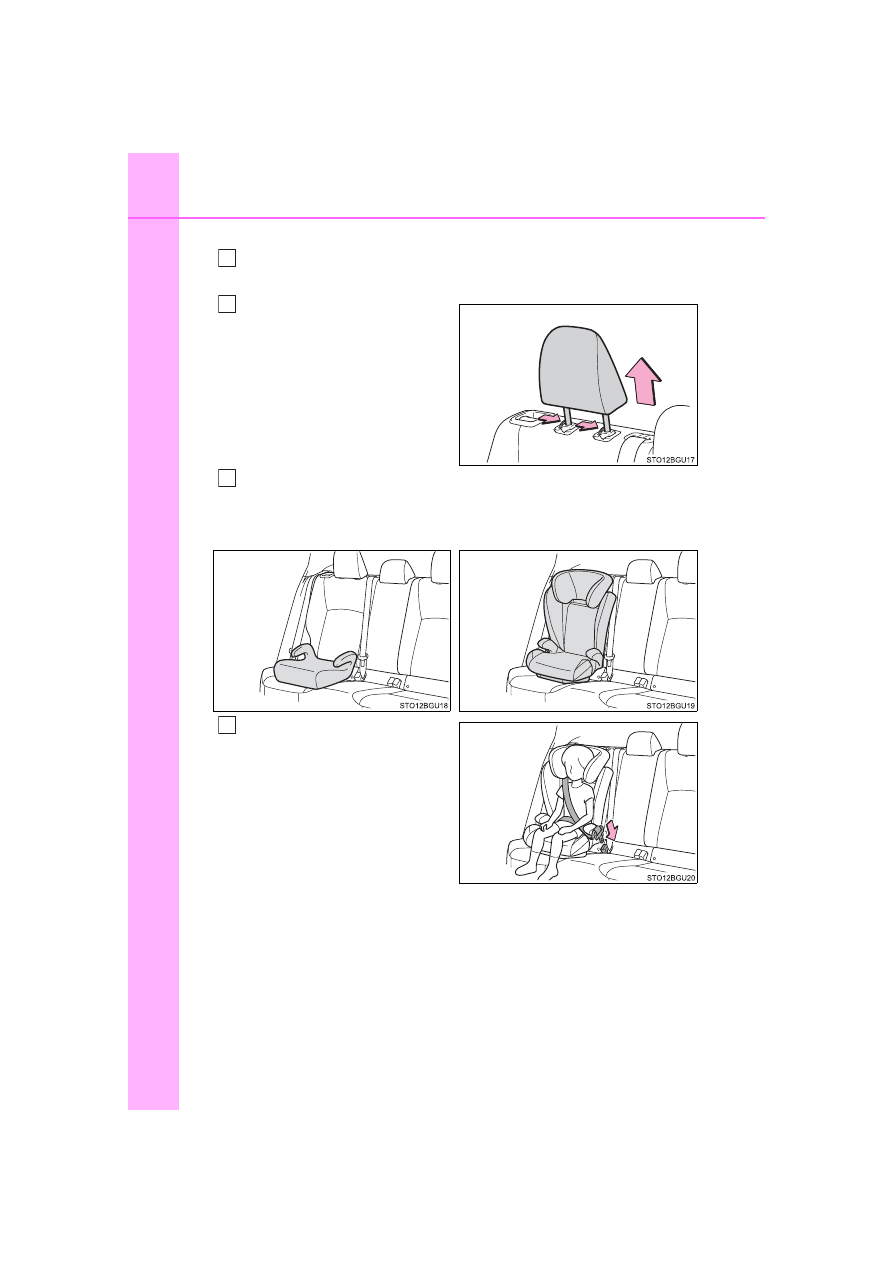

High back type: If the head
restraint interferes with your
child restraint system, and
the head restraint can be
removed, remove the head
restraint. (

→P. 130)

Place the child restraint system on the seat facing the front of the
vehicle.

Sit the child in the child
restraint system. Fit the seat
belt to the child restraint sys-
tem according to the manu-
facturer’s instructions and
insert the plate into the
buckle. Make sure that the
belt is not twisted.

Check that the shoulder belt is correctly positioned over the child’s
shoulder and that the lap belt is as low as possible. (

→P. 26)



Booster type



High back type

Toyota C-HR (2018 year). Instruction - part 4
