289

4-5. Using the driving support systems

Dr
ivi
n

WARNING

■

Replacing tires
Make sure that all tires are of the specified size, brand, tread pattern and
total load capacity. In addition, make sure that the tires are inflated to the
recommended tire inflation pressure level.

The ABS, TRAC and VSC systems will not function correctly if different tires
are installed on the vehicle.
Contact your Toyota dealer for further information when replacing tires or
wheels.

■

Handling of tires and the suspension
Using tires with any kind of problem or modifying the suspension will affect
the driving assist systems, and may cause a system to malfunction.

290

4-5. Using the driving support systems

The Blind Spot Monitor is a system that has 2 functions;
● The BSM (Blind Spot Monitor) function

Assists the driver in making a decision when changing lanes

● The RCTA (Rear Cross Traffic Alert) function

Assists the driver when backing up

These functions use same sensors.

BSM (Blind Spot Monitor)

∗

: If equipped

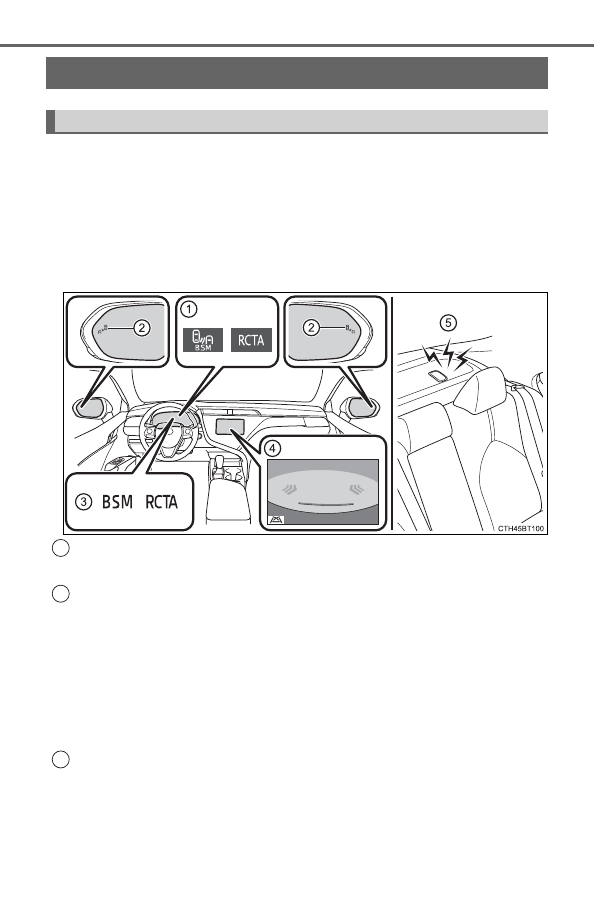

Summary of the Blind Spot Monitor

Multi-information display

Turning the BSM function/RCTA function on/off. (

→P. 291)

Outside rear view mirror indicators

BSM function:
When a vehicle is detected in the blind spot, the outside rear view mirror
indicator comes on while the turn signal lever is not operated and the out-
side rear view mirror indicator flashes while the turn signal lever is oper-
ated.

RCTA function:
When a vehicle approaching from the right or left rear of the vehicle is
detected, the outside rear view mirror indicators flash.

“BSM” indicator/“RCTA” indicator

When the BSM function/RCTA function is turned on, the indicator illumi-
nates.

291

4-5. Using the driving support systems

Dr
ivi
n



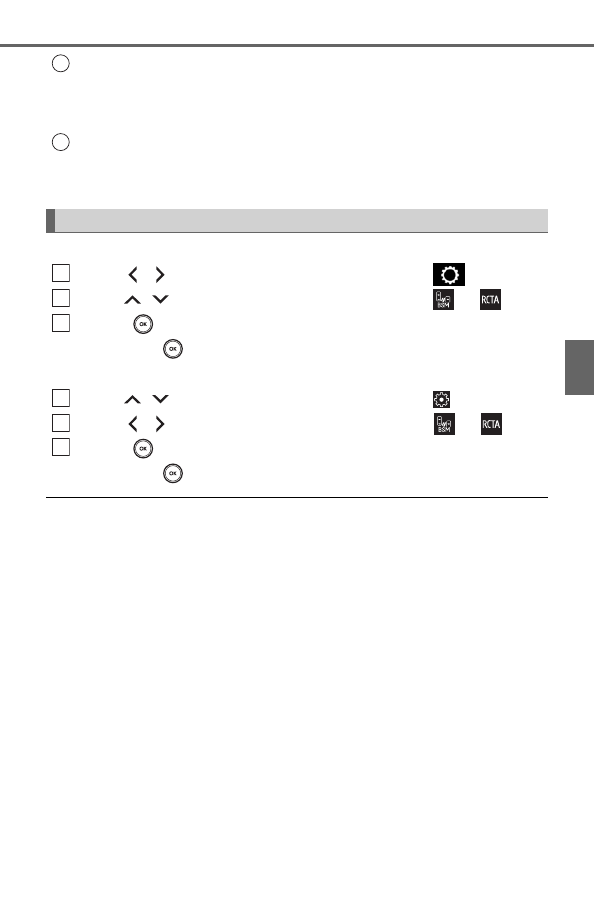

Vehicles with 4.2-inch multi-information display

Press

of the meter control switches, select

Press

of the meter control switches, select

Press

of the meter control switch.

Each time

is pressed, the function changes on/off.



Vehicles with 7-inch multi-information display

Press

of the meter control switches, select

Press

of the meter control switched, select

Press

of the meter control switch.

Each time

is pressed, the function changes on/off.

■

The outside rear view mirror indicators visibility
When under strong sunlight, the outside rear view mirror indicator may be dif-
ficult to see.

■

RCTA buzzer hearing
RCTA function may be difficult to hear over loud noises such as high audio
volume.

■

When there is a malfunction in the Blind Spot Monitor
If a system malfunction is detected due to any of the following reasons, a
warning message will be displayed:

●

There is a malfunction with the sensors

●

The sensors have become dirty

●

The outside temperature is extremely high or low

●

The sensor voltage has become abnormal

Audio system screen (RCTA function only)

If a vehicle approaching from the right or left at the rear of the vehicle is
detected, the RCTA icon (

→P. 296, 300) for the detected side will be dis-

played.

RCTA

buzzer (

RCTA

function only)

When a vehicle approaching from the right or left rear of the vehicle is
detected, a buzzer sounds from behind the rear seat.

Turning the BSM function/RCTA function on/off

1
2
3

292

4-5. Using the driving support systems

■

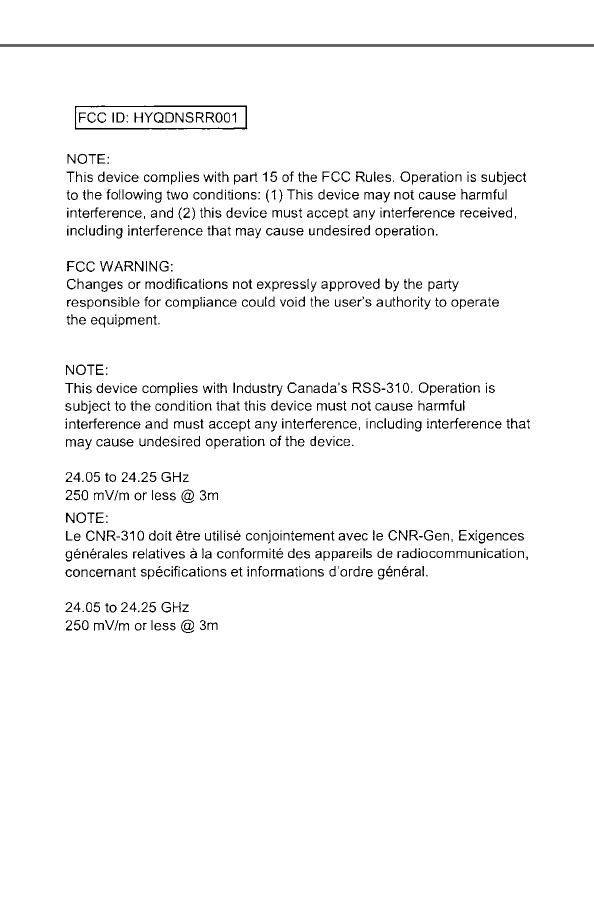

Certification for the Blind Spot Monitor



For vehicles sold in the U.S.A.



For vehicles sold in Canada

293

4-5. Using the driving support systems

Dr
ivi
n

The BSM function uses radar sensors to detect vehicles that are trav-
eling in an adjacent lane in the area that is usually not reflected in the
outside rear view mirror (the blind spot), and advises the driver of the
vehicles existence via the outside rear view mirror indicator.

WARNING

■

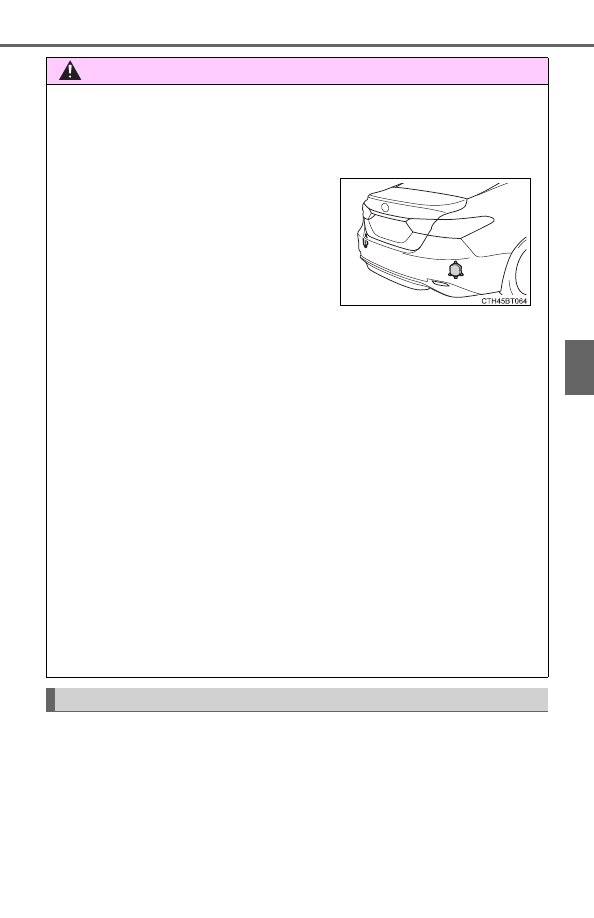

Handling the radar sensor
One Blind Spot Monitor sensor is installed inside the left and right side of
the vehicle rear bumper respectively. Observe the following to ensure the
Blind Spot Monitor can function correctly.

If the warning message does not disappear, have the vehicle inspected
by your Toyota dealer.

●

Do not subject a sensor or its surrounding area on the rear bumper to a
strong impact.
If a sensor is moved even slightly off position, the system may malfunction
and vehicles may not be detected correctly.
In the following situations, have your vehicle inspected by your Toyota
dealer.

• A sensor or its surrounding area is subject to a strong impact.
• If the surrounding area of a sensor is scratched or dented, or part of

them has become disconnected.

●

Do not disassemble the sensor.

●

Do not attach accessories or stickers to the sensor or surrounding area on
the bumper.

●

Do not modify the sensor or surrounding area on the bumper.

●

Do not paint the rear bumper any color other than an official Toyota color.

BSM function

●

Keep the sensor and its surrounding
area on the bumper clean at all times.
If a sensor or its surrounding area on
the rear bumper is dirty or covered with
snow, the Blind Spot Monitor may not
operate and a warning message (

→P.

291) will be displayed.
In this situation, clear off the dirt or
snow and drive the vehicle with the
operation conditions of the BSM func-
tion (

→P. 294) satisfied for approxi-

mately 10 minutes.

294

4-5. Using the driving support systems

The areas that vehicles can be detected in are outlined below.

The range of the detection area
extends to:

Approximately 11.5 ft. (3.5 m)
from the side of the vehicle

The first 1.6 ft. (0.5 m) from the
side of the vehicle is not in the
detection area

Approximately 9.8 ft. (3 m) from
the rear bumper

Approximately 3.3 ft. (1 m) for-
ward of the rear bumper

■

The BSM function is operational when

●

The BSM function is turned on

●

Vehicle speed is greater than approximately 10 mph (16 km/h).

■

The BSM function will detect a vehicle when

●

A vehicle in an adjacent lane overtakes your vehicle.

●

Another vehicle enters the detection area when it changes lanes.

■

Conditions under which the BSM function will not detect a vehicle
The BSM function is not designed to detect the following types of vehicles
and/or objects:

●

Small motorcycles, bicycles, pedestrians, etc.

●

Vehicles traveling in the opposite direction

BSM function detection areas

WARNING

■

Cautions regarding the use of the system
The driver is solely responsible for safe driving. Always drive safely, taking
care to observe your surroundings.

The BSM function is a supplementary function which alerts the driver that a
vehicle is present in the blind spot. Do not overly rely on the BSM function.
The function cannot judge if it is safe to change lanes, therefore over reli-
ance could cause an accident resulting in death or serious injury.

According to conditions, the system may not function correctly. Therefore
the driver’s own visual confirmation of safety is necessary.

295

4-5. Using the driving support systems

Dr
ivi
n

●

Guardrails, walls, signs, parked vehicles and similar stationary objects

●

Following vehicles that are in the same lane

●

Vehicles driving 2 lanes across from your vehicle

: Depending on the conditions, detection of a vehicle and/or object may

occur.

■

Conditions under which the BSM function may not function correctly

●

The BSM function may not detect vehicles correctly in the following condi-
tions:

• When the sensor is misaligned due to a strong impact to the sensor or its

surrounding area

• During bad weather such as heavy rain, fog, snow, etc.
• When ice or mud, etc., is attached to the rear bumper
• When driving on a road surface that is wet due to rain, standing water,

snow, etc.

• When there is a significant difference in speed between your vehicle and

the vehicle that enters the detection area

• When a vehicle is in the detection area from a stop and remains in the

detection area as your vehicle accelerates

• When driving up or down consecutive steep inclines, such as hills, a dip

in the road, etc.

• When driving on roads with sharp bends, consecutive curves, or uneven

surfaces

• When multiple vehicles approach with only a small gap between each

vehicle

• When vehicle lanes are wide, and the vehicle in the next lane is too far

away from your vehicle

• When the vehicle that enters the detection area is traveling at about the

same speed as your vehicle

• When there is a significant difference in height between your vehicle and

the vehicle that enters the detection area

• Directly after the BSM function is turned on

●

Instances of the BSM function unnecessarily detecting a vehicle and/or
object may increase under the following conditions:

• When the sensor is misaligned due to a strong impact to the sensor or its

surrounding area

• When there is only a short distance between your vehicle and a guardrail,

wall, etc.

• When there is only a short distance between your vehicle and a following

vehicle

• When vehicle lanes are narrow and a vehicle driving 2 lanes across from

your vehicle enters the detection area

• When items such as a bicycle carrier are installed on the rear of the vehi-

cle

296

4-5. Using the driving support systems

The RCTA functions when your vehicle is in reverse. It can detect
other vehicles approaching from the right or left rear of the vehicle. It
uses radar sensors to alert the driver of the other vehicle’s existence
through flashing the outside rear view mirror indicators and sounding
a buzzer.

■

RCTA icon display (if equipped)

When a vehicle approaching from the right or left at the rear of the
vehicle is detected, the following will be displayed on the audio sys-
tem screen.

: The RCTA function is malfunctioning (

→P. 291)

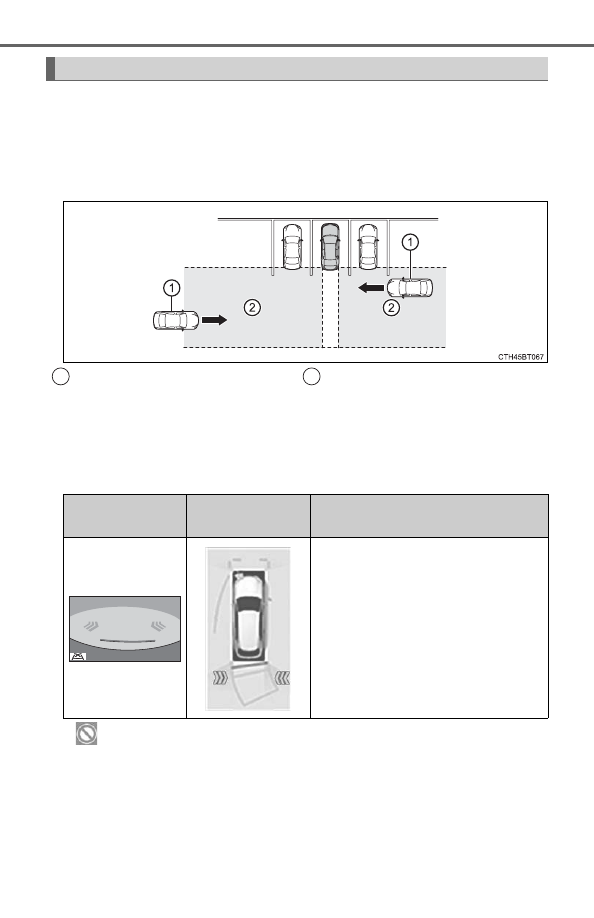

RCTA function

Approaching vehicles

Detection areas

Toyota parking

assist monitor

Panoramic view

monitor

Content

A vehicle is approaching from the
left or right at the rear of the vehicle

297

4-5. Using the driving support systems

Dr
ivi
n

WARNING

■

Cautions regarding the use of the system
The driver is solely responsible for safe driving. Always drive safely, taking
care to observe your surroundings.

The RCTA function is only an assist and is not a replacement for careful
driving. Driver must be careful when backing up, even when using RCTA
function. The driver’s own visual confirmation of behind you and your vehi-
cle is necessary and be sure there are no pedestrians, other vehicles, etc.,
before backing up. Failure to do so could cause death or serious injury.

According to conditions, the system may not function correctly. Therefore
the driver’s own visual confirmation of safety is necessary.

298

4-5. Using the driving support systems

The areas that vehicles can be detected in are outlined below.

To give the driver a more consistent time to react, the buzzer can alert
for faster vehicles from farther away.

Example:

■

The RCTA function is operational when

●

The RCTA function is turned on.

●

The shift lever is in R.

●

Vehicle speed is less than approximately 5 mph (8 km/h).

●

Approaching vehicle speed is between approximately 5 mph (8 km/h) and
18 mph (28 km/h).

■

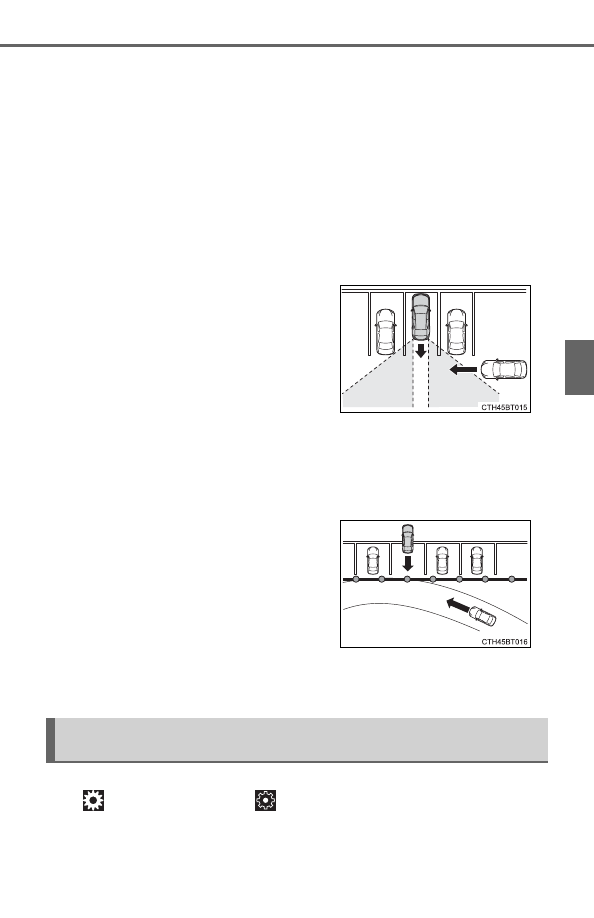

Conditions under which the RCTA function will not detect a vehicle
The RCTA function is not designed to detect the following types of vehicles
and/or objects:

●

Small motorcycles, bicycles, pedestrians, etc.

●

Vehicles approaching from directly behind

●

Guardrails, walls, signs, parked vehicles and similar stationary objects

●

Vehicles moving away from your vehicle

●

Vehicles approaching from the parking spaces next to your vehicle

●

Vehicles backing up in the parking space next to your vehicle

: Depending on the conditions, detection of a vehicle and/or object may

occur.

RCTA function detection areas

Approaching vehicle

Speed

Approximate
alert distance

Fast

18 mph (28 km/h)

65 ft. (20 m)

Slow

5 mph (8 km/h)

18 ft. (5.5 m)

299

4-5. Using the driving support systems

Dr
ivi
n

■

Conditions under which the RCTA function may not function correctly

●

The RCTA function may not detect vehicles correctly in the following condi-
tions:

• When the sensor is misaligned due to a strong impact to the sensor or its

surrounding area

• When ice or mud etc. is attached to the rear bumper
• During bad weather such as heavy rain, fog, snow, etc.
• When multiple vehicles approach continuously
• Shallow angle parking
• When a vehicle is approaching at high speed
• When parking on a steep incline, such as hills, a dip in the road, etc.
• Directly after the RCTA function is turned on
• Directly after the hybrid system is started with the RCTA function on.

• When items such as a bicycle carrier are installed on the rear of the vehi-

cle

●

Instances of the RCTA function unnecessarily detecting a vehicle and/or
object may increase in the following situations:

• When a vehicle passes by the side of your vehicle

• When the distance between your vehicle and metal objects, such as a

guardrail, wall, sign, or parked vehicle, which may reflect electrical waves
toward the rear of the vehicle, is short

The brightness for outside rear view mirror indicator can be changed
on

(4.2-inch display) or

(7-inch display) (

→P. 107, 1 23) of the

multi-information display.

• Vehicles that the sensors cannot

detect because of obstacles

• When the parking space faces a

street and vehicles are being driven
on the street

Changing settings of the brightness for outside rear view mirror
indicator

300

4-5. Using the driving support systems

Pedestrian detection icon

Displayed automatically when a pedestrian is detected.

Mute switch

Select to mute the buzzer. The buzzer will be re-enabled when the shift
lever is shifted to a position other than R.

The buzzer volume of this function changes with the RCTA buzzer volume.
(

→P. 107, 121)

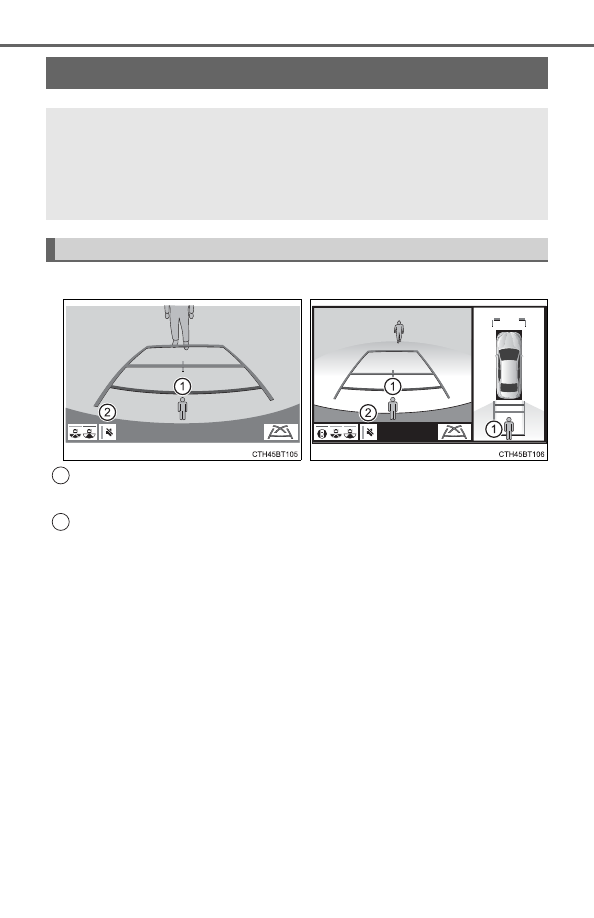

Rear Camera Detection Function

∗

: If equipped

When the vehicle is backing up, the rear camera detection func-
tion can detect pedestrians in the detection area behind the
vehicle. If a pedestrian is detected, a buzzer will sound and an
icon on the audio system screen will be displayed to inform the
driver of the pedestrian.

Display



Toyota parking assist monitor



Panoramic view monitor

301

4-5. Using the driving support systems

Dr
ivi
n

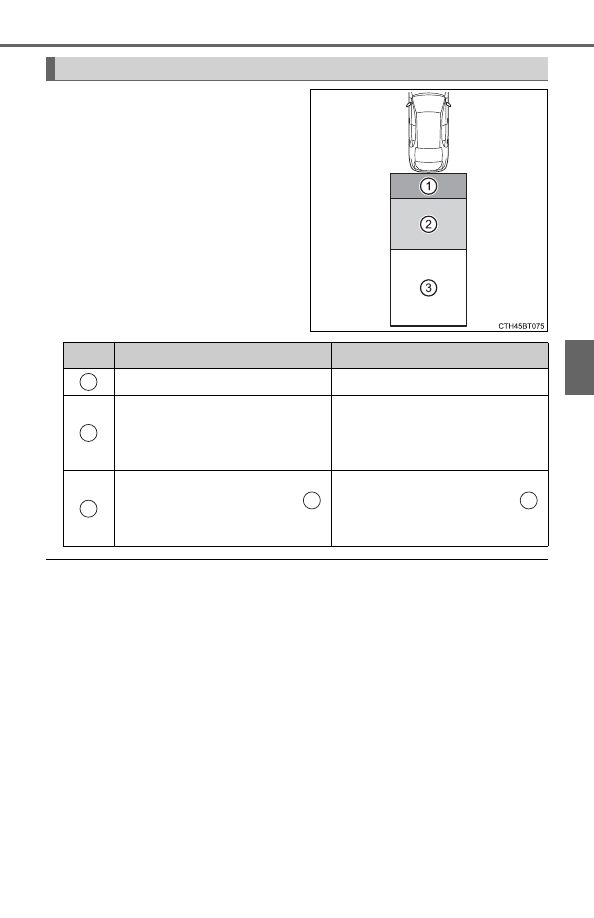

If the rear camera detection func-
tion detects a pedestrian in the
detection area, the buzzer and
icon will operate as shown in the
following table:

■

The rear camera detection function is operational when
The rear camera detection function is operational when the following condi-
tions are met:

●

The power switch is in the ON mode.

●

The shift lever is in R.

■

If the rear camera detection function is malfunctioning
If a malfunction of the rear camera detection function is detected, one of the
following messages will be displayed on the audio system screen. Have the
vehicle inspected by your Toyota dealer.

●

“RCD malfunction.”

●

“Visit your dealer.”

●

“RCD unavailable.”

When a pedestrian is detected

Area

Buzzer

Icon

Sounds repeatedly

Blinks 3 times and then stays on

When the vehicle is stationary:
Sounds 3 times
When the vehicle is backing up:
Sounds repeatedly

When the vehicle is stationary:
Blinks 3 times
When the vehicle is backing up:
Blinks 3 times and then stays on

When it is determined that a
pedestrian will enter area
within a few seconds: Sounds
repeatedly

When it is determined that a
pedestrian will enter area
within a few seconds: Blinks 3
times and then stays on

302

4-5. Using the driving support systems

■

Situations in which the system may not operate properly

●

Some pedestrians, such as the following, may not be detected by the Rear
Camera Detection function, preventing the function from operating properly:

• Pedestrians who are squatting
• Pedestrians who are lying down
• Pedestrians who are running
• Pedestrians who suddenly enter the detection area
• Pedestrians riding a bicycle, skateboard, or other light vehicle
• Pedestrians wearing unusual clothing, such as a costume
• Pedestrians whose body is partially hidden by a cart or other object
• Pedestrians which are obscured by darkness, such as at night

●

In some situations, such as the following, pedestrians may not be detected
by the Rear Camera Detection function, preventing the function from operat-
ing properly:

• When backing up in inclement weather (rain, snow, fog, etc.)
• When the rear camera is obscured (dirt, snow, ice, etc. are attached) or

scratched

• When a very bright light, such as the sun, or the headlights of another

vehicle, shines directly into the rear camera

• When backing up in a place where the surrounding brightness changes

suddenly, such as at the entrance or exit of a garage or underground
parking lot

●

In some situations, such as the following, the Rear Camera Detection func-
tion may operate even though there are no pedestrians in the detection
area.

• When a three dimensional object, such as a pole, traffic cone, fence, or

parked vehicle, is detected

• When a moving object, such as a car or motorcycle is detected
• When backing up toward moving objects such as flags or puddles, or air-

borne matter, such as smoke, steam, rain, or snow

• When there is a pattern on the road, due to the road being made of cob-

blestone or gravel or having tram rails, traces of repair, white lines,
pedestrian crossings or fallen leaves on the surface

• When backing up on a metal cover (grating), such as those used for

drainage ditches

• When backing up toward the roadside or a bump in the road
• When an object is reflected in a puddle or on a wet road surface
• When there are shadows on the road
• When backing up over a bump in the road
• If the vehicle is significantly tilted, such as when carrying a heavy load
• When backing up toward an incline/decline
• If the suspension has been modified or tires of a size other than specified

are installed

• If the rear of the vehicle is raised or lowered due to the carried load
• If an electronic component, such as a backlit license plate (especially flu-

orescent type), is installed near the rear camera

• If a bumper protector, such as an additional trim strip, is installed to the

rear bumper

303

4-5. Using the driving support systems

Dr
ivi
n

• If the orientation of the rear camera has been changed due to a collision

or other impact, or removal and installation

• If a towing eyelet is installed to the rear of the vehicle
• When the rear camera is obscured (dirt, snow, ice, etc. are attached) or

scratched

• When water is flowing over the rear camera lens
• If there is a flashing light in the detection area, such as the emergency

flashers of another vehicle

■

Situations in which the Rear Camera Detection function may be difficult
to notice

●

If buzzer may be difficult to hear if the surrounding area is noisy, the volume
of the audio system volume is high, the air conditioning system is being
used, etc.

●

If the temperature in the cabin is extremely high or low, the audio system
screen may not operate correctly.

304

4-5. Using the driving support systems

Front corner sensors

Front center sensors

Rear corner sensors

Rear center sensors

Press

of the meter con-

trol switches, select

Press

of the meter con-

trol switches, select

Press

of the meter con-

trol switch.

Each time

is pressed, the function changes on/off.

When on, the indicator light comes on to inform the driver that the sys-
tem is operational.

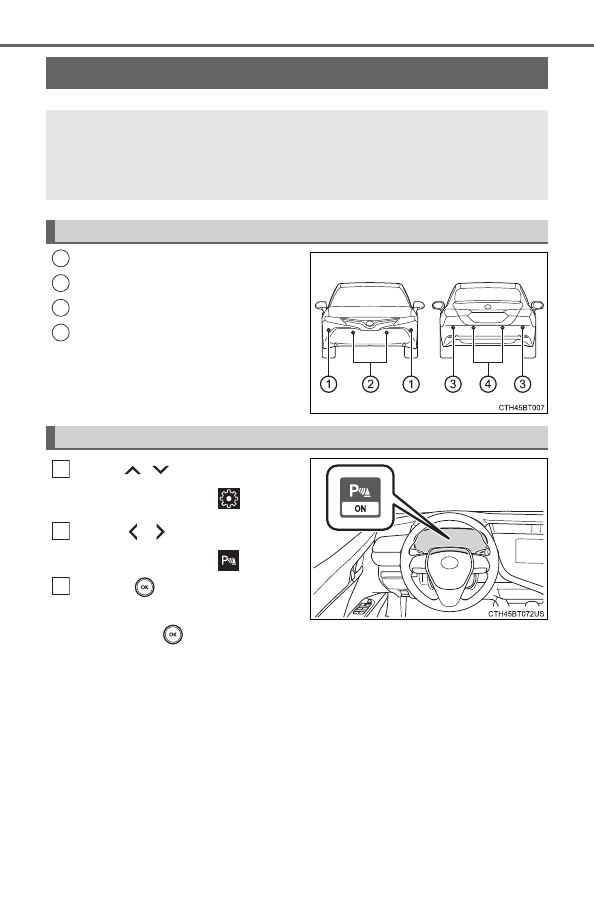

Intuitive parking assist

∗

: If equipped

The distance from your vehicle to nearby obstacles when paral-
lel parking or maneuvering into a garage is measured by the
sensors and communicated via the displays and a buzzer.
Always check the surrounding area when using this system.

Types of sensors

1
2
3
4

Turning the intuitive parking assist on/off

Content .. 17 18 19 20 ..
