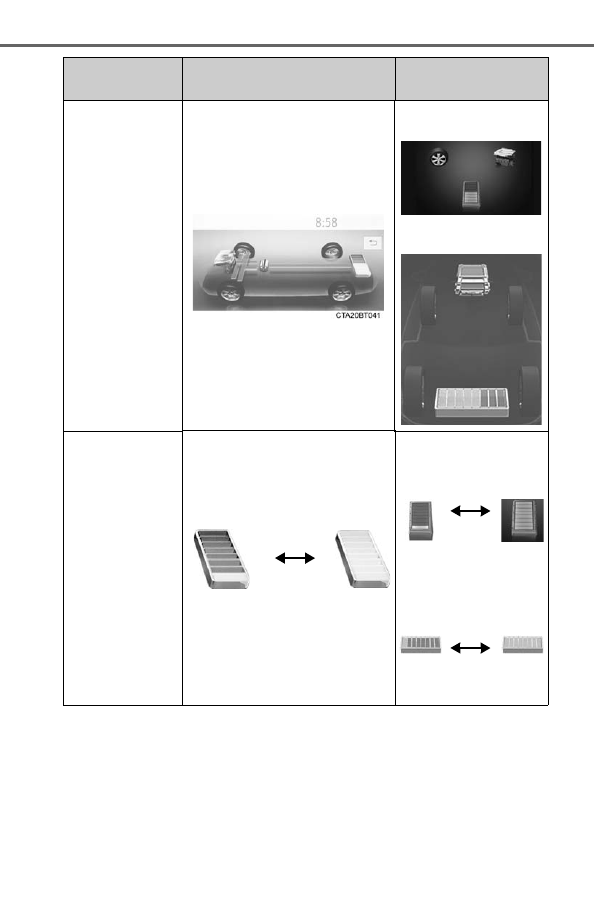

2. Instrument cluster

Instrument cluster

Select

on the multi-information display (

→P. 119) and then

◆

Enabling/disabling the head-up display

Press

to enable/disable the head-up display.

◆

Changing the head-up display settings

Press and hold

to change the following settings:

■

Hybrid System Indicator/Tachometer

Select to display Hybrid System Indicator/tachometer/no content.

■

Display brightness/position

Select to adjust the brightness and position of the head-up display.

■

Display content

Select to enable/disable the following items:

• Route guidance to destination (if equipped)
• Driving assist system status
• Compass (if equipped)
• Audio system operation status

■

Display angle

Select to adjust the angle of the head-up display.

Using the head-up display

130

2. Instrument cluster

◆

Driving assist system status display

Displays the operational status of the following systems:

• Dynamic radar cruise control with full-speed range (

→P. 270)

• LDA (Lane Departure Alert with steering control) (

→P. 260)

• Intuitive parking assist (if equipped) (

→P. 304)

◆

Navigation system-linked display area (if equipped)

Displays the following items, which are linked to the navigation sys-
tem:

■

Street name

When the navigation system is performing route guidance, the
name of the next street will be displayed on the top of the display
area.

■

Route guidance to destination

Displayed when the navigation system is performing route guid-
ance. When approaching an intersection, an arrow will be displayed
to indicate the suggested direction of travel.

■

Compass

Displays the direction of travel.

Driving assist system status/navigation system-linked display
area (if equipped)

131

2. Instrument cluster

Instrument cluster

■

Hybrid System Indicator

Charge area

Hybrid Eco area

Eco area

Power area

Displayed content is the same
as that displayed on the meter
(Hybrid System Indicator). For
details, refer to P. 98.

■

Tachometer

Displays the engine speed in revolutions per minute.

Hybrid System Indicator/Tachometer

1
2
3
4

132

2. Instrument cluster

Displays the following items in the appropriate situation:

■

Warning/Message
● Alert from the LDA (Lane Departure Alert with steering control)
● Dynamic radar cruise control with full-speed range
●

message

Displayed when a suggestion/advice pop-up display is displayed on the
multi-information display. (

→P. 125)

●

message

Displayed when a warning message is displayed on the multi-informa-
tion display. (

→P. 490)

● Outside temperature

Displayed in the following situations:

• When the power switch is turned to ON mode
• When the low outside temperature indicator is flashing

Displayed content is the same as that displayed on the multi-information
display. For details, refer to the explanation of the outside temperature
display on the multi-information display. (

→P. 96)

■

Hands-free system status

Displayed when the hands-free system is operated.

■

Audio system operation status

Displayed when the audio system is operated.

Information display area

133

2. Instrument cluster

Instrument cluster

■

Head-up display
The head-up display may seem dark or hard to see when viewed through
sunglasses, especially polarized sunglasses.
Adjust the brightness of the head-up display or remove your sunglasses.

■

Display brightness

The brightness of the head-up display can be adjusted on

of the multi-

information display. Also, it is automatically adjusted according to the ambient
brightness.

■

Enabling/disabling of the head-up display
If the head-up display is disabled, it will remain disabled when the power
switch is turned off then back to ON mode.

■

Street name display (vehicles with a navigation system)
Only street names which are included in the map data will be displayed.

WARNING

■

Before using the head-up display

●

Check that the position and brightness of the head-up display image does
not interfere with safe driving. Incorrect adjustment of the image’s position
or brightness may obstruct the driver’s view and lead to an accident,
resulting in death or serious injury.

●

Do not continuously look at the head-up display while driving as you may
fail to see pedestrians, objects on the road, etc. ahead of the vehicle.

■

Caution for changing settings of the head-up display
As the hybrid system needs to be running while changing the settings of the
head-up display, ensure that the vehicle is parked in a place with adequate
ventilation. In a closed area such as a garage, exhaust gases including
harmful carbon monoxide (CO) may collect and enter the vehicle. This may
lead to death or a serious health hazard.

134

2. Instrument cluster

NOTICE

■

To prevent damage to components

■

When changing the settings of the head-up display
To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while the changing the settings of the head-up display.

●

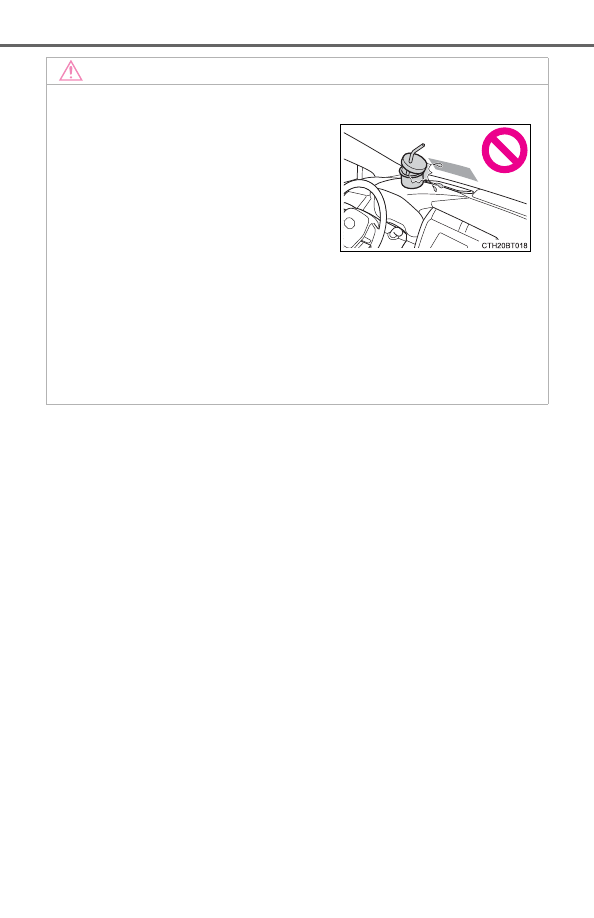

Do not place any drinks near the head-
up display projector. If the projector gets
wet, electrical malfunctions may result.

●

Do not place anything on or put stickers
onto the head-up display projector.
Doing so could interrupt head-up dis-
play indications.

●

Do not touch the inside of the head-up
display projector or thrust sharp edges
or the like into the projector.
Doing so could cause mechanical mal-
functions.

135

2. Instrument cluster

Instrument cluster

Audio system screen

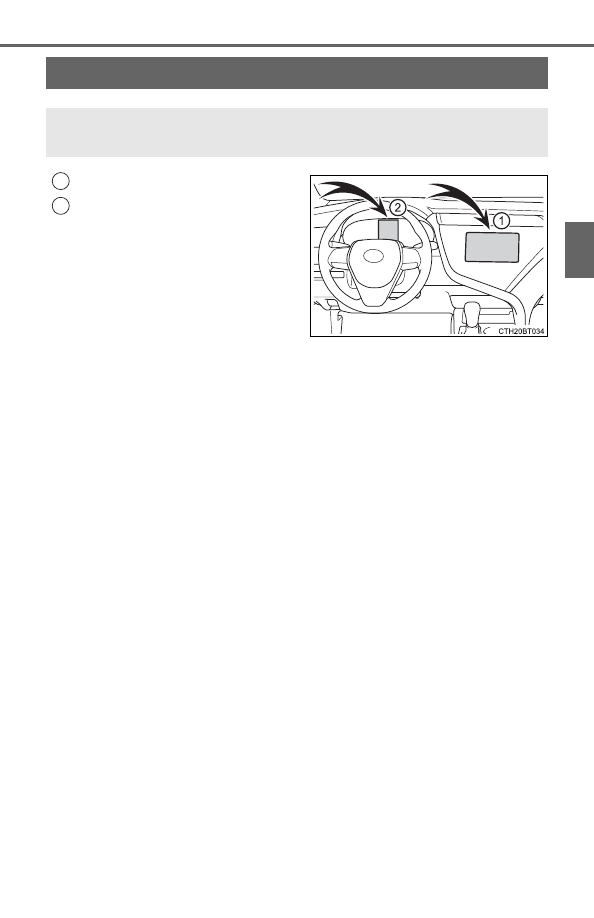

Multi-information display

Energy monitor/consumption screen

You can view the status of your hybrid system on the multi-infor-
mation display, the audio system screen.

1
2

136

2. Instrument cluster



Entune Audio or Entune Audio Plus (vehicles without Data Commu-
nication Module)

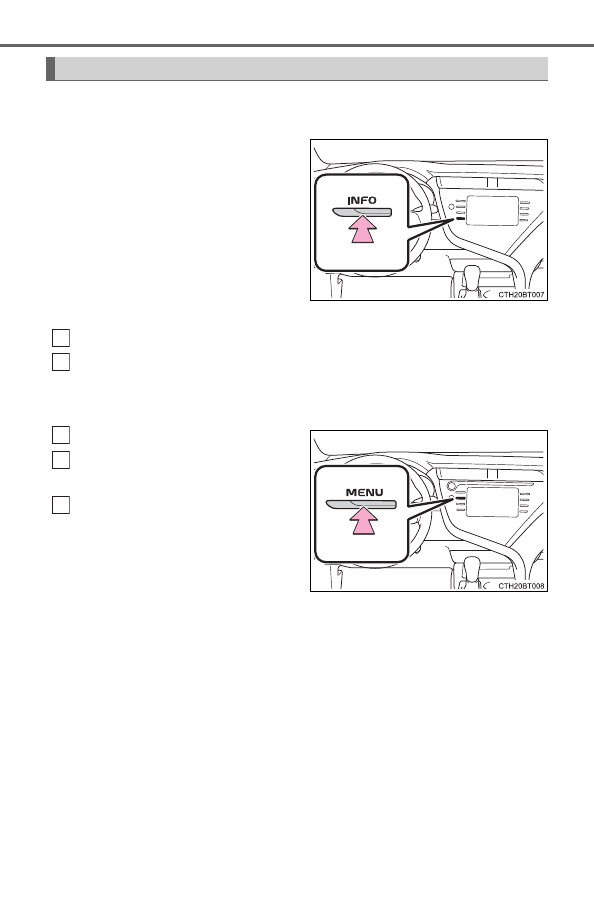

Press the “INFO” button.

If the “Trip Information” or “History”
screen is displayed, select
“Energy”.



Entune Audio Plus (vehicles with Data Communication Module)

Press the “INFO” button.

Select “ECO” on the “Information” screen.

If the “Trip Information” or “History” screen is displayed, select “Energy”.



Entune Premium Audio

Press the “MENU” button.

Select “Info” on the “Menu”
screen.

Select “ECO” on the “Informa-
tion” screen.

If the “Trip Information” or “History”
screen is displayed, select
“Energy”.

Energy monitor

1
2

137

2. Instrument cluster

Instrument cluster

■

Multi-information display

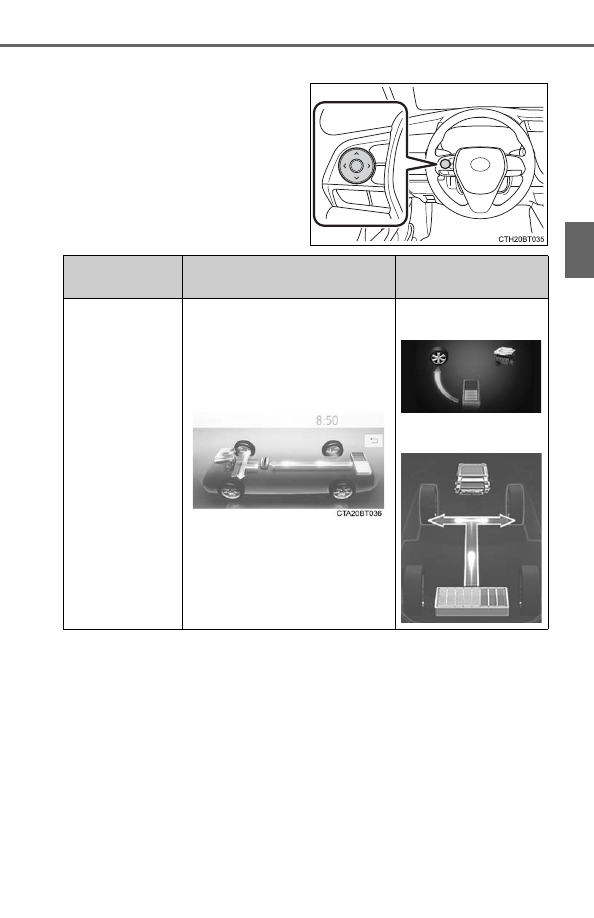

Press the meter control
switches on the steering wheel
several times to select the
energy monitor display.

Audio system screen

Multi-information

display

When the vehi-
cle is powered
by the electric
motor (traction
motor)

Vehicles with 4.2-inch
display:

Vehicles with 7-inch
display:

138

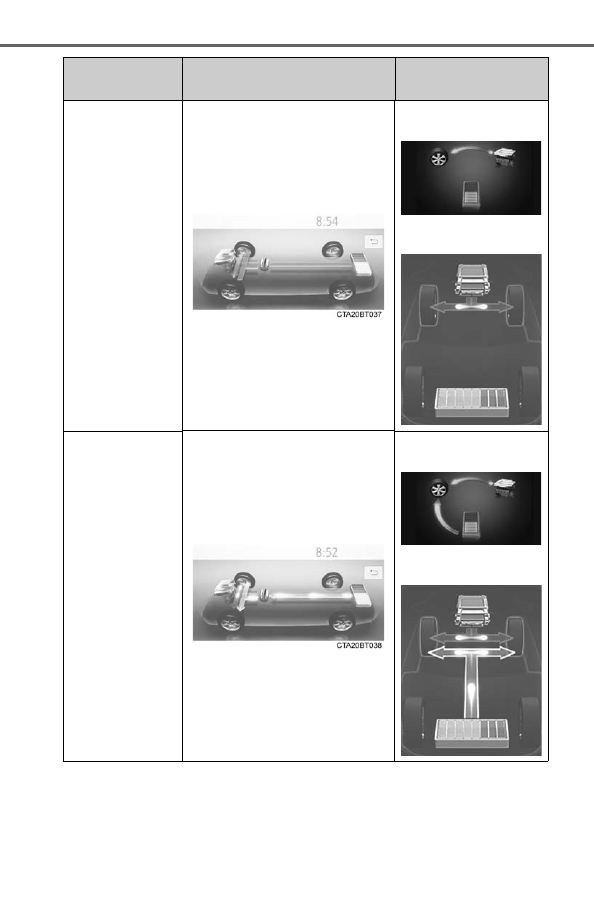

2. Instrument cluster

When the vehi-
cle is powered
by the gasoline
engine

Vehicles with 4.2-inch
display:

Vehicles with 7-inch
display:

When the vehi-
cle is powered
by both the gas-
oline engine and
the electric
motor (traction
motor)

Vehicles with 4.2-inch
display:

Vehicles with 7-inch
display:

Audio system screen

Multi-information

display

139

2. Instrument cluster

Instrument cluster

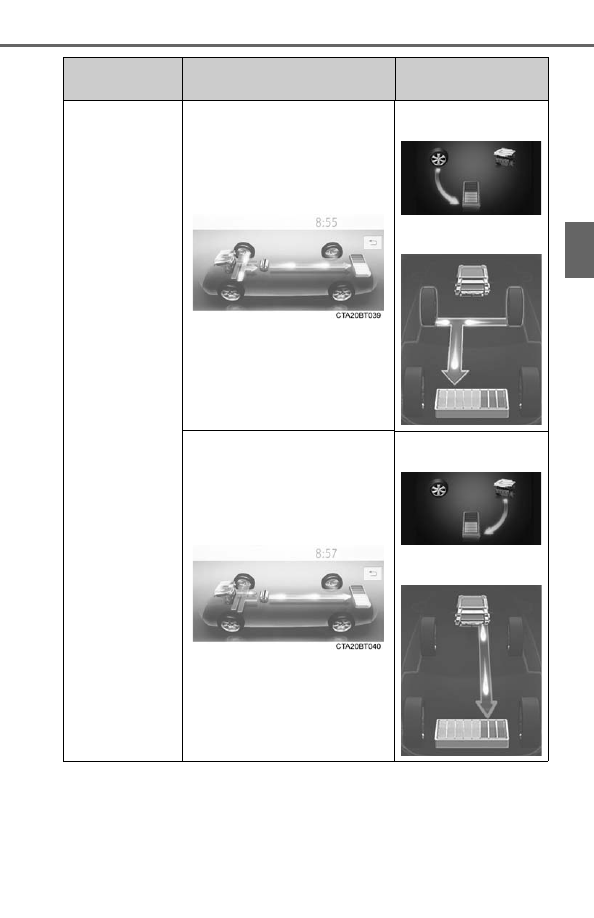

When the vehi-
cle is charging
the hybrid bat-
tery (traction
battery)

Vehicles with 4.2-inch
display:

Vehicles with 7-inch
display:

Vehicles with 4.2-inch
display:

Vehicles with 7-inch
display:

Audio system screen

Multi-information

display

140

2. Instrument cluster

When there is
no energy flow

Vehicles with 4.2-inch
display:

Vehicles with 7-inch
display:

Hybrid battery
(traction bat-
tery) status

Low

Full

Vehicles with 4.2-inch
display:

Low

Full

Vehicles with 7-inch
display:

Low

Full

Audio system screen

Multi-information

display

141

2. Instrument cluster

Instrument cluster

■

Trip information



Entune Audio or Entune Audio Plus (vehicles without Data Com-
munication Module)

Press the “INFO” button. (

→P. 136)

If the “Energy Monitor” or “History” screen is displayed, select “Trip
Information”.



Entune Audio Plus (vehicles with Data Communication Module)

Press the “INFO” button.

Select “ECO” on the “Information” screen.

If the “Energy Monitor” or “History” screen is displayed, select “Trip
Information”.



Entune Premium Audio

Press the “MENU” button. (

→P. 136)

Select “Info” on the “Menu” screen.

Select “ECO” on the “Information” screen.

If “Energy Monitor” or “History” screen is displayed, select “Trip Informa-
tion”.

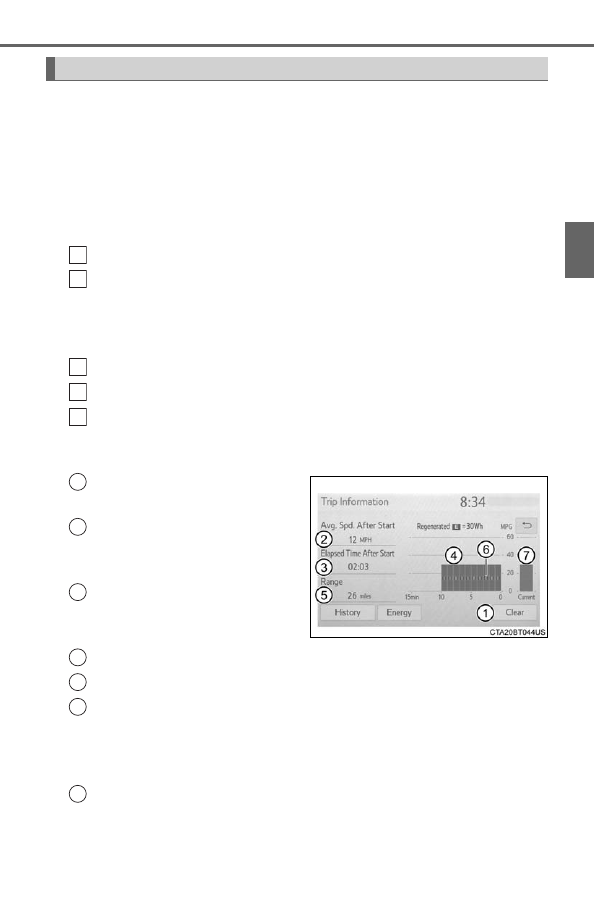

Resetting the consumption
data

Displays the average vehicle
speed since the hybrid sys-
tem was started

Displays the elapsed time
since the hybrid system was
started

Fuel consumption in the past 15 minutes

Cruising range

Regenerated energy in the past 15 minutes

One symbol indicates 30 Wh. Up to 5 symbols are shown.

The image is example only, and may vary slightly from actual condi-
tions.

Current fuel consumption

Fuel consumption screen

1
2

1
2
3

4
5
6

142

2. Instrument cluster

■

History



Entune Audio or Entune Audio Plus (vehicles without Data Com-
munication Module)

Press the “INFO” button. (

→P. 136)

If the “Energy Monitor” or “Trip Information” screen is displayed, select
“History”.



Entune Audio Plus (vehicles with Data Communication Module)

Press the “INFO” button.

Select “ECO” on the “Information” screen.

If the “Energy Monitor” or “Trip Information” screen is displayed, select
“History”.



Entune Premium Audio

Press the “MENU” button. (

→P. 136)

Select “Info” on the “Menu” screen.

Select “ECO” on the “Information” screen.

If “Energy Monitor” or “Trip Information” screen is displayed, select “His-
tory”.

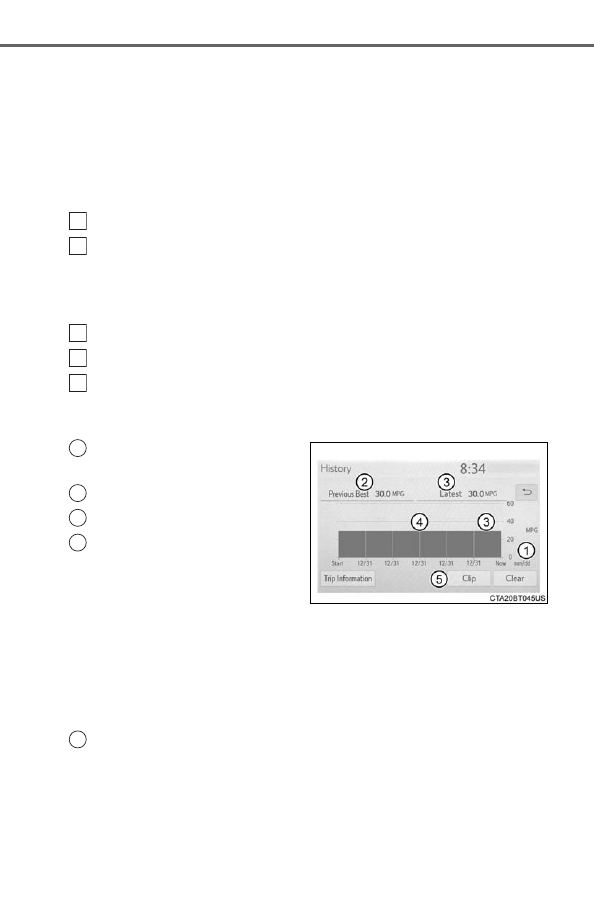

Resetting the past record
data

Best past fuel consumption

Current fuel economy

Previous fuel consumption
record



Entune Audio or Entune Audio Plus

Displays the daily average fuel consumption. (Instead of the date,
“Trip 1” through “Trip 5” will be displayed.)



Entune Premium Audio

Displays the daily average fuel consumption.

Updating the average fuel consumption data

Displays a maximum of five past record of the average fuel consump-
tion.

The image is example only, and may vary slightly from actual condi-
tions.

1
2

1
2
3

2
3
4

143

2. Instrument cluster

Instrument cluster

■

Resetting the consumption data
Selecting “Clear” on the “Trip Information” screen will reset the fuel consump-
tion and the regenerated energy for the past 15 minutes. Selecting “Clear” on
the “History” screen will reset the past records and best past fuel consump-
tion. Selecting “Yes” on the following screen will confirm resetting of all the
data.

144

2. Instrument cluster
