5-2. Steps to take in an emergency

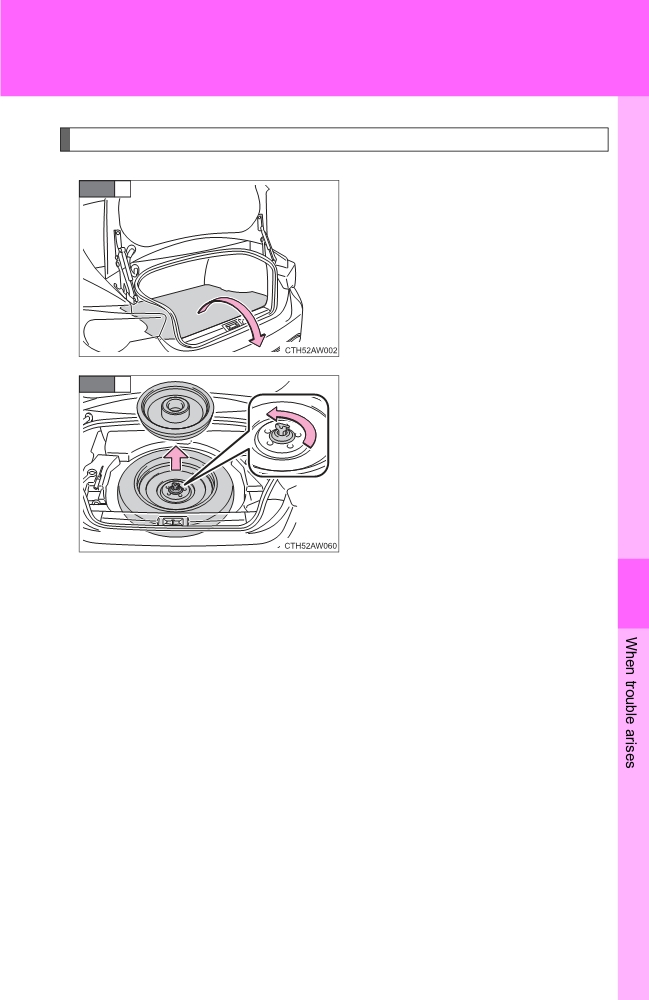

Taking out the spare tire
STEP
1
Remove the luggage mat.
STEP
2
Remove the cover and loosen
the center fastener that secures
the spare tire.
5
425
5-2. Steps to take in an emergency

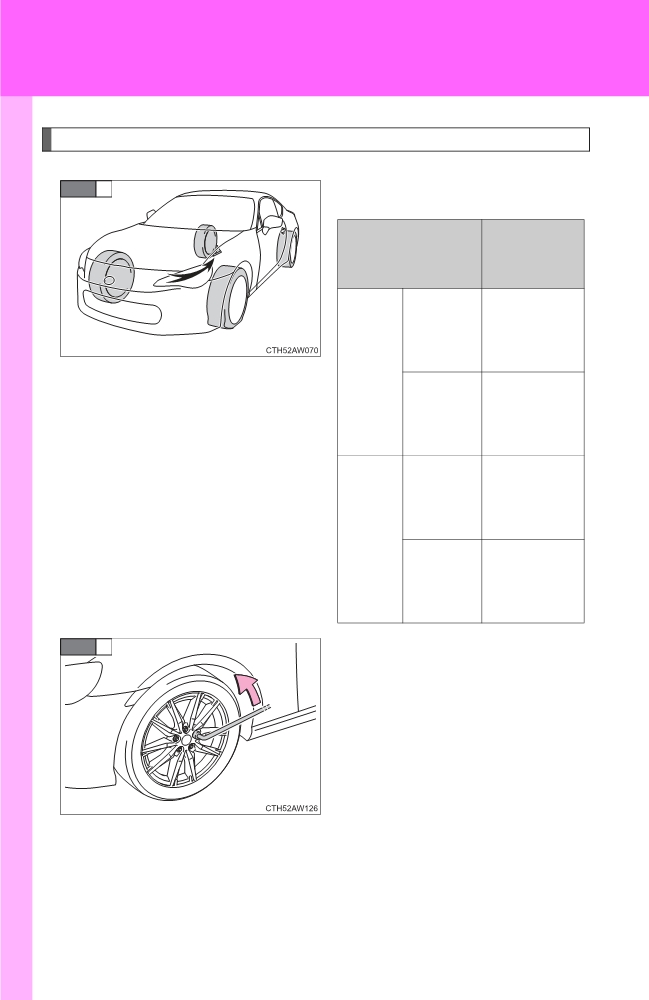

Replacing a flat tire
STEP
1
Chock the tires.
Wheel
Flat tire
chock posi-
tions
Behind the
Left-
rear right-
hand
hand side
side
tire
Front
Behind the
Right-
rear left-
hand
hand side
side
tire
In front of
Left-
the front
hand
right-hand
side
side tire
Rear
In front of
Right-
the front
hand
left-hand
side
side tire
STEP
2
Slightly loosen
the wheel nuts
(one turn).
426
5-2. Steps to take in an emergency
STEP
3

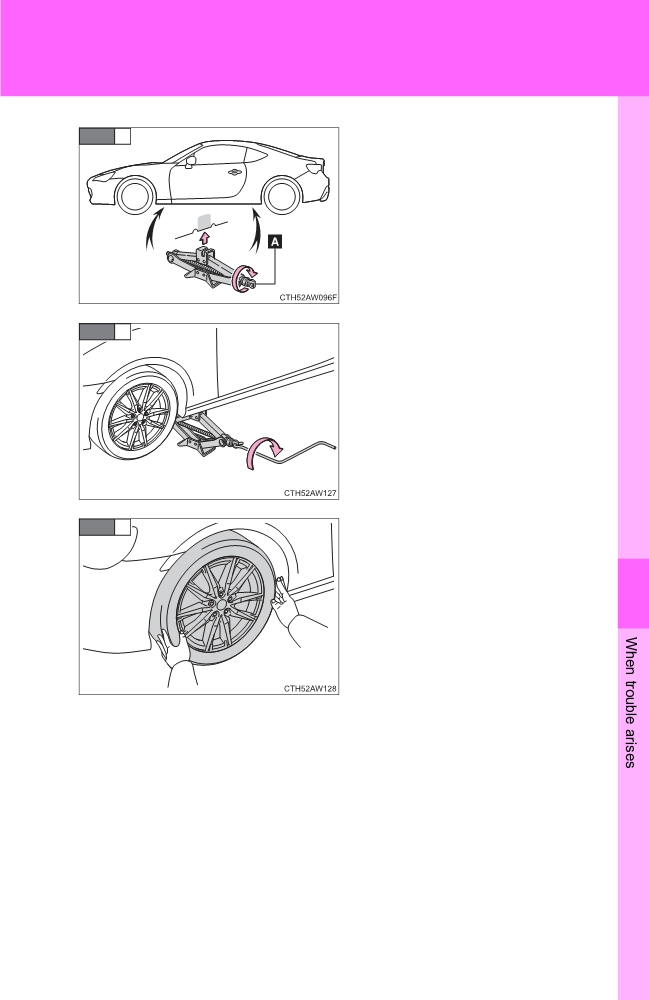

Turn the tire jack portion “A” by
hand until the notch of the jack is
in contact with the jack point.
STEP
4
Raise the vehicle until the tire is
slightly raised off the ground.
STEP
5
Remove all the wheel nuts and
the tire.
When resting the tire on the
5
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
427
5-2. Steps to take in an emergency

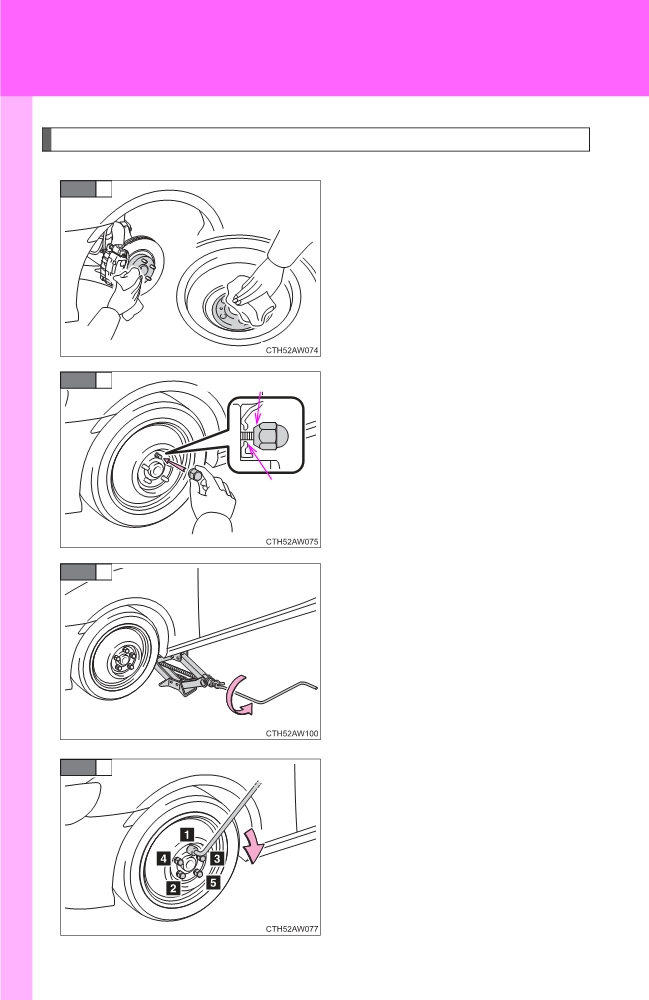

Installing the spare tire
STEP
1
Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is
in motion, and the tire may
come off the vehicle.
STEP
2
Tapered portion
Install the spare tire and loosely
tighten each wheel nut by hand
to approximately the same
amount.
Tighten the wheel nuts until the
Disc wheel
tapered portion comes into
seat
loose contact with the disc
wheel seat.
STEP
3
Lower the vehicle.
STEP
4
Firmly tighten each nut two or
three times in the order shown in
the illustration.
Tightening torque:
89 ft•lbf (120 N•m, 12.2 kgf•m)
428
5-2. Steps to take in an emergency
Stow the flat tire, tire jack and all tools.
STEP
5
■The compact spare tire
● The compact spare tire is identified by the label “TEMPORARY USE
ONLY” on the tire sidewall.
Use the compact spare tire temporarily only in an emergency.
● Make sure to check the tire pressure of the compact spare tire.
(P. 468)
■When using the compact spare tire
As the compact spare tire is not equipped with the tire pressure warning
valve and transmitter, low inflation pressure of the spare tire will not be
warned. Also, if you replace the compact spare tire after the tire pressure
warning light comes on, the light remains on.
■If you have a flat rear tire
Install the compact spare tire on the front of the vehicle. Perform the fol-
lowing steps.
STEP
1
Replace a front tire with the compact spare tire.
STEP
2
Replace the flat rear tire with the tire removed from the front of
the vehicle.
■After completing the tire change
5
The tire pressure warning system must be reset. (P. 346)
429
5-2. Steps to take in an emergency

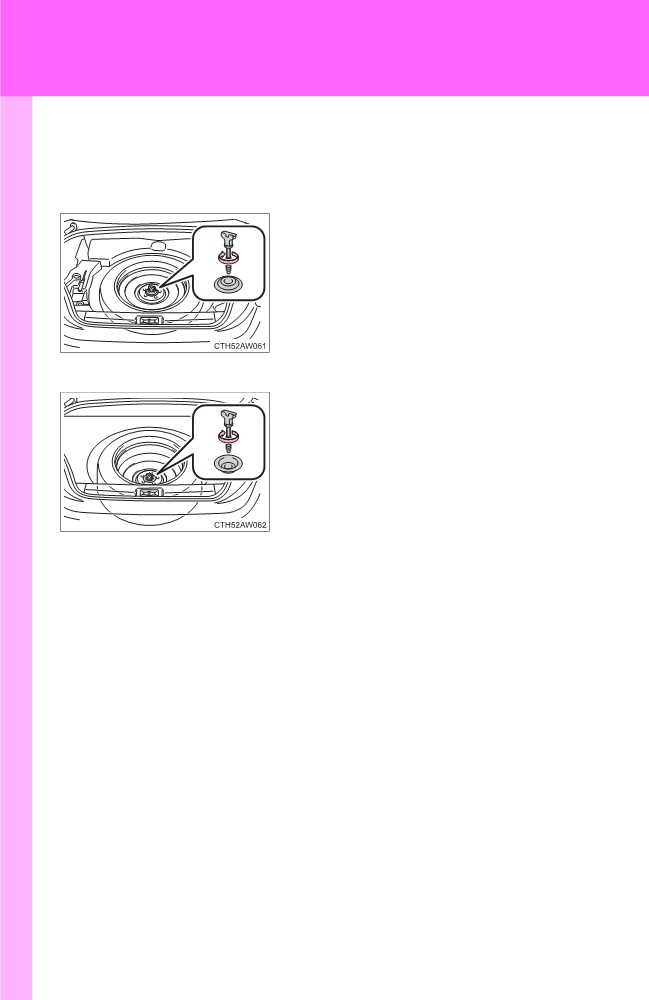

■Storing the tire
Always install the center fastener as shown in the illustration below.
Compact spare tire
Except compact spare tire
430
5-2. Steps to take in an emergency
WARNING
■Using the tire jack
Improper use of the tire jack may lead to death or serious injuries due to
the vehicle suddenly falling off the jack.
● Do not use the tire jack for any purpose other than replacing tires or
installing and removing tire chains.
● Only use the tire jack that comes with this vehicle for replacing a flat
tire.
Do not use it on other vehicles, and do not use other tire jacks for
replacing tires on this vehicle.
● Always check that the tire jack is securely set to the jack point.
●Do not put any part of your body under the vehicle supported by a jack.
● Do not start or run the engine while your vehicle is supported by the
jack.
●Do not raise the vehicle while someone is in it.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a height greater than that required to
replace the tire.
● Use a jack stand if it is necessary to get under the vehicle.
5
Take particular care when lowering the vehicle to ensure that no one
working on or near the vehicle may be injured.
431
5-2. Steps to take in an emergency
WARNING
■Replacing a flat tire
●Do not touch the disc wheels or the area around the brakes immedi-
ately after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around
the brakes will be extremely hot. Touching these areas with hands, feet
or other body parts while changing a tire, etc. may result in burns.
●Do not attach a heavily damaged wheel ornament, as it may fly off the
wheel while the vehicle is moving.
● Failure to follow these precautions could cause the wheel nuts to
loosen and the tire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 89 ft•lbf (120
N•m, 12.2 kgf•m) as soon as possible after changing wheels.
• When installing a tire, only use wheel nuts that have been specifi-
cally designed for that wheel.
• If there are any cracks or deformations in the bolt screws, nut
threads or bolt holes of the wheel, have the vehicle inspected by
your Toyota dealer.
• When installing the wheel nuts, be sure to install them with the
tapered ends facing inward. (P. 358)
432
5-2. Steps to take in an emergency
WARNING
■When using the compact spare tire
●Remember that your compact spare tire is specifically designed for
use with your vehicle. Do not use your compact spare tire on another
vehicle.
●Do not use two compact spare tires simultaneously.
●Replace the compact spare tire with a standard tire as soon as possi-
ble.
● Avoid sudden acceleration, abrupt steering, sudden braking and shift-
ing operations that cause sudden engine braking.
●Install the compact spare tire on a front wheel.
■When storing the compact spare tire
Be careful not to catch fingers or other body parts between the compact
spare tire and the body of the vehicle.
■Speed limit when using the compact spare tire
Do not drive at speeds in excess of 50 mph (80 km/h) when a compact
spare tire is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failing
to observe this precaution may lead to an accident causing death or seri-
5
ous injury.
■When the compact spare tire is attached
The vehicle speed may not be correctly detected, and the following sys-
tems may not operate correctly:
●ABS & brake assist
●VSC
● TRAC
●EPS
● Cruise control
433
5-2. Steps to take in an emergency
NOTICE
■Do not drive the vehicle with a flat tire.
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair.
■Be careful when driving over bumps with the compact spare tire
installed on the vehicle.
The vehicle becomes lower when driving with the compact spare tire
compared to when driving with standard tires. Be careful when driving
over uneven road surfaces.
■Driving with tire chains and the compact spare tire
Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving
performance.
■When replacing the tires
When removing or fitting the wheels, tires or the tire pressure warning
valve and transmitter, contact your Toyota dealer as the tire pressure
warning valve and transmitter may be damaged if not handled correctly.
■ To avoid damage to the tire pressure warning valves and transmit-
ters
When a tire is repaired with liquid sealants, the tire pressure warning
valve and transmitter may not operate properly. If a liquid sealant is
used, contact your Toyota dealer or other qualified service shop as soon
as possible. Make sure to replace the tire pressure warning valve and
transmitter when replacing the tire. (P. 346)
■Stowing the jack
When stowing the jack in the jack holder, make sure that the part that the
jack handle attaches to is pointing towards the inside of the trunk. Failure
to do so may damage the vehicle body.
434
5-2. Steps to take in an emergency
If the engine will not start
If the engine will not start even though correct starting procedures
are being followed (P. 166, 175), consider each of the following
points.
■ The engine will not start even when the starter motor oper-
ates normally.
One of the following may be the cause of the problem.
● There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
● The engine may be flooded.
Try to restart the engine once more following correct starting
procedures. (P. 166, 175)
● There may be a malfunction in the engine immobilizer system.
(P. 79)
■ The starter motor turns over slowly, the interior lights and
headlights are dim, or the horn does not sound or sounds at
a low volume.
One of the following may be the cause of the problem.
5
● The battery may be discharged. (P. 444)
● The battery terminal connections may be loose or corroded.
■ The starter motor does not turn over. (vehicles with a smart
key system)
The engine starting system may be malfunctioning due to an
electrical problem such as an open circuit or a blown fuse. How-
ever, an interim measure is available to start the engine.
(P. 436)
435
5-2. Steps to take in an emergency
■ The starter motor does not turn over, the interior lights and
headlights do not turn on, or the horn does not sound.
One of the following may be the cause of the problem.
● One or both of the battery terminals may be disconnected.
● The battery may be discharged. (P. 444)
● There may be a malfunction in the steering lock system. (vehi-
cles with a smart key system)
Contact your Toyota dealer if the problem cannot be repaired, or if
repair procedures are unknown.
Emergency start function (vehicles with a smart key system)
When the engine does not start, the following steps can be used as
an interim measure to start the engine if the “ENGINE START STOP”
switch is functioning normally:
Vehicles with an automatic transmission
STEP
1
Set the parking brake.
STEP
2
Put the shift lever in P.
STEP
3
Set the
“ENGINE START STOP” switch to ACCESSORY
mode.
STEP
4
Press and hold the “ENGINE START STOP” switch about 15
seconds while depressing the brake pedal firmly.
Even if the engine can be started using the above steps, the system
may be malfunctioning. Have the vehicle checked by your Toyota
dealer.
436
5-2. Steps to take in an emergency
Vehicles with a manual transmission
STEP
1
Set the parking brake.
STEP
2
Put the shift lever in N.
STEP
3
Turn the “ENGINE START STOP” switch to ACCESSORY
mode.
STEP
4
Push and hold the “ENGINE START STOP” switch for about
15 seconds while depressing the brake pedal and clutch
pedal firmly.
Even if the engine can be started using the above steps, the system
may be malfunctioning. Have the vehicle checked by your Toyota
dealer.
5
437
5-2. Steps to take in an emergency

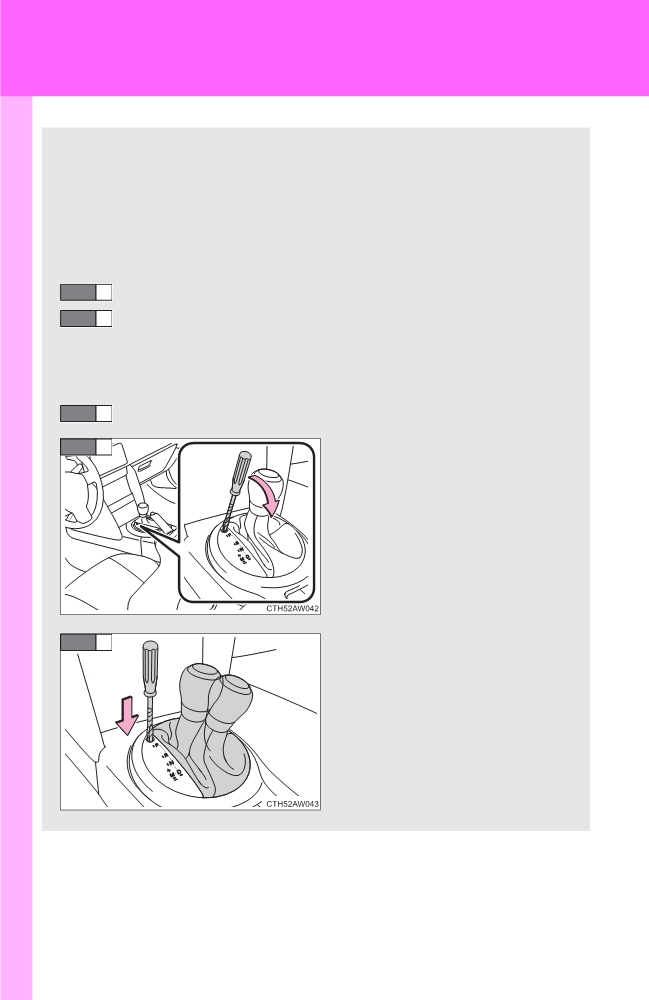

If the shift lever cannot be shifted from P (vehicles with an automatic transmission)
If the shift lever cannot be shifted with your foot on the brake, there
may be a problem with the shift lock system (a system to prevent
accidental operation of the shift lever). Have the vehicle inspected by
your Toyota dealer immediately.
The following steps may be used as an emergency measure to
ensure that the shift lever can be shifted.
STEP
1
Set the parking brake.
STEP
2
Vehicles without a smart key system: Turn the engine
switch to the “ACC” position.
Vehicles with a smart key system: Turn the
“ENGINE
START STOP” switch to ACCESSORY mode.
STEP
3
Depress the brake pedal.
STEP
4
Pry the cover up with a flat-
head screwdriver or equiva-
lent.
STEP
5
Press the shift lock override
button.
The shift lever can be shifted
while the button is pressed.
438
5-2. Steps to take in an emergency
If you lose your keys
New genuine keys can be made by your Toyota dealer. For vehicles
without a smart key system, bring a master key and the key number
stamped on the key number plate. For vehicles with a smart key sys-
tem, bring the other key and the key number stamped on the key
number plate.
5
439
5-2. Steps to take in an emergency
If the electronic key does not operate properly (vehicles with a smart key system)
If communication between the electronic key and vehicle is inter-
rupted (P. 31) or the electronic key cannot be used because the
battery is depleted, the smart key system and wireless remote con-
trol cannot be used. In such cases, the doors and trunk can be
opened or the engine can be started by following the procedure
below.

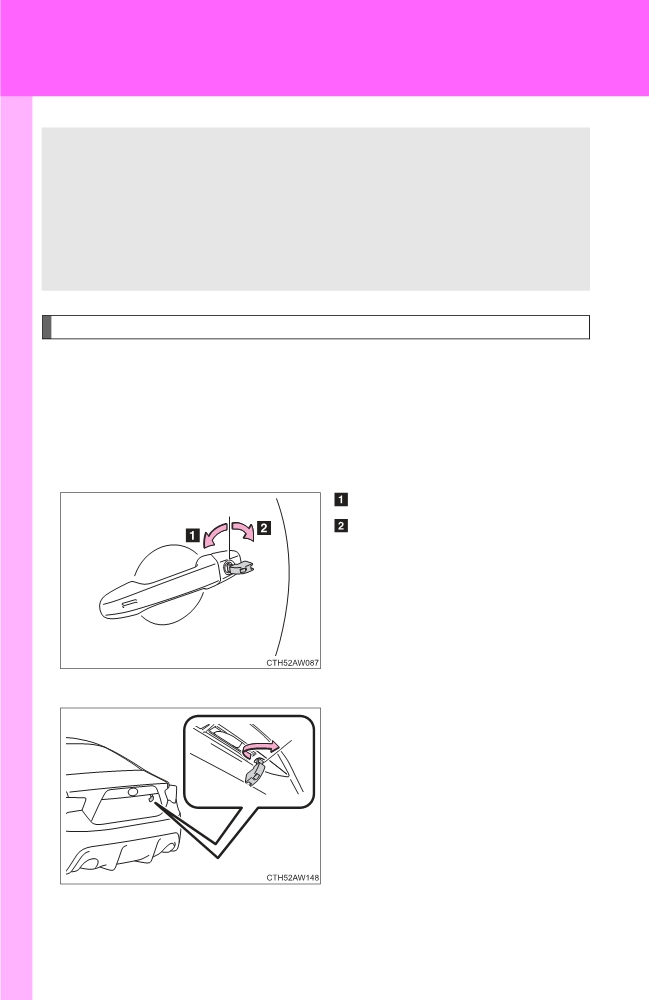

Unlocking and locking the doors, unlocking the trunk
Use the mechanical key built in to the electronic keys to operate the
doors and trunk. (P. 23)
Vehicles with an alarm: An alarm will sound if the alarm is set when the
trunk or doors are unlocked. (P. 82)
Doors
Locks driver’s door
Unlocks driver’s door
Trunk
Turn the mechanical key clock-
wise to open.
440
5-2. Steps to take in an emergency

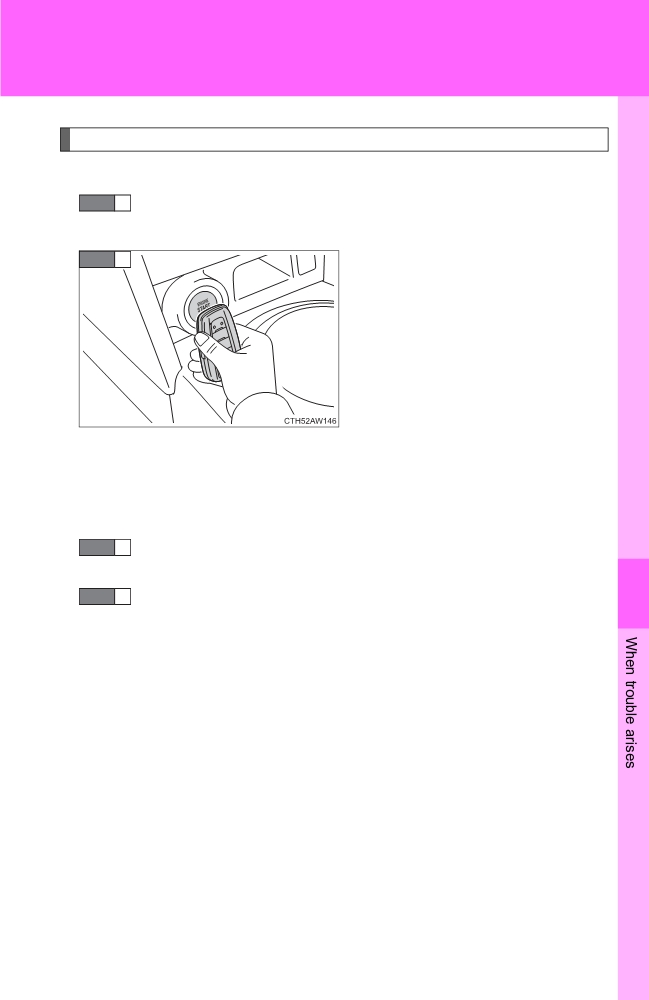

Starting the engine
Vehicles with an automatic transmission
STEP
1
Ensure that the shift lever is in P and firmly depress the brake
pedal.
STEP
2
Touch the Toyota emblem side of
the electronic key to the
“ENGINE START STOP” switch.
When the electronic key is
detected, a buzzer sounds and
the
“ENGINE START STOP”
switch will turn to IGNITION ON
mode.
When the smart key system is
deactivated in customization set-
ting, the “ENGINE START STOP”
switch will turn to ACCESSORY
mode.
STEP
3
Firmly depress the brake pedal and check that the smart key
system indicator light (green) turns on.
5
Press the “ENGINE START STOP” switch.
STEP
4
In the event that the “ENGINE START STOP” switch still cannot be
operated, contact your Toyota dealer.
441
