Toyota 86 (2018 year). Instruction - part 23
4-3. Do-it-yourself maintenance
■ After a fuse is replaced
● If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. (P. 375)
● If the replaced fuse blows again, have the vehicle inspected by your
Toyota dealer.
■ If there is an overload in the circuits
The fuses are designed to blow, protecting the wiring harness from damage.
WARNING
■ To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
● Do not modify the fuse or the fuse box.
NOTICE
■ Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer.
374
4-3. Do-it-yourself maintenance
Light bulbs
You may replace the following bulbs by yourself. The difficulty level
of replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perform, contact your Toyota dealer.
■ Preparing a replacement light bulb
Check the wattage of the light bulb being replaced. (P. 469)

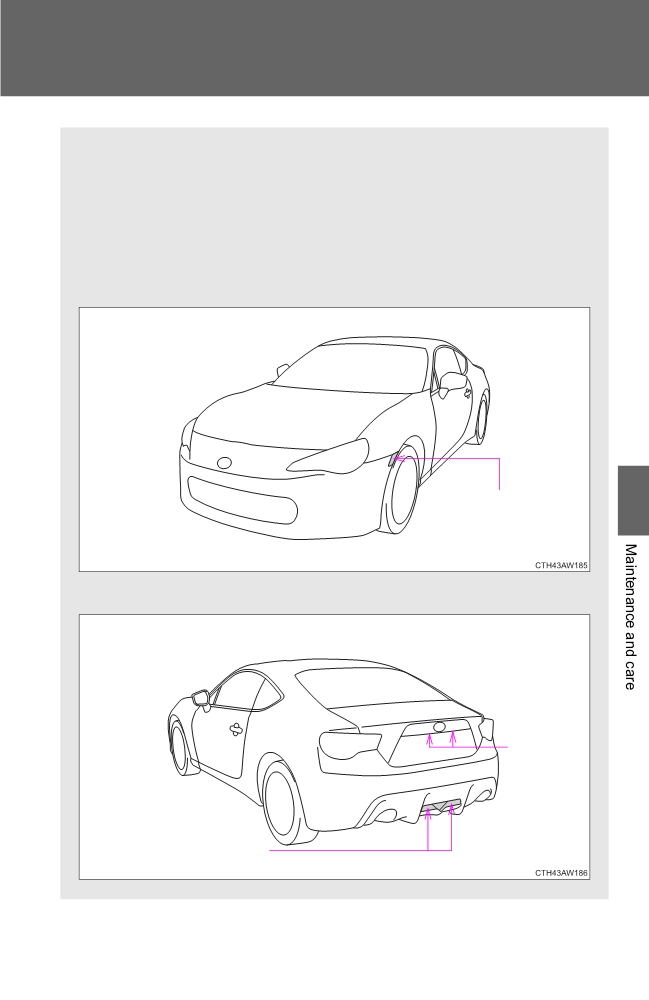

■ Front bulb locations
Front side marker lights
4
■ Rear bulb locations
License
plate
lights
Back-up lights
375
4-3. Do-it-yourself maintenance

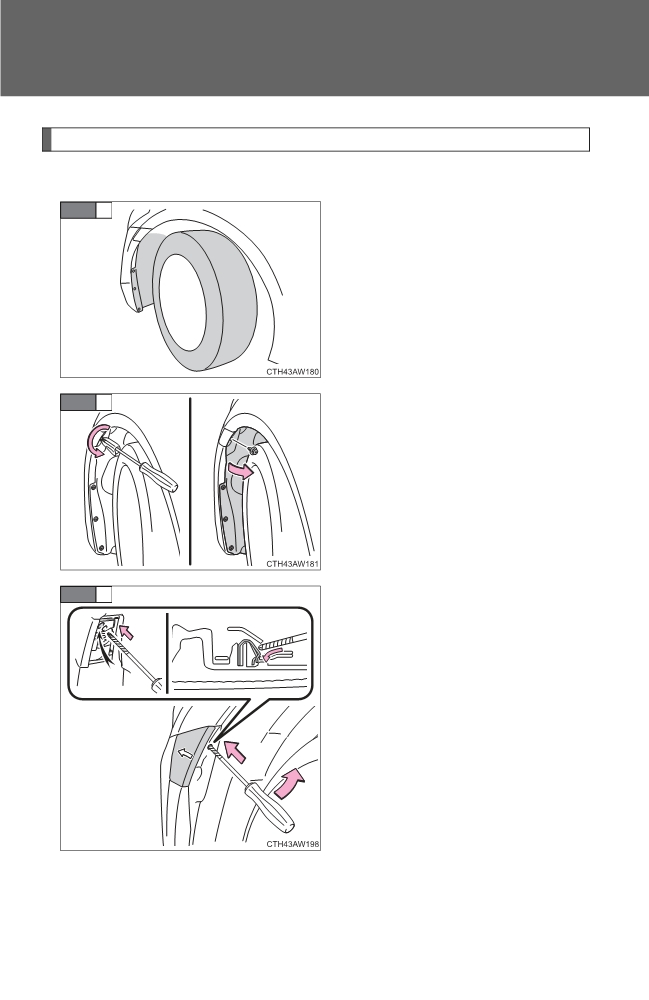

Replacing light bulbs
■ Front side marker lights
STEP
1
Turn the steering wheel in the
opposite direction of the light to
be replaced.
Turn the steering wheel to a point
that allows your hand to easily fit
between the tire and fender liner.

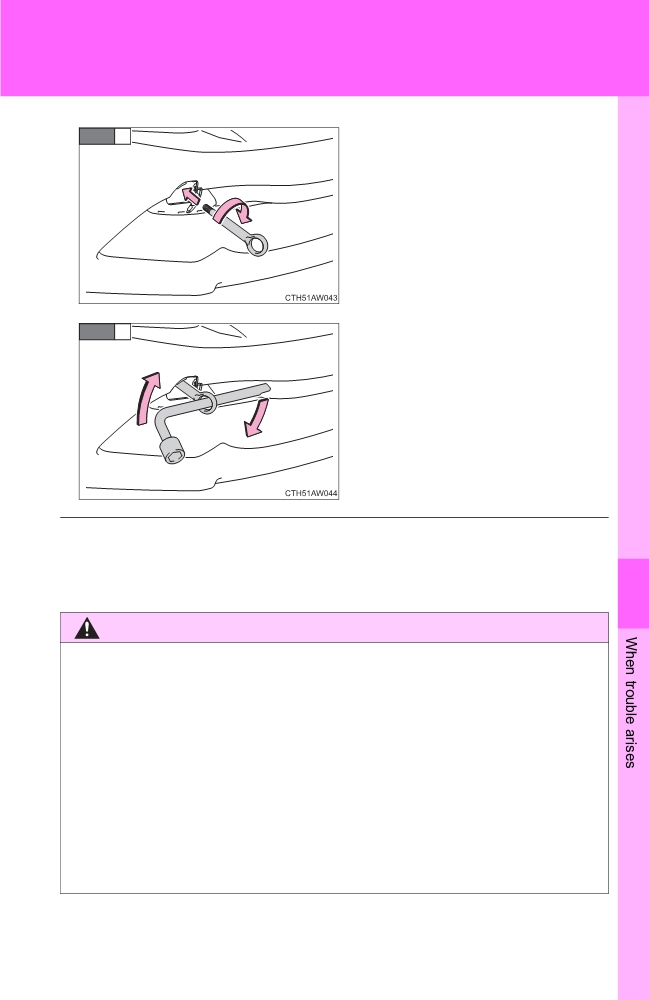

STEP
2
Remove the clips and partly
remove the fender liner.
To prevent damage to the vehicle,
cover the tip of the screwdriver
with a rag.
STEP
3
Release the light's claw.
Insert the screwdriver into the
hole. While firmly pushing the
screwdriver forward, move it
towards the inside of the vehicle.
To prevent damage to the vehicle,
wrap the tip of the screwdriver
with a tape.
376
4-3. Do-it-yourself maintenance

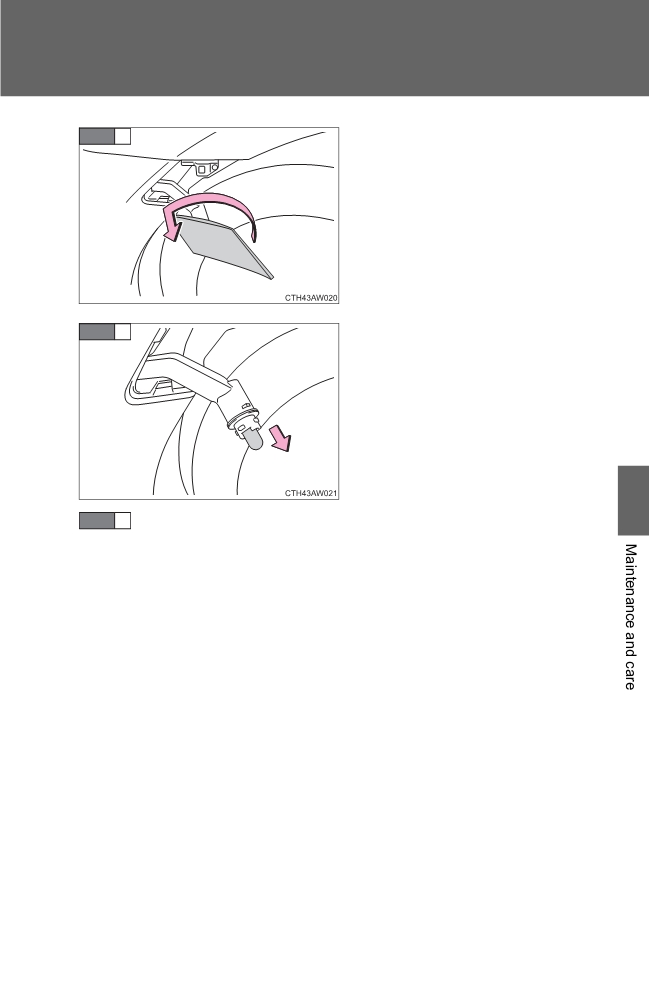

STEP
4
Pull out the lamp and turn the
lens counterclockwise.
STEP
5
Remove the light bulb.
4
When installing, reverse the steps listed.
STEP
6
377
4-3. Do-it-yourself maintenance

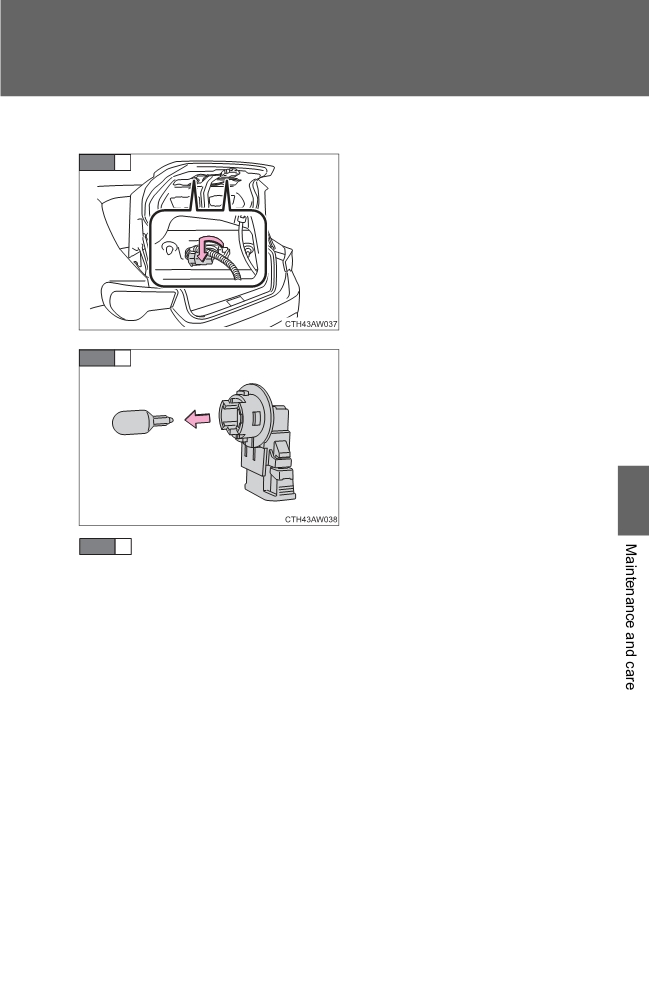

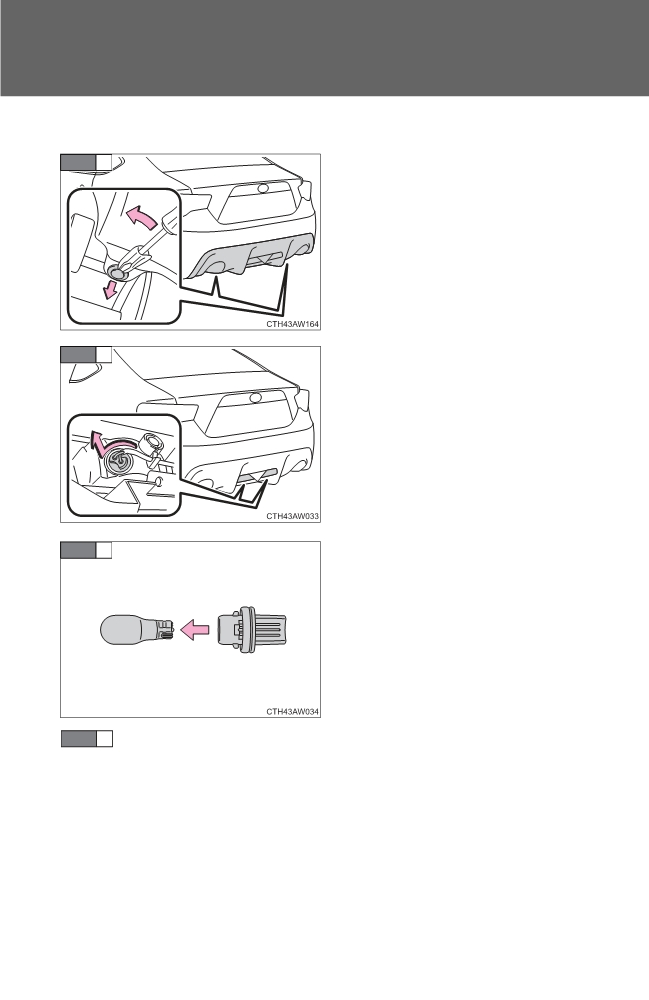

■ Back-up lights
STEP
1
Remove the clips.
To prevent damage to the vehicle,
cover the tip of the screwdriver
with a rag.
STEP
2
Turn the bulb base counterclock-
wise.
STEP
3
Remove the light bulb.
STEP
4
When installing, reverse the steps listed.
378
4-3. Do-it-yourself maintenance
■ License plate lights
STEP
1
Turn the bulb base counterclock-
wise.
STEP
2
Remove the light bulb.
4
STEP
3
When installing, reverse the steps listed.
■ Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
your Toyota dealer.
● Headlights
● Parking lights/daytime running lights
● Front turn signal lights
● Front fog lights (if equipped)
● Stop/tail lights
● Stop lights
● Rear turn signal lights
● Rear side marker lights
● High mounted stoplight
● Door courtesy lights (if equipped)
379
4-3. Do-it-yourself maintenance
■ Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the light lens does not
indicate a malfunction. Contact your Toyota dealer for more information in
the following situations:
● Large drops of water are built up on the inside of the lens.
● Water has built up inside the light.
■LED light bulbs
The headlights, parking lights/daytime running lights, front turn signal lights,
front fog lights (if equipped), stop/tail lights, stop lights, rear turn signal lights,
rear side marker lights and high mounted stoplight consist of a number of
LEDs. If any of the LEDs burn out, take your vehicle to your Toyota dealer to
have the light replaced.
■ When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle.
Because certain bulbs are connected to circuits designed to prevent over-
load, non-genuine parts or parts not designed for this vehicle may be unus-
able.

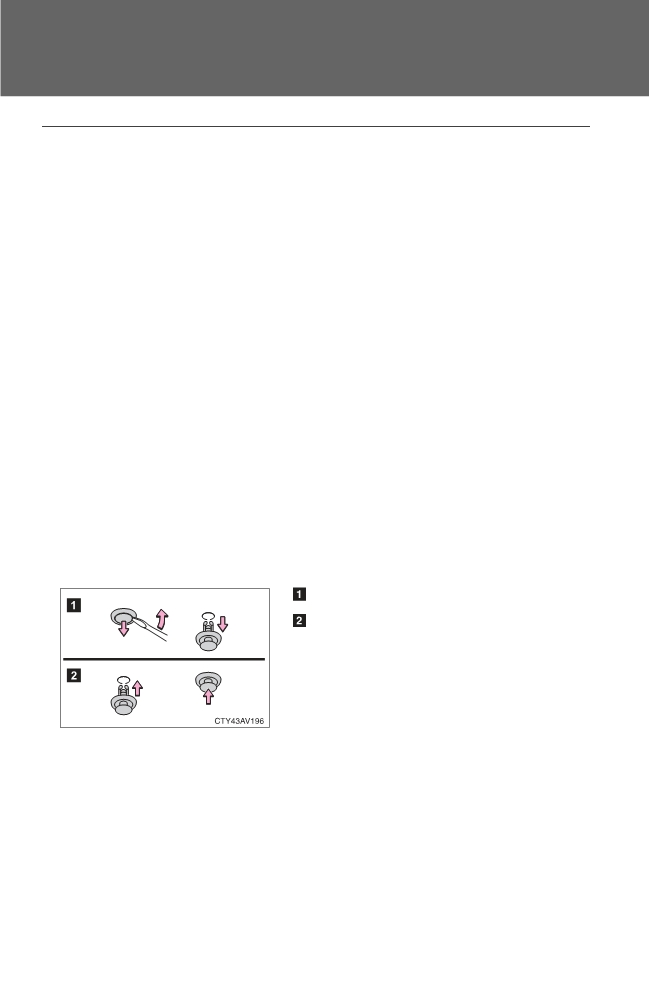

■Removing and installing the luggage trim cover clip
Removing
Installing
380
4-3. Do-it-yourself maintenance
WARNING
■ Replacing light bulbs
● Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
● Fully install the light bulbs and any parts used to secure them. Failure to
do so may result in heat damage, fire, or water entering a light unit. This
may damage the light or cause condensation to build up on the inner side
of the lens.
■When changing the back-up lights
Stop the engine and wait until the exhaust pipes have cooled down suffi-
ciently. The lights are located near the exhaust pipe and touching a hot
4
exhaust pipe can cause burns.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.
381
4-3. Do-it-yourself maintenance
382
When trouble arises
5
5-1. Essential information
If the engine will
not start
435
Emergency flashers
384
If the shift lever cannot be
If your vehicle needs to
shifted from P
438
be towed
385
If you lose your keys
439
If you think something
is wrong
393
If the electronic key does
not operate properly
440
Fuel pump shut off
system
394
If the battery is
discharged
444
5-2. Steps to take in an
If your vehicle
overheats
449
emergency
If the vehicle becomes
If a warning light turns on
stuck
452
or a warning buzzer
sounds
395
If your vehicle has to be
stopped in an
If a warning message is
emergency
454
displayed
407
If you have a flat tire
424
383
5-1. Essential information

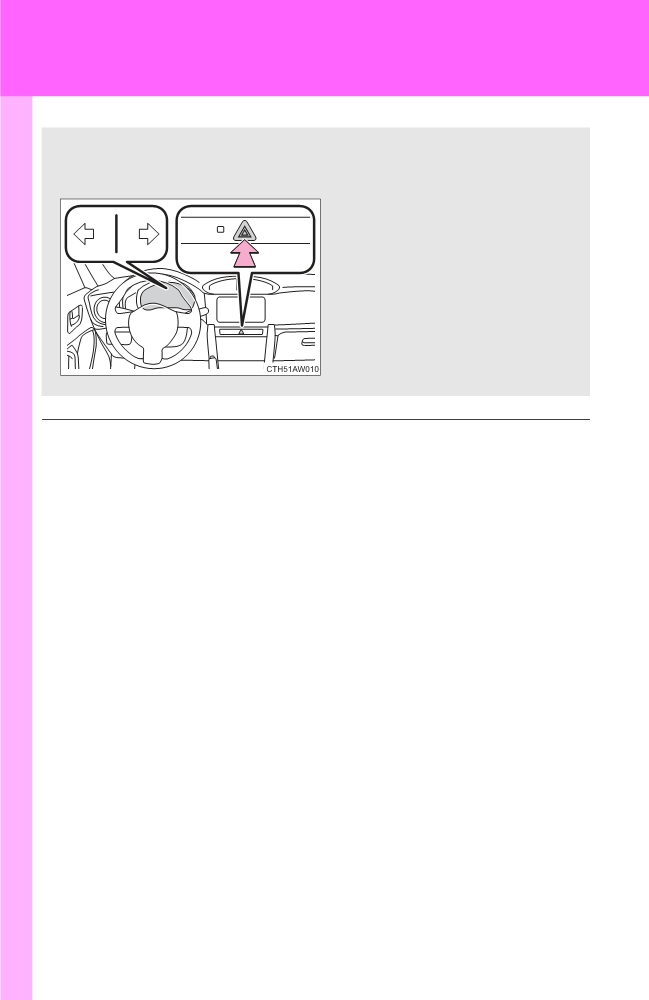

Emergency flashers
The emergency flashers are used to warn other drivers when the
vehicle has to be stopped in the road due to a breakdown, etc.
Press the switch.
All the turn signal lights will
flash. To turn them off, press
the switch once again.
■ Emergency flashers
If the emergency flashers are used for a long time while the engine is not
operating, the battery may discharge.
384
5-1. Essential information
If your vehicle needs to be towed
If towing is necessary, we recommend having your vehicle towed by
your Toyota dealer or a commercial towing service, using a lift-type
truck or a flat bed truck.
Use a safety chain system for all towing, and abide by all state/pro-
vincial and local laws.
If towing from the rear, the vehicle's front wheels and axles must be
in good condition. (P. 391)
If they are damaged, use a towing dolly or flat bed truck.
Before towing
The following may indicate a problem with your transmission. Contact
your Toyota dealer before towing.
● The engine is running, but the vehicle will not move.
● The vehicle makes an abnormal sound.
Emergency towing
If a tow truck is not available in an emergency, your vehicle may be
5
temporarily towed using a cable or chain secured to the emergency
towing eyelet. This should only be attempted on hard surfaced roads
for short distances at low speeds.
A driver must be in the vehicle to steer and operate the brakes. The
vehicle’s wheels, drive train, axles, steering and brakes must be in
good condition.
For vehicles with an automatic transmission, only the front towing
eyelet may be used.
385

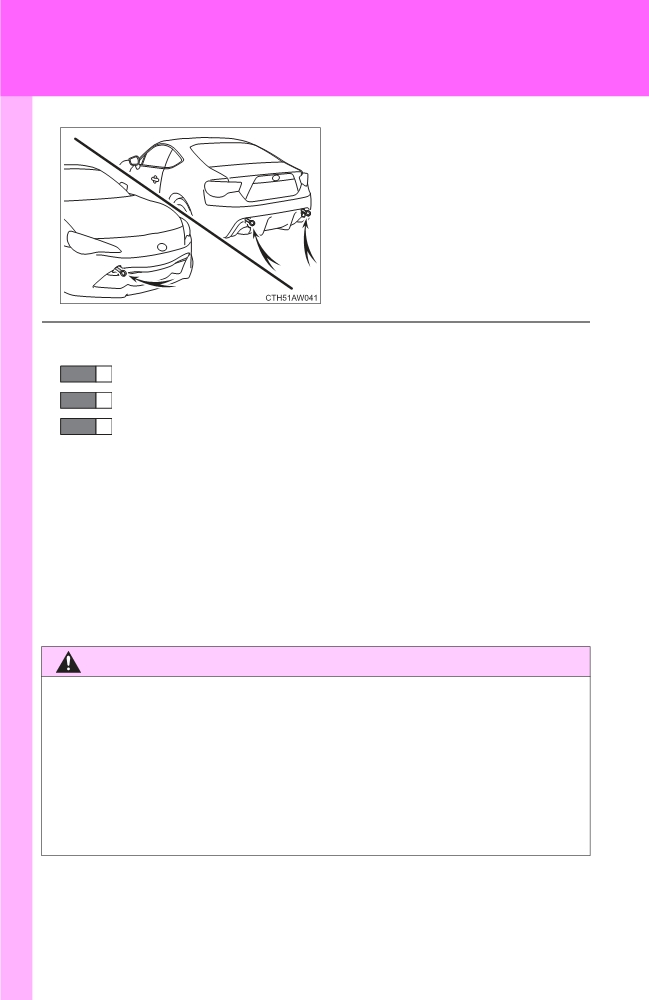

5-1. Essential information

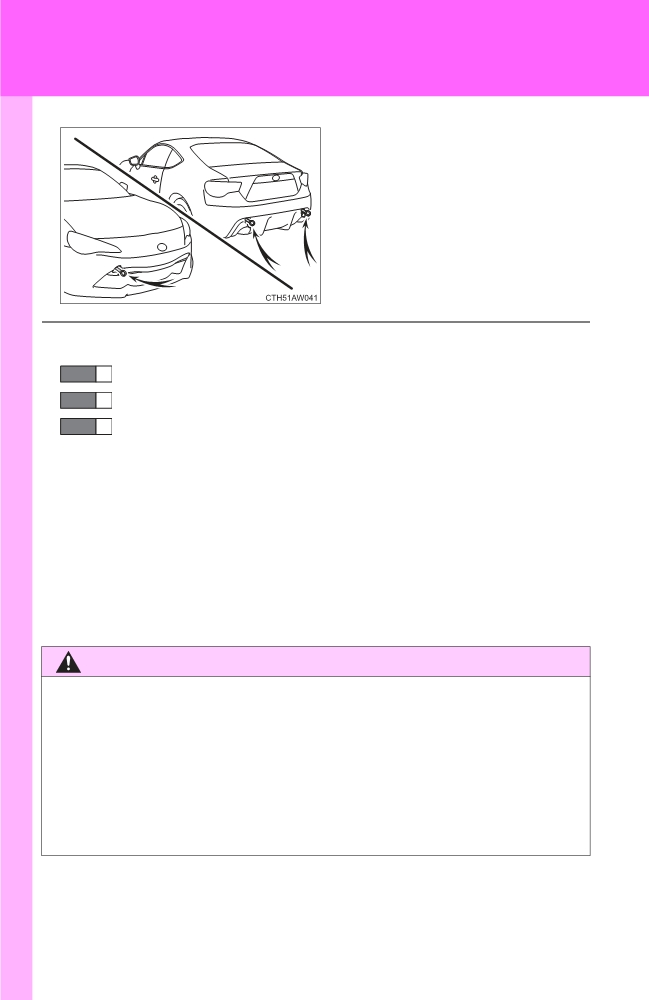

Towing eyelet
■ Before emergency towing
STEP
1
Release the parking brake.
STEP
2
Shift the shift lever to N.
STEP
3
Vehicles without a smart key system: Turn the engine switch to the
“ACC” (engine off) or “ON” (engine running) position.
Vehicles with a smart key system: Turn the
“ENGINE START
STOP” switch to ACCESSORY (engine off) or IGNITION ON
(engine running) mode.
■ If towing a vehicle
Do not tow another vehicle. If towing a vehicle that has broken down is
unavoidable, avoid towing a vehicle that is heavier than your vehicle. Also,
do not pull out a vehicle that has fallen into a ditch.
WARNING
■ Caution while towing
● Use extreme caution when towing the vehicle.
Avoid sudden starts or erratic driving maneuvers which place excessive
stress on the emergency towing eyelets and the cables or chains. Always
be cautious of the surroundings and other vehicles while towing.
● If the engine is not running, the power assist for the brakes and steering
will not function, making steering and braking more difficult.
386
5-1. Essential information
NOTICE
■ To prevent causing serious damage to the transmission in emergency
towing (vehicles with an automatic transmission)
Never tow a vehicle from the rear with four wheels on the ground. This may
cause serious damage to the transmission.
■ To prevent damage to the vehicle
● When towing this vehicle, make sure to observe the following:
• Do not use a wire rope
• Keep vehicle speed below 20 mph (30 km/h) and do not tow for dis-
tances over 19 miles (30 km)
• Tow the vehicle in the forward direction
• Do not apply rope to the vehicle's suspension and so forth
● Do not tow another vehicle, boat (trailer) and so forth, that is heavier than
this vehicle.
■ When towing down a long slope
Use a wheel lift-type or flat bed truck. (P. 391, 392)
If a wheel lift-type or flat bed truck is not used, the brakes may overheat,
leading to poor brake performance.
5
387
5-1. Essential information

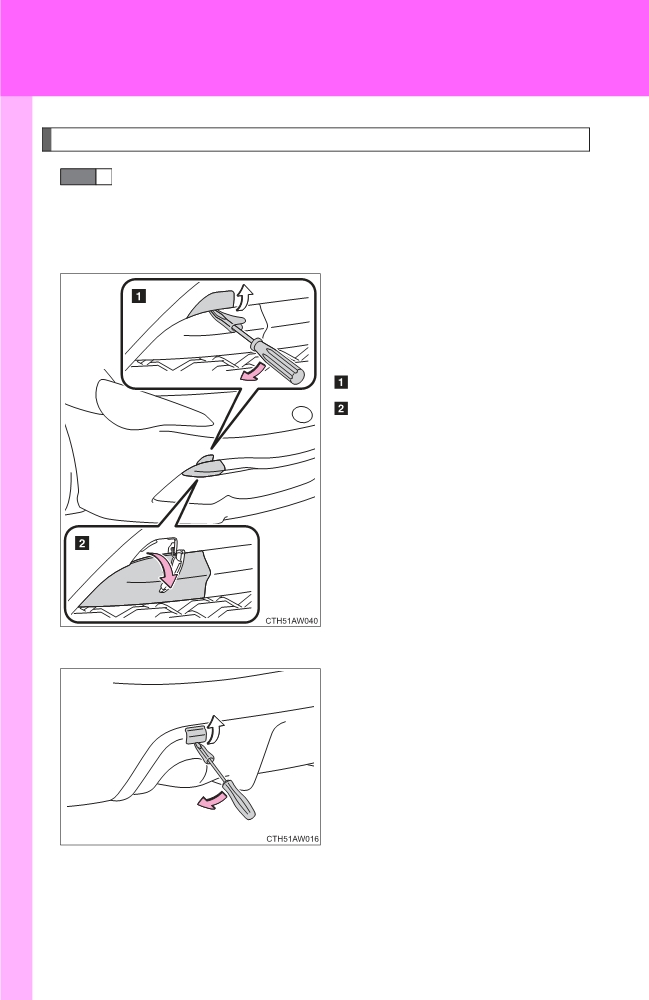

Installing a towing eyelet
STEP
1
Remove the eyelet cover(s).
To prevent damage to the vehicle, cover the tip of the screwdriver
with a rag.
Front
Remove the upper cover using a
flathead screwdriver and then
pull the lower cover outward by
hand to remove it.
Upper cover
Lower cover
Rear
388
5-1. Essential information
STEP
2
Insert the towing eyelet into the
hole and tighten partially by
hand.
STEP
3
Tighten down the towing eyelet
securely using a wheel nut
wrench.
■Location of the emergency towing eyelet
P. 424
5
WARNING
■ Installing towing eyelets to the vehicle
Make sure that towing eyelet is installed securely.
If not securely installed, towing eyelets may come loose during towing. This
may lead to accidents that cause serious injury or even death.
■ After towing
● Always remove the towing eyelet. Failure to do so can cause the SRS air-
bags to not operate correctly in the event of a frontal collision.
● Always remove the towing eyelets. Failure to do so may prevent the fuel
pump shut off system from operating properly if the vehicle receives an
impact from the rear.
389
5-1. Essential information

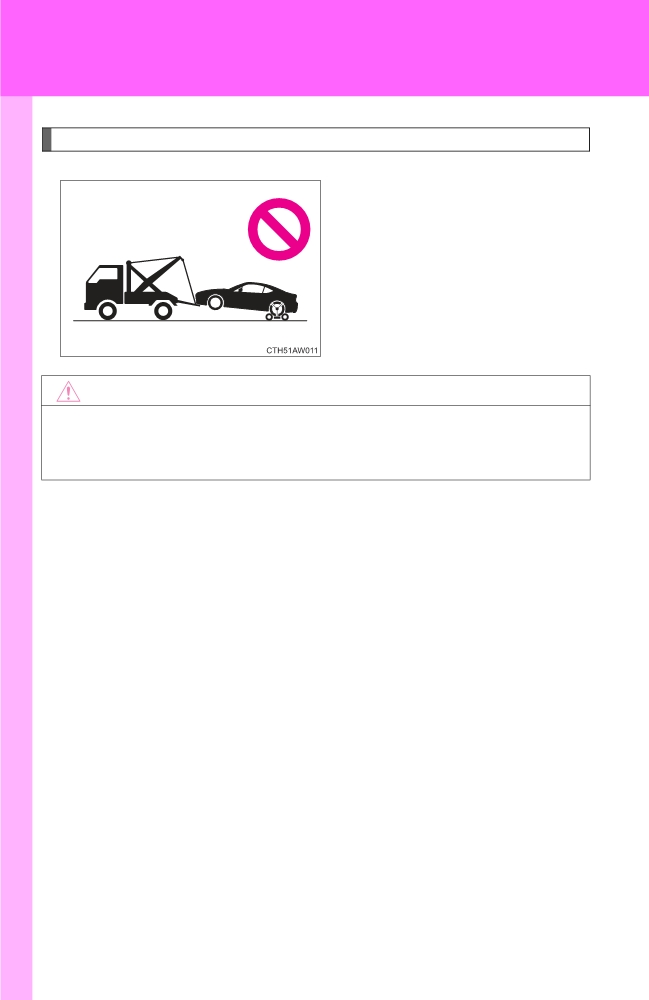

Towing with a sling-type truck
NOTICE
■ To prevent body damage
Do not tow with a sling-type truck, either from the front or rear.
390
