Toyota 86 (2018 year). Instruction - part 12
2-1. Driving procedures

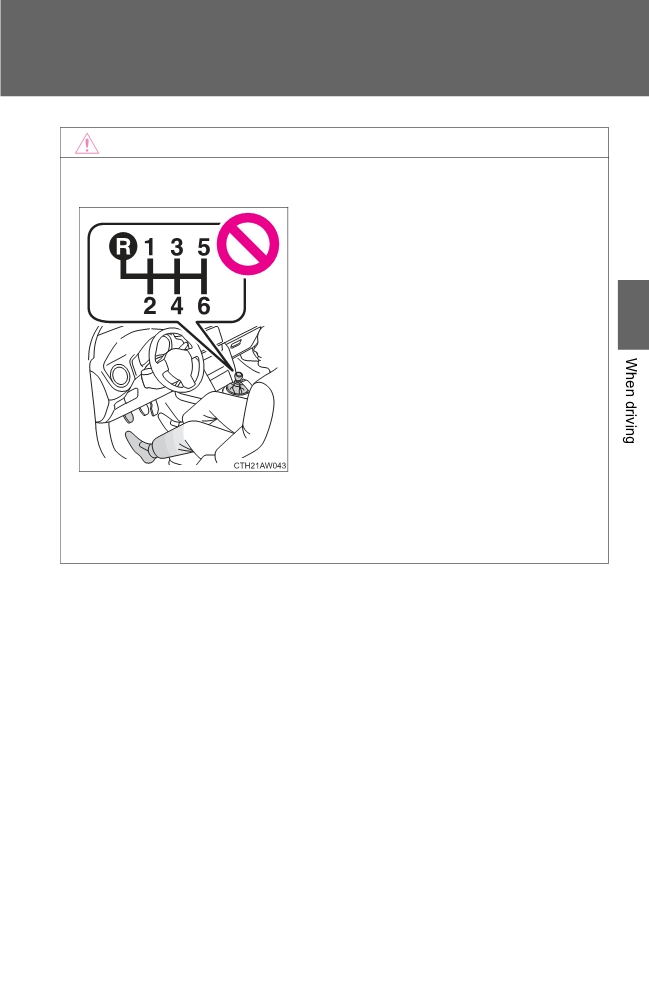

NOTICE
■ To prevent damage to the transmission
● Do not shift the shift lever without
depressing the clutch pedal.
2
● Do not lift up the ring section except when shifting the lever to R.
● Shift the shift lever to R only when the vehicle is stationary and the clutch
pedal is fully depressed.
187
2-1. Driving procedures

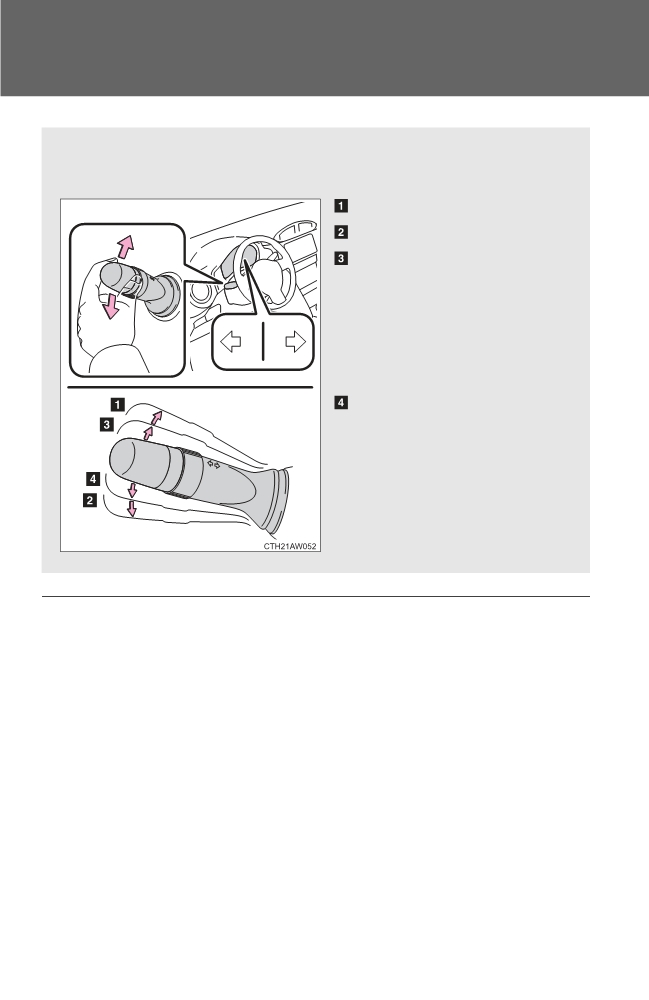

Turn signal lever
The turn signal lever can be used to show the following intentions of
the driver:
Right turn
Left turn
Lane change to the right
(push and hold the lever
partway)
The right hand signals will
flash until you release the
lever.
Lane change to the left
(push and hold the lever
partway)
The left hand signals will flash
until you release the lever.
■ Turn signals can be operated when
Vehicles without a smart key system
The engine switch is in the “ON” position.
Vehicles with a smart key system
The “ENGINE START STOP” switch is in IGNITION ON mode.
■ If the indicators flash faster than usual
Check that a light bulb in the turn signal lights has not burned out.
188
2-1. Driving procedures

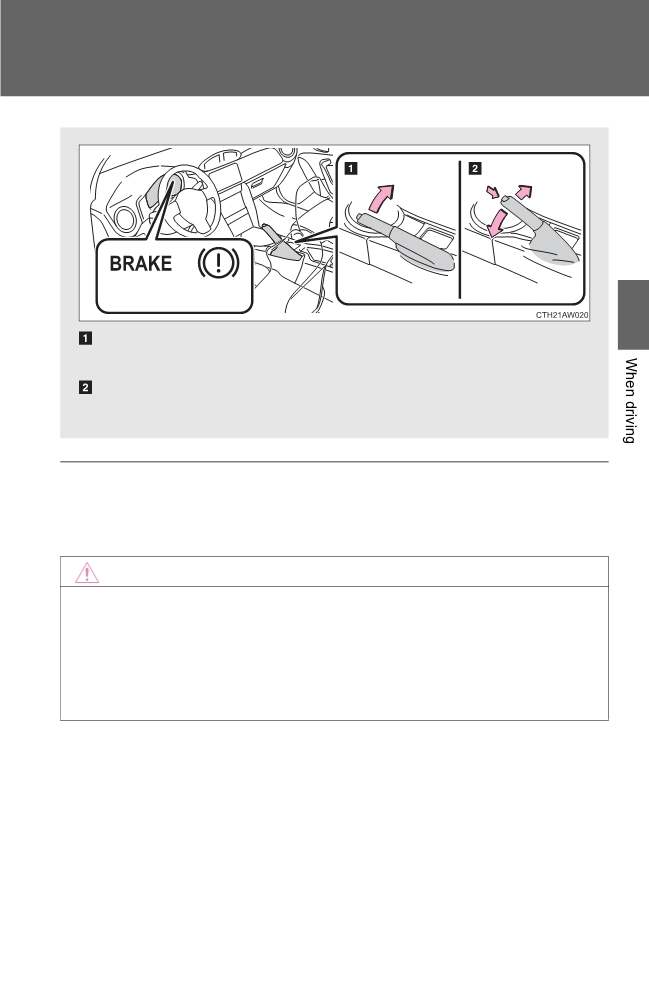

Parking brake
U.S.A.
Canada
2
To set the parking brake, fully pull the parking brake lever while
depressing the brake pedal.
To release the parking brake, slightly raise the lever and lower it
completely while pressing the button.
■ Usage in winter time
P. 261
NOTICE
■ Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components
overheating, which may affect braking performance and increase brake
wear.
189
2-1. Driving procedures

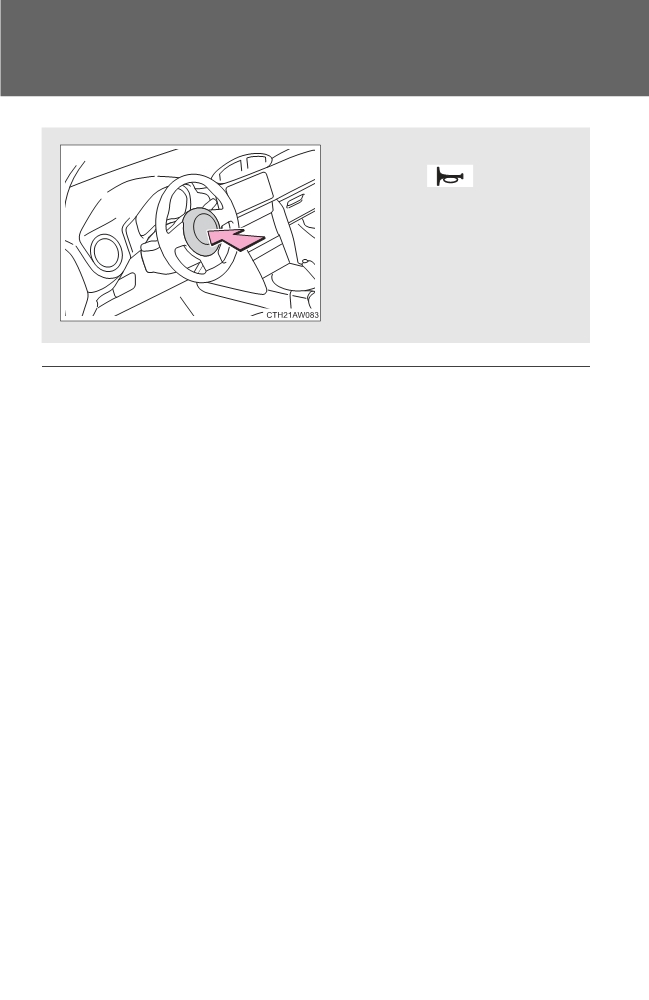

Horn
To sound the horn, press on or
close to the
mark.
■After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
The horn may not sound if the steering wheel is not securely locked.
(P. 67)
190
2-2. Instrument cluster

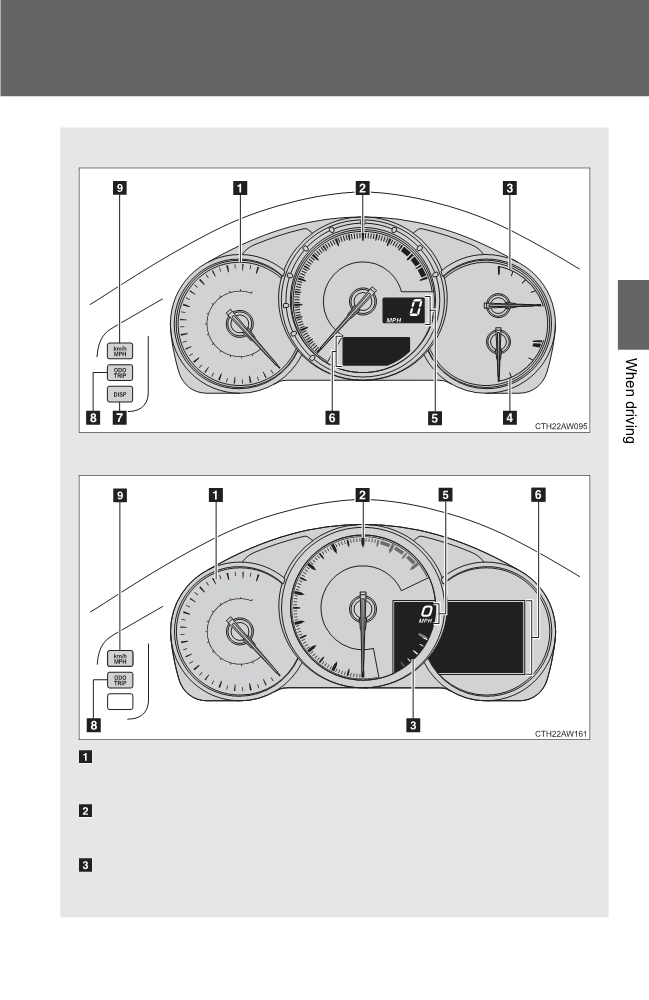

Gauges and meters
With monochrome display
2
With color display
Analog Speedometer
Displays the vehicle speed.
Tachometer
Displays the engine speed in revolutions per minute.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
191
2-2. Instrument cluster
Engine coolant temperature gauge (if equipped)
Displays the engine coolant temperature.
Digital Speedometer
Displays the vehicle speed.
Multi-information display, odometer and trip meter
P. 200, 207
“DISP” switch (if equipped)
P. 203
“ODO/TRIP” switch
P. 202
“km/h MPH” switch
Each time the switch is pressed, the display inside the meter changes
between km/h and MPH.

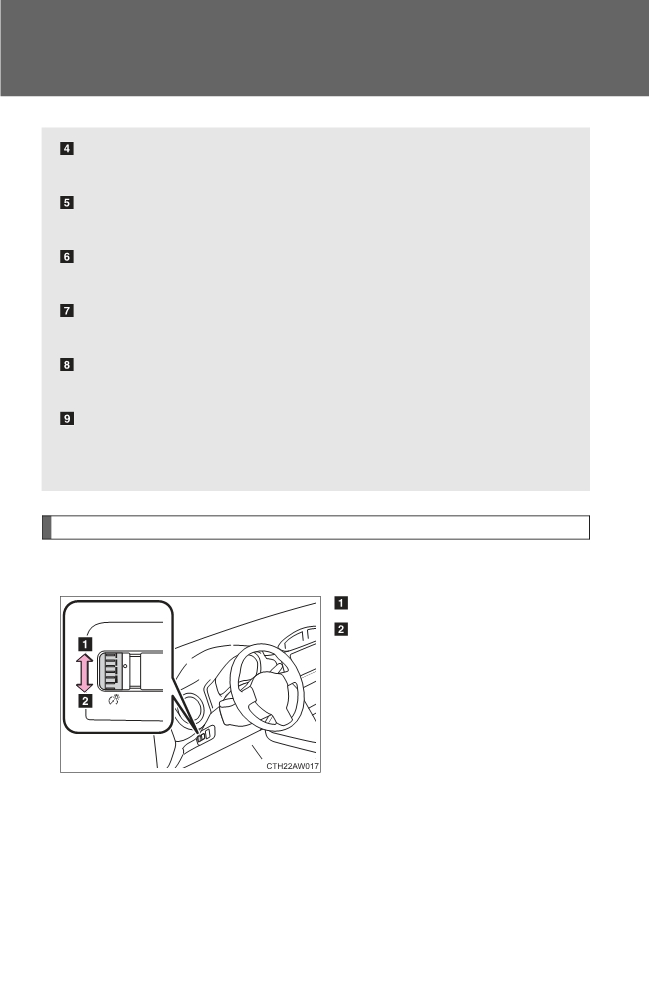

Instrument panel light control
The brightness of the instrument panel lights can be adjusted.
Brighter
Darker
192
2-2. Instrument cluster
■ The meters and display illuminate when
Vehicles without a smart key system
The engine switch is in the “ON” position.
Vehicles with a smart key system
The “ENGINE START STOP” switch is in IGNITION ON mode.
■ The brightness of the instrument panel lights
When the parking lights or the headlights turn on, the instrument panel lights
2
will dim. However, when the instrument panel brightness control dial is
turned to the up most position, the instrument panel lights will not dim even
when the parking lights or headlights turn on.
NOTICE
■ To prevent damage to the engine and its components
● Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
● In the following situations, the engine may be overheating. In this case,
immediately stop the vehicle in a safe place, and check the engine after it
has cooled completely. (P. 449)
• Vehicles with a monochrome multi-information display: The engine
coolant temperature gauge enters the red zone
• Vehicles with a color multi-information display: The high engine coolant
temperature warning light flashes or illuminates
193
2-2. Instrument cluster
Indicators and warning lights
The indicator and warning lights on the instrument cluster and cen-
ter panel inform the driver of the status of the vehicle’s various sys-
tems.

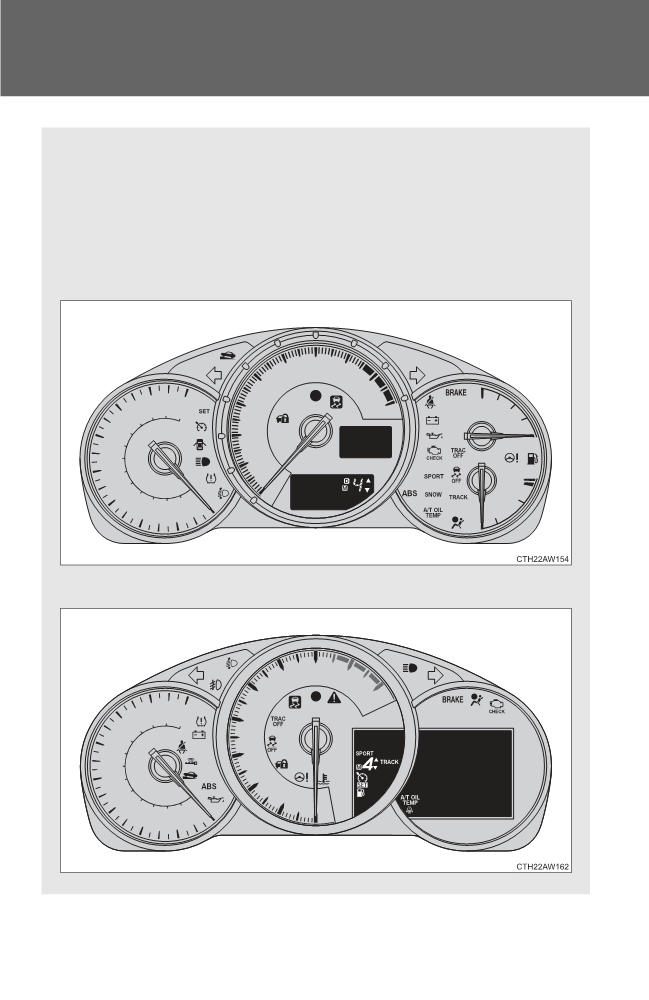

For the purpose of explanation, the following illustration displays all
indicators and warning lights illuminated.
Instrument cluster (with monochrome display)
Instrument cluster (with color display)
194
2-2. Instrument cluster

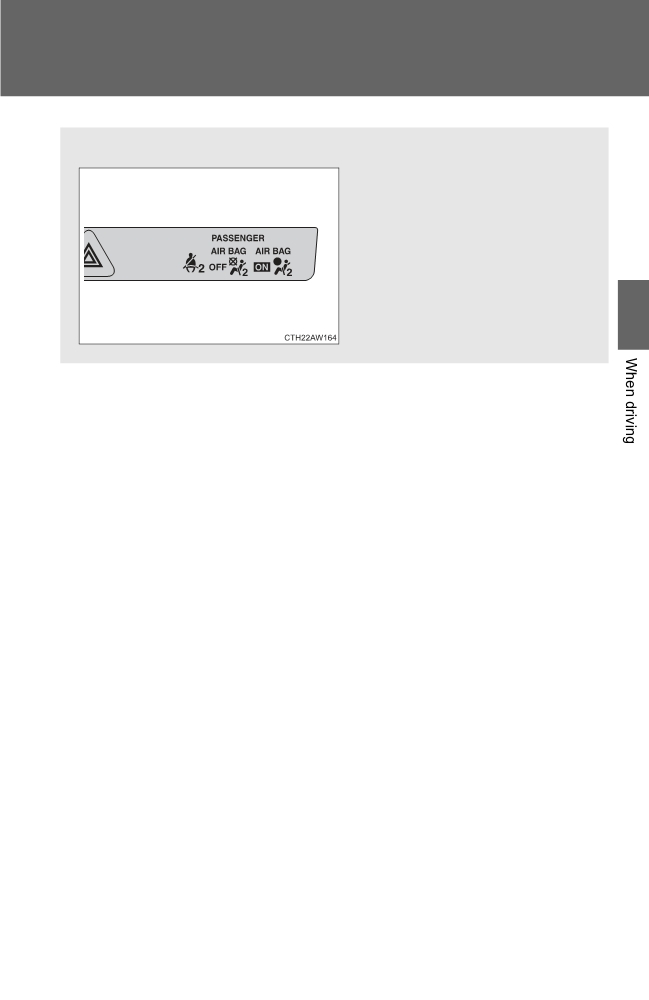

Center panel
2
195
2-2. Instrument cluster

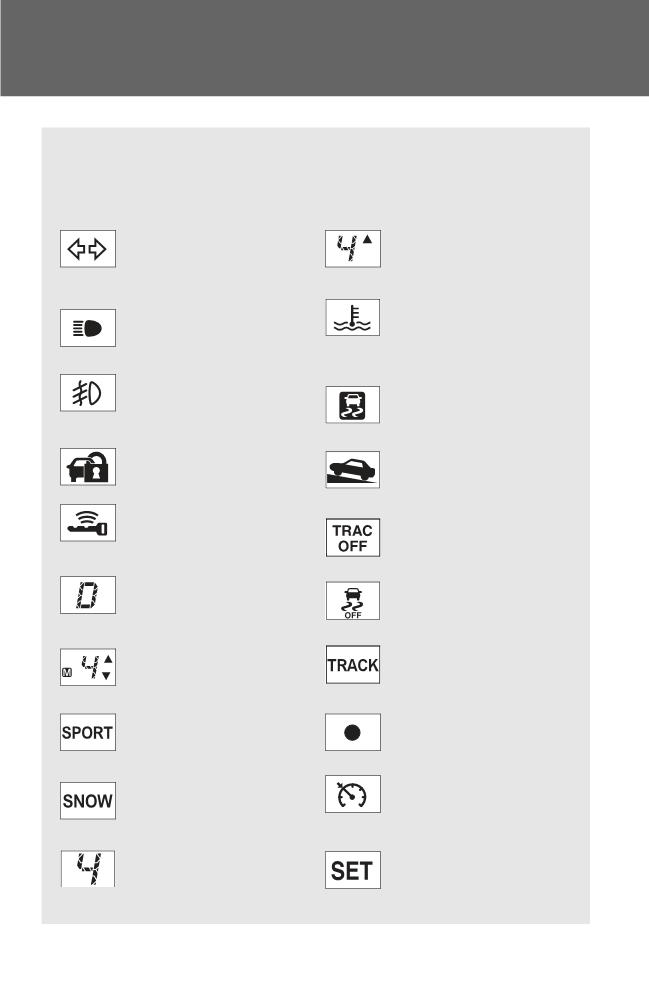

■ Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
Shift-up indicator
(P. 188)
(P. 186)
(Vehicles with a manual transmission)
*2
Headlight high beam
Low engine coolant
indicator (P. 223)
temperature indicator
(Blue)
(If equipped)
*1, 3
Front fog light indicator
Slip indicator
(P. 228)
(P. 246)
(If equipped)
Hill-start assist control
Security indicator
*3
ON indicator
(P. 79, 82)
(P. 252)
Smart key system indi-
*1
“TRAC OFF” indicator
cator (P. 166)
(P. 246)
(If equipped)
Shift position and shift
*1
VSC off indicator
range indicator
(P. 247)
(P. 179)
(Vehicles with an automatic transmission)
Upshift/downshift indi-
“TRACK” indicator
cator (P. 181, 183)
(P. 247)
(Vehicles with an automatic transmission)
“SPORT” indicator
REV indicator
(P. 180)
(P. 156)
(Vehicles with an automatic transmission)
“SNOW” indicator
Cruise control indicator
(P. 180)
(P. 232)
(Green)
(Vehicles with an automatic transmission)
Shift position indicator
“SET” indicator
(P. 186)
(P. 232)
(Vehicles with a manual transmission)
196
2-2. Instrument cluster

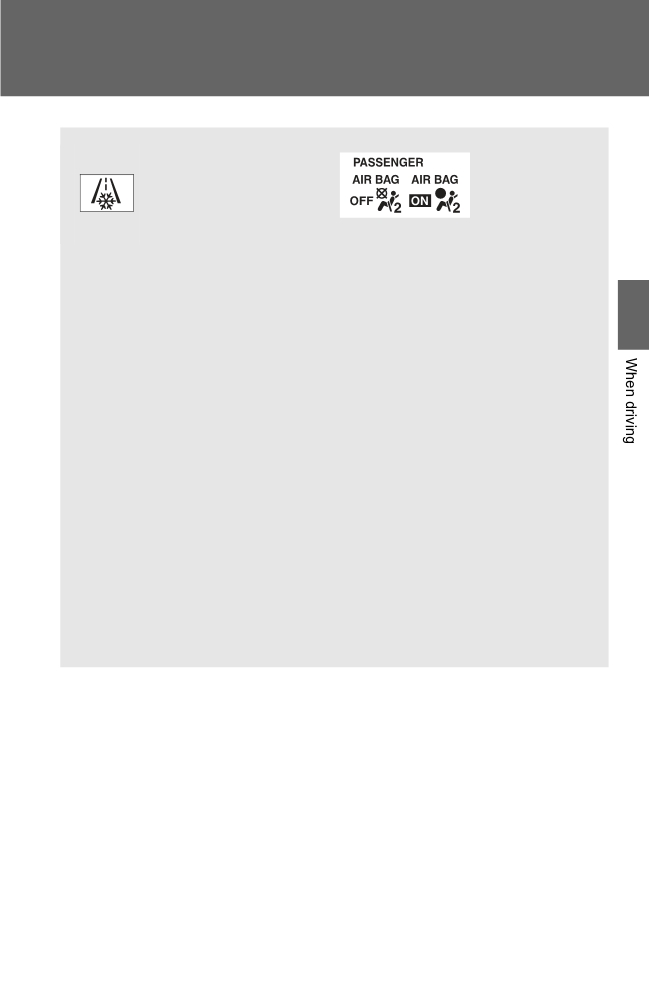

*4
Low outside tempera-
ture indicator (P. 219)
(If equipped)
Airbag on-off indicator (P. 128)
*1: Vehicles without a smart key system
These lights turn on when the engine switch is turned to the “ON”
2
position to indicate that a system check is being performed. They
will turn off after the engine is started, or after a few seconds. There
may be a malfunction in a system if a light does not come on, or if
the lights do not turn off. Have the vehicle inspected by your Toyota
dealer.
Vehicles with a smart key system
These lights turn on when the “ENGINE START STOP” switch is
turned to IGNITION ON mode to indicate that a system check is
being performed. They will turn off after the engine is started, or
after a few seconds. There may be a malfunction in a system if a
light does not come on, or if the lights do not turn off. Have the vehi-
cle inspected by your Toyota dealer for details.
*2: This indicator turns on when the engine coolant temperature is low.
*3: The light flashes to indicate that the system is operating.
*4: When the outside temperature is approximately 37°F (3°C) or lower,
the indicator will illuminate.
197
2-2. Instrument cluster

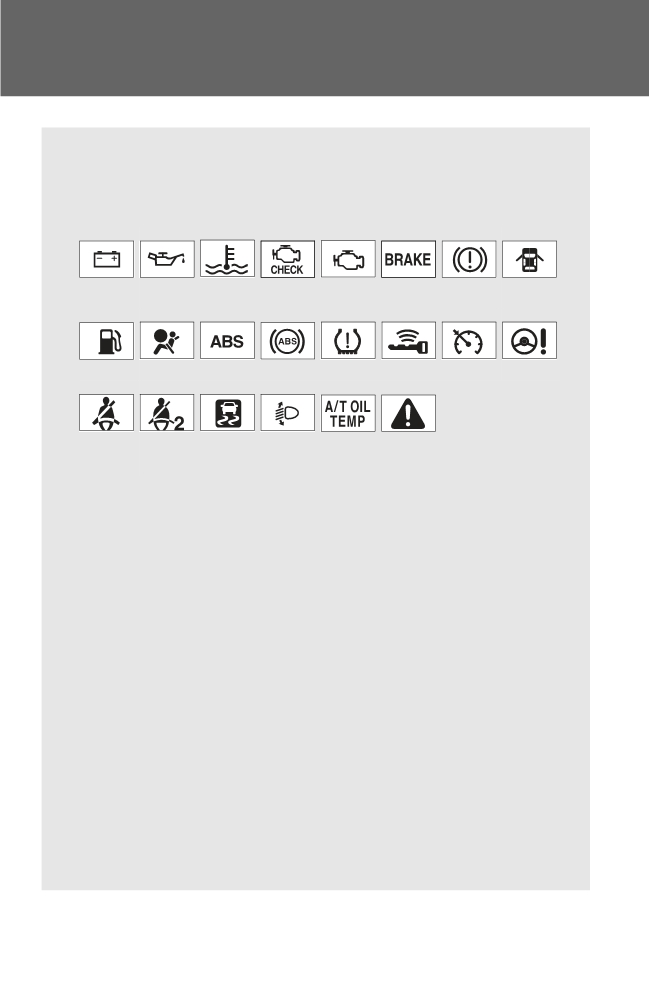

■ Warning lights
Warning lights inform the driver of malfunctions in any of the
vehicle’s systems. (P. 395, 407)
*1
*1
*1
*1
*1
*1
*1
(Red)
(U.S.A.)
(Canada)
(U.S.A.)
(Canada) (If equipped)
(If equipped)
*1
*1
*1
*1
*1
*2
*3
*1
(Yellow)
(U.S.A.)
(Canada)
(If equipped)
(Yellow)
*1
*1
*4
*1
(for driver)
(for the
(If equipped) (If equipped)
front pas-
senger)
*1: Vehicles without a smart key system
These lights turn on when the engine switch is turned to the “ON”
position to indicate that a system check is being performed. They
will turn off after the engine is started, or after a few seconds. There
may be a malfunction in a system if a light does not come on, or if
the lights do not turn off. Have the vehicle inspected by your Toyota
dealer for details.
Vehicles with a smart key system
These lights turn on when the “ENGINE START STOP” switch is
turned to IGNITION ON mode to indicate that a system check is
being performed. They will turn off after the engine is started, or
after a few seconds. There may be a malfunction in a system if a
light does not come on, or if the lights do not turn off. Have the vehi-
cle inspected by your Toyota dealer for details.
*2: The light flashes in yellow to indicate a malfunction. The light
flashes quickly in green to indicate that the steering lock has not
been released.
*3: The light comes on in yellow to indicate a malfunction.
198
2-2. Instrument cluster
*4: Vehicles with a monochrome multi-information display only: This
light turns on when the engine switch is turned to the “ON” position
to indicate that a system check is being performed. It will turn off
after the engine is started, or after a few seconds. There may be a
malfunction in a system if the light does not come on or turn off.
Have the vehicle inspected by your Toyota dealer for details.
WARNING
2
■ If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by your Toyota dealer immedi-
ately if this occurs.
199
2-2. Instrument cluster

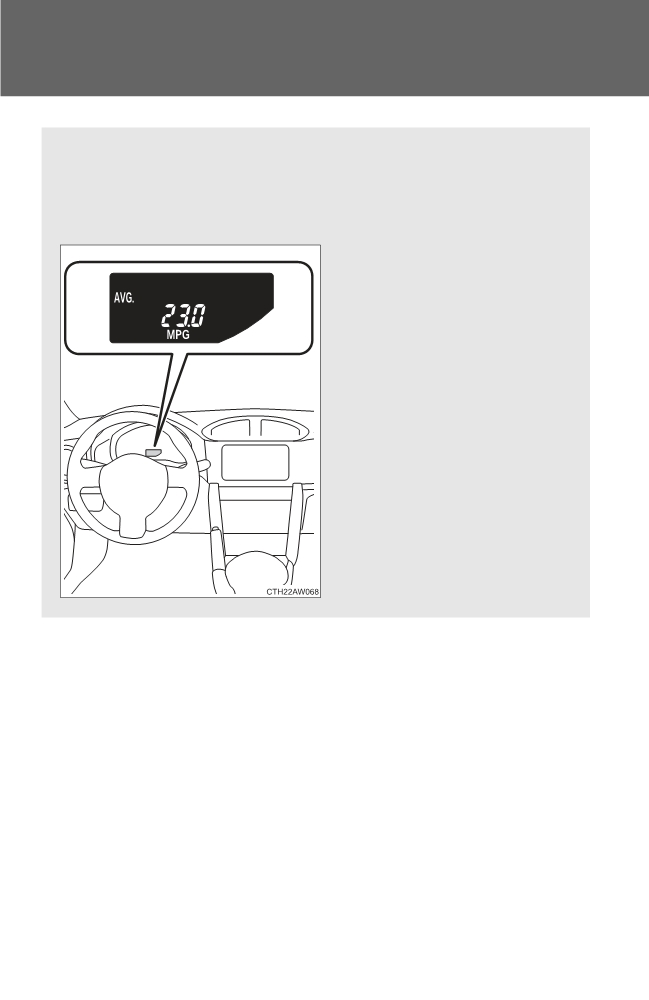

Multi-information display (monochrome display)
The multi-information display presents the driver with a variety of
driving-related data, such as the current outside temperature. The
multi-information display can also be used to change the meter set-
tings.
● Odometer
● Trip meter
● Outside temperature
● Current fuel consumption
● Average fuel consumption
● Setting screen for the shift
position indicator and shift-
up indicator (vehicles with a
manual transmission)
● Setting screen for the REV
indicator
200
2-2. Instrument cluster

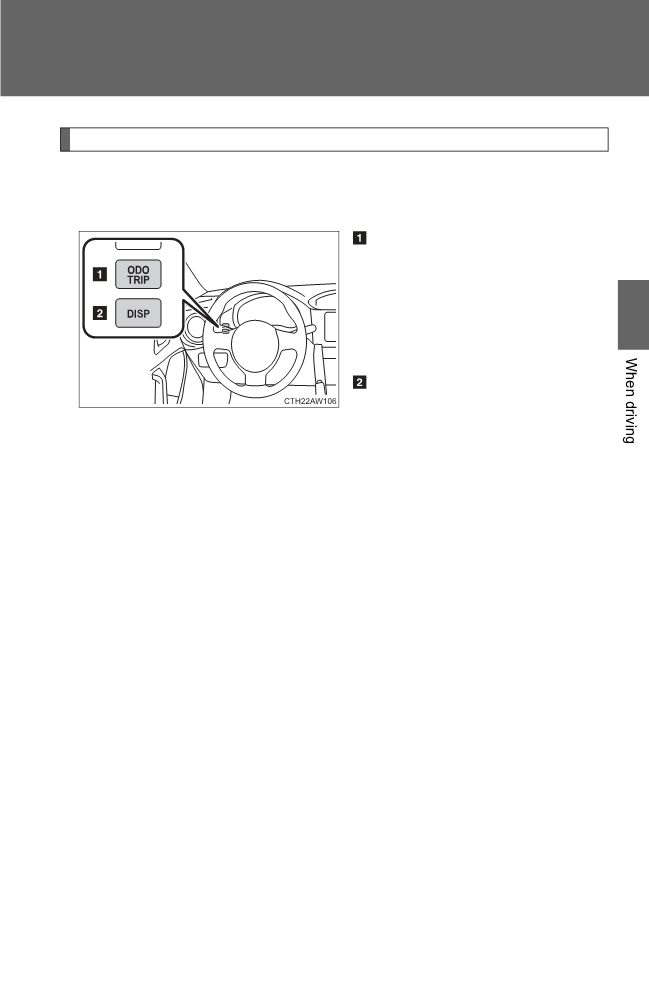

Switch the display
Pressing the “ODO/TRIP” switch or “DISP” switch displays the follow-
ing information respectively:
“ODO/TRIP” switch
• Odometer
• Trip meter
• Setting screen for the shift posi-
2
tion indicator and shift-up indica-
tor (vehicles with a manual
transmission)
“DISP” switch
• Outside temperature
• Current fuel consumption
• Average fuel consumption
• Setting screen for the REV indica-
tor
201
2-2. Instrument cluster

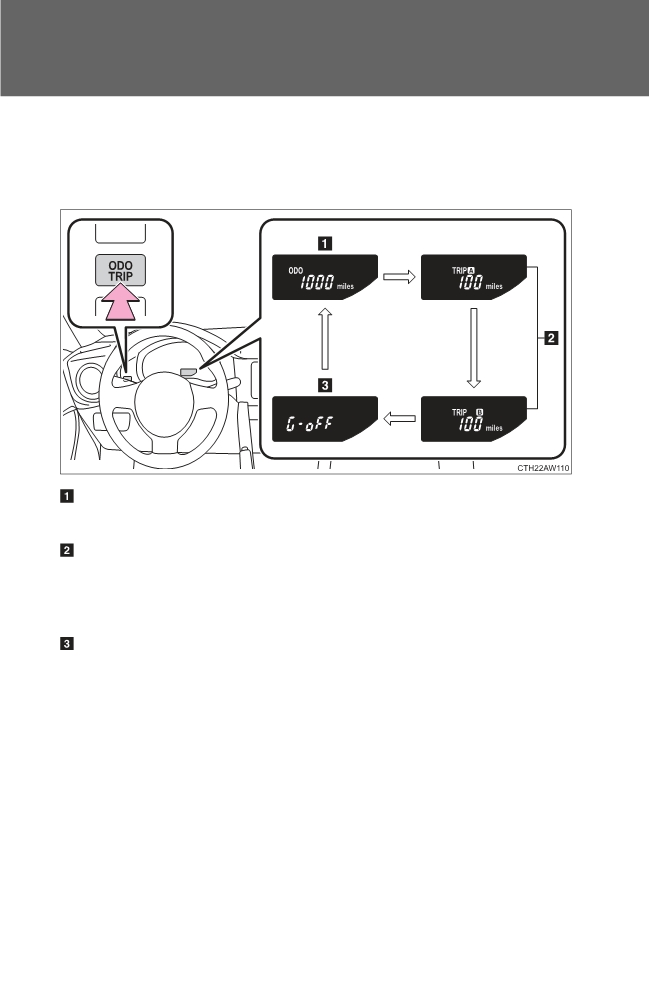

■ Changing the display using the “ODO/TRIP” switch
Each time the “ODO/TRIP” switch is pressed, the display changes as
follows.
Odometer
Displays the total distance the vehicle has been driven.
Trip meter*1
Displays the distance the vehicle has been driven since the meter was
last reset. Trip meters A and B can be used to record and display different
distances independently.
Setting screen for the shift position indicator and shift-up indica-
tor*2 (vehicles with a manual transmission)
P. 204
*1: Pressing and holding the “ODO/TRIP” switch will reset the trip meter that
is currently displayed.
*2: Only displayed when the engine switch is in the “ACC” or “LOCK” posi-
tion.
202
2-2. Instrument cluster

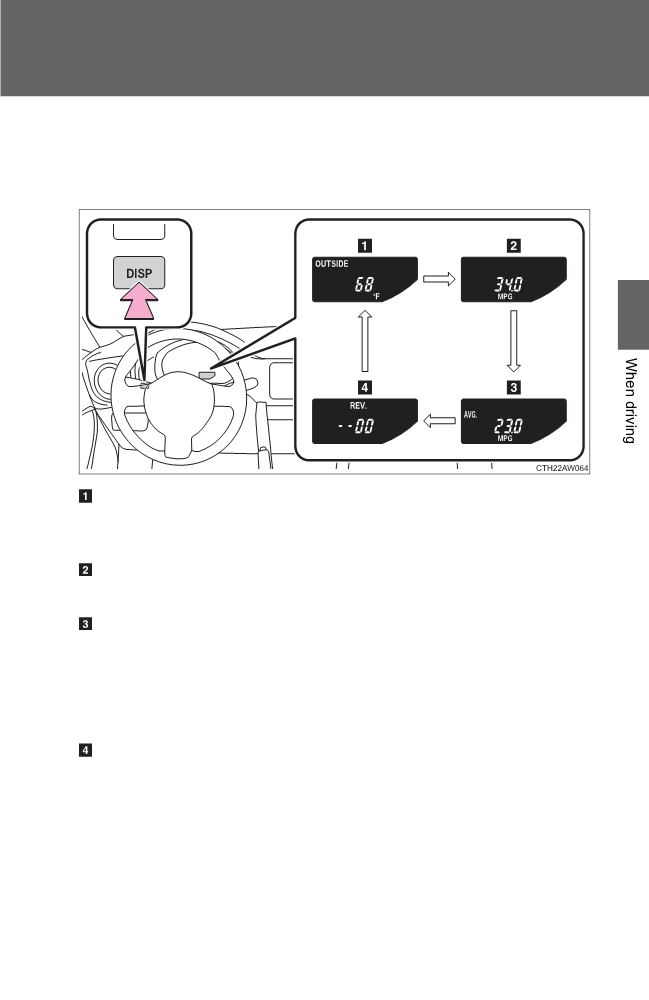

■ Changing the display using the “DISP” switch
Each time the “DISP” switch is pressed, the display changes as fol-
lows.
2
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to
122°F (50°C).
Current fuel consumption
Displays the current rate of fuel consumption.
Average fuel consumption
Displays the average fuel consumption since the function was reset.
• The function can be reset by pushing the “DISP” switch for longer than
one second when the average fuel consumption is displayed.
• Use the displayed average fuel consumption as a reference.
Setting screen for the REV indicator*
P. 204
*: Only displayed when the vehicle is stopped.
203
