Toyota Yaris Hybrid (2017 year). Instruction - part 21
340
7-3. Do-it-yourself maintenance
■ If the coolant level drops within a short time of replenishing
Visually check the radiator, hoses, engine/power control unit coolant reservoir
caps, drain cock and water pump.
If you cannot find a leak, have any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional, test the cap and check for
leaks in the cooling system.
WARNING
■ When the hybrid system is hot
Do not remove the engine/power control unit coolant reservoir caps.
The cooling system may be under pressure and may spray hot coolant if the
cap is removed, causing serious injuries, such as burns.
NOTICE
■ When adding coolant
Coolant is neither plain water nor straight antifreeze. The correct mixture of
water and antifreeze must be used to provide proper lubrication, corrosion
protection and cooling. Be sure to read the antifreeze or coolant label.
■ If you spill coolant
Be sure to wash it off with water to prevent it from damaging parts or paint.

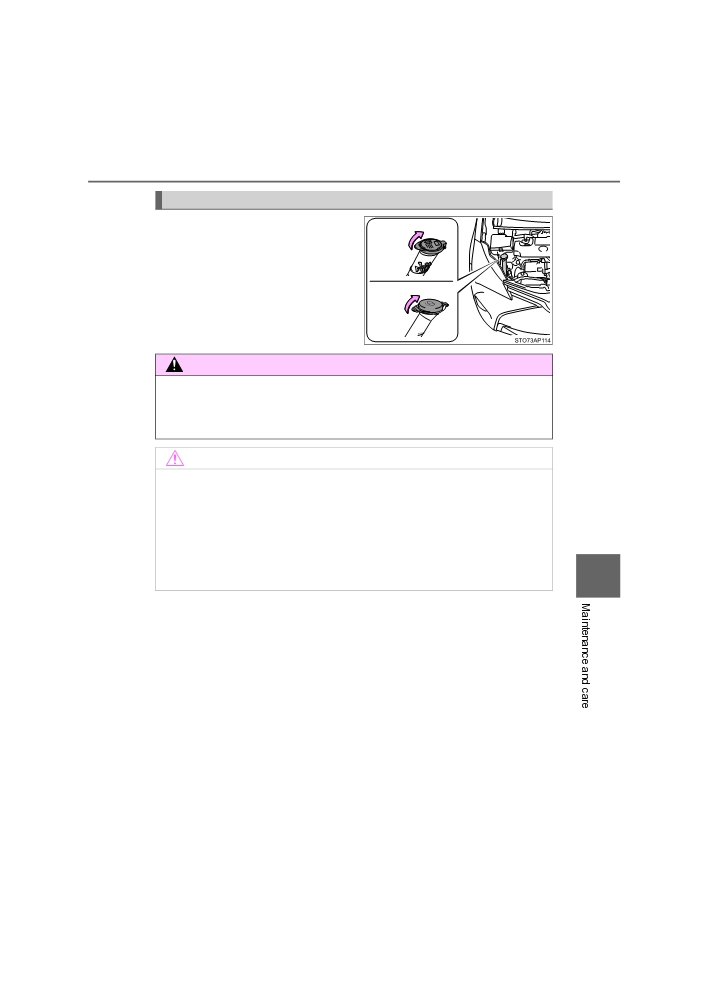

Radiator and condenser
Check the radiator and condenser and clear away any foreign objects.
If any of the above parts is extremely dirty or you are not sure of their
condition, have your vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional.
WARNING
■ When the hybrid system is hot
Do not touch the radiator or condenser as they may be hot and cause seri-
ous injuries, such as burns.
YARIS_HV_OM_Europe_OM52G76E
7-3. Do-it-yourself maintenance
341
Washer fluid
If the washer fluid level is less
Type A
than “FULL” line, add washer fluid
to “FULL” line.
Type B
WARNING
■ When adding washer fluid
Do not add washer fluid when the hybrid system is hot or operating as
washer fluid contains alcohol and may catch fire if spilled on the engine etc.
NOTICE
■ Do not use any fluid other than washer fluid
Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle’s painted surfaces.
■ Diluting washer fluid
Dilute washer fluid with water as necessary.
Refer to the freezing temperatures listed on the label of the washer fluid bot-
tle.
7
YARIS_HV_OM_Europe_OM52G76E
342
7-3. Do-it-yourself maintenance
12-volt battery

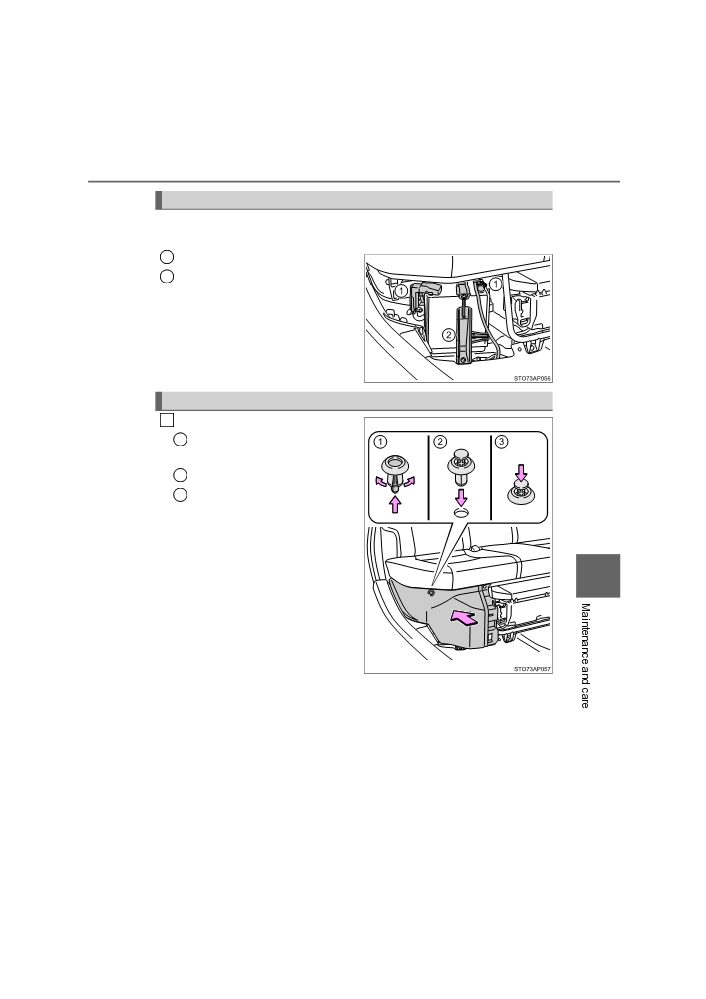

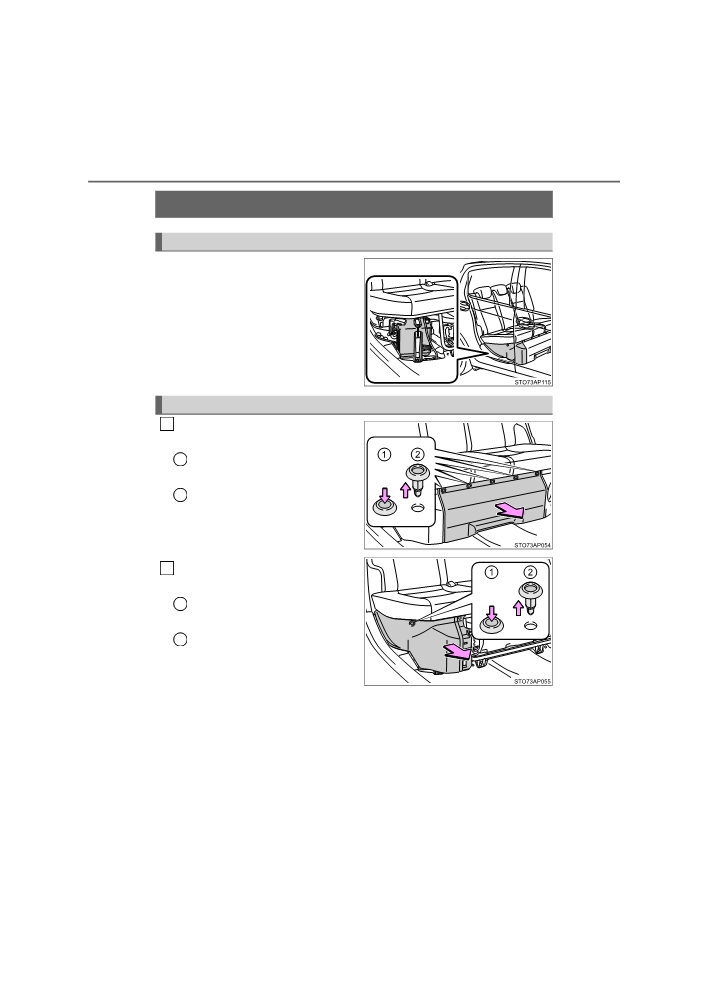

Location
The
12-volt battery is located
under the rear right seat.
Removing the 12-volt battery cover
Remove the cover after remov-
1
ing the clips.
1
Push in the center part of the
clips
2
Remove the clips
2
Remove the cover after remov-
ing the clip.
1
Push in the center part of the
clips
2
Remove the clips
YARIS_HV_OM_Europe_OM52G76E
7-3. Do-it-yourself maintenance
343
Exterior
Make sure that the 12-volt battery terminals are not corroded and that
there are no loose connections, cracks, or loose clamps.
1
Terminals
2
Hold-down clamp
Installing the 12-volt battery cover
1
Install the cover with the clip.
1
Push out the center part of
the clips
2
Insert the clips
3
Push in the center part of the
clips
7
YARIS_HV_OM_Europe_OM52G76E
344
7-3. Do-it-yourself maintenance
2
Install the cover with the clip.
1
Push out the center part of
the clips
2
Insert the clips
3
Push in the center part of the
clips
Caution symbols
The meanings of each caution symbol on the top of the 12-volt battery
are as follows:
No smoking, no naked
12-volt battery acid
flames, no sparks
Note operating instruc-
Shield eyes
tions
Keep away from children
Explosive gas
YARIS_HV_OM_Europe_OM52G76E
7-3. Do-it-yourself maintenance
345
■ Before recharging
When recharging, the 12-volt battery produces hydrogen gas which is flam-
mable and explosive. Therefore, observe the following precautions before
recharging:
● If recharging with the 12-volt battery installed on the vehicle, be sure to dis-
connect the ground cable.
● Make sure the power switch on the charger is off when connecting and dis-
connecting the charger cables to the 12-volt battery.
■ When disconnecting the 12-volt battery terminals
Always disconnect the negative (-) terminal first.
■ After recharging/reconnecting the 12-volt battery
● Unlocking the doors using entry function of the smart entry & start system
may not be possible immediately after reconnecting the 12-volt battery. If
this happens, use the wireless remote control or the mechanical key to lock/
unlock the doors.
● Vehicles with a smart entry & start system: Start the hybrid system with the
power switch in ACCESSORY mode. The hybrid system may not start with
the power switch turned off. However, the hybrid system will operate nor-
mally from the second attempt.
● Vehicles with a smart entry & start system: The power switch mode is
recorded by the vehicle. If the 12-volt battery is reconnected, the vehicle will
return the power switch mode to the status it was in before the 12-volt bat-
tery was disconnected. Make sure to turn off the power before disconnect
the 12-volt battery. Take extra care when connecting the 12-volt battery if
the power switch mode prior to discharge is unknown.
If the system will not start even after multiple attempts, contact any authorized
7
Toyota dealer or repairer, or another duly qualified and equipped professional.
YARIS_HV_OM_Europe_OM52G76E
346
7-3. Do-it-yourself maintenance
WARNING
■ Chemicals in the 12-volt battery
The 12-volt battery contains poisonous and corrosive sulfuric acid and may
produce hydrogen gas which is flammable and explosive. To reduce the risk
of death or serious injury, take the following precautions while working on or
near the 12-volt battery:
●Do not cause sparks by touching the 12-volt battery terminals with tools.
●Do not smoke or light a match near the 12-volt battery.
● Avoid contact with eyes, skin and clothes.
●Never inhale or swallow electrolyte.
● Wear protective safety glasses when working near the 12-volt battery.
● Keep children away from 12-volt battery.
■ Where to safely charge the 12-volt battery
Always charge the 12-volt battery in an open area. Do not charge the 12-
volt battery in a garage or closed room where there is insufficient ventila-
tion.
■ When disconnecting the 12-volt battery terminals
Always disconnect the negative (-) terminal first. If the positive (+) terminal
is disconnected first and touches a surrounding metal surface sparks will be
produced, possibly starting a fire. It could also result in an electric shock or
serious injury.
■ How to recharge the 12-volt battery
Only perform a slow charge (3.5 A or less). The 12-volt battery may explode
if charged at a quicker rate.
YARIS_HV_OM_Europe_OM52G76E
7-3. Do-it-yourself maintenance
347
WARNING
■ Emergency measures regarding electrolyte
●If electrolyte gets in your eyes
Flush your eyes with clean water for at least 15 minutes and get immedi-
ate medical attention. If possible, continue to apply water with a sponge or
cloth while traveling to the nearest medical facility.
●If electrolyte gets on your skin
Wash the affected area thoroughly. If you feel pain or burning, get medical
attention immediately.
● If electrolyte gets on your clothes
It can soak through clothing on to your skin. Immediately take off the cloth-
ing and follow the procedure above if necessary.
● If you accidentally swallow electrolyte
Drink a large quantity of water or milk. Get emergency medical attention
immediately.
■ When replacing the 12-volt battery
Use a 12-volt battery designed for this vehicle. Failure to do so may cause
gas (hydrogen) to enter the passenger compartment, causing a fire or
explosion.
For replacement of the 12-volt battery, contact any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional.
NOTICE
■ When recharging the 12-volt battery
7
Never recharge the 12-volt battery while the hybrid system is operating.
Also, be sure all accessories are turned off.
YARIS_HV_OM_Europe_OM52G76E
348
7-3. Do-it-yourself maintenance
Tires
Replace or rotate tires in accordance with maintenance sched-
ules and treadwear.
Checking tires

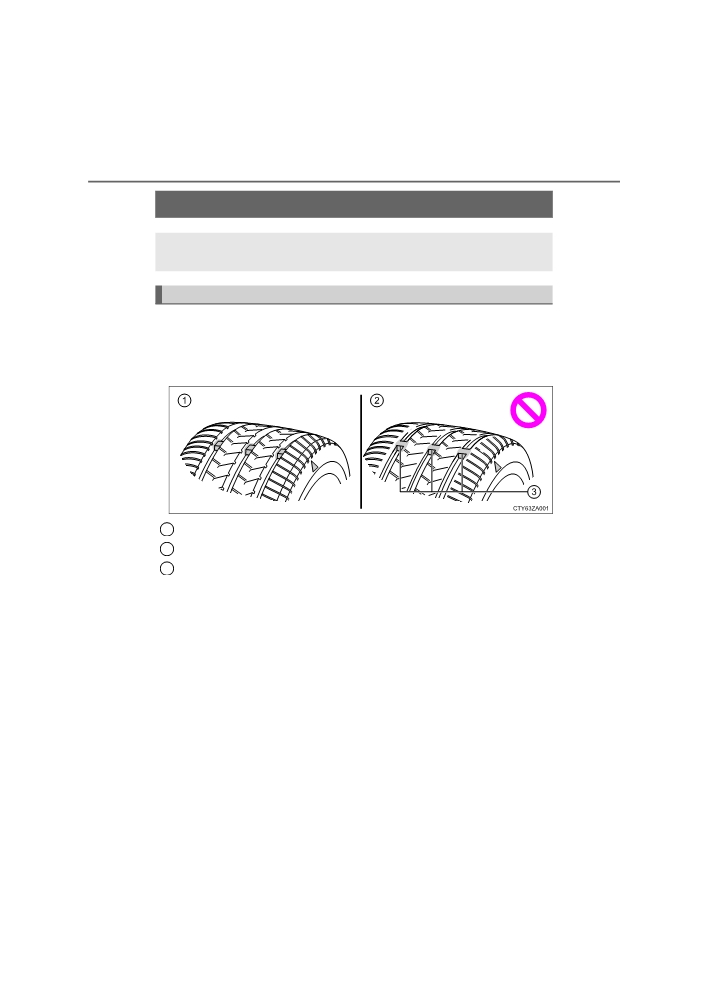

Check if the treadwear indicators are showing on the tires. Also check
the tires for uneven wear, such as excessive wear on one side of the
tread.
Check the spare tire condition and pressure if not rotated.
1
New tread
2
Worn tread
3
Treadwear indicator
The location of treadwear indicators is shown by a “TWI” or “” mark, etc.,
molded into the sidewall of each tire.
Replace the tires if
the treadwear indicators are showing on a tire.
YARIS_HV_OM_Europe_OM52G76E
7-3. Do-it-yourself maintenance
349

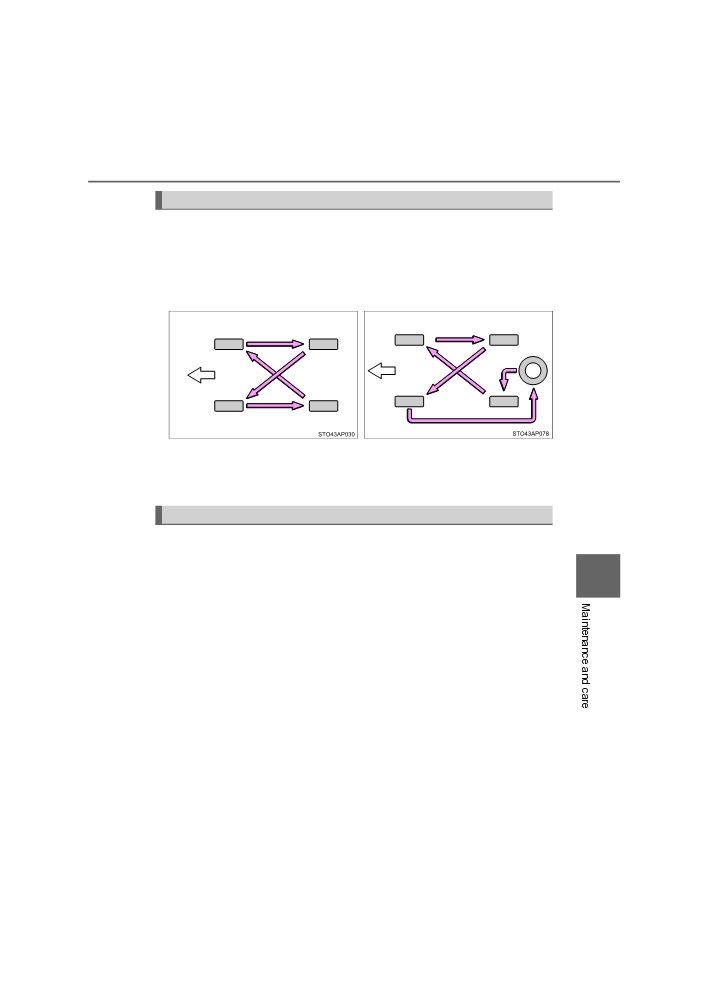

Tire rotation
Rotate the tires in the order shown.
Vehicles with a spare tire of dif-
Vehicles with a spare tire of
ferent wheel type from the
the same wheel type as the
installed tires or an emergency
installed tires
tire puncture repair kit
Front
Front
To equalize tire wear and help extend tire life, Toyota recommends
that tire rotation is carried out approximately every
10000 km
(6000 miles).
Tire pressure warning system (if equipped)
Your vehicle is equipped with a tire pressure warning system that uses
tire pressure warning valves and transmitters to detect low tire infla-
tion pressure before serious problems arise.
7
If the tire pressure drops below a predetermined level, the driver is
warned by a warning light. (P. 408)
YARIS_HV_OM_Europe_OM52G76E
350
7-3. Do-it-yourself maintenance
Installing tire pressure warning valves and transmitters (vehicles
with a tire pressure warning system)
When replacing tires or wheels, tire pressure warning valves and
transmitters must also be installed.
When new tire pressure warning valves and transmitters are installed,
new ID codes must be registered in the tire pressure warning com-
puter and the tire pressure warning system must be initialized. Have
tire pressure warning valve and transmitter ID codes registered by
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional. (P. 352)
Initializing the tire pressure warning system (vehicles with a tire
pressure warning system)
■ The tire pressure warning system must be initialized in the fol-
lowing circumstances:
● When rotating front and rear tires which have different tire infla-
tion pressures
● When the tire inflation pressure is changed such as when chang-
ing traveling speed
● When changing the tire size
When the tire pressure warning system is initialized, the current tire
inflation pressure is set as the benchmark pressure.
YARIS_HV_OM_Europe_OM52G76E
7-3. Do-it-yourself maintenance
351

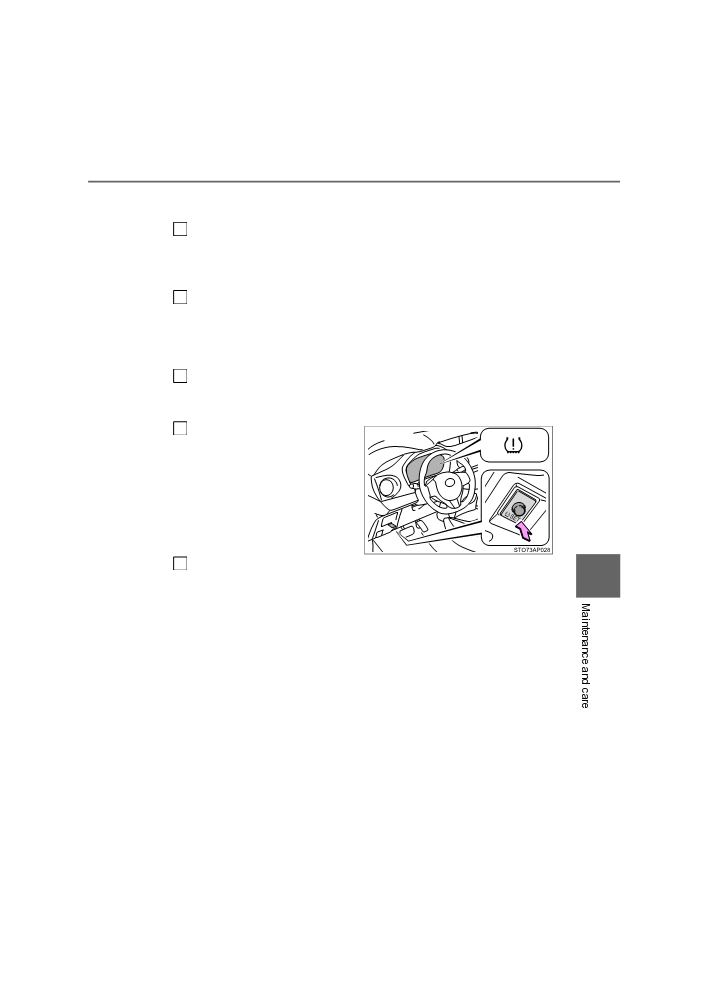

■ How to initialize the tire pressure warning system (vehicles
with a tire pressure warning system)
Park the vehicle in a safe place and turn the power switch to the
1
“LOCK” position (vehicles without a smart entry & start system)
or off (vehicles with a smart entry & start system).
Initialization cannot be performed while the vehicle is moving.
Adjust the tire inflation pressure to the specified cold tire inflation
2
pressure level. (P. 471)
Make sure to adjust the tire pressure to the specified cold tire inflation
pressure level. The tire pressure warning system will operate based on
this pressure level.
Turn the power switch to the “ON” position (vehicles without a
3
smart entry & start system) or ON mode (vehicles with a smart
entry & start system).
Press and hold the tire pres-
4
sure warning reset switch
until the tire pressure warn-
ing light blinks slowly 3 times.
5
Vehicles without a smart entry & start system: Wait for a few min-
7
utes with the power switch in the “ON” position and then turn the
power switch to the “ACC” or “LOCK” position.
Vehicles with a smart entry & start system: Wait for a few minutes
with the power switch in ON mode and then turn the power
switch off.
YARIS_HV_OM_Europe_OM52G76E
352
7-3. Do-it-yourself maintenance
Registering ID codes (vehicles with a tire pressure warning sys-
tem)
The tire pressure warning valve and transmitter is equipped with a
unique ID code. When replacing a tire pressure warning valve and
transmitter, it is necessary to register the ID code. Have the ID code
registered by any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
■ When to replace your vehicle’s tires
Tires should be replaced if:
● Tire tread wear indicators are showing on a tire.
● You have tire damage such as cuts, splits, cracks deep enough to expose
the fabric, and bulges indicating internal damage
● A tire goes flat repeatedly or cannot be properly repaired due to the size or
location of a cut or other damage
If you are not sure, consult with any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
■ Replacing tire and wheels (vehicles with a tire pressure warning system)
If the ID code of the tire pressure warning valve and transmitter is not regis-
tered, the tire pressure warning system will not work properly. After driving for
about 10 minutes, the tire pressure warning light blinks for 1 minute and stays
on to indicate a system malfunction.
■ Tire life
Any tire over 6 years old must be checked by a qualified technician even if it
has seldom or never been used or damage is not obvious.
■ Low profile tires (vehicles with 195/50R16 tires)
Generally, low profile tires will wear more rapidly and tire grip performance
will be reduced on snowy and/or icy roads when compared to standard tires.
Be sure to use snow tires or tire chains on snowy and/or icy roads and drive
carefully at a speed appropriate for road and weather conditions.
YARIS_HV_OM_Europe_OM52G76E
7-3. Do-it-yourself maintenance
353
■ Routine tire inflation pressure checks (vehicles with a tire pressure
warning system)
The tire pressure warning system does not replace routine tire inflation pres-
sure checks. Make sure to check tire inflation pressure as part of your routine
of daily vehicle checks.
■ Initializing the tire pressure warning system (vehicles with a tire pres-
sure warning system)
Initialize the system with the tire inflation pressure adjusted to the specified
level.
■ If the tread on snow tires wears down below 4 mm (0.16 in.)
The effectiveness of the tires as snow tires is lost.
■ When initialization of the tire pressure warning system has failed (vehi-
cles with a tire pressure warning system)
Initialization can be completed in a few minutes. However, in the following
cases, the settings have not been recorded and the system will not operate
properly. If repeated attempts to record tire inflation pressure settings are
unsuccessful, have the vehicle inspected by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
● When operating the tire pressure warning reset switch, the tire pressure
warning light does not blink 3 times.
●After driving for a certain period of time since the initialization has been
completed, the warning light comes on after blinking for 1 minute.
7
YARIS_HV_OM_Europe_OM52G76E
354
7-3. Do-it-yourself maintenance
■ Certification for the tire pressure warning system

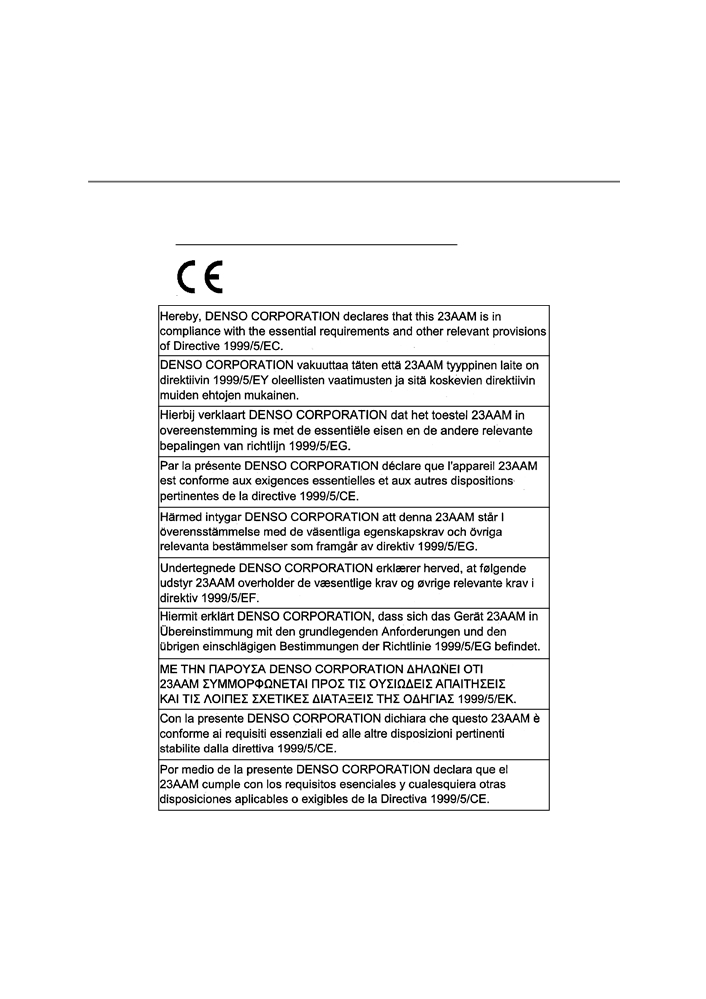

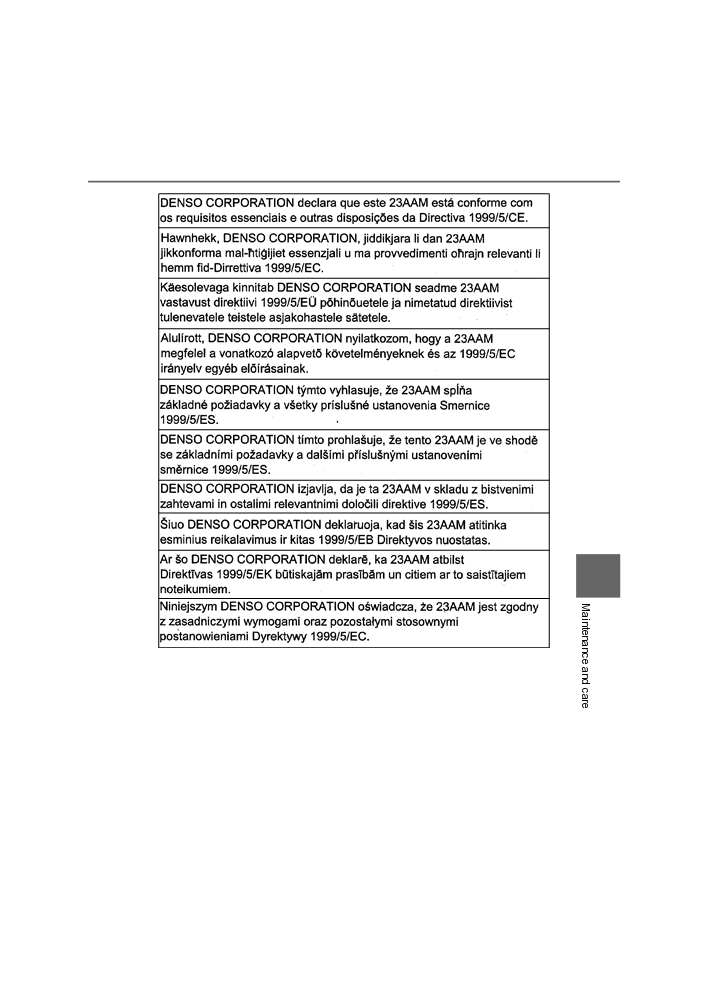

The latest “DECLARATION of CONFORMITY” (DoC) is available at the fol-
lowing address:
YARIS_HV_OM_Europe_OM52G76E
7-3. Do-it-yourself maintenance
355
7
YARIS_HV_OM_Europe_OM52G76E
356
7-3. Do-it-yourself maintenance

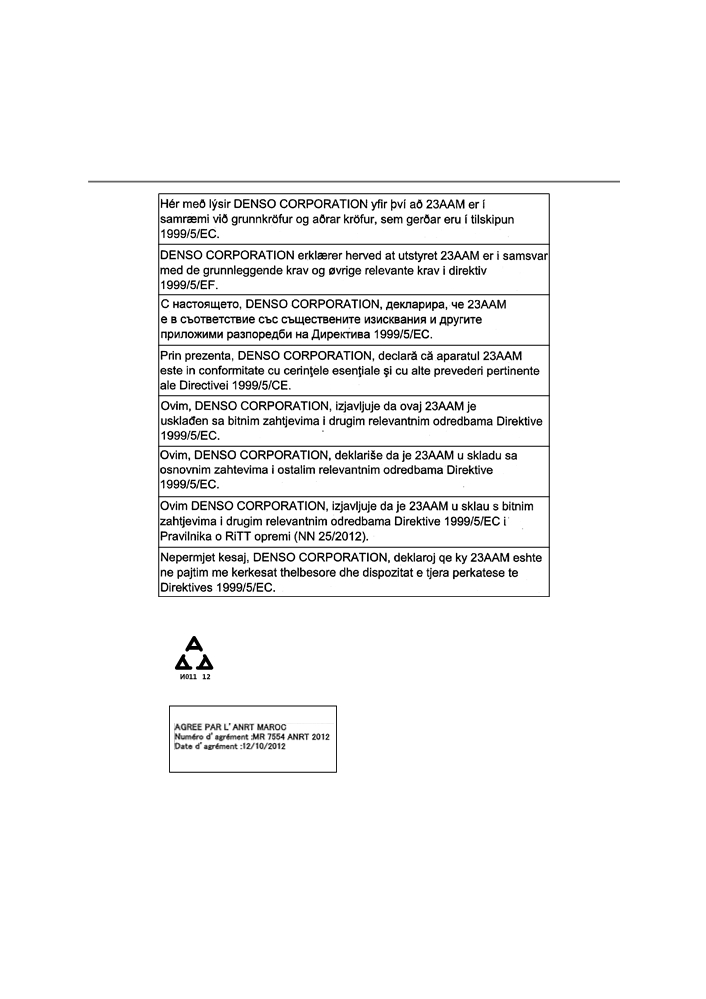

Vehicles sold in Serbia
Vehicles sold in Morocco
YARIS_HV_OM_Europe_OM52G76E
