7-3. Do-it-yourself maintenance
595
■ When replacing wheels
The wheels of your vehicle are equipped with tire pressure warning valves
and transmitters that allow the tire pressure warning system to provide
advance warning in the event of a loss in tire inflation pressure. Whenever
wheels are replaced, tire pressure warning valves and transmitters must be
installed. (P. 581)
WARNING
■ When replacing wheels
●Do not use wheels that are a different size from those recommended in the
Owner’s Manual, as this may result in a loss of handling control.
●Never use an inner tube in a leaking wheel which is designed for a tube-
less tire. Doing so may result in an accident, causing death or serious
injury.

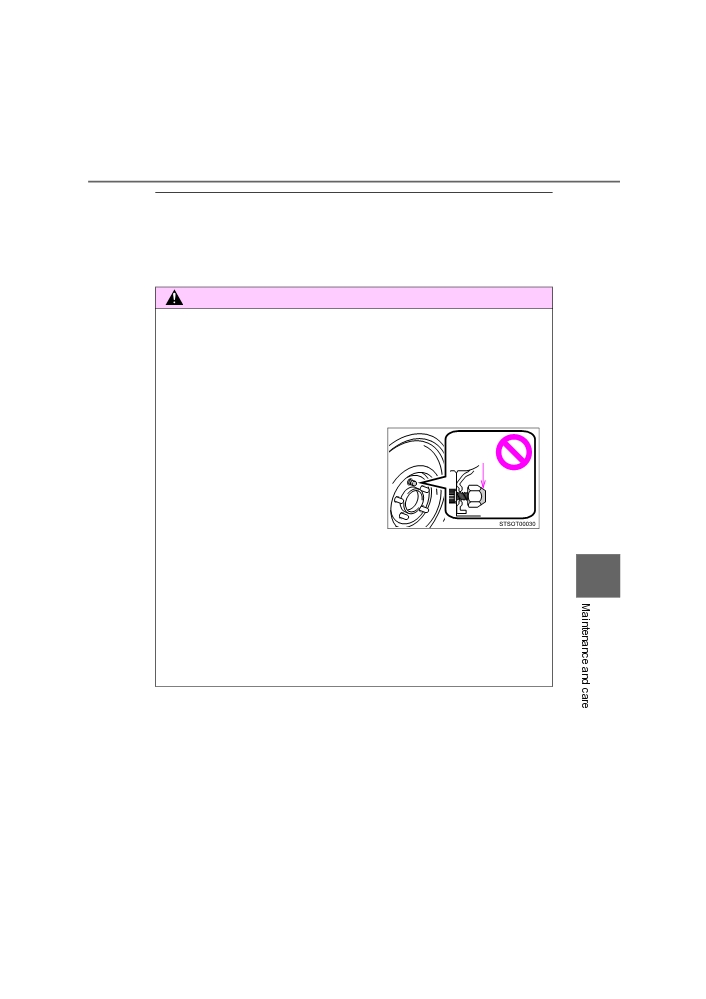

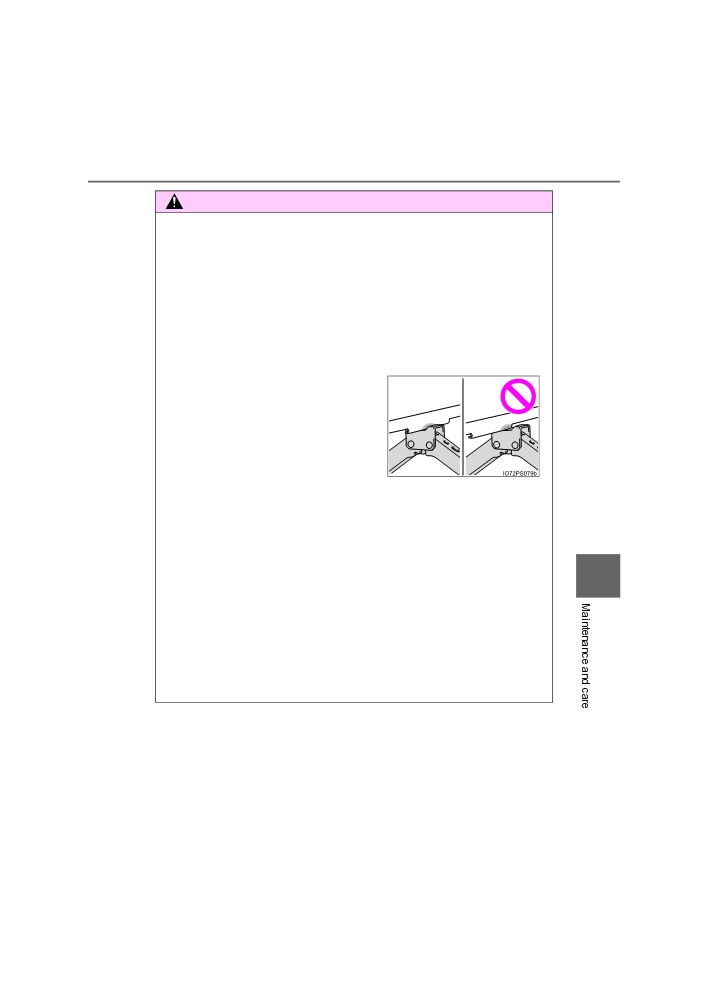

■ When installing the wheel nuts
●Be sure to install the wheel nuts with the
tapered ends facing inward. Installing
Tapered
the nuts with the tapered ends facing
portion
outward can cause the wheel to break
and eventually cause the wheel to come
off while driving, which could lead to an
accident resulting in death or serious
injury.
●Never use oil or grease on the wheel bolts or wheel nuts.
Oil and grease may cause the wheel nuts to be excessively tightened,
7
leading to bolt or disc wheel damage. In addition, the oil or grease can
cause the wheel nuts to loosen and the wheel may fall off, causing an acci-
dent and resulting in death or serious injury. Remove any oil or grease
from the wheel bolts or wheel nuts.
■ Use of defective wheels prohibited
Do not use cracked or deformed wheels.
Doing so could cause the tire to leak air during driving, possibly causing an
accident.
PRIUS PHV_OM_OM47A89E_(EE)
596
7-3. Do-it-yourself maintenance
NOTICE
■ Replacing tire pressure warning valves and transmitters
● Because tire repair or replacement may affect the tire pressure warning
valves and transmitters, make sure to have tires serviced by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional or other qualified service shop. In addition, make sure to
purchase your tire pressure warning valves and transmitters at any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
● Ensure that only genuine Toyota wheels are used on your vehicle.
Tire pressure warning valves and transmitters may not work properly with
non-genuine wheels.
PRIUS PHV_OM_OM47A89E_(EE)
7-3. Do-it-yourself maintenance
597
Replacing the tire
When raising your vehicle with a jack, position the jack cor-
rectly.
Improper placement may damage your vehicle or cause injury.
Before jacking up the vehicle
● Stop the vehicle in a safe place on a hard, flat surface.
● Set the parking brake.
● Shift the shift position to P.
● Stop the hybrid system.
● Turn on the emergency flashers. (P. 632)
7
PRIUS PHV_OM_OM47A89E_(EE)
598
7-3. Do-it-yourself maintenance

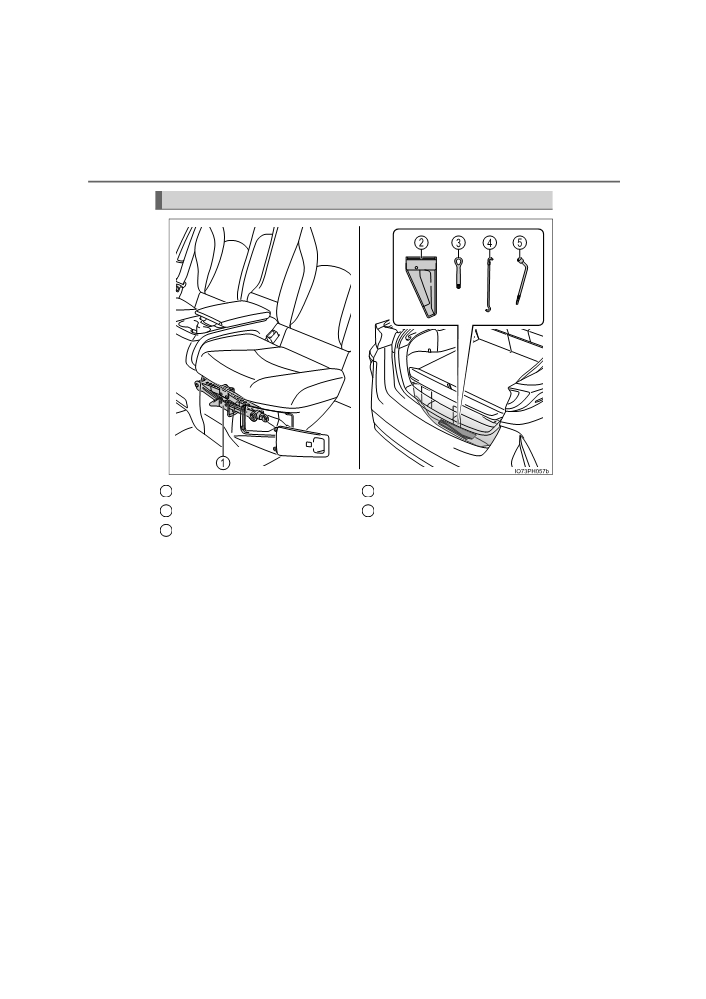

Location of the jack and tools
1
Jack
4
Jack handle
2
Tool bag
5
Wheel nut wrench
3
Towing eyelet
PRIUS PHV_OM_OM47A89E_(EE)
7-3. Do-it-yourself maintenance
599
WARNING
■ Using the tire jack
Observe the following precautions.
Improper use of the tire jack may cause the vehicle to suddenly fall off the
jack, leading to death or serious injury.
●Only use the tire jack that comes with this vehicle for replacing a tire.
Do not use it on other vehicles, and do not use other tire jacks for replac-
ing tires on this vehicle.
●Do not raise the vehicle while someone is inside.
●Do not use the tire jack for any purpose other than replacing tires or install-
ing and removing tire chains.
●Put the jack properly in its jack point.
(P. 602)
●Do not put any part of your body under the vehicle while it is supported by
the jack.
●Do not start the hybrid system or drive the vehicle while the vehicle is sup-
ported by the jack.
● When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a height greater than that required to replace
7
the tire.
●Use a jack stand if it is necessary to get under the vehicle.
● When lowering the vehicle, make sure that there is no-one near the vehi-
cle. If there are people nearby, warn them vocally before lowering.
■ When removing the jack from the storage location
The jack may be hot due to heat from the charging equipment during or
after charging. Please use gloves when handling the jack. If it is touched
with bare hands, it may result in burns.
PRIUS PHV_OM_OM47A89E_(EE)
600
7-3. Do-it-yourself maintenance

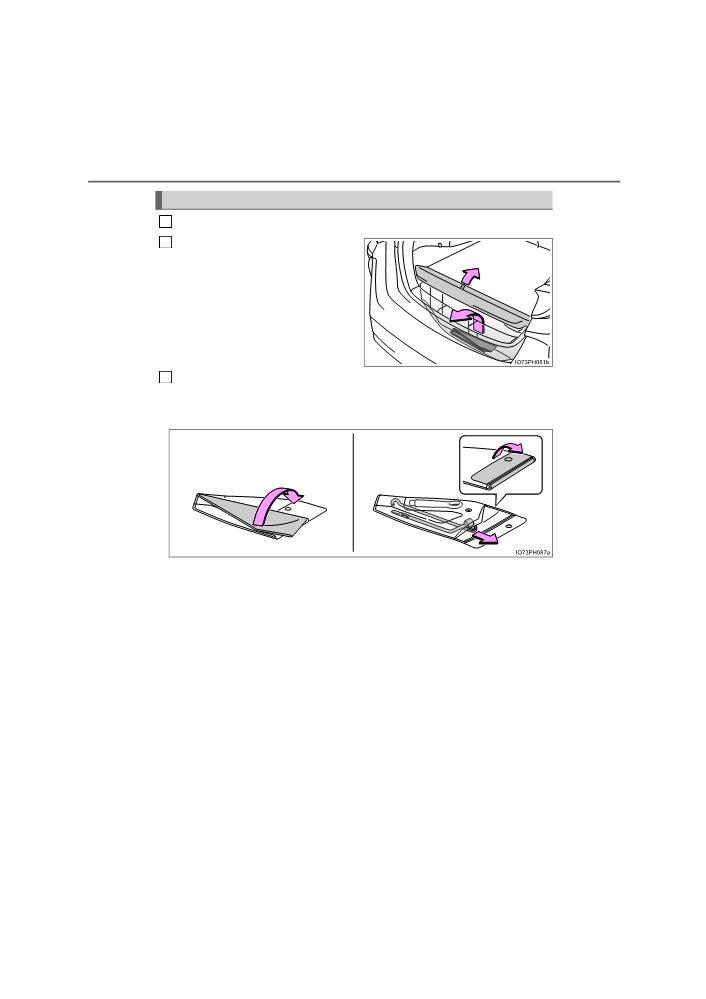

Taking out the tools
1
Open the back door. (P. 274)
2
Lift the deck under box cover
up and take out the tool bag.
3
To open the tool bag and then take out the jack handle and wheel
nut wrench.
After using the tools, stow them by reversing the steps listed.
PRIUS PHV_OM_OM47A89E_(EE)
7-3. Do-it-yourself maintenance
601

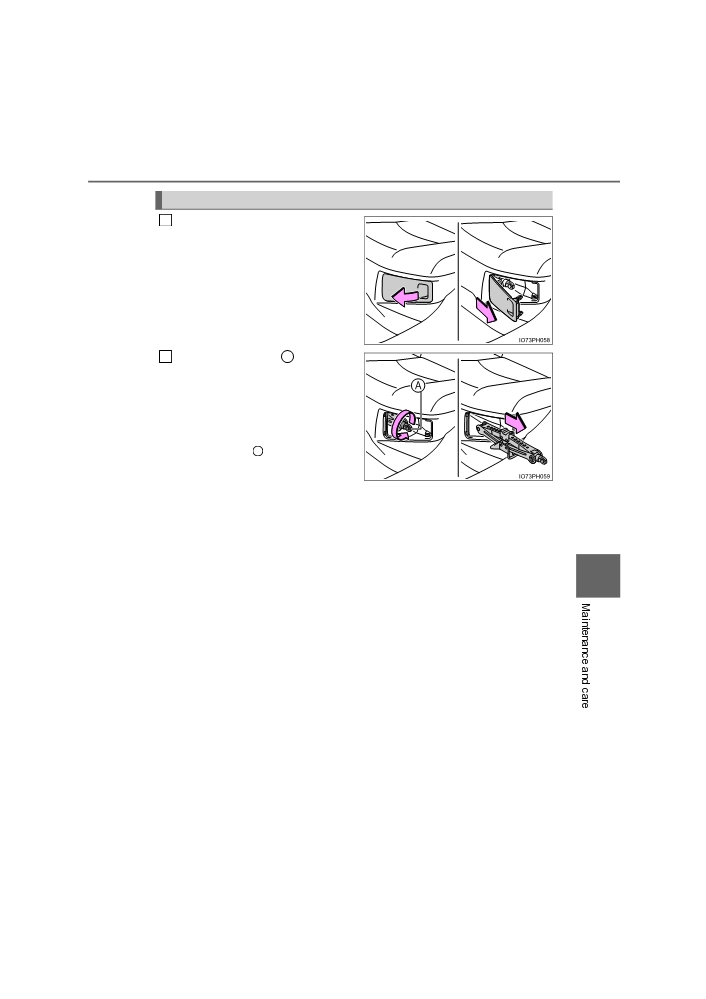

Taking out the jack
Pull the cover to disconnect the
1
tabs, and remove the cover.
2
Turn the portion
A
to loosen
the jack, and slowly take out the
jack.
Be careful when handling the jack,
as it may become hot depending
on conditions. (P. 599)
If the portion
A
can not be loos-
ened, turn it using the jack handle.
7
PRIUS PHV_OM_OM47A89E_(EE)
602
7-3. Do-it-yourself maintenance

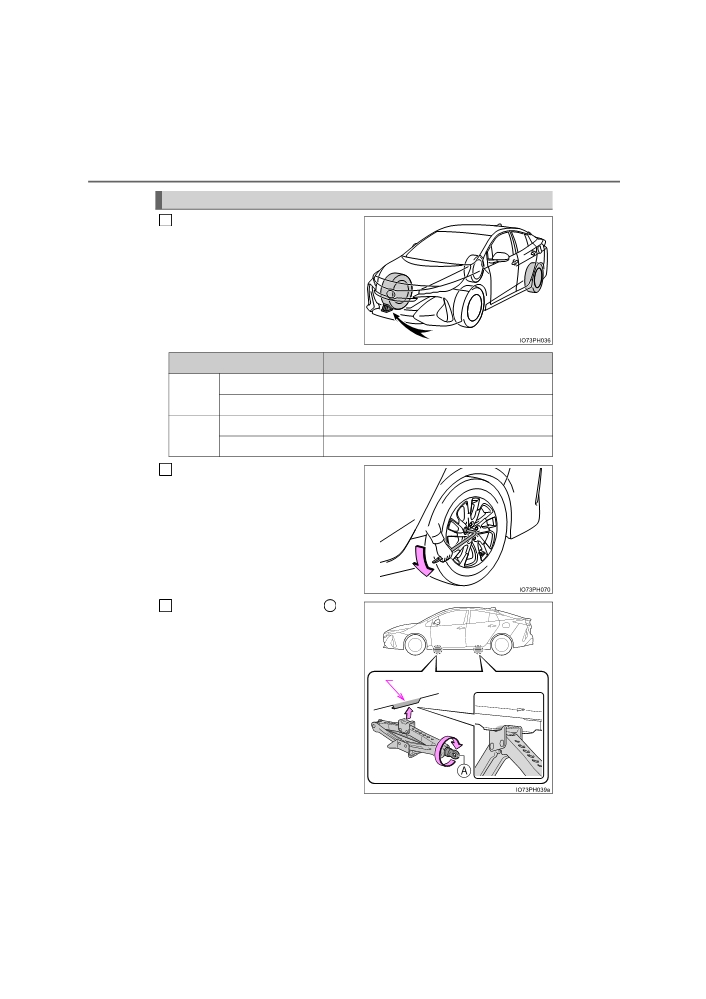

Replacing a tire
1
Chock the tires.
Tire position
Wheel chock positions
Left-hand side
Behind the rear right-hand side tire
Front
Right-hand side
Behind the rear left-hand side tire
Left-hand side
In front of the front right-hand side tire
Rear
Right-hand side
In front of the front left-hand side tire
2
Slightly loosen the wheel nuts
(one turn).
3
Turn the tire jack portion
A
by
hand until the center of the
recessed portion of the jack is
in contact with the center of the
jack point.
Jack point
PRIUS PHV_OM_OM47A89E_(EE)
7-3. Do-it-yourself maintenance
603

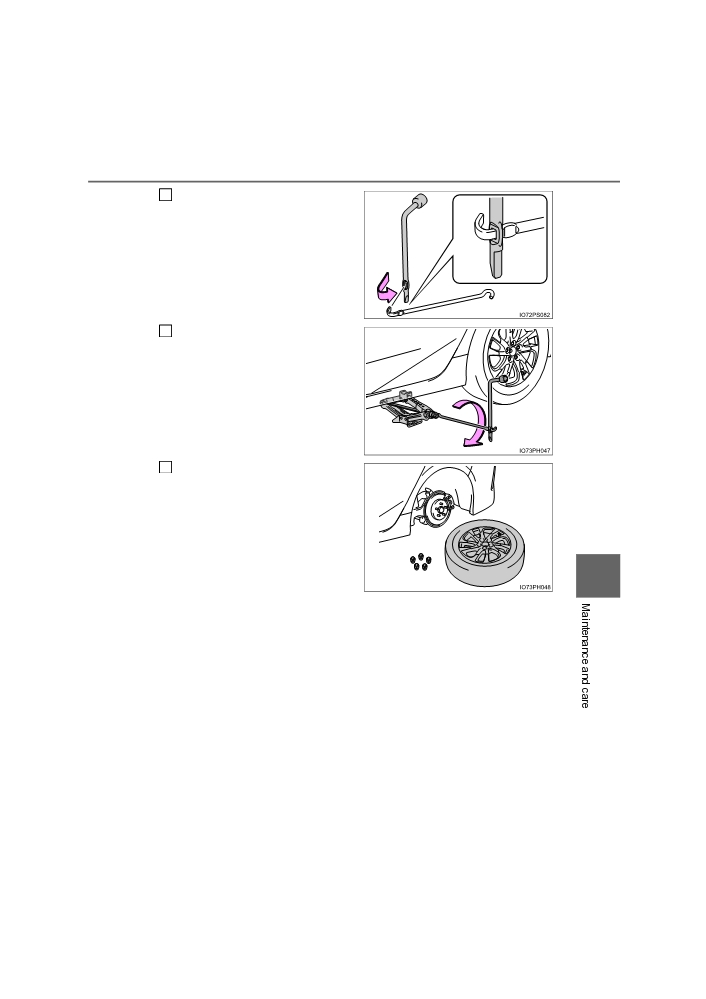

4
Assemble the jack handle and
the wheel nut wrench as shown
in the illustration.
Raise the vehicle until the tire is
5
slightly raised off the ground.
6
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
7
PRIUS PHV_OM_OM47A89E_(EE)
604
7-3. Do-it-yourself maintenance
WARNING
■ Replacing a tire
●Do not touch the disc wheels or the area around the brakes immediately
after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around the
brakes will be extremely hot. Touching these areas with hands, feet or
other body parts while changing a tire, etc. may result in burns.
●Failure to follow these precautions could cause the wheel nuts to loosen
and the tire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 103 N•m
(10.5 kgf•m, 76 ft•lbf) as soon as possible after changing wheels.
• When installing a tire, only use wheel nuts that have been specifically
designed for that wheel.
• If there are any cracks or deformations in the bolt screws, nut threads or
bolt holes of the wheel, have the vehicle inspected by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional.
• When installing the wheel nuts, be sure to install the wheel nuts with the
tapered ends facing inward. (P. 595)
PRIUS PHV_OM_OM47A89E_(EE)
7-3. Do-it-yourself maintenance
605

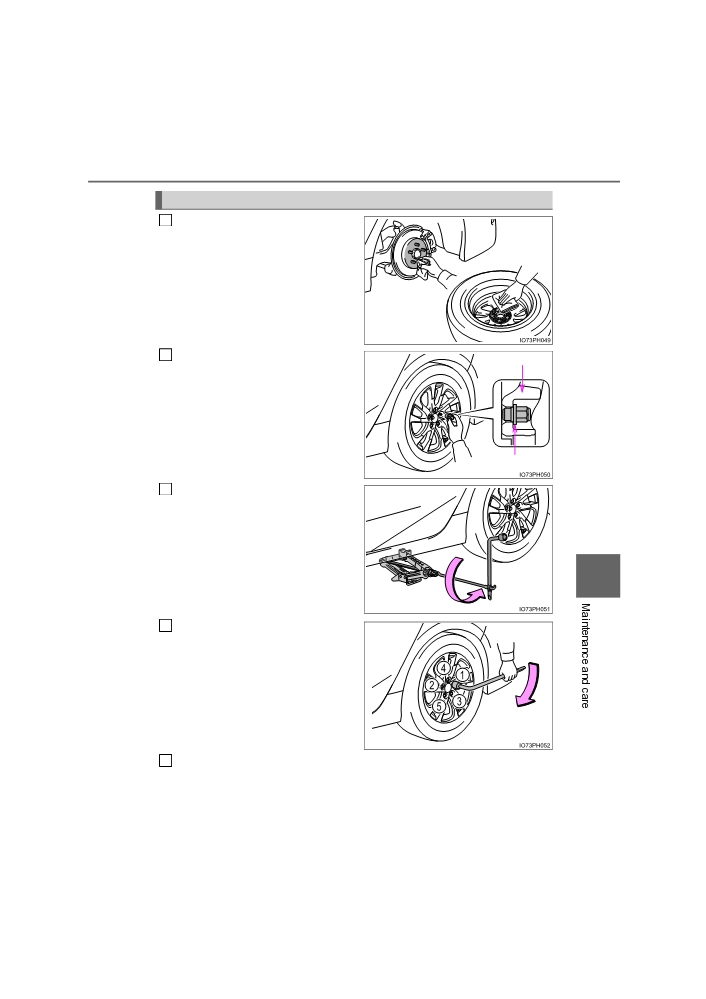

Installing the tire
Remove any dirt or foreign mat-
1
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is in
motion, causing the tire to come
off.
2
Install the tire and loosely
Disc wheel
tighten each wheel nut by hand
by approximately the same
amount.
Turn the wheel nuts until the wash-
ers come into contact with the disc
wheel.
Washer
Lower the vehicle.
3
7
Firmly tighten each wheel nut
4
two or three times in the order
shown in the illustration.
Tightening torque:
103 N•m (10.5 kgf•m, 76 ft•lbf)
Stow the tire jack and all tools.
5
PRIUS PHV_OM_OM47A89E_(EE)
606
7-3. Do-it-yourself maintenance

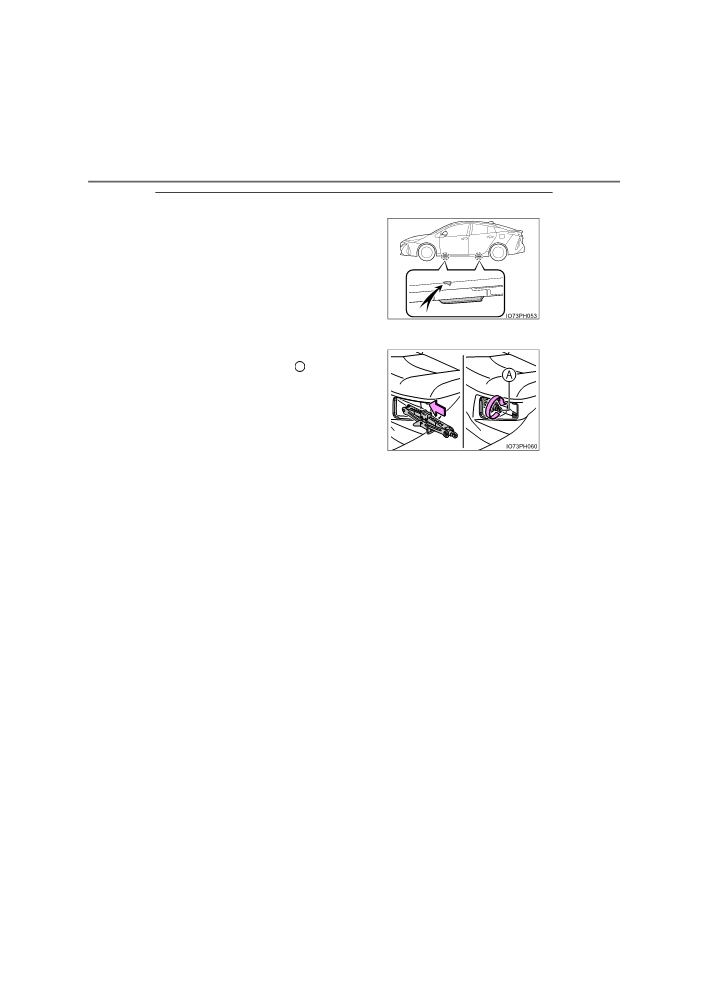

■ Jack point
The mark indicating the jack point is
stamped on the underside of the vehicle.
■ Storing the jack
Fully insert the jack in the stowing posi-
tion, and turn the portion
A
to secure the
jack.
PRIUS PHV_OM_OM47A89E_(EE)
7-3. Do-it-yourself maintenance
607

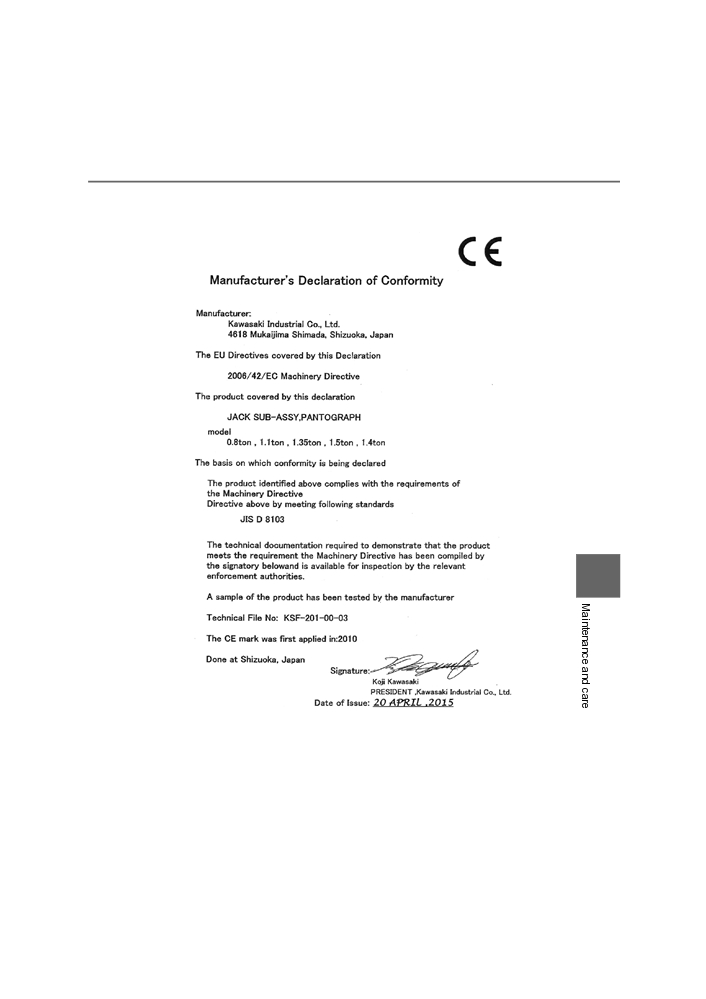

■ Certification for the jack
7
PRIUS PHV_OM_OM47A89E_(EE)
608
7-3. Do-it-yourself maintenance
WARNING
■ After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in their
storage location to reduce the possibility of personal injury during a collision
or sudden braking.
NOTICE
■ When replacing the tires
When removing or fitting the wheels, tires or the tire pressure warning valve
and transmitter, contact any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional as the tire pressure warning valve
and transmitter may be damaged if not handled correctly.
PRIUS PHV_OM_OM47A89E_(EE)
7-3. Do-it-yourself maintenance
609

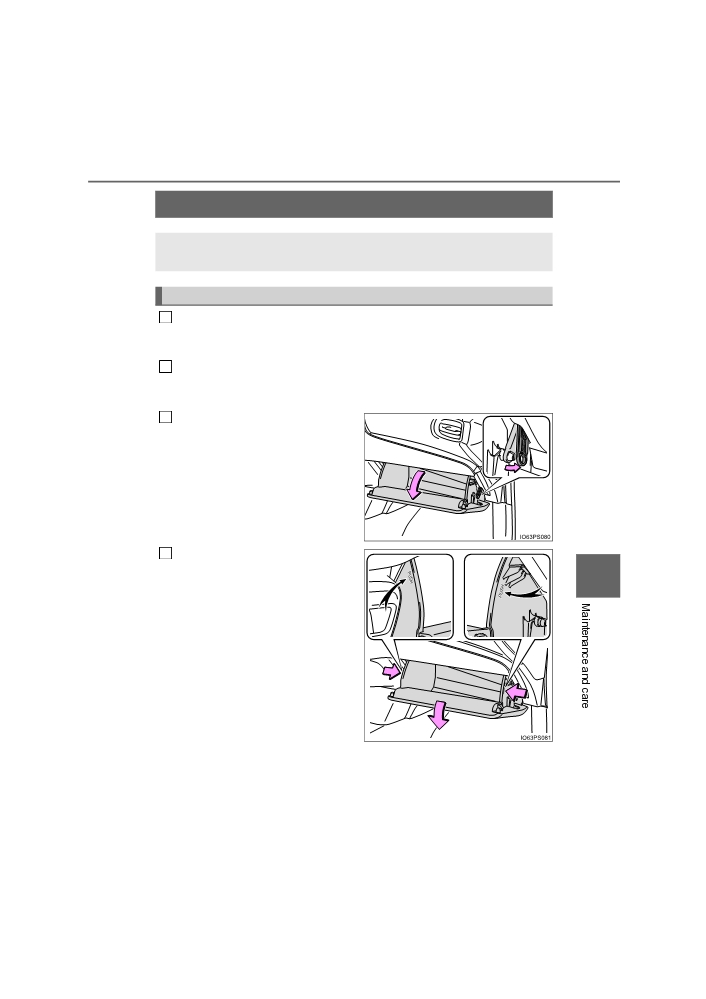

Air conditioning filter
The air conditioning filter must be changed regularly to maintain
air conditioning efficiency.
Replacing the air conditioning filter
Turn the power switch off.
1
Confirm that the charging connector is not connected. Also, do not use the
Remote Air Conditioning System during the procedure.
2
Open the front passenger’s door.
By keeping the door open, unexpected operation of the Remote Air Condi-
tioning System can be prevent. (P. 517)
3
Open the glove box and slide
off the damper.
4
Push in each side of the glove
box to disconnect the claws,
7
and then slowly and fully open
the glove box while supporting
it.
PRIUS PHV_OM_OM47A89E_(EE)
610
7-3. Do-it-yourself maintenance

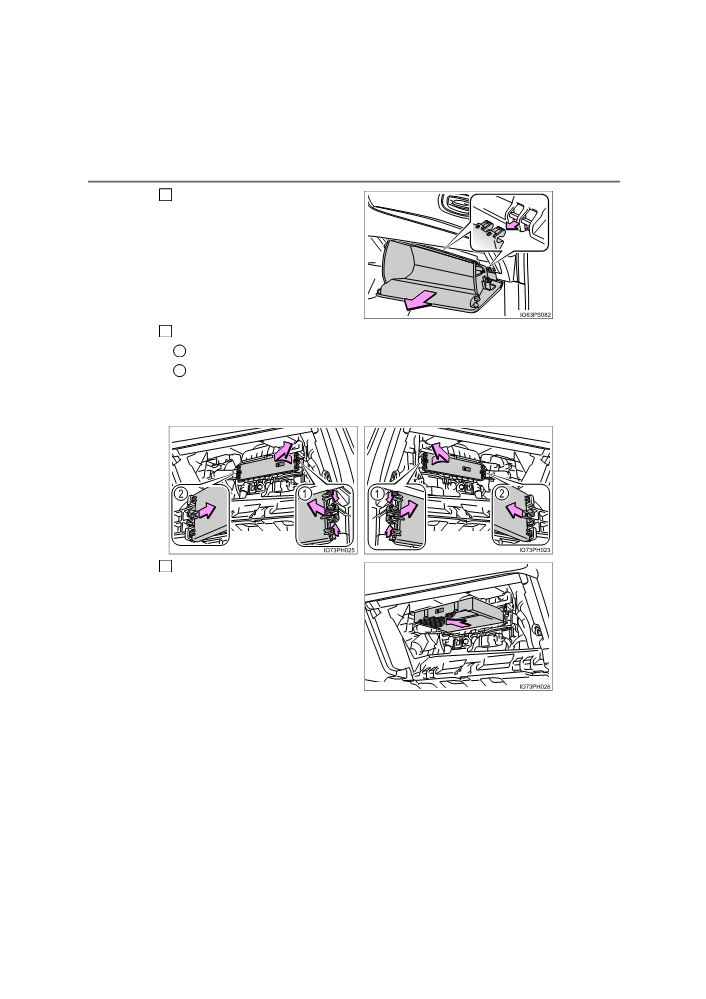

5
With the glove box fully open,
slightly lift up the glove box and
pull toward the seat to detach
the bottom of the glove box.
Do not use excessive force if the
glove box does not detach when
lightly pulled. Instead, pull toward
the seat while slightly adjusting the
height of the glove box.
6
Remove the filter cover.
1
Unlock the filter cover.
2
Move the filter cover in the direction of the arrow, and then pull it out
of the claws.
Left-hand drive vehicles
Right-hand drive vehicles
Remove the filter case.
7
PRIUS PHV_OM_OM47A89E_(EE)
7-3. Do-it-yourself maintenance
611

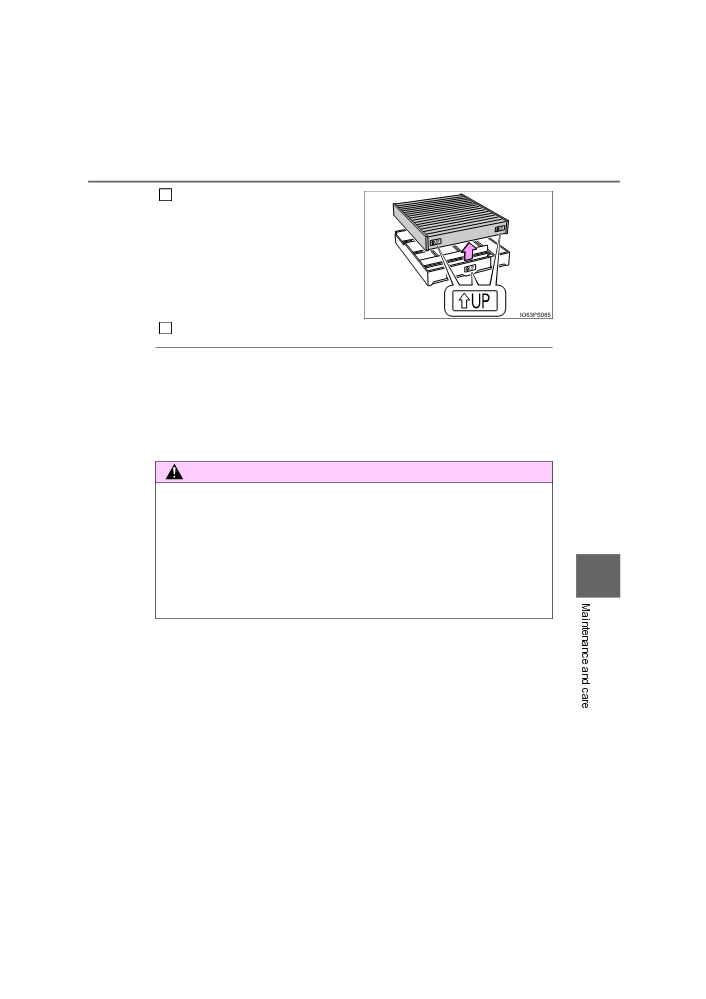

8
Remove the air conditioning fil-
ter from the filter case and
replace it with a new one.
The “UP” marks shown on the fil-
ter should be pointing up.
When installing, reverse the steps listed.
9
■ Checking interval
Inspect and replace the air conditioning filter according to the maintenance
schedule. In dusty areas or areas with heavy traffic flow, early replacement
may be required. (For scheduled maintenance information, please refer to the
“Toyota Service Booklet” or “Toyota Warranty Booklet”.)
■ If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
WARNING
■ When replacing the air conditioning filter
Observe the following precautions. Failure to do so may result in the air
conditioning system operating during the procedure, possibly resulting in
injury.
●Check that the charging connector is not connected
7
The air conditioning may operate due to the “Climate Prep” (P. 163) or
“Traction Battery Cooler” (P. 142) setting. (if equipped)
●Do not use the Remote Air Conditioning System
PRIUS PHV_OM_OM47A89E_(EE)
