Toyota Prius Plug-in Hybrid (2017 year). Instruction - part 13

204

3. Instrument cluster

Indicators and symbols displayed on the display

■ Main display and multi-information display

Indicators

Pages

*1

EV drive mode indicator

P. 92

*1

EV City mode indicator

P. 92

*1

Hybrid battery charge mode indicator

P. 93

*2

“ECO MODE” indicator

P. 412

*2

“PWR MODE” indicator

P. 412

Speed limiter indicator

P. 414

EV indicator

P. 223

*1: The displayed indicator changes according to the current plug-in hybrid

system operation mode.

*2: The displayed indicator changes according to the current driving mode.

PRIUS PHV_OM_OM47A89E_(EE)

3. Instrument cluster

205

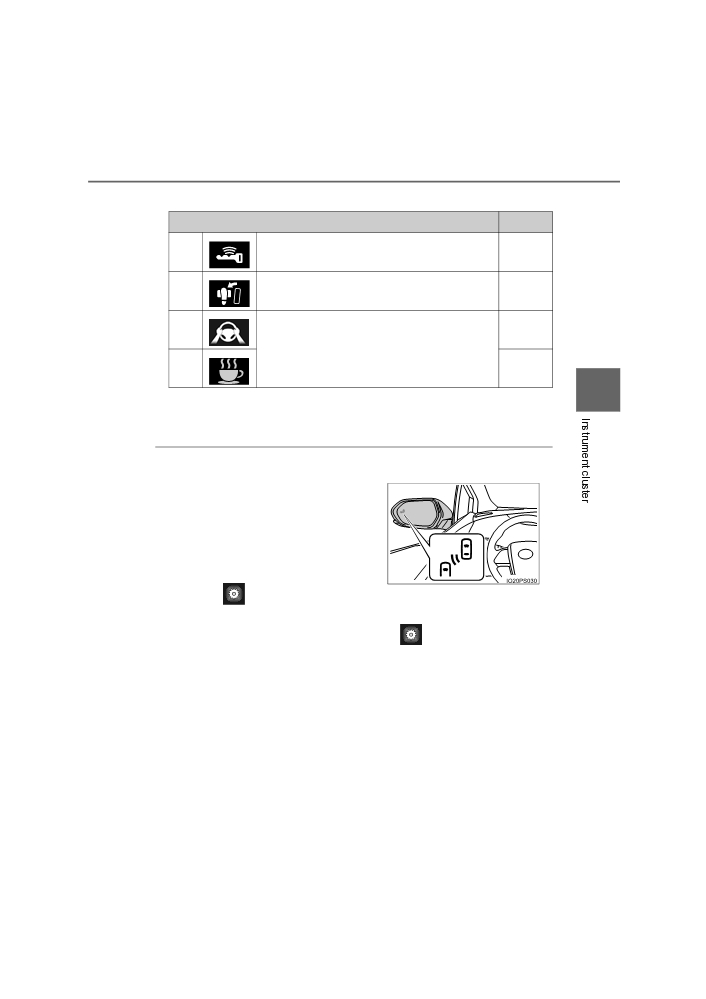

■ Multi-information display (symbol display*)

Symbol display

Pages

Smart entry & start system

P. 327

Brake Override System/Drive-Start Control/

P. 646

Intelligent Clearance Sonar (if equipped)

P. 646

LDA (Lane Departure Alert with steering con-

trol) system

P. 646

3

*: These symbols are displayed along with a message. Also, the symbol dis-

plays listed here are only an example, and different symbols may be dis-

played according to the contents of the multi-information display.

■ BSM (Blind Spot Monitor) outside rear view mirror indicators

(if equipped) (P. 417)

● Indicators are also displayed on the out-

side rear view mirrors.

● In order to confirm operation, the BSM

outside rear view mirror indicators illumi-

nate in the following situations:

• When the power switch is in ON

mode, the BSM function is enabled

on the

screen of the multi-infor-

mation display.

• When the BSM function is enabled on the

screen of the multi-infor-

mation display, the power switch is turned to ON mode.

If the system is functioning correctly, the BSM outside rear view mirror indi-

cators will turn off after a few seconds.

If the BSM outside rear view mirror indicators do not illuminate or do not

turn off, there may be a malfunction in the system.

If this occurs, have the vehicle inspected by any authorized Toyota dealer

or repairer, or another duly qualified and equipped professional.

PRIUS PHV_OM_OM47A89E_(EE)

206

3. Instrument cluster

WARNING

■ If a safety system warning light does not come on

Should a safety system light such as the ABS and SRS warning light not

come on when you start the hybrid system, this could mean that these sys-

tems are not available to help protect you in an accident, which could result

in death or serious injury. Have the vehicle inspected by any authorized

Toyota dealer or repairer, or another duly qualified and equipped profes-

sional immediately if this occurs.

NOTICE

■ To prevent damage to the engine and its components

The engine may be overheating if the high coolant temperature warning

light comes on or flashes. In this case, immediately stop the vehicle in a

safe place, and check the engine after it has cooled completely. (P. 688)

PRIUS PHV_OM_OM47A89E_(EE)

3. Instrument cluster

207

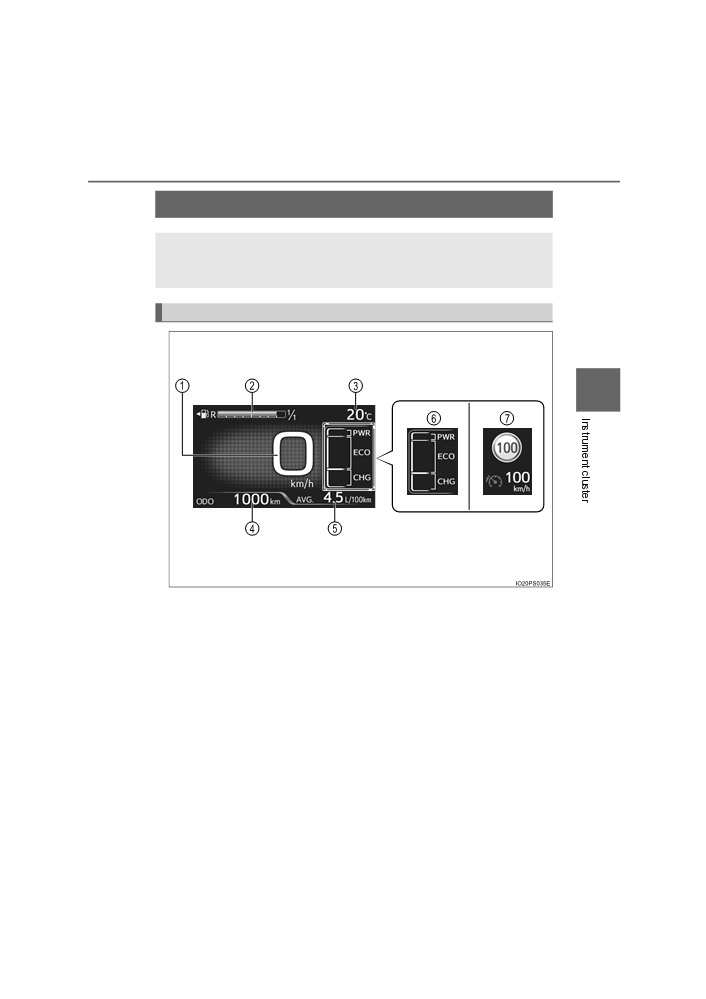

Main display

The main display shows basic information, such as the vehicle

speed and remaining fuel amount. Also, the displayed informa-

tion can be switched according to user preference.

Display contents

3

The units used on the display may differ depending on the target region.

PRIUS PHV_OM_OM47A89E_(EE)

208

3. Instrument cluster

1

Speedometer

Displays the vehicle speed

2

Fuel gauge

Displays the quantity of fuel remaining in the tank

3

Outside temperature

Displays the outside temperature within the range of -40°C (-40°F) to 50°C

(122°F).

The temperature display flashes for approximately 10 seconds when the

outside temperature drops to approximately 3°C (37°F) or less, and then

stops flashing.

Mileage display (odometer/trip meters/driving range)

4

The possible driving range estimated from the mileage and current remain-

ing fuel amount can be displayed. (P. 209)

Average fuel consumption display

5

The average electricity and fuel consumption that is linked with the con-

tents of the mileage display can be displayed. (P. 209)

Sub-screen (when RSA and speed limiter is off)

6

Information such as the Hybrid System Indicator and current fuel con-

sumption can be displayed. (P. 211)

Sub-screen (when RSA and/or speed limiter is on)

7

Displays information related to RSA* or speed limiter. (P. 392, 414)

*: When RSA information is displayed in the

screen of the multi-infor-

mation display (P. 241), RSA information is not displayed on the sub-

screen.

PRIUS PHV_OM_OM47A89E_(EE)

3. Instrument cluster

209

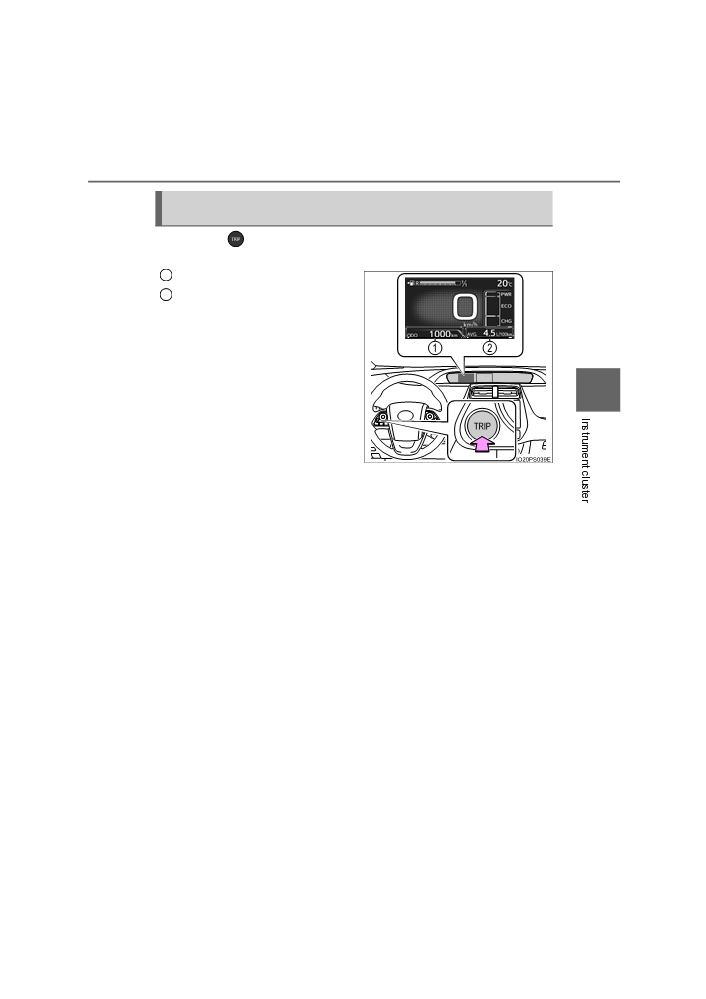

Switching the mileage display and average fuel consumption

display

Each time

is pressed, the mileage display and fuel consumption

display change in the following order from 1 to 7.

1

Mileage display

2

Average fuel consumption dis-

play

After 1 to 7 are displayed, the dis-

plays return to 1.

Use the displayed average fuel

consumption as a reference.

3

PRIUS PHV_OM_OM47A89E_(EE)

210

3. Instrument cluster

1

Mileage display

2

Average fuel consumption display

Average fuel consumption since

ODO (Odometer)

last reset

1

Total mileage

Average fuel consumption since

last reset*1

TRIP A average fuel consumption

TRIP A (Trip meter A)

2

Average fuel consumption since

Mileage since last reset*1

TRIP A was reset*1

TRIP B average fuel consumption

TRIP B (Trip meter B)

3

Average fuel consumption since

Mileage since last reset*1

TRIP B was reset*1

(Mileage since hybrid sys-

Average fuel consumption after

tem was started)

hybrid system started

4

Mileage since hybrid system

Average fuel consumption since

started*2

hybrid system was started*2

(Distance to empty)

Approximate distance vehicle

5

Blank screen

can travel based on current

remaining fuel amount

(EV driving range)

Approximate driving range using

6

Blank screen

only the electric motor (traction

motor) (P. 111)*3, 4, 5

7

Blank screen

Blank screen

*

1: If

is pressed and held while this item is displayed, the information is

reset.

*2: This item is reset each time the hybrid system starts.

*3: This value is not displayed if electricity needed for EV driving is not remain-

ing.

*4: When the air conditioning system is operating, the icon display changes to

and the driving range with the air conditioning system on is dis-

played.

*5: The EV driving range may shorten even when not driving due to power

consumption by the system.

PRIUS PHV_OM_OM47A89E_(EE)

3. Instrument cluster

211

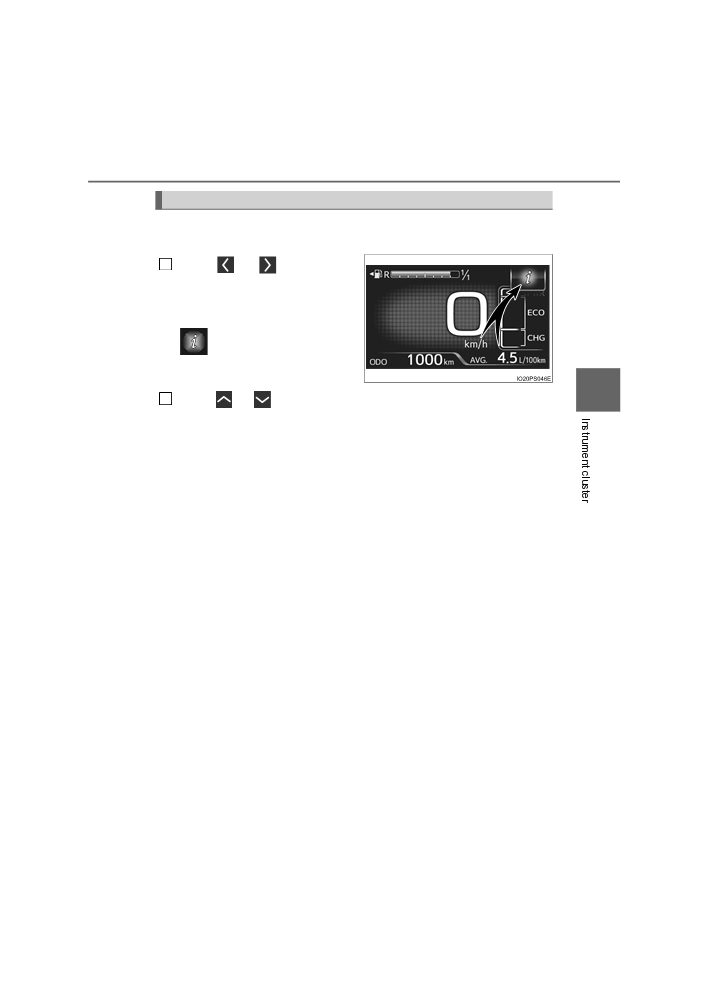

Switching contents displayed on the sub-screen

When RSA and speed limiter are off, display contents on the sub-

screen can be selected.

1

Press

or

of the meter

control switches and select the

sub-screen.

When the sub-screen is selected,

is displayed on the sub-

screen.

3

2

Press

or

of the meter control switches to select the display

item.

One of the following 3 items can be displayed.

PRIUS PHV_OM_OM47A89E_(EE)

212

3. Instrument cluster

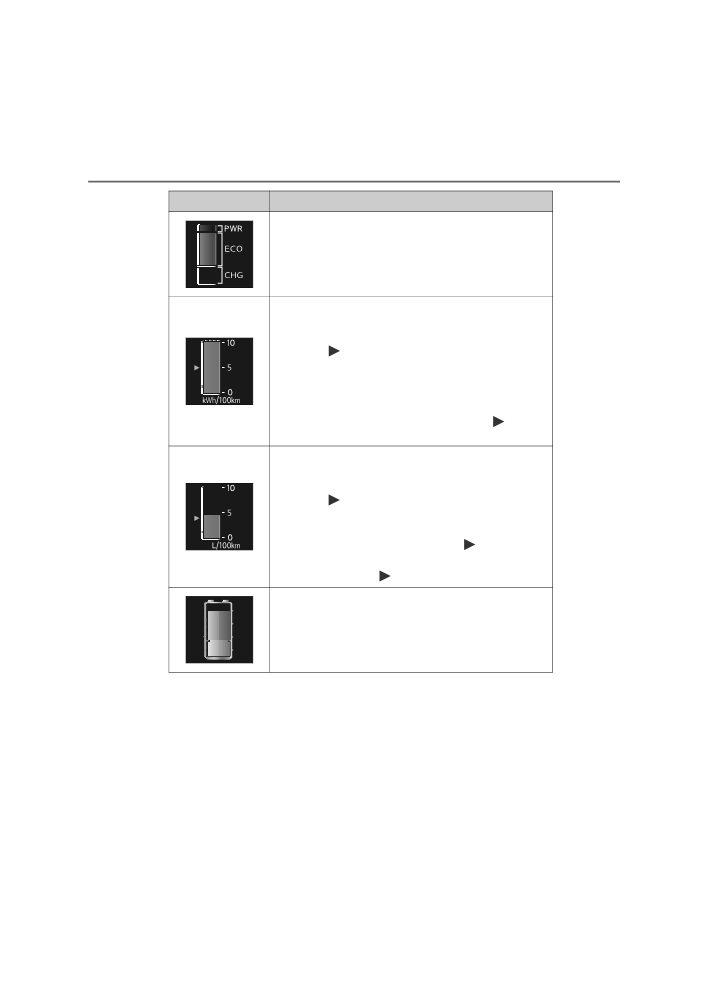

Display contents

Detail

Hybrid System Indicator

A convenient Hybrid System Indicator is displayed.

Refer to P. 221 for details on how to read the Hybrid

System Indicator.

Current electricity consumption

When in EV/EV City mode, the current electricity

consumption during driving is displayed.

• The

mark indicates the total average electric-

ity consumption since last reset until it is reset

again.

• When “Electricity Consumption Reset” (P. 246)

is performed, the data of the total average elec-

tricity consumption is deleted and the

mark is

reset to 0.

Current fuel consumption

When in HV mode, the current fuel consumption

during driving is displayed.

• The

mark indicates the value displayed in the

average fuel consumption display

(P. 209).

Switching the average fuel consumption display

also changes the position of the

mark.

• When the average fuel consumption is reset, the

position of the

mark is reset to 0.

Hybrid battery (traction battery) status

The same contents as the hybrid battery (traction

battery) status on the Hybrid System Indicator are

displayed. (P. 221)

PRIUS PHV_OM_OM47A89E_(EE)

214

3. Instrument cluster

■ Switching the driving mode (P. 412)

When the driving mode is switched, the

driving mode indicator changes and an

animation* is displayed on the multi-infor-

mation display.

Also, the background color of the main

display, energy monitor

(P. 218) and

Hybrid System Indicator

(P.

221)

change as follows.

Driving modes

Background color

Normal mode

Green

Power mode

Red

Eco drive mode

Blue

*: The animation displayed when the driving mode is switched can be turned

off in the “Meter Customize” settings. (P. 245)

PRIUS PHV_OM_OM47A89E_(EE)

3. Instrument cluster

215

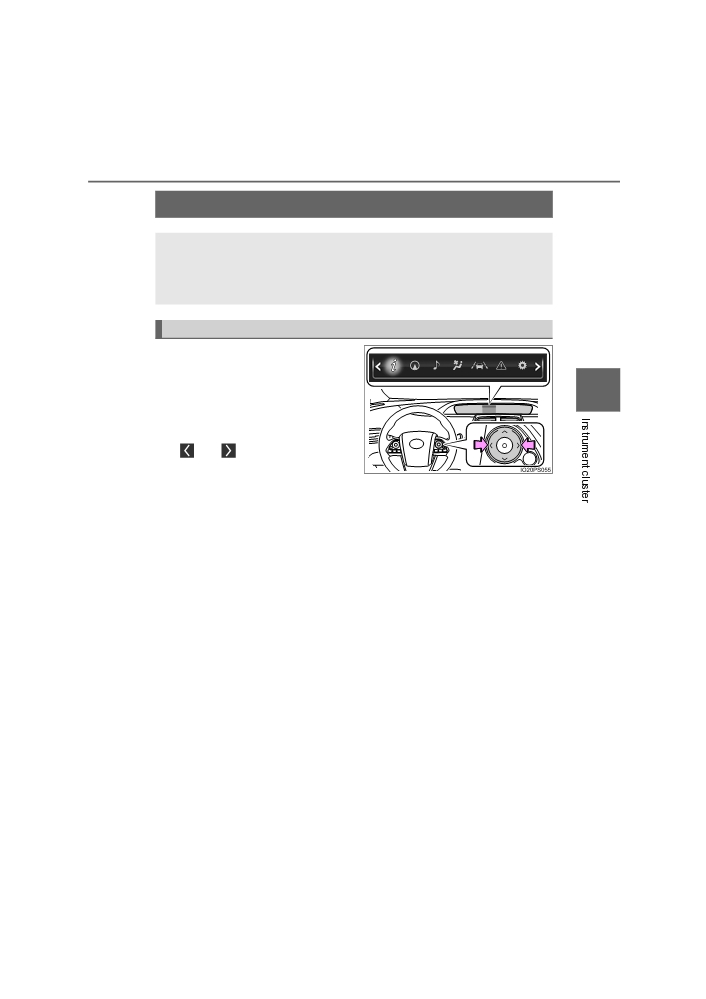

Multi-information display

A variety of information related to the vehicle can be displayed,

including the operation status of each system and data related

to Eco driving, and the settings of each system can be changed

according to user preference.

Display contents

Information related to each icon

on the upper portion of the multi-

information display can be dis-

3

played by operating the meter

control switches to select the icon.

Icons are displayed when pressing

or

of the meter control

switches and turn off shortly after

pressing the switch.

Screens linked with vehicle functions may be automatically displayed

according to the operation status of the corresponding functions.

PRIUS PHV_OM_OM47A89E_(EE)

216

3. Instrument cluster

Menu icons

Contents

Pages

Drive information

The energy monitor that shows the operation

status of the hybrid system, or other informa-

P. 217

tion such as electricity consumption and fuel

consumption are displayed.

Navigation system-linked display

The information related to the navigation sys-

P. 236

tem is displayed.

Audio system-linked display

P. 236

The audio system settings can be changed.

Air conditioning system settings screen

The air conditioning system settings can be

P. 237

changed.

Driving assist system information

The information related to driving assist sys-

tems such as the LDA (Lane Departure Alert

P. 241

with steering control) and dynamic radar

cruise control with full-speed range is dis-

played.

Warning message display*

P. 241

The warning messages are displayed.

Settings display

The settings of the vehicle functions, meter

P. 242

display, etc. can be changed.

*: When there is a warning message that can be displayed, the color of

changes to amber.

PRIUS PHV_OM_OM47A89E_(EE)

3. Instrument cluster

217

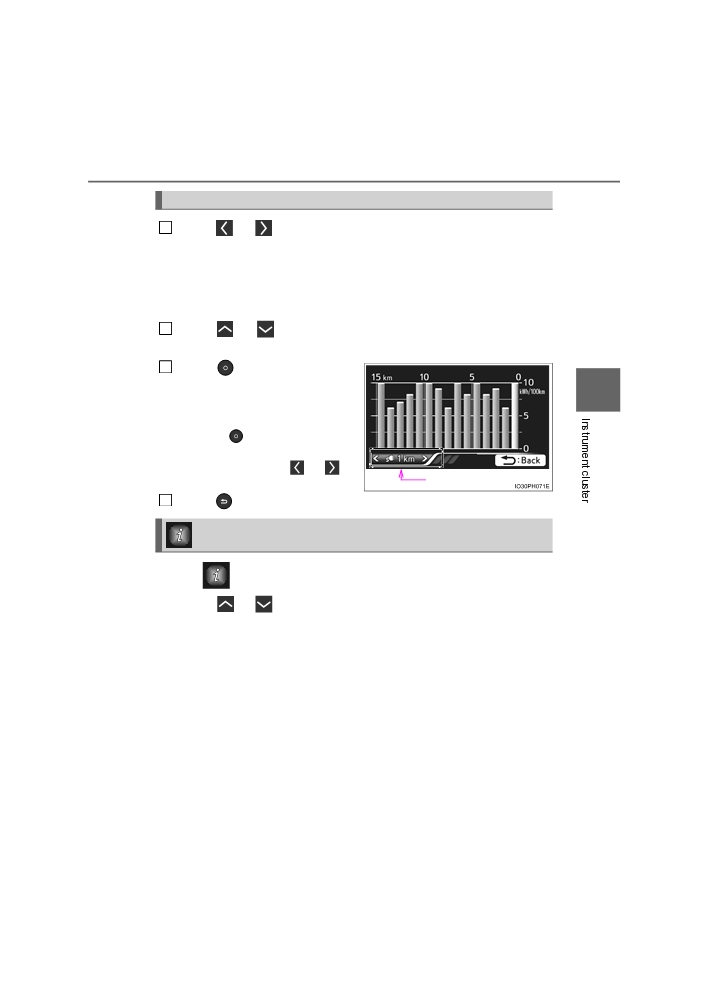

Basic Operations

1

Press

or

of the meter control switches and select the icon

of the desired item.

The selected icon is highlighted and the display switches to the information

screen.

When RSA (Road Sign Assist) and speed limiter is off, the sub-screen of

the main display can also be selected. (P. 211)

2

Press

or

of the meter control switches to switch the con-

tents of the display.

3

Press

on screens where it

is necessary to select or con-

3

firm an item.

On screens with tab displays,

pressing

selects the tab dis-

play, and the screen display can be

changed by pressing

or

of

Tab display

the meter control switches.

4

Press

to return to the previous screen.

Drive information

When

is selected, the following information can be displayed by

pressing

or

of the meter control switches.

● Energy monitor (P. 218)

● Hybrid System Indicator (P. 221)

● “Fuel Consumption Record” (P. 229)

● “Drive Monitor” (P. 232)

● “Drive Monitor 2” (P. 233)

● “Eco-Diary” (P. 234)

PRIUS PHV_OM_OM47A89E_(EE)

3. Instrument cluster

219

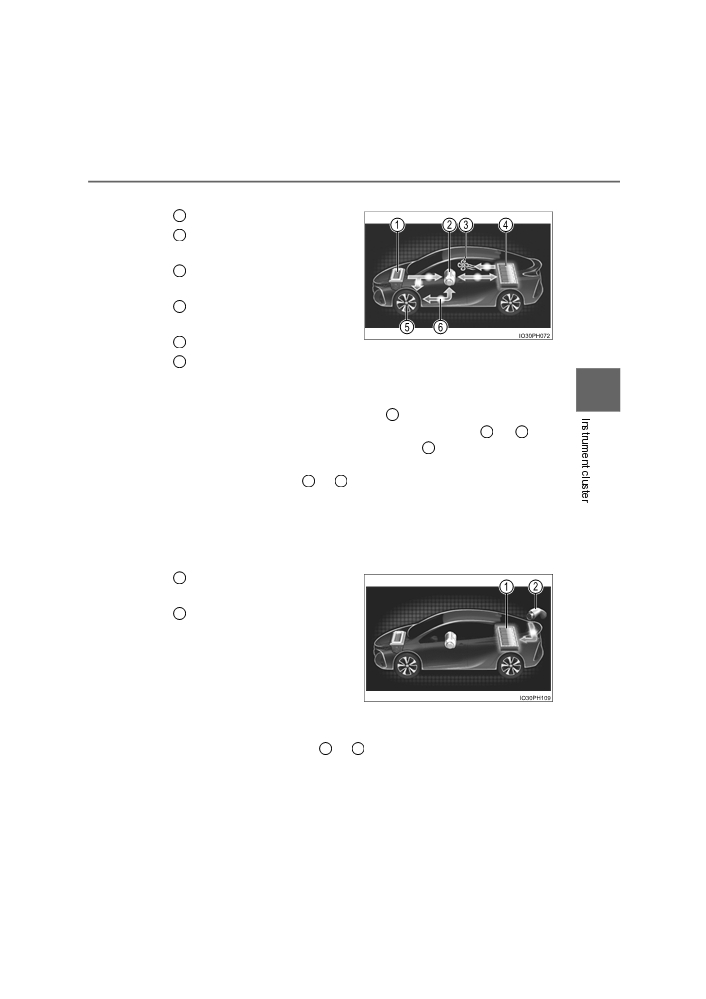

■ Except when charging

1

Gasoline engine

2

Electric motor

(traction motor)

3

Air conditioning system oper-

ation*1

4

Hybrid battery

(traction battery)

5

Tire

6

Bright point of light showing the flow of energy

(Display example)

3

● When the hybrid battery (traction battery) is being charged, the

bright point of light moves towards

4

● During driving, the bright point of light moves from

1

or

2

(or

both depending on the situation) towards

5

.*2

● When the air conditioning compressor is operating, a bright point

of light moves from

4

to

3

● During driving, the image of the tires rotates.

*1: It is displayed while the air conditioning system is operating.

*2: The display may differ depending on the driving status.

■ While charging

1

Hybrid battery (traction bat-

tery)

2

Charging connector

(Display example)

When the hybrid battery (traction battery) is being charged, a bright

point of light moves from

2

to

1

PRIUS PHV_OM_OM47A89E_(EE)

220

3. Instrument cluster

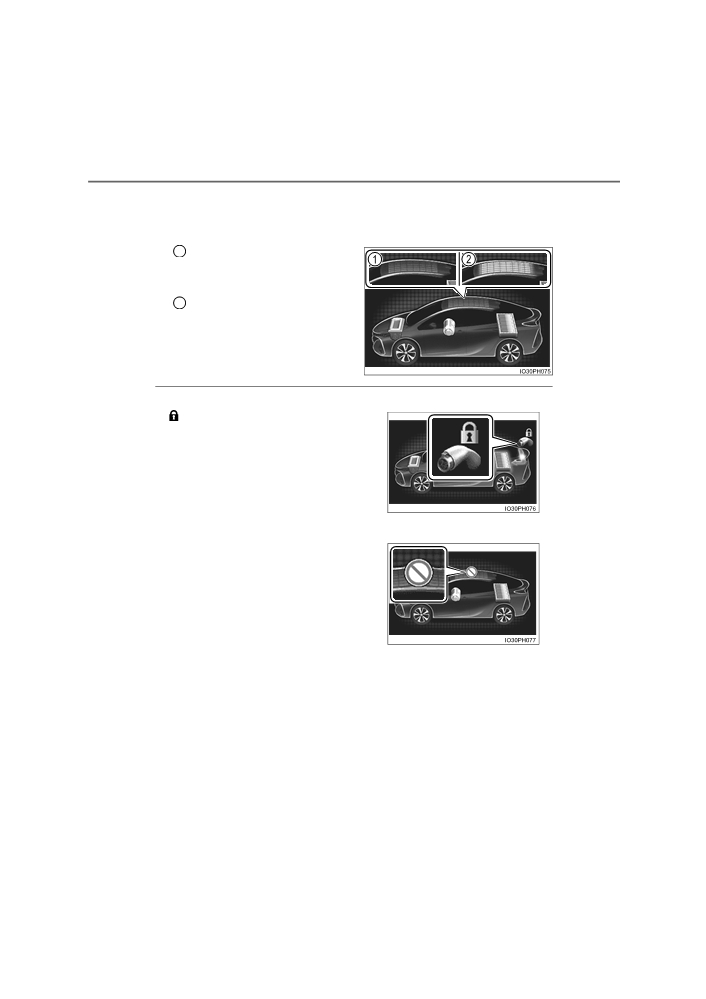

■ While the solar charging system is operating (if equipped)

The current approximate solar power generation level is displayed

on the energy monitor. (The display changes in 5 levels.)

Indicates that solar power

1

generation is not being per-

formed

Indicates that the amount of

2

solar power generation is

near the maximum

■ When the charging connector is locked (P. 154)

is displayed in the charging connector

display portion on the energy monitor.

■ When the solar charging system is malfunctioning (if equipped)

The mark indicating a malfunction is dis-

played in the solar roof display portion on

the energy monitor. If the mark is dis-

played, have the vehicle inspected by any

authorized Toyota dealer or repairer, or

another duly qualified and equipped pro-

fessional immediately.

PRIUS PHV_OM_OM47A89E_(EE)

Content   ..  11  12  13  14   ..
