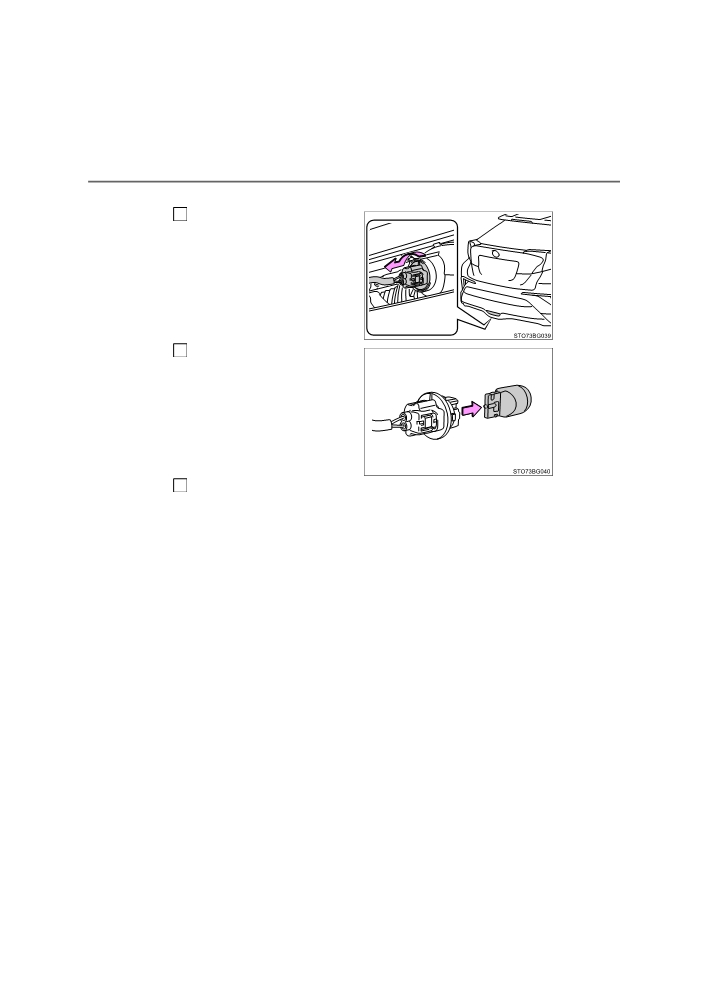

■ Rear fog light

1

Turn the bulb base counter-

clockwise.

2

Remove the light bulb.

3

When installing, reverse the steps listed.

C-HR_HV_OM_Europe_OM10538E

7-3. Do-it-yourself maintenance

579

■ Side turn signal lights

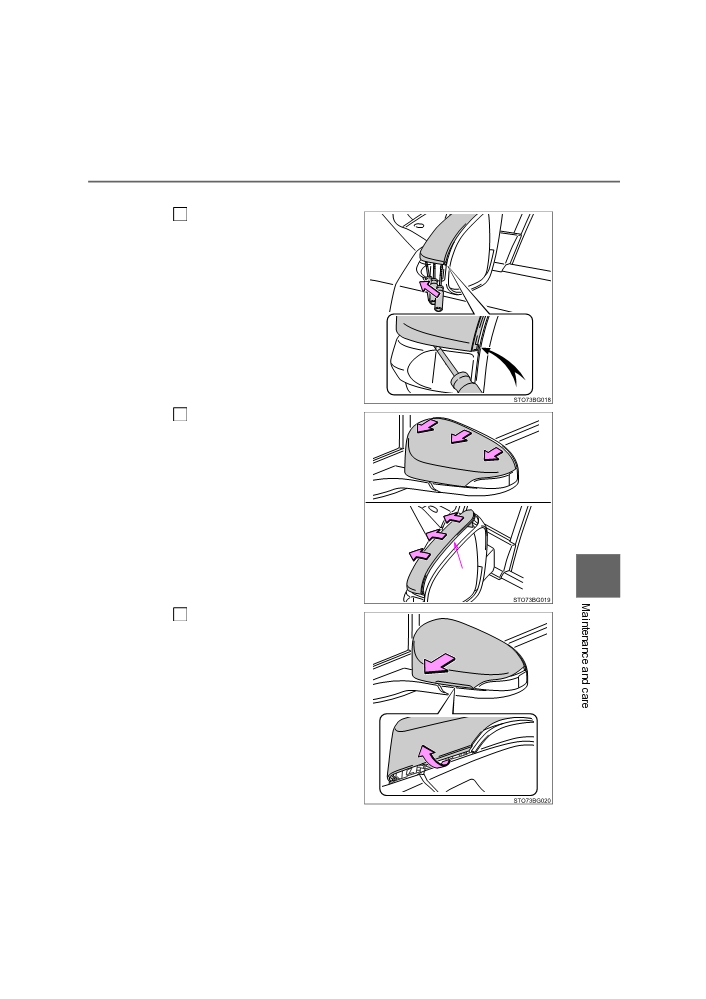

Insert a flathead screwdriver

1

and release the claw for the

outside rear view mirror

cover.

To prevent damaging the vehi-

cle, wrap the flathead screw-

driver with a tape.

2

Release the cover claws

spanning over the entire

perimeter.

Claw

7

Release the claw of the bot-

3

tom part of the cover and

then remove the cover.

C-HR_HV_OM_Europe_OM10538E

580

7-3. Do-it-yourself maintenance

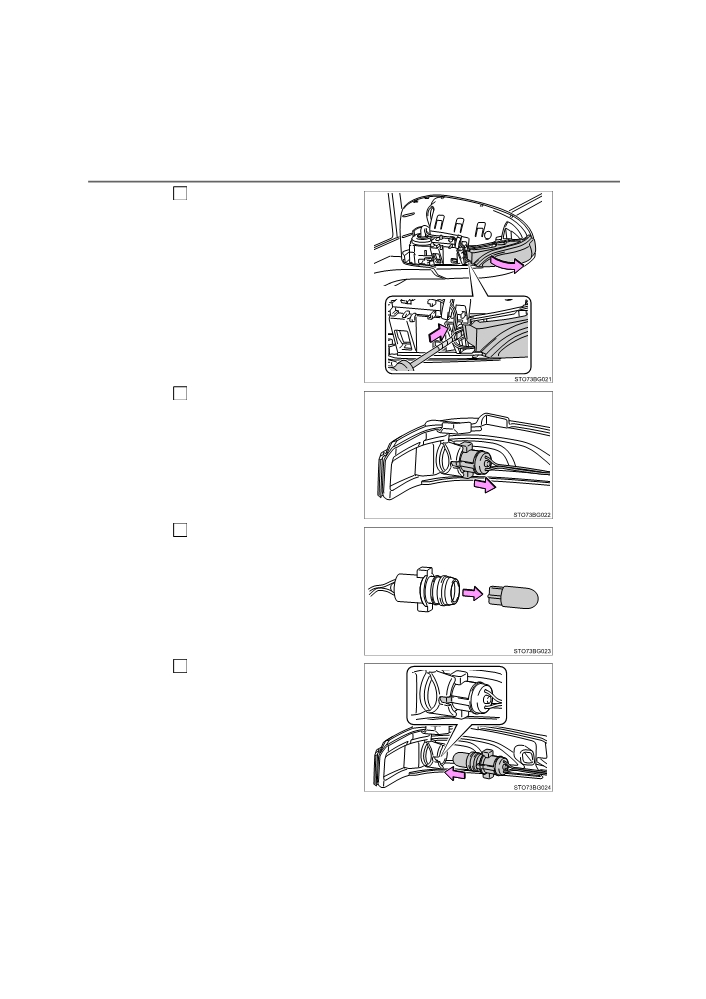

4

Insert a flathead screwdriver

and remove the lens to the

outside.

5

Remove the socket from the

side turn signal light housing.

Remove the bulb.

6

Replace the bulb and install

7

the socket to the side turn

signal light housing.

Align the grooves of the socket

to the side turn signal light hous-

ing.

C-HR_HV_OM_Europe_OM10538E

7-3. Do-it-yourself maintenance

581

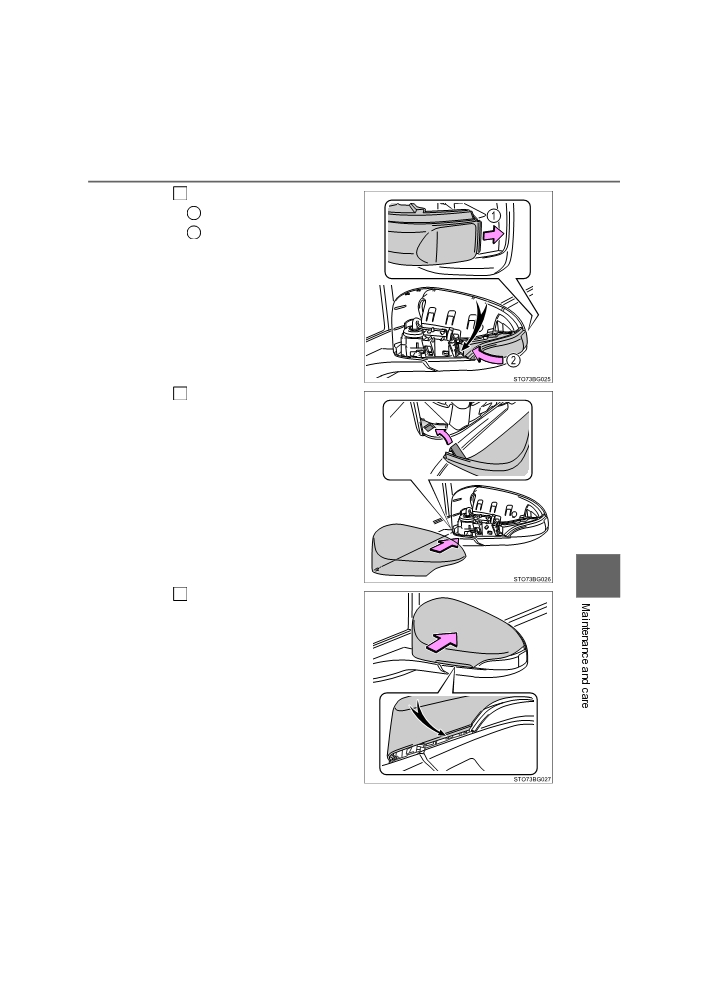

8

Install the lens.

1

Insert the claw of the lens.

2

Attach the lens.

Arrange the wire harness on

the back side of the lens.

Insert the claw of the cover.

9

7

Attach the claw on the bot-

10

tom part of the cover.

C-HR_HV_OM_Europe_OM10538E

582

7-3. Do-it-yourself maintenance

11

Attach the cover claws span-

ning over the entire perime-

ter.

Finally, confirm that the outside

claw is securely fitted.

■ Replacing the following bulbs

If any of the lights listed below has burnt out, have it replaced by

any authorized Toyota retailer or Toyota authorized repairer, or any

reliable repairer.

● Headlights (vehicles with LED type)

● Front position lights/daytime running lights

● Front turn signal lights (vehicles with LED type)

● Front fog lights (vehicles with LED type)

● Stop/tail lights

● Rear turn signal lights (vehicles with LED type)

● Back-up lights (vehicles with LED type)

● High mounted stoplight

● Outer mirror illumination (if equipped)

C-HR_HV_OM_Europe_OM10538E

584

7-3. Do-it-yourself maintenance

WARNING

■ Replacing light bulbs

● Turn off the lights. Do not attempt to replace the bulb immediately after

turning off the lights.

The bulbs become very hot and may cause burns.

●Do not touch the glass portion of the light bulb with bare hands. When it is

unavoidable to hold the glass portion, use and hold with a clean dry cloth

to avoid getting moisture and oils on the bulb.

Also, if the bulb is scratched or dropped, it may blow out or crack.

●Fully install light bulbs and any parts used to secure them. Failure to do so

may result in heat damage, fire, or water entering the headlight unit. This

may damage the headlights or cause condensation to build up on the lens.

●Do not attempt to repair or disassemble light bulbs, connectors, electric

circuits or component parts.

Doing so may result in death or serious injury due to electric shock.

■ To prevent damage or fire

● Make sure bulbs are fully seated and locked.

●Check the wattage of the bulb before installing to prevent heat damage.

C-HR_HV_OM_Europe_OM10538E

585

When trouble arises

8

8-1.

Essential information

Emergency flashers

586

If your vehicle has to

be stopped in an

emergency

587

8-2.

Steps to take in an

emergency

If your vehicle needs

to be towed

588

If you think something is

wrong

594

If a warning light turns on

or a warning buzzer

sounds

595

If a warning message is

displayed

606

If you have a flat tire

(vehicles with an

emergency tire

puncture repair kit)

612

If you have a flat tire

(vehicles with

a spare tire)

632

If the hybrid system will

not start

646

If the electronic key does

not operate properly

648

If the 12-volt battery is

discharged

651

If your vehicle

overheats

657

If the vehicle becomes

stuck

662

C-HR_HV_OM_Europe_OM10538E

586

8-1. Essential information

Emergency flashers

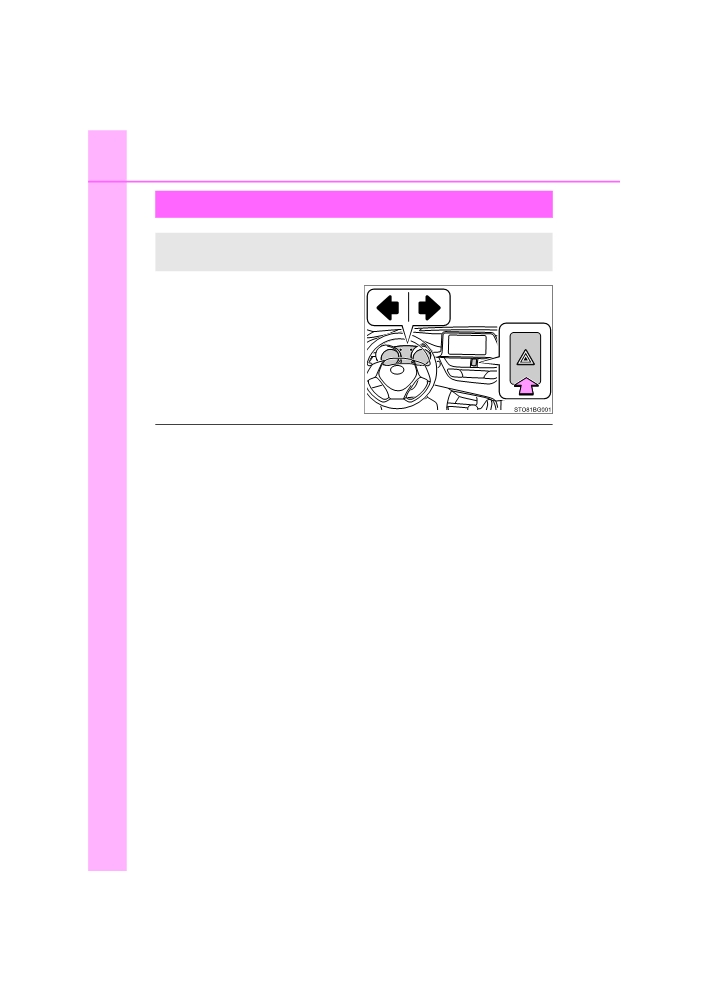

The emergency flashers are used to warn other drivers when the

vehicle has to be stopped in the road due to a breakdown, etc.

Press the switch.

All the turn signal lights will flash.

To turn them off, press the switch

once again.

■ Emergency flashers

If the emergency flashers are used for a long time while the hybrid system is

not operating (while the “READY” indicator is not illuminated), the 12-volt bat-

tery may discharge.

C-HR_HV_OM_Europe_OM10538E

8-1. Essential information

587

If your vehicle has to be stopped in an

emergency

Only in an emergency, such as if it becomes impossible to stop

the vehicle in the normal way, stop the vehicle using the follow-

ing procedure:

1

Steadily step on the brake pedal with both feet and firmly depress it.

Do not pump the brake pedal repeatedly as this will increase the effort

required to slow the vehicle.

2

Shift the shift lever to N.

 If the shift lever is shifted to N

3

After slowing down, stop the vehicle in a safe place by the road.

4

Stop the hybrid system.

 If the shift lever cannot be shifted to N

3

Keep depressing the brake pedal with both feet to reduce vehicle

speed as much as possible.

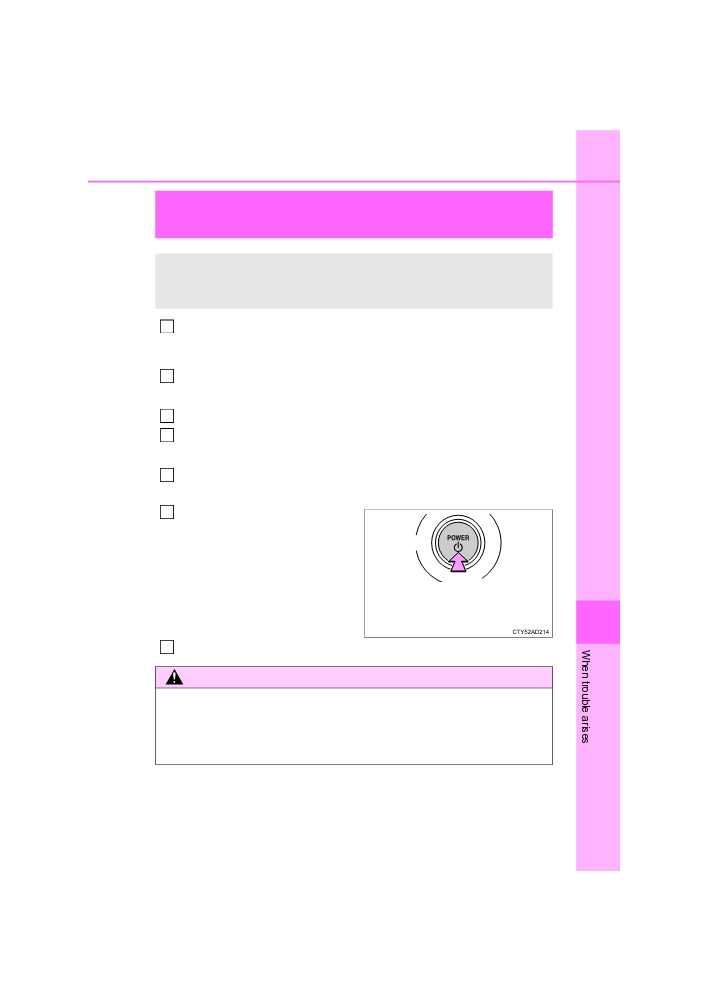

To stop the hybrid system,

4

press and hold the power

switch for

2 consecutive sec-

onds or more, or press it briefly

3 times or more in succession.

Press and hold for 2 seconds or

more, or press briefly 3 times or

8

more

5

Stop the vehicle in a safe place by the road.

WARNING

■ If the hybrid system has to be turned off while driving

Power assist for the steering wheel will be lost, making the steering wheel

heavier to turn. Decelerate as much as possible before turning off the hybrid

system.

C-HR_HV_OM_Europe_OM10538E

8-2. Steps to take in an emergency

589

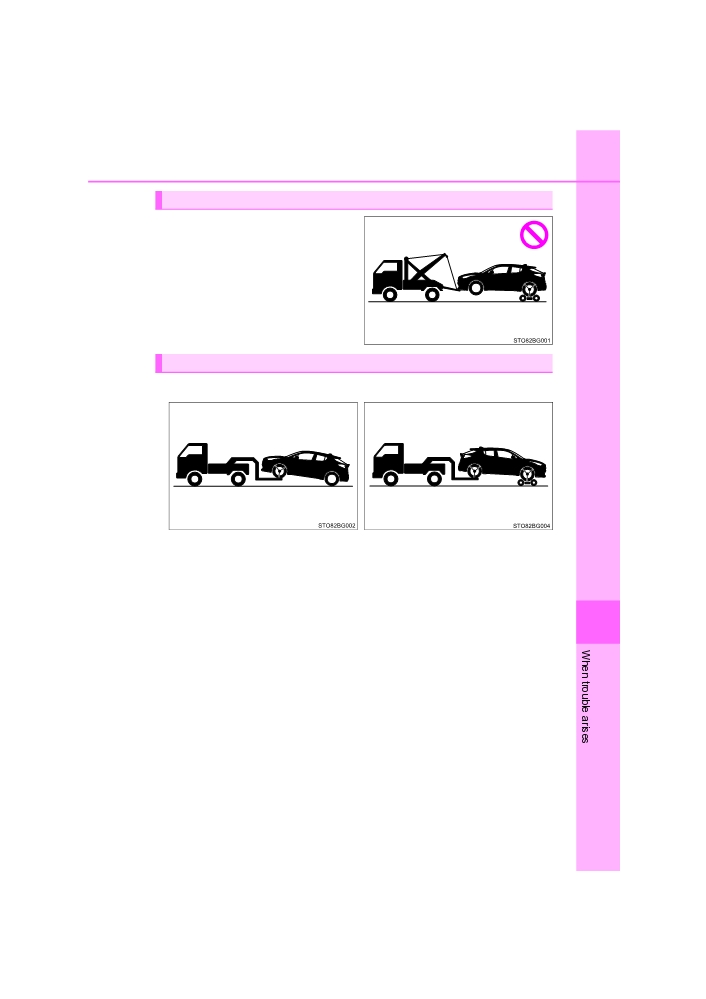

Towing with a sling-type truck

Do not tow with a sling-type truck

to prevent body damage.

Towing with a wheel-lift type truck

 From the front

 From the rear

Release the parking brake.

Use a towing dolly under the

front wheels.

8

C-HR_HV_OM_Europe_OM10538E

590

8-2. Steps to take in an emergency

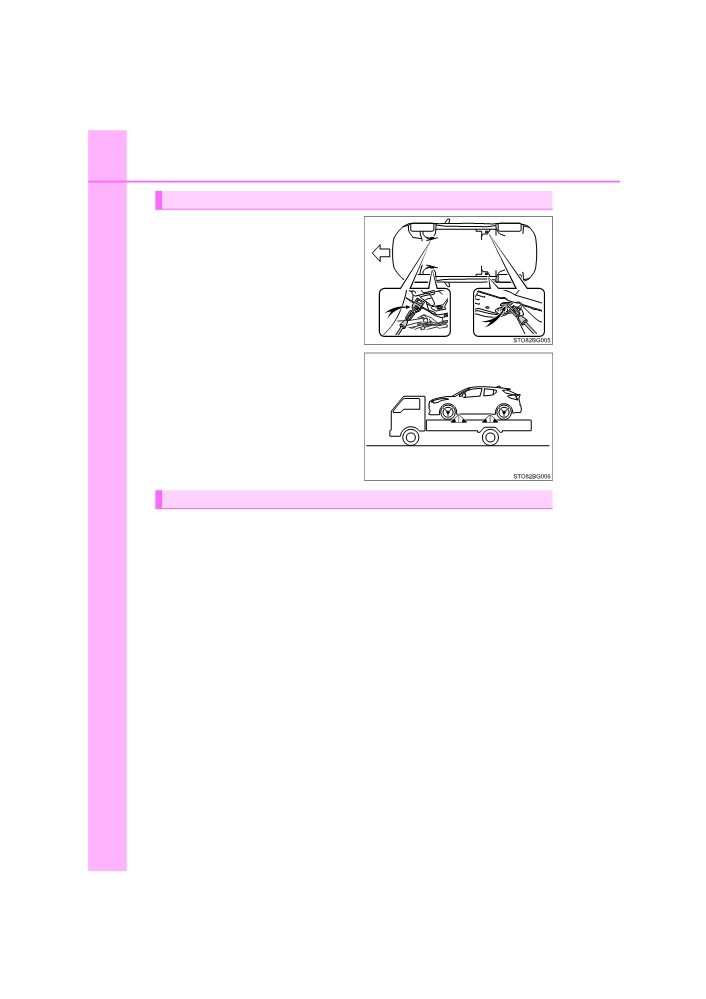

Using a flatbed truck

If your vehicle is transported by a

flatbed truck, it should be tied

down at the locations shown in the

illustration.

Front

If you use cables or chains to tie

down your vehicle, the angles

shaded in black must be 45.

Do not overly tighten the tie

downs or the vehicle may be dam-

aged.

Emergency towing

If a tow truck is not available in an emergency, your vehicle may be

temporarily towed using cables or chains secured to the emergency

towing eyelets. This should only be attempted on hard surfaced roads

for short distances at under 30 km/h (18 mph).

A driver must be in the vehicle to steer and operate the brakes. The

vehicle’s wheels, drivetrain, axles, steering and brakes must be in

good condition.

Only the front towing eyelets may be used.

C-HR_HV_OM_Europe_OM10538E

8-2. Steps to take in an emergency

591

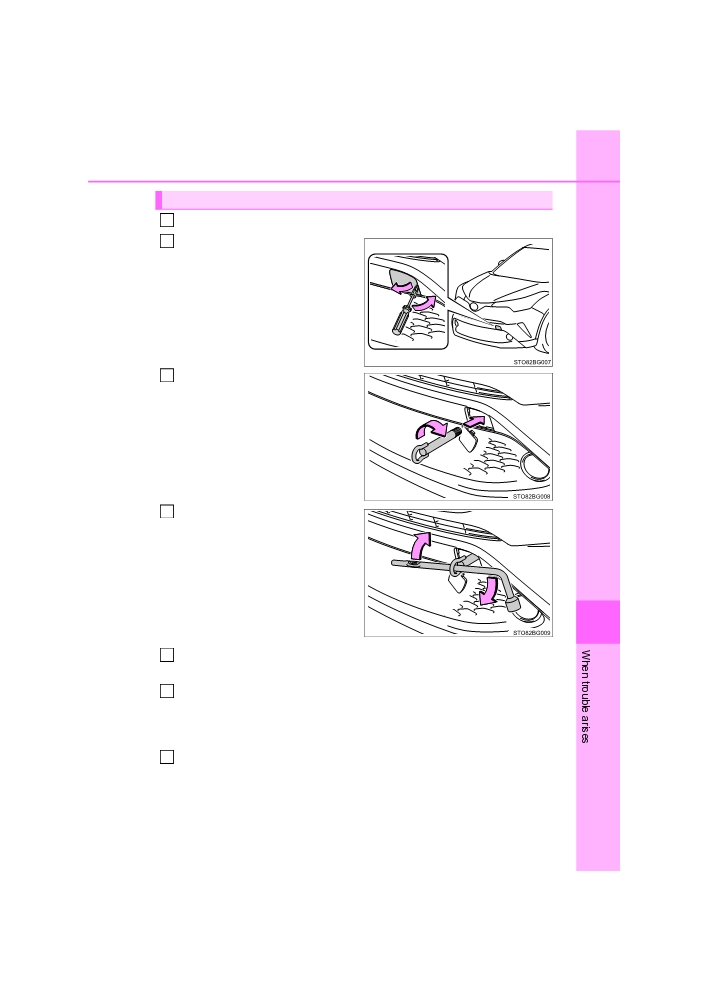

Emergency towing procedure

1

Take out the towing eyelet. (P. 615, 633)

2

Remove the eyelet cover using

a flathead screwdriver.

To protect the bodywork, place a

rag between the screwdriver and

the vehicle body as shown in the

illustration.

Insert the towing eyelet into the

3

hole and tighten partially by

hand.

Tighten down the towing eyelet

4

securely using a wheel nut

wrench* or hard metal bar.

*: If the vehicle is not equipped with a

wheel nut wrench, a wheel nut

wrench can be purchased at any

authorized Toyota retailer or Toyota

8

authorized repairer, or any reliable

repairer.

Securely attach cables or chains to the towing eyelet.

5

Take care not to damage the vehicle body.

Enter the vehicle being towed and start the hybrid system.

6

If the hybrid system does not start, turn the power switch to ON mode.

Before towing the vehicle, turn the power switch off once, and then start

the hybrid system.

Shift the shift lever to N and release the parking brake.

7

When the shift lever cannot be shifted:

P. 233

C-HR_HV_OM_Europe_OM10538E

592

8-2. Steps to take in an emergency

■While towing

If the hybrid system is off, the power assist for the brakes and steering will not

function, making steering and braking more difficult.

■ Wheel nut wrench

Vehicles without a wheel nut wrench: Wheel nut wrench can be purchased at

any authorized Toyota retailer or Toyota authorized repairer, or any reliable

repairer.

Vehicles with a wheel nut wrench: Wheel nut wrench is installed in the lug-

gage compartment. (P. 615, 633)

WARNING

Observe the following precautions.

Failure to do so may result in death or serious injury.

■ When towing the vehicle

Be sure to transport the vehicle with the

front wheels raised or with all four wheels

raised off the ground. If the vehicle is

towed with the front wheels contacting

the ground, the drivetrain and related

parts may be damaged or electricity gen-

erated by the operation of the motor may

cause a fire to occur depending on the

nature of the damage or malfunction.

■ While towing

●When towing using cables or chains, avoid sudden starts, etc., which

place excessive stress on the towing eyelets, cables or chains. The towing

eyelets, cables or chains may become damaged, broken debris may hit

people, and cause serious damage.

●Do not turn the power switch off.

There is a possibility that the steering wheel is locked and cannot be oper-

ated.

■ Installing towing eyelets to the vehicle

Make sure that towing eyelets are installed securely.

If not securely installed, towing eyelets may come loose during towing.

C-HR_HV_OM_Europe_OM10538E

8-2. Steps to take in an emergency

593

NOTICE

■ To prevent damage to the vehicle when towing using a wheel-lift type

truck

●Do not tow the vehicle from the rear when the power switch is off. The

steering lock mechanism is not strong enough to hold the front wheels

straight.

● When raising the vehicle, ensure adequate ground clearance for towing at

the opposite end of the raised vehicle. Without adequate clearance, the

vehicle could be damaged while being towed.

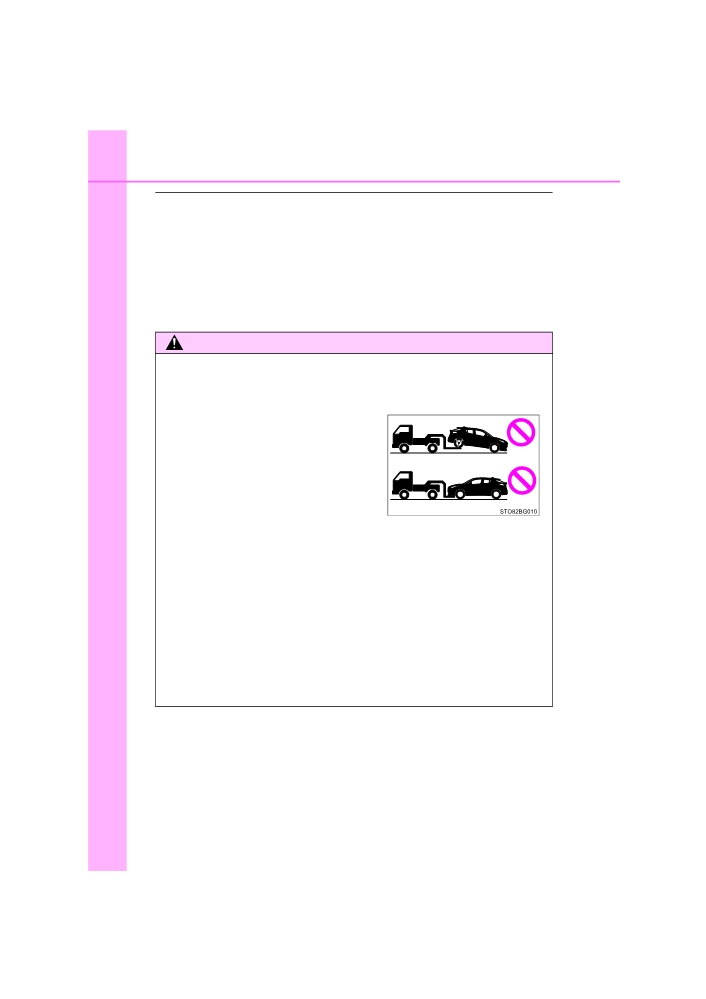

■ To prevent damage to the vehicle when towing with a sling-type truck

Do not tow with a sling-type truck, either from the front or rear.

■ To prevent damage to the vehicle during emergency towing

Do not secure cables or chains to the suspension components

8

C-HR_HV_OM_Europe_OM10538E

594

8-2. Steps to take in an emergency

If you think something is wrong

If you notice any of the following symptoms, your vehicle proba-

bly needs adjustment or repair. Contact any authorized Toyota

retailer or Toyota authorized repairer, or any reliable repairer as

soon as possible.

Visible symptoms

● Fluid leaks under the vehicle

(Water dripping from the air conditioning after use is normal.)

● Flat-looking tires or uneven tire wear

● Engine coolant temperature gauge needle continually points higher

than normal

Audible symptoms

● Changes in exhaust sound

● Excessive tire squeal when cornering

● Strange noises related to the suspension system

● Pinging or other noises related to the hybrid system

Operational symptoms

● Engine misses, stumbling or running roughly

● Appreciable loss of power

● Vehicle pulls heavily to one side when braking

● Vehicle pulls heavily to one side when driving on a level road

● Loss of brake effectiveness, spongy feeling, pedal almost touches

the floor

C-HR_HV_OM_Europe_OM10538E

Content   ..  33  34  35  36   ..
