9-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length
4595 mm (180.9 in.)
Overall width
1760 mm (69.3 in.)
Overall height*1
1485 mm (58.5 in.)
Wheelbase
2600 mm (102.4 in.)
1535 mm (60.4 in.)*2
Front
1525 mm (60.0 in.)*3
1515 mm (59.6 in.)*4, 5
1NR-FE,
1ND-TV and
1WW
engines
Tread
1535 mm (60.4 in.)*2
1525 mm (60.0 in.)*3
Rear
1515 mm (59.6 in.)*4, 5
1ZR-FAE and 8NR-FTS engines
1525 mm (60.0 in.)*2
1515 mm (59.6 in.)*3
1505 mm (59.3 in.)*5
1NR-FE engine
1765 kg (3891 lb.)
1ZR-FAE engine
1860 kg (4101 lb.)*6
1835 kg (4045 lb.)*7
8NR-FTS engine
Gross vehicle mass
1875 kg (4134 lb.)*6
1850 kg (4079 lb.)*7
1ND-TV engine
1850 kg (4079 lb.)
1WW engine
1890 kg (4167 lb.)
9-1. Specifications
613
1NR-FE,
1ZR-FAE,
8NR-FTS
and 1ND-TV engines
Maximum
Front
1020 kg (2249 lb.)
permissible axle
1WW engine
capacity
1080 kg (2381 lb.)
Rear
1010 kg (2227 lb.)
1NR-FE and 1ND-TV engines
55 kg (121 lb.)
Drawbar load
1ZR-FAE, 8NR-FTS and 1WW
engines
65 kg (143 lb.)
1NR-FE and 1ND-TV engines
1000 kg (2205 lb.)
With brake
1ZR-FAE, 8NR-FTS and 1WW
Towing capacity
engines
1300 kg (2867 lb.)
Without brake
450 kg (992 lb.)
*
1: Unladen vehicles
*2: Vehicles with 195/65R15 tires
*3: Vehicles with 205/55R16 tires
*4: Vehicles with 215/45R17 tires
*5: Vehicles with 225/45R17 tires
*6: Vehicles with a Multidrive
*7: Vehicles with a manual transmission
9
614
9-1. Specifications
Vehicle identification
■ Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.

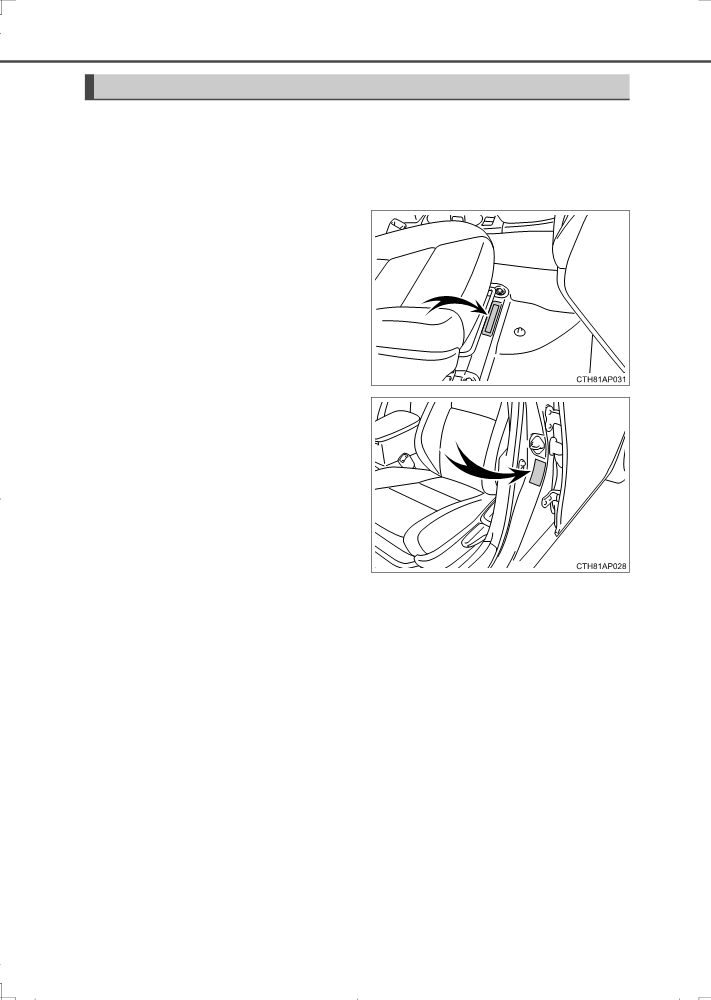

This number is stamped under
the right-hand front seat.
This number is also on the
manufacturer’s label.
9-1. Specifications
615
■ Engine number

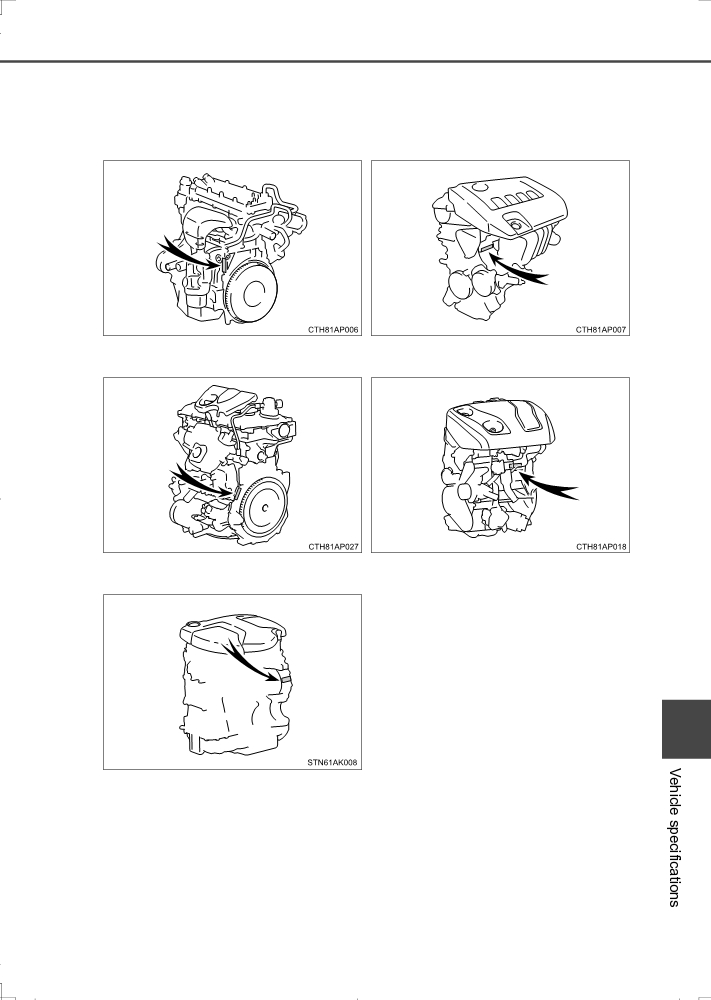

The engine number is stamped on the engine block as shown.
1NR-FE engine
1ZR-FAE engine
8NR-FTS engine
1ND-TV engine
1WW engine
9
616
9-1. Specifications
Engine
1NR-FE and 1ZR-FAE engines
Model
1NR-FE, 1ZR-FAE
Type
4-cylinder in line, 4-cycle, gasoline
1NR-FE engine
72.5 80.5 mm (2.85 3.17 in.)
Bore and stroke
1ZR-FAE engine
80.5 78.5 mm (3.17 3.09 in.)
1NR-FE engine
1329 cm3 (81.1 cu. in.)
Displacement
1ZR-FAE engine
1598 cm3 (97.5 cu. in.)
Valve clearance
Automatic adjustment
(engine cold)
1NR-FE engine
Automatic adjustment
1ZR-FAE engine
7.6 10.0 mm (0.30 0.39 in.)*

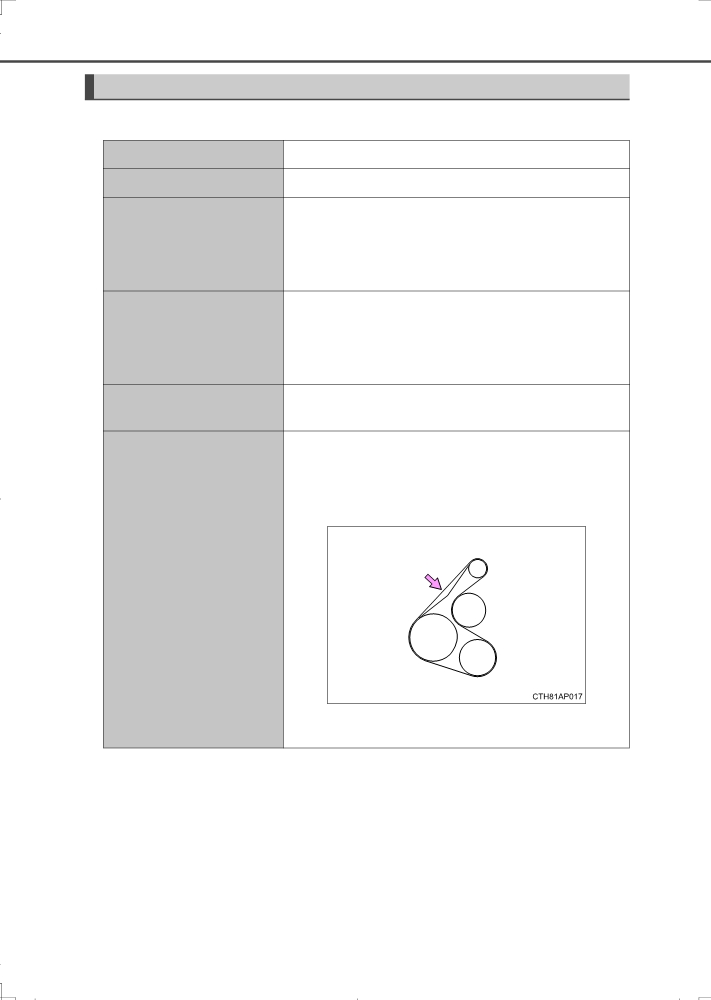

Generator
Drive belt tension
Water pump
Crankshaft
Air
conditioning
compressor
*: Drive belt deflection with 98 N (10 kgf, 22 lbf) thumb
force (used belt)
9-1. Specifications
617
8NR-FTS engine
Model
8NR-FTS
4-cylinder in line,
4-cycle, gasoline
(with
Type
turbocharger)
Bore and stroke
71.5 74.5 mm (2.82 2.93 in.)
Displacement
1197 cm3 (73.0 cu. in.)
Valve clearance
Automatic adjustment
(engine cold)
Drive belt tension
Automatic adjustment
1ND-TV and 1WW engines
Model
1ND-TV, 1WW
4-cylinder in line,
4-cycle, diesel
(with
Type
turbocharger)
1ND-TV engine
73.0 81.5 mm (2.87 3.21 in.)
Bore and stroke
1WW engine
78.0 83.6 mm (3.07 3.29 in.)
1ND-TV engine
1364 cm3 (83.2 cu. in.)
Displacement
1WW engine
1598 cm3 (97.52 cu. in.)
1ND-TV engine
Intake: 0.11 0.17 mm (0.004 0.007 in.)
Valve clearance
Exhaust: 0.14 0.20 mm (0.006 0.008 in.)
(engine cold)
1WW engine
Automatic adjustment
9
Drive belt tension
Automatic adjustment
618
9-1. Specifications
NOTICE
■ Drive belt type (1ND-TV engine)
The high strength drive belt is used for the generator side drive belt. When
replacing the drive belt, use Toyota genuine drive belt or equivalent high
strength drive belt. If the high strength drive belt is not used, durability of the
belt may become less than expected. The high strength drive belt is a belt
with Aramid core which has higher strength compared to usually available
belts with PET or PEN core.
Fuel
Gasoline engine
EU area:
Unleaded gasoline conforming to European
Fuel type
standard EN228 only
Except EU area:
Unleaded gasoline only
Research Octane
95 or higher
Number
Fuel tank capacity
50 L (13.2 gal., 11.0 Imp. gal.)
(Reference)
Diesel engine
EU area:
Diesel fuel conforming to European standard
Fuel type
EN590
Except EU area:
Diesel fuel that contains 50 ppm or less of sulfur
Cetane number
48 or higher
Fuel tank capacity
50 L (13.2 gal., 11.0 Imp. gal.)
(Reference)
9-1. Specifications
619
Lubrication system
Oil capacity
(Drain and refill reference*)
With filter
1NR-FE engine
3.4 L (3.6 qt., 3.0 Imp. qt.)
1ZR-FAE engine
4.2 L (4.4 qt., 3.7 Imp. qt.)
8NR-FTS engine
4.0 L (4.2 qt., 3.5 Imp. qt.)
1ND-TV engine
3.7 L (3.9 qt., 3.3 Imp. qt.)
1WW engine
5.2 L (5.5 qt., 4.6 Imp. qt.)
Without filter
1NR-FE engine
3.2 L (3.4 qt., 2.8 Imp. qt.)
1ZR-FAE engine
3.9 L (4.1 qt., 3.4 Imp. qt.)
8NR-FTS engine
3.7 L (3.9 qt., 3.3 Imp. qt.)
1ND-TV engine
3.3 L (3.5 qt., 2.9 Imp. qt.)
1WW engine
4.9 L (5.2 qt., 4.3 Imp. qt.)
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
■ Engine oil selection
1NR-FE and 1ZR-FAE engines
9
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Oil grade:
0W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC multigrade engine oil
15W-40:
API grade SL, SM or SN multigrade engine oil
620
9-1. Specifications

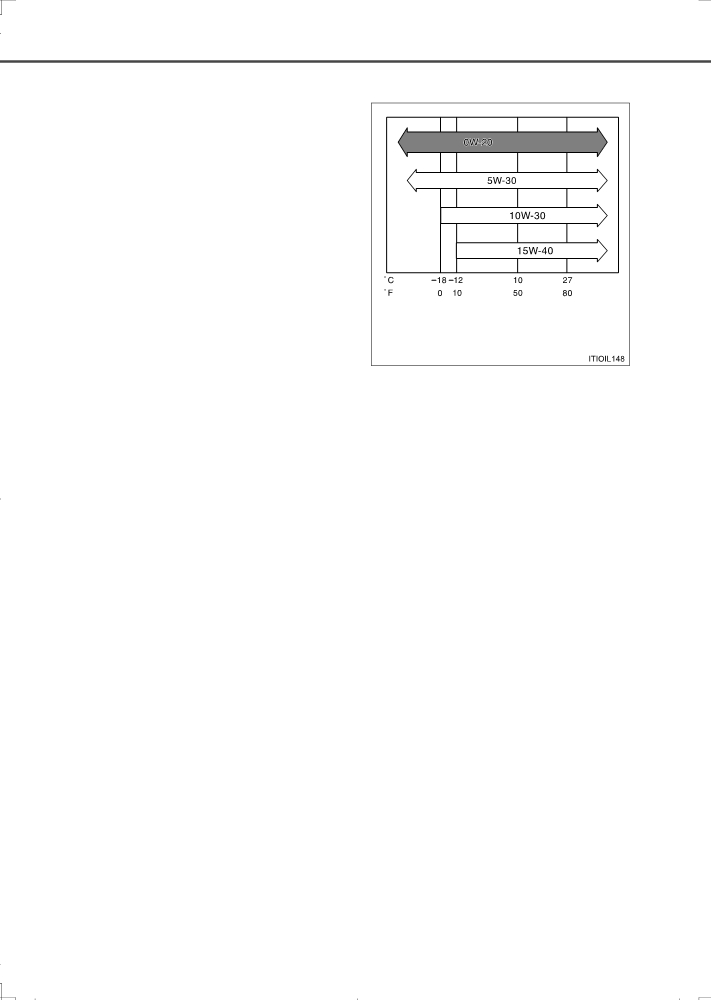

Recommended viscosity (SAE):

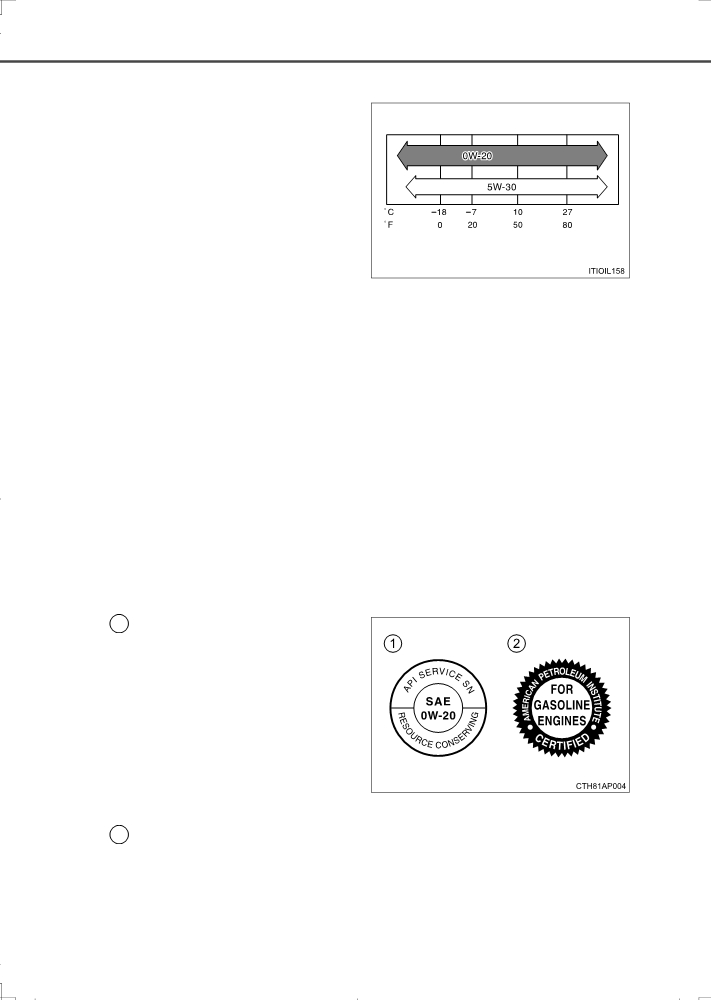

SAE 0W-20 is filled into your
Toyota vehicle at manufactur-
Preferred
ing, and the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 oil is not avail-
able, SAE 5W-30 oil may be
used. However, it should be
replaced with SAE 0W-20 at the
next oil change.
Temperature range anticipated
If you use SAE 10W-30 or a
before next oil change
higher viscosity engine oil in
extremely low temperatures,
the engine may become difficult
to start, so SAE 0W-20 or 5W-
30 engine oil is recommended.
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
9-1. Specifications
621
How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.

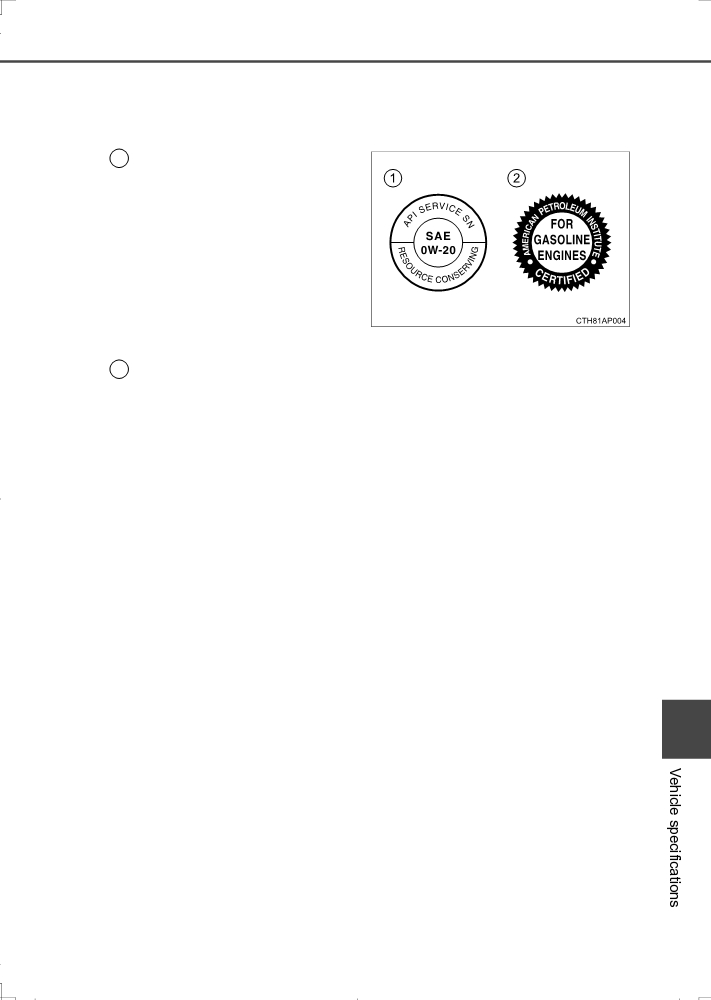

API Service Symbol
1
Top portion: “API SERVICE SN”
means the oil quality designa-
tion by American Petroleum
Institute (API).
Center portion:
“SAE
0W-20”
means the SAE viscosity grade.
Lower portion:
“Resource-
Conserving” means that the oil
has fuel-saving and environ-
mental protection capabilities.
ILSAC Certification Mark
2
The International Lubricant Specification Advisory Committee (ILSAC)
Certification Mark is displayed on the front of the container.
8NR-FTS engine
“Toyota Genuine Motor Oil SAE 0W-20 for Downsized Turbo Gaso-
line Engines” is used in your Toyota vehicle. Use Toyota approved
“Toyota Genuine Motor Oil SAE 0W-20 for Downsized Turbo Gaso-
line Engines” or equivalent to satisfy the following grade and vis-
cosity.
Oil grade:
“Toyota Genuine Motor Oil SAE 0W-20 for Downsized Turbo Gaso-
line Engines” or API grade SL “Energy-Conserving”, SM “Energy-
Conserving” or SN “Resource-Conserving”; or ILSAC multigrade
engine oil
Viscosity grade:
SAE 0W-20 and 5W-30
9
622
9-1. Specifications
Recommended viscosity (SAE):
“Toyota Genuine Motor Oil SAE
0W-20 for Downsized Turbo
Gasoline Engines” is filled into
Preferred
your Toyota vehicle at manufac-
turing, and SAE 0W-20 is the
best choice for good fuel econ-
omy and good starting in cold
Temperature range anticipated
weather.
before next oil change
If SAE 0W-20 oil is not available, SAE 5W-30 oil may be used.
However, it should be replaced with SAE 0W-20 at the next oil
change.
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.
API Service Symbol
1
Top portion: “API SERVICE SN”
means the oil quality designa-
tion by American Petroleum
Institute (API).
Center portion:
“SAE
0W-20”
means the SAE viscosity grade.
Lower portion:
“Resource-
Conserving” means that the oil
has fuel-saving and environ-
mental protection capabilities.
ILSAC Certification Mark
2
The International Lubricant Specification Advisory Committee (ILSAC)
Certification Mark is displayed on the front of the container.
9-1. Specifications
623
1ND-TV engine
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Oil grade: ACEA C2
NOTICE
Using engine oil other than ACEA C2 may damage the catalytic converter.

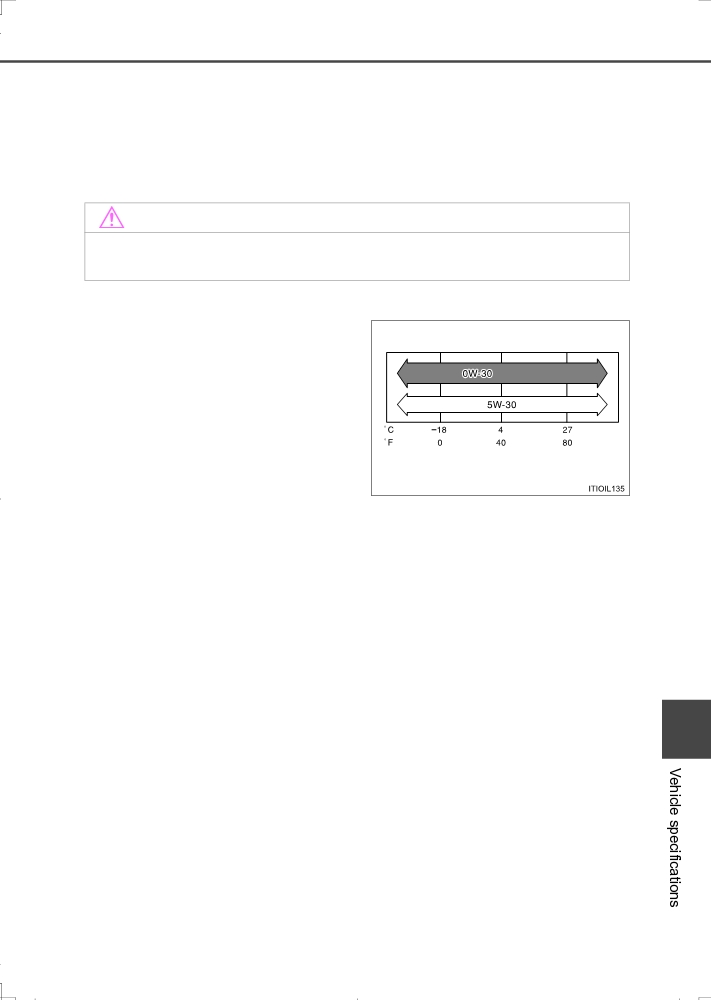

Recommended viscosity (SAE):
SAE 0W-30 is filled into your
Toyota vehicle at manufactur-
ing, and the best choice for
Preferred
good fuel economy and good
starting in cold weather.
Temperature range anticipated
before next oil change
Oil viscosity (0W-30 is explained here as an example):
• The 0W in 0W-30 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 30 in 0W-30 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
9
624
9-1. Specifications
1WW engine
Toyota recommends the use of approved “Toyota Genuine Motor
Oil 5W-30 Premium Fuel Economy for 1WW/2WW engines”. Con-
tact any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional for usage of any other approved
engine oil of matching quality.
NOTICE
■ To prevent damage to the engine
● Use of engine oils other than “Toyota Genuine Motor Oil 5W-30 Premium
Fuel Economy for 1WW/2WW engines” or any other approved engine oil,
may cause damage to the engine.
● If the approved oils are not available, up to 1 L (1.1 qt., 0.9 Imp. qt.) of the
following oils may be used: ACEA C3 oils.
Confirm that the viscosity grade is SAE 0W-40, 0W-30, 5W-40 or 5W-30.
Viscosities other than these, may damage the engine.
9-1. Specifications
625
Cooling system
1NR-FE, 1ZR-FAE and 1ND-TV engines
With exhaust heat recirculation system
5.7 L (6.0 qt., 5.0 Imp. qt.)
1NR-FE engine
Without exhaust heat recirculation system
4.7 L (5.0 qt., 4.1 Imp. qt.)
Vehicles with a Multidrive
Capacity
5.8 L (6.1 qt., 5.1 Imp. qt.)
(Refer-
1ZR-FAE engine
Vehicles with a manual transmission
ence)
5.6 L (5.9 qt., 4.9 Imp. qt.)
With power heater
6.0 L (6.3 qt., 5.3 Imp. qt.)
1ND-TV engine
Without power heater
5.6 L (5.9 qt., 4.9 Imp. qt.)
Use either of the following:
•
“Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-
Coolant type
based non-silicate, non-amine, non-
nitrite, and non-borate coolant with
long-life hybrid organic acid technology
Do not use plain water alone.
8NR-FTS engine
Capacity (reference)
Gasoline engine
Vehicles with a Multidrive
6.4 L (6.8 qt., 5.6 Imp. qt.)
Vehicles with a manual transmission
6.2 L (6.6 qt., 5.5 Imp. qt.)
9
Intercooler
2.1 L (2.2 qt., 1.8 Imp. qt.)
Use either of the following:
•
“Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-
Coolant type
based non-silicate, non-amine, non-
nitrite, and non-borate coolant with
long-life hybrid organic acid technology
Do not use plain water alone.
626
9-1. Specifications
1WW engine
With power heater
7.3 L (7.7 qt., 6.4 Imp. qt.)
Capacity (reference)
Without power heater
7.0 L (7.4 qt., 6.2 Imp. qt.)
“Toyota Genuine Premium Long Life Cool-
ant
1WW/2WW” or equivalent.
“Toyota
Genuine Premium Long Life Coolant 1WW/
2WW” concentrated product always needs
to be mixed as
50% coolant and 50%
deionized water. Do not use plain water
Coolant type
alone.
Contact any authorized Toyota dealer or
repairer, or another duly qualified and
equipped professional for usage of any
other approved engine coolant of matching
quality.
Ignition system (gasoline engine)
Spark plug
1NR-FE engine
DENSO SC16HR11
1ZR-FAE engine
Make
DENSO SC16HR11 or DENSO SC20HR11
8NR-FTS engine
NGK DILKAR8J9G
1NR-FE and 1ZR-FAE engines
1.1 mm (0.043 in.)
Gap
8NR-FTS engine
0.9 mm (0.035 in.)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
9-1. Specifications
627
Electrical system
Battery
Open voltage at 20C
12.6 12.8 V Fully charged
(68F):
12.2 12.4 V Half charged
11.8 12.0 V Discharged
(Voltage is checked 20 minutes after the engine
and all lights are turned off.)
Charging rates
5 A max.
Multidrive
Fluid capacity*
7.5 L (7.9 qt., 6.6 Imp. qt.)
Fluid type
Toyota Genuine CVT Fluid FE
*: The fluid capacity is a reference quantity.
If replacement is necessary, contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
NOTICE
■ Multidrive fluid type
Using Multidrive fluid other than “Toyota Genuine CVT Fluid FE” may cause
deterioration in shift quality, locking up of your transmission accompanied
by vibration, and ultimately damage to the transmission of your vehicle.
9
628
9-1. Specifications
Manual transaxle
1WW engine
2.1 L (2.2 qt., 1.8 Imp. qt.)
Gear oil capacity (Reference)
Except 1WW engine
2.4 L (2.5 qt., 2.1 Imp. qt.)
Use either of the following:
•
“TOYOTA Genuine Manual Transmis-
Gear oil type
sion Gear Oil LV”
• Other gear oil that meets API GL-4
and SAE 75W specifications
NOTICE
■ Manual transaxle gear oil
Please be aware that depending on the particular characteristics of the gear
oil used or the operating conditions, idle sound, shift feeling and/or fuel effi-
ciency may be different or affected. Toyota recommends to use “TOYOTA
Genuine Manual Transmission Gear Oil LV” to achieve optimal perfor-
mance.
Clutch
Pedal free play
5 15 mm (0.2 0.6 in.)
SAE J1703 or FMVSS No.116 DOT 3 or
Fluid type
SAE J1704 or FMVSS No.116 DOT 4
