8-2. Steps to take in an emergency
Fuel pump shut off system (gasoline engine
only)
To minimize the risk of fuel leakage when the engine stalls or
when an airbag inflates upon collision, the fuel pump shut off
system stops the supply of fuel to the engine.
Follow the procedure below to restart the engine after the system is
activated.
Vehicles without a smart entry & start system
Turn the engine switch to the “ACC” or “LOCK” position.
1
2
Restart the engine.
Vehicles with a smart entry & start system
1
Turn the engine switch to ACCESSORY mode or turn it off.
2
Restart the engine.
NOTICE
■ Before starting the engine
Inspect the ground under the vehicle.
If you find that fuel has leaked onto the ground, the fuel system has been
damaged and is in need of repair. Do not restart the engine.
8-2. Steps to take in an emergency
545
If a warning light turns on or a warning
buzzer sounds
Calmly perform the following actions if any of the warning lights
comes on or flashes. If a light comes on or flashes, but then
goes off, this does not necessarily indicate a malfunction in the
system. However, if this continues to occur, have the vehicle
inspected by any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.

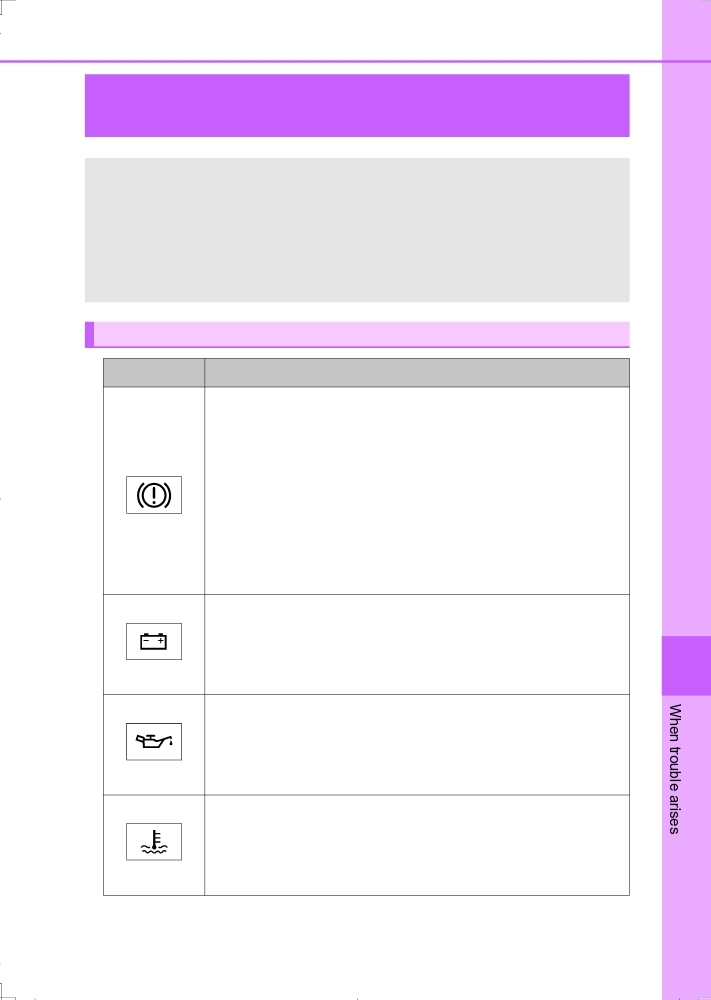

Warning light and warning buzzer list
Warning light
Warning light/Details/Actions
Brake system warning light (warning buzzer)*1
Indicates that:
• The brake fluid level is low; or
• The brake system is malfunctioning
This light also comes on when the parking brake is not
released. If the light turns off after the parking brake is
fully released the system is operating normally.
Immediately stop the vehicle in a safe place and con-
tact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
Continuing to drive the vehicle may be dangerous.
Charging system warning light
Indicates a malfunction in the vehicle’s charging system
Immediately stop the vehicle in a safe place and con-
tact any authorized Toyota dealer or repairer, or
8
(If equipped)
another duly qualified and equipped professional.
Low engine oil pressure warning light
Indicates that the engine oil pressure is too low.
Immediately stop the vehicle in a safe place and con-
(If equipped)
tact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
High engine coolant temperature warning light
Indicates that the engine is almost overheating. (P. 603)
Immediately stop the vehicle in a safe place and con-
(If equipped)
tact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
546
8-2. Steps to take in an emergency
Warning light
Warning light/Details/Actions

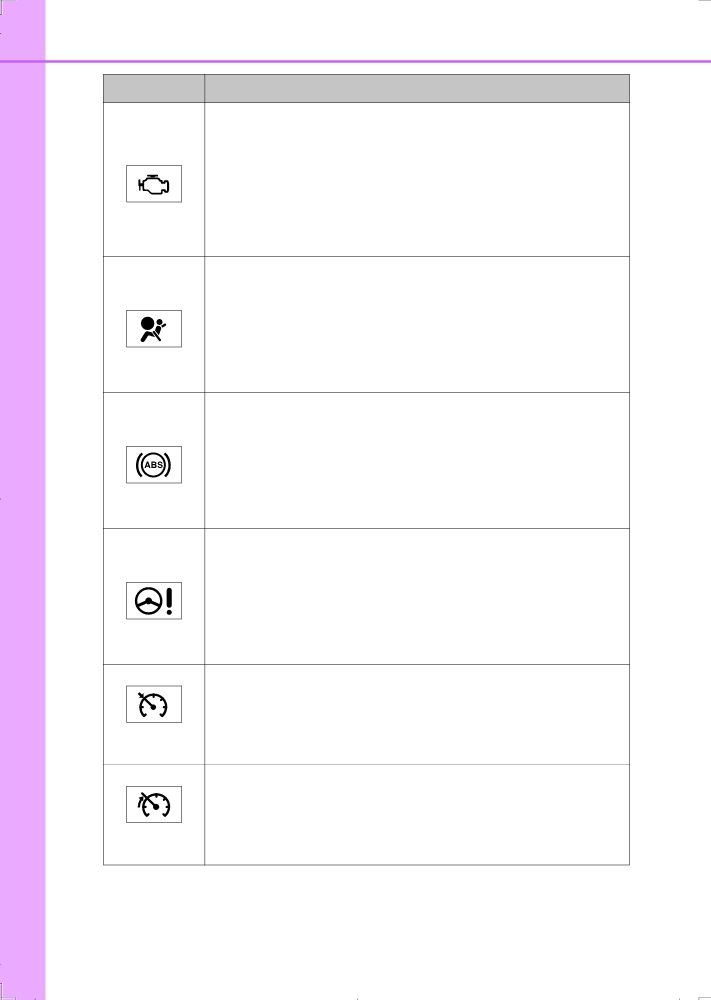

Malfunction indicator lamp
Indicates a malfunction in:
• The electronic engine control system;
• The electronic throttle control system; or
• The electronic Multidrive (if equipped) control system
Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and
equipped professional immediately.
SRS warning light
Indicates a malfunction in:
• The SRS airbag system; or
• The seat belt pretensioner system
Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and
equipped professional immediately.
ABS warning light
Indicates a malfunction in:
• The ABS; or
• The brake assist system
Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and
equipped professional immediately.
Electric power steering system warning light (warning
buzzer)
Indicates a malfunction in the EPS (Electric Power Steer-
ing) system
Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and
equipped professional immediately.
Cruise control indicator
Indicates a malfunction in the cruise control system.
Have the vehicle inspected by any authorized Toyota
(Comes on in yellow)
dealer or repairer, or another duly qualified and
(If equipped)
equipped professional immediately.
Speed limiter indicator
Indicates a malfunction in the speed limiter system.
Have the vehicle inspected by any authorized Toyota
(Comes on in yellow)
dealer or repairer, or another duly qualified and
(If equipped)
equipped professional immediately.
8-2. Steps to take in an emergency
547
Warning light
Warning light/Details/Actions

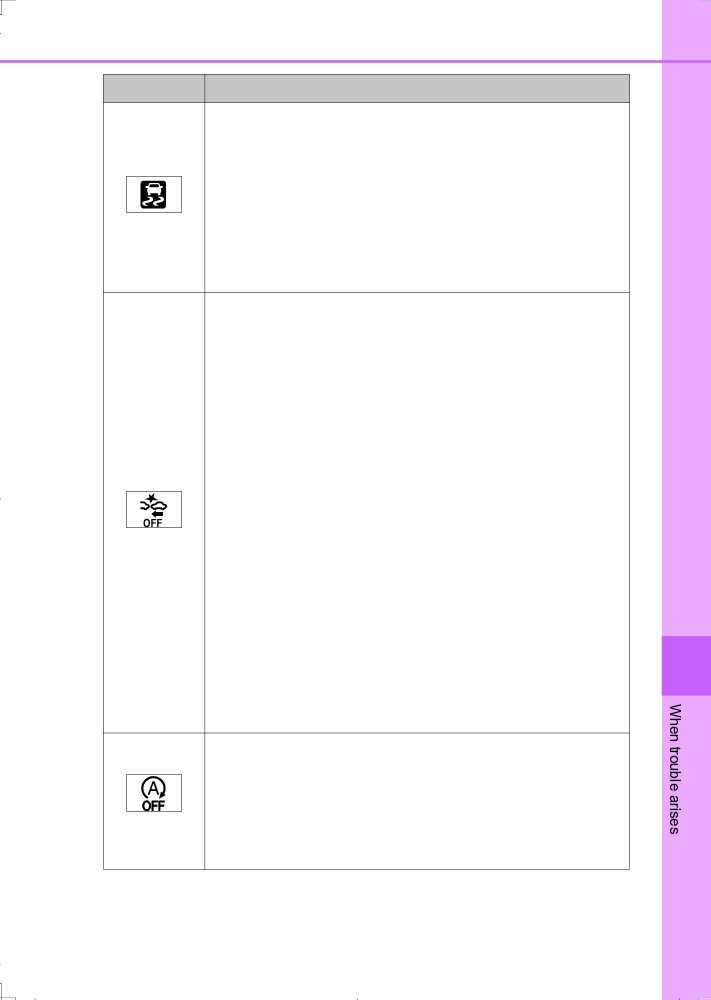

Slip indicator
Indicates a malfunction in:
• The VSC (Vehicle Stability Control) system;
• The TRC (Traction Control) system; or
• The hill-start assist control system
The light will flash when the VSC or the TRC is operating.
(Comes on)
(P. 332)
Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and
equipped professional immediately.
PCS warning light
When the warning light flashes (and a buzzer sounds):
Indicates a malfunction in the PCS (Pre-Crash Safety sys-
tem)
Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and
equipped professional immediately.
When the warning light illuminates:
Indicates that the PCS (Pre-Crash Safety system) is tem-
porarily unavailable, possibly due to either of the following:
• The part of the windshield around the front sensor being
dirty, fogged up or covered with condensation, ice, stick-
ers, etc.
(If equipped)
Clear the dirt, fog, condensation, ice, stickers, etc.
(P. 256)
• Front sensor temperature being outside of its opera-
tional range
Wait for a while until the area around the front sensor
has cooled down sufficiently.
Either the VSC (Vehicle Stability Control) system or PCS
8
(Pre-Crash Safety system) is disabled or both are dis-
abled.
To enable the PCS, enable both the VSC system and
PCS. (P. 261, 333)
Stop & Start cancel indicator
Indicates a malfunction in the Stop & Start system
(The Stop & Start cancel indicator will come on when the
system is canceled.: P. 288)
(Flashes)
Have the vehicle inspected by any authorized Toyota
(If equipped)
dealer or repairer, or another duly qualified and
equipped professional immediately.
548
8-2. Steps to take in an emergency
Warning light
Warning light/Details/Actions

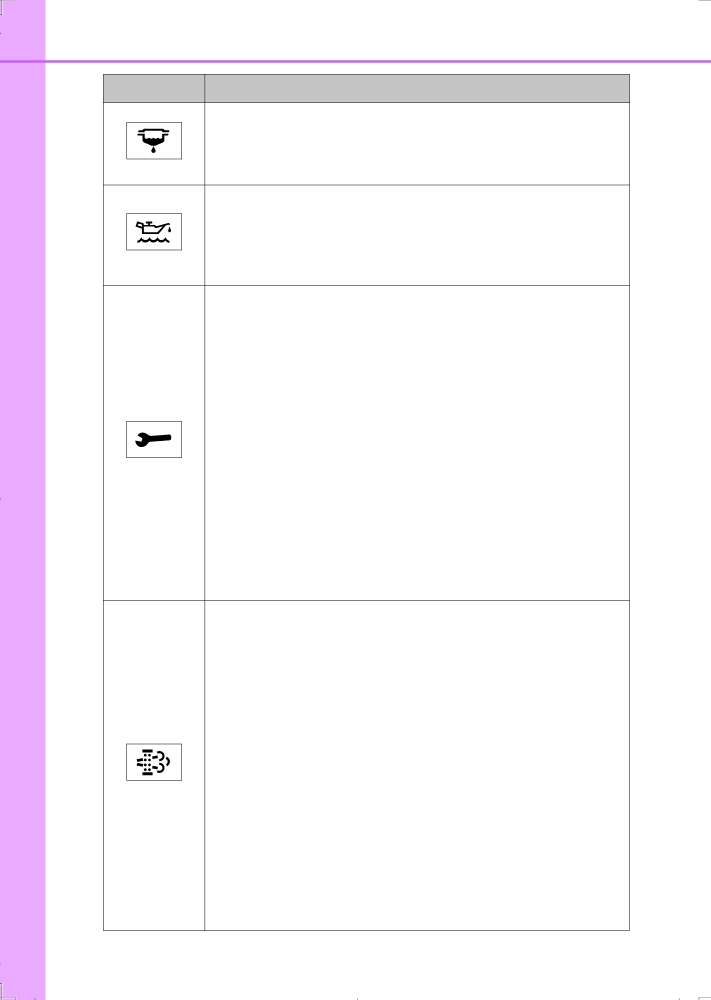

Fuel filter warning light
Indicate that the amount of accumulated water in the fuel
filter has reached the specified level.
(If equipped)
P. 488
Low engine oil level warning light
Indicates that engine oil level is low, but does not indicate
a malfunction.
(If equipped)
Check the level of engine oil, and add if necessary.
(P. 473)
Engine oil change reminder light
When the light flashes:
Indicates that the engine oil is scheduled to be changed.
(The indicator will not work properly unless the oil mainte-
nance date has been reset).
Check the engine oil, and change if necessary. After
changing the engine oil, the oil change system
should be reset. (P. 478)
When the light comes on:
(If equipped)
Indicates that the engine oil should be changed.
After the engine oil is changed and the oil maintenance
data has been reset.
Check and change the engine oil, and oil filter by any
authorized Toyota dealer or repairer, or another duly
qualified and equipped professional. After changing
the engine oil, the oil change system should be reset.
(P. 478)
DPF system warning light
• Indicates that the DPF catalytic converter needs to be
cleaned due to repeated short trips and/or low-speed
driving.
• Indicates that the amount of accumulated deposits in the
DPF catalytic converter has reached the specified level.
To clean with DPF catalytic converter, drive the vehi-
cle at a speed of 65 km/h (40 mph) or greater for 20 to
30 minutes as much as possible until the DPF system
warning light turns off*2.
(If equipped)
Do not turn off the engine as much as possible until
the DPF system warning light turns off.
If it is not possible to drive the vehicle at speeds of 65
km/h (40 mph) or greater, or the DPF system warning
light does not turn off even after driving for more than
30 minutes, have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.
8-2. Steps to take in an emergency
549
Warning light
Warning light/Details/Actions
Open door warning light (warning buzzer)*3
Indicates that a door is not fully closed
(If equipped)
Check that all the doors are closed.

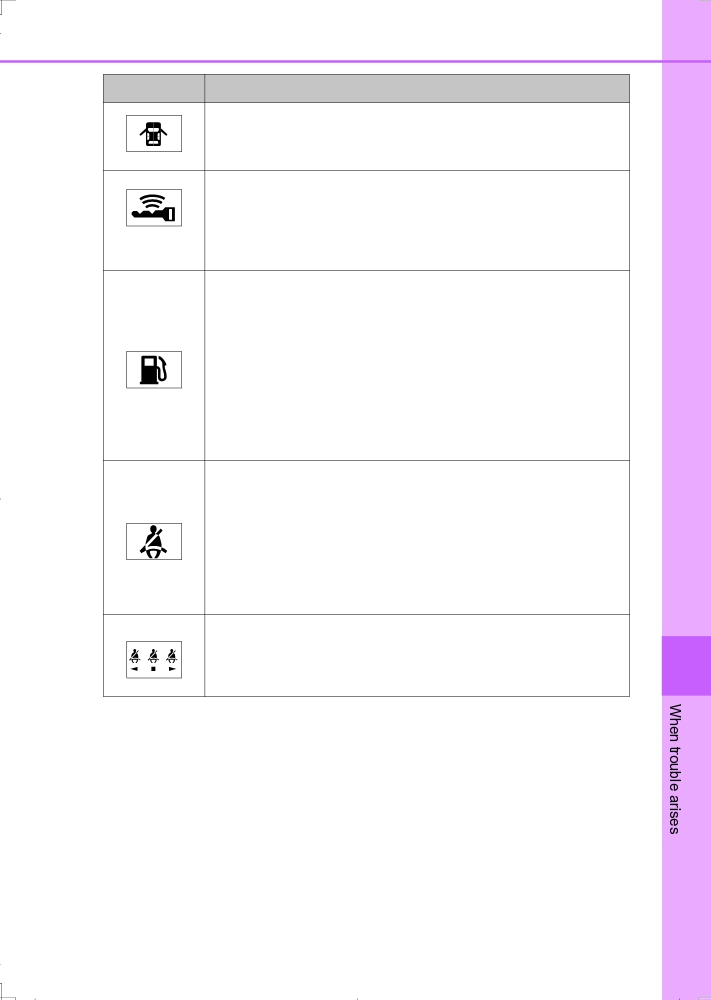

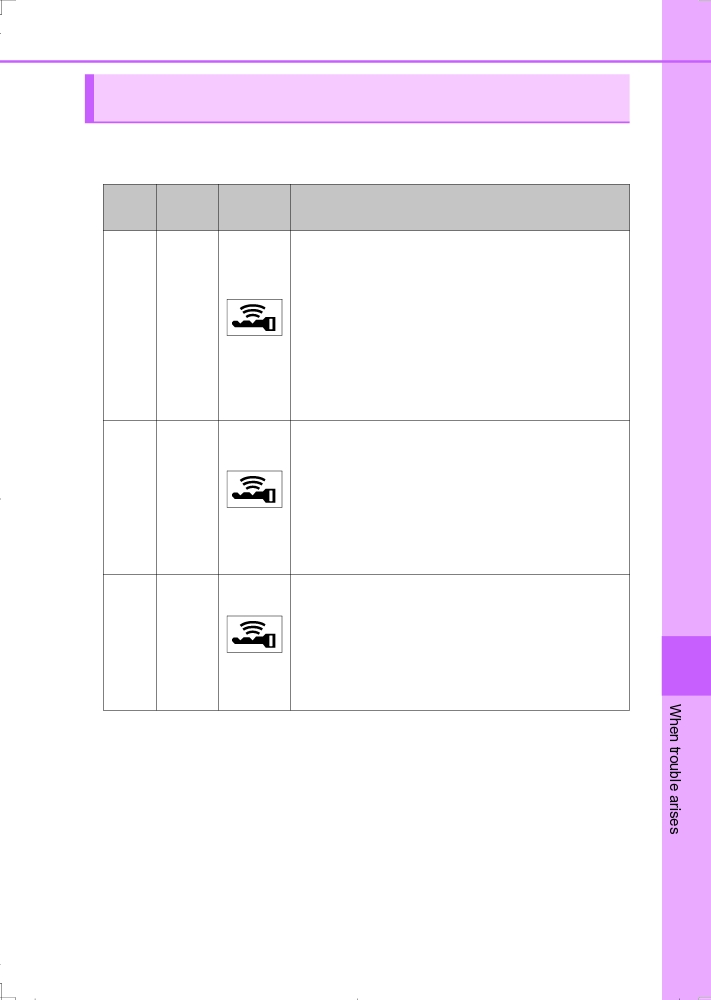

Smart entry & start system indicator
Indicates a malfunction in the smart entry & start system.
Have the vehicle inspected by any authorized Toyota
(Flashes in yellow for
15 seconds.)
dealer or repairer, or another duly qualified and
(If equipped)
equipped professional immediately.
Low fuel level warning light
3-ring meter:
Indicates that remaining fuel is approximately 7.5 L (2.0
gal., 1.6 Imp. gal.) or less
2-ring meter:
• Gasoline engine: Indicates that remaining fuel is approx-
imately 7.5 L (2.0 gal., 1.6 Imp. gal.) or less
• Diesel engine: Indicates that remaining fuel is approxi-
mately 8.3 L (2.2 gal., 1.8 Imp. gal.) or less
Refuel the vehicle.
Driver’s and front passenger’s seat belt reminder light
(warning buzzer)*4
Warns the driver and/or front passenger to fasten their
seat belts
Fasten the seat belt.
If the front passenger’s seat is occupied, the front
passenger’s seat belt also needs to be fastened to
make the warning light (warning buzzer) turn off.
Rear passengers’ seat belt reminder lights (warning
buzzer)*4
Warns the rear passengers to fasten their seat belts.
8
Fasten the seat belt.
550
8-2. Steps to take in an emergency
Warning light
Warning light/Details/Actions

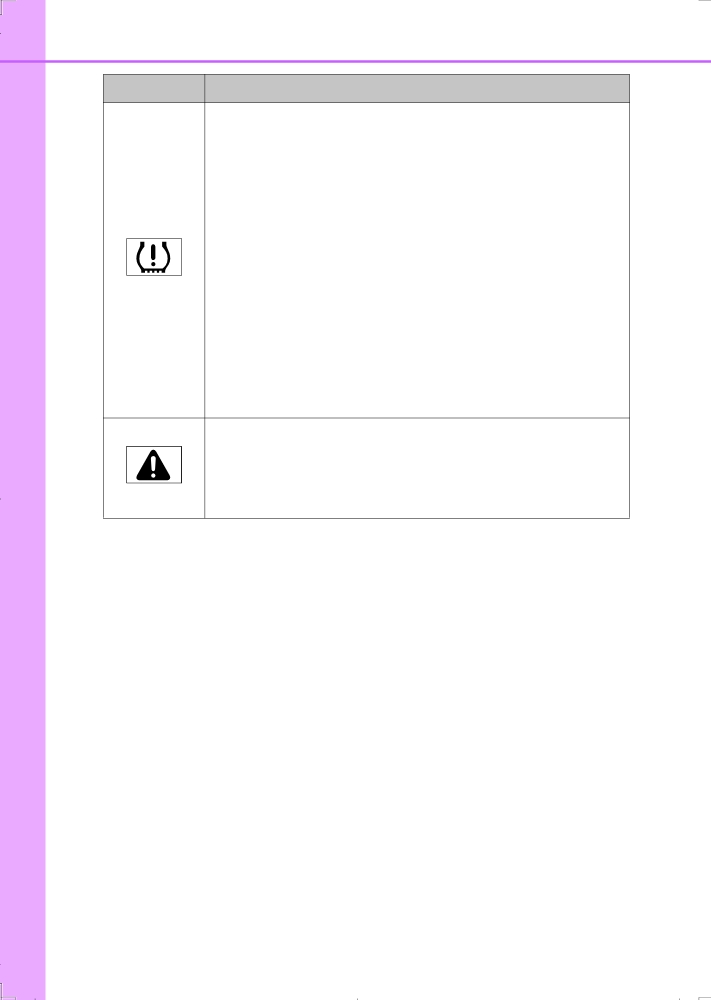

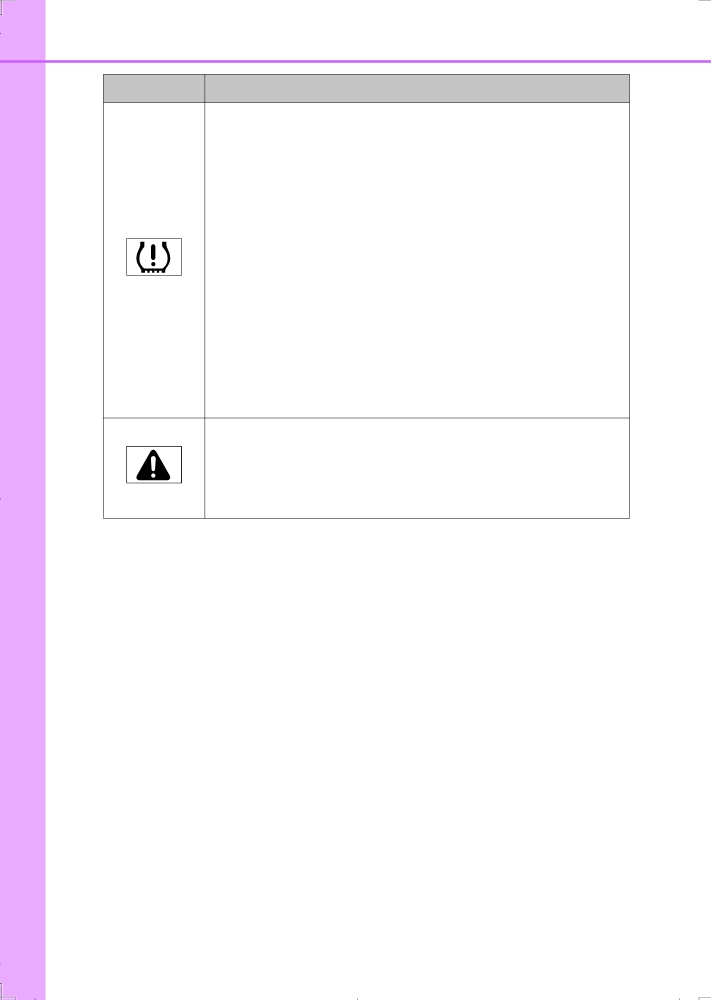

Tire pressure warning light
When the light comes on:
Low tire inflation pressure such as
• Natural causes (P. 553)
• Flat tire (P. 563, 576)
Adjust the tire inflation pressure to the specified
level.
The light will turn off after a few minutes. In case the
light does not turn off even if the tire inflation pres-
(If equipped)
sure is adjusted, have the system checked by any
authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
When the light comes on after blinking for 1 minute:
Malfunction in the tire pressure warning system (P. 554)
Have the system checked by any authorized Toyota
dealer or repairer, or another duly qualified and
equipped professional.

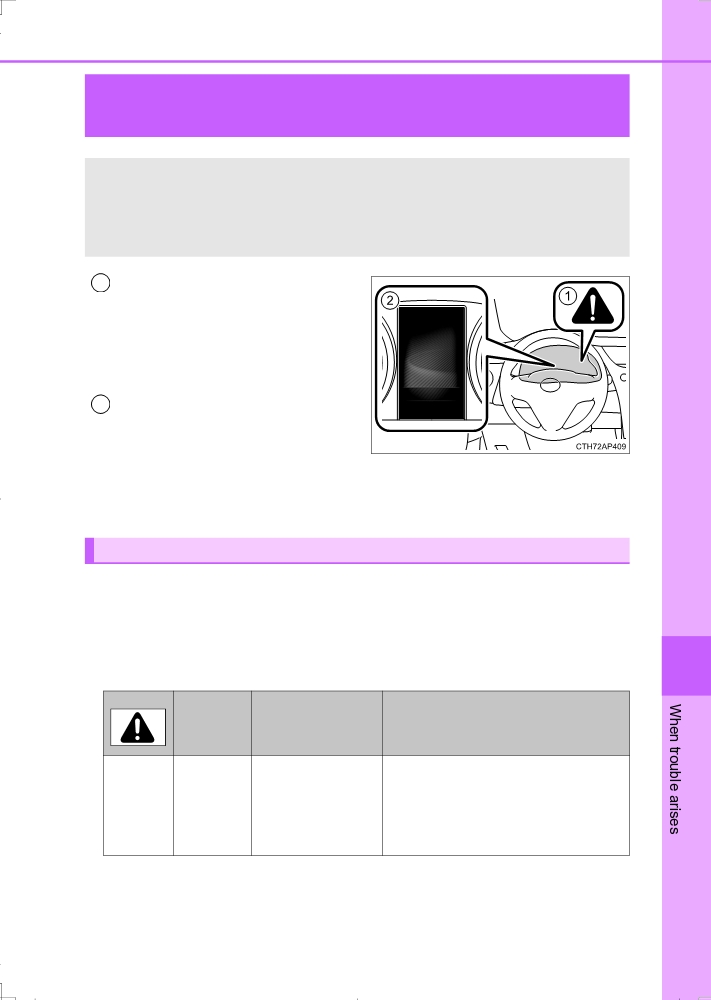

Master warning light
A buzzer sounds and the warning light comes on and
flashes to indicate that the master warning system has
(If equipped)
detected a malfunction.
P. 557
*
1: Parking brake engaged warning buzzer:
The buzzer sounds to indicate that the parking brake is still engaged (with
the vehicle having reached a speed of 5 km/h [3 mph]).
*2: The DPF system warning light may not turn off when the engine oil change
reminder light is on. In this event, have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
*3: Open door warning buzzer:
A buzzer will sound if the vehicle reaches a speed of 5 km/h (3 mph) or
more with any door open.
*4: Driver’s and passengers’ seat belt buzzer:
The driver’s and passengers’ seat belt buzzer sounds to alert the driver and
passengers that his or her seat belt is not fastened. The buzzer sounds for
30 seconds after the vehicle reaches a speed of at least 20 km/h (12 mph).
Then, if the seat belt is still unfastened, the buzzer will sound in a different
tone for 90 more seconds.
8-2. Steps to take in an emergency
551
Follow the correction procedures. (vehicles with a smart entry &
start system and with a 3-ring meter)
After taking the specified steps to correct the suspected problem,
check that the warning light turns off.
Interior
Exterior
Warning

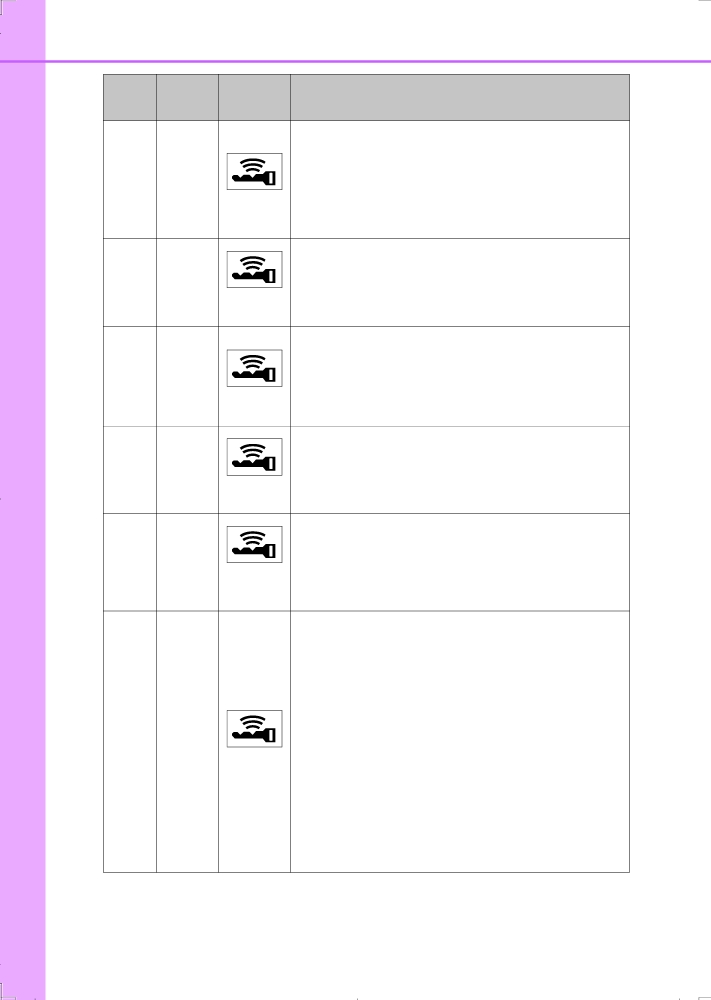

Warning light/Details/Action
buzzer
buzzer
light
Smart entry & start system indicator (vehi-
cles with a Multidrive)
The electronic key was carried outside the
vehicle and the driver’s door was opened and
closed while any shift position other than P
Continuous
Continuous
was selected without turning off the engine
(Flashes in
yellow)
switch.
Change the shift position to P.
Bring the electronic key back into the
vehicle.
Smart entry & start system indicator (vehi-
cles with a Multidrive)
The electronic key was carried outside the
vehicle and the driver’s door was opened and
Once
3 times
closed while the shift position P was selected
(Flashes in
yellow)
without turning off the engine switch.
Turn the engine switch off or bring the
electronic key back into the vehicle.
Smart entry & start system indicator
Indicates that a door other than the driver’s
door has been opened and closed with the
Once
3 times
engine switch in any mode other than off and
(Flashes in
the electronic key outside of the detection
8
yellow)
area.
Confirm the location of the electronic key.
552
8-2. Steps to take in an emergency
Interior
Exterior
Warning
Warning light/Details/Action
buzzer
buzzer
light
Smart entry & start system indicator
An attempt was made to exit the vehicle with
Continuous
the electronic key and lock the doors without
Once
(5 seconds)
first turning the engine switch off.
(Flashes in
yellow)
Turn the engine switch off and lock the
doors again.
Smart entry & start system indicator
Indicates that the electronic key is not present
Once
(Flashes in
when attempting to start the engine.
yellow for 15
Confirm the location of the electronic key.
seconds)
Smart entry & start system indicator
An attempt was made to drive when the regu-
9 times
lar key was not inside the vehicle.
(Flashes in
Confirm that the electronic key is inside
yellow)
the vehicle.
Smart entry & start system indicator
Indicates that the electronic key battery is low.
Once
(Flashes in
Replace the battery.
yellow for 15
(P. 511)
seconds)
Smart entry & start system indicator
Indicates that the steering lock has not been
Once
(Flashes
released.
quickly in
green for 15
Release the steering lock. (P. 219)
seconds)
Smart entry & start system indicator
• When the doors were unlocked with the
mechanical key and then the engine switch
was pressed, the electronic key could not
be detected in the vehicle.
• The electronic key could not be detected in
the vehicle even after the engine switch
Once
(Flashes in
was pressed two consecutive times.
yellow for 30
Vehicles with a Multidrive: Touch the elec-
seconds)
tronic key to the engine switch while
depressing the brake pedal.
Vehicles with a manual transmission:
Touch the electronic key to the engine
switch while depressing the clutch pedal.
8-2. Steps to take in an emergency
553
■ Front passenger detection sensor, seat belt reminder and warning
buzzer
● If luggage is placed on the front passenger seat, the front passenger detec-
tion sensor may cause the warning light to flash and the warning buzzer to
sound even if a passenger is not sitting in the seat.
● If a cushion is placed on the seat, the sensor may not detect a passenger,
and the warning light may not operate properly.
■ If the malfunction indicator lamp comes on while driving
For some models, the malfunction indicator lamp will come on if the fuel tank
becomes completely empty. If the fuel tank is empty, refuel the vehicle imme-
diately. The malfunction indicator lamp will go off after several trips.
If the malfunction indicator lamp does not go off, contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped professional
as soon as possible.
■ When the tire pressure warning light comes on (vehicles with a tire pres-
sure warning system)
Carry out the following procedure after the tire temperature has lowered suffi-
ciently.
● Check the tire inflation pressure and adjust it to the appropriate level.
● If the warning light does not go out after several minutes, check that the tire
inflation pressure is at the specified level and carry out initialization.
The warning light may come on again if the above operations are conducted
without first allowing the tire temperature to lower sufficiently.
■ The tire pressure warning light may come on due to natural causes
(vehicles with a tire pressure warning system)
The tire pressure warning light may come on due to natural causes such as
natural air leaks and tire inflation pressure changes caused by temperature.
In this case, adjusting the tire inflation pressure will turn off the warning light
(after a few minutes).
8
■ When a tire is replaced with a spare tire (vehicles with a tire pressure
warning system)
The compact spare tire is not equipped with a tire pressure warning valve and
transmitter. If a tire goes flat, the tire pressure warning light will not turn off
even though the flat tire has been replaced with the spare tire. Replace the
spare tire with the repaired tire and adjust the tire inflation pressure. The tire
pressure warning light will go off after a few minutes.
■ Conditions that the tire pressure warning system may not function prop-
erly (vehicles with a tire pressure warning system)
P. 494
554
8-2. Steps to take in an emergency
■ If the tire pressure warning light frequently comes on after blinking for 1
minute (vehicles with a tire pressure warning system)
Vehicles without a smart entry & start system
If the tire pressure warning light comes on after blinking for 1 minute fre-
quently when the engine switch is turned to the “ON” position, have it
checked by any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
Vehicles with a smart entry & start system
If the tire pressure warning light comes on after blinking for 1 minute fre-
quently when the engine switch is turned to IGNITION ON mode, have it
checked by any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
■ Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an
audio sound.
■ If the engine oil change reminder light flashes (diesel engine)
Repeated short trips and/or low-speed driving may cause the oil to degrade
sooner than usual, regardless of the actual distance driven. If this happens,
the engine oil change reminder will flash.
■ Engine oil change reminder light comes on (diesel engine)
Replace the engine oil filter when the engine oil change reminder light does
not come on even if you have driven over 15000 km (9300 miles) after the
engine oil was changed.
There is a possibility that the engine oil change reminder light has been illumi-
nated when you have driven less than 15000 km (9300 miles) based on a
usage or driving condition.
■ Electric power steering system warning light (warning buzzer)
When the battery charge becomes insufficient or the voltage temporarily
drops, the electric power steering system warning light may come on and the
warning buzzer may sound.
8-2. Steps to take in an emergency
555
WARNING
■ If both the ABS and the brake system warning lights remain on
Stop your vehicle in a safe place immediately and contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional. The vehicle will become extremely unstable during braking, and the
ABS system may fail, which could cause an accident resulting in death or
serious injury.
■ When the electric power steering system warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavier than usual when operating, hold
firmly and operate using more force than usual.
■ When driving to clean the DPF catalytic converter (diesel engine)
When driving, pay sufficient attention to weather, road conditions, terrain
and traffic conditions, and be sure to observe traffic laws and/or regulations.
Failure to do so may cause an unexpected accident, resulting in death or
serious injury.
■ If the tire pressure warning light comes on (vehicles with a tire pres-
sure warning system)
Be sure to observe the following precautions. Failure to do so could cause a
loss of vehicle control and result in death or serious injury.
● Stop your vehicle in a safe place as soon as possible. Adjust the tire infla-
tion pressure immediately.
● Vehicles with a compact spare tire: If the tire pressure warning light comes
on even after tire inflation pressure adjustment, it is probable that you have
a flat tire. Check the tires. If a tire is flat, change it with the spare tire and
have the flat tire repaired by the nearest authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
● Vehicles with an emergency tire puncture repair kit: If the tire pressure
warning light comes on even after tire inflation pressure adjustment, it is
8
probable that you have a flat tire. Check the tires. If a tire is flat, repair the
flat tire by using emergency tire puncture repair kit.
● Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you
could lose control of the steering wheel or the brakes.
■ If a blowout or sudden air leakage should occur (vehicles with a tire
pressure warning system)
The tire pressure warning system may not activate immediately.
556
8-2. Steps to take in an emergency
NOTICE
■ To ensure the tire pressure warning system operates properly (vehi-
cles with a tire pressure warning system)
Do not install tires with different specifications or makers, as the tire pres-
sure warning system may not operate properly.
■ When the DPF system warning light comes on (diesel engine)
If the DPF system warning light is left on without performing cleaning, after
an additional 100 to 300 km (62 to 187 miles), the malfunction indicator
lamp may come on. If this happens, have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional immediately.
■ If the fuel filter warning light comes on (diesel engine)
Never drive the vehicle with the warning light on. Continued driving with
water accumulated in the fuel filter will damage the fuel injection pump.
8-2. Steps to take in an emergency
557
If a warning message is displayed (vehicles
with a 2-ring meter)
The multi-information display shows warnings of system mal-
functions, incorrectly performed operations, and messages that
indicate a need for maintenance. When a message is shown,
perform the correction procedure appropriate to the message.
Master warning light
1
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the multi-
information display.
Multi-information display
2
If any of the message or indicator comes on again after the following
actions have been performed, contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Messages and warnings
The warning lights and warning buzzers operate as follows depending
on the content of the message. If a message indicates the need for
inspection by a dealer, have the vehicle inspected by any authorized
Toyota dealer or repairer, or another duly qualified and equipped pro-
8
fessional immediately.
System
warning
Warning buzzer*
Warning
light
Indicates an important situation,
such as when a system related to
Comes
Sounds
driving is malfunctioning or that
on
danger may result if the correction
procedure is not performed
558
8-2. Steps to take in an emergency
System
warning
Warning buzzer*
Warning
light
Indicates an important situation,
Comes
Sounds or does
such as when the systems shown
on or
not sound
on the multi-information display
flashes
may be malfunctioning
Indicates a situation, such as
Flashes
Sounds
when damage to the vehicle or
danger may result
Indicates a condition, such as
Comes
malfunction of electrical compo-
Does not sound
on
nents, their condition, or indicates
the need for maintenance
Indicates a situation, such as
when an operation has been per-
Does not sound
formed incorrectly, or indicates
how to perform an operation cor-
rectly
*: A buzzer sounds the first time a message is shown on the multi-informa-
tion display
If a message instructing to refer to the Owner’s Manual is dis-
played
● If the following message is displayed, take the appropriate actions.
•
“DPF full. See owner’s manual.” (diesel engine)
P. 561
● If the following message is displayed, there may be a malfunction.
Immediately stop the vehicle in a safe place and contact any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
•
“Brake effectiveness is reduced due to failure, please stop in a
safe area and check manual.”
8-2. Steps to take in an emergency
559
Other messages displayed on the multi-information display
Take the appropriate actions as instructed in the message displayed.
If any of the following messages are displayed, also refer to this
Owner’s Manual.
■ If “Check charging system.” is displayed
Indicates a malfunction in the vehicle's charging system.
Immediately stop the vehicle in a safe place and contact any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
■ If “Engine oil pressure low.” is displayed
Indicates that the engine oil pressure is too low.
Immediately stop the vehicle in a safe place and contact any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
■ When “Headlight system malfunction. Visit your dealer.” is
displayed on the multi-information display (if equipped)
The following systems may be malfunctioning. Have the vehicle
inspected by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional immediately.
● The LED headlight system
● The automatic headlight leveling system
● Automatic High Beam
■ If “Front sensor systems are temporarily unavailable due to
inappropriate temp. Wait a moment.” or “Front Camera Vision
8
Blocked Clean and Demist Windshield.” is displayed
(if
equipped)
The following systems may be suspended until the problem shown
in the message is resolved.
● PCS (Pre-Crash Safety system)
● LDA (Lane Departure Alert)
● Automatic High Beam
● RSA (Road Sign Assist)
560
8-2. Steps to take in an emergency
■ If “Drain water from fuel filter.” is displayed (if equipped)
Indicates that the amount of water that has accumulated in the fuel
filter has reached a specified level.
P. 488, 489
■ If “Engine oil low.” is displayed (if equipped)
Indicates that the engine oil level may be low.
Check the engine oil level and add oil if necessary.
■ If “Oil Maintenance required soon.” is displayed (if equipped)
Indicates that the engine oil is scheduled to be changed. (The indi-
cator will not work properly unless the oil maintenance data has
been reset.)
Check the engine oil, and change if necessary. After changing the
engine oil, the oil change system should be reset. (P. 478)
■ If “Oil maintenance required.” is displayed (if equipped)
Indicates that the engine oil should be changed. (After the engine
oil is changed and the oil maintenance data has been reset.)
Check and change the engine oil, and oil filter by any authorized
Toyota dealer or repairer, or another duly qualified and equipped
professional. After changing the engine oil, the oil change system
should be reset. (P. 478)
