306
4-6. Using the driving support systems

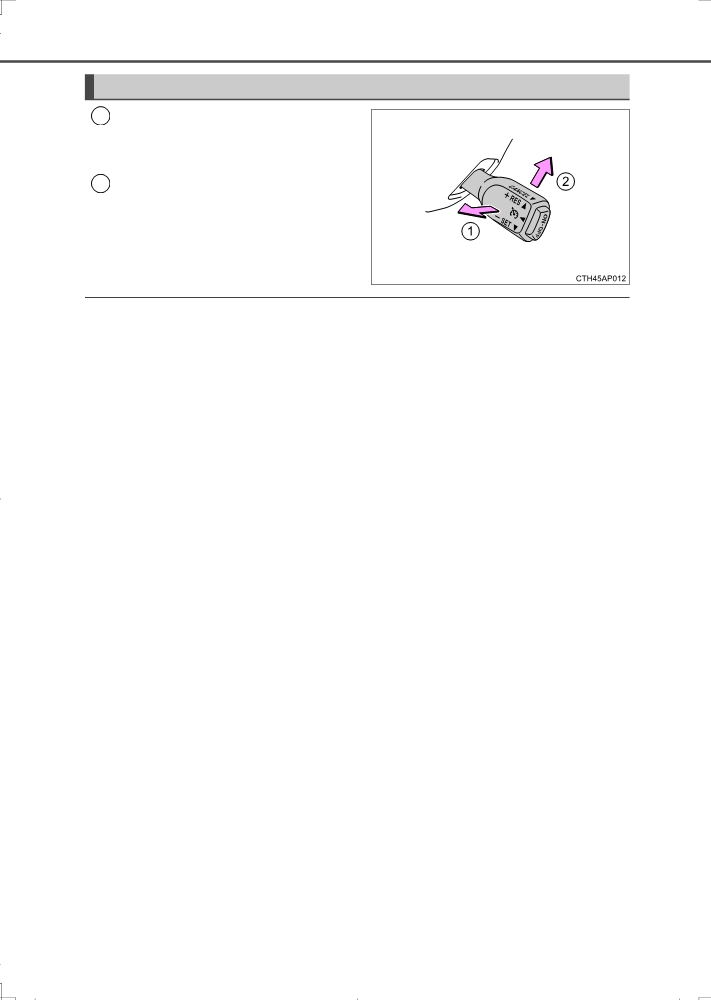

Canceling and resuming the speed limiter
1
Cancel
Pull the lever towards you to can-
cel the speed limiter.
2
Resume
To resume use of the speed limiter,
push the lever up.
■ Exceeding the set speed
In the following situations, the vehicle speed exceeds the set speed and dis-
play characters will flash:
● When fully depressing the accelerator pedal
● When driving down a slope
■ Automatic speed limiter cancelation
The speed limiter is automatically canceled in any of the following situations:
● Cruise control is activated.
● 8NR-FTS engine only: When the VSC system and/or TRC system is turned
off by pressing the VSC OFF switch.
■ If the speed limiter indicator comes on in yellow (vehicles with a 3-ring
meter) or “Check speed limiter system.” is displayed on the multi-infor-
mation display (vehicles with a 2-ring meter)
Stop the engine and then restart the engine. After restarting the engine, set
the speed limiter. If the speed limiter cannot be set, there may be a malfunc-
tion in the speed limiter. Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.
4-6. Using the driving support systems
307
WARNING
■ To avoid operating the speed limiter by mistake
Keep the speed limiter button off when not in use.
■ Situations unsuitable for speed limiter
Do not use speed limiter in either of the following situations.
Doing so may result in control of the vehicle being lost and could cause an
accident resulting in death or serious injury.
● On slippery roads, such as those covered with rain, ice or snow
● On steep hills
● When your vehicle is towing a trailer
4
308
4-6. Using the driving support systems
Toyota parking assist-sensor
Vehicles without a navigation/multimedia system:
The distance from your vehicle to nearby obstacles when paral-
lel parking or maneuvering into a garage is measured by the
sensors and communicated via the multi-information display
and a buzzer. Always check the surrounding area when using
this system.
Vehicles with a navigation/multimedia system:
Refer to the “Navigation and multimedia system Owner’s man-
ual”.

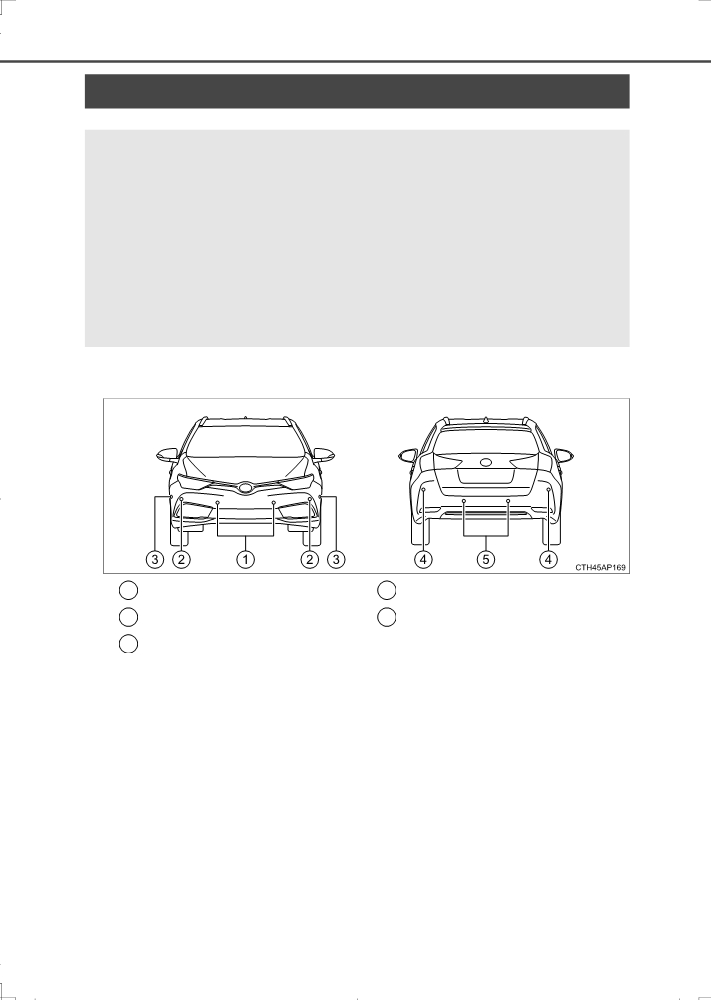

■ Types of sensors
1
Front center sensors
4
Rear corner sensors
2
Front corner sensors
5
Rear center sensors
3
Front side sensors
: If equipped
4-6. Using the driving support systems
309

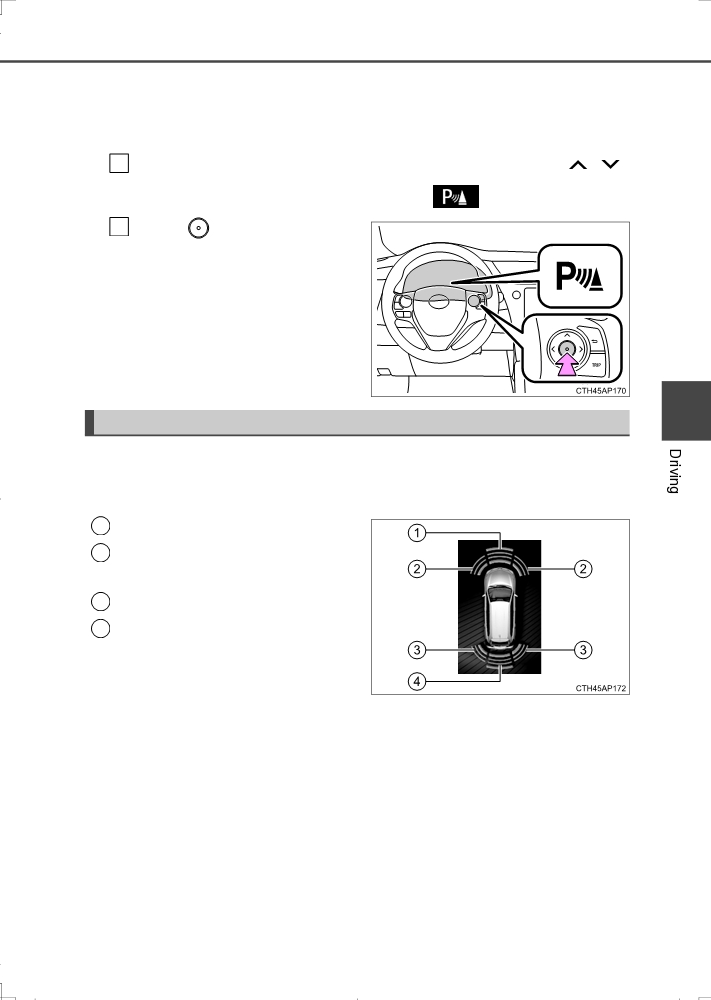

■ Enabling/disabling the Toyota parking assist-sensor system
This system can be enabled/disabled on the multi-information dis-
play.
1
Display the settings display (P. 107), and then press
/
on the meter control switches to select
2
Press
on the meter con-
trol switches to enable/dis-
able the system.
When enabled, the Toyota
parking assist-sensor indica-
tor will illuminate.
4
Display
When the sensors detect an obstacle, a graphic is shown on the multi
information display depending on the position and distance to the
obstacle.
1
Front center sensor operation
2
Front corner sensor and front
side sensor operation
3
Rear corner sensor operation
4
Rear center sensor operation
310
4-6. Using the driving support systems

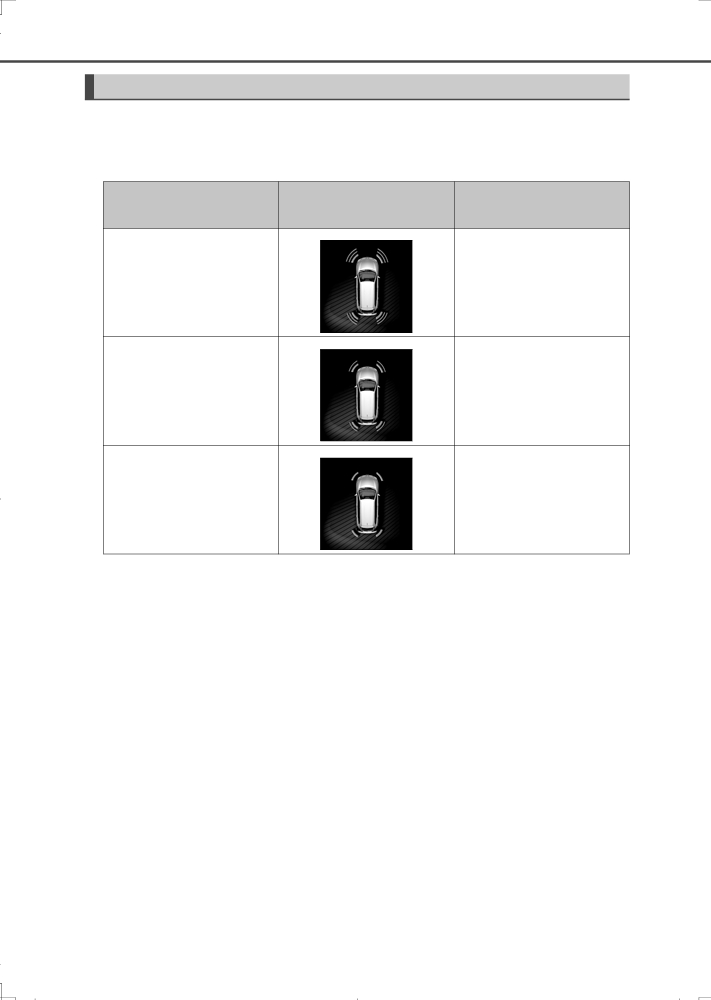

The distance display and buzzer
When a sensor detects an obstacle, the direction of and the approxi-
mate distance to the obstacle are displayed and the buzzer sounds.
■ Corner sensors
Approximate distance to
Multi-information
Buzzer
obstacle
display
50 to 37.5 cm
Medium
(1.6 to 1.2 ft.)
37.5 to 25 cm
Fast
(1.2 to 0.8 ft.)
Less than 25 cm
Continuous
(0.8 ft.)
4-6. Using the driving support systems
311

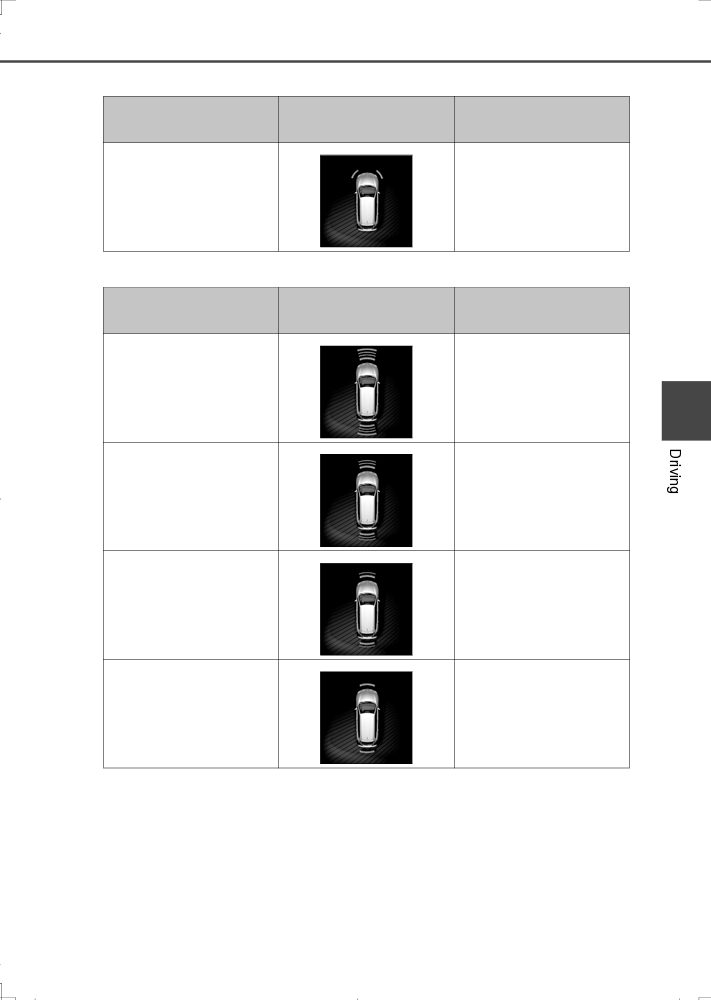

■ Front side sensors
Approximate distance to
Multi-information
Buzzer
obstacle
display
Less than 25 cm
Continuous
(0.8 ft.)
■ Center sensors
Approximate distance to
Multi-information
Buzzer
obstacle
display
Front: 100 to 55 cm
(3.3 to 1.8 ft.)
Slow
Rear: 150 to 55 cm
4
(4.9 to 1.8 ft.)
55 to 42.5 cm
Medium
(1.8 to 1.4 ft.)
42.5 to 30 cm
Fast
(1.4 to 1.0 ft.)
Less than 30 cm
Continuous
(1.0 ft.)
312
4-6. Using the driving support systems

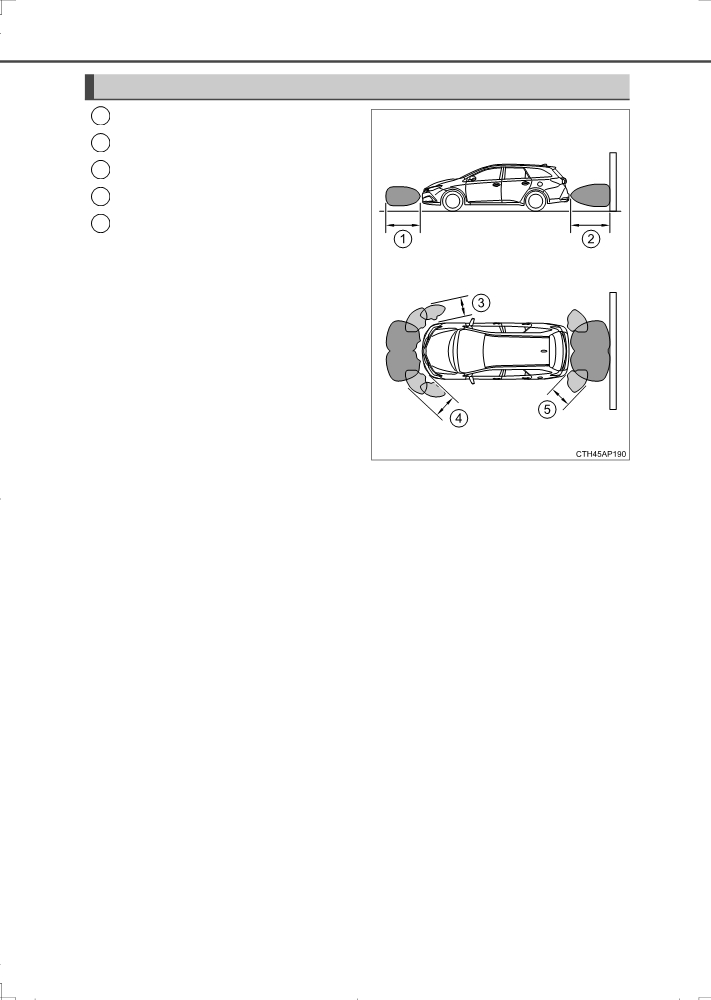

Detection range of the sensors
1
Approximately 100 cm (3.3 ft.)
2
Approximately 150 cm (4.9 ft.)
3
Approximately 25 cm (0.8 ft.)
4
Approximately 50 cm (1.6 ft.)
5
Approximately 50 cm (1.6 ft.)
The diagram shows the detection
range of the sensors. Note that the
sensors cannot detect obstacles
that are extremely close to the
vehicle.
The range of the sensors may
change depending on the shape of
the object etc.
4-6. Using the driving support systems
313
■ The Toyota parking assist-sensor can be operated when
Vehicles without a smart entry & start system:
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system:
The engine switch is in IGNITION ON mode.
● Front sensors:
• Vehicles with a Multidrive:
The shift lever is in a position other than P.
• Vehicles with a manual transmission:
The parking brake is not applied.
• The vehicle speed is less than about 10 km/h (6 mph).
(At any speed when the shift lever is in R)
● Rear sensors:
The shift lever is in R.
■ Sensor detection information
● Certain vehicle conditions and the surrounding environment may affect the
4
ability of the sensor to correctly detect obstacles. Particular instances where
this may occur are listed below.
• There is dirt, snow or ice on the sensor.
• A sensor is frozen.
• A sensor is covered in any way.
• The vehicle is leaning considerably to one side.
• On an extremely bumpy road, on an incline, on gravel, or on grass.
• The vicinity of the vehicle is noisy due to vehicle horns, motorcycle
engines, air brakes of large vehicles, or other loud noises producing ultra-
sonic waves.
• There is another vehicle equipped with parking assist sensors in the
vicinity.
• A sensor is coated with a sheet of spray or heavy rain.
• The vehicle is equipped with a fender pole or wireless antenna.
• Towing eyelet is installed.
• A bumper or sensor receives a strong impact.
• The vehicle is approaching a tall or curved curb.
• In harsh sunlight or intense cold weather.
• A non-genuine Toyota suspension (lowered suspension etc.) is installed.
In addition to the examples above, there are instances in which, because of
their shapes, signs and other objects may be judged by the sensor to be
closer than they are.
314
4-6. Using the driving support systems
● The shape of the obstacle may prevent the sensor from detecting it. Pay
particular attention to the following obstacles:
• Wires, fences, ropes, etc.
• Cotton, snow and other materials that absorb sound waves
• Sharply-angled objects
• Low obstacles
• Tall obstacles with upper sections projecting outwards in the direction of
your vehicle
■ If “Clean sonar.” is displayed on the multi-information display
A sensor may be dirty or covered with snow or ice. In this case, clean the
sensor and the system should return to normal.
If a sensor is frozen due to low temperatures, a warning message may be dis-
played or an obstacle may not be detected. When the sensor thaws out, the
system should return to normal.
■ If “Check sonar system.” is displayed on the multi-information display
The system may not operate due to the malfunction of a sensor.
Have the vehicle inspected by any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
WARNING
■ Caution when using the Toyota parking assist-sensor
Observe the following precautions.
Failing to do so may result in the vehicle being unable to be driven safely
and possibly cause an accident.
● Do not use the sensor at speeds in excess of 10 km/h (6 mph).
● Do not attach any accessories within the sensor range.
NOTICE
■ Notes on the Toyota parking assist-sensor
● Do not apply intensive bursts of water or steam to the sensor area.
Doing so may result in the sensor malfunctioning.
● If your vehicle is involved in an accident, it will affect the sensors and may
result in a system failure.
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
4-6. Using the driving support systems
315

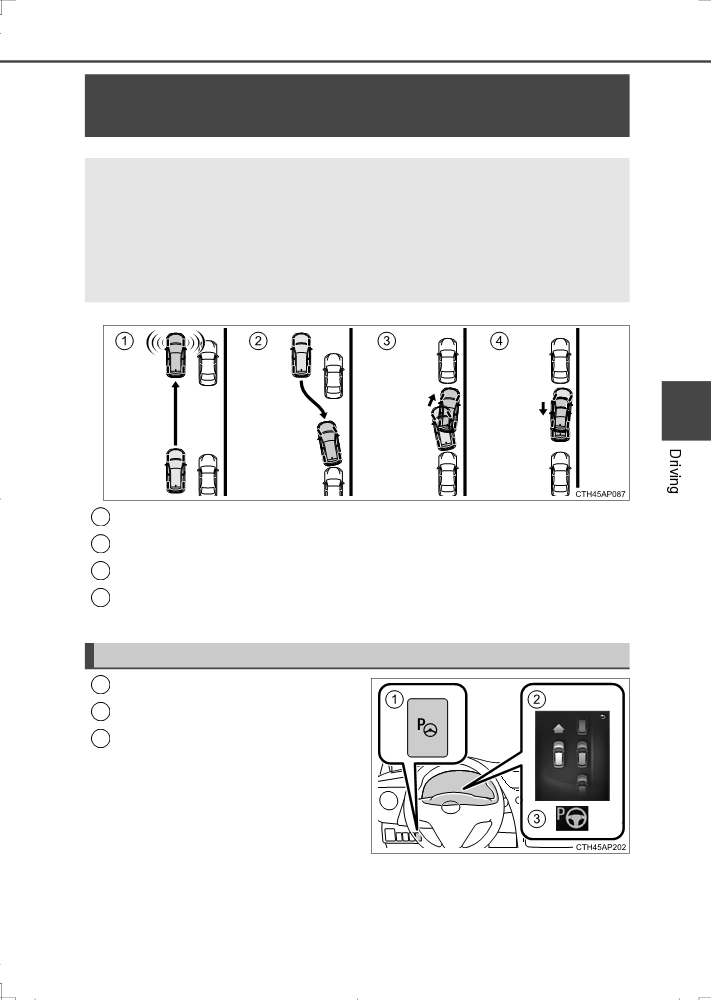

Simple-IPA (Simple-Intelligent Parking
Assist)
Simple-IPA is a system that assists parallel parking operations.
When parking between two parked vehicles or in the space
behind one parked vehicle, the sensors installed on the sides of
the front bumper are utilized and a space which the vehicle can
be parked in is detected. Parking operations are then assisted
by automatic operation of the steering wheel.
4
1
Detecting allowable parking space
2
Parking the vehicle in a detected parking space*
3
Turning the steering wheel to park in the target parking space*
4
Parking in the target parking space is complete*
*: The steering wheel is operated automatically.
Simple-IPA switch and multi-information display
1
Simple-IPA switch
2
Display
3
Indicator
: If equipped
316
4-6. Using the driving support systems
Operating Simple-IPA
Operate Simple-IPA according to the multi-information display and the
buzzer.
The system detects parking spaces on the front passenger’s side of the
vehicle and assists with parking in a detected space.
When parking in a space on the driver’s side of the vehicle, move the turn
signal lever to indicate turning on the driver’s seat side. Leave the turn sig-
nal lever in that position until automatic steering begins.

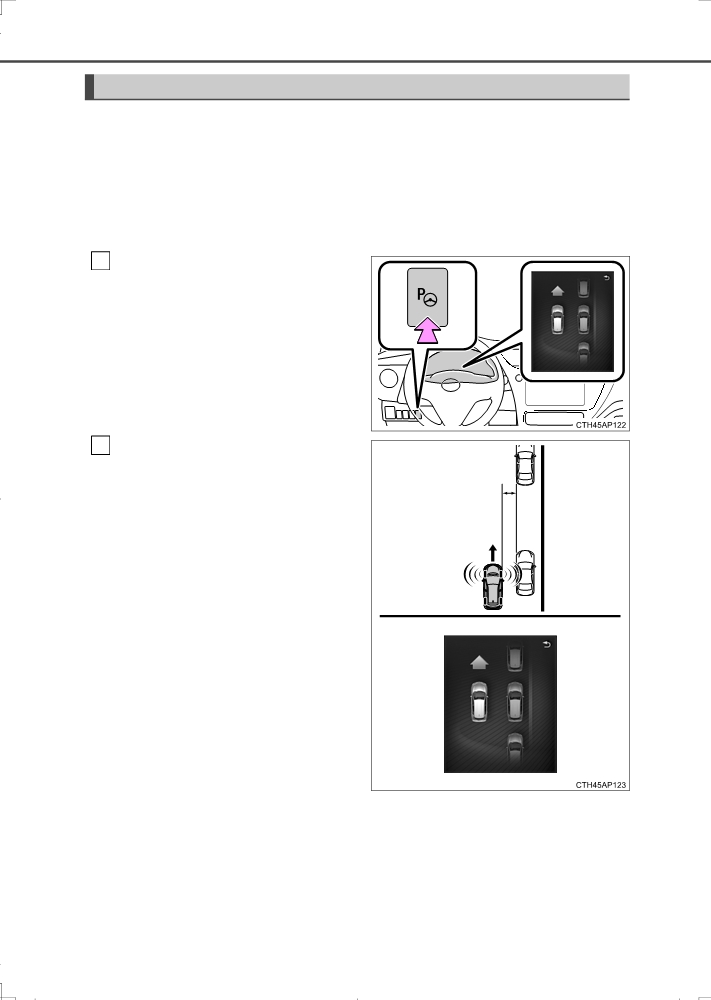

1
Turn the Simple-IPA switch on
with the vehicle driving at
30
km/h (18 mph) or less.
The multi-information display
changes to the parking space
detection screen when the system
is operating.
2
Drive the vehicle while main-
taining a distance of approxi-
Approx. 1 m (3 ft.)
mately
1 m (3 ft.) from the
parked vehicles.
Drive the vehicle as parallel to the
parked vehicles and curb as possi-
ble.
Lower vehicle speeds allow the
system to assist in parking the
vehicle more parallel to the parked
vehicles and curb, and in a more
proper position between vehicles
at the front and rear of a parking
space.
The required length for a parking
space to be detected is the total
vehicle length plus approximately 1
m (3 ft.).
Maintain a vehicle speed of 30 km/h (18 mph) or less.
4-6. Using the driving support systems
317

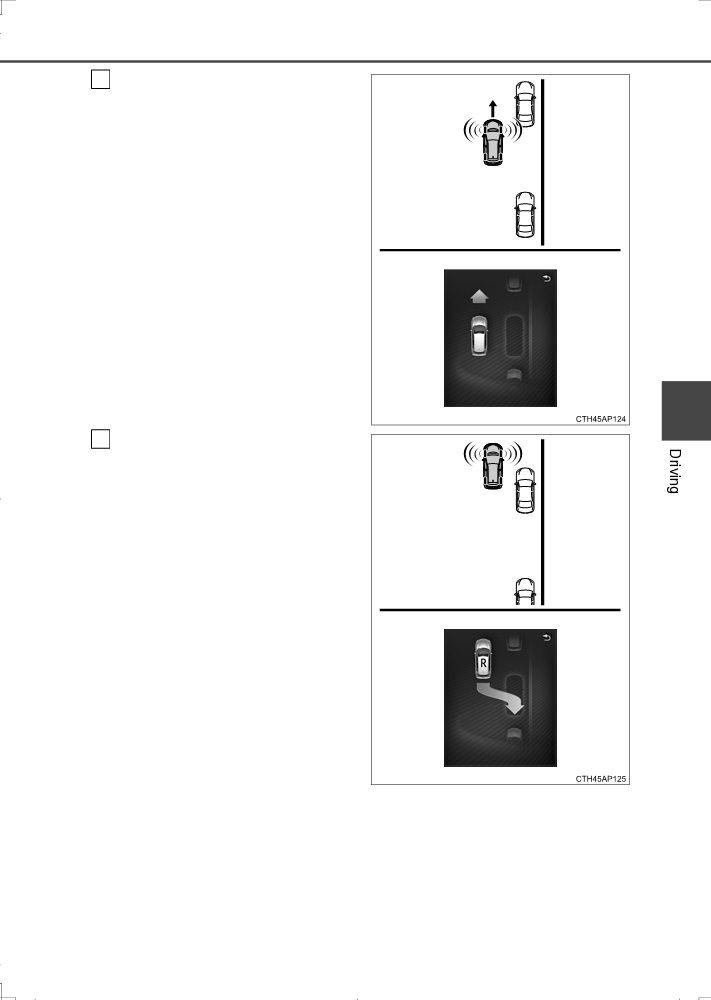

3
When the multi-information dis-
play changes, reduce the vehi-
cle speed.
Move the vehicle forward slowly
until the buzzer sounds.
4
4
Stop the vehicle when the
buzzer sounds.
The multi-information display will
change.
Visually check that the detected
space is safe for parking.
If the vehicle moves 10 m (32 ft.) or
more after the buzzer sounds,
detection of a new parking space
will begin.
318
4-6. Using the driving support systems

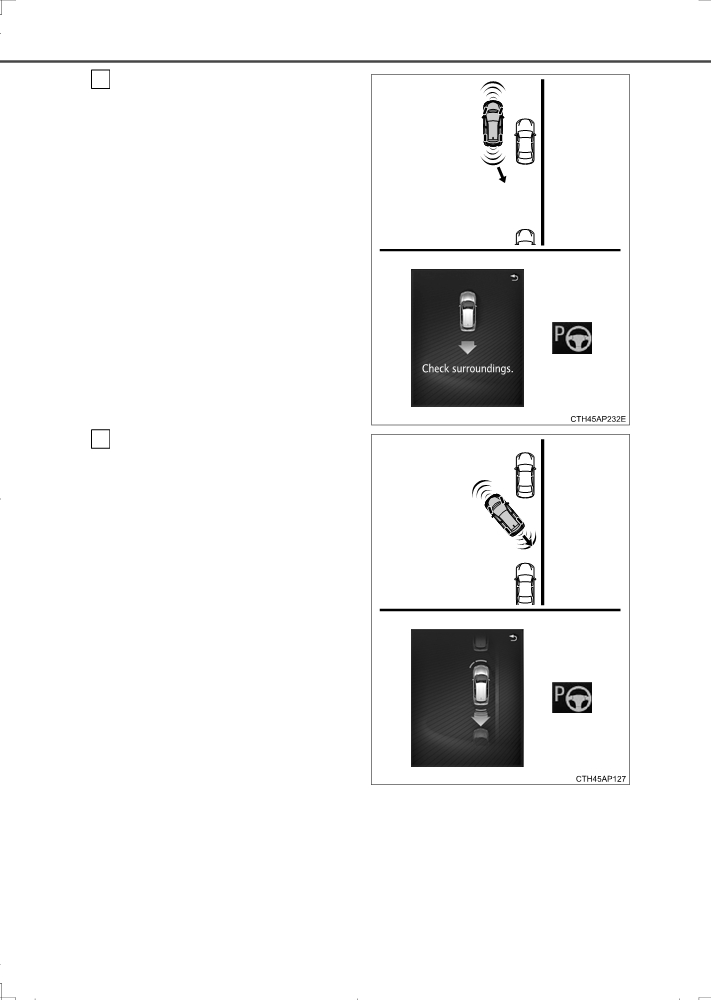

5
Shift the shift lever to R.
The multi-information display will
change, Simple-IPA indicator will
come on and automatic steering
will begin. While taking care not to
catch your hands on the steering
wheel and checking the safety of
the surrounding area, reverse the
vehicle slowly by operating the
accelerator and brake pedals.
During automatic steering, main-
tain a vehicle speed of 6 km/h (3
mph) or less.
When the multi-information dis-
6
play changes, reduce the vehi-
cle speed.
While checking the safety of the
area behind the vehicle, reverse
the vehicle slowly.
4-6. Using the driving support systems
319
7

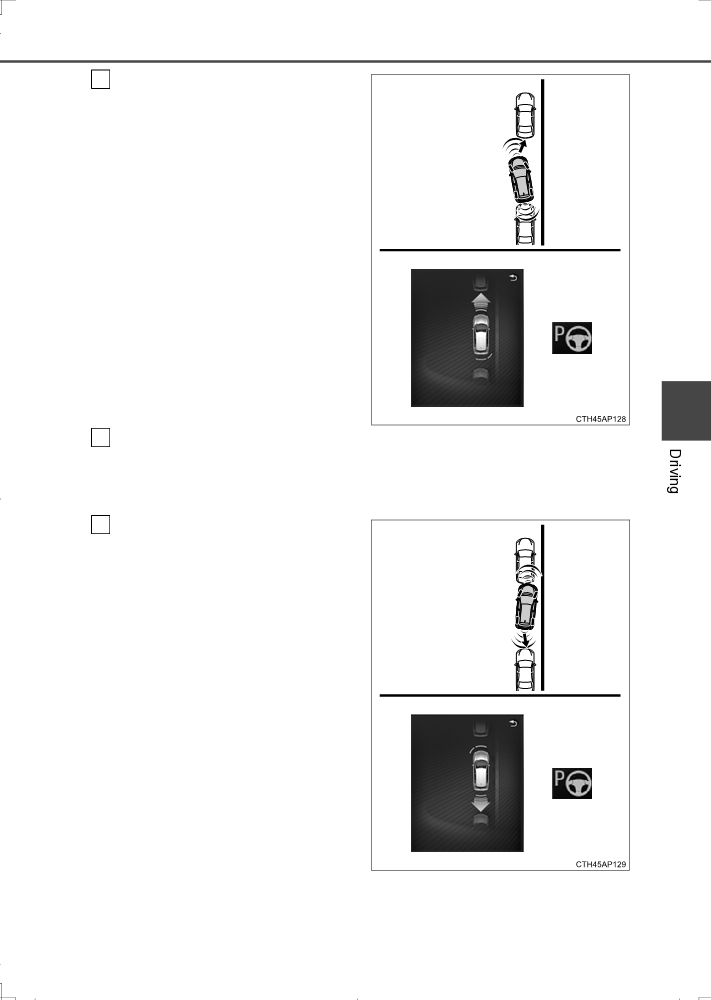

When the rear Toyota parking
assist-sensor’s warning buzzer
sounds continuously, com-
pletely stop the vehicle immedi-
ately.
The multi-information display will
change when the warning buzzer
starts sounding continuously.
4
Shift the shift lever to D (Multidrive) or 1 (manual transmission).
8
While the steering wheel is turning, keep the vehicle at a complete stop.
When the steering wheel stops turning, move the vehicle forward slowly
while checking the safety of the area in front of the vehicle.
When the front Toyota parking
9
assist-sensor’s warning buzzer
sounds continuously, com-
pletely stop the vehicle immedi-
ately.
The multi-information display will
change when the warning buzzer
starts sounding continuously.
320
4-6. Using the driving support systems
10
Shift the shift lever to R.
While the steering wheel is turning, keep the vehicle at a complete stop.
When the steering wheel stops turning, reverse the vehicle slowly while
checking the safety of the area behind the vehicle.
11
Repeat steps
7
through
10
until the parking assist opera-
tion has completed.

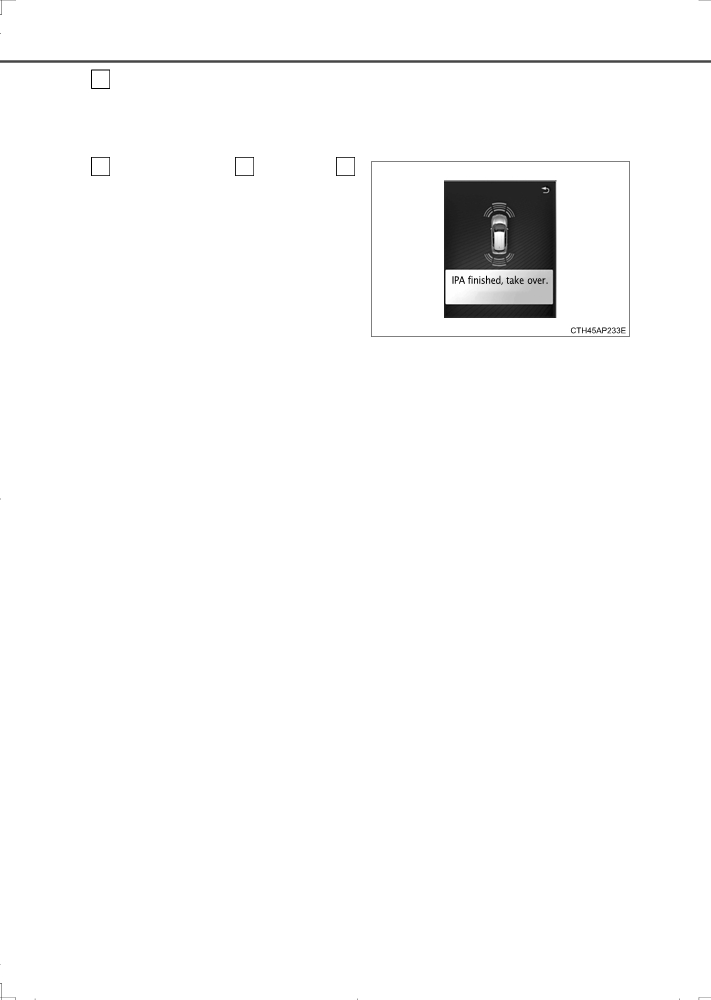

When the parking assist operation
has completed, the buzzer sounds,
the Simple-IPA indicator turns off
and the multi-information display
changes.
Adjust the vehicle position and/or
angle as necessary to complete
parking the vehicle.
4-6. Using the driving support systems
321
When a message is shown on the multi-information display
Message
Cause
What to do
The vehicle speed
Reduce vehicle speed
“IPA slot not detected,
exceeded 30 km/h (18
to 30 km/h (18 mph) or
speed too high.”
mph).
less.
The Simple-IPA switch
Turn the Simple-IPA
was turned off.
switch on.
The Simple-IPA switch
Park the vehicle manu-
was turned on while
ally or detect another
reversing.
parking space.
The shift lever was
Park the vehicle manu-
shifted to R during
ally or detect another
detection of a parking
parking space.
space.
4
The shift lever was
shifted to a position
other than R after the
Park the vehicle manu-
automatic
steering
ally or detect another
“IPA cancelled, take
began and before the
parking space.
over.”
vehicle enters a park-
ing space.
• Check tires for wear
and pressure.
The steering wheel
• If this message is dis-
could not be turned suf-
played when the
ficiently due to reasons
vehicle is parked in
such as low tire pres-
other spaces, have
sure, tire wear, the
the vehicle inspected
influence of road condi-
by any authorized
tions, being on a slope,
Toyota dealer or
etc., therefore the vehi-
repairer, or another
cle could not be parked
duly qualified and
in the desired space.
equipped
profes-
sional.
322
4-6. Using the driving support systems
Message
Cause
What to do
The power steering
Attempt to use Simple-
temporarily
over-
IPA after waiting a little
heated.
while.
Have the vehicle
“IPA cancelled, take
inspected
by any
over.”
authorized
Toyota
Possible system mal-
dealer or repairer, or
function.
another duly qualified
and equipped profes-
sional.
The steering wheel was
Park the vehicle manu-
“IPA cancelled, take
manually
operated
ally or detect another
over, driver intervened.”
during automatic steer-
parking space.
ing.
The vehicle speed
Reduce vehicle speed
exceeded 50 km/h (31
to 30 km/h (18 mph) or
mph) during detection
less and turn the Sim-
of a parking space.
ple-IPA switch on.
“IPA cancelled, take
over, speed too high.”
The vehicle speed
Park the vehicle manu-
exceeded
6 km/h
(3
ally or detect another
mph) during automatic
parking space.
steering.
• If the operation was
canceled
during
detection of a parking
space, turn the Sim-
ple-IPA switch on
“IPA cancelled, take
again.
The TRC, VSC or ABS
over,
TRC/ABS/VSC
• If the operation was
operated.
activated.”
canceled
during
automatic steering,
park the vehicle man-
ually
or
detect
another
parking
space.
