Toyota Auris Touring Sports (2017 year). Instruction - part 16

4-5. Toyota Safety Sense

255

WARNING

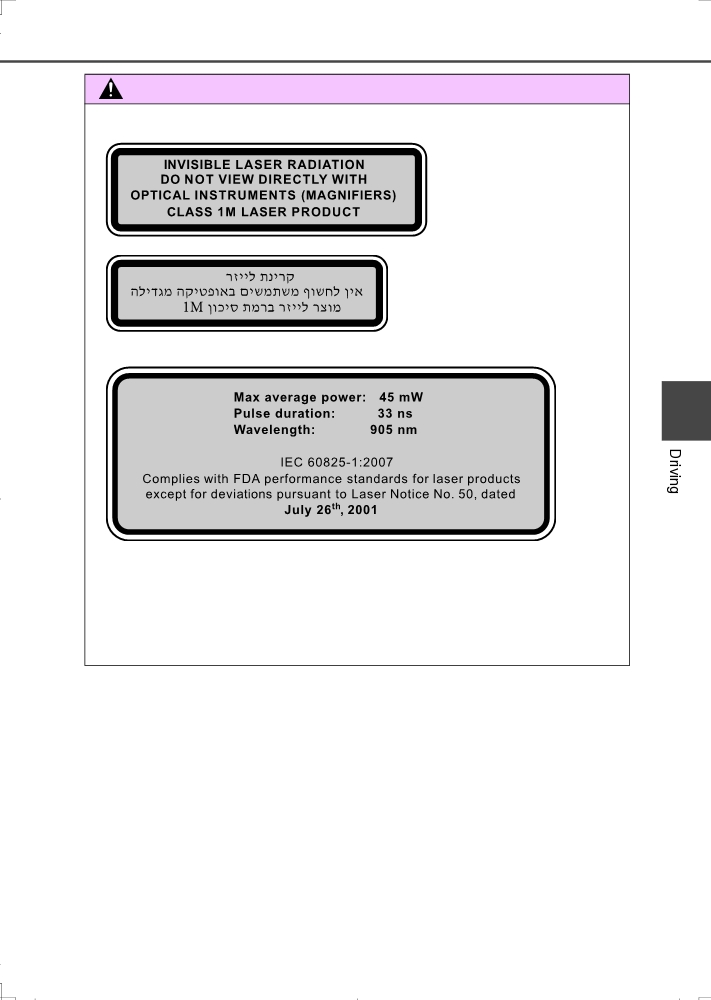

Laser classification label

Laser explanatory label

4

Laser emission data

Maximum average power: 45 mW

Pulse duration: 33 ns

Wave length: 905 nm

Divergence (horizontal x vertical): 28° x 12°

256

4-5. Toyota Safety Sense

WARNING

■ To avoid malfunction of the front sensor

Observe the following precautions.

Otherwise, the front sensor may not operate properly, possibly leading to an

accident resulting in death or serious injury.

● Keep the windshield clean at all times. If the windshield is dirty or covered

with an oily film, water droplets, snow, etc., clear the windshield. If the

inner side of the windshield in front of the front sensor is dirty, contact any

authorized Toyota dealer or repairer, or another duly qualified and

equipped professional.

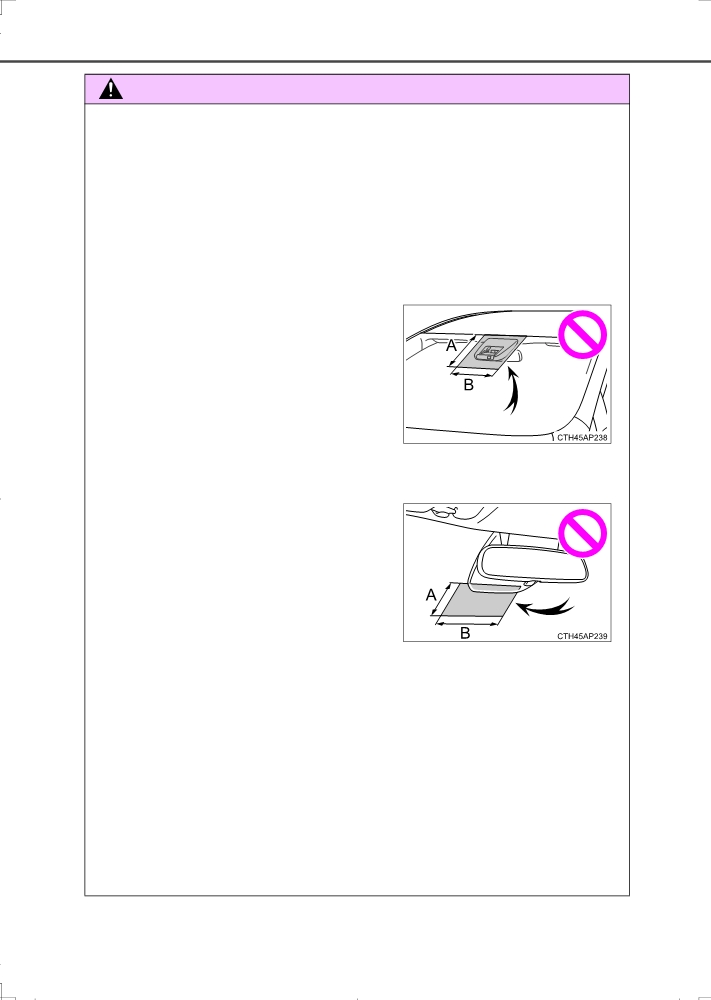

● Do not attach objects, such as stickers,

transparent stickers, etc., and so forth,

to the outer side of the windshield in

front of the front sensor (shaded area in

the illustration).

A: From the top of the windshield to

approximately 10 cm (4.0 in.) below the

bottom of the front sensor

B: Approximately 20 cm (7.9 in.) (Approximately 10 cm (4.0 in.) to the

right and left from the center of the front sensor)

● Do not install or attach anything to the

inner side of the windshield under the

front sensor (shaded area in the illustra-

tion).

A: Approximately 10 cm (4.0 in.) (Start-

ing from the bottom of the front sensor)

B: Approximately

20 cm

(7.9 in.)

(Approximately 10 cm (4.0 in.) to the

right and left from the center of the front

sensor)

● If there is a large difference in temperature between the inside and outside

of the vehicle, such as in winter, the windshield is likely to fog up easily. If

the part of the windshield in front of the front sensor is fogged up or cov-

ered with condensation or ice, the PCS warning light may illuminate and

the system may be temporarily disabled. In this case, use the windshield

defogger to remove the fog, etc. (P. 406, 413)

● If the area of the windshield in front of the front sensor is covered with

water droplets, use the windshield wipers to remove them.

If the water droplets are not sufficiently removed, the performance of the

front sensor may be reduced.

4-5. Toyota Safety Sense

257

WARNING

● If water droplets cannot be properly removed from the area of the wind-

shield in front of the front sensor by the windshield wipers, replace the

wiper insert or wiper blade.

If the wiper inserts or wiper blades need to be replaced, contact any autho-

rized Toyota dealer or repairer, or another duly qualified and equipped pro-

fessional.

● Do not attach window tinting to the windshield.

● Replace the windshield if it is damaged or cracked.

If the windshield needs to be replaced, contact any authorized Toyota

dealer or repairer, or another duly qualified and equipped professional.

● Do not install an antenna in front of the sensor.

● Do not get the front sensor wet.

● Do not allow bright lights to shine into the front sensor.

● Do not dirty or damage the front sensor.

When cleaning the inside of the windshield, do not allow glass cleaner to

4

contact the lens. Also, do not touch the lens.

If the lens is dirty or damaged, contact any authorized Toyota dealer or

repairer, or another duly qualified and equipped professional.

● Do not subject the front sensor to a strong impact.

● Do not change the installation position or direction of the front sensor or

remove it.

● Do not disassemble the front sensor.

● Do not install an electronic device or device that emits strong electric

waves near the front sensor.

● Do not modify any components of the vehicle around the front sensor

(inside rear view mirror, sun visors, etc.) or ceiling.

● Do not attach any accessories that may obstruct the front sensor to the

hood, front grille or front bumper. Contact any authorized Toyota dealer or

repairer, or another duly qualified and equipped professional for details.

● If a surfboard or other long object is to be mounted on the roof, make sure

that it will not obstruct the front sensor.

● Do not modify the headlights or other lights.

● Do not attach anything to or place anything on the dashboard.

■ Installation area of front sensor on windshield

When the windshield is fogging up easily, the glass around the front sensor

may be hot due to the heater running. If the glass is touched, it may result in

burns.

258

4-5. Toyota Safety Sense

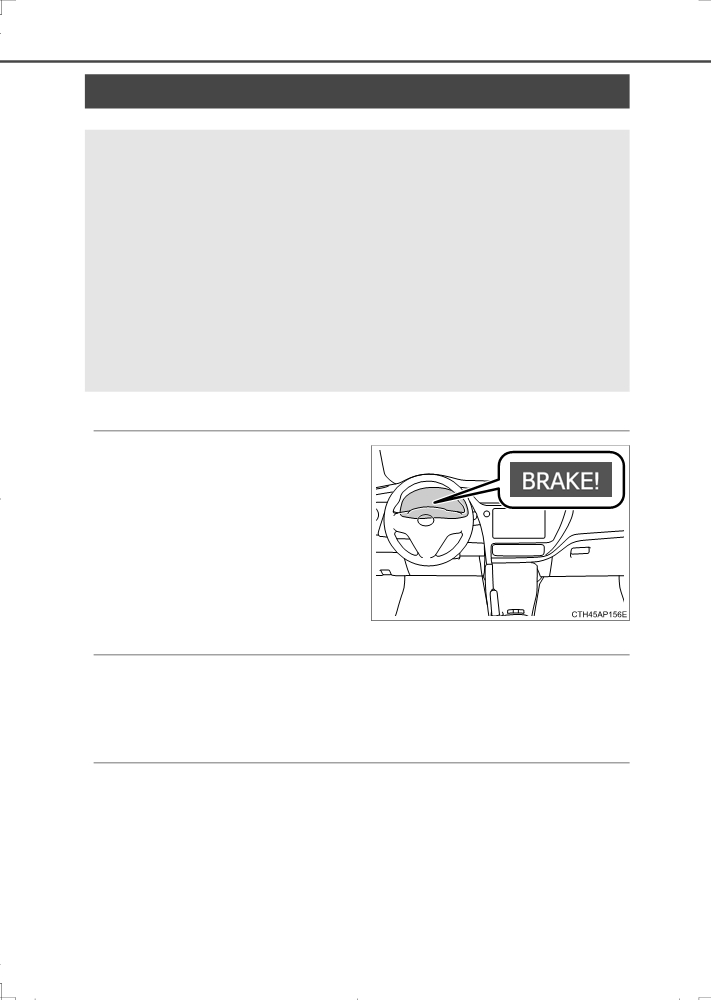

PCS (Pre-Crash Safety system)

The pre-crash safety system uses the front sensor to detect

vehicles in front of your vehicle. When the system determines

that the possibility of a frontal collision with a vehicle is high, a

warning operates to urge the driver to take evasive action and

the potential brake pressure is increased to help the driver avoid

the collision. If the system determines that the possibility of a

frontal collision with a vehicle is extremely high, the brakes are

automatically applied to help avoid the collision or help reduce

the impact of the collision.

The pre-crash safety system can be disabled/enabled and the warn-

ing timing can be changed. (P. 261)

◆ Pre-crash warning

When the system determines

that the possibility of a frontal

collision is high, a buzzer will

sound and a warning message

will be displayed on the multi-

information display to urge the

driver to take evasive action.

◆ Pre-crash brake assist

When the system determines that the possibility of a frontal colli-

sion with a vehicle is high, the system applies greater braking force

in relation to how strongly the brake pedal is depressed.

◆ Pre-crash braking

When the system determines that the possibility of a frontal colli-

sion with a vehicle is high, the system warns the driver. If the sys-

tem determines that the possibility of a collision is extremely high,

the brakes are automatically applied to help avoid the collision or

reduce the collision speed.

: If equipped

4-5. Toyota Safety Sense

259

WARNING

■ Limitations of the pre-crash safety system

● The driver is solely responsible for safe driving. Always drive safely, taking

care to observe your surroundings.

Do not use the pre-crash safety system instead of normal braking opera-

tions under any circumstances. This system will not prevent collisions or

lessen collision damage or injury in every situation. Do not overly rely on

this system. Failure to do so may lead to an accident, resulting in death or

serious injury.

● Although this system is designed to help avoid and reduce the impact of a

collision, its effectiveness may change according to various conditions,

therefore the system may not always be able to achieve the same level of

performance.

Read the following conditions carefully. Do not overly rely on this system

and always drive carefully.

• Conditions under which the system may operate even if there is no pos-

sibility of a collision: P. 263

4

• Conditions under which the system may not operate properly: P. 267

● Do not attempt to test the operation of the pre-crash safety system your-

self, as the system may not operate properly, possibly leading to an acci-

dent.

■ Pre-crash braking

● The pre-crash braking function may not operate if certain operations are

performed by the driver. If the accelerator pedal is being depressed

strongly or the steering wheel is being turned, the system may determine

that the driver is taking evasive action and possibly prevent the pre-crash

braking function from operating.

● In some situations, while the pre-crash braking function is operating, oper-

ation of the function may be canceled if the accelerator pedal is depressed

strongly or the steering wheel is turned and the system determines that

the driver is taking evasive action.

● A large amount of braking force is applied while the pre-crash braking

function is operating. Additionally, as the operation of the pre-crash brak-

ing function will be canceled after the vehicle has been stopped for

approximately 2 seconds if it is stopped by the operation of the pre-crash

braking function, the driver should depress the brake pedal as necessary.

● If the brake pedal is being depressed, the system may determine that the

driver is taking evasive action and possibly delay the operation timing of

the pre-crash braking function.

4-5. Toyota Safety Sense

261

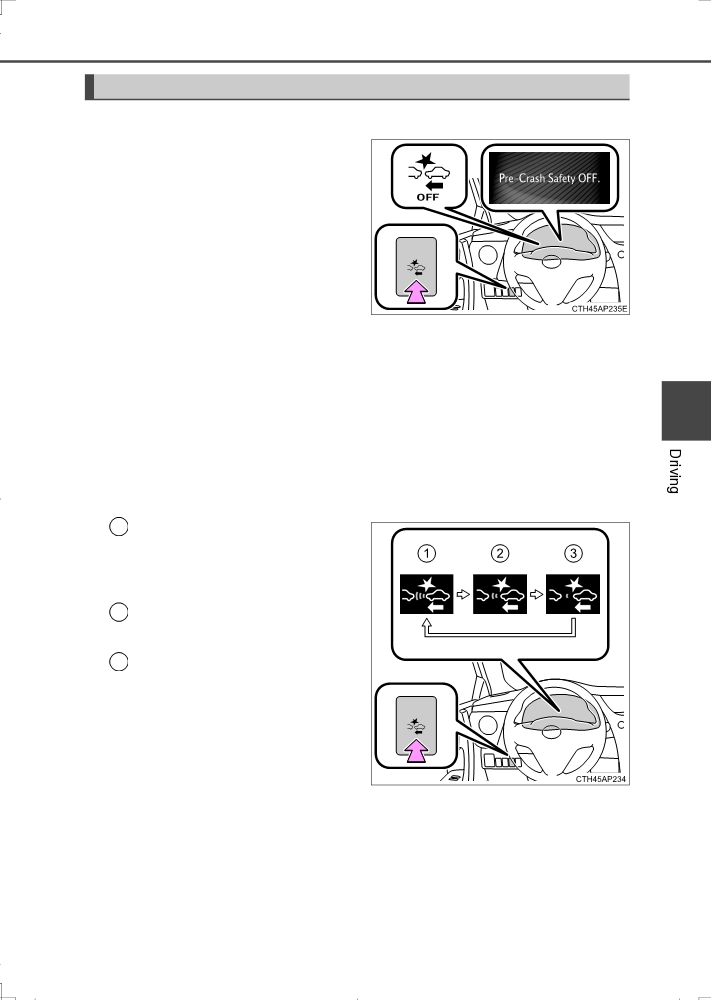

Changing settings of the pre-crash safety system

■ Enabling/disabling the pre-crash safety system

Press the PCS switch for 3 sec-

onds or more.

The PCS warning light will turn

on and a message will be dis-

played in the multi-information

display, when the system is

turned off.

To enable the system, press the

PCS switch again.

The pre-crash safety system is

enabled each time the engine is

started.

■ Changing the pre-crash warning timing

4

Press the PCS switch to display the current warning timing in the

multi-information display. Each time the PCS switch is pressed in

the displayed state, the timing for the warning changes as follows:

If the operation timing setting has been changed, the setting will be

retained the next time the engine is started.

1

Far

The warning will begin to oper-

ate earlier than with the default

timing.

2

Middle

This is the default setting.

3

Near

The warning will begin to oper-

ate later than with the default

timing.

4-5. Toyota Safety Sense

263

■ Conditions under which the system may operate even if there is no pos-

sibility of a collision

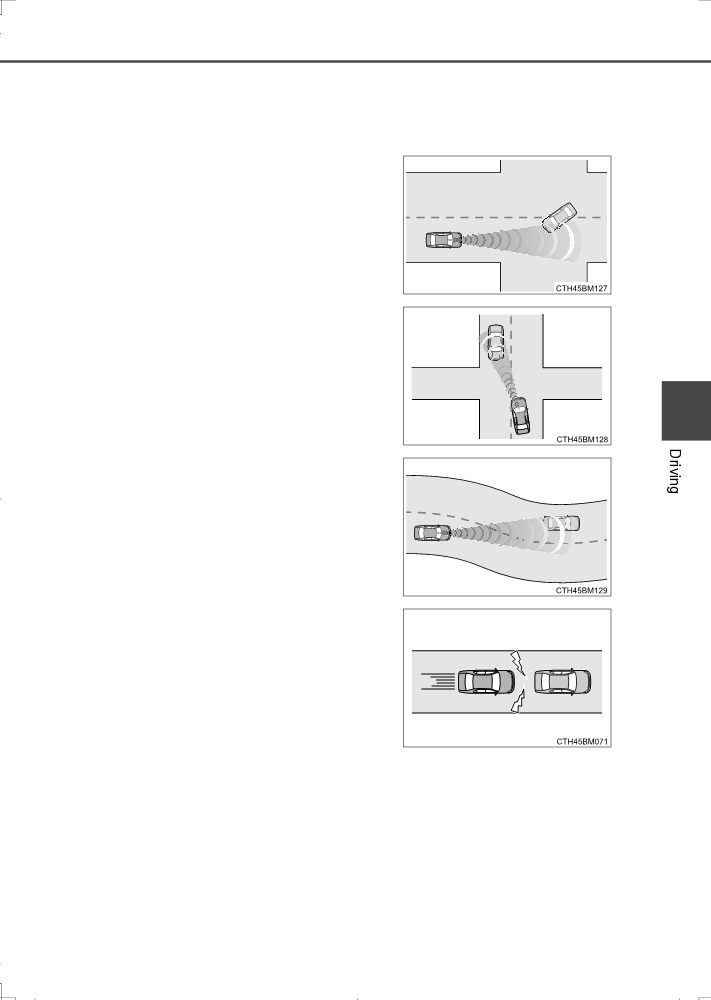

● In some situations such as the following, the system may determine that

there is a possibility of a frontal collision and operate.

• When passing a vehicle in an oncom-

ing lane that is stopped to make a

right/left turn

• When passing an oncoming vehicle

while making a left or right turn

4

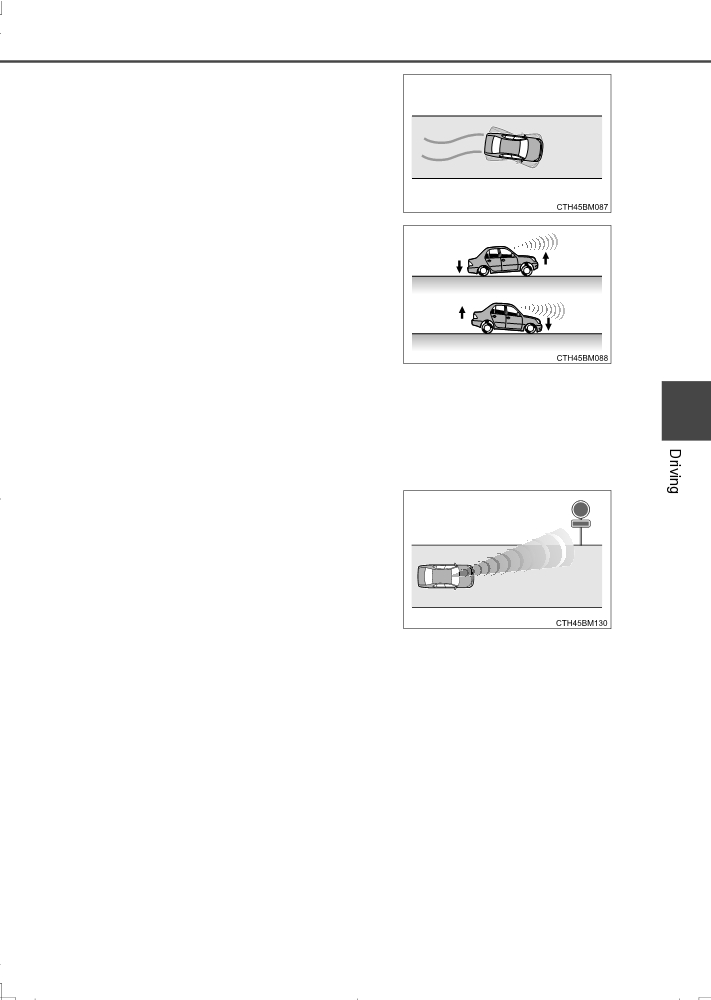

• When driving on a road where relative

location to vehicle ahead in an adja-

cent lane may change, such as on a

winding road

• When rapidly closing on a preceding

vehicle

• If the front of the vehicle is raised or lowered, such as when the road sur-

face is uneven or undulating

264

4-5. Toyota Safety Sense

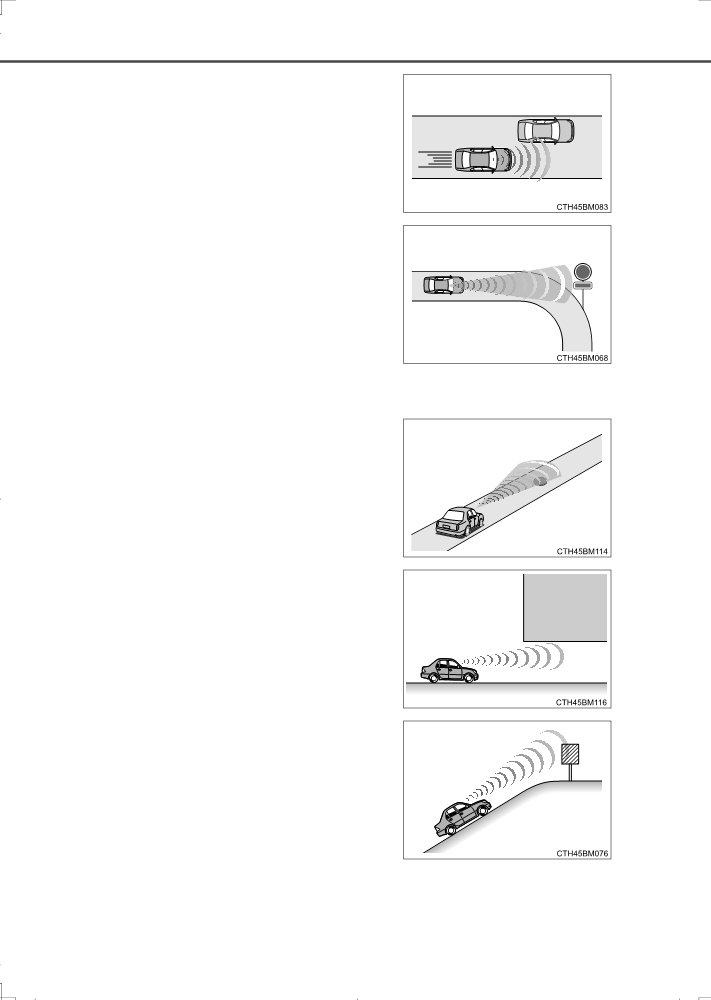

• When passing extremely close to a

vehicle or structural object

• When there is a vehicle or object by

the roadside at the entrance of a

curve

• When driving on a narrow path surrounded by a structure, such as in a

tunnel or on an iron bridge

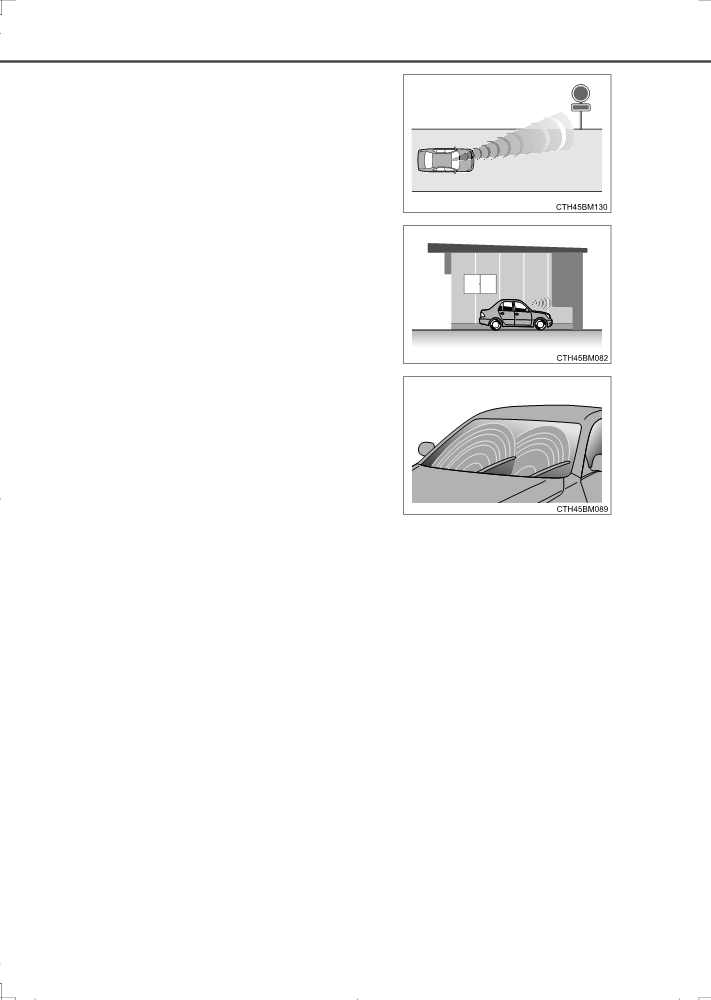

• When there is a reflective object

(manhole cover, steel plate, etc.),

steps, dip, or a protrusion on the road

surface or roadside

• When passing through a place with a

low structure above the road (low ceil-

ing, traffic sign, etc.)

• When there is a structural object

(overpass, traffic sign, billboard,

street light, etc.) at the top of an uphill

road

4-5. Toyota Safety Sense

265

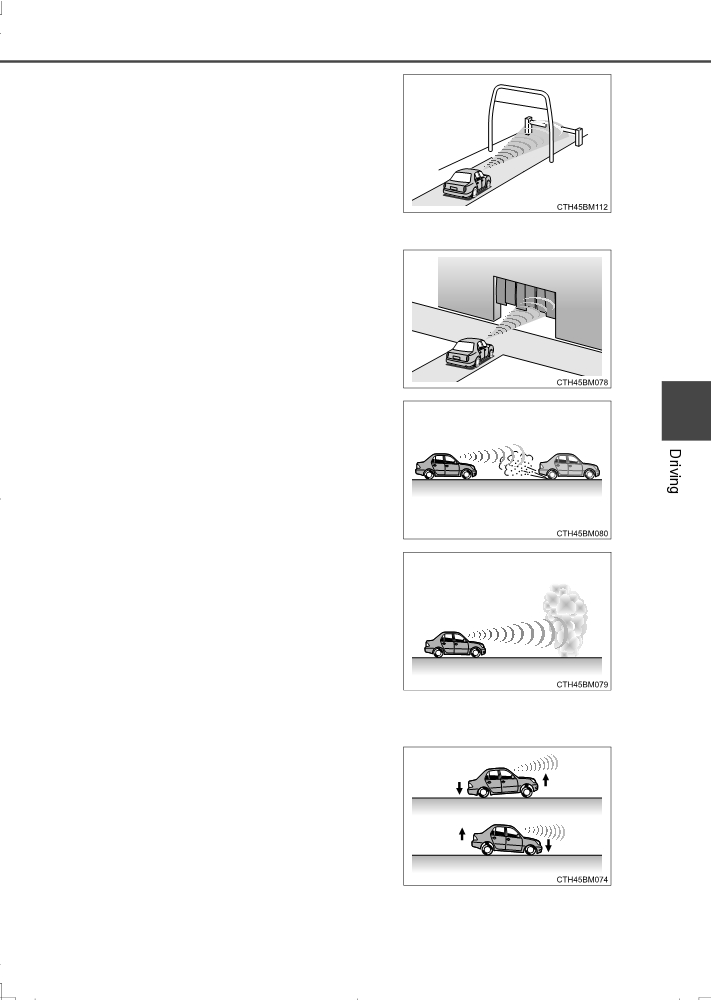

• When rapidly closing on an electric

toll gate barrier, parking area barrier,

or other barrier that opens and closes

• When using an automatic car wash

• When approaching a low hanging

object that may contact the vehicle,

such as a banner, tree branches or

thick grass

• When the vehicle is hit by water,

4

snow, dust, etc. from a vehicle ahead

• When driving through steam or

smoke

• When there are patterns or paint on the road or a wall that may be mis-

taken for a vehicle

• When the front part of the vehicle is

raised or lowered

266

4-5. Toyota Safety Sense

• When the sensor is misaligned due to

a strong impact being applied to the

sensor, etc.

• When the vehicle is being parked in a

place where there is a low hanging

object at the height of the front sensor

• When the windshield is covered with

raindrops, etc.

4-5. Toyota Safety Sense

267

■ Situations in which the system may not operate properly

● In some situations such as the following, a vehicle may not be detected by

the front sensor, preventing the system from operating properly:

• If an oncoming vehicle is approaching your vehicle

• When approaching the side or front of a vehicle

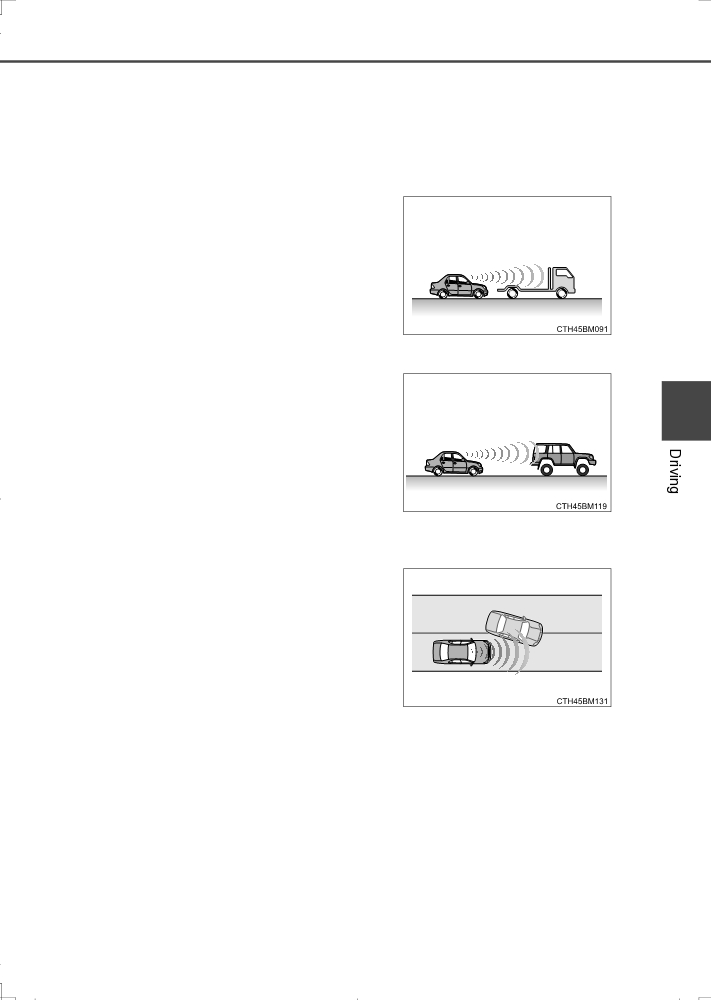

• If a preceding vehicle has a small rear end, such as an unloaded truck

• If a preceding vehicle has a low rear

end, such as a low bed trailer

• If a vehicle ahead is carrying a load which protrudes past its rear bumper

• If a vehicle ahead has extremely high

ground clearance

4

• If a vehicle ahead is irregularly shaped, such as a tractor or side car

• If the sun or other light is shining directly on a vehicle ahead

• If a vehicle cuts in front of your vehicle

or emerges from beside a vehicle

• If a vehicle ahead makes an abrupt maneuver (such as sudden swerving,

acceleration or deceleration)

• When suddenly cutting behind a preceding vehicle

268

4-5. Toyota Safety Sense

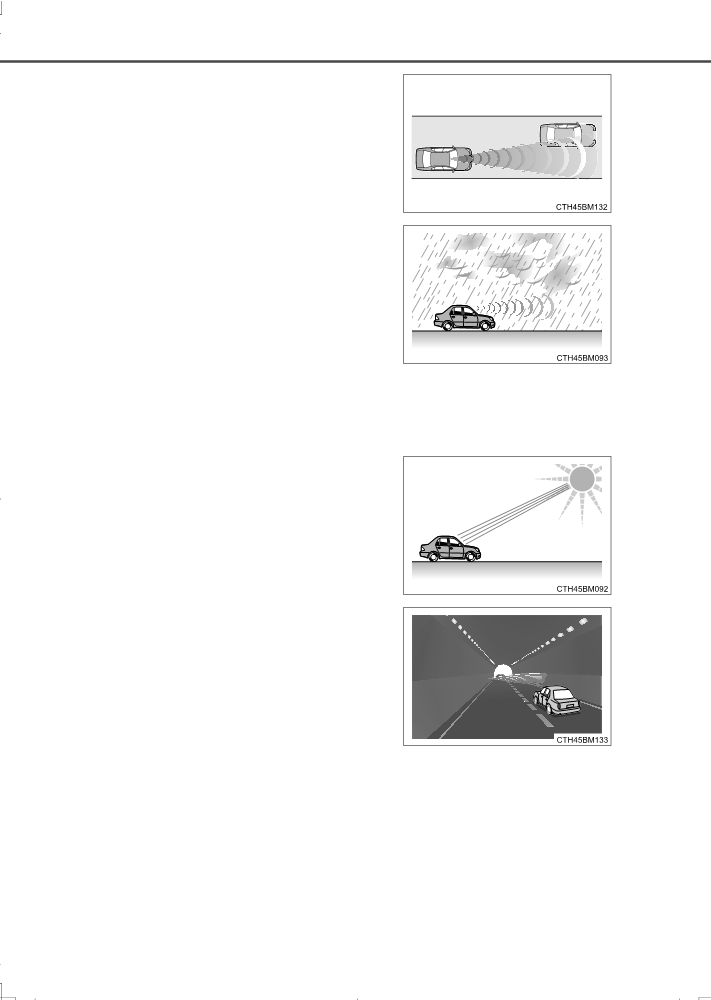

• When a vehicle ahead is not directly

in front of your vehicle

• When driving in inclement weather

such as heavy rain, fog, snow or a

sand storm

• When the vehicle is hit by water, snow, dust, etc. from a vehicle ahead

• When driving through steam or smoke that may obscure vehicles ahead

• When driving in a place where the surrounding brightness changes sud-

denly, such as at the entrance or exit of a tunnel

• When a very bright light, such as the

sun or the headlights of oncoming

traffic, shines directly into the front

sensor

• When the surrounding area is dim,

such as at dawn or dusk, or while at

night or in a tunnel

• While driving on a curve and for a certain amount of time after driving on

a curve

4-5. Toyota Safety Sense

269

• If your vehicle is skidding

• When the front part of the vehicle is

raised or lowered

• If the wheels are misaligned

• If a wiper blade is blocking the front sensor

4

• The vehicle is wobbling.

• The vehicle is being driven at extremely high speeds.

• When driving on roads with sharp bends or uneven surfaces

• When a preceding vehicle is a poor reflector of laser

• When the sensor is misaligned due to

a strong impact being applied to the

sensor, etc.

● In some situations such as the following, sufficient braking force may not be

obtained, preventing the system from performing properly:

• If the braking functions cannot operate to their full extent, such as when

the brake parts are extremely cold, extremely hot, or wet

• If the vehicle is not properly maintained (brakes or tires are excessively

worn, improper tire inflation pressure, etc.)

• When the vehicle is being driven on a gravel road or other slippery sur-

face

4-5. Toyota Safety Sense

271

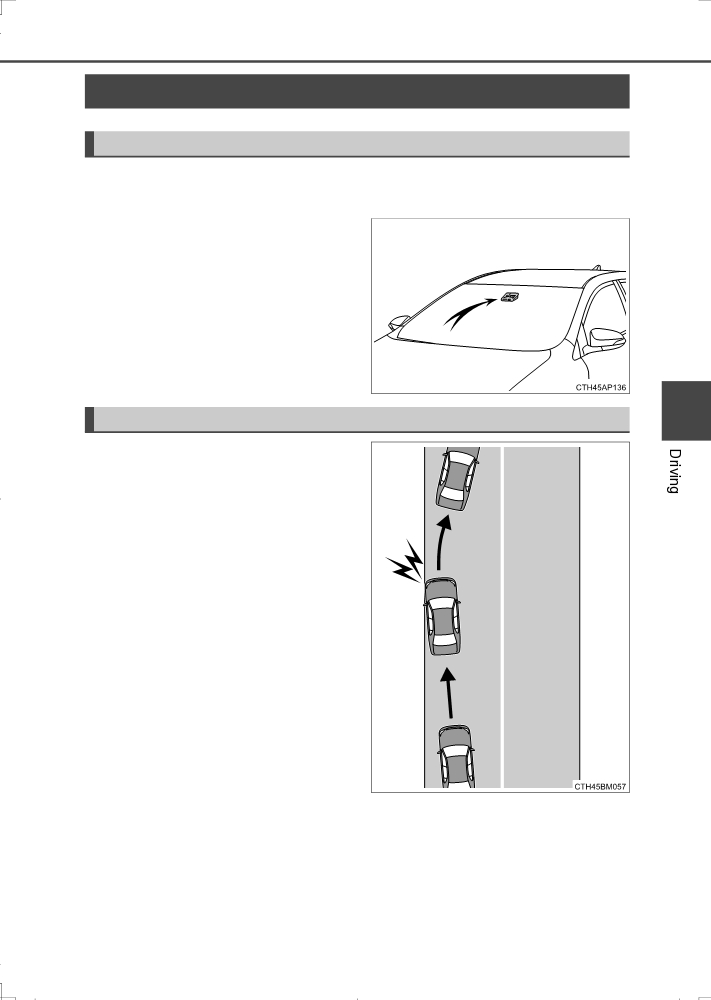

LDA (Lane Departure Alert)

Summary of function

When driving on roads with white (yellow) lines, this function alerts the

driver when the vehicle might depart from its lane.

The LDA system recognizes visi-

ble white (yellow) lines with the

front sensor on the upper portion

of the windshield.

4

Lane departure alert function

When the system determines that

the vehicle might depart from its

lane, a warning is displayed on

the multi-information display and

the warning buzzer sounds to

alert the driver.

When the warning buzzer sounds,

check the surrounding road situa-

tion and carefully operate the

steering wheel to move the vehicle

back to the center within the white

(yellow) lines.

: If equipped

Content   ..  14  15  16  17   ..
