510
7-3. Do-it-yourself maintenance

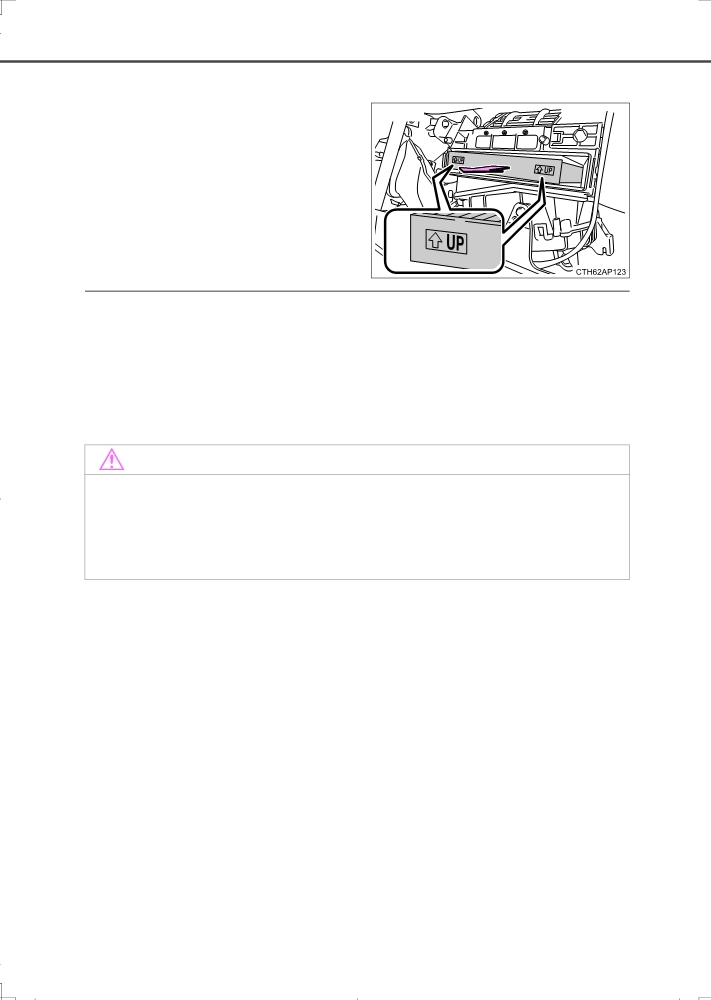

■ Replacement method
Remove the air conditioning fil-
ter and replace it with a new
one.
The “UP” marks shown on the
filter should be pointing up.
■ Checking interval
Inspect and replace the air conditioning filter according to the maintenance
schedule. In dusty areas or areas with heavy traffic flow, early replacement
may be required. (For scheduled maintenance information, please refer to the
“Toyota Service Booklet” or “Toyota Warranty Booklet”.)
■ If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
NOTICE
■ When using the air conditioning system
Make sure that a filter is always installed.
Using the air conditioning system without a filter may cause damage to the
system.
7-3. Do-it-yourself maintenance
511

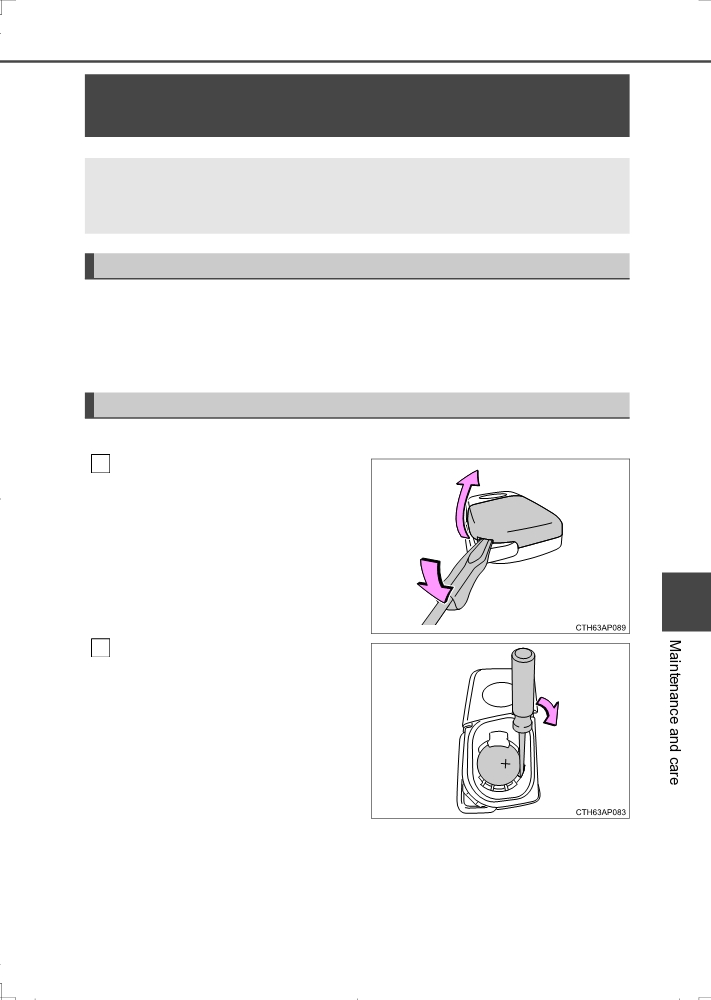

Wireless remote control/electronic key
battery
Replace the battery with a new one if it is depleted or “Key bat-
tery low.” is displayed on the multi-information display (vehicles
with a 2-ring meter only).
You will need the following items:
● Flathead screwdriver
● Small flathead screwdriver
● Lithium battery CR2016 (vehicles without a smart entry & start sys-
tem), or CR2032 (vehicles with a smart entry & start system)
Replacing the battery
Vehicles without a smart entry & start system
1
Remove the cover.
To prevent damage to the key,
cover the tip of the screwdriver with
a rag.
7
Remove the depleted battery.
2
Insert a new battery with the “+”
terminal facing up.
512
7-3. Do-it-yourself maintenance

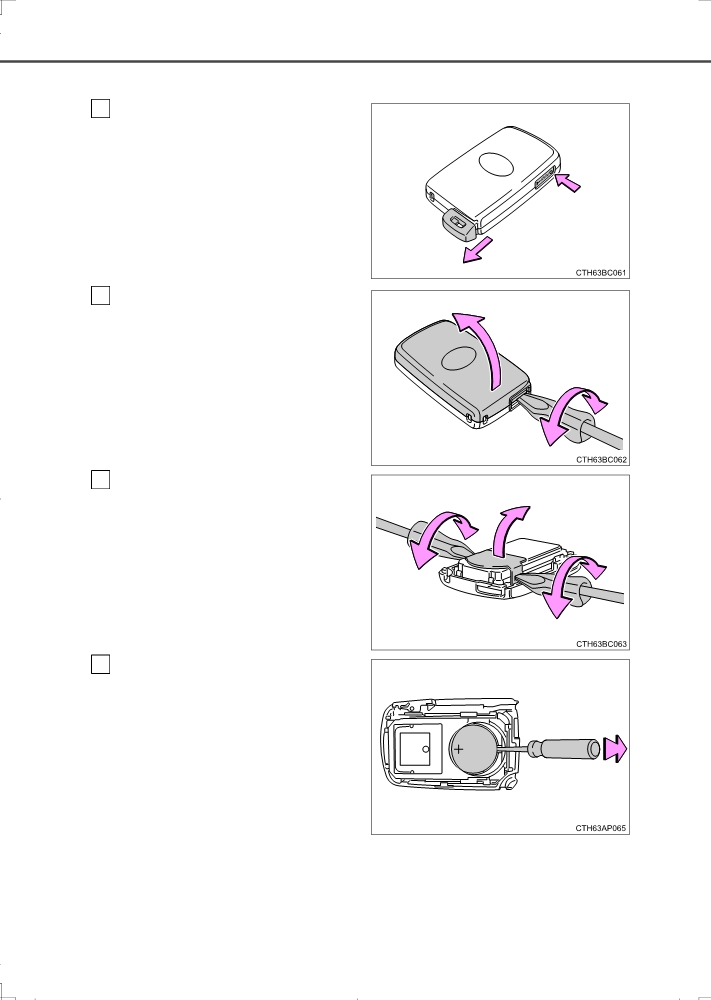

Vehicles with a smart entry & start system
1
Take out the mechanical key.
Remove the cover.
2
To prevent damage to the key,
cover the tip of the screwdriver with
a rag.
Remove the battery cover.
3
To prevent damage to the key,
cover the tip of the screwdriver with
a rag.
Remove the depleted battery.
4
Insert a new battery with the “+”
terminal facing up.
7-3. Do-it-yourself maintenance
513
■ Use a CR2016 (vehicles without a smart entry & start system) or CR2032
(vehicles with a smart entry & start system) lithium battery
● Batteries can be purchased at any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional, local electrical appliance
shops or camera stores.
● Replace only with the same or equivalent type recommended by the manu-
facturer.
● Dispose of used batteries according to local laws.
■ If the key battery is depleted
The following symptoms may occur:
● The smart entry & start system (if equipped) and wireless remote control will
not function properly.
● The operational range will be reduced.
WARNING
■ Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking.
Keep away from children. Failure to do so could result in death or serious
injury.
■ Certification for the lithium battery
CAUTION:
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT
TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUC-
TIONS
7
NOTICE
■ For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
● Always work with dry hands.
Moisture may cause the battery to rust.
● Do not touch or move any other component inside the remote control.
● Do not bend either of the battery terminals.
514
7-3. Do-it-yourself maintenance

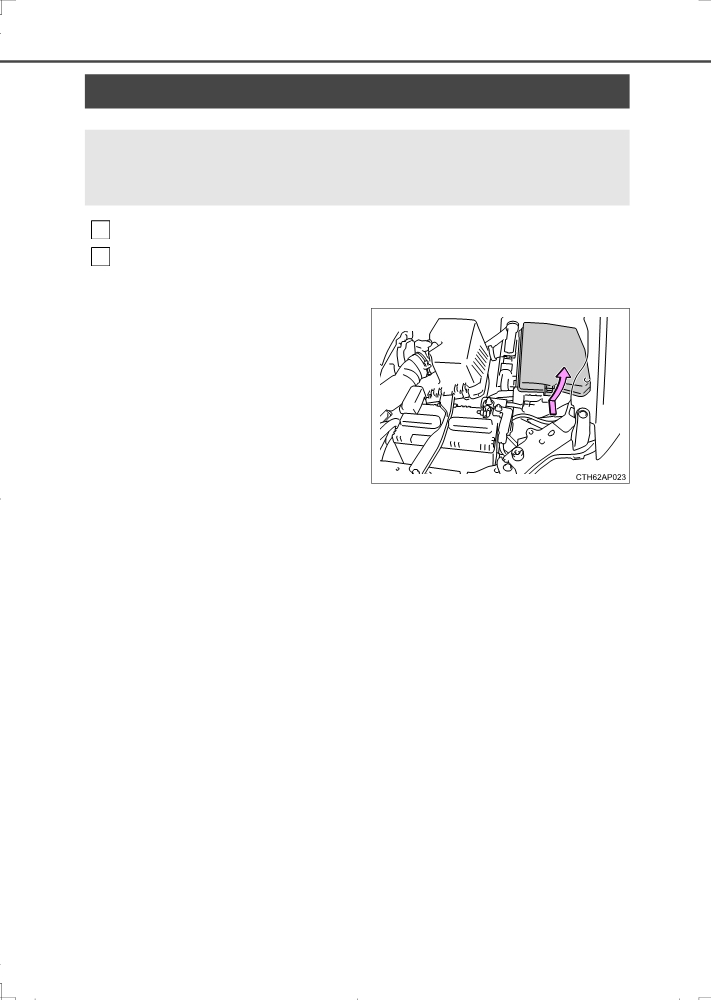

Checking and replacing fuses
If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.
1
Turn the engine switch off.
2
Open the fuse box cover.
Engine compartment
Push the tab in and lift the lid off.
When installing, first hook the lid
onto the two rear tabs.
7-3. Do-it-yourself maintenance
515

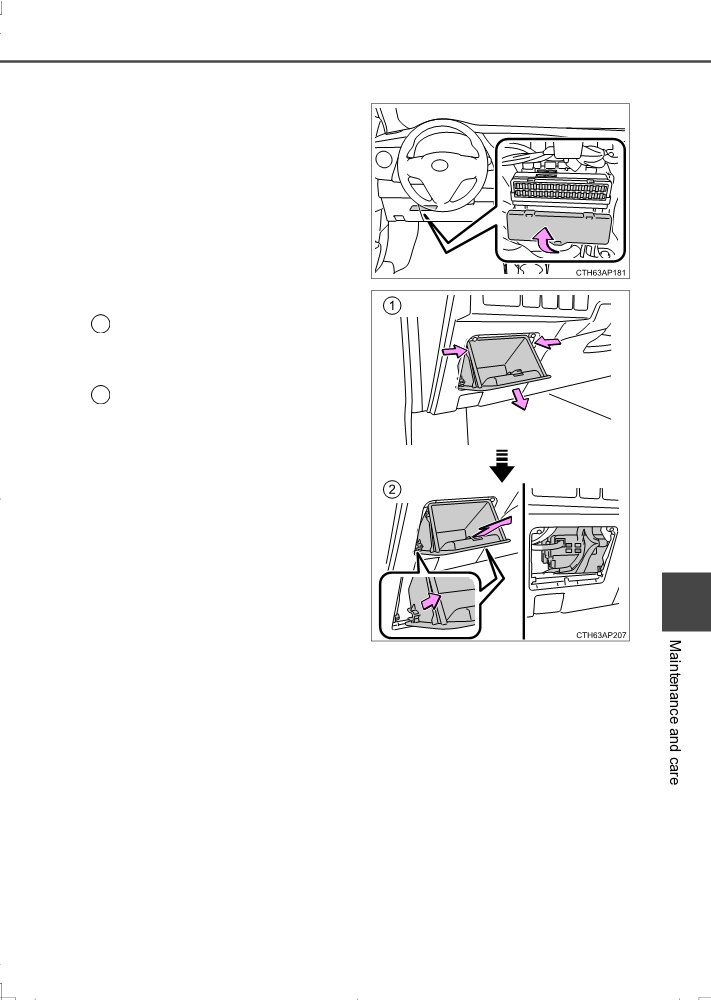

Under the driver’s side instrument panel (left-hand drive vehicles)
Type A:
Remove the lid.
Type B:
Open the auxiliary box. Push in
1
each side of the auxiliary box to
disconnect the upper claws.
Pull out the auxiliary box and
2
disconnect the lower claws.
7
516
7-3. Do-it-yourself maintenance

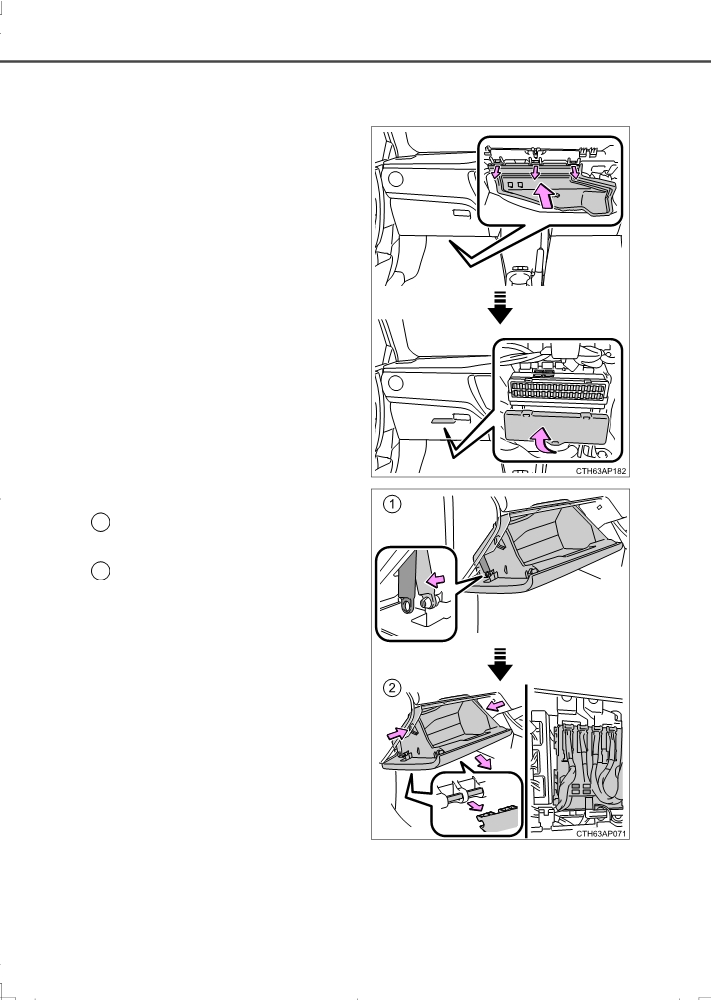

Under the passenger’s side instrument panel (right-hand drive vehi-
cles)
Type A:
Remove the cover* and the lid.
Type B:
1
Open the glove box. Slide off
the damper.
Push in each side of the glove
2
box disconnect the upper
claws. Then pull out the glove
box and disconnect the lower
claws.
*: If equipped
7-3. Do-it-yourself maintenance
517

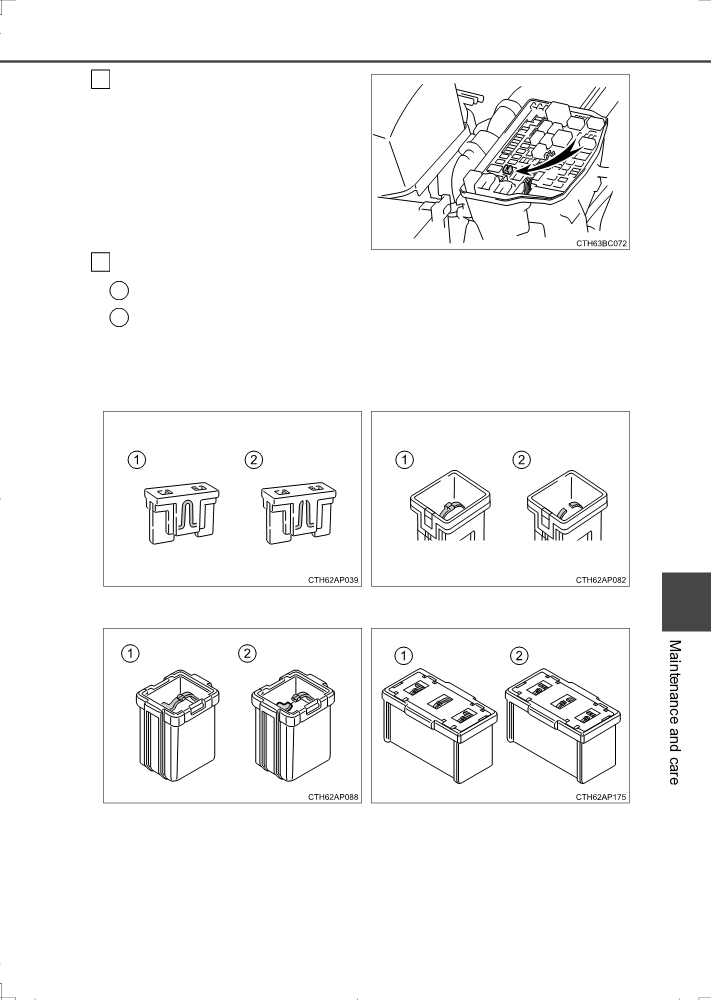

3
Remove the fuse with the pull-
out tool.
Only type A fuses can be removed
using the pullout tool.
4
Check if the fuse is blown.
1
Normal fuse
2
Blown fuse
Replace the blown fuse with a new fuse of an appropriate amperage rat-
ing. The amperage rating can be found on the fuse box lid.
Type A
Type B
7
Type C
Type D
518
7-3. Do-it-yourself maintenance
■ After a fuse is replaced
● If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. (P. 519)
● If the replaced fuse blows again, have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■ When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload, non-genuine parts or parts not designed for this vehicle may be
unusable.
WARNING
■ To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional as soon as possible.
7-3. Do-it-yourself maintenance
519

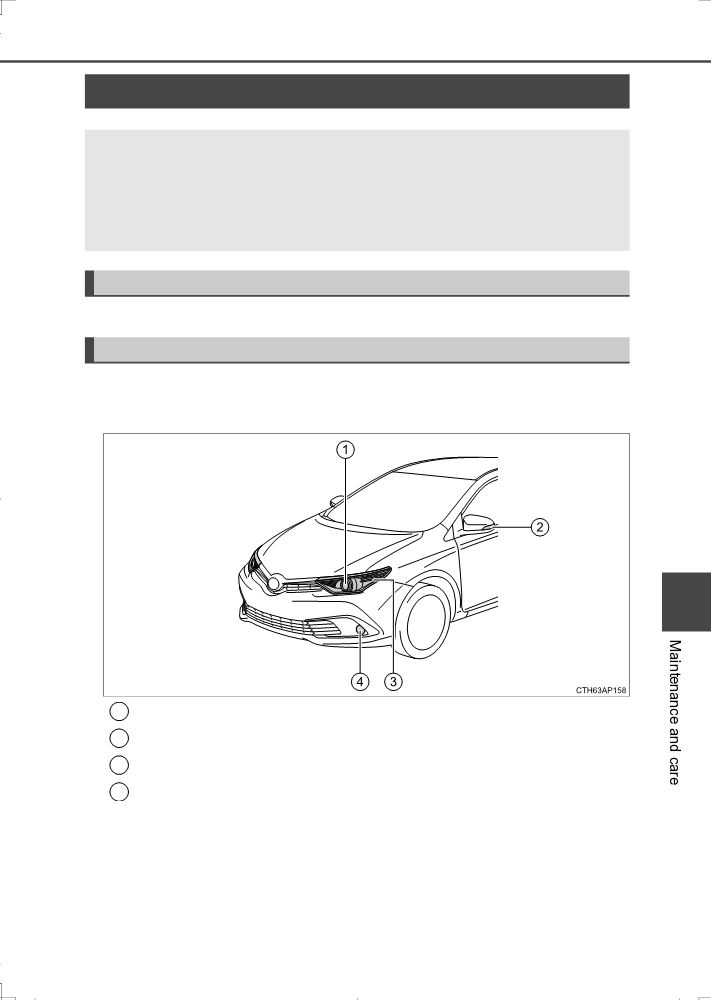

Light bulbs
You may replace the following bulbs by yourself. The difficulty
level of replacement varies depending on the bulb. As there is a
danger that components may be damaged, we recommend that
replacement is carried out by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Preparing for light bulb replacement
Check the wattage of the light bulb to be replaced. (P. 632)
Bulb locations
■ Front
Vehicles with halogen headlights
7
1
Headlights
2
Side turn signal lights
3
Front turn signal lights
4
Front fog lights (if equipped)
520
7-3. Do-it-yourself maintenance

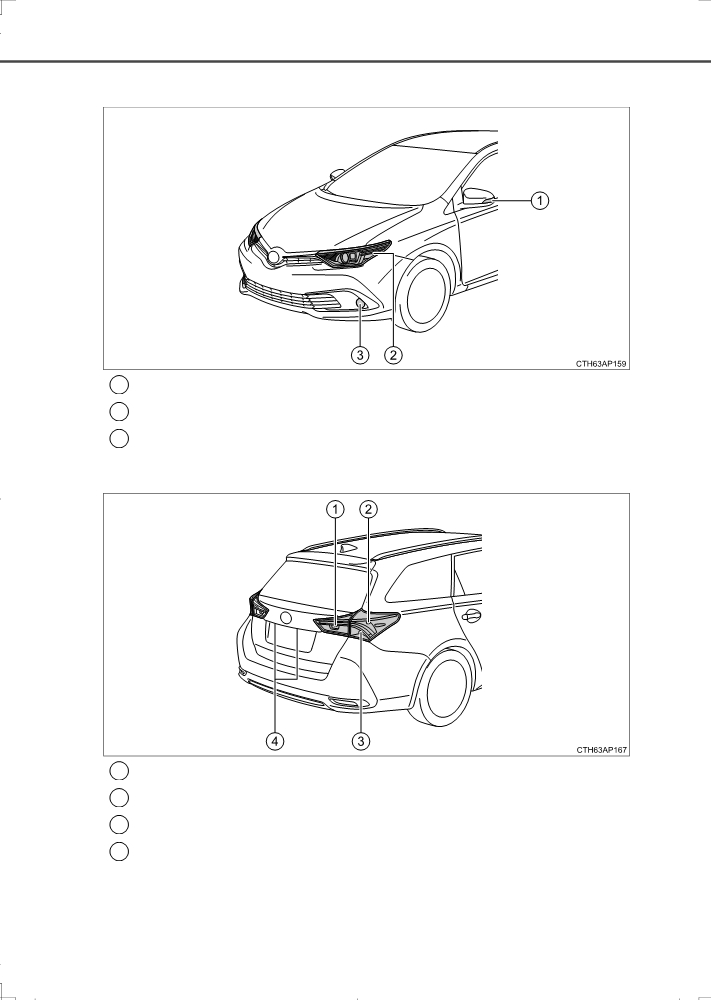

Vehicles with LED headlights
1
Side turn signal lights
2
Front turn signal lights
3
Front fog lights (if equipped)
■ Rear (left-hand drive vehicles)
1
Back-up light
2
Stop lights
3
Rear turn signal lights
4
License plate lights
7-3. Do-it-yourself maintenance
521

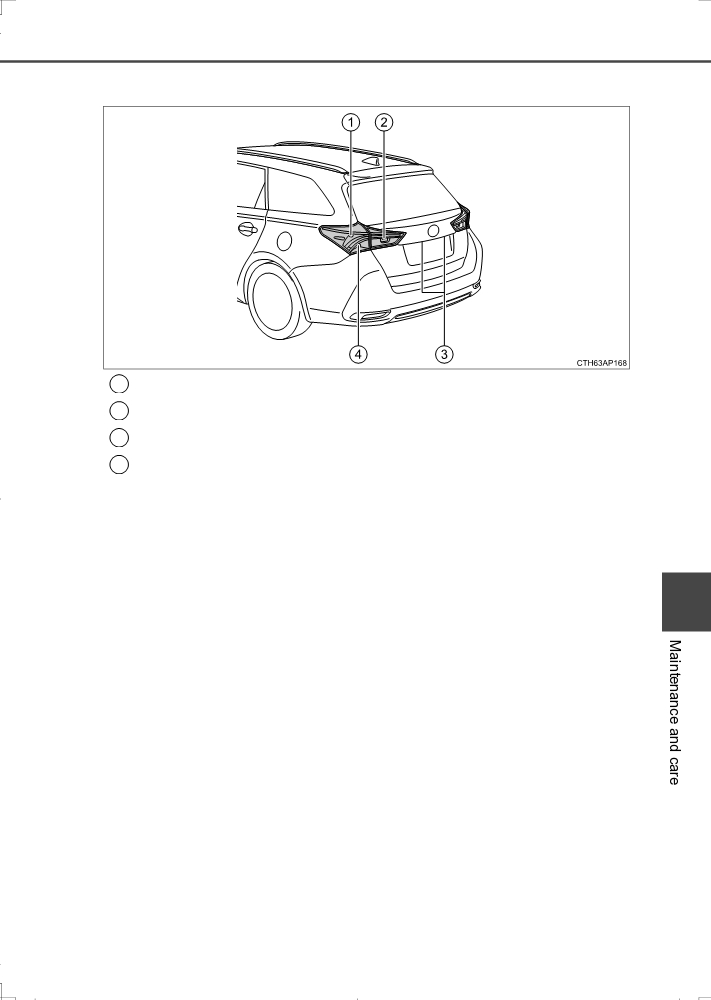

■ Rear (right-hand drive vehicles)
1
Stop lights
2
Back-up light
3
License plate lights
4
Rear turn signal lights
7
522
7-3. Do-it-yourself maintenance
Replacing light bulbs

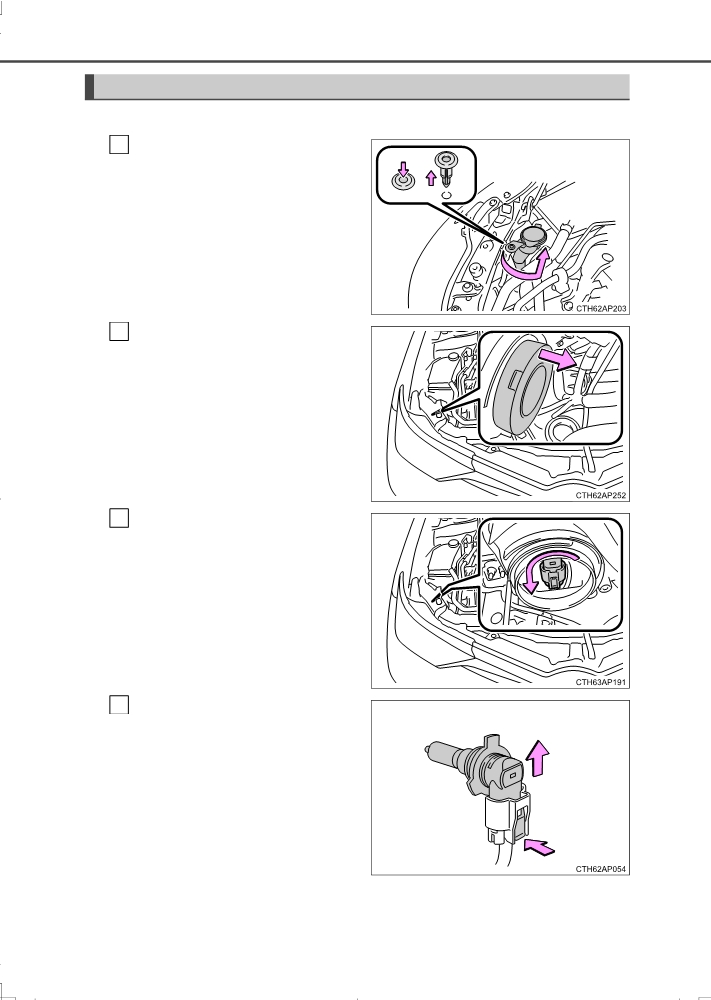

■ Headlights (vehicles with halogen headlights)
Remove the securing clip.
1
Pull out the washer fluid filler
opening after turning it.
(When replacing right side
bulb only.)
Remove the cover.
2
3
Turn
the
bulb
base
counterclockwise
and
remove it.
Unplug the connector while
4
pressing the lock release.
7-3. Do-it-yourself maintenance
523

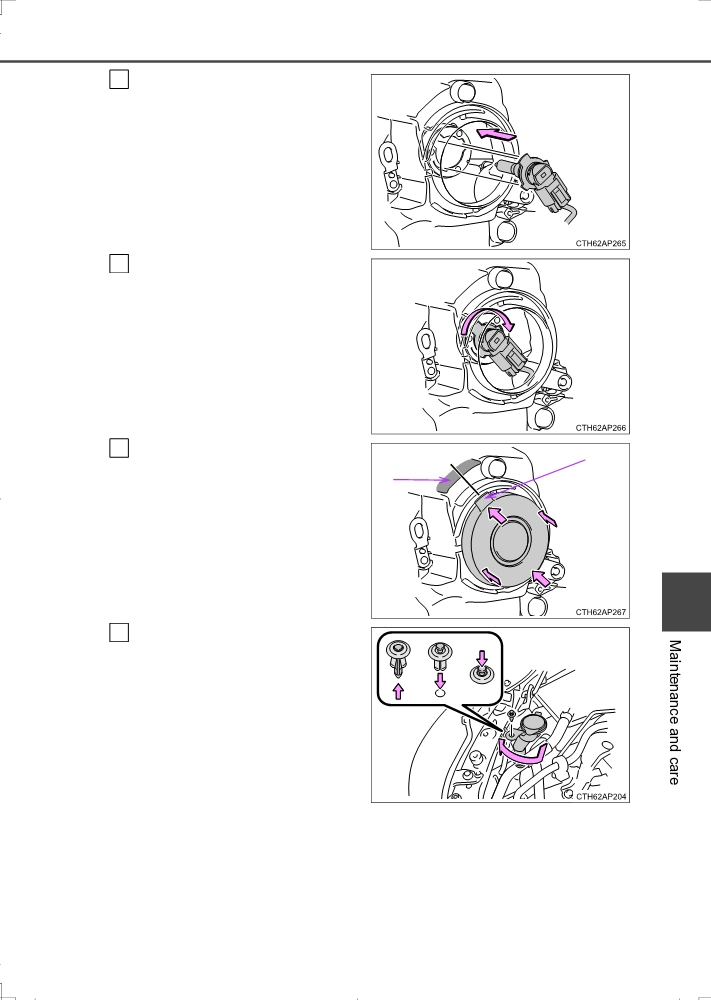

5
Replace the light bulb, and
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting and insert.
6
Turn and secure the bulb
base.
Shake the bulb base gently to
check that it is not loose, turn
the headlights on once and visu-
ally confirm that no light is leak-
ing through the mounting.
7
Install the cover.
A
To make sure the cover is
B
installed securely, align the pro-
truding part (A) with the center
of the area
(B) shown in the
illustration and push the perime-
ter of the cover firmly.
7
Install the washer fluid filler
8
opening by inserting and
turning it. Install the securing
clip.
(When replacing right
side bulb only.)
524
7-3. Do-it-yourself maintenance

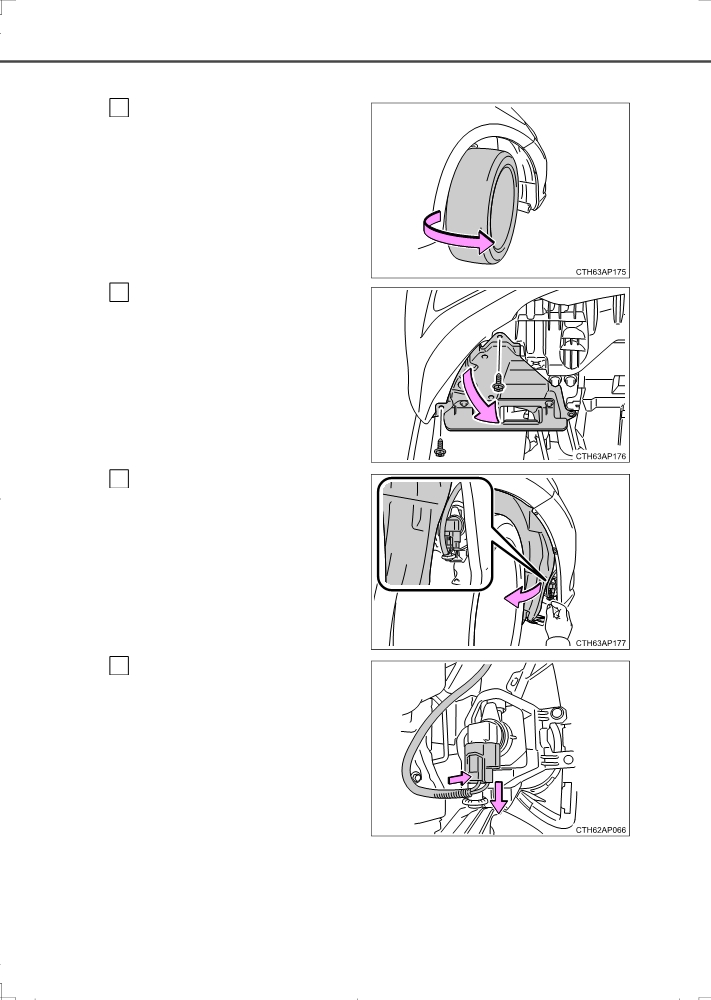

■ Front fog lights (if equipped)
Turn the steering wheel in
1
the opposite direction of the
light to be replaced.
Turn the steering wheel to a
point that allows your hand to
easily fit between the tire and
fender liner.
Remove the 2 screws and
2
partly remove the fender
liner.
Partly remove the fender
3
liner until the bulb is visible.
Unplug the connector while
4
pressing the lock release.
7-3. Do-it-yourself maintenance
525

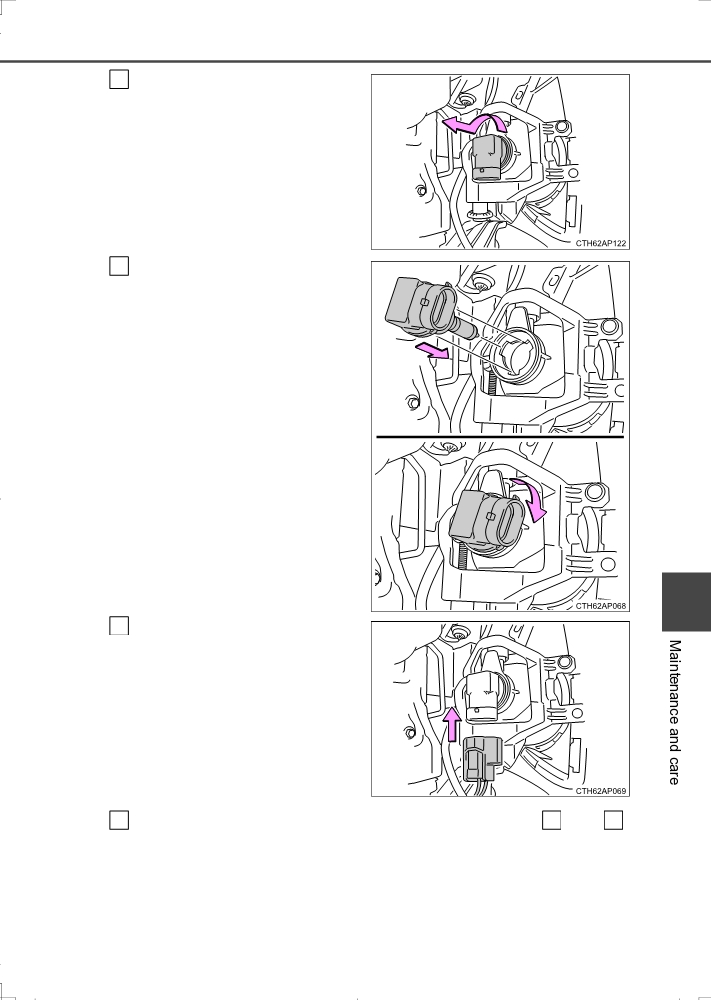

5
Turn
the
bulb
base
counterclockwise
and
remove it.
Install a new light bulb.
6
Align the 3 tabs on the light bulb
with the mounting and insert.
Turn clockwise and secure the
bulb base.
7
Install the connector.
7
Shake the connector gently to
check that it is not loose, turn
the front fog lights on once and
visually confirm that no light is
leaking through the mounting.
8
When installing the fender liner, install by conducting
3
and
2
with the directions reversed.
Make sure that the fender liner is attached to the inside of the bumper.
526
7-3. Do-it-yourself maintenance

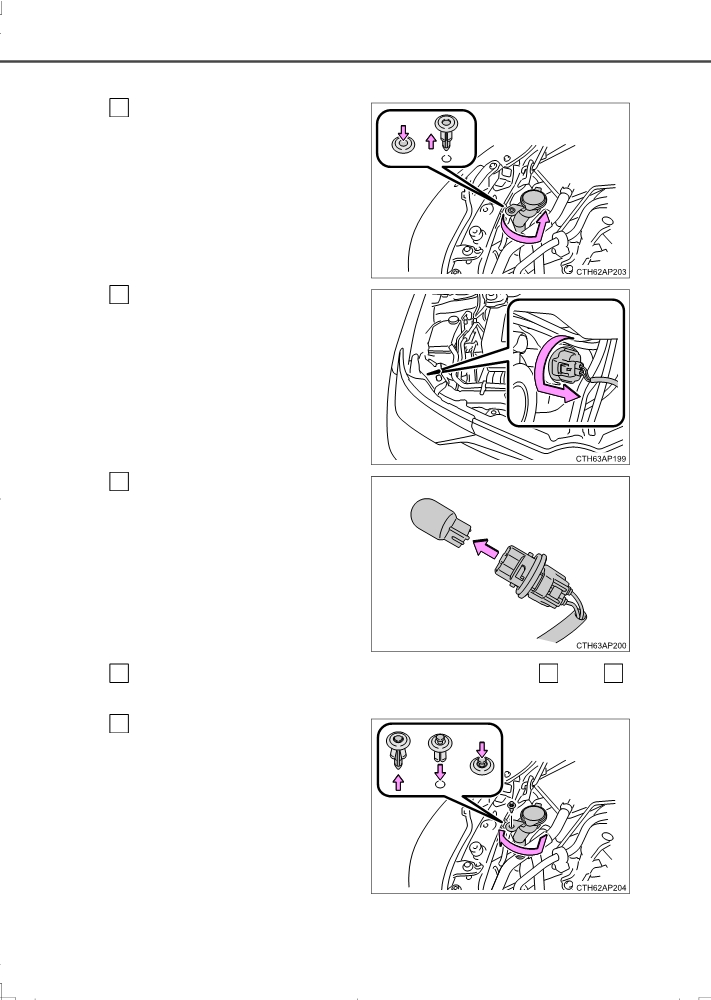

■ Front turn signal lights
Remove the securing clip.
1
Pull out the washer fluid filler
opening after turning it.
(When replacing right side
bulb only.)
2
Turn
the
bulb
base
counterclockwise.
Remove the light bulb.
3
4
When installing the light bulb, install by conducting
3
and
2
with the directions reversed.
Install the washer fluid filler
5
opening by inserting and
turning it. Install the securing
clip.
(When replacing right
side bulb only.)
