Toyota Urban Cruiser (2015 year). Instruction - part 28
4-3. Do-it-yourself maintenance

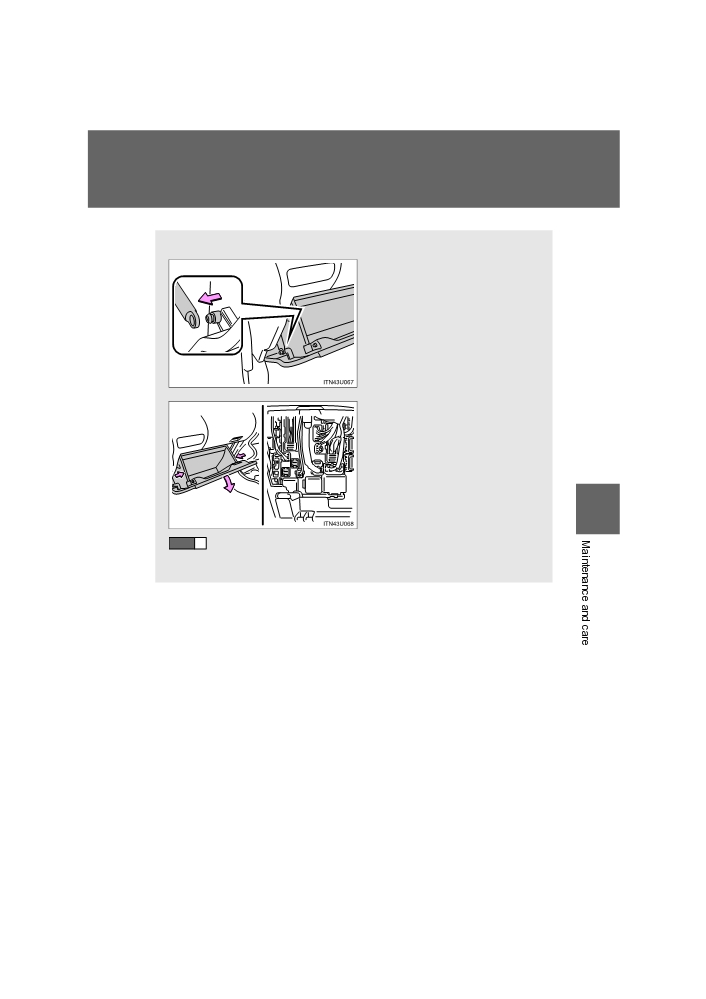

Passenger’s side instrument panel (type B)
Open the glove box. Slide off
the damper.
Push in each side of the glove
box to disconnect the claws.
4
STEP
3
After a system failure, see “Fuse layout and amperage rat-
ings” (→P. 408) for details about which fuse to check.
405
URBAN CRUISER_OM_OM52F47E_(EE)
4-3. Do-it-yourself maintenance

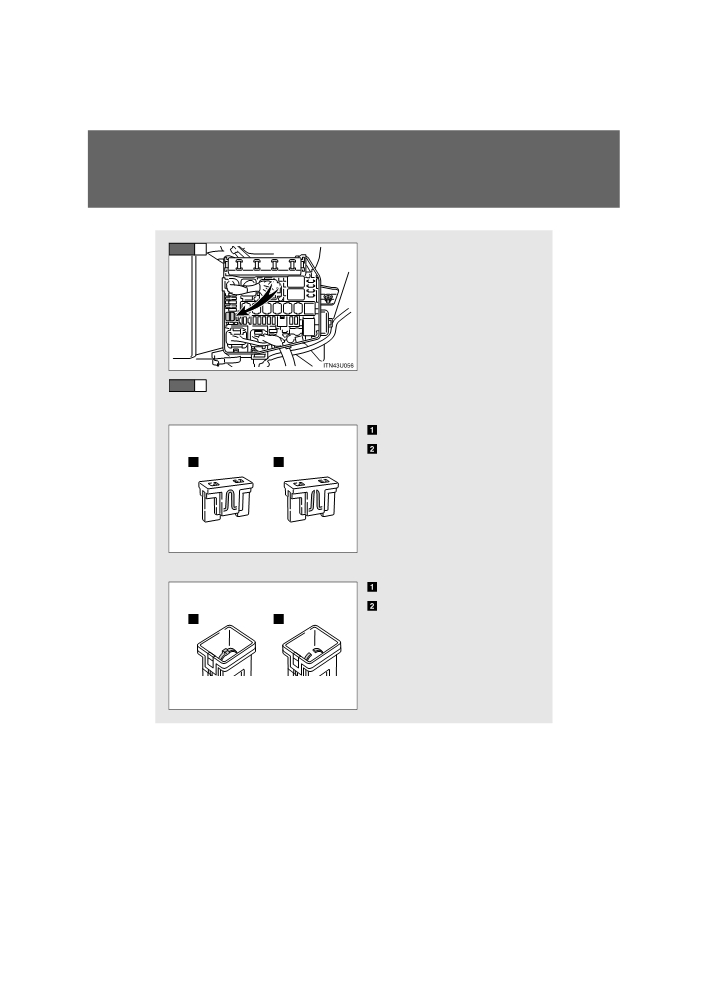

STEP
4
Remove the fuse with the pull-
out tool.
STEP
5
Check if the fuse has blown.
Type A
Normal fuse
Blown fuse
1
2
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
ITY42C012
Type B
Normal fuse
Blown fuse
1
2
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
ITY42C013
406
URBAN CRUISER_OM_OM52F47E_(EE)
4-3. Do-it-yourself maintenance

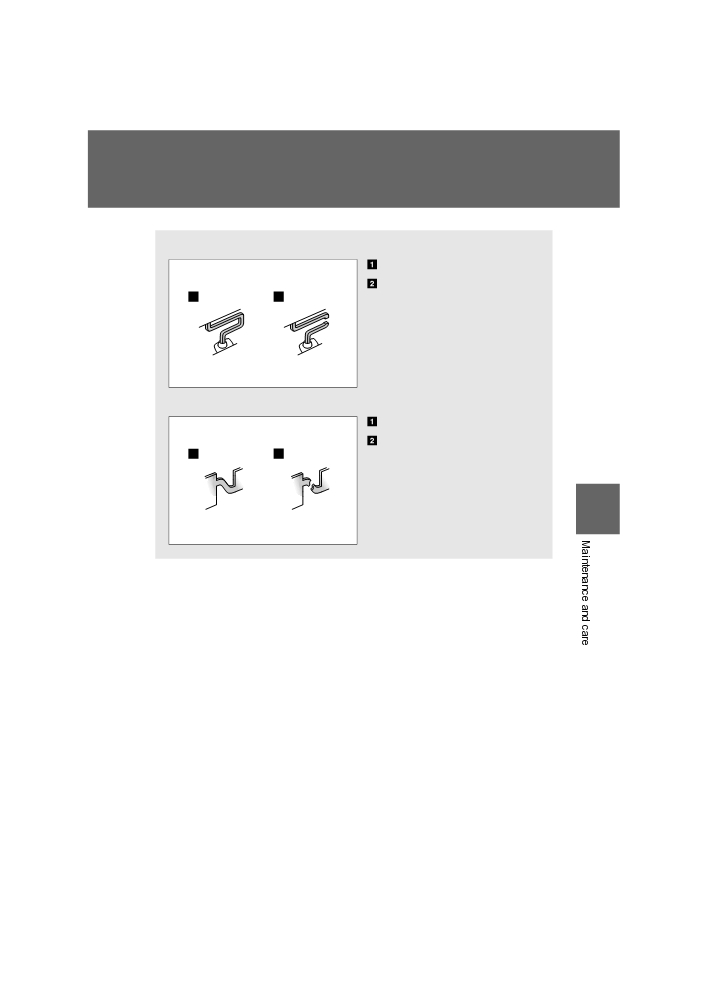

Type C
Normal fuse
Blown fuse
1
2
Contact any authorized Toyota
dealer or repairer, or another
duly qualified and equipped
professional.
ITY42C014
Type D
Normal fuse
Blown fuse
1
2
Contact any authorized Toyota
dealer or repairer, or another
duly qualified and equipped
professional.
4
ITY42C015
407
URBAN CRUISER_OM_OM52F47E_(EE)
4-3. Do-it-yourself maintenance

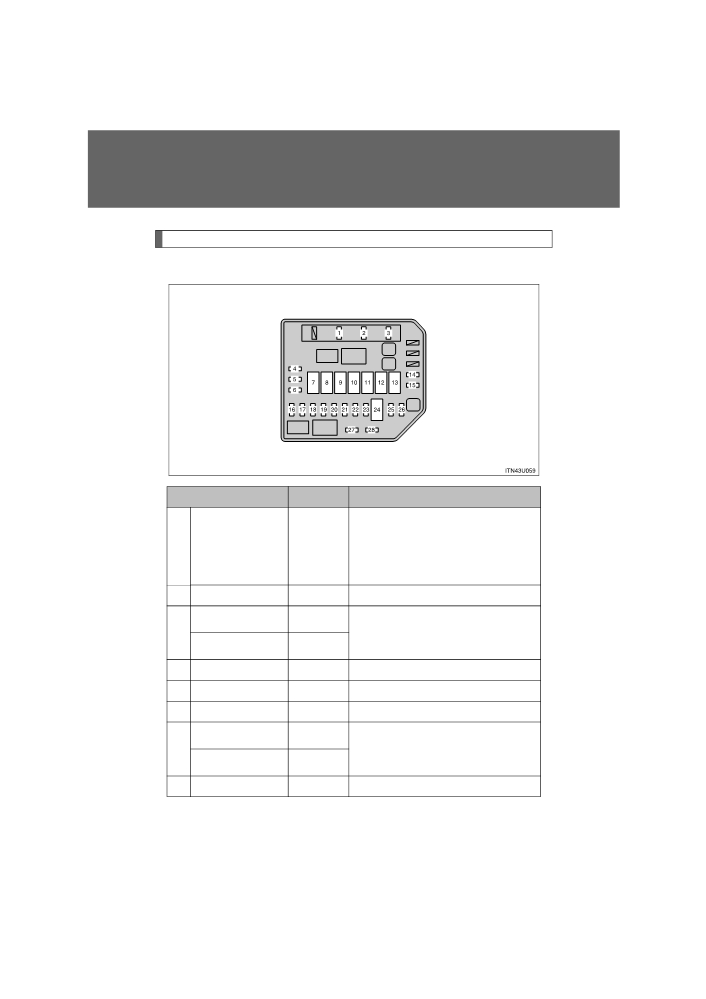

Fuse layout and amperage ratings
■ Engine compartment (type A)
Fuse
Ampere
Circuit
Starting system, multi-port fuel
injection system/sequential multi-
1
AM2
15 A
port fuel injection system, Stop &
Start system, smart entry & start
system
2
HORN
10 A
Horn
EFI*1, 2, 3, 4
20 A
Multi-port fuel injection system/
3
sequential multi-port fuel injection
5, 6, 7, 8
ECD*
30 A
system
4
SPARE
30 A
Spare fuse
5
SPARE
15 A
Spare fuse
6
SPARE
10 A
Spare fuse
HTR SUB2*3
40 A
7
Air conditioning system
HTR SUB1*7
50 A
8
EPS
50 A
Electric power steering
408
URBAN CRUISER_OM_OM52F47E_(EE)
4-3. Do-it-yourself maintenance
Fuse
Ampere
Circuit
9
ABS1/VSC1
50 A
ABS, VSC
10
HTR
40 A
Air conditioning system
11
RDI
30 A
Electric cooling fan
HTR SUB1*3
12
30 A
Air conditioning system
HTR SUB2*7
H-LP CLN/PWR
HTR*5
13
30 A
Air conditioning system
HTR SUB3*7
14
FR DEF
20 A
No circuit
15
ABS2/VSC2
30 A
ABS, VSC
“H-LP HI LH”, “H-LP HI RH”, “H-LP
16
H-LP MAIN
30 A
RH/H-LP LO RH”, “H-LP LH/H-LP
LO LH” fuses
4
17
ST
30 A
Starting system
18
S-LOCK
20 A
Smart entry & start system
Interior light, personal lights, lug-
gage compartment light, smart
19
DOME
15 A
entry & start system, wireless
remote control, audio system
Daytime running light system,
power windows, power door lock
system, smart entry & start system,
20
ECU-B
7.5 A
gauges and meters, air condition-
ing system, VSC, Active Torque
Control 4WD system, Stop & Start
system
409
URBAN CRUISER_OM_OM52F47E_(EE)
4-3. Do-it-yourself maintenance
Fuse
Ampere
Circuit
ALT-S*1, 2, 3, 4
7.5 A
21
Charging system, fuel system
F/PMP*5, 6, 7, 8
30 A
22
ETCS
10 A
Electronic throttle control system
Turn signal lights, emergency
23
HAZ
10 A
flashers
BBC*1
40 A
Stop & Start system
24
AMT*5, 6, 7, 8
50 A
No circuit
H-LP RH/H-LP
25
10 A
Right-hand headlight
LO RH
H-LP LH/H-LP
26
10 A
Left-hand headlight
LO LH
EFI2*1, 2, 3, 4
Multi-port fuel injection system/
27
10 A
sequential multi-port fuel injection
5, 6, 7, 8
ECD2*
system
Multi-port fuel injection system/
28
ECD3*5, 6, 7, 8
7.5 A
sequential multi-port fuel injection
system
*1: Gasoline engine (vehicles with a Stop & Start system)
*2: Gasoline engine (vehicles without a Stop & Start system)
*3: Gasoline engine (vehicles with PTC heater)
*4: Gasoline engine (vehicles without PTC heater)
*5: Diesel engine (vehicles with power heater)
*6: Diesel engine (vehicles without power heater)
*7: Diesel engine (vehicles with PTC heater)
*8: Diesel engine (vehicles without PTC heater)
410
URBAN CRUISER_OM_OM52F47E_(EE)
4-3. Do-it-yourself maintenance

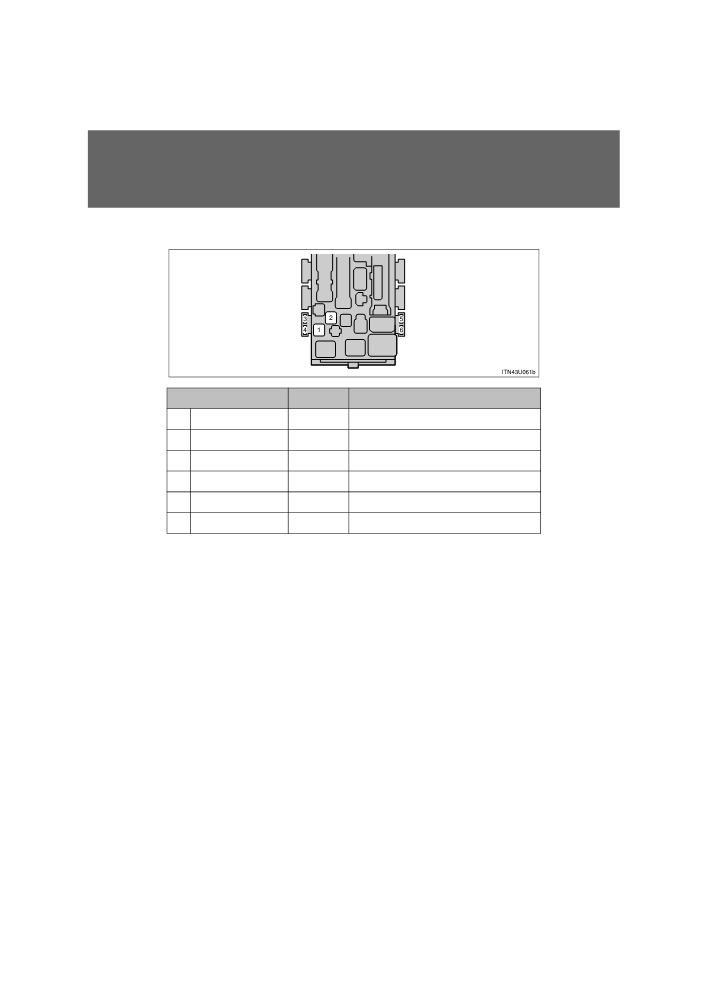

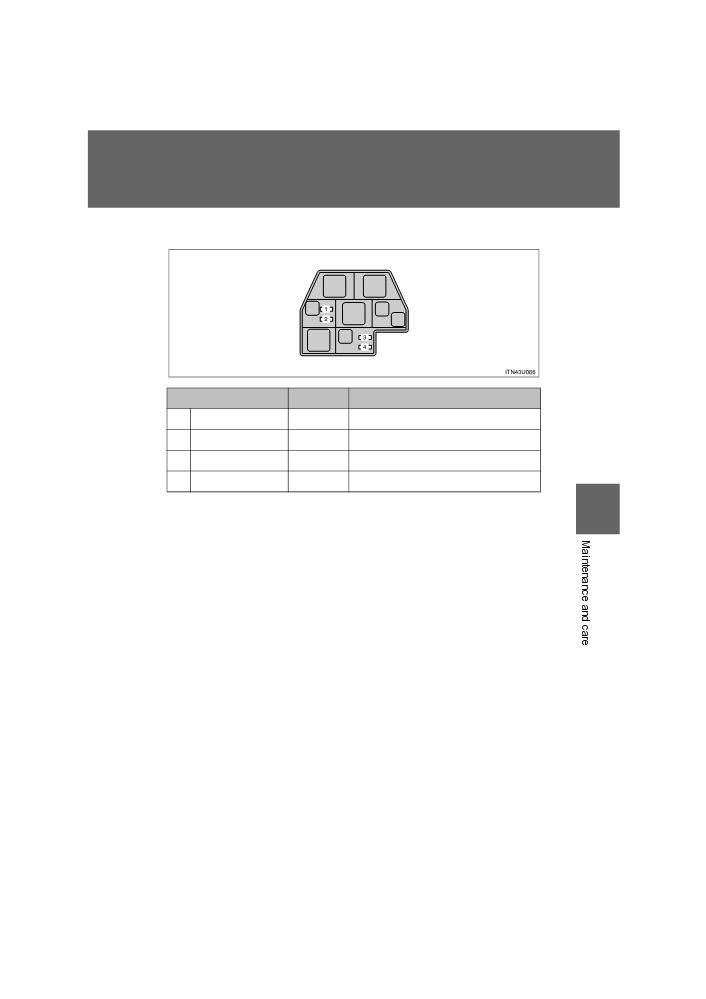

■ Engine compartment (type B)
Fuse
Ampere
Circuit
1
ATF PMP
10 A
No circuit
2
HTR W/P
10 A
No circuit
3
H-LP HI RH
10 A
Right-hand headlight
4
H-LP HI LH
10 A
Left-hand headlight
4
411
URBAN CRUISER_OM_OM52F47E_(EE)
4-3. Do-it-yourself maintenance

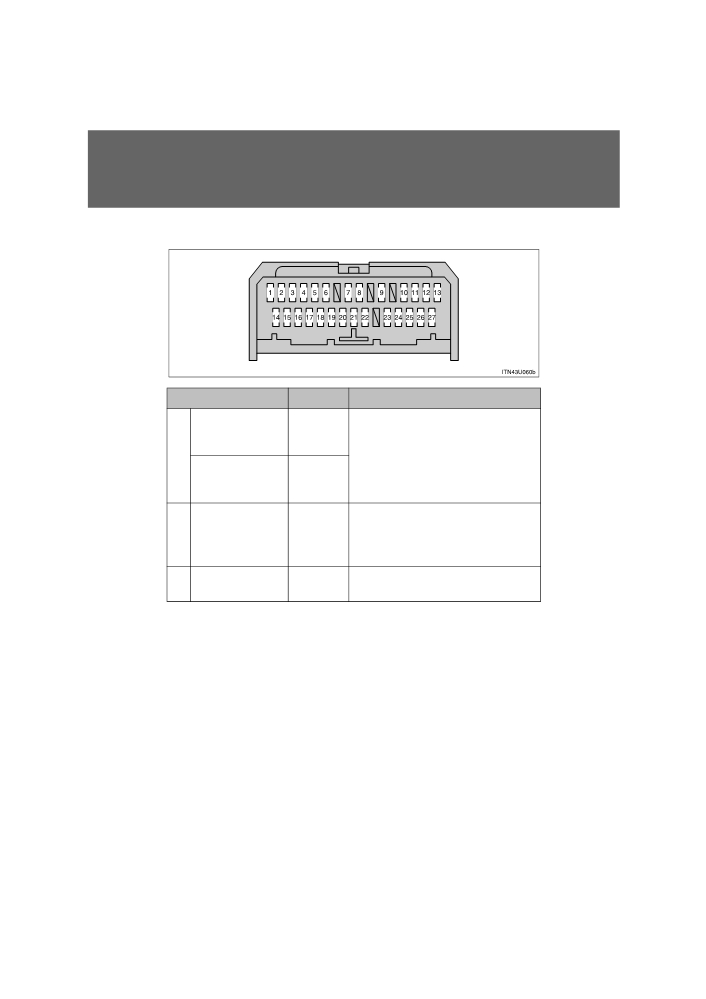

■ Under the instrument panel (type A)
Fuse name
Ampere
Circuit
Front position lights, tail lights,
TAIL*1
10 A
license plate lights, manual head-
light leveling dial, multi-port fuel
1
injection system/sequential multi-
PANEL2*2
7.5 A
port fuel injection system, instru-
ment cluster lights
Switch illuminations, instrument
cluster lights, steering switches,
2
PANEL1*2
7.5 A
Stop & Start system, gauges and
meters
Air conditioning system, rear win-
3
A/C
7.5 A
dow defogger, power heater
412
URBAN CRUISER_OM_OM52F47E_(EE)
4-3. Do-it-yourself maintenance
Fuse name
Ampere
Circuit
4
D DOOR
20 A
Power windows
5
RL DOOR
20 A
Power windows (rear left)
6
RR DOOR
20 A
Power windows (rear right)
7
CIG
15 A
Cigarette lighter
Power door lock system, outside
8
ACC
7.5 A
rear view mirrors, audio system
ID/UP / MIR
9
10 A
Outside rear view mirror defoggers
HTR
10
AM1 NO2*3
7.5 A
No circuit
11
RR FOG
7.5 A
Rear fog light
Multi-port fuel injection system/
sequential multi-port fuel injection
12
IGN
7.5 A
system, SRS airbag system, smart
entry & start system, Stop & Start
4
system
13
MET
7.5 A
Gauges and meters
14
P S-HTR
15 A
Seat heater
15
D S-HTR
15 A
Seat heater
16
WIP
20 A
Windshield wipers
17
RR WIP
15 A
Rear window wiper
Windshield washers, rear window
18
WSH
15 A
washer
413
URBAN CRUISER_OM_OM52F47E_(EE)
4-3. Do-it-yourself maintenance
Fuse name
Ampere
Circuit
Daytime running light system, ABS,
electric power steering, power win-
dows, power door lock system,
19
ECU-IG
10 A
VSC, Active Torque Control 4WD
system, smart entry & start system,
Stop & Start system, electric cool-
ing fan
Charging system, turn signal lights,
emergency flashers, back-up
20
GAUGE
10 A
lights, air conditioning system, rear
window defogger, gauges and
meters
21
OBD2
7.5 A
On-board diagnosis system
Stop lights, high mounted stop-
light, multi-port fuel injection sys-
22
STOP
10 A
tem/sequential multi-port fuel
injection system, ABS, VSC
Power door lock system, double
23
D/L
25 A
locking system
24
FR FOG
15 A
Front fog lights
25
4WD
7.5 A
Active Torque Control 4WD system
414
URBAN CRUISER_OM_OM52F47E_(EE)
4-3. Do-it-yourself maintenance
Fuse name
Ampere
Circuit
Front position lights, tail lights,
license plate lights, manual head-
light leveling dial, multi-port fuel
26
TAIL*2
10 A
injection system/sequential multi-
port fuel injection system, instru-
ment cluster lights
Multi-port fuel injection system/
27
AM1
25 A
sequential multi-port fuel injection
system, “ACC”, “CIG” fuses
*1: Vehicles with daytime running light system
*2: Vehicles without daytime running light system
*3: Vehicles with smart entry & start system
4
415
URBAN CRUISER_OM_OM52F47E_(EE)
4-3. Do-it-yourself maintenance
■ Under the instrument panel (type B)
Fuse name
Ampere
Circuit
1
POWER
30 A
Power windows
2
DEF
30 A
Rear window defogger
3
WIP-S*1
7.5 A
Power management
4
ACC2*1, 3
7.5 A
No circuit
5
WIP-S*2
7.5 A
Power management
6
ACC2*2, 3
7.5 A
No circuit
*1: Left-hand drive vehicles
*2: Right-hand drive vehicles
*3: Vehicles without smart entry & start system
416
URBAN CRUISER_OM_OM52F47E_(EE)
4-3. Do-it-yourself maintenance
■ After a fuse is replaced
● If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. (→P. 418)
●If the replaced fuse blows again, have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
■ If there is an overload in the circuits
The fuses are designed to blow, protecting the wiring harness from damage.
CAUTION
■ To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
4
●Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
●Do not modify the fuse or the fuse box.
NOTICE
■ Before replacing fuses
Have the cause of electrical overload determined and repaired by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional, as soon as possible.
417
URBAN CRUISER_OM_OM52F47E_(EE)
4-3. Do-it-yourself maintenance
Light bulbs
You may replace the following bulbs by yourself. The difficulty level
of replacement varies depending on the bulb. As there is a danger
that components may be damaged, we recommend that replacement
is carried out by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
■ Prepare a replacement light bulb
Check the wattage of the light bulb being replaced. (→P. 522)

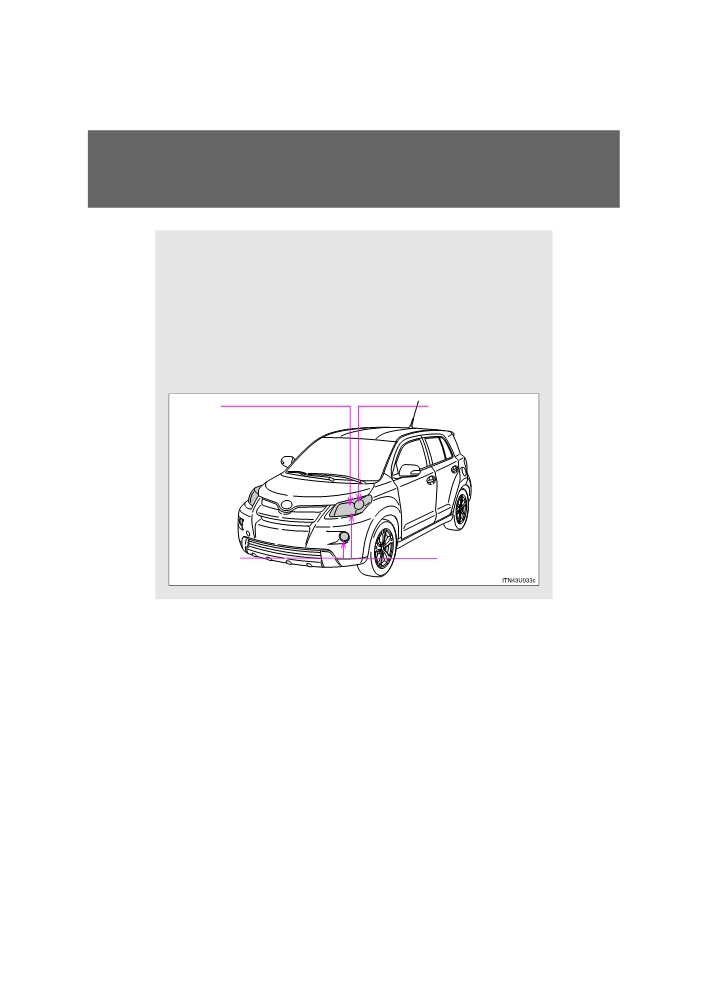

■ Front bulb locations
Headlight
Front turn signal light
Front fog light
Front position light
(if equipped)
418
URBAN CRUISER_OM_OM52F47E_(EE)
4-3. Do-it-yourself maintenance

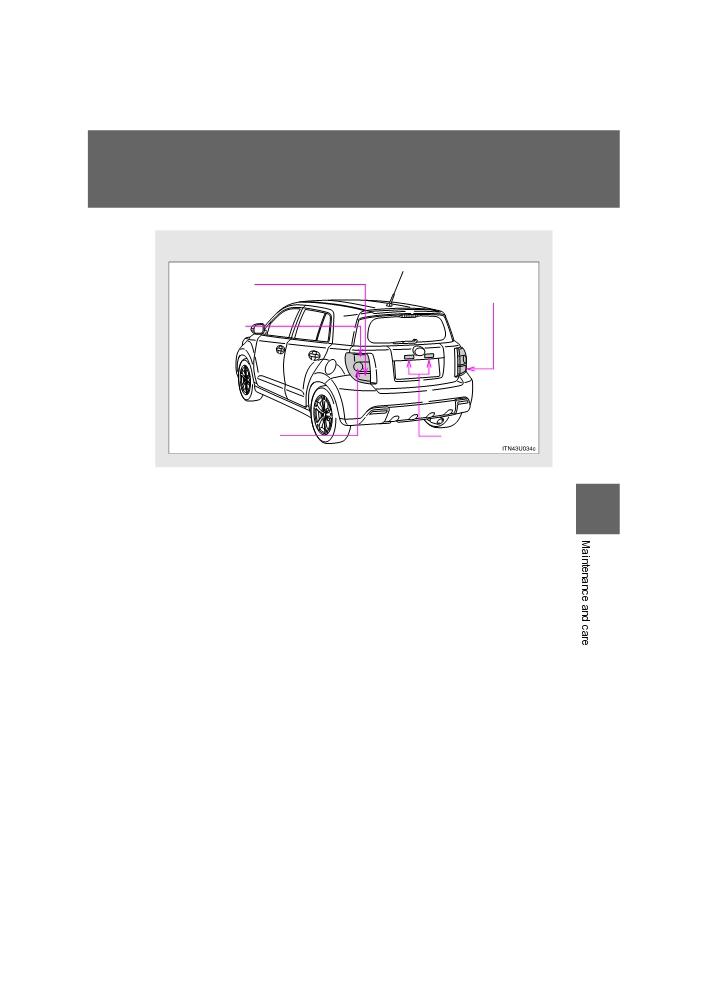

■ Rear bulb locations
Back-up light
Back-up light
or rear fog light
or rear fog light
Stop/tail light
Rear turn signal light
License plate lights
4
