3-5. Other interior features
Floor mat
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.

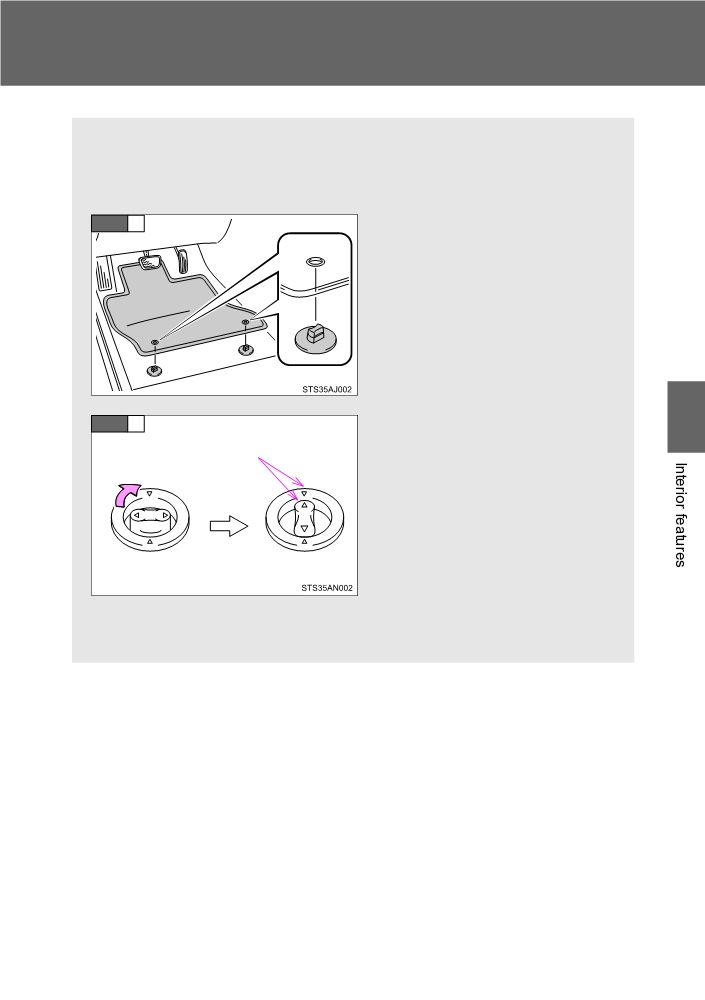

STEP
1
Insert the retaining hooks
(clips) into the floor mat eye-
lets.
3

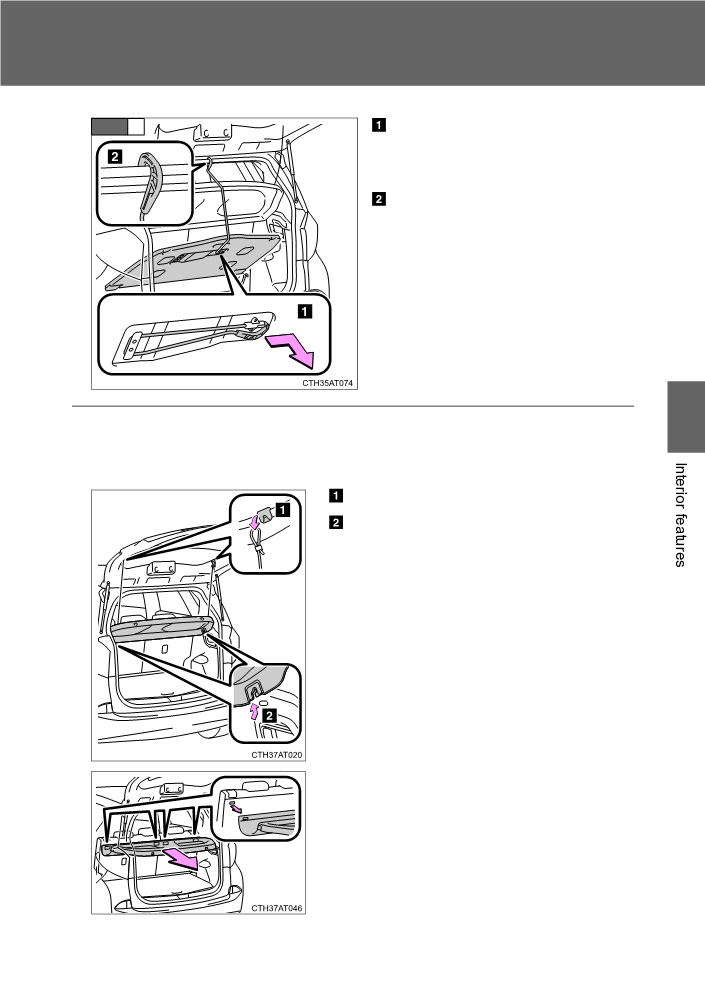

STEP
2
Turn the upper knob of each
retaining hook (clip) to secure
*
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in the
illustration.
345
3-5. Other interior features

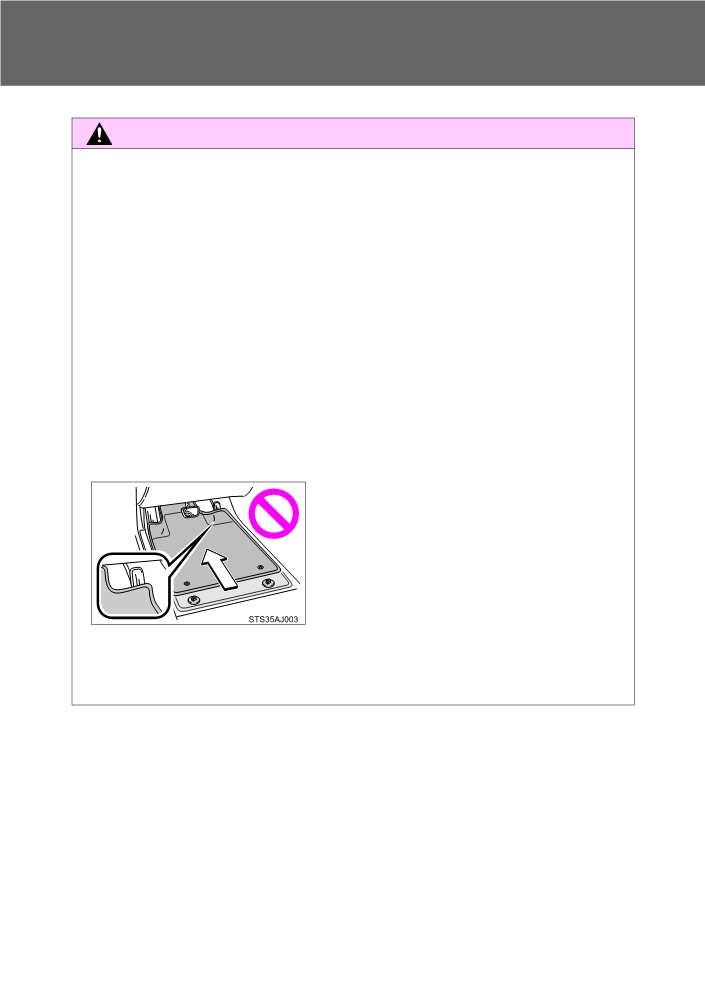

CAUTION
Observe the following precautions.
Failure to do so may cause the driver's floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle, leading to a serious accident.
When installing the driver's floor mat
Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
Only use floor mats designed for the driver's seat.
Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
Do not use two or more floor mats on top of each other.
Do not place the floor mat bottom-side up or upside-down.
Before driving
Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks
(clips). Be
especially careful to perform this check
after cleaning the floor.
With the engine stopped and the shift
lever in P
(Multidrive) or N
(manual
transmission), fully depress each pedal
to the floor to make sure it does not
interfere with the floor mat.
346
3-5. Other interior features
Luggage compartment features

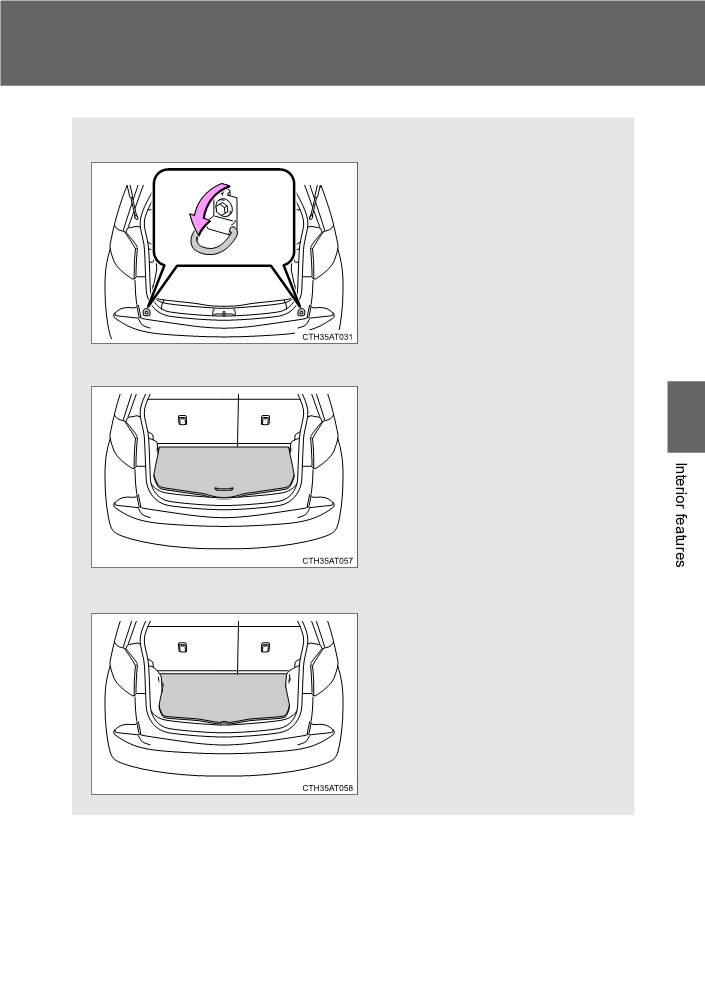

Cargo hooks
Pull the hook down to use.
The cargo hooks are provided
for securing loose items.
Dual-level deck board (if equipped)
The position of the dual-level
deck board can be changed
3
(lowered/raised). (P. 349)
Deck board
347
3-5. Other interior features

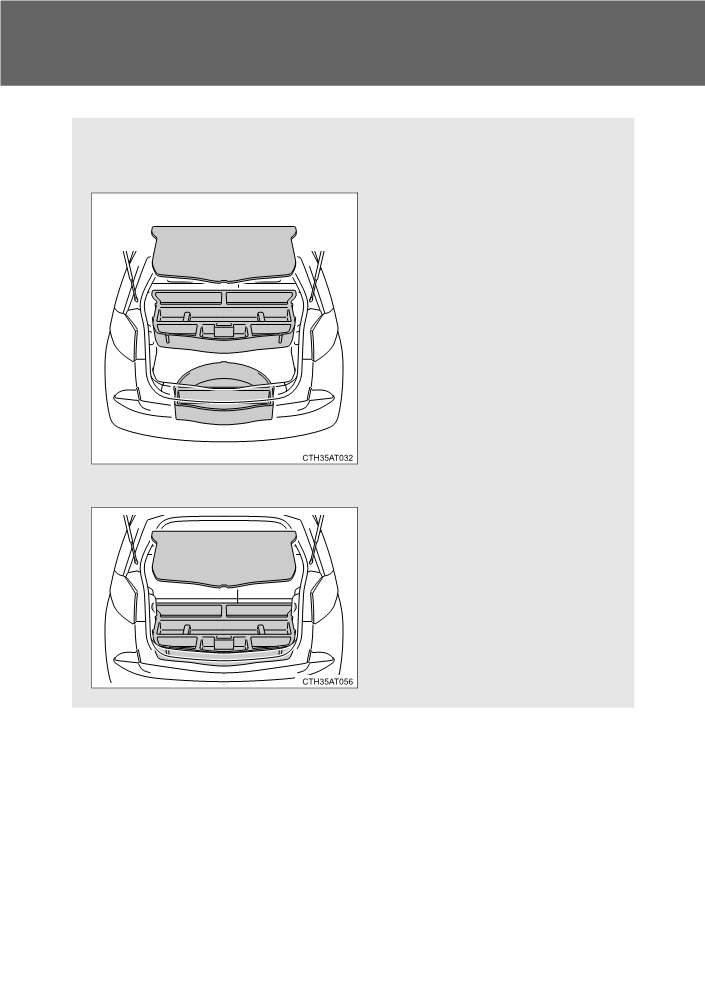

Auxiliary boxes (if equipped)
Type A
Type B
348
3-5. Other interior features

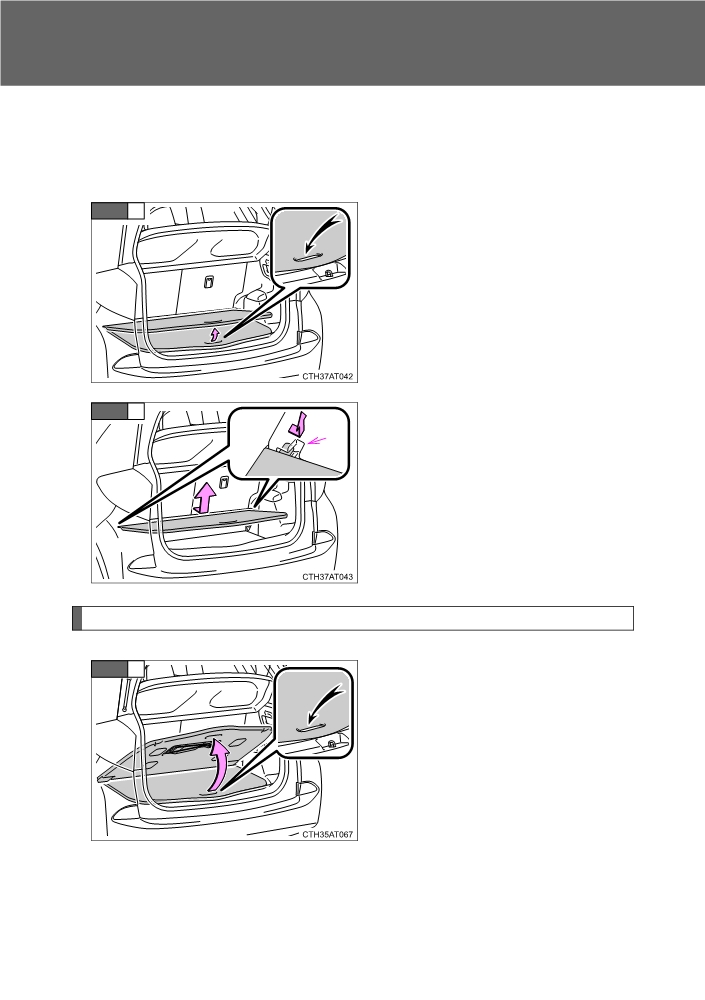

Operating the dual-level deck board

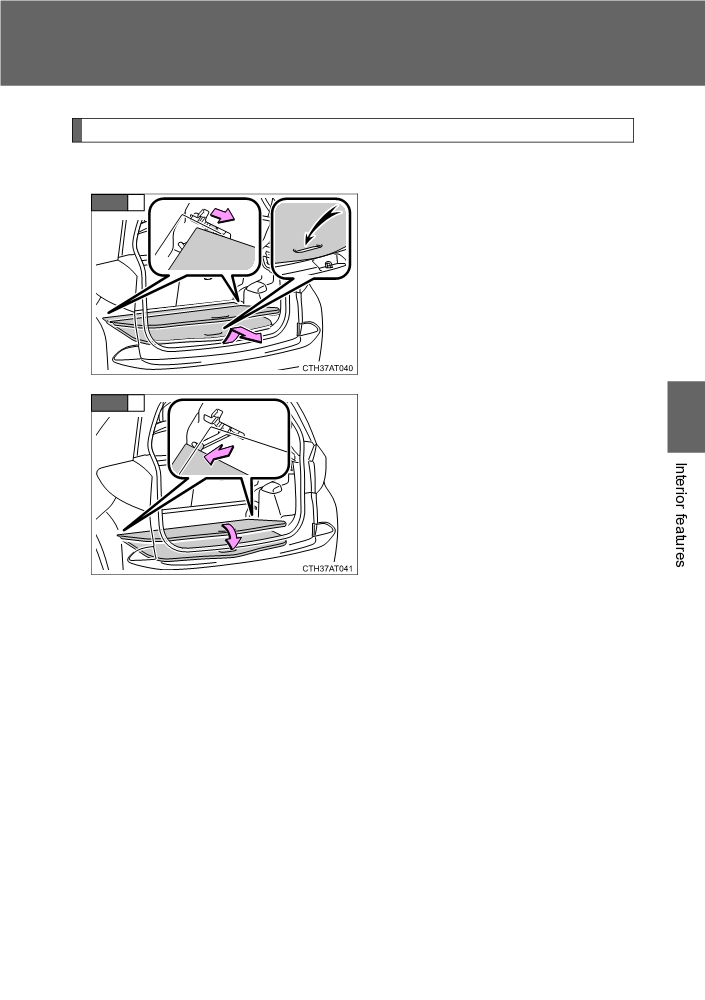

Lowering the dual-level deck board
STEP
1
Lift the dual-level deck board and
pull it toward you.
STEP
2
Lower the dual-level deck board
3
along the groove and then close
the board.
349
3-5. Other interior features
Removing the dual-level deck board
Before removing, raise the dual-level deck board to the upper posi-
tion. If it is in the lower position, the board cannot be removed.
STEP 1
Lift the dual-level deck board up.
STEP
2
Lift the dual-level deck board fur-
A
ther upward through the portion
“A” in the illustration.
Securing the dual-level deck board
STEP 1
Lift the dual-level deck board up.
350
3-5. Other interior features
STEP
2
Remove the hook on the back-
side of the dual-level deck
board.
Attach the hook to the upper
edge of the back door opening
as shown.
3
Removing the luggage cover
The luggage cover can be removed by the following procedure:
Unhook the cords.
Remove the luggage cover out of the
retainers.
Unfasten the hook-and-loop fasteners
from the seatback and remove the lug-
gage cover.
351
3-5. Other interior features
CAUTION
When operating the dual-level deck board or deck board
Do not place anything on the dual-level deck board or deck board when
operating the board. Otherwise, your fingers may be caught or an accident
may result causing injuries.
When the cargo hooks are not in use
To avoid injury, always return the cargo hooks to their stowed positions.
NOTICE
When closing the back door
Do not leave the dual-level deck board hooks attached to the back door
opening. The hooks may get jammed and damage the vehicle.
352
Maintenance and care
4
4-1.
Maintenance and care
Cleaning and protecting
the vehicle exterior
354
Cleaning and protecting
the vehicle interior
358
4-2.
Maintenance
Maintenance
requirements
361
4-3.
Do-it-yourself
maintenance
Do-it-yourself service
precautions
364
Hood
367
Positioning a floor
jack
368
Engine compartment
370
Tires
384
Tire inflation pressure
395
Wheels
397
Air conditioning filter
400
Wireless remote control/
electronic key battery
403
Checking and replacing
fuses
407
Light bulbs
423
353
4-1. Maintenance and care
Cleaning and protecting the vehicle exterior
Perform the following to protect the vehicle and maintain it in prime
condition:
Working from top to bottom, liberally apply water to the vehicle
body, wheel wells and underside of the vehicle to remove any
dirt and dust.
Wash the vehicle body using a sponge or soft cloth, such as a
chamois.
For hard-to-remove marks, use car wash soap and rinse thor-
oughly with water.
Wipe away any water.
Wax the vehicle when the waterproof coating deteriorates.
If water does not bead on a clean surface, apply wax when the vehicle
body is cool.
Automatic car washes
Fold the mirrors and remove the antenna before washing the vehicle.
Start washing from the front of the vehicle. Make sure to re-install the
antenna and extend the mirrors before driving.
Brushes used in automatic car washes may scratch the vehicle surface
and harm your vehicle’s paint.
In certain automatic car washes, the rear spoiler may interfere with
machine operation. This may prevent the vehicle from being cleaned
properly or result in damage to the rear spoiler.
High pressure car washes
Do not allow the nozzles of the car wash to come within close proximity
of the windows.
Before using the car wash, check that the fuel filler door on your vehicle
is closed properly.
354
4-1. Maintenance and care
When using a car wash (vehicles with a smart entry & start system)
If the door handle becomes wet while the electronic key is within the effec-
tive range, the door may lock and unlock repeatedly. Place the key in a posi-
tion 2 m (6 ft.) or more separate from the vehicle while the vehicle is being
washed. (Take care to ensure that the key is not stolen.)
Aluminum wheels (if equipped)
Remove any dirt immediately by using a neutral detergent. Do not use
hard brushes or abrasive cleaners. Do not use strong or harsh chemical
cleaners.
Use the same mild detergent and wax as used on the paint.
Do not use detergent on the wheels when they are hot, for example after
driving for long distance in the hot weather.
Wash detergent from the wheels immediately after use.
Bumpers
Do not scrub with abrasive cleaners.
CAUTION
4
When washing the vehicle
Do not apply water to the inside of the engine compartment. Doing so may
cause the electrical components etc. to catch fire.
355
4-1. Maintenance and care
CAUTION

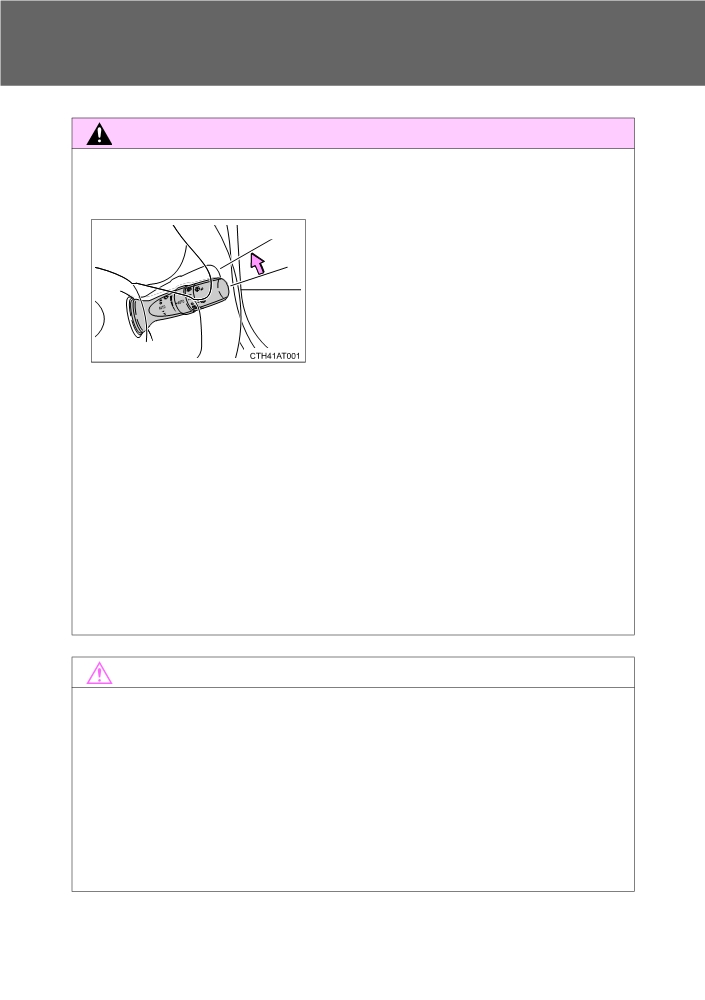

When cleaning the windshield (vehicles with rain-sensing windshield
wiper)
Set the wiper switch to off.
Off
If the wiper switch is in “AUTO”, the wiper
may operate unexpectedly in the follow-
ing situations, and may result in hands
being caught or other serious injuries and
cause damage to the wiper blade.
When the upper part of the windshield where the raindrop sensor is
located is touched by hand
When a wet rag or similar is held close to the raindrop sensor
If something bumps against the windshield
If you directly touch the raindrop sensor body or if something bumps into
the raindrop sensor
Precautions regarding the exhaust pipe
Exhaust gasses cause the exhaust pipe to become quite hot.
When washing the vehicle, be careful not to touch the pipe until it has cooled
sufficiently, as touching a hot exhaust pipe can cause burns.
NOTICE
To prevent paint deterioration and corrosion on the body and compo-
nents (aluminum wheels etc.)
Wash the vehicle immediately in the following cases:
• After driving near the sea coast
• After driving on salted roads
• If coal tar or tree sap is present on the paint surface
• If dead insects, insect droppings or bird droppings are present on the
paint surface
356
4-1. Maintenance and care
NOTICE
• After driving in an area contaminated with soot, oily smoke, mine dust,
iron powder or chemical substances
• If the vehicle becomes heavily soiled with dust or mud
• If liquids such as benzene and gasoline are spilled on the paint surface
If the paint is chipped or scratched, have it repaired immediately.
To prevent the wheels from corroding, remove any dirt and store in a place
with low humidity when storing the wheels.
Cleaning the exterior lights
Wash carefully. Do not use organic substances or scrub with a hard brush.
This may damage the surfaces of the lights.
Do not apply wax to the surfaces of the lights.
Wax may cause damage to the lenses.
Antenna installation and removal precautions
Before driving, ensure that the antenna is installed.
When the antenna is removed, such as before entering an automatic car
4
wash, make sure to store it in a suitable place so as not to lose it. Also,
before driving, make sure to reinstall the antenna in its original position.
When using an automatic car wash (vehicles with rain-sensing wind-
shield wiper)
Set the wiper switch to the off position.
If the wiper switch is in “AUTO”, the wiper may operate and the wiper blade
may be damaged.
To prevent damage to the antenna
Remove the antenna in the following situations:
When the antenna will touch the ceiling of a garage or other such places
When a car cover is to be used to cover the vehicle
357
4-1. Maintenance and care
Cleaning and protecting the vehicle interior
The following procedures will help protect your vehicle's interior and
keep it in top condition:
Protecting the vehicle interior
Remove dirt and dust using a vacuum cleaner. Wipe dirty sur-
faces with a cloth dampened with lukewarm water.
Cleaning the leather areas
Remove dirt and dust using a vacuum cleaner.
Wipe off any excess dirt and dust with a soft cloth dampened
with diluted detergent.
Use a diluted water solution of approximately 5% neutral wool deter-
gent.
Wring out any excess water from the cloth and thoroughly
wipe off all remaining traces of detergent.
Wipe the surface with a dry, soft cloth to remove any remain-
ing moisture. Allow the leather to dry in a shaded and venti-
lated area.
Cleaning the synthetic leather areas
Remove loose dirt using a vacuum cleaner.
Apply a mild soap solution to the synthetic leather using a
sponge or soft cloth.
Allow the solution to soak in for a few minutes. Remove the
dirt and wipe off the solution with a clean, damp cloth.
358
4-1. Maintenance and care
Caring for leather areas
Toyota recommends cleaning the interior of the vehicle at least twice a year
to maintain the quality of the vehicle's interior.
Shampooing the carpets
There are several commercial foaming-type cleaners available. Use a
sponge or brush to apply the foam. Rub in overlapping circles. Do not use
water. Wipe dirty surfaces and let them dry. Excellent results are obtained by
keeping the carpet as dry as possible.
Seat belts
Clean with mild soap and lukewarm water using a cloth or sponge. Also
check the belts periodically for excessive wear, fraying or cuts.
CAUTION
Water in the vehicle
Do not splash or spill liquid in the vehicle.
4
Doing so may cause electrical components etc. to malfunction or catch
fire.
Do not get any of the SRS components or wiring in the vehicle interior wet.
(P. 123)
An electrical malfunction may cause the airbags to deploy or not function
properly, resulting in death or serious injury.
Cleaning the interior (especially instrument panel)
Do not use polish wax or polish cleaner. The instrument panel may reflect off
the windshield, obstructing the driver's view and leading to an accident,
resulting in death or serious injury.
359
