’08 Solara_U (L/O 0802)

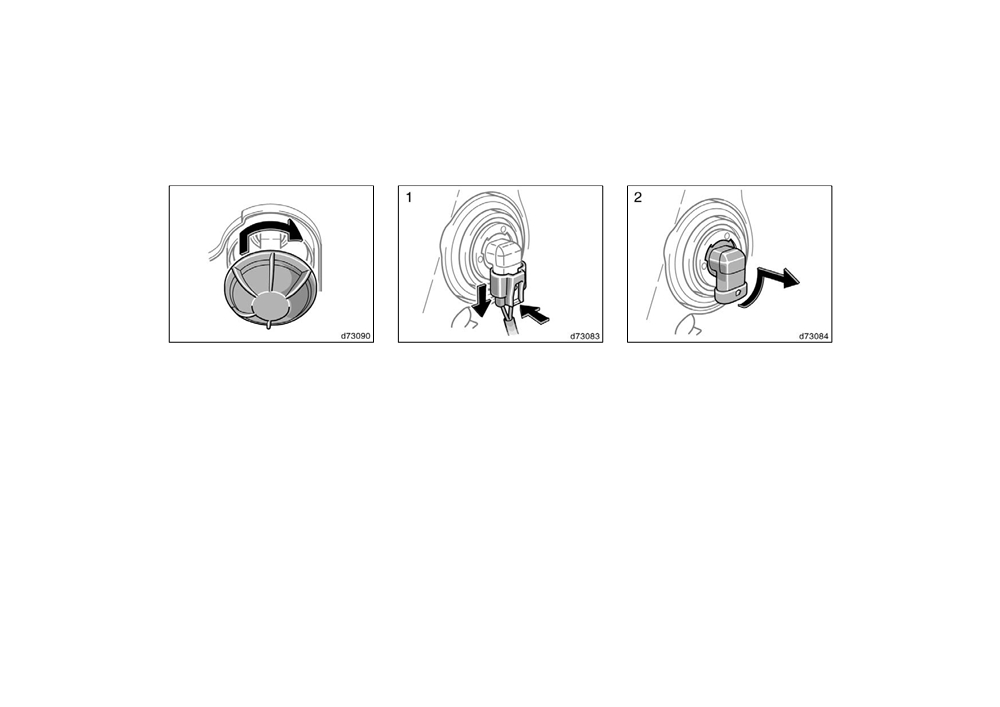

—High beam headlights
5. Install the bulb cover and turn it
1. Open the hood. Unplug the connec-
2. Turn the bulb base counterclockwise
clockwise.
tor while depressing the lock re-
to the front of the vehicle as shown.
lease.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
If the connector is tight, wiggle it.
essary, contact your Toyota dealer.
The above illustration shows the left−hand
headlight.
367
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
’08 Solara_U (L/O 0802)

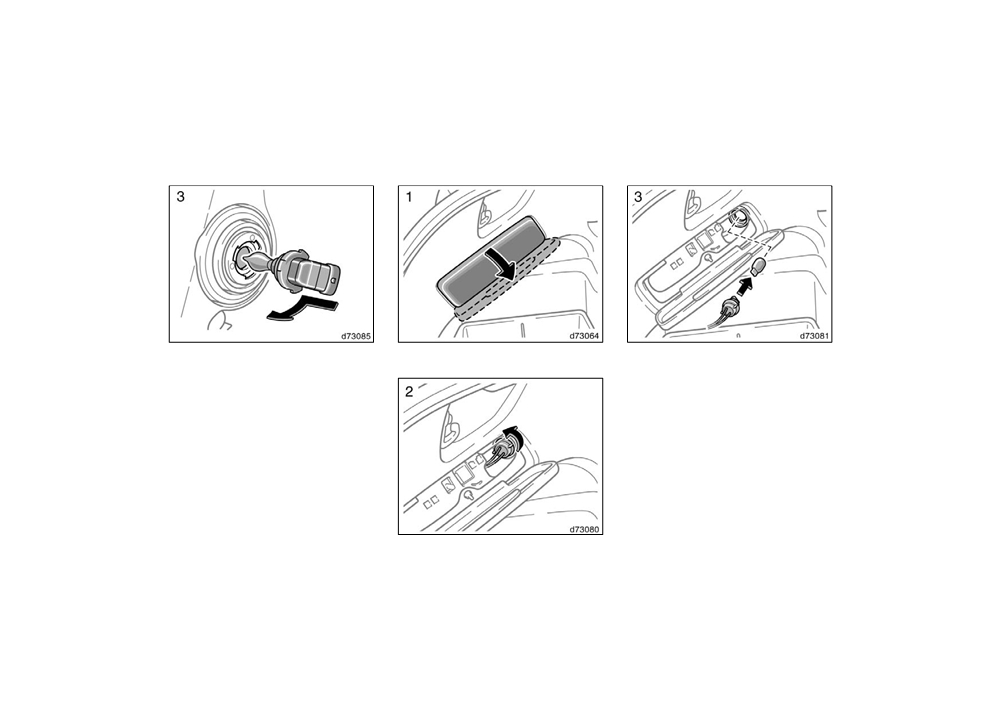

—Rear turn signal lights
3. Install a new bulb into the mounting
hole. Plug the connector.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.
368
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
’08 Solara_U (L/O 0802)

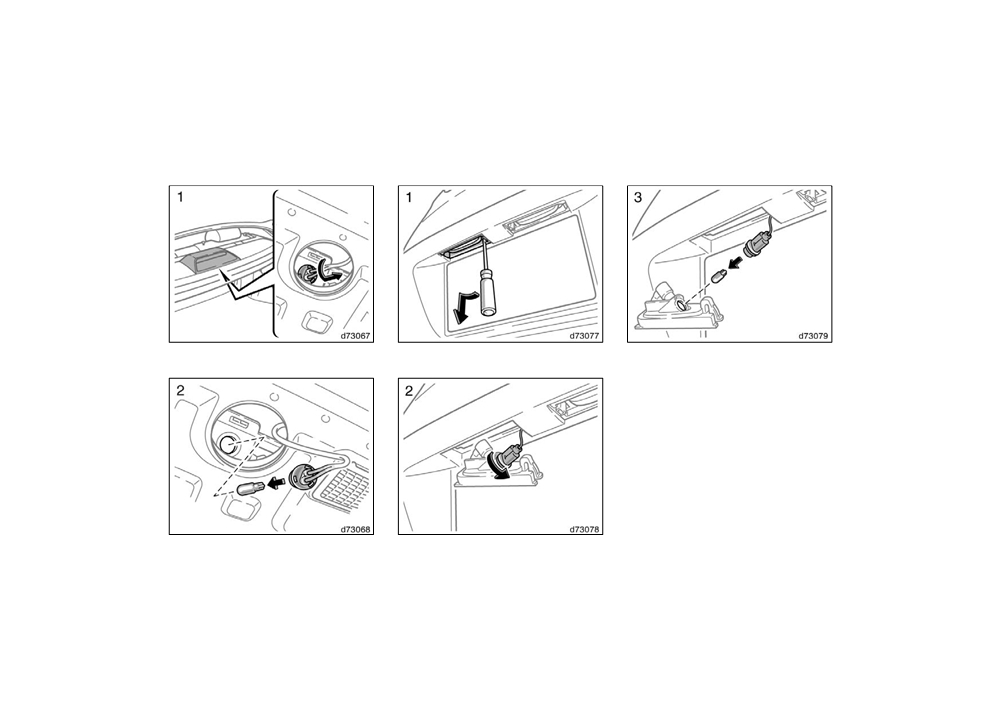

—High mounted stoplight
(coupe)
—License plate lights
Use a flathead screwdriver.
369
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
’08 Solara_U (L/O 0802)
—Front fog, parking, front
side marker, front turn signal
and back−up lights
If either the left or right front fog, park-
ing, front side marker, front turn signal
and back−up lights burns out, contact
your Toyota dealer.
NOTICE
Do not try to replace the front fog,
parking, front side marker and front
turn signal light bulbs by yourself.
You may damage the vehicle.
370
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
’08 Solara_U (L/O 0802)
SECTION 8
SPECIFICATIONS
Specifications
Dimensions and weight
372
Engine
372
Fuel
373
Service specifications
373
Tires
377
Fuses
377
371
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
’08 Solara_U (L/O 0802)
Dimensions and weight
Engine
Model:
Coupe
Convertible
2AZ−FE and 3MZ−FE
Overall length
mm (in.)
4890
(192.5)
4890
(192.5)
Type:
Overall width
mm (in.)
1815
(71.5)
1815
(71.5)
2AZ−FE engine
4 cylinder in line,
4 cycle, gasoline
Overall height∗
mm (in.)
1440
(56.7)
1450
(57.1)
3MZ−FE engine
6 cylinder V type
4 cycle, gasoline
Wheelbase
mm (in.)
2720
(107.1)
2720
(107.1)
Bore and stroke, mm (in.):
Front tread
mm (in.)
1545
(60.8)
1545
(60.8)
2AZ−FE engine
Rear tread
mm (in.)
1535
(60.4)
1535
(60.4)
88.5
96.0
(3.48
3.78)
3MZ−FE engine
Vehicle capacity weight
410
(900)
342
(754)
92.0
83.0
(3.62
3.27)
(occupants + luggage)
kg (lb.)
Displacement, cm3 (cu. in.):
∗: Unladen vehicle
2AZ−FE engine
2362
(144.1)
3MZ−FE engine
3311
(201.9)
372
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
’08 Solara_U (L/O 0802)
Fuel
Service specifications
Fuel type:
ENGINE
ENGINE LUBRICATION
Unleaded gasoline, Octane Rating
87
Valve clearance (engine cold), mm (in.):
Oil capacity
(drain and refill), L
(qt., Imp.
(Research Octane Number 91) or higher
qt.):
2.4 L 4−cylinder (2AZ−FE) engine
Fuel tank capacity, L
(gal., Imp. gal.):
Intake
0.19—0.29 (0.007—0.011)
2.4 L 4−cylinder (2AZ−FE) engine
70
(18.5,
15.4)
Exhaust
0.38—0.48 (0.015—0.019)
With filter
4.3
(4.5,
3.7)
Without filter
4.1
(4.3,
3.6)
3.3 L V6 (3MZ−FE) engine
Intake
0.15—0.25 (0.006—0.010)
3.3 L V6 (3MZ−FE) engine
Exhaust
0.25—0.35 (0.010—0.014)
With filter
4.7
(5.0,
4.1)
Without filter
4.5
(4.8,
4.0)
Spark plug type:
DENSO
SK20R11
“Toyota Genuine Motor Oil” is used in
NGK
IFR6A11
your Toyota vehicle. Use Toyota approved
“Toyota Genuine Motor Oil” or equivalent
Spark plug gap, mm(in.):
to satisfy the following grade and
1.1
(0.043)
viscosity.
3.3 L V6
(3MZ−FE) engine only—Drive
Oil grade:
belt tension measured with Borroughs
ILSAC multigrade engine oil
drive belt tension gauge No.BT−33−73F
(used belt), Ibf:
115"20
373
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
’08 Solara_U (L/O 0802)

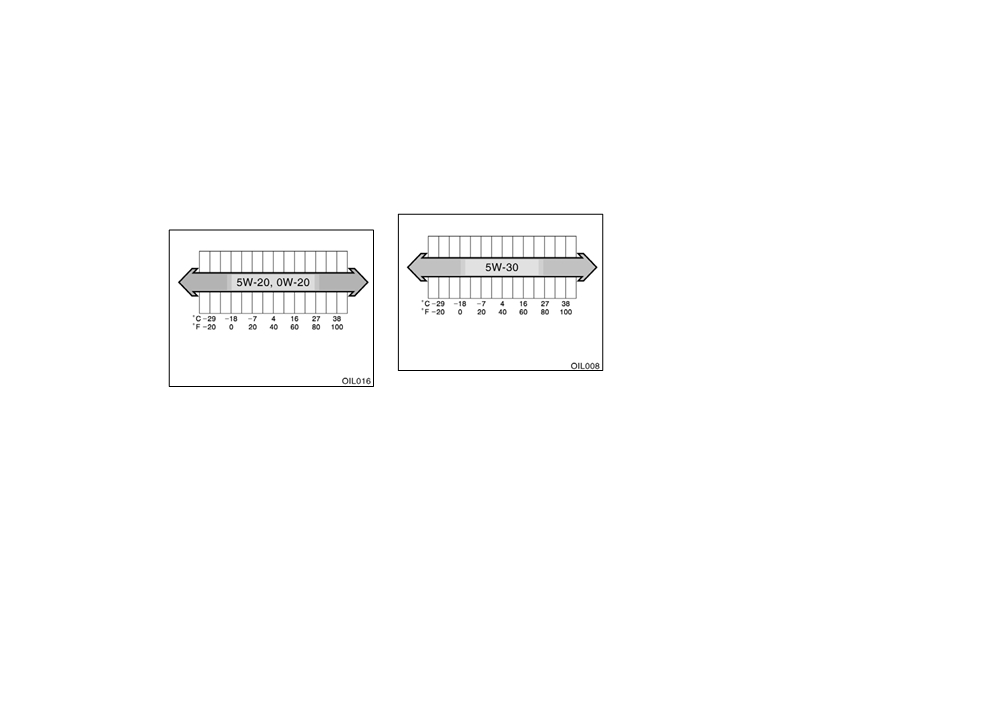

Recommended oil viscosity:
3.3 L V6 (3MZ−FE) engine
COOLING SYSTEM
SAE 5W−30
2.4 L 4−cylinder
(2AZ−FE) engine
Total capacity, L (qt., Imp. qt.):
SAE 5W−20 or 0W−20
2.4 L 4−cylinder (2AZ−FE) engine
6.2
(6.6,
5.4)
3.3 L V6 (3MZ−FE) engine
9.2
(9.8,
8.1)
Coolant type:
“Toyota Super Long Life Coolant” is
used in your Toyota vehicle at factory
fill. In order to avoid technical problems,
only use
“Toyota Super Long Life
Outside temperature
Coolant” or similar high quality ethylene
glycol based non−silicate, non−amine,
Outside temperature
non−nitrite, and non−borate coolant with
long−life hybrid organic acid technology.
(Coolant with long−life hybrid organic
Please contact your Toyota dealer for fur-
acid technology is a combination of low
ther details.
phosphates and organic acids.)
Do not use plain water alone.
Please contact your Toyota dealer for
further details.
374
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
’08 Solara_U (L/O 0802)
BATTERY
AUTOMATIC TRANSAXLE
Notice: Using automatic transmission
fluid other than
“Toyota Genuine ATF
Open voltage∗ at 20_C (68_F):
Fluid capacity
(drain and refill), L
(qt.,
WS” (2.4 L 4−cylinder [2AZ−FE] engine)
12.6—12.8 V
Fully charged
Imp. qt.):
or “Toyota genuine ATF Type T−IV” (3.3
12.2—12.4 V
Half charged
3.5
(3.7,
3.1)
L V6 [3MZ−FE] engine) may cause dete-
11.8—12.0 V
Discharged
Fluid type:
rioration in shift quality, locking up of
∗: Voltage that is checked
20 minutes af-
2.4 L 4−cylinder (2AZ−FE) engine
your transmission accompanied by
ter the key is removed with all the lights
Toyota Genuine ATF WS
vibration, and ultimately damage the au-
turned off
3.3 L V6 (3MZ−FE) engine
tomatic transmission of your vehicle.
Charging rates:
Toyota Genuine ATF Type T−IV
Please contact your Toyota dealer for fur-
5 A max.
Change automatic transmission fluid only
ther details.
NOTE: If replacement is necessary, make
as necessary.
sure to do so with a battery that
Generally, it is necessary to change
meets the same standard as the
automatic transmission fluid only if your
original.
vehicle is driven under one of the Special
CLUTCH
Operating Conditions listed in your
“Scheduled
Maintenance
Guide”
or
Pedal free play, mm (in.):
“Owner’s Manual Supplement”. When
5—15 (0.2—0.6)
changing the automatic transmission fluid,
Fluid type:
use only the following types to aid in
SAE J1703 or FMVSS No.116 DOT 3
assuring optimum transaxle performance.
MANUAL TRANSAXLE
2.4 L 4−cylinder (2AZ−FE) engine
Oil capacity, L (qt., Imp. qt.):
“Toyota Genuine ATF WS”
(ATF
2.5
(2.6,
2.2)
JWS3324 or NWS9638)
Oil type:
3.3 L V6 (3MZ−FE) engine
Gear oil API GL−4 or GL−5
“Toyota Genuine ATF Type T−IV” (ATF
JWS3309 or NWS6500)
Recommended oil viscosity:
SAE 75W−90
375
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
’08 Solara_U (L/O 0802)
BRAKES
Minimum pedal clearance when depressed
with the force of
490 N (50 kgf, 110 lbf)
with the engine running, mm (in.):
With vehicle stability control system
78
(3.1)
Without vehicle stability control system
68.5
(2.7)
Pedal free play, mm (in.):
1—6 (0.04—0.24)
Pad wear limit, mm (in.):
1.0
(0.04)
Lining wear limit, mm
(in.):
1.0
(0.04)
Parking brake adjustment when pulled with
the force of
196 N (20 kgf, 44 lbf):
6—9 clicks
Fluid type:
SAE J1703 or FMVSS No.116 DOT 3
STEERING
Wheel free play:
Less than 30 mm (1.2 in.)
Power steering fluid type:
Automatic transmission fluid DEXRONrII
or III
376
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
’08 Solara_U (L/O 0802)
Tires
Fuses
Tire size and cold tire inflation pressure:
Front and rear
kPa (kgf/cm2 or bar, psi)
Tire size
Front
Rear
Wheel size
16
6 1/2 J
P215/60R16 94V
200
(2.0,
29)
200
(2.0,
29)
16
6 1/2 JJ
P215/55R17 93V
220
(2.2,
32)
220
(2.2,
32)
17
7 J
When driving under the above driving conditions at sustained high speeds
above 160 km/h (100 mph), in countries where such speeds are permitted
by law, inflate the front and rear tires to 240 kPa (2.4 kgf/cm2 or bar, 35
psi) provided that it does not exceed the maximum cold tire inflation pressure
molded on the tire sidewall.
Spare
kPa (kgf/cm2 or bar, psi)
Tire size
Front
Rear
Wheel size
16
6 1/2 J
P215/60R16 94V
200
(2.0,
29)
200
(2.0,
29)
16
6 1/2 JJ
P215/55R17 93V
220
(2.2,
32)
220
(2.2,
32)
17
7 J
T155/70R17 110M
420
(4.2,
60)
420
(4.2,
60)
17
4 T
Wheel nut torque, N·m (kgf·m, ft·lbf):
103
(10.5,
76)
NOTE: For a complete information on tires (e.g. replacing tires or replacing
wheels), see “Checking tire inflation pressure” through “Aluminum
wheel precautions”, pages 349 through 358, in Section 7−2.

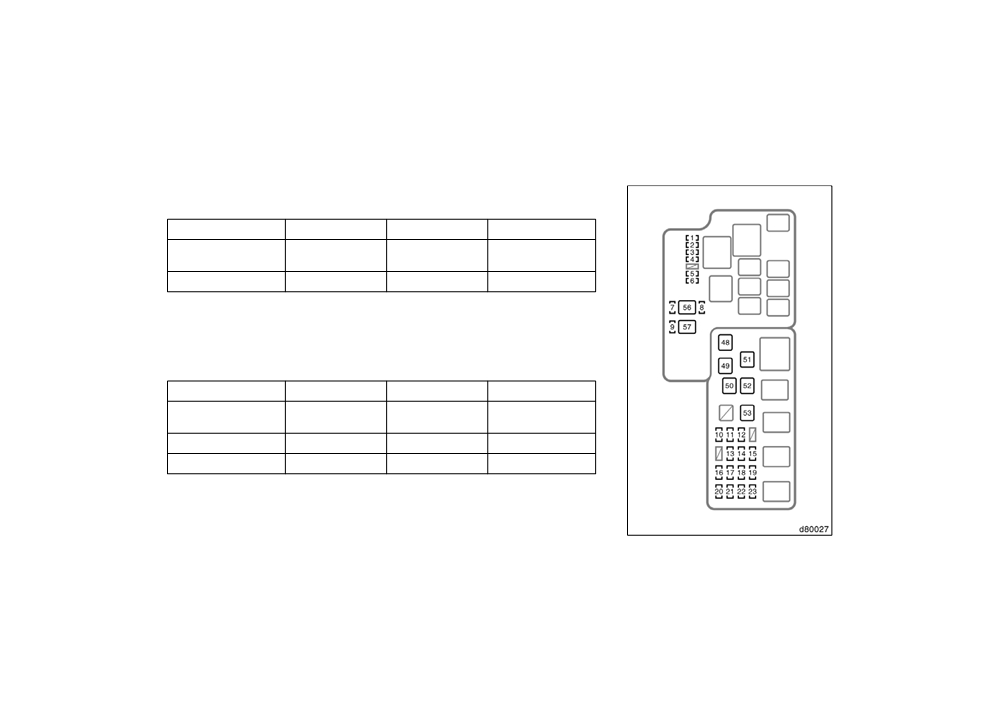

Engine compartment
377
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
’08 Solara_U (L/O 0802)
9.
SPARE 5 A: Spare fuse
20. A/F 25 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
10.
AM2 30 A: Starting system, “IGN” and
system
“IG2” fuses
21. ABS No.2 25 A: Anti−lock brake sys-
11.
HEAD LH UPR 10 A: Left−hand head-
tem, vehicle stability control system,
light
(high beam)
traction control system, brake assist
12.
HEAD RH UPR
10 A: Right−hand
system
headlight
(high beam)
22. ETCS
10 A: Multiport fuel injection
13.
ALT−S 5 A: Charging system
system/sequential multiport fuel injec-
14.
IGN 15 A: Ignition system, multi−infor-
tion system
mation display
23. HAZ 15 A: Emergency flashers
15.
IG2 10 A: Multiport fuel injection sys-
Fuses (type B)
tem/sequential multiport fuel injection

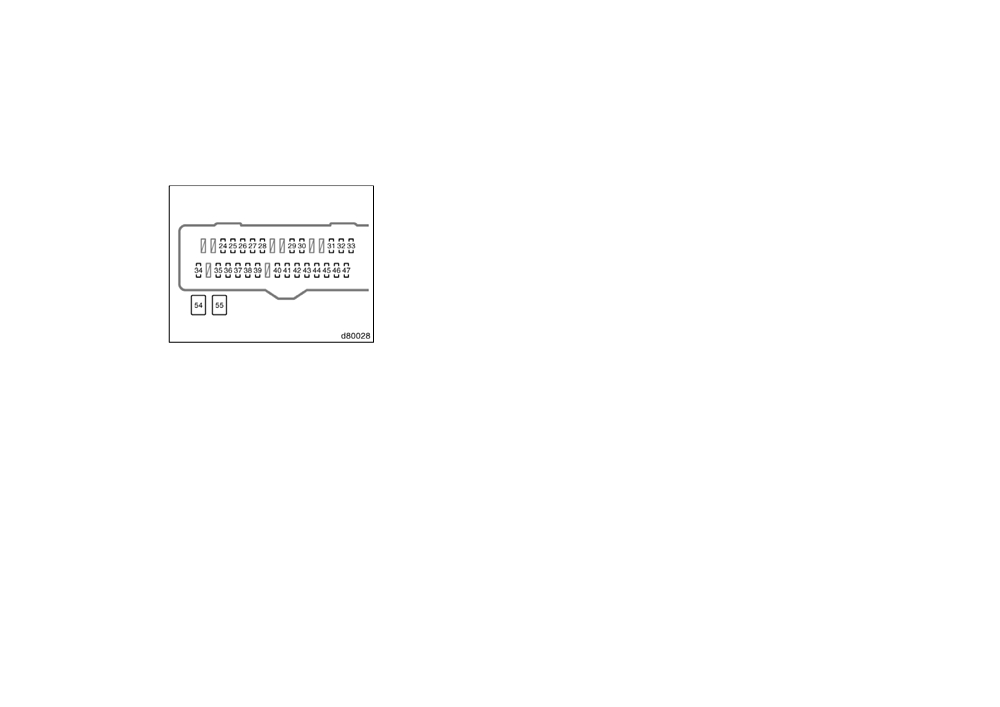

Instrument panel
24. P/W No.2
7.5 A
(convertible): Side
system, SRS airbag system, cruise
power windows
control system, gauges and meters,
Fuses (type A)
front passenger occupant classification
25. FOG 15 A: Front fog lights
system
1. HEAD LH LWR 15 A: Left−hand head-
26. OBD 7.5 A: On−board diagnosis sys-
light
(low beam)
16.
DOOR1 25 A: Multiplex communication
tem
2. HEAD RH LWR
15 A: Right−hand
system (power door lock system, auto−
27. AMP 25 A: Audio system
headlight
(low beam)
door locking system, wireless remote
28. STOP 15 A: Stop lights, high mounted
control system)
3. DRL 5 A: Daytime running light system
stoplight, anti−lock brake system, shift
17.
EFI
20 A: Multiport fuel injection sys-
4. A/C 10 A: Air conditioning system
lock control system, vehicle stability
tem/sequential multiport fuel injection
control system, multiport fuel injection
5. EFI2
5 A: Multiport fuel injection sys-
system, emission control system
system/sequential multiport fuel injec-
tem/sequential multiport fuel injection
18.
HORN 10 A: Horns
tion system
system
19.
D.C.C
30 A:
“ECU−B”,
“RAD1” and
29. AM1 7.5 A: Starting system
6. ST 5 A: Starting system
“DOME” fuses
30. P/W 25 A: Power windows
7. SPARE 10 A: Spare fuse
31. S/ROOF 25 A: Electric moon roof
8. SPARE 15 A: Spare fuse
378
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
’08 Solara_U (L/O 0802)
32.
TAIL
10 A: Tail lights, parking lights,
41.
ECU−B 10 A: Multiplex communication
Fuses (type C)
license plate lights, front fog lights,
system (power door lock system, secu-
48. MAIN
40 A: Headlights, daytime run-
multiport fuel injection system/sequen-
rity system, auto−door locking system,
ning light system, multiport fuel injec-
tial multiport fuel injection system
automatic light control system, head-
tion system/sequential multiport fuel in-
light delay off system, tail light auto
33.
PANEL 10 A: Glove box light, multi−in-
jection system,
“HEAD LH LWR”,
cut system, illuminated entry system,
formation display, instrument cluster
“HEAD RH LWR”,
“HEAD LH UPR”,
daytime running light system, wireless
lights, instrument panel lights
“HEAD RH UPR” and “DRL” fuses
remote control system), air conditioning
34.
ECU−IG
10 A: SRS airbag system,
49. ABS No.1 50 A: Anti−lock brake sys-
system, front passenger occupant clas-
anti−lock brake system, vehicle stability
tem, vehicle stability control system,
sification system, gauges and meters,
control system, traction control system,
traction control system, brake assist
vehicle stability control system
brake assist system, compass, anti−
system
42.
DOME 7.5 A: Engine switch light, inte-
glare inside rear view mirror, electric
50. CDS 30 A: Electric cooling fan
rior light, personal lights, trunk light,
moon roof, power windows, multiplex
vanity lights, wireless remote control
51. RDI 30 A: Electric cooling fan
communication system
system, multi−information display
52. HTR 50 A: Air conditioning system
35.
HTR
10 A: Air conditioning system,
43.
ECU ACC 7.5 A: Power rear view mir-
rear window defogger, outside rear
53. TSK
30 A
(convertible): Convertible
rors, multi−information display, gauges
view mirror defoggers
top control system, quarter windows
and meters, automatic transmission,
36.
WASH 15 A: Windshield washer
54. PWR 30 A: Side power windows
multiplex communication system
37.
S/HTR 20 A: Seat heaters
55. P/SEAT 30 A: Power seats
44.
CIG 15 A: Power outlet
38.
GAUGE1 10 A: Gauges and meters,
Fuses (type D)
45.
P/POINT 15 A: Power outlet
multi−information display, shift lock con-
56. ALT 120 A:
“HEAD LH LWR”, “HEAD
46.
RAD2 10 A: Audio system
trol system, turn signal lights, back−up
RH LWR”, “DRL”, “A/C”, “AM2”, “HEAD
lights, cruise control system, charging
47.
MIR HTR 10 A: Outside rear view mir-
LH UPR”,
“HEAD RH UPR”, “ALT−S”,
system, theft deterrent system, auto-
ror defoggers, multiport fuel injection
“IGN”,
“IG2”,
“DOOR1”, “EFI”, “HORN”,
matic transmission
system/sequential multiport fuel injec-
“D.C.C”,
“A/F”,
“ABS No.2”,
“ETCS”,
tion system
39.
WIP 25 A: Windshield wipers
“HAZ”,
“DEF”,
“MAIN”,
“ABS No.1”,
“CDS”, “RDI” and “HTR (50 A)” fuses
40.
RAD1 20 A: Audio system
57. DEF 40 A: Rear window defogger, out-
side rear view mirror defoggers
379
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
’08 Solara_U (L/O 0802)
380
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
’08 Solara_U (L/O 0802)
SECTION 9
FOR OWNERS
For owners
Reporting safety defects for U.S. owners
382
Seat belt instructions for Canadian owners (in French)
382
381
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
