’05MY CELICA U (L/O 0409)
Here are some common reception prob-
AM
Use high−quality cassettes.
lems that probably do not indicate a prob-
Fading—AM broadcasts are reflected by
D Low−quality cassette tapes can cause
lem with your radio:
the upper atmosphere—especially at night.
many problems, including poor sound,
FM
These reflected signals can interfere with
inconsistent
playing
speed,
and
those received directly from the radio sta-
constant auto−reversing. They can also
Fading and drifting stations—Generally, the
tion, causing the radio station to sound
get stuck or tangled in the cassette
effective range of FM is about 40 km (25
alternately strong and weak.
player.
miles). Once outside this range, you may
notice fading and drifting, which increase
Station interference—When a reflected sig-
D Do not use a cassette if it has been
with the distance from the radio transmit-
nal and a signal received directly from a
damaged or tangled or if its label is
ter. They are often accompanied by distor-
radio station are very nearly the same
peeling off.
tion.
frequency, they can interfere with each
D Do not leave a cassette in the player
other, making it difficult to hear the broad-
Multi−path—FM signals are reflective,
if you are not listening to it, especially
cast.
making it possible for two signals to reach
if it is hot outside.
your antenna at the same time. If this
Static—AM is easily affected by external
D Store cassettes in their cases and out
happens, the signals will cancel each oth-
sources of electrical noise, such as high
of direct sunlight.
er out, causing a momentary flutter or
tension power lines, lightening, or electri-
D Avoid using cassettes with a total play-
loss of reception.
cal motors. This results in static.
ing time longer than
100 minutes
(50
Static and fluttering—These occur when
CARING FOR YOUR CASSETTE PLAYER
minutes per side). The tape used in
signals are blocked by buildings, trees, or
AND TAPES
these cassettes is thin and could get
other large objects. Increasing the bass
For the best performance for your cas-
stuck or tangled in the cassette player.
level may reduce static and fluttering.
sette player and tapes:
Station swapping—If the FM signal you
Clean the tape head and other parts regu-
are listening to is interrupted or weak-
larly.
ened, and there is another strong station
D A dirty tape head or tape path can
nearby on the FM band, your radio may
decrease sound quality and tangle your
tune in the second station until the origi-
cassette tapes. The easiest way to
nal signal can be picked up again.
clean them is by using a cleaning tape.
(A wet type is recommended.)
127
2005 CELICA from Sep. ’04 Prod. (OM20888U)
’05MY CELICA U (L/O 0409)
CARING FOR YOUR COMPACT DISC
PLAYER AND DISCS
D Your compact disc player is intended
for use with 12 cm (4.7 in.) discs only.
D Extremely high temperatures can keep
your compact disc player from working.
On hot days, use the air conditioning
to cool the vehicle interior before you
listen to a disc.
D Bumpy roads or other vibrations may
cause your compact disc player to
skip.
D If moisture gets into your compact disc
Special shaped discs
D Use only compact discs marked as
player, you may not hear any sound
shown above. The following products
even though your compact disc player
appears to be working. Remove the
may not be playable on your compact
disc player.
disc from the player and wait until it
dries.
Copy−protected CD
CD−R (CD−Recordable)
CAUTION
CD−RW (CD−Re−writable)
CD−ROM
Compact disc players use an invisible
laser beam which could cause hazard-
ous radiation exposure if directed
outside the unit. Be sure to operate
the player correctly.
Transparent/translucent discs
128
2005 CELICA from Sep. ’04 Prod. (OM20888U)
’05MY CELICA U (L/O 0409)
NOTICE
Do not use special shaped, transpar-
ent/translucent, low quality or labeled
discs such as those shown in the il-
lustrations. The use of such discs
may damage the player or changer, or
it may be impossible to eject the
disc.
Correct
Wrong
Low quality discs
D Handle compact discs carefully, espe-
cially when you are inserting them.
Hold them on the edge and do not
bend them. Avoid getting fingerprints
on them, particularly on the shiny side.
D Dirt, scratches, warping, pin holes, or
other disc damage could cause the
player to skip or to repeat a section of
a track.
(To see a pin hole, hold the
disc up to the light.)
D Remove discs from the compact disc
player when you are not listening to
them. Store them in their plastic cases
away from moisture, heat, and direct
sunlight.
Labeled discs
129
2005 CELICA from Sep. ’04 Prod. (OM20888U)
’05MY CELICA U (L/O 0409)

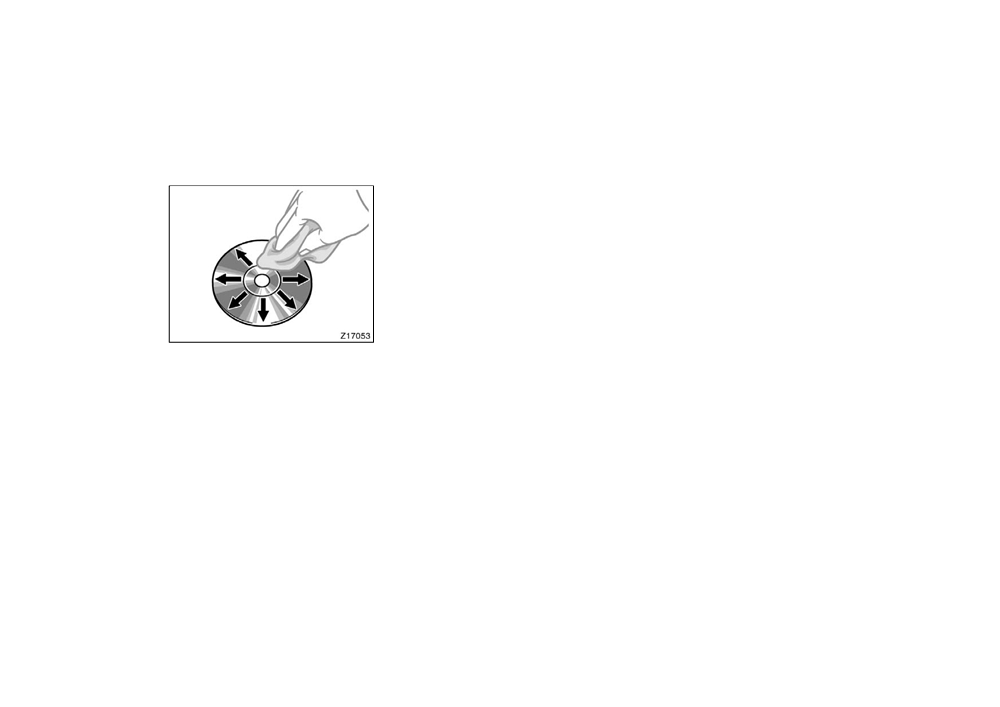

To clean a compact disc: Wipe it with a
soft, lint−free cloth that has been damp-
ened with water. Wipe in a straight line
from the center to the edge of the disc
(not in circles). Dry it with another soft,
lint−free cloth. Do not use a conventional
record cleaner or anti−static device.
130
2005 CELICA from Sep. ’04 Prod. (OM20888U)
’05MY CELICA U (L/O 0409)
SECTION 1− 9
OPERATION OF INSTRUMENTS AND
CONTROLS
Air conditioning system
Controls
132
Air flow selector settings
135
Operating tips
135
Instrument panel vents
137
131
2005 CELICA from Sep. ’04 Prod. (OM20888U)
’05MY CELICA U (L/O 0409)

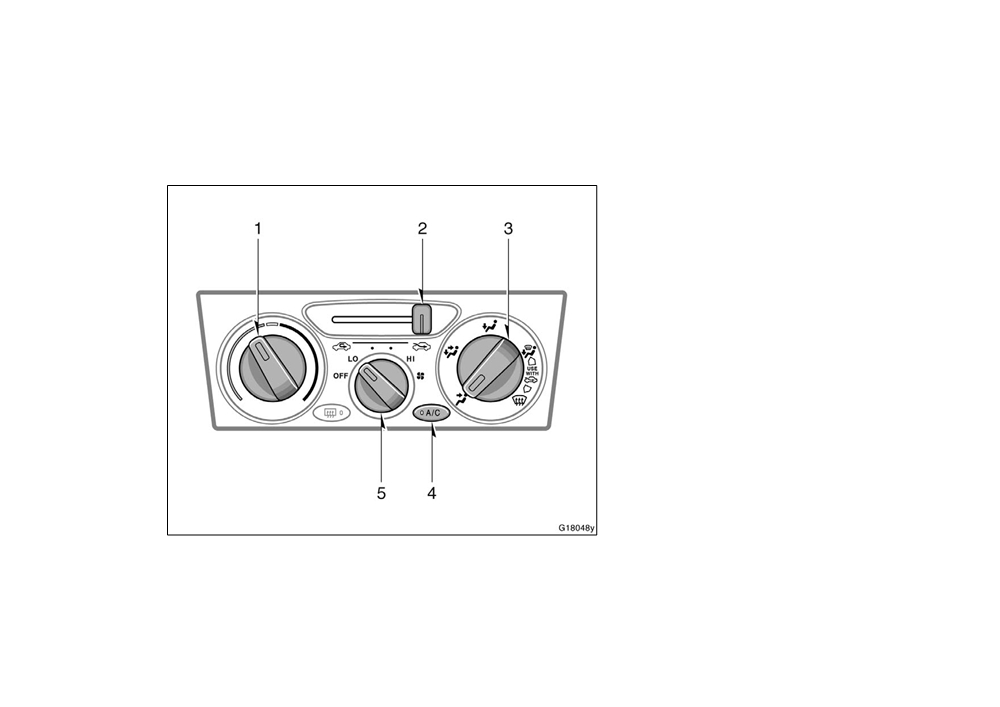

Controls
1. Temperature selector
2. Air intake selector
3. Air flow selector
4. “A/C” button
(on some models)
5. Fan speed selector
132
2005 CELICA from Sep. ’04 Prod. (OM20888U)
’05MY CELICA U (L/O 0409)
Fan speed selector
4. Floor/Windshield—Air flows mainly
from the floor vents and windshield
Turn the knob to adjust the fan speed—to
vents.
the right to increase, to the left to de-
crease.
Use with the air intake selector posi-
tioned in Fresh.
Temperature selector
5. Windshield—Air flows mainly from the
Turn the knob to adjust the tempera-
windshield vents.
ture—to the right to warm, to the left to
cool.
Turning the air flow selector to the
windshield position turns on the defog-
ging function with the purpose of clear-
ing the front view.
Use with the air intake selector posi-
tioned in Fresh.
Air flow selector
Vehicles with
“A/C” button—
Turn the knob to select the vents used for
Press the
“A/C” button for dehumidified
air flow.
heating or cooling. This setting clears the
1. Panel—Air flows mainly from the in-
front view more quickly.
strument panel vents.
For details about air flow selector settings,
2. Bi−level—Air flows from both the floor
see “Air flow selector settings” described
vents and the instrument panel vents.
below.
3. Floor—Air flows mainly from the floor
vents.
133
2005 CELICA from Sep. ’04 Prod. (OM20888U)
’05MY CELICA U (L/O 0409)
“A/C” button (on some models)
To turn on the air conditioning, press the
“A/C” button. The
“A/C” button indicator
will come on. To turn the air conditioning
off, press the button again.
If the
“A/C” button indicator flashes, there
is a problem in the air conditioning system
and the air conditioning automatically
shuts off. If this happens, take your ve-
hicle to a Toyota dealer for service.

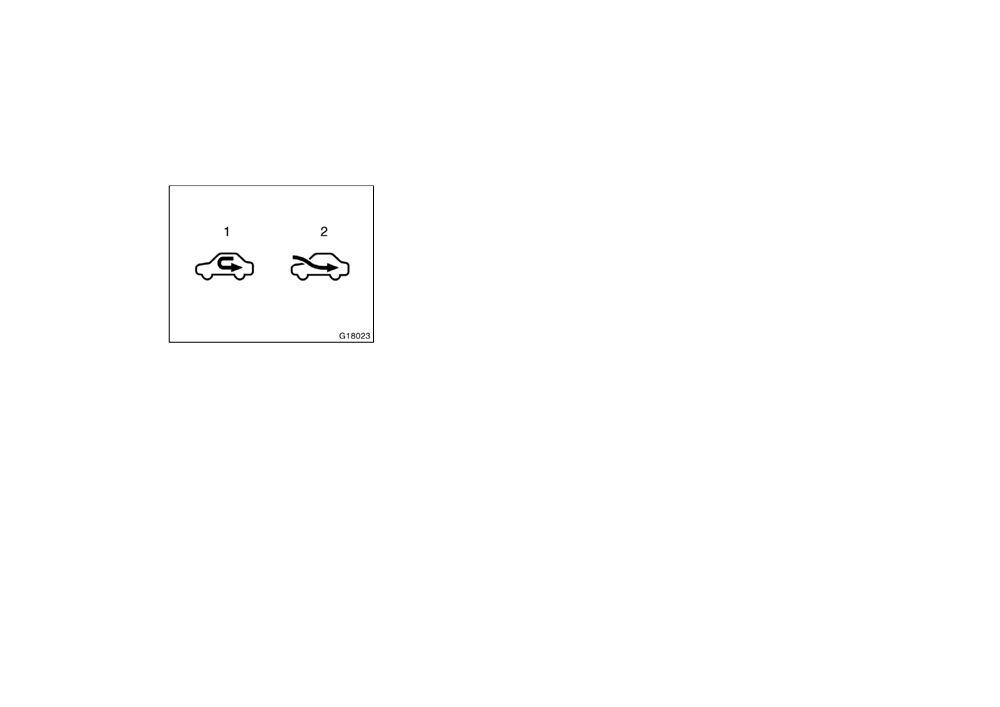

Air intake selector
Move the lever to select the air source.
1. Recirculate—Recirculates the air inside
the vehicle.
2. Fresh—Draws outside air into the sys-
tem.
134
2005 CELICA from Sep. ’04 Prod. (OM20888U)
’05MY CELICA U (L/O 0409)

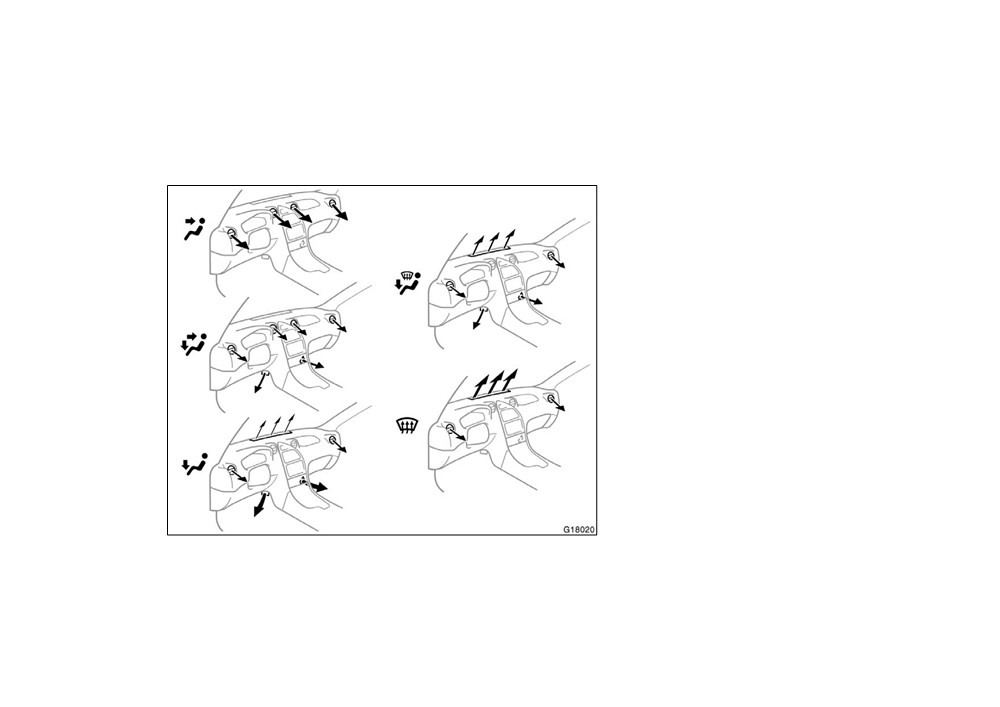

Air flow selector settings
Operating tips
D To cool off your Toyota after it has
been parked in the hot sun, drive with
the windows open for a few minutes.
This vents the hot air, allowing the air
conditioning to cool the interior more
quickly.
D Make sure the air intake grilles in front
of the windshield are not blocked
(by
leaves or snow, for example).
D On humid days, do not blow cold air
on the windshield. The windshield could
fog up because of the difference in air
temperature on the inside and outside
of the windshield.
D Keep the area under the front seats
clear to allow air to circulate through-
out the vehicle.
D On cold days, set the fan speed to
high for a minute to help clear the
intake ducts of snow or moisture. This
can reduce the amount of fogging on
the windows.
D When driving on dusty roads, close all
windows. If dust thrown up by the ve-
hicle is still drawn into the vehicle after
closing the windows, it is recommended
that the air intake selector be set to
FRESH and the fan speed selector to
any setting except
“OFF”.
135
2005 CELICA from Sep. ’04 Prod. (OM20888U)
’05MY CELICA U (L/O 0409)
D If following another vehicle on a dusty
Heating
Air conditioning
road, or driving in windy and dusty
For best results, set controls to:
For best results, set controls to:
conditions, it is recommended that the
air intake selector be temporarily set to
Fan speed—Any setting except “OFF”
Fan speed—Any setting except “OFF”
RECIRCULATE, which will close off the
Temperature—Towards WARM
Temperature—Towards COLD
outside passage and prevent outside
(red zone)
(blue zone)
air and dust from entering the vehicle
Air intake—FRESH (outside air)
Air intake—FRESH (outside air)
interior.
Air flow—FLOOR
Air flow—PANEL
Air conditioning—OFF
Air conditioning—ON
D For quick heating, select recirculated
D For quick cooling, move the air intake
air for a few minutes. To keep the
selector to recirculate for a few min-
windows from fogging. select fresh af-
utes.
ter the vehicle interior has been
Ventilation
warmed.
For best results, set controls to:
D Press the “A/C” button on for dehumidi-
fied heating.
Fan speed—Any setting except “OFF”
Temperature—Towards COLD
D Choose floor/windshield air flow to heat
(blue zone)
the vehicle interior while defrosting or
Air intake—FRESH (outside air)
defogging the windshield.
Air flow—PANEL
Air conditioning—OFF
136
2005 CELICA from Sep. ’04 Prod. (OM20888U)
’05MY CELICA U (L/O 0409)

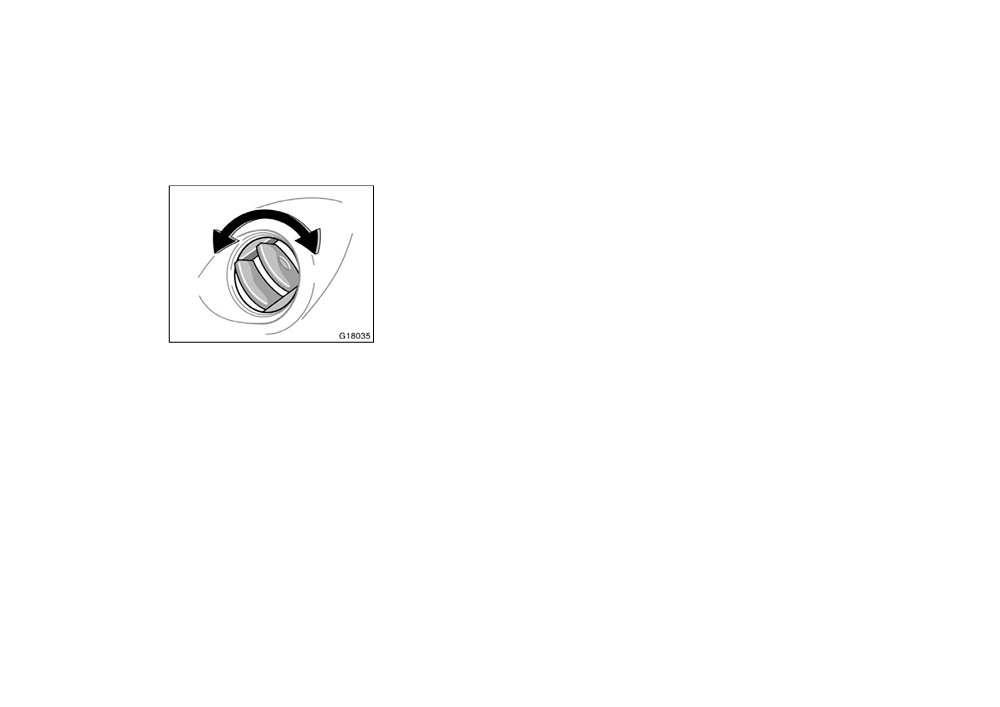

Instrument panel vents
Defogging and defrosting
The outside of the windshield
Open
The inside of the windshield
For best results, set controls to:
For best results, set controls to:
Fan speed—Any setting except “OFF”
Temperature—Towards WARM
Fan speed—Any setting except “OFF”
(red zone)
Temperature—Towards WARM (red
Close
Air intake—FRESH (outside air)
zone) to heat; COLD
Air flow—WINDSHIELD
(blue zone) cool
Air intake—FRESH (outside air)
Turning the air flow selector to the wind-
Air flow—WINDSHIELD
shield position turns on the defogging
function with the purpose of clearing the
Turning the air flow selector to the wind-
front view.
shield position turns on the defogging
function with the purpose of clearing the
Vehicles with
“A/C” button—
front view.
If air flow control is not satisfactory, check
Press the
“A/C” button for dehumidified
the instrument panel vents. The instrument
Vehicles with
“A/C” button—
heating or cooling. This setting clears the
front view more quickly.
panel vents may be opened or closed as
Press the
“A/C” button for dehumidified
shown.
heating or cooling. This setting clears the
D To heat the vehicle interior while de-
front view more quickly.
frosting the windshield, choose floor/
windshield air flow.
D On humid days, do not blow cold air
on the windshield—the difference be-
tween the outside and inside tempera-
tures could make the fogging worse.
137
2005 CELICA from Sep. ’04 Prod. (OM20888U)
’05MY CELICA U (L/O 0409)
You can change air flow direction by turn-
ing the instrument panel vents.
138
2005 CELICA from Sep. ’04 Prod. (OM20888U)
’05MY CELICA U (L/O 0409)
SECTION 1− 10
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Clock
140
Outside temperature display
140
Cigarette lighter and ashtray
141
Glove box
142
Auxiliary boxes
142
Cup holders
143
Tie−down hooks
143
Luggage cover
144
Grocery bag hooks
144
Floor mat
144
139
2005 CELICA from Sep. ’04 Prod. (OM20888U)
’05MY CELICA U (L/O 0409)

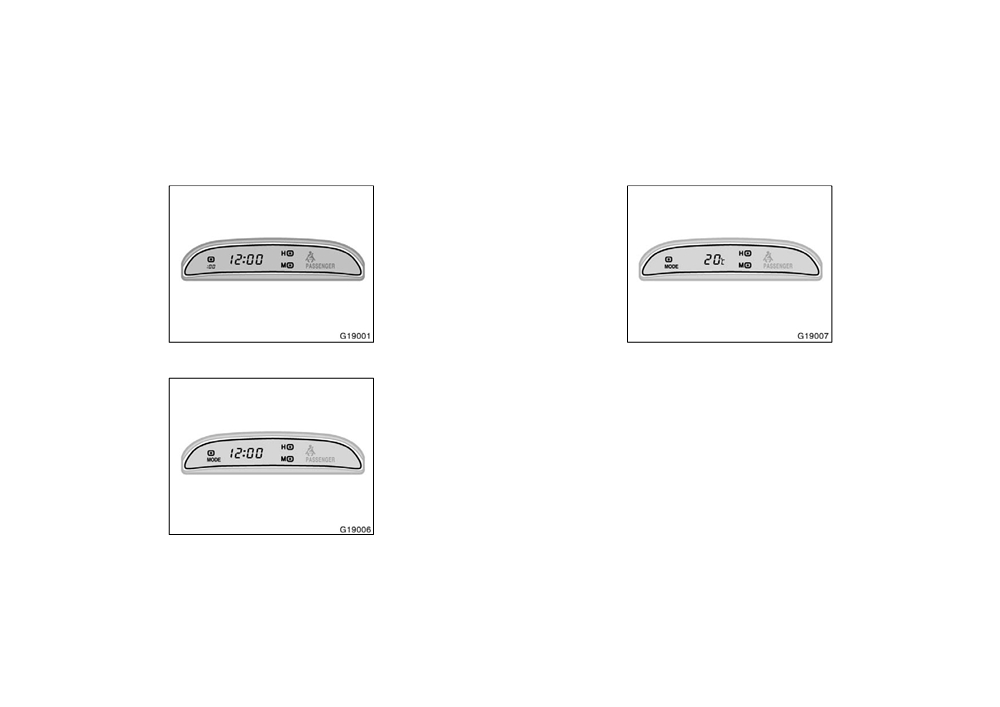

Clock
Outside temperature display
To reset the hour: Push the “H” button.
To reset the minutes: Push the “M” button.
The key must be in the
“ACC” or
“ON”
position.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o’clock).
When the instrument panel lights are
turned on, the brightness of the time indi-
cator is reduced.
Type A only—
Type A
If quick adjustment to a full hour is de-
sired, push the
“:00” button.
To change the display from clock to out-
side temperature display, push and release
For example, if the
“:00” button is de-
“MODE”. The display changes from clock
pressed when the time is between
to outside temperature display
(_C), then
1:01—1:29, the time will change to
1:00.
back to clock each time you push.
(See
If the time is between
1:30—1:59, the
“Clock” in this Section.)
time will change to
2:00.
Type B only—
Outside temperature display
(_C)—Shows
the outside air temperature in Celsius.
When the key is in the
“ON” position,
The displayed temperature ranges from
push the
“MODE” button to change the
−30_C to 50_C.
display from clock to outside temperature
display.
(See
“Outside temperature dis-
The key must be in the “ON” position.
play” in this Section.)
When you return the key to the
“ACC”
position, the display returns to clock
mode.
Type B
140
2005 CELICA from Sep. ’04 Prod. (OM20888U)
’05MY CELICA U (L/O 0409)
Cigarette lighter and ashtray
If an abnormality exists in the connection
ASHTRAY
to the outside air temperature sensor, “−−”
To use the ashtray, pull out the lid.
will appear on the display. Contact your
When finished with your cigarette, thor-
Toyota dealer.
oughly extinguish it in the ashtray to pre-
When the instrument panel lights are
vent other cigarette butts from catching
turned on, the brightness of the tempera-
fire. After using the ashtray, close the lid
ture indicator is reduced.
completely.
To remove the ashtray, pull the lid and
pull it out.
CAUTION
To reduce the chance of injury in
CIGARETTE LIGHTER
case of an accident or sudden stop
while driving, always close the lid
To use the cigarette lighter, press it in.
completely after use.
After it finishes heating up, it automati-
cally pops out ready for use.
If the engine is not running, the key must
be in the
“ACC” position.
Do not hold the cigarette lighter pressed
in.
Use a Toyota genuine cigarette lighter or
equivalent for replacement.
141
2005 CELICA from Sep. ’04 Prod. (OM20888U)
