Toyota Celica (2005 year). Instruction - part 7

’05MY CELICA U (L/O 0409)

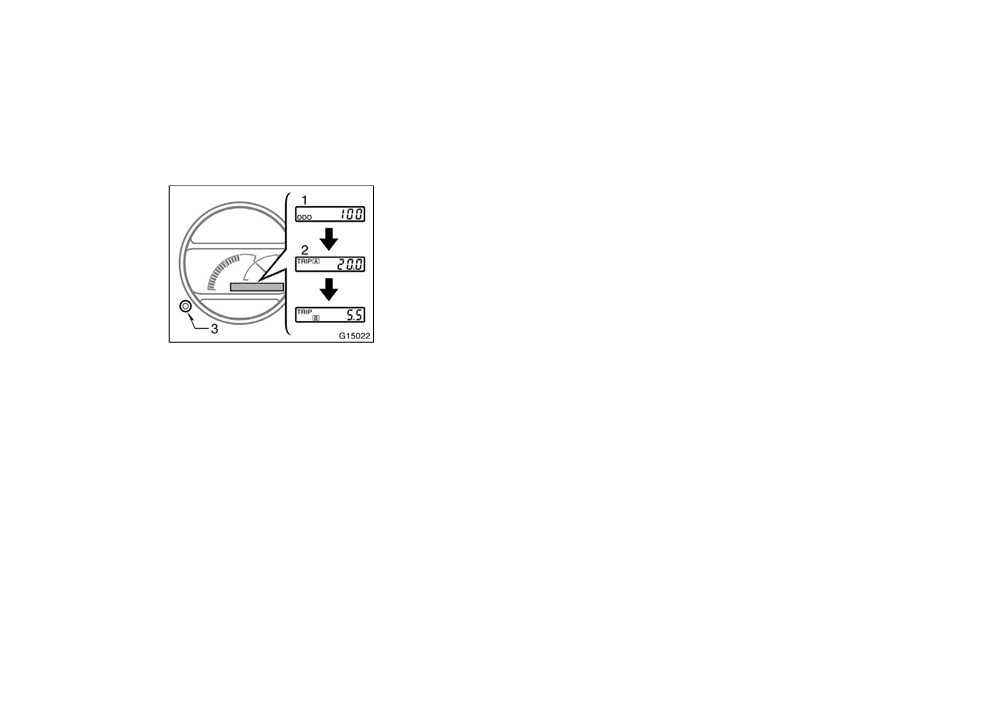

Odometer and two trip meters

3.

Trip meter reset knob—Resets the two

trip meters to zero, and also change

the meter display.

To change the meter display, quickly

push and release the knob. The meter

display changes in the order from the

odometer to trip meter A to trip meter

B, then back to the odometer each

time you push.

To reset the trip meter A to zero, dis-

play the meter A reading, then push

and hold the knob until the meter is

set to zero. The same process can be

applied for resetting the trip meter B.

This meter displays the odometer and

two trip meters.

1. Odometer—Shows the total distance

the vehicle has been driven.

2. Two trip meters—Show two different

distances independently driven since

the last time each trip meter was set

to zero.

You can use one trip meter to calculate

the fuel economy and the other to

measure the distance on each trip. All

trip meter data is cancelled if the elec-

trical power source is disconnected.

82

2005 CELICA from Sep. ’04 Prod. (OM20888U)

’05MY CELICA U (L/O 0409)

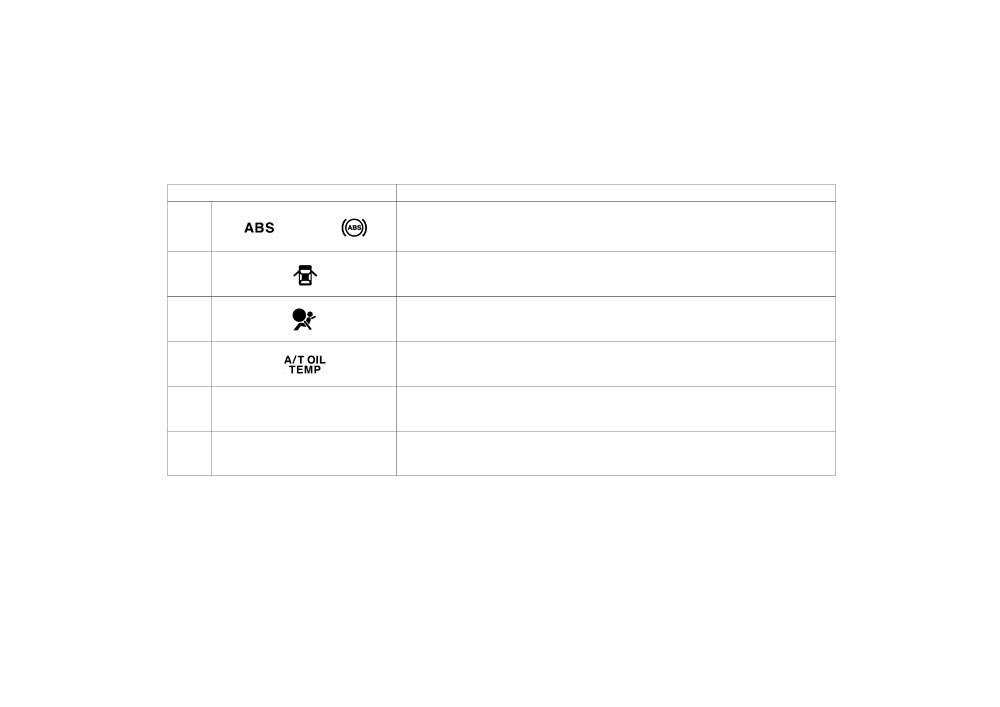

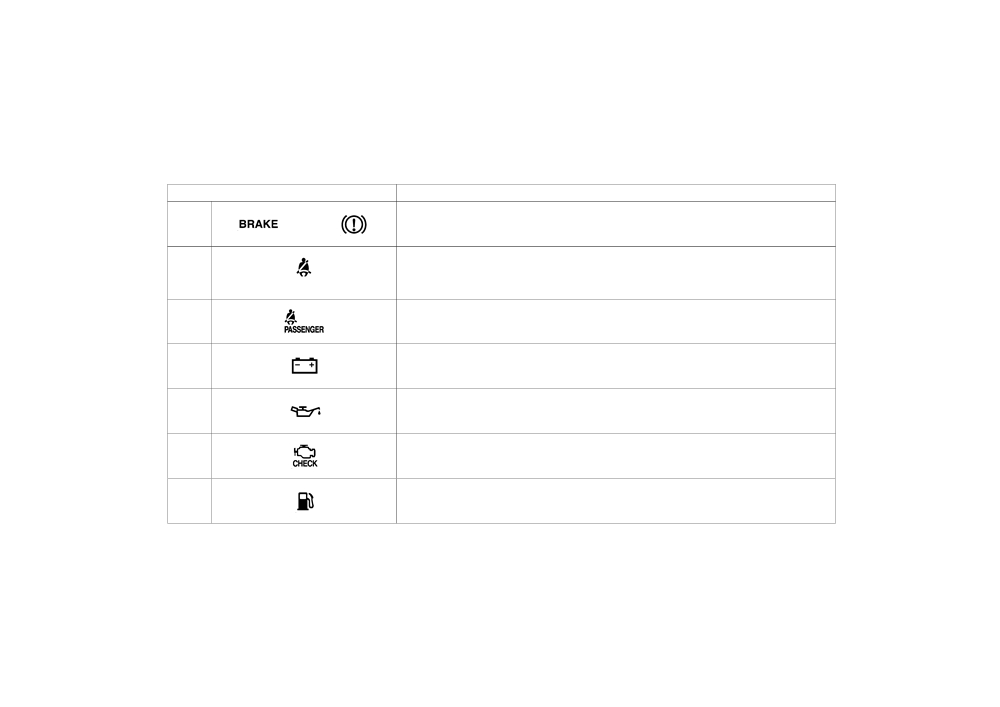

Service reminder indicators and warning buzzers

If the indicator or buzzer comes on...

Do this.

(a)

or

If parking brake is off, stop immediately and contact Toyota dealer.

(b)

Fasten driver’s seat belt.

(indicator and buzzer)

(c)

Have the front passenger fasten the seat belt.

(d)

Stop and check.

(e)

Stop and check.

(f)

Take vehicle to Toyota dealer.

(g)

Fill up tank.

83

2005 CELICA from Sep. ’04 Prod. (OM20888U)

’05MY CELICA U (L/O 0409)

If the indicator or buzzer comes on...

Do this.

Take vehicle to Toyota dealer.

(h)

or

If the brake system warning light is also on, stop immediately and contact Toyota

dealer.

(i)

Close both side doors and back door.

(j)

Take vehicle to Toyota dealer immediately.

(k)

Stop and check.

(l)

Key reminder buzzer

Remove key.

(m)

Light reminder buzzer

Turn off lights.

84

2005 CELICA from Sep. ’04 Prod. (OM20888U)

’05MY CELICA U (L/O 0409)

(a) Brake System Warning Light

A warning light turning on briefly during

(b) Driver’s Seat Belt Reminder Light

operation does not indicate a problem.

and Buzzer

This light comes on in the following cases

when the ignition key is in the “ON” posi-

The light and buzzer act as a reminder to

tion.

CAUTION

buckle up the driver’s seat belt.

D When the parking brake is applied...

Once the ignition key is turned to “ON” or

If either of the following conditions

“START”, the reminder light flashes and

Vehicles with anti−lock brake system—

occurs, immediately stop your vehicle

buzzer sounds if the driver’s seat belt is

at a safe place and contact your

This light comes on for a few seconds

not fastened. Unless the driver fastens the

Toyota dealer.

when the ignition key is turned to the

belt, the light continues flashing and the

“ON” position even after the parking brake

D The light does not turn off even

buzzer stops after about

4 to 8 seconds.

is released.

after the parking brake is released

(c) Front

Passenger’s

Seat

Belt

while the engine is running.

D When the brake fluid level is low...

Reminder Light

In this case, the brakes may not

The light acts as a reminder to have the

CAUTION

work properly and your stopping

front passenger buckle up the seat belt.

distance will become longer. De-

It is dangerous to continue driving

press the brake pedal firmly and

Once the ignition key is turned to “ON” or

normally when the brake fluid level is

bring the vehicle to an immediate

“START”, the reminder light flashes if a

low.

stop.

passenger sits in the front passenger seat

and does not fasten the seat belt. Unless

Vehicles with anti−lock brake sys-

the front passenger fastens the belt, the

Have your vehicle checked at your

tem—

light stays flashing.

Toyota dealer in the following cases:

D The brake system warning light re-

If luggage or other load is placed on the

D The light does not come on even if the

mains on together with the

“ABS”

front passenger seat, depending on its

parking brake is applied when the igni-

warning light.

weight and how it is placed on the seat,

tion key is in the

“ON” position.

In this case, not only the anti−lock

built−in sensors in the seat cushion may

Vehicles with anti−lock brake system—

brake system will fail but also the

detect the pressure, causing the reminder

vehicle will become extremely un-

D The light does not come on even if the

light to flash.

stable during braking.

ignition key is turned on with the park-

ing brake released.

85

2005 CELICA from Sep. ’04 Prod. (OM20888U)

’05MY CELICA U (L/O 0409)

(d) Discharge Warning Light

The light may occasionally flicker when

D Loose fuel tank cap

the engine is idling or it may come on

This light warns that the battery is being

If the fuel tank cap is loose, securely

briefly after a hard stop. There is no

discharged.

tighten it.

cause for concern if it then goes out when

If it comes on while you are driving, there

These cases are temporary malfunctions.

the engine is accelerated slightly.

is a problem somewhere in the charging

The malfunction indicator lamp will go off

The light may come on when the oil level

system.

after taking several driving trips.

is extremely low. It is not designed to

The engine ignition will continue to oper-

If the lamp does not go off even after

indicate low oil level, and the oil level

ate, however, until the battery is dis-

several trips, contact your Toyota dealer

must be checked using the level dipstick.

charged. Turn off the air conditioning,

as soon as possible.

blower, radio, etc., and drive directly to

NOTICE

If the fuel tank is not empty or the fuel

the nearest Toyota dealer or repair shop.

tank cap is not loose...

Do not drive the vehicle with the

NOTICE

warning light on—even for one block.

D There is a problem somewhere in the

It may ruin the engine.

engine, emission control system, elec-

Do not continue driving if the engine

tronic throttle control system, automatic

drive belt is broken or loose.

transmission electrical system or warn-

(f) Malfunction Indicator Lamp

ing light system itself.

This lamp comes on when the ignition

(e) Low Engine Oil Pressure Warning

Contact your Toyota dealer as soon as

key is turned to the “ON” position and

Light

possible to service the vehicle.

goes off after the engine starts. This

This light warns that the engine oil pres-

means that the warning light system is

2ZZ−GE engine—

sure is too low.

operating properly.

If engine speed does not increase when

If it flickers or stays on while you are

If the lamp remains on, or the lamp

the accelerator pedal is depressed, there

driving, pull off the road to a safe place

comes on while driving, first check the

may be a problem somewhere in the elec-

and stop the engine immediately. Call a

followings.

tronic throttle control system.

Toyota dealer or qualified repair shop for

D Empty fuel tank

At this time, vibration may occur. Howev-

assistance.

er, if you depress the accelerator pedal

If the fuel tank is empty, refuel immedi-

more firmly and slowly, you can drive your

ately.

vehicle at low speeds. Have your vehicle

checked by your Toyota dealer as soon as

possible.

86

2005 CELICA from Sep. ’04 Prod. (OM20888U)

’05MY CELICA U (L/O 0409)

Even if the abnormality of the electronic

(h)

“ABS” Warning Light

A warning light turning on briefly during

throttle control system is corrected during

operation does not indicate a problem.

The light comes on when the ignition key

low speed driving, the system may not be

is turned to the “ON” position. If the anti−

recovered until the engine is stopped and

CAUTION

lock brake system works properly, the

the ignition key is turned to

“ACC” or

light turns off after a few seconds. There-

“LOCK” position.

If the “ABS” warning light remains on

after, if the system malfunctions, the light

together with the brake system warn-

comes on again.

CAUTION

ing light, immediately stop your ve-

When the “ABS” warning light is on (and

hicle at a safe place and contact your

the brake system warning light is off), the

Be especially careful to prevent erro-

Toyota dealer.

anti−lock brake system does not operate,

neous pedal operation.

In this case, not only the anti−lock

but the brake system still operates con-

brake system will fail but also the

ventionally.

Emissions Inspection and Maintenance

vehicle will become extremely unsta-

When the “ABS” warning light is on (and

(I/M) programs

ble during braking.

the brake system warning light is off), the

Your vehicle may not pass a state emis-

anti−lock brake system does not operate

sion inspection if the malfunction indicator

(i) Open Door Warning Light

so that the wheels could lock up during

lamp remains on. Contact your Toyota

a sudden braking or braking on slippery

This light remains on until both side doors

dealer to check your vehicle’s emission

road surfaces.

and back door are completely closed.

control system and OBD (On−Board Diag-

If either of the following conditions

nostics) system before taking your vehicle

occurs, this indicates a malfunction

for the inspection.

somewhere in the components moni-

For details, see “Emissions Inspection and

tored by the warning light system. Con-

Maintenance (I/M) programs” in Section 6.

tact your Toyota dealer as soon as

(g) Low Fuel Level Warning Light

possible to service the vehicle.

This light comes on when the fuel level

D The light does not come on when the

in the tank becomes nearly empty. Fill up

ignition key is turned to the

“ON” posi-

the tank as soon as possible.

tion, or remains on.

D The light comes on while you are driv-

ing.

87

2005 CELICA from Sep. ’04 Prod. (OM20888U)

’05MY CELICA U (L/O 0409)

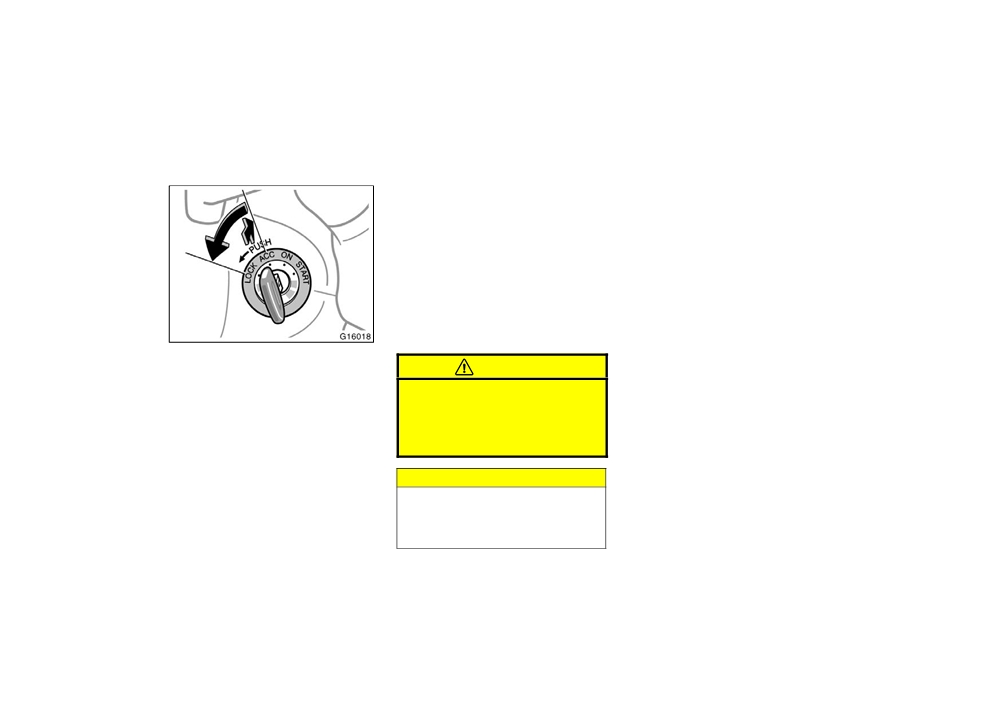

Ignition switch with steering

lock

“LOCK”—Engine is off and the steering

wheel is locked. The key can be re-

moved only at this position.

You must push in the key to turn the key

from

“ACC” to the

“LOCK” position. On

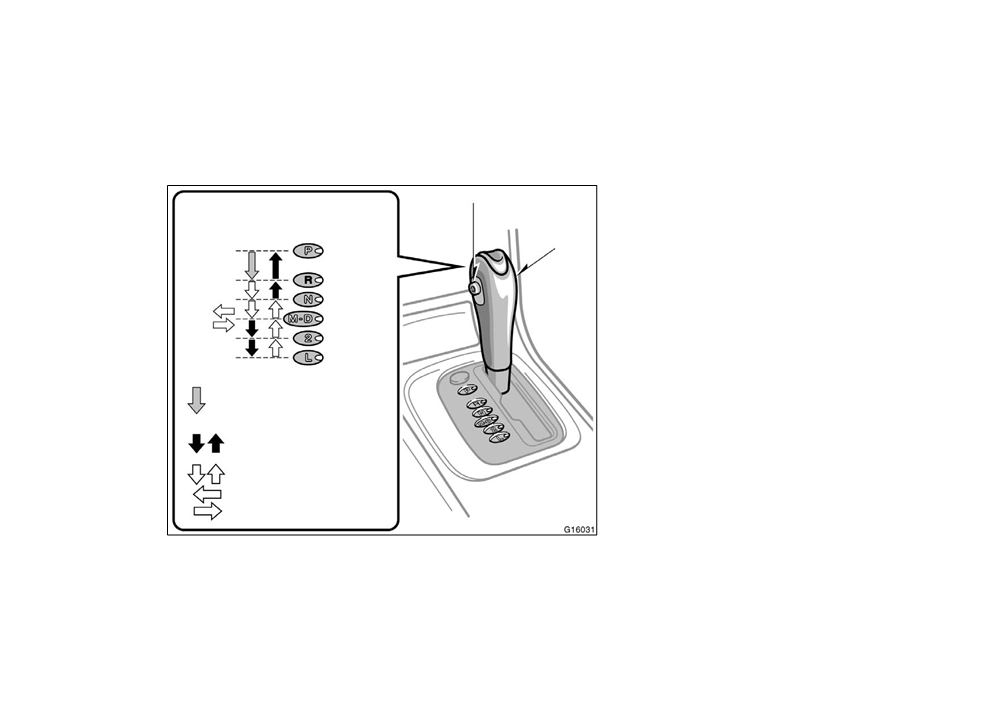

vehicles with an automatic transmission,

the selector lever must be in the “P” posi-

tion before pushing the key.

When starting the engine, the key may

seem stuck at the

“LOCK” position. To

free it, first be sure the key is pushed all

the way in, and then rock the steering

wheel slightly while turning the key gently.

“START”—Starter motor on. The key

will return to the

“ON” position when

CAUTION

released.

For manual transmission:

For starting tips, see Section

3.

Never remove the key when the ve-

“ON”—Engine on and all accessories

hicle is moving, as this will lock the

on.

steering wheel and result in loss of

This is the normal driving position.

steering control.

“ACC”—Accessories such as the radio

operate, but the engine is off.

NOTICE

If you leave the key in the

“ACC” or

“LOCK” position and open the driver’s

Do not leave the key in the

“ON”

door, a buzzer will remind you to remove

position if the engine is not running.

the key.

The battery will discharge and the

ignition could be damaged.

90

2005 CELICA from Sep. ’04 Prod. (OM20888U)

’05MY CELICA U (L/O 0409)

Automatic transmission

"1ZZ−FE engine

Your automatic transmission has a shift

Overdrive switch

lock system to minimize the possibility of

Lock release button

incorrect operation. This means you can

To prevent misshifting

only shift out of

“P” position when the

brake pedal is depressed (with the ignition

Selector lever

switch in

“ON” position and the lock re-

lease button depressed).

(a) Selector lever

The shift position is also displayed on the

instrument cluster.

P: Parking, engine starting and key

removal

R: Reverse

N: Neutral

D: Normal driving (with overdrive on)

With the brake pedal depressed,

2: Stronger engine braking

shift while holding the lock

release button in.

L: Maximum engine braking

(The ignition switch must be in

“ON” position.)

Shift while holding the lock

release button in.

Shift normally.

91

2005 CELICA from Sep. ’04 Prod. (OM20888U)

’05MY CELICA U (L/O 0409)

Vehicles with cruise control—When the

3. Release the parking brake and brake

cruise control is being used, even if you

pedal. Depress the accelerator pedal

downshift the transmission by pushing and

slowly for smooth starting.

releasing the overdrive switch, engine

(d) Using engine braking

braking will not be enabled because the

To use engine braking, you can downshift

cruise control is not cancelled.

the transmission as follows:

For ways to decrease the vehicle speed,

D Push the overdrive switch. The

“O/D

see “Cruise control” in this Section.

OFF” indicator light will come on and

(c) Normal driving

the transmission will downshift to third

1. Start the engine as instructed in

“How

gear.

to start the engine” in Section

3. The

D Shift into the

“2” position. The trans-

transmission must be in

“P” or

“N”.

mission will downshift to second gear

2. With your foot holding down the brake

when the vehicle speed drops down to

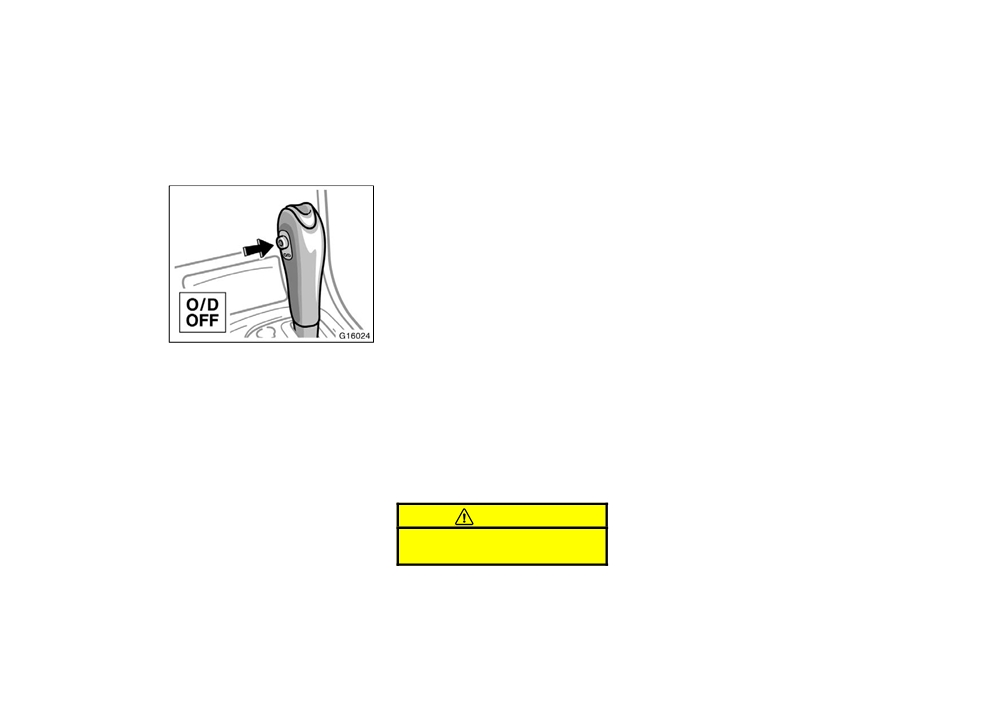

(b) Overdrive switch

pedal, shift the selector lever to

“D”.

or lower than 106 km/h (66 mph), and

You can select either third gear

(with

stronger engine braking will be en-

When the lever is in the “D” position, the

overdrive off) or fourth gear

(with over-

abled.

automatic transmission system will select

drive on) by pushing this switch.

the most suitable gear for running condi-

D Shift into the

“L” position. The trans-

To turn the overdrive off, push the switch.

tions such as normal cruising, hill climb-

mission will downshift to first gear

The “O/D OFF” indicator light should come

ing, hard towing, etc.

when the vehicle speed drops down to

on. To turn the overdrive on again, push

or lower than

53 km/h (33 mph), and

Always turn the overdrive on for better

the switch again. The “O/D OFF” indicator

maximum engine braking will be en-

fuel economy and quieter driving. If the

light should go off.

abled.

engine coolant temperature is low, the

Always drive your vehicle with the over-

transmission will not shift into the over-

Vehicles with cruise control—When the

drive on for better fuel economy and

drive gear even with the overdrive on.

cruise control is being used, even if you

quieter driving.

downshift the transmission by pushing and

CAUTION

releasing the overdrive switch, engine

If the engine is turned off when the over-

braking will not be enabled because the

drive is off and restarted, the overdrive

Never put your foot on the accelera-

cruise control is not cancelled.

will automatically be on.

tor pedal while shifting.

92

2005 CELICA from Sep. ’04 Prod. (OM20888U)

’05MY CELICA U (L/O 0409)

For ways to decrease the vehicle speed,

(g) Parking

NOTICE

see “Cruise control” in this Section.

1. Bring the vehicle to a complete stop.

z Be careful not to over−rev the en-

2. Pull the parking brake lever up fully to

CAUTION

gine. Watch the tachometer to keep

securely apply the parking brake.

engine rpm from going into the red

Be careful when downshifting on a

zone. The approximate maximum al-

3. With the brake pedal pressed down,

slippery surface. Abrupt shifting

lowable speed for each position is

shift the selector lever to the

“P” posi-

could cause the vehicle to skid or

tion.

given below for your reference:

spin.

“2”

124 km/h (77 mph)

CAUTION

“L”

67 km/h (41 mph)

(e) Using the

“2” and “L” positions

z Do not continue hill climbing or

Never attempt to move the selector

The

“2” and

“L” positions are used for

hard towing for a long time in the

lever into “P” position under any cir-

strong engine braking as described pre-

“2” or “L” position. This may cause

cumstances while the vehicle is mov-

viously.

severe automatic transmission dam-

ing. Serious mechanical damage and

age from overheating. To prevent

With the selector lever in

“2” or

“L”, you

loss of vehicle control may result.

such damage,

“D” position should

can start the vehicle in motion as with the

be used in hill climbing or hard

lever in

“D”.

(h) Good driving practice

towing.

With the selector lever in

“2”, the vehicle

D If the transmission repeatedly shifts up

will start in first gear and automatically

(f) Backing up

and down between third gear and over-

shift to second gear.

drive when climbing a gentle slope, the

1. Bring the vehicle to a complete stop.

With the selector lever in

“L”, the trans-

overdrive should be turned off. Be sure

mission is engaged in first gear.

2. With the brake pedal held down with

to turn the switch on immediately after-

your foot, shift the selector lever to the

ward.

“R” position.

D When towing a trailer, in order to main-

tain engine braking efficiency, do not

NOTICE

use overdrive.

Never shift into reverse while the ve-

hicle is moving.

93

2005 CELICA from Sep. ’04 Prod. (OM20888U)

’05MY CELICA U (L/O 0409)

CAUTION

Always keep your foot on the brake

pedal while stopped with the engine

running. This prevents the vehicle

from creeping.

NOTICE

Always use the brake pedal or the

parking brake to hold the vehicle on

an upgrade. Do not attempt to hold

the vehicle using the accelerator ped-

al, as this can cause the transmission

to overheat.

(i) If you cannot shift the selector le-

ver out of

“P” position

If you cannot shift the selector lever from

the

“P” position even though the brake

pedal is depressed, use the shift lock

override button. For instructions, see

“If

you cannot shift automatic transmission

selector lever” in Section

4.

94

2005 CELICA from Sep. ’04 Prod. (OM20888U)

’05MY CELICA U (L/O 0409)

"2ZZ−GE engine

Your automatic transmission has a shift

Overdrive switch

lock system to minimize the possibility of

Lock release button

incorrect operation. This means you can

To prevent misshifting

only shift out of

“P” position when the

brake pedal is depressed (with the ignition

Selector lever

switch in

“ON” position and the lock re-

lease button depressed).

(a) Selector lever

The shift position is also displayed on the

instrument cluster.

P: Parking, engine starting and key

removal

R: Reverse

N: Neutral

With the brake pedal depressed,

D: Normal driving (with overdrive on)

shift while holding the lock

release button in.

M: “M” position

(The ignition switch must be in

2: Stronger engine braking

“ON” position.)

L: Maximum engine braking

Shift while holding the lock

release button in.

Shift normally.

To select “M”, lean the selector

lever leftward from “D”.

95

2005 CELICA from Sep. ’04 Prod. (OM20888U)

’05MY CELICA U (L/O 0409)

When you are driving in M mode, over-

drive switch does not activate.

(For de-

tails, see “(d) Driving in M mode” and “(e)

Using engine braking”.)

Vehicles with cruise control—When the

cruise control is being used, even if you

downshift the transmission by pushing and

releasing the overdrive switch, engine

braking will not be enabled because the

cruise control is not cancelled.

For ways to decrease the vehicle speed,

see “Cruise control” in this Section.

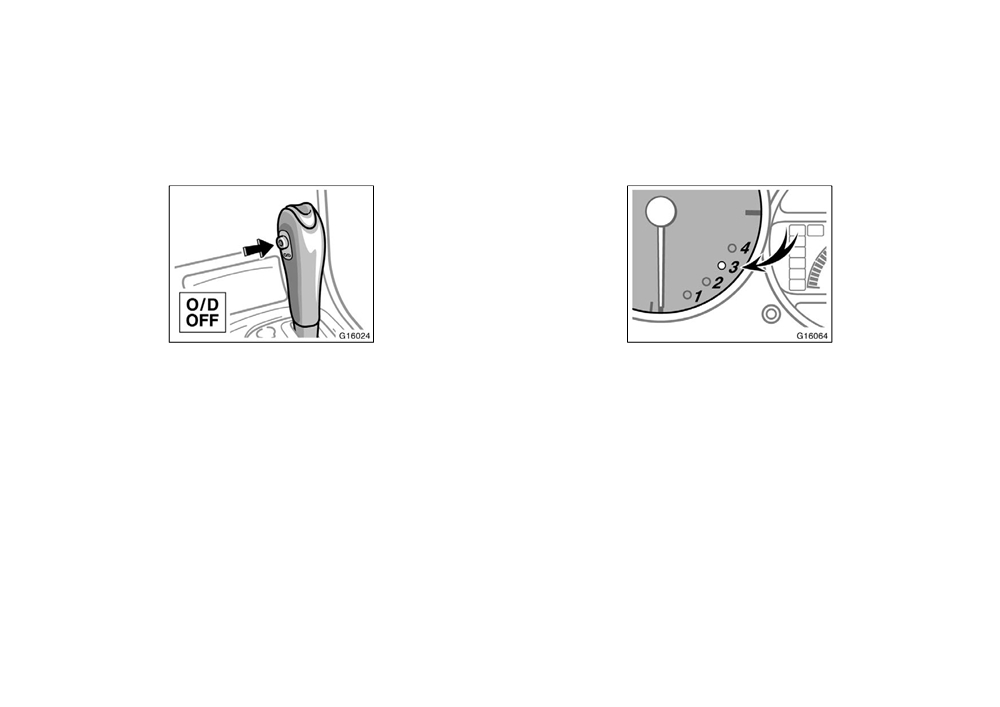

(b) Overdrive switch

(c) Normal driving

You can select either third gear

(with

1. Start the engine as instructed in

“How

overdrive off) or fourth gear

(with over-

to start the engine” in Section

3. The

drive on) by pushing this switch.

transmission must be in

“P” or

“N”.

To turn the overdrive off, push the switch.

2. With your foot holding down the brake

The “O/D OFF” indicator light should come

pedal, shift the selector lever to

“D”.

on. To turn the overdrive on again, push

When the lever is in the “D” position, the

the switch again. The “O/D OFF” indicator

automatic transmission system will select

light should go off.

the most suitable gear for running condi-

Always drive your vehicle with the over-

tions such as normal cruising, hill climb-

drive on for better fuel economy and

ing, hard towing, etc. The current gear

quieter driving.

position is displayed on the instrument

cluster.

If the engine is turned off when the over-

drive is off and restarted, the overdrive

will automatically be on.

96

2005 CELICA from Sep. ’04 Prod. (OM20888U)

Content   ..  5  6  7  8   ..
