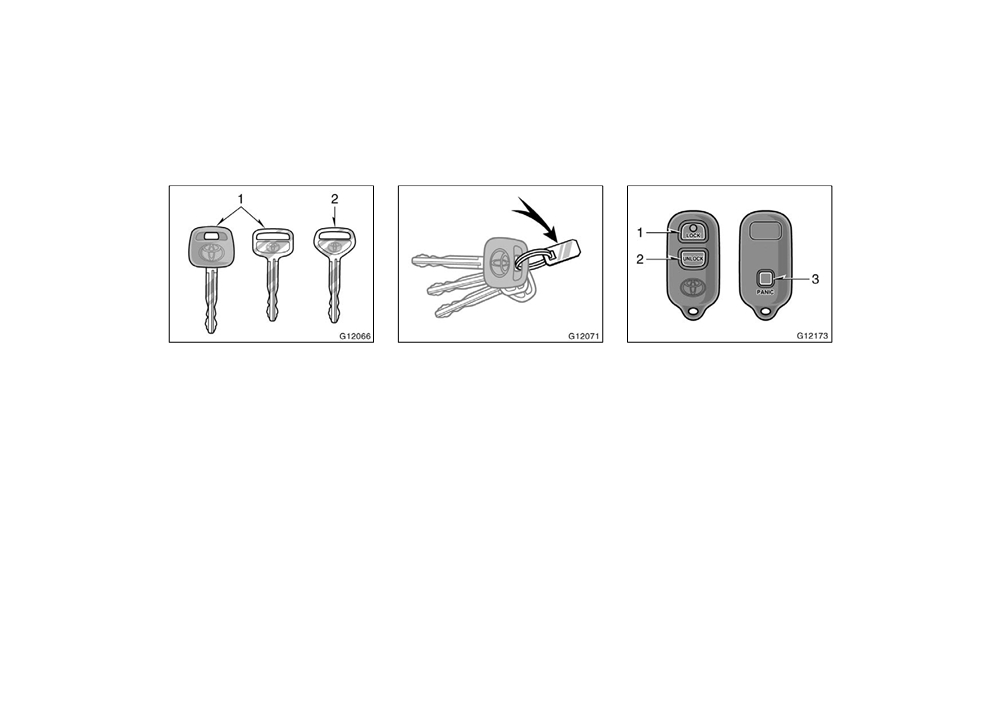

Keys

Wireless remote control—

Your vehicle is supplied with two kinds

KEY NUMBER PLATE

1. “LOCK” switch

of keys.

Your key number is shown on the plate.

2. “UNLOCK” switch

1. Master keys—

Keep the plate in a safe place such as

3. “PANIC” switch

your wallet, not in the vehicle.

These keys work in every lock.

If you should lose your keys or if you

Since the side doors and back door

need additional keys, duplicates can be

can be locked without a key, you

made by a Toyota dealer using the key

should always carry a spare master

number.

key in case you accidentally lock your

keys inside the vehicle.

We recommend writing down the key num-

ber and storing it in a safe place.

2. Sub key—

This key will not work in the back door

and glove box.

To protect items locked in the glove

box or luggage compartment when us-

ing valet parking, leave the sub key

with the attendant.

8

2005 CELICA from Sep. ’04 Prod. (OM20888U)

’05MY CELICA U (L/O 0409)

—Locking and unlocking

doors

NOTICE:

D Reorient or relocate the receiving an-

This equipment has been tested and

tenna.

found to comply with the limits for a

D Increase the separation between the

Class B digital device, pursuant to Part

equipment and receiver.

15 of the FCC Rules. These limits are

D Connect the equipment into an outlet

designed to provide reasonable protec-

on a circuit different from that to

tion against harmful interference in a

which the receiver is connected.

residential installation. This equipment

generates, uses and can radiate radio

D Consult the dealer or an experienced

frequency energy and, if not installed

radio/TV technician for help.

and used in accordance with the instruc-

FCC WARNING:

tions, may cause harmful interference to

Changes or modifications not ex-

radio communications. However, there is

pressly approved by the party respon-

Locking operation

no guarantee that interference will not

sible for compliance could void the

occur in a particular installation. If this

user’s authority to operate the equip-

equipment does cause harmful interfer-

ment.

ence to radio or television reception,

which can be determined by turning the

For vehicles sold in Canada

equipment off and on, the user is en-

couraged to try to correct the interfer-

ence by one or more of the following

Operation is subject to the following two

measures:

conditions:

(1) this device may not cause interfer-

ence, and

(2) this device must accept

any interference, including interference

that may cause undesired operation of

the device.

Unlocking operation

10

2005 CELICA from Sep. ’04 Prod. (OM20888U)

’05MY CELICA U (L/O 0409)

—Activating panic mode

To lock: Push the

“LOCK” switch. Both

You have 30 seconds to open a door after

side doors and back door are locked si-

using the wireless remote unlock feature.

multaneously. At this time, parking lights,

If a door is not opened by then, both side

side marker lights and tail lights flash.

doors and back door will be automatically

locked again.

Check to see that both side doors and

back door are securely locked.

If the

“LOCK” or “UNLOCK” switch is kept

pressed in, the locking or unlocking opera-

If either side doors or back door is not

tion is not repeated. Release the switch

securely closed, or if the key is in the

and then push again.

ignition switch, locking cannot be per-

formed by the “LOCK” switch.

To unlock: Push the

“UNLOCK” switch

once to unlock the driver’s door alone.

Pushing the switch twice within 3 seconds

unlocks both side doors and back door

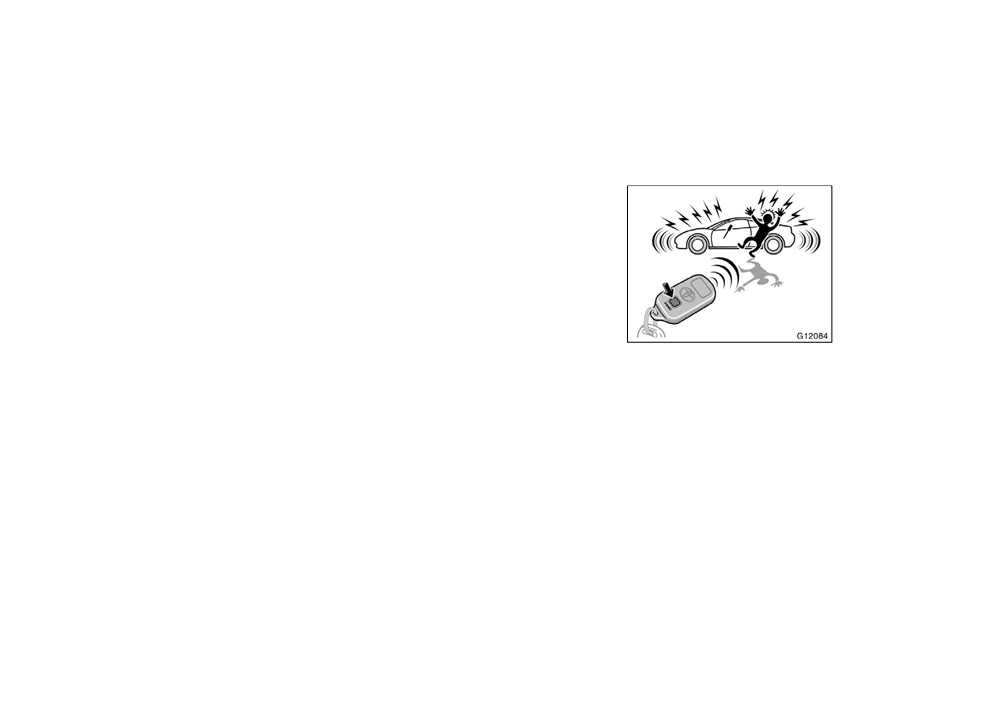

Pushing the “PANIC” switch blows the

simultaneously. At this time, parking lights,

horn intermittently and flashes the

side marker lights and tail lights flash

headlights and tail lights.

twice.

The “PANIC” switch is used to deter ve-

When the interior light switch is in the

hicle theft when you witness anyone at-

“DOOR” position, and both side doors and

tempting to break into or damage your

back door are unlocked simultaneously us-

vehicle.

ing the wireless remote control transmitter,

The alarm will last for one minute. To stop

the interior light will come on and remain

alarm midway, do the following:

on for about

15 seconds before fading

D Push the “PANIC” switch once again.

out, even if the door is not opened.

(For

further information, see

“Interior light” in

D Unlock either side door or back door

Section 1−5.)

with the key or wireless remote control

transmitter.

D Turn the ignition key from the

“LOCK”

to

“ACC” or “ON” position.

11

2005 CELICA from Sep. ’04 Prod. (OM20888U)

’05MY CELICA U (L/O 0409)

—Replacing battery

The

“PANIC” mode does not work when

For replacement, use a CR2016 lithium

the ignition key is in the

“ACC” or “ON”

battery or equivalent.

position.

CAUTION

Special care should be taken to pre-

vent small children from swallowing

the removed transmitter battery or

components.

NOTICE

z During replacing the transmitter

battery, do not push the

“LOCK”

1. Using a coin or equivalent, open the

and

“UNLOCK” switches many

transmitter case.

times.

z When replacing the transmitter bat-

tery, be careful not to lose the com-

ponents.

z Replace only with the same or

equivalent type recommended by a

Toyota dealer.

z Dispose of used batteries according

to the local laws.

Replace the transmitter battery by follow-

ing these procedures:

12

2005 CELICA from Sep. ’04 Prod. (OM20888U)

’05MY CELICA U (L/O 0409)

z Be careful not to bend the electrode

when inserting the transmitter bat-

tery and that dust or oils do not

adhere to the transmitter case.

z Close the transmitter case securely.

After replacing the battery, check that the

transmitter operates properly. If the trans-

mitter still does not operate properly, con-

tact your Toyota dealer.

2. Remove the discharged transmitter bat-

3. Put in a new transmitter battery with

tery by ballpoint pen. Insert the tip of

positive

(+) side up.

ballpoint pen at the guide groove and

Close the transmitter case securely.

lift as shown in the above illustration.

NOTICE

NOTICE

z Make sure the positive side and

Do not bend the terminals.

negative side of the transmitter bat-

tery are faced correctly.

z Do not replace the battery with wet

hands. Water may cause unexpected

rust.

z Do not touch or move any compo-

nents inside the transmitter, or it

may interfere with proper operation.

13

2005 CELICA from Sep. ’04 Prod. (OM20888U)

’05MY CELICA U (L/O 0409)

Side doors

Vehicles with the power door lock sys-

tem—When the interior light switch is in

the “DOOR” position, and both side doors

and back door are unlocked using either

the key or the wireless remote control

transmitter, the interior light will come on

and remain on for about

15 seconds be-

fore fading out.

(For further information,

see “Interior light” in Section

1−5.)

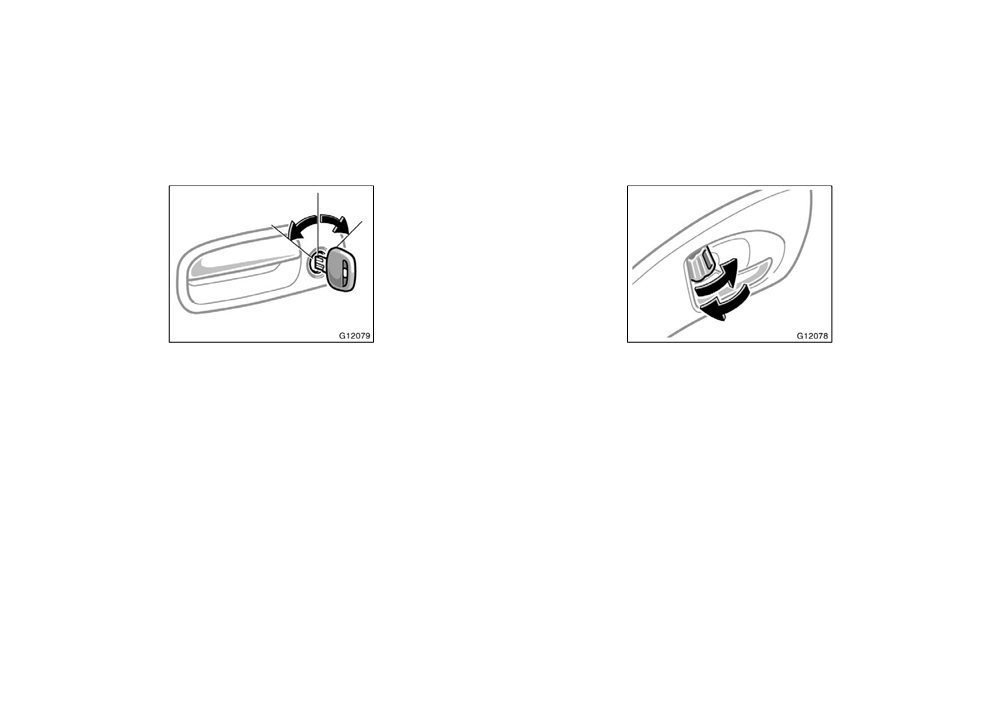

LOCKING AND UNLOCKING WITH KEY

LOCKING AND UNLOCKING WITH

INSIDE LOCK KNOB

Insert the key into the keyhole and turn

it.

Move the lock knob.

To lock: Turn the key forward.

To lock: Push the knob forward.

To unlock: Turn the key backward.

To unlock: Pull the knob backward.

Vehicles with the power door lock sys-

Closing the side door with the lock knob

tem—Both side doors and back door lock

in the lock position will also lock the side

and unlock simultaneously with either side

door. Be careful not to lock your keys in

door. In the driver’s door lock, turning the

the vehicle.

key once will unlock the driver’s door and

Vehicles with the power door lock sys-

twice in succession will unlock both side

tem—Doors cannot be locked when either

doors and back door simultaneously.

side door is open and the key is in the

ignition.

14

2005 CELICA from Sep. ’04 Prod. (OM20888U)

’05MY CELICA U (L/O 0409)

Power windows

CAUTION

Before driving, be sure that the side

doors are closed and locked, espe-

cially when small children are in the

vehicle. Along with the proper use of

seat belts, locking the side doors

helps prevent the driver and passen-

gers from being thrown out from the

vehicle during an accident. It also

helps prevent the side doors from be-

ing opened unintentionally.

LOCKING AND UNLOCKING WITH

The windows can be operated with the

POWER DOOR LOCK SWITCH

switch on the center console.

Push the switch.

The power windows work when the ignition

switch is in the

“ON” position.

To lock: Push the switch down on the

front side.

Key off operation: If both side doors are

To unlock: Push the switch down on the

closed, they work for

43 seconds even

rear side.

after the ignition switch is turned off. They

stop working when either side door is

Both side doors and back door lock or

opened.

unlock simultaneously.

OPERATING THE DRIVER’S WINDOW

Use the switch on the driver’s side of

the center console.

Normal operation: The window moves as

long as you hold the switch.

To open: Lightly push down the switch.

To close: Pull up the switch.

15

2005 CELICA from Sep. ’04 Prod. (OM20888U)

’05MY CELICA U (L/O 0409)

Automatic operation

(to open only):

OPERATING

THE

PASSENGER’S

If you push in the window lock switch on

Push the switch completely down and then

WINDOW

the instrument panel, the passenger’s win-

release it. The window will fully open. To

dow cannot be operated.

Use the switch on the passenger’s side

stop the window partway, lightly pull the

of the center console.

switch up and then release it.

The window moves as long as you hold

the switch.

To open: Push down the switch.

To close: Pull up the switch.

16

2005 CELICA from Sep. ’04 Prod. (OM20888U)

’05MY CELICA U (L/O 0409)

Back door

CAUTION

D Never leave anyone

(particularly a

small child) alone in your vehicle,

To avoid serious personal injury, you

especially with the ignition key still

must do the following.

inserted. Otherwise, he/she could

use the power window switches and

D Before you close the power win-

get trapped in a window. Unat-

dows, always make sure there is

tended person

(particularly a small

nobody around the power windows.

child) can be involved in a serious

You must also make sure the

accident.

heads, hands and other parts of the

bodies of all occupants are kept

completely inside the vehicle. If

someone’s neck, head or hands get

caught in a closing window, it

could result in a serious injury.

Insert the master key into the keyhole

When anyone closes the power win-

and turn it.

dows, make sure he or she oper-

To lock: Turn the key clockwise.

ates the windows safely.

To unlock: Turn the key counterclockwise.

D When small children are in the ve-

To open the back door, pull the lock re-

hicle, never let them use the power

lease lever.

window switches without supervi-

Operating the power door lock switch or

sion. Use the window lock switch to

wireless remote control transmitter simul-

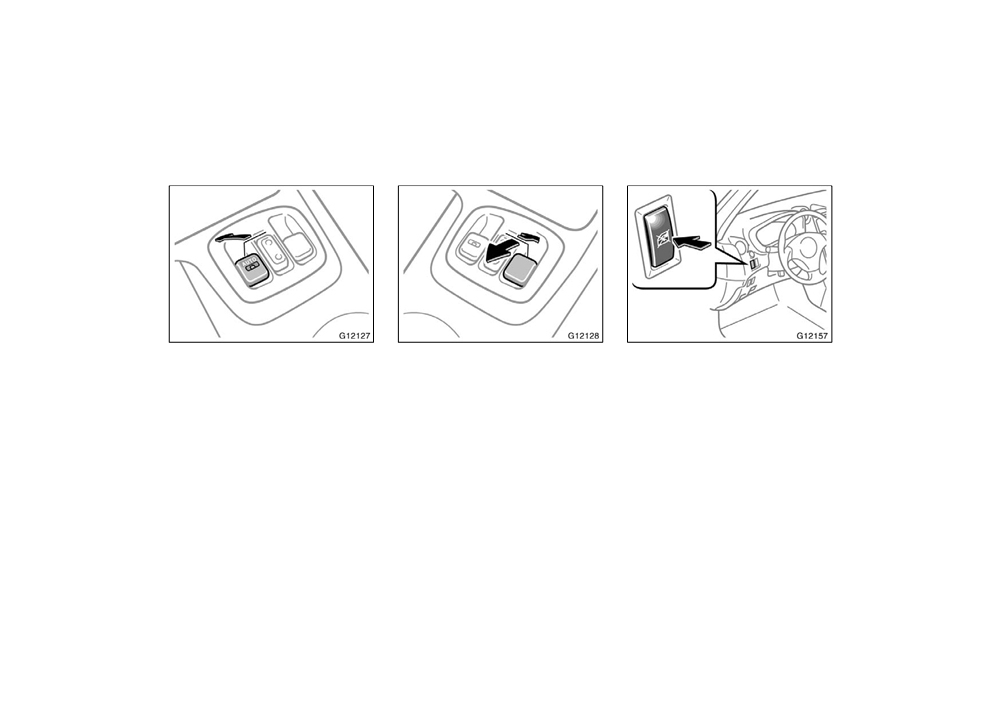

prevent them from making unex-

taneously locks or unlocks the back door.

pected use of the switches.

(See “—Locking and unlocking doors” and

D Be sure to remove the ignition key

“Side doors” in this Section.)

when you leave your vehicle.

When closing the back door, make sure

it is securely closed.

See “—Stowage precautions” in Section 2

for precautions when loading luggage.

17

2005 CELICA from Sep. ’04 Prod. (OM20888U)

’05MY CELICA U (L/O 0409)

Hood

When closing the back door, the inside

To open the hood:

2. In front of the vehicle, pull up the

handle can be used to make the reach

auxiliary catch lever and lift the

1. Pull the hood lock release lever. The

easier.

hood.

hood will spring up slightly.

To close the back door, lower it and press

down on it. After closing the back door,

CAUTION

try pulling it up to make sure it is secure-

ly closed.

Before driving, be sure that the hood

is closed and securely locked. Other-

CAUTION

wise, the hood may open unexpected-

ly while driving and an accident may

Keep the back door closed while driv-

occur.

ing. This not only keeps the luggage

from being thrown out but also pre-

vents exhaust gases from entering

the vehicle.

18

2005 CELICA from Sep. ’04 Prod. (OM20888U)

’05MY CELICA U (L/O 0409)

Fuel tank cap

NOTICE

Be sure to return the support rod to

its clip before closing the hood. Clos-

ing the hood with the support rod up

could cause the hood to bend.

3. Hold the hood open by inserting the

This indicates that the fuel filler door

support rod into the slot.

is on the left side of your vehicle.

Before closing the hood, check to see that

you have not forgotten any tools, rags,

etc. and return the support rod to its

clip—this prevents rattles. Then lower the

hood and make sure it locks into place.

If necessary, press down gently on the

front edge to lock it.

CAUTION

After inserting the support rod into

the slot, make sure the rod supports

the hood securely from falling down

on to your head or body.

19

2005 CELICA from Sep. ’04 Prod. (OM20888U)

’05MY CELICA U (L/O 0409)

CAUTION

D Make sure the cap is tightened se-

curely to prevent fuel spillage in

the event of an accident.

D Use only a genuine Toyota fuel tank

cap for replacement. It has a built−

in check valve to reduce fuel tank

pressure.

1. To open the fuel filler door, pull the

2. To remove the fuel tank cap, turn

lever up.

the cap slowly counterclockwise,

then pause slightly before removing

When refueling, turn off the engine.

it. After removing the cap, hang the

tether as shown in the illustration.

CAUTION

It is not unusual to hear a slight swoosh

D Do not smoke, cause sparks or al-

when the cap is opened. When installing,

low open flames when refueling.

turn the cap clockwise till you hear a

The fumes are flammable.

click.

D When opening the cap, do not re-

If the cap is not tightened securely, the

move the cap quickly. In hot weath-

malfunction indicator lamp comes on.

er, fuel under pressure could cause

Make sure the cap is tightened securely.

injury by spraying out of the filler

The indicator lamp goes off after driving

neck if the cap is suddenly re-

several times. If the indicator lamp does

moved.

not go off, contact your Toyota dealer as

soon as possible.

20

2005 CELICA from Sep. ’04 Prod. (OM20888U)

’05MY CELICA U (L/O 0409)

Electric moon roof

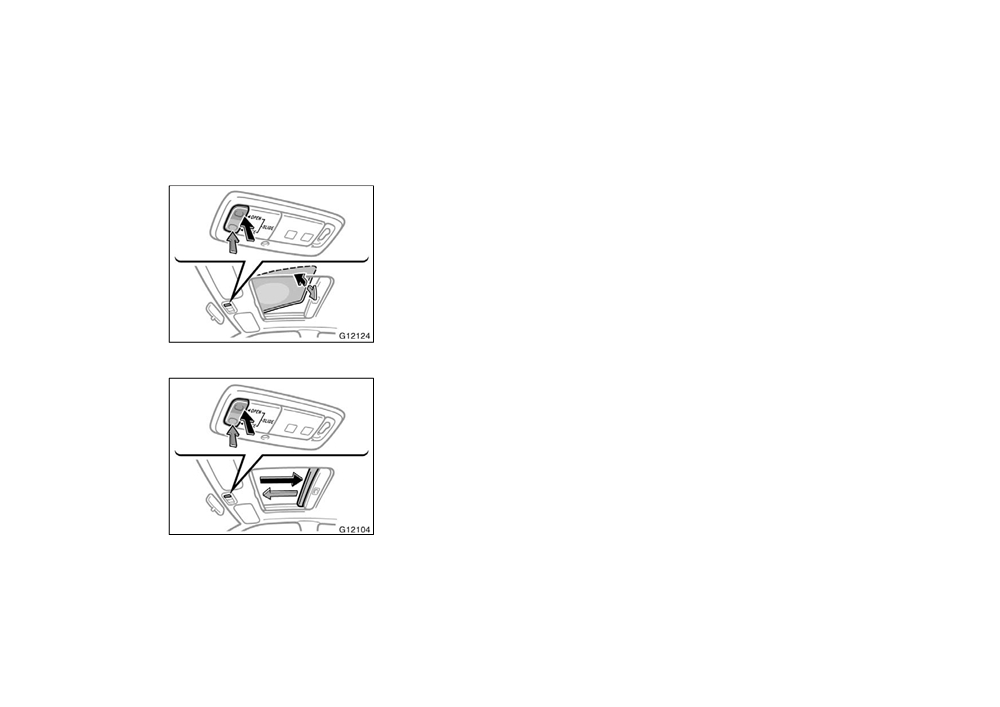

To operate the moon roof, use the

The sun shade will be opened together

switch beside the interior light.

with the roof.

The moon roof works when the ignition

To close: Push the switch briefly on the

switch is in the

“ON” position.

“CLOSE” side. The roof will close com-

pletely.

The sun shade can be opened or closed

by hand.

Key off operation: If both side doors are

closed, it works for 43 seconds even after

Tilting operation—

the ignition switch is turned off. It stops

To tilt up: Push the switch briefly on the

working when either side door is opened.

“OPEN” side. The roof will tilt up com-

Jam protection function: If something

pletely.

gets caught between the moon roof and

To stop the roof partway, push the switch

frame during closing operation, the moon

either the “OPEN” or “CLOSE” side briefly.

roof stops and opens half way.

Tilting operation

The sun shade will open lightly with the

If the moon roof receives a strong impact,

moon roof. To open the sun shade com-

this function may work even if nothing is

pletely, pull it back by hand.

caught.

To lower: Push the switch briefly on the

If the battery is disconnected or run

“CLOSE” side. The roof will lower com-

down, the moon roof may not operate

pletely.

automatically and the jam protection func-

Sliding operation—

tion will not function correctly after you

reconnect, replace or recharge the battery.

To open (with the roof tilting up): Push the

In any of these cases, you should normal-

switch on the

“OPEN” side briefly. The

ize the moon roof.

roof will open completely.

To normalize the moon roof, close the

To open (with the roof tilting down): Push

moon roof, and continue to hold the

the switch on the

“OPEN” side for more

switch up briefly after the moon roof

than

2 seconds. The roof will open com-

reaches the completely closed position

pletely after tilting up.

and the motor is blocked.

Sliding operation

To stop the roof partway, push the switch

either the “OPEN” or “CLOSE” side briefly.

21

2005 CELICA from Sep. ’04 Prod. (OM20888U)

Content   ..   1  2  3   ..
