● Stop the vehicle in a safe place on a hard, flat surface.
● Set the parking brake.
● Shift the shift position to P.
● Stop the hybrid system.
● Turn on the emergency flashers.
● Check the degree of the tire damage.

A  tire  should  only  be  repaired
with  the  emergency  tire  punc-
ture  repair  kit  if  the  damage  is
caused by a nail or screw pass-
ing through the tire tread.

• Do not remove the nail or

screw  from  the  tire.  Remov-
ing the object may widen the
opening  and  make  emer-
gency  repair  with  the  repair
kit impossible.

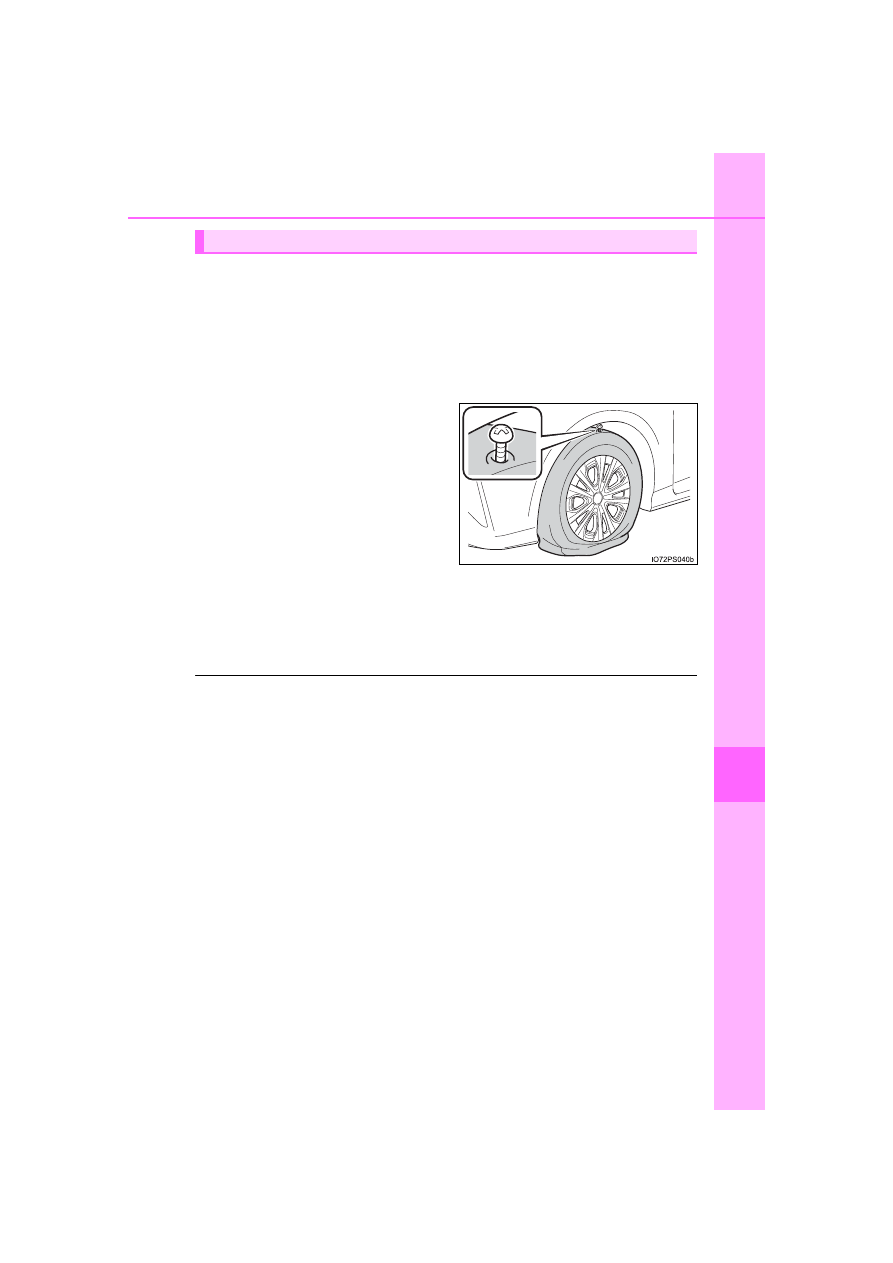

• To avoid sealant leakage, move the vehicle until the area of the

puncture, if known, is positioned at the top of the tire.

■

A flat tire that cannot be repaired with the emergency tire puncture

repair kit
In the following cases, the tire cannot be repaired with the emergency tire

puncture repair kit. Contact your Toyota dealer.

●

When the tire is damaged due to driving without sufficient air pressure

●

When there are any cracks or damage at any location on the tire, such

as on the side wall, except the tread

●

When the tire is visibly separated from the wheel

●

When the cut or damage to the tread is 0.16 in. (4 mm) long or more

●

When the wheel is damaged

●

When two or more tires have been punctured

●

When more than one sharp objects such as nails or screws have passed

through the tread on a single tire

●

When the sealant has expired

Before repairing the tire

-------------------------------------------------------------------------------------------------------------------------------------------------------------

682

Emergency tire puncture repair kit

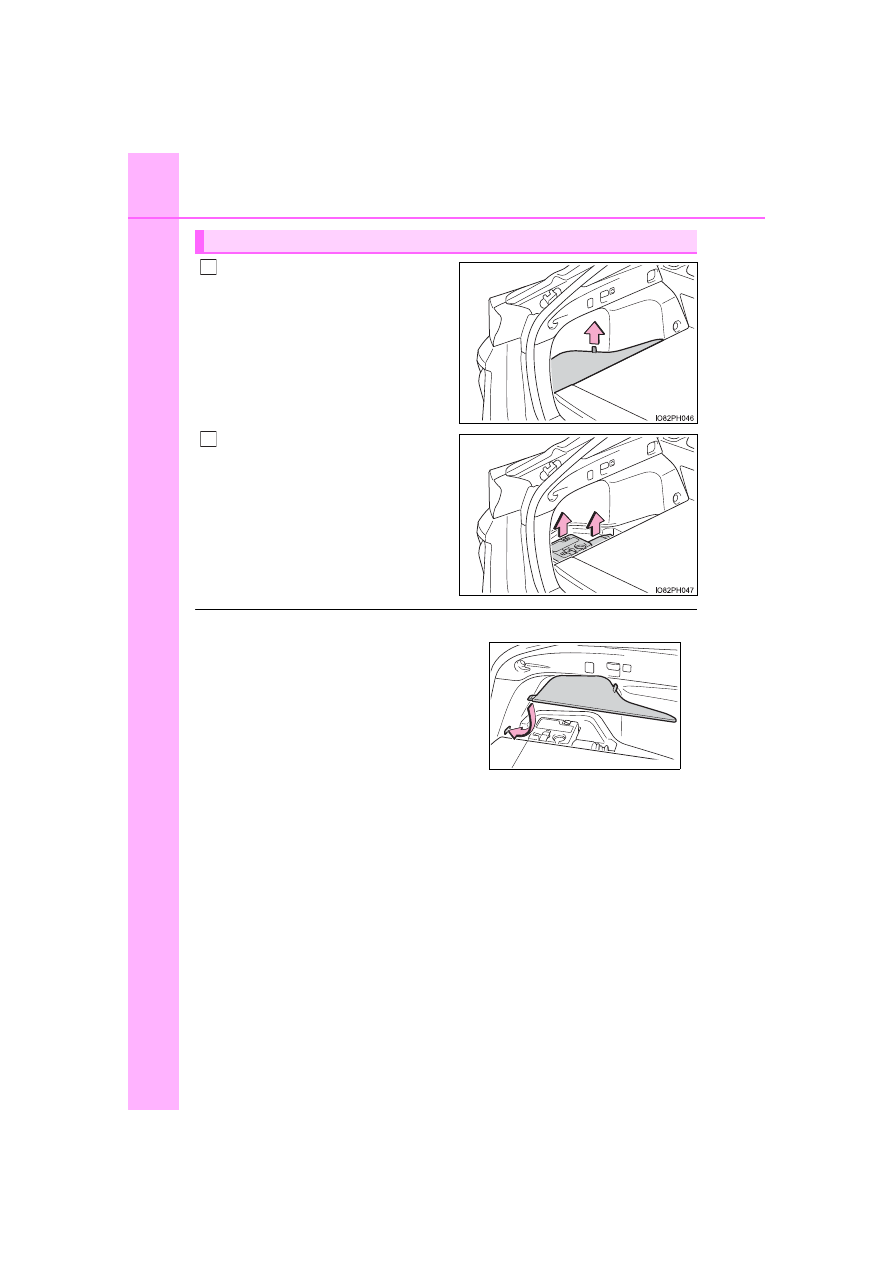

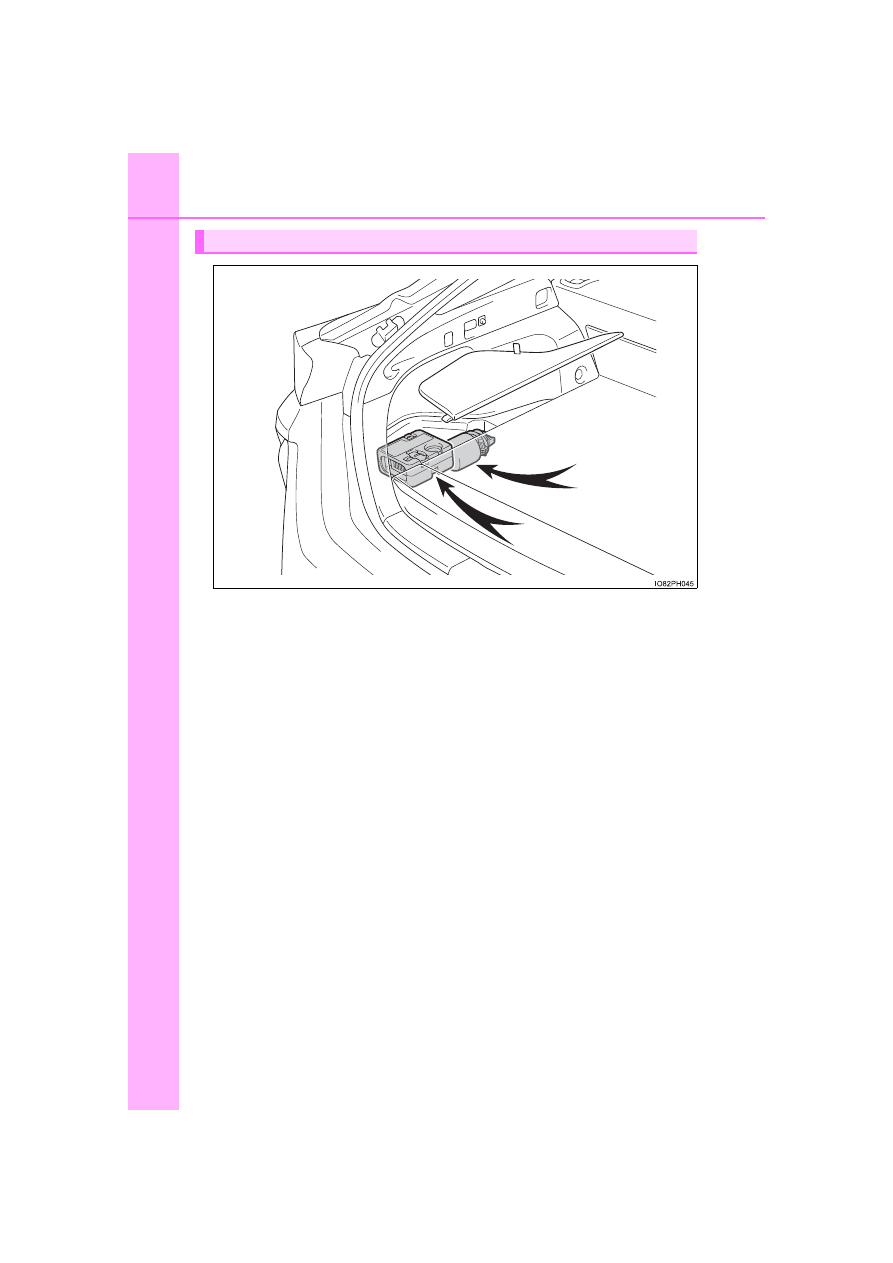

Location of the emergency tire puncture repair kit

-------------------------------------------------------------------------------------------------------------------------------------------------------------

683

Wh
en tro

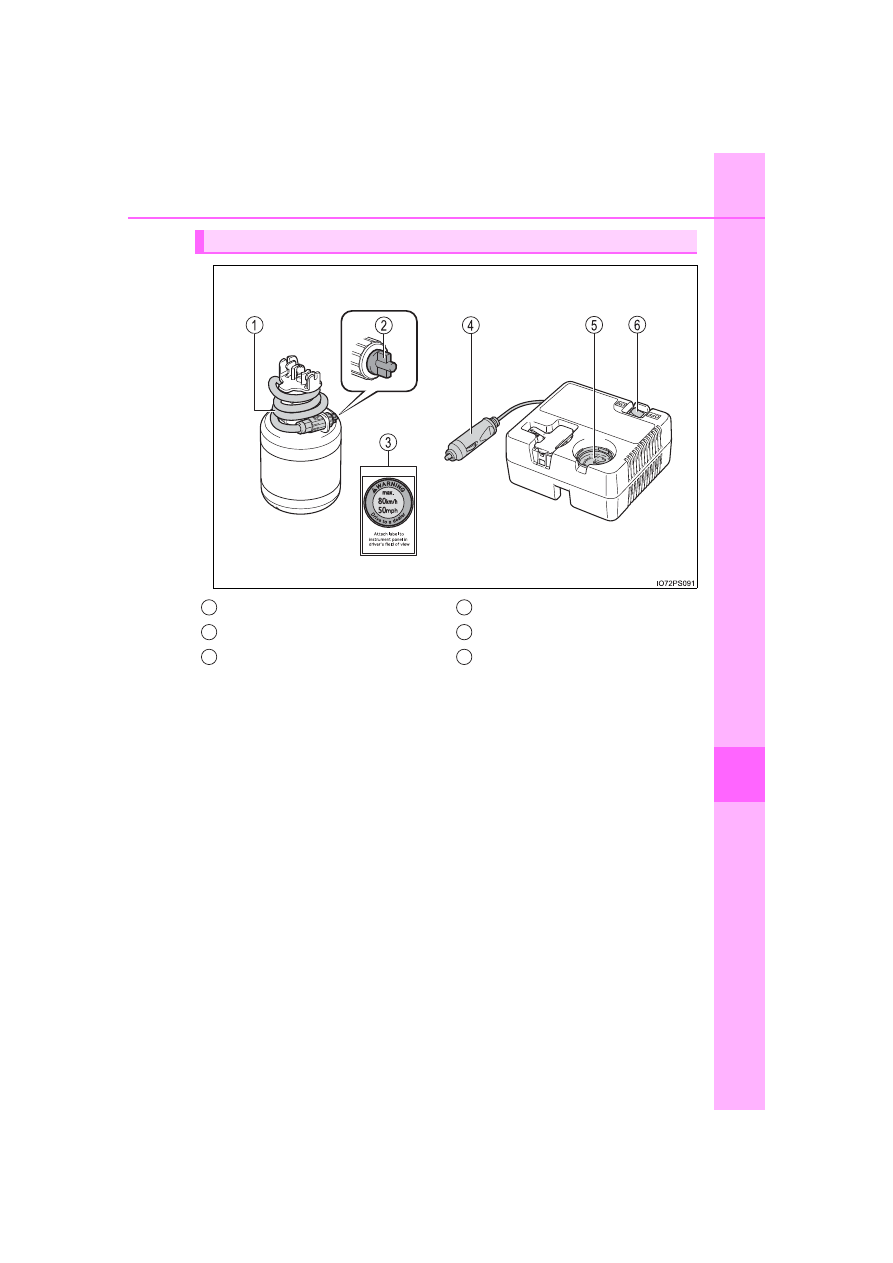

Emergency tire puncture repair kit components

Hose
Air release cap
Sticker

Power plug
Air pressure gauge
Compressor switch

1
2
3

4
5
6

-------------------------------------------------------------------------------------------------------------------------------------------------------------

684

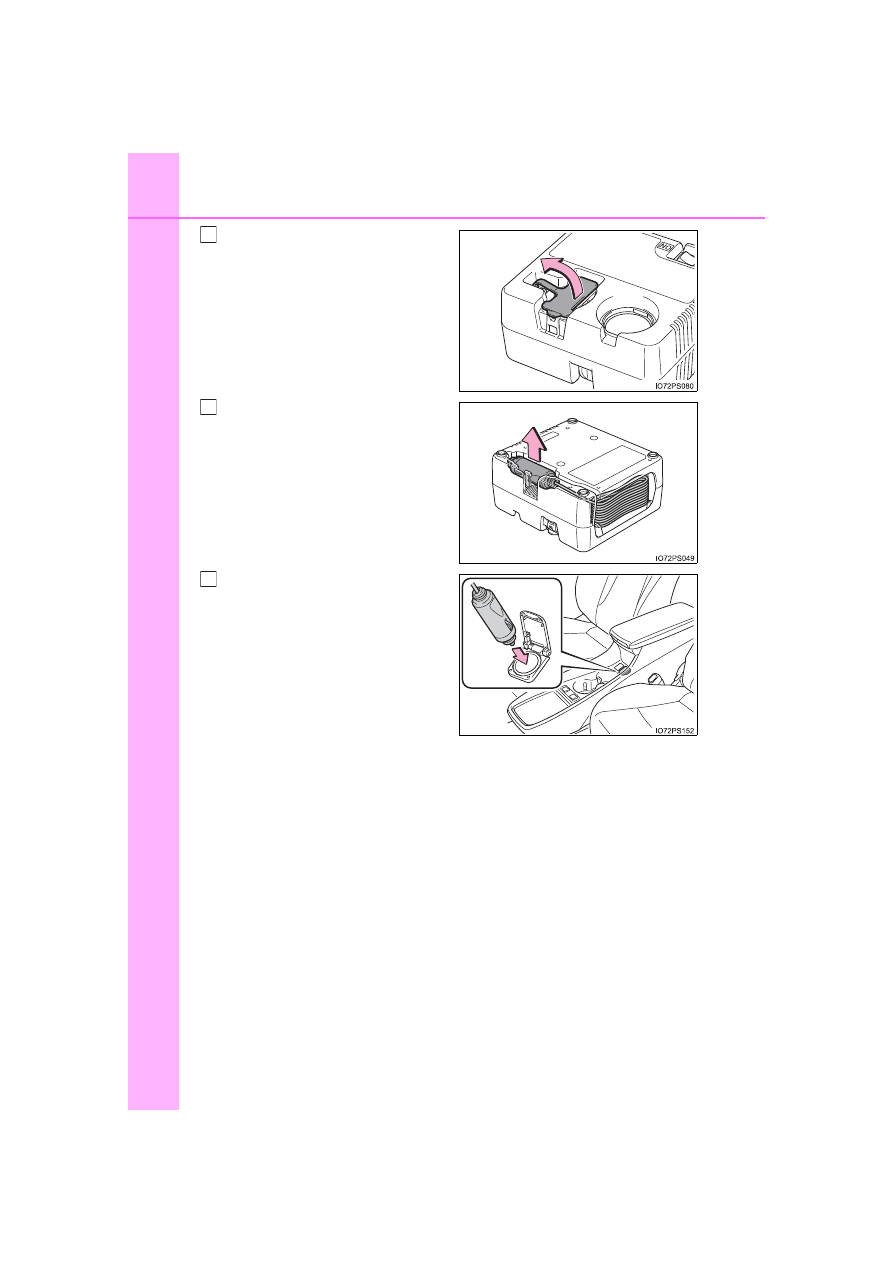

Pull the strap up and remove
the cover.

Take out the emergency tire
puncture repair kit.

■

When installing the cover

Taking out the emergency tire puncture repair kit

Insert the claw in to the hole, and return

the cover.

IO82PH048

-------------------------------------------------------------------------------------------------------------------------------------------------------------

685

Wh
en tro

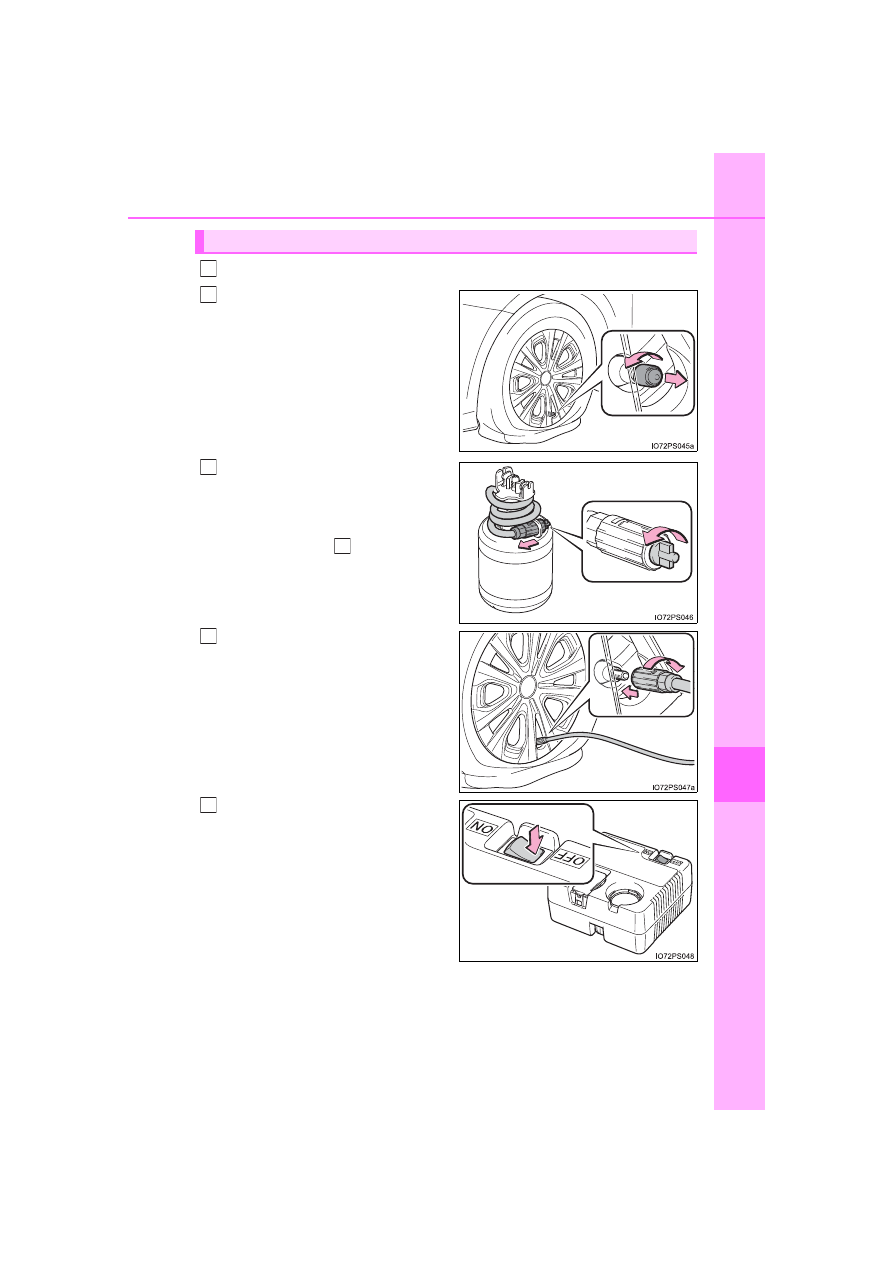

Take out the repair kit from the plastic bag.
Remove the valve cap from the
valve of the punctured tire.

Extend the hose. Remove the
air release cap from the hose.

Attach the sticker enclosed with

the bottle on the specified loca-

tions. (See step

You will use the air release cap

again. Therefore keep it in a safe

place.

Connect the hose to the valve.

Screw the end of the hose clock-

wise as far as possible.

Make sure that the compressor
switch is off.

Emergency repair method

-------------------------------------------------------------------------------------------------------------------------------------------------------------

686

Lift the rubber stopper on the
compressor.

Remove the power plug from
the compressor.

Connect the power plug to the
power outlet socket. (

P. 541)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

687

Wh
en tro

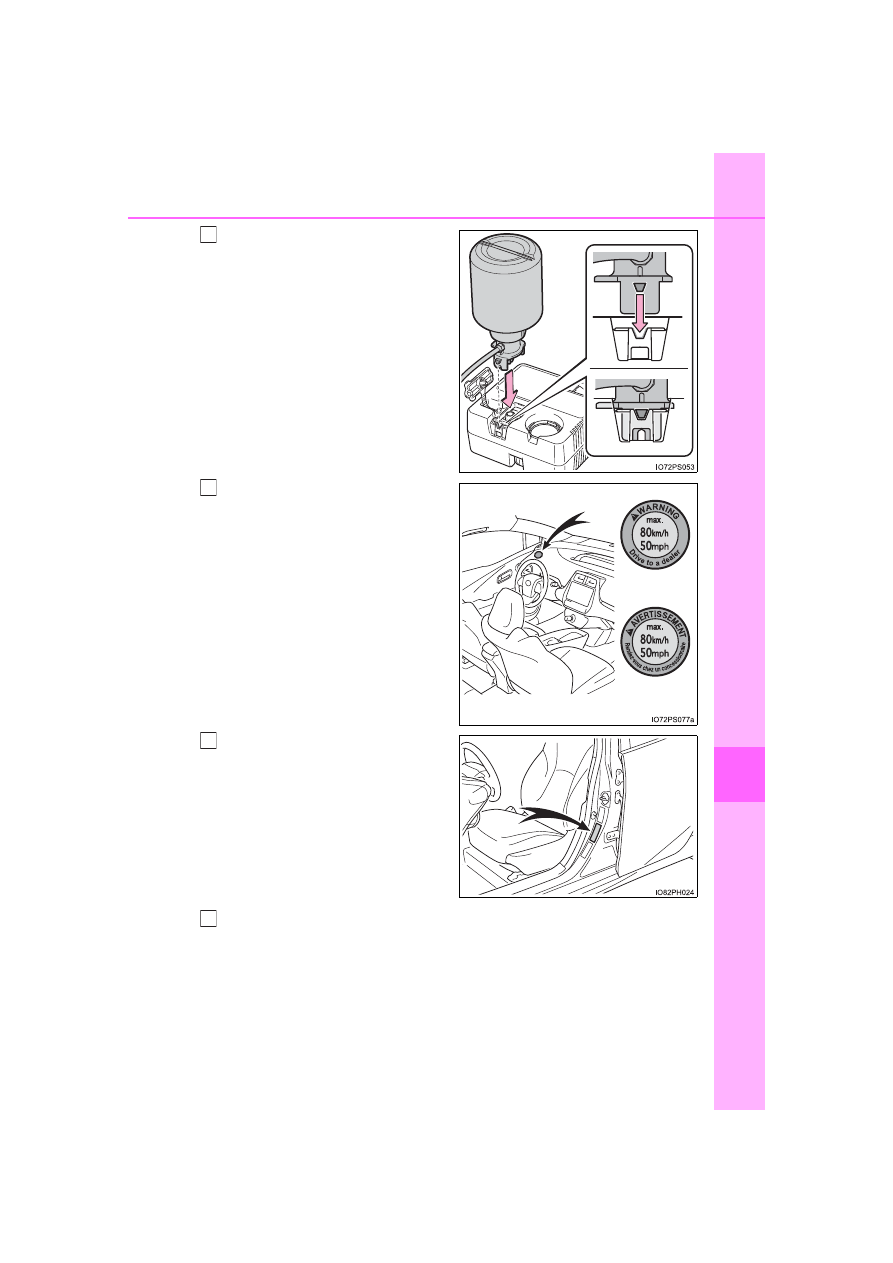

Connect the bottle to the com-
pressor.

As shown in the illustration, insert

the bottle securely into the com-

pressor until the upper side of the

mark on the bottle is aligned with

the upper end of the notch.

Attach the sticker provided with
the tire puncture repair kit to a
position easily seen from the
driver’s seat.

Check the specified tire inflation
pressure.

Tire inflation pressure is specified

on the label on the driver’s side

pillar as shown. (

P. 725)

Start the hybrid system. (

P. 336)

(U.S.A.)

(Canada)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

688

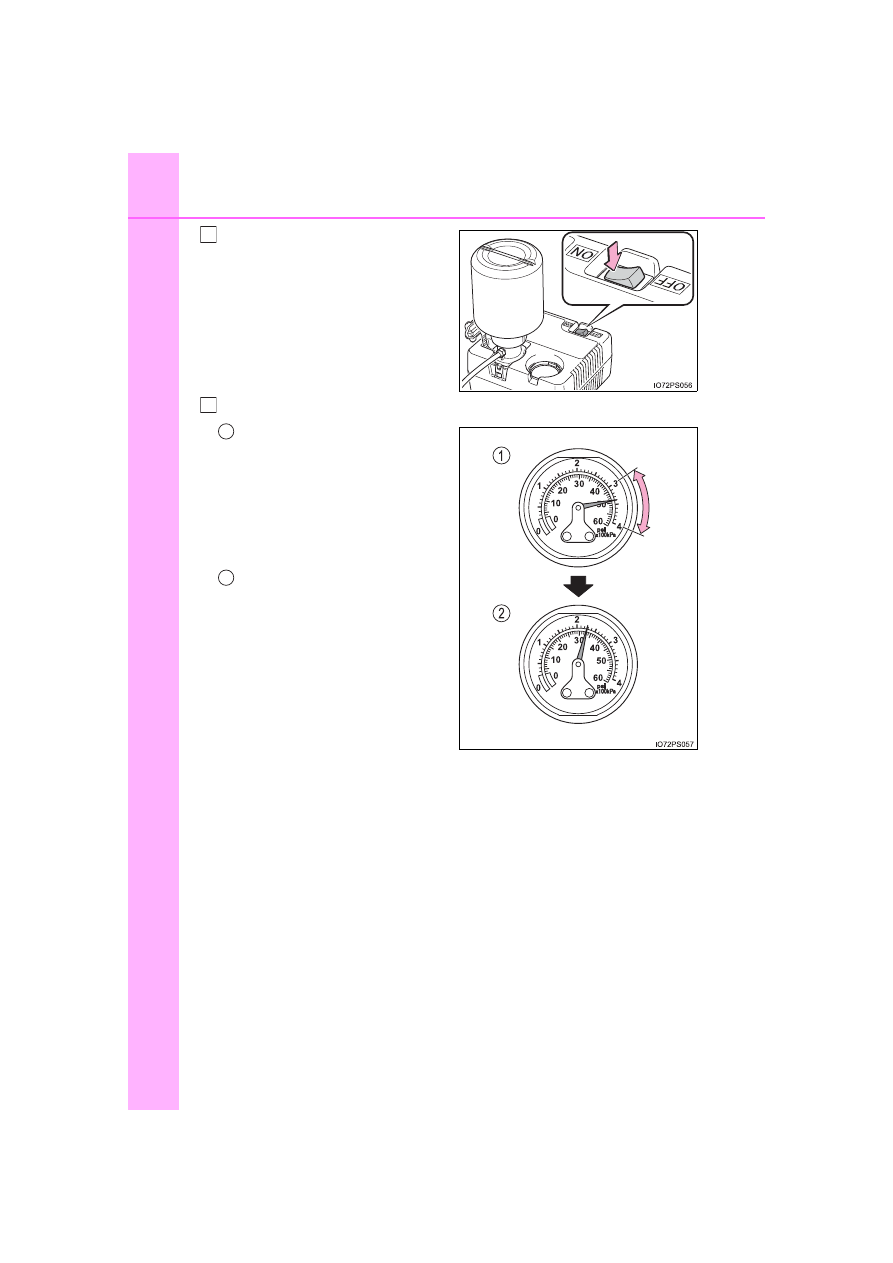

To inject the sealant and inflate
the tire, turn the compressor
switch on.

Inflate the tire until the specified air pressure is reached.

The sealant will be injected
and the pressure will spike to
between 44 psi (300 kPa,
3.0 kgf/cm

or bar) and

58 psi (400 kPa, 4.0 kgf/cm

or  bar),  then  gradually
decrease.
The  air  pressure  gauge  will
display  the  actual  tire  infla-
tion  pressure  about  1  to  5
minutes  after  the  switch  is
turned on.

• Turn the compressor switch

off and then check the tire
inflation

pressure.

Being

careful  not  to  over  inflate,
check and repeat the inflation
procedure  until  the  specified
tire  inflation  pressure  is
reached.

• The tire can be inflated for about 5 to 20 minutes (depending on

the outside temperature). If the tire inflation pressure is still lower
than the specified point after inflation for 25 minutes, the tire is
too damaged to be repaired. Turn the compressor switch off and
contact your Toyota dealer.

• If the tire inflation pressure exceeds the specified air pressure, let

out some air to adjust the tire inflation pressure. (

P. 691, 725)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

689

Wh
en tro

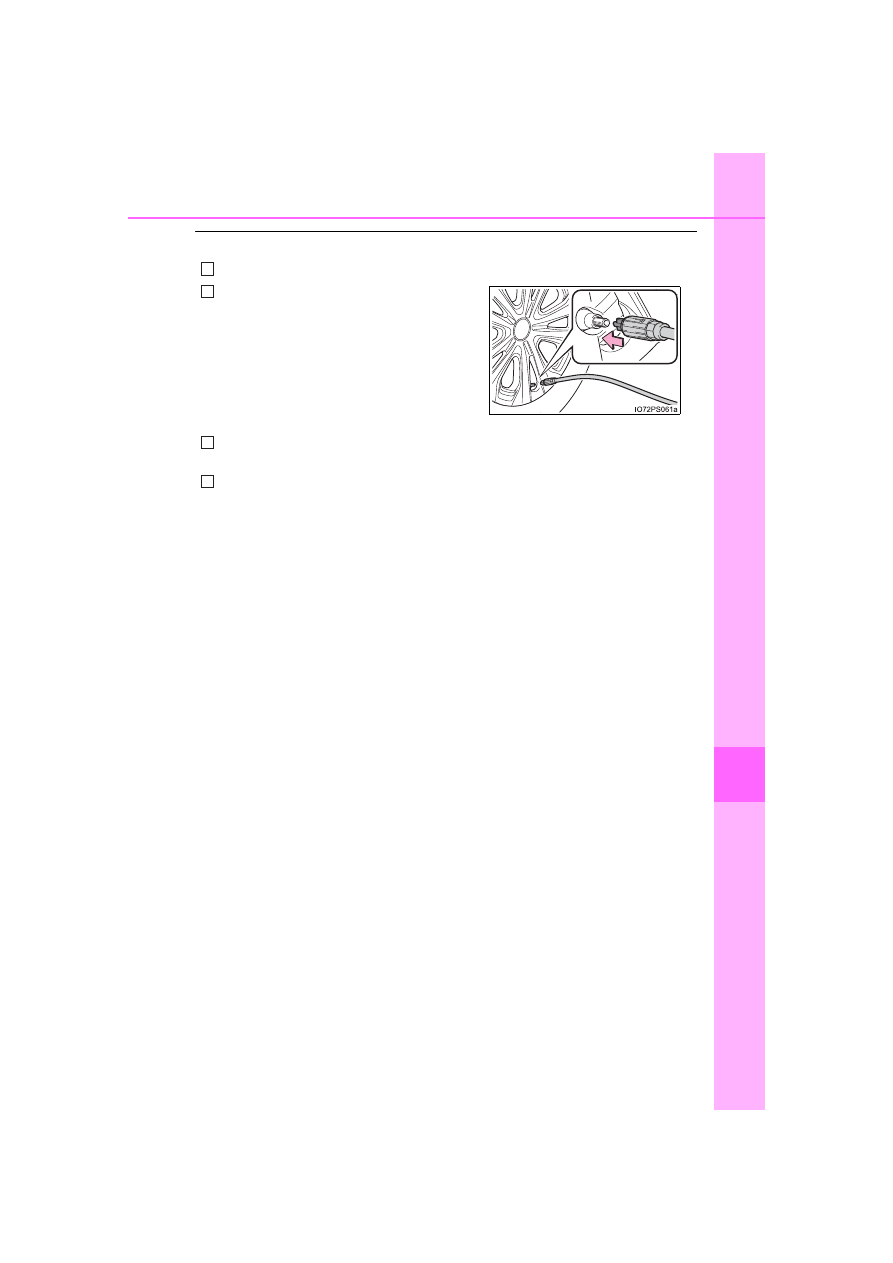

With the compressor switch off, disconnect the hose from the valve
on the tire and then pull out the power plug from the power outlet
socket.

Some sealant may leak when the hose is removed.

Install the valve cap onto the valve of the emergency repaired tire.

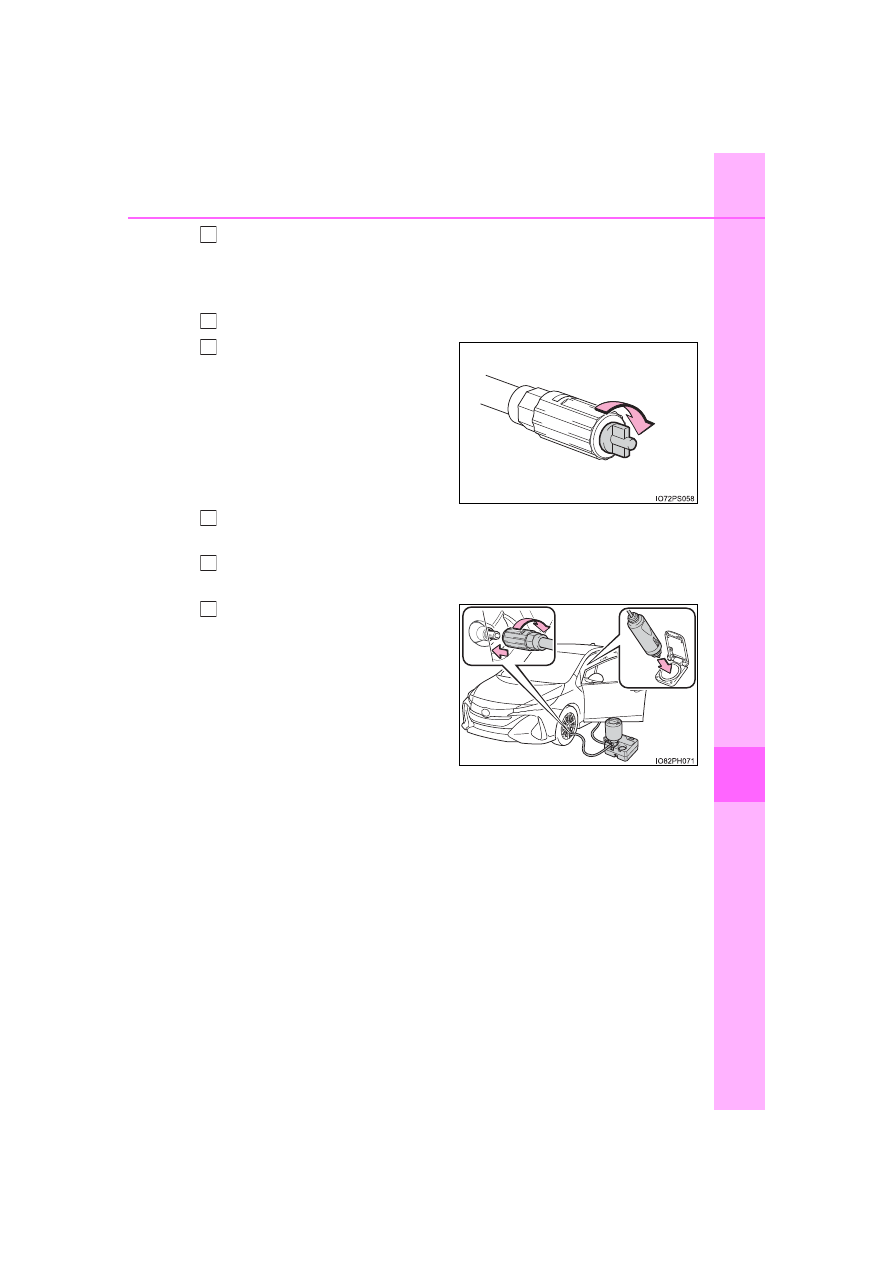

Attach the air release cap to the
end of the hose.

If the air release cap is not

attached, the sealant may leak

and the vehicle may get dirty.

Temporarily store the bottle in the luggage compartment while it is
connected to the compressor.
To spread the liquid sealant evenly within the tire, immediately drive
safely for about 3 miles (5 km) below 50 mph (80 km/h).
After  driving,  stop  your  vehicle
in  a  safe  place  on  a  hard,  flat
surface  and  reconnect  the
repair kit.

Remove the air release cap from

the hose before reconnecting the

hose.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

690

Turn the compressor switch on and wait for several seconds, then
turn it off. Check the tire inflation pressure.

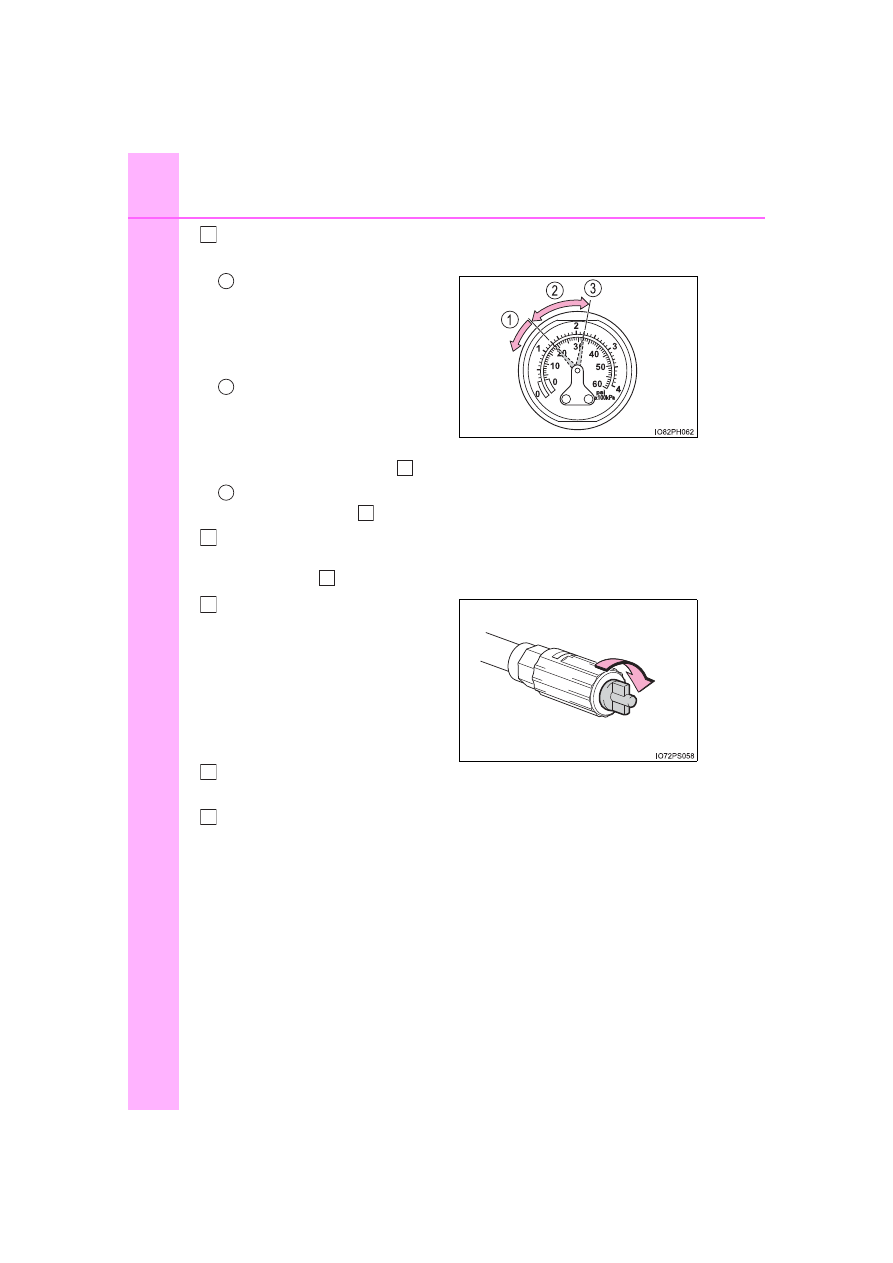

If the tire inflation pressure is
under

19 psi

(130 kPa,

1.3 kgf/cm

or bar): The

puncture cannot be repaired.
Contact your Toyota dealer.
If the tire inflation pressure is
19 psi (130 kPa, 1.3 kgf/cm

or bar) or higher, but less
than the specified air pres-
sure: Proceed to step

If the tire inflation pressure is the specified air pressure (

P. 725):

Proceed to step

Turn the compressor switch on to inflate the tire until the specified
air pressure is reached. Drive for about 3 miles (5 km) and then
perform step

Attach the air release cap to the
end of the hose.

If the air release cap is not

attached, the sealant may leak

and the vehicle may get dirty.

Store the bottle in the luggage compartment while it is connected to
the compressor.
Taking precautions to avoid sudden braking, sudden acceleration
and sharp turns, drive carefully at under 50 mph (80 km/h) to the
nearest Toyota dealer that is less than 62 miles (100 km) away for
tire repair or replacement.

When having the tire repaired or replaced, make sure to tell the Toyota

dealer that the sealant is injected.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

691

Wh
en tro

■

If the tire is inflated to more than the specified air pressure

Disconnect the hose from the valve.

Disconnect the hose from the valve, remove the air release cap from

the hose and then reconnect the hose.
Turn the compressor switch on and wait for several seconds, and then

turn it off. Check that the air pressure indicator shows the specified air

pressure. (

P. 725)

If the air pressure is under the designated pressure, turn the compres-

sor switch on again and repeat the inflation procedure until the speci-

fied air pressure is reached.

■

The valve of a tire that has been repaired
After a tire is repaired with the emergency tire puncture repair kit, the

valve should be replaced.

■

After a tire is repaired with the emergency tire puncture repair kit

●

The tire pressure warning valve and transmitter should be replaced.

●

Even if the tire inflation pressure is at the recommended level, the tire

pressure warning light may come on/flash.

■

Note for checking the emergency tire puncture repair kit
Check the sealant expiry date occasionally.

The expiry date is shown on the bottle. Do not use sealant whose expiry

date has already passed. Otherwise, repairs conducted using the emer-

gency tire puncture repair kit may not be performed properly.

Install the air release cap to the end of

the hose and push the protrusion on

the air release cap into the tire valve

to let some air out.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

692

■

Emergency tire puncture repair kit

●

The emergency tire puncture repair kit is for filling the car tire with air.

●

The sealant has a limited life span. The expiry date is marked on the

bottle. The sealant should be replaced before the expiry date. Contact

your Toyota dealer for replacement.

●

The sealant stored in the emergency tire puncture repair kit can be used

only once to temporarily repair a single tire. If the sealant in the bottle

and other parts of the kit have been used and need to be replaced, con-

tact your Toyota dealer.

●

The compressor can be used repeatedly.

●

The sealant can be used when the outside temperature is from -40°F

(-40°C) to 140°F (60°C).

●

The kit is exclusively designed for size and type of tires originally

installed on your vehicle. Do not use it for tires that a different size than

the original ones, or for any other purposes.

●

If the sealant gets on your clothes, it may stain.

●

If the sealant adheres to a wheel or the surface of the vehicle body, the

stain may not be removable if it is not cleaned at once. Immediately wipe

away the sealant with a wet cloth.

●

During operation of the repair kit, a loud operation noise is produced.

This does not indicate a malfunction.

●

Do not use to check or to adjust the tire pressure.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

693

Wh
en tro

WARNING

■

Do not drive the vehicle with a flat tire
Do not continue driving with a flat tire.

Driving even a short distance with a flat tire can damage the tire and the

wheel beyond repair.
Driving with a flat tire may cause a circumferential groove on the side

wall. In such a case, the tire may explode when using a repair kit.

■

Caution while driving

●

Store the repair kit in the luggage compartment.

Injuries may result in the event of an accident or sudden braking.

●

The repair kit is exclusively only for your vehicle.

Do not use repair kit on other vehicles, which could lead to an accident

causing death or serious injury.

●

Do not use repair kit for tires that are different size than the original

ones, or for any other purpose. If the tires have not been completely

repaired, it could lead to an accident causing death or serious injury.

■

Precautions for use of the sealant

●

Ingesting the sealant is hazardous to your health. If you ingest sealant,

consume as much water as possible, and then immediately consult a

doctor.

●

If sealant gets in eyes or adheres to skin, immediately wash it off with

water. If discomfort persists, consult a doctor.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

694

WARNING

■

When fixing the flat tire

●

Stop your vehicle in a safe and flat area.

●

Do not touch the wheels or the area around the brakes immediately

after the vehicle has been driven.

After the vehicle has been driven, the wheels and the area around the

brakes may be extremely hot. Touching these areas with hands, feet or

other body parts may result in burns.

●

Connect the valve and hose securely with the tire installed on the vehi-

cle. If the hose is not properly connected to the valve, air leakage may

occur as sealant may be sprayed out.

●

If the hose comes off the valve while inflating the tire, there is a risk

that the hose will move abruptly due to air pressure.

●

After inflation of the tire has completed, the sealant may splatter when

the hose is disconnected or some air is let out of the tire.

●

Follow the operation procedure to repair the tire. If the procedures not

followed, the sealant may spray out.

●

Keep back from the tire while it is being repaired, as there is a chance

of it bursting while the repair operation is being performed. If you

notice any cracks or deformation of the tire, turn off the compressor

switch and stop the repair operation immediately.

●

The repair kit may overheat if operated for a long period of time. Do not

operate the repair kit continuously for more than 40 minutes.

●

Parts of the repair kit become hot during operation. Be careful handling

the repair kit during and after operation. Do not touch the metal part

connecting the bottle and the compressor. It will be extremely hot.

●

Do not attach the vehicle speed warning sticker to an area other than

the one indicated. If the sticker is attached to an area where an SRS

airbag is located, such as the pad of the steering wheel, it may prevent

the SRS airbag from operating properly.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

695

Wh
en tro
