7-3. Do-it-yourself maintenance

NOTICE

■

Replacing tire pressure warning valves and transmitters

●

Because tire repair or replacement may affect the tire pressure warn-

ing valves and transmitters, make sure to have tires serviced by your

Toyota dealer or other qualified service shop. In addition, make sure to

purchase  your  tire  pressure  warning  valves  and  transmitters  at  your

Toyota dealer.

●

Ensure that only genuine Toyota wheels are used on your vehicle.

Tire pressure warning valves and transmitters may not work properly

with non-genuine wheels.

617

7-3. Do-it-yourself maintenance

7

Mainten

ance an

d ca

re

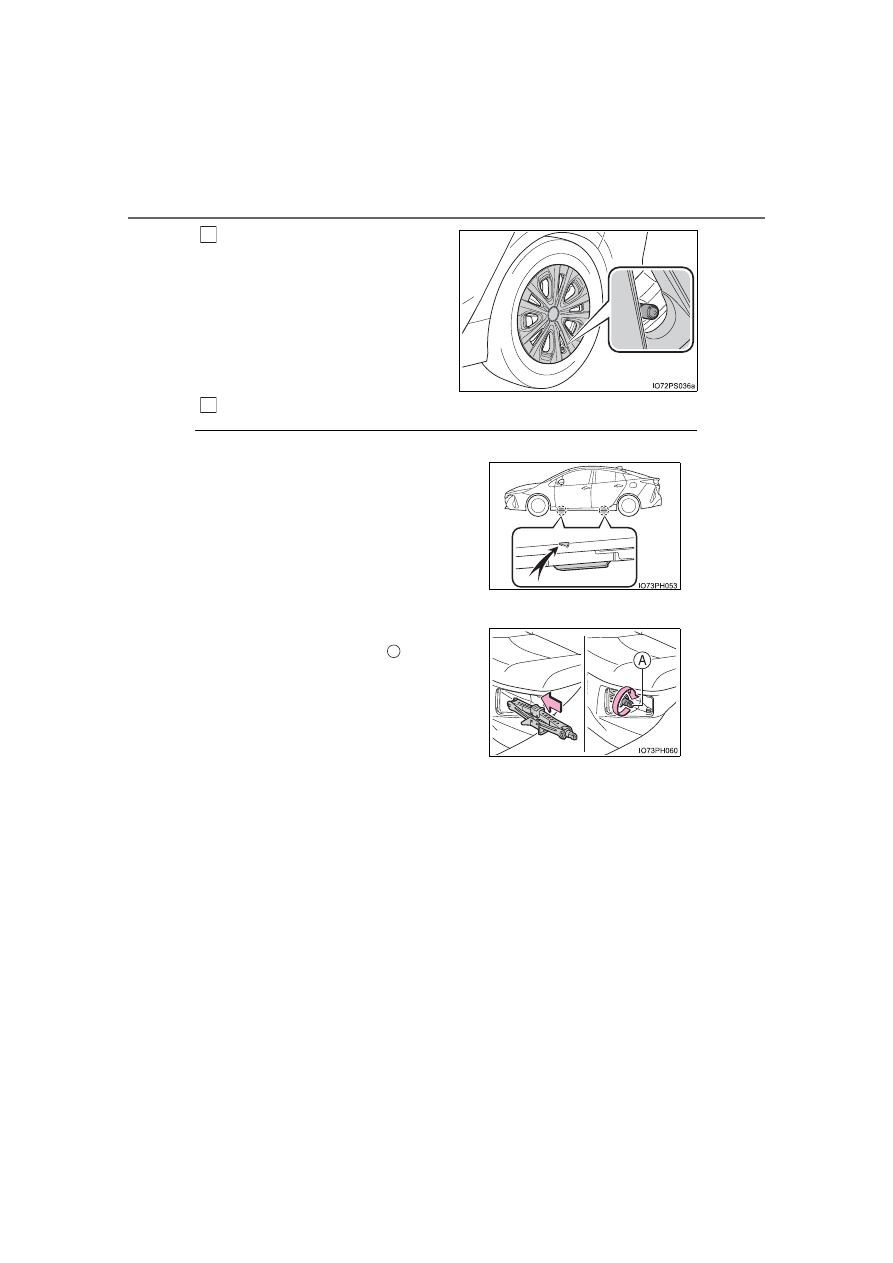

Replacing the tire

● Stop the vehicle in a safe place on a hard, flat surface.
● Set the parking brake.
● Shift the shift position to P.
● Stop the hybrid system.

When  raising  your  vehicle  with  a  jack,  position  the  jack  cor-
rectly.
Improper placement may damage your vehicle or cause injury.

Before jacking up the vehicle

618

7-3. Do-it-yourself maintenance

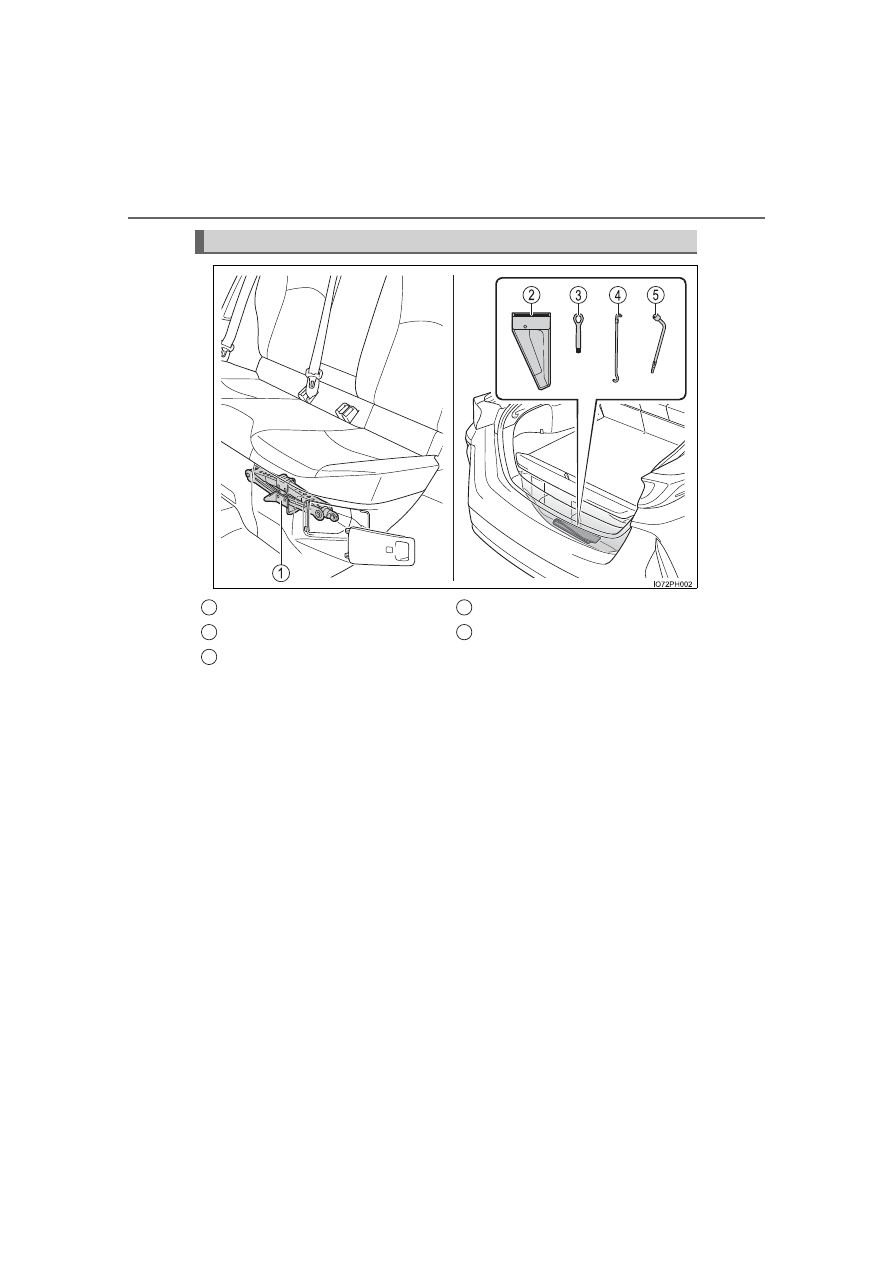

Location of the jack and tools

Jack
Tool bag
Towing eyelet

Jack handle
Wheel nut wrench

1
2
3

4
5

619

7-3. Do-it-yourself maintenance

7

Mainten

ance an

d ca

re

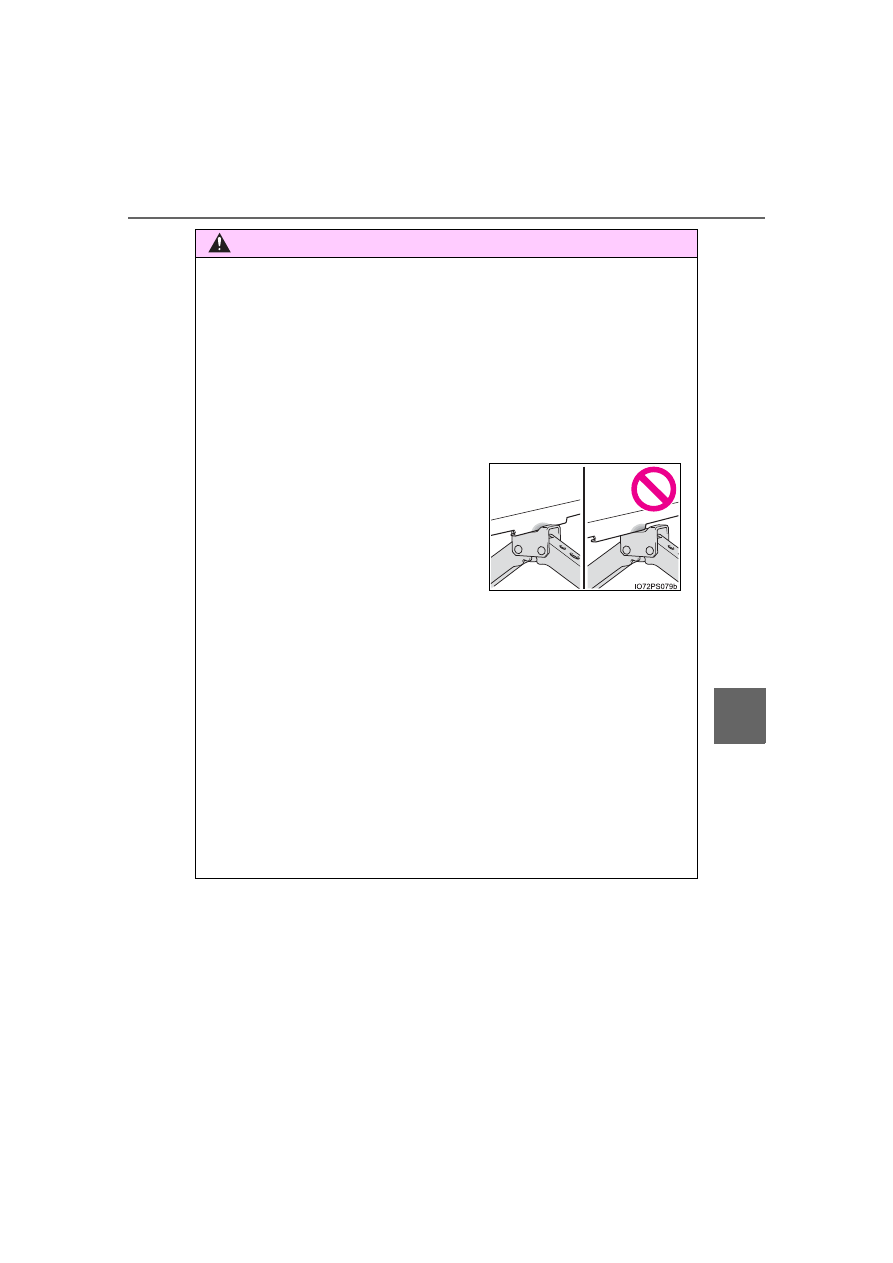

WARNING

■

Using the tire jack
Observe the following precautions.

Improper use of the tire jack may cause the vehicle to suddenly fall off

the jack, leading to death or serious injury.

●

Only use the tire jack that comes with this vehicle for replacing a tire.

Do  not  use  it  on  other  vehicles,  and  do  not  use  other  tire  jacks  for

replacing tires on this vehicle.

●

Do not raise the vehicle while someone is inside.

●

Do not use the tire jack for any purpose other than replacing tires or

installing and removing tire chains.

●

Do not put any part of your body under the vehicle while it is supported

by the jack.

●

Do not start the hybrid system or drive the vehicle while the vehicle is

supported by the jack.

●

When raising the vehicle, do not put an object on or under the jack.

●

Do  not  raise  the  vehicle  to  a  height  greater  than  that  required  to

replace the tire.

●

Use a jack stand if it is necessary to get under the vehicle.

●

When  lowering  the  vehicle,  make  sure  that  there  is  no-one  near  the

vehicle. If there are people nearby, warn them vocally before lowering.

■

When removing the jack from the storage location
The jack may be hot due to heat from the charging equipment during or

after charging. Please use gloves when handling the jack. If it is touched

with bare hands, it may result in burns.

●

Put the jack properly in its jack point.

(

P. 623)

620

7-3. Do-it-yourself maintenance

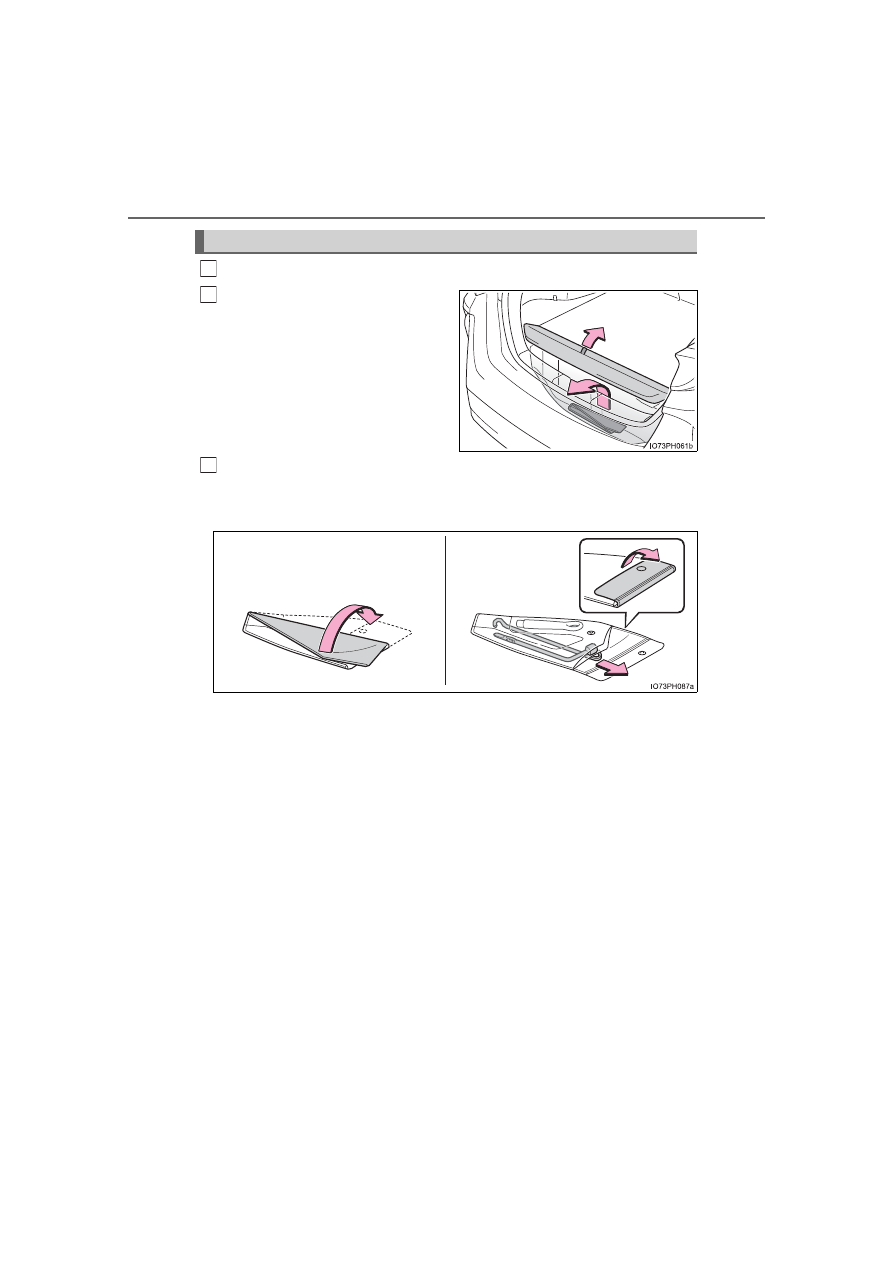

Open the back door. (

P. 285)

Lift  the  deck  under  box  cover
up and take out the tool bag.

Open the tool bag and then take out the jack handle and wheel nut
wrench.

After using the tools, stow them by reversing the steps listed.

Taking out the tools

1

2

3

621

7-3. Do-it-yourself maintenance

7

Mainten

ance an

d ca

re

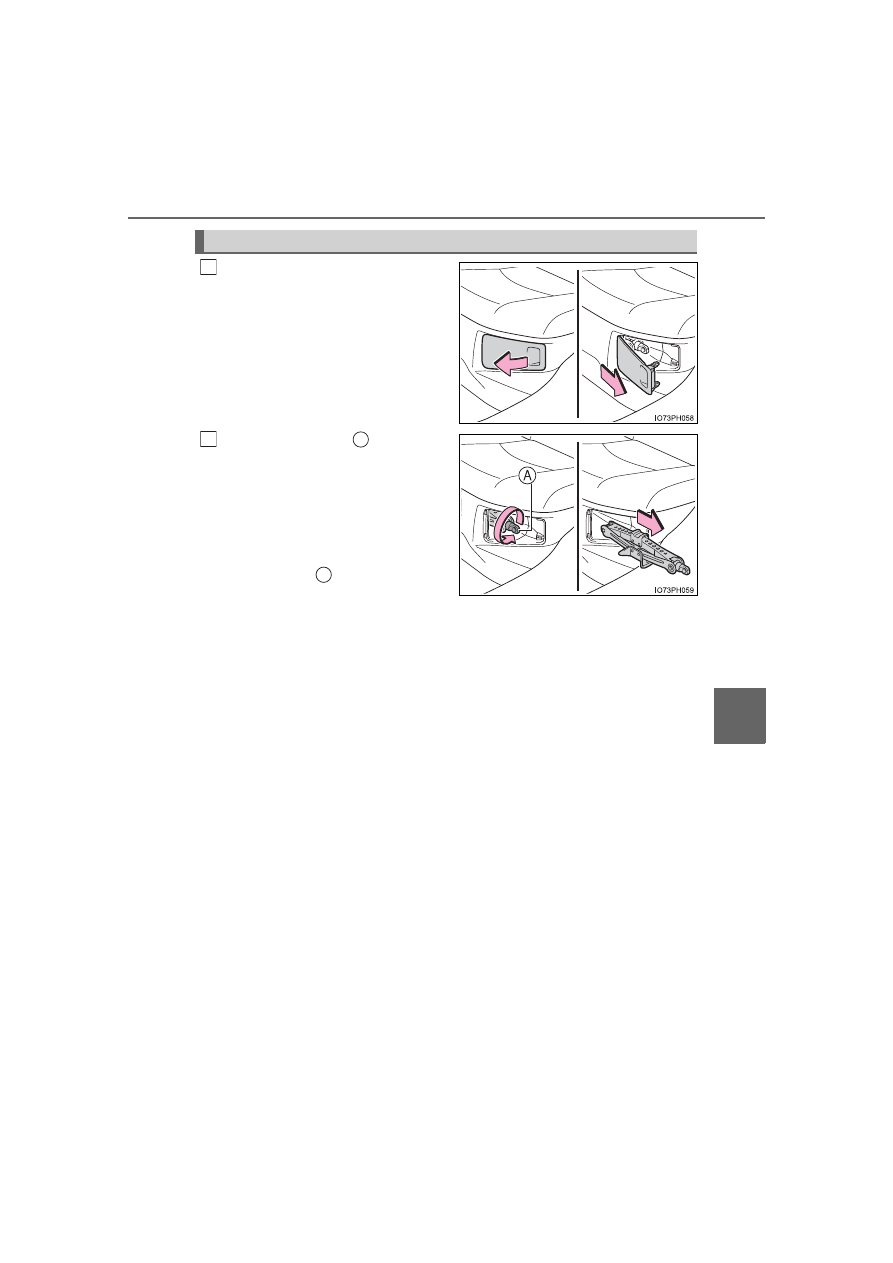

Pull the cover to disconnect the
tabs, and remove the cover.

Turn  the  portion

  to  loosen

the jack, and slowly take out the
jack.

Be  careful  when  handling  the

jack,  as  it  may  become  hot

depending on conditions.

(

P. 619)

If the portion

 can not be loos-

ened,  turn  it  using  the  jack  han-

dle.

Taking out the jack

1

2

A

A

622

7-3. Do-it-yourself maintenance

Chock the tires.

Remove  the  wheel  ornament
using the wrench.

To prevent damage, cover the tip

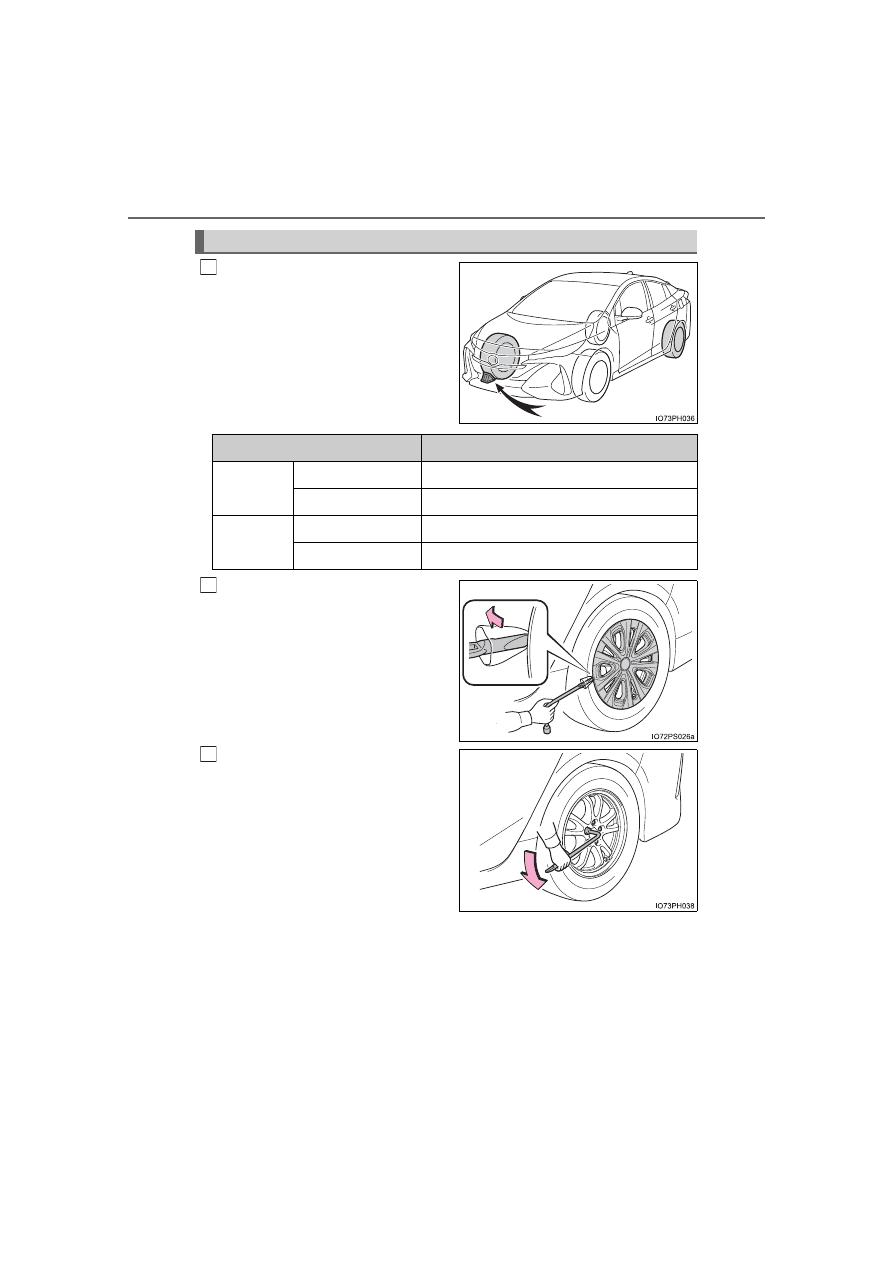

of the wrench with a rag.

Slightly  loosen  the  wheel  nuts
(one turn).

Replacing a tire

1

Tire position

Wheel chock positions

Front

Left-hand side

Behind the rear right-hand side tire

Right-hand side

Behind the rear left-hand side tire

Rear

Left-hand side

In front of the front right-hand side tire

Right-hand side

In front of the front left-hand side tire

2

3

623

7-3. Do-it-yourself maintenance

7

Mainten

ance an

d ca

re

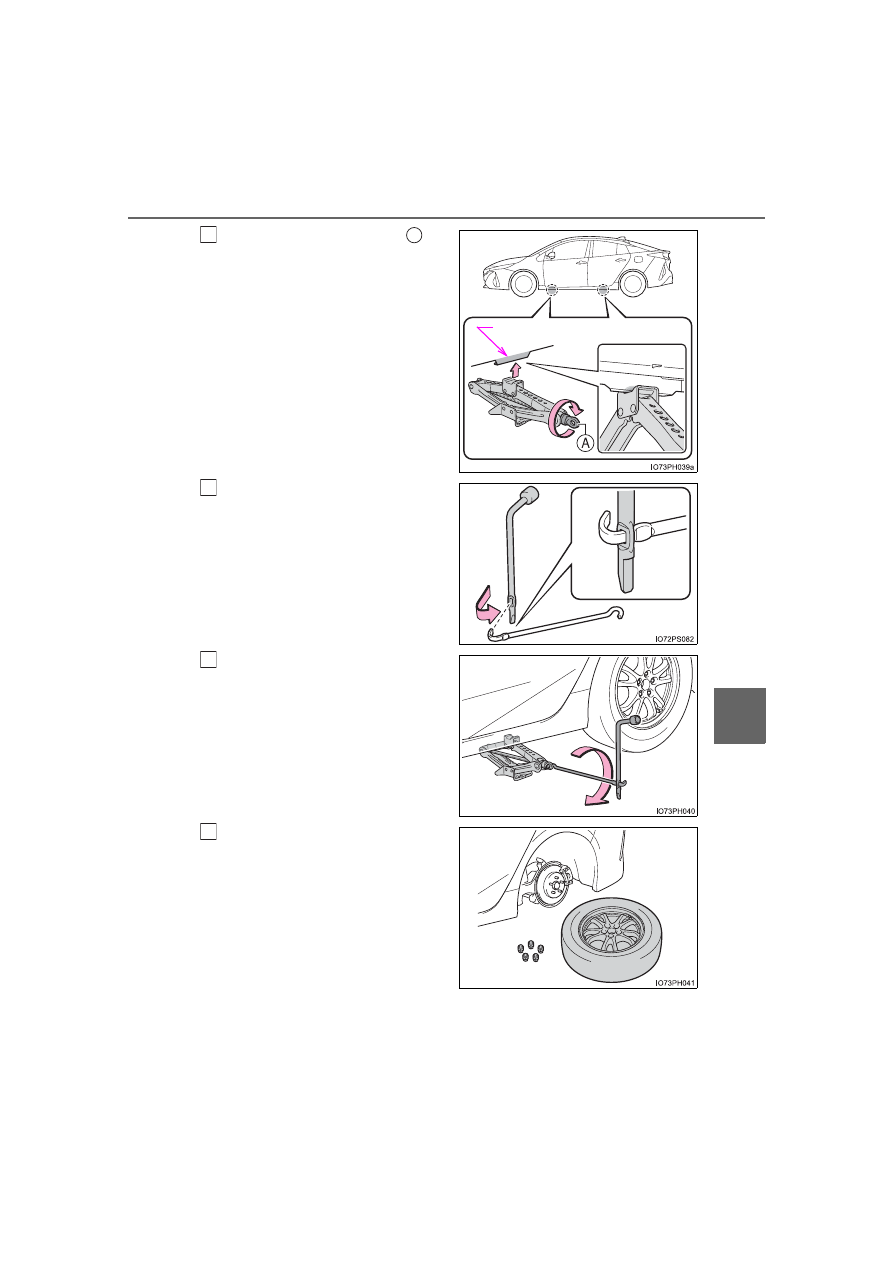

Turn the tire jack portion

 by

hand  until  the  center  of  the
recessed  portion  of  the  jack  is
in contact with the center of the
jack point.

Assemble  the  jack  handle  and
the wheel nut wrench as shown
in the illustration.

Raise the vehicle until the tire is
slightly raised off the ground.

Remove all the wheel nuts and
the tire.

When  resting  the  tire  on  the

ground, place the tire so that the

wheel  design  faces  up  to  avoid

scratching the wheel surface.

Jack point

4

A

5

6

7

624

7-3. Do-it-yourself maintenance

WARNING

■

Replacing a tire

●

Do not touch the disc wheels or the area around the brakes immedi-

ately after the vehicle has been driven.

After the vehicle has been driven the disc wheels and the area around

the brakes will be extremely hot. Touching these areas with hands, feet

or other body parts while changing a tire, etc. may result in burns.

●

Failure  to  follow  these  precautions  could  cause  the  wheel  nuts  to

loosen and the tire to fall off, resulting in death or serious injury.
• Have  the  wheel  nuts  tightened  with  a  torque  wrench  to  76  ft•lbf

(103 N•m, 10.5 kgf•m) as soon as possible after changing wheels.

• When installing a tire, only use wheel nuts that have been specifi-

cally designed for that wheel.

• If  there  are  any  cracks  or  deformations  in  the  bolt  screws,  nut

threads  or  bolt  holes  of  the  wheel,  have  the  vehicle  inspected  by

your Toyota dealer.

• When installing the wheel nuts, be sure to install the wheel nuts with

the tapered ends facing inward. (

P. 615)

625

7-3. Do-it-yourself maintenance

7

Mainten

ance an

d ca

re

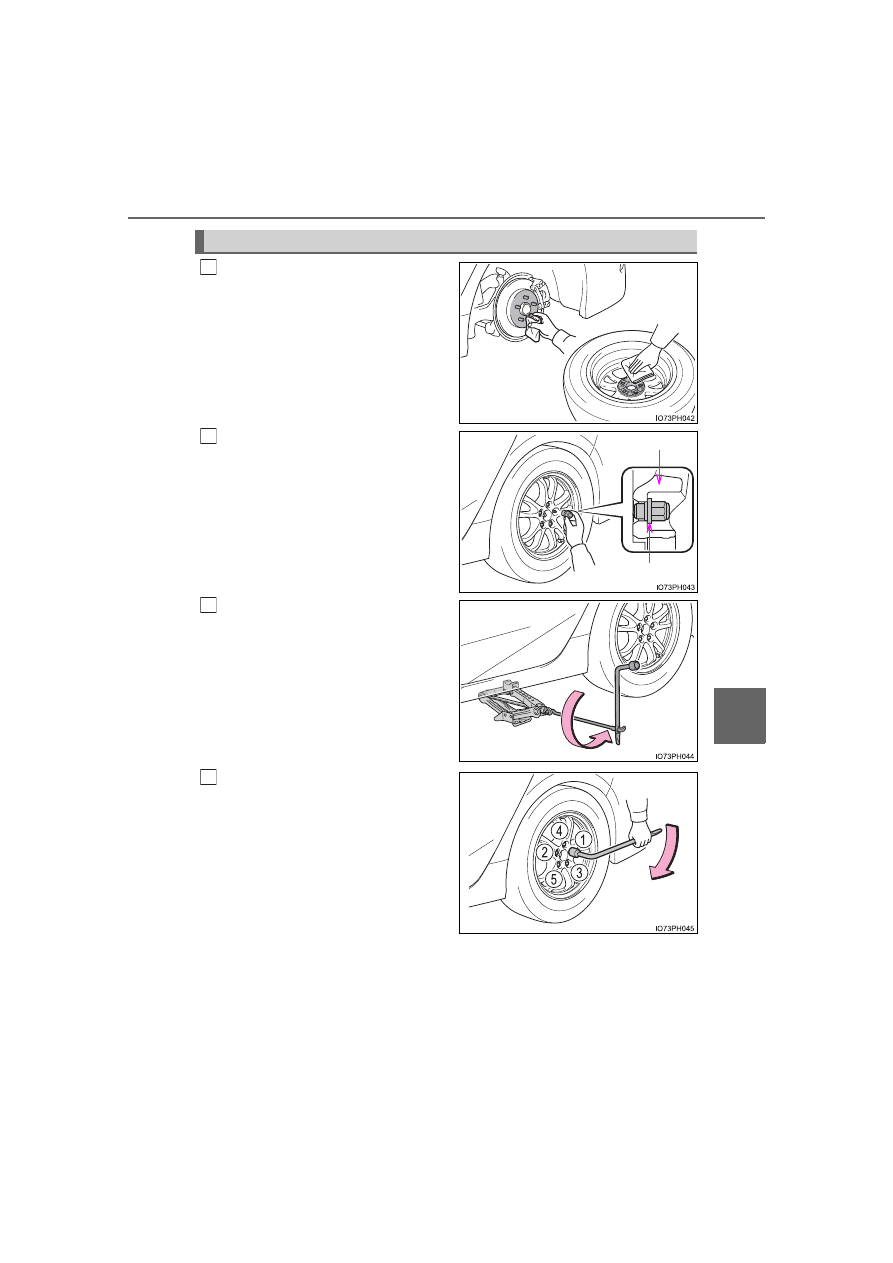

Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.

If  foreign  matter  is  on  the  wheel

contact  surface,  the  wheel  nuts

may loosen while the vehicle is in

motion,  causing  the  tire  to  come

off.

Install  the  tire  and  loosely
tighten each wheel nut by hand
by  approximately  the  same
amount.

Turn  the  wheel  nuts  until  the

washers  come  into  contact  with

the disc wheel.

Lower the vehicle.

Firmly  tighten  each  wheel  nut
two  or  three  times  in  the  order
shown in the illustration.

Tightening torque:

76 ft•lbf (103 N•m, 10.5 kgf•m)

Installing the tire

1

Washer

Disc wheel

2

3

4

626

7-3. Do-it-yourself maintenance

Reinstall the wheel ornament.

Align  the  cutout  of  the  wheel

ornament with the valve stem as

shown.

Stow the tire jack and all tools.

■

Jack point

■

Storing the jack

5

The  mark  indicating  the  jack  point  is

stamped  on  the  underside  of  the  vehi-

cle.

Fully insert the jack in the stowing posi-

tion,  and  turn  the  portion

  to  secure

the jack.

6

A

627

7-3. Do-it-yourself maintenance

7

Mainten

ance an

d ca

re

WARNING

■

After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in

their storage location to reduce the possibility of personal injury during a

collision or sudden braking.

NOTICE

■

When replacing the tires
When removing or fitting the wheels, tires or the tire pressure warning

valve  and  transmitter,  contact  your Toyota  dealer  as  the  tire  pressure

warning valve and transmitter may be damaged if not handled correctly.

628

7-3. Do-it-yourself maintenance

Air conditioning filter

Turn the power switch off.

Confirm that the charging connector is not connected. Also, do not use the
Remote Air Conditioning System during the procedure.

Open the front passenger’s door.

By keeping the door open, unexpected operation of the Remote Air Condi-
tioning System can be prevent. (

P. 523)

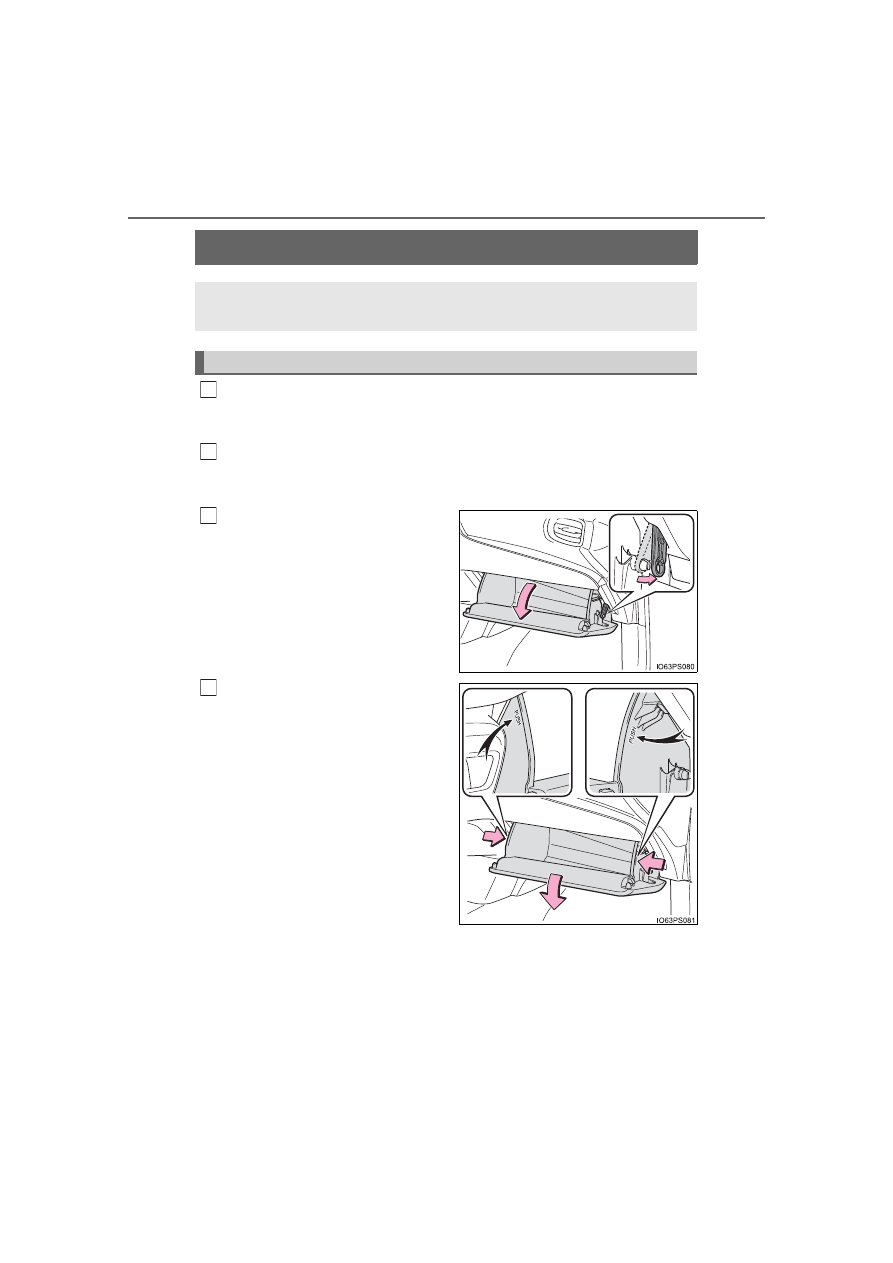

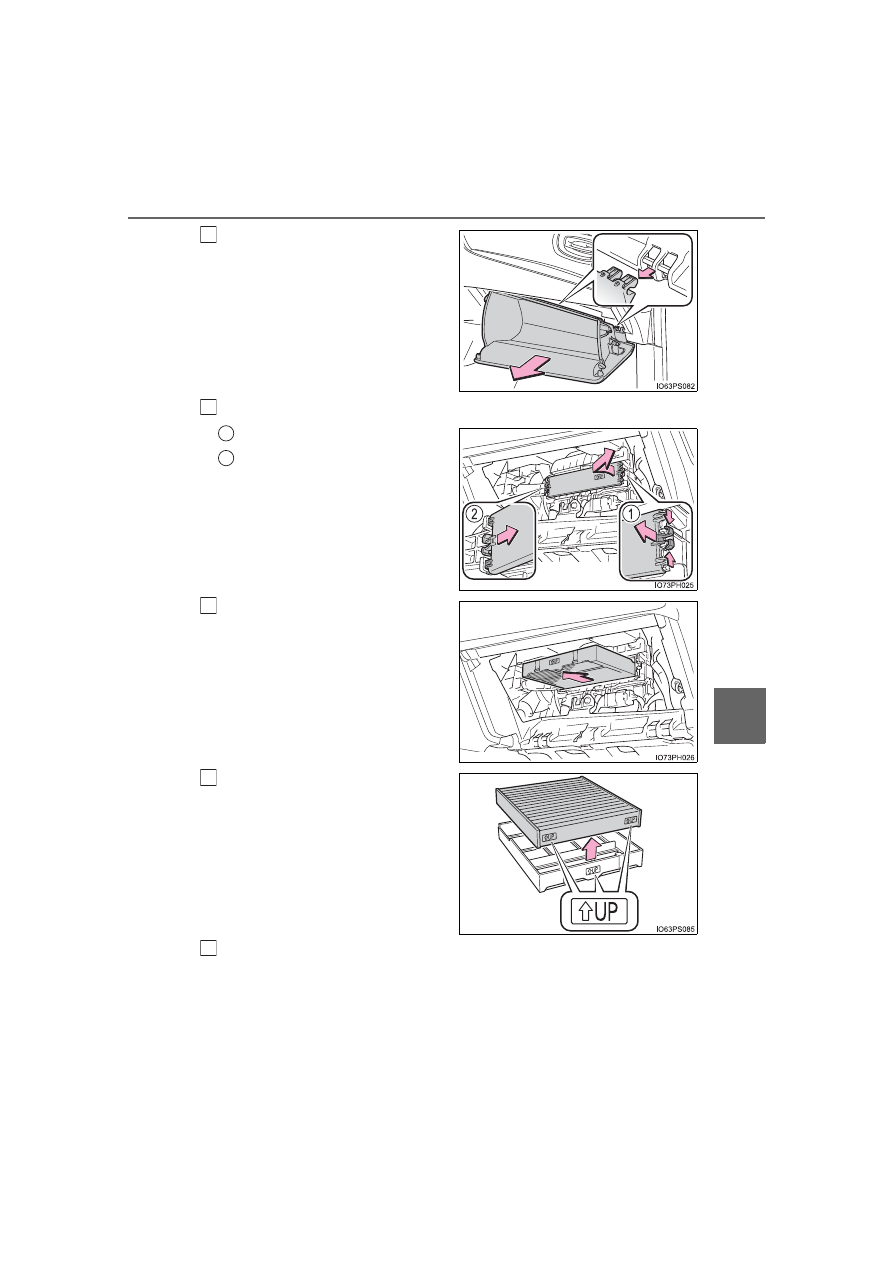

Open  the  glove  box  and  slide
off the damper.

Push  in  each  side  of  the  glove
box  to  disconnect  the  claws,
and  then  slowly  and  fully  open
the  glove  box  while  supporting
it.

The air conditioning filter must be changed regularly to maintain
air conditioning efficiency.

Replacing the air conditioning filter

1

2

3

4

629

7-3. Do-it-yourself maintenance

7

Mainten

ance an

d ca

re

With  the  glove  box  fully  open,
slightly lift up the glove box and
pull  toward  the  seat  to  detach
the bottom of the glove box.

Do  not  use  excessive  force  if  the
glove  box  does  not  detach  when
lightly  pulled.  Instead,  pull  toward
the seat while slightly adjusting the
height of the glove box.

Remove the filter cover.

Unlock the filter cover.
Move  the  filter  cover  in  the
direction of the arrow, and then
pull it out of the claws.

Remove the filter case.

Remove the air conditioning fil-
ter  from  the  filter  case  and
replace it with a new one.

The “

UP” marks shown on the fil-

ter should be pointing up.

When installing, reverse the steps listed.

5

6

1
2

7

8

9

630

7-3. Do-it-yourself maintenance

■

Checking interval
Inspect and replace the air conditioning  filter  according to  the  maintenance
schedule. In dusty areas or areas with heavy traffic flow, early replacement
may be required. (For scheduled maintenance information, please refer to the
“Scheduled Maintenance Guide” or “Owner’s Manual Supplement”.)

■

If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.

WARNING

■

When replacing the air conditioning filter
Observe  the  following  precautions.  Failure  to  do  so  may  result  in  the  air
conditioning  system  operating  during  the  procedure,  possibly  resulting  in
injury.

●

Check that the charging connector is not connected
The air conditioning may operate due to the “Climate Prep” (

P. 157) or

“Traction Battery Cooler” (

P. 136) setting.

●

Do not use the Remote Air Conditioning System

631

7-3. Do-it-yourself maintenance

7

Mainten

ance an

d ca

re

NOTICE

■

When using the air conditioning system
Make sure that a filter is always installed.
Using the air conditioning system without a filter may cause damage to the
system.

■

When removing the glove box
Always follow the specified procedure to remove the glove box (

P. 628). If

the  glove  box  is  removed  without  following  the  specified  procedure,  the
hinge of the glove box may become damaged.

■

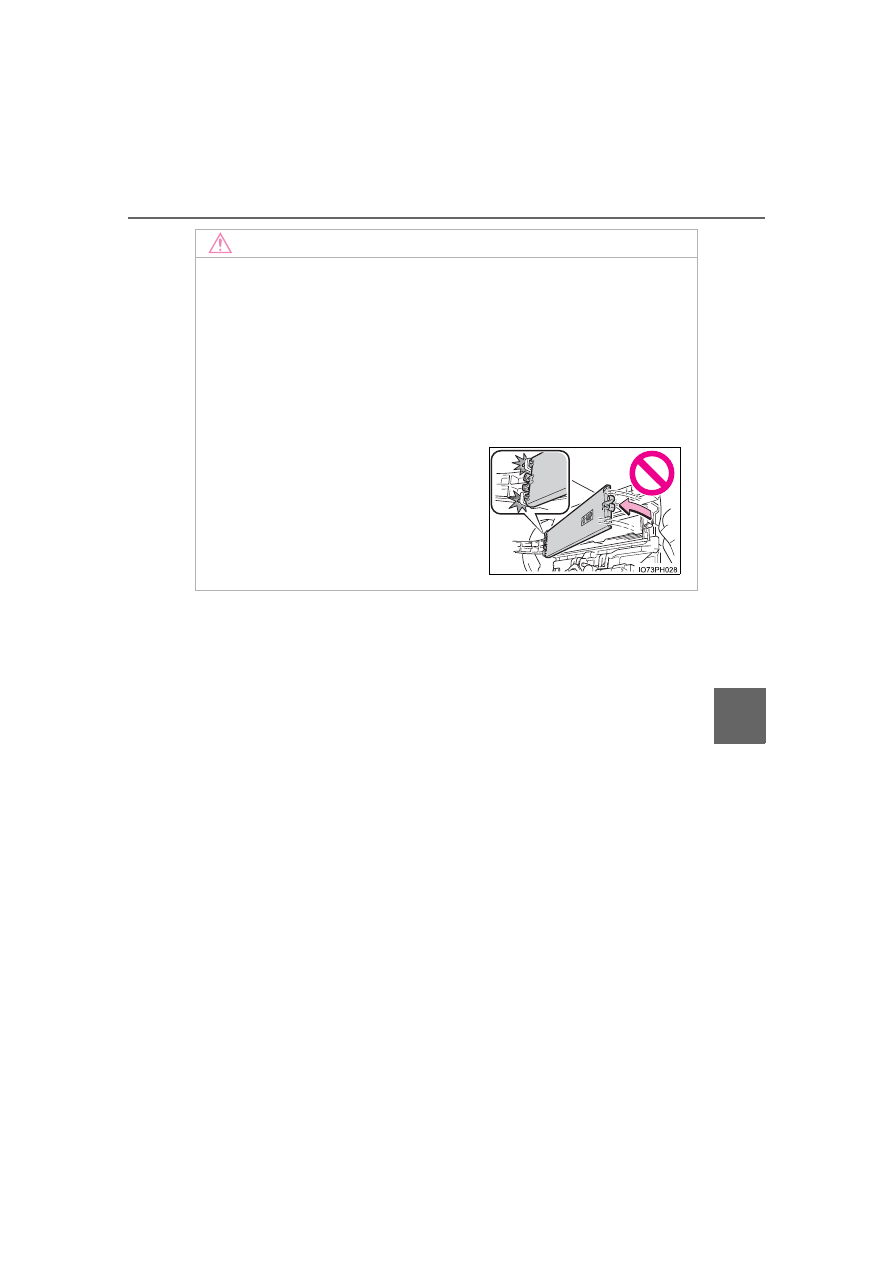

To prevent damage to the filter cover

When moving the filter cover in the direc-
tion  of  arrow  to  release  the  fitting,  pay
attention  not  to apply excessive  force  to
the  claws.  Otherwise,  the  claws  may  be
damaged.
