232

3. Instrument cluster

■

Types of “Fuel Consumption Record”



When the unit is set to “MPH”

*

: This record is reset each time the hybrid system stops.



When the unit is set to “km/h”

*

: This record is reset each time the hybrid system stops.

Tab display

Recorded contents

Recorded range

“



1 miles”

Average  electricity  con-
sumption  of  every  1  mile
(1.6 km) driven

*

The last 15 miles (24.1 km)
driven

“



5 miles”

Average  electricity  con-
sumption of every 5 miles (8
km) driven

*

The last 30 miles (48.3 km)
driven

“



1 miles”

Average  fuel  consumption
of  every  1  mile  (1.6  km)
driven

*

The last 15 miles (24.1 km)
driven

“



5 miles”

Average  fuel  consumption
of  every  5  miles  (8  km)
driven

*

The last 30 miles (48.3 km)
driven

Tab display

Recorded contents

Recorded range

“



1 km”

Average  electricity  con-
sumption  of  every  1  km
(0.6 mile) driven

*

The  last  15  km  (9.3  miles)
driven

“



5 km”

Average  electricity  con-
sumption  of  every  5  km
(3.1 miles) driven

*

The last 30 km (18.6 miles)
driven

“



1 km”

Average  fuel  consumption
of  every  1  km  (0.6 mile)
driven

*

The  last  15  km  (9.3  miles)
driven

“



5 km”

Average  fuel  consumption
of  every  5  km  (3.1 miles)
driven

*

The last 30 km (18.6 miles)
driven

233

3. Instrument cluster

3

Instrument clus

ter

■

Switching the electricity and fuel consumption history screen

While the “Fuel Consumption Record” screen is displayed, press

.

The tab display is selected and it is possible to switch the contents of
the display.

Press

 or

 of the meter control switches to switch the con-

tents of the display.

Each time

 is pressed, the display switches in the following order:



When the unit is set to “MPH”

“



1 miles”, “



5 miles”, “



1 miles” and “



5 miles”

*

1

. When

is pressed, it switches in the reverse order.



When the unit is set to “km/h”

“



1  km”,  “



5  km”,  “



1  km”  and  “



5  km”

*

2

.  When

  is

pressed, it switches in the reverse order.

*

1

: After “



5 miles”, the display returns to “



1 miles”.

*

2

: After “



5 km”, the display returns to “



1 km”.

1

2

234

3. Instrument cluster

◆

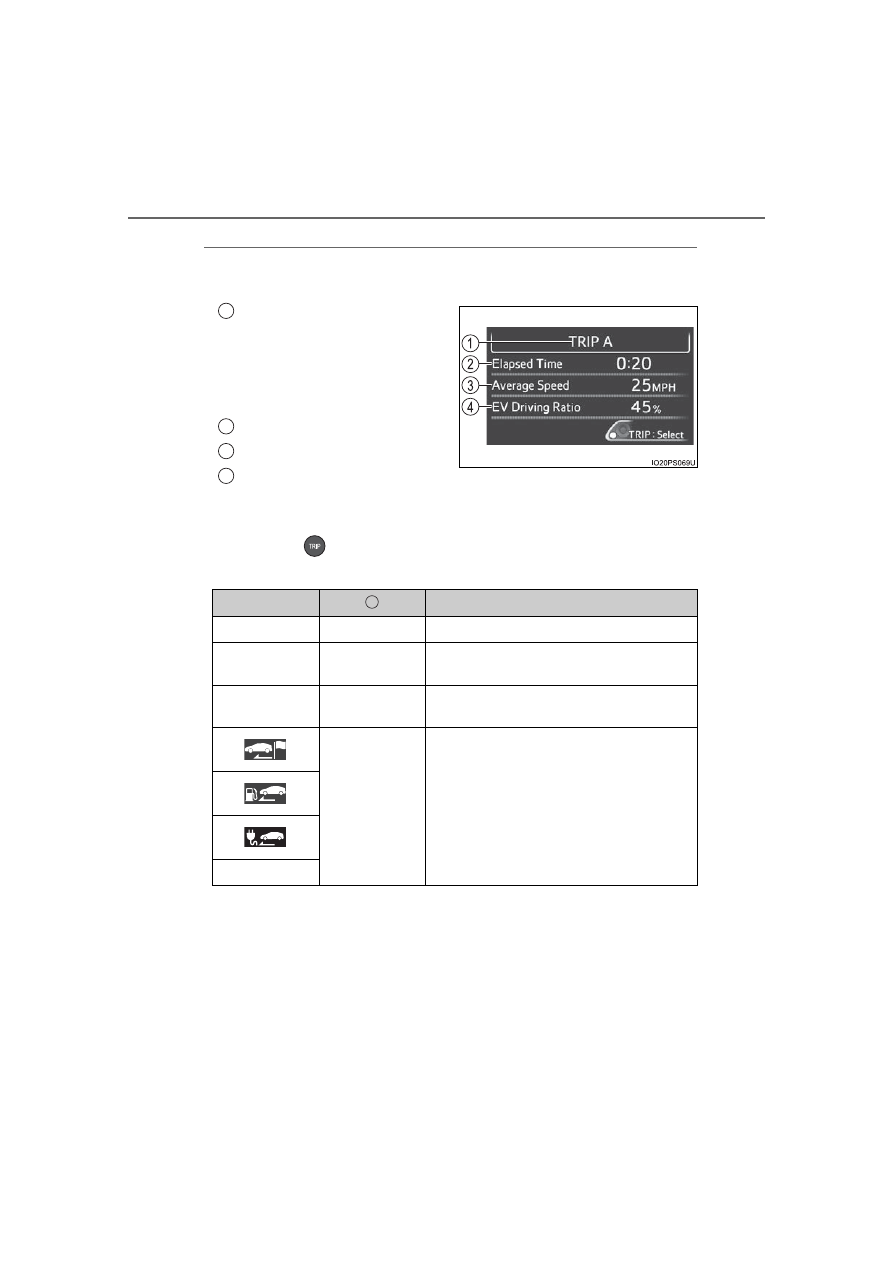

“Drive Monitor”

Displays information such as the driving time and average vehicle
speed, which are linked with the current mileage display. (

P. 211)

Current  contents  of  the  dis-
play

Displayed  information  shows
which  driving  record  the  cur-
rently  displayed  contents  are
based on.

“Elapsed Time”
“Average Speed”
“EV Driving Ratio”

For the displayed distance of the mileage display, the percent traveled
using only electric motor power is displayed.

Each time

 is pressed, the mileage display (

P. 211) switches

and the contents of the “Drive monitor” change as follows.

*

1

: When the average fuel consumption is reset (

P. 212), the “Drive monitor”

display is also reset.

*

2

: When the trip meter is reset (

P. 212), the “Drive monitor” display is also

reset.

*

3

: This item is reset each time the hybrid system starts.

1

2
3
4

Mileage display

Contents of the “Drive monitor”

ODO

After Reset

Information since last reset

*

1

TRIP A

TRIP A

Information  based  on  driving  record  of
TRIP A

*

2

TRIP B

TRIP B

Information  based  on  driving  record  of
TRIP B

*

2

After Start

Information  since  hybrid  system  was
started

*

3

Blank screen

1

235

3. Instrument cluster

3

Instrument clus

ter

◆

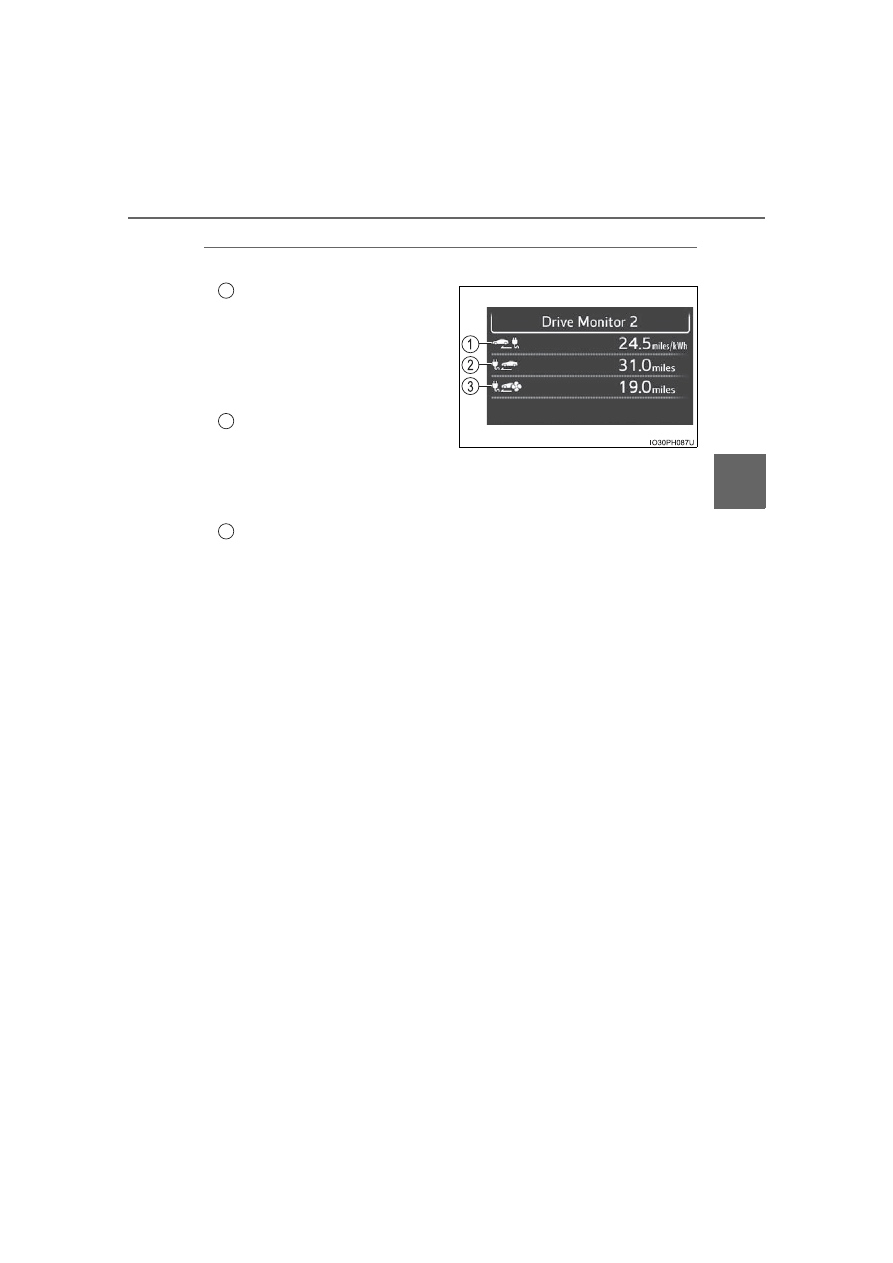

“Drive Monitor 2”

The following information of EV driving is displayed.

Total average electricity con-
sumption
Indicates  the  total  average
electricity  consumption  since
last  reset  until  it  is  reset
again.

*

1

EV  driving  range  (without
using  the  air  conditioning
system)
Indicates the estimated distance that can be driven using the cur-
rent remaining hybrid battery (traction battery). (

P. 108)

*

2

EV driving range (with using the air conditioning system)
Indicates the estimated distance that can be driven using the cur-
rent remaining hybrid battery (traction battery) while using the air
conditioning system.

*

2

*

1

: When “Electricity Consumption Reset” (

P. 248) is performed, the data

of the total electricity consumption is deleted.

*

2

: The EV driving range may shorten even when not driving due to power

consumption by the system.

1

2

3

236

3. Instrument cluster

◆

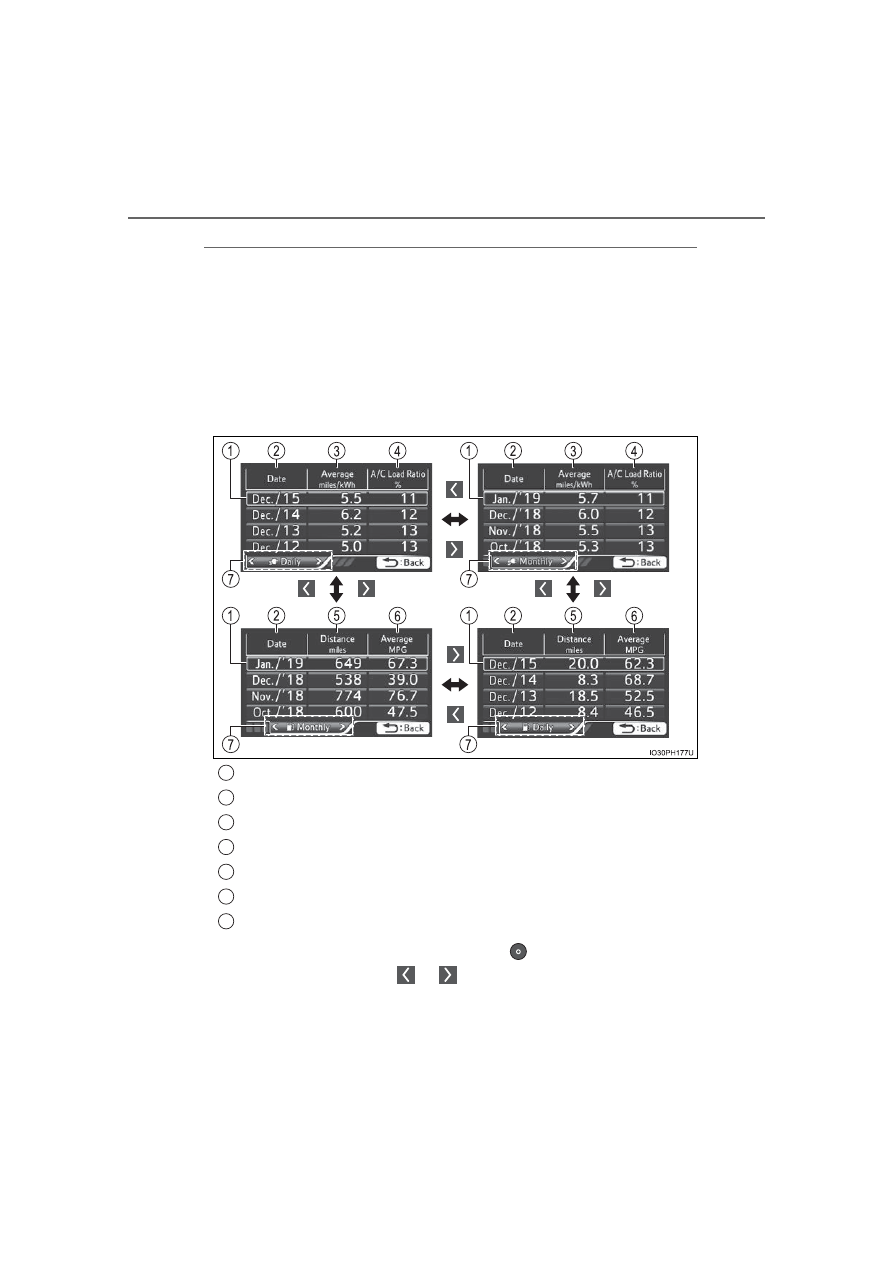

“Eco-Diary”

The history of the average electricity consumption, air conditioning
system load ratio (“A/C Load Ratio”)

*

, distance traveled and aver-

age fuel consumption can be displayed in a table according to day
(“Daily”) or month (“Monthly”) units.

*

: It indicates the percentage of the electricity consumed from the hybrid

battery (traction  battery) that is  consumed  by the air conditioning sys-
tem.

■

How to read the display

Record of the day/month
Date/month of stored information
Average electricity consumption of the day/month
“A/C Load Ratio” of the day/month
Total distance traveled for the day/month
Average fuel consumption of the day/month
Tab display

The display can be switched by pressing

 to enter the select condi-

tion, and then operating

 or

 of the meter control switches.

1
2
3
4
5
6
7

237

3. Instrument cluster

3

Instrument clus

ter

■

Checking history
When  each  screen  is  selected,  past  records  from  the  following

ranges can be displayed by pressing

 or

 of the meter con-

trol switches.

● If the above number of records is exceeded, the oldest informa-

tion is deleted.

● To reset the history, perform “History Reset” in the “Meter Cus-

tomize”  settings  (

P.  246).  (“Daily”  and  “Monthly”  information

can be reset independently.)

■

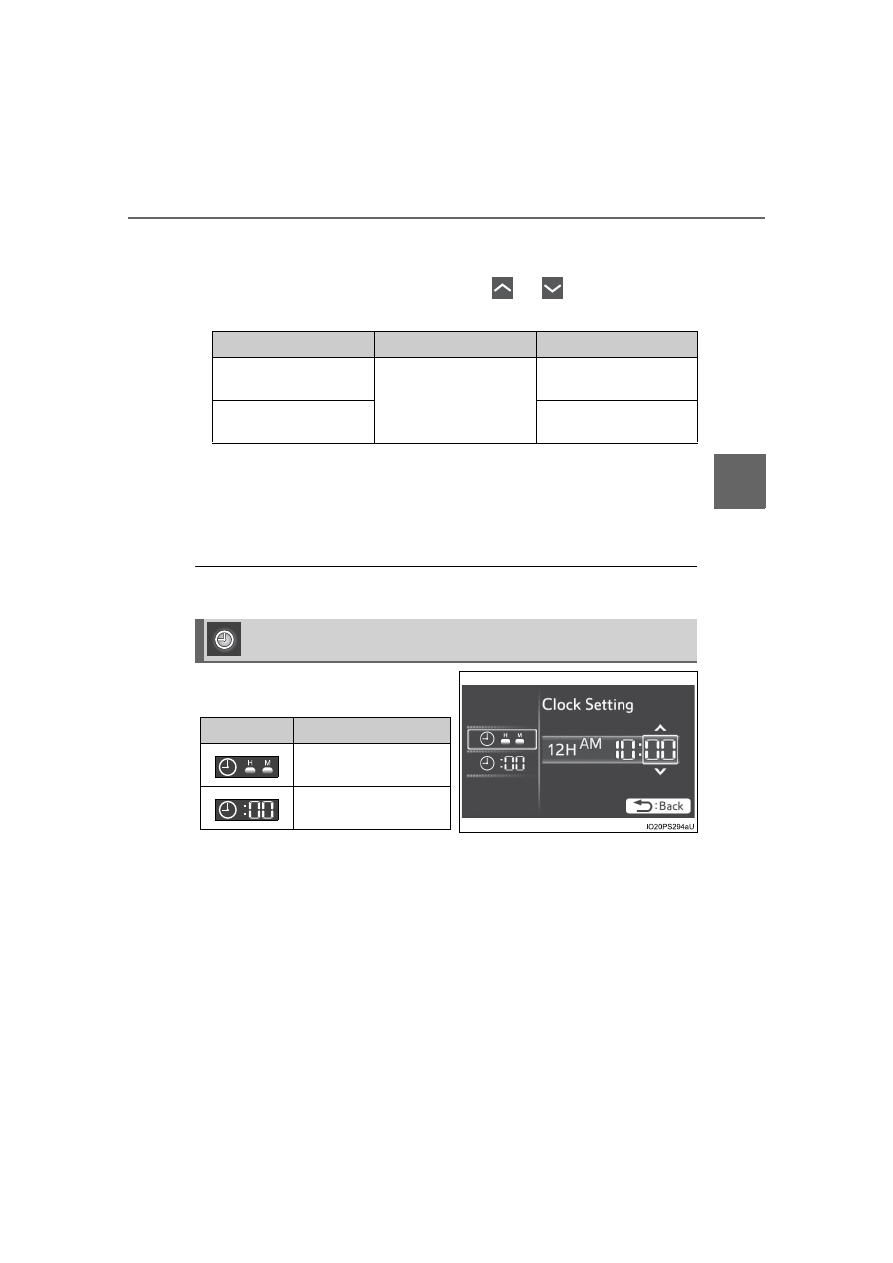

Calendar setting
P. 249

The  clock  settings  can  be
changed.

Displayed screen

Displayed information

Stored information

“Daily”

4 reports

Up to 32 reports

(8 screens)

“Monthly”

Up to 24 reports

(6 screens)

 Clock setting display

Item

Setting result

Adjusts the clock.
(

P. 197)

Sets  the  minutes  to
“00”. (

P. 198)

238

3. Instrument cluster

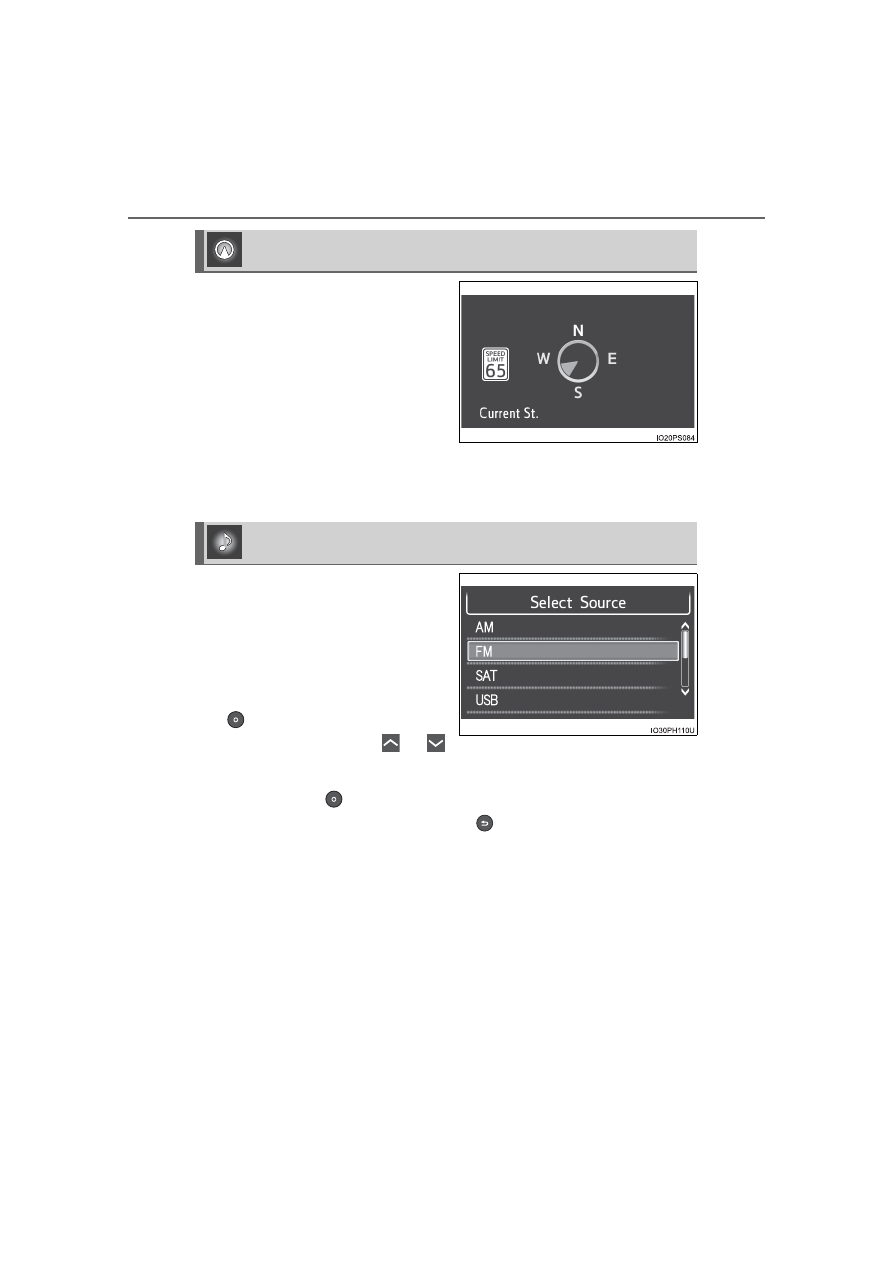

Displays  a  compass  linked  with
the navigation system. Also, when
the navigation system is perform-
ing  intersection  guidance  during
destination  guidance,  the  inter-
section guidance is also displayed
on the multi-information display.

The illustration is only an example
and  may  differ  from  the  actual
screen.
For  details  on  how  to  set  the  destination  and  switch  the  map  direction,
refer to “NAVIGATION SYSTEM OWNER’S MANUAL”.

The  information  about  the  cur-
rently  selected  audio  source  is
displayed.

The illustration is only an example
and  may  differ  from  the  actual
screen.
To  switch  the  audio  source,  press

  to  display  the  audio  source

selection  screen,  press

  or

of  the  meter  control  switches  and
select  the  desired  audio  source,
and then press

.

To  stop  audio  source  selection,  press

  on  the  audio  source  selection

screen.

 Navigation system-linked display (if equipped)

 Audio system-linked display

239

3. Instrument cluster

3

Instrument clus

ter

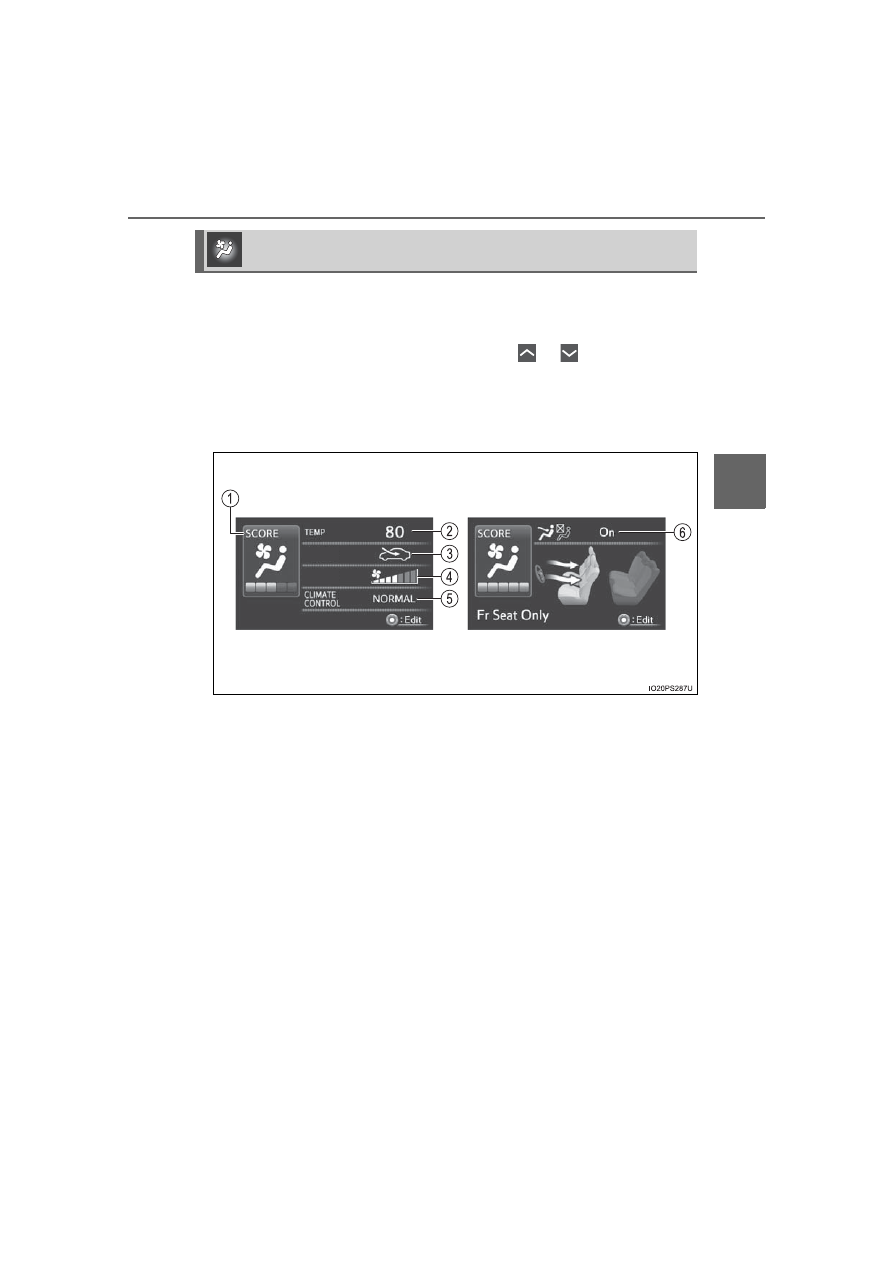

The condition of the air conditioning system settings can be checked
on  the  screen  and  the  air  conditioning  system  settings  can  be
changed using the meter control switches.

On the air conditioning settings screen, press

 or

 of the meter con-

trol switches to switch the contents of the display.
For details regarding the air conditioning system function, refer to P. 500
and 511.

■

Screen display and setting items that can be changed

 Air conditioning system settings screen

240

3. Instrument cluster

*

1

: “LO” is displayed if the temperature is adjusted to the lowest setting, and

“HI” is displayed if the temperature is adjusted to the highest setting.

*

2

: The selectable modes differ depending on whether a passenger is present.

(

P. 501, 513)

■

Adjusting the settings

Press

 to display the cursor.

Press

  or

  of  the  meter  control  switches  to  select  the

desired item to set.

Press

 or

 of the meter control switches to select the set-

ting item or setting value.

The  air  conditioning  system  cannot  be  stopped  by  performing  opera-
tions on the air conditioning settings screen. Please use the air condi-
tioning switch or navigation system

*

 to stop the air conditioning system.

*

: Vehicles with 11.6-inch display only

Item

Settings

Eco score
(A/C score)

P. 241

Temperature
setting

Changes according to operation of the meter control

switches

*

1

Outside air and
recirculated  air
modes



(Outside air mode)

(Recirculated air mode)

Fan speed

1 to 7

“CLIMATE
CONTROL”

“NORMAL”

“ECO”

S-FLOW mode

“On (Driver

Priority)”

*

2

“On (Fr Seat

Only)”

*

2

“Off (All seat)”

1

2

3

4

5

6

1

2

3

241

3. Instrument cluster

3

Instrument clus

ter

■

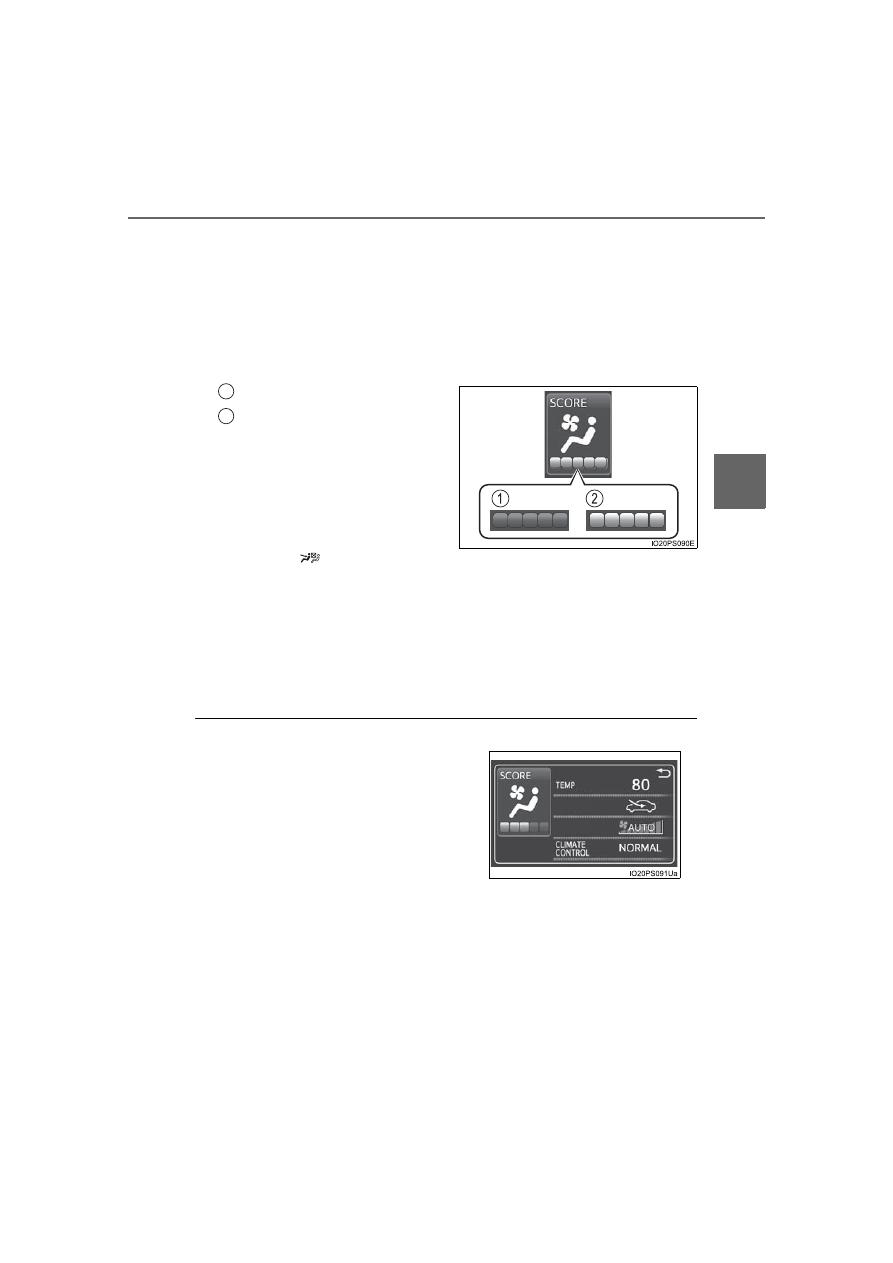

Eco score (A/C score)
The current air conditioning system usage status is evaluated in 5
levels to determine whether it is Eco-friendly.
The  evaluation  changes  according  to  the  air  conditioning  system
usage status. When the power switch is turned off, the current total
driving  score

*

1

  and  advice

*

2

  related  to  using  the  air  conditioning

system are displayed. (

P. 196)

Low score

*

3

High score

Avoiding  excessive  use  of  the
air  conditioning  system  and
using  the  air  conditioning  sys-
tem  at  the  appropriate  setting
according  to  the  ambient  tem-
perature and number of passen-
gers  and  with  the  S-FLOW
mode  (

)  and  “CLIMATE

CONTROL”  will  result  in  a  high
evaluation.

*

1

: The Eco score (A/C score) is not evaluated for approximately 1 minute

after the power switch is turned to ON mode.

*

2

: This advice may not be displayed depending on the situation.

*

3

: For  items  not  evaluated  with  an  Eco  score  (A/C  score),  the  display

reads 0.

■

Operating switches of the air conditioning system operation panel

●

The pop-up display function that displays when the air conditioning settings
are changed using the air conditioning system switches can be turned off in
the “Meter Customize” settings. (

P. 246)

1
2

●

When  the  air  conditioning  system
switches are operated to change the air
conditioning  settings  while  a  screen
other  than  the  air  conditioning  system
settings screen is displayed on the multi-
information display, a pop-up display for
the  air  conditioning  settings  contents  is
displayed.  However,  air  conditioning
system  settings  cannot  be  changed  on
the pop-up display.

242

3. Instrument cluster

■

Eco score (A/C score)

●

The  setting  status  of  the  following  air  conditioning  system  functions  are
reflected in the score.
• Temperature setting
• Fan speed setting
• Outside air and recirculated air modes
• “A/C” button
• S-FLOW mode
• “CLIMATE CONTROL”

●

The Eco score (A/C score) is evaluated according to the ambient tempera-
ture  and  cabin  temperature.  Accordingly,  even  if  the  same  settings  are
always  used  for  the  air  conditioning  system,  the  evaluation  will  change
according to such factors as the season and weather.

●

When the air conditioning system is not being used or the airflow mode is
set to

 or

, the Eco score (A/C score) is not evaluated. (While the

air conditioning system is not evaluated, its usage status is not reflected in
the total Eco score result.)

●

The Eco score (A/C score) is a function that helps select an air conditioning
system setting which reduces electricity and fuel consumption, not a func-
tion that satisfies both comfortability and low fuel consumption.

243

3. Instrument cluster

3

Instrument clus

ter

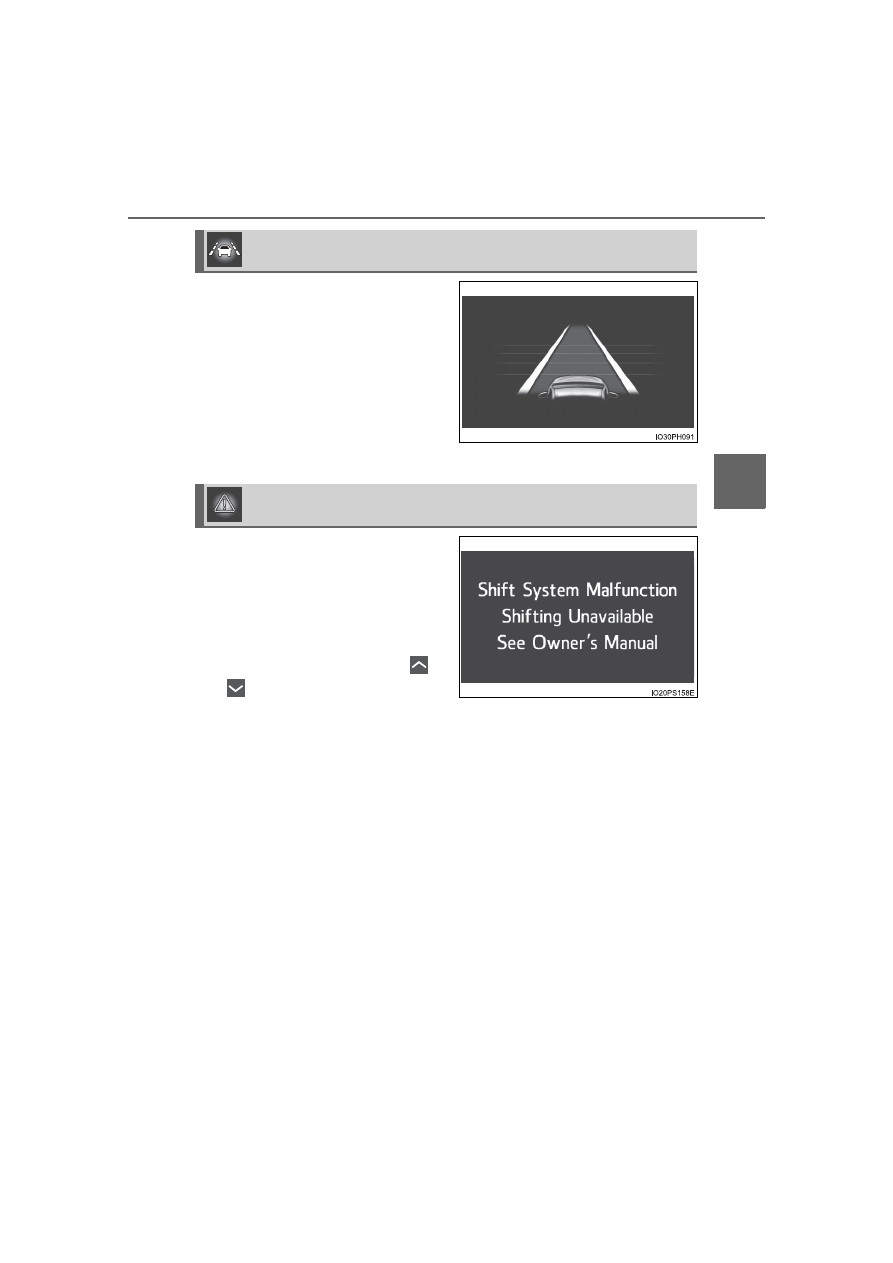

The  operation  status  of  driving
support  system  such  as  the  LDA
(Lane  Departure Alert  with  steer-
ing  control)  and  dynamic  radar
cruise  control  with  full-speed
range and warning information are
displayed.

For  details  regarding  the  driving
support functions, refer to the page
for the corresponding function.

The warning messages that have
been  displayed  since  the  power
switch  was  turned  to  ON  mode
can be checked.

When  multiple  warning  messages
have  been  displayed,  the  display
can be switched by pressing

 or

 of the meter control switches.

Warning  messages  that  have  been  currently  cleared  and  some  warning
messages are not displayed. Also, when there are no warning messages
that can be checked, the display indicates that there are no messages.

 Driving assist system information

 Warning message display

244

3. Instrument cluster

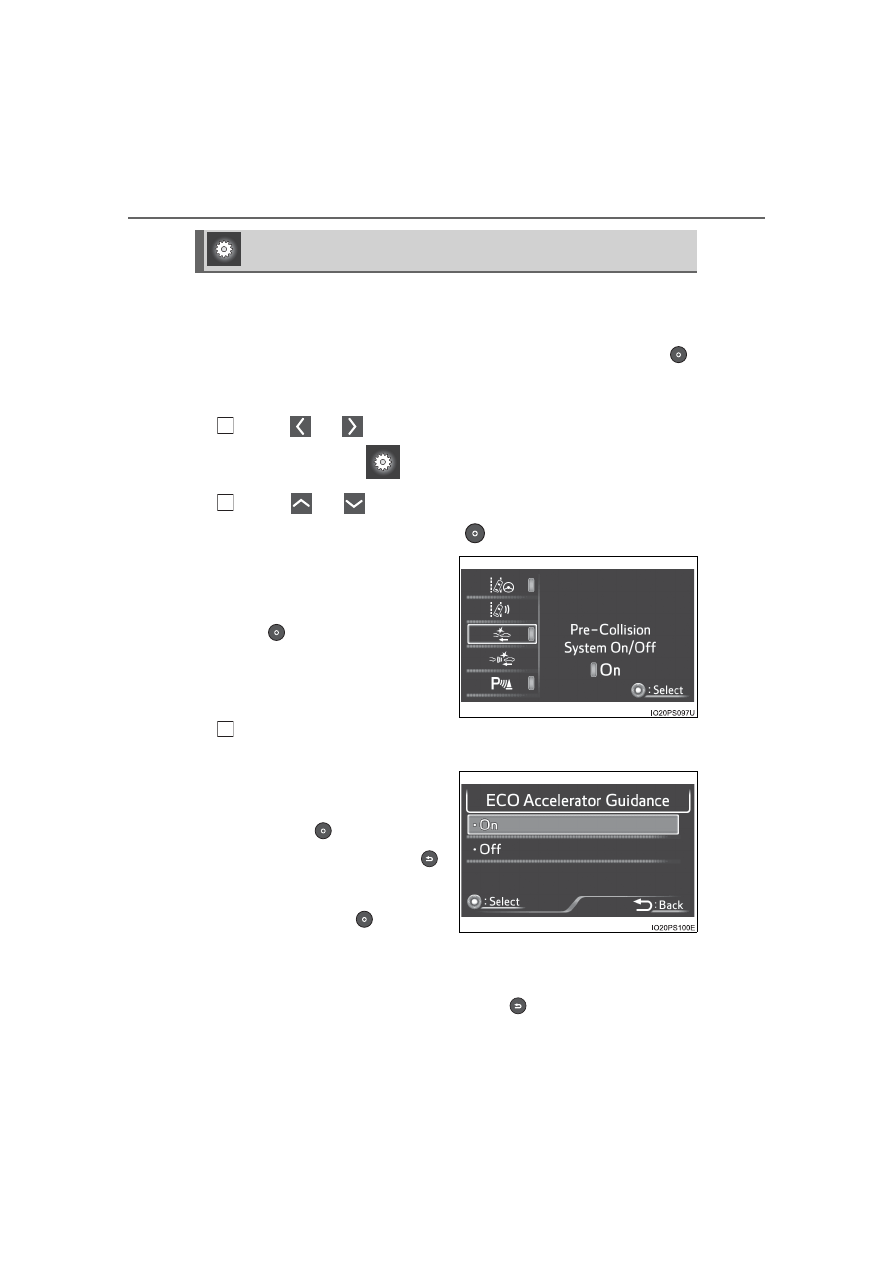

The  operation  contents  of  the  driving  support  systems  and  settings
related to the combination meter display can be changed.

Driving support systems such as the PCS (Pre-Collision System) and Blind
Spot  Monitor  (if  equipped)  is  turned  on  and  off  by  simply  pressing

.

Make sure not to cancel the systems accidentally.

■

Setting procedure

Press

 or

 of the meter control switches on the steering

wheel and select

.

Press

  or

  of  the  meter  control  switches  and  select  the

item to change, and then press

.

If  the  function  is  turned  on  and
off  or  the  sensitivity,  etc.  is
changed  on  the  setting  screen,
the setting is changed each time
the

 is pressed.

For  functions  that  allow  opera-
tion  contents,  display  contents,
etc., of a function to be selected,
the setting screen is displayed.

When  the  setting  screen  is  displayed,  select  the  setting  or
desired value (time, etc.) with the meter control switches.

*

1, 2

For  selectable  operation  con-
tents  and  setting  values,  select
the desired setting or value, and
then press

.

To stop the selection, press

.

When  the  setting  check  screen
is  displayed,  select  proceed  or
cancel and press

.

*

1

: Depending on the items, a subsequent setting screen may be displayed

after selecting an item.

*

2

: For items which set the adjustment level or time, after the item is set,

the setting screen remains displayed until

 is pressed.

 Settings display

1

2

3

245

3. Instrument cluster

3

Instrument clus

ter

■

Settings table

Item

Settings

Setting result

“On”

Turns  the  LDA  system  steering  control
function on and off. (

P. 402)

“Off”

“High”

Switches  the  LDA  system  lane  deviation
sensitivity. (

P. 402)

“Standard”

“On”

Turns  the  PCS  (Pre-Collision  System)  on
and off. (

P. 385)

“Off”

Far

Switches  the  PCS  (Pre-Collision  System)
warning timing. (

P. 385)

Middle

Near

*

“On”

Turns the Intuitive parking assist on and off.
(

P. 433)

“Off”

*

“On”

Turns  the  Parking  Support  Brake  function
on and off. (

P. 444)

“Off”

*

“On”

Turns the Blind Spot Monitor on and off.
(

P. 422)

“Off”

“On”

Turns the LDA system vehicle sway warn-
ing on and off. (

P. 402)

“Off”

“High”

Switches  the  LDA  system  vehicle  sway
warning sensitivity. (

P. 402)

“Standard”

“Low”

246

3. Instrument cluster

*

: If equipped

■

“Meter Customize” settings (

 )

*

Height

Changes  the  display  position  and  bright-
ness of the head-up display. (

P. 254)

Brightness

“km/h”

Switches the speed unit used by the screen
display.

“MPH”

“Meter Customize” settings:

P. 246

“Vehicle Settings” settings:

P. 741

Item

Settings

Setting result

Item

Settings

Setting result

“Simple/Split
Screen”

“Simple”

Switches  the  display  mode  of
the main display. (

P. 213)

“Split”

“Screen
OFF”

*

1

“Yes”

Turns the multi-information dis-
play off.

“No”

“HV System
Indicator”
(

P. 223)

“ECO  Acceler-
ator Guidance”

“On”

Turns  the  “ECO  Accelerator
Guidance” on and off.

“Off”

“EV Indicator
Light On/Off”

“On”

Turns the  EV indicator on and
off.

“Off”

“EV Drive
Monitor”

“EV
Energy”

Switches  the  information  dis-
play in the left upper corner of
the  Hybrid  System  Indicator.
(

P. 228)

“EV
Dis-
tance”

“Blank”

247

3. Instrument cluster

3

Instrument clus

ter

“Pop-up  Display
On/Off”

“Navigation”

*

2

“On”

Turns the pop-up display of the
selected  item  on  the  multi-
information display on and off.

“Off”

“Instrument
Panel Light”

“On”

“Off”

“Climate
Settings”

“On”

“Off”

“Cruise
Control
Operation
Display”

“On”

“Off”

“HUD
Settings”

*

2

“On”

“Off”

“Driving  Mode
Select”

“On”

“Off”

“Multimedia
Menu”

*

2

“On”

“Off”

“Traction
Battery
Cooler”

“On”

“Off”

“Speed
Limit”

*

2, 3

(

P. 256)

“Off”

Switches  the  operation  con-
tents  of  the  speed  limit  func-
tion.

“Only Display”

“With Caution”

“Language”

“English” (English)

Switches  the  language  dis-
played on the screen.

“Français” (French)

“Español” (Spanish)

“Calendar”

Month/Day/Year

*

4

Changes the date used for the
electricity  and  fuel  consump-
tion  record  and  the  charging
timer function.

Day/Month/Year

*

5

Item

Settings

Setting result
