12. INSTALL FRONT SEATBACK COVER

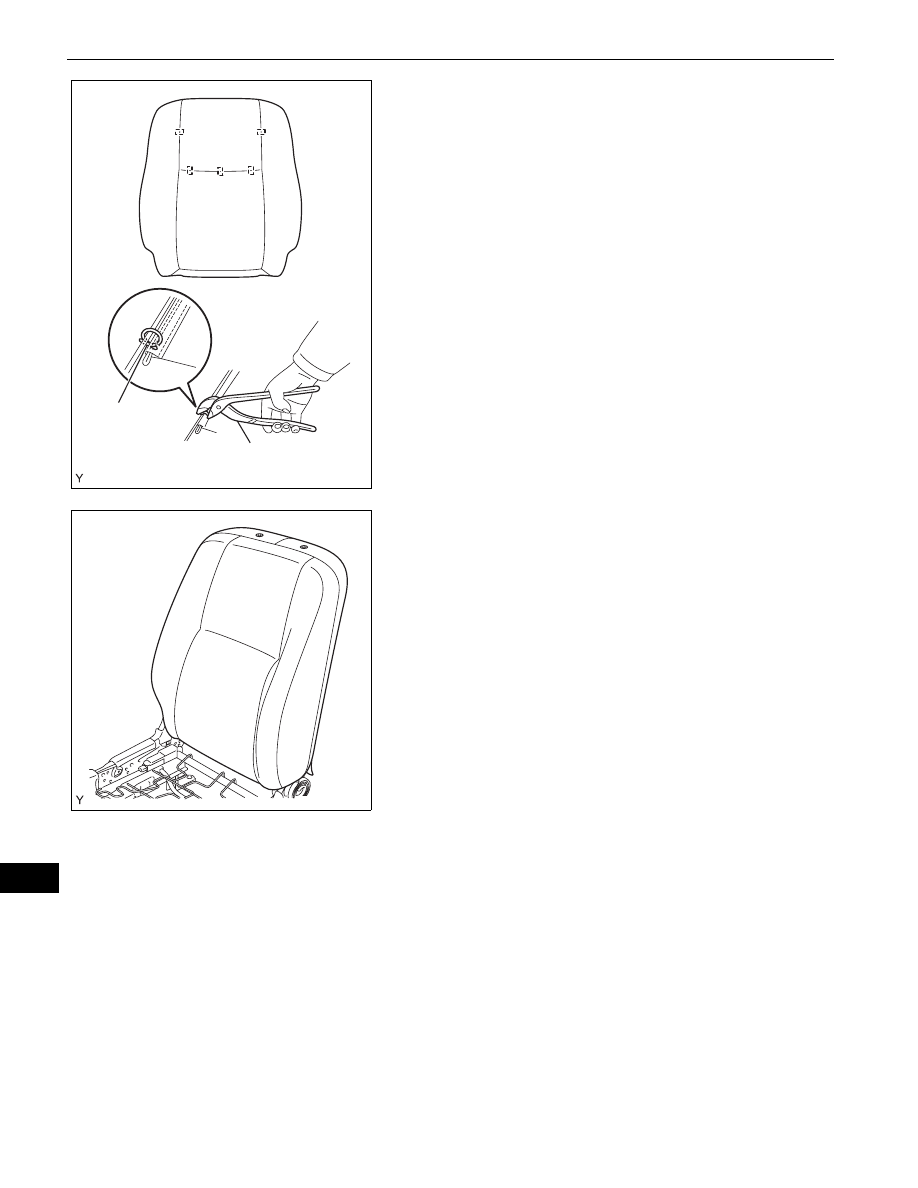

(a) Using hog ring pliers, install the front seatback cover

with 5 new hog rings.
NOTICE:
•

Do not soil or scratch the front seatback
cover.

•

When installing the hog rings, minimize
wrinkles as far as possible.

13. INSTALL FRONT SEATBACK ASSEMBLY

(a) Install the front seatback.

New Hog Ring

Hog Ring Pliers

B130700E01

B130698

SEAT  –  FRONT SEAT ASSEMBLY

SE–19

SE

(b) w/ Front Seat Side Airbag:

(1) Fully cover the airbag with the 2 front seatback

cover brackets and tighten the nut.
Torque: 5.5 N*m (55 kgf*cm, 49 in.*lbf)
CAUTION:
•

For vehicles with front seat side airbag,
the front seatback cover must be
securely installed. Otherwise, the front
seat side airbag may not deploy properly.

•

Make sure that the strap is not twisted
after installing the bracket.

•

Install the bracket securely.

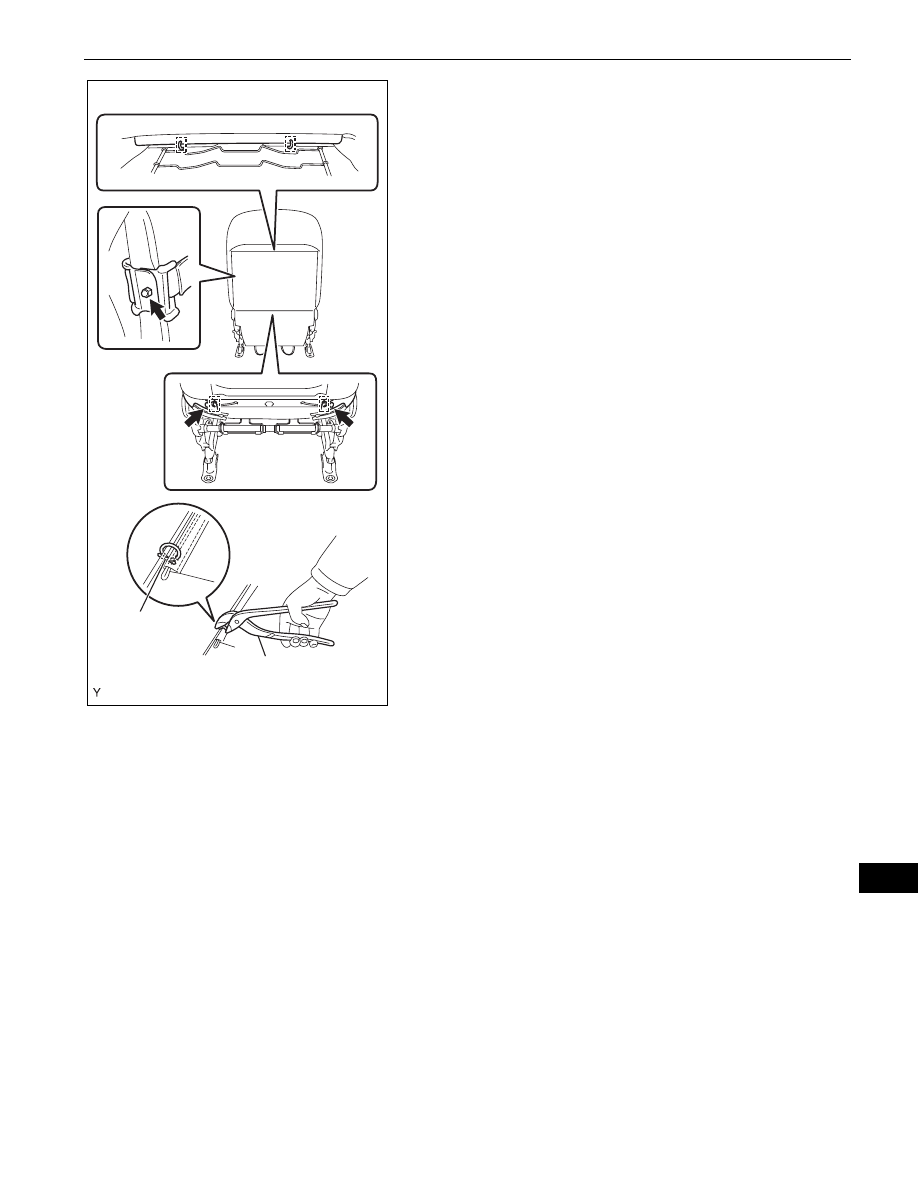

(c) Using hog ring pliers, install 4 new hog rings.
(d) Install the 2 clips.

New Hog Ring

Hog Ring Pliers

B130697E01

SE–20

SEAT  –  FRONT SEAT ASSEMBLY

SE

(e) Fasten the 2 zippers.
(f)

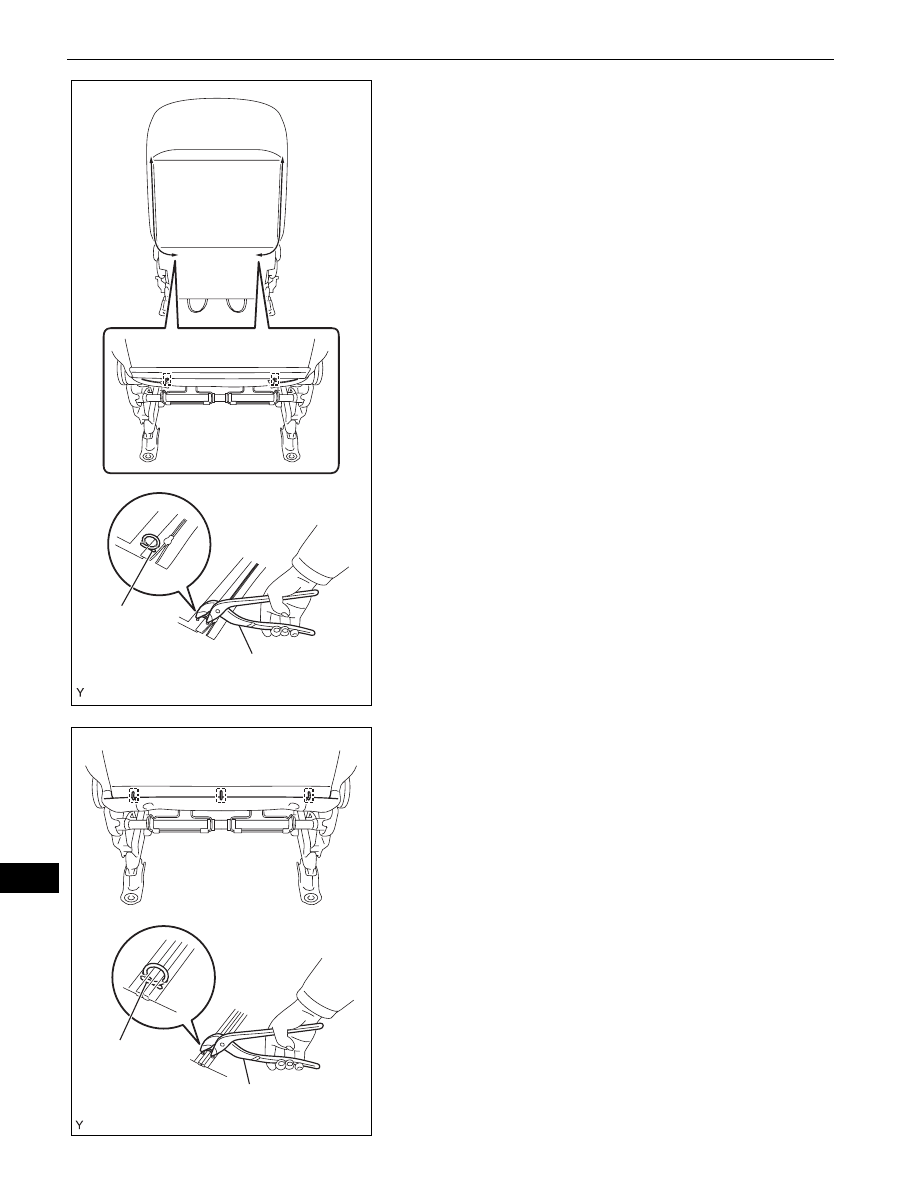

Using hog ring pliers, install 2 new hog rings.

(g) Using hog ring pliers, install 3 new hog rings.

New Hog Ring

Hog Ring Pliers

B130693E01

New Hog Ring

Hog Ring Pliers

B130691E01

SEAT  –  FRONT SEAT ASSEMBLY

SE–21

SE

14. INSTALL FRONT SEAT HEADREST SUPPORT

HINT:
Use the same procedure for both sides.

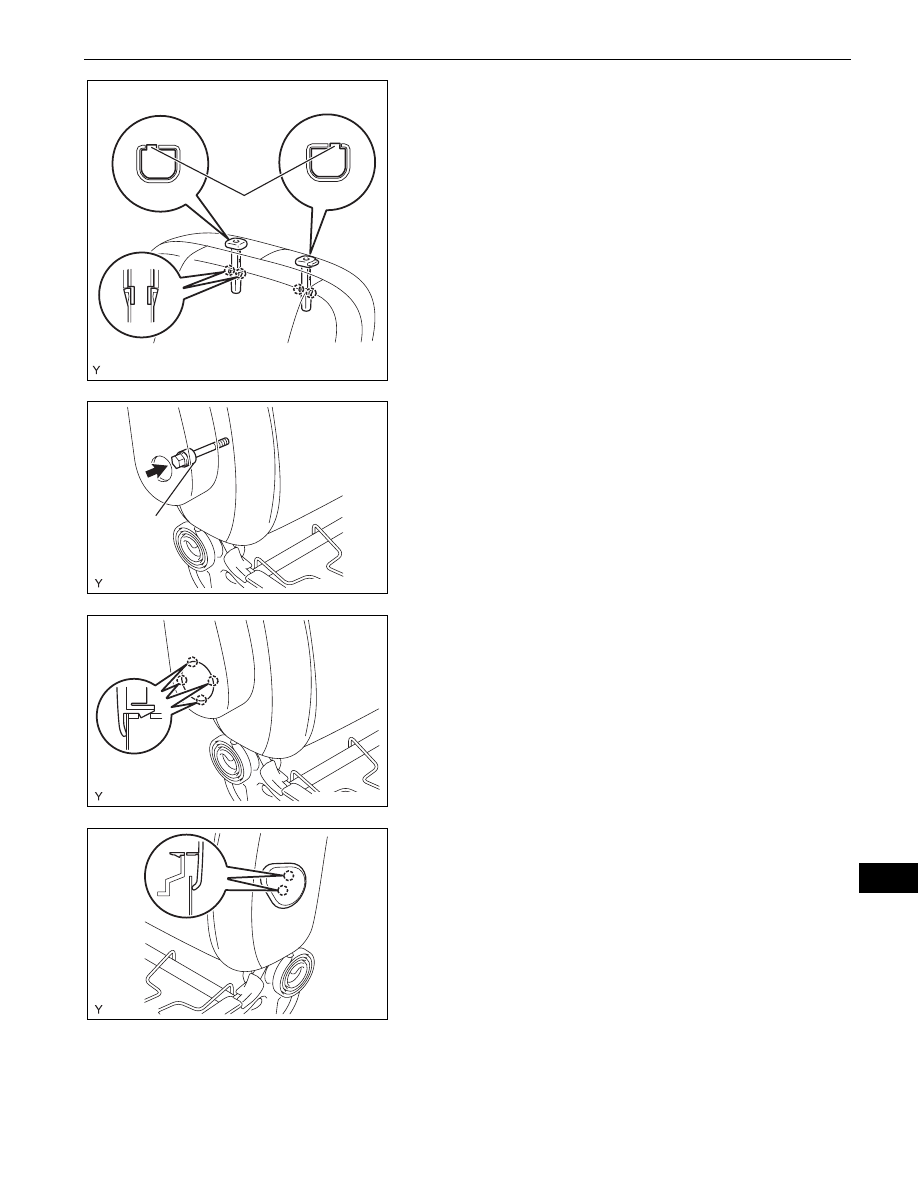

(a) Align the protruding portion of the front seat

headrest support with the installation groove of the
front seatback frame.

(b) Engage the 2 claws and install the front seat

headrest support.

15. INSTALL FRONT SEAT ARMREST ASSEMBLY (for

Driver Side)
(a) Install the bush onto the front seat armrest.
(b) Install the front seat armrest with the bolt.

Torque: 38 N*m (385 kgf*cm, 28 ft.*lbf)

16. INSTALL FRONT SEAT ARMREST CAP (for Driver

Side)
(a) Engage the 4 claws and install the front seat

armrest cap.

17. INSTALL FRONT SEAT ARMREST COVER (for Front

Passenger Side)
(a) Engage the 2 claws and install the front seat

armrest cover.

Protrusion

B130695E01

Bush

B130689E01

B130686
