SEAT BELT  –  REAR CENTER SEAT INNER BELT ASSEMBLY

SB–63

SB

RESTRAINTS

SEAT BELT

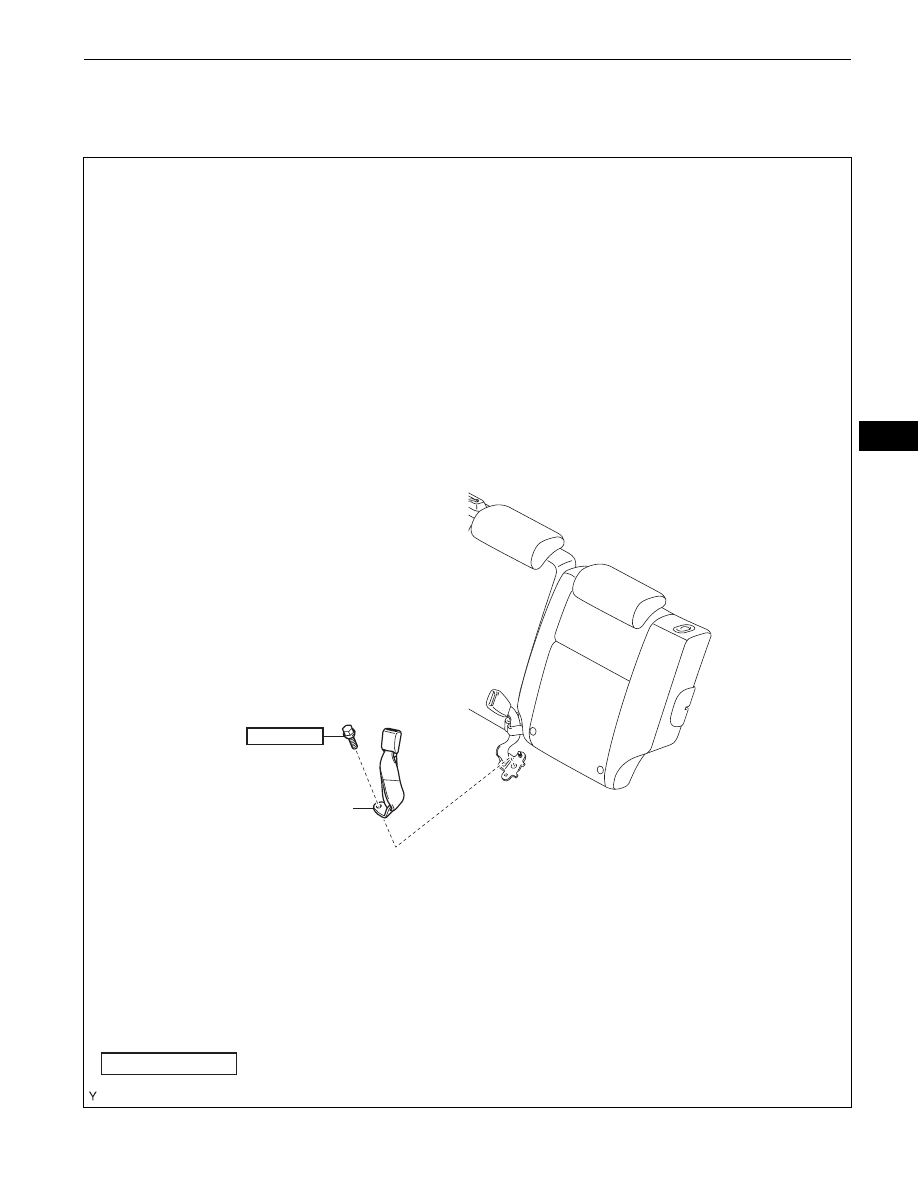

REAR CENTER SEAT INNER BELT ASSEMBLY

COMPONENTS

REAR CENTER SEAT
INNER BELT ASSEMBLY

N*m (kgf*cm, ft*lbf)  : Specified torque

42 (430, 31)

B135169E01

SB–64

SEAT BELT  –  REAR CENTER SEAT INNER BELT ASSEMBLY

SB

REMOVAL

1.

REMOVE REAR CENTER SEAT INNER BELT
ASSEMBLY
(a) Pull up the rear seat cushion.
(b) Remove the buckle from the rear seatback band.
(c) Remove the bolt and the rear center seat inner belt.

INSTALLATION

1.

INSTALL REAR CENTER SEAT INNER BELT
ASSEMBLY

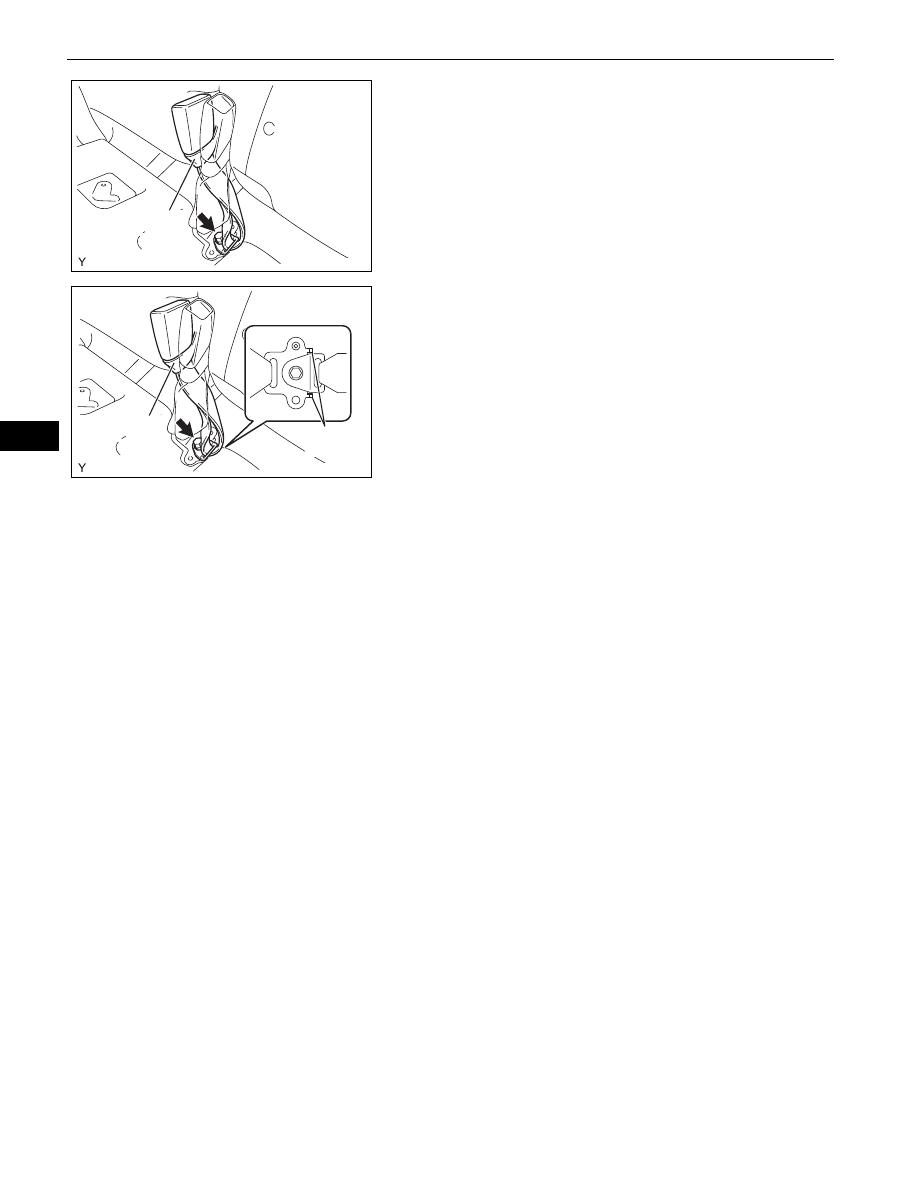

(a) Install the anchor plate of the rear center seat inner

belt with the bolt.
Torque: 42 N*m (430 kgf*cm, 31 ft.*lbf)
NOTICE:
Do not place the anchor plate over the convex
areas of the rear seat inner belt.

(b) Install the buckle into the rear seatback band.
(c) Install the rear seat cushion.

Band

B135170E01

Convex

Band

B135171E01

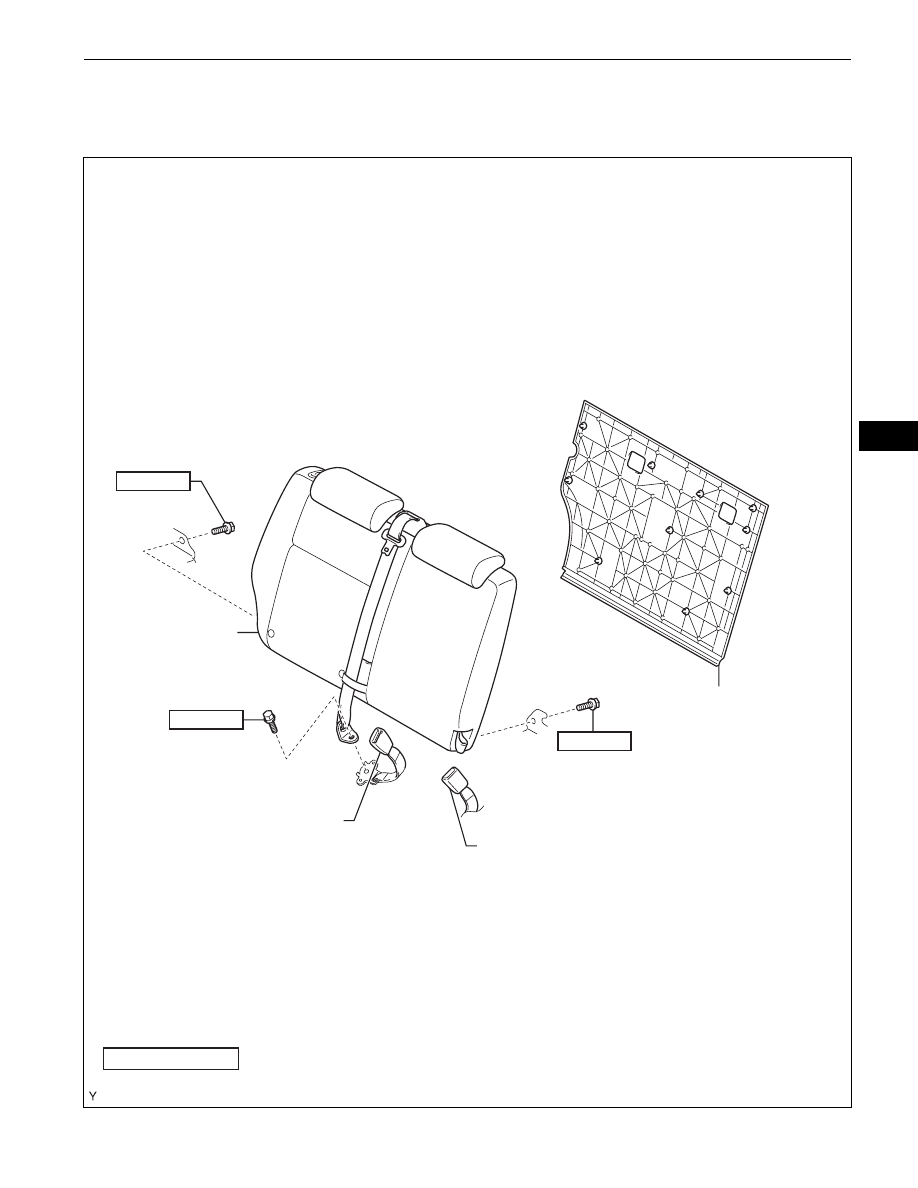

SEAT BELT  –  REAR CENTER SEAT OUTER BELT ASSEMBLY

SB–65

SB

RESTRAINTS

SEAT BELT

REAR CENTER SEAT OUTER BELT ASSEMBLY

COMPONENTS

REAR SEATBACK
ASSEMBLY

REAR SEATBACK BOARD
CARPET ASSEMBLY

REAR SEAT INNER
BELT ASSEMBLY RH

N*m (kgf*cm, ft*lbf)  : Specified torque

REAR SEAT INNER
BELT ASSEMBLY LH

37 (375, 27)

42 (430, 31)

37 (375, 27)

B138490E01

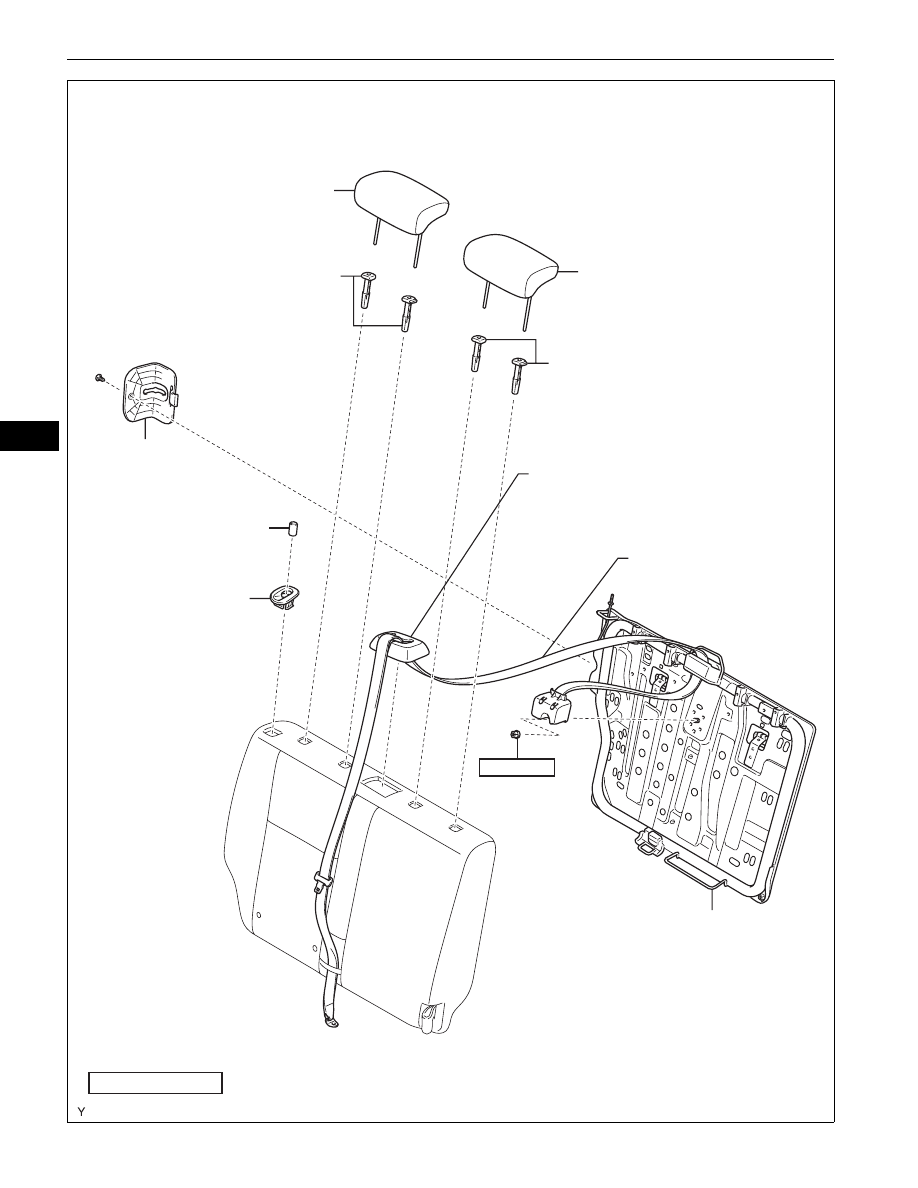

SB–66

SEAT BELT  –  REAR CENTER SEAT OUTER BELT ASSEMBLY

SB

REAR CENTER SEAT
HEADREST ASSEMBLY

REAR CENTER SEAT
OUTER BELT ASSEMBLY

REAR SEAT HEADREST
ASSEMBLY

REAR SEAT HEADREST
SUPPORT

REAR SEAT SHOULDER
BELT COVER

REAR SEATBACK FRAME
SUB-ASSEMBLY

REAR SEATBACK
LOCK COVER

REAR SEATBACK STOP
BUTTON GROMMET

REAR SEAT HEADREST
SUPPORT

N*m (kgf*cm, ft*lbf)  : Specified torque

42 (430, 31)

REAR SEATBACK STOP
BUTTON GROMMET

B135153E01
