SEAT BELT  –  FRONT SEAT INNER BELT ASSEMBLY

SB

(c) Remove the wire harness from the claw of the front

seat cushion inner shield.

(d) Remove the nut and the front seat inner belt.

INSPECTION

1.

INSPECT FRONT SEAT INNER BELT ASSEMBLY (for
Driver Side)

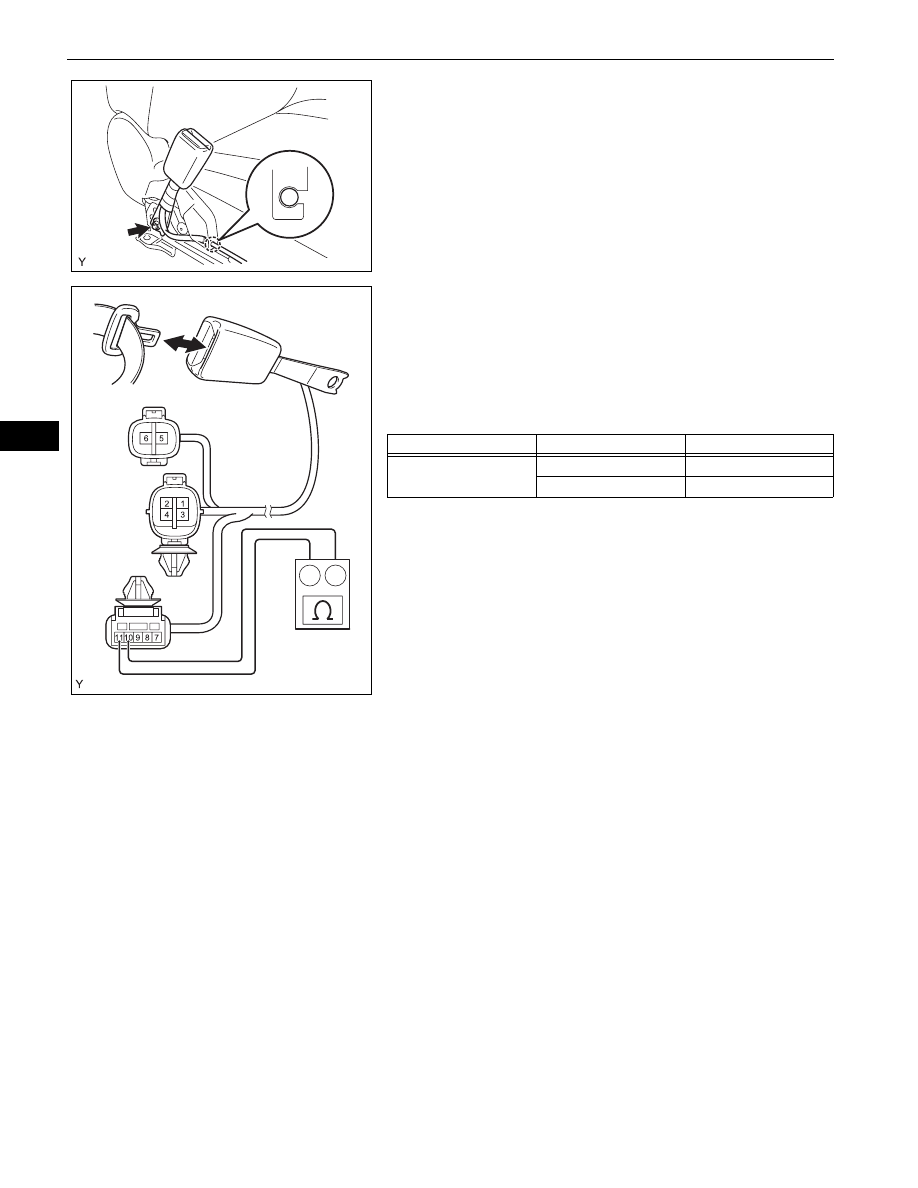

(a) Check the resistance.

(1) Using an ohmmeter, measure the resistance

between the terminals.
Standard resistance

If the result is not as specified, replace the front
seat inner belt.

B130777

Ohmmeter

B135157E01

Tester Connection

Condition

Specified Condition

10 - 11

Tongue plate fastened

Below 1

Ω

Tongue plate released

10 k

Ω or higher

SEAT BELT  –  FRONT SEAT INNER BELT ASSEMBLY

SB–33

SB

INSTALLATION

CAUTION:
Some of these service operations affect the SRS airbag
system. Read the precautionary notices concerning the
SRS airbag system before servicing (w/ Front Seat Side
Airbag) (See page

RS-1

).

HINT:
The procedure described below is for the driver side. Use the
same procedure for both the driver and front passenger
sides, unless otherwise specified.

1.

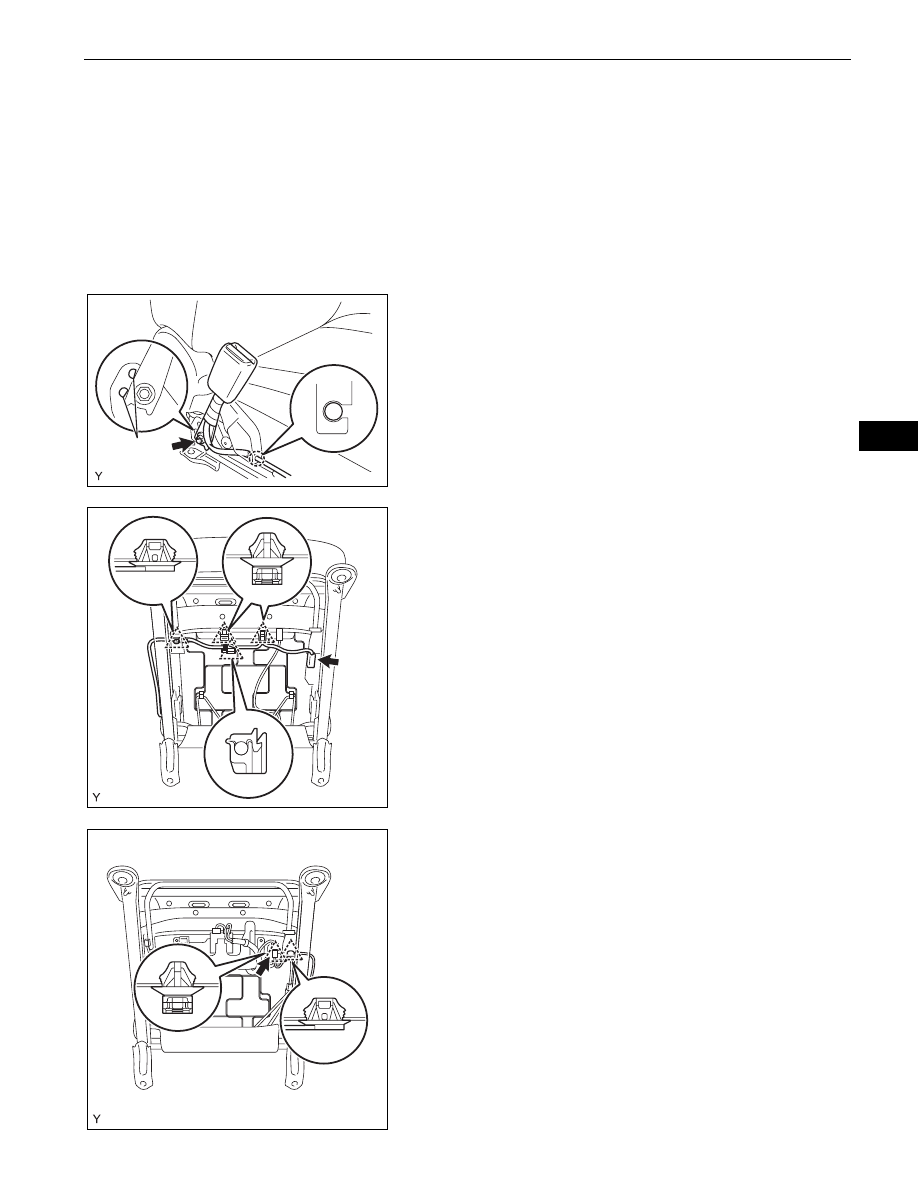

INSTALL FRONT SEAT INNER BELT ASSEMBLY
(a) Install the front seat inner belt with the bolt.

Torque: 42 N*m (430 kgf*cm, 31 ft.*lbf)
NOTICE:
Do not place the front seat inner belt over the
convex areas of the front seat frame adjuster.

(b) Install the wire harness into the claw of the front

seat cushion inner shield.

(c) for Driver Side:

(1) Install the 2 clamps and the 2 connectors.
(2) Connect the seat position sensor connector.

(d) for Front Passenger Side:

(1) Install the clamp and the connector.
(2) Connect the buckle switch connector.

2.

INSTALL FRONT SEAT ASSEMBLY (See page

SE-24

)

3.

INSTALL FRONT SEAT TRACK COVER (See page

SE-25

)

4.

CONNECT CABLE TO NEGATIVE BATTERY
TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

5.

INSPECT SRS WARNING LIGHT (w/ Front Seat Side
Airbag)
(See page

RS-29

)

Convex

B130778E01

B130776

B130779

SB–34

SEAT BELT  –  FRONT SEAT OUTER BELT ASSEMBLY

SB

RESTRAINTS

SEAT BELT

FRONT SEAT OUTER BELT ASSEMBLY

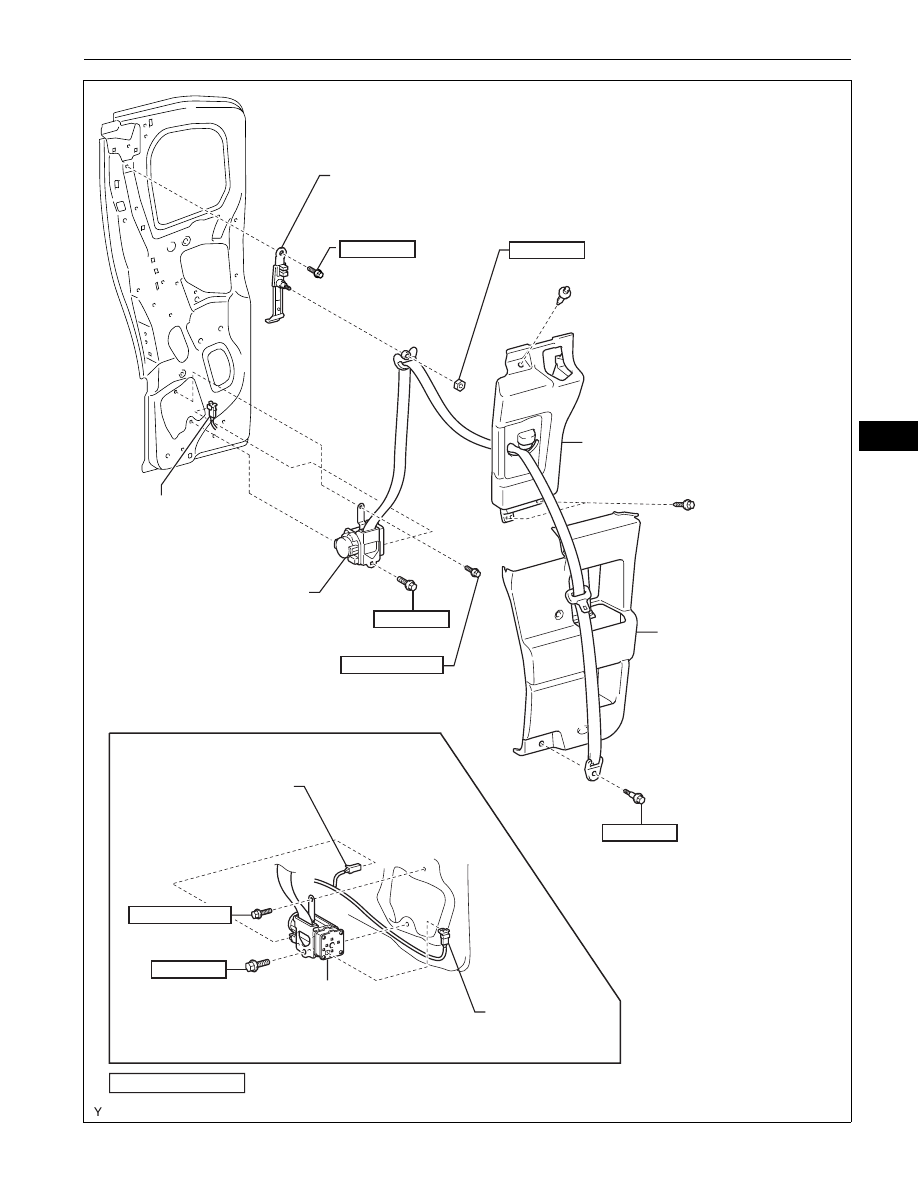

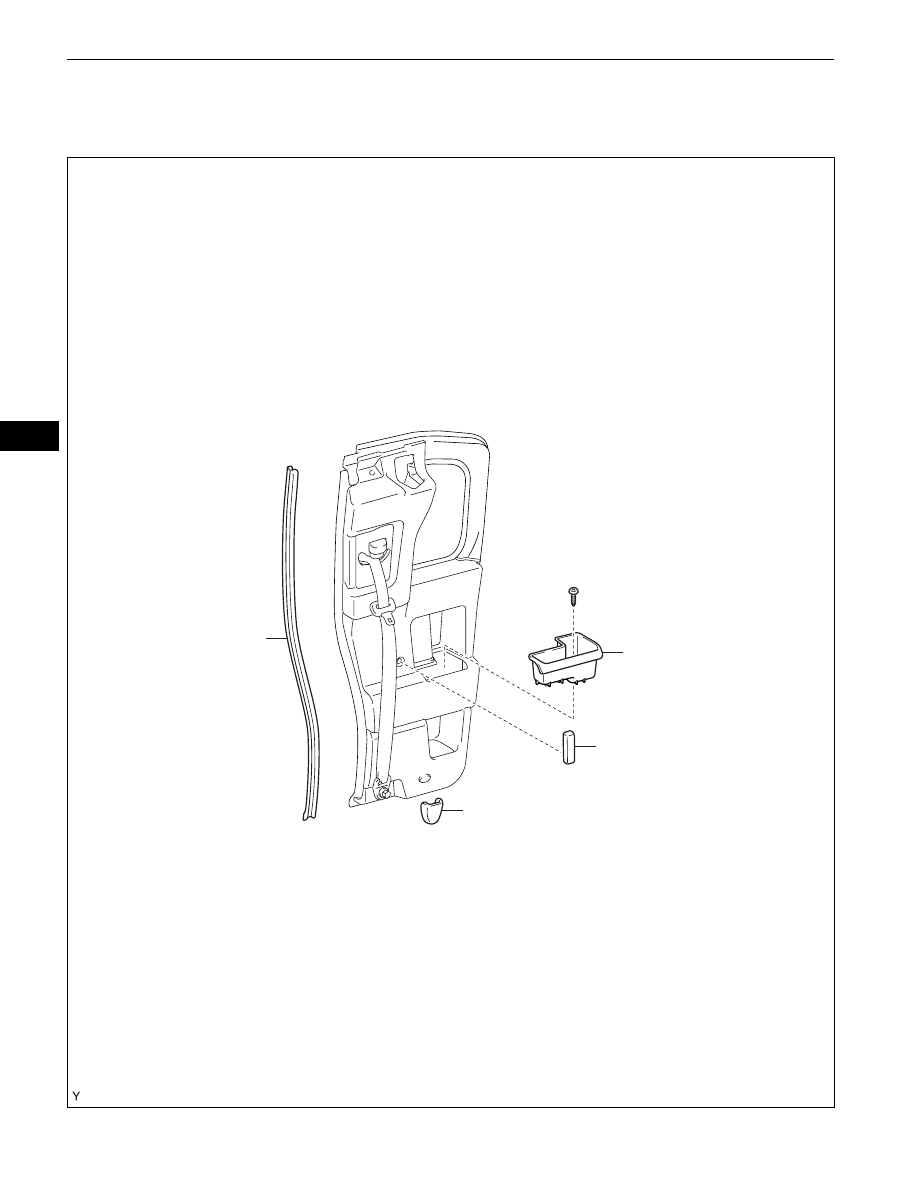

COMPONENTS

ACCESS PANEL REAR
WEATHERSTRIP

CUP HOLDER

ACCESS DOOR INSIDE
HANDLE SUB-ASSEMBLY

LAP BELT OUTER
ANCHOR COVER

B138387E01

SEAT BELT  –  FRONT SEAT OUTER BELT ASSEMBLY

SB–35

SB

42 (430, 31)

FRONT SHOULDER BELT
ANCHOR ADJUSTER ASSEMBLY

x2

42 (430, 31)

CENTER PILLAR
UPPER GARNISH

x2

PRETENSIONER
CONNECTOR

FRONT SEAT OUTER
BELT ASSEMBLY

42 (430, 31)

42 (430, 31)

8.5 (85, 75 in.*lbf)

42 (430, 31)

42 (430, 31)

8.5 (85, 75 in.*lbf)

TENSION REDUCER
CONNECTOR

PRETENSIONER
CONNECTOR

FRONT SEAT OUTER
BELT ASSEMBLY

N*m (kgf*cm, ft.*lbf) : Specified torque

for LH Side:

ACCESS DOOR TRIM
BOARD SUB-ASSEMBLY

B135086E01
