PB–20

PARKING BRAKE  –  PARKING BRAKE ASSEMBLY

PB

6.

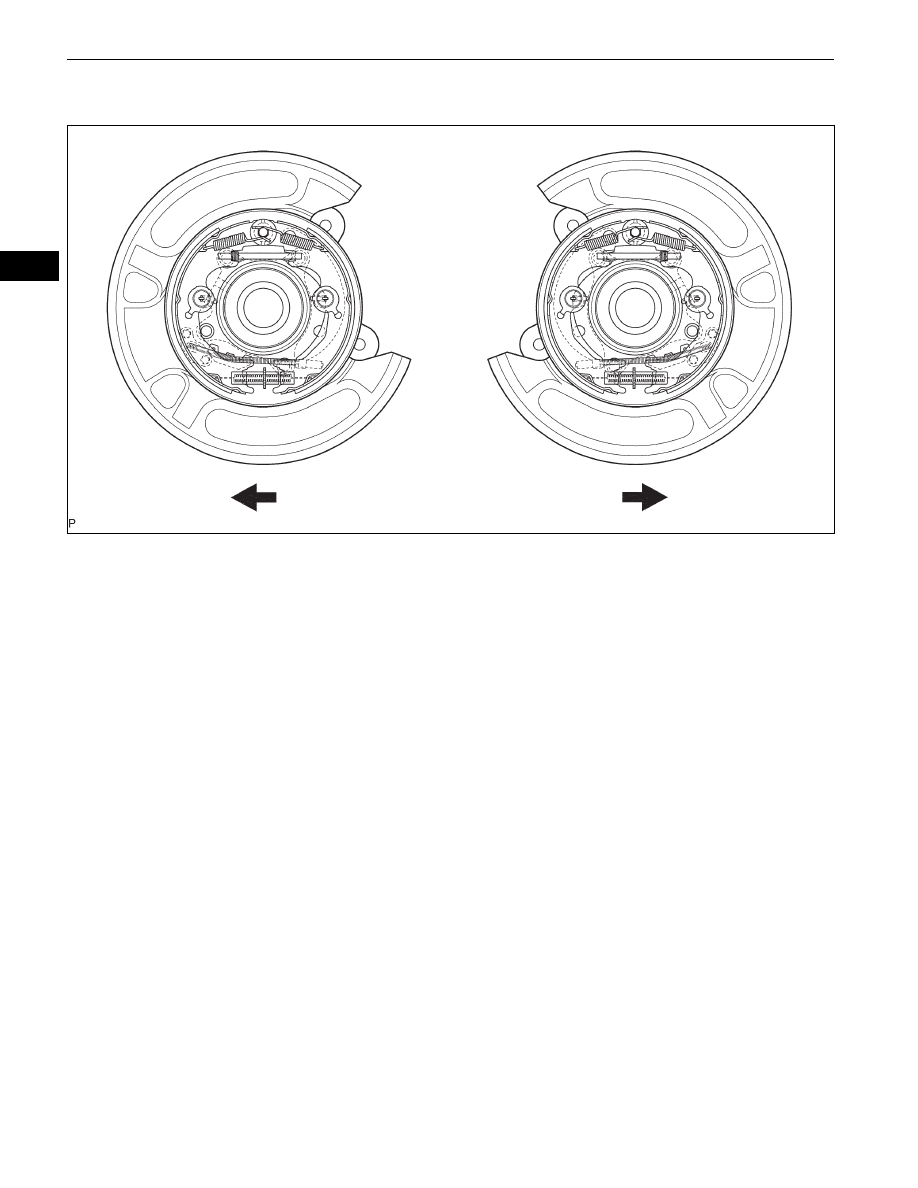

CHECK PARKING BRAKE INSTALLATION
(a) Check that each part is installed properly.

NOTICE:
There should be no oil or grease adhering to the
friction surfaces of the shoe lining or the disc.

RH Side:

LH Side:

Front

Front

D028130E01

PARKING BRAKE  –  PARKING BRAKE ASSEMBLY

PB–21

PB

INSTALLATION

1.

INSTALL REAR DISC
(a) Align the matchmarks of the disc and axle hub and

install the disc.

2.

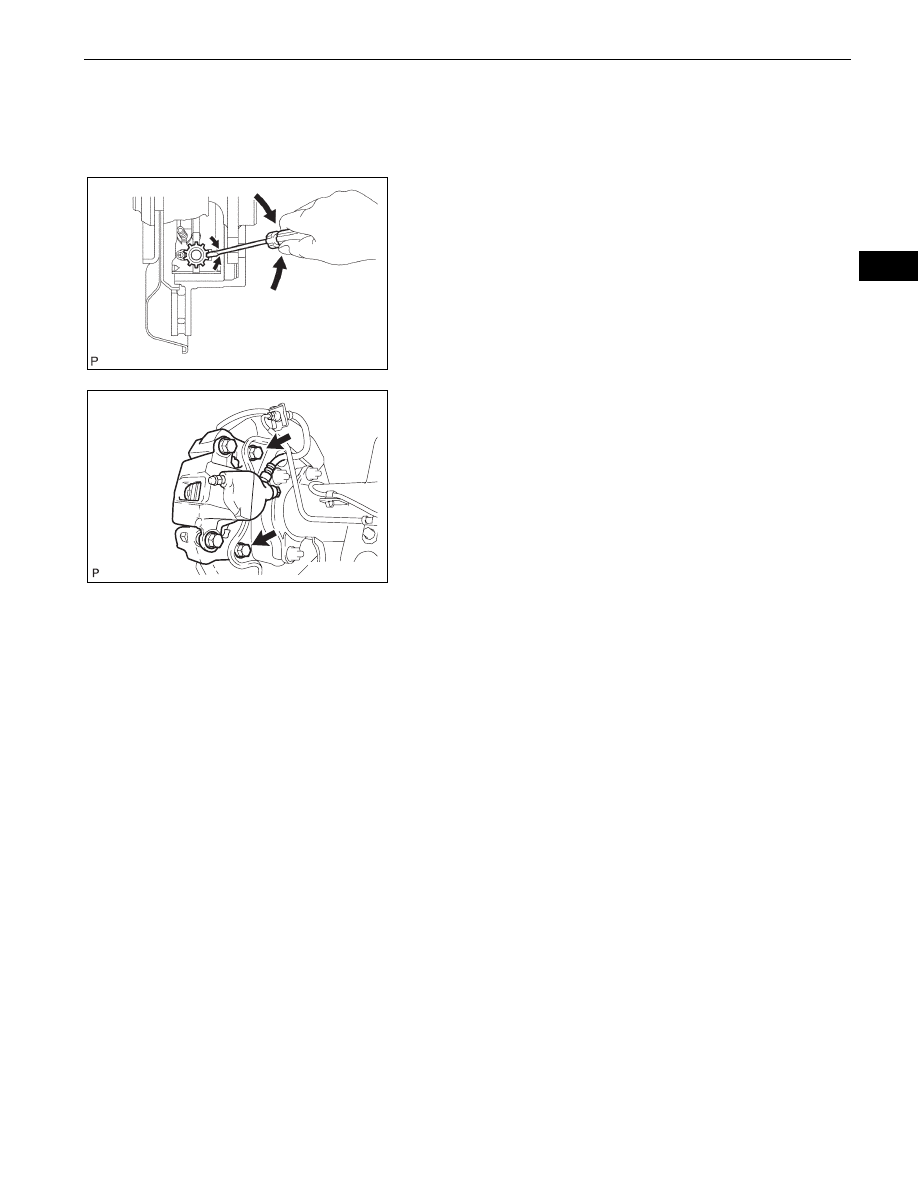

ADJUST PARKING BRAKE SHOE CLEARANCE
(a) Provisionally install the 2 hub nuts.
(b) Remove the hole plug, and turn the adjuster to

expand the shoe until the disc locks.

(c) Contract the shoe adjuster until the disc rotates

smoothly.
Standard:

Return 8 notches

(d) Install the hole plug.

3.

INSTALL REAR DISC BRAKE CALIPER ASSEMBLY
(a) Install the disc brake caliper with the 2 bolts and 2

washers.
Torque: 105 N*m (1,071 kgf*cm, 78 ft.*lbf)

4.

INSTALL REAR WHEEL
Torque: 112 N*m (1,137 kgf*cm, 82 ft.*lbf)

5.

INSPECT PARKING BRAKE LEVER TRAVEL (See
page

PB-4

)

6.

ADJUST PARKING BRAKE LEVER TRAVEL (See
page

PB-4

)

Contract

Expand

D028131E01

C133098

PB–22

PARKING BRAKE  –  PARKING BRAKE SWITCH

PB

BRAKE

PARKING BRAKE

PARKING BRAKE SWITCH

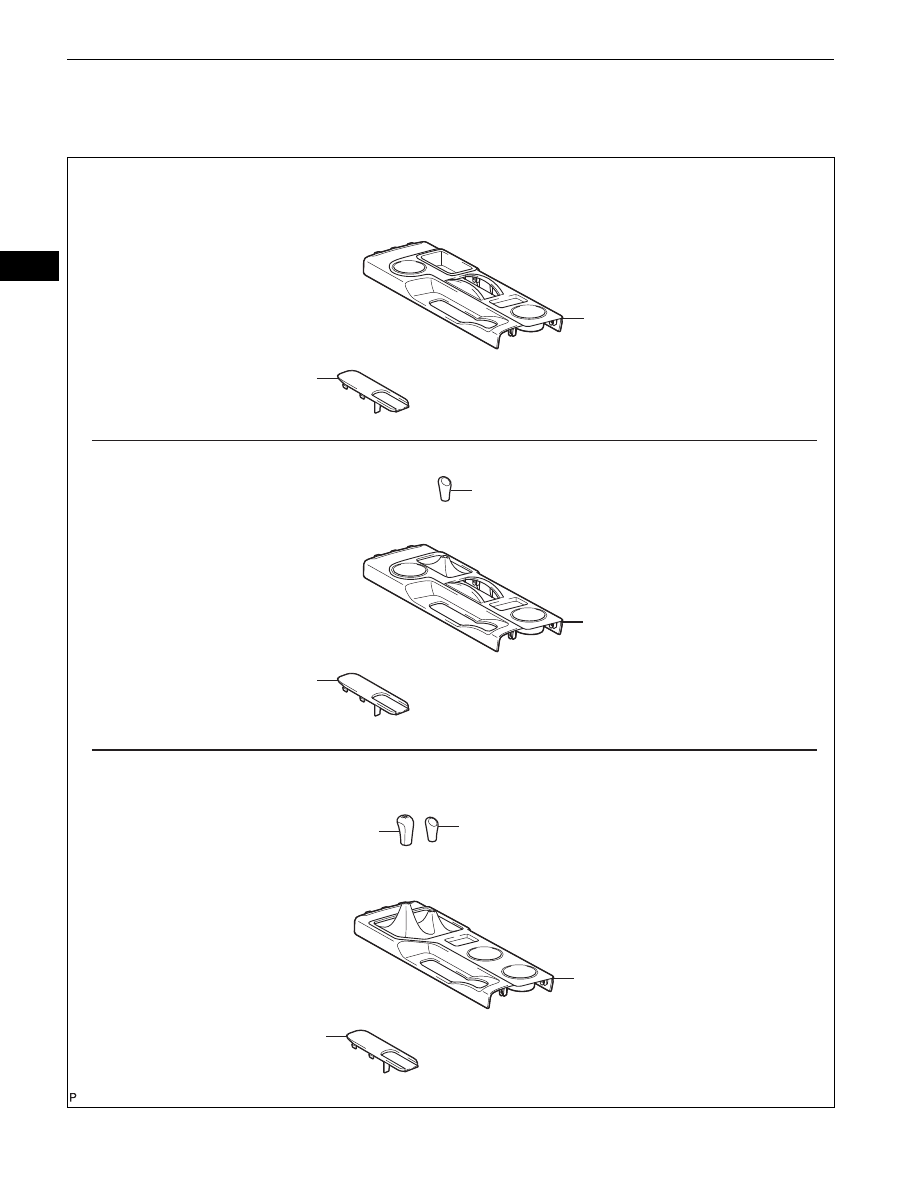

COMPONENTS

CONSOLE UPPER REAR
PANEL SUB-ASSEMBLY

PARKING BRAKE HOLE
COVER SUB-ASSEMBLY

CONSOLE UPPER REAR
PANEL SUB-ASSEMBLY

PARKING BRAKE HOLE
COVER SUB-ASSEMBLY

CONSOLE UPPER REAR
PANEL SUB-ASSEMBLY

PARKING BRAKE HOLE
COVER SUB-ASSEMBLY

for Automatic Transmission 2WD:

for Manual Transmission 4WD:

for Automatic Transmission 4WD:

SHIFT LEVER KNOB
SUB-ASSEMBLY

SHIFT LEVER KNOB
SUB-ASSEMBLY

SHIFT LEVER KNOB
SUB-ASSEMBLY

C133108E01

PARKING BRAKE  –  PARKING BRAKE SWITCH

PB–23

PB

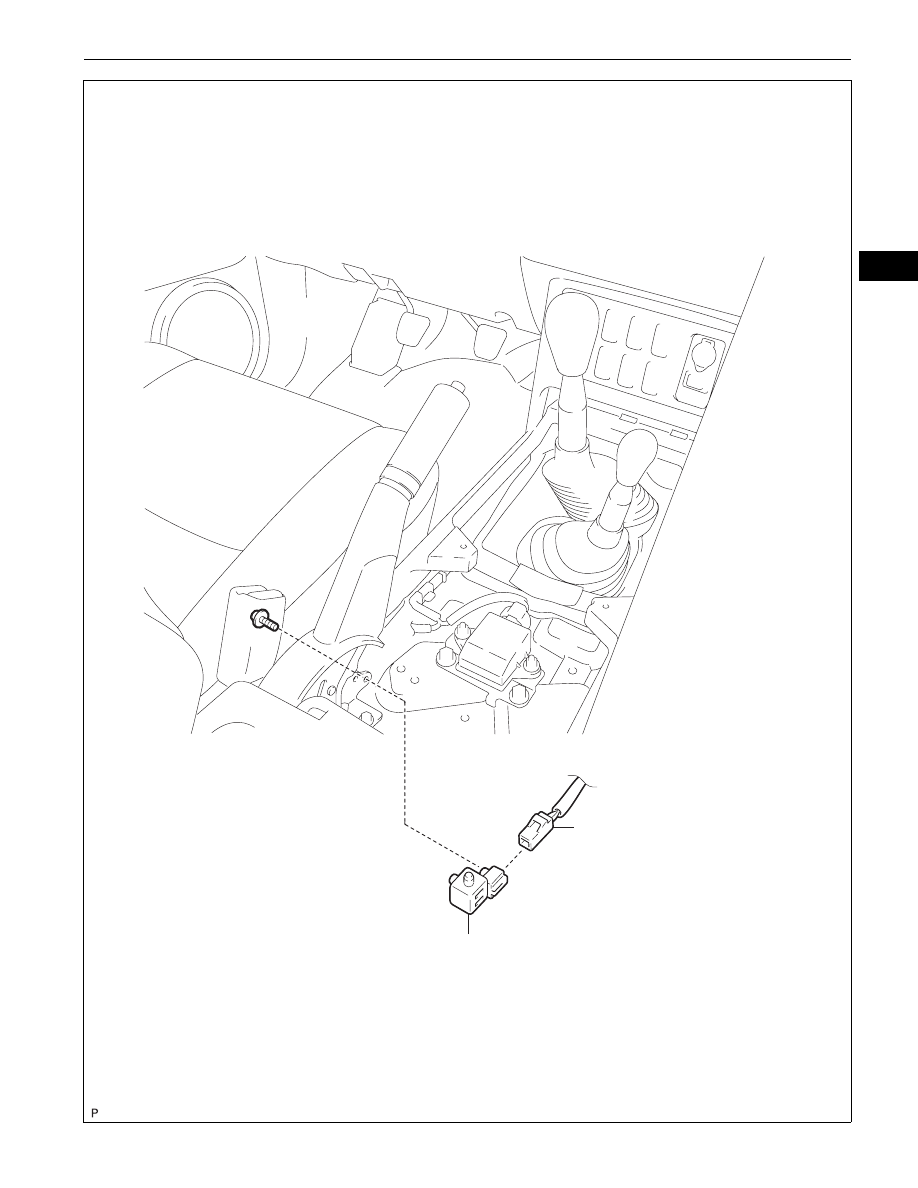

PARKING BRAKE SWITCH

PARKING BRAKE
SWITCH CONNECTOR

C133099E01
