LIGHTING  –  FRONT DOOR COURTESY SWITCH

LI–113

LI

BODY ELECTRICAL

LIGHTING

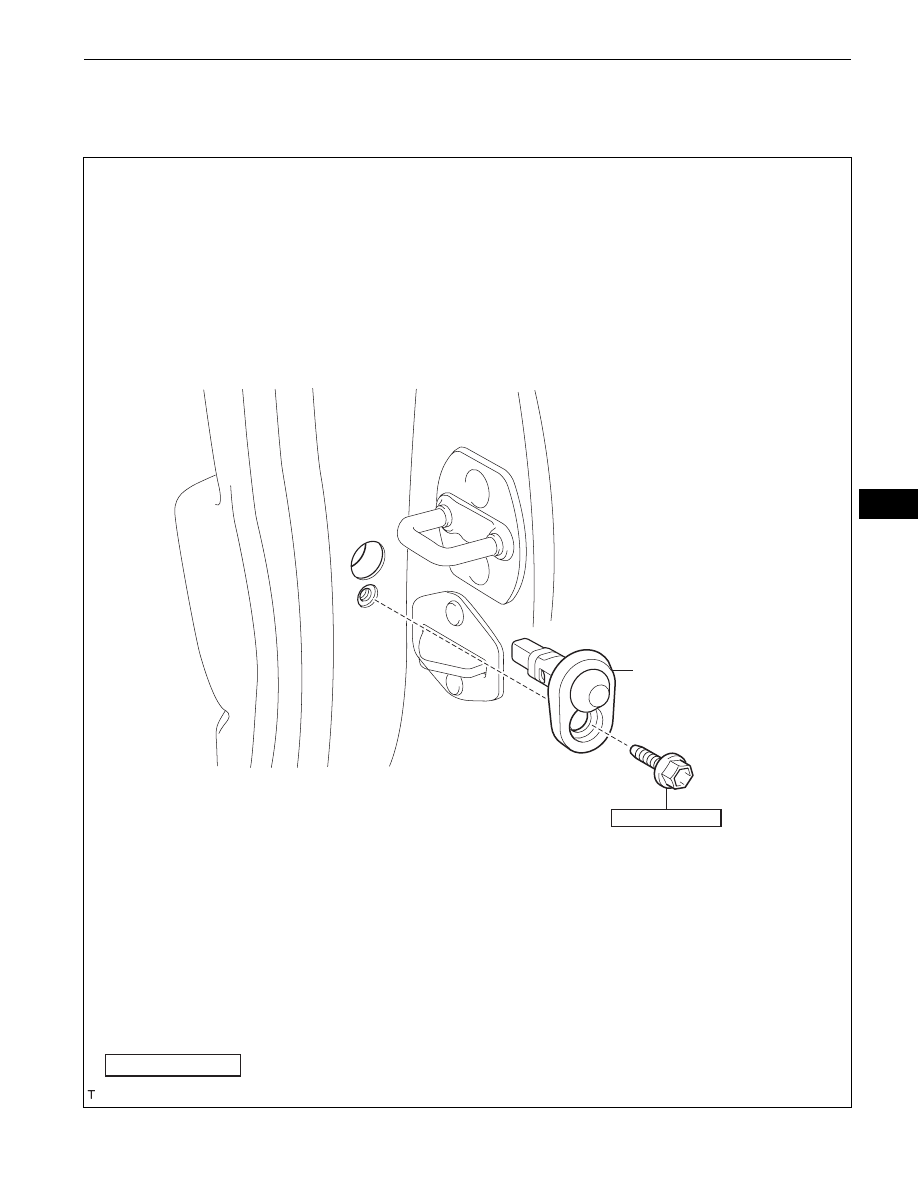

FRONT DOOR COURTESY SWITCH

COMPONENTS

FRONT DOOR
COURTESY SWITCH

N*m (kgf*cm, ft*lbf)  : Specified torque

7.0 (71, 62 in.*lbf)

E127227E01

LI–114

LIGHTING  –  FRONT DOOR COURTESY SWITCH

LI

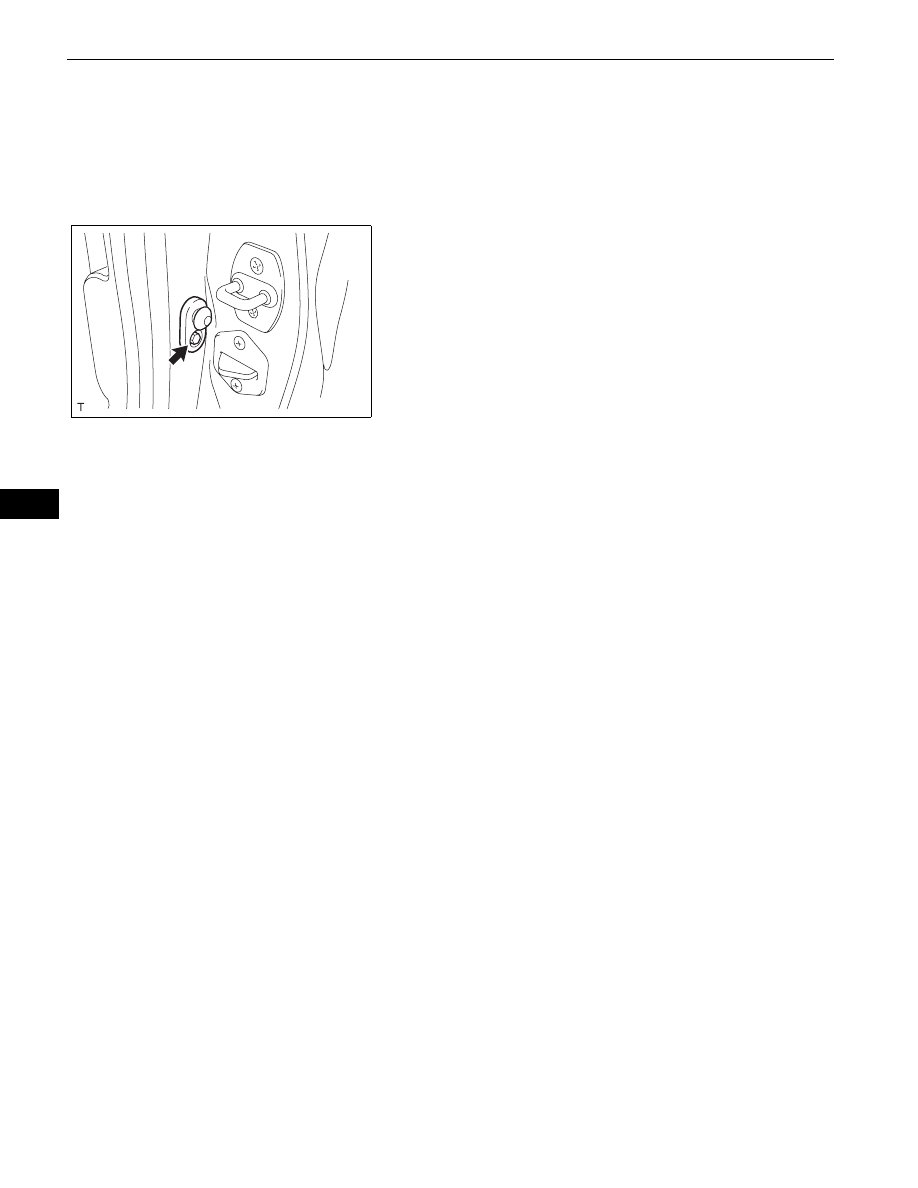

REMOVAL

HINT:
•

Use the same procedure for both the RH and LH sides.

•

The procedure described below is for the LH side.

1.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL

2.

REMOVE FRONT DOOR COURTESY SWITCH
(a) Remove the bolt and front door courtesy switch.
(b) Disconnect the connector.

E127226

LIGHTING  –  FRONT DOOR COURTESY SWITCH

LI–115

LI

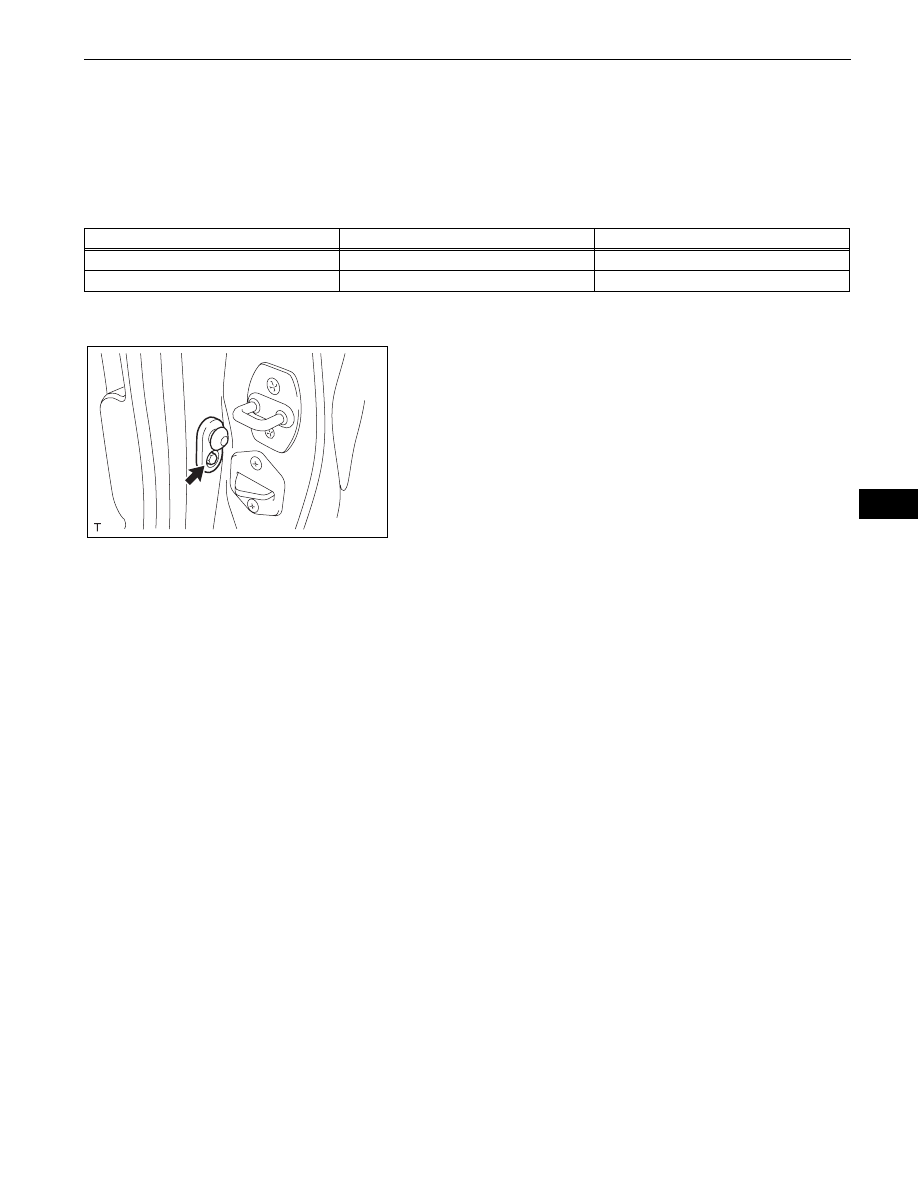

INSPECTION

1.

INSPECT FRONT DOOR COURTESY SWITCH
(a) Check the resistance.

(1) Using an ohmmeter, measure the resistance

and check the results in accordance with the
value(s) in the table below.

Standard Resistance

If the result is not as specified, replace the front
door courtesy switch.

INSTALLATION

1.

INSTALL FRONT DOOR COURTESY SWITCH
(a) Connect the connector.
(b) Install the front door courtesy switch with the bolt.

Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

2.

CONNECT CABLE TO NEGATIVE BATTERY
TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

Tester Connection

Condition

Specified Condition

1 - Switch body

ON (Shaft not pressed)

Below 1

Ω

1 - Switch body

OFF (Shaft pressed)

10 k

Ω or higher

E127226

LIGHTING  –  REAR DOOR COURTESY SWITCH (for Upper Side)

LI–115

LI

BODY ELECTRICAL

LIGHTING

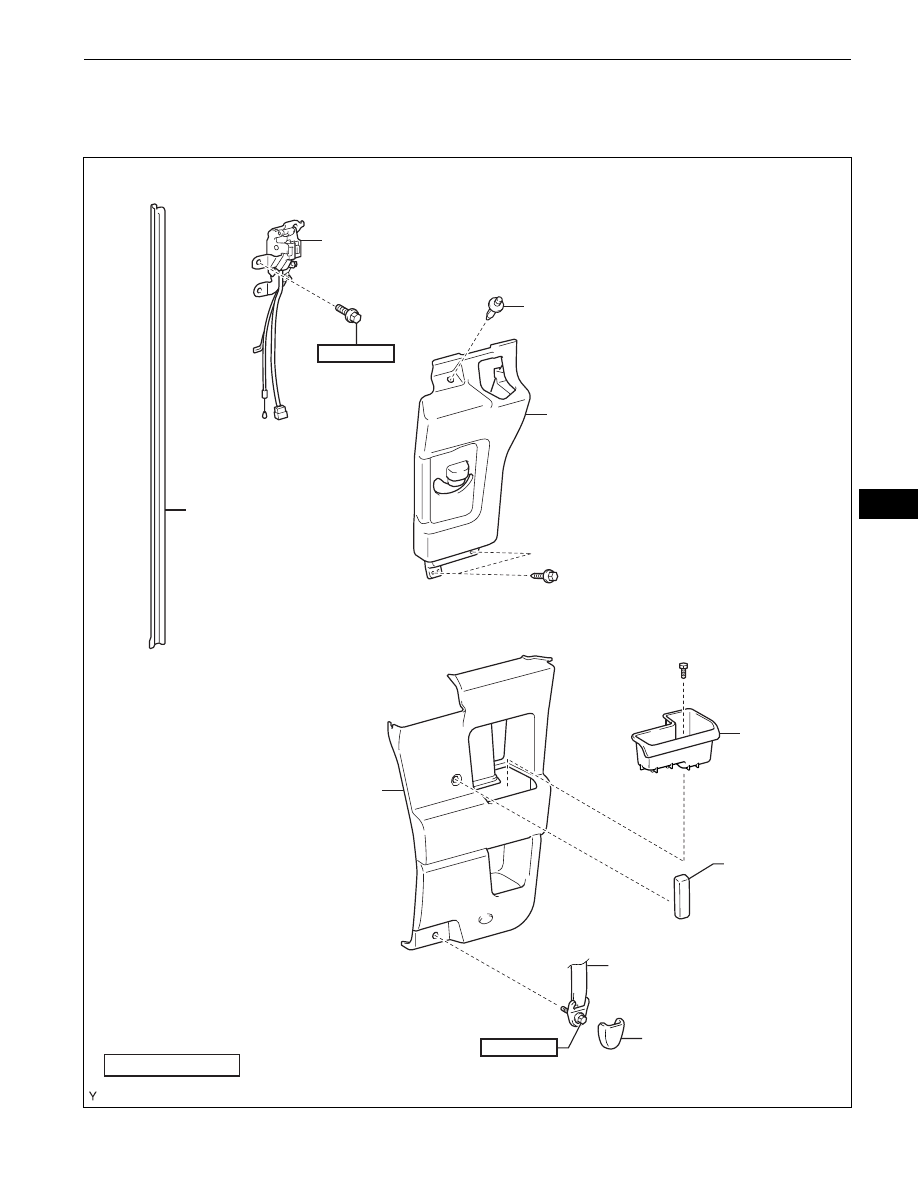

REAR DOOR COURTESY SWITCH (for Upper Side)

COMPONENTS

ACCESS PANEL REAR
WEATHERSTRIP

ACCESS PANEL UPPER LOCK ASSEMBLY
(REAR DOOR COURTESY SWITCH)

CENTER PILLAR
UPPER GARNISH

LAP BELT OUTER
ANCHOR COVER

NO. 1 CUP
HOLDER

REAR DOOR
INSIDE HANDLE
SUB-ASSEMBLY

REAR DOOR
TRIM BOARD
SUB-ASSEMBLY

CLIP

FRONT SEAT OUTER
BELT ASSEMBLY

N*m (kgf*cm, ft*lbf)  : Specified torque

42 (428, 31)

12 (122, 9)

x3

E127242E01
