INSTRUMENT PANEL  –  INSTRUMENT PANEL ASSEMBLY

IP–19

IP

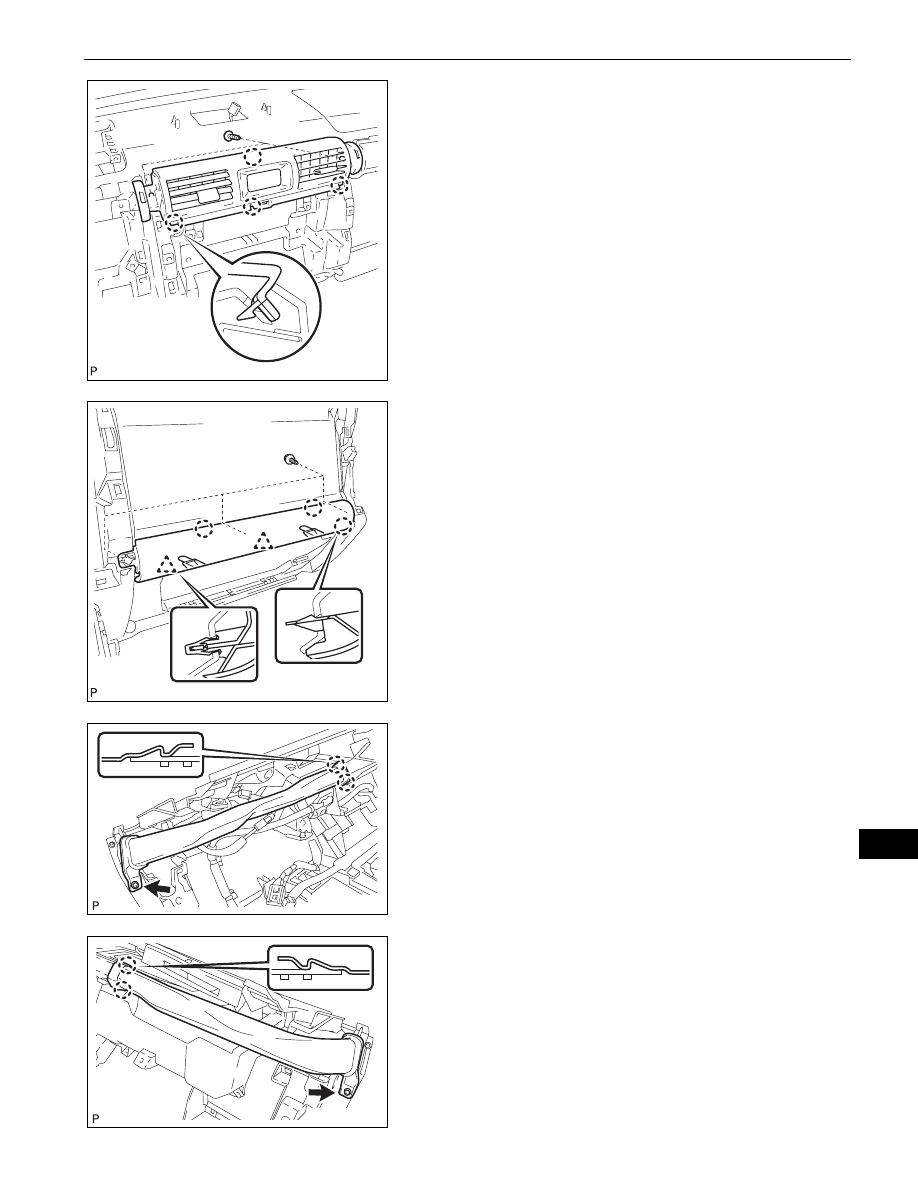

48. REMOVE INSTRUMENT CLUSTER CENTER FINISH

PANEL SUB-ASSEMBLY
(a) Remove the 2 <B> screws.
(b) Disengage the 4 claws and remove the instrument

cluster center finish panel.

49. REMOVE INSTRUMENT CLUSTER LOWER CENTER

FINISH PANEL SUB-ASSEMBLY
(a) Remove the 3 <B> screws.
(b) Disengage the 2 clips and 3 claws and remove the

instrument cluster lower center finish panel.

50. REMOVE NO. 1 SIDE DEFROSTER NOZZLE DUCT

(a) Remove screw <B>.
(b) Disengage the 2 claws and remove the side

defroster nozzle duct.

51. REMOVE NO. 2 SIDE DEFROSTER NOZZLE DUCT

(a) Remove screw <B>.
(b) Disengage the 2 claws and remove the side

defroster nozzle duct.

B133872

B133880

B133874

B133873

IP–20

INSTRUMENT PANEL  –  INSTRUMENT PANEL ASSEMBLY

IP

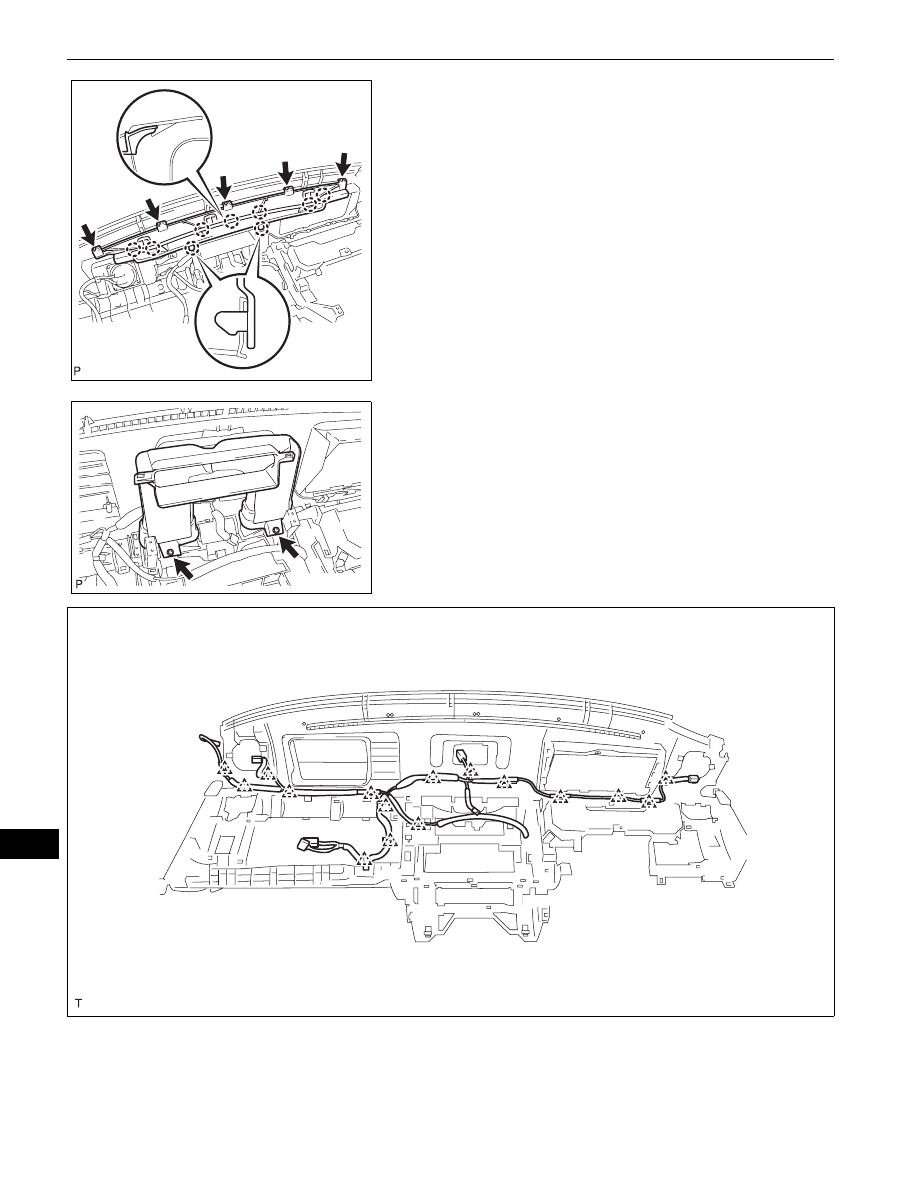

52. REMOVE DEFROSTER NOZZLE ASSEMBLY

(a) Remove the 5 <B> screws.
(b) Disengage the 9 claws and remove the defroster

nozzle.

53. REMOVE NO. 3 HEATER TO REGISTER DUCT

(a) Remove the 2 <B> screws and remove the heater to

register duct.

54. REMOVE NO. 2 INSTRUMENT PANEL WIRE

(a) Disengage the 16 clamps and remove the

instrument panel wire.

55. REMOVE FRONT PASSENGER AIRBAG ASSEMBLY

(See page

RS-363

)

B133875

B133876

B133892

INSTRUMENT PANEL  –  INSTRUMENT PANEL ASSEMBLY

IP–21

IP

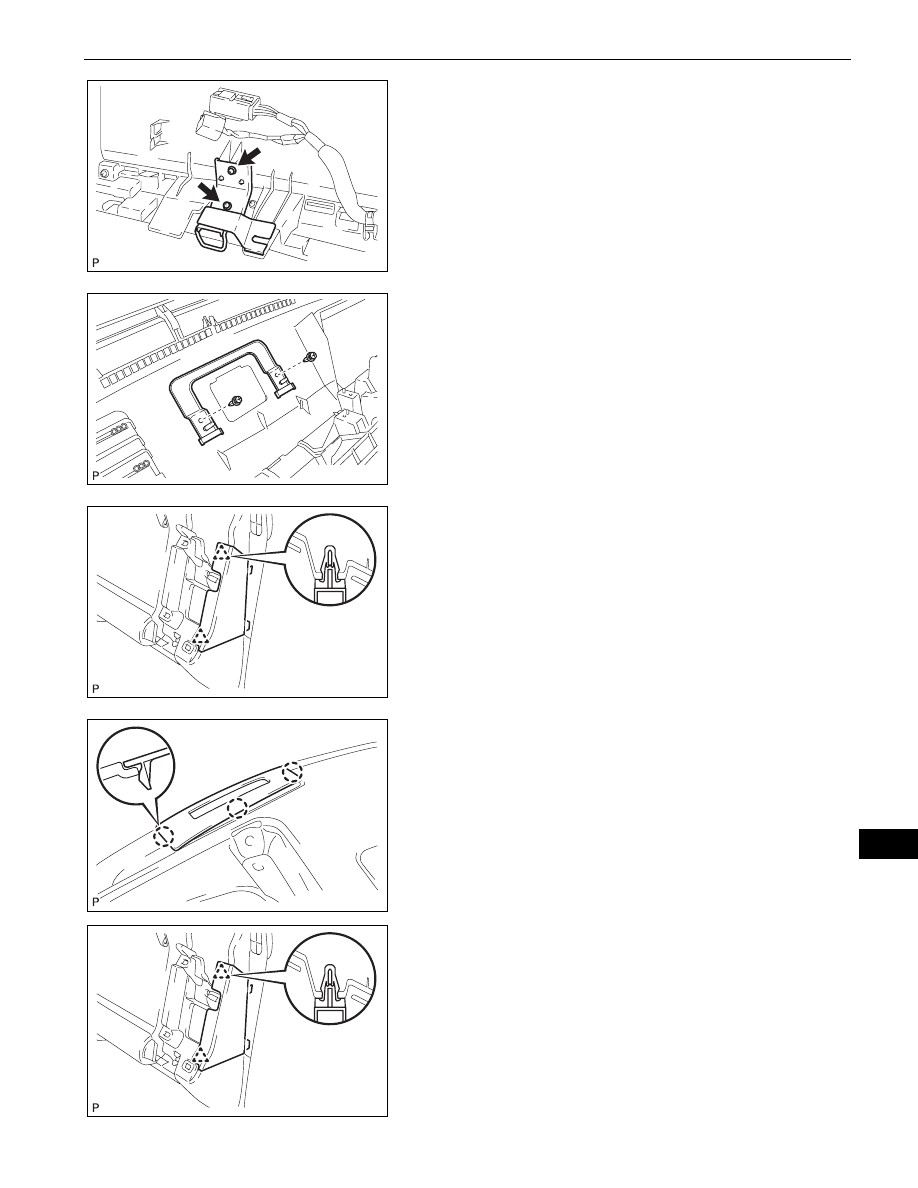

56. REMOVE INSTRUMENT PANEL CENTER BRACKET

SUB-ASSEMBLY
(a) Remove the 2 <B> screws and remove the

instrument panel center bracket.

57. REMOVE ACCESSORY METER BRACKET

(a) Remove the 2 clips and remove the accessory

meter bracket.

58. REMOVE LOWER INSTRUMENT PANEL SUB-

ASSEMBLY RH
(a) Disengage the 2 clips and remove the lower

instrument panel.

59. REMOVE LOWER INSTRUMENT PANEL SUB-

ASSEMBLY LH
HINT:
Use the same procedure as for the RH side.

60. REMOVE INSTRUMENT PANEL FINISH PANEL END

LH
(a) Disengage the 3 claws and remove the instrument

panel finish panel end.

INSTALLATION

1.

INSTALL LOWER INSTRUMENT PANEL SUB-
ASSEMBLY RH
(a) Engage the 2 clips and install the lower instrument

panel.

2.

INSTALL LOWER INSTRUMENT PANEL SUB-
ASSEMBLY LH
HINT:
Use the same procedure as for the RH side.

B133877

B133882

B133879

B133889

B133879

IP–22

INSTRUMENT PANEL  –  INSTRUMENT PANEL ASSEMBLY

IP

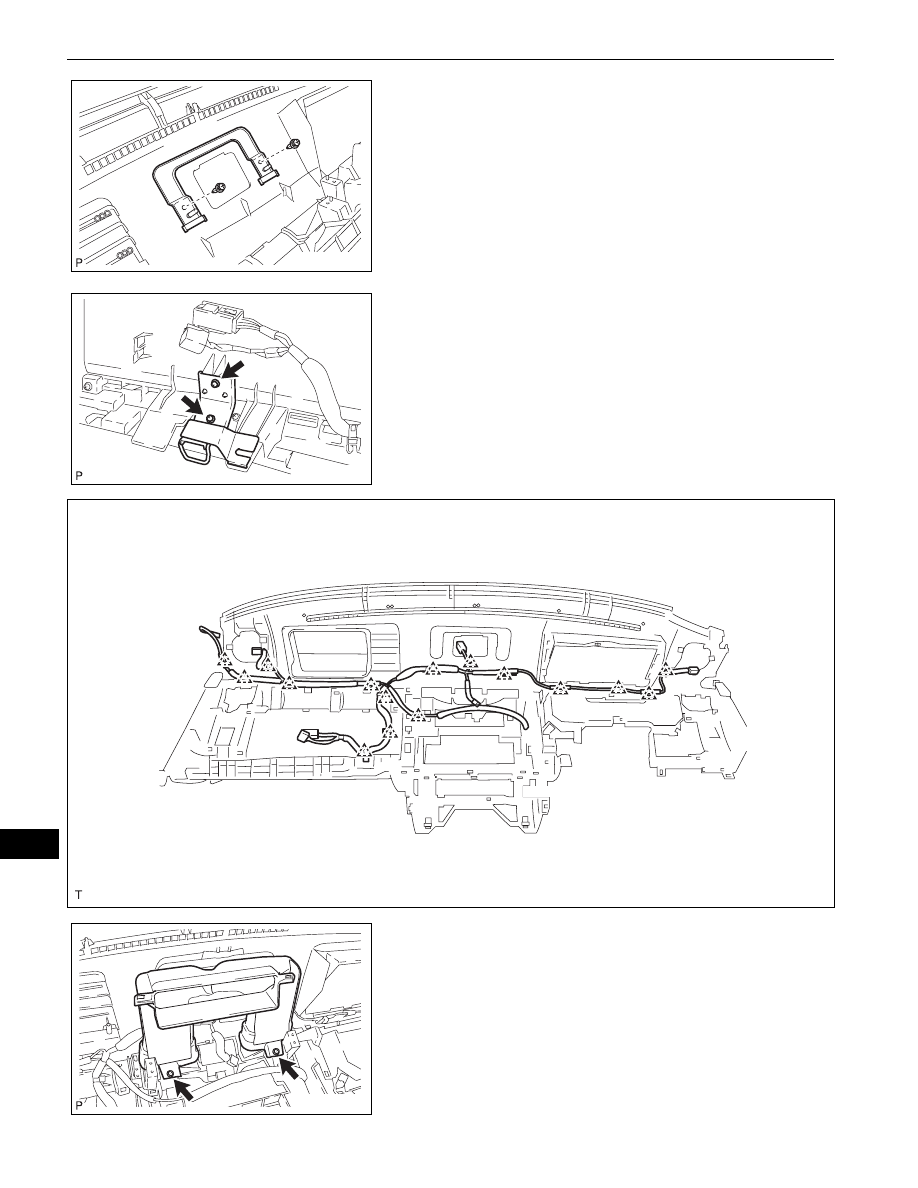

3.

INSTALL ACCESSORY METER BRACKET
(a) Install the accessory meter bracket with the 2 clips.

4.

INSTALL INSTRUMENT PANEL CENTER BRACKET
SUB-ASSEMBLY
(a) Install the instrument panel center bracket with the 2

<B> screws.

5.

INSTALL FRONT PASSENGER AIRBAG ASSEMBLY
(See page

RS-364

)

6.

INSTALL NO. 2 INSTRUMENT PANEL WIRE
(a) Engage the 16 clamps and install the instrument

panel wire.

7.

INSTALL NO. 3 HEATER TO REGISTER DUCT
(a) Install the heater to register duct with the 2 <B>

screws.

B133882

B133877

B133892

B133876
